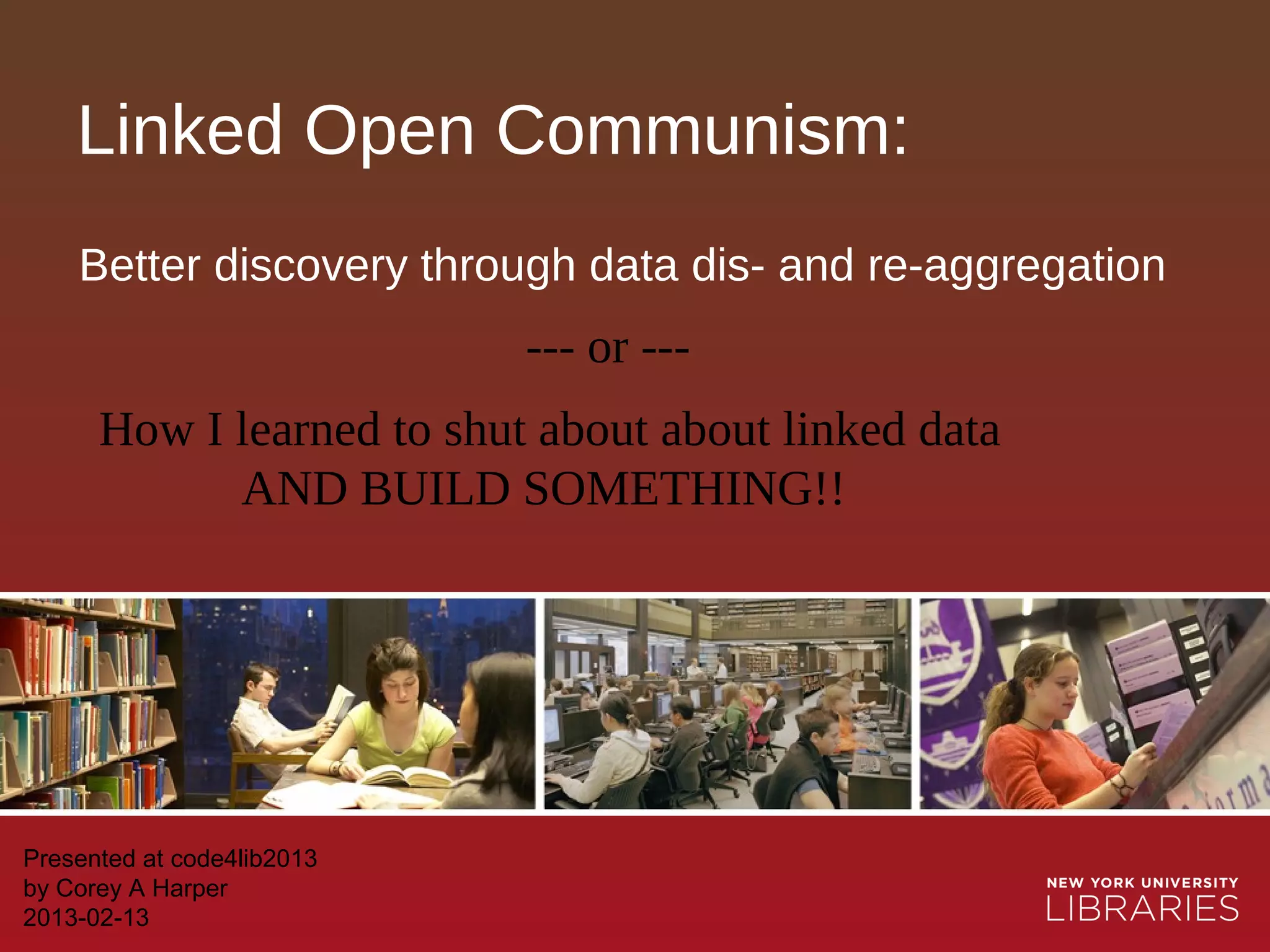

1. Linked Open Communism:
Better discovery through data dis- and re-aggregation
--- or ---
How I learned to shut about about linked data
AND BUILD SOMETHING!!
Presented at code4lib2013
by Corey A Harper
2013-02-13

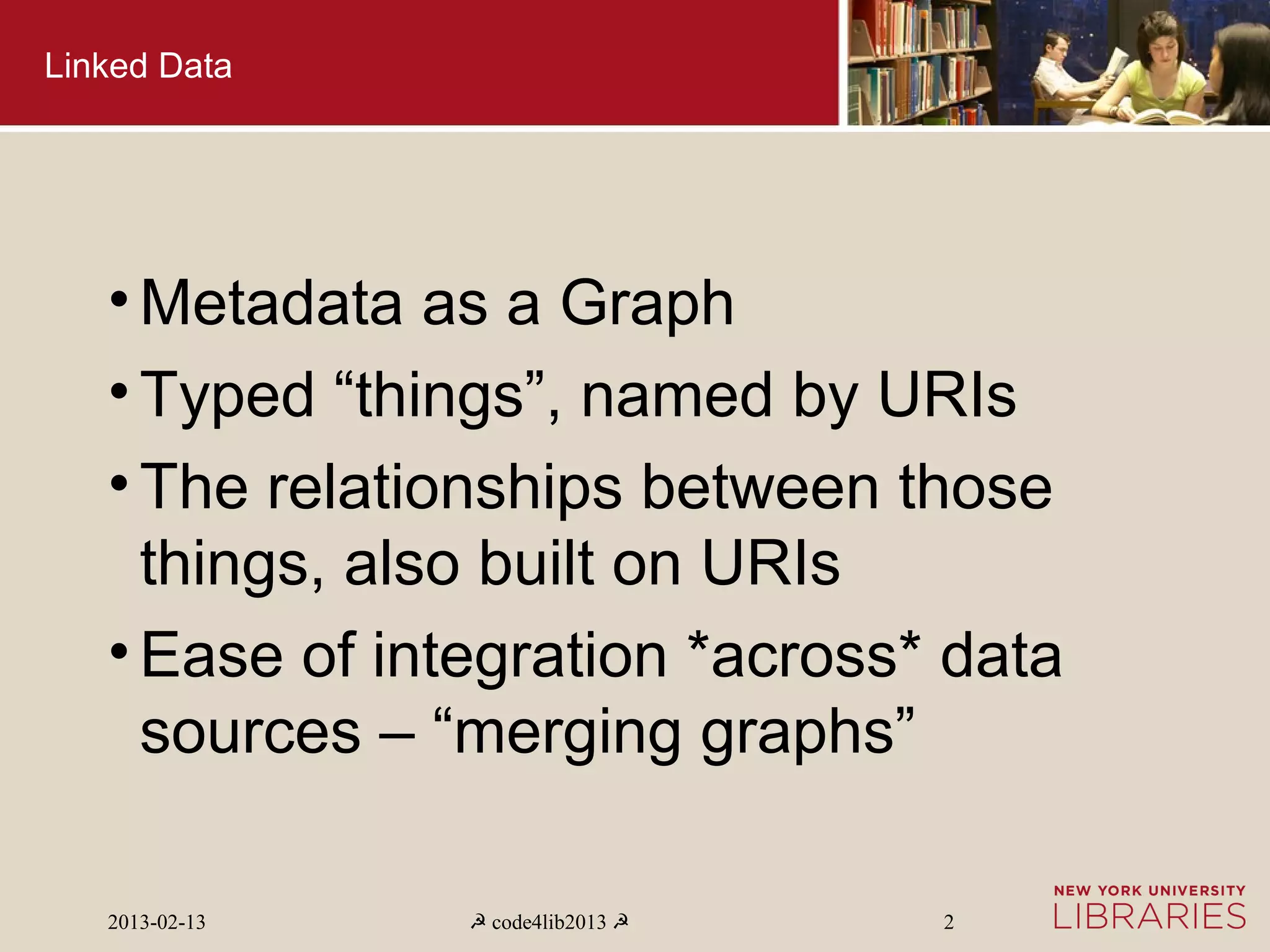

2. Linked Data
• Metadata as a Graph
• Typed “things”, named by URIs
• The relationships between those
things, also built on URIs
• Ease of integration *across* data
sources – “merging graphs”
2013-02-13 ☭ code4lib2013 ☭ 2

3. 2013-02-13 ☭ code4lib2013 ☭ 3

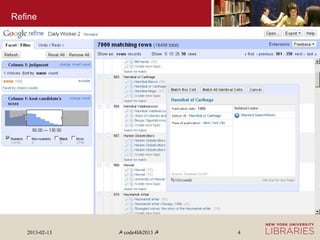

4. Refine
2013-02-13 ☭ code4lib2013 ☭ 4

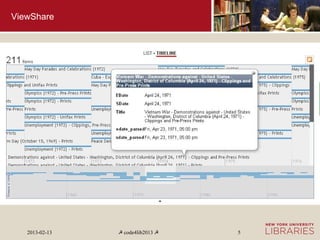

5. ViewShare
2013-02-13 ☭ code4lib2013 ☭ 5

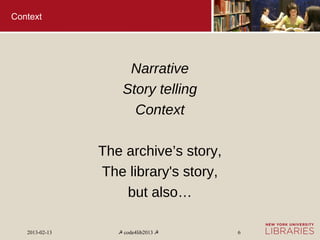

6. Context
Narrative
Story telling
Context
The archive’s story,
The library's story,
but also…
2013-02-13 ☭ code4lib2013 ☭ 6

7. Users’ stories
Adding context through recombinant
metadata
2013-02-13 ☭ code4lib2013 ☭ 7

8. Backing Away from Evangelism...
Image NOT used by permission.
Probably a violation of several copyrights & trademarks.
2013-02-13 ☭ code4lib2013 ☭ 8

9. Image by Jonestown Institute via Wikimedia Commons
http://en.wikipedia.org/wiki/File:Jonestown_entrance.jpg
9
☭ code4lib2013 ☭
Aside on metaphors
2013-02-13

10. Image by Joe Mabel via Wikimedia Commons.
http://en.wikipedia.org/wiki/File:Furthur_05.jpg
10
☭ code4lib2013 ☭
Aside on metaphors
2013-02-13

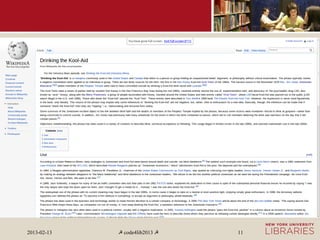

11. 2013-02-13 ☭ code4lib2013 ☭ 11

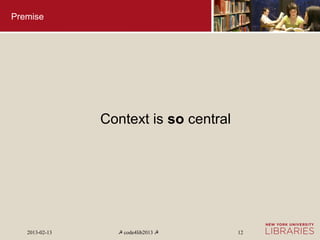

12. Premise
Context is so central
2013-02-13 ☭ code4lib2013 ☭ 12

13. And yet our Controlled Vocabs
Are nearly gone
Because the interfaces to them
were broken
2013-02-13 ☭ code4lib2013 ☭ 13

14. 2013-02-13 ☭ code4lib2013 ☭ 14

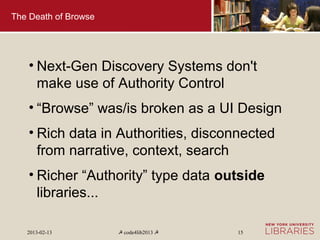

15. The Death of Browse
• Next-Gen Discovery Systems don't
make use of Authority Control
• “Browse” was/is broken as a UI Design
• Rich data in Authorities, disconnected
from narrative, context, search
• Richer “Authority” type data outside
libraries...
2013-02-13 ☭ code4lib2013 ☭ 15

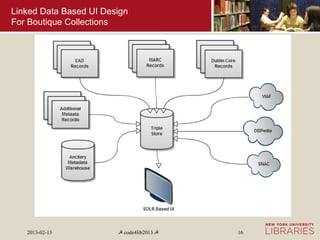

16. Linked Data Based UI Design
For Boutique Collections
2013-02-13 ☭ code4lib2013 ☭ 16

17. Public Domain image of Paulette Goddard
via Wikimedia Commons.
http://en.wikipedia.org/wiki/File:Paulette_Goddard-publicity.JPG
17
☭ code4lib2013 ☭
A research leave
2013-02-13

18. Public Domain image via Wikimedia Commons.
http://en.wikipedia.org/wiki/File:Symbol-hammer-and-sickle.svg
18
☭ code4lib2013 ☭
Initial Scope
2013-02-13

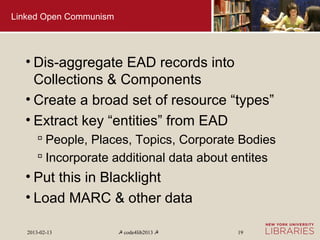

19. Linked Open Communism
• Dis-aggregate EAD records into
Collections & Components
• Create a broad set of resource “types”
• Extract key “entities” from EAD
 People, Places, Topics, Corporate Bodies
 Incorporate additional data about entites
• Put this in Blacklight
• Load MARC & other data
2013-02-13 ☭ code4lib2013 ☭ 19

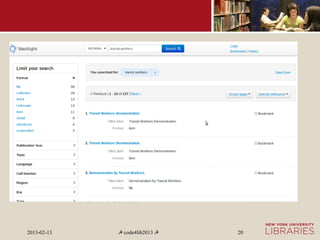

20. 2013-02-13 ☭ code4lib2013 ☭ 20

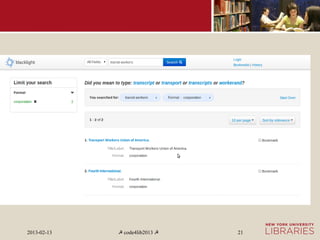

21. 2013-02-13 ☭ code4lib2013 ☭ 21

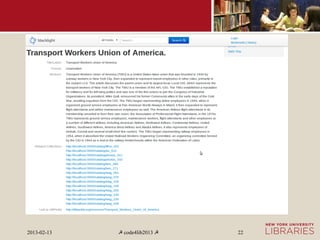

22. 2013-02-13 ☭ code4lib2013 ☭ 22

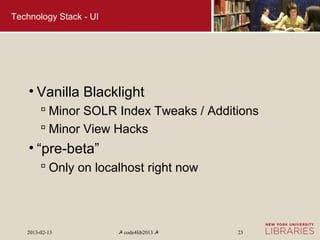

23. Technology Stack - UI
• Vanilla Blacklight
 Minor SOLR Index Tweaks / Additions
 Minor View Hacks
• “pre-beta”
 Only on localhost right now
2013-02-13 ☭ code4lib2013 ☭ 23

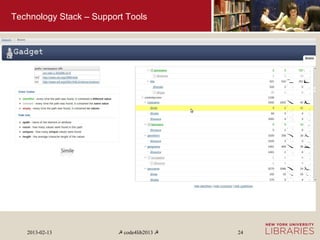

24. Technology Stack – Support Tools
2013-02-13 ☭ code4lib2013 ☭ 24

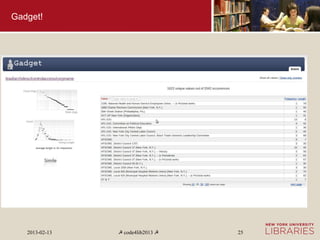

25. Gadget!
2013-02-13 ☭ code4lib2013 ☭ 25

26. Technology Stack - Backend
• Python & RDFLib
• 4Store & HTTP4Store
• Sunburnt
• FuzzyWuzzy
• (Lots of other Python modules....)
2013-02-13 ☭ code4lib2013 ☭ 26

27. Fuzzy Wuzzy – Awesome Library from SeatGeek
https://github.com/seatgeek/fuzzywuzzy
http://seatgeek.com/blog/dev/fuzzywuzzy-fuzzy-string-matching-in-python
27
☭ code4lib2013 ☭
FuzzyWuzzy & SeatGeek!
2013-02-13

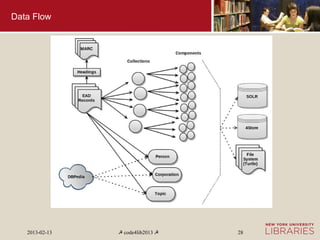

28. Data Flow
2013-02-13 ☭ code4lib2013 ☭ 28

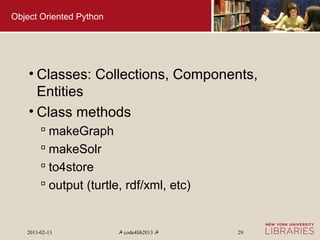

29. Object Oriented Python
• Classes: Collections, Components,
Entities
• Class methods
 makeGraph
 makeSolr
 to4store
 output (turtle, rdf/xml, etc)
2013-02-13 ☭ code4lib2013 ☭ 29

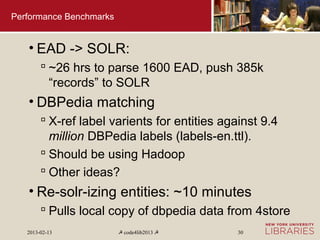

30. Performance Benchmarks
• EAD -> SOLR:
 ~26 hrs to parse 1600 EAD, push 385k
“records” to SOLR
• DBPedia matching
 X-ref label varients for entities against 9.4
million DBPedia labels (labels-en.ttl).
 Should be using Hadoop
 Other ideas?
• Re-solr-izing entities: ~10 minutes
 Pulls local copy of dbpedia data from 4store
2013-02-13 ☭ code4lib2013 ☭ 30

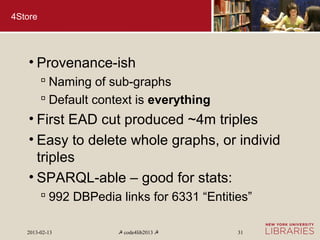

31. 4Store
• Provenance-ish
 Naming of sub-graphs
 Default context is everything
• First EAD cut produced ~4m triples
• Easy to delete whole graphs, or individ
triples
• SPARQL-able – good for stats:
 992 DBPedia links for 6331 “Entities”
2013-02-13 ☭ code4lib2013 ☭ 31

32. Image by wallygrom via flickr
http://www.flickr.com/photos/33037982@N04/3669790240/
32
https://github.com/chrpr/ead2rdf2solr
☭ code4lib2013 ☭
2013-02-13

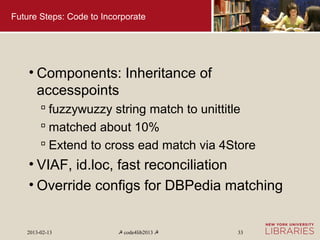

33. Future Steps: Code to Incorporate
• Components: Inheritance of
accesspoints
 fuzzywuzzy string match to unittitle
 matched about 10%
 Extend to cross ead match via 4Store
• VIAF, id.loc, fast reconciliation
• Override configs for DBPedia matching
2013-02-13 ☭ code4lib2013 ☭ 33

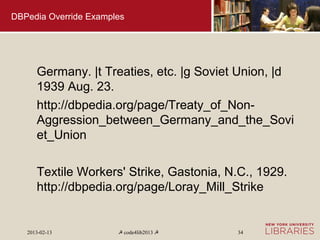

34. DBPedia Override Examples
Germany. |t Treaties, etc. |g Soviet Union, |d
1939 Aug. 23.
http://dbpedia.org/page/Treaty_of_Non-
Aggression_between_Germany_and_the_Sovi
et_Union
Textile Workers' Strike, Gastonia, N.C., 1929.
http://dbpedia.org/page/Loray_Mill_Strike
2013-02-13 ☭ code4lib2013 ☭ 34

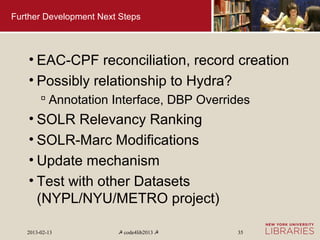

35. Further Development Next Steps
• EAC-CPF reconciliation, record creation
• Possibly relationship to Hydra?
 Annotation Interface, DBP Overrides
• SOLR Relevancy Ranking
• SOLR-Marc Modifications
• Update mechanism
• Test with other Datasets
(NYPL/NYU/METRO project)
2013-02-13 ☭ code4lib2013 ☭ 35

36. Thanks!
corey.harper@nyu.edu
212.998.2479
@chrpr
2013-02-13 ☭ code4lib2013 ☭ 36
