Leveraging partition enhancements

1
© The Pythian Group Inc., 2018
Aishwarya Kala
Leveraging Partitioning
Enhancements

2
© The Pythian Group Inc., 2018 2
ABOUT PYTHIAN
Pythian’s 400+ IT professionals help
companies adopt and manage
disruptive technologies to better
compete

3
AGENDA
3
● Introduction
● Partitioning 101
● Partition Extensions + New Features
● Partition Manageability + New Features
● ADO & Data Archival
● Some More New Features

4

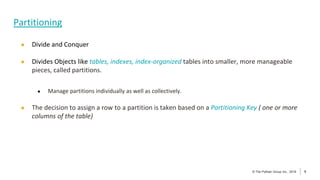

Partitioning 101

5
● Divide and Conquer
● Divides Objects like tables, indexes, index-organized tables into smaller, more manageable
pieces, called partitions.
● Manage partitions individually as well as collectively.
● The decision to assign a row to a partition is taken based on a Partitioning Key ( one or more
columns of the table)
Partitioning

6

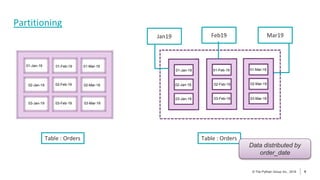

Partitioning
01-Jan-19
02-Jan-19
03-Jan-19 03-Feb-19
02-Feb-19
01-Feb-19
03-Mar-19
02-Mar-19
01-Mar-19
01-Jan-19
02-Jan-19
03-Jan-19
01-Feb-19
02-Feb-19
03-Feb-19 03-Mar-19
02-Mar-19
01-Mar-19
Table : Orders
Jan19 Mar19
Feb19
Table : Orders
Data distributed by
order_date

7

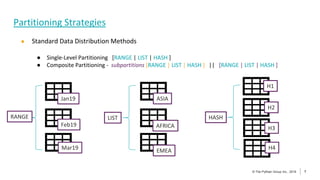

● Standard Data Distribution Methods
● Single-Level Partitioning [RANGE | LIST | HASH ]
● Composite Partitioning - subpartitions [RANGE | LIST | HASH ] || [RANGE | LIST | HASH ]
Partitioning Strategies
Jan19
Feb19
Mar19
RANGE
ASIA
EMEA
AFRICA
HASH
LIST
H1
H2
H3
H4

8
Partition Extensions + New Features

9

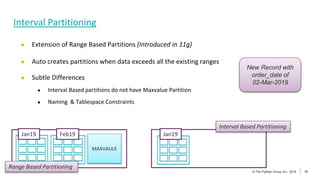

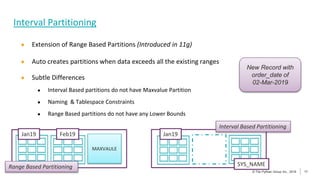

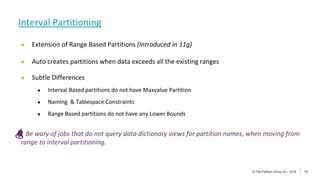

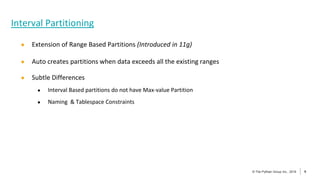

● Extension of Range Based Partitions (Introduced in 11g)
● Auto creates partitions when data exceeds all the existing ranges
● Subtle Differences
● Interval Based partitions do not have Max-value Partition
● Naming & Tablespace Constraints
Interval Partitioning

10
● Interval Based partitions do not have Maxvalue Partition
MAXVAULE
Range Based Partitioning
Jan19 Feb19 Jan19
New Record with
order_date of
02-Mar-2019
Interval Based Partitioning

11
● Range Based partitions do not have any Lower Bounds
MAXVAULE
Jan19 Feb19 Jan19
SYS_NAME
New Record with
order_date of
02-Mar-2019

12

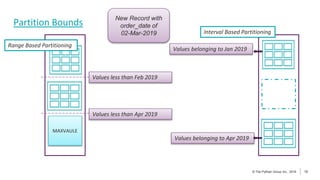

Partition Bounds
MAXVAULE
Values less than Feb 2019
Values less than Apr 2019
Values belonging to Jan 2019
Values belonging to Apr 2019
New Record with
order_date of
02-Mar-2019

13
● Range Based partitions do not have any Lower Bounds
Be wary of jobs that do not query data dictionary views for partition names, when moving from
range to interval partitioning.

14

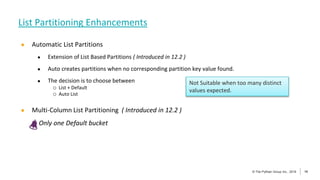

● Automatic List Partitions
● Extension of List Based Partitions ( Introduced in 12.2 )
● Auto creates partitions when no corresponding partition key value found.
● The decision is to choose between
o List + Default
o Auto List
● Multi-Column List Partitioning ( Introduced in 12.2 )
Only one Default bucket
List Partitioning Enhancements
Not Suitable when too many distinct
values expected.

15

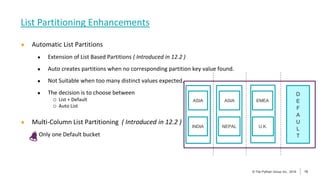

● Automatic List Partitions
● Extension of List Based Partitions ( Introduced in 12.2 )
● Auto creates partitions when no corresponding partition key value found.
● Not Suitable when too many distinct values expected.
● The decision is to choose between
o List + Default
o Auto List
● Multi-Column List Partitioning ( Introduced in 12.2 )
Only one Default bucket
List Partitioning Enhancements
D
E
F
A
U
L
T
ASIA ASIA EMEA
INDIA NEPAL U.K.

16

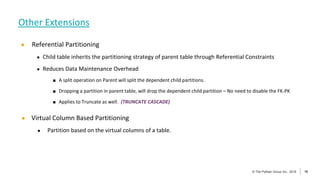

● Referential Partitioning
● Child table inherits the partitioning strategy of parent table through Referential Constraints
● Reduces Data Maintenance Overhead
■ A split operation on Parent will split the dependent child partitions.
■ Dropping a partition in parent table, will drop the dependent child partition – No need to disable the FK-PK
■ Applies to Truncate as well. (TRUNCATE CASCADE)
● Virtual Column Based Partitioning
● Partition based on the virtual columns of a table.
Other Extensions

17

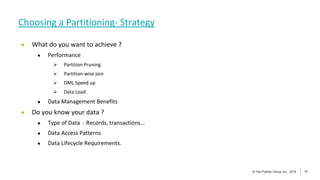

● What do you want to achieve ?
● Performance
 Partition Pruning
 Partition-wise join
 DML Speed up
 Data Load
● Data Management Benefits
● Do you know your data ?
● Type of Data - Records, transactions…
● Data Access Patterns
● Data Lifecycle Requirements.
Choosing a Partitioning- Strategy

18
Partition Manageability +
New Features

19

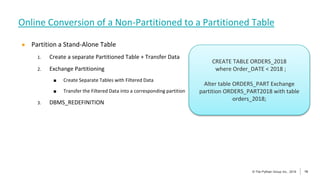

● Partition a Stand-Alone Table
1. Create a separate Partitioned Table + Transfer Data
2. Exchange Partitioning
■ Create Separate Tables with Filtered Data
■ Transfer the Filtered Data into a corresponding partition
3. DBMS_REDEFINITION
Online Conversion of a Non-Partitioned to a Partitioned Table
CREATE TABLE ORDERS_2018
where Order_DATE < 2018 ;
Alter table ORDERS_PART Exchange
partition ORDERS_PART2018 with table
orders_2018;

20

21

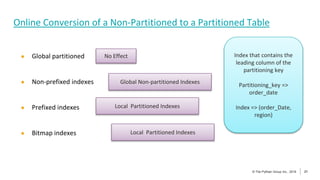

● Global partitioned
● Non-prefixed indexes
● Prefixed indexes
● Bitmap indexes
No Effect
Global Non-partitioned Indexes
Local Partitioned Indexes
Local Partitioned Indexes
Index that contains the
leading column of the
partitioning key
Partitioning_key =>
order_date
Index => (order_Date,
region)

22

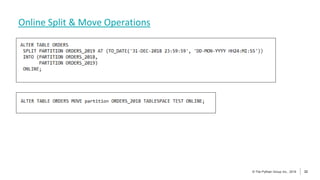

Online Split & Move Operations

23

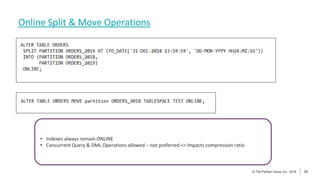

Online Split & Move Operations
• Indexes always remain ONLINE
• Concurrent Query & DML Operations allowed – not preferred => Impacts compression ratio

24

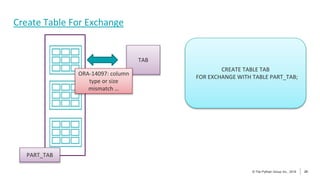

Create Table For Exchange
TAB
ORA-14097: column
type or size
mismatch …
CREATE TABLE TAB
FOR EXCHANGE WITH TABLE PART_TAB;
PART_TAB

25

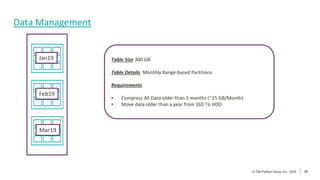

Data Management
Jan19
Feb19
Mar19
Table Size 300 GB
Table Details Monthly Range-based Partitions
Requirements
• Compress All Data older than 3 months (~25 GB/Month)
• Move data older than a year from SSD To HDD

26

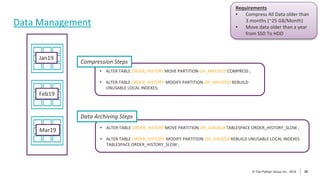

Data Management
Jan19
Feb19
Mar19
Requirements
• Compress All Data older than
3 months (~25 GB/Month)
• Move data older than a year
from SSD To HDD
• ALTER TABLE ORDER_HISTORY MOVE PARTITION OH_MAY2019 COMPRESS ;
• ALTER TABLE ORDER_HISTORY MODIFY PARTITION OH_MAY2019 REBUILD
UNUSABLE LOCAL INDEXES;
Compression Steps
• ALTER TABLE ORDER_HISTORY MOVE PARTITION OH_JUN2018 TABLESPACE ORDER_HISTORY_SLOW ;
• ALTER TABLE ORDER_HISTORY MODIFY PARTITION OH_JUN2018 REBUILD UNUSABLE LOCAL INDEXES
TABLESPACE ORDER_HISTORY_SLOW ;
Data Archiving Steps

27

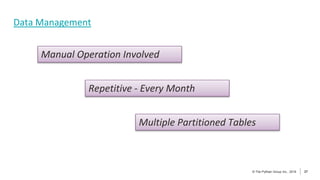

Data Management
Manual Operation Involved
Repetitive - Every Month
Multiple Partitioned Tables

28
Automatic Data
Optimization (ADO)

29

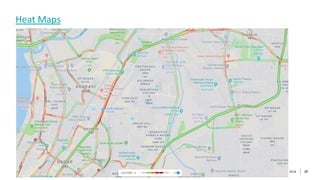

Heat Maps

30

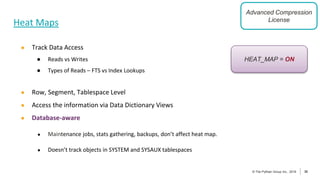

Heat Maps
● Track Data Access
● Reads vs Writes
● Types of Reads – FTS vs Index Lookups
● Row, Segment, Tablespace Level
● Access the information via Data Dictionary Views
● Database-aware
● Maintenance jobs, stats gathering, backups, don’t affect heat map.
● Doesn’t track objects in SYSTEM and SYSAUX tablespaces
HEAT_MAP = ON
Advanced Compression
License

31

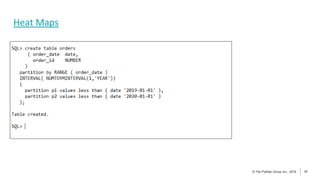

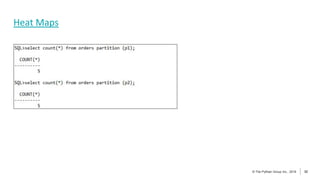

Heat Maps

32

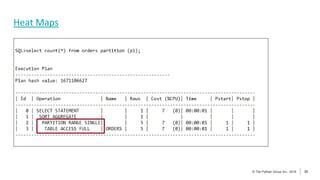

Heat Maps

33

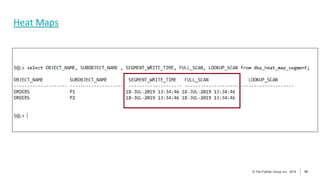

Heat Maps

34

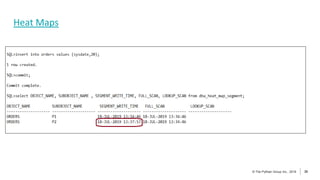

Heat Maps

35
Heat Maps

36

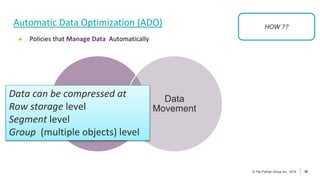

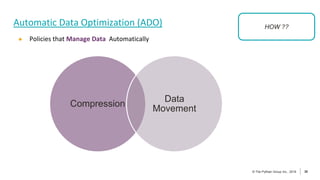

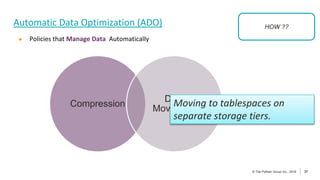

Automatic Data Optimization (ADO)
● Policies that Manage Data Automatically
Compression
Data
Movement
HOW ??

37
Compression
Data
Movement
HOW ??
Moving to tablespaces on
separate storage tiers.

38
Compression
Data
Movement
HOW ??
Data can be compressed at
Row storage level
Segment level
Group (multiple objects) level

39

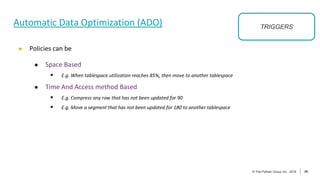

● Policies can be
● Space Based
 E.g. When tablespace utilization reaches 85%, then move to another tablespace
● Time And Access method Based
 E.g. Compress any row that has not been updated for 90
 E.g. Move a segment that has not been updated for 180 to another tablespace
TRIGGERS

40

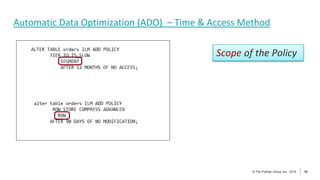

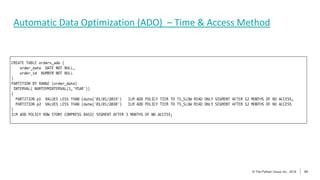

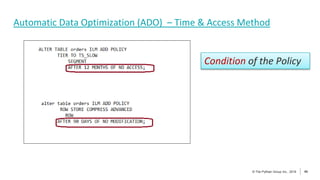

Automatic Data Optimization (ADO) – Time & Access Method
Condition of the Policy

41
Goal of the Policy

42
Scope of the Policy

43

44

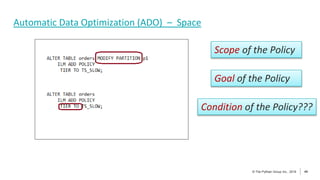

Automatic Data Optimization (ADO) – Space
Goal of the Policy
Scope of the Policy
Condition of the Policy???

45
Automatic Data Optimization (ADO) – Space
Condition of the Policy???
• Global Defaults
• Can be controlled
dbms_ilm_admin.customize_ilm

46

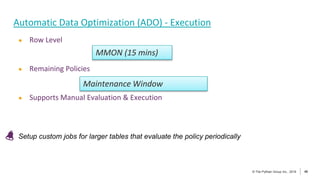

Automatic Data Optimization (ADO) - Execution
● Row Level
● Remaining Policies
● Supports Manual Evaluation & Execution
Setup custom jobs for larger tables that evaluate the policy periodically
MMON (15 mins)
Maintenance Window

47

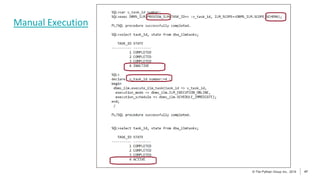

Manual Execution

48
Some More New Features

49

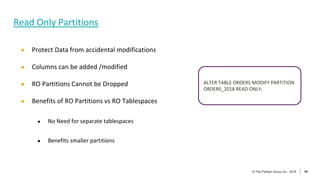

● Protect Data from accidental modifications
● Columns can be added /modified
● RO Partitions Cannot be Dropped
● Benefits of RO Partitions vs RO Tablespaces
● No Need for separate tablespaces
● Benefits smaller partitions
Read Only Partitions
ALTER TABLE ORDERS MODIFY PARTITION
ORDERS_2018 READ ONLY;

50

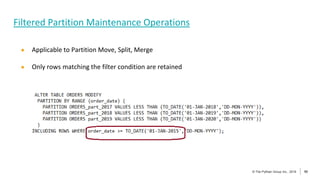

● Applicable to Partition Move, Split, Merge
● Only rows matching the filter condition are retained
Filtered Partition Maintenance Operations

51

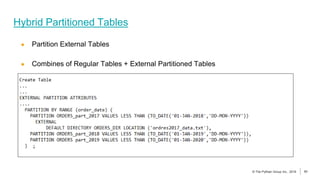

● Partition External Tables
● Combines of Regular Tables + External Partitioned Tables
Hybrid Partitioned Tables

52

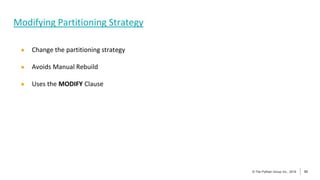

● Change the partitioning strategy
● Avoids Manual Rebuild
● Uses the MODIFY Clause
Modifying Partitioning Strategy

53

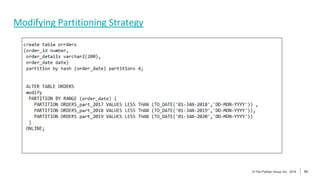

Modifying Partitioning Strategy

54
THANK YOU
You can reach me :
@aishwaryakala13
