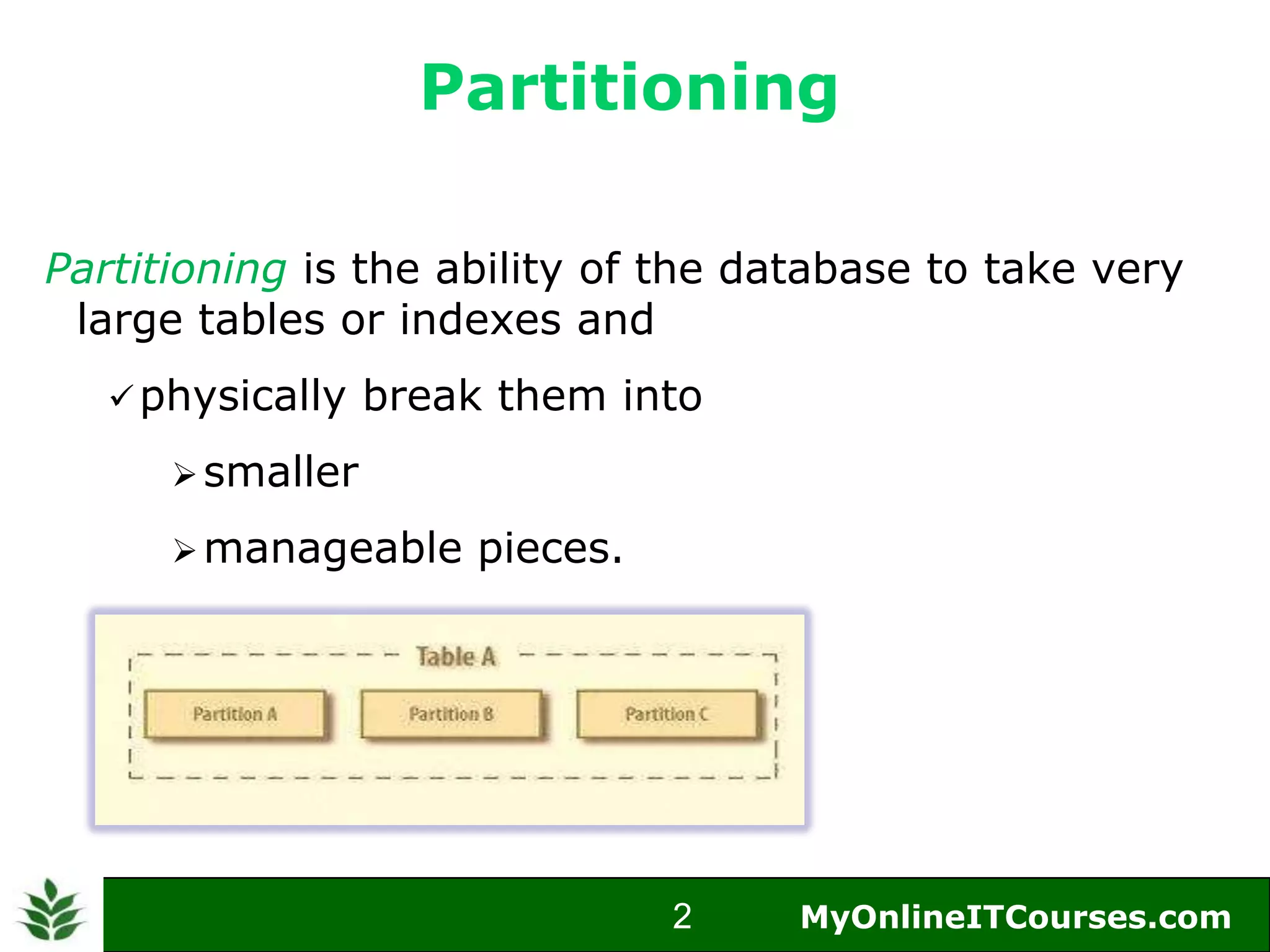

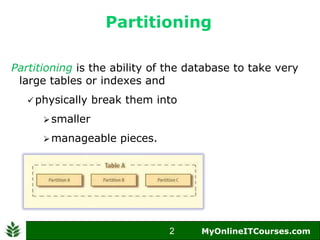

2. Partitioning
Partitioning is the ability of the database to take very
large tables or indexes and
physically break them into
smaller
manageable pieces.
2
2 MyOnlineITCourses.com
MyOnlineITCourses.com
3. Partitioned VS Non Partitioned Table
3
3 MyOnlineITCourses.com
MyOnlineITCourses.com

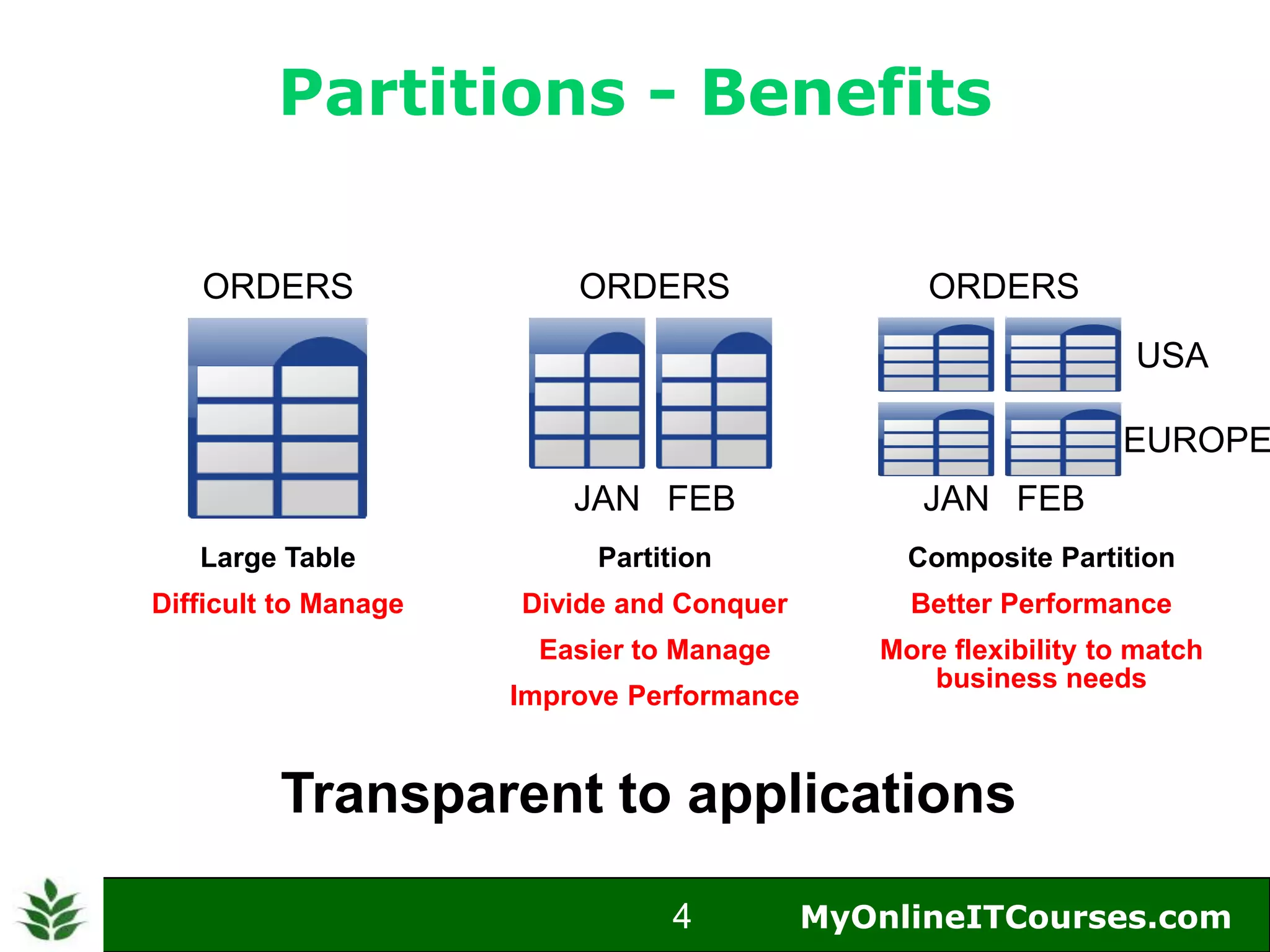

4. Partitions - Benefits
ORDERS ORDERS ORDERS
USA
EUROPE
JAN FEB JAN FEB
Large Table Partition Composite Partition
Difficult to Manage Divide and Conquer Better Performance
Easier to Manage More flexibility to match
business needs
Improve Performance
Transparent to applications
4
4 MyOnlineITCourses.com
MyOnlineITCourses.com

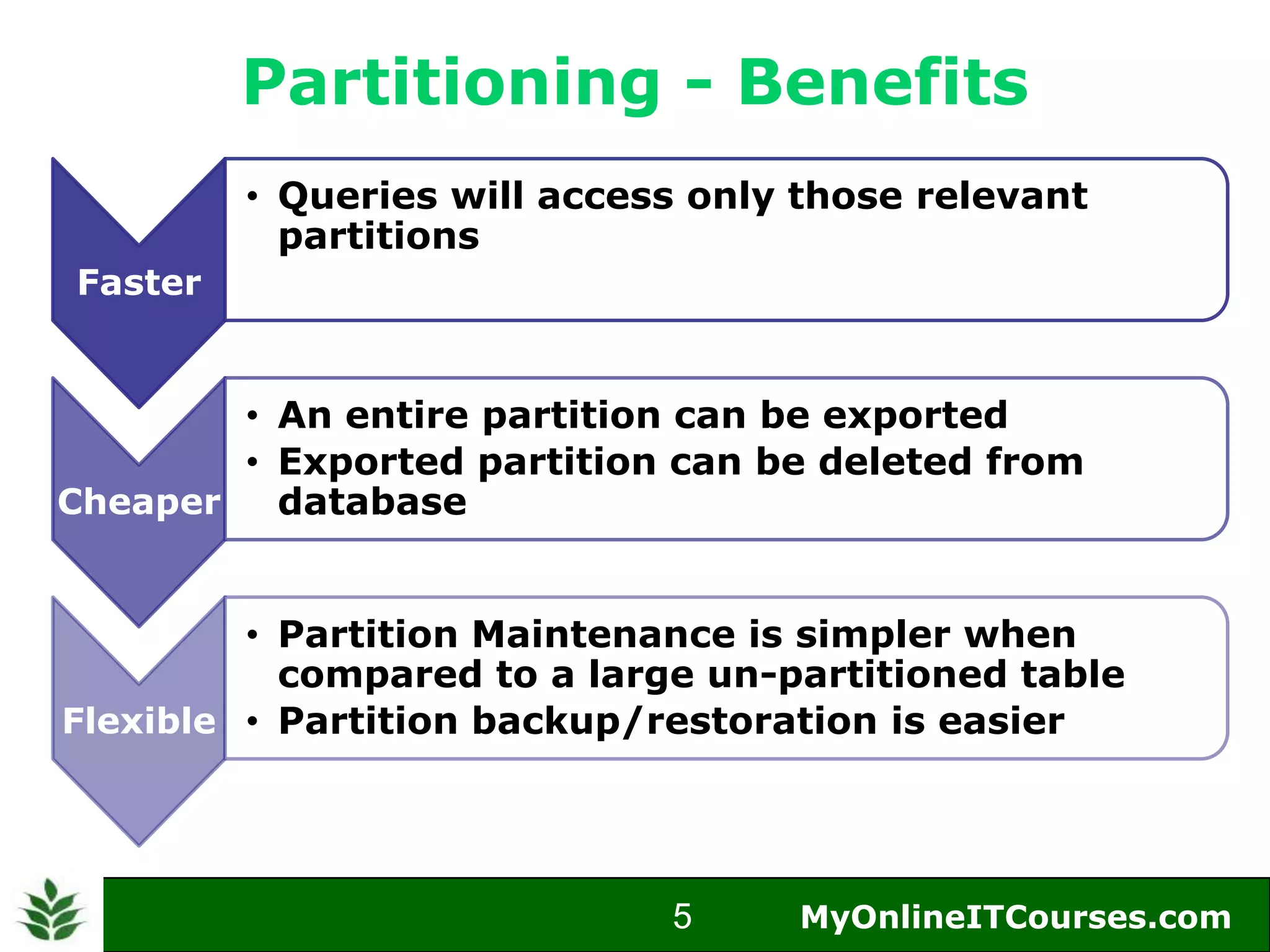

5. Partitioning - Benefits
• Queries will access only those relevant
partitions
Faster
• An entire partition can be exported
• Exported partition can be deleted from
Cheaper database
• Partition Maintenance is simpler when
compared to a large un-partitioned table
Flexible • Partition backup/restoration is easier
5
5 MyOnlineITCourses.com
MyOnlineITCourses.com

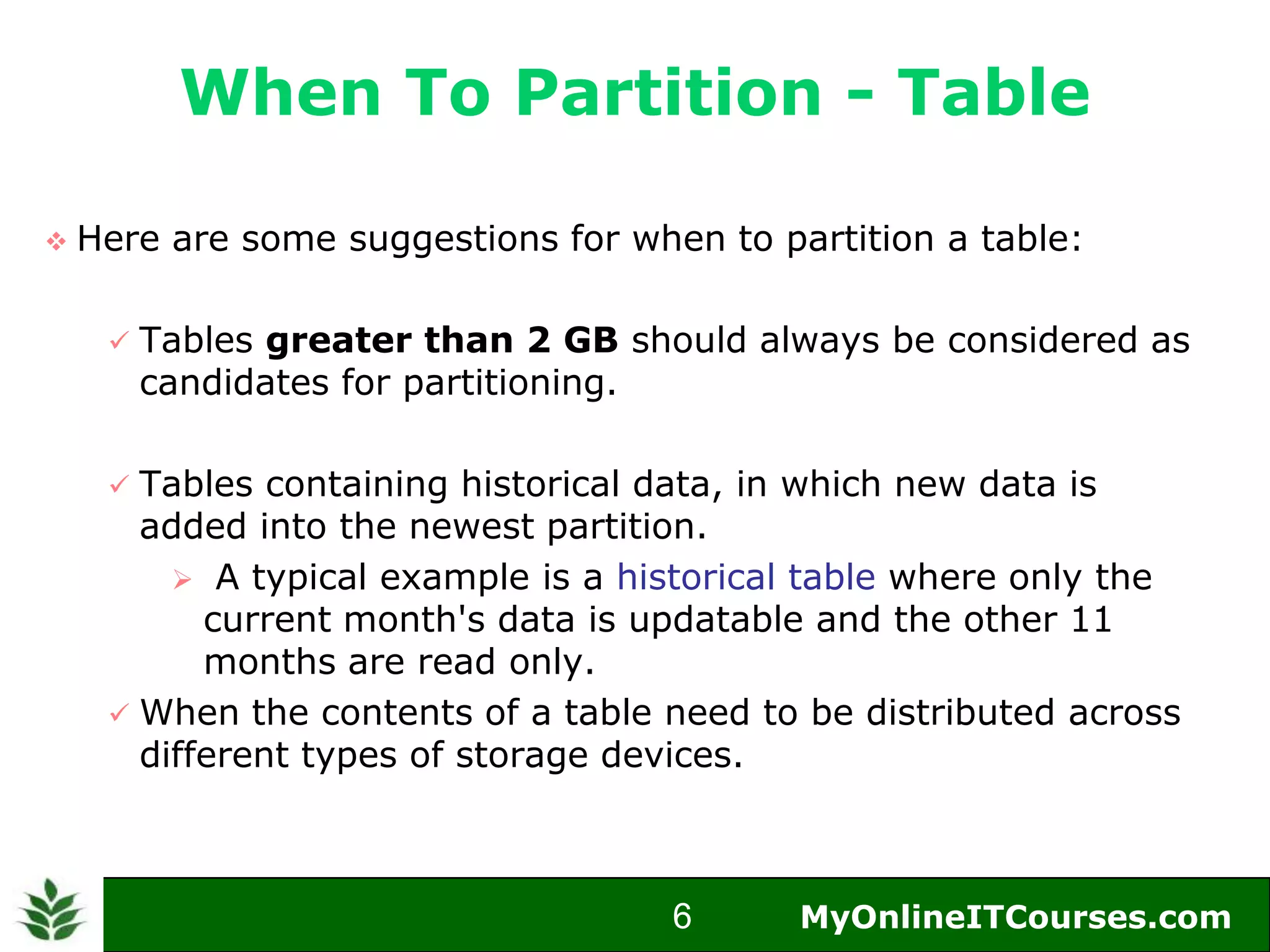

6. When To Partition - Table
Here are some suggestions for when to partition a table:
Tables greater than 2 GB should always be considered as
candidates for partitioning.
Tables containing historical data, in which new data is
added into the newest partition.
A typical example is a historical table where only the
current month's data is updatable and the other 11
months are read only.
When the contents of a table need to be distributed across
different types of storage devices.
6
6 MyOnlineITCourses.com
MyOnlineITCourses.com

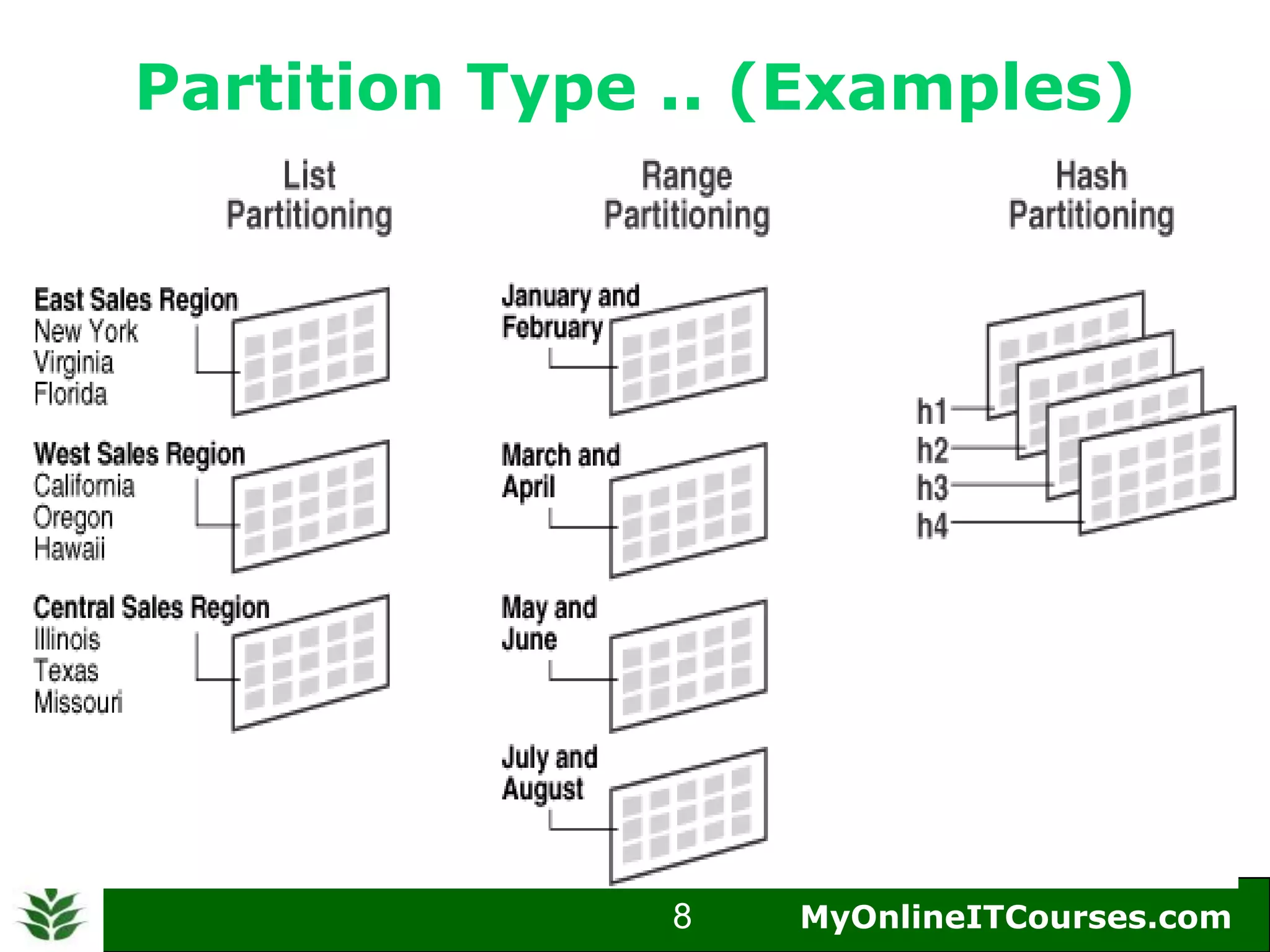

8. Partition Type .. (Examples)
8
8 MyOnlineITCourses.com
MyOnlineITCourses.com

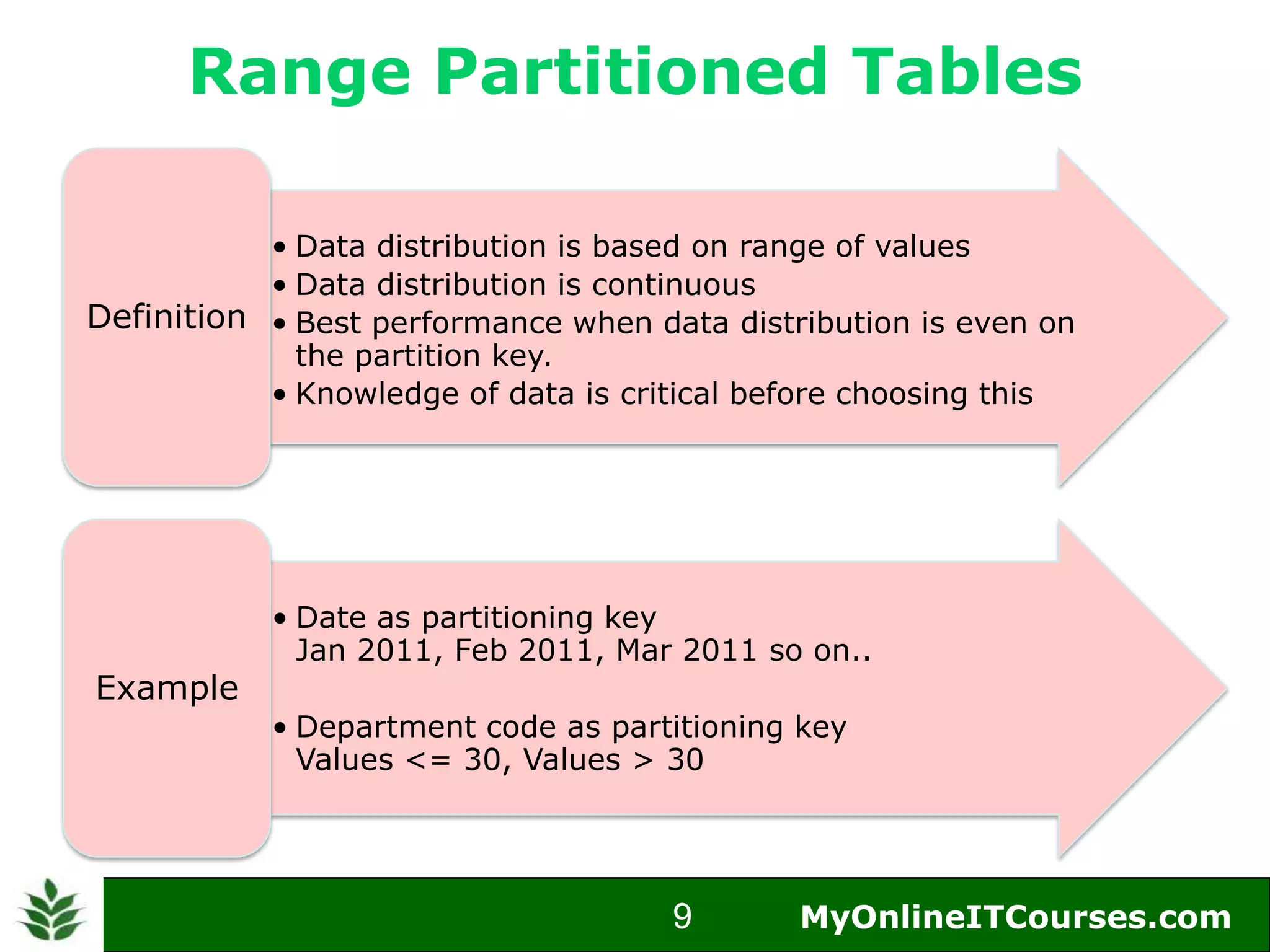

9. Range Partitioned Tables
• Data distribution is based on range of values
• Data distribution is continuous
Definition • Best performance when data distribution is even on
the partition key.
• Knowledge of data is critical before choosing this
• Date as partitioning key
Jan 2011, Feb 2011, Mar 2011 so on..
Example
• Department code as partitioning key
Values <= 30, Values > 30
9
9 MyOnlineITCourses.com
MyOnlineITCourses.com

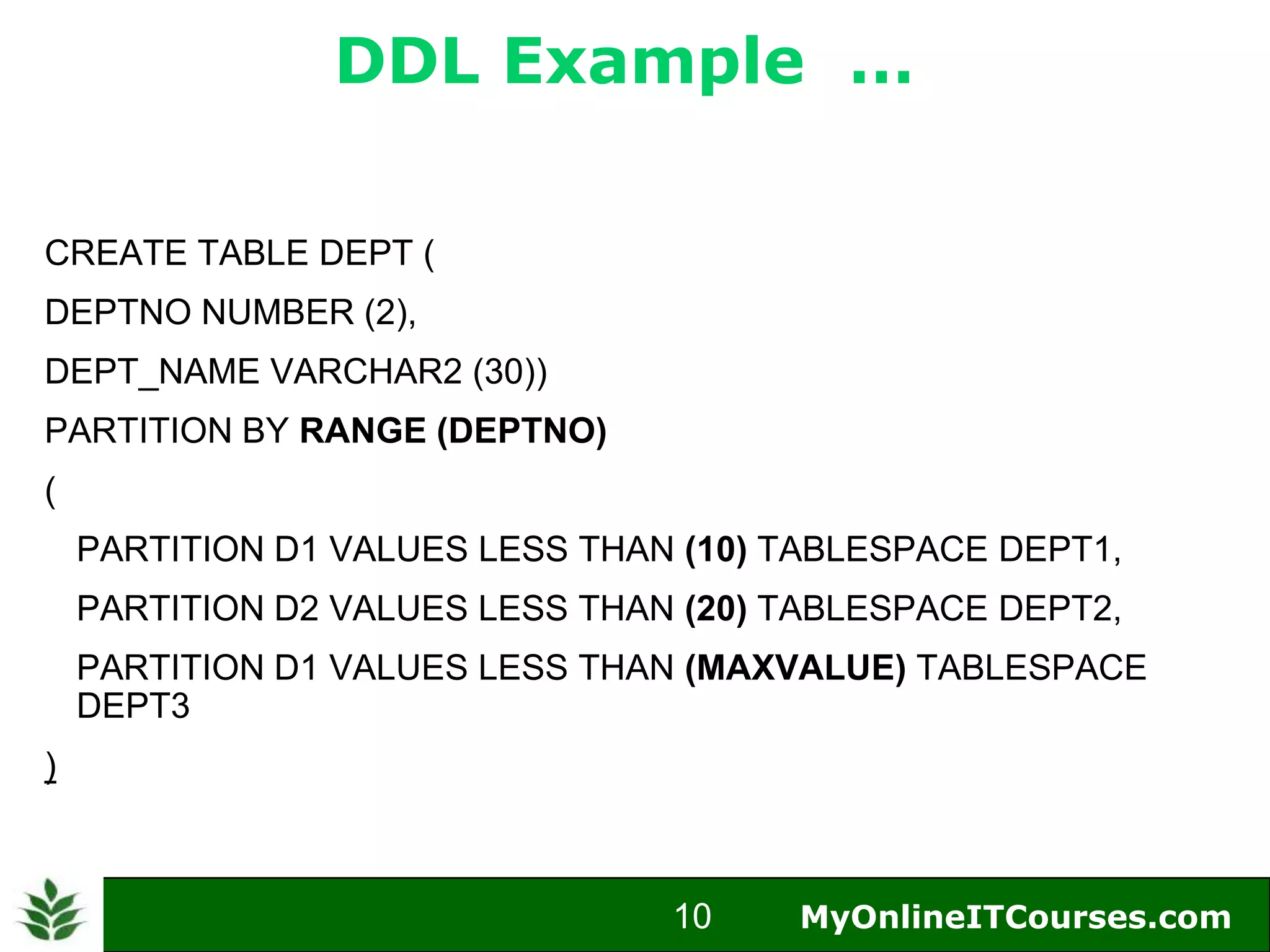

10. DDL Example …
CREATE TABLE DEPT (
DEPTNO NUMBER (2),
DEPT_NAME VARCHAR2 (30))
PARTITION BY RANGE (DEPTNO)
(
PARTITION D1 VALUES LESS THAN (10) TABLESPACE DEPT1,
PARTITION D2 VALUES LESS THAN (20) TABLESPACE DEPT2,
PARTITION D1 VALUES LESS THAN (MAXVALUE) TABLESPACE
DEPT3
)
10
10 MyOnlineITCourses.com
MyOnlineITCourses.com

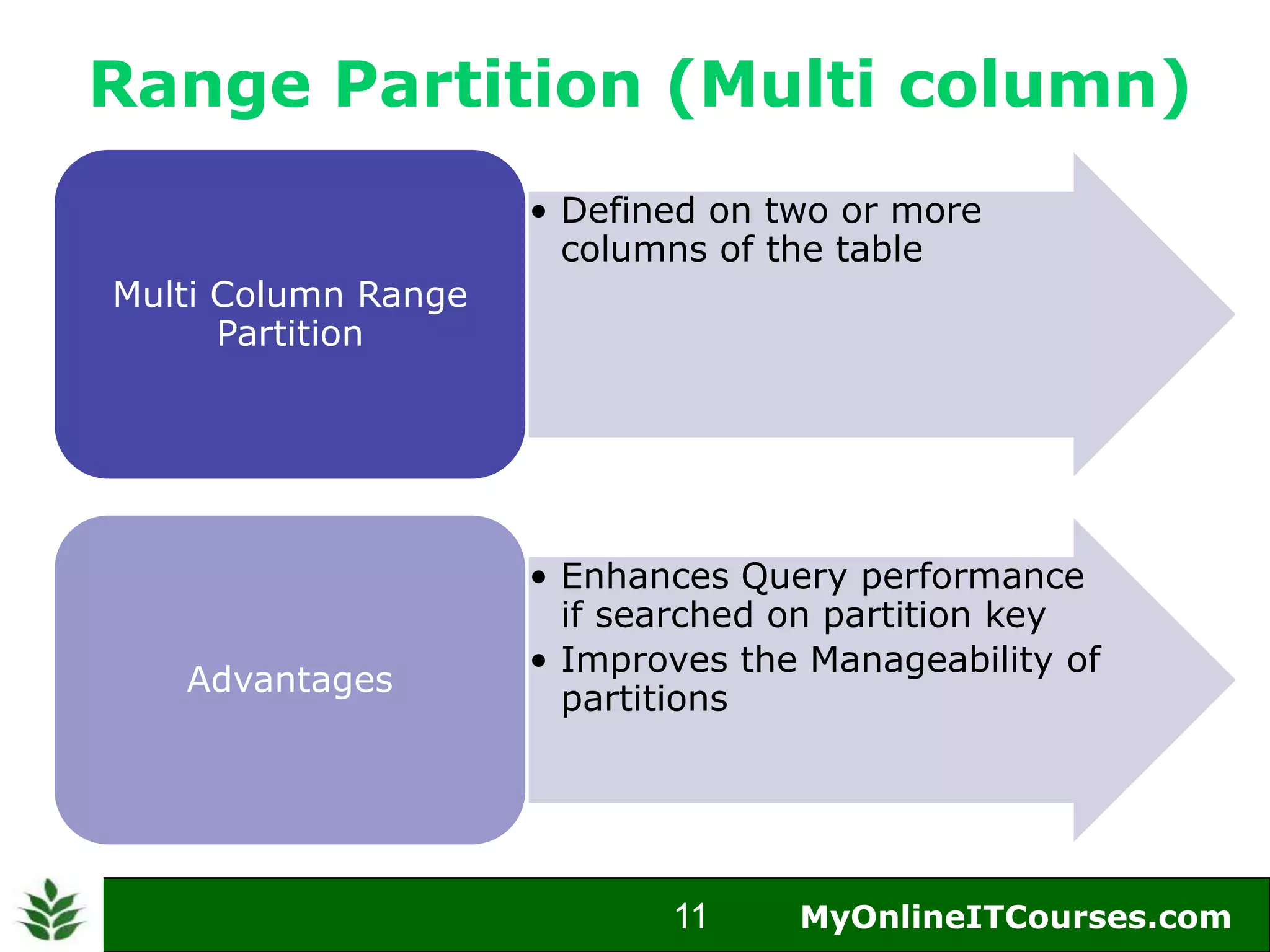

11. Range Partition (Multi column)
• Defined on two or more
columns of the table
Multi Column Range
Partition
• Enhances Query performance
if searched on partition key
• Improves the Manageability of
Advantages
partitions
11
11 MyOnlineITCourses.com
MyOnlineITCourses.com

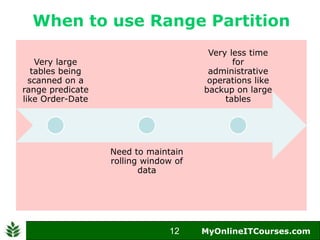

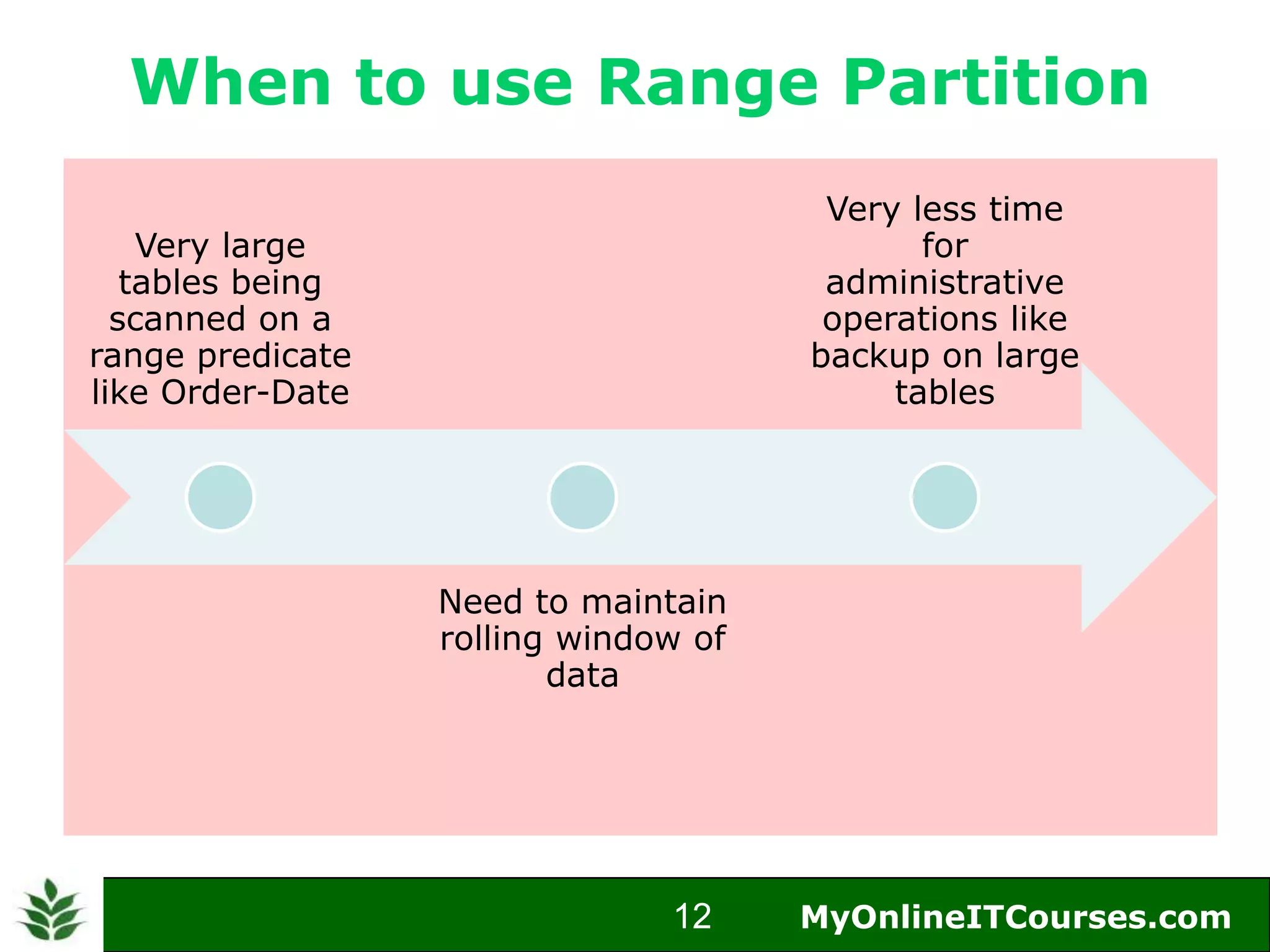

12. When to use Range Partition
Very less time
Very large for
tables being administrative
scanned on a operations like
range predicate backup on large
like Order-Date tables
Need to maintain
rolling window of
data
12
12 MyOnlineITCourses.com
MyOnlineITCourses.com

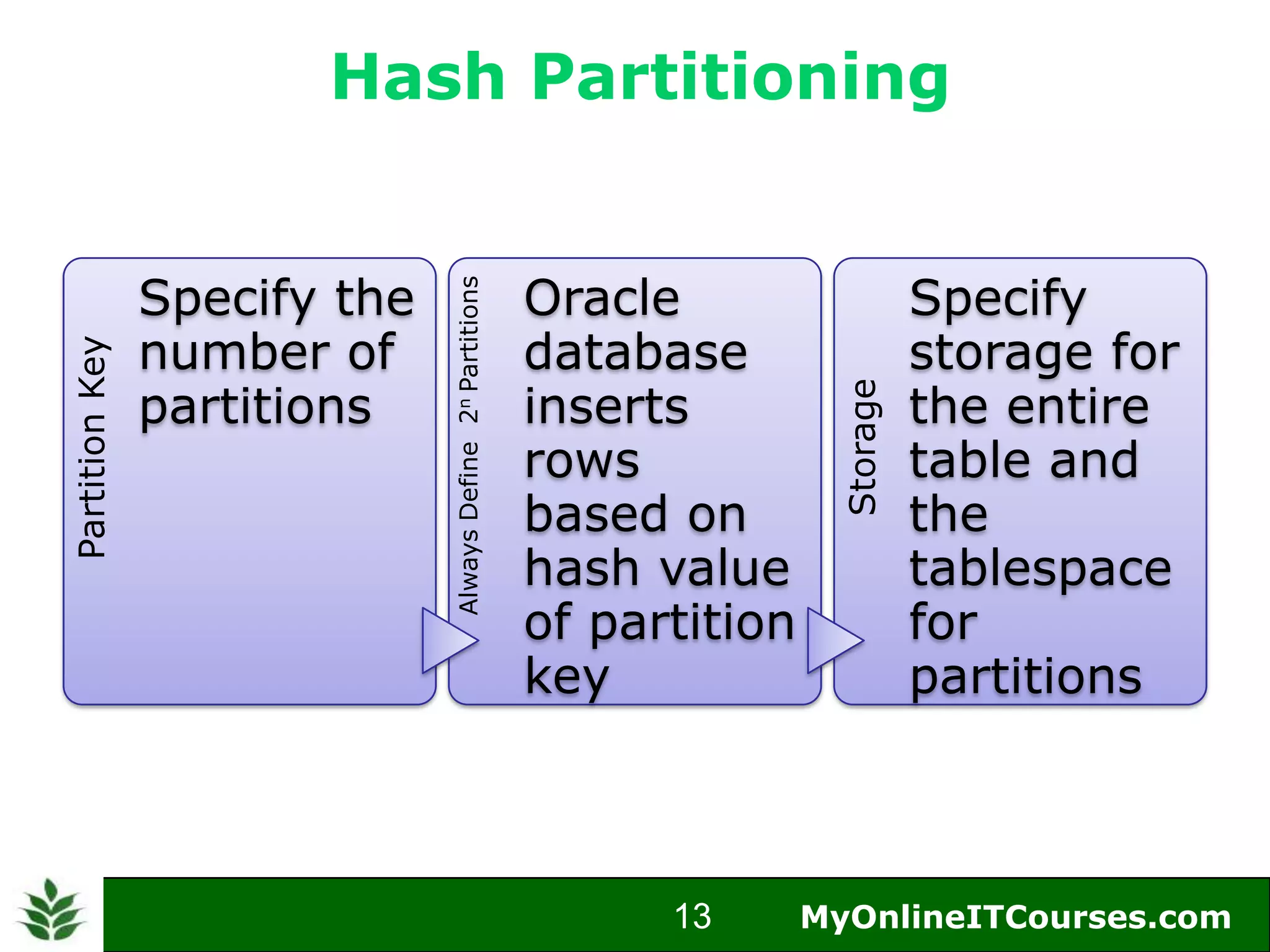

13. Hash Partitioning
Specify the Oracle Specify
Always Define 2n Partitions
number of database storage for
Partition Key
partitions inserts the entire
Storage
rows table and
based on the
hash value tablespace
of partition for
key partitions
13
13 MyOnlineITCourses.com
MyOnlineITCourses.com

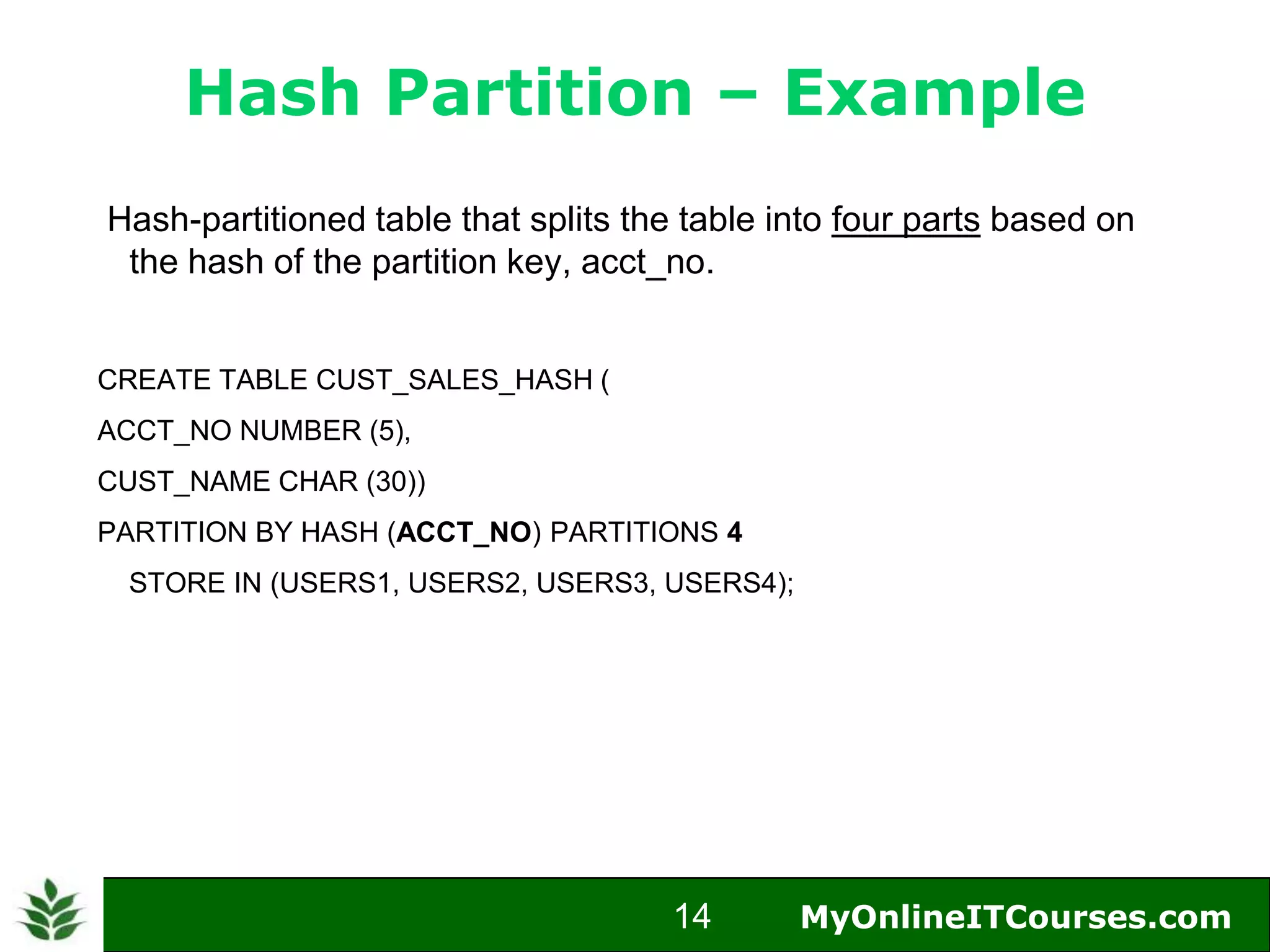

14. Hash Partition – Example
Hash-partitioned table that splits the table into four parts based on
the hash of the partition key, acct_no.
CREATE TABLE CUST_SALES_HASH (
ACCT_NO NUMBER (5),
CUST_NAME CHAR (30))
PARTITION BY HASH (ACCT_NO) PARTITIONS 4
STORE IN (USERS1, USERS2, USERS3, USERS4);
14
14 MyOnlineITCourses.com
MyOnlineITCourses.com

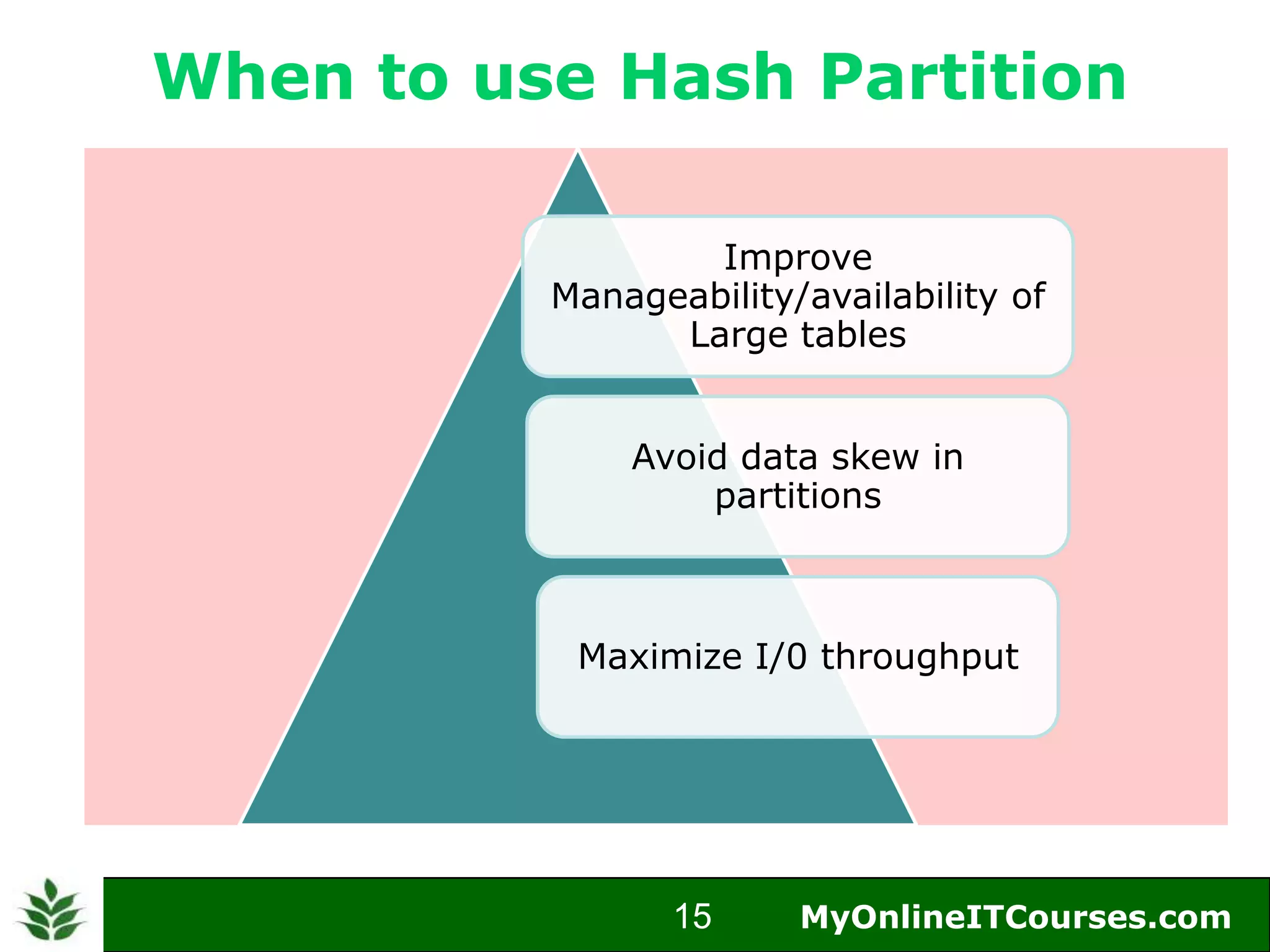

15. When to use Hash Partition
Improve
Manageability/availability of
Large tables
Avoid data skew in
partitions
Maximize I/0 throughput
15
15 MyOnlineITCourses.com
MyOnlineITCourses.com

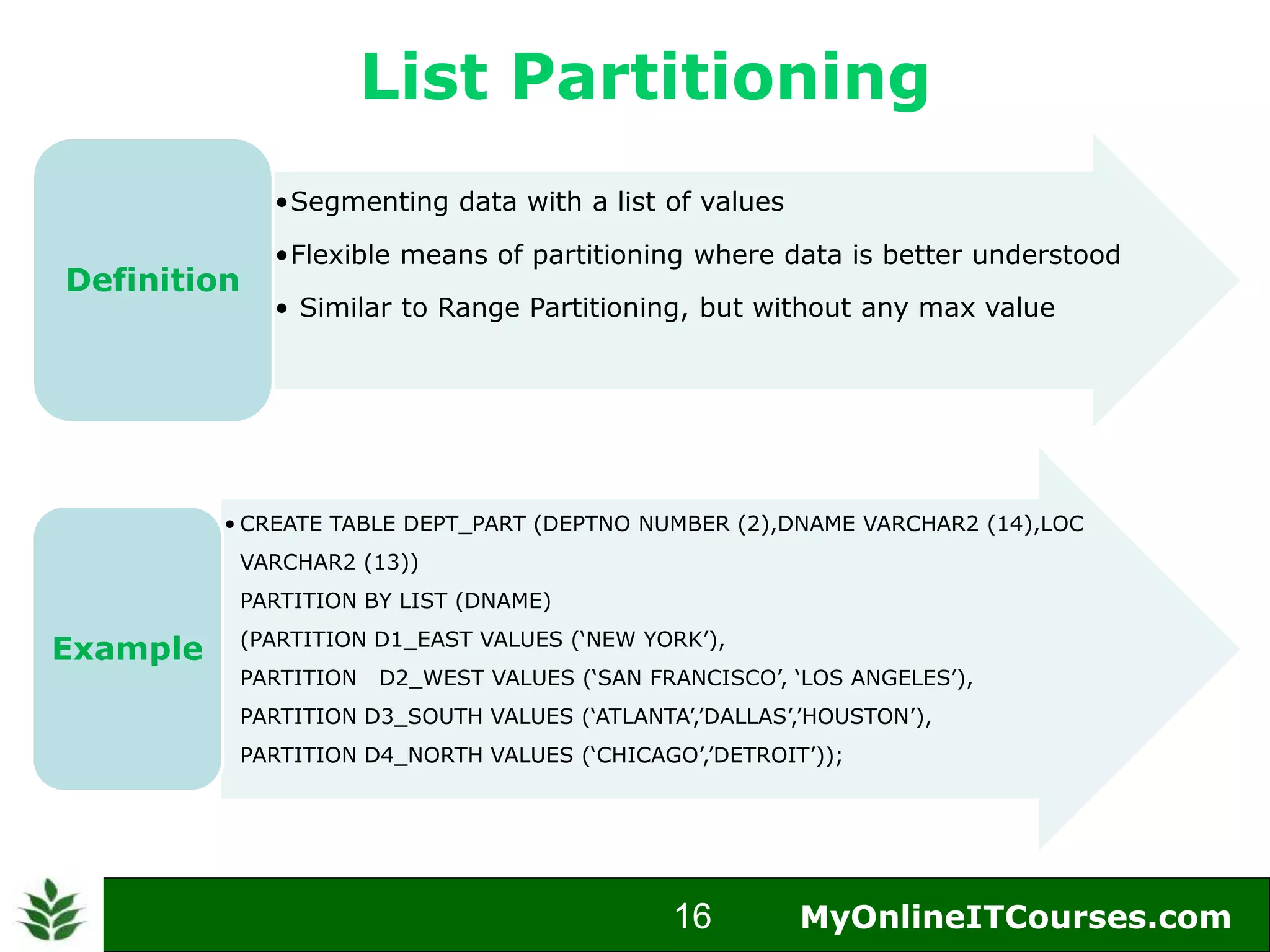

16. List Partitioning
•Segmenting data with a list of values
•Flexible means of partitioning where data is better understood
Definition
• Similar to Range Partitioning, but without any max value
• CREATE TABLE DEPT_PART (DEPTNO NUMBER (2),DNAME VARCHAR2 (14),LOC
VARCHAR2 (13))
PARTITION BY LIST (DNAME)
(PARTITION D1_EAST VALUES (‘NEW YORK’),
Example
PARTITION D2_WEST VALUES (‘SAN FRANCISCO’, ‘LOS ANGELES’),
PARTITION D3_SOUTH VALUES (‘ATLANTA’,’DALLAS’,’HOUSTON’),
PARTITION D4_NORTH VALUES (‘CHICAGO’,’DETROIT’));
16
16 MyOnlineITCourses.com
MyOnlineITCourses.com

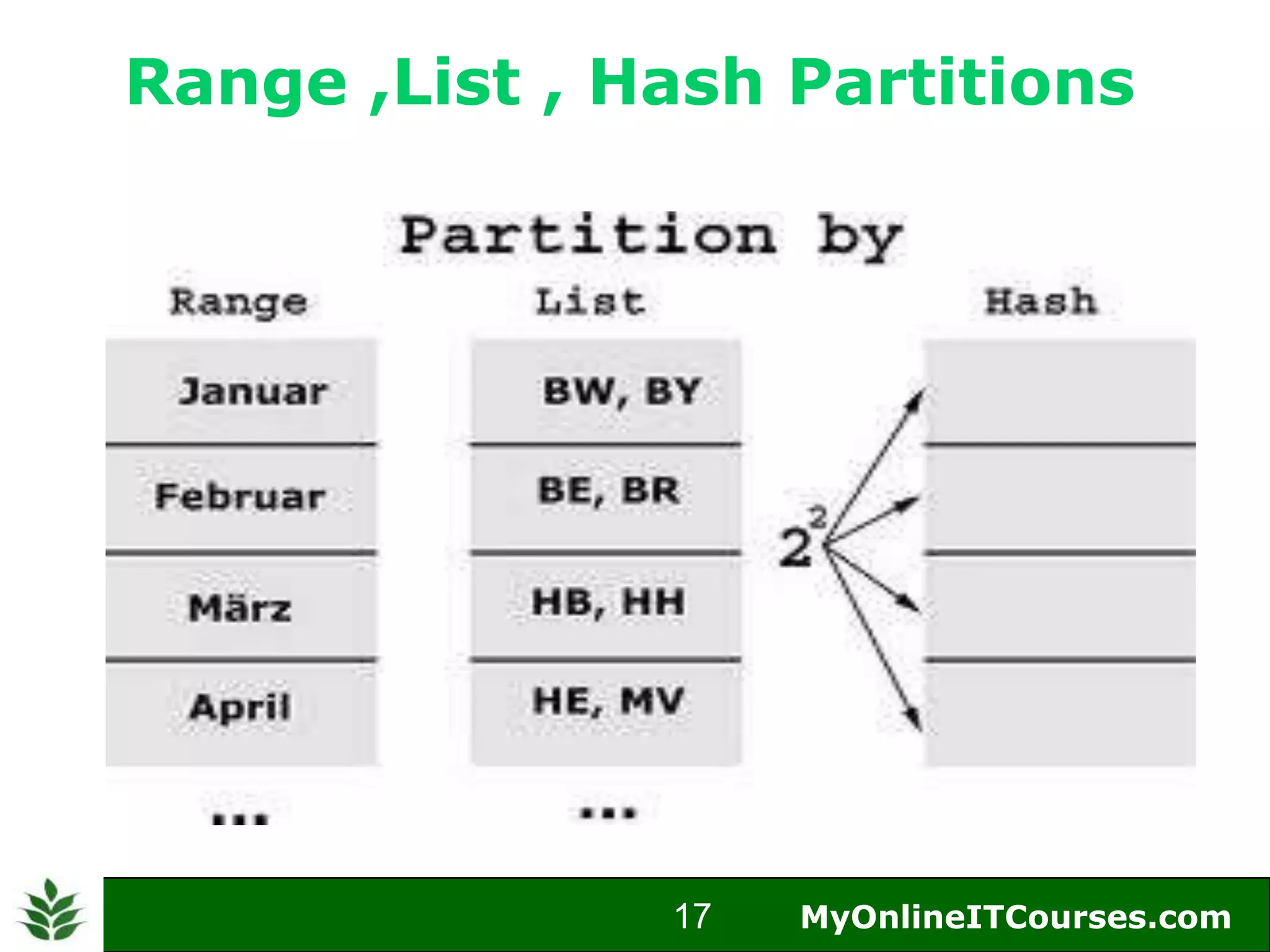

17. Range ,List , Hash Partitions
17
17 MyOnlineITCourses.com
MyOnlineITCourses.com

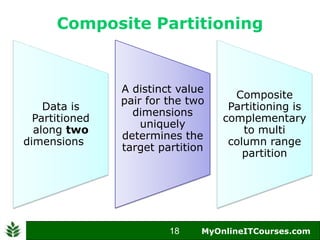

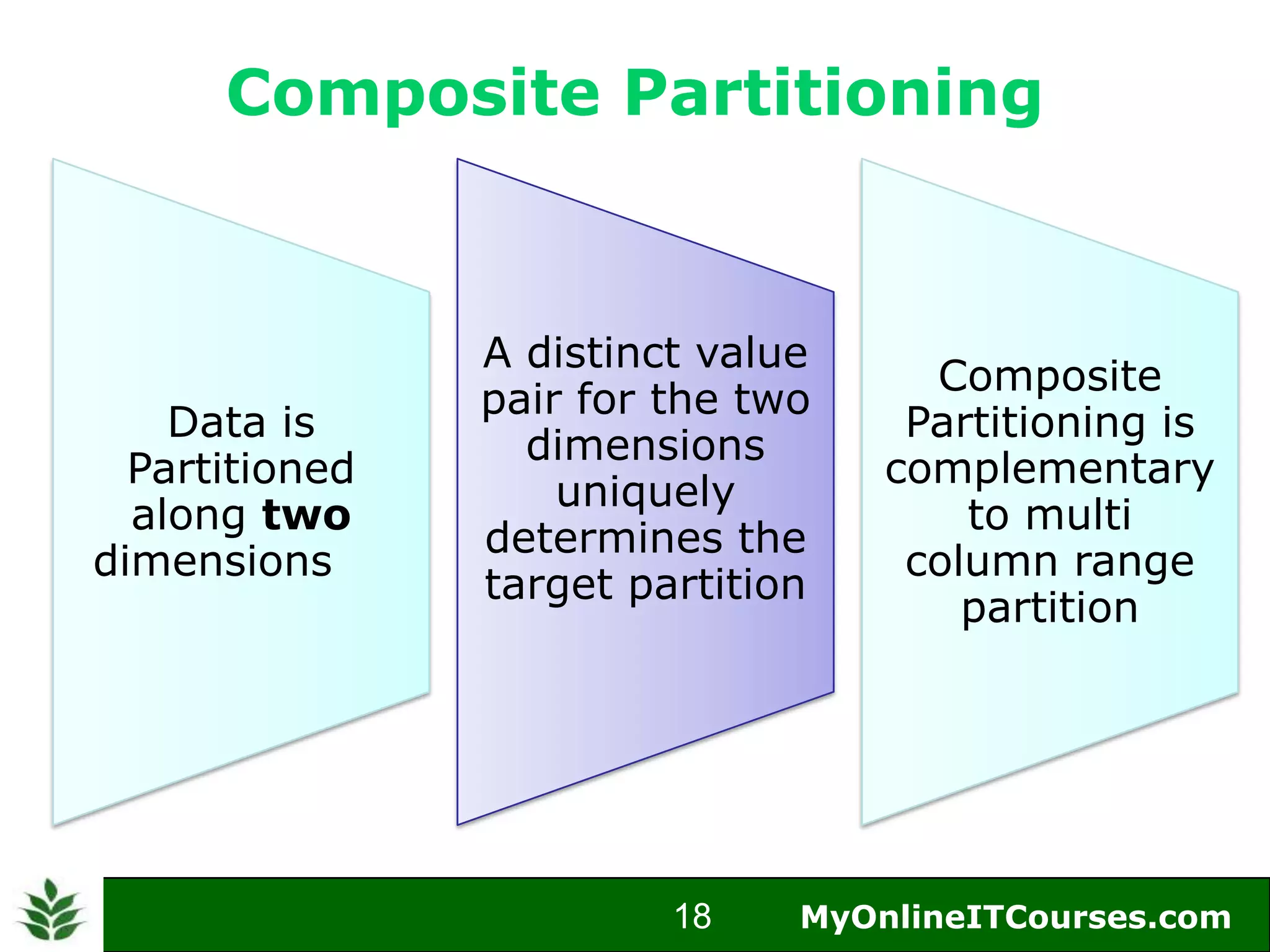

18. Composite Partitioning
A distinct value
Composite
pair for the two
Data is Partitioning is
dimensions
Partitioned complementary
uniquely
along two to multi
determines the
dimensions column range
target partition
partition
18
18 MyOnlineITCourses.com
MyOnlineITCourses.com

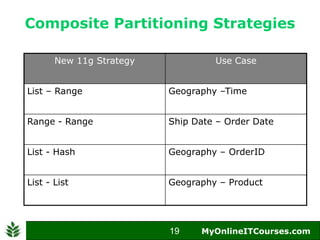

19. Composite Partitioning Strategies
New 11g Strategy Use Case
List – Range Geography –Time
Range - Range Ship Date – Order Date
List - Hash Geography – OrderID
List - List Geography – Product
19
19 MyOnlineITCourses.com
MyOnlineITCourses.com

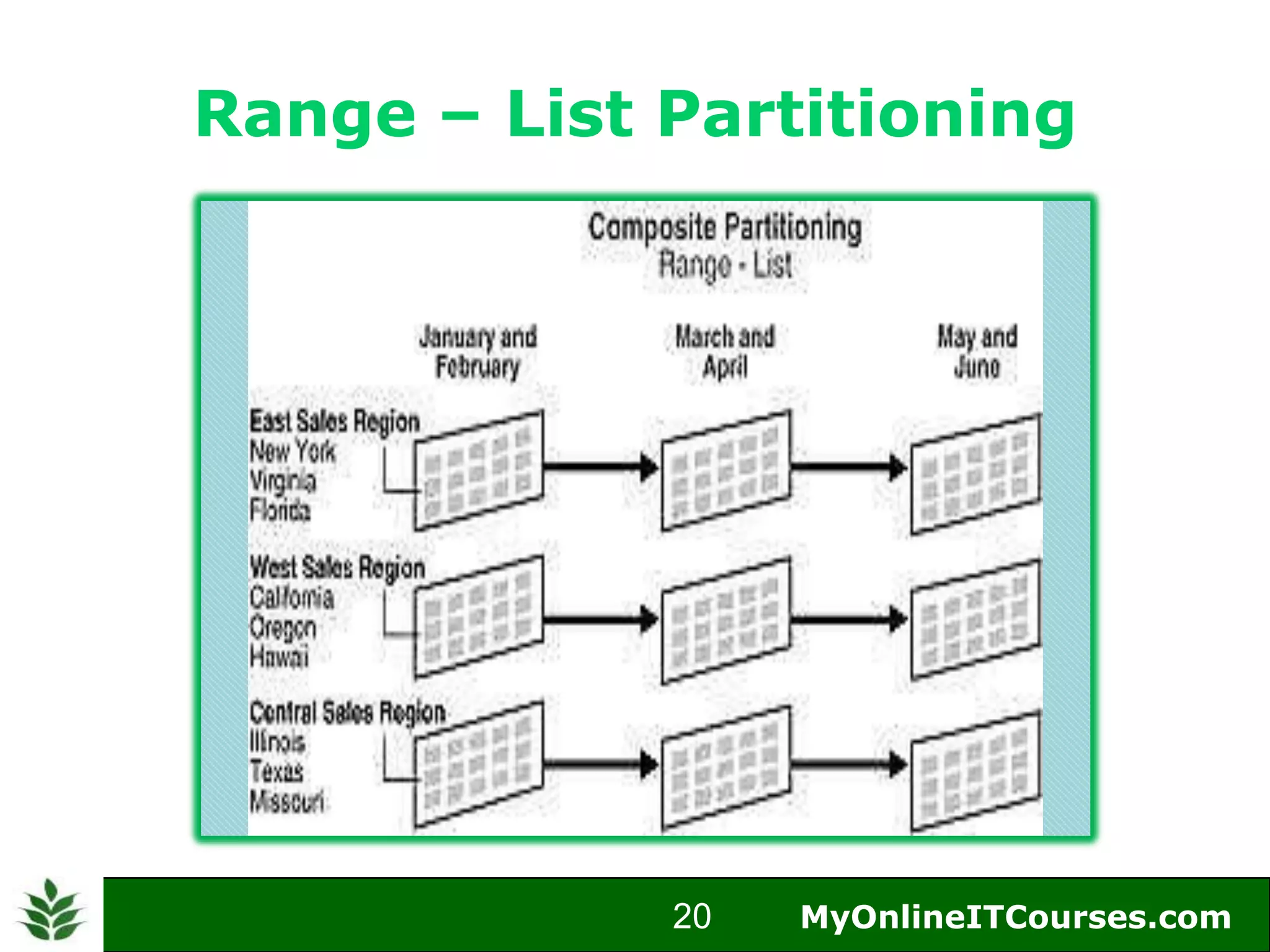

20. Range – List Partitioning
20
20 MyOnlineITCourses.com
MyOnlineITCourses.com

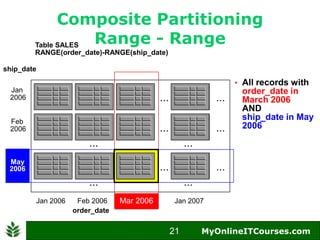

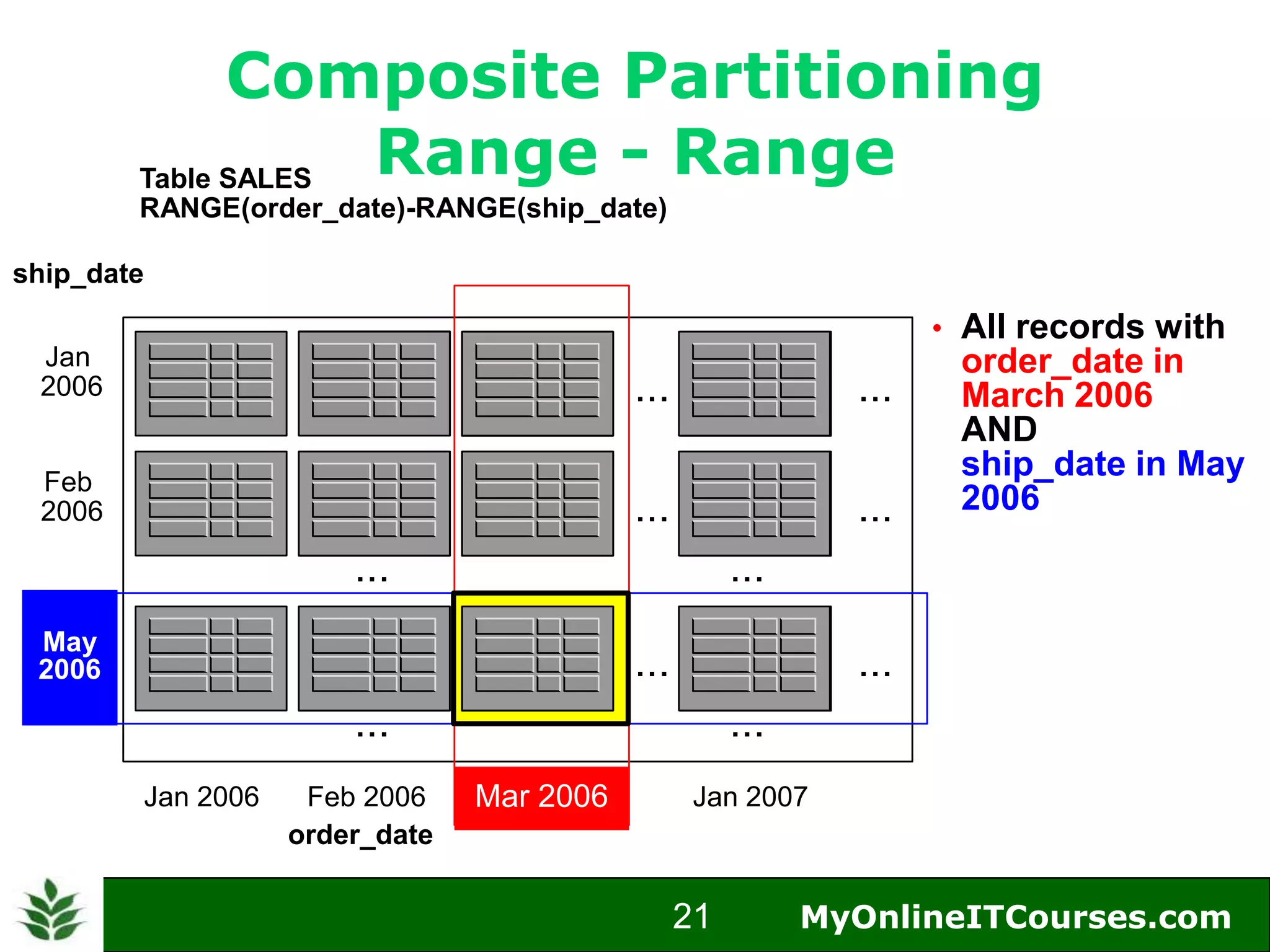

21. Composite Partitioning
Table SALES Range - Range
RANGE(order_date)-RANGE(ship_date)
ship_date
• All records with
Jan order_date in
2006 ... ... March 2006
AND
Feb
ship_date in May
2006 ... ... 2006
... ...
May
May
2006 ... ...
... ...
Jan 2006 Feb 2006 Mar 2006
Mar 2006 Jan 2007
order_date
21
21 MyOnlineITCourses.com
MyOnlineITCourses.com
