LET’S GET STARTED WITH ORACLE DATABASE CLOUD

LET’S GET STARTED
WITH ORACLE
DATABASE CLOUD
Alex Zaballa

Copyright © 2016 Accenture All rights reserved. | 2
Alex Zaballa
http://alexzaballa.blogspot.com/
@alexzaballa
https://www.linkedin.com/in/alexzaballa
236 and counting…

Worked for 3 years in Brazil as a Clipper/Delphi Developer (15 years old)
1997-1999
Worked for 7 years in Brazil as an Oracle Developer
2000 - 2007
Worked for 8 years in Angola as an Oracle DBA
for the Ministry of Finance.
2007 - 2015

3 Membership Tiers
• Oracle ACE Director
• Oracle ACE
• Oracle ACE Associate
bit.ly/OracleACEProgram
500+ Technical Experts
Helping Peers Globally
Connect:
Nominate yourself or someone you know: acenomination.oracle.com
@oracleace
Facebook.com/oracleaces
oracle-ace_ww@oracle.com

ORACLE DATABASE CLOUD
CLOUD 101

CLOUD
Will the Database Cloud ”Kill” the DBA?

CLOUD

CLOUD
My Opinion is NO
The DBA will be more specialized:
- Application DBA
- Architecture DBA
- Performance and Tuning DBA
- Big Data DBA

COMMON USE CASES
• Dev/Test/UAT
• Backup to the Cloud

COMMON USE CASES
• Disaster Recovery to the Cloud

COMMON USE CASES ?
• Business Critical Workloads in the
Cloud

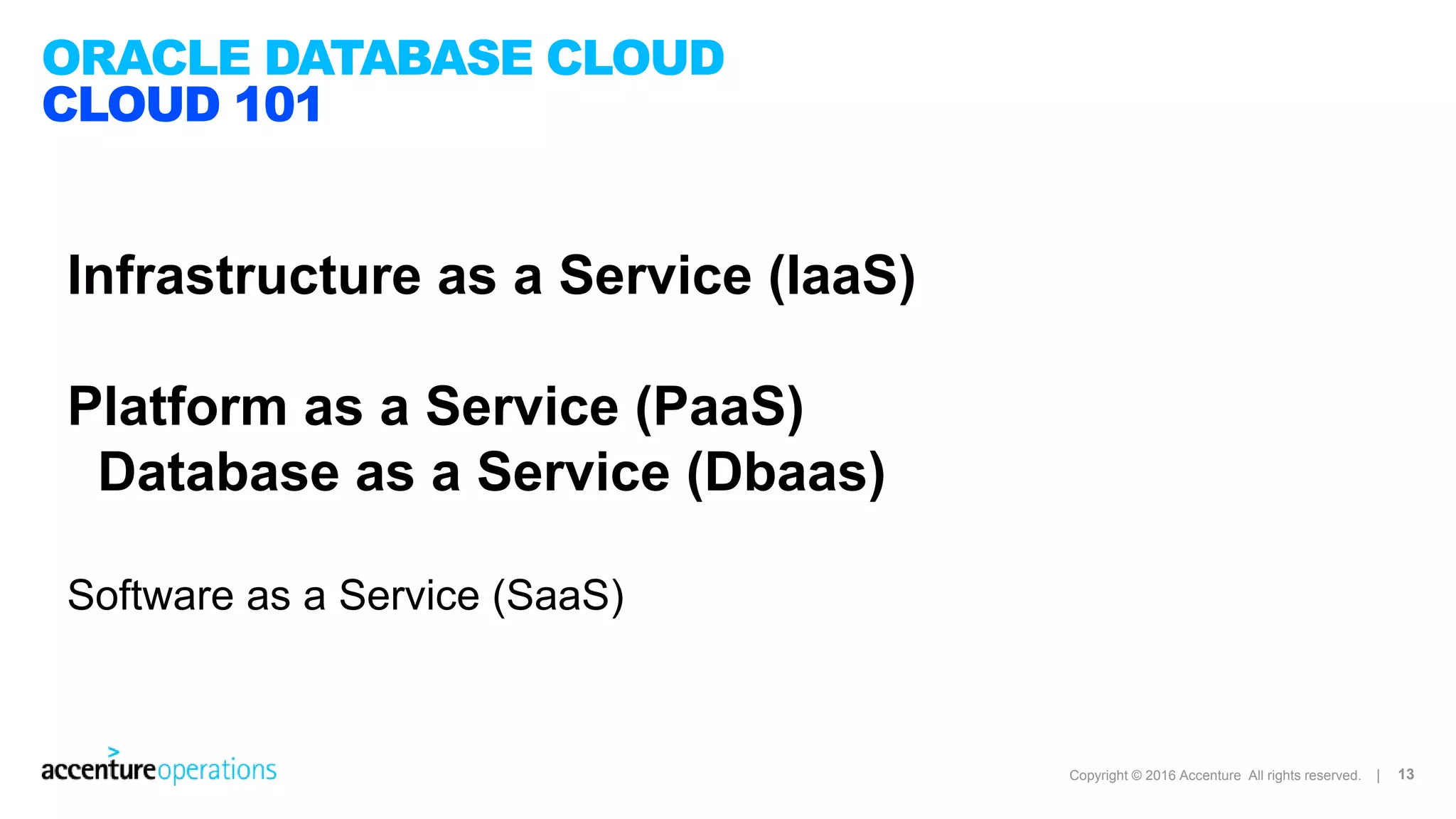

CLOUD 101
Infrastructure as a Service (IaaS)
Platform as a Service (PaaS)
Database as a Service (Dbaas)
Software as a Service (SaaS)

• Oracle Database Cloud Service
• Oracle Database Cloud Service – Bare Metal
• Oracle Database Exadata Cloud Service
• Oracle Database Exadata Cloud Machine
• Oracle Database Exadata Express Cloud Service – Managed
• Oracle Database Schema Cloud Service - Managed
https://cloud.oracle.com/database

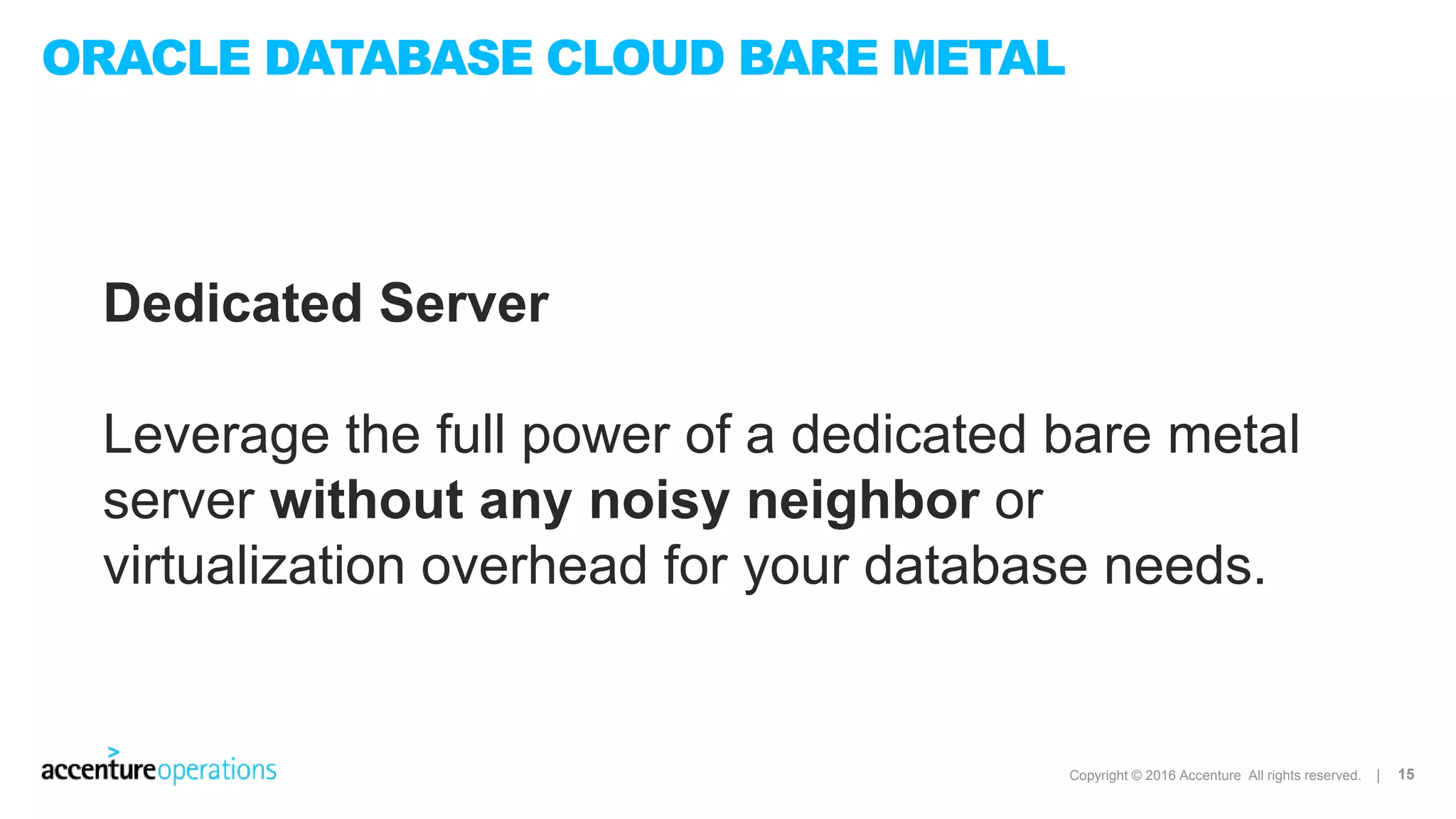

ORACLE DATABASE CLOUD BARE METAL
Dedicated Server
Leverage the full power of a dedicated bare metal
server without any noisy neighbor or
virtualization overhead for your database needs.

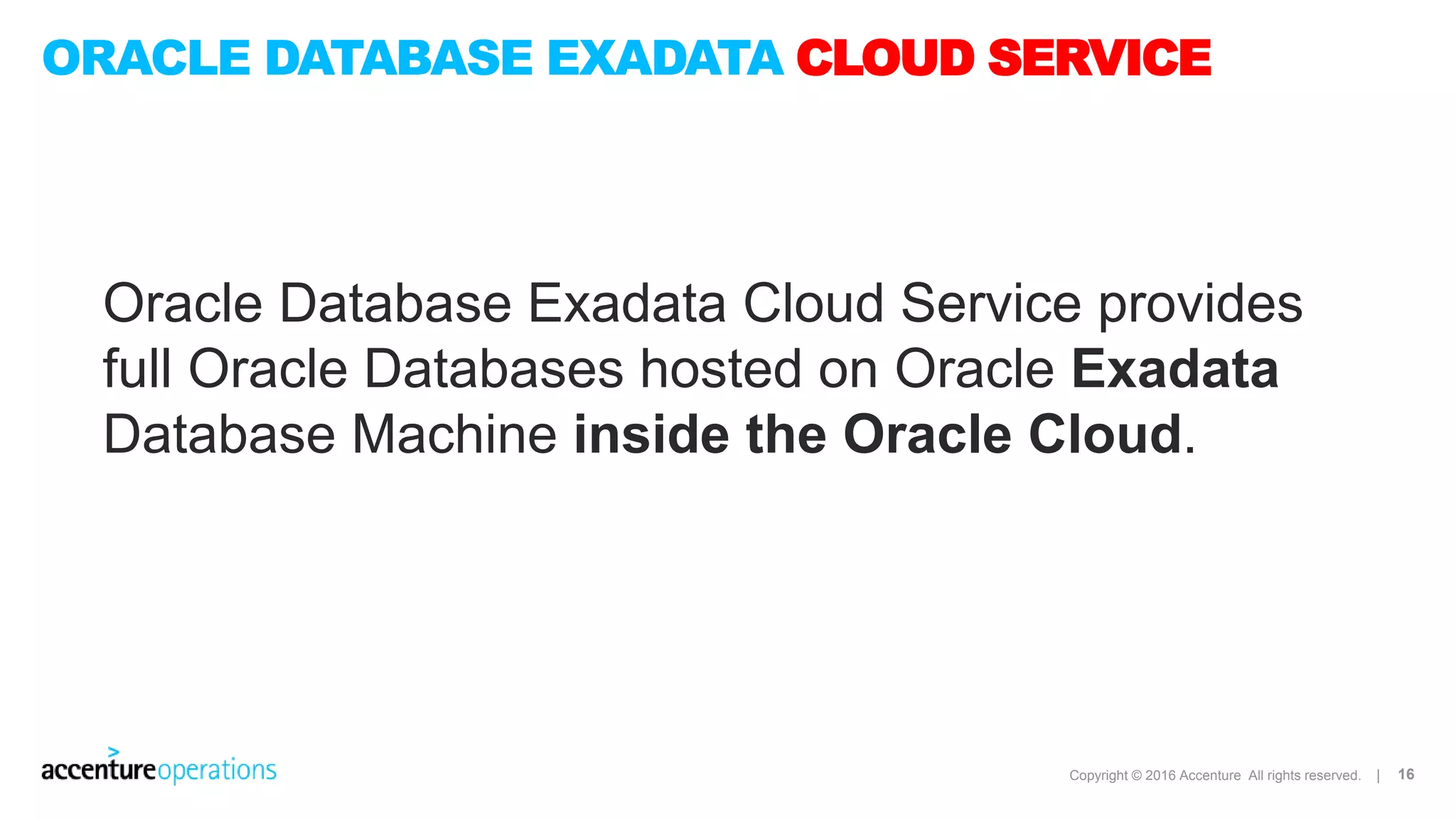

ORACLE DATABASE EXADATA CLOUD SERVICE
Oracle Database Exadata Cloud Service provides
full Oracle Databases hosted on Oracle Exadata
Database Machine inside the Oracle Cloud.

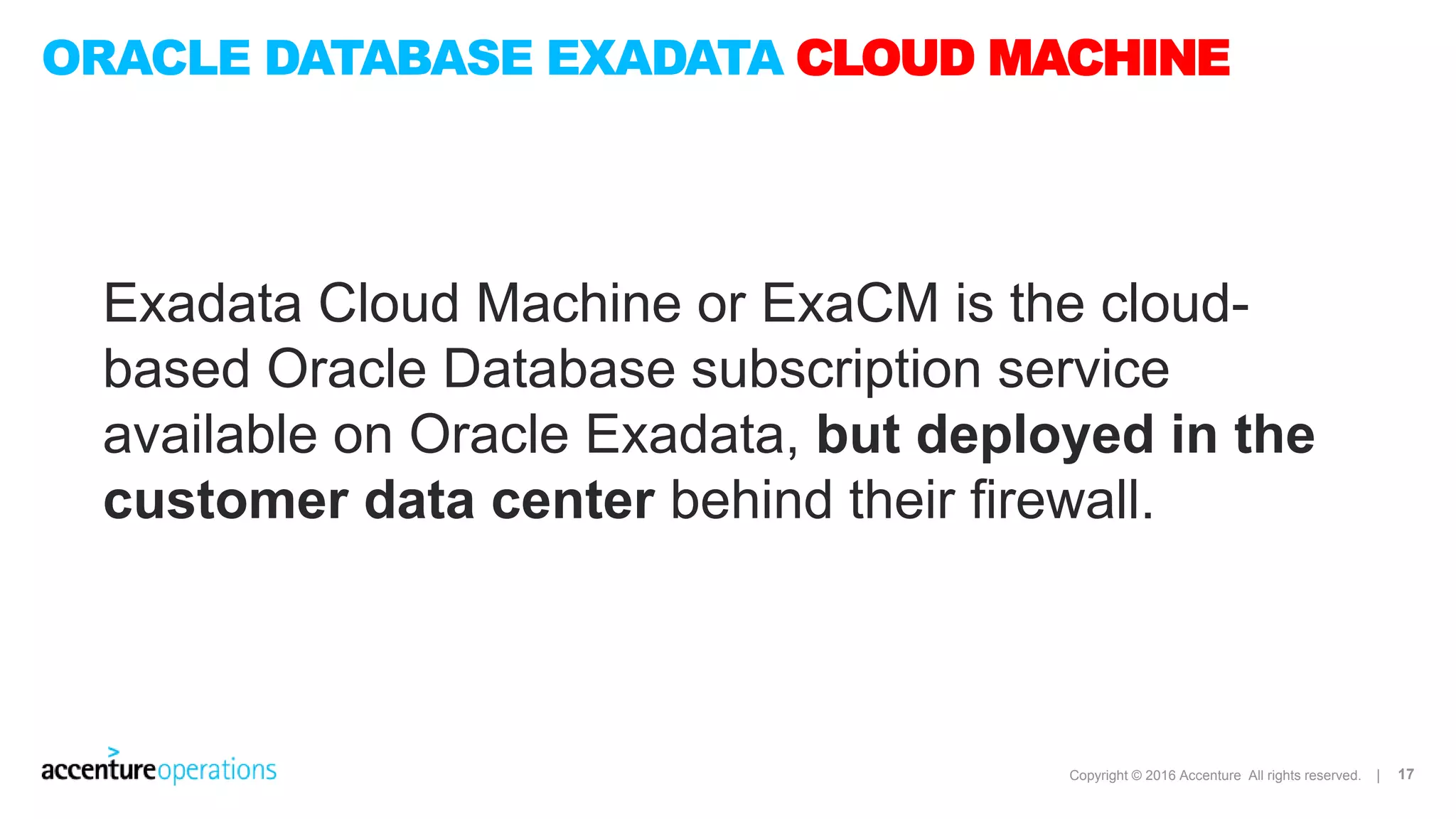

ORACLE DATABASE EXADATA CLOUD MACHINE
Exadata Cloud Machine or ExaCM is the cloud-
based Oracle Database subscription service
available on Oracle Exadata, but deployed in the
customer data center behind their firewall.

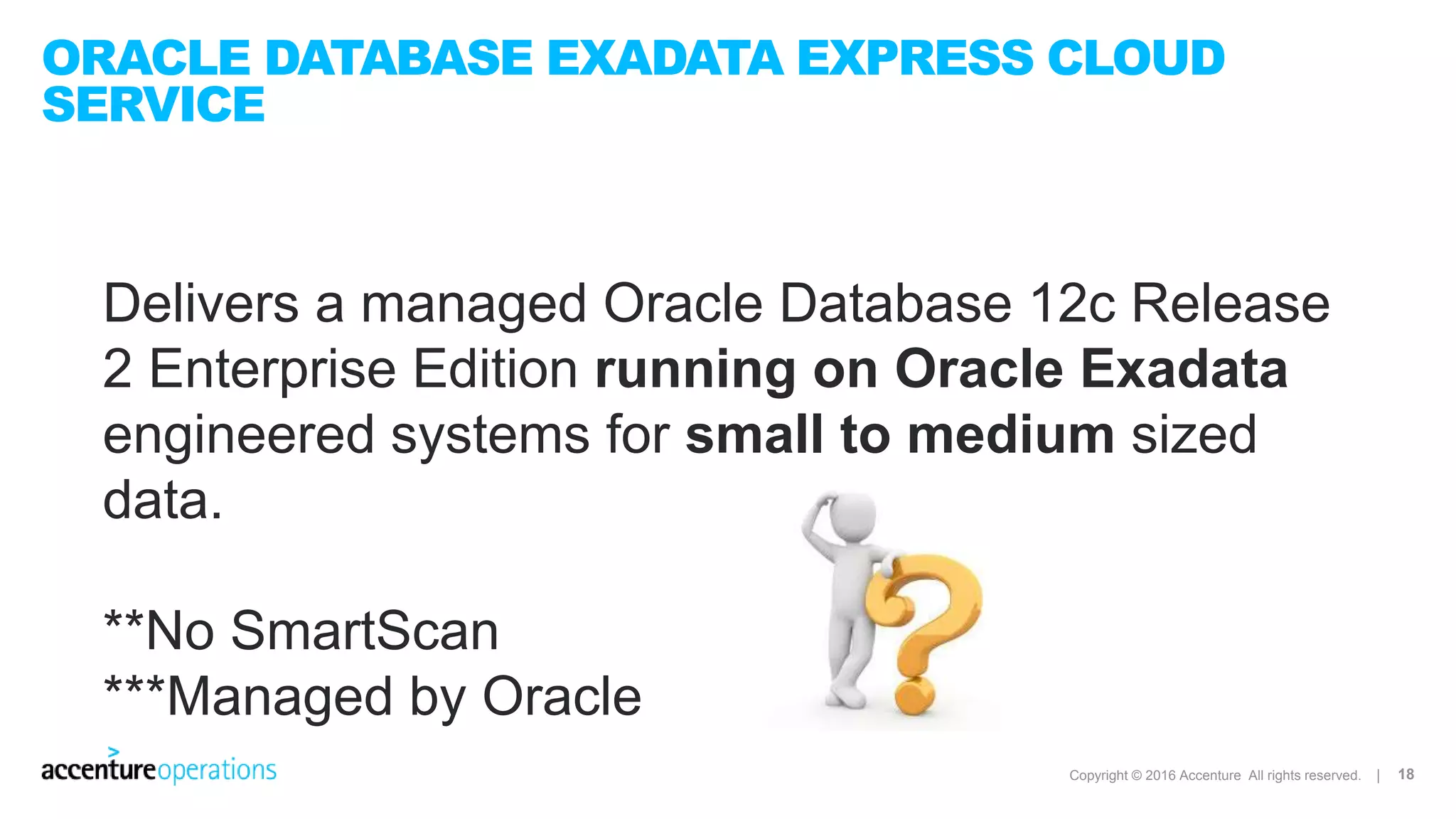

ORACLE DATABASE EXADATA EXPRESS CLOUD
SERVICE
Delivers a managed Oracle Database 12c Release
2 Enterprise Edition running on Oracle Exadata
engineered systems for small to medium sized
data.
**No SmartScan
***Managed by Oracle

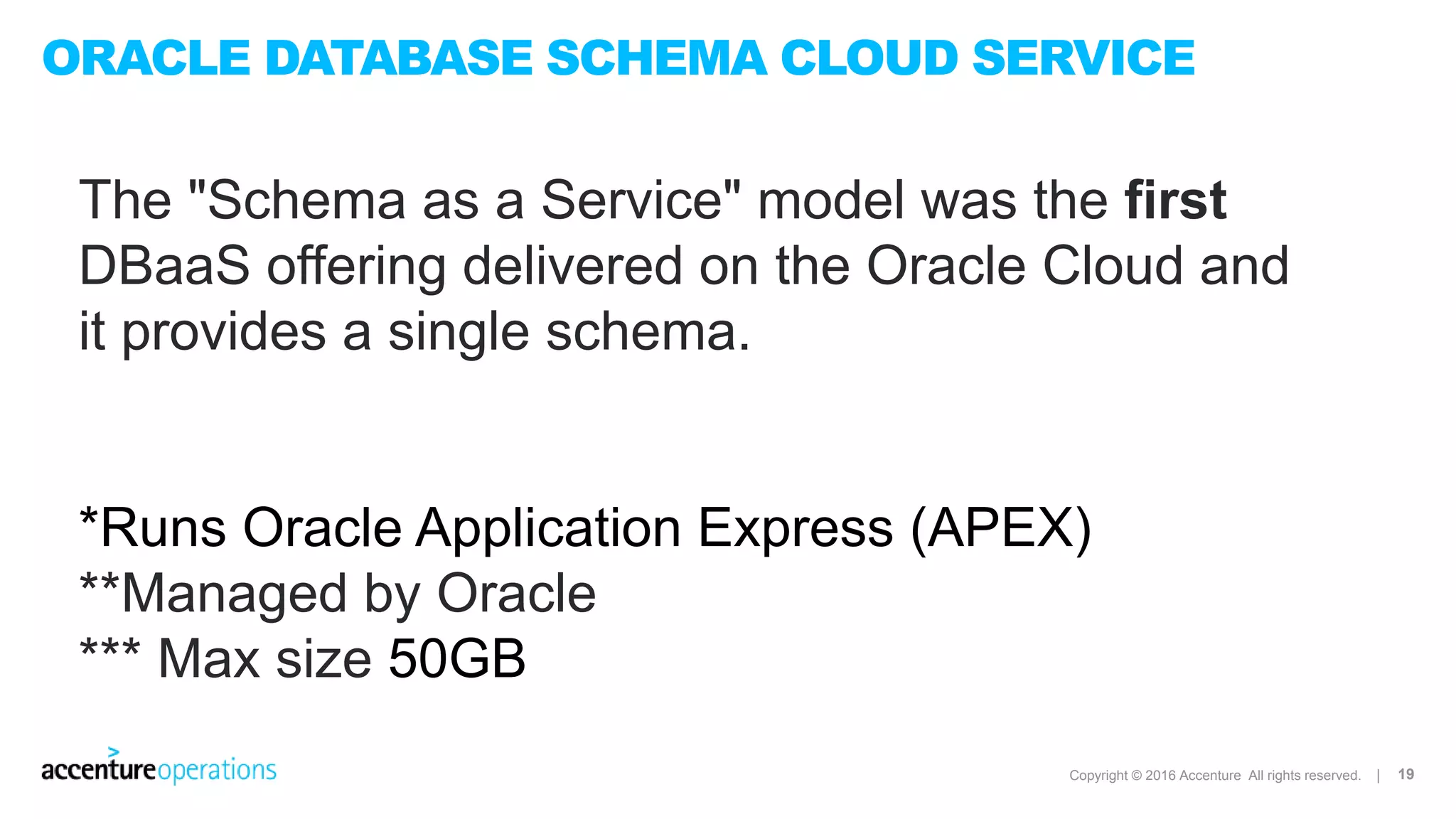

ORACLE DATABASE SCHEMA CLOUD SERVICE
The "Schema as a Service" model was the first
DBaaS offering delivered on the Oracle Cloud and
it provides a single schema.
*Runs Oracle Application Express (APEX)
**Managed by Oracle
*** Max size 50GB

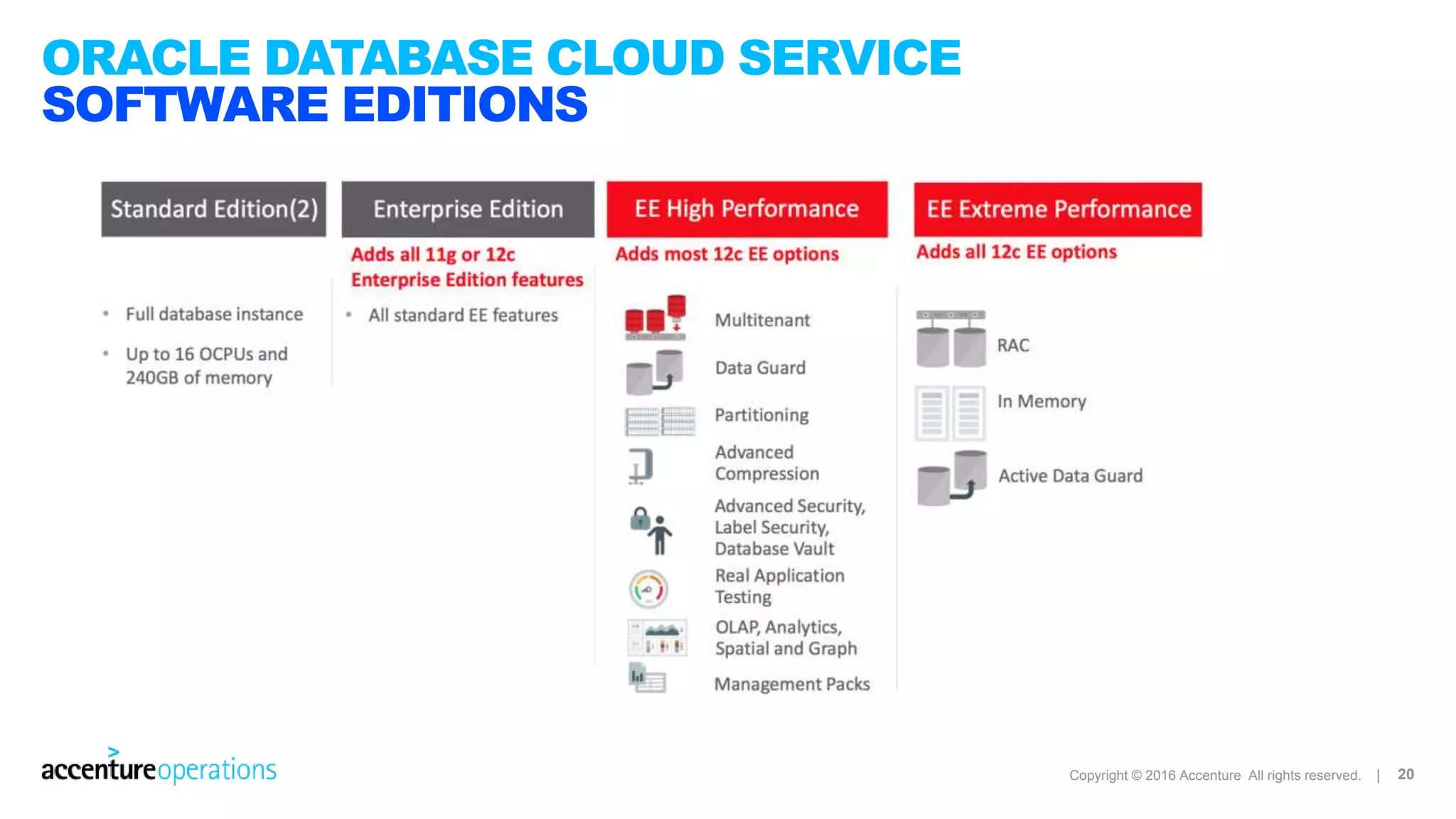

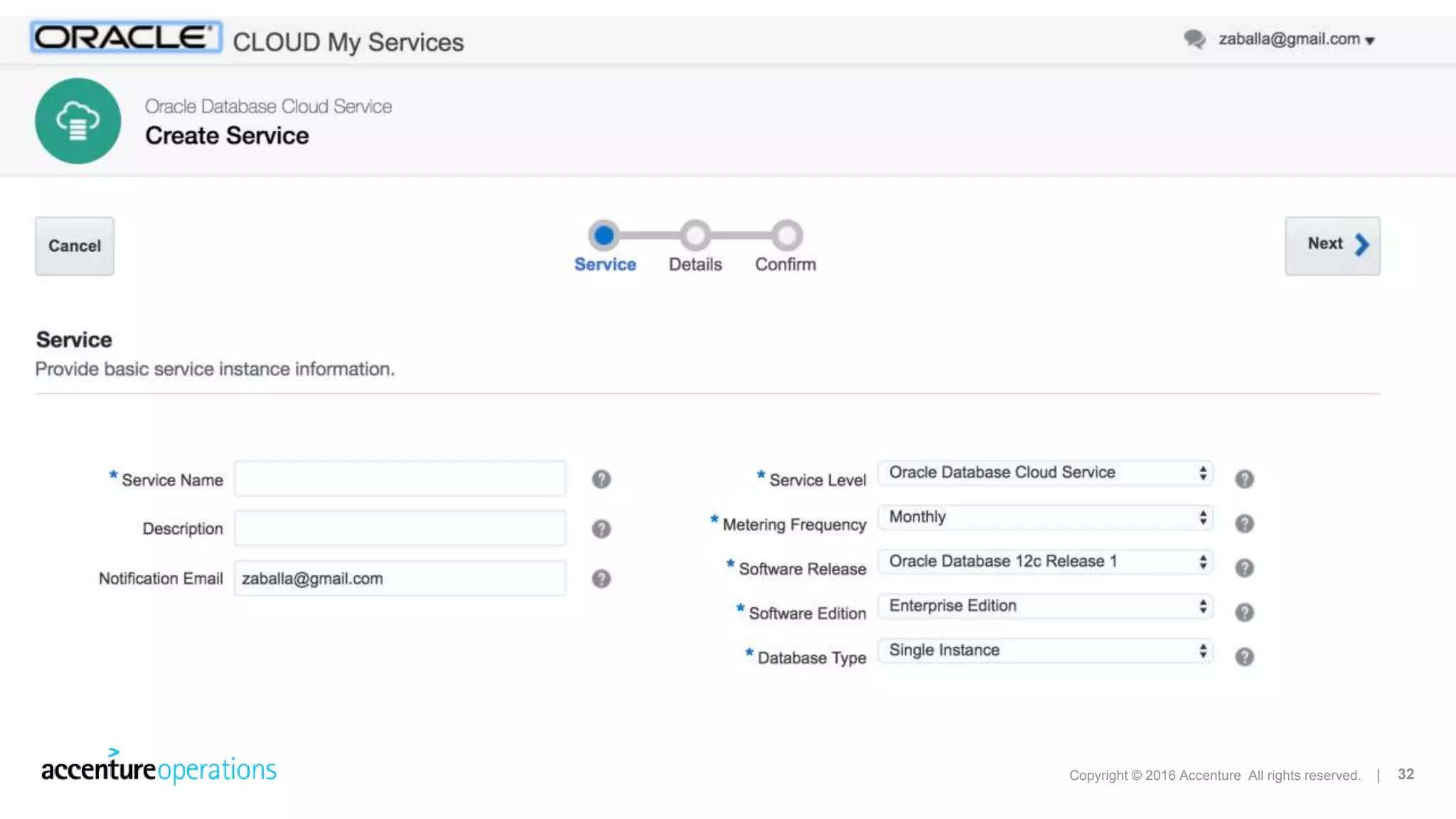

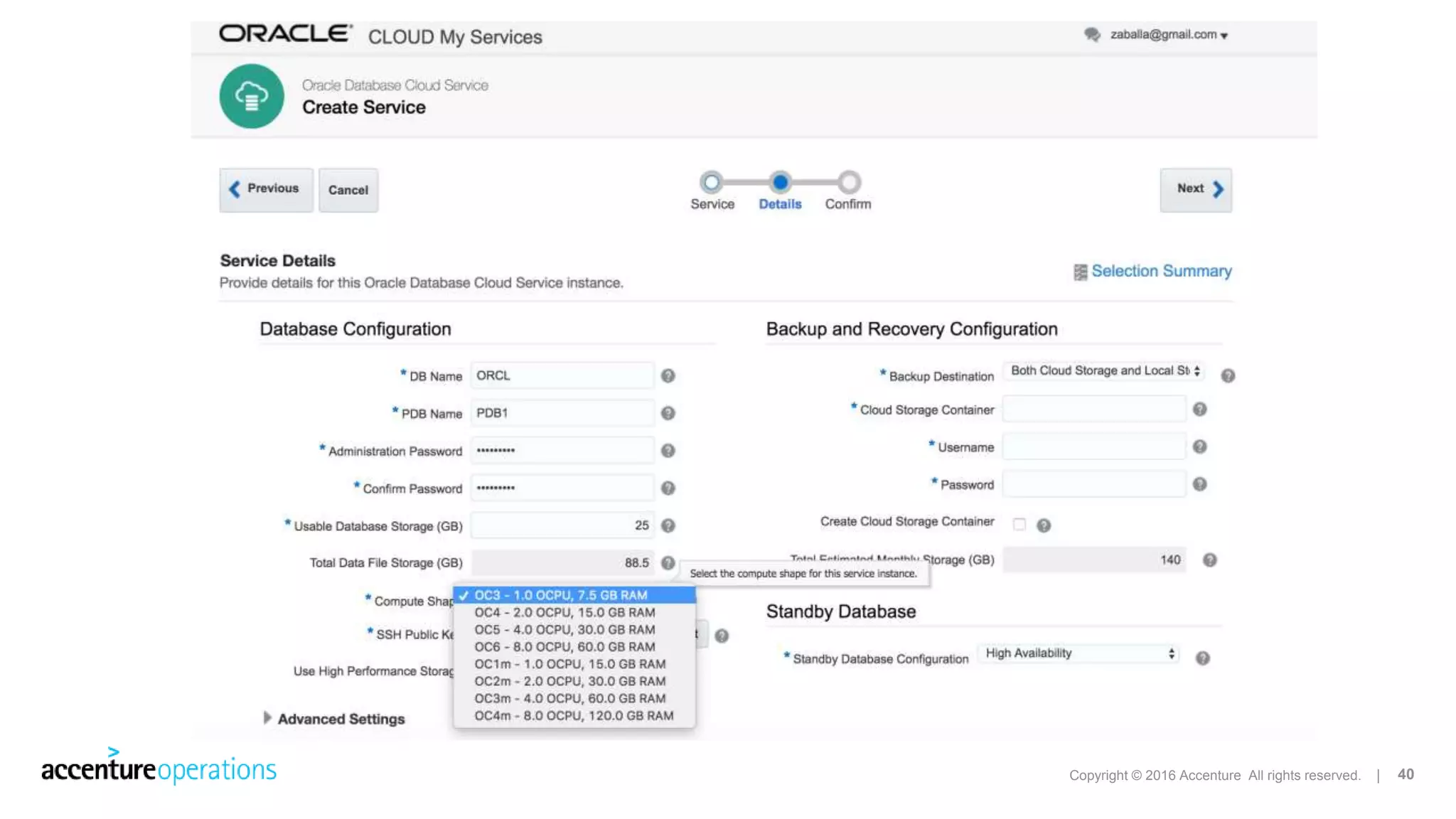

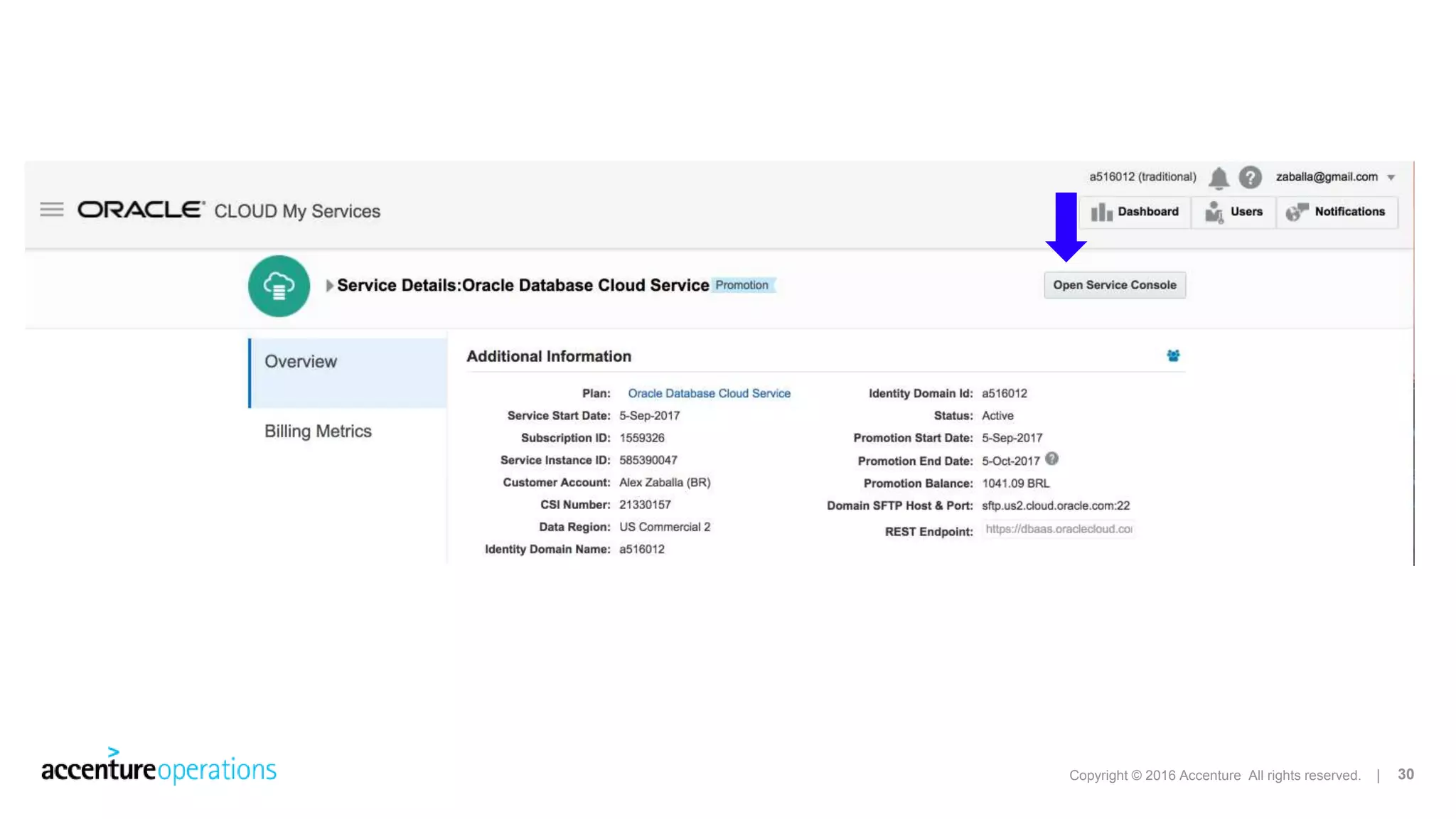

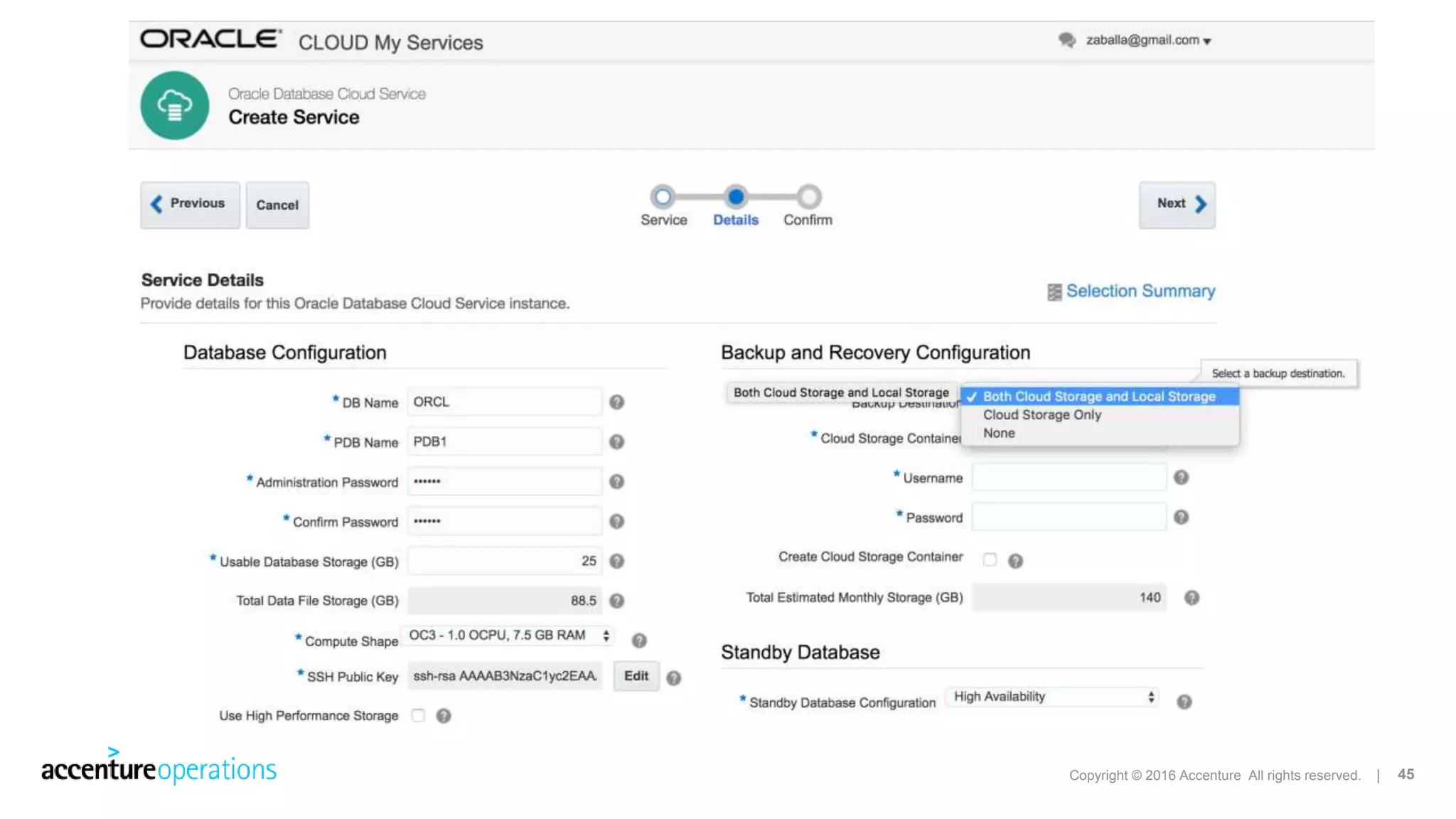

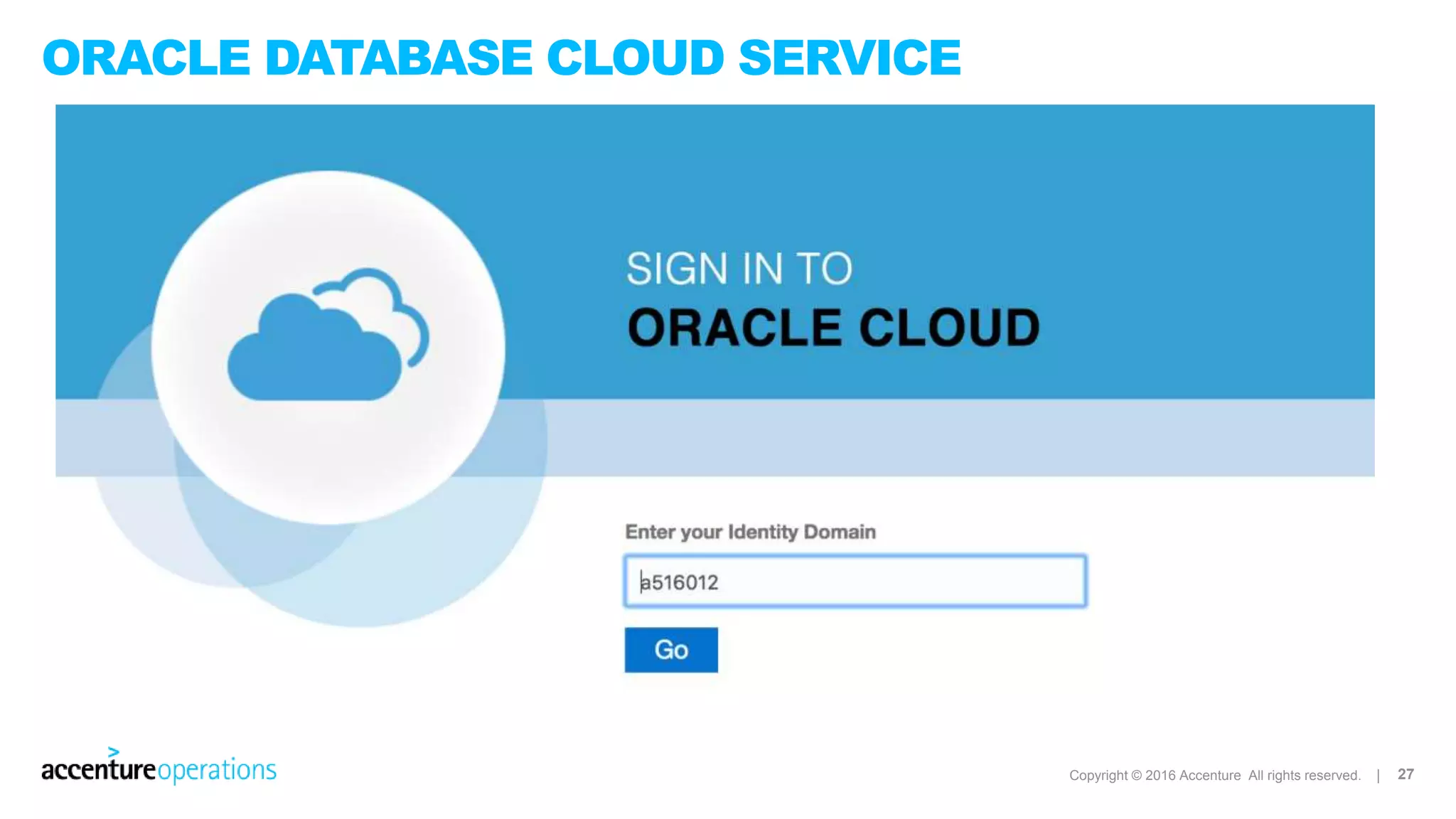

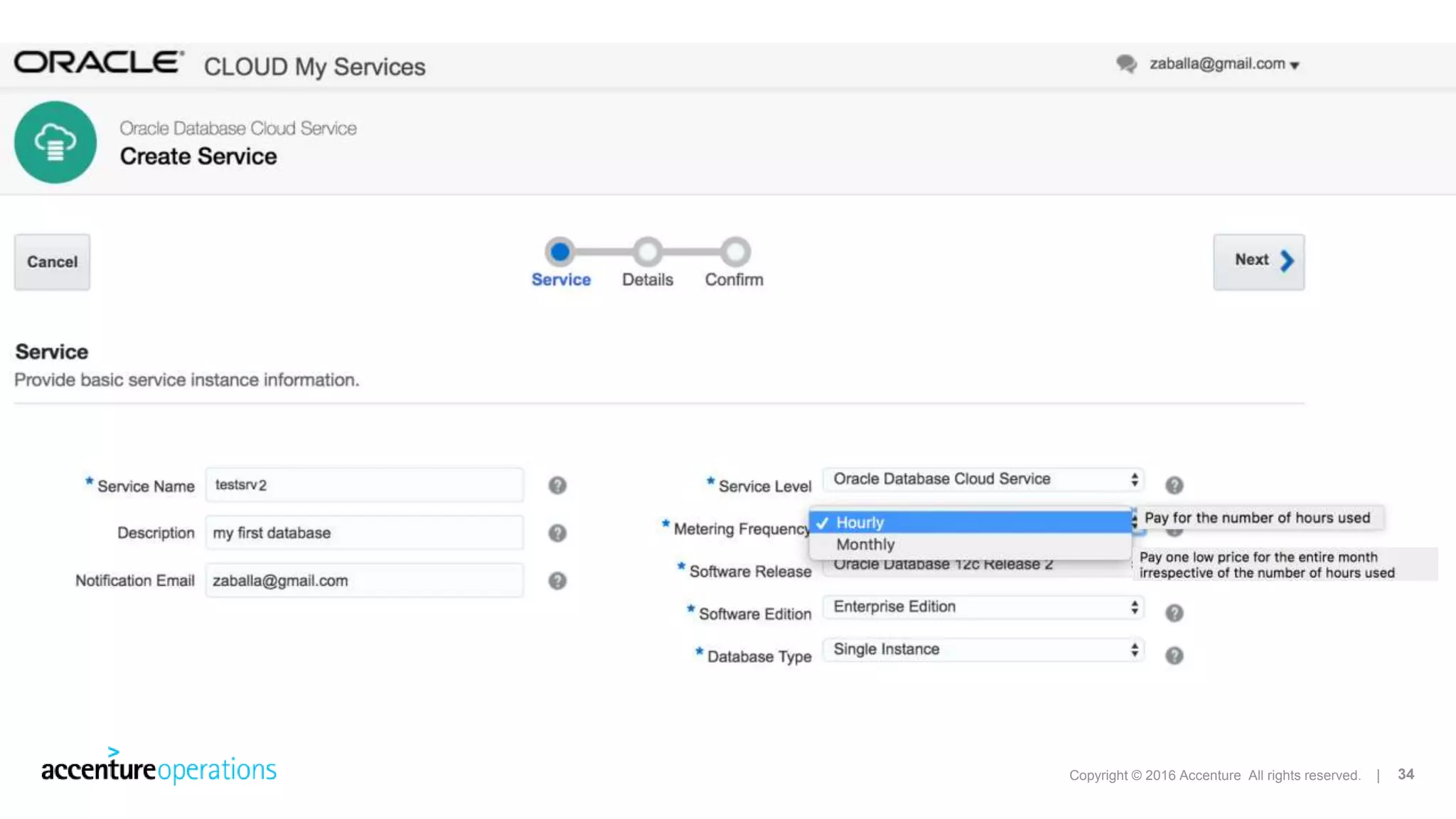

ORACLE DATABASE CLOUD SERVICE
SOFTWARE EDITIONS

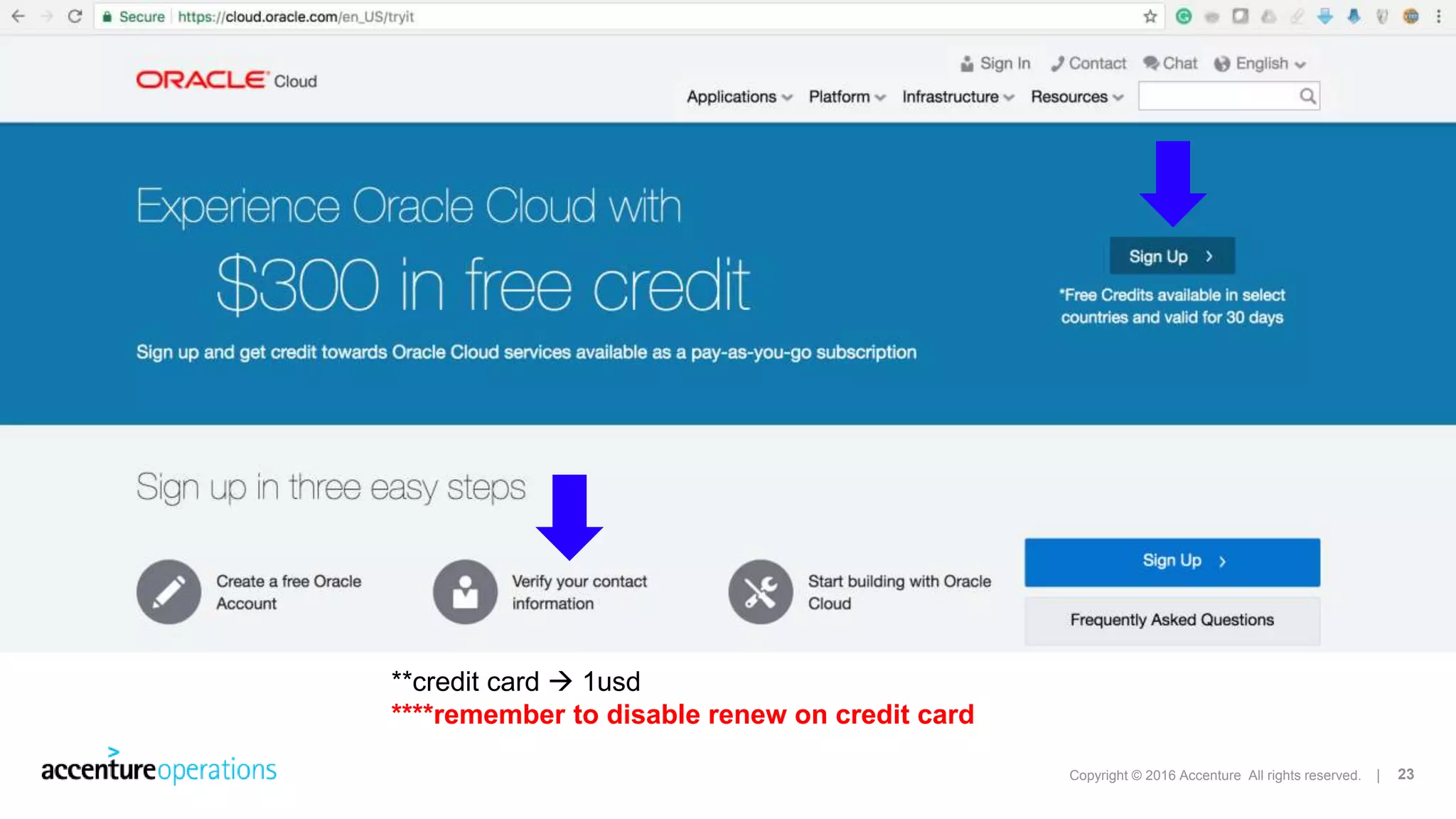

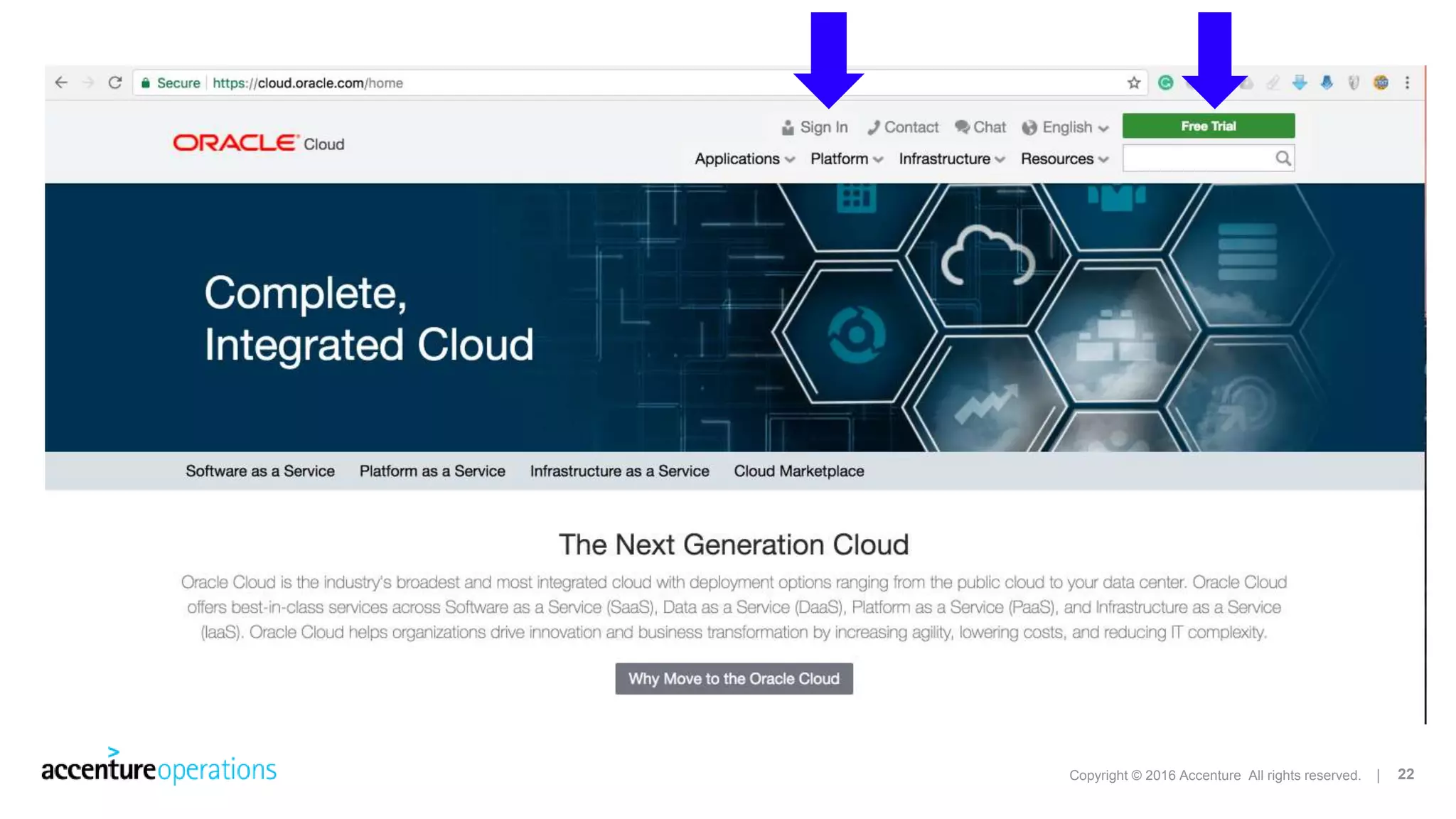

https://cloud.oracle.com/

**credit card  1usd
****remember to disable renew on credit card

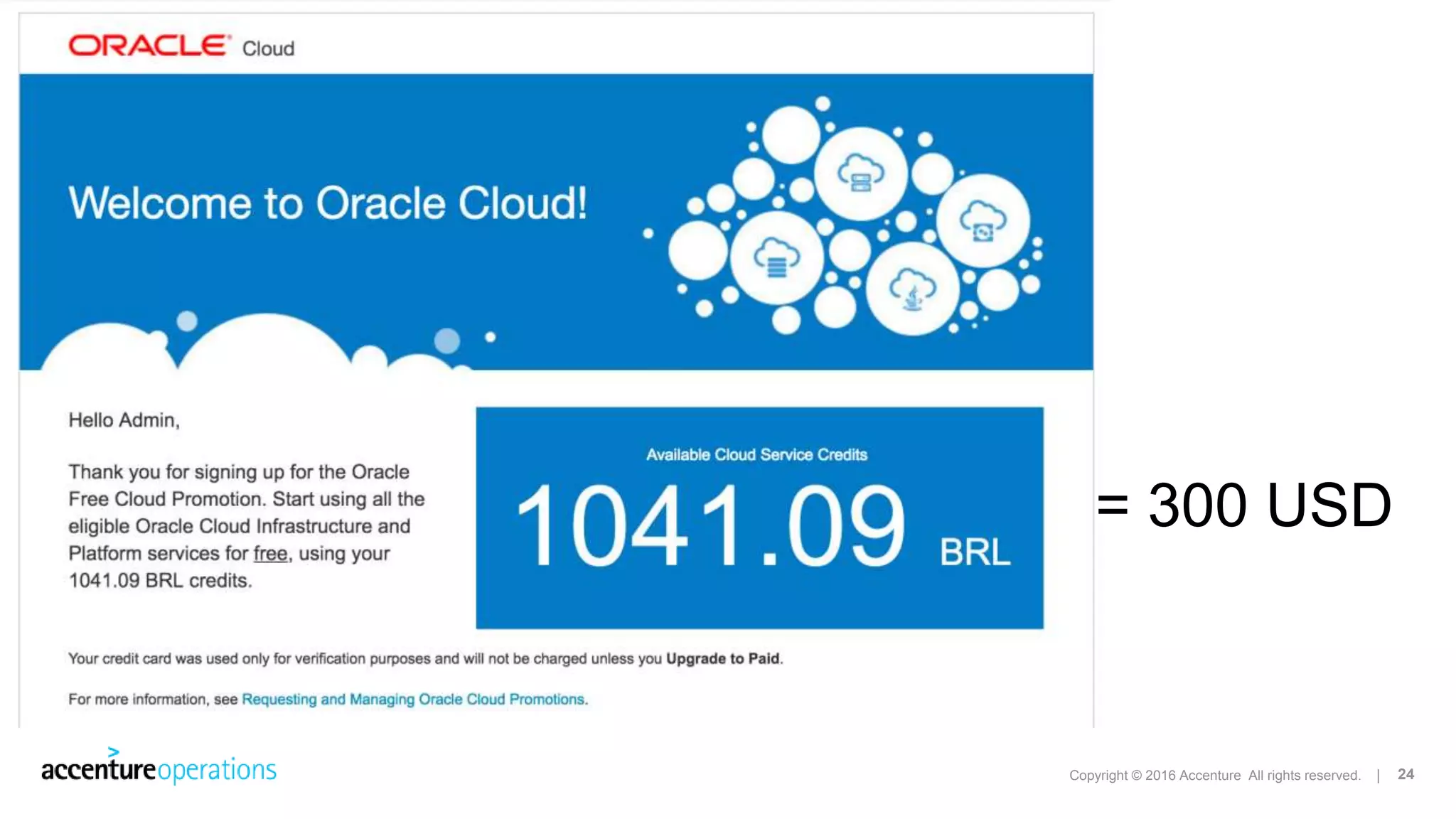

= 300 USD

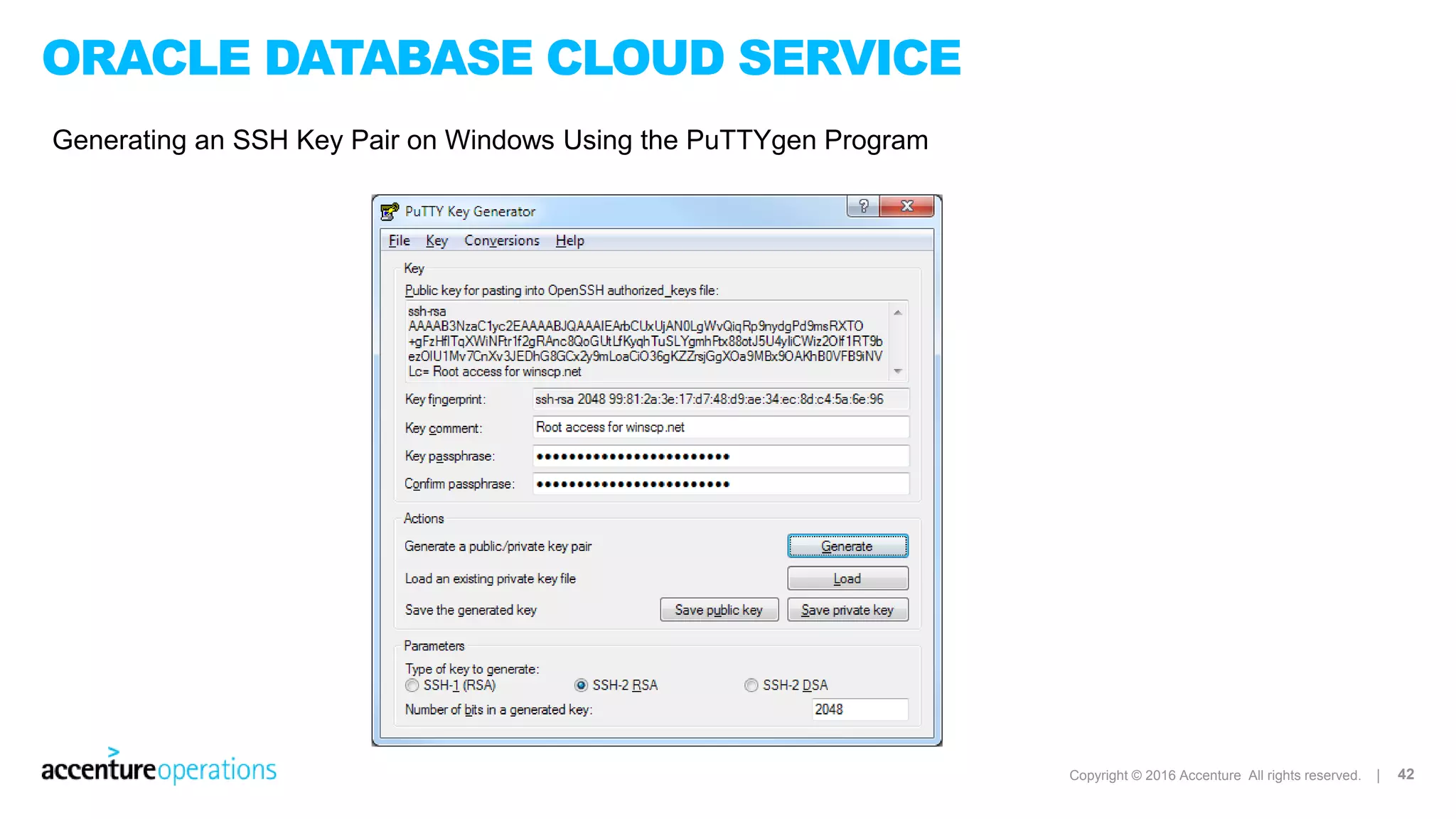

Generating an SSH Key Pair on Windows Using the PuTTYgen Program

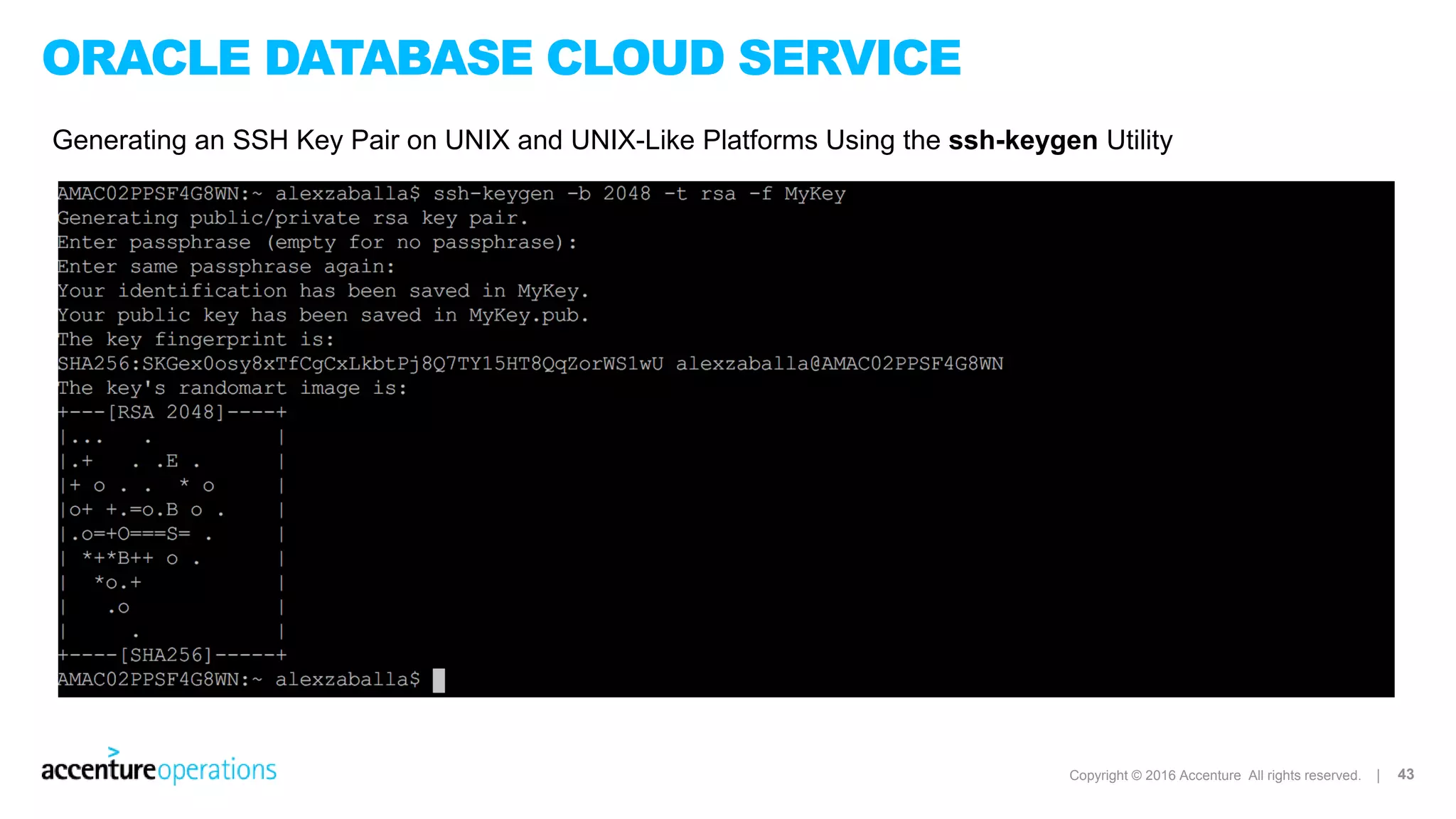

Generating an SSH Key Pair on UNIX and UNIX-Like Platforms Using the ssh-keygen Utility

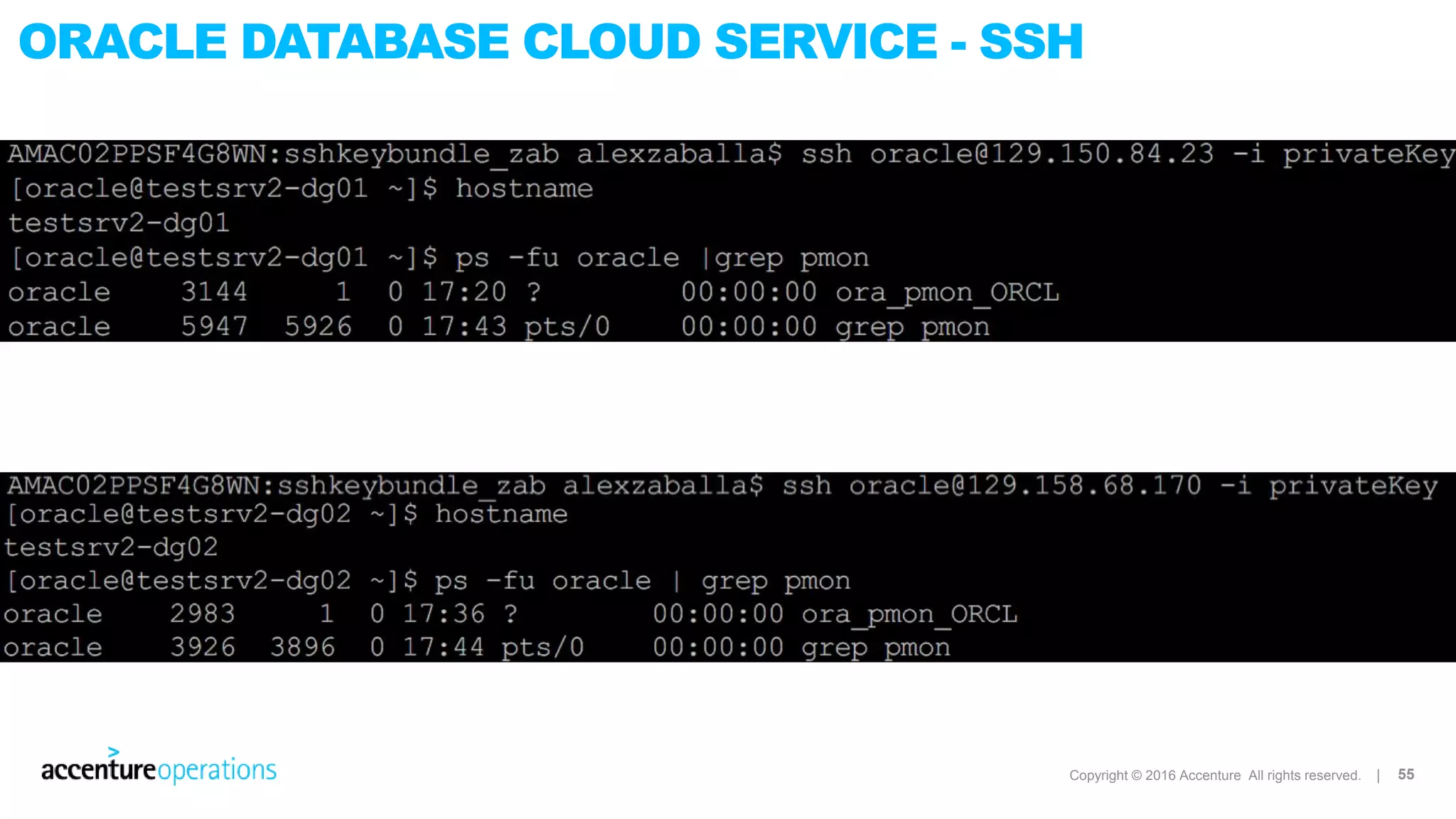

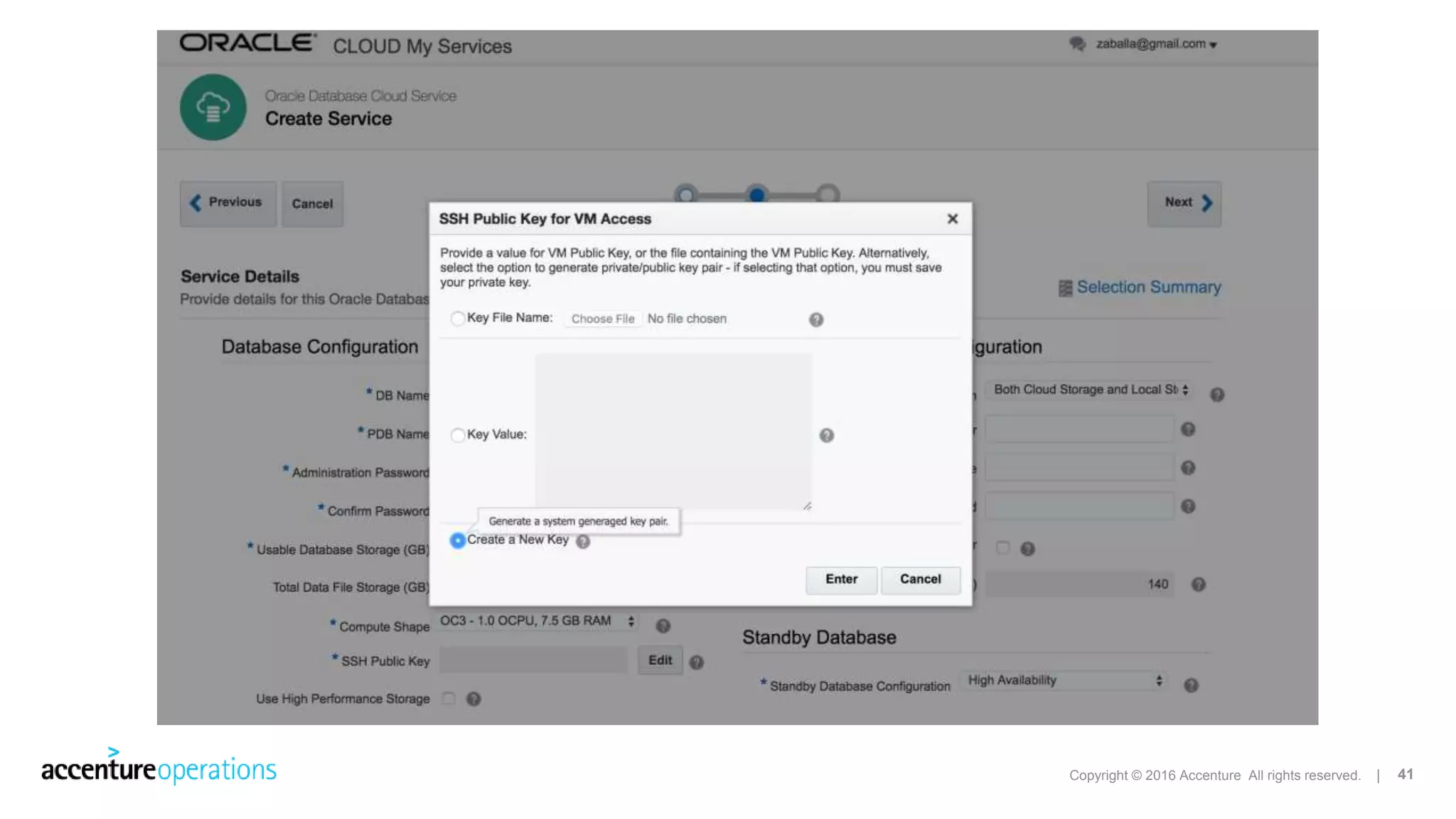

ORACLE DATABASE CLOUD SERVICE - SSH

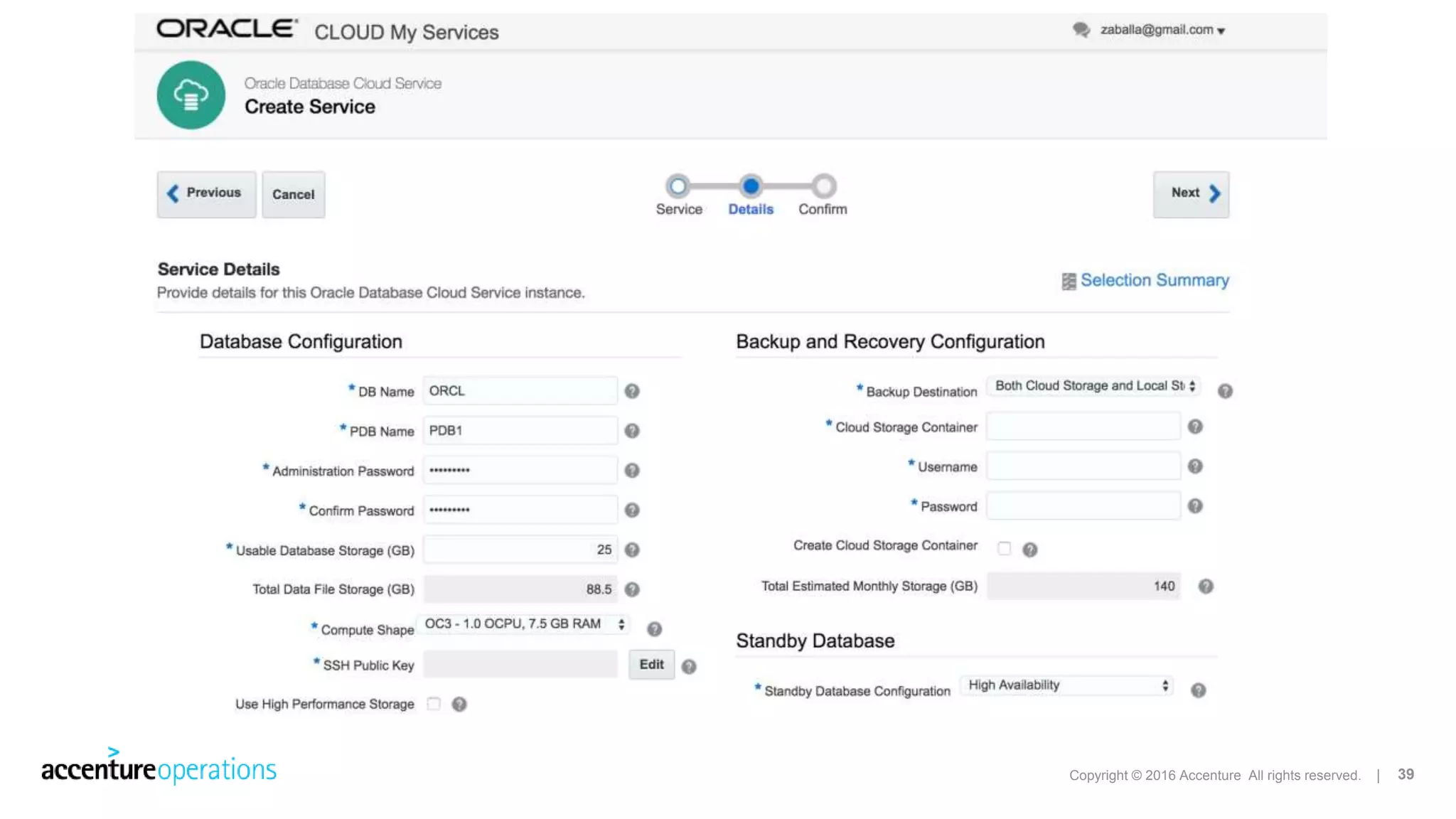

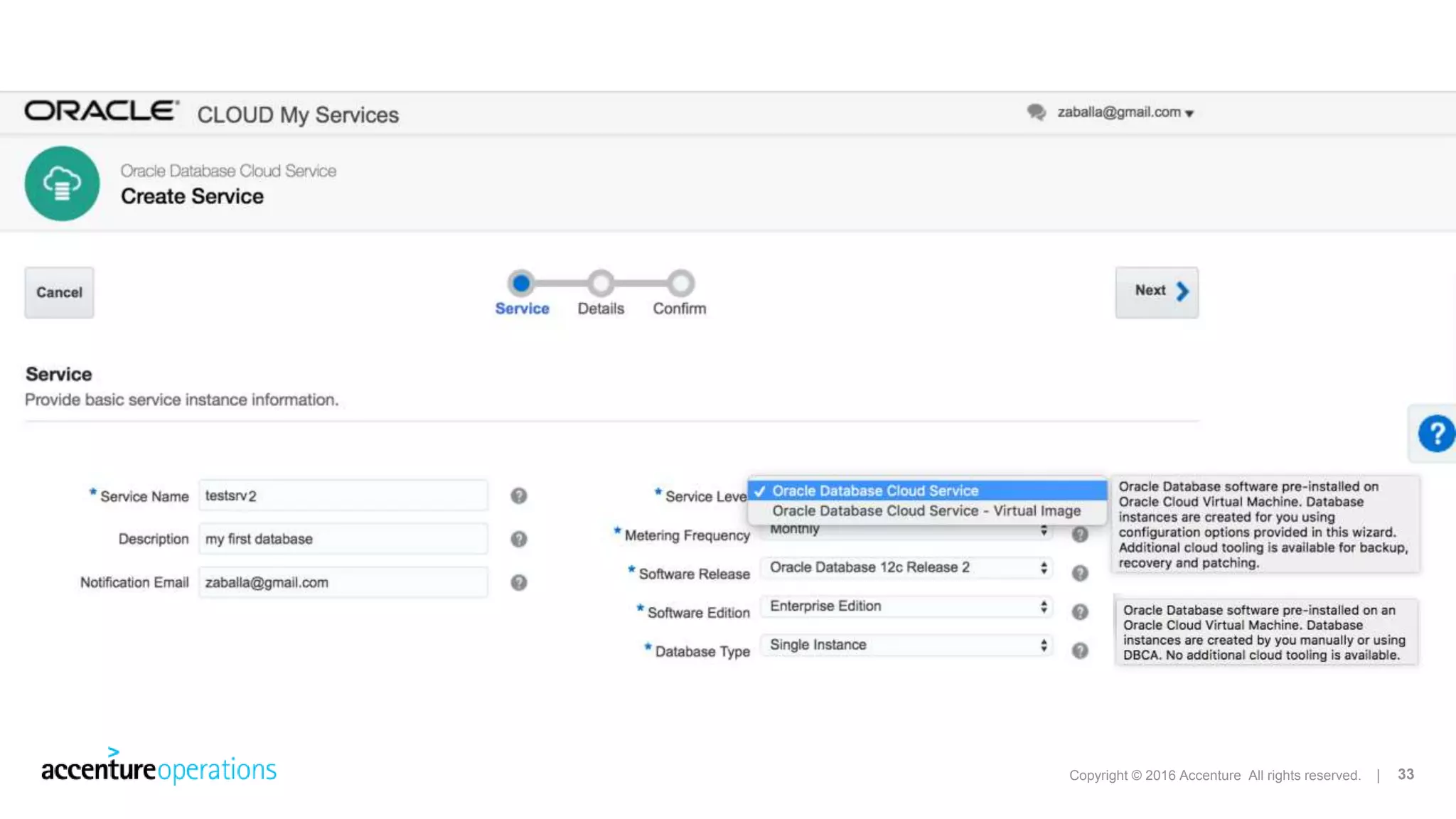

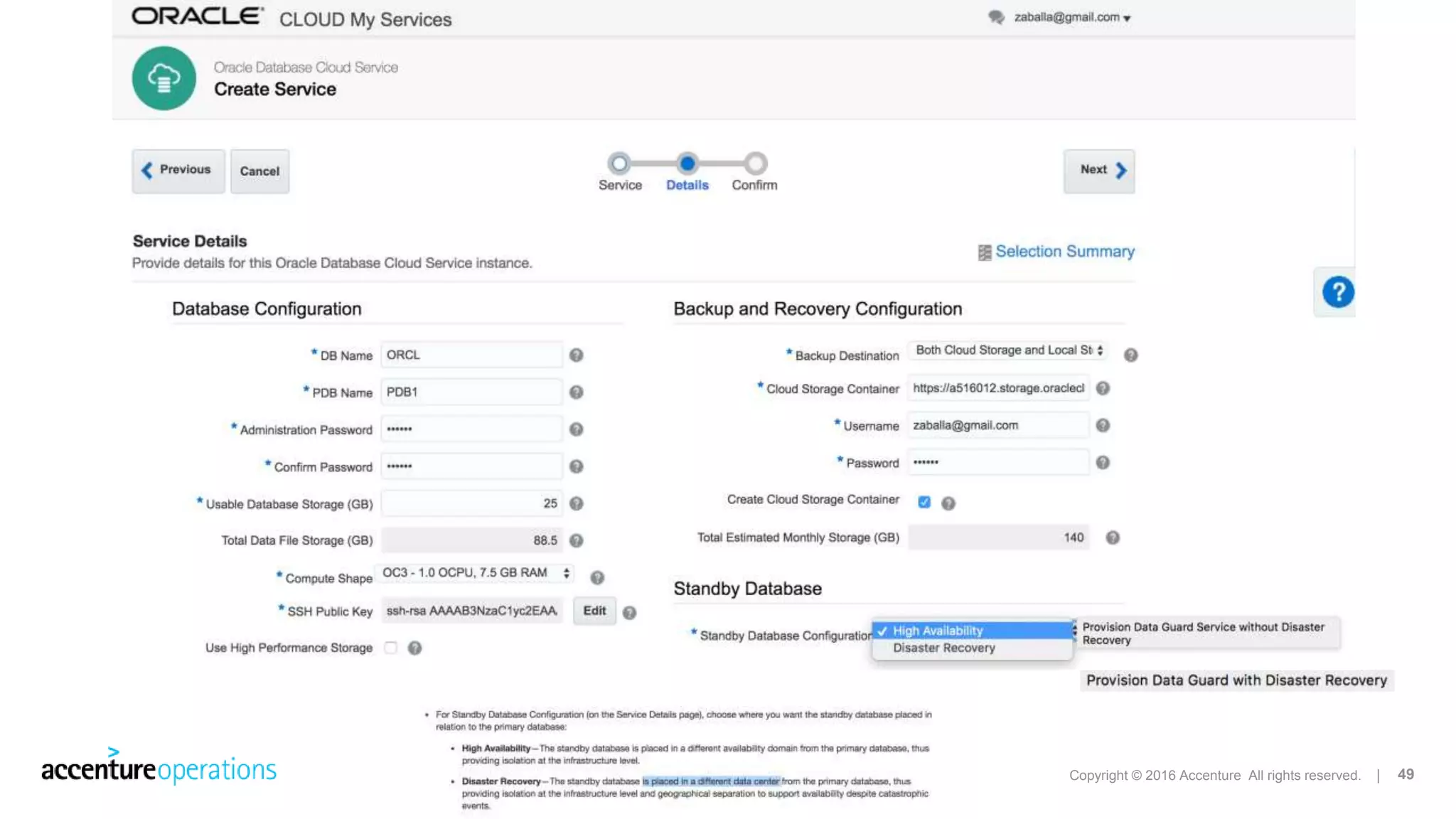

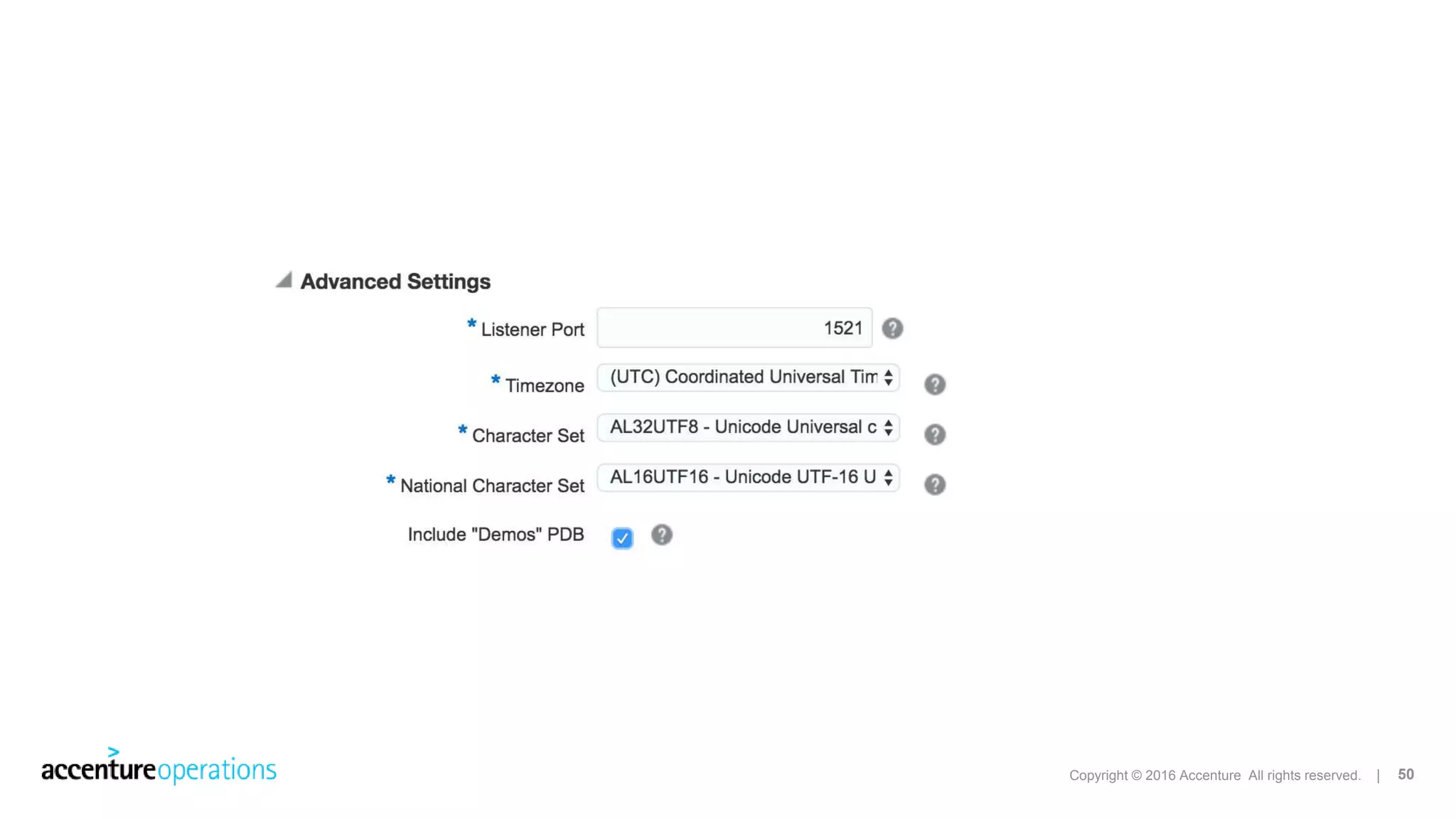

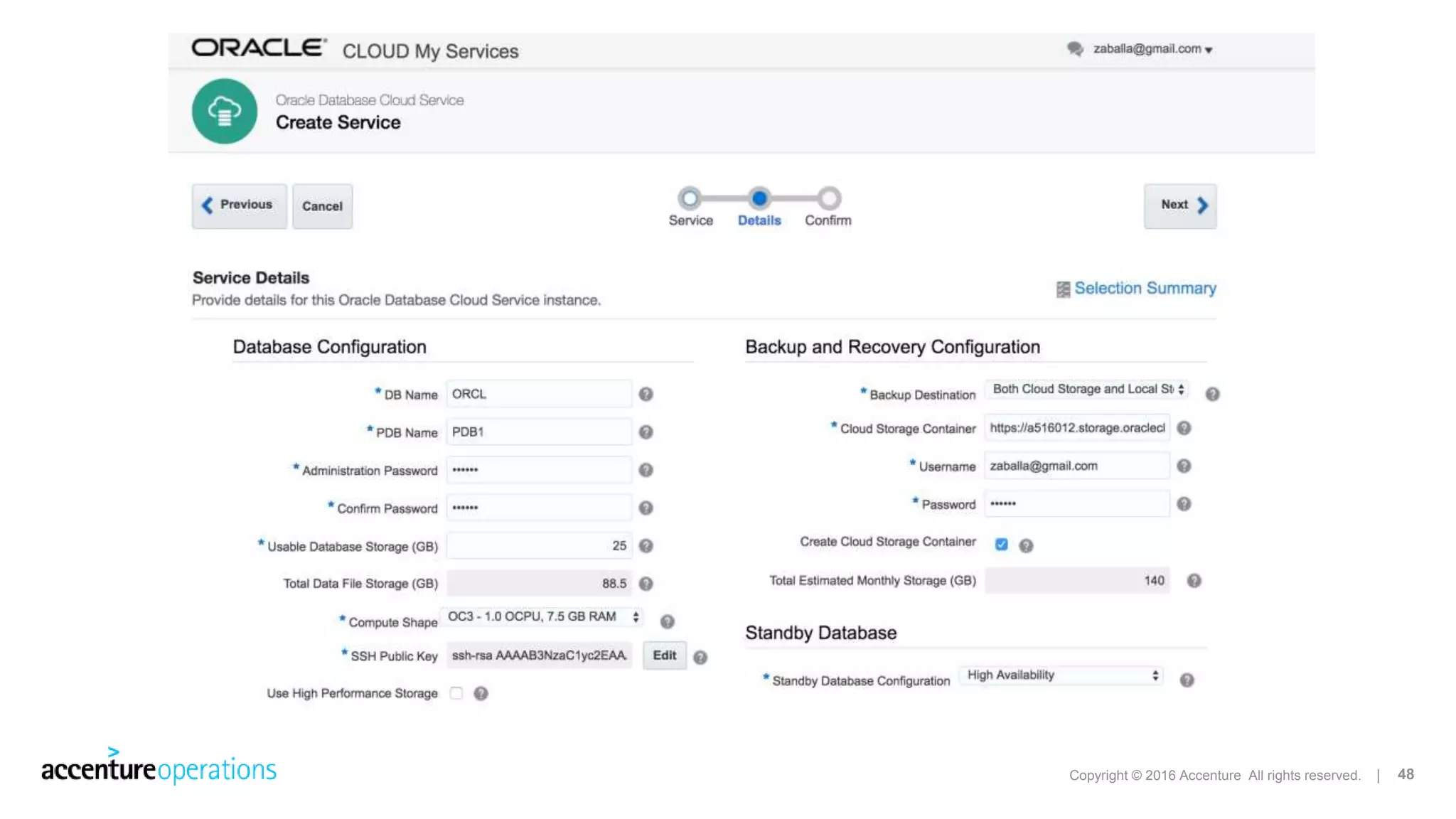

ORACLE DATABASE CLOUD SERVICE - DB

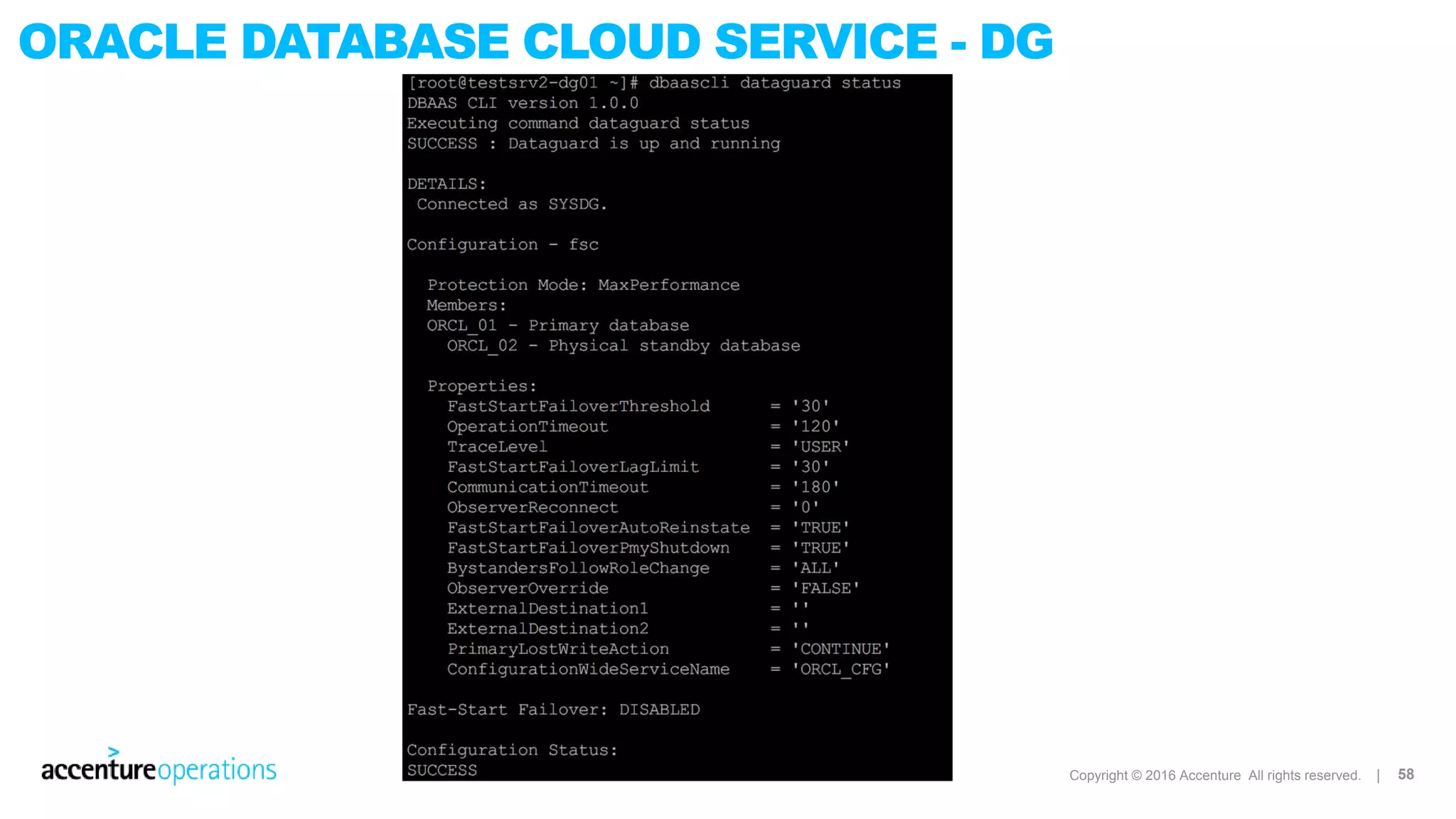

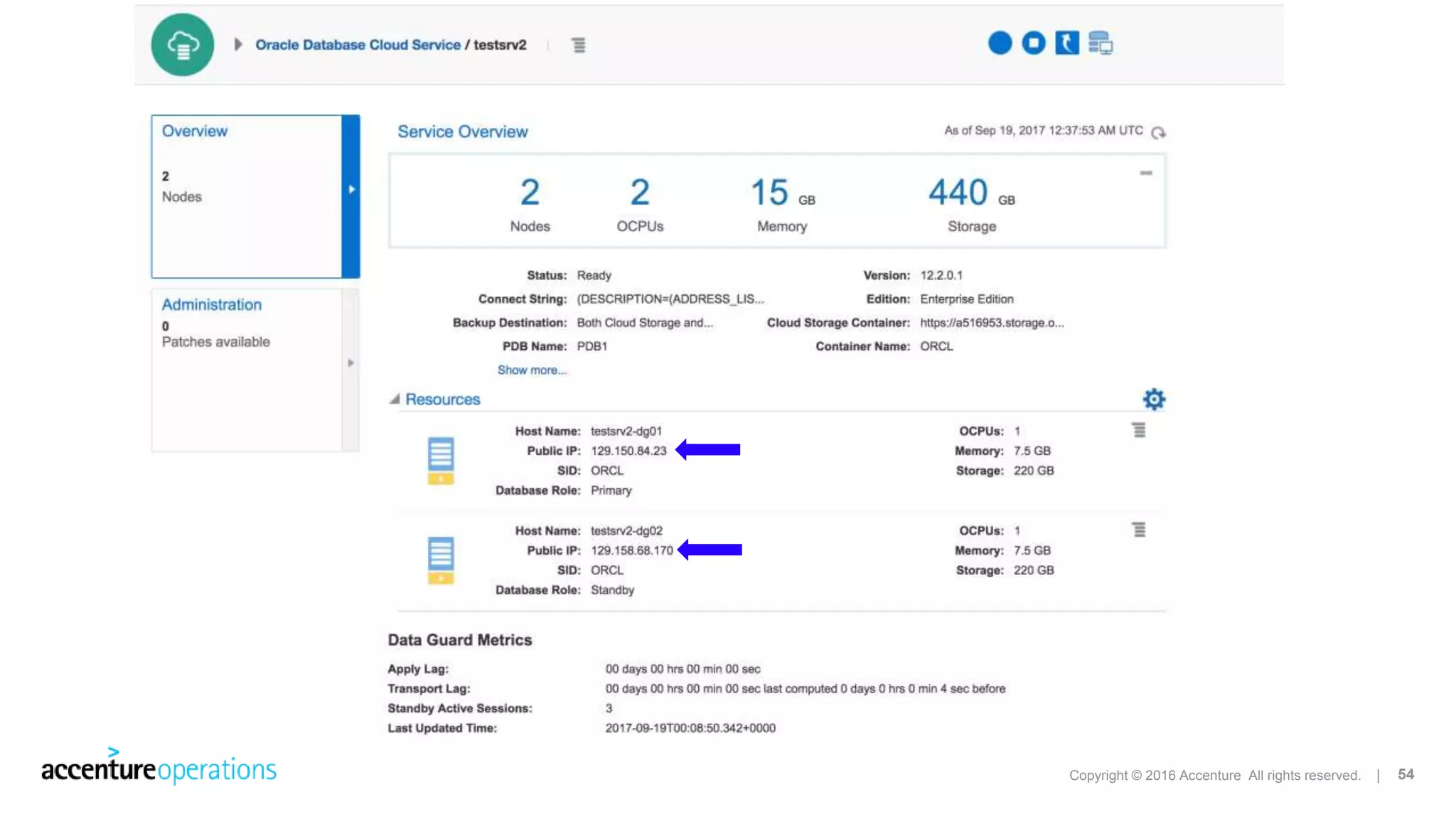

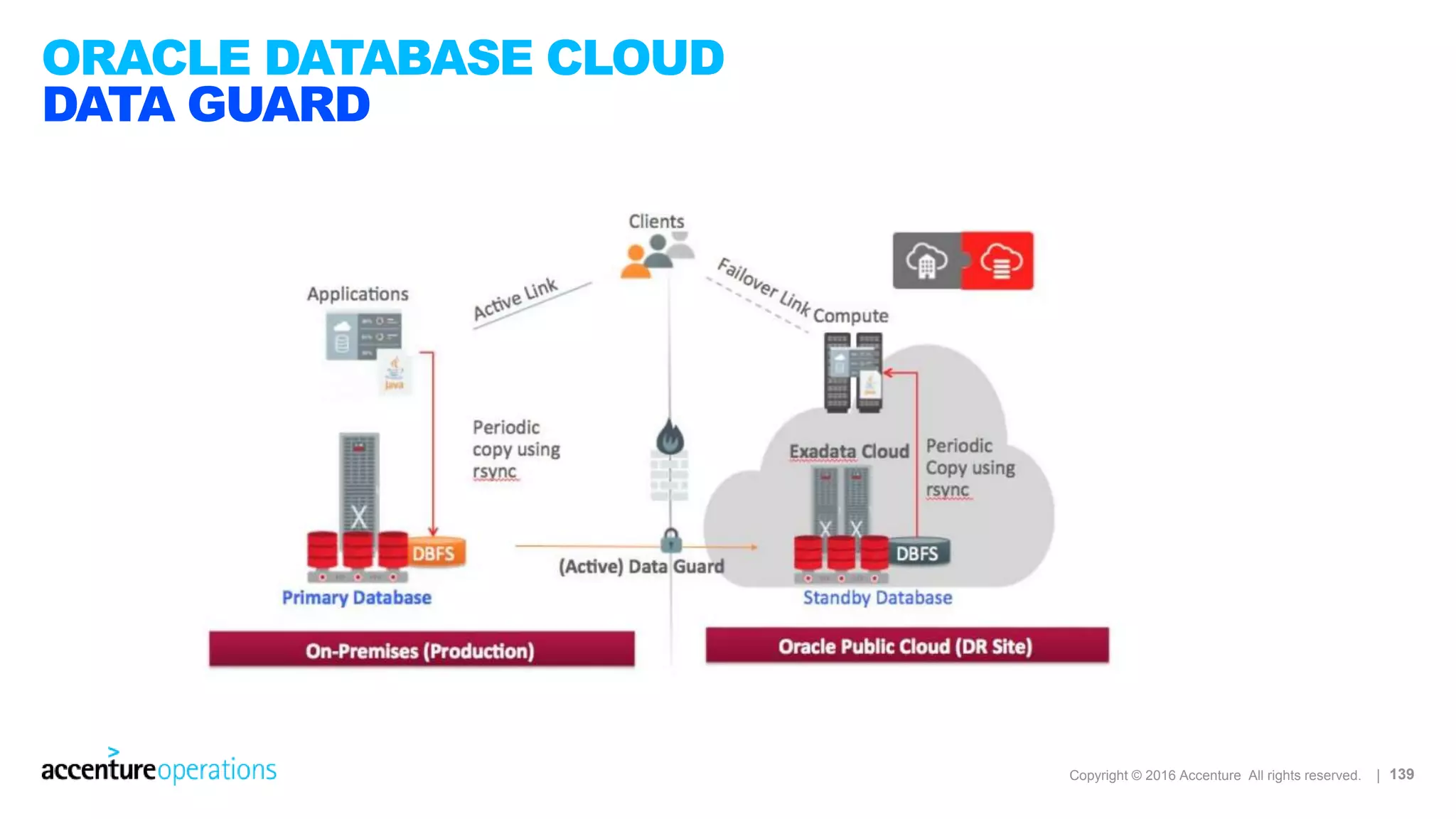

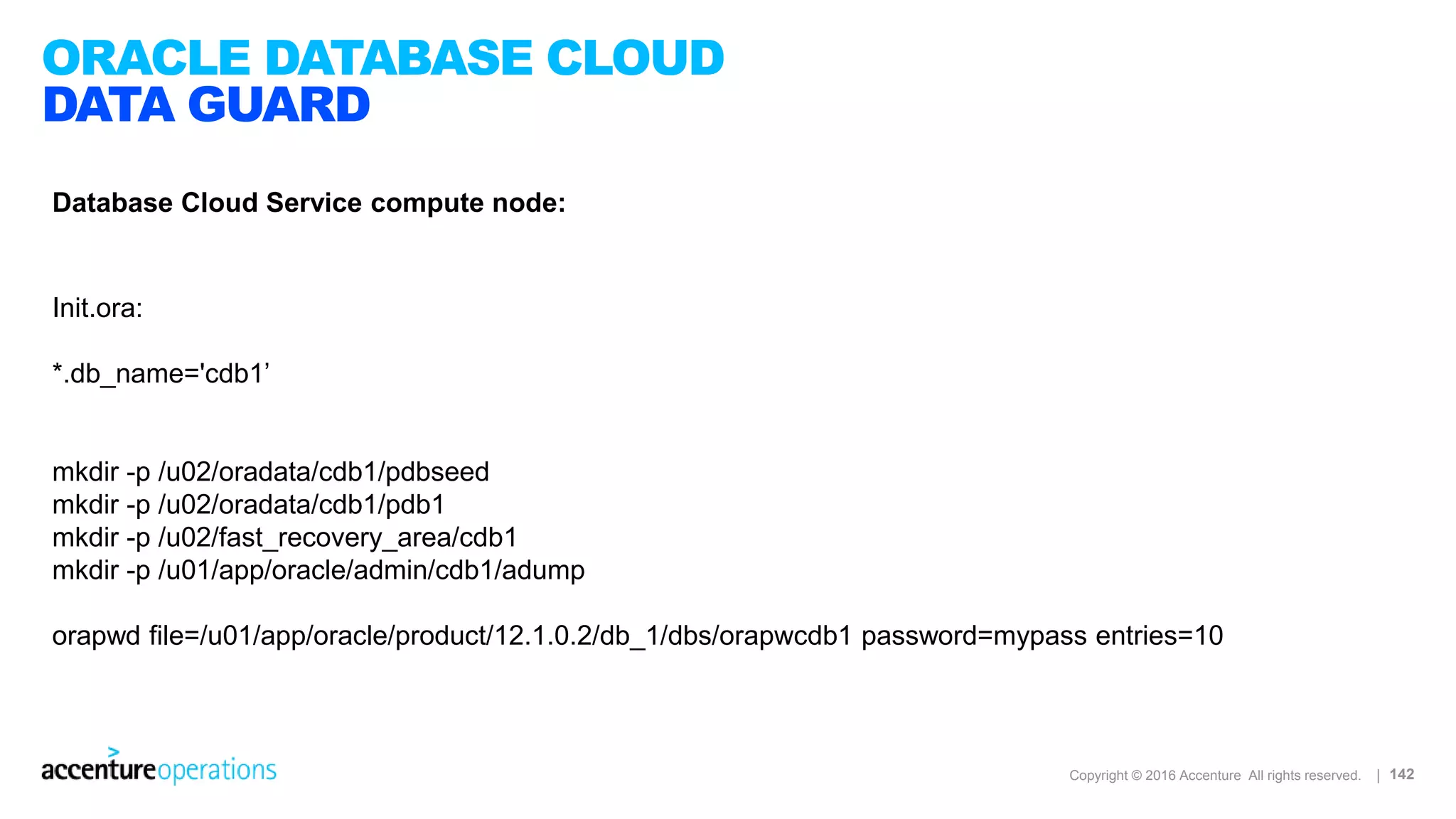

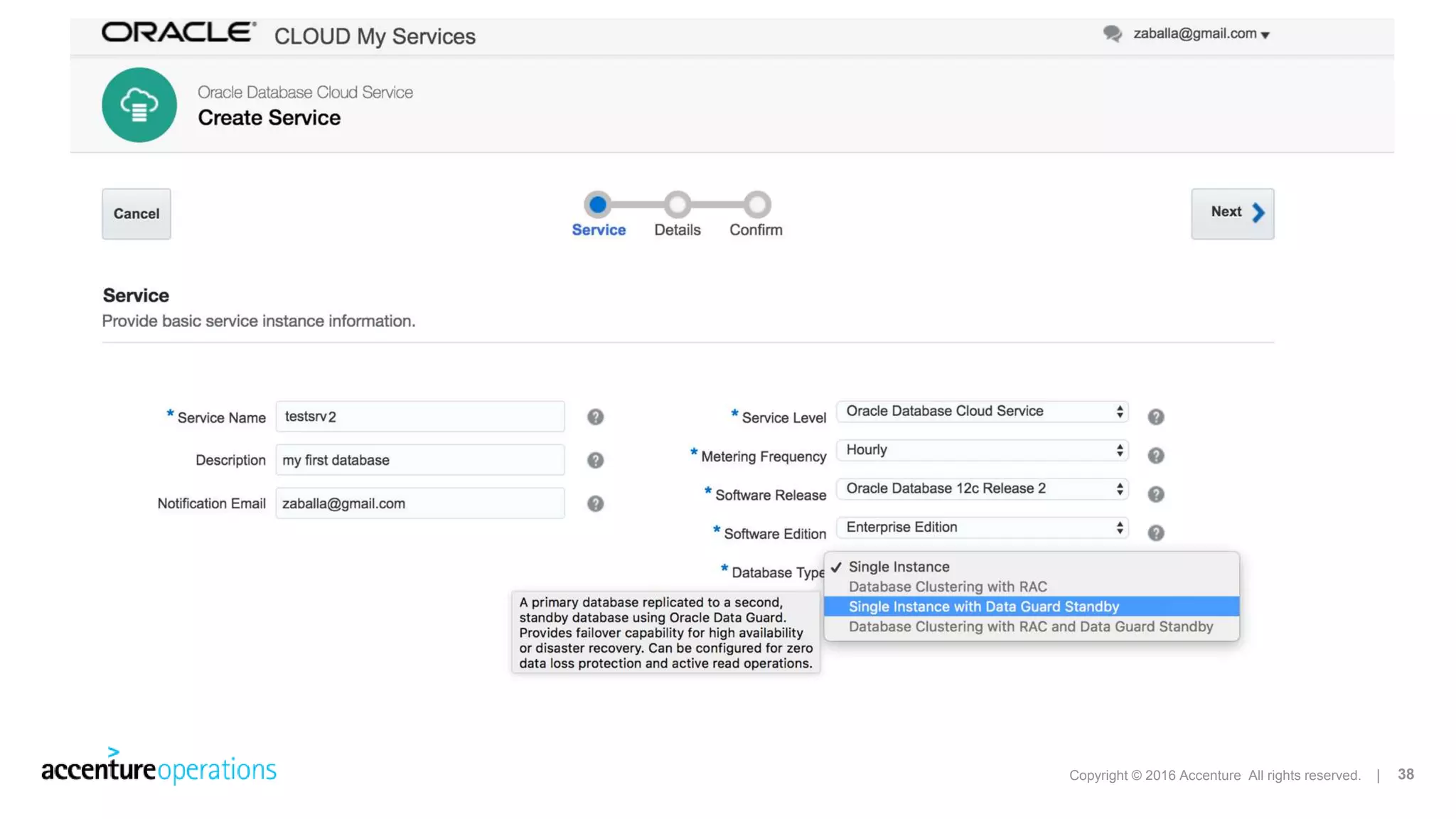

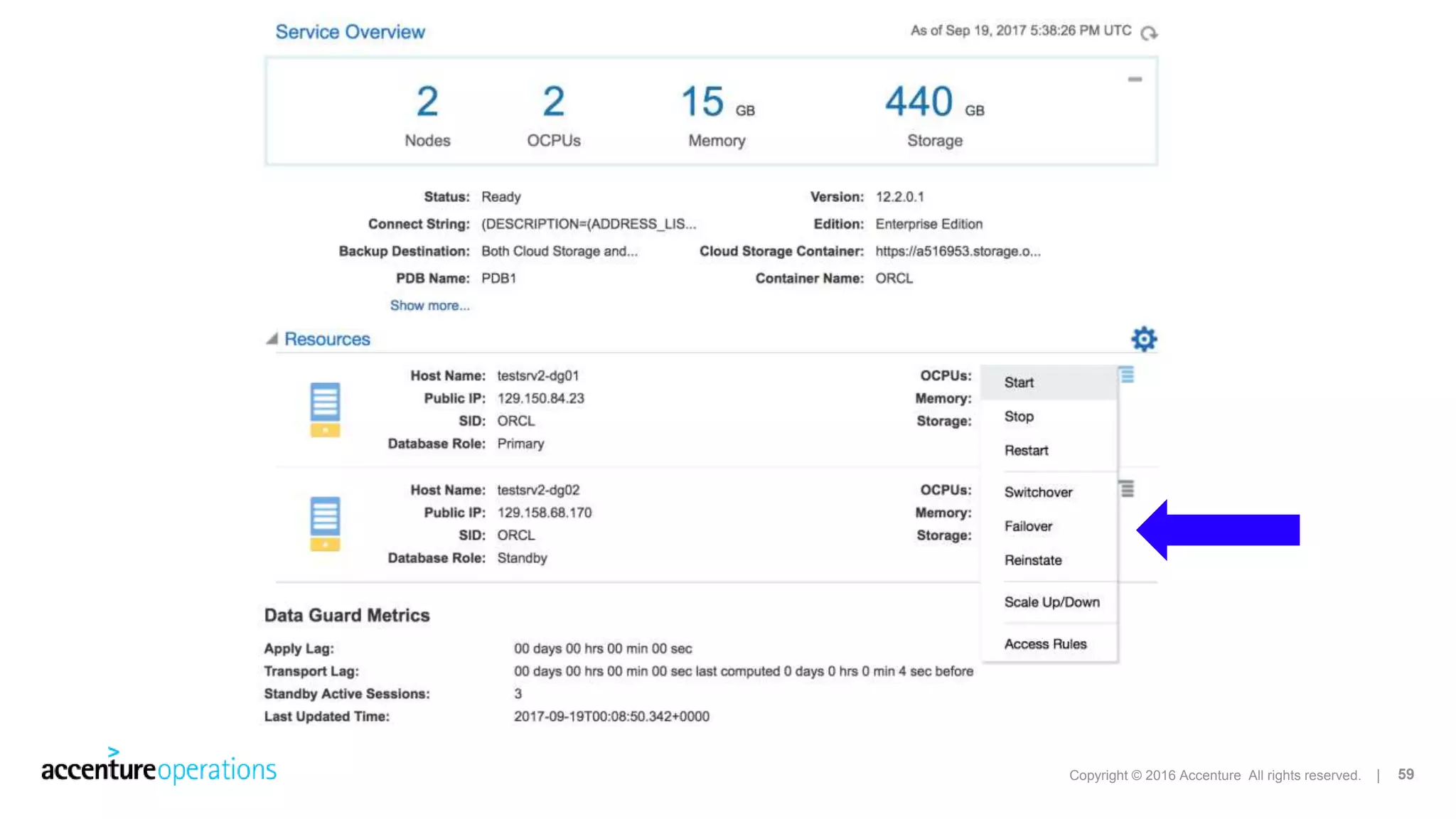

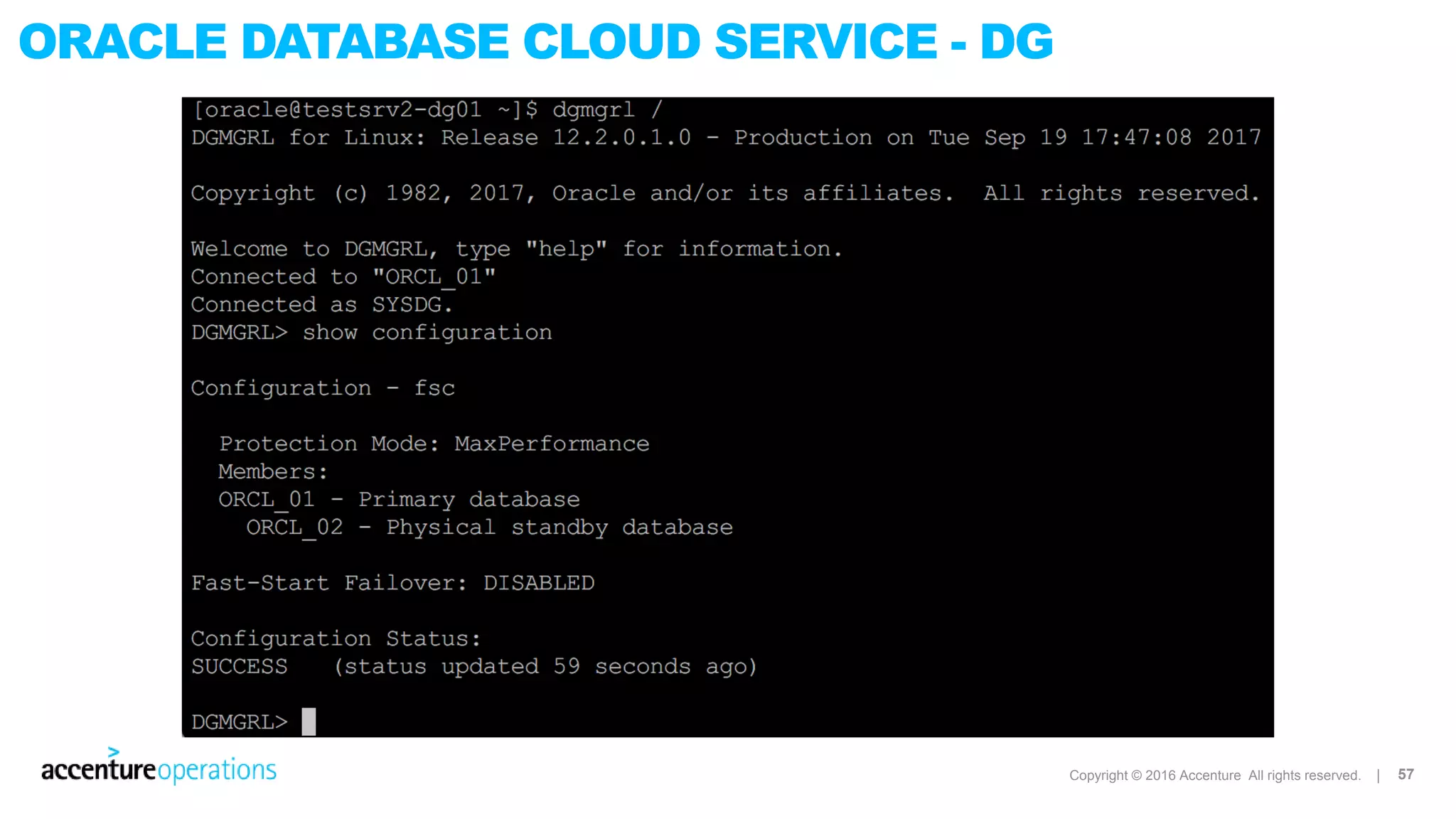

ORACLE DATABASE CLOUD SERVICE - DG

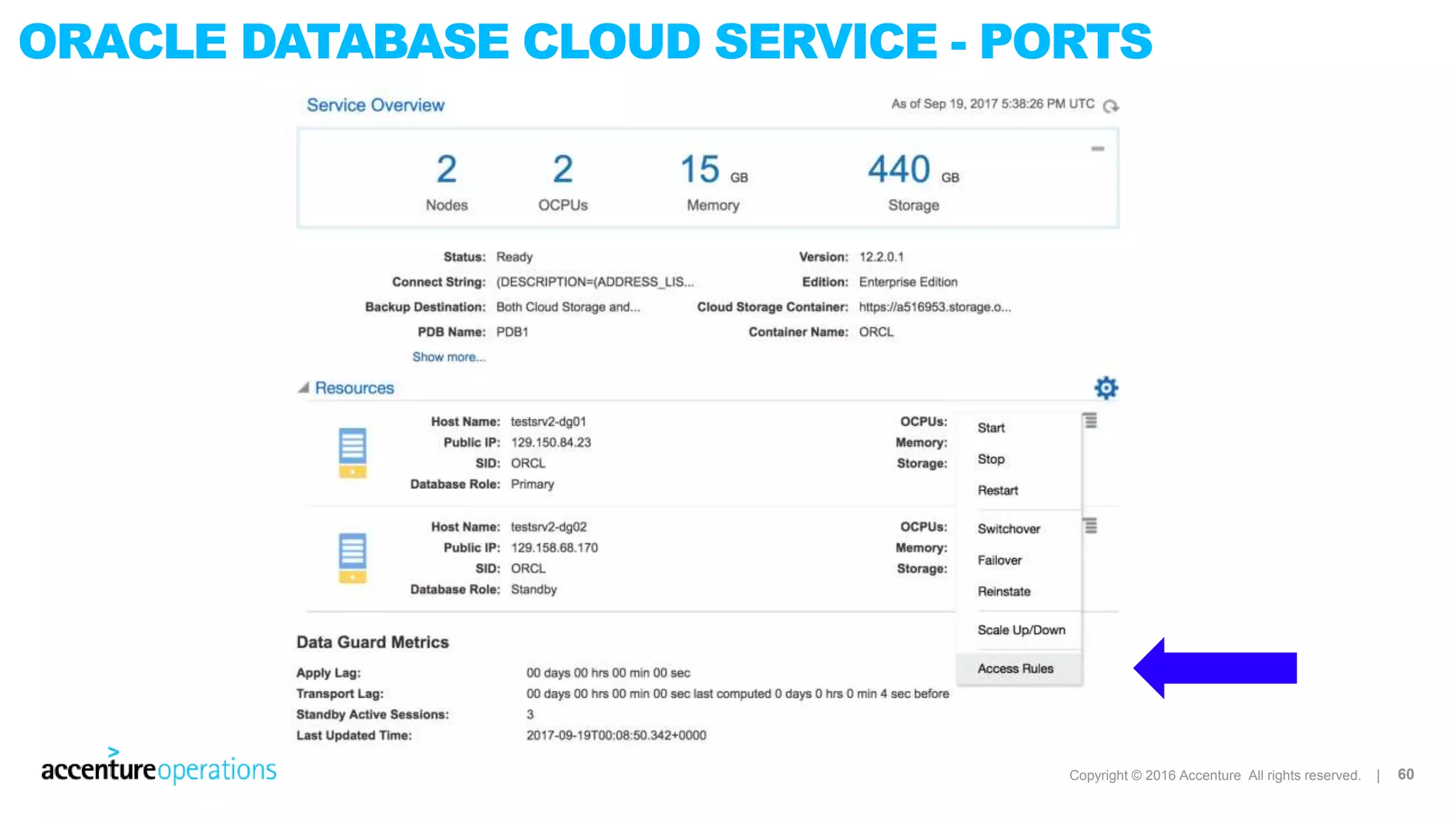

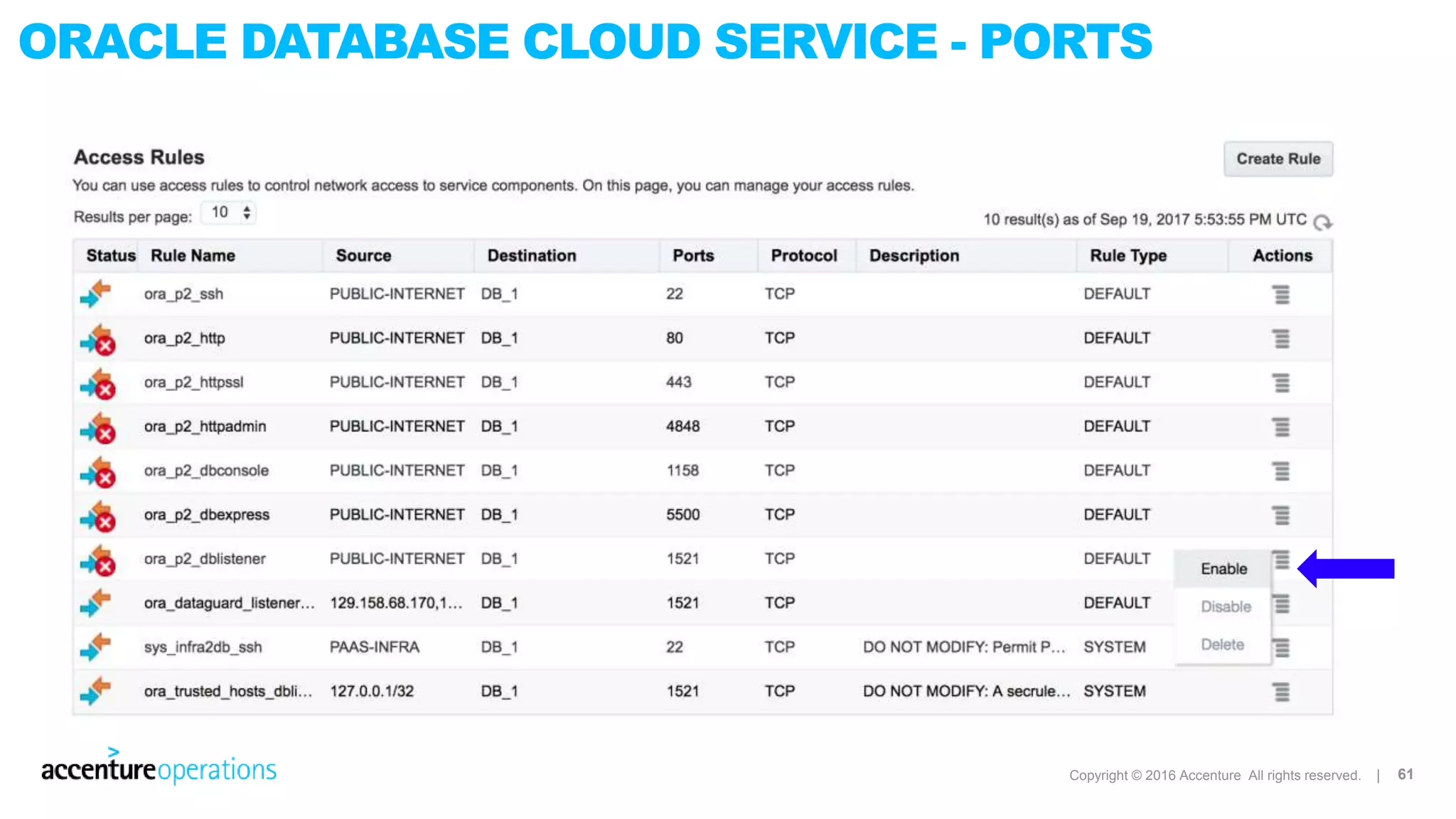

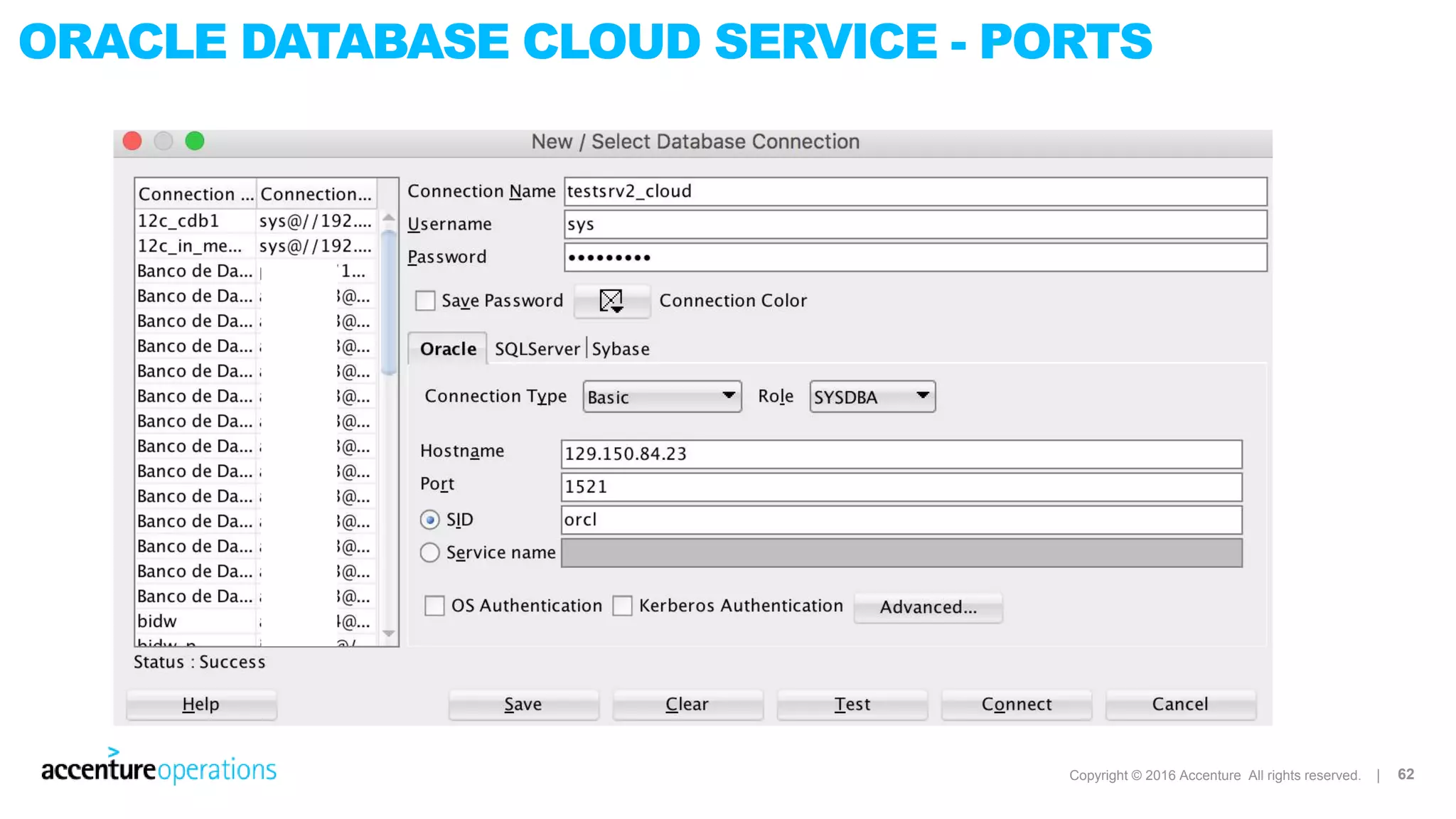

ORACLE DATABASE CLOUD SERVICE - PORTS

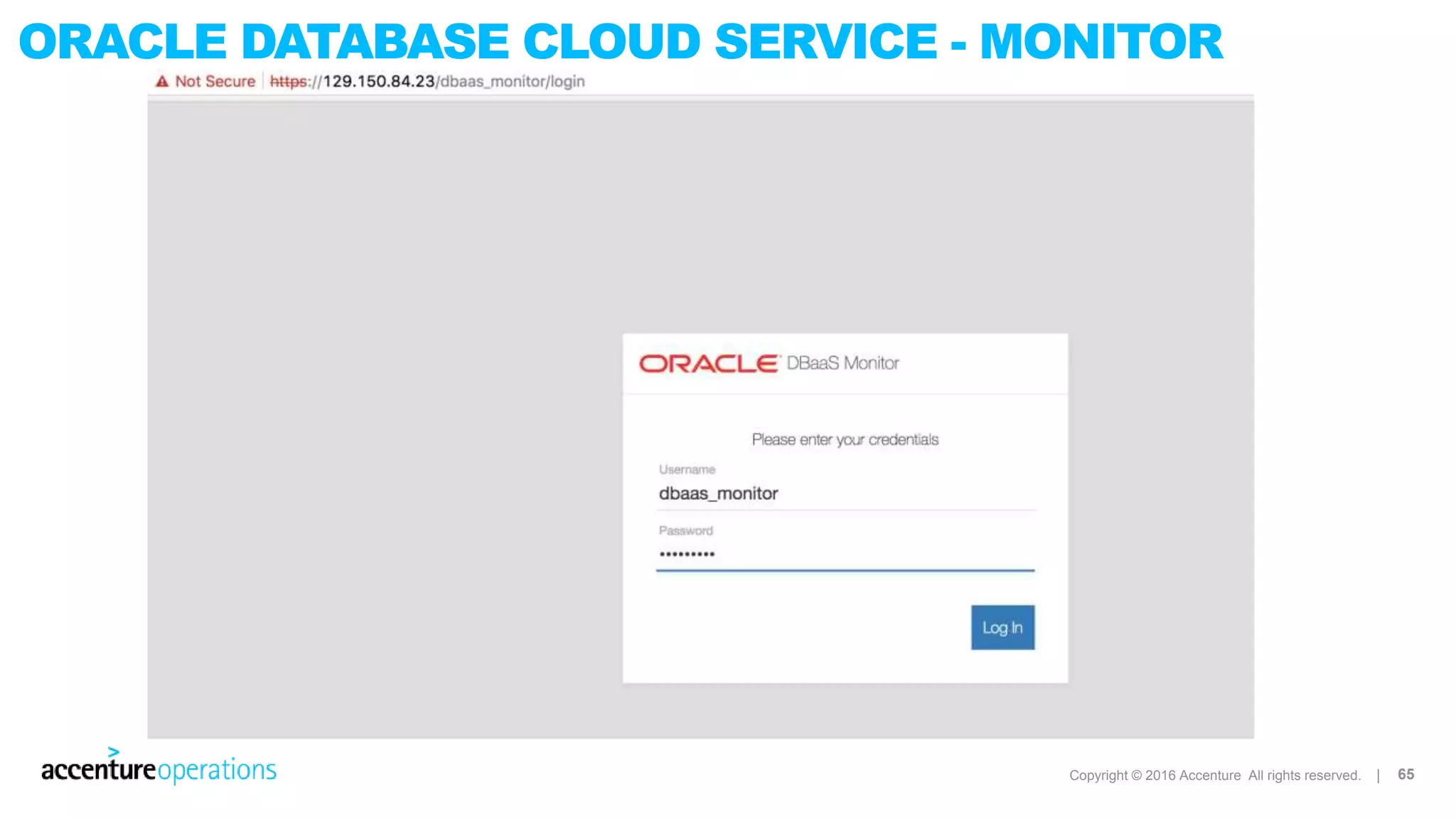

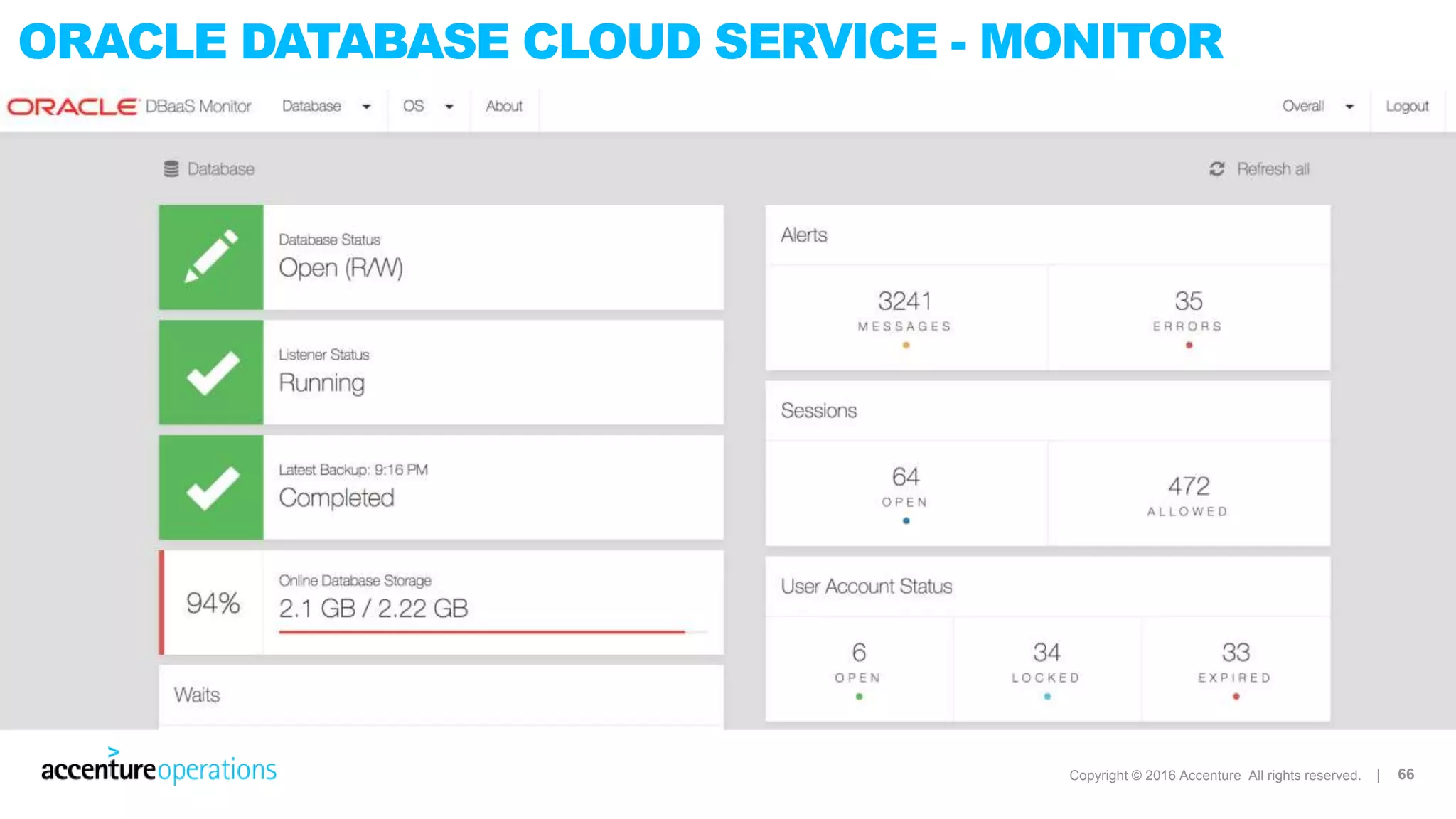

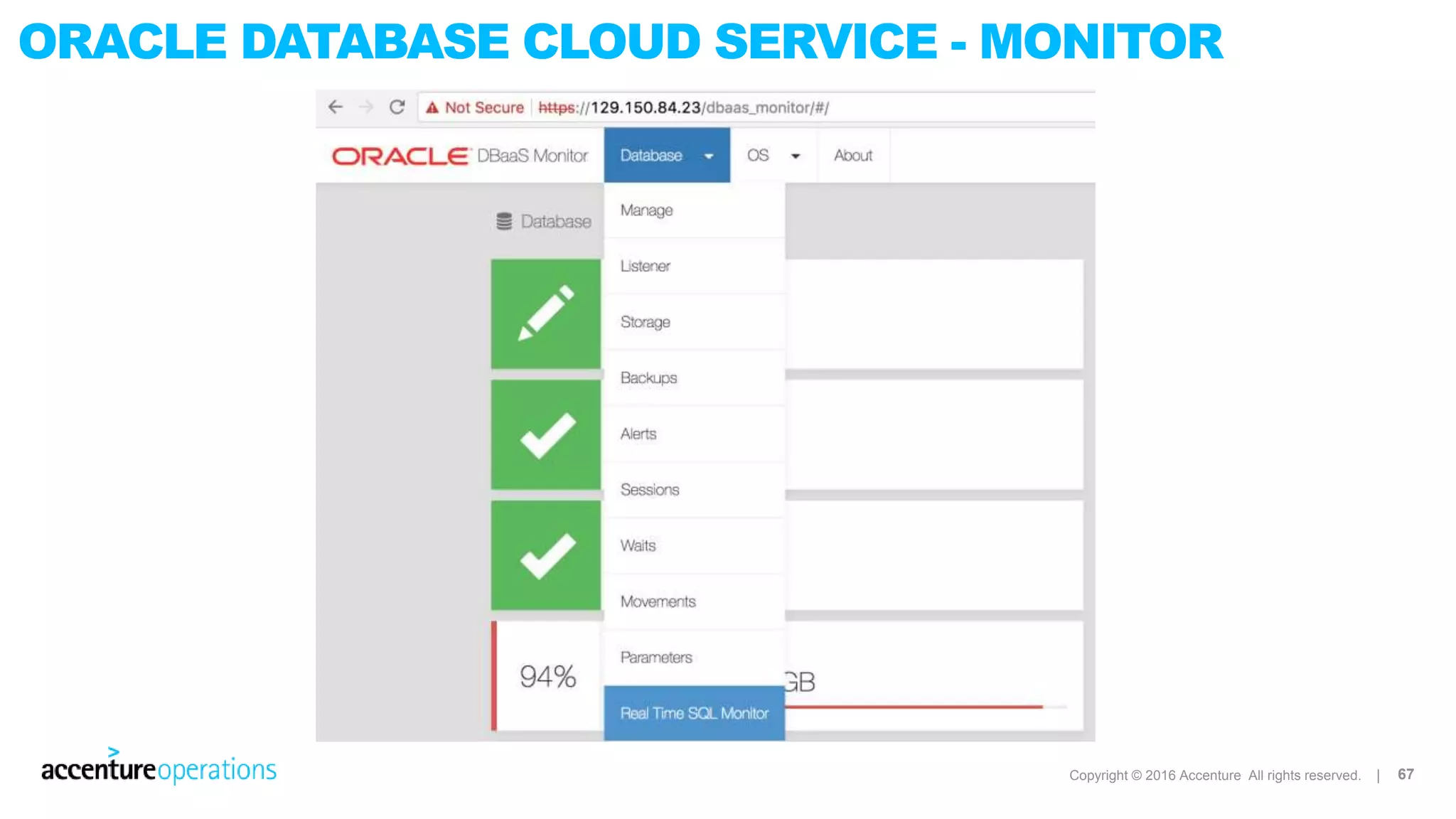

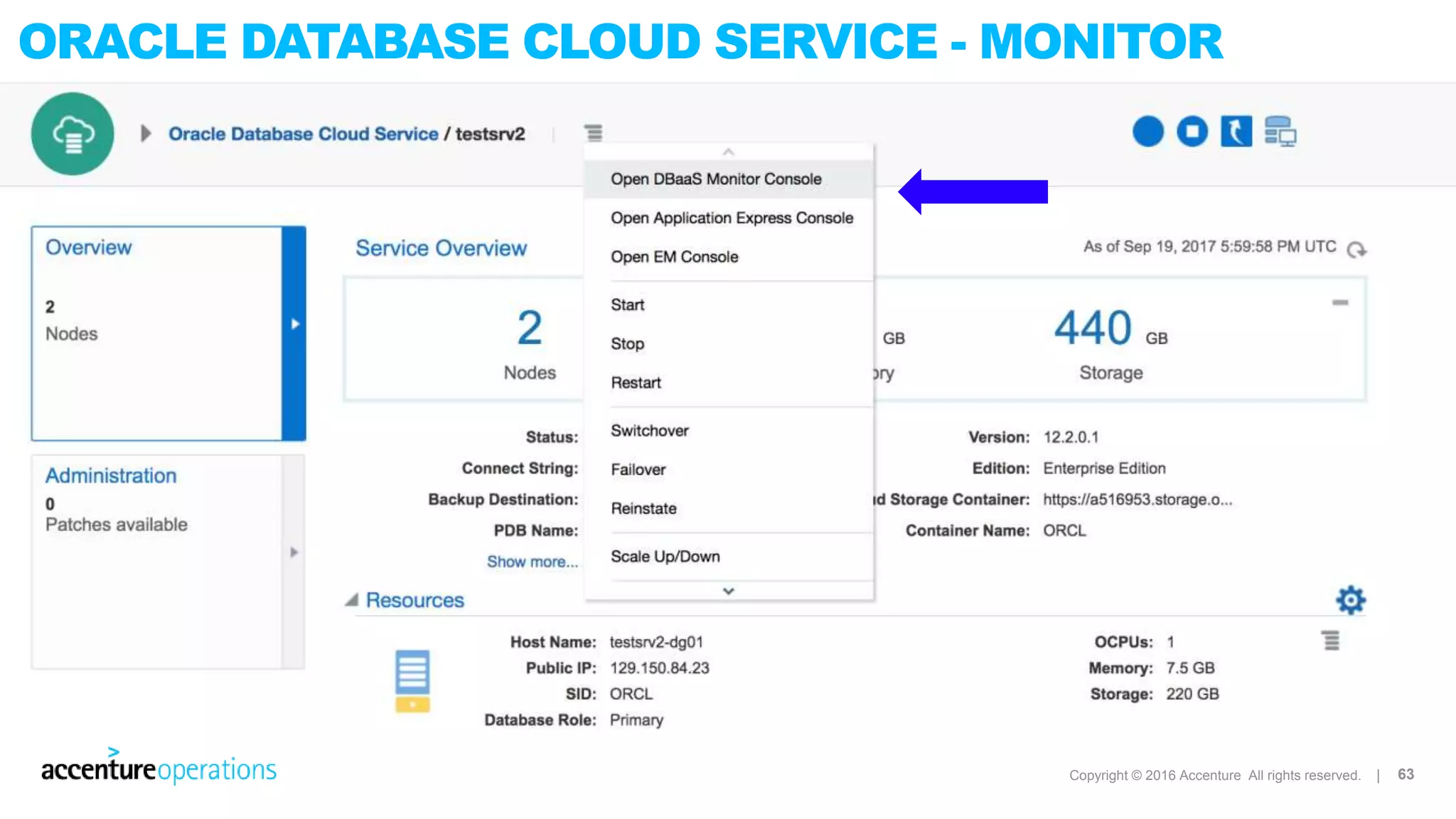

ORACLE DATABASE CLOUD SERVICE - MONITOR

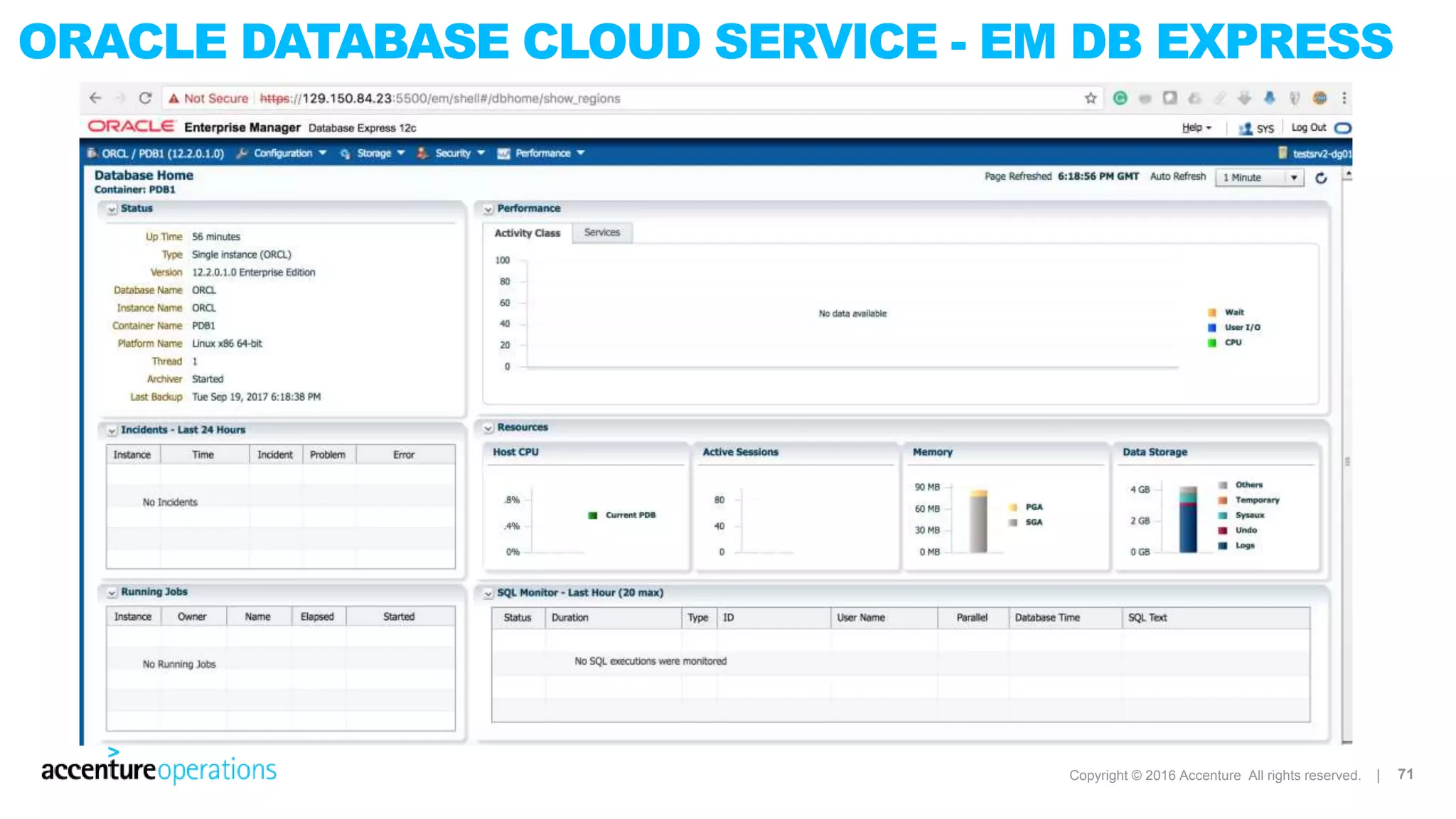

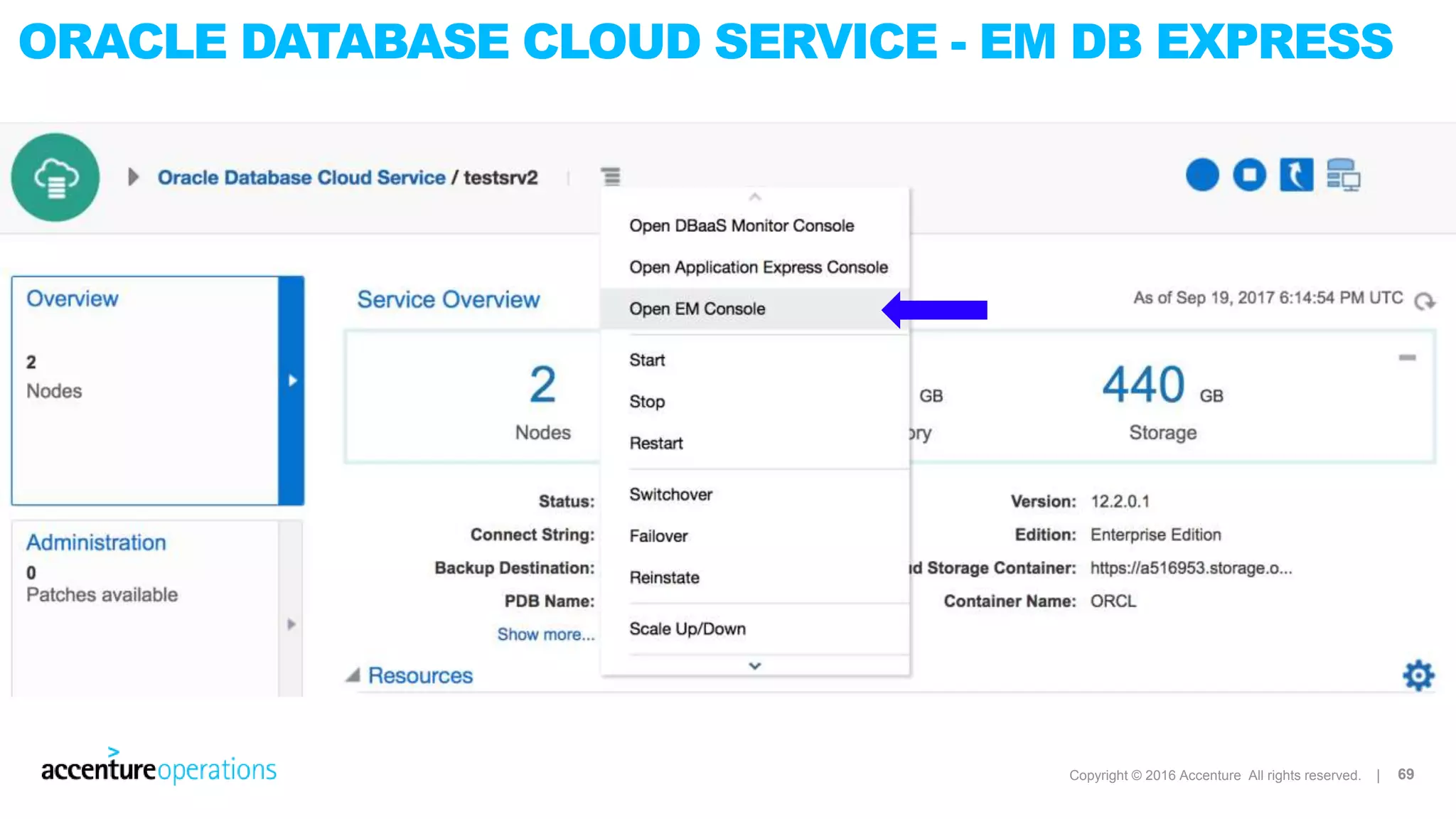

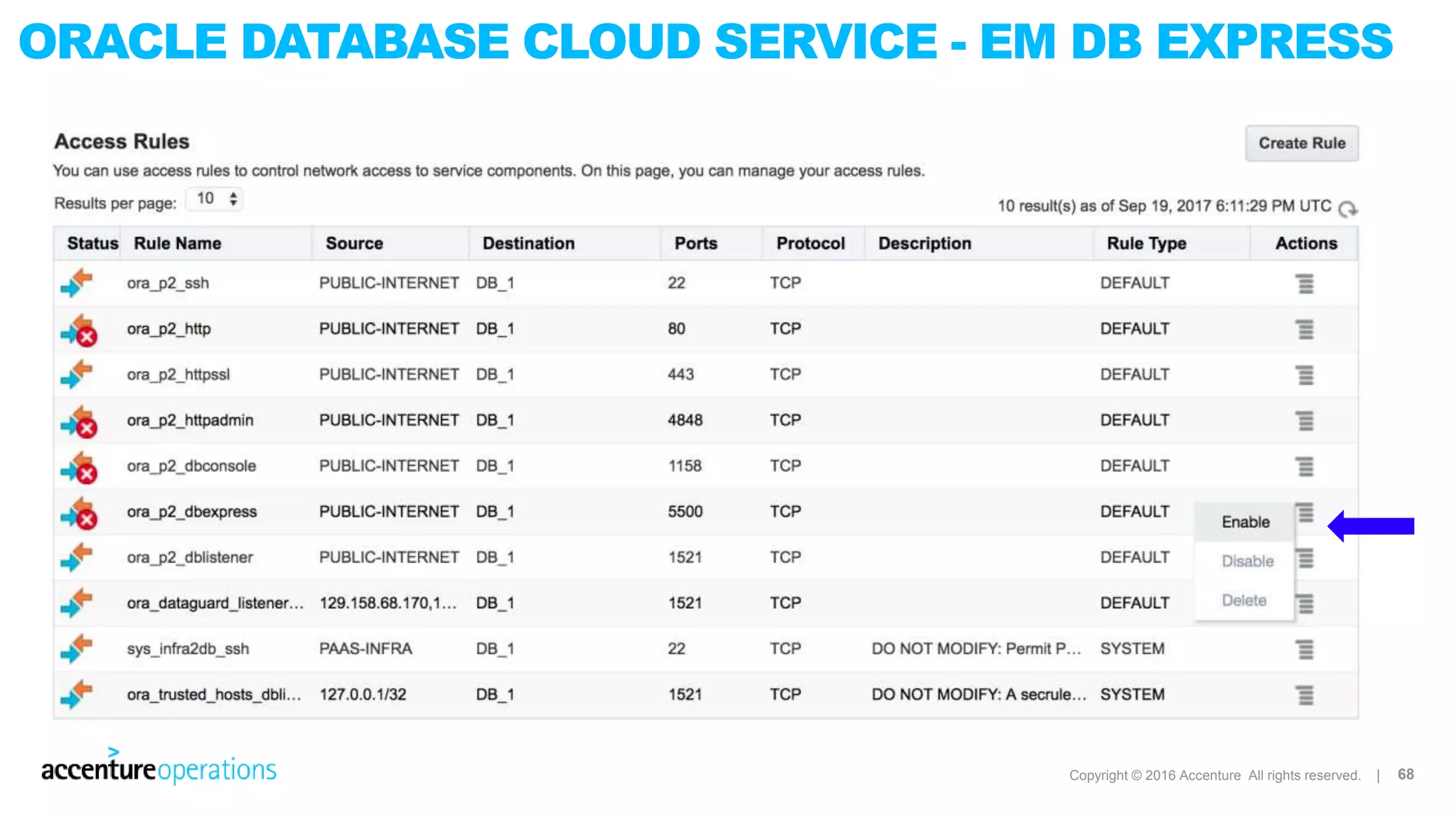

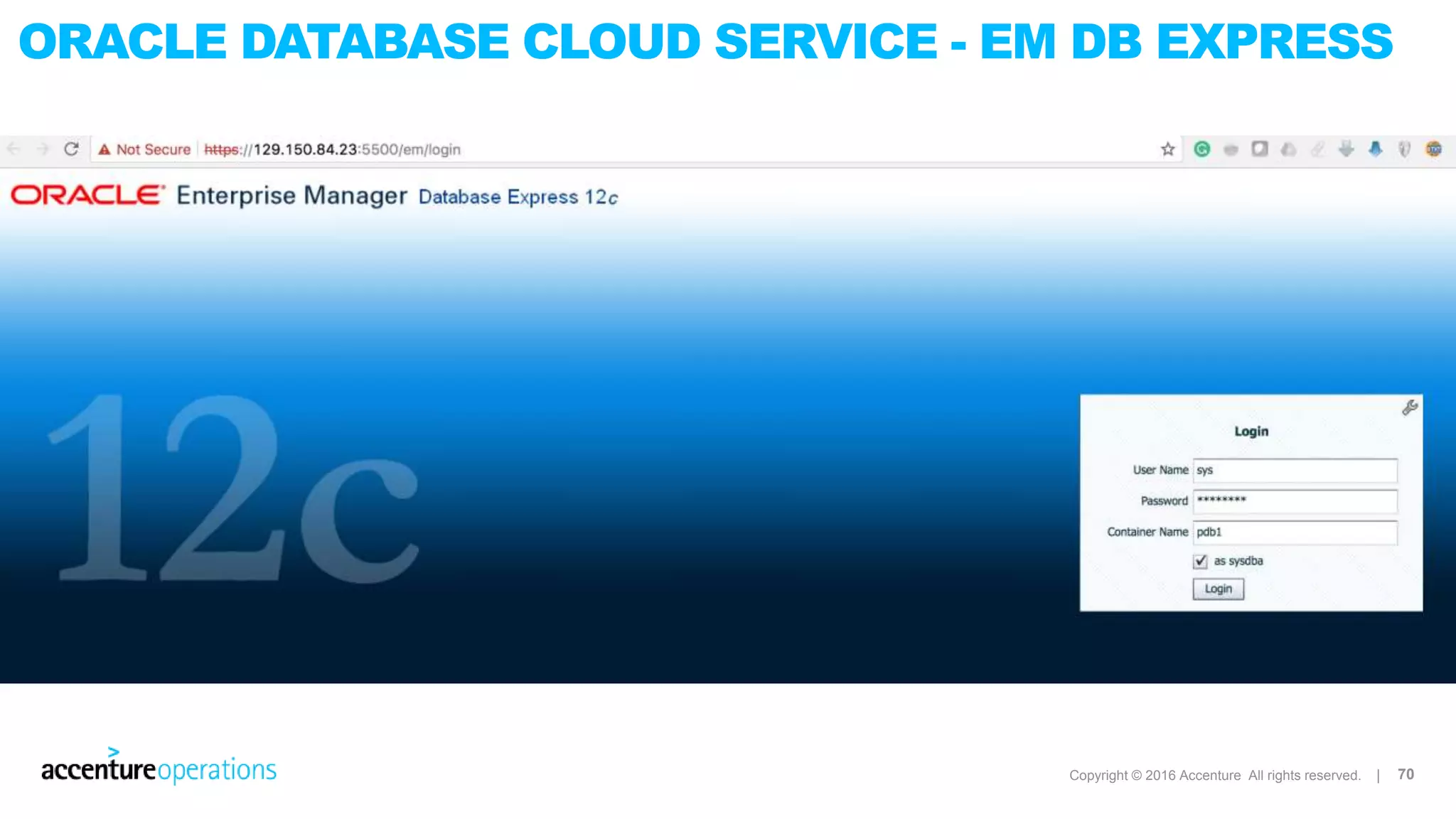

ORACLE DATABASE CLOUD SERVICE - EM DB EXPRESS

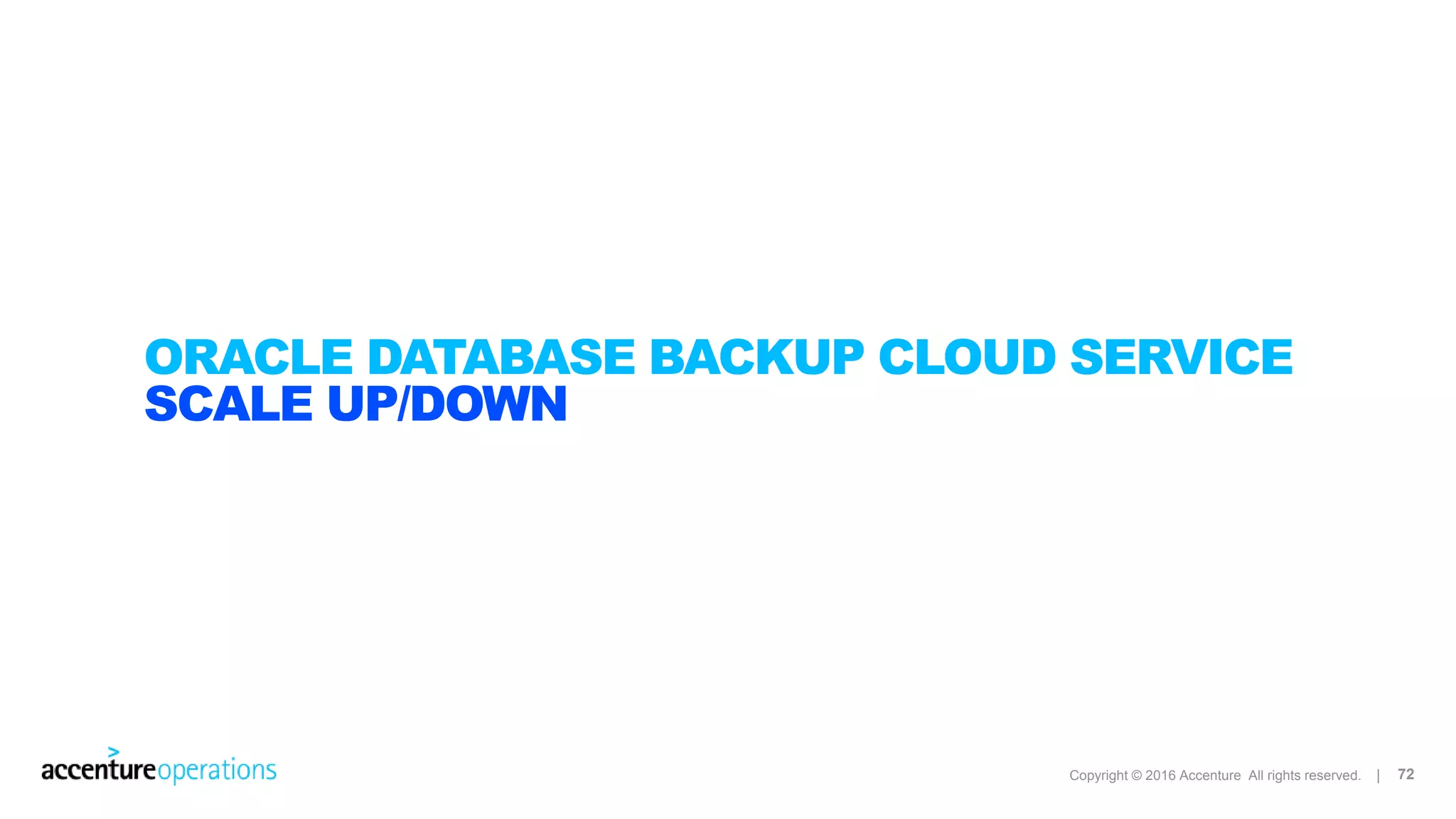

ORACLE DATABASE BACKUP CLOUD SERVICE
SCALE UP/DOWN

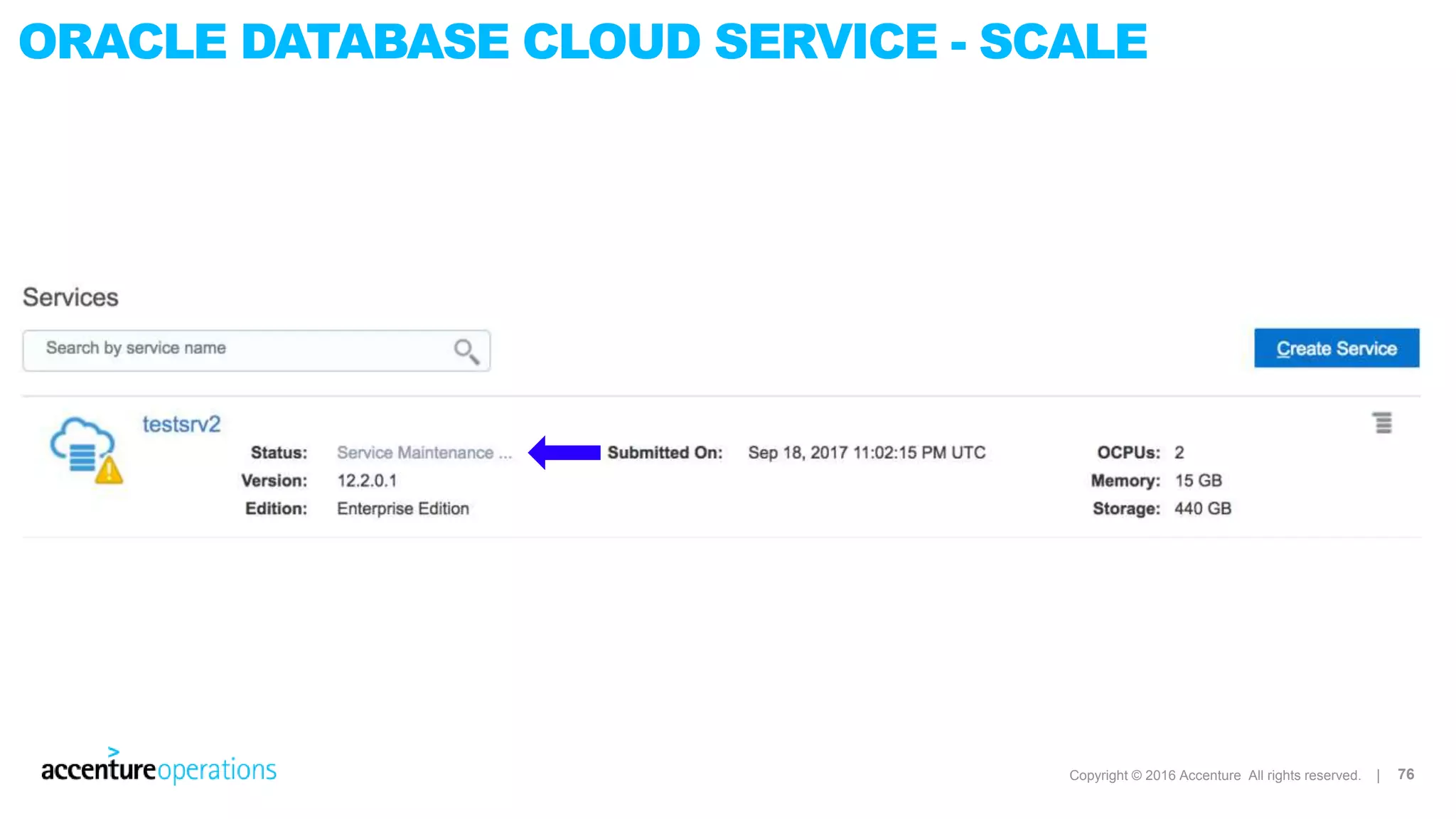

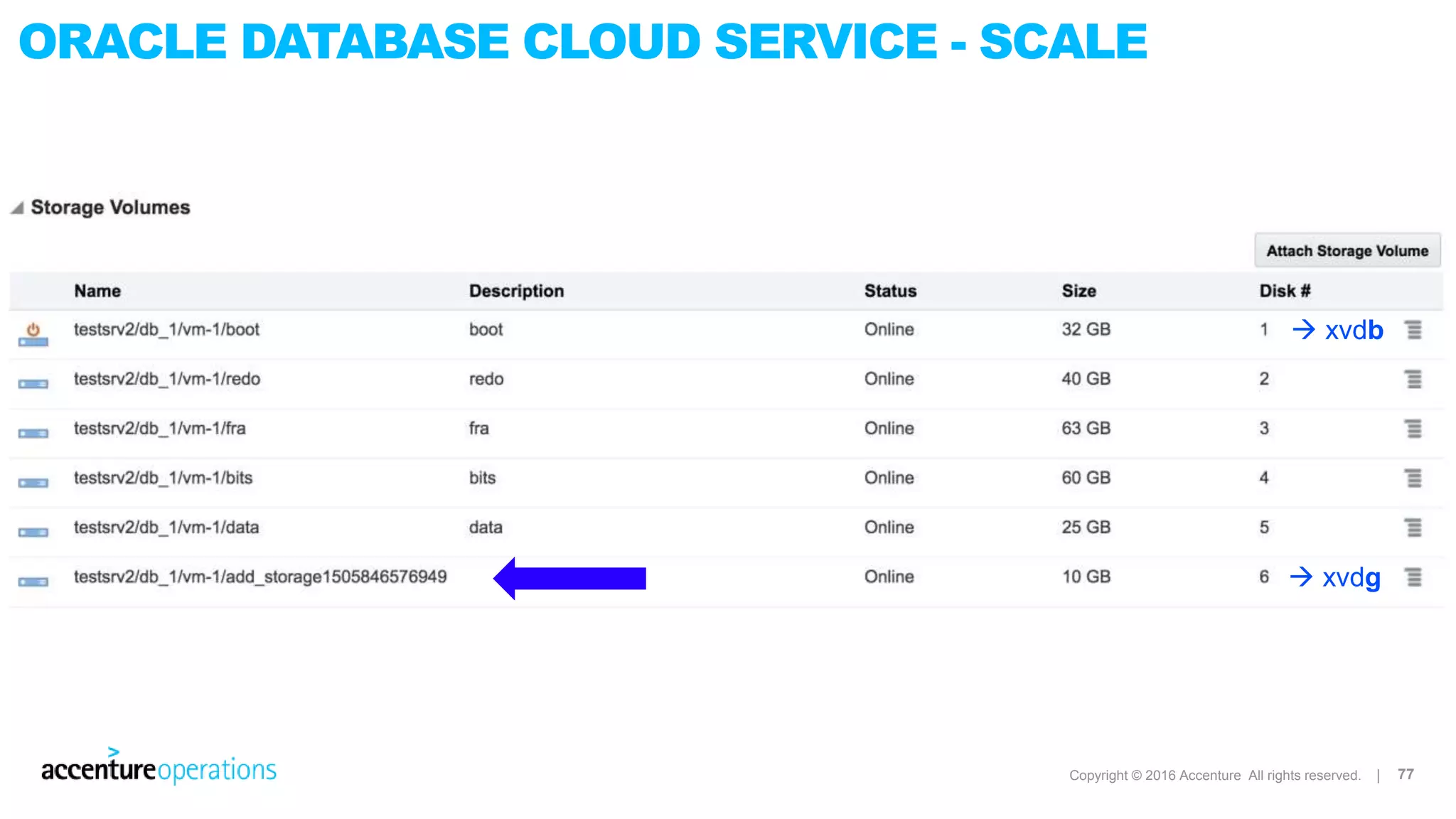

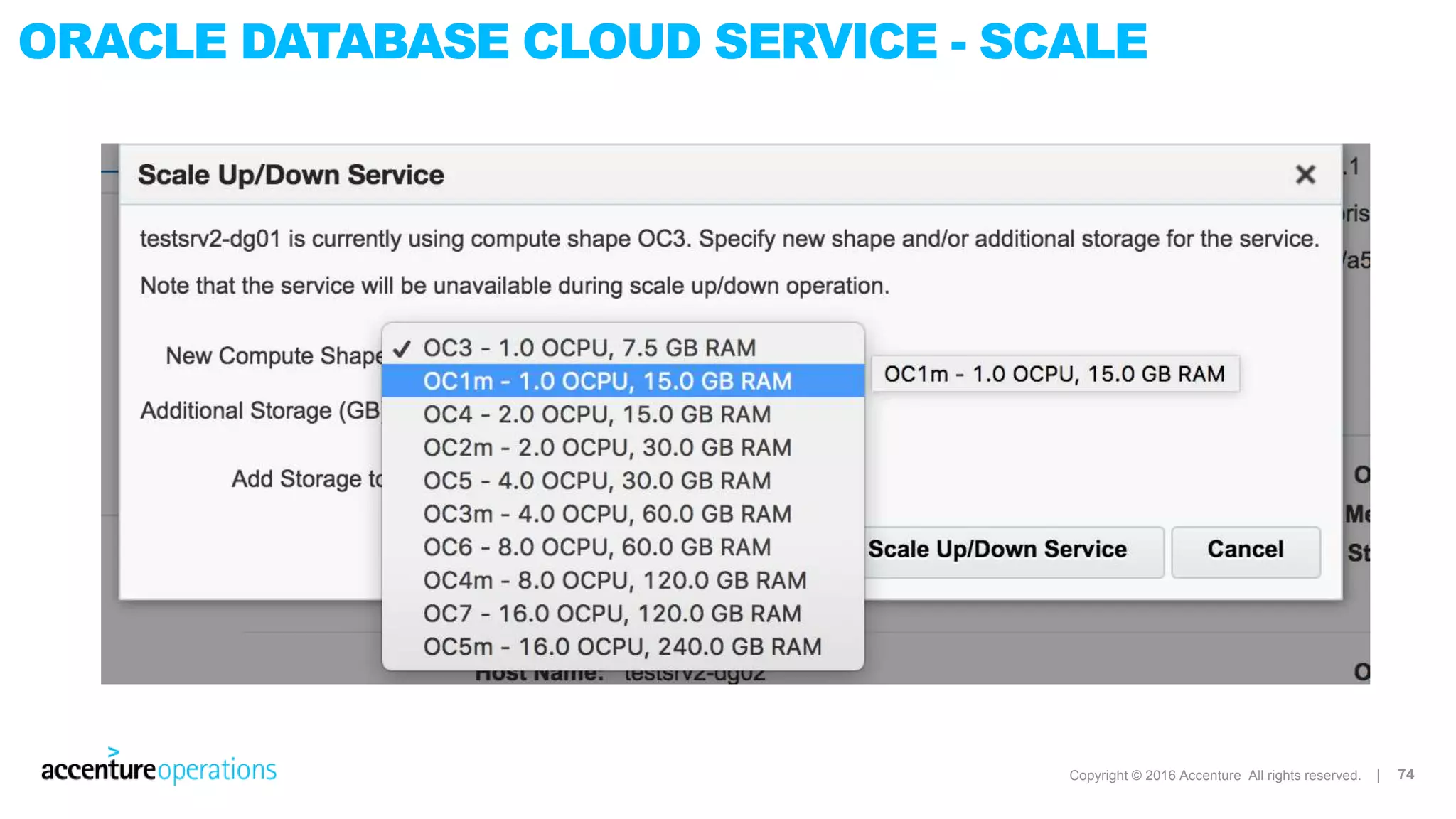

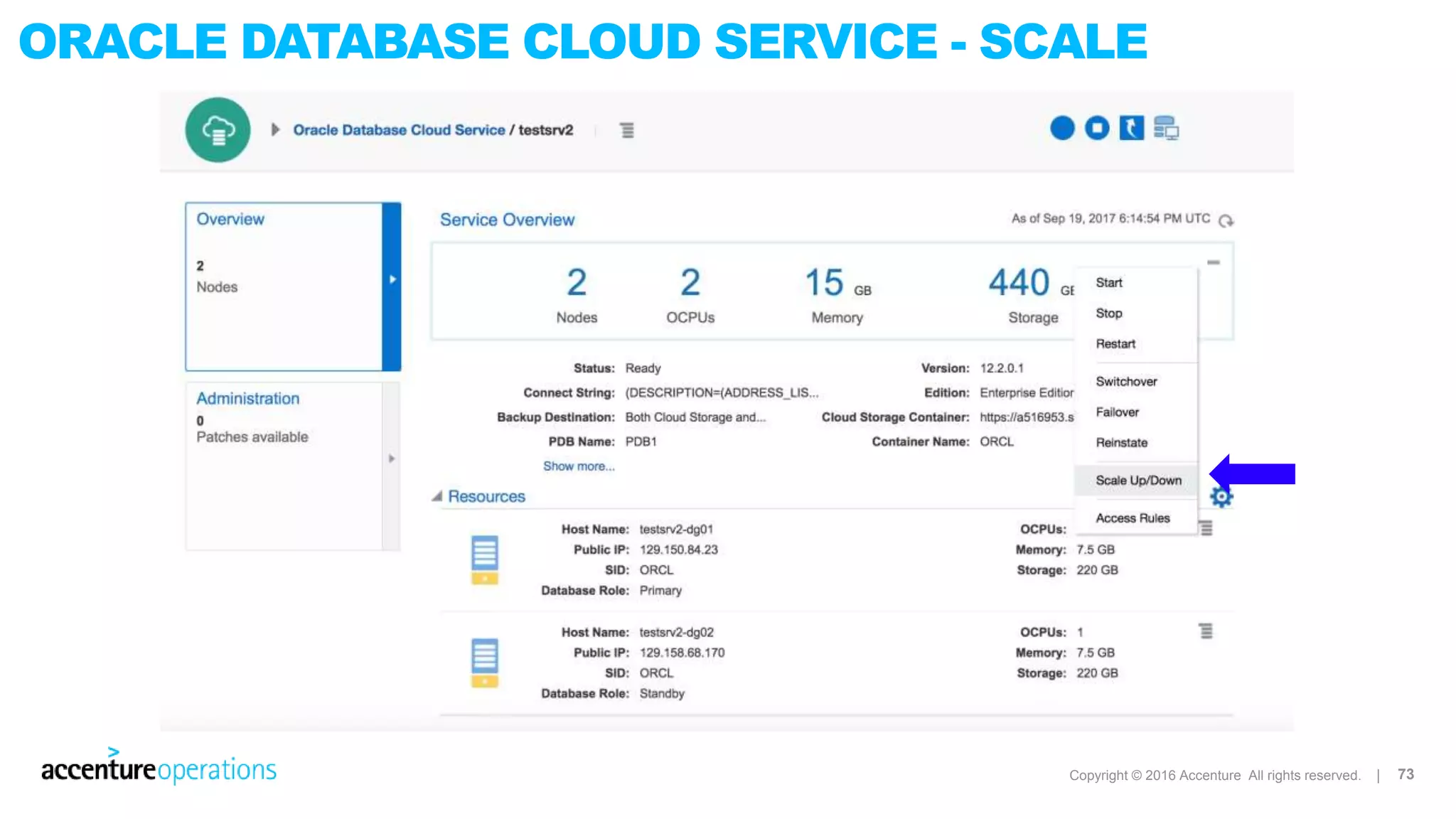

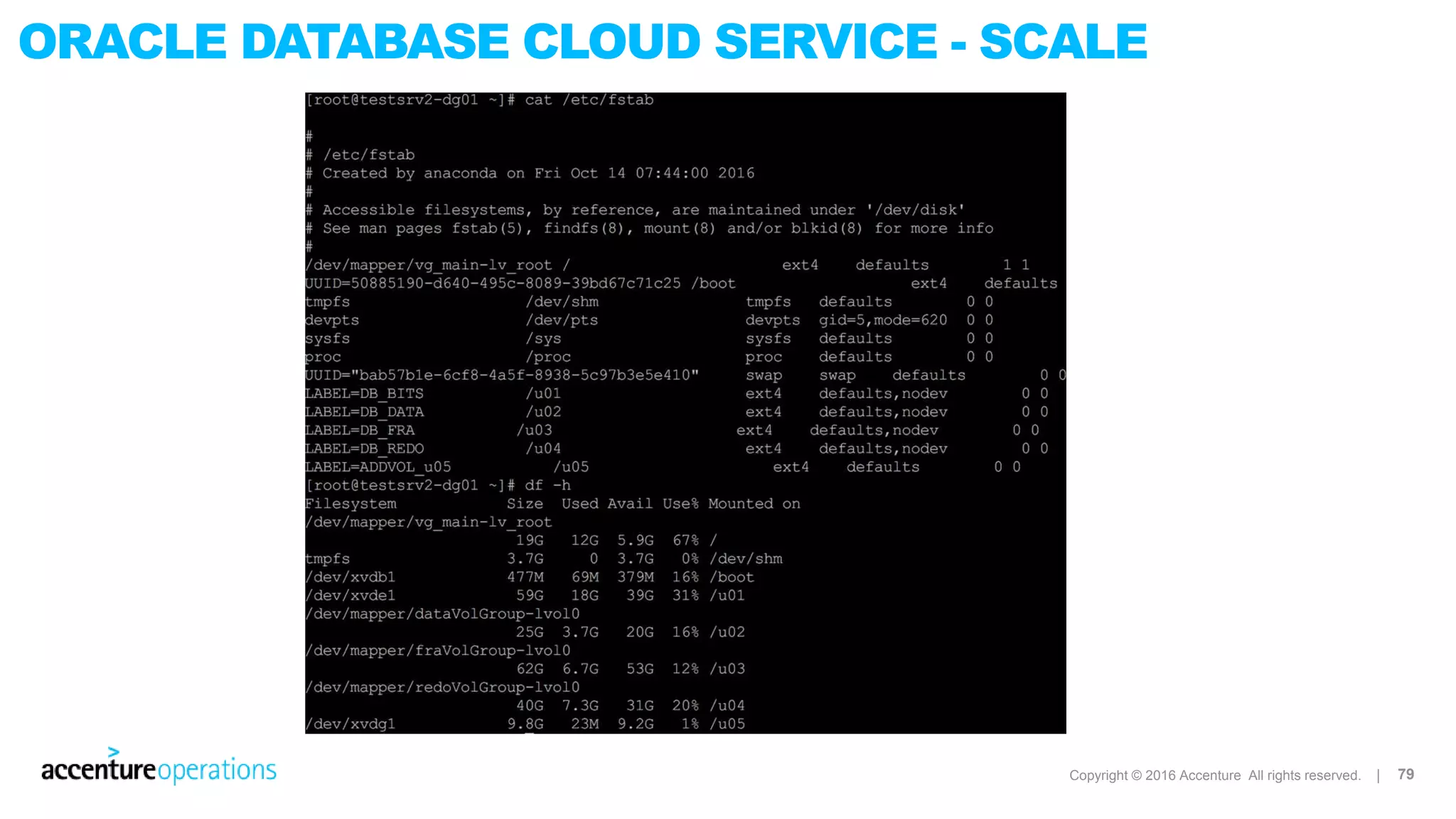

ORACLE DATABASE CLOUD SERVICE - SCALE

 xvdb
 xvdg

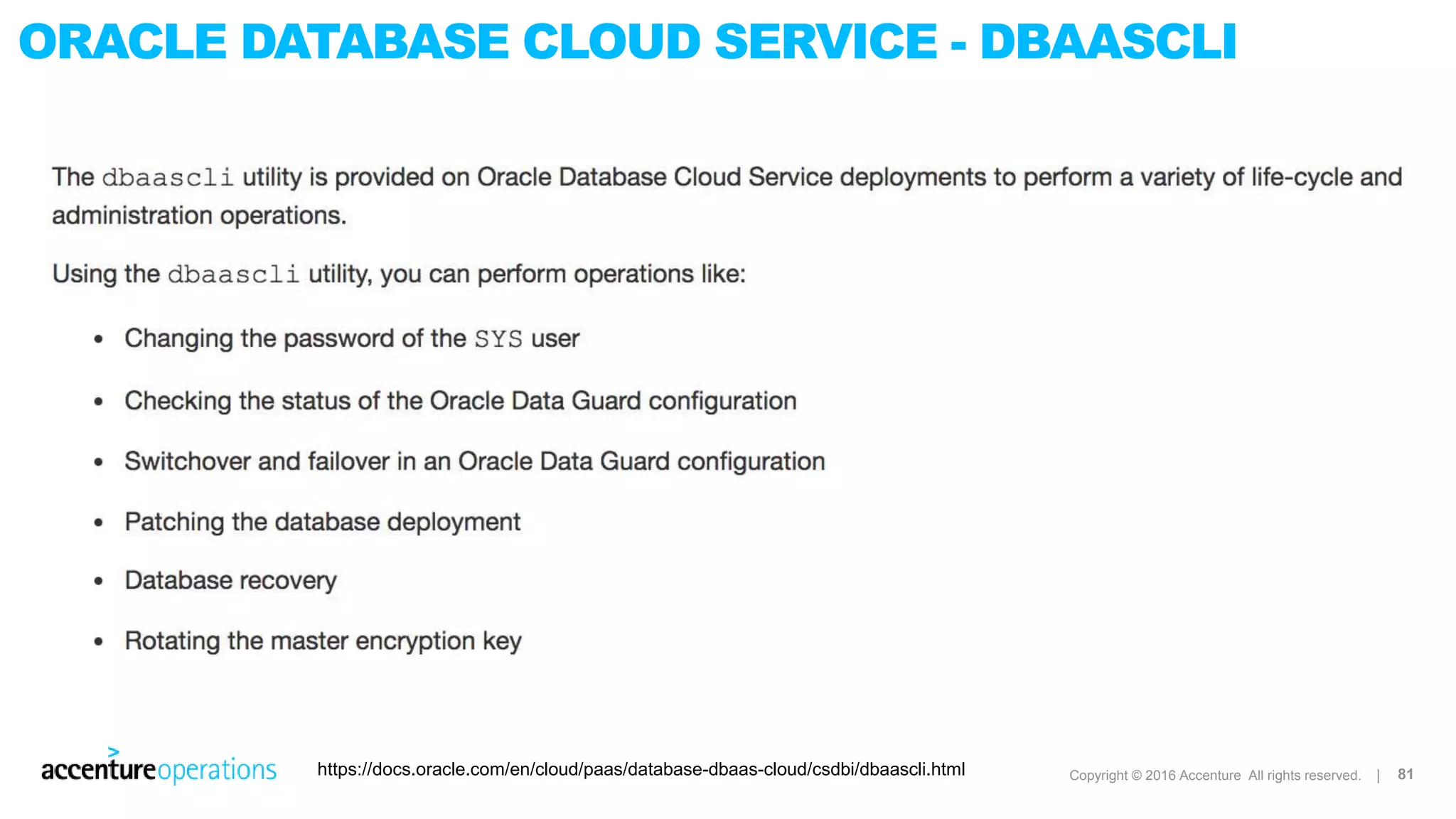

ORACLE DATABASE CLOUD SERVICE - DBAASCLI
https://docs.oracle.com/en/cloud/paas/database-dbaas-cloud/csdbi/dbaascli.html

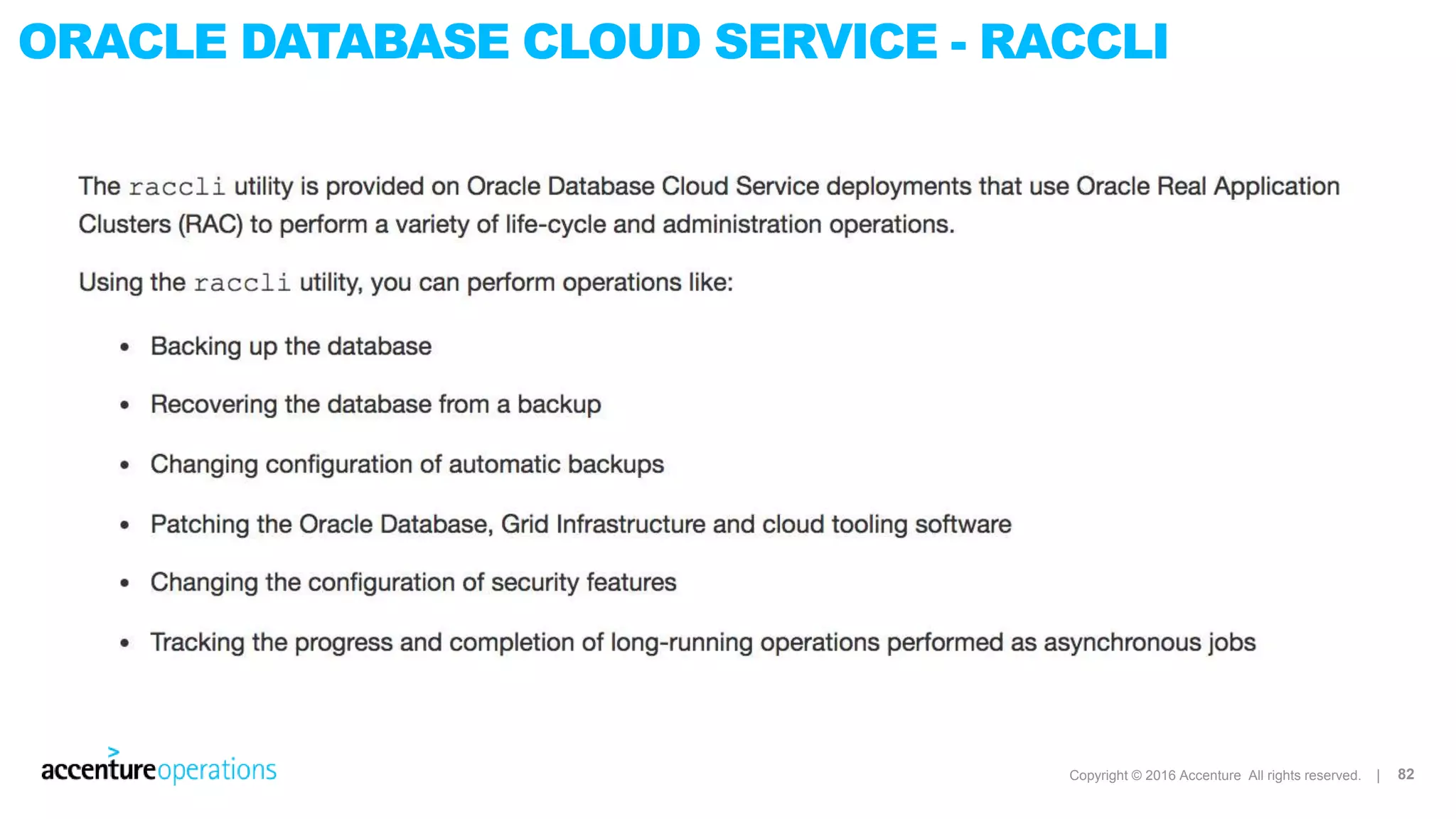

ORACLE DATABASE CLOUD SERVICE - RACCLI

BACKUPS

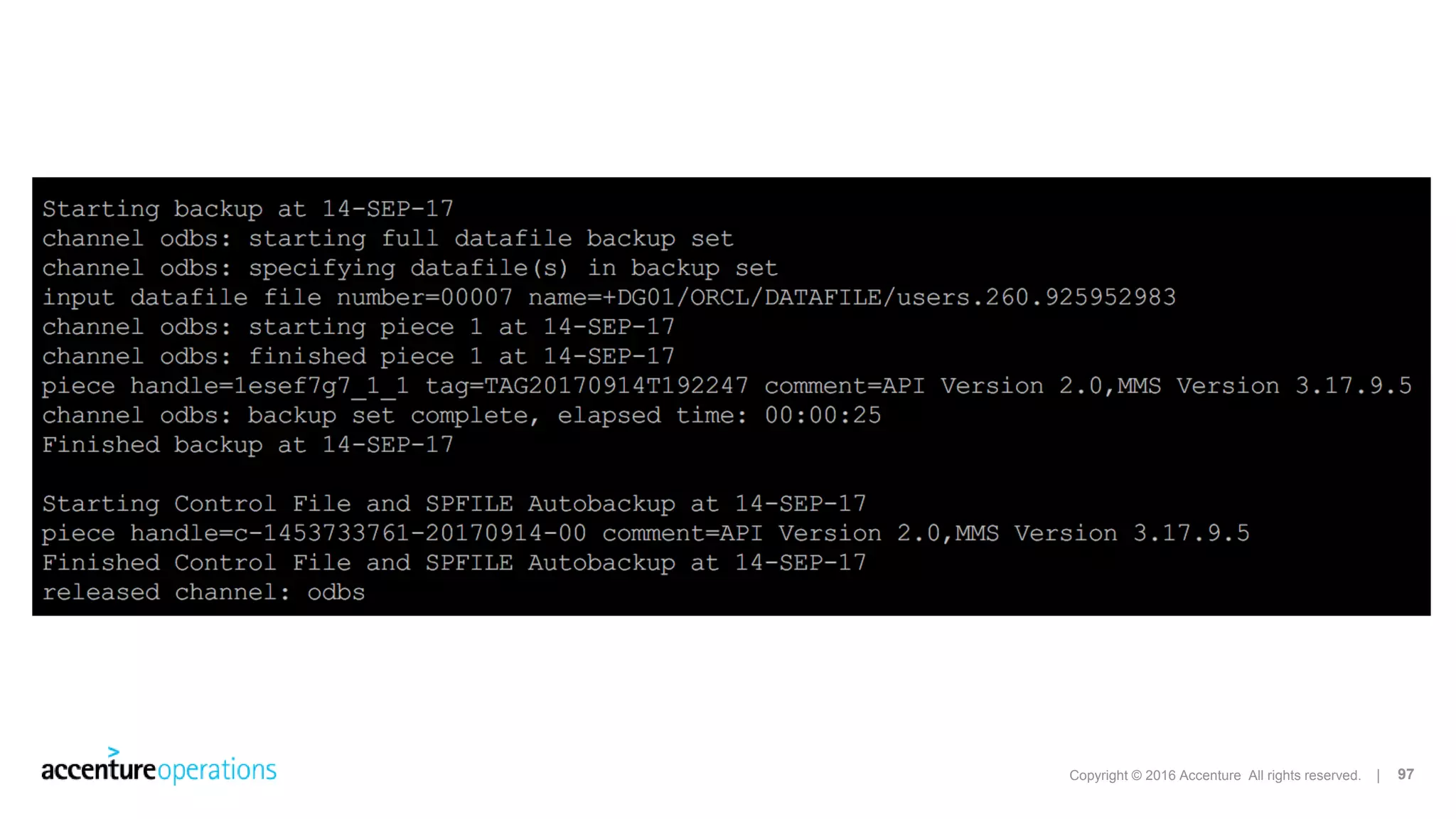

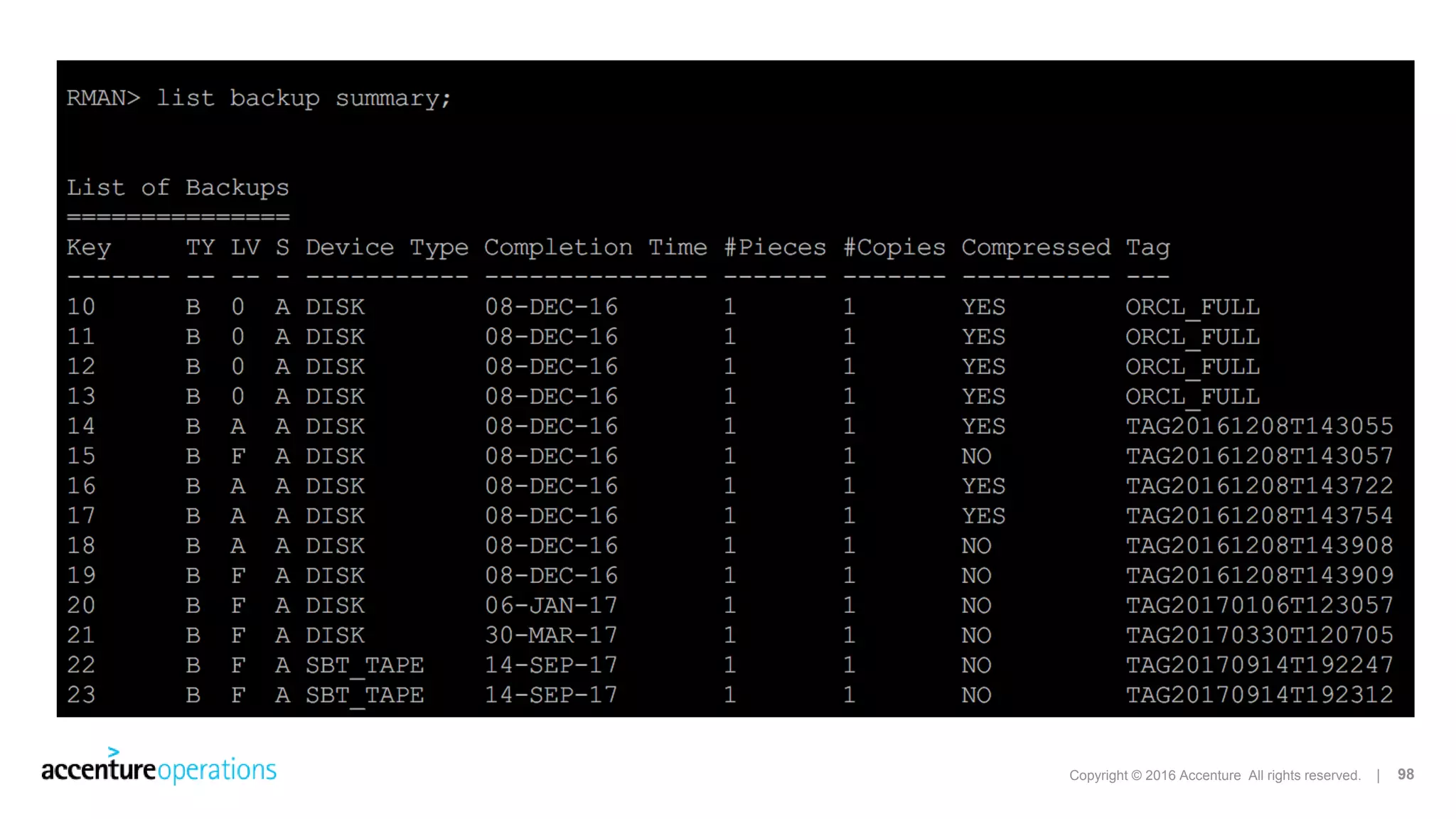

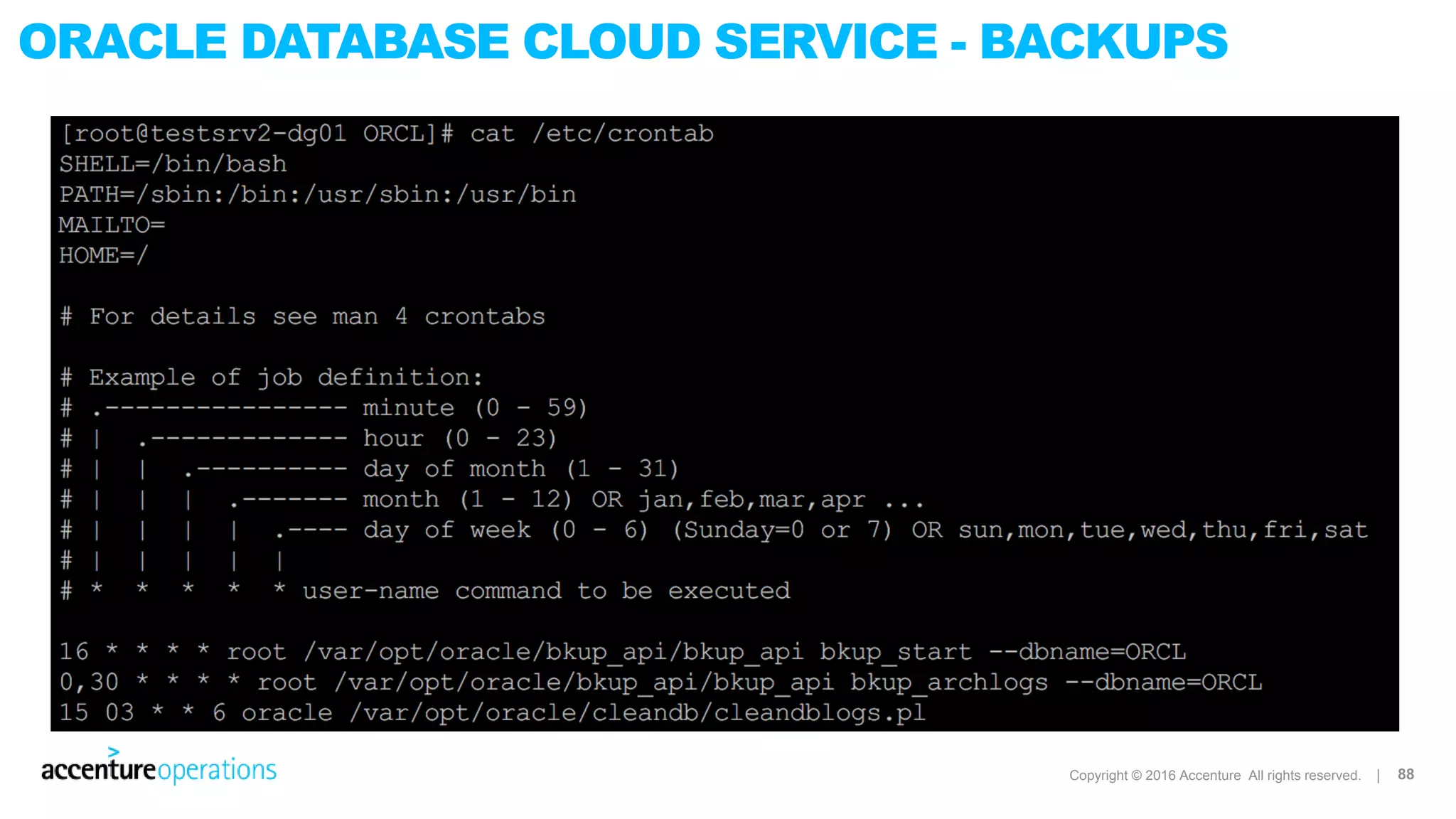

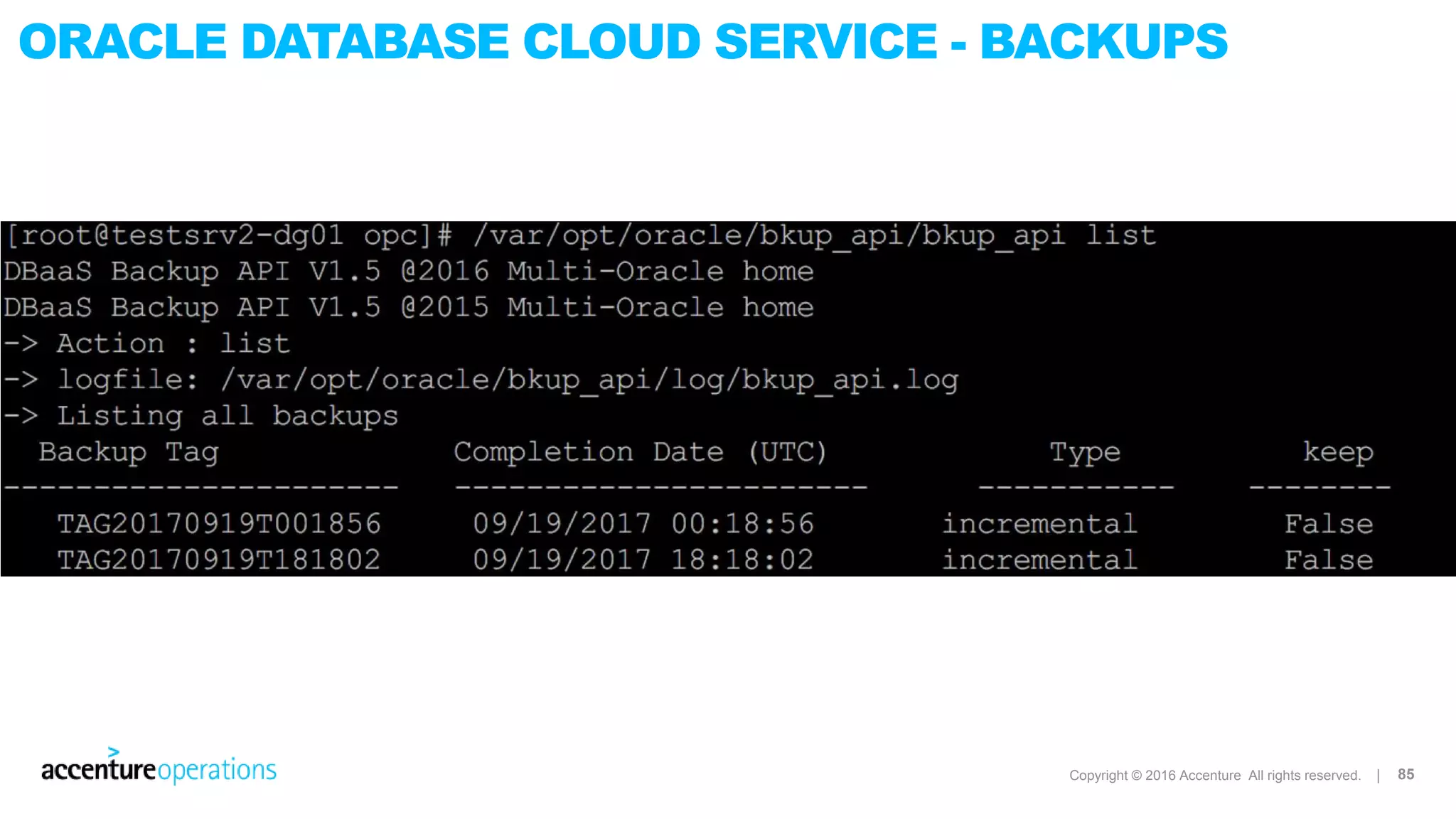

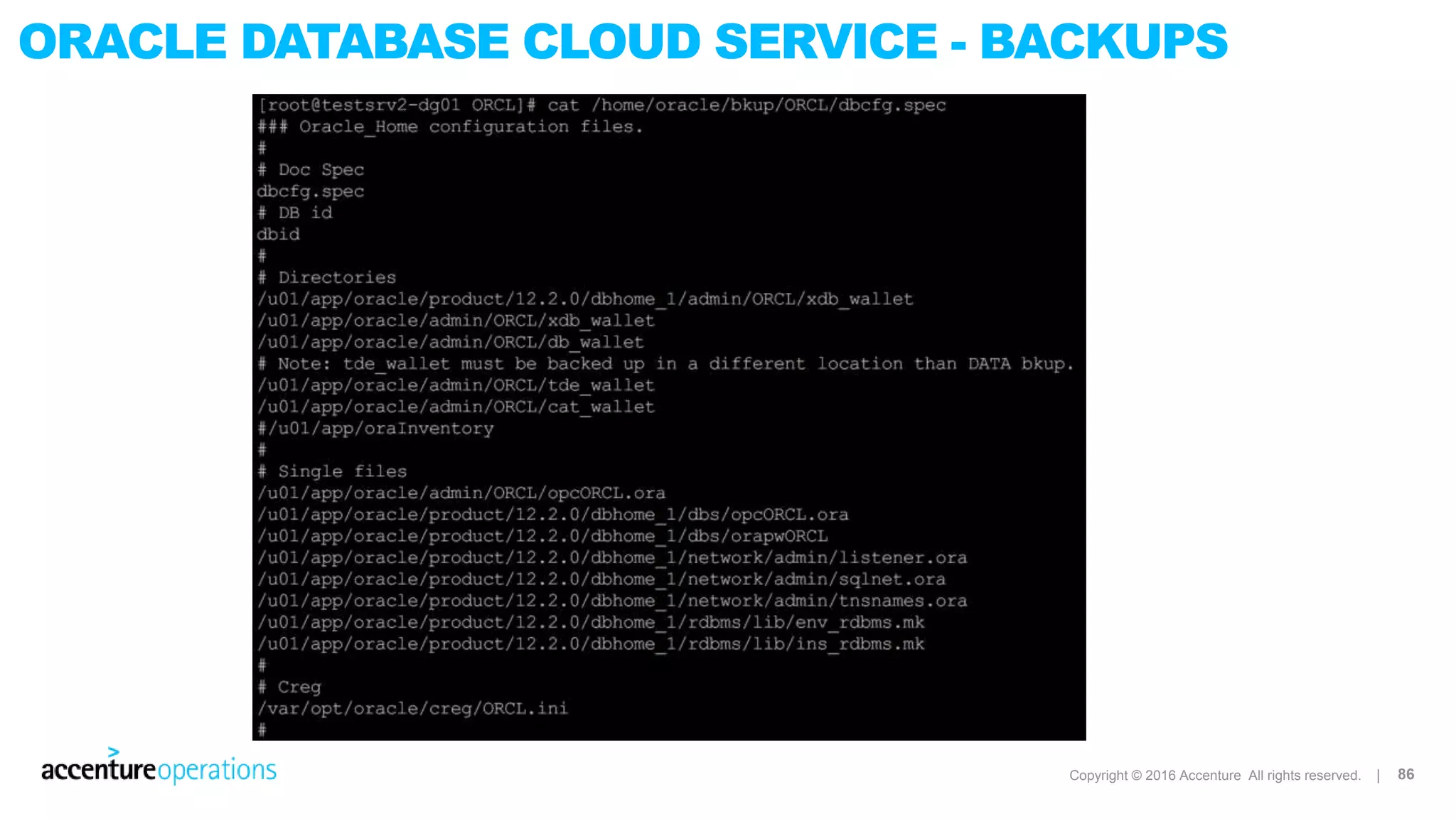

ORACLE DATABASE CLOUD SERVICE - BACKUPS

PATCHING

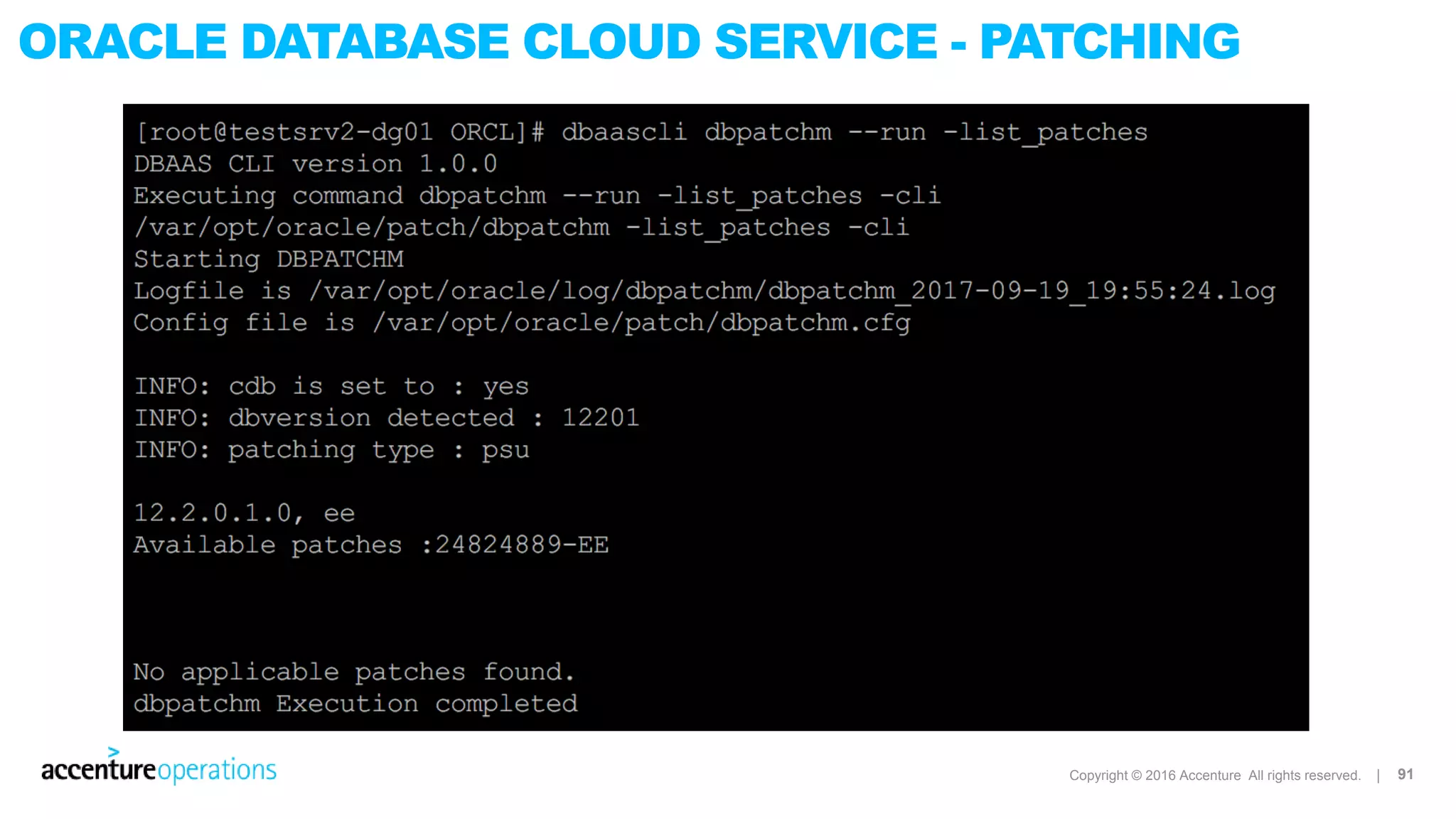

ORACLE DATABASE CLOUD SERVICE - PATCHING

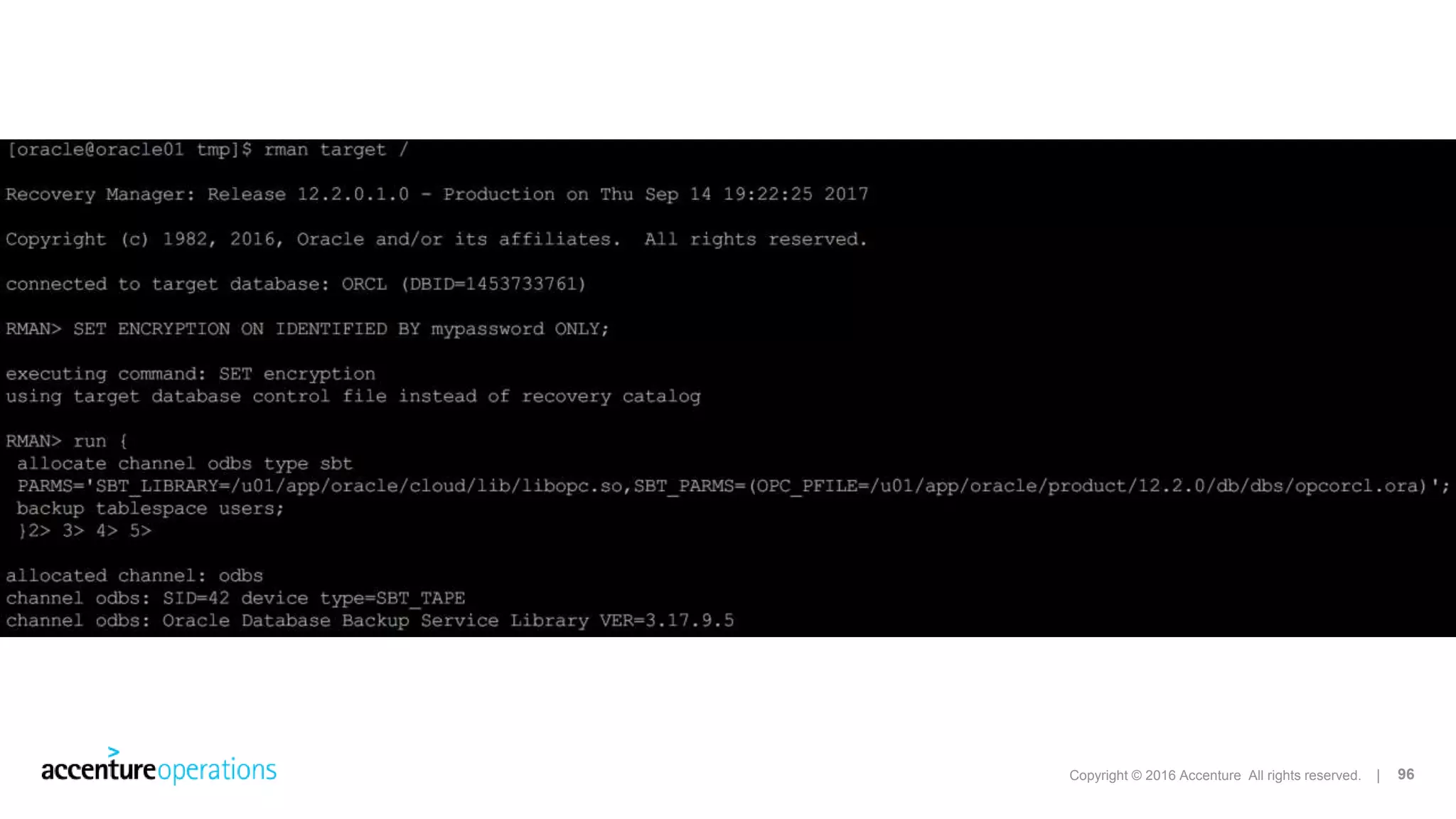

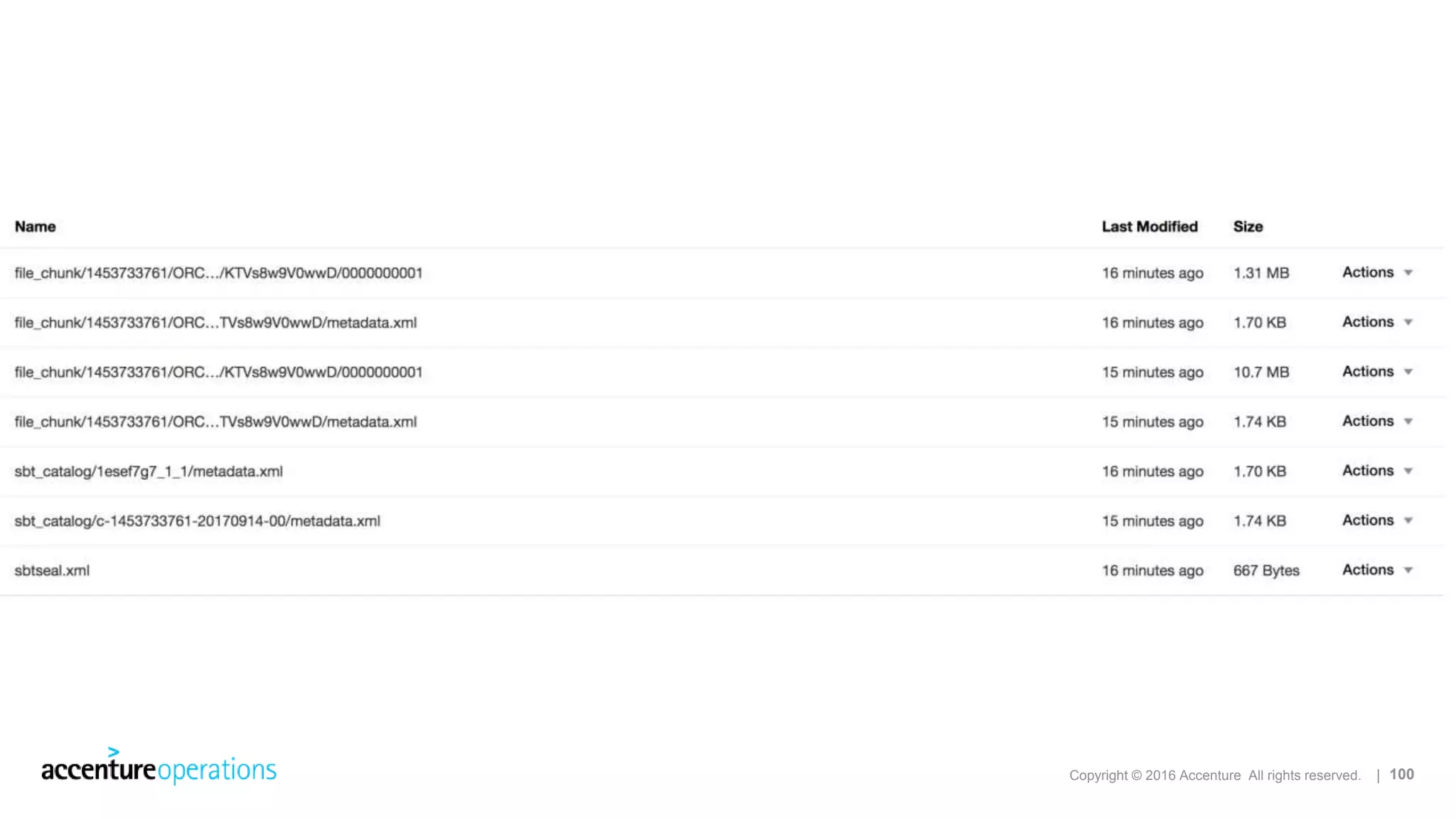

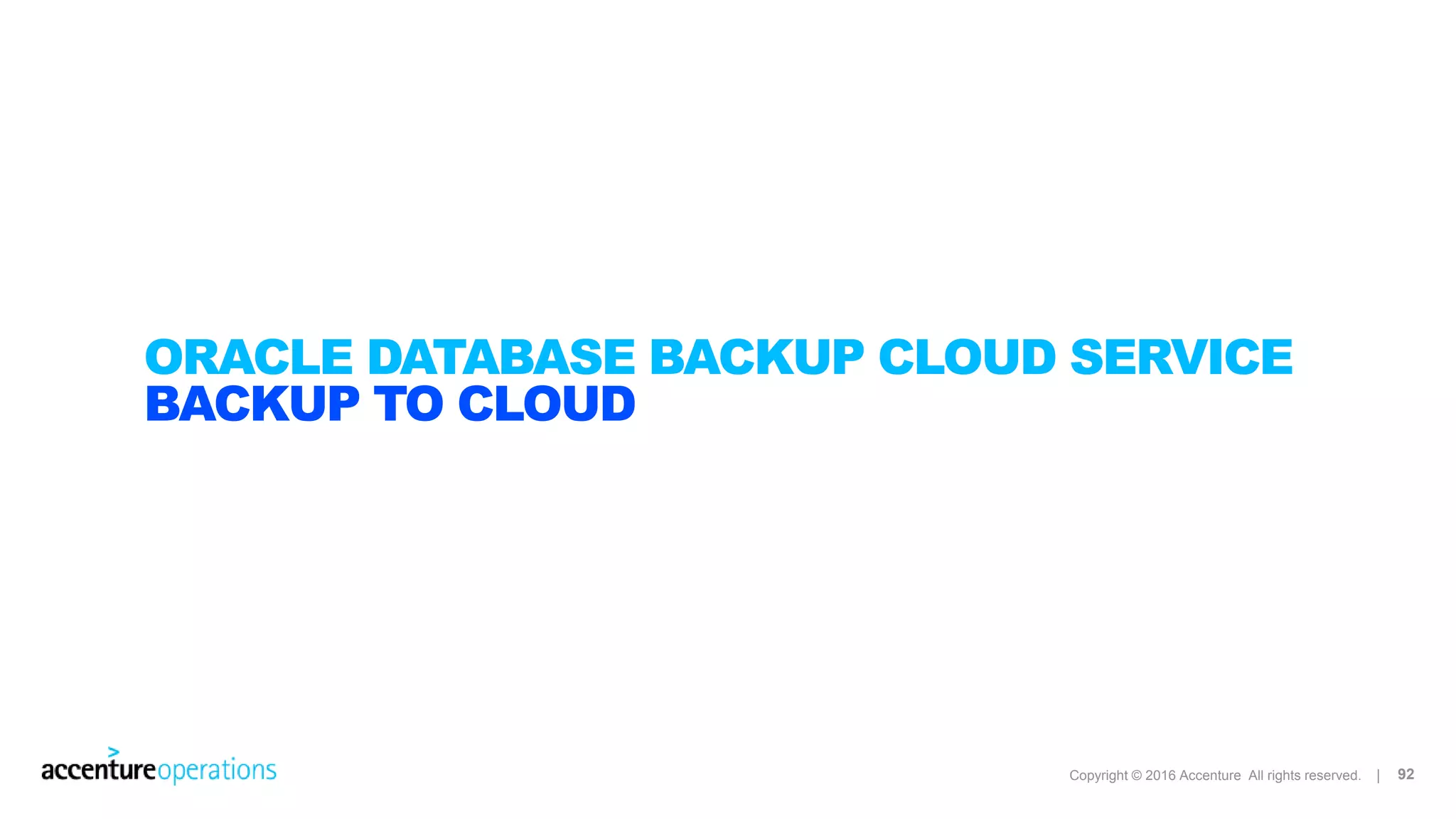

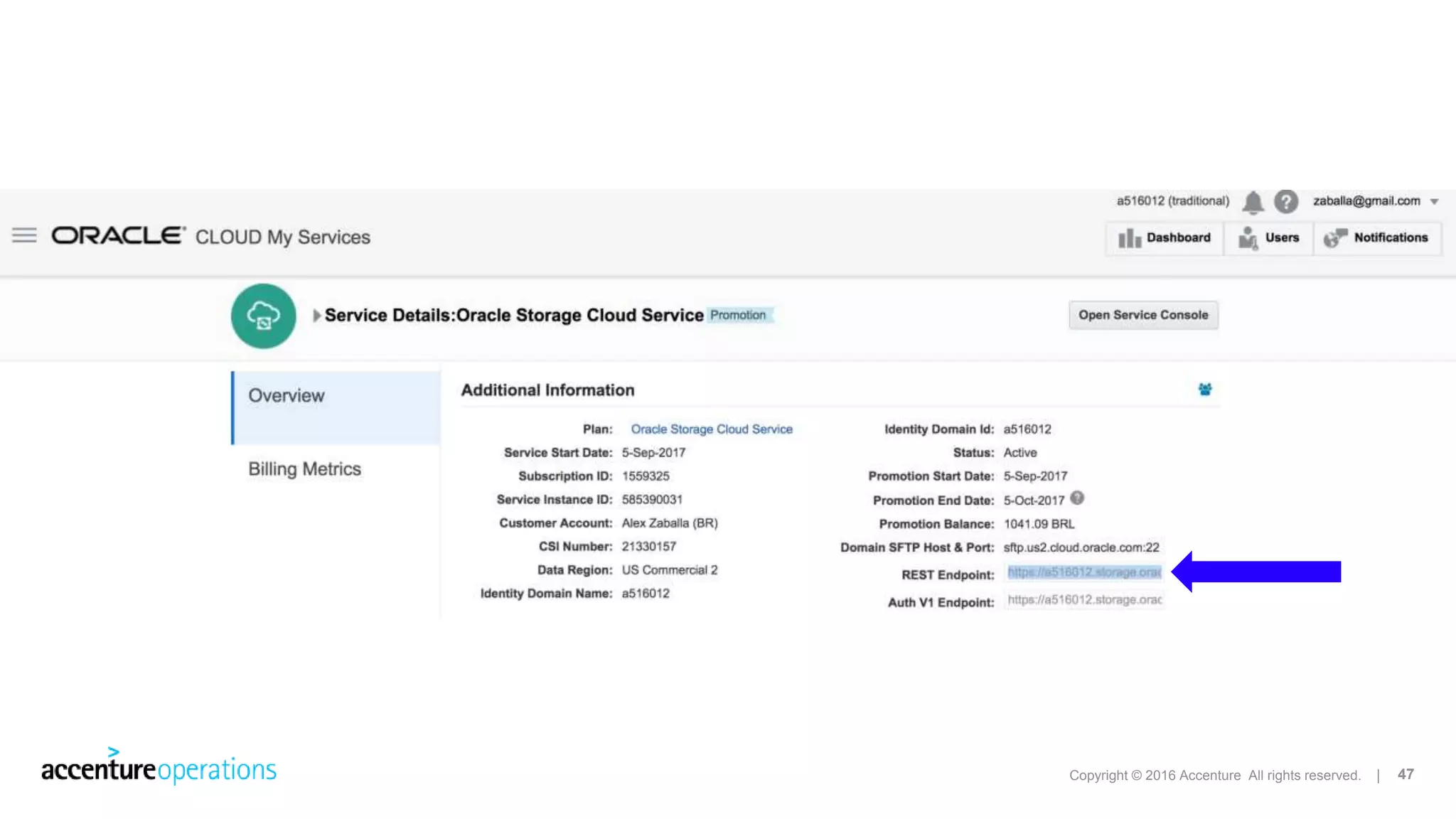

BACKUP TO CLOUD

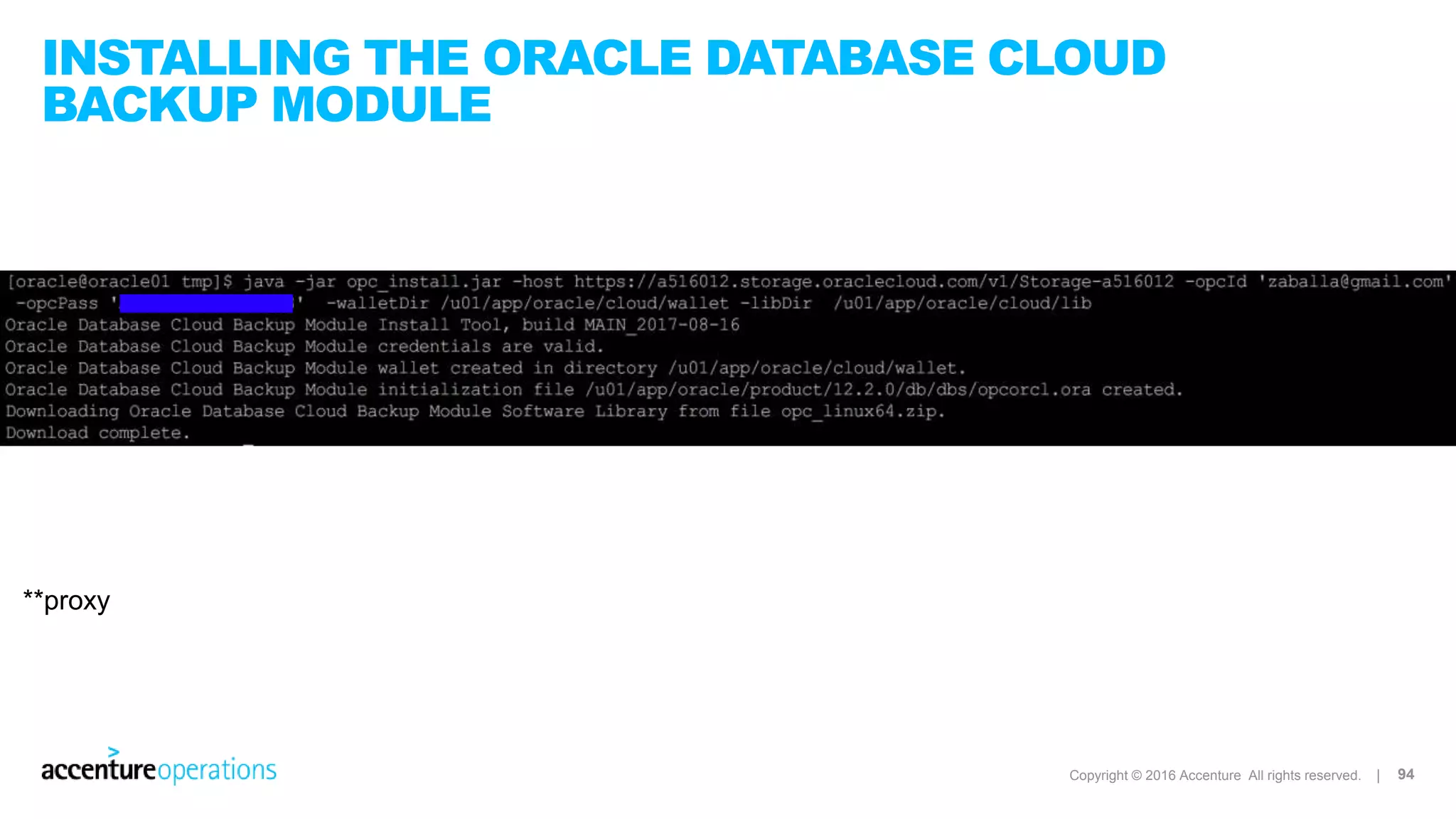

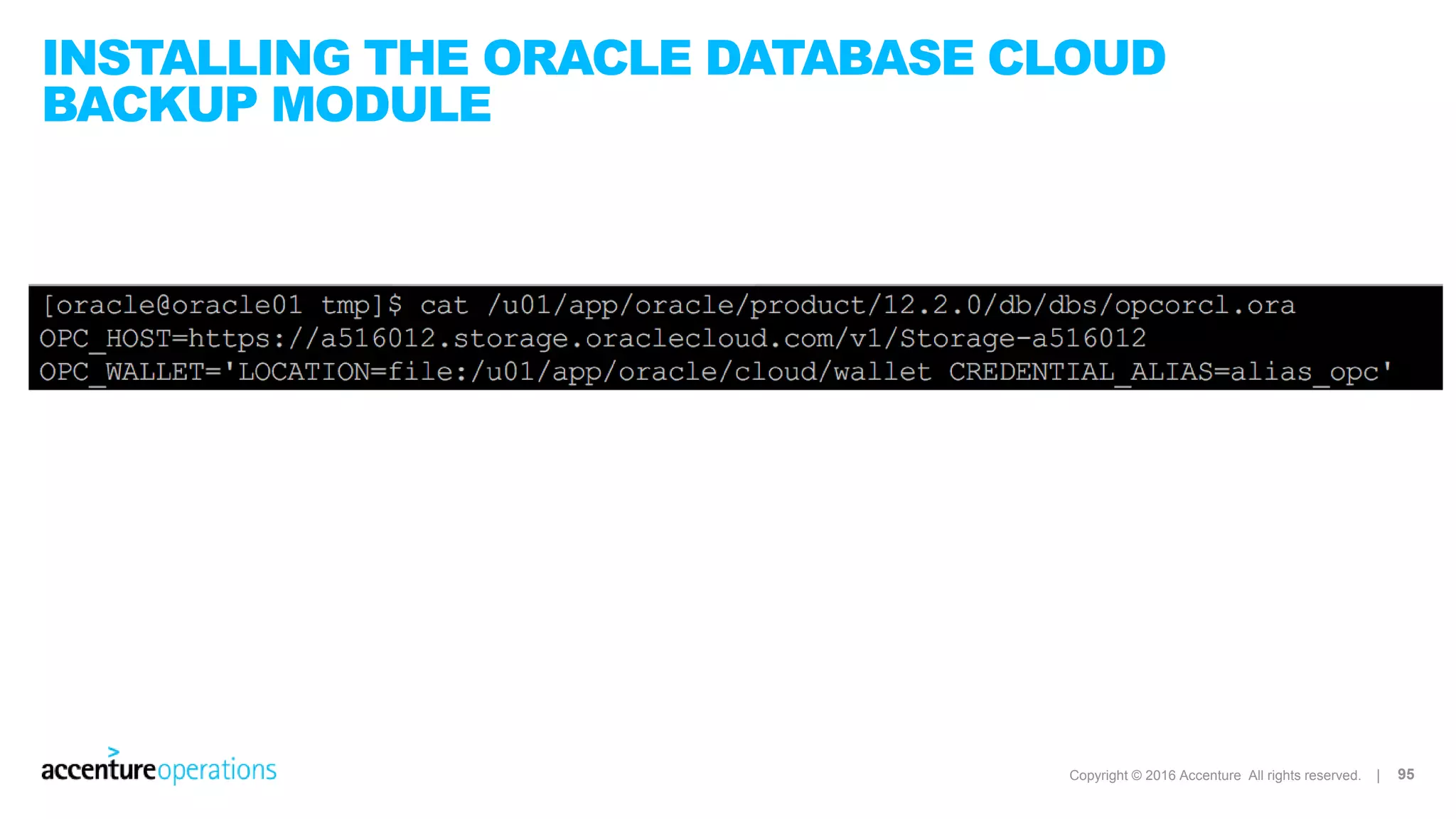

INSTALLING THE ORACLE DATABASE CLOUD
BACKUP MODULE

BACKUP MODULE
**proxy

BACKUP MODULE

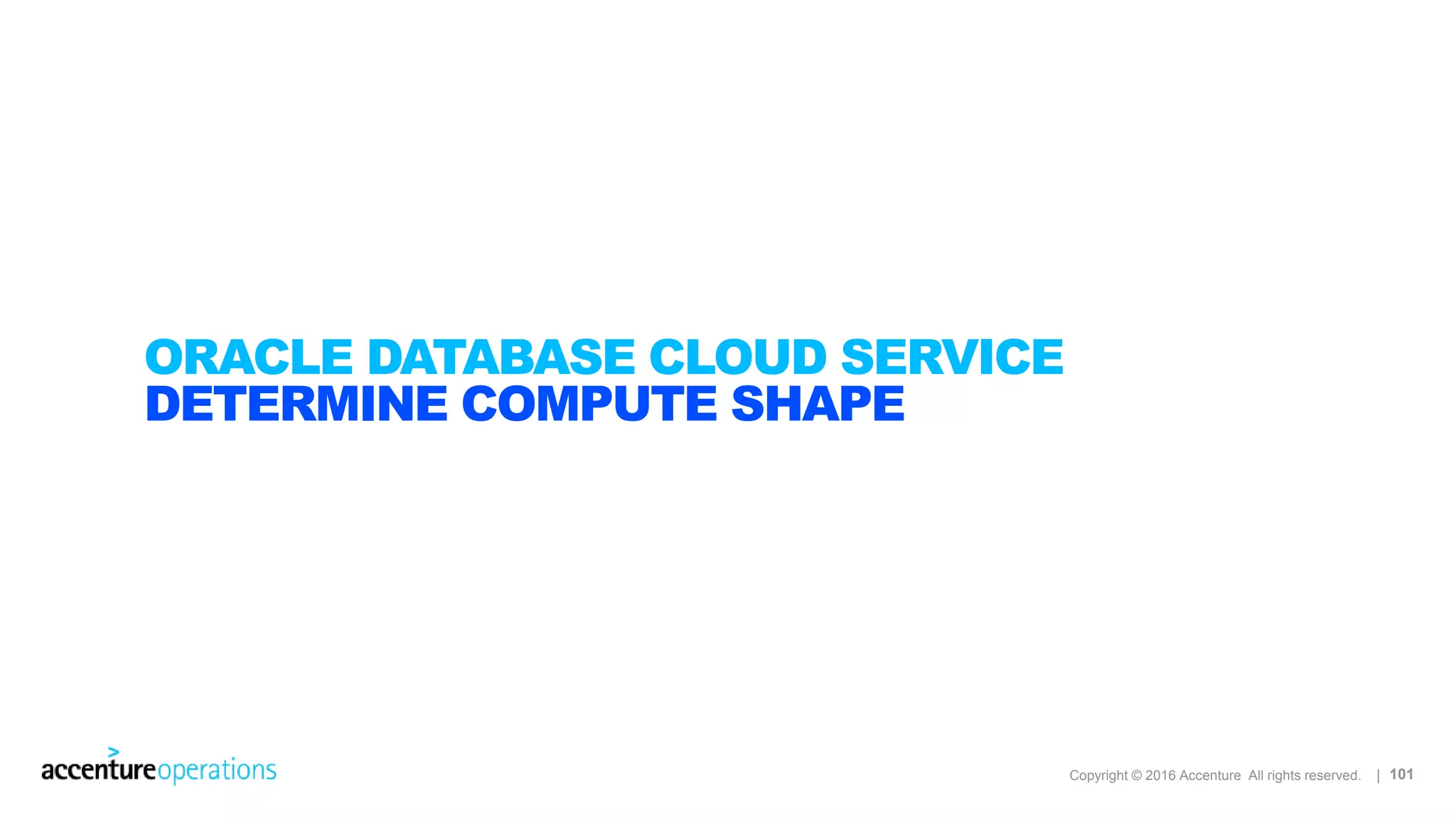

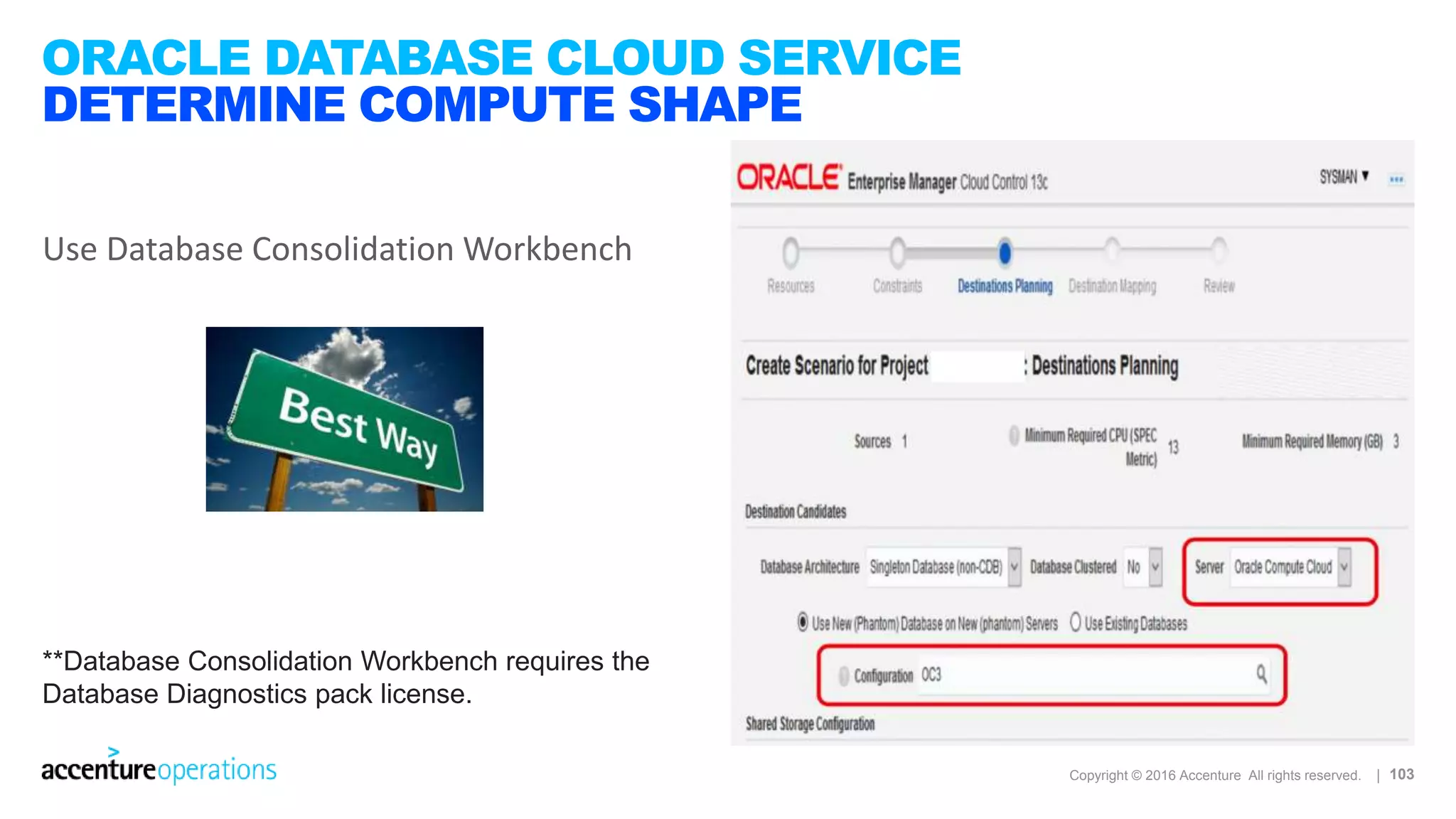

DETERMINE COMPUTE SHAPE

Use Database Consolidation Workbench
**Database Consolidation Workbench requires the
Database Diagnostics pack license.

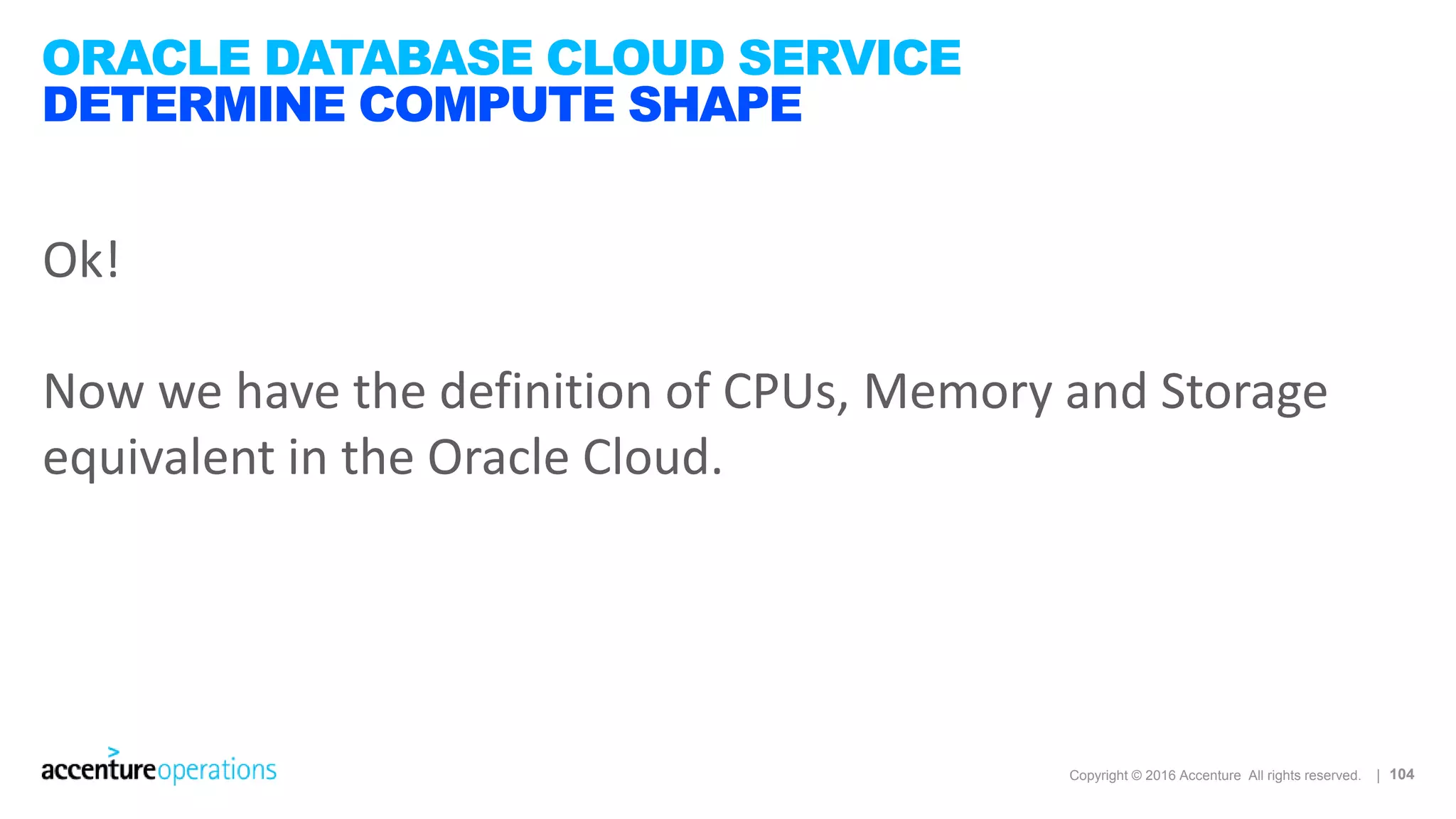

Ok!
Now we have the definition of CPUs, Memory and Storage
equivalent in the Oracle Cloud.

DATA LOADING INTO THE CLOUD
Basically, it depends on the
Cloud Service that I’m using.

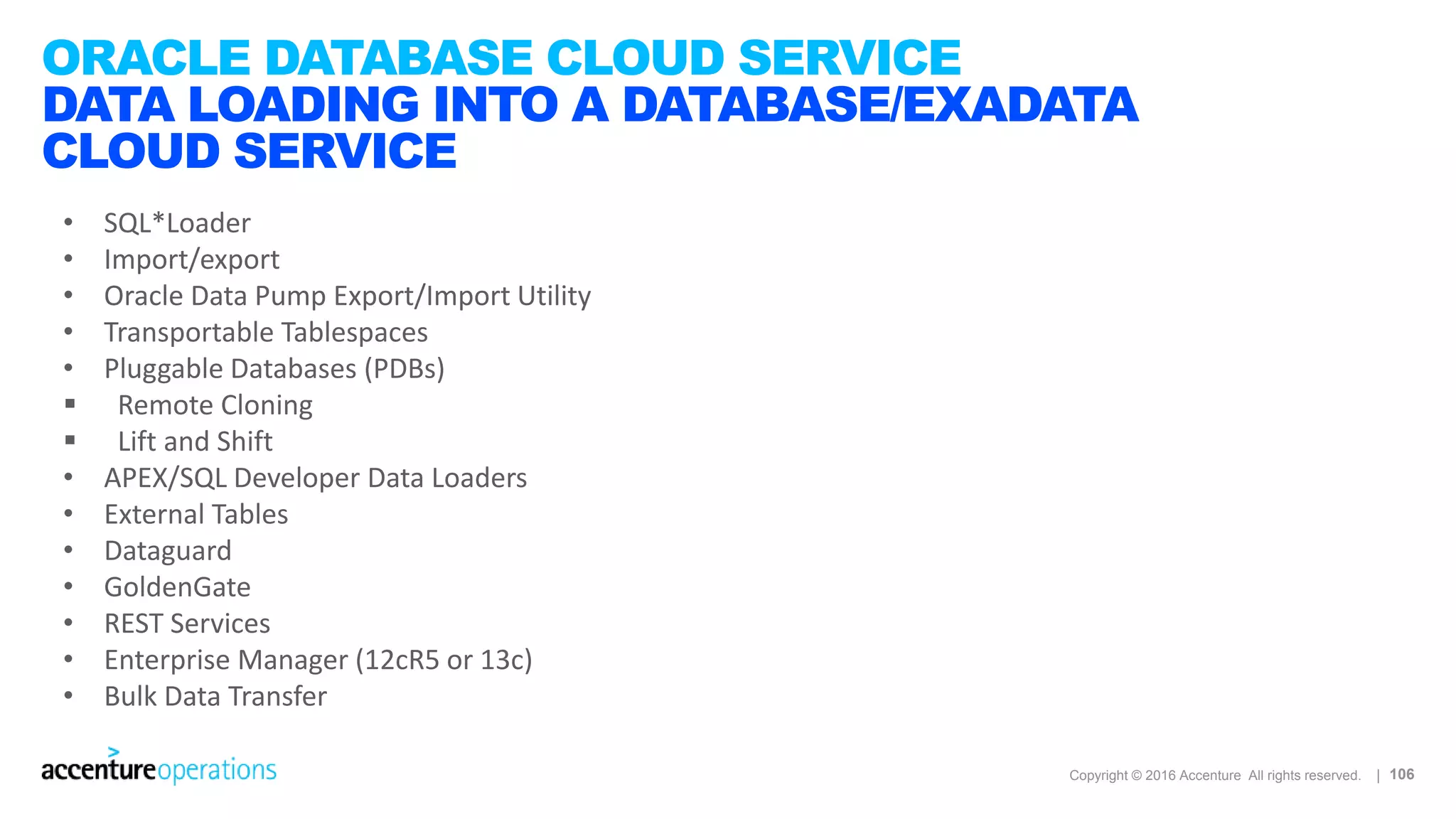

DATA LOADING INTO A DATABASE/EXADATA
CLOUD SERVICE
• SQL*Loader
• Import/export
• Oracle Data Pump Export/Import Utility
• Transportable Tablespaces

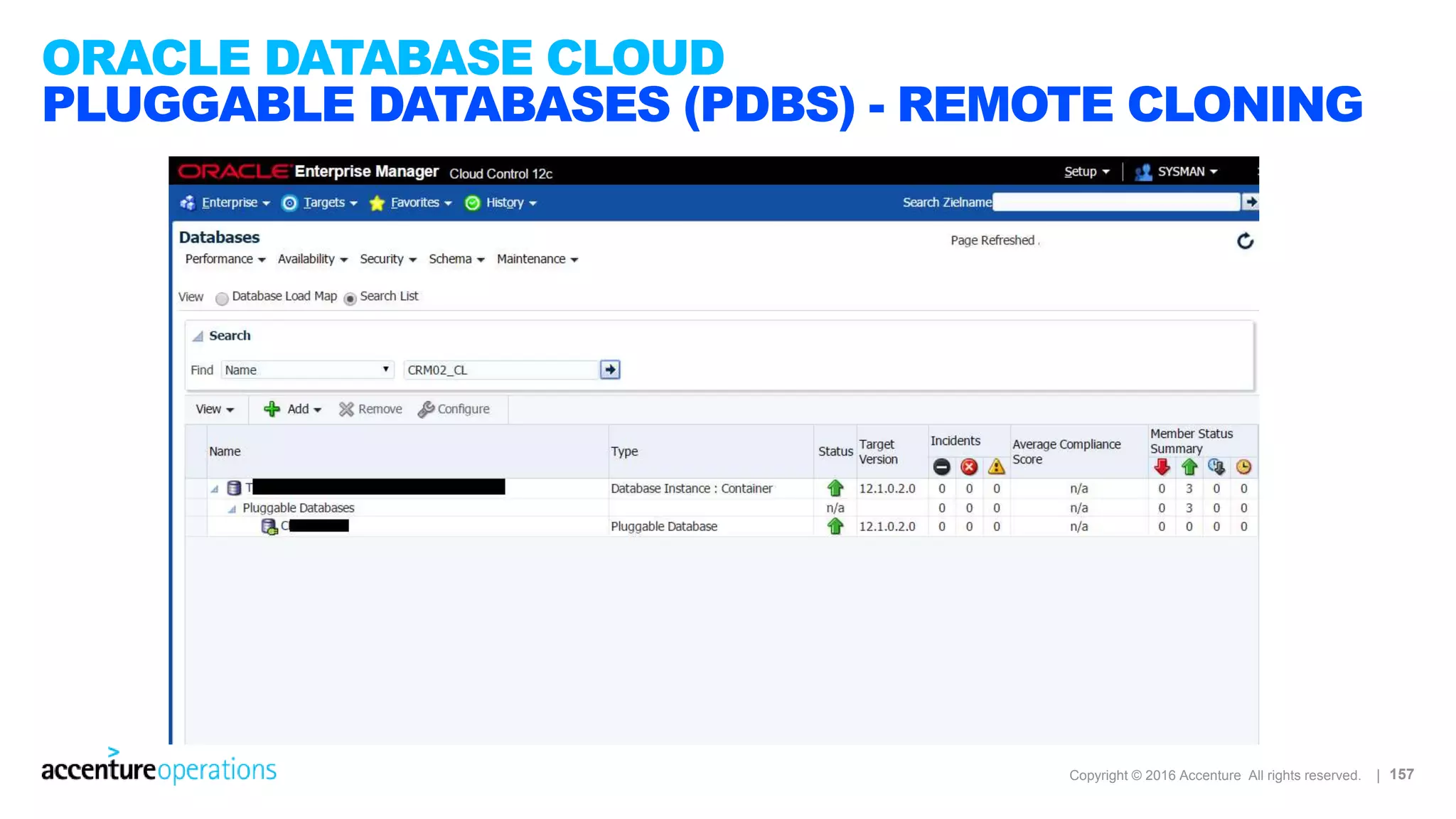

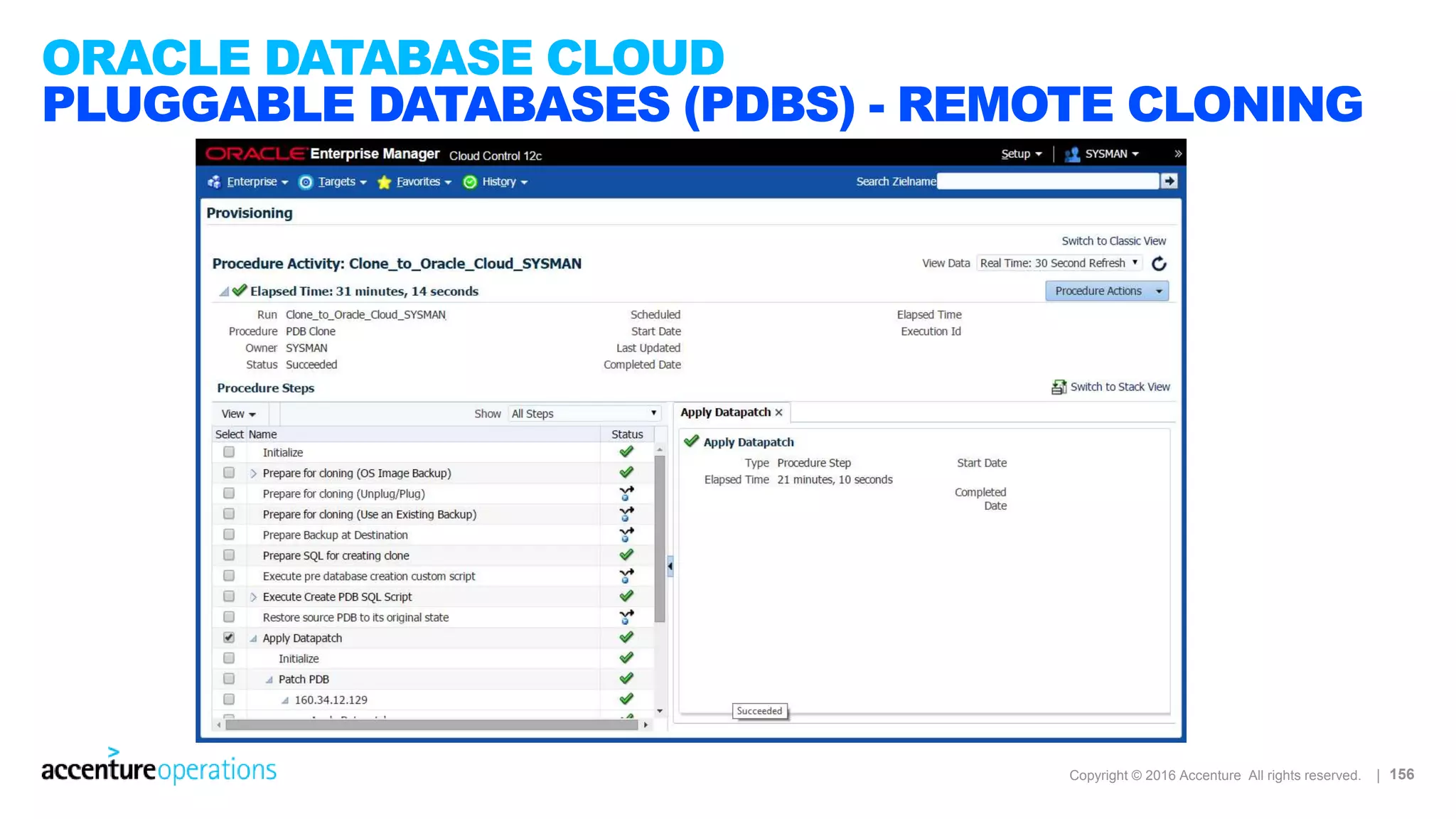

• Pluggable Databases (PDBs)
 Remote Cloning
 Lift and Shift
• APEX/SQL Developer Data Loaders
• External Tables

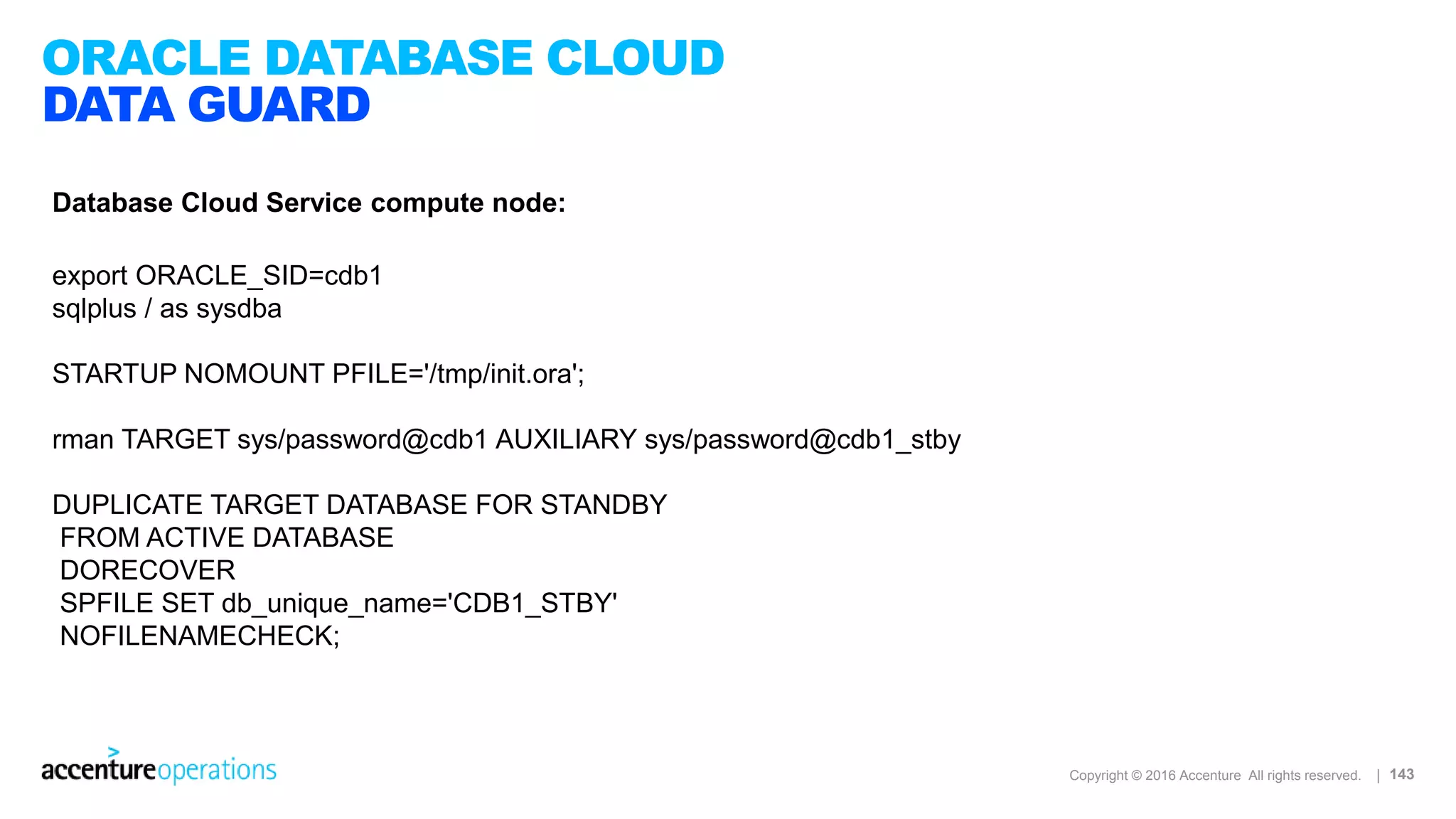

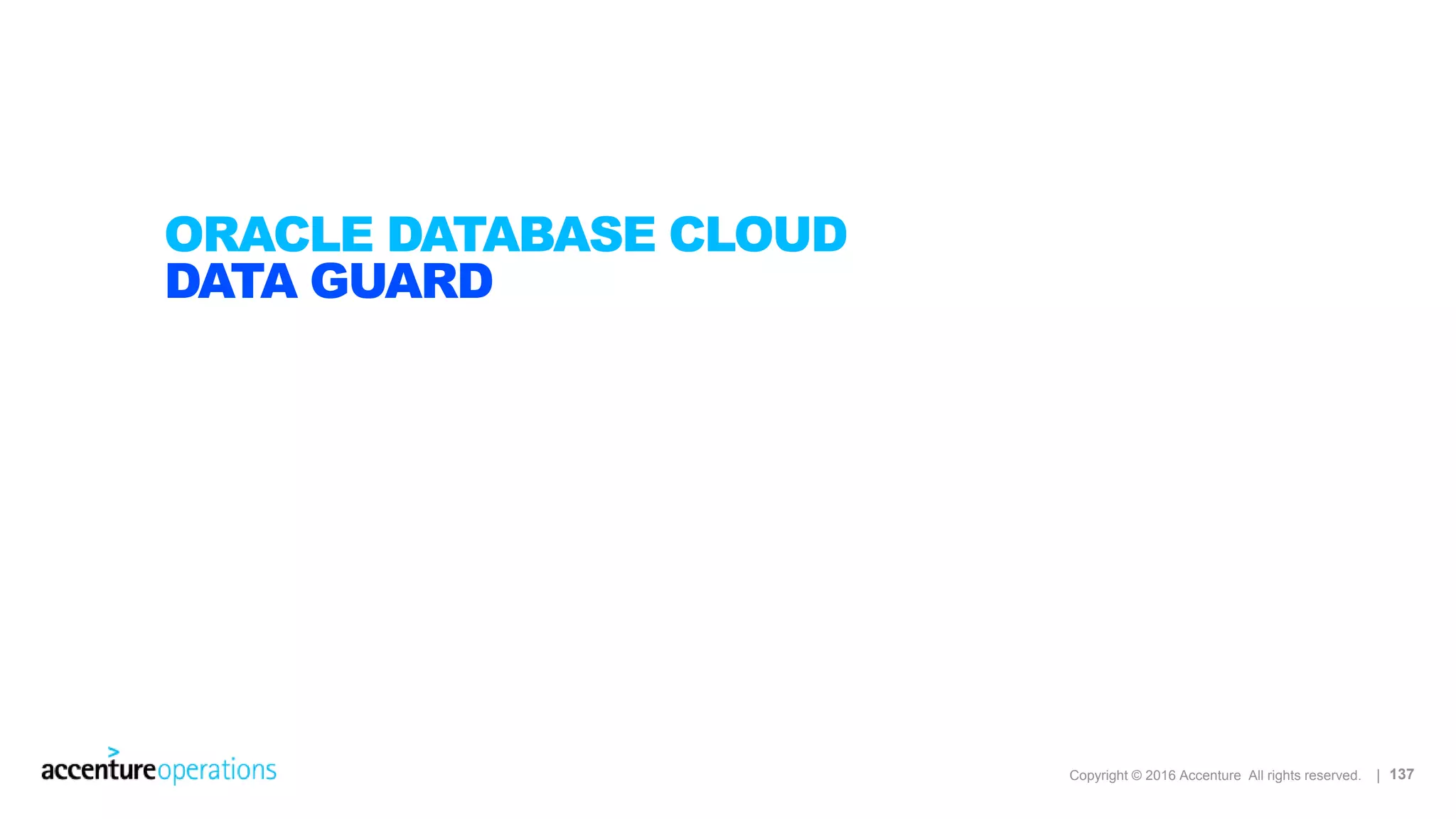

• Dataguard

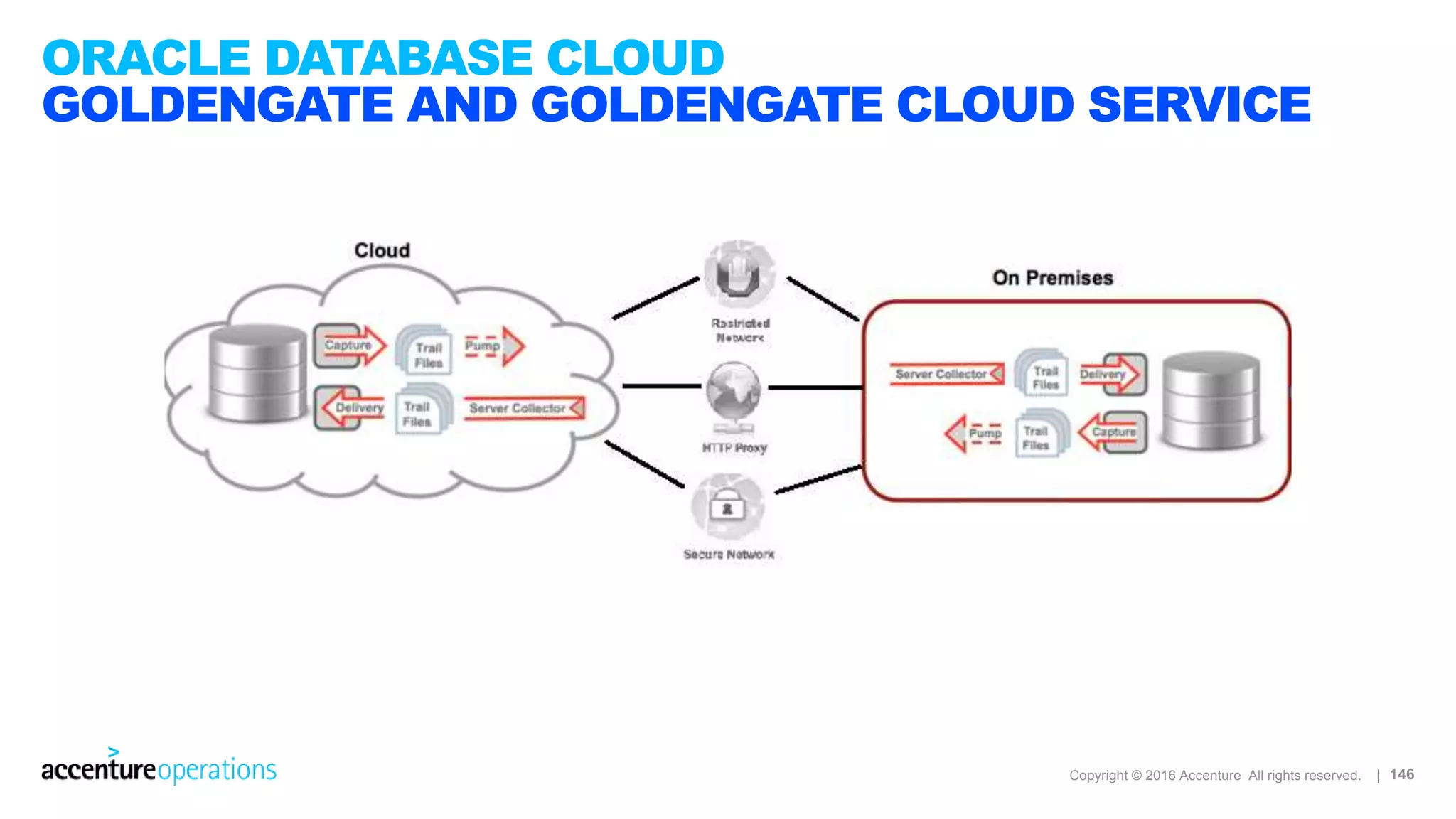

• GoldenGate
• REST Services
• Enterprise Manager (12cR5 or 13c)
• Bulk Data Transfer

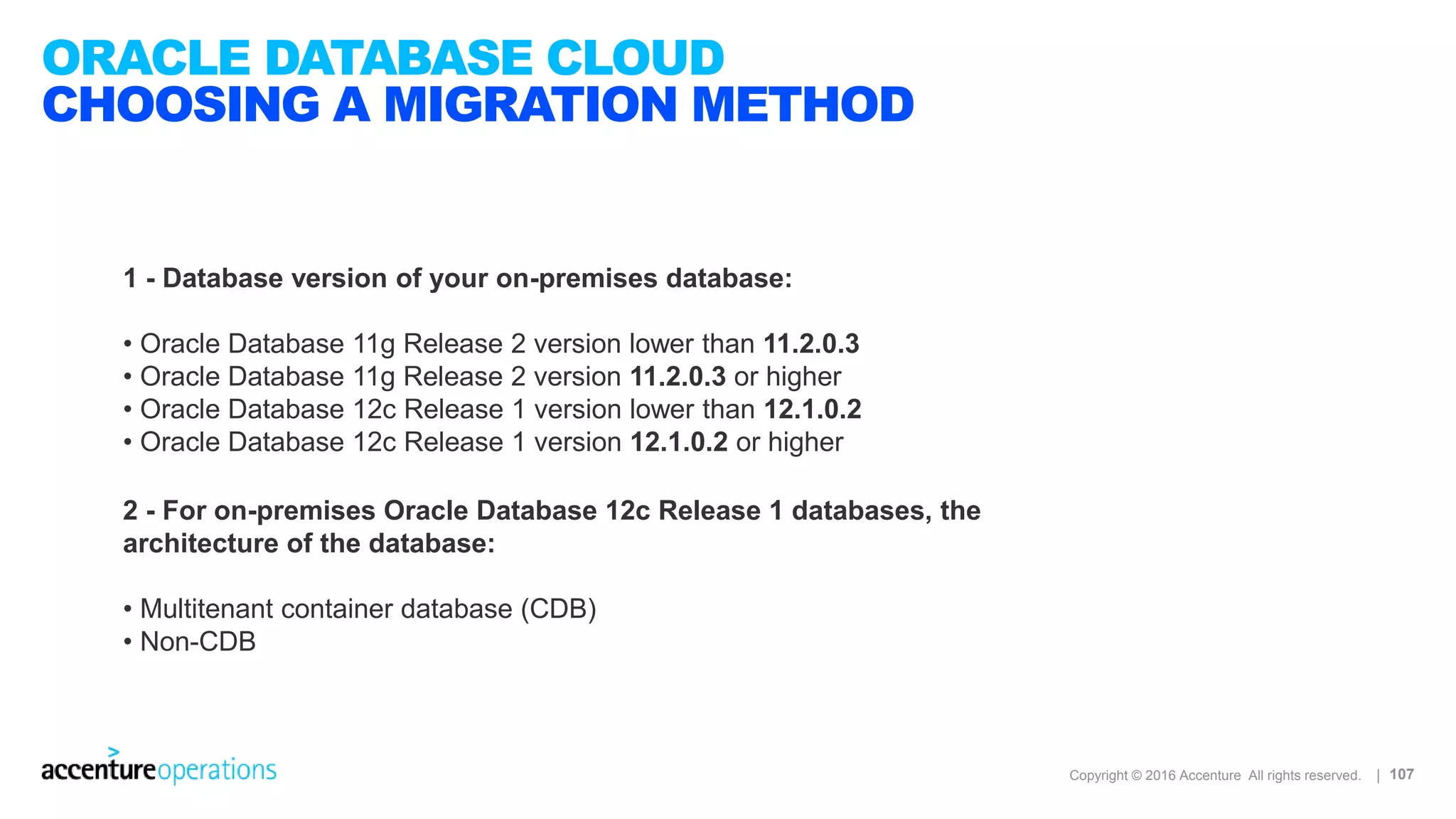

CHOOSING A MIGRATION METHOD
1 - Database version of your on-premises database:
• Oracle Database 11g Release 2 version lower than 11.2.0.3
• Oracle Database 11g Release 2 version 11.2.0.3 or higher
• Oracle Database 12c Release 1 version lower than 12.1.0.2
• Oracle Database 12c Release 1 version 12.1.0.2 or higher
2 - For on-premises Oracle Database 12c Release 1 databases, the
architecture of the database:
• Multitenant container database (CDB)
• Non-CDB

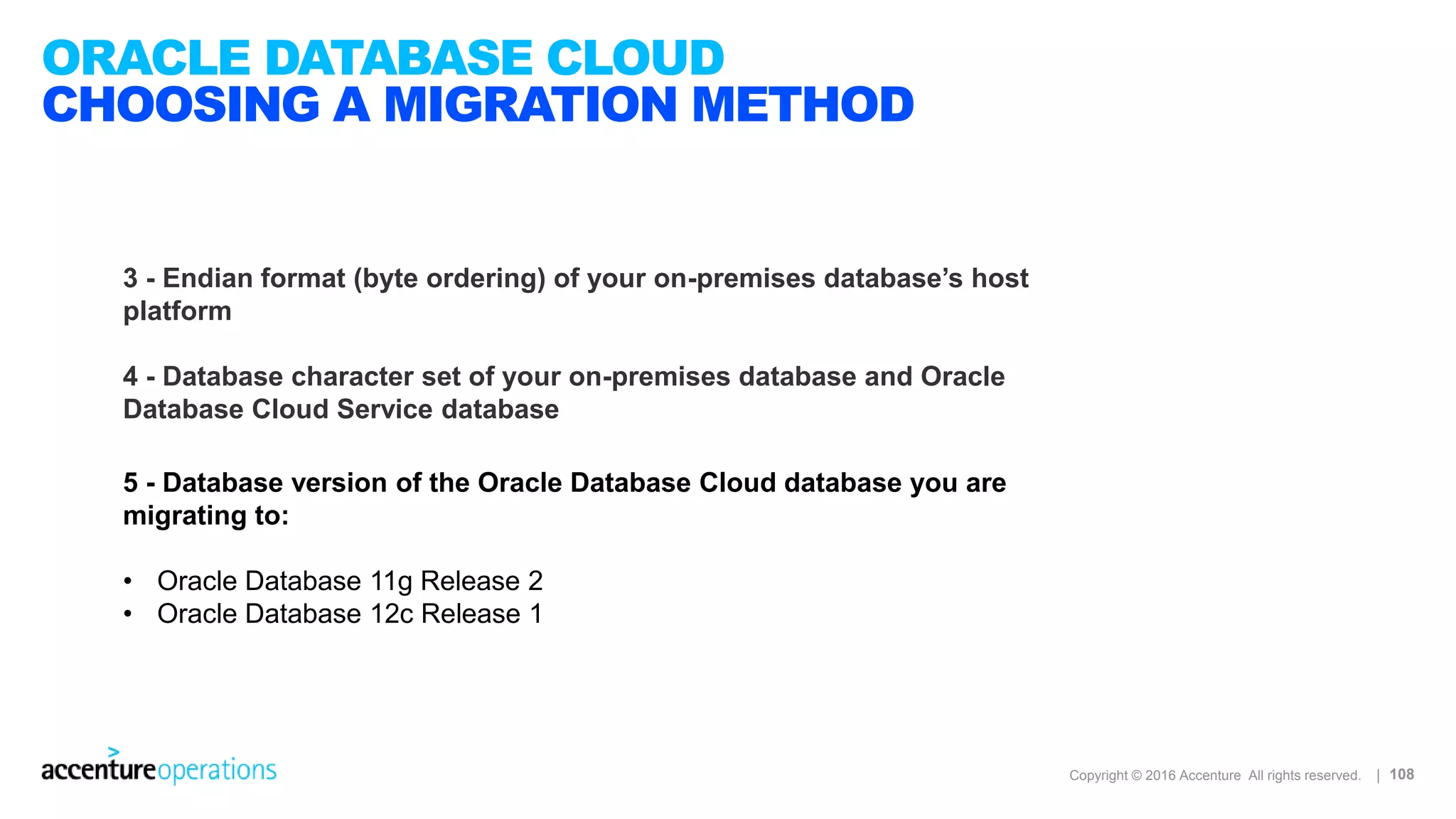

3 - Endian format (byte ordering) of your on-premises database’s host
platform
4 - Database character set of your on-premises database and Oracle
Database Cloud Service database
5 - Database version of the Oracle Database Cloud database you are
migrating to:
• Oracle Database 11g Release 2
• Oracle Database 12c Release 1

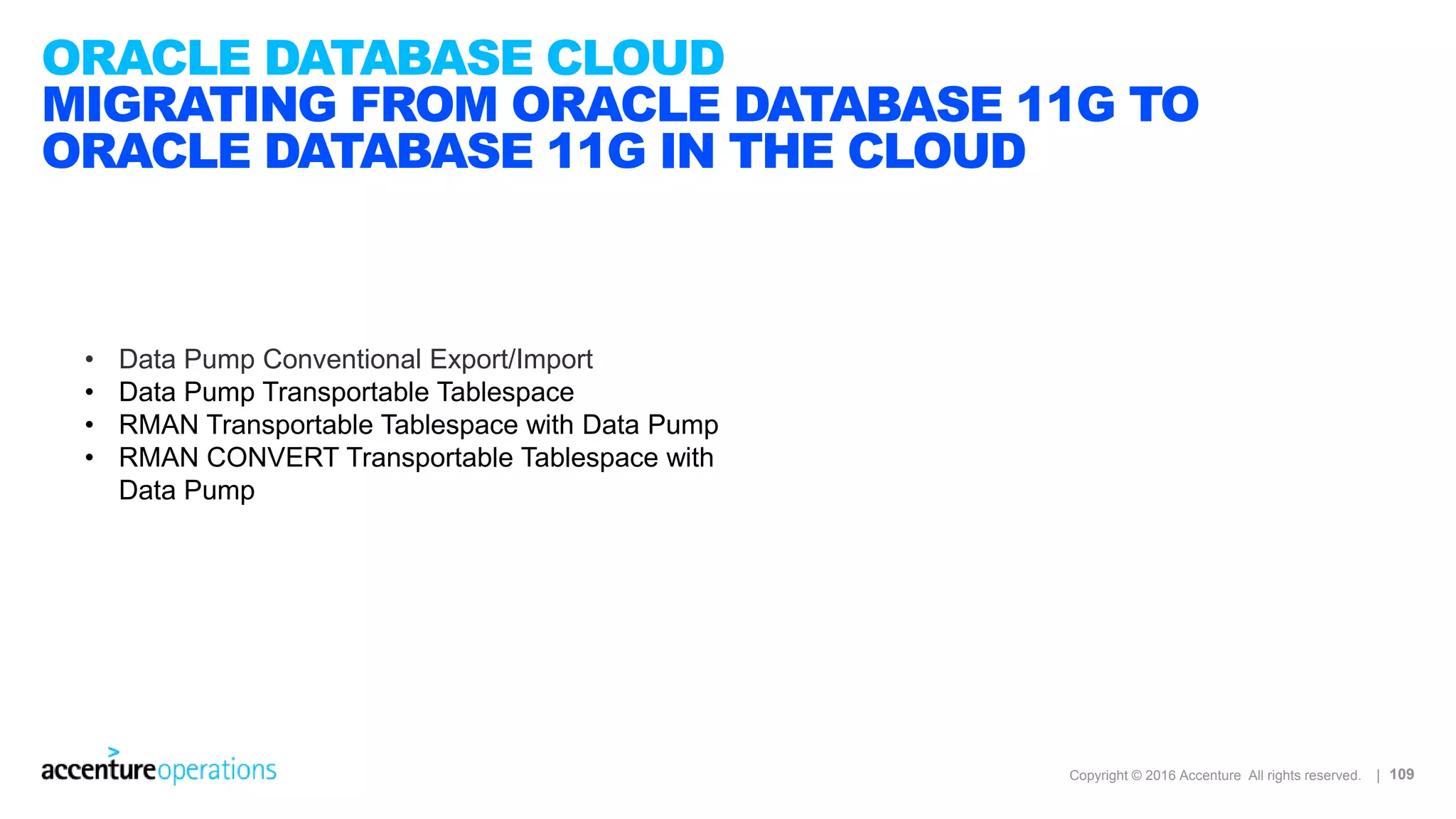

MIGRATING FROM ORACLE DATABASE 11G TO
ORACLE DATABASE 11G IN THE CLOUD
• Data Pump Conventional Export/Import
• Data Pump Transportable Tablespace

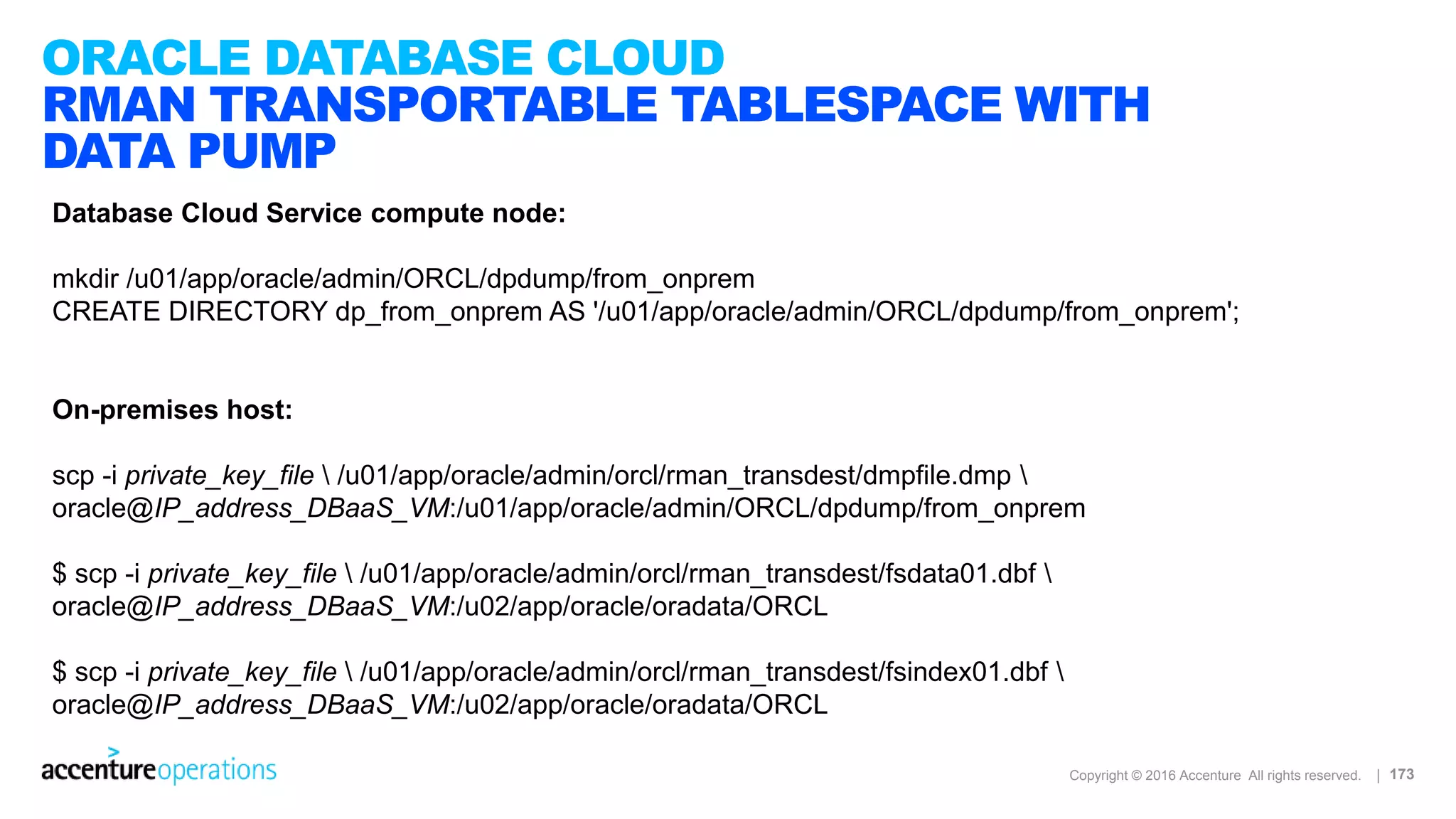

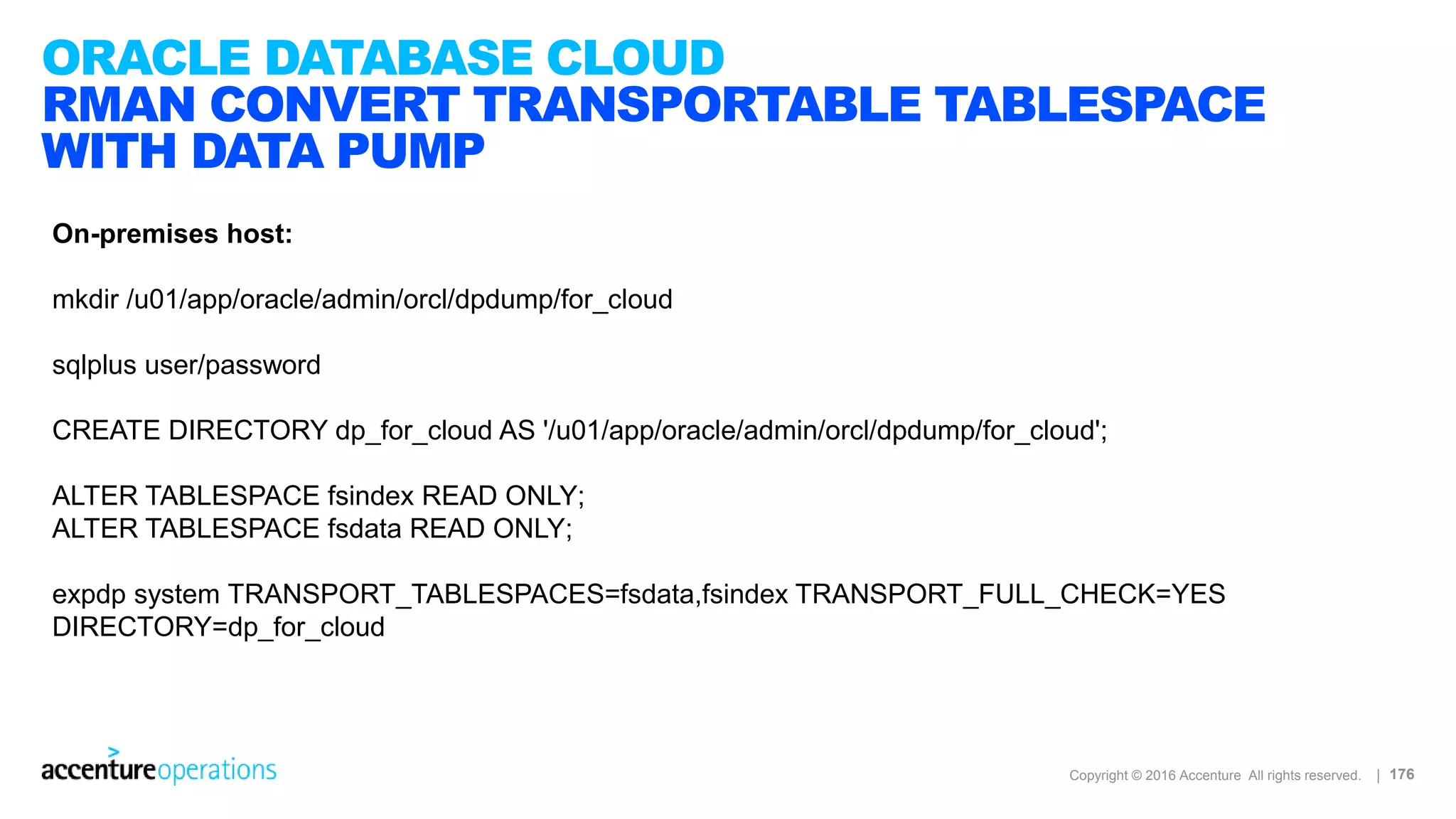

• RMAN Transportable Tablespace with Data Pump

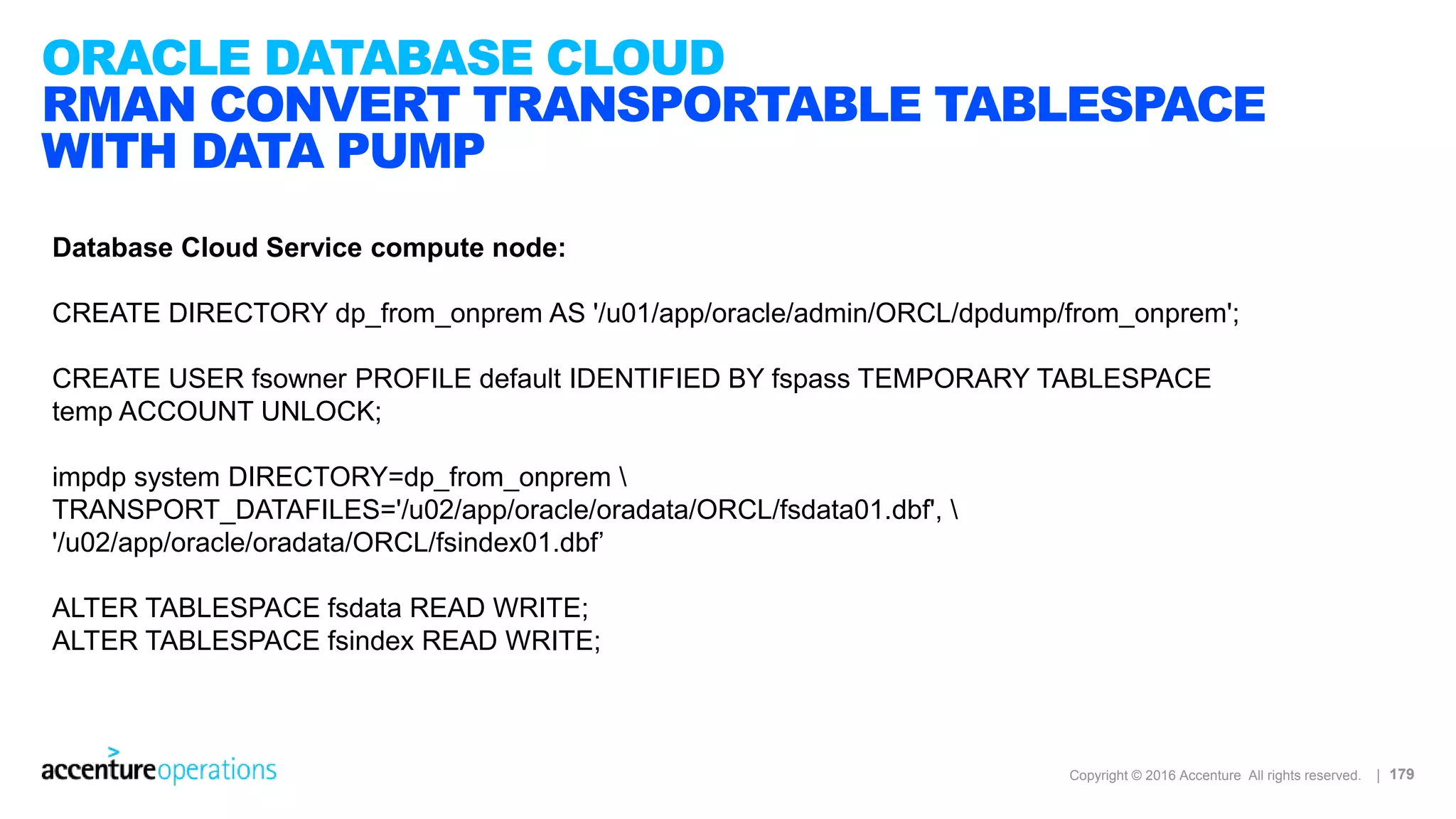

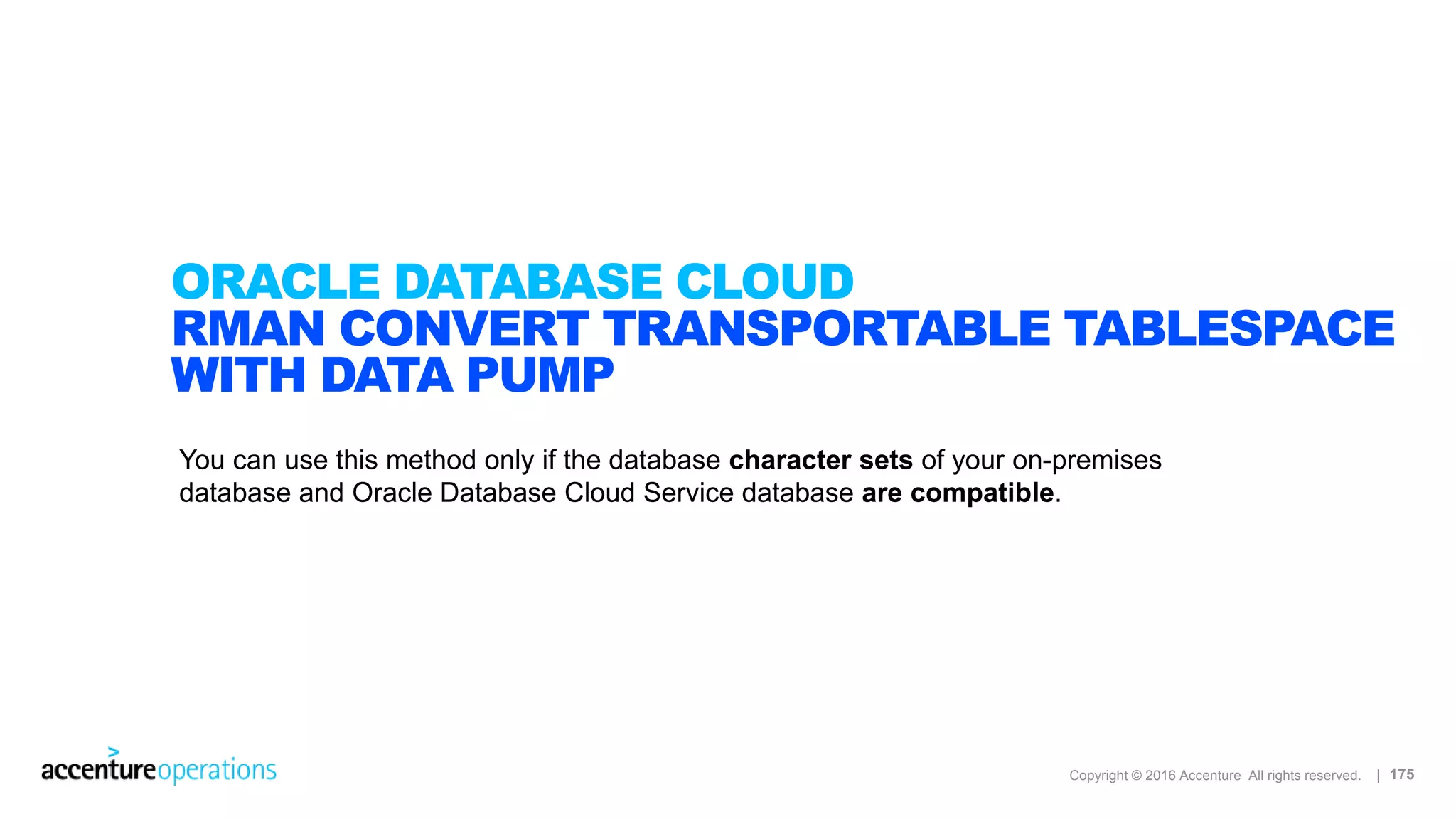

• RMAN CONVERT Transportable Tablespace with
Data Pump

MIGRATING FROM ORACLE DATABASE 11G TO
ORACLE DATABASE 12C IN THE CLOUD
• RMAN CONVERT Transportable Tablespace with
Data Pump
• Data Pump Full Transportable

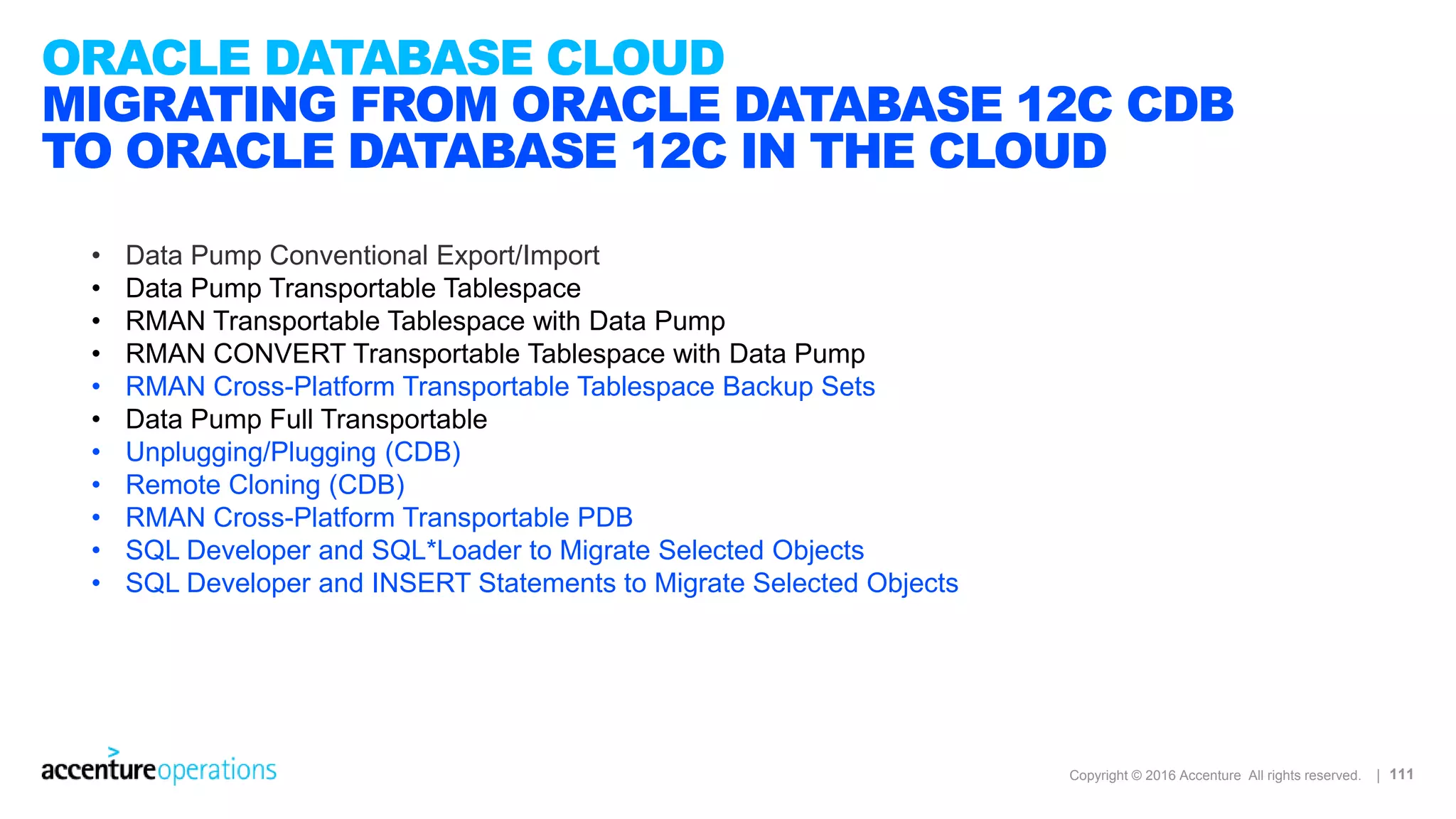

MIGRATING FROM ORACLE DATABASE 12C CDB
TO ORACLE DATABASE 12C IN THE CLOUD
• RMAN CONVERT Transportable Tablespace with Data Pump

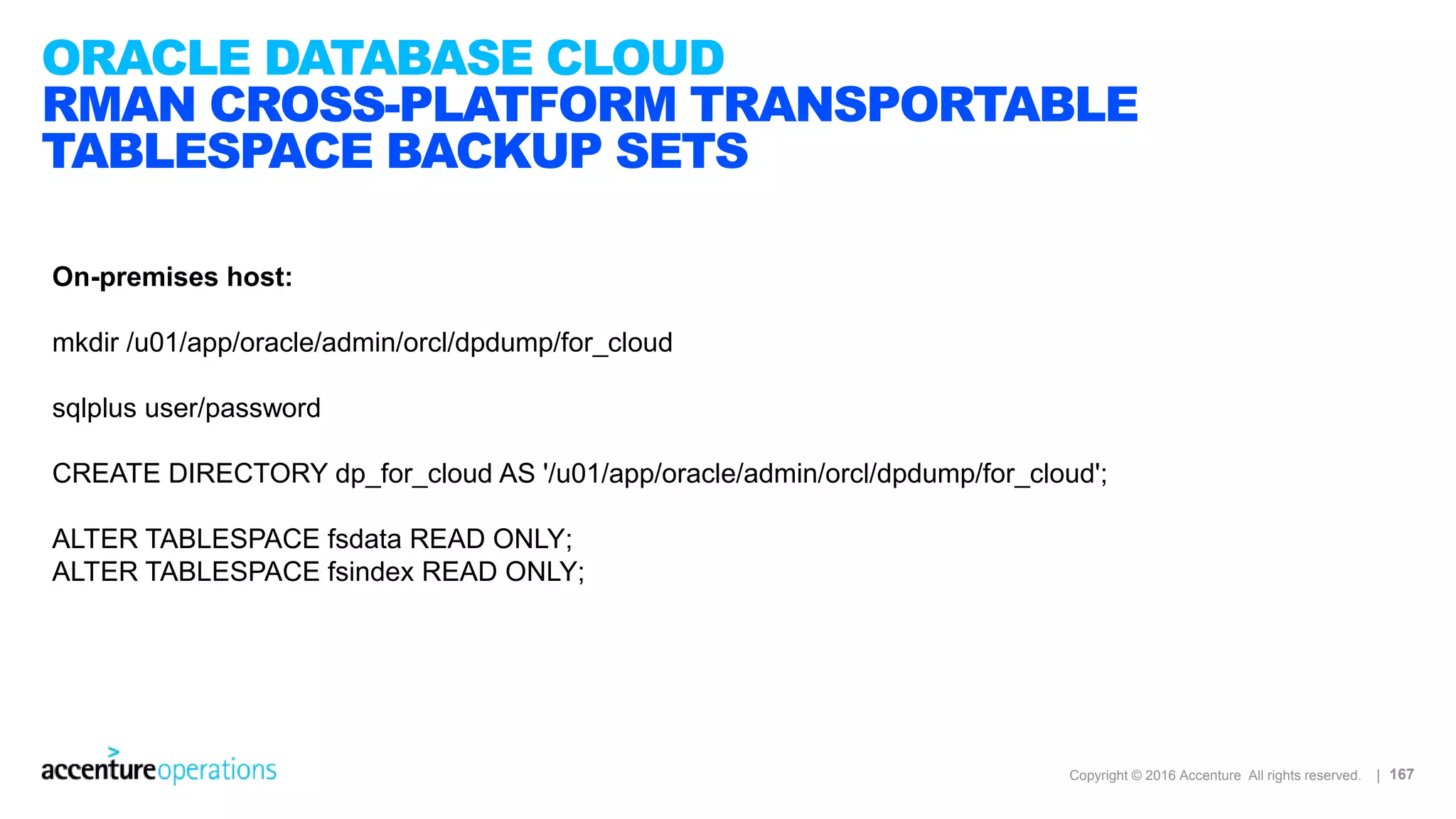

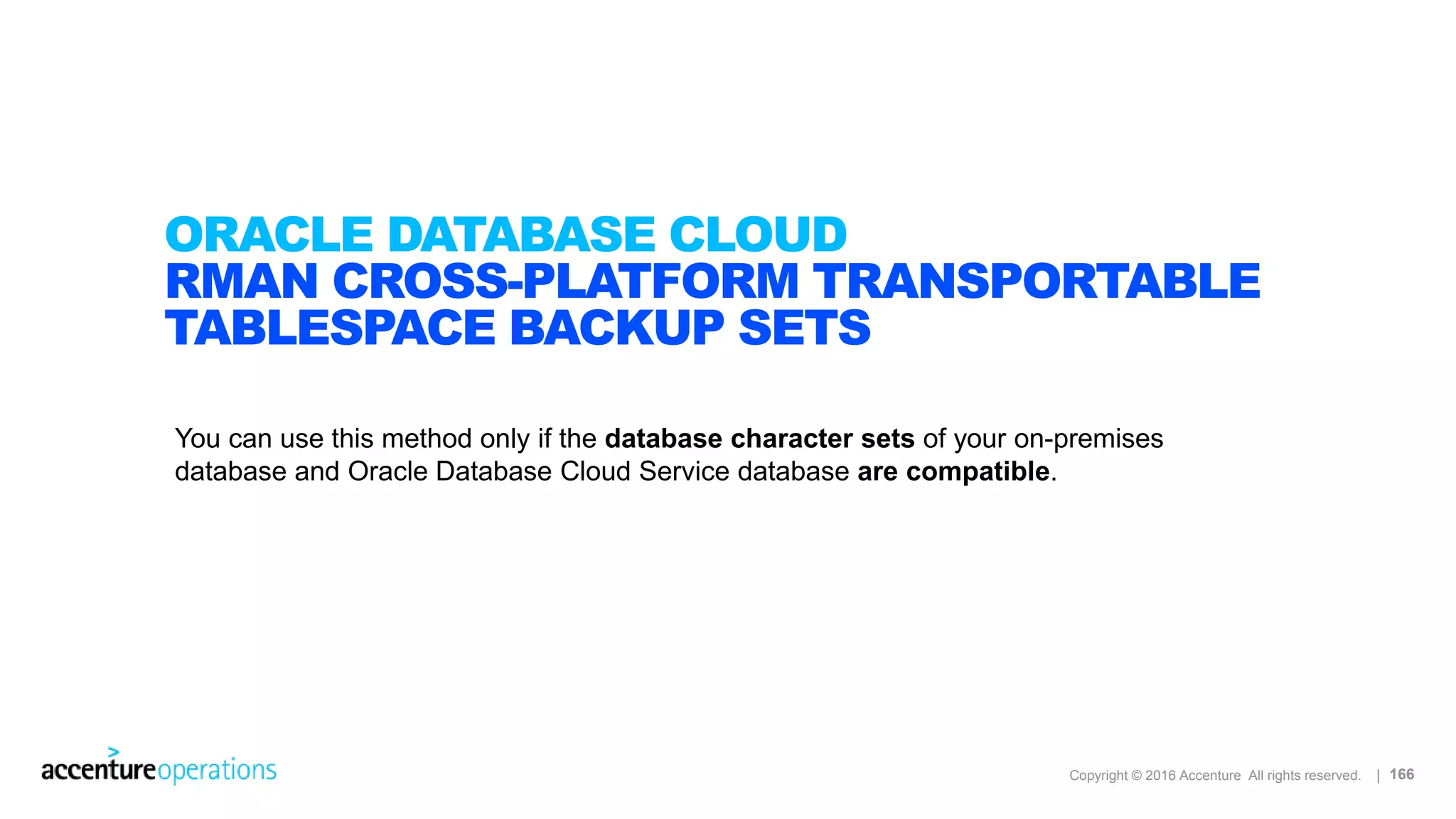

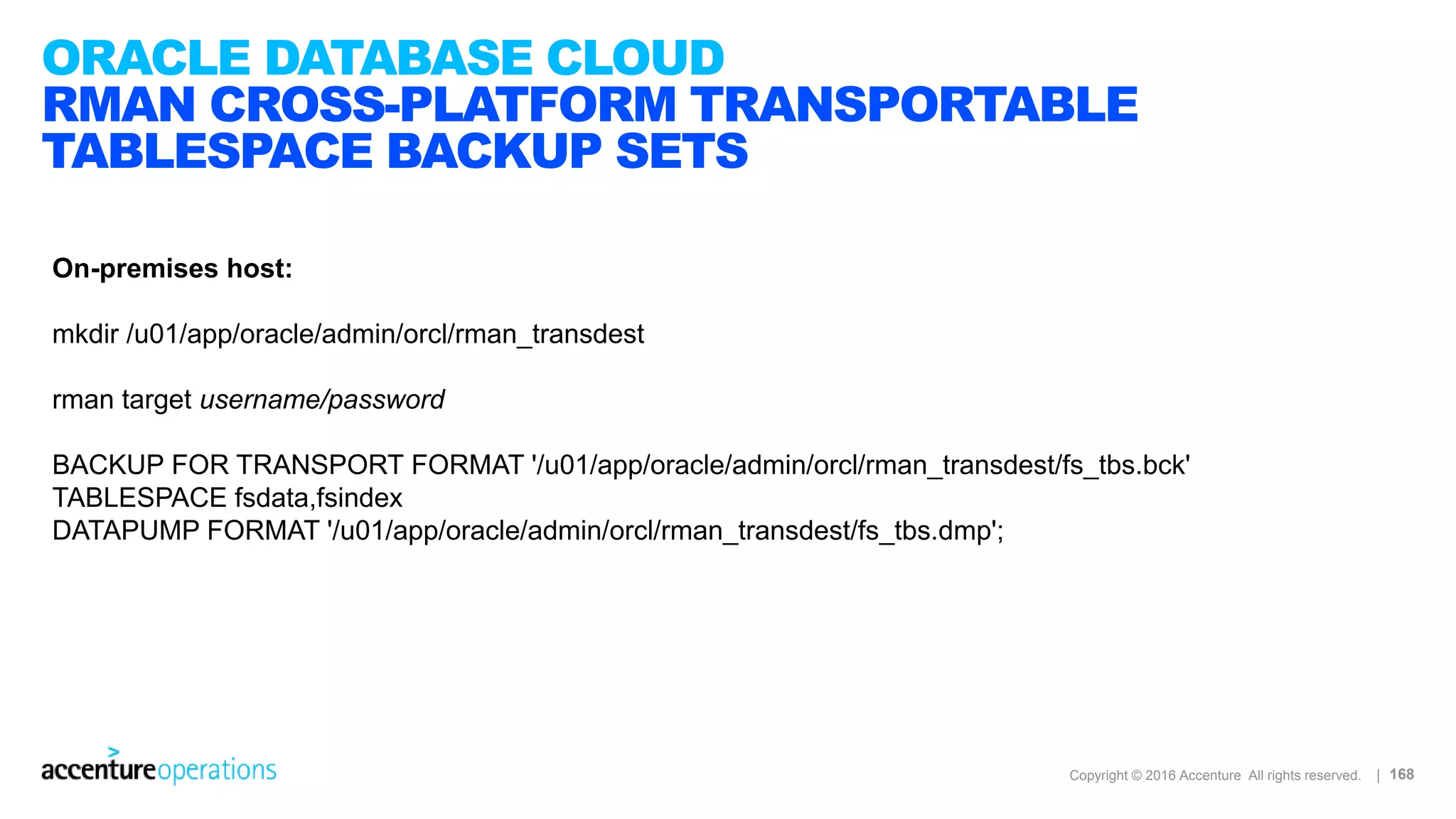

• RMAN Cross-Platform Transportable Tablespace Backup Sets

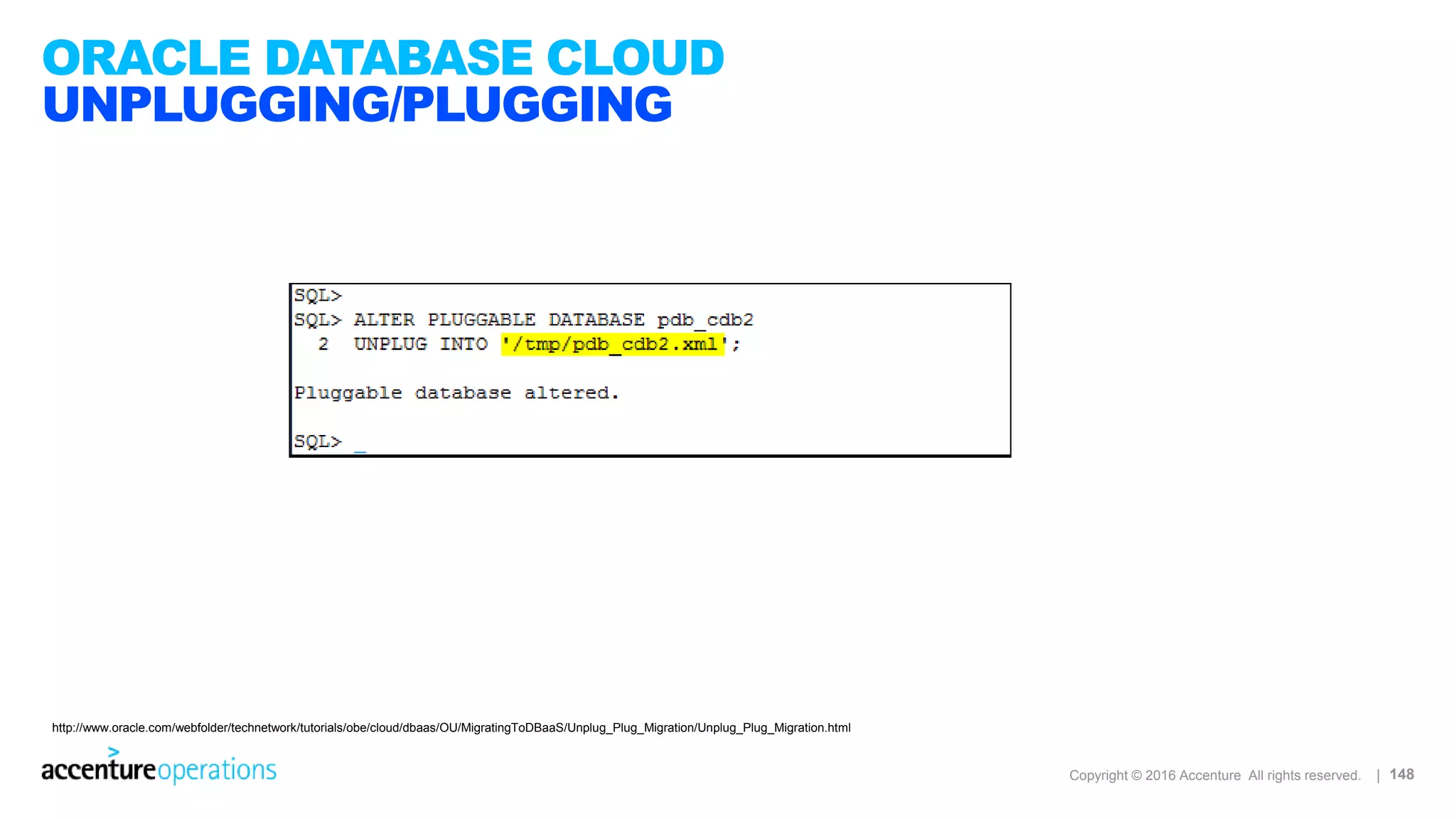

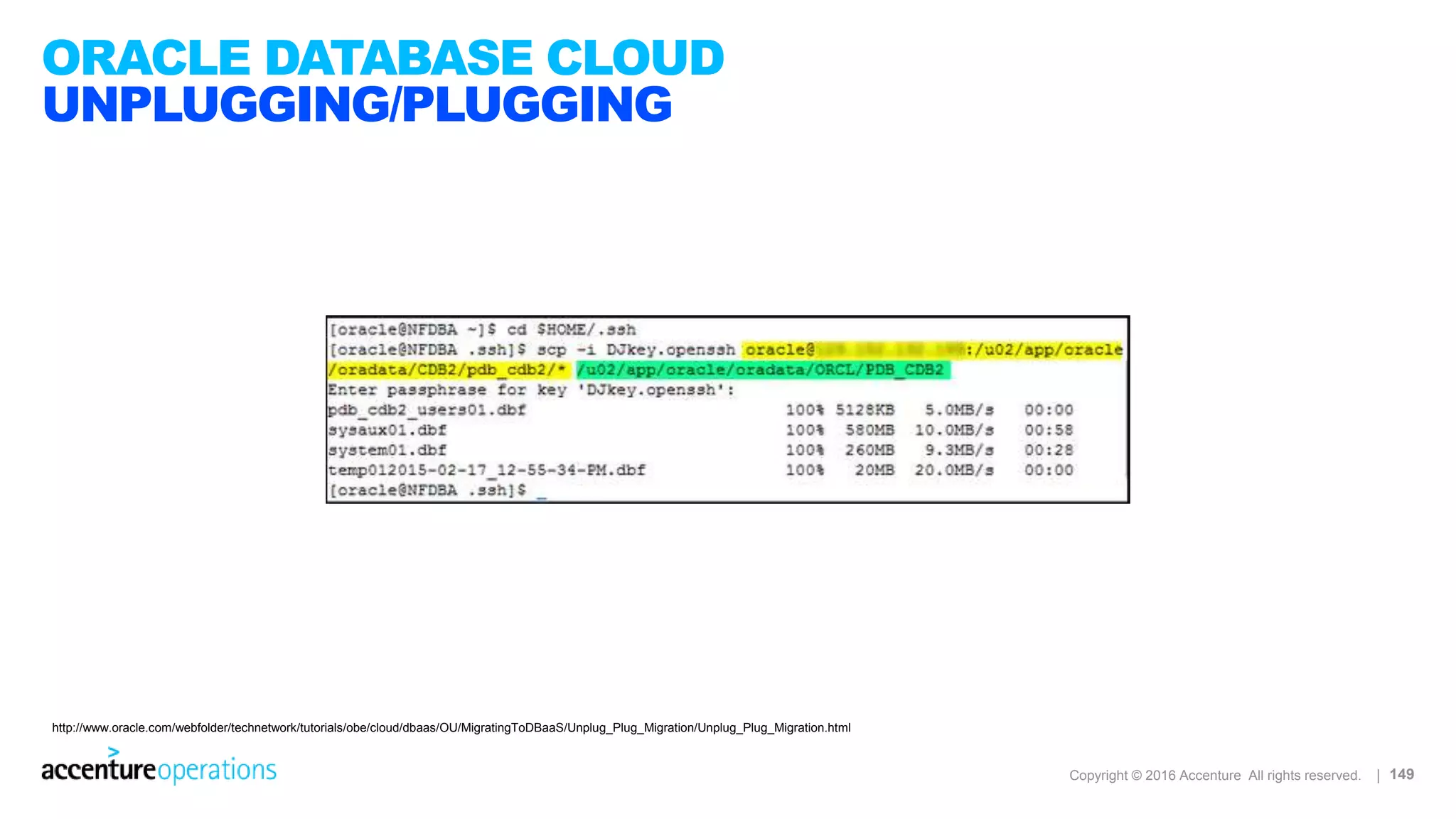

• Unplugging/Plugging (CDB)
• Remote Cloning (CDB)
• RMAN Cross-Platform Transportable PDB

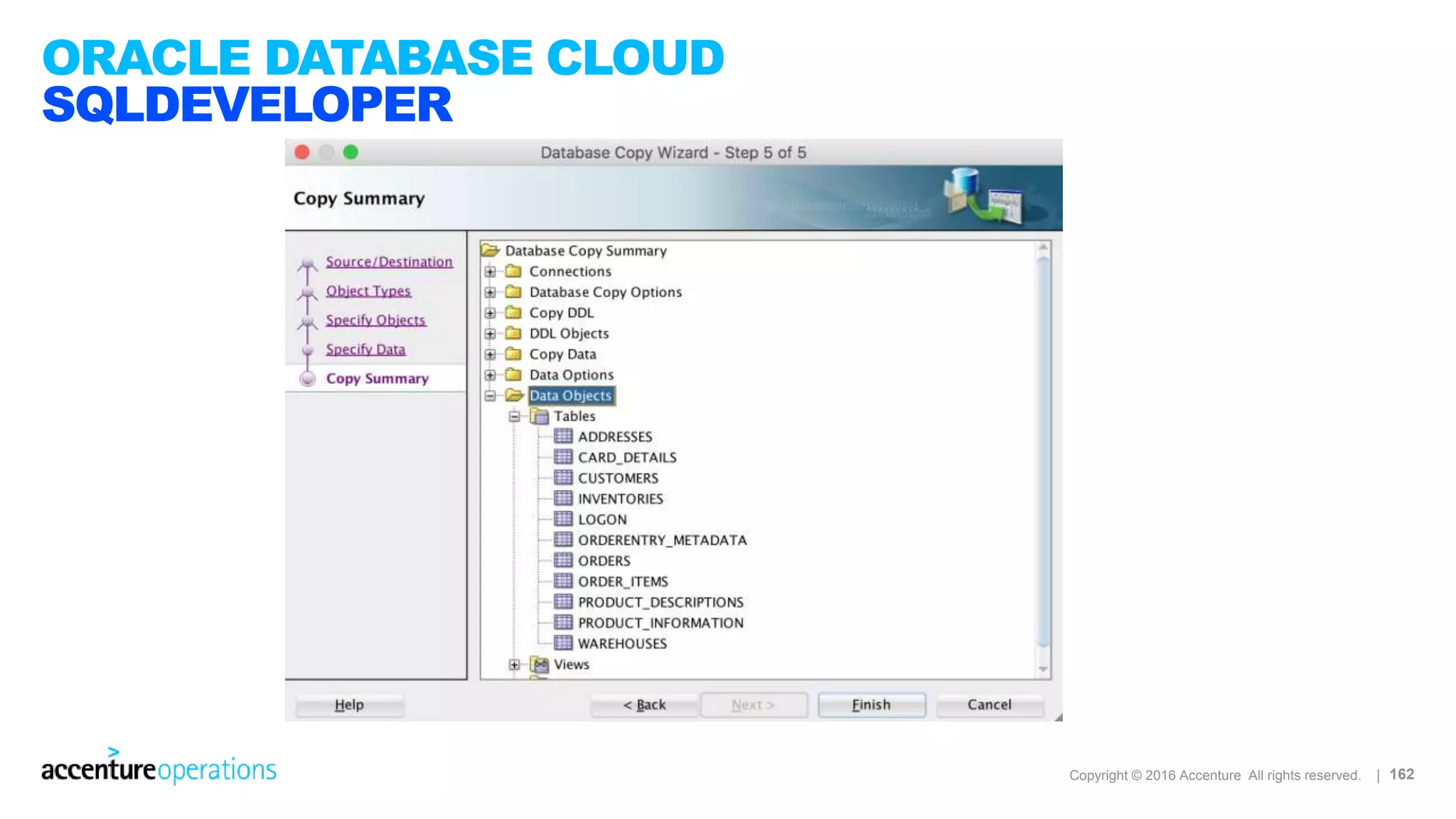

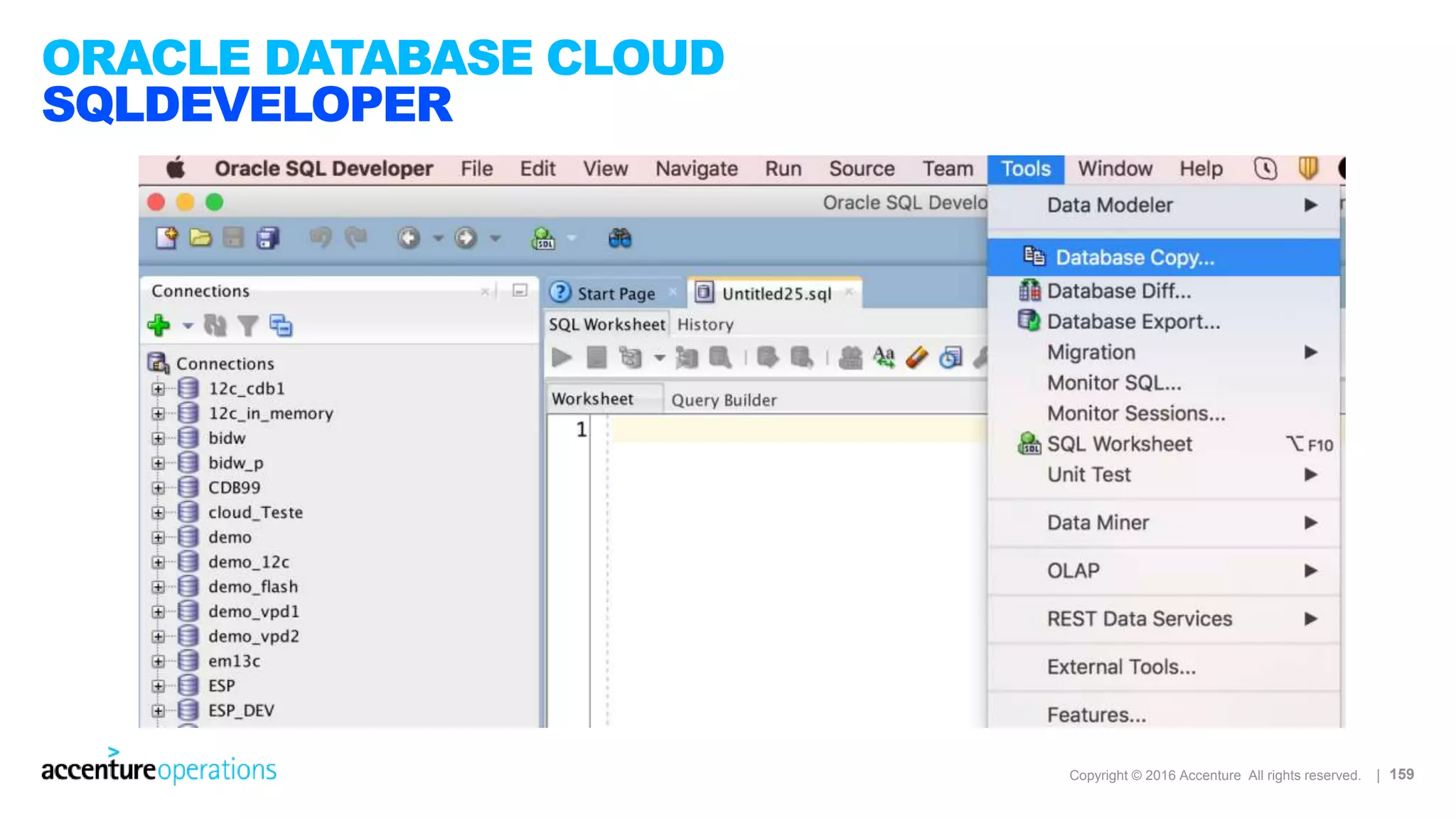

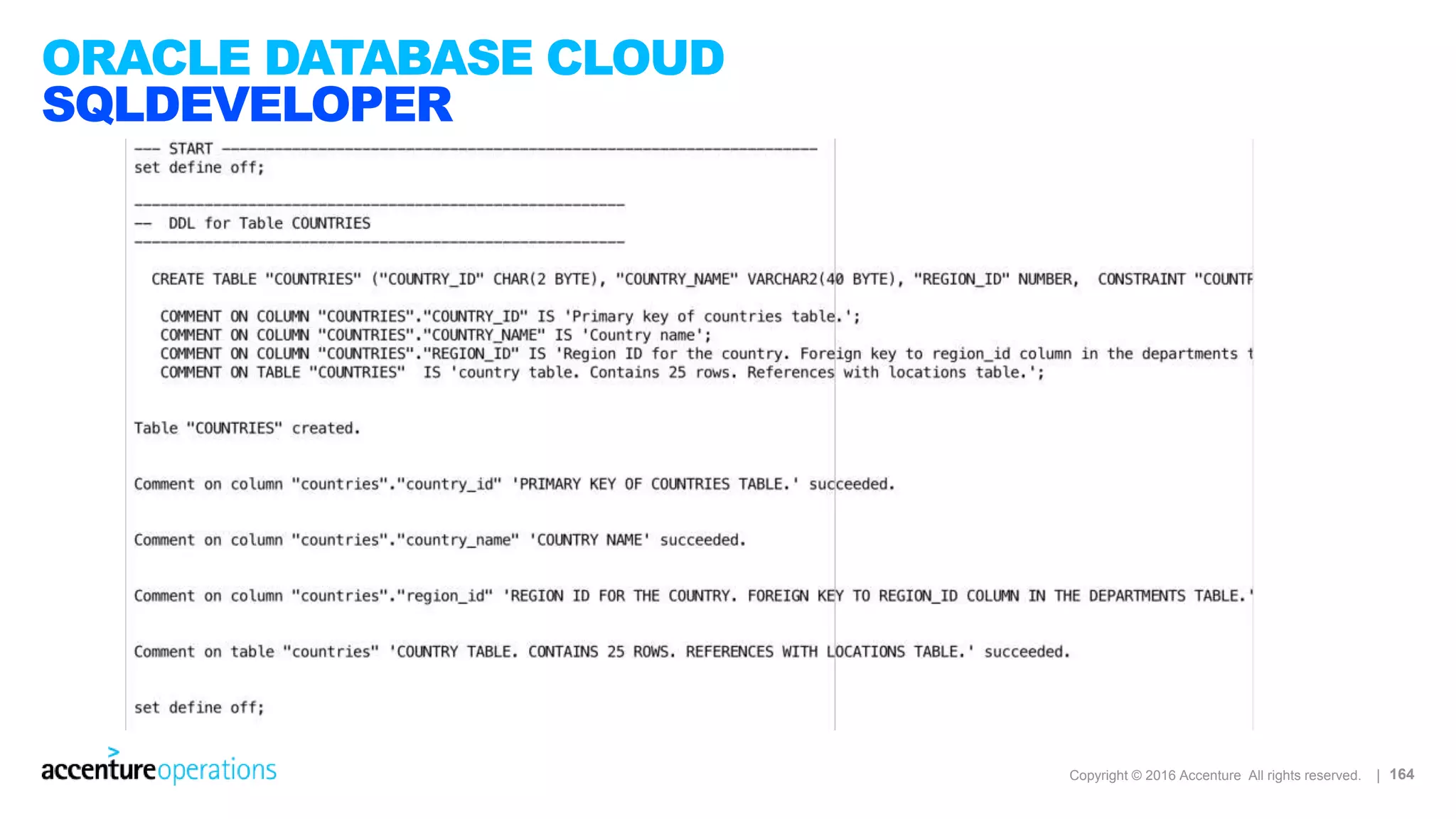

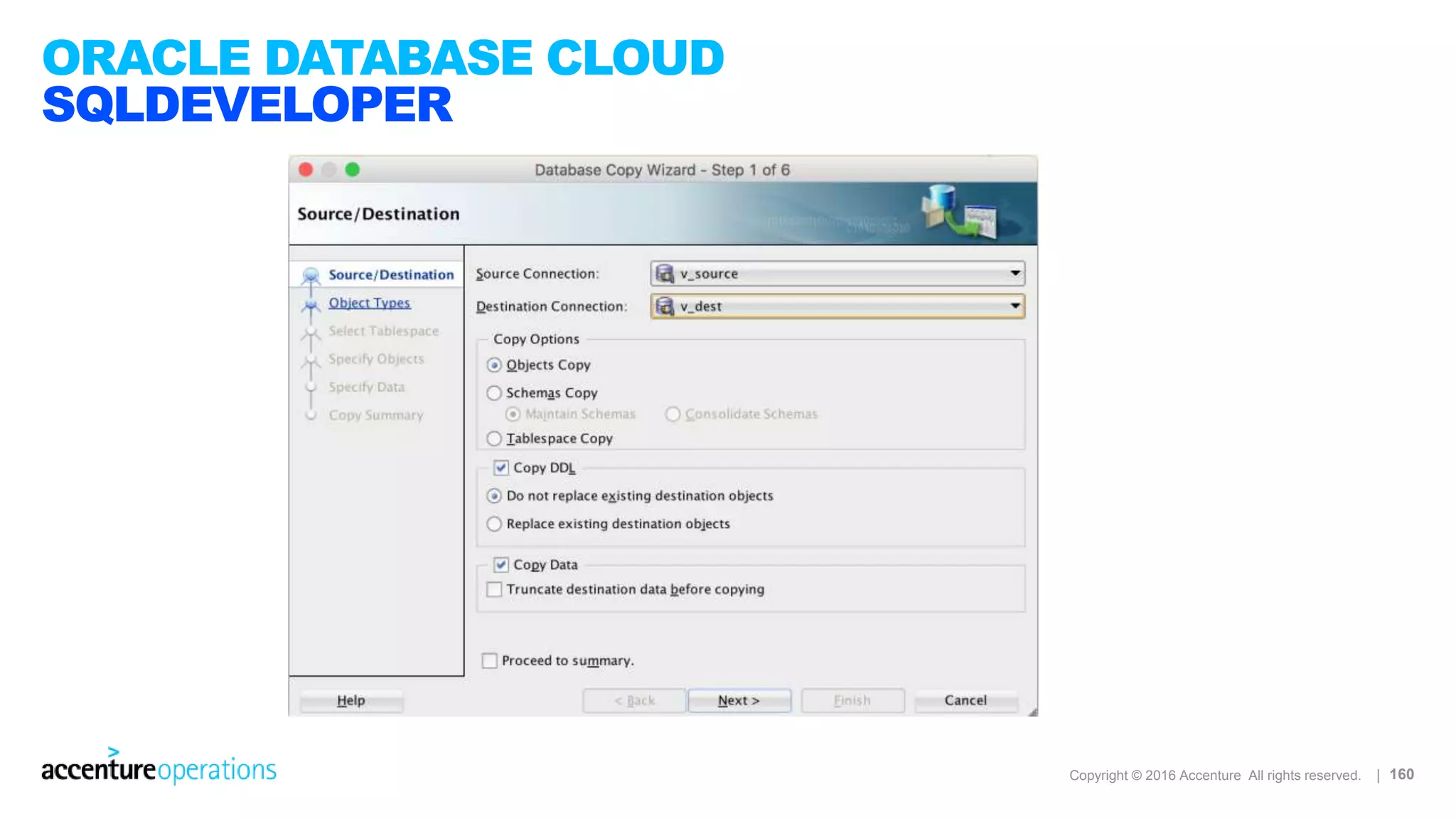

• SQL Developer and SQL*Loader to Migrate Selected Objects
• SQL Developer and INSERT Statements to Migrate Selected Objects

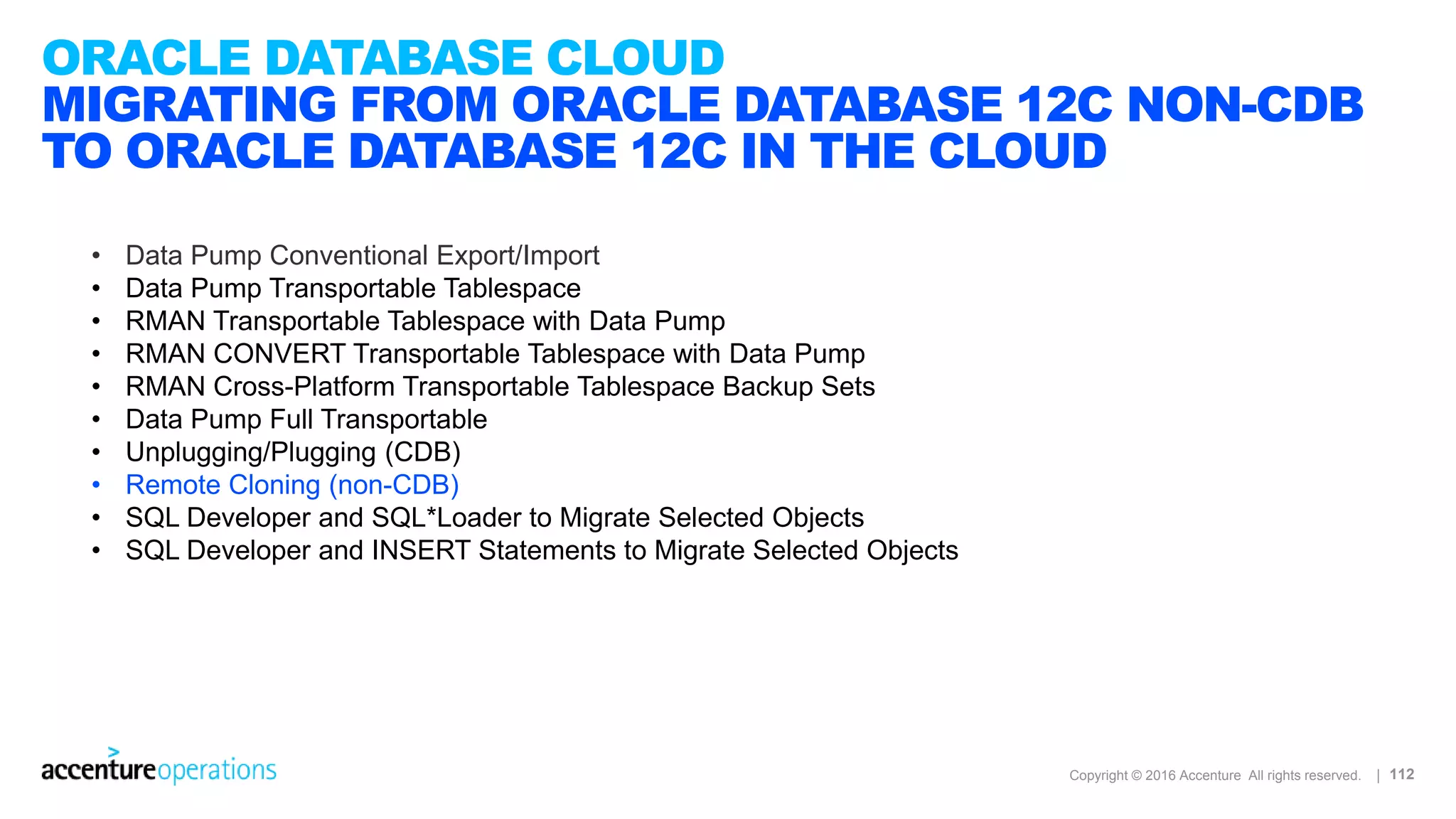

MIGRATING FROM ORACLE DATABASE 12C NON-CDB
TO ORACLE DATABASE 12C IN THE CLOUD
• RMAN CONVERT Transportable Tablespace with Data Pump
• RMAN Cross-Platform Transportable Tablespace Backup Sets
• Unplugging/Plugging (CDB)
• Remote Cloning (non-CDB)
• SQL Developer and SQL*Loader to Migrate Selected Objects
• SQL Developer and INSERT Statements to Migrate Selected Objects

https://d0.awsstatic.com/whitepapers/strategies-for-migrating-oracle-database-to-aws.pdf

Downtime?

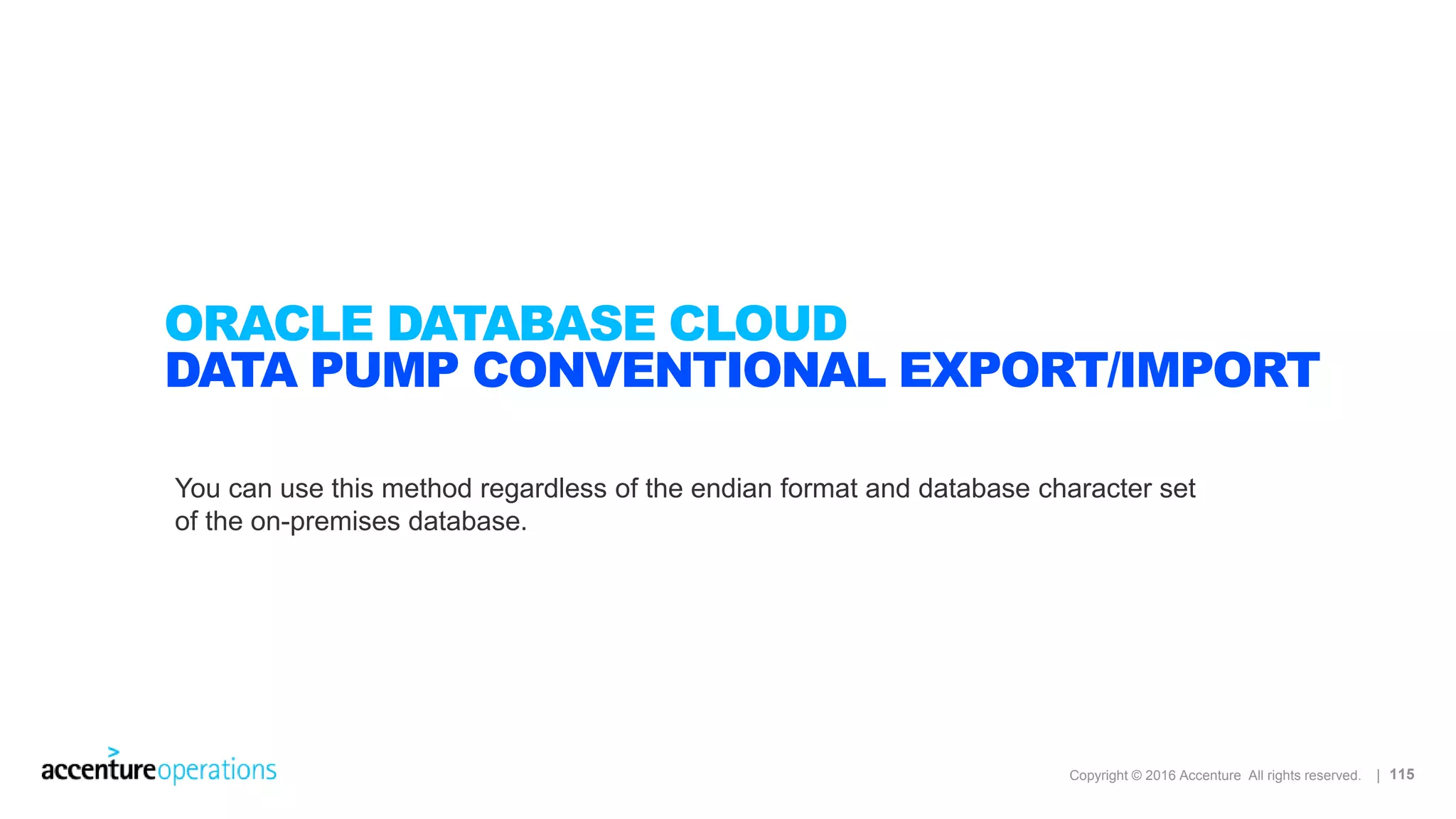

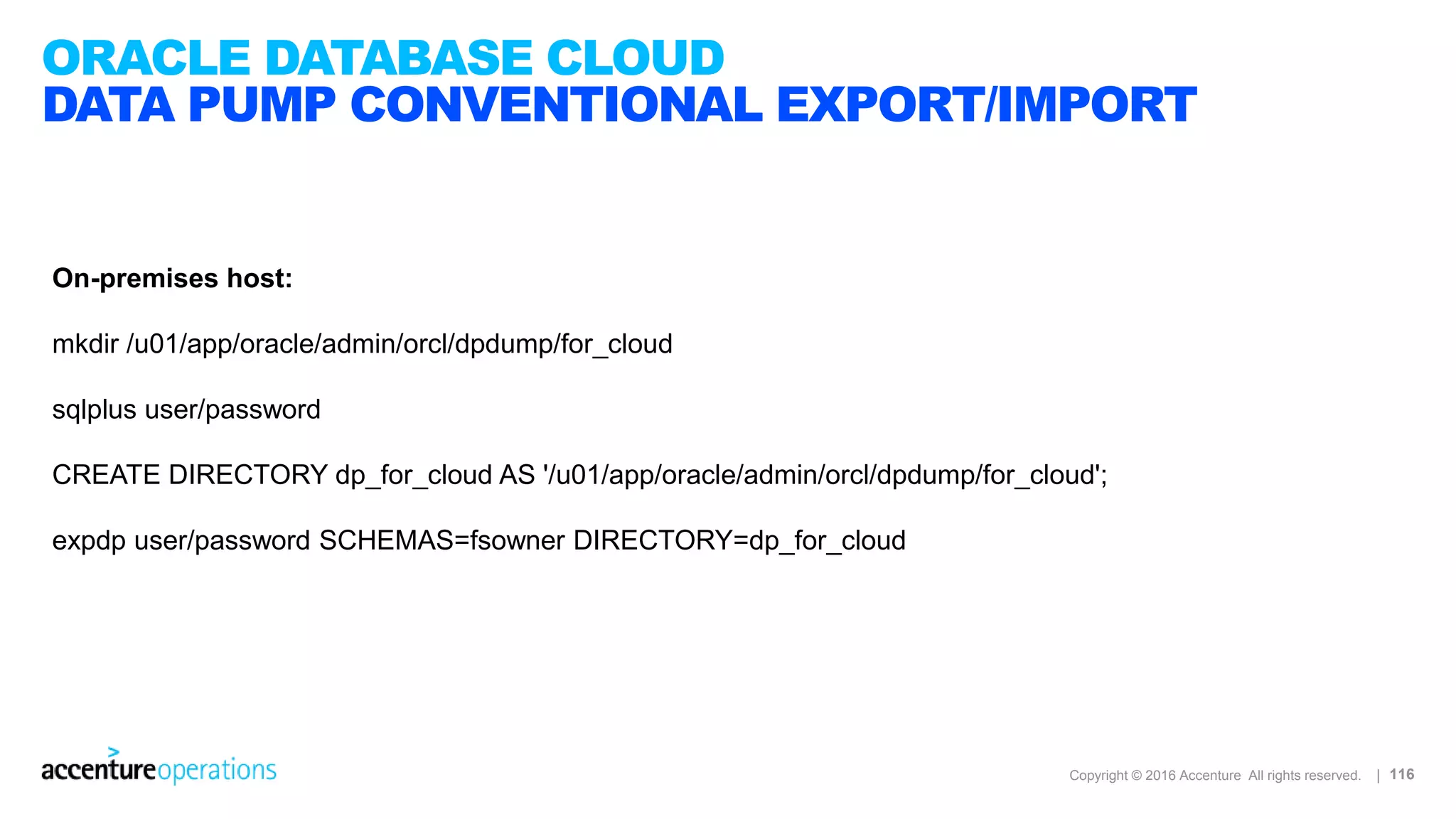

DATA PUMP CONVENTIONAL EXPORT/IMPORT
You can use this method regardless of the endian format and database character set
of the on-premises database.

On-premises host:
mkdir /u01/app/oracle/admin/orcl/dpdump/for_cloud
sqlplus user/password
CREATE DIRECTORY dp_for_cloud AS '/u01/app/oracle/admin/orcl/dpdump/for_cloud';
expdp user/password SCHEMAS=fsowner DIRECTORY=dp_for_cloud

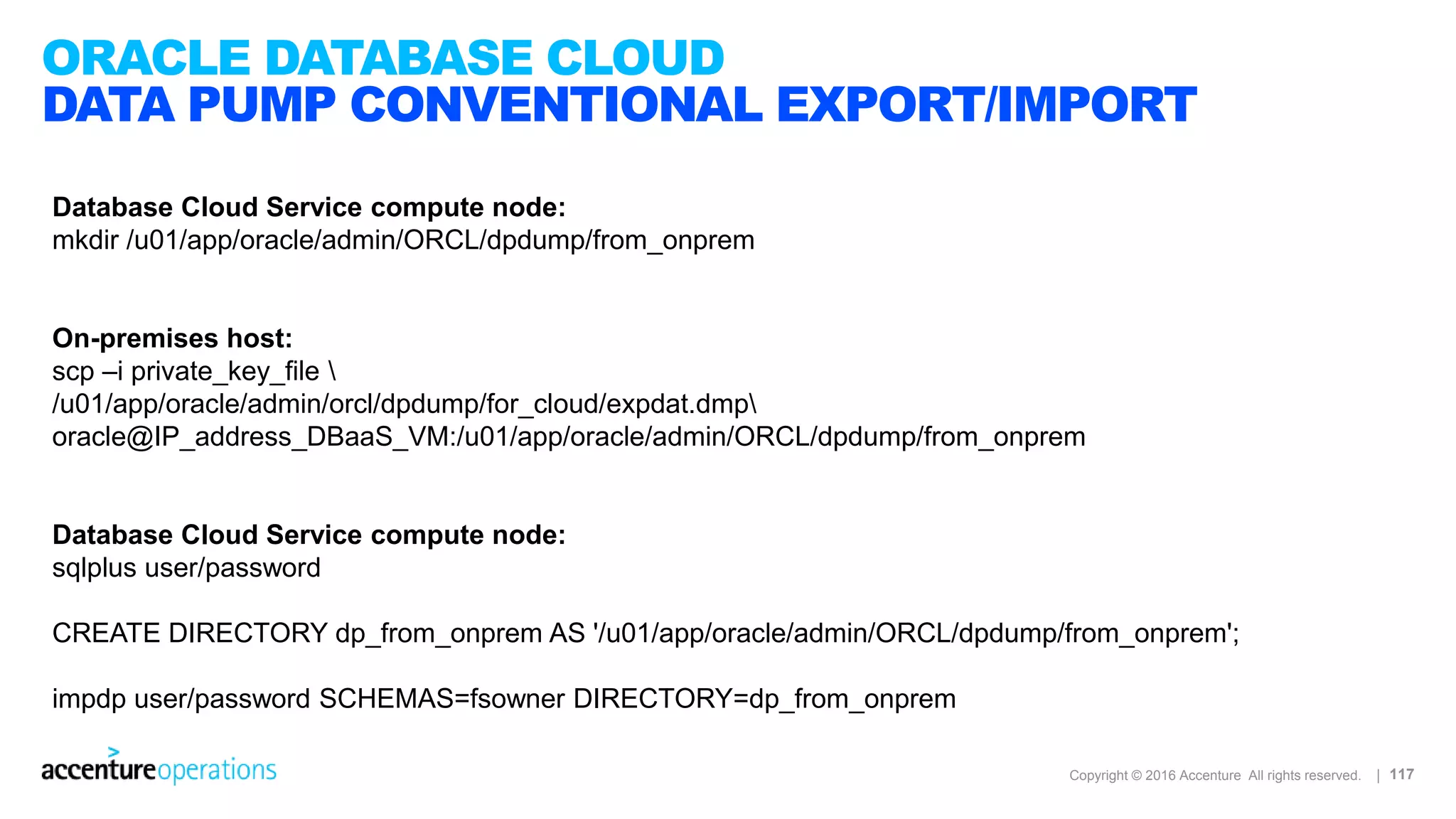

Database Cloud Service compute node:
mkdir /u01/app/oracle/admin/ORCL/dpdump/from_onprem
On-premises host:
scp –i private_key_file
/u01/app/oracle/admin/orcl/dpdump/for_cloud/expdat.dmp
oracle@IP_address_DBaaS_VM:/u01/app/oracle/admin/ORCL/dpdump/from_onprem
CREATE DIRECTORY dp_from_onprem AS '/u01/app/oracle/admin/ORCL/dpdump/from_onprem';
impdp user/password SCHEMAS=fsowner DIRECTORY=dp_from_onprem

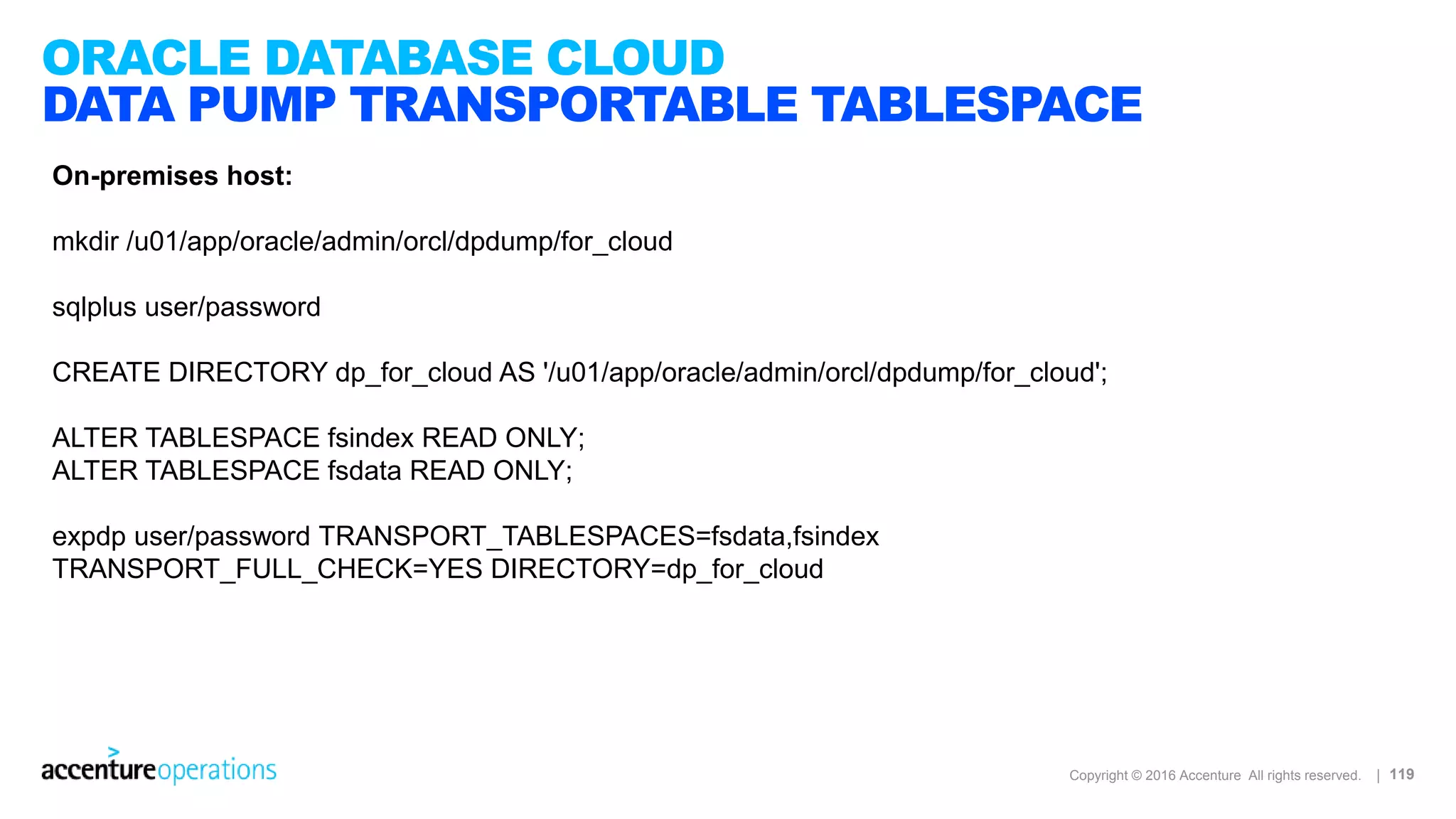

DATA PUMP TRANSPORTABLE TABLESPACE
You can use this method only if the on-premises platform is little endian, and the
database character sets of your on-premises database and Oracle Database Cloud
Service database are compatible.

On-premises host:
ALTER TABLESPACE fsindex READ ONLY;
ALTER TABLESPACE fsdata READ ONLY;
expdp user/password TRANSPORT_TABLESPACES=fsdata,fsindex
TRANSPORT_FULL_CHECK=YES DIRECTORY=dp_for_cloud

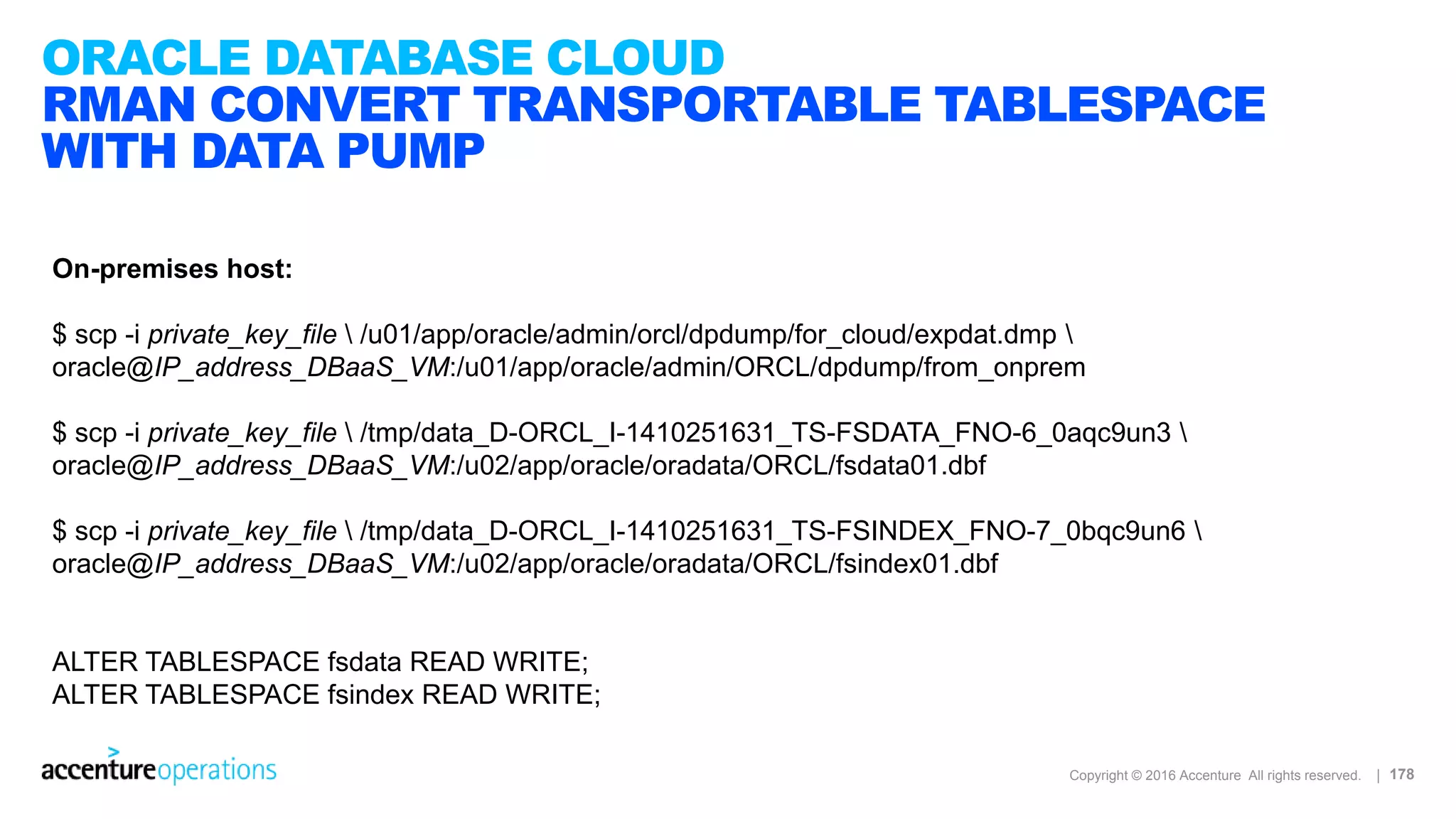

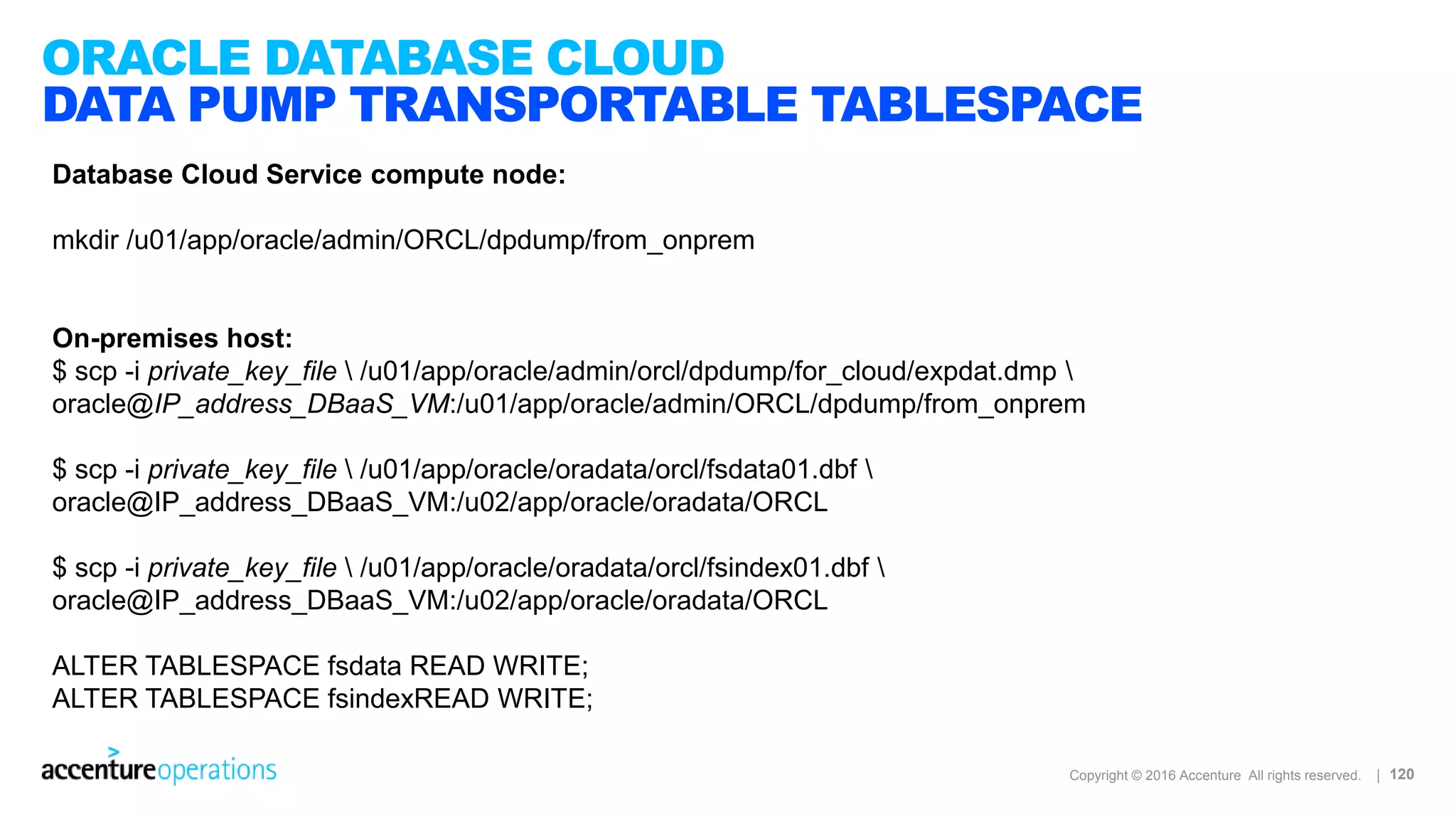

On-premises host:
$ scp -i private_key_file /u01/app/oracle/admin/orcl/dpdump/for_cloud/expdat.dmp
$ scp -i private_key_file /u01/app/oracle/oradata/orcl/fsdata01.dbf
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL
$ scp -i private_key_file /u01/app/oracle/oradata/orcl/fsindex01.dbf
ALTER TABLESPACE fsdata READ WRITE;
ALTER TABLESPACE fsindexREAD WRITE;

SQL> CREATE USER fsowner PROFILE default IDENTIFIED BY fspass TEMPORARY
TABLESPACE temp ACCOUNT UNLOCK;
impdp user/password DIRECTORY=dp_from_onprem
TRANSPORT_DATAFILES='/u02/app/oracle/oradata/ORCL/fsdata01.dbf',
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf’
ALTER TABLESPACE fsindex READ WRITE;

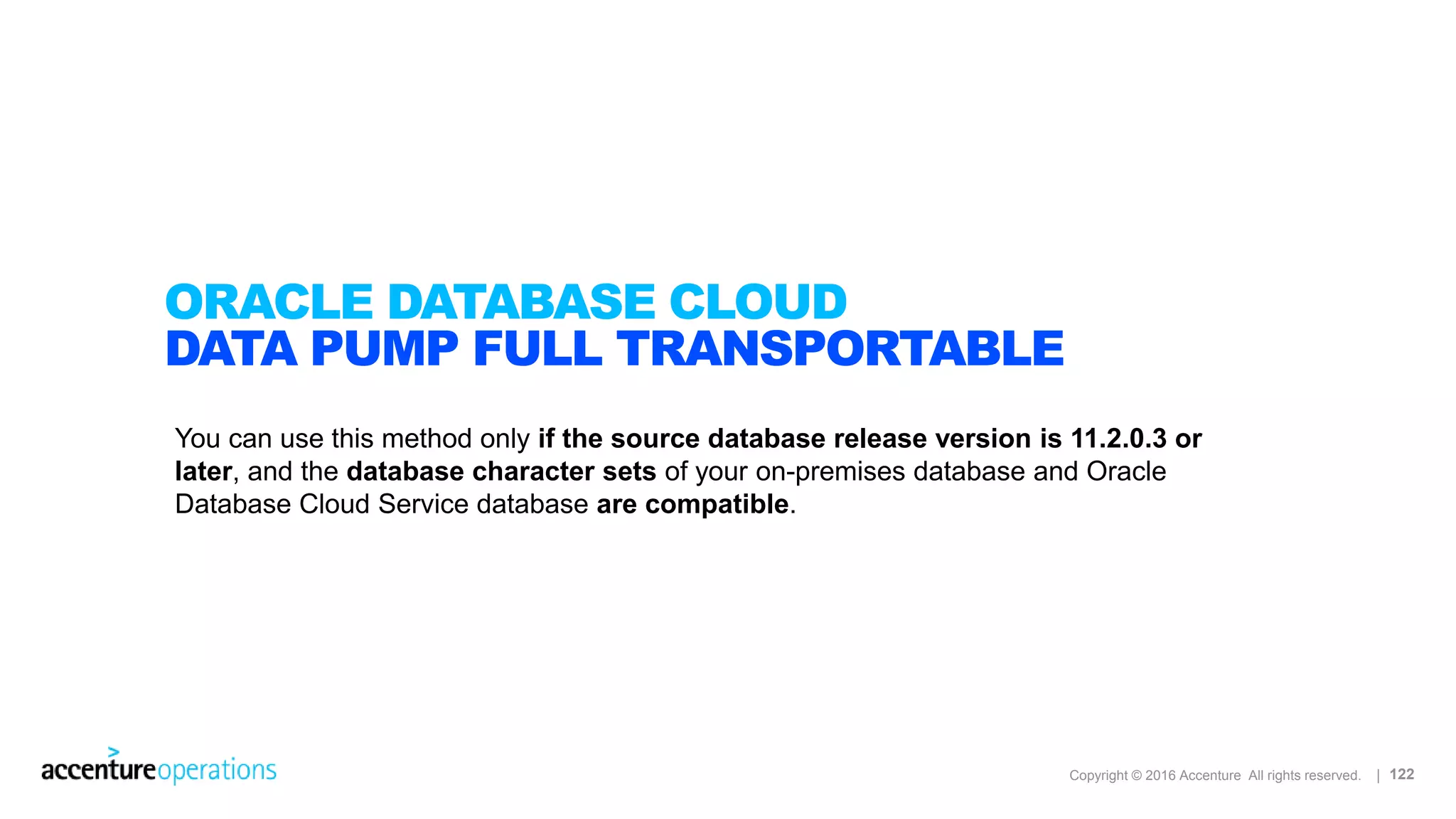

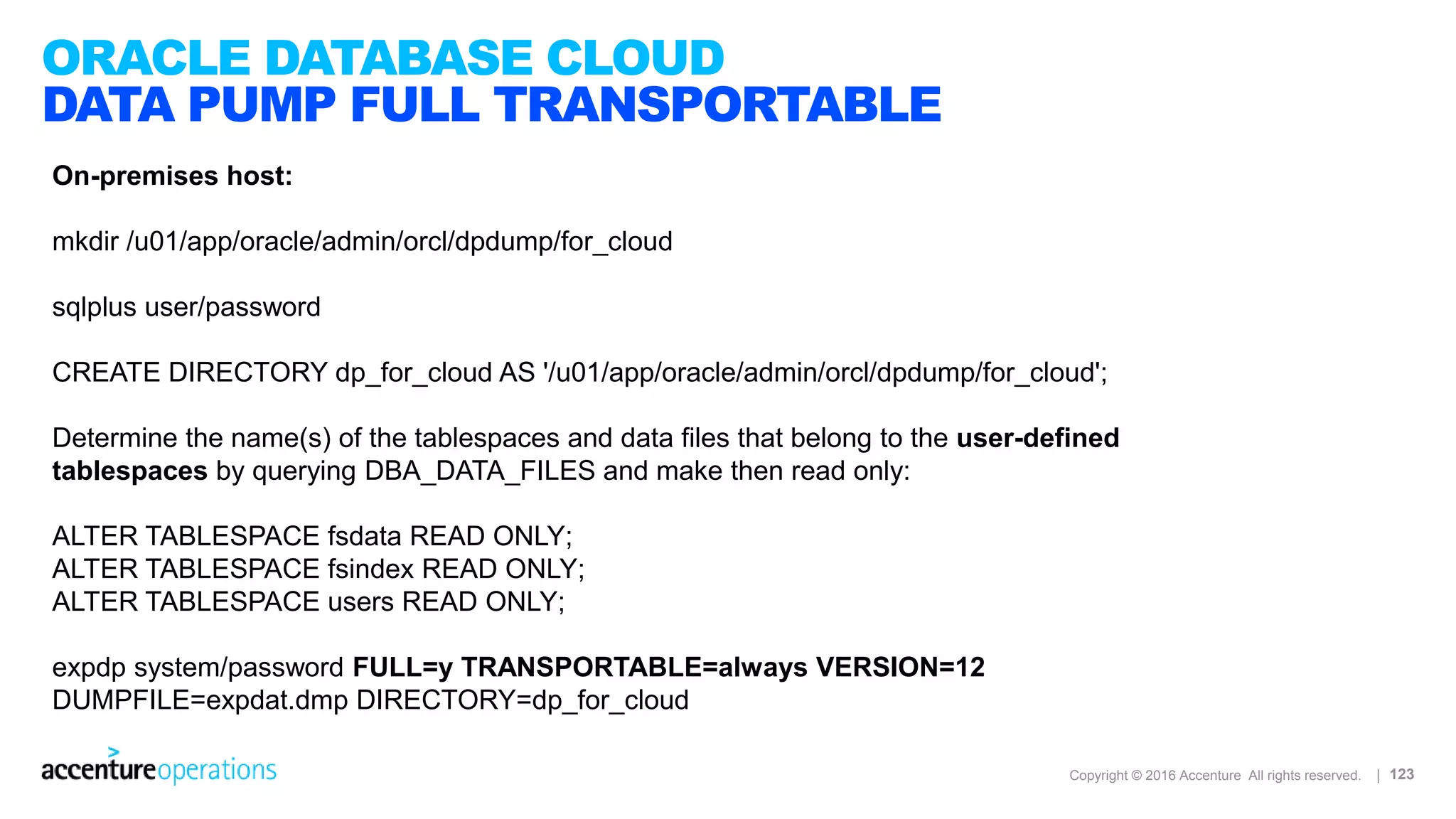

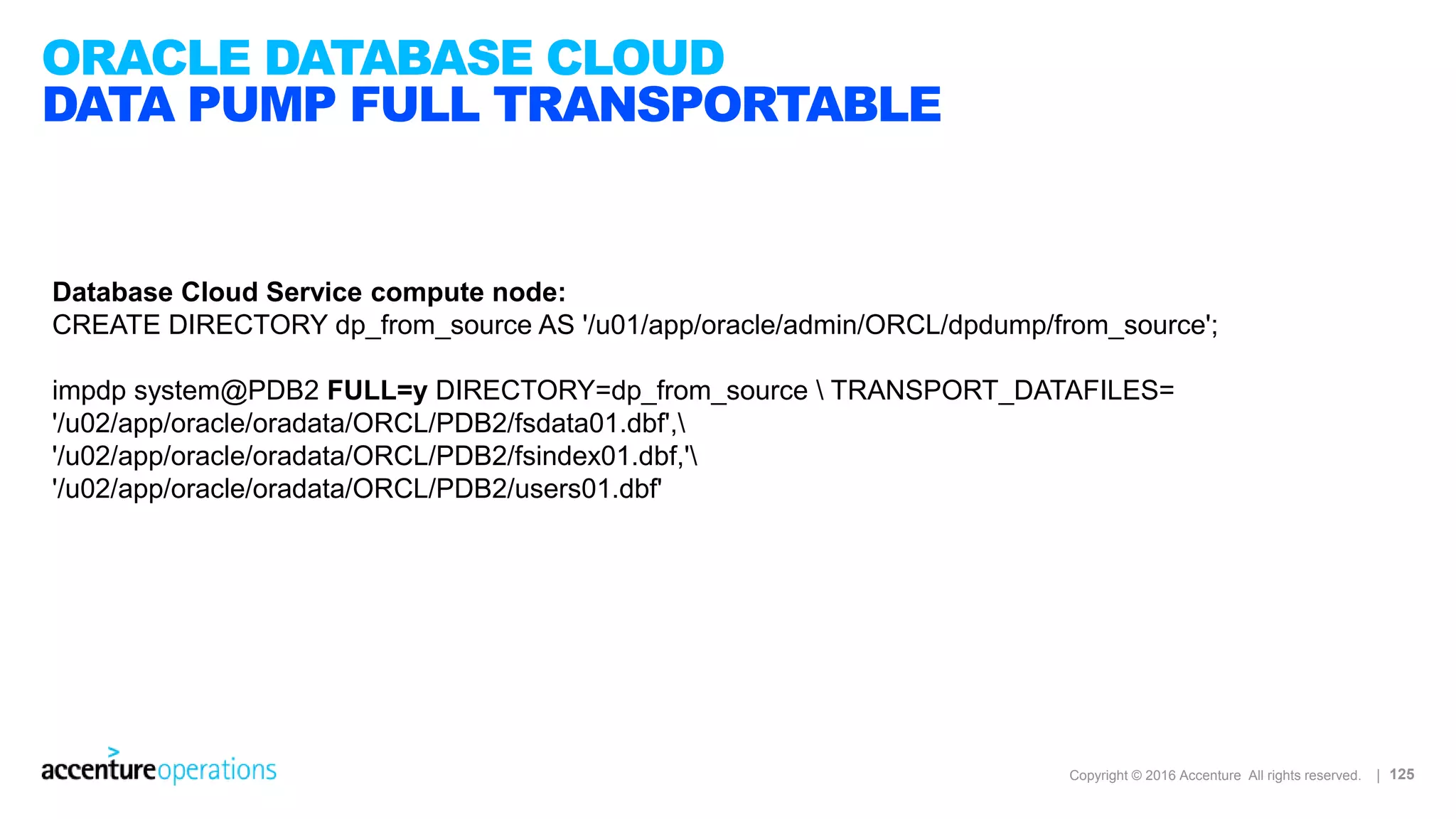

DATA PUMP FULL TRANSPORTABLE
You can use this method only if the source database release version is 11.2.0.3 or
later, and the database character sets of your on-premises database and Oracle
Database Cloud Service database are compatible.

On-premises host:
Determine the name(s) of the tablespaces and data files that belong to the user-defined
tablespaces by querying DBA_DATA_FILES and make then read only:
ALTER TABLESPACE users READ ONLY;
expdp system/password FULL=y TRANSPORTABLE=always VERSION=12
DUMPFILE=expdat.dmp DIRECTORY=dp_for_cloud

mkdir /u01/app/oracle/admin/ORCL/dpdump/from_source
On-premises host:
$ scp -i private_key_file /u01/app/oracle/oradata/orcl/fsdata01.dbf
oracle@compute_node_IP_address:/u02/app/oracle/oradata/ORCL/PDB2
$ scp -i private_key_file /u01/app/oracle/oradata/orcl/fsindex01.dbf
$ scp -i private_key_file /u01/app/oracle/oradata/orcl/users01.dbf
ALTER TABLESPACE users READ WRITE;

CREATE DIRECTORY dp_from_source AS '/u01/app/oracle/admin/ORCL/dpdump/from_source';
impdp system@PDB2 FULL=y DIRECTORY=dp_from_source TRANSPORT_DATAFILES=
'/u02/app/oracle/oradata/ORCL/PDB2/fsdata01.dbf',
'/u02/app/oracle/oradata/ORCL/PDB2/fsindex01.dbf,'
'/u02/app/oracle/oradata/ORCL/PDB2/users01.dbf'

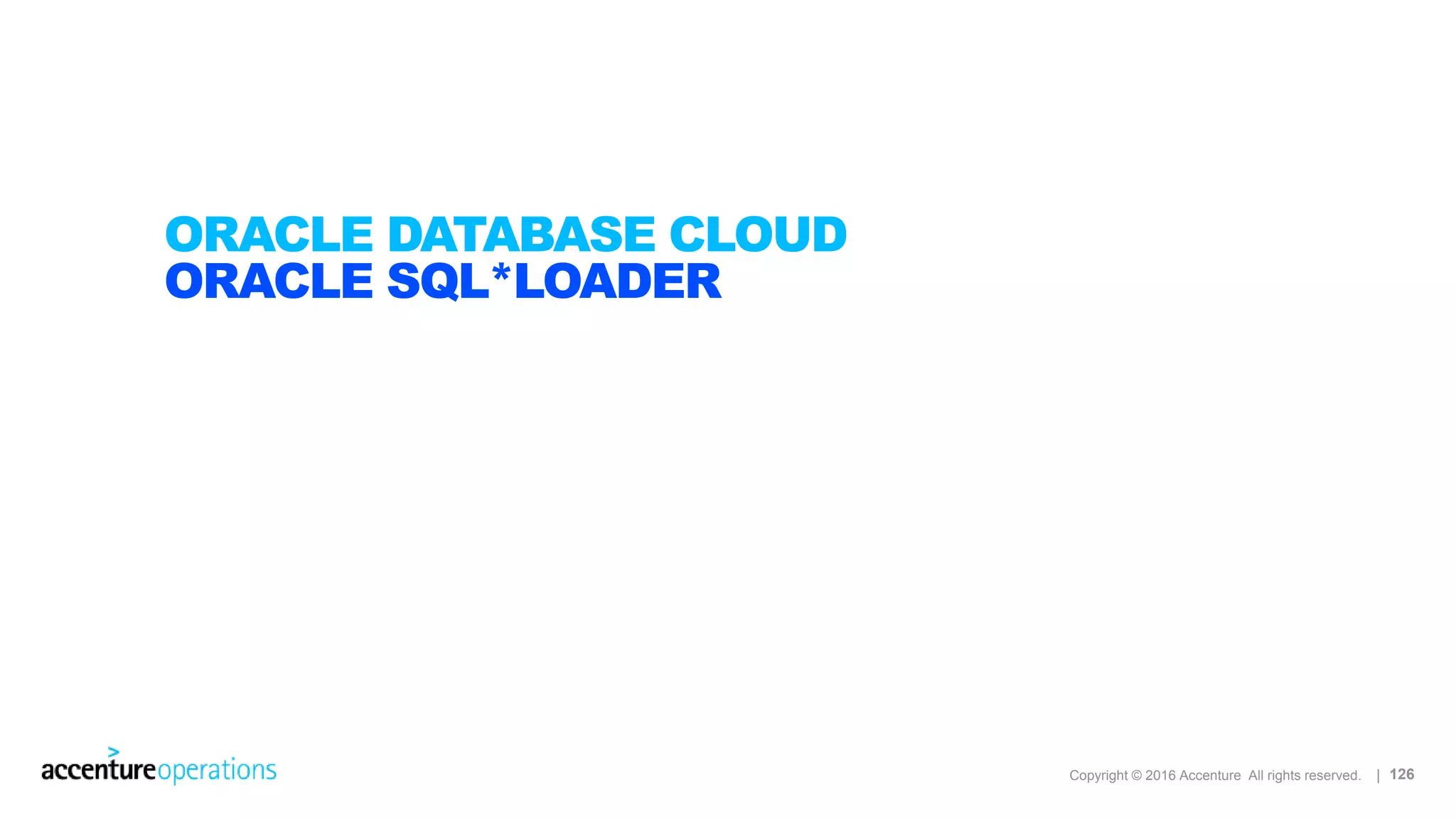

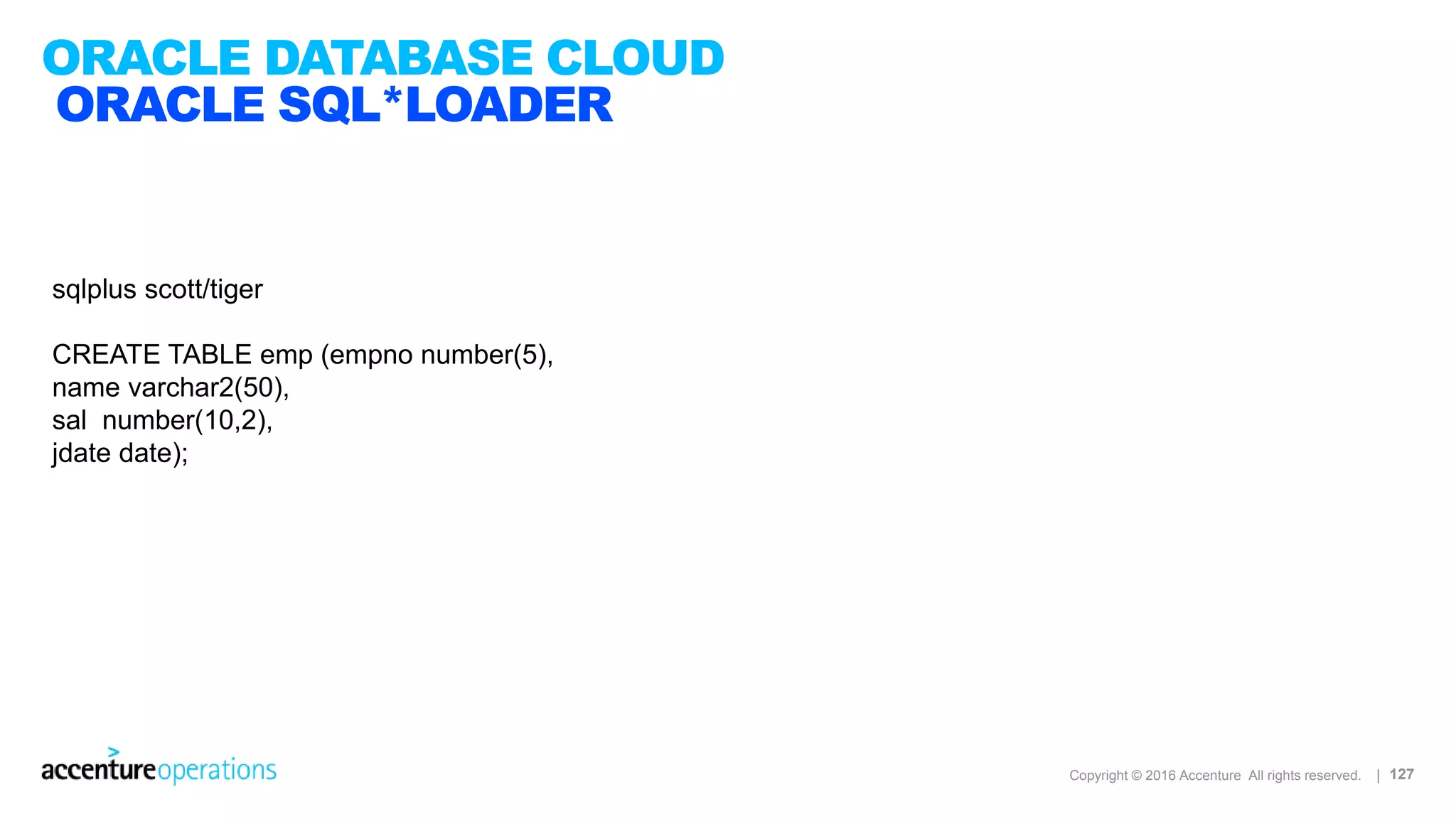

ORACLE SQL*LOADER

ORACLE SQL*LOADER
sqlplus scott/tiger
CREATE TABLE emp (empno number(5),
name varchar2(50),
sal number(10,2),
jdate date);

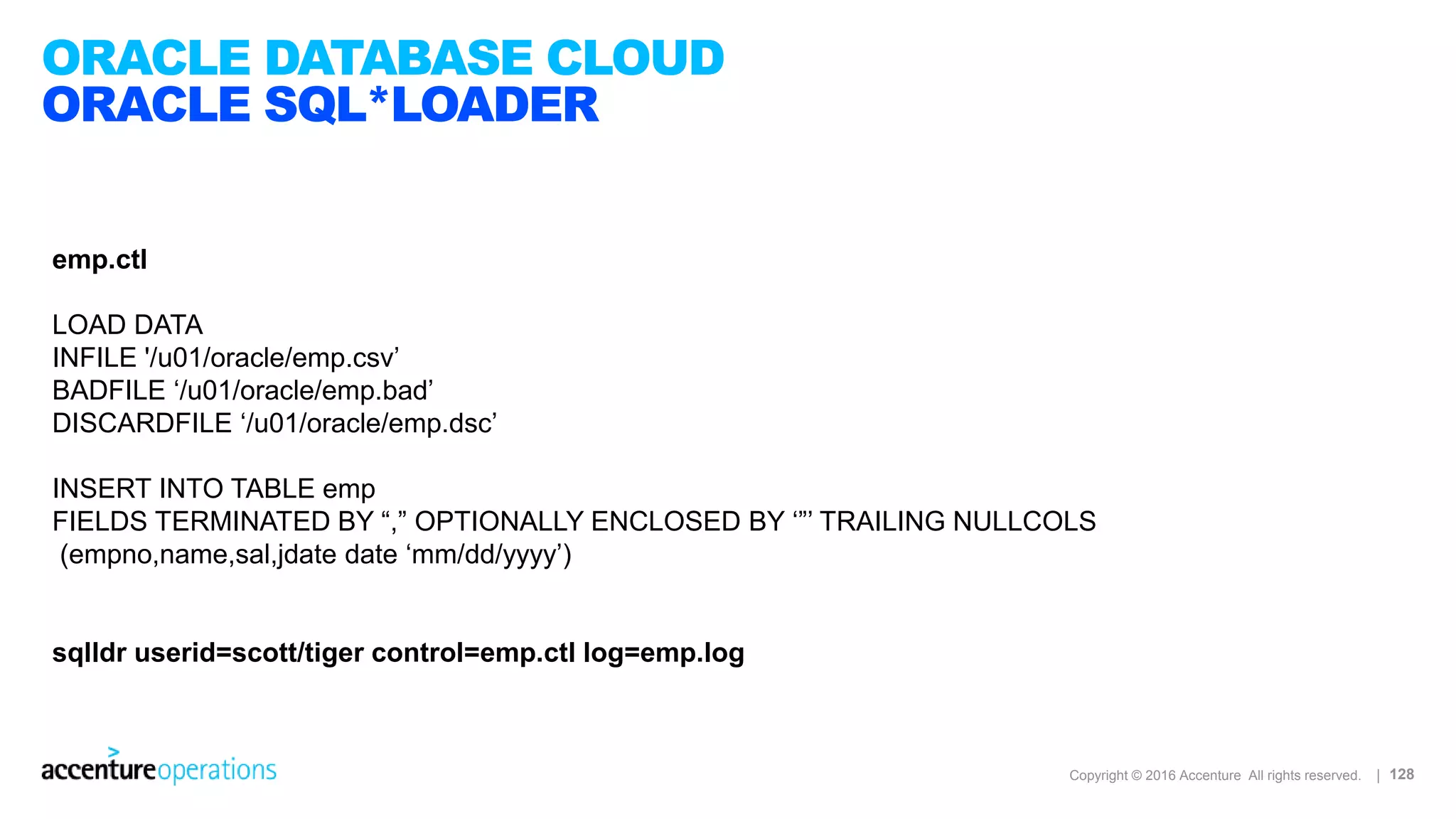

ORACLE SQL*LOADER
emp.ctl
LOAD DATA
INFILE '/u01/oracle/emp.csv’
BADFILE ‘/u01/oracle/emp.bad’
DISCARDFILE ‘/u01/oracle/emp.dsc’
INSERT INTO TABLE emp
FIELDS TERMINATED BY “,” OPTIONALLY ENCLOSED BY ‘”’ TRAILING NULLCOLS
(empno,name,sal,jdate date ‘mm/dd/yyyy’)
sqlldr userid=scott/tiger control=emp.ctl log=emp.log

ORACLE SQL*LOADER EXPRESS – 12C
SQL> create table COMPANY (id NUMBER(1), name VARCHAR2(30));
Table created.
[oracle@oracle01 tmp]$ cat COMPANY .dat
1,Company 1
2,Company 2
3,Company 3
4,Company 4
5,Company 5
6,Company 6
7,Company 7
8,Company 8
9,Company 9

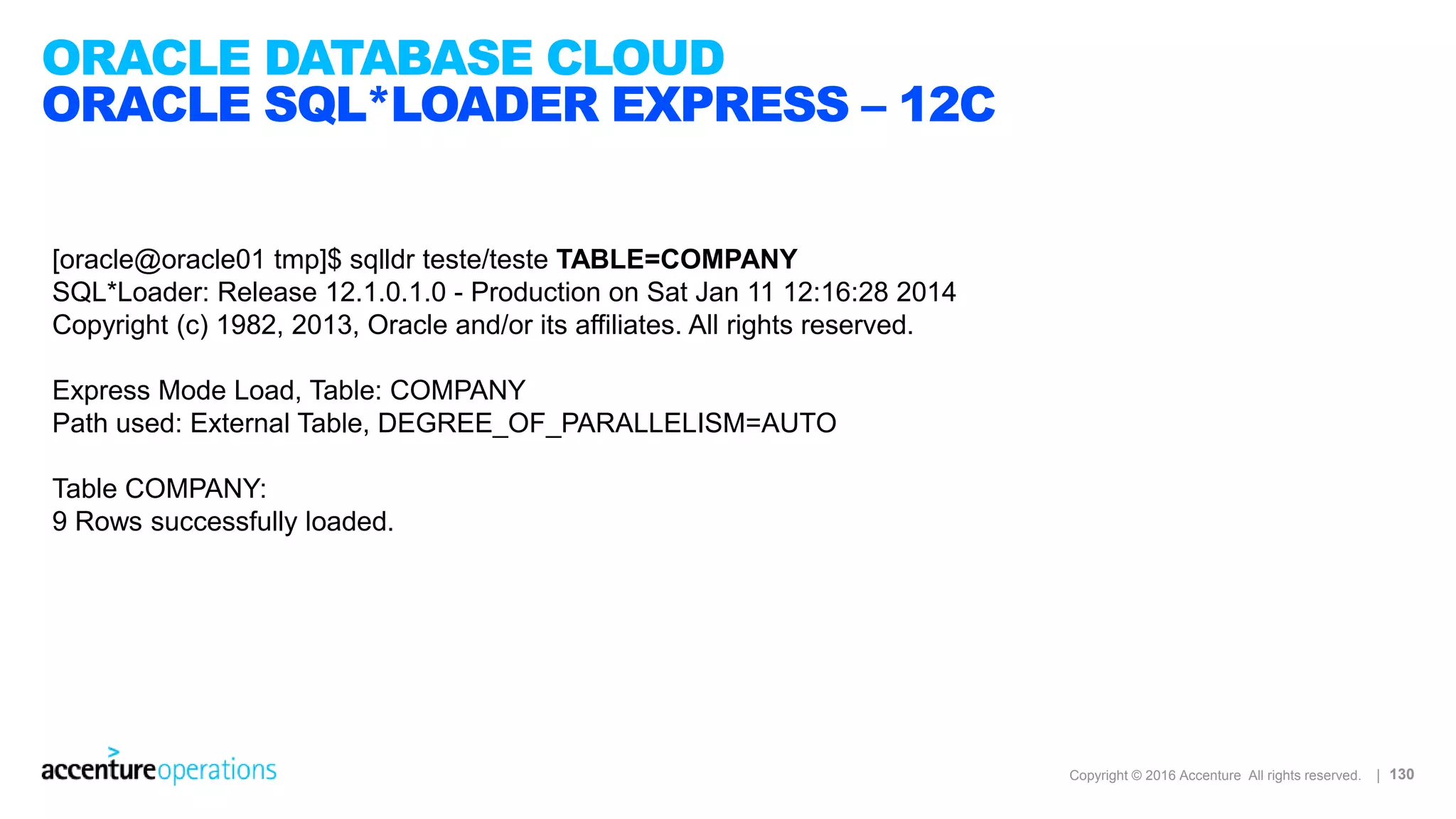

ORACLE SQL*LOADER EXPRESS – 12C
[oracle@oracle01 tmp]$ sqlldr teste/teste TABLE=COMPANY
SQL*Loader: Release 12.1.0.1.0 - Production on Sat Jan 11 12:16:28 2014
Copyright (c) 1982, 2013, Oracle and/or its affiliates. All rights reserved.
Express Mode Load, Table: COMPANY
Path used: External Table, DEGREE_OF_PARALLELISM=AUTO
Table COMPANY:
9 Rows successfully loaded.

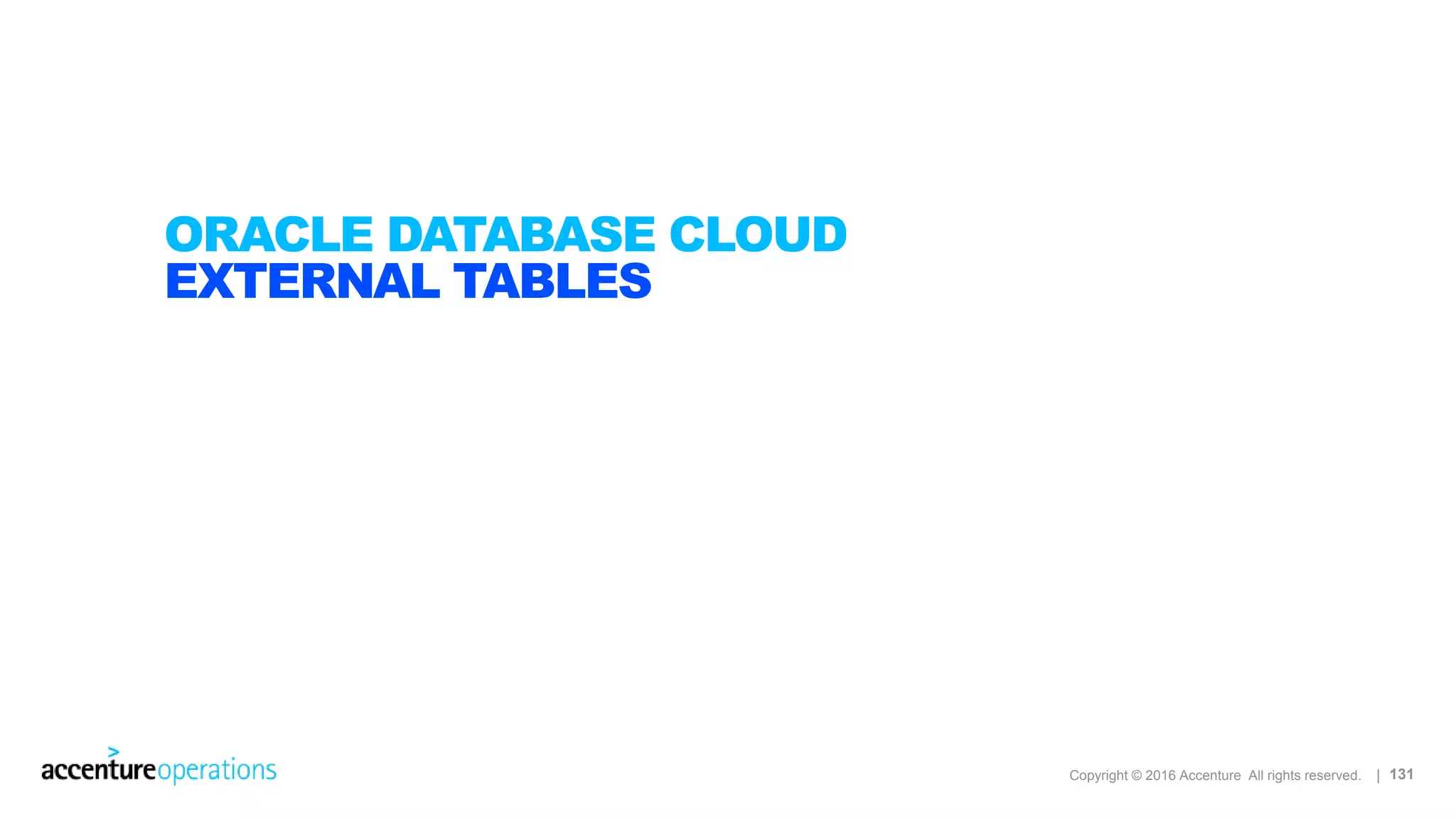

EXTERNAL TABLES

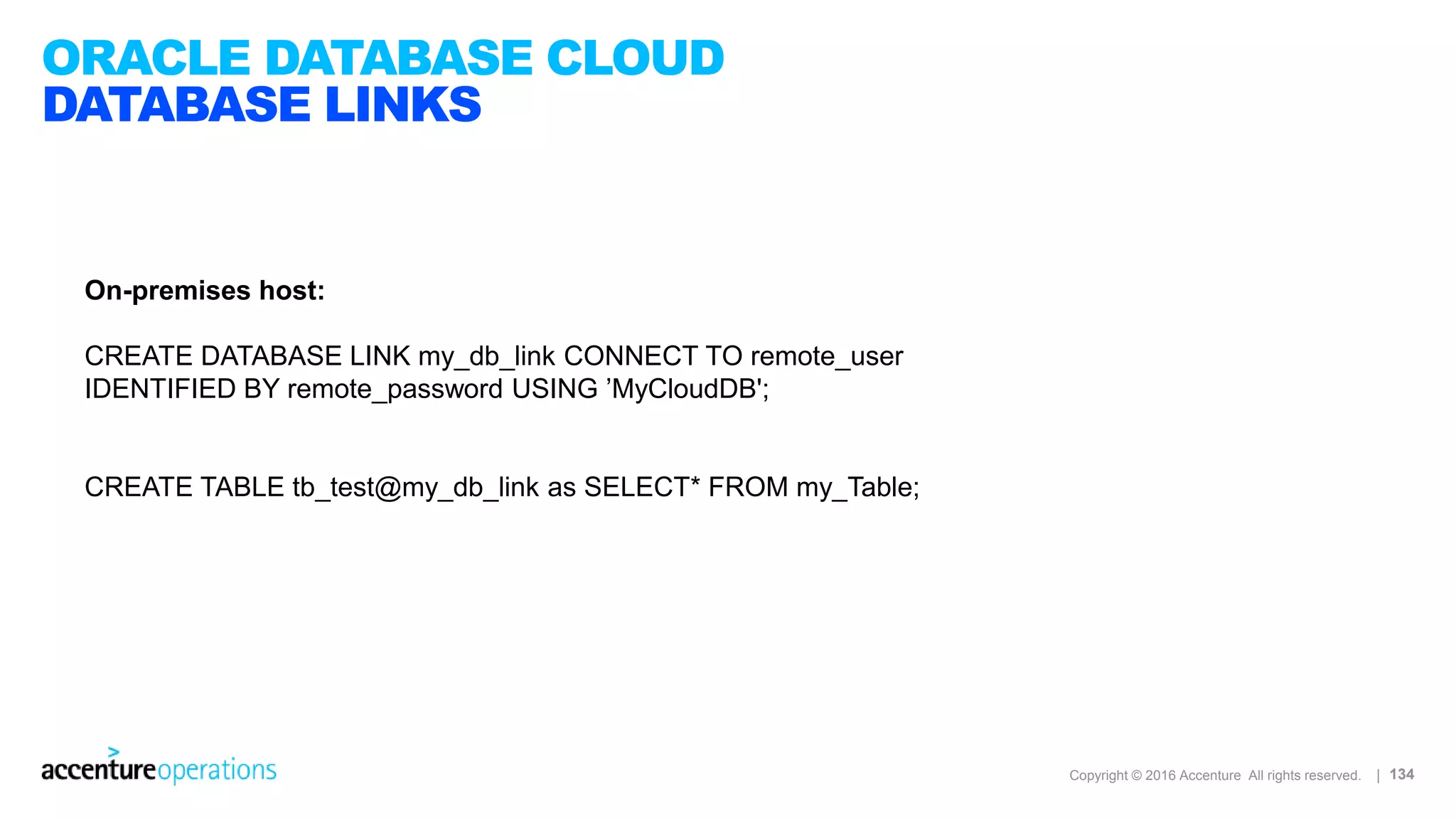

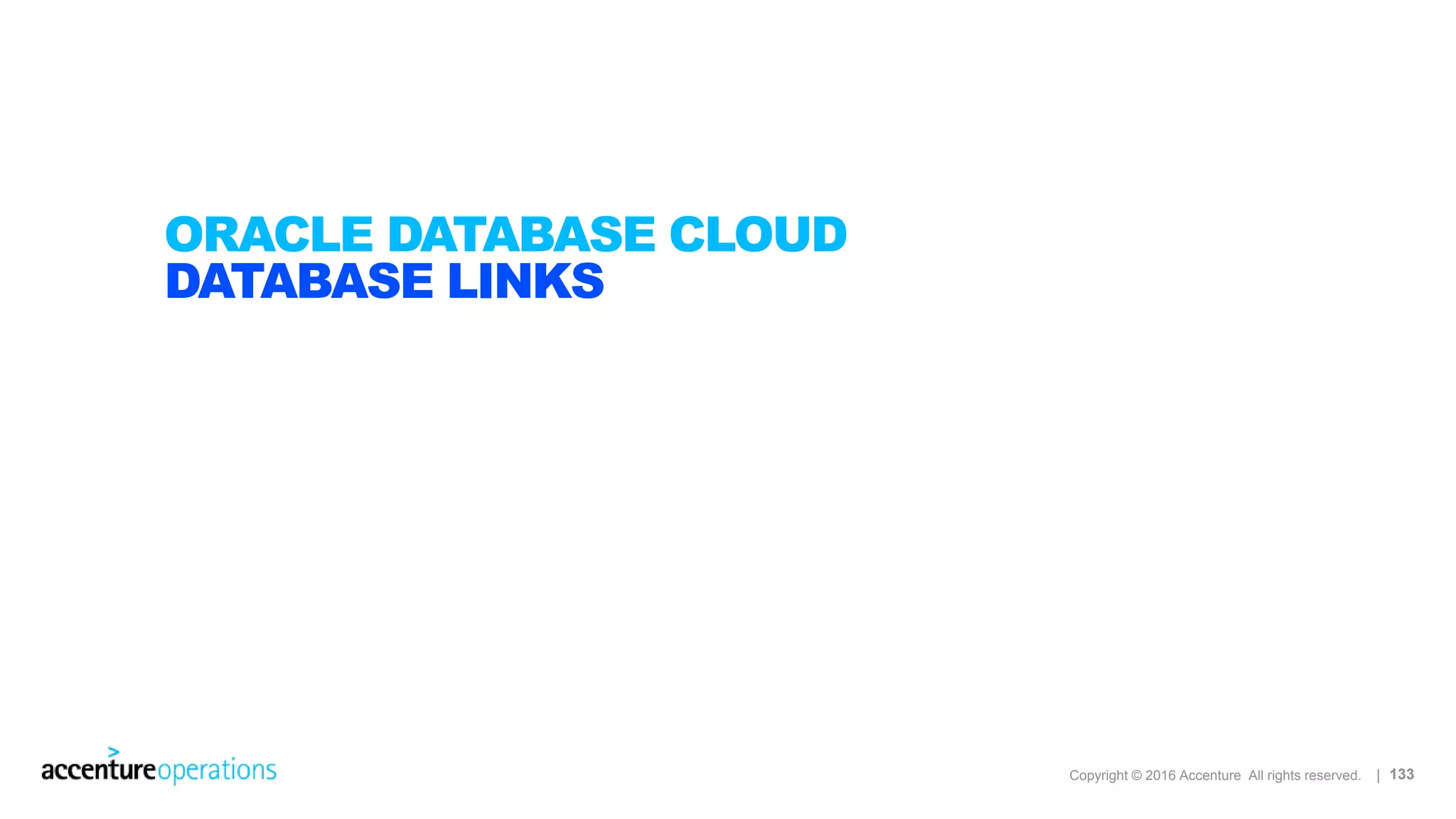

DATABASE LINKS

DATABASE LINKS
On-premises host:
CREATE DATABASE LINK my_db_link CONNECT TO remote_user
IDENTIFIED BY remote_password USING ’MyCloudDB';
CREATE TABLE tb_test@my_db_link as SELECT* FROM my_Table;

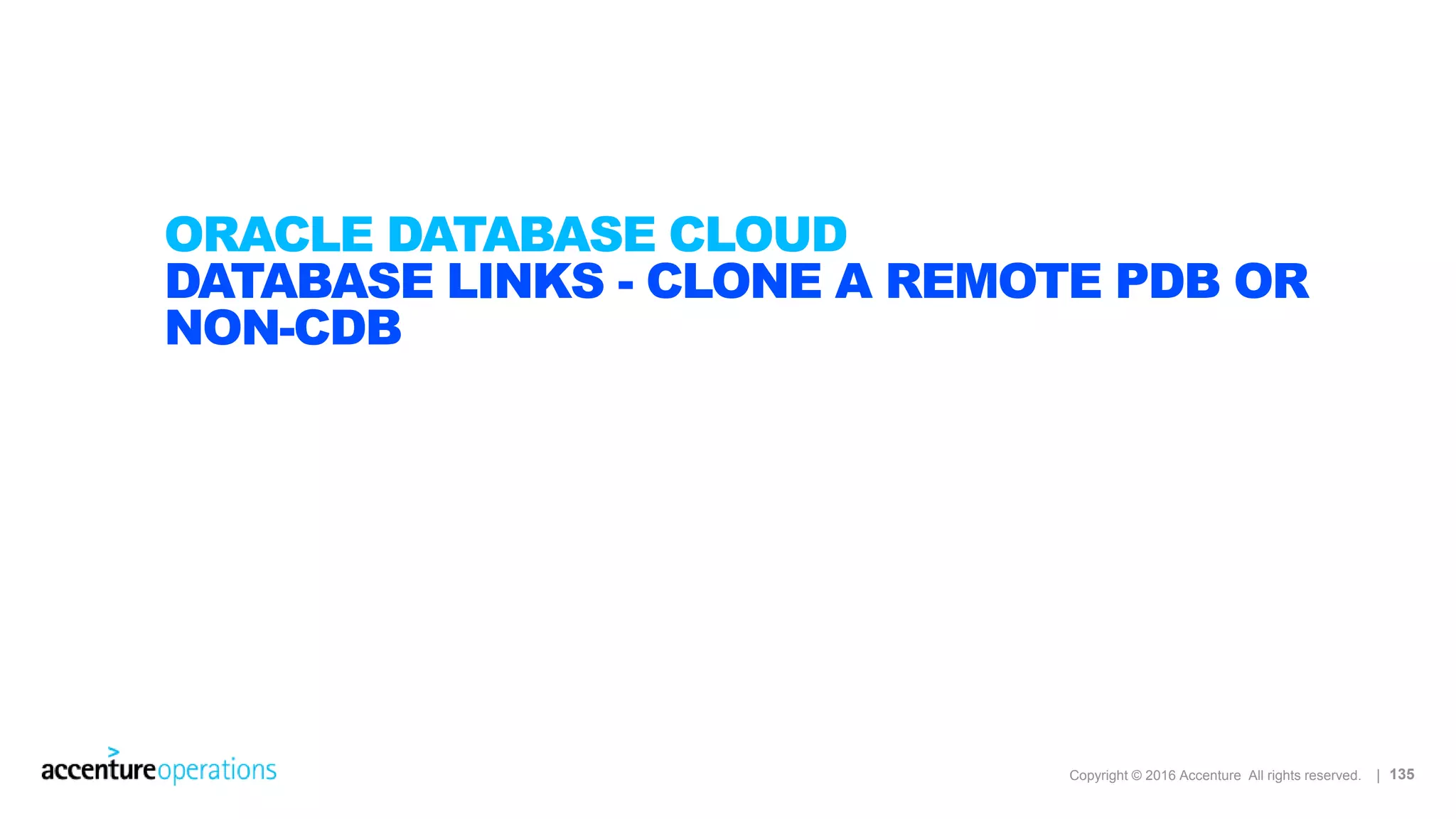

DATABASE LINKS - CLONE A REMOTE PDB OR
NON-CDB

DATABASE LINKS - CLONE A REMOTE PDB OR
NON-CDB
You have to expose your on-premises database over the internet or have a VPN or
SSH tunneling configured:
CREATE DATABASE LINK clone_link CONNECT TO remote_clone_user
IDENTIFIED BY remote_clone_user USING ’MyOnPremDB';
CREATE PLUGGABLE DATABASE pdb1 FROM pdb1@clone_link;
CREATE PLUGGABLE DATABASE pdb2b FROM NON$CDB@clone_link;

DATA GUARD

DATA GUARD

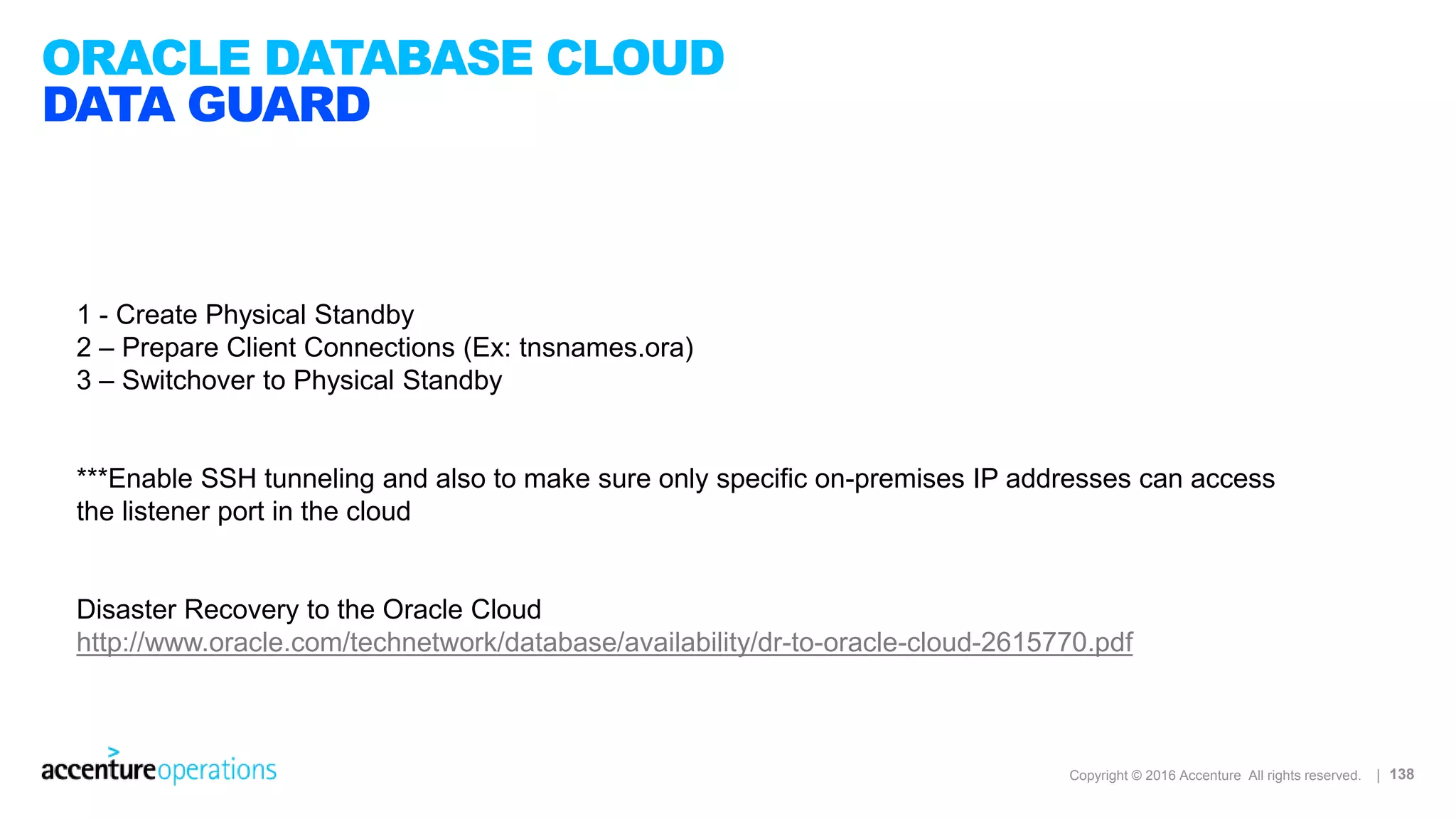

1 - Create Physical Standby
2 – Prepare Client Connections (Ex: tnsnames.ora)
3 – Switchover to Physical Standby
***Enable SSH tunneling and also to make sure only specific on-premises IP addresses can access
the listener port in the cloud
Disaster Recovery to the Oracle Cloud
http://www.oracle.com/technetwork/database/availability/dr-to-oracle-cloud-2615770.pdf

DATA GUARD

DATA GUARD

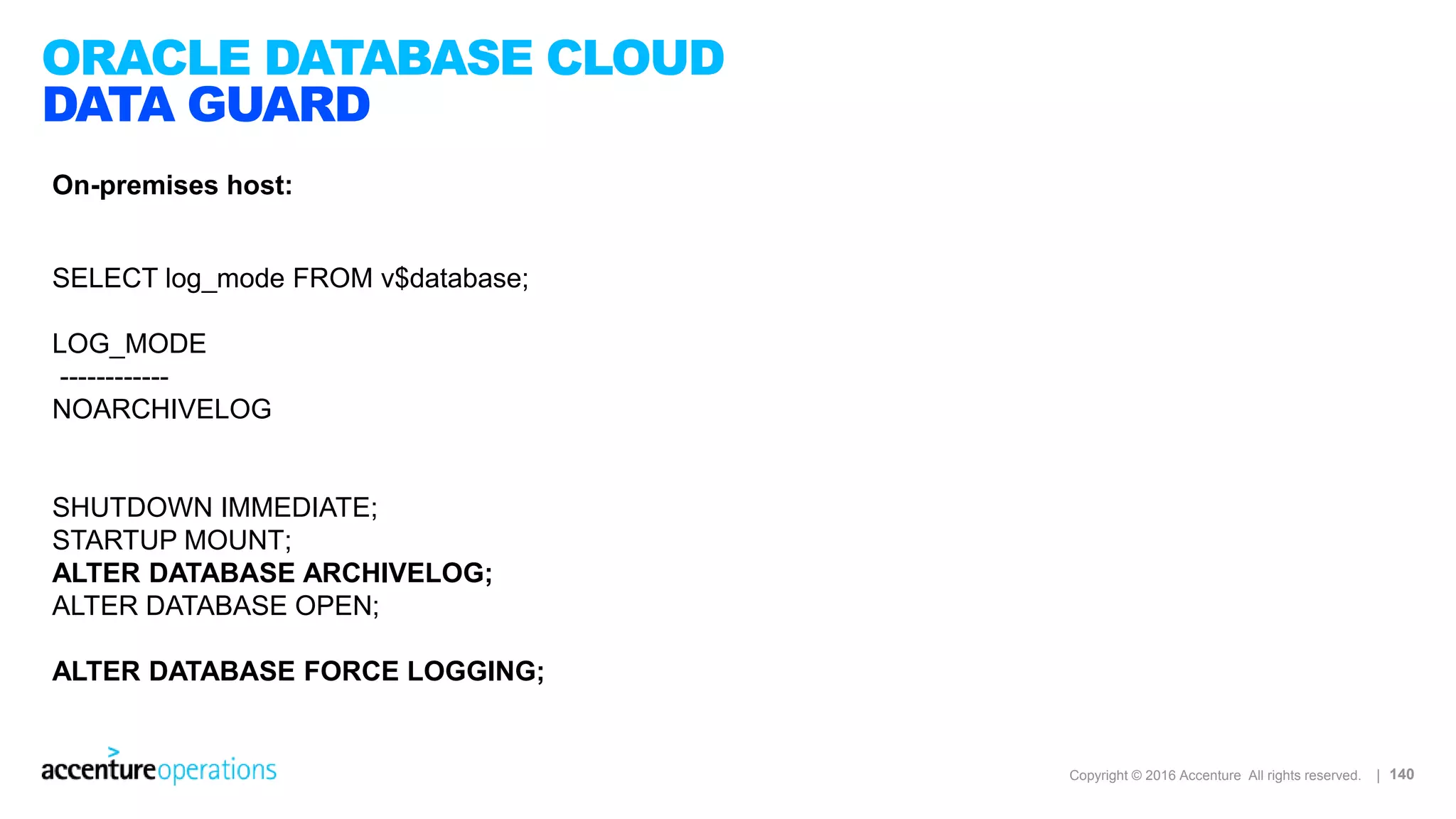

SELECT log_mode FROM v$database;
LOG_MODE
------------
NOARCHIVELOG
SHUTDOWN IMMEDIATE;
STARTUP MOUNT;
ALTER DATABASE ARCHIVELOG;
ALTER DATABASE OPEN;
ALTER DATABASE FORCE LOGGING;
On-premises host:

DATA GUARD

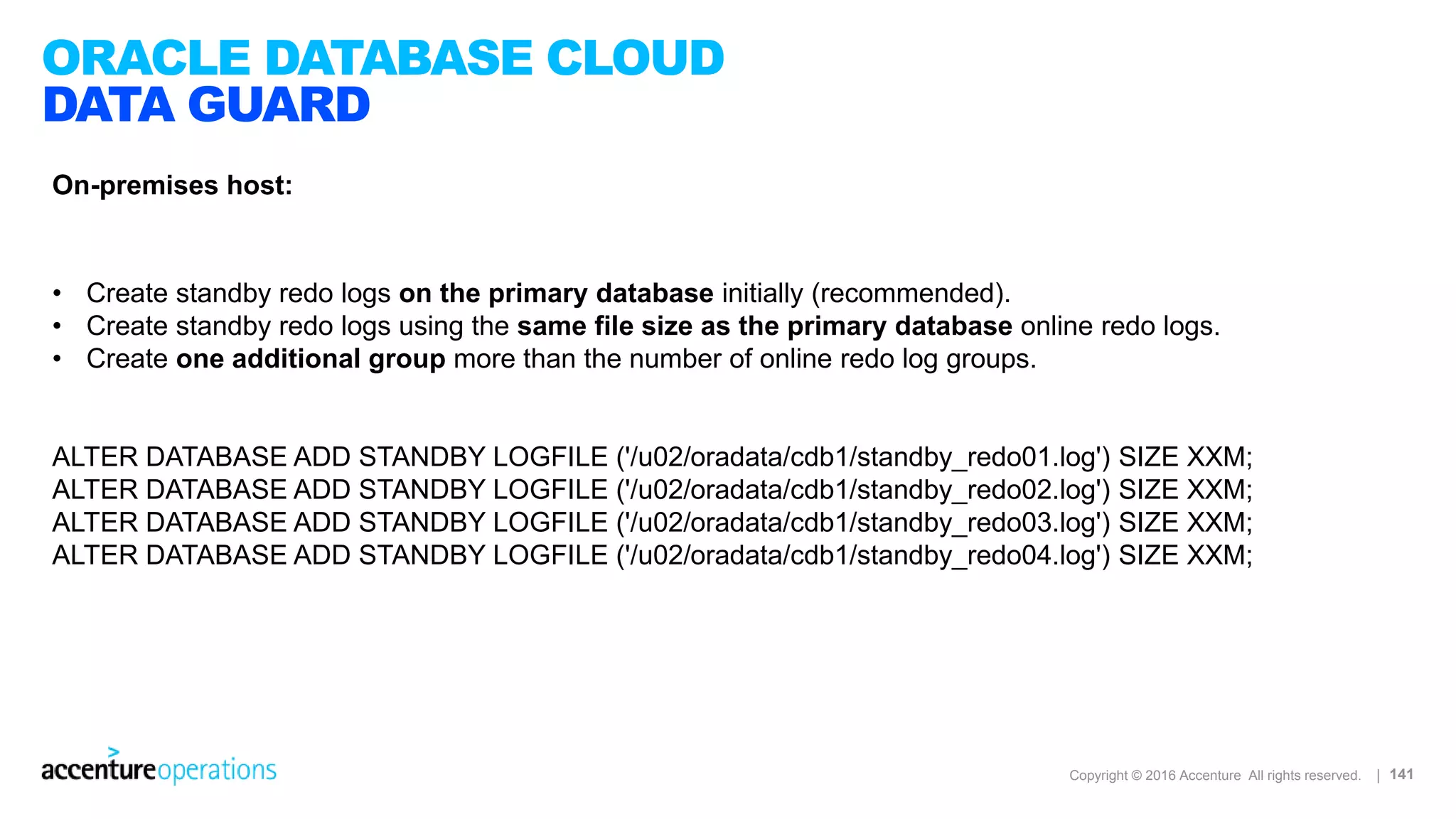

• Create standby redo logs on the primary database initially (recommended).
• Create standby redo logs using the same file size as the primary database online redo logs.
• Create one additional group more than the number of online redo log groups.
ALTER DATABASE ADD STANDBY LOGFILE ('/u02/oradata/cdb1/standby_redo01.log') SIZE XXM;
On-premises host:

DATA GUARD
Init.ora:
*.db_name='cdb1’
mkdir -p /u02/oradata/cdb1/pdbseed
mkdir -p /u02/oradata/cdb1/pdb1
mkdir -p /u02/fast_recovery_area/cdb1
mkdir -p /u01/app/oracle/admin/cdb1/adump
orapwd file=/u01/app/oracle/product/12.1.0.2/db_1/dbs/orapwcdb1 password=mypass entries=10

DATA GUARD
export ORACLE_SID=cdb1
sqlplus / as sysdba
STARTUP NOMOUNT PFILE='/tmp/init.ora';
rman TARGET sys/password@cdb1 AUXILIARY sys/password@cdb1_stby
DUPLICATE TARGET DATABASE FOR STANDBY
FROM ACTIVE DATABASE
DORECOVER
SPFILE SET db_unique_name='CDB1_STBY'
NOFILENAMECHECK;

DATA GUARD

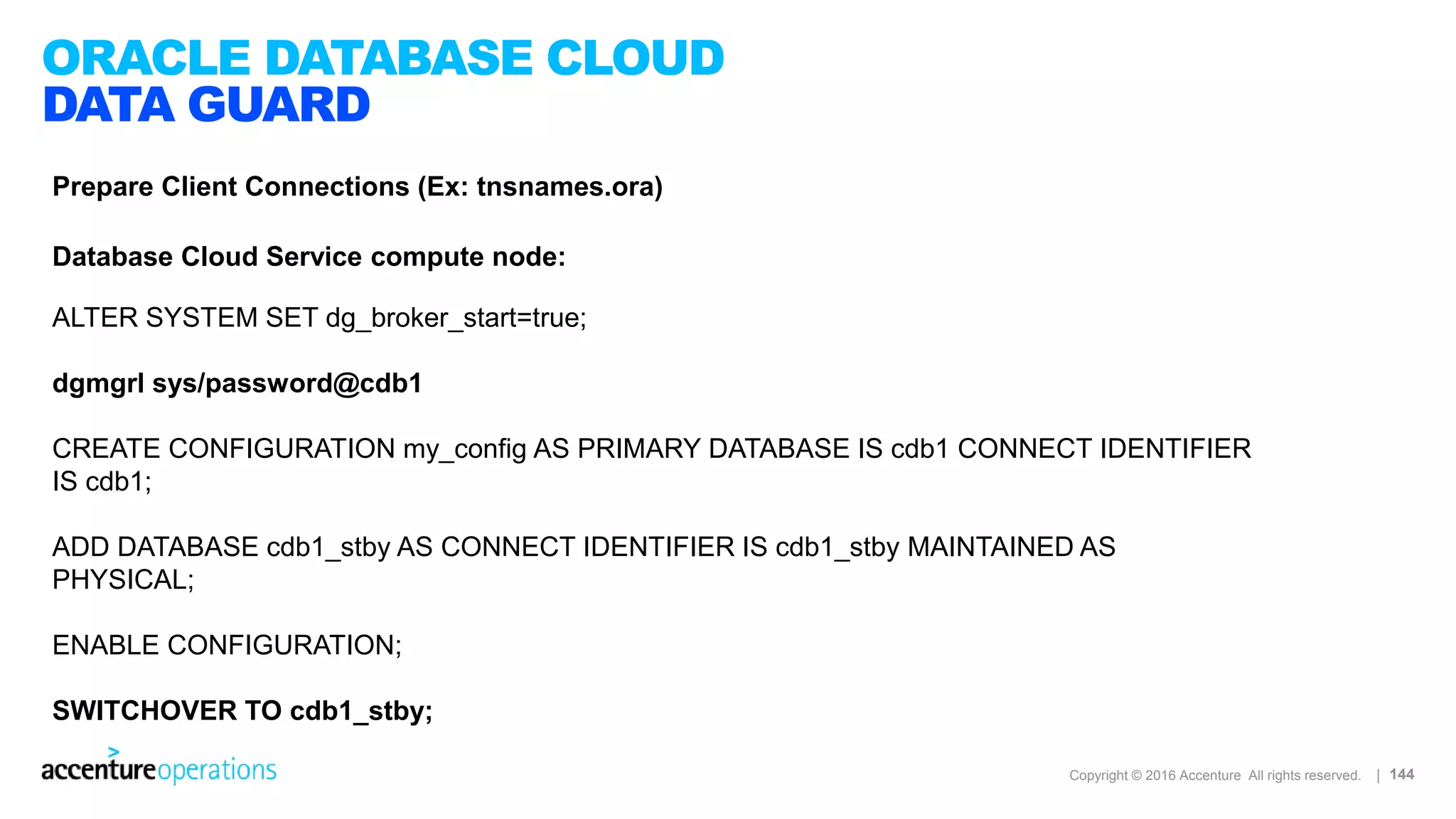

Prepare Client Connections (Ex: tnsnames.ora)
ALTER SYSTEM SET dg_broker_start=true;
dgmgrl sys/password@cdb1
CREATE CONFIGURATION my_config AS PRIMARY DATABASE IS cdb1 CONNECT IDENTIFIER
IS cdb1;
ADD DATABASE cdb1_stby AS CONNECT IDENTIFIER IS cdb1_stby MAINTAINED AS
PHYSICAL;
ENABLE CONFIGURATION;
SWITCHOVER TO cdb1_stby;

GOLDENGATE AND GOLDENGATE CLOUD SERVICE

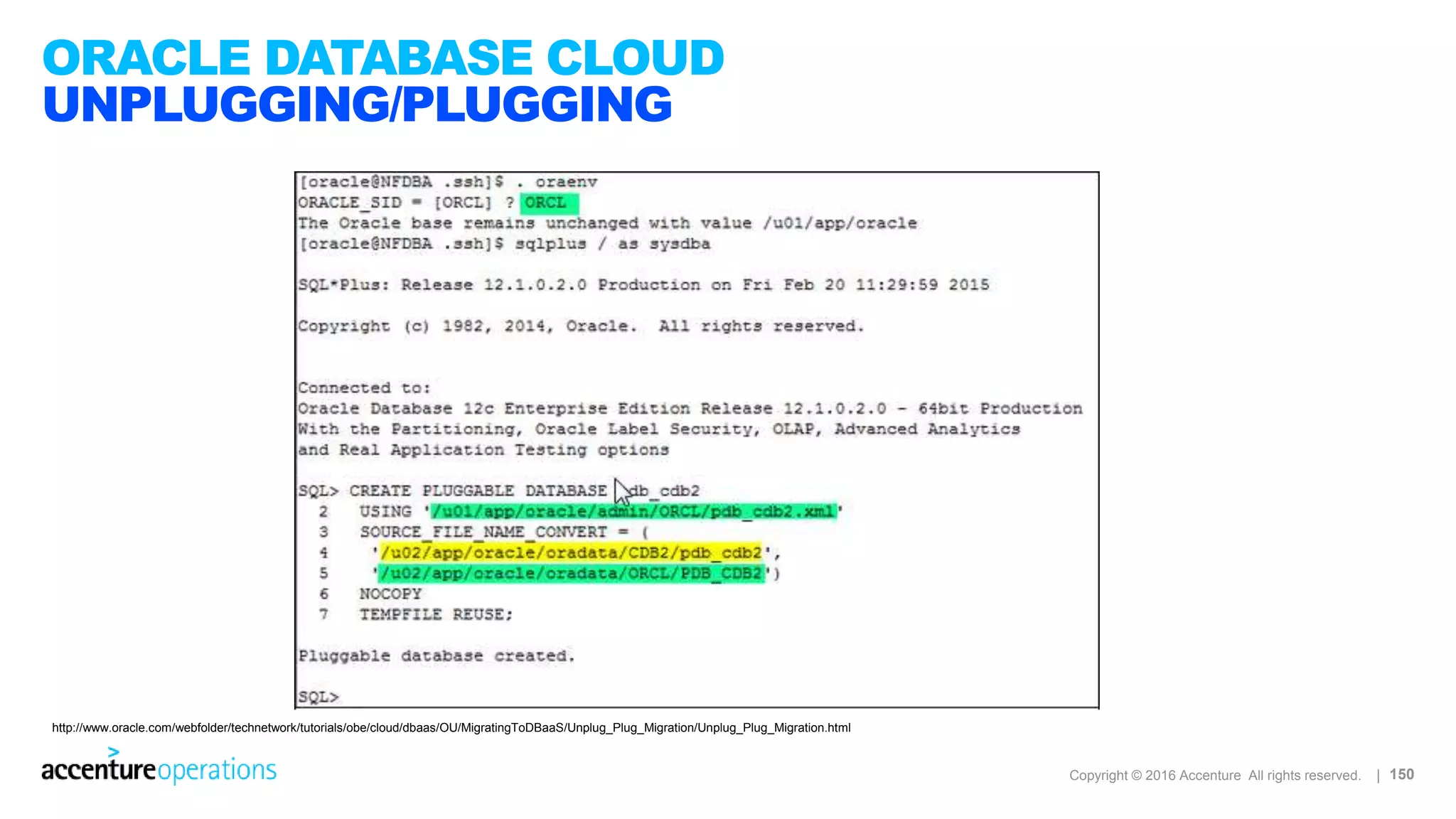

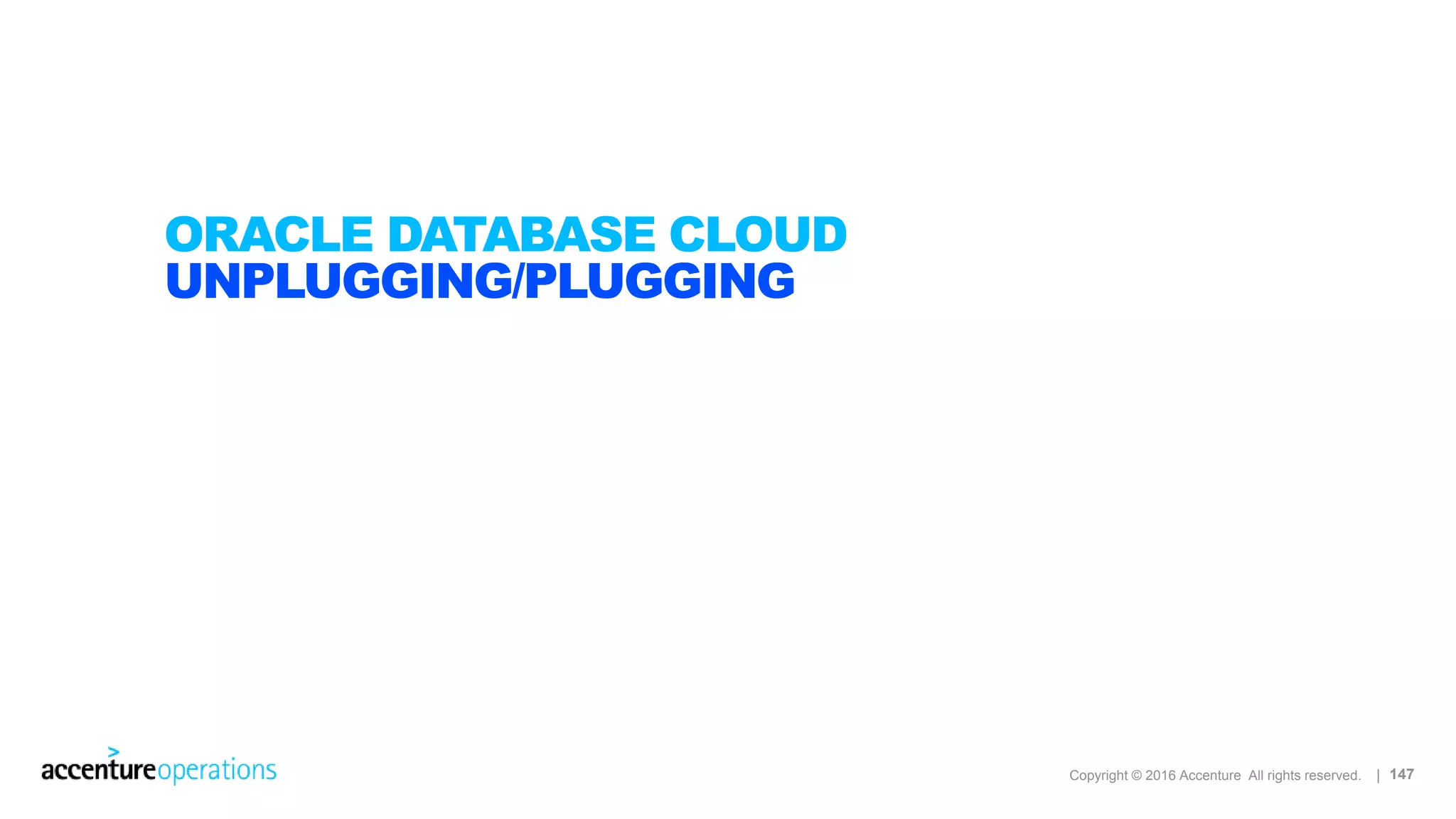

UNPLUGGING/PLUGGING

UNPLUGGING/PLUGGING
http://www.oracle.com/webfolder/technetwork/tutorials/obe/cloud/dbaas/OU/MigratingToDBaaS/Unplug_Plug_Migration/Unplug_Plug_Migration.html

UNPLUGGING/PLUGGING

PLUGGABLE DATABASES (PDBS) - REMOTE
CLONING

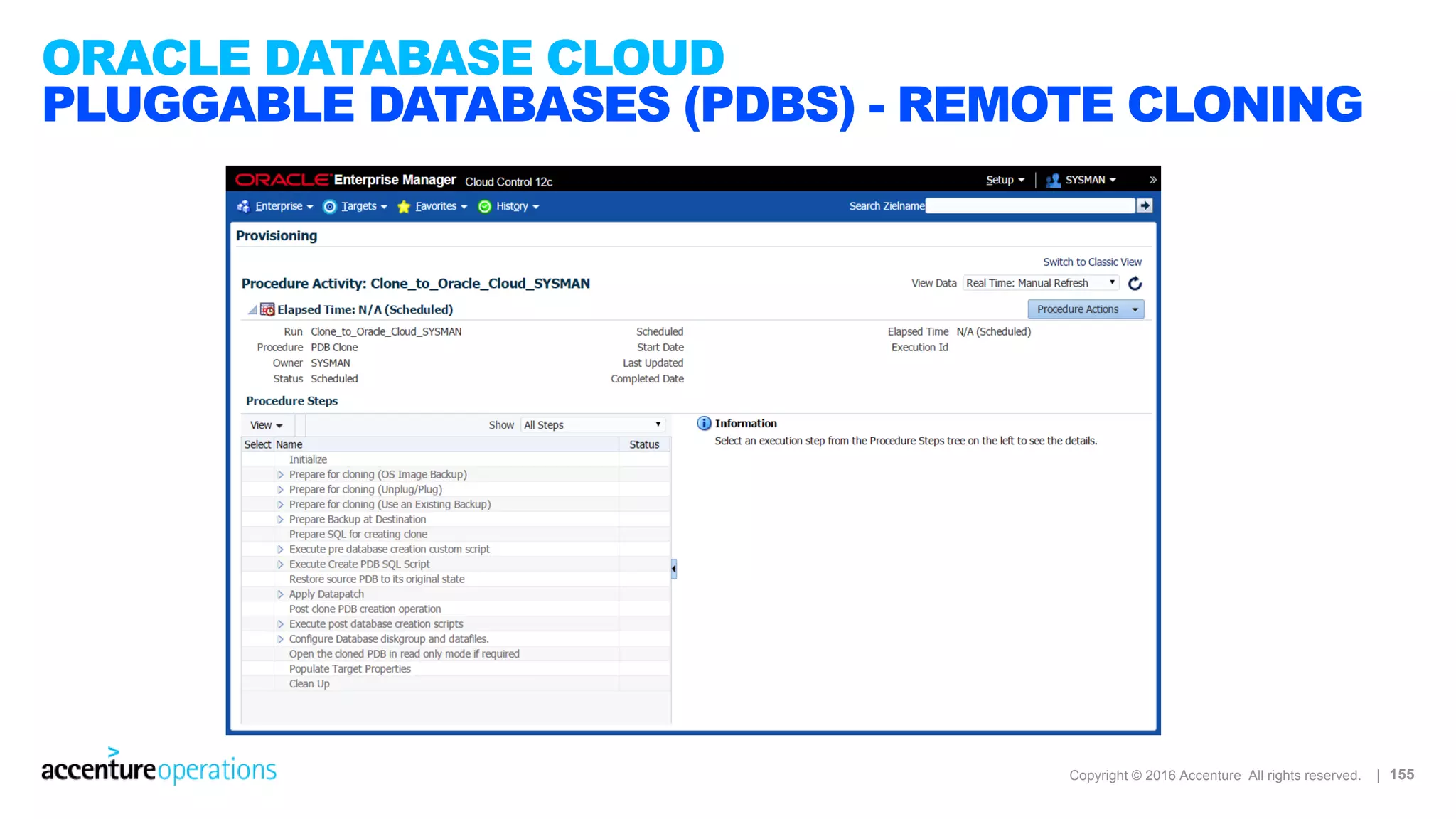

PLUGGABLE DATABASES (PDBS) - REMOTE CLONING
SQLDEVELOPER
Enterprise Manager

SQLDEVELOPER DATABASE COPY

SQLDEVELOPER

RMAN CROSS-PLATFORM TRANSPORTABLE
TABLESPACE BACKUP SETS
You can use this method only if the database character sets of your on-premises
database and Oracle Database Cloud Service database are compatible.

On-premises host:

On-premises host:
mkdir /u01/app/oracle/admin/orcl/rman_transdest
rman target username/password
BACKUP FOR TRANSPORT FORMAT '/u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.bck'
TABLESPACE fsdata,fsindex
DATAPUMP FORMAT '/u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.dmp';

mkdir /tmp/from_onprem
On-premises host:
$ scp -i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.bck
oracle@IP_address_DBaaS_VM:/tmp/from_onprem
$ scp -i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.dmp
oracle@IP_address_DBaaS_VM:/tmp/from_onprem

CREATE USER fsowner PROFILE default IDENTIFIED BY fspass TEMPORARY TABLESPACE
temp ACCOUNT UNLOCK;
mkdir /tmp/from_onprem
rman target username/password
RESTORE FOREIGN TABLESPACE fsdata,fsindex TO NEW
FROM BACKUPSET '/tmp/from_onprem/fs_tbs.bck'
DUMP FILE DATAPUMP DESTINATION '/tmp/datapump'
FROM BACKUPSET '/tmp/from_onprem/fs_tbs.dmp';

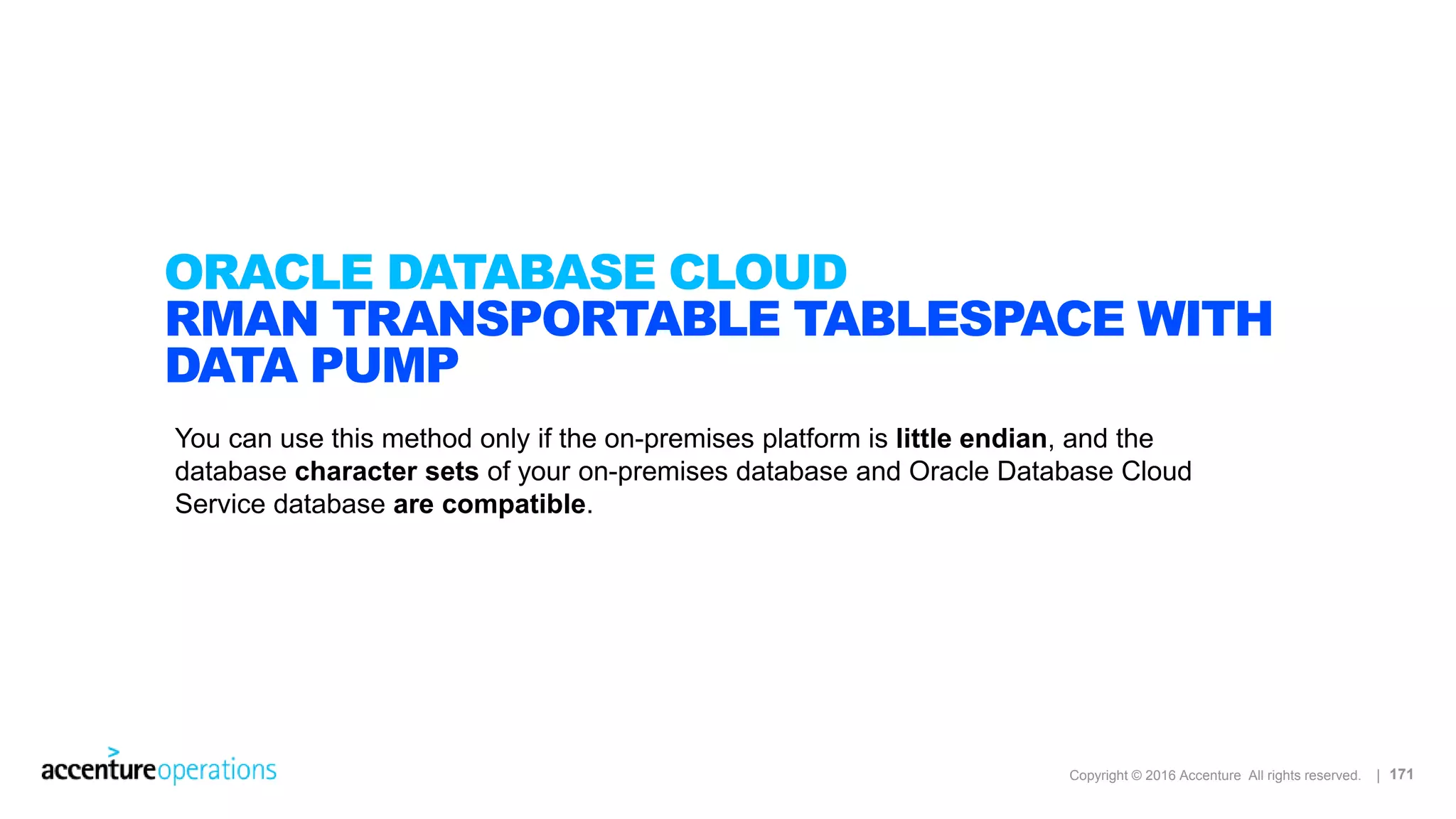

RMAN TRANSPORTABLE TABLESPACE WITH
DATA PUMP
You can use this method only if the on-premises platform is little endian, and the
database character sets of your on-premises database and Oracle Database Cloud
Service database are compatible.

DATA PUMP

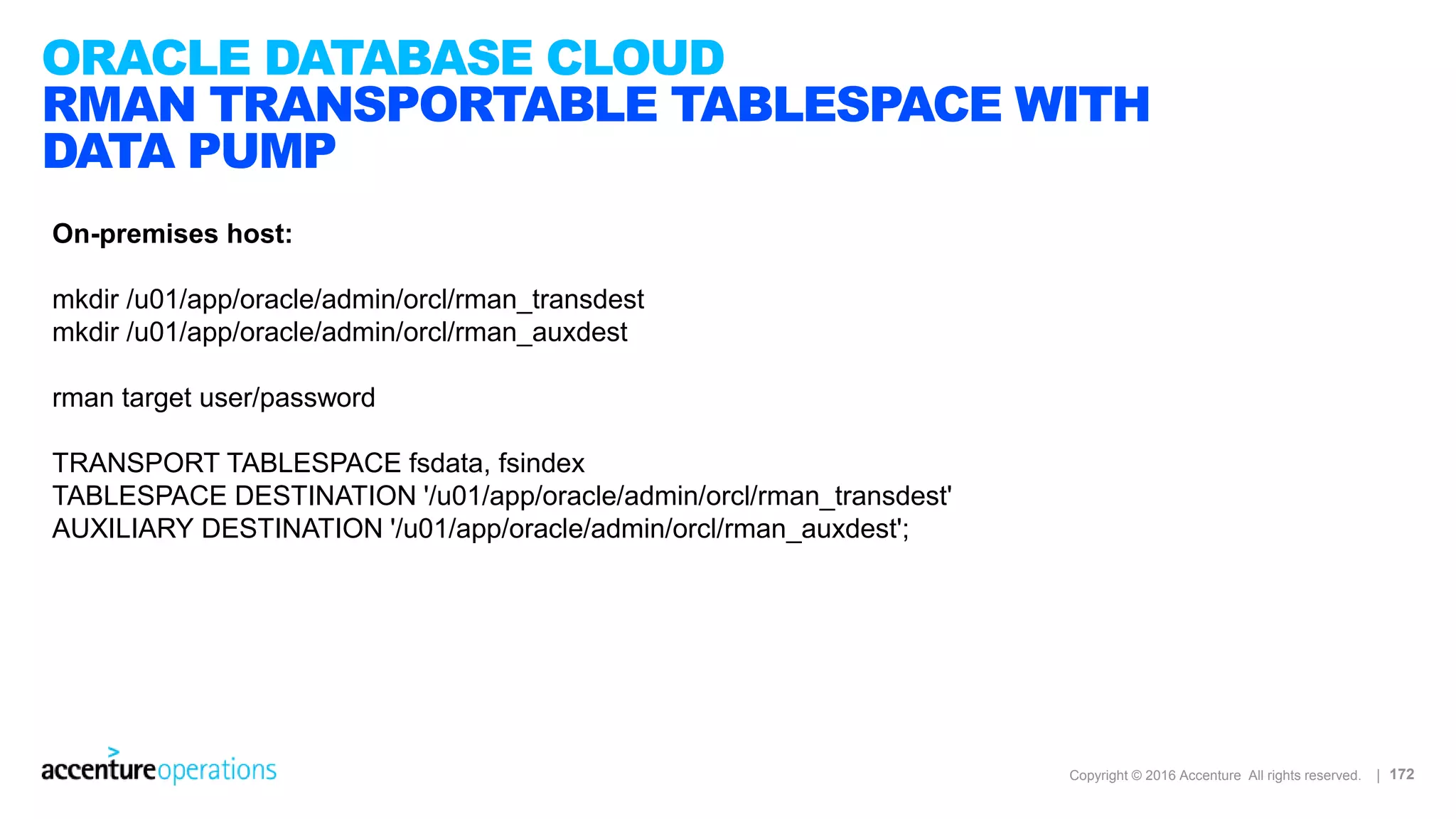

On-premises host:
mkdir /u01/app/oracle/admin/orcl/rman_transdest
mkdir /u01/app/oracle/admin/orcl/rman_auxdest
rman target user/password
TRANSPORT TABLESPACE fsdata, fsindex
TABLESPACE DESTINATION '/u01/app/oracle/admin/orcl/rman_transdest'
AUXILIARY DESTINATION '/u01/app/oracle/admin/orcl/rman_auxdest';

DATA PUMP
On-premises host:
scp -i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/dmpfile.dmp
$ scp -i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fsdata01.dbf
$ scp -i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fsindex01.dbf

DATA PUMP
impdp system DIRECTORY=dp_from_onprem DUMPFILE='dmpfile.dmp'
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf'

RMAN CONVERT TRANSPORTABLE TABLESPACE
WITH DATA PUMP
You can use this method only if the database character sets of your on-premises
database and Oracle Database Cloud Service database are compatible.

WITH DATA PUMP
On-premises host:
expdp system TRANSPORT_TABLESPACES=fsdata,fsindex TRANSPORT_FULL_CHECK=YES
DIRECTORY=dp_for_cloud

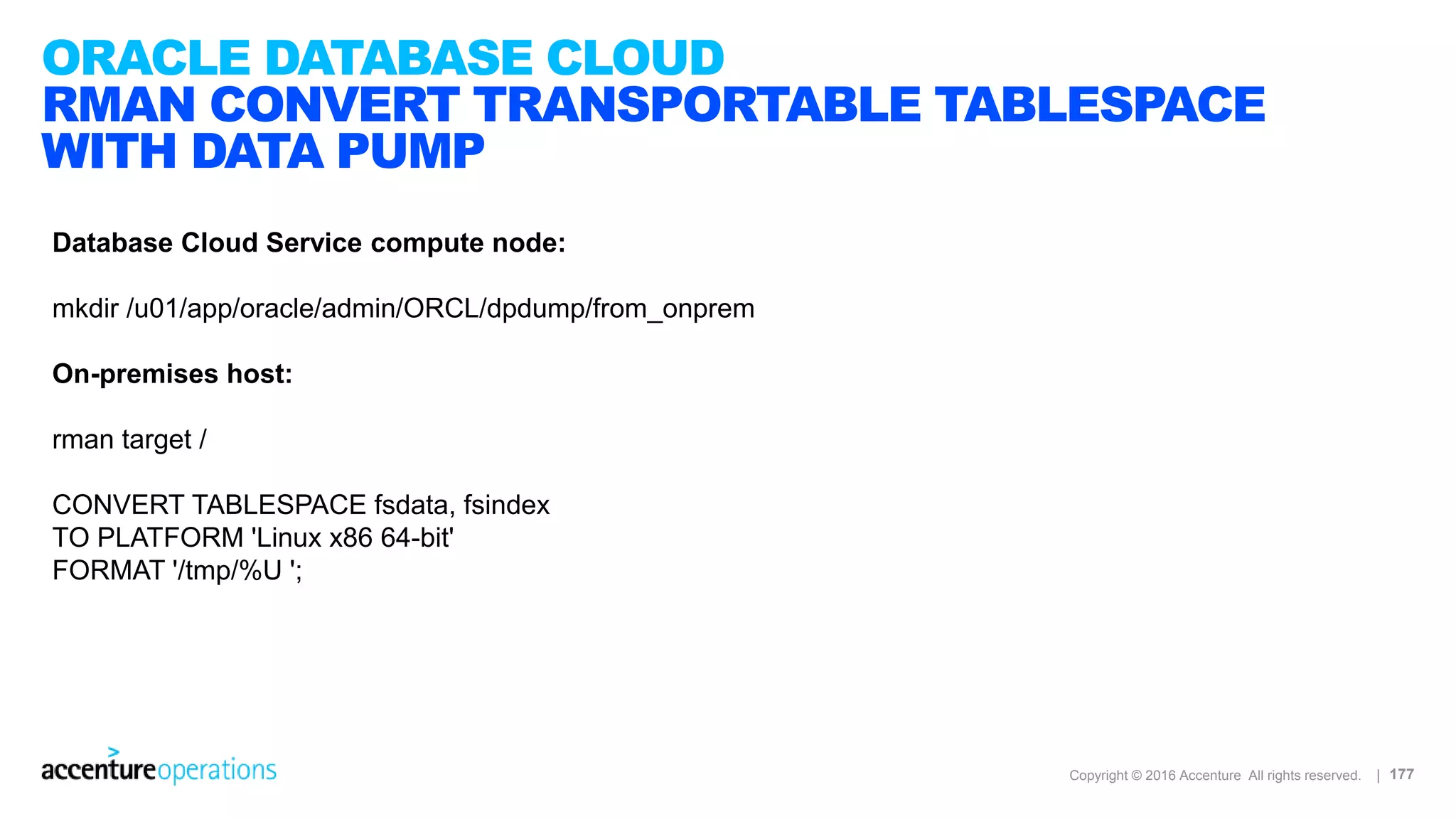

On-premises host:
rman target /
CONVERT TABLESPACE fsdata, fsindex
TO PLATFORM 'Linux x86 64-bit'
FORMAT '/tmp/%U ';
WITH DATA PUMP

On-premises host:
$ scp -i private_key_file /u01/app/oracle/admin/orcl/dpdump/for_cloud/expdat.dmp
$ scp -i private_key_file /tmp/data_D-ORCL_I-1410251631_TS-FSDATA_FNO-6_0aqc9un3
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL/fsdata01.dbf
$ scp -i private_key_file /tmp/data_D-ORCL_I-1410251631_TS-FSINDEX_FNO-7_0bqc9un6
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL/fsindex01.dbf
WITH DATA PUMP

impdp system DIRECTORY=dp_from_onprem
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf’
WITH DATA PUMP

QUESTIONS?

Thank You
Slides Available: http://www.slideshare.net/

LET’S GET STARTED WITH ORACLE DATABASE CLOUD

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to LET’S GET STARTED WITH ORACLE DATABASE CLOUD

Similar to LET’S GET STARTED WITH ORACLE DATABASE CLOUD (20)

More from Alex Zaballa

More from Alex Zaballa (20)

Recently uploaded

Recently uploaded (20)

LET’S GET STARTED WITH ORACLE DATABASE CLOUD
