OOW16 - Oracle Database 12c - The Best Oracle Database 12c New Features for Developers and DBAs

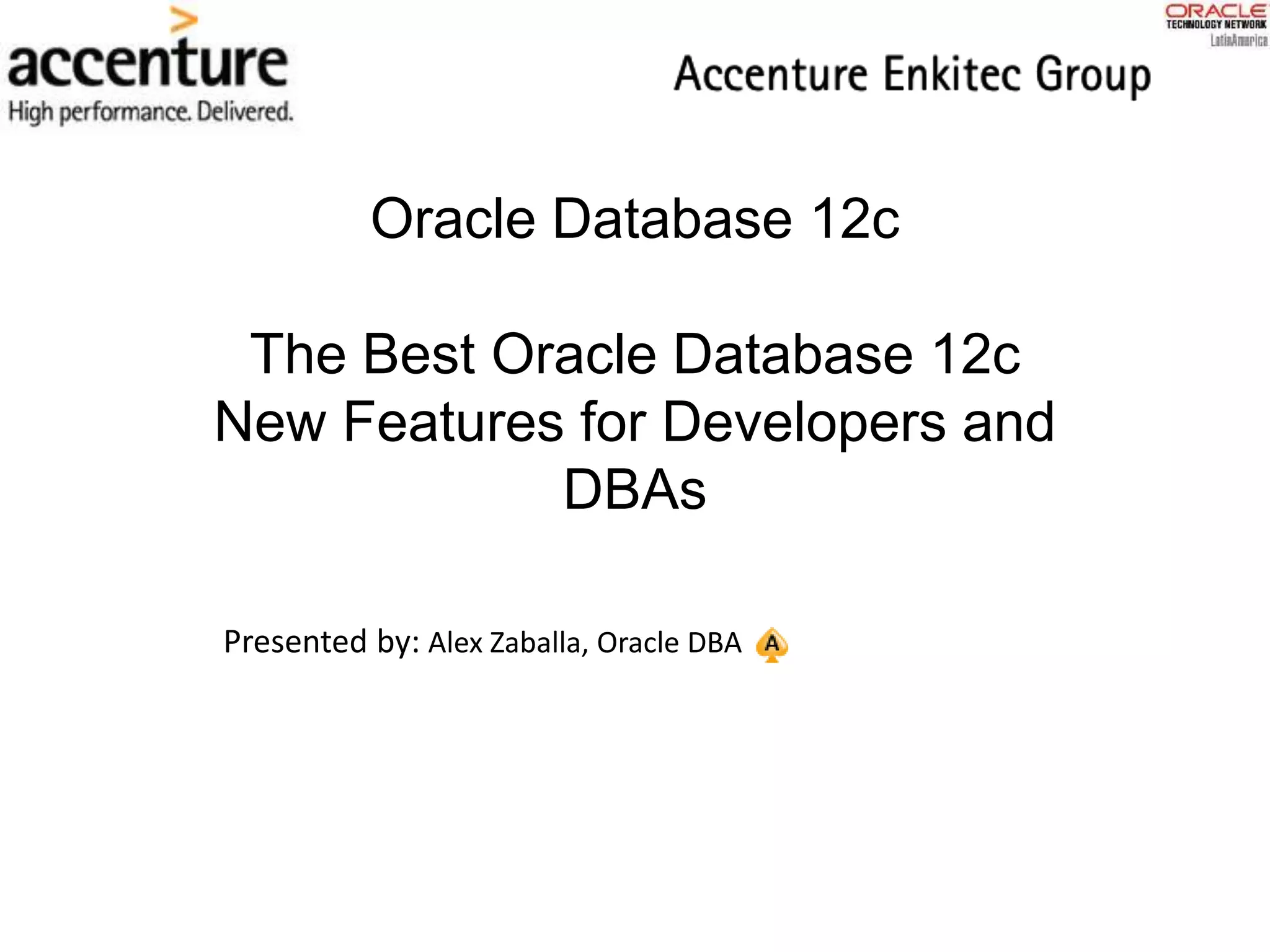

1. Oracle Database 12c
The Best Oracle Database 12c
New Features for Developers and
DBAs
Presented by: Alex Zaballa, Oracle DBA

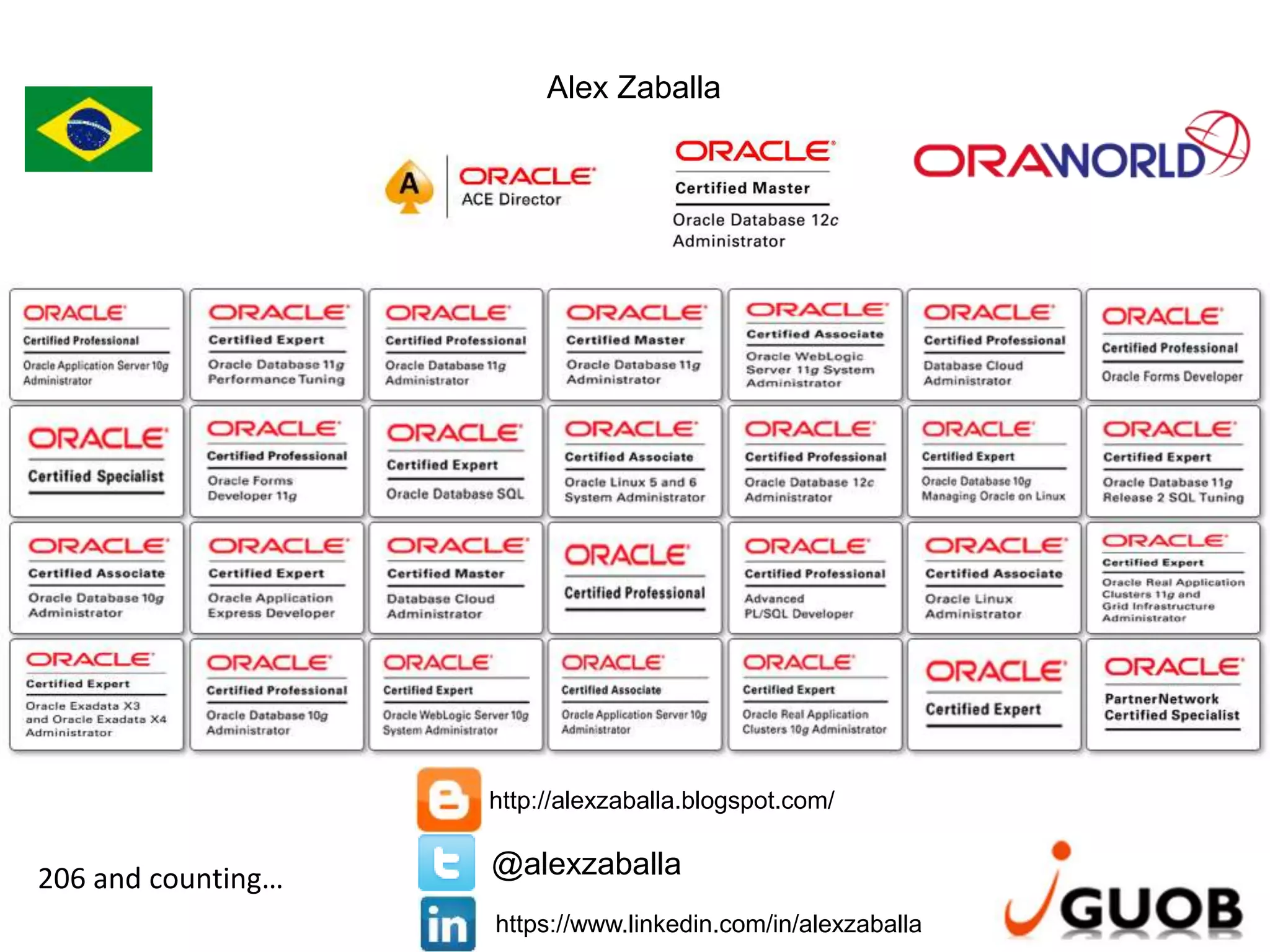

2. Alex Zaballa
http://alexzaballa.blogspot.com/
@alexzaballa206 and counting…
https://www.linkedin.com/in/alexzaballa

3. Worked for 7 years in Brazil as an Oracle Developer.
2000 - 2007
Worked for 8 years in Angola as an Oracle DBA
for the Ministry of Finance.
2007 - 2015

5. Oracle Database 12c
New Features for Developers and DBAs

6. Oracle Official Documentation
12.1.0.2
• http://docs.oracle.com/database/121/NEWFT/ch
apter12102.htm
Oracle Learning Library (OLL)
• https://apexapps.oracle.com/pls/apex/f?p=44785
:1:0

7. Articles about 12c
• https://oracle-base.com/articles/12c/articles-
12c

8. “With more than 500 new features, Oracle
Database 12c is designed to give Oracle
customers exactly what they’ve told us they
need for cloud computing, big data, security,
and availability.”

9. JSON
OTN Article by Alex Zaballa
http://www.oracle.com/technetwork/pt/articles
/sql/json-oracle-database-12c-2378776-
ptb.html

10. JSON
• Oracle Database 12.1.0.2 has now native
support for JSON.
• “JSON (JavaScript Object Notation) is a
lightweight data-interchange format. It is easy
for humans to read and write. It is easy for
machines to parse and generate.”
Source: http://json.org/

11. JSON

12. JSON

13. DEMO

14. Data Redaction
OTN Article in English by Alex Zaballa
http://www.oracle.com/technetwork/articles/d
atabase/data-redaction-odb12c-2331480.html

15. Data Redaction
• One of the new features introduced in Oracle
Database 12c
• Part of the Advanced Security option
• Enables the protection of data shown to the
user in real time, without requiring changes to
the application

16. Data Redaction

17. Data Redaction

18. DEMO

19. SQL Query Row Limits and Offsets

20. SQL Query Row Limits and Offsets

21. SQL Query Row Limits and Offsets
Top-N Queries – Pré 12c

22. SQL Query Row Limits and Offsets

23. SQL Query Row Limits and Offsets

24. SQL Query Row Limits and Offsets

25. DEMO

26. PL/SQL From SQL
with
function Is_Number
(x in varchar2) return varchar2 is
Plsql_Num_Error exception;
pragma exception_init(Plsql_Num_Error, -06502);
begin
if (To_Number(x) is NOT null) then
return 'Y';
else
return '';
end if;
exception
when Plsql_Num_Error then
return 'N';
end Is_Number;
select rownum, x, is_number(x) is_num from t;

27. DEMO

28. Session Level Sequences
Session level sequences are used to produce
unique values in a session. Once the session
ends, the sequence is reset.
Generating Primary Keys for a Global Temporary
Table would be a field where those kinds of
sequences could be used.

29. Session Level Sequences
CREATE SEQUENCE sequence_test
START WITH 1
INCREMENT BY 1
SESSION
/

30. Session Level Sequences
ALTER SEQUENCE sequence_test
SESSION;
ALTER SEQUENCE sequence_test
GLOBAL;

31. DEMO

32. Temporary Undo
Global Temporary Tables (GTT) hold the data in a
temporary tablespace. The data in GTTs are either
deleted after commit or kept until the session is
connected depending of the definition of the
GTT.(ON COMMIT PRESERVE OR DELETE ROWS ).
DMLs in a Global Temporary Tables do not generate
REDO, but generate UNDO and this will result in
REDO generating.

33. Temporary Undo
alter session set temp_undo_enabled=true;
**you can change for the session or for the database.

34. DEMO

35. Statistics During Loads
The ability to gather statistics automatically
during bulk loads:
- CREATE TABLE AS SELECT
- INSERT INTO ... SELECT into an empty table
using a direct path insert

36. DEMO

37. SQL*Loader Express
• You don't need to to write and test a
SQL*Loader control file.
• The benefit main is the savings for time and
effort.

38. SQL*Loader Express
[oracle@oracle01 tmp]$ cat EMP_TEST.dat
1,Emp 1
2,Emp 2
3,Emp 3
4,Emp 4
5,Emp 5
6,Emp 6
7,Emp 7
8,Emp 8
9,Emp 9

39. SQL*Loader Express
[oracle@oracle01 tmp]$ sqlldr teste/teste TABLE=EMP_TEST
SQL*Loader: Release 12.1.0.1.0 - Production on Sat Jan 11 12:16:28 2014
Copyright (c) 1982, 2013, Oracle and/or its affiliates. All rights reserved.
Express Mode Load, Table: EMP_TEST
Path used: External Table, DEGREE_OF_PARALLELISM=AUTO
Table EMP_TEST:
9 Rows successfully loaded.
Check the log files:
EMP_TEST.log
EMP_TEST_%p.log_xt
for more information about the load.

40. DEMO

41. Extended Data Types
SQL> create table table_test(column01
varchar2(4001));
*
ERROR at line 1:
ORA-00910: specified length too long for its
datatype

42. Extended Data Types
- VARCHAR2 : 32767 bytes
- NVARCHAR2 : 32767 bytes
- RAW : 32767 bytes

43. Extended Data Types
SHUTDOWN IMMEDIATE;
STARTUP UPGRADE;
ALTER SYSTEM SET max_string_size=extended;
@?/rdbms/admin/utl32k.sql
SHUTDOWN IMMEDIATE;
STARTUP;
**Once you switch to extended data types you can't switch back

44. DEMO

45. READ Object Privilege and READ ANY
TABLE System Privilege
What is the difference to SELECT and SELECT
ANY TABLE?

46. READ Object Privilege and READ ANY
TABLE System Privilege
SELECT and SELECT ANY TABLE provides the
ability to lock rows:
LOCK TABLE table_name IN EXCLUSIVE MODE;
SELECT ... FROM table_name FOR UPDATE;

47. READ Object Privilege and READ ANY
TABLE System Privilege
SQL> grant select on scott.emp to teste;
Grant succeeded.
SQL> lock table scott.emp in exclusive mode;
Table(s) Locked.

48. READ Object Privilege and READ ANY
TABLE System Privilege
SQL> grant read on scott.emp to teste;
Grant succeeded.
SQL> lock table scott.emp in exclusive mode;
lock table scott.emp in exclusive mode
*
ERROR at line 1:
ORA-01031: insufficient privileges

49. DEMO

50. Invisible Columns
CREATE TABLE table_test_inv
(
column1 NUMBER,
column2 NUMBER,
column3 NUMBER INVISIBLE,
column4 NUMBER
);
SQL> desc table_test_inv
Name
-----------------------------------------
COLUMN1 NUMBER
COLUMN2 NUMBER
COLUMN4 NUMBER

51. Invisible Columns
INSERT INTO table_test_inv
(column1,column2,column3,column4) VALUES
(1,2,3,4);
INSERT INTO table_test_inv VALUES (1,2,4);

52. Invisible Columns
SET COLINVISIBLE ON
SQL> desc table_test_inv
Name
-----------------------------------------
COLUMN1 NUMBER
COLUMN2 NUMBER
COLUMN4 NUMBER
COLUMN3 (INVISIBLE) NUMBER

53. Invisible Columns
ALTER TABLE table_test_inv MODIFY column3 VISIBLE;
WHY ?
You are preparing the changes on the database, but the application is not
prepared yet.
Select * from …...
Insert into TABLE VALUES (......, ....., .....)

54. DEMO

55. SQL Text Expansion
SQL> variable retorno clob
SQL> begin
dbms_utility.expand_sql_text( input_sql_text
=> 'select * from emp', output_sql_text=>
:retorno );
end;

56. SQL Text Expansion
• Views
• VPDs

57. DEMO

58. Multiple Indexes on the same set of
Columns
Pre 12c:
ORA-01408: such column list already indexed
error.

59. Multiple Indexes on the same set of
Columns
Is the ability to create more than one index on
the same set of columns in 12c.
**Only one of these indexes can be visible at a
time

60. Multiple Indexes on the same set of
Columns
Why would you want to do that?
• Unique versus nonunique
• B-tree versus bitmap
• Different partitioning strategies

61. DEMO

62. Partial Indexes for Partitioned Table
• You can create local and global indexes on a
subset of the partitions of a table, enabling
more flexibility in index creation.
• This feature is not supported for unique
indexes, or for indexes used for enforcing
unique constraints.

63. Partial Indexes for Partitioned Table

64. DEMO

65. Truncate Cascade
SQL> truncate table scott.dept;
truncate table scott.dept
*
ERROR at line 1:
ORA-02266: unique/primary keys in table
referenced by enabled foreign keys

66. Truncate Cascade
SQL> truncate table scott.dept cascade;
Table truncated.
The constraint should be ON DELETE CASCADE.

67. DEMO

68. Limit the PGA
SQL> show parameter pga
NAME TYPE VALUE
-------------------------- ------------- ----------------------
pga_aggregate_limit big integer 2G
pga_aggregate_target ****

69. Limit the PGA
PGA_AGGREGATE_LIMIT is set to the greater of:
- 2 GB (default value)
- 200% of PGA_AGGREGATE_TARGET
- 3 MB times the PROCESSES parameter

70. Full Database Caching
Can be used to cache the entire database in
memory. It should be used when the buffer
cache size of the database instance is greater
than the whole database size.

71. RMAN Table Recovery in 12c
RMAN enables you to recover one or more
tables or table partitions to a specified point in
time.

72. RMAN Table Recovery in 12c
RMAN> RECOVER TABLE HR.REGIONS
UNTIL TIME "TO_DATE('01/10/2013
09:33:39','DD/MM/RRRR HH24:MI:SS')"
AUXILIARY DESTINATION '/tmp/backups'

73. DDL LOGGING

74. DDL LOGGING
/u01/app/oracle/diag/rdbms/orcl/orcl/log/ddl/log.xml

75. Direct SQL statement execution in
RMAN
Pre - 12c:
RMAN> SQL ‘SELECT sysdate FROM dual’;
12c:
RMAN> SELECT sysdate FROM dual;

76. In-Database Archiving
SQL> create table table_test(column1 number)
row archival;
insert into table_test values(1);
insert into table_test values(2);
insert into table_test values(3);

77. In-Database Archiving

78. In-Database Archiving
update table_test
set ora_archive_state=DBMS_ILM.ARCHIVESTATENAME(1)
where column1=3;

79. In-Database Archiving
alter session set row archival visibility=all;

80. Heat Map, Automatic Data
Optimization and ILM
OTN Article in Portuguese by Daniel Da Meda and Alex Zaballa
http://www.oracle.com/technetwork/pt/articles
/database-performance/ilm-e-automatic-data-
optimization-2601873-ptb.html

81. Heat Map, Automatic Data
Optimization and ILM
• Heat Map: Oracle Database 12c feature that stores system-
generated data usage statistics at the block and segment
levels. Automatically tracks modification and query
timestamps at the row and segment levels.
• Automatic Data Optimization (ADO): automatically moves
and compresses data according to user-defined policies
based on the information collected by Heat Map
• ILM: Heat Map and Automatic Data Optimization make
Oracle Database 12c ideal for implementing ILM

82. Heat Map, Automatic Data
Optimization and ILM
Enabling Heat Map
SQL> alter system set heat_map = on;

83. Heat Map, Automatic Data
Optimization and ILM
Heat Map statistics can be viewed graphically
through EM Cloud Control:

84. Heat Map, Automatic Data
Optimization and ILM
Creating ADO policies
Compress the tablespace USER_DATA and all its residing
segments at OLTP level after 30 days of low access:
ALTER TABLESPACE USER_DATA ILM ADD POLICY
ROW STORE COMPRESS ADVANCED
SEGMENT AFTER 30 DAYS OF LOW ACCESS;

85. Heat Map, Automatic Data
Optimization and ILM
Creating ADO policies
Compress the table ORDER_ITEMS including any
SecureFile LOBs at OLTP level after 90 days of no
modification:
ALTER TABLE ORDER_ITEMS ILM ADD POLICY
ROW STORE COMPRESS ADVANCED
GROUP AFTER 90 DAYS OF NO MODIFICATION;

86. Session private statistics for Global
Temporary Tables
Pre 12c, statistics gathered for global temporary
tables (GTTs) were common to all sessions.

87. Session private statistics for Global
Temporary Tables
On 12c, by default session-private statistics are
enabled
SELECT DBMS_STATS.get_prefs('GLOBAL_TEMP_TABLE_STATS')
FROM dual;
STATS
------------------------------------------------------------------------------
SESSION

88. Session private statistics for Global
Temporary Tables
How to change?
Behavior pre 12c:
BEGIN
DBMS_STATS.set_global_prefs (
pname => 'GLOBAL_TEMP_TABLE_STATS',
pvalue => 'SHARED');
END;
/
Back to default on 12c:
BEGIN
DBMS_STATS.set_global_prefs (
pname => 'GLOBAL_TEMP_TABLE_STATS',
pvalue => 'SESSION');
END;
/

89. Session private statistics for Global
Temporary Tables
How to change for one table?
BEGIN
dbms_stats.set_table_prefs('SCOTT','GTT_TEST',
'GLOBAL_TEMP_TABLE_STATS','SHARED');
END;
BEGIN
dbms_stats.set_table_prefs('SCOTT','GTT_TEST',
'GLOBAL_TEMP_TABLE_STATS’,’SESSION');
END;

90. DEMO

91. Identity Columns
CREATE TABLE tabela_teste (
id NUMBER GENERATED ALWAYS AS IDENTITY,
coluna1 VARCHAR2(30)
);

92. Identity Columns
CREATE TABLE tabela_teste (
id NUMBER GENERATED BY DEFAULT AS IDENTITY,
coluna1 VARCHAR2(30)
);

93. Multitenant

94. Fonte: Oracle Documentation

95. Multitenant
Fonte: https://blogs.oracle.com/UPGRADE/entry/non_cdb_architecture_of_oracle

96. Multitenant
Fonte: https://blogs.oracle.com/UPGRADE/entry/non_cdb_architecture_of_oracle

97. Multitenant
Fonte: https://blogs.oracle.com/UPGRADE/entry/non_cdb_architecture_of_oracle

98. In-Memory
Fonte: Oracle Documentation

99. SIMD Vector Processing
Fonte: http://www.oracle.com/technetwork/database/in-memory/overview/twp-
oracle-database-in-memory-2245633.html

100. In-Memory
In-Memory Area – a static pool in SGA

101. In-Memory
Fonte: OracleBase.com

102. In-Memory
Alter table hr.EMPLOYEES inmemory;
ALTER TABLE sales MODIFY PARTITION SALES_Q1_1998
INMEMORY;
ALTER TABLE sales INMEMORY NO INMEMORY(prod_id);
CREATE TABLESPACE tbs_test
DATAFILE '+DG01 SIZE 100M
DEFAULT INMEMORY;

103. In-Memory
Fonte: http://www.oracle.com/technetwork/database/in-memory/overview/twp-
oracle-database-in-memory-2245633.html

104. SQLcl
http://www.oracle.com/technetwork/developer-tools/sql-developer/downloads/index.html

106. Thank You
Slides Available: http://www.slideshare.net/
