Getting cars to drive autonomously is one of the most exciting problems these days. One of the key challenges is making them drive safely, which requires processing large amounts of data. In our talk we would like to focus on only one task of a self-driving car, namely road detection. Road detection is a software component which needs to be safe for being able to keep the car in the current lane. In order to track the progress of such a software component, a well-designed KPI (key performance indicators) evaluation pipeline is required. In this presentation we would like to show you how we incorporate Spark in our pipeline to deal with huge amounts of data and operate under strict scalability constraints for gathering relevant KPIs. Additionally, we would like to mention several lessons learned from using Spark in this environment.

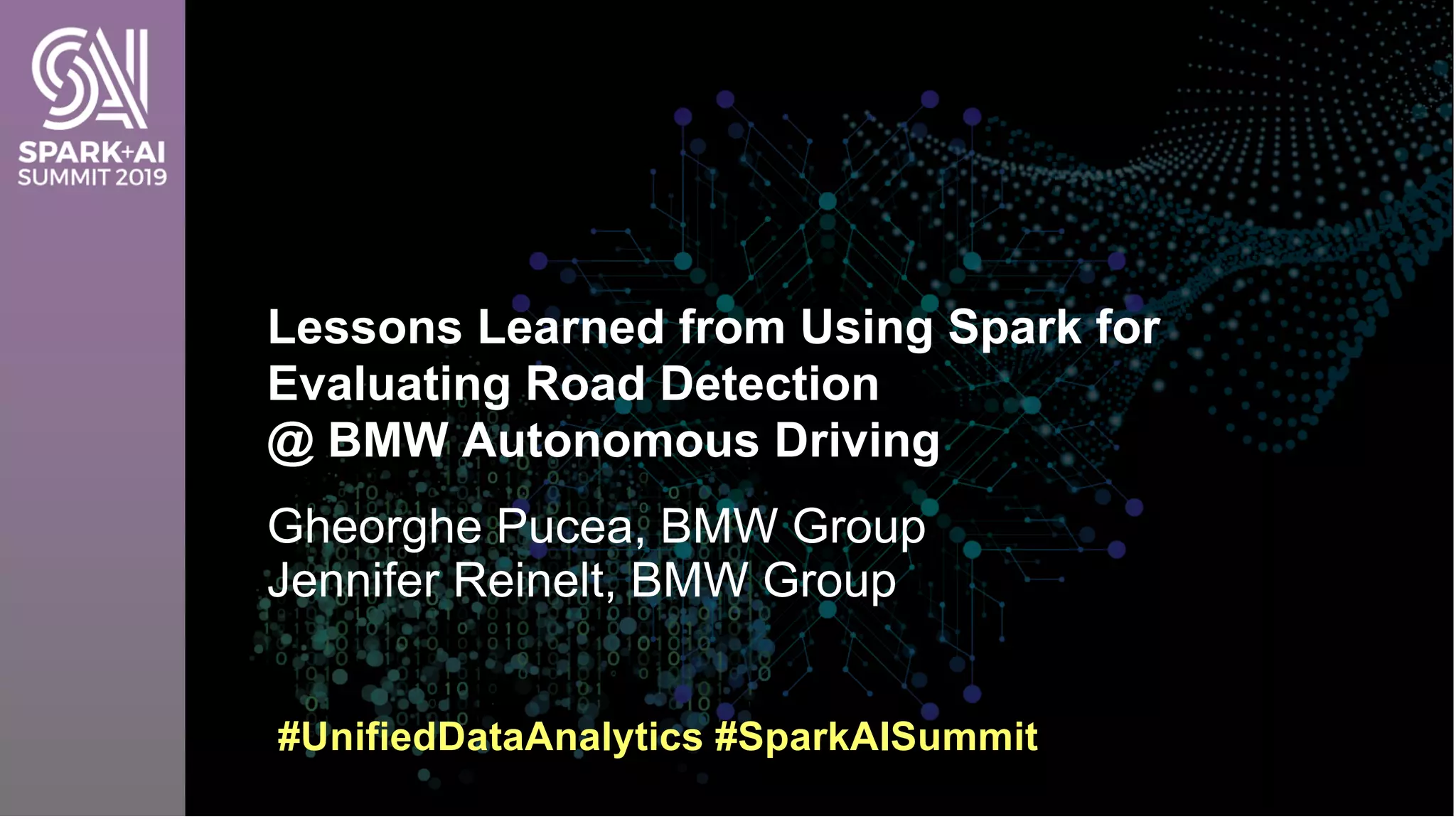

2. Gheorghe Pucea, BMW Group
Jennifer Reinelt, BMW Group
Lessons Learned from Using Spark for
Evaluating Road Detection
@ BMW Autonomous Driving
#UnifiedDataAnalytics #SparkAISummit
6. Outline
6
• Evaluation of Lane Detection
• Evaluation Pipeline
• AI Based Ground Truth
• Lessons Learned
7. Evaluation of Lane Detection
7
Real lane markings
Detected lane markings
At 1m?
At 50m?At 100m?
At 150m?
How well does the car detect the lane markings?
8. How well does the car detect the lane markings?
Key Performance Indicator (KPI) – Lateral Offset
Evaluation of Lane Detection
8
commit
70d9c31
commit
c271a01
commit
4e0bcd3
commit
6e3bcd3
150m
Functional development time
Lateraloffset
improvement
9. Challenges:
• Where are the real lane markings? How do
we get the ground truth?
• How do we avoid making the same mistakes
as the car when looking for real lane
markings?
• How do we scale this ground truth
generation?
Evaluation of Lane Detection
9
Real lane markings
Detected lane markings
At 1m?
At 50m?At 100m?
At 150m?
10. How do we get the ground truth?
• From manual labels
Evaluation of Lane Detection
10
Very accurate Manual
Slow
Expensive to
scale up
Bad for
Occlusions
11. How do we get the ground truth?
• From additional sensors
Evaluation of Lane Detection
11
Automated
Fast
Accurate
Expensive to
scale up
12. How do we get the ground truth?
• Using sophisticated algorithms in the backend
Evaluation of Lane Detection
12
Scalable
Automated
Fast
Cheap
Lower
accuracy
13. Outline
13
• Evaluation of Lane Detection
• Evaluation Pipeline
• AI Based Ground Truth
• Lessons Learned
14. Ros
bag
orc
Datacenter:
> 230 PB capacity and > 1.500 TB raw data/day
> 100.000 Cores and >200 GPUs
Reprocessing KPI CalculationRos ConverterData Ingestion
Ground Truth
Generation
Other
Applications
Other
Applications
Other
Applications
Evaluation Pipeline
14
Data
Collection
InfluxDB
15. Outline
15
• Evaluation of Lane Detection
• Evaluation Pipeline
• AI Based Ground Truth
• Lessons Learned
16. Ros
bag
orc
Datacenter:
> 230 PB capacity and > 1.500 TB raw data/day
> 100.000 Cores and >200 GPUs
Reprocessing KPI CalculationRos ConverterData Ingestion
Ground Truth
Generation
Other
ApplicationsOther
ApplicationsOther
Applications
16
Data
Collection
InfluxDB
AI Based Ground Truth
17. AI Based Ground Truth
17
3D Lidar points clouds Semantic
Segmentation
Lidar intensity in
2D bird‘s eye view
Deep Neural
Network
Lane Marking
No Lane Marking
18. Outline
18
• Evaluation of Lane Detection
• Evaluation Pipeline
• AI Based Ground Truth
• Lessons Learned
20. Motivation of Lessons Learned
20
Source: https://papers.nips.cc/paper/5656-hidden-technical-debt-in-machine-learning-systems.pdf
21. Ros
bag
orc
Datacenter:
> 230 PB capacity and > 1.500 TB raw data/day
> 100.000 Cores and >200 GPUs
Reprocessing KPI Calculation
Ros
Converter
Data
Ingestion
Ground Truth
Generation
Other
Applications
Other
Applications
Other
Applications
Lessons Learned – Spark Testing
21
Data
Collection
InfluxDB
25. Lessons Learned – Spark Testing
Using test data generation library for integration tests
25
Cats FlatMap Type Class
Scalacheck generators available with Type Classes
27. Lessons Learned – Spark Testing
Example Typeclass for generating Can Messages
27
28. Lessons Learned – Spark Testing
Implemeting cats.FlatMap type class
28
29. Lessons Learned – Testing
Advantages of using code instead of static Orc files
• Compiler helps with breaking changes
• Improves test understandability
• Flexible manipulation of data using monadic operations
29
30. Lessons Learned – Catalyst Optimizations
Ros
bag
orc
Datacenter:
> 230 PB capacity and > 1.500 TB raw data/day
> 100.000 Cores and >200 GPUs
Reprocessing KPI Calculation
Ros
Converter
Data
Ingestion
Ground Truth
Generation
30
Data
Collection
InfluxDB
RDD
31. Lessons Learned – Catalyst Optimizations
Interested in testing the impact of RDD – Dataset – Dataframe conversion:
• Test with 1 GB of Flexray data, ~ 20 runs/experiment
• Count the data
• Filter data by specific busId
31
33. Lessons Learned – Catalyst Optimizations
How about filtering by busId before counting?
33
34. Lessons Learned – Catalyst Optimizations
How about filtering by busId before counting?
34
0 50 100 150 200 250 300 350
RDD
Dataset Typed
Dataset Untyped
Dataframe
Processing time(s)
35. Lessons Learned – Catalyst Optimizations
Running „explain“ on Dataset yields:
35
Dataset Untyped API Dataset Typed API
36. Lessons Learned – Catalyst Optimizations
Which version is applying push down filters?
36
a) left
b) right
c) both
d) none
37. Lessons Learned – Catalyst Optimizations
Which version is applying push down filters?
37
a) left
b) right
c) both
d) none
busIds: Array[Long] but
busId is of type Int
38. Lessons Learned – Optimizations
Catalyst optimizations
• Types matter for push down filters
• Conversion between Dataset Typed and Untyped API might
hurt performance
• Always check assumptions by looking at metrics/physical
execution plan
38
39. Ros
bag
orc
Datacenter:
> 230 PB capacity and > 1.500 TB raw data/day
> 100.000 Cores and >200 GPUs
Reprocessing KPI Calculation
Ros
Converter
Data Ingestion
Ground Truth
Generation
Other
Applications
Other
Applications
Other
Applications
Lessons Learned – Spark Configuration
39
Data
Collection
InfluxDB
> 1GB
be available fast
be sorted
40. Lessons Learned – Spark Configuration
Adding the feature to rosbag converter of writing bags > 1GB
Resulted in
• Increased processing time
• shuffle.FetchFailedException
Spark UI showed
• Lots of RACK_LOCAL tasks
• Task are taking long
40
