Lesson 5
- 1. HTML PROGRAMMING Lesson 5:Using tables and lists
- 2. Lesson Objectives Bythe end of this lesson you will be able to: Create tables to display information Make effective use of lists to display information Change how information is displayed in a table

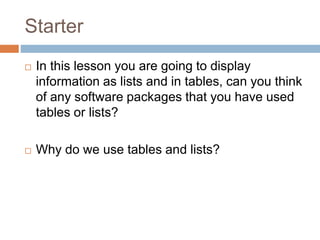

- 3. Starter In thislesson you are going to display information as lists and in tables, can you think of any software packages that you have used tables or lists? Why do we use tables and lists?
- 4. Creating a table... <html> <body> <p>Eachtable starts with a table tag. Each table row starts with a tr tag. Each table data starts with a td tag. </p> <h4>One column:</h4> <table border="1"> <tr> <td>100</td> </tr> </table> <h4>One row and three columns:</h4> <table border="1"> <tr> <td>100</td> <td>200</td> <td>300</td> </tr> </table> </body> </html> 100 100 200 300
- 5. Create a table Using tables can help to display information in a neat way You have used tables before in other software, but they are slightly more difficult to create in HTML Using the code provided, create a new webpage and save it as table.htm Preview the website in Internet Explorer when finished. You might also want to try changing the size of the table border to see what happens. <html> <body> <p>Each table starts with a table tag. Each table row starts with a tr tag. Each table data starts with a td tag. </p> <h4>One column:</h4> <table border="1"> <tr> <td>100</td> </tr> </table> <h4>One row and three columns:</h4> <table border="1"> <tr> <td>100</td> <td>200</td> <td>300</td> </tr> </table> </body> </html>
- 6. Using lists... Sometimesa table is not always the best option, so we are also going to try and use HTML lists There are 2 types of list, ordered and unordered Type in the code provided to create a new webpage and save it as unorderedlist.htm Preview your work in Internet Explorer to see how it looks. Try adding some more items to your list <html> <body> <h4>An Unordered List:</h4> <ul> <li>Coffee</li> <li>Tea</li> <li>Milk</li> </ul> </body> </html>
- 7. More lists... Wehave created an unordered list, but we also want to find out how to create an ordered list When you type in this code, each of the list items will automatically be numbered Try typing in the HTML code provided to create a new webpage called orderedlist.htm Save your work and then preview it in Internet Explorer What is the difference between ordered and unordered lists? <html> <body> <h4>An Ordered List:</h4> <ol> <li>Coffee</li> <li>Tea</li> <li>Milk</li> </ol> </body> </html>

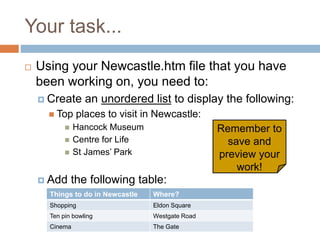

- 8. Your task... Usingyour Newcastle.htm file that you have been working on, you need to: Create an unordered list to display the following: Top places to visit in Newcastle: Hancock Museum Centre for Life St James’ Park Add the following table: Things to do in Newcastle Where? Shopping Eldon Square Ten pin bowling Westgate Road Cinema The Gate Remember to save and preview your work!
- 9. Extension... If youhave reached this stage then you are doing exceptionally well – congratulations! Here is a challenge for you: Using the Internet, find out how to: Change the colour of the cells in the table you have created Change the colour of the text in the table you have created Save your work then preview it in Internet
- 10. Adding font colourand background colour <td bgcolor="red"><font color="white">100</td> <td bgcolor="yellow“><font color="blue">200</td> <td bgcolor="red"><font color="yellow">300</td> This code must go between the td tags
- 11. Add a movingmarquee <font size="5" face="verdana" color="white"> <marquee>Newcastle are the BEST!!</marquee>
- 12. Plenary... Update yourHTML tag table to explain the following: <tr> <td> <ul> <li> <ol> Remember to include an example from today’s lesson of where you have used these tags
- 13. Summary In thislesson you have: Created tables to display information Made effective use of lists to display information Changed how information is displayed in a table
