2. Kernel
Monolothic Microkernel Exokernel
Hybrid

3.  When a computer is powered on, there is
nothing running on the CPU. For a program to
be set running, the binary image of the
program must first be loaded into memory
from a storage device.
 Bootstrapping: cold start to the point at
which user-mode programs can be run.
 In FreeBSD, the binary image is in /vmunix or
/boot/kernel/kernel

4. Kernel
Static Modules KLDs
Compiled in the kernel Loaded during run time

5.  Some modules should be compiled in the
kernel and can’t be loaded during run time.
 Those modules are ones that used before control
turned to the user.

6.  Kernel Location
/usr/src/sys/machine_type
 Kernel Configuration File
/usr/src/sys/machine_type/conf
 By default, Kernel Configuration file is called
GENERIC.

7.  Kernel Configuration file consists of set of
modules.
 These modules consists of machine
architecture, devices and set of options.
 Options are modes of compilation,
communication restrictions, ports
infrastructure, debugging options, .. etc

8.  It’s very important to compile the kernel with
the modules which are needed at boot time
since there is no control to the user to load
them manually.
 Default Options are stored in DEFAULTS file.
 All the available options are located in the
NOTES file in the same directory.

9. 1. One method is using the dmesg(8) utility
and the man(1) commands. Most device
drivers on FreeBSD have a manual page,
listing supported hardware, and during the
boot probe, found hardware will be listed.

10. 2. Another method of finding hardware is by
using the pciconf(8) utility which provides
more verbose output.
 Using man ath will return the ath(4) manual
page

11.  An include directive is available for use in
configuration files. This allows another
configuration file to be logically included in
the current one, making it easy to maintain
small changes relative to an existing file.

13.  Note: To build a file which contains all
available options, as normally done for
testing purposes, run the following command
as root:
# cd /usr/src/sys/i386/conf && make LINT

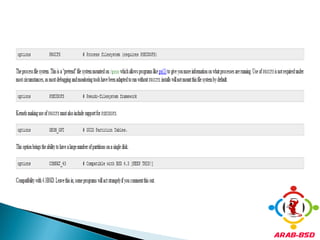

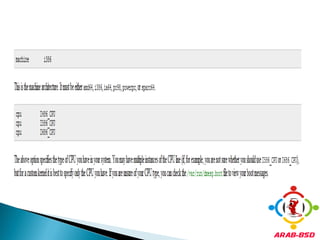

22.  Compile Kernel
 Install Kernel

23.  New kernel will be installed in /boot/kernel
 For backup issues, old kernel stored in
/boot/kernel.old
 You can load the old kernel by using single
user mode at the FreeBSD booting page.

24. Unlike the older approach, this
make buildkernel uses the new compiler residing
in /usr/obj.
This first compiles the new
compiler and a few related tools,
make buildworld then uses the new compiler to
compile the rest of the new world.
The result ends up in /usr/obj.
Place the new kernel and kernel
modules onto the disk, making it
make installkernel
possible to boot with the newly
updated kernel.
Copies the world from /usr/obj.
make installworld You now have a new kernel and
new world on disk.

25. 1. Move to the directory of i386 kernel config files
# cd /usr/src/sys/i386/conf
2. Create a copy of your kernel config file.
# cp GENERIC MYKERNEL
3. Modify MYKERNEL configuration file.
# ee MYKERNEL

26. 4. Change to the /usr/src directory:
# cd /usr/src
5. Compile the kernel:
# make buildkernel KERNCONF=MYKERNEL
6. Install the new kernel:
# make installkernel KERNCONF=MYKERNEL

27.  Kernel Loadable Modules result large
flexibility in the kernel size since only needed
KLD’s are loaded.
 We can use Binary file for total KLD’s indexing and
make it easier for the user to determine what KLD’s
can be loaded at boot time without the need for
loading each one separately.

28.  Use kldstat to view them.

29.  All the kld’s are found in /boot/kernel
directory.

30.  Use kldload to load kld’s.
 After loading

31.  Use kldunload to unload kld.

32. 1. The bsd.kmod.mk makefile resides
in /usr/src/share/mk/bsd.kmod.mk and
takes all of the pain out of building and
linking kernel modules properly.

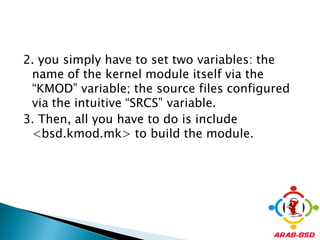

33. 2. you simply have to set two variables: the
name of the kernel module itself via the
“KMOD” variable; the source files configured
via the intuitive “SRCS” variable.
3. Then, all you have to do is include
<bsd.kmod.mk> to build the module.

34.  The Makefile for our introductory kernel
module looks like this:
# Declare Name of kernel module
KMOD = hello_fsm
# Enumerate Source files for kernel module
SRCS = hello_fsm.c
# Include kernel module makefile
.include <bsd.kmod.mk>

35.  Create a new directory called kernel, under
your home directory. Copy and paste the text
in the last presentation into a file
called Makefile. This will be your working
base going forward.

36.  A kernel module allows dynamic functionality
to be added to a running kernel. When a
kernel module is inserted, the “load” event is
fired. When a kernel module is removed, the
“unload” event is fired. The kernel module is
responsible for implementing an event
handler that handles these cases.

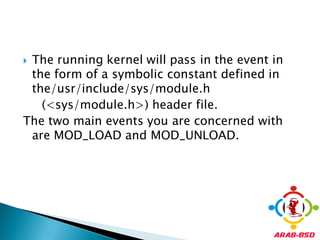

37. The running kernel will pass in the event in
the form of a symbolic constant defined in
the/usr/include/sys/module.h
(<sys/module.h>) header file.
The two main events you are concerned with
are MOD_LOAD and MOD_UNLOAD.

38.  The module is responsible for configuring
that call-back as well by using the
DECLARE_MODULE macro.
 The DECLARE_MODULE macro is defined in
the <sys/module.h> header

39.  DECLARE_MODULE takes four parameters in the
following order:
1. name: Defines the name.
2. data: Specifies the name of
the moduledata_t structure, which I’ve
named hello_conf in my implementation.
The moduledata_t type is defined at
<sys/module.h>
3. sub: Sets the subsystem interface, which defines
the module type.
4. order: Defines the modules initialization order
within the defined subsystem

40.  The moduledata structure contains the name
defined as a char variable and the event
handler routine defined as
a modeventhand_t structure which is defined
at line 50 of <sys/module.h>. Finally,
themoduledata structure has void pointer for
any extra data, which you won’t be using.

41.  #include <sys/param.h>
 #include <sys/module.h>
 #include <sys/kernel.h>
 #include <sys/systm.h>

42.  /* The function called at load/unload. */
static int event_handler(struct module *module, int event, void *arg)
{
int e = 0; /* Error, 0 for normal return status */
switch (event) {
case MOD_LOAD:
uprintf("Hello Free Software Magazine Readers! n");
break;
case MOD_UNLOAD:
uprintf("Bye Bye FSM reader, be sure to check http://www.google.com !n");
break;
default:
e = EOPNOTSUPP; /* Error, Operation Not Supported */
break;
}
return(e);
}

43.  This is where you set the name of the module
and expose the event_handler routine to be
called when loaded and unloaded from the
kernel.
 /* The second argument of
DECLARE_MODULE. */
static moduledata_t hello_conf = {
"hello_fsm", /* module name */
event_handler, /* event handler */
NULL /* extra data */
};

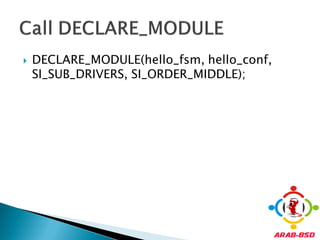

44.  DECLARE_MODULE(hello_fsm, hello_conf,
SI_SUB_DRIVERS, SI_ORDER_MIDDLE);

45.  make
