1. Instructor: Er. Ahmed Baasaay
LECTURE 5

3. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks

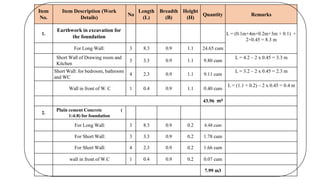

1.
Earthwork in excavation for
the foundation
L = (0.1m+4m+0.2m+3m + 0.1) +
2×0.45 = 8.3 m
For Long Wall: 3 8.3 0.9 1.1 24.65 cum
Short Wall of Drawing room and
Kitchen
3 3.3 0.9 1.1 9.80 cum
L = 4.2 – 2 x 0.45 = 3.3 m
Short Wall: for bedroom, bathroom
and WC
4 2.3 0.9 1.1 9.11 cum
L = 3.2 – 2 x 0.45 = 2.3 m
Wall in front of W. C 1 0.4 0.9 1.1 0.40 cum
L = (1.1 + 0.2) – 2 x 0.45 = 0.4 m
43.96 m3
2.
Plain cement Concrete (
1:4:8) for foundation
For Long Wall: 3 8.3 0.9 0.2 4.48 cum
For Short Wall: 3 3.3 0.9 0.2 1.78 cum
For Short Wall: 4 2.3 0.9 0.2 1.66 cum
wall in front of W.C 1 0.4 0.9 0.2 0.07 cum
7.99 m3

4. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks

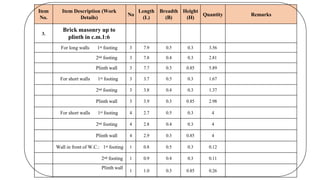

3.
Brick masonry up to
plinth in c.m.1:6
For long walls 1st footing 3 7.9 0.5 0.3 3.56
2nd footing 3 7.8 0.4 0.3 2.81
Plinth wall 3 7.7 0.3 0.85 5.89
For short walls 1st footing 3 3.7 0.5 0.3 1.67
2nd footing 3 3.8 0.4 0.3 1.37
Plinth wall 3 3.9 0.3 0.85 2.98
For short walls 1st footing 4 2.7 0.5 0.3 4
2nd footing 4 2.8 0.4 0.3 4
Plinth wall 4 2.9 0.3 0.85 4
Wall in front of W.C.: 1st footing 1 0.8 0.5 0.3 0.12
2nd footing 1 0.9 0.4 0.3 0.11
Plinth wall
1 1.0 0.3 0.85 0.26

5. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
1st Step 1 1.1 0.9 0.20 0.20
2nd Step 1 1.1 0.6 0.15 0.10
3rd Step 1 1.1 0.3 0.15 0.05
Total 25.04 m3

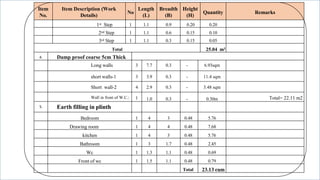

4. Damp proof coarse 5cm Thick
Long walls 3 7.7 0.3 - 6.93sqm
short walls-1 3 3.9 0.3 - 11.4 sqm
Short wall-2 4 2.9 0.3 - 3.48 sqm
Wall in front of W.C.: 1 1.0 0.3 - 0.30m Total= 22.11 m2
5. Earth filling in plinth
Bedroom 1 4 3 0.48 5.76
Drawing room 1 4 4 0.48 7.68
kitchen 1 4 3 0.48 5.76
Bathroom 1 3 1.7 0.48 2.45
Wc 1 1.3 1.1 0.48 0.69
Front of wc 1 1.5 1.1 0.48 0.79
Total 23.13 cum

6. Item
No.
Item Description (Work Details) No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
slab level in c.m. 1:6
6.
Brick masonry above plinth up to
For Long Wall: 3 7.6 0.2 3.0 13.68
For Short Wall: 1 3 4.0 0.2 3.0 7.2
For Short Wall 2 4 3.0 0.2 3.0 7.2
Wall in front of W.C. 1 1.1 0.2 3.0 0.66
Parapet wall Long wall 2 7.6 0.2 0.7 2.12
Short wall 2 7.2 0.2 0.7 2.02
32.88 m3
Deduction For Doors & Windows
D1 3 1.1 0.2 2.1 2
D2 2 0.9 0.2 2.1 0.76
G1 1 1.2 0.2 2.1 0.50
W1 4 1.8 0.2 1.4 2.02
W2 1 1.2 0.2 1.4 0.34
W3 1 1.5 0.2 1.4 0.42
V 2 0.6 0.2 0.6 0.14

7. Item
No.
Item Description (Work Details) No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
Deduction for lintels above
door and windows with 15cm
bearing at each end.
Lintel above D1 3 1.4 0.2 0.15 0.126
Lintel above D2 2 1.2 0.2 0.15 0.072
Lintel above G1 1 1.5 0.2 0.15 0.045
Lintel above W1 4 2.1 0.2 0.15 0.25
Lintel above W2 1 1.5 0.2 0.15 0.045
Lintel above W3 1 1.8 0.2 0.15 0.054
Lintel above V 2 0.9 0.2 0.15 0.054
Deduction= (-)0.646 m3
Net quantity of brickwork = 32.88-5.57-0.646= 22.54m^3 26.66 m^3

8. Item
No.
Item Description (Work Details) No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
7.
R.C.C works in slab, sunshade
and lintel
R.C.C slab 1 7.6 7.6 0.10 5.776
R.C.C Lintel above D1 4 1.2 0.2 0.15 0.144
R.C.C Lintel above D2 2 1.2 0.2 0.15 0.072
R.C.C Lintel above G1 1 1.5 0.2 0.15 0.045
R.C.C Lintel above W1 4 2.1 0.2 0.15 0.25
R.C.C Lintel above W2 1 1.5 0.2 0.15 0.045
R.C.C Lintel above W3 1 1.8 0.2 0.15 0.054
R.C.C Lintel above V 2 0.9 0.2 0.15 0.054
Sunshade on W1 4 2.1 0.6 0.1 0.504
Sunshade on W2 1 1.5 0.6 0.1 0.09
Sunshade on W3 1 1.8 0.6 0.1 0.108
Total 7 cum

9. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
8.
Smooth plaster inside the
rooms and ceilings in
c.m.1:3
Drg. Room 4 4.0 - 3.0 48.0
Bed Room 2 4.0 - 3.0 24.0
2 3.0 3.0 18.0
Kitchen 2 4.0 3.0 24.0
2 3.0 3.0 18.0
Bath 2 3.0 3.0 18.0
2 1.7 3.0 10.2
W.C. 2 1.3 3.0 7.8
2 1.1 3.0 6.6
2 1.5 3.0 9.0
2 1.1 3.0 6.6

10. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
ceiling plaster
Drg. Room 1 4.0 4.0 16.0
Bed Room 1 4.0 3.0 12.0
Kitchen 1 3.0 4.0 12.0
Bath 1 4.0 1.7 5.1
w.c. 1 1.3 1.1 1.43
in front of W.C 1 1.5 1.1 1.65
Total Quantity= 238.38 m2
D1 4/2 1.1 2.1 5.78
D2 4/2 0.9 2.1 3.78
G1 2/2 1.2 2.1 2.52
W1 4/2 1.8 1.4 5.04
W2 1/2 1.2 1.4 0.84
1/2 1.5 1.4 1.05
Total Deduction= (-)19.01 m2

11. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
The area of a ventilator is
less than 0.5m2 therefore no
deduction is made
For Door, half the number
of faces is deducted.
Net Quantity= 219.37 m2
plastering outside the rooms
and ceilings in c.m.1:3
Long Wall 2 7.6 - 3.8 57.76
Short wall 2 7.6 - 3.8 57.76
Inside of parapet walls 4 7.2 - 0.7 20.16
Sill of parapet wall long wall 2 7.6 - 0.2 3.04
Short wall 2 7.2 - 0.2 2.88
Total 141.6 m^2

12. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
9. Painting 2 coats and white
washing 1 coat Same as plastering 219.37 m2
10. 10cm thick P.C.C flooring
Bedroom 4 3 0.1 1.2 cum
Drawing room 4 4 0.1 1.6 cum
kitchen 4 3 0.1 1.2 cum
Bathroom 3 1.7 0.1 5.1 cum
Wc 1.3 1.1 0.1 1.43 cum
Front of wc 1.5 1.1 0.1 0.165 cum
Total 10.695 cum

13. Item
No.
Item Description (Work
Details)
No
Length
(L)
Breadth
(B)
Height
(H)
Quantity Remarks
9. 2cm thick marble flooring
Drg. Room 1 4.0 4.0 16.0
Bed Room 1 4.0 3.0 12.0
Kitchen 1 3.0 4.0 12.0
Bath 1 4.0 1.7 5.1
w.c. 1 1.3 1.1 1.43
in front of W.C 1 1.5 1.1 1.65
Steps Tread 3 1.1 0.3 0.99
Risers 4 1.1 - 0.15 0.66
9. wall finishing WC Long wall 2 1.3 - 2.5 6.5
Shor wall 2 1.1 - 2.5 5.5
Bathroom Long wall 2 3 - 2.5 15
Shor wall 2 1.7 - 2.5 5.5

14. Exercise

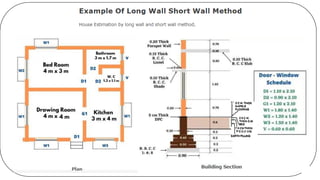

Estimate the quantities of the following given plan &
section

15. Doors & Windows
D1 (1.2 x 2.1)
D2 (0.9 x 2.1)
D3 (0.8 x 2.1)
W (1.2 x 1.5)
V (0.6 x 0.45)

16. THANK YOU
