1. TCP"
Reno, NewReno, SACK
4 September 2009
CS5229, Semester 1, 2009/10
1

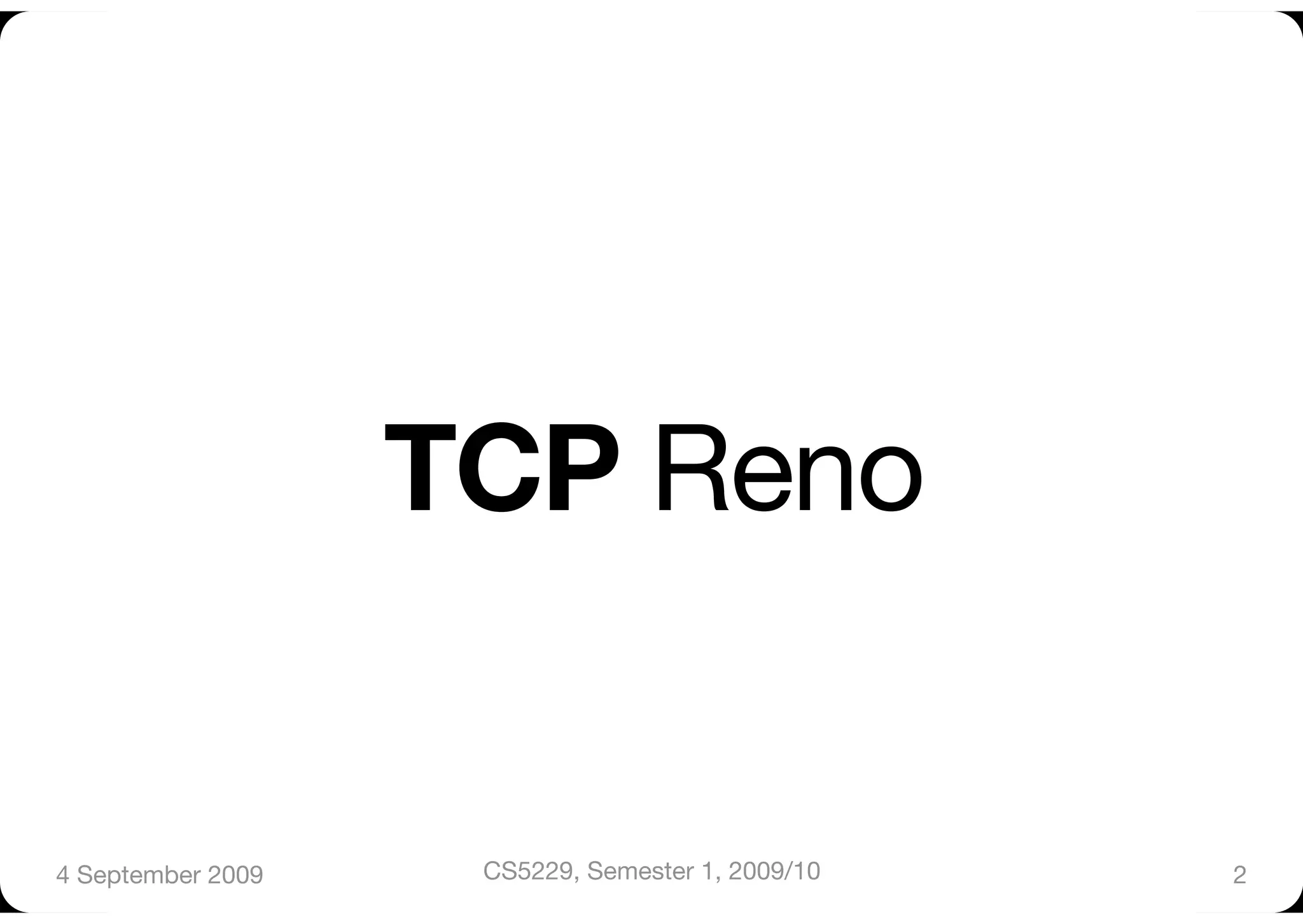

2. TCP Reno
4 September 2009
CS5229, Semester 1, 2009/10
2

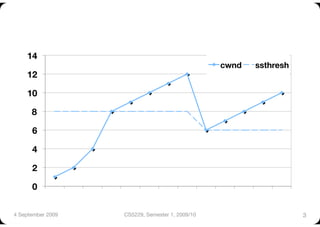

3. 14
cwnd
ssthresh
12
10
8
6
4
2
0
4 September 2009
CS5229, Semester 1, 2009/10
3

4. new ack:"
if (cwnd < sstresh)"
cwnd += 1"
else"
cwnd += 1/cwnd
4 September 2009
CS5229, Semester 1, 2009/10
5

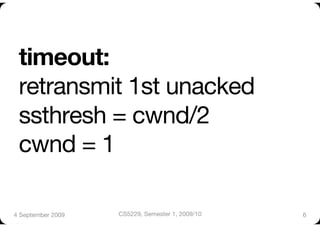

5. timeout:"
retransmit 1st unacked"
ssthresh = cwnd/2"
cwnd = 1"
4 September 2009
CS5229, Semester 1, 2009/10
6

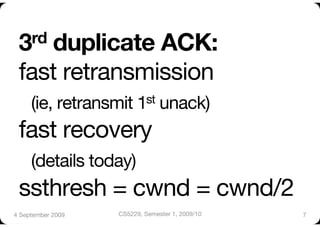

6. 3rd duplicate ACK:"
fast retransmission"
(ie, retransmit 1st unack) "
fast recovery"
(details today)"
ssthresh = cwnd = cwnd/2
4 September 2009
CS5229, Semester 1, 2009/10
7

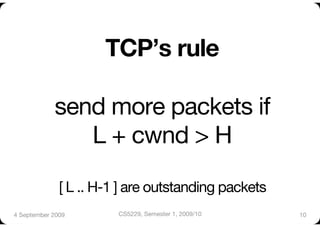

7. TCP’s rule"
send more packets if "
L + cwnd > H"
[ L .. H-1 ] are outstanding packets
4 September 2009
CS5229, Semester 1, 2009/10
10

8. 4 September 2009
CS5229, Semester 1, 2009/10
11

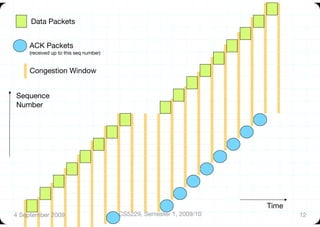

9. Data Packets
ACK Packets
(received up to this seq number)
Congestion Window
Sequence
Number
Time
4 September 2009
CS5229, Semester 1, 2009/10
12

10. 3rd dup ack:"
retransmit 1st unacked"
ssthresh = cwnd/2"
cwnd = cwnd/2
4 September 2009
CS5229, Semester 1, 2009/10
13

11. Incorrectly clamping the congestion window
too soon (without fast recovery)
X
4 September 2009
CS5229, Semester 1, 2009/10
14

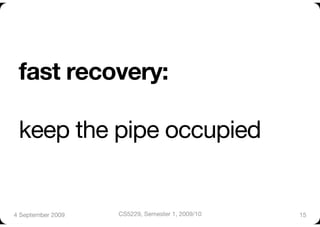

12. fast recovery:"
keep the pipe occupied"
4 September 2009
CS5229, Semester 1, 2009/10
15

13. X
4 September 2009
CS5229, Semester 1, 2009/10
16

14. 4 September 2009
CS5229, Semester 1, 2009/10
17

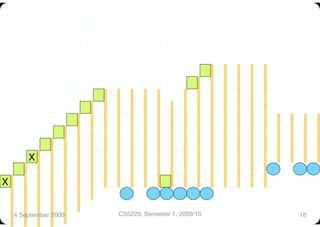

15. X
X
4 September 2009
CS5229, Semester 1, 2009/10
18

16. TCP Reno timeout with
multiple losses in a window
4 September 2009
CS5229, Semester 1, 2009/10
19

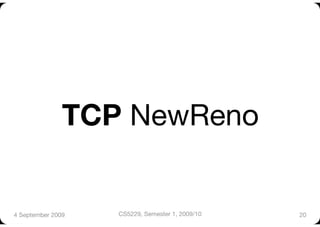

17. TCP NewReno
4 September 2009
CS5229, Semester 1, 2009/10
20

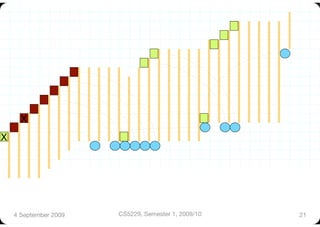

18. X
X
4 September 2009
CS5229, Semester 1, 2009/10
21

19. 4 September 2009
CS5229, Semester 1, 2009/10
22

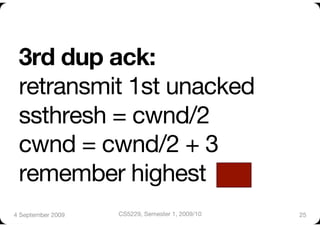

20. 3rd dup ack:"
retransmit 1st unacked"
ssthresh = cwnd/2"
cwnd = cwnd/2 + 3"
remember highest
4 September 2009
CS5229, Semester 1, 2009/10
25

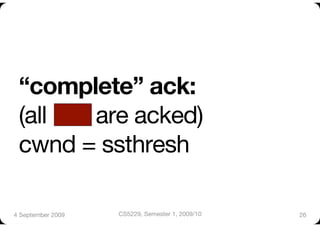

21. “complete” ack:"
(all are acked) "
cwnd = ssthresh
4 September 2009
CS5229, Semester 1, 2009/10
26

22. “partial” ack:"
(acknowledge n packets)"
retransmit"
cwnd = cwnd - n + 1
4 September 2009
CS5229, Semester 1, 2009/10
27

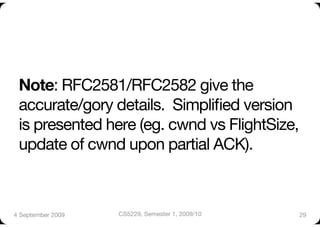

23. Note: RFC2581/RFC2582 give the
accurate/gory details. Simplified version
is presented here (eg. cwnd vs FlightSize,
update of cwnd upon partial ACK).
4 September 2009
CS5229, Semester 1, 2009/10
29

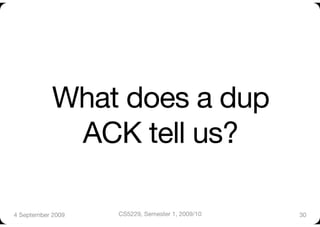

24. What does a dup
ACK tell us?
4 September 2009
CS5229, Semester 1, 2009/10
30

25. “Coarse Feedback”
4 September 2009
CS5229, Semester 1, 2009/10
31

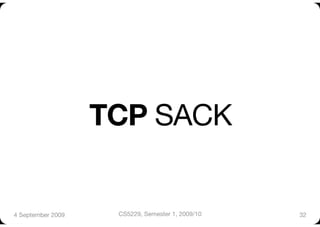

26. TCP SACK
4 September 2009
CS5229, Semester 1, 2009/10
32

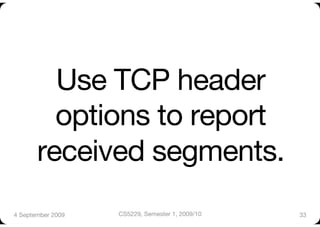

27. Use TCP header
options to report
received segments.
4 September 2009
CS5229, Semester 1, 2009/10
33

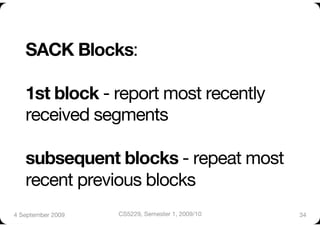

28. SACK Blocks:"
1st block - report most recently
received segments"
subsequent blocks - repeat most
recent previous blocks
4 September 2009
CS5229, Semester 1, 2009/10
34

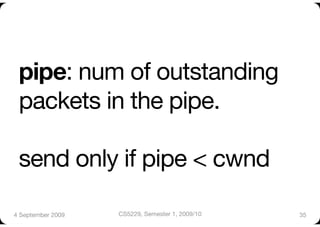

29. pipe: num of outstanding
packets in the pipe."
send only if pipe < cwnd
4 September 2009
CS5229, Semester 1, 2009/10
35

30. scoreboard: which
packets have been
received?
4 September 2009
CS5229, Semester 1, 2009/10
36

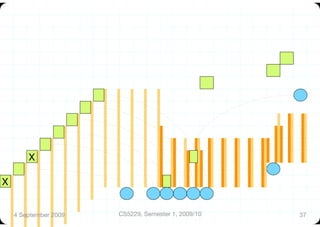

31. X
X
4 September 2009
CS5229, Semester 1, 2009/10
37

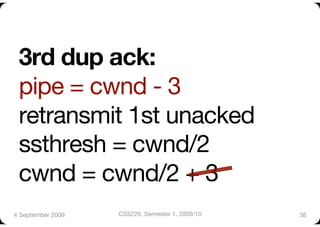

32. 3rd dup ack:"
pipe = cwnd - 3"
retransmit 1st unacked"
ssthresh = cwnd/2"
cwnd = cwnd/2 + 3
4 September 2009
CS5229, Semester 1, 2009/10
38

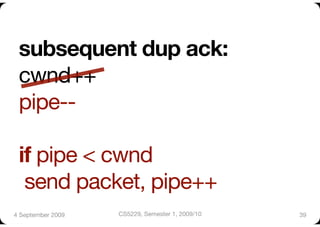

33. subsequent dup ack:"
cwnd++"
pipe--"
if pipe < cwnd"
send packet, pipe++
4 September 2009
CS5229, Semester 1, 2009/10
39

34. “partial” ack:"
retransmit"
cwnd = cwnd - n + 1"
pipe -= 2"
if pipe < cwnd"
send packet, pipe++
4 September 2009
CS5229, Semester 1, 2009/10
40

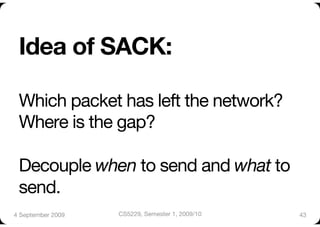

35. Idea of SACK:"
Which packet has left the network?"
Where is the gap?"
Decouple when to send and what to
send.
4 September 2009
CS5229, Semester 1, 2009/10
43

36. TCP SACK recovers faster
than NewReno with
multiple losses in a window.
4 September 2009
CS5229, Semester 1, 2009/10
44

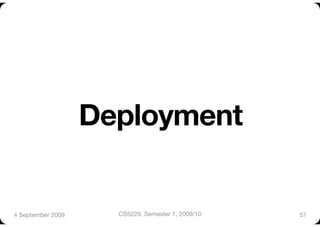

37. Deployment
4 September 2009
CS5229, Semester 1, 2009/10
57

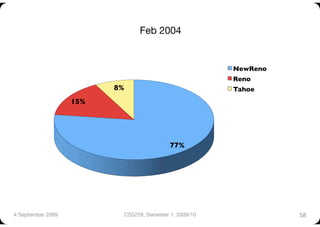

38. Feb 2004
NewReno
Reno
8%
Tahoe
15%
77%
4 September 2009
CS5229, Semester 1, 2009/10
58

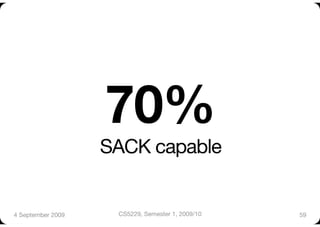

39. 70% "
SACK capable
4 September 2009
CS5229, Semester 1, 2009/10
59

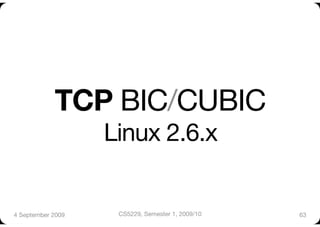

40. TCP BIC/CUBIC"
Linux 2.6.x
4 September 2009
CS5229, Semester 1, 2009/10
63

41. Compound TCP "
MS Windows Vista
4 September 2009
CS5229, Semester 1, 2009/10
64

42. TFRC"
equation-based"
congestion control
4 September 2009
CS5229, Semester 1, 2009/10
65

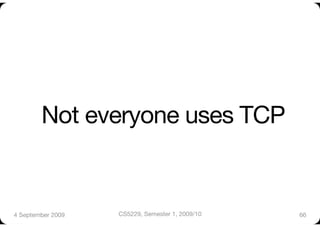

43. Not everyone uses TCP
4 September 2009
CS5229, Semester 1, 2009/10
66

44. UDP:"
Media streaming"
Gaming"
VoIP
4 September 2009
CS5229, Semester 1, 2009/10
67

45. Why not congestion controlled?"
1. UDP has low delay, no need
full reliability. UDP "
is not congestion controlled.
4 September 2009
CS5229, Semester 1, 2009/10
68

46. Why not congestion controlled?"
2. No incentive. OTOH, there
are incentives NOT to use
congestion control.
4 September 2009
CS5229, Semester 1, 2009/10
69

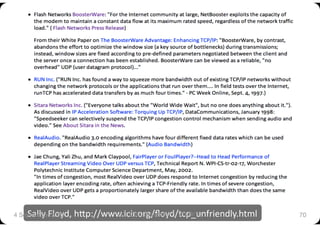

47. Sally Floyd, h+p://www.icir.org/floyd/tcp_unfriendly.html
4 September 2009
CS5229, Semester 1, 2009/10
70

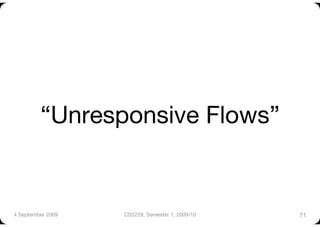

48. “Unresponsive Flows”
4 September 2009
CS5229, Semester 1, 2009/10
71

49. Bad: lead to unfairness
and congestion collapse.
4 September 2009
CS5229, Semester 1, 2009/10
72

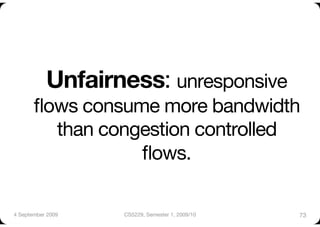

50. Unfairness: unresponsive
flows consume more bandwidth
than congestion controlled
flows.
4 September 2009
CS5229, Semester 1, 2009/10
73

51. Congestion Collapse:
wasting bandwidth by sending
packets that will be dropped
4 September 2009
CS5229, Semester 1, 2009/10
77

52. Today: "
a TCP-friendly"
unreliable protocol
4 September 2009
CS5229, Semester 1, 2009/10
78

53. Idea: "
send at a rate that a TCP
flow would send
4 September 2009
CS5229, Semester 1, 2009/10
79

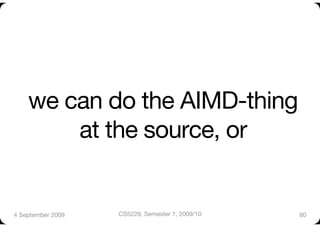

54. we can do the AIMD-thing"
at the source, or
4 September 2009
CS5229, Semester 1, 2009/10
80

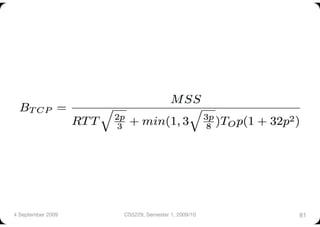

55. 4 September 2009
CS5229, Semester 1, 2009/10
81

56. equation-based "
congestion control
4 September 2009
CS5229, Semester 1, 2009/10
82

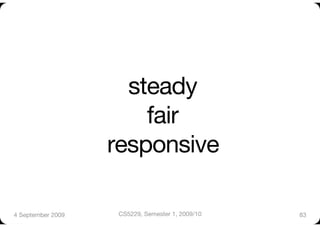

57. steady"
fair"
responsive
4 September 2009
CS5229, Semester 1, 2009/10
83

58. how to determine"
RTT"
tRTO"
p
4 September 2009
CS5229, Semester 1, 2009/10
84

59. p is not packet loss rate"
but "
loss event rate
4 September 2009
CS5229, Semester 1, 2009/10
85

60. 4 September 2009
CS5229, Semester 1, 2009/10
86

61. 4 September 2009
CS5229, Semester 1, 2009/10
87

62. 4 September 2009
CS5229, Semester 1, 2009/10
88

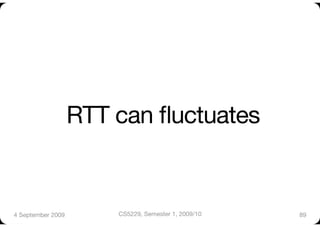

63. RTT can fluctuates
4 September 2009
CS5229, Semester 1, 2009/10
89

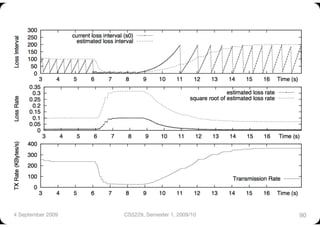

64. 4 September 2009
CS5229, Semester 1, 2009/10
90

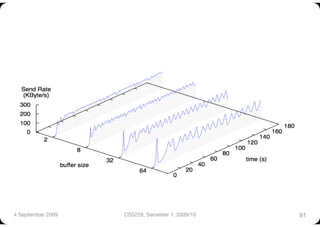

65. 4 September 2009
CS5229, Semester 1, 2009/10
91

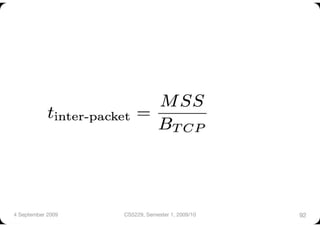

66. 4 September 2009
CS5229, Semester 1, 2009/10
92

67. 4 September 2009
CS5229, Semester 1, 2009/10
93

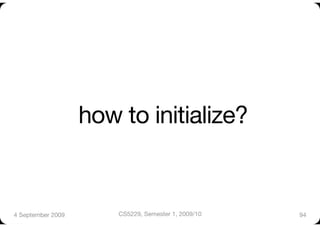

68. how to initialize?
4 September 2009
CS5229, Semester 1, 2009/10
94

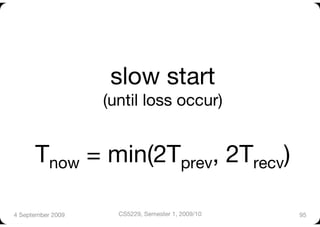

69. slow start"
(until loss occur)"
Tnow = min(2Tprev, 2Trecv)
4 September 2009
CS5229, Semester 1, 2009/10
95

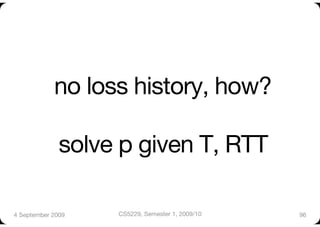

70. no loss history, how?"
solve p given T, RTT
4 September 2009
CS5229, Semester 1, 2009/10
96

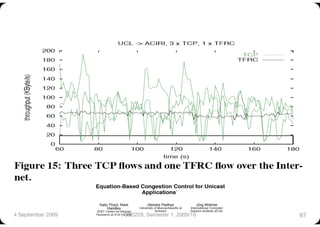

71. 4 September 2009
CS5229, Semester 1, 2009/10
97

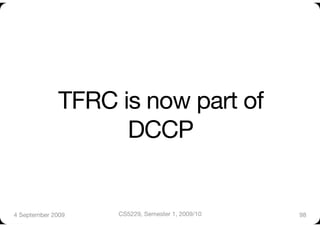

72. TFRC is now part of
DCCP
4 September 2009
CS5229, Semester 1, 2009/10
98
