This document provides an overview of two's complement multiplication and division in computer organization and assembly language. It discusses how to perform two's complement multiplication by sign extending both integers to twice as many bits and taking bits from the least significant bit of the result. It also explains the process of division, which involves setting an initial quotient of 0, incrementing the quotient if the dividend is greater than or equal to the divisor, and finding the remainder using two's complement arithmetic. Examples of two's complement multiplication and division are provided to illustrate the concepts.

1. Lecture 2
Computer Organization and
Assembly Language
Fall 2013

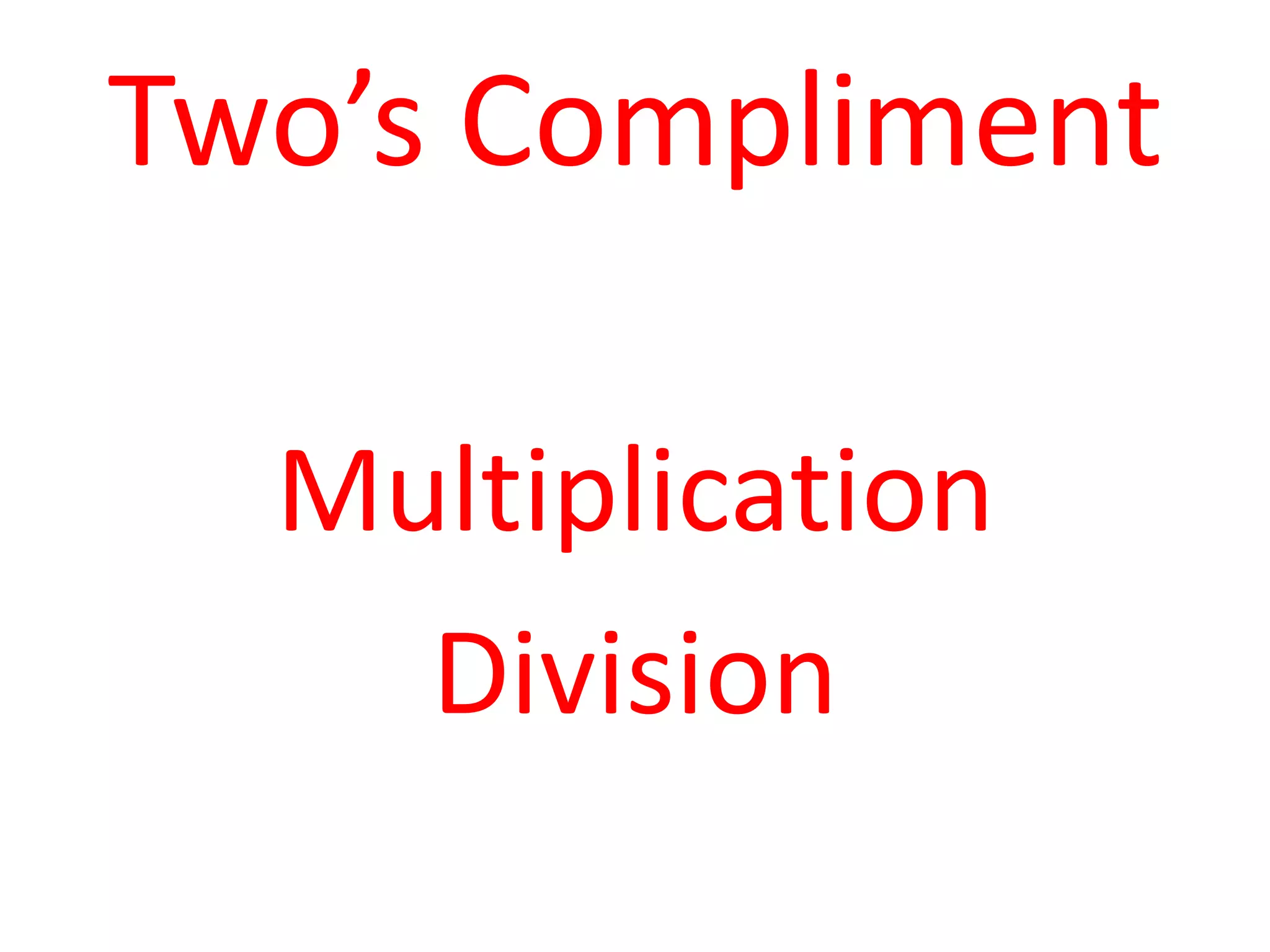

2. Two’s Compliment
Multiplication
Division

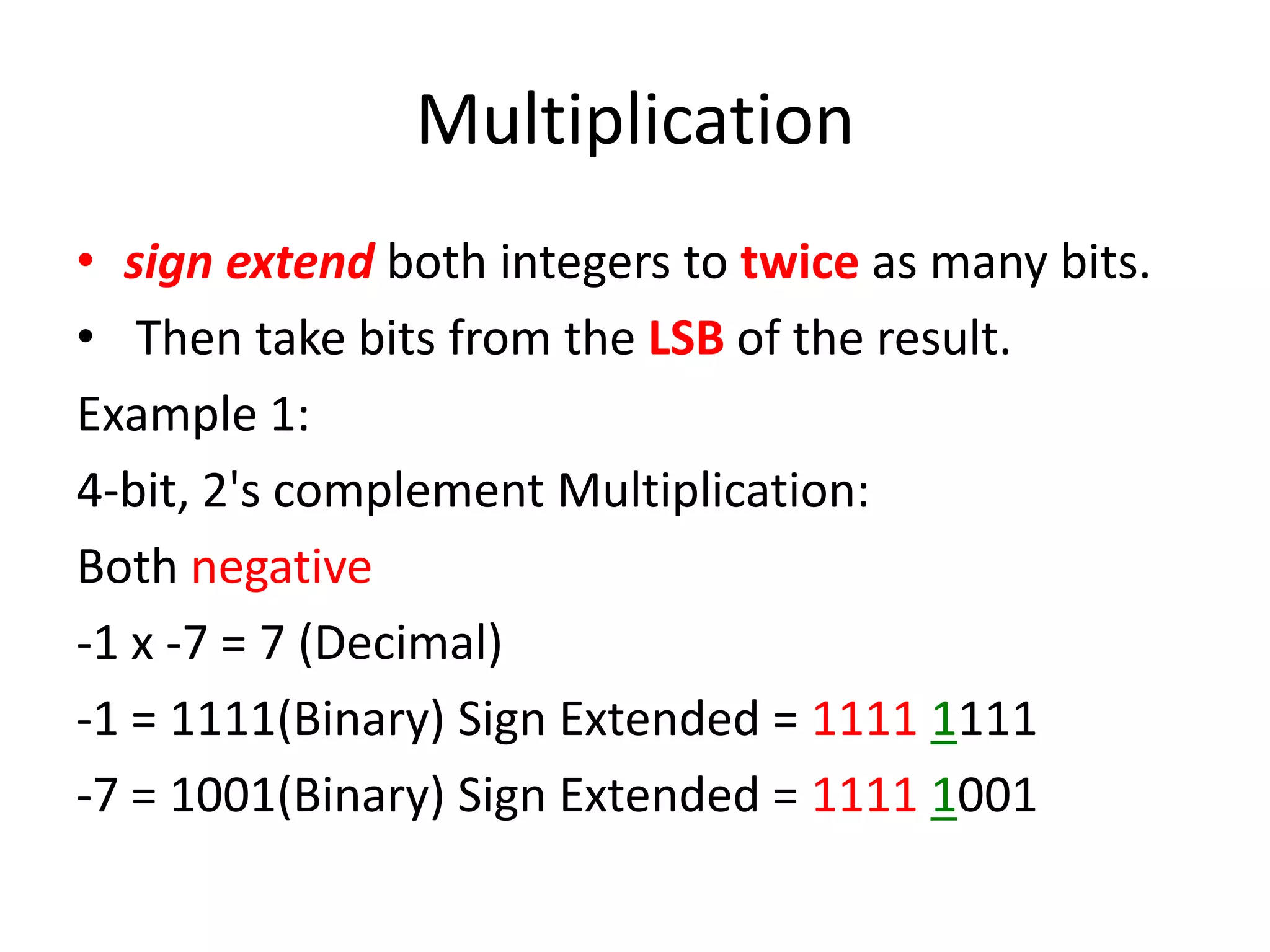

3. Multiplication
• sign extend both integers to twice as many bits.
• Then take bits from the LSB of the result.
Example 1:
4-bit, 2's complement Multiplication:
Both negative
-1 x -7 = 7 (Decimal)
-1 = 1111(Binary) Sign Extended = 1111 1111
-7 = 1001(Binary) Sign Extended = 1111 1001

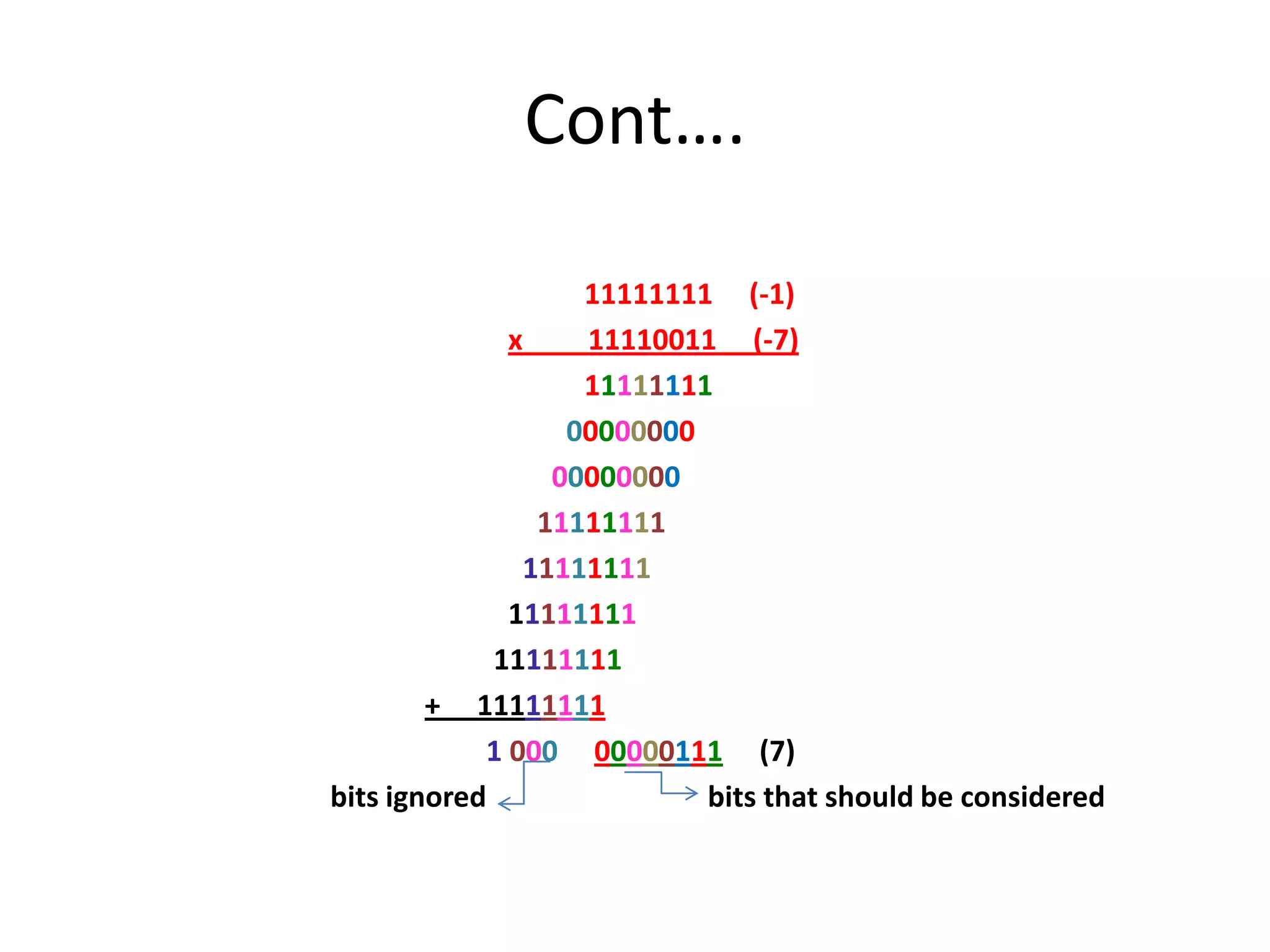

4. Cont….
11111111 (-1)
x
11110011 (-7)
11111111
00000000
00000000
11111111
11111111
11111111
11111111
+ 11111111
1 000 00000111 (7)
bits ignored
bits that should be considered

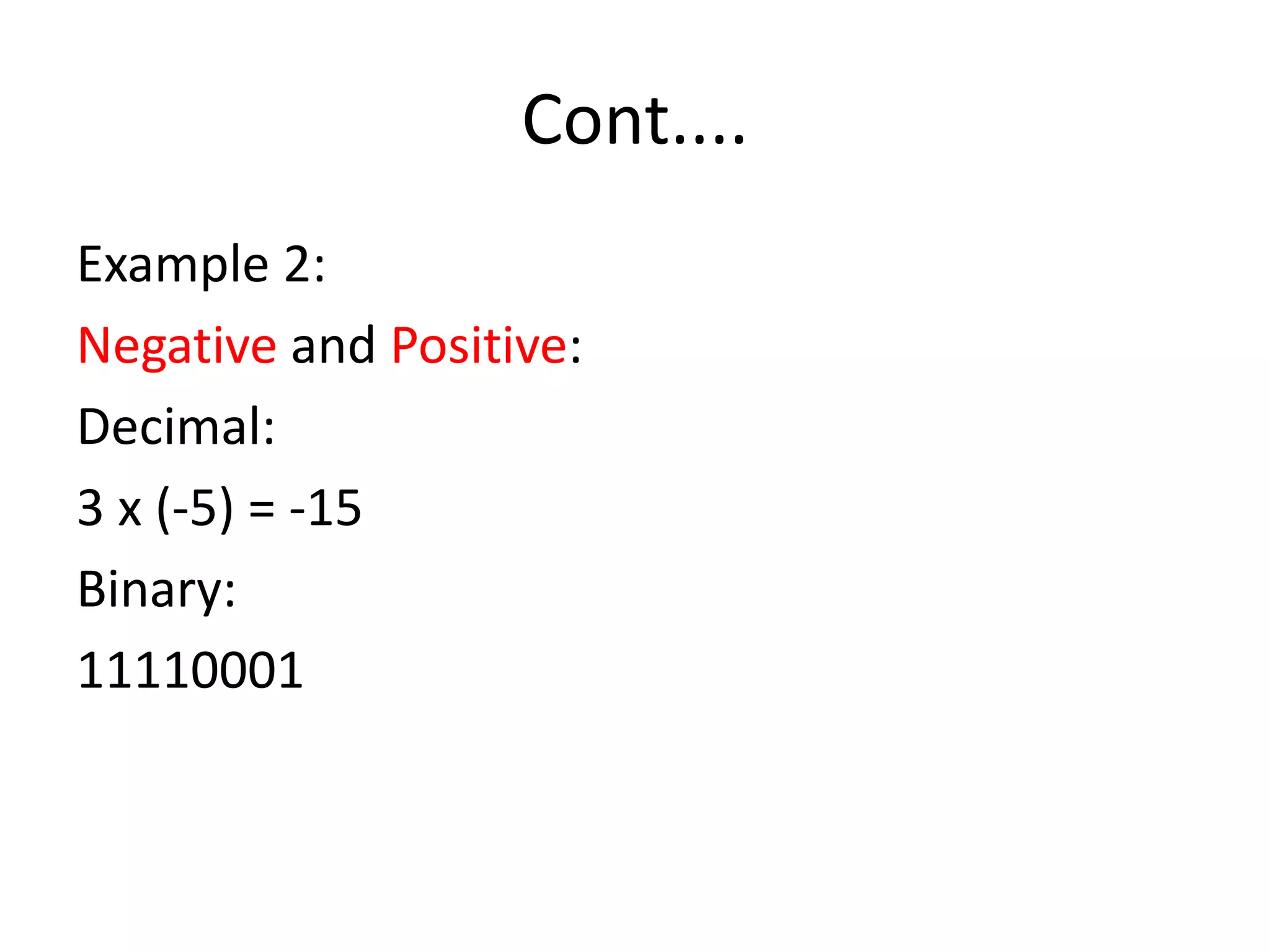

5. Cont....
Example 2:
Negative and Positive:
Decimal:
3 x (-5) = -15
Binary:
11110001

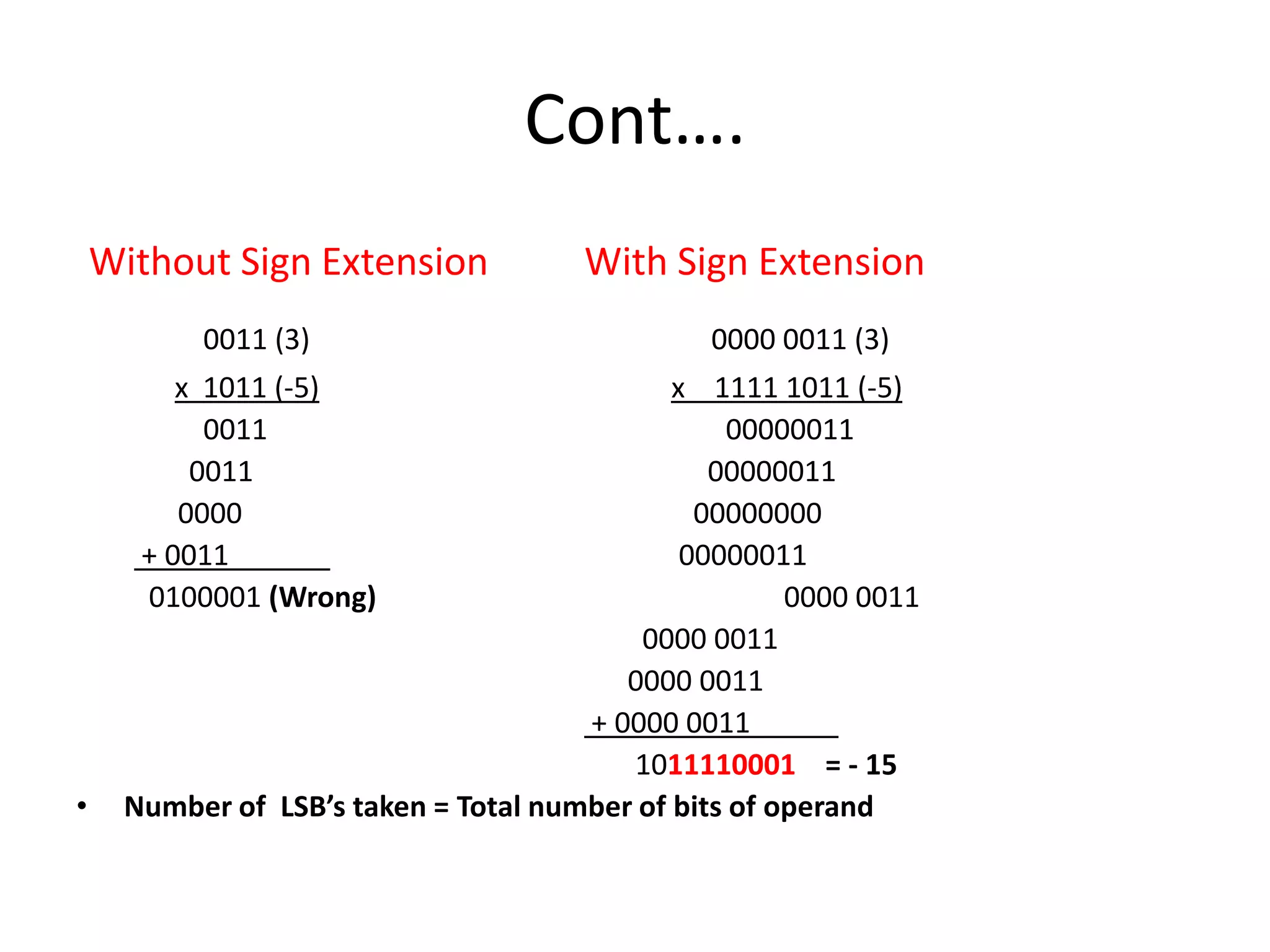

6. Cont….
Without Sign Extension
0011 (3)
x 1011 (-5)
0011
0011
0000
+ 0011
0100001 (Wrong)
•
With Sign Extension
0000 0011 (3)
x 1111 1011 (-5)
00000011
00000011
00000000
00000011
0000 0011
0000 0011
0000 0011
+ 0000 0011
1011110001 = - 15
Number of LSB’s taken = Total number of bits of operand

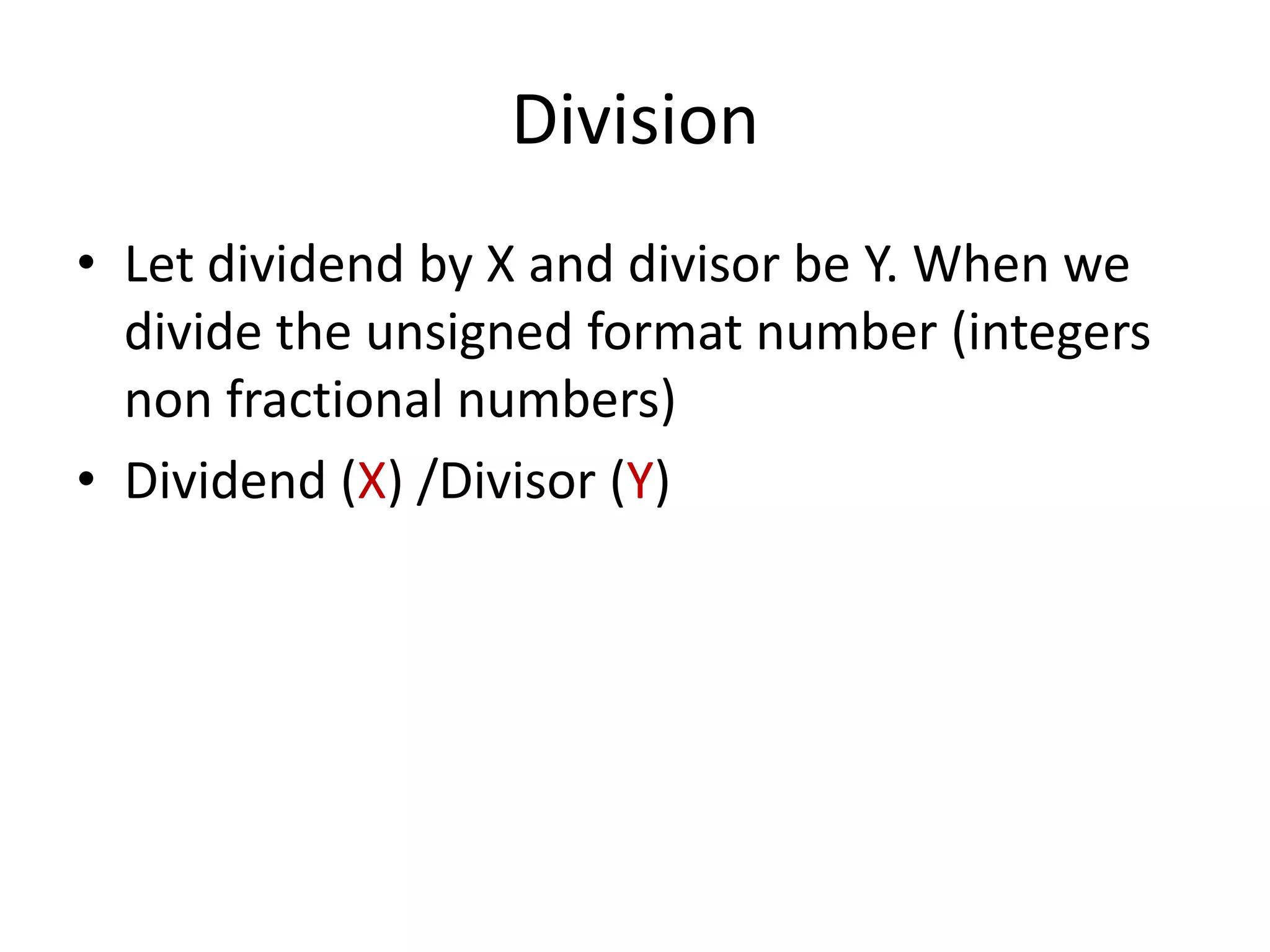

7. Division
• Let dividend by X and divisor be Y. When we
divide the unsigned format number (integers
non fractional numbers)
• Dividend (X) /Divisor (Y)

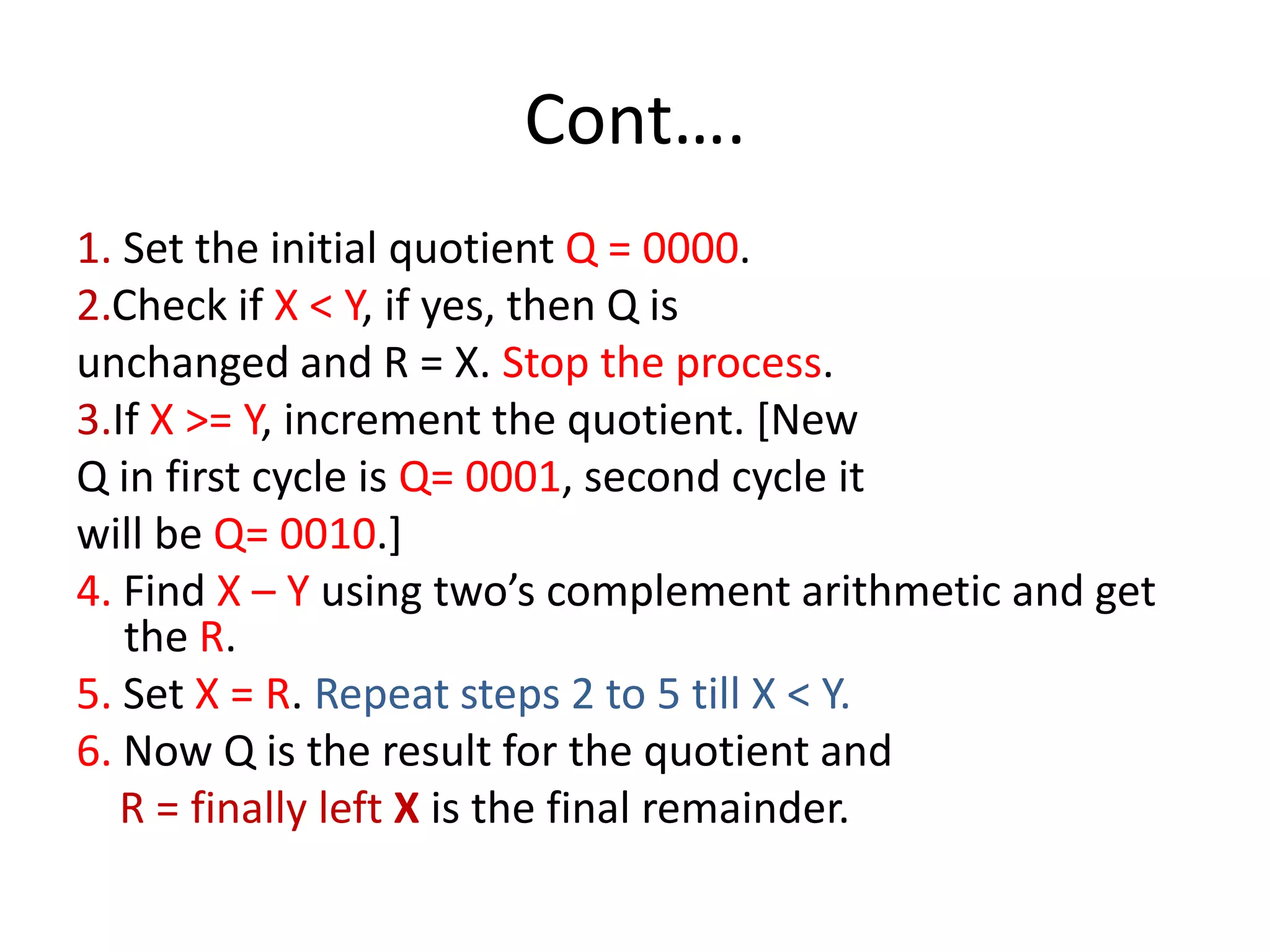

8. Cont….
1. Set the initial quotient Q = 0000.
2.Check if X < Y, if yes, then Q is
unchanged and R = X. Stop the process.
3.If X >= Y, increment the quotient. [New
Q in first cycle is Q= 0001, second cycle it
will be Q= 0010.]
4. Find X – Y using two’s complement arithmetic and get
the R.
5. Set X = R. Repeat steps 2 to 5 till X < Y.
6. Now Q is the result for the quotient and
R = finally left X is the final remainder.

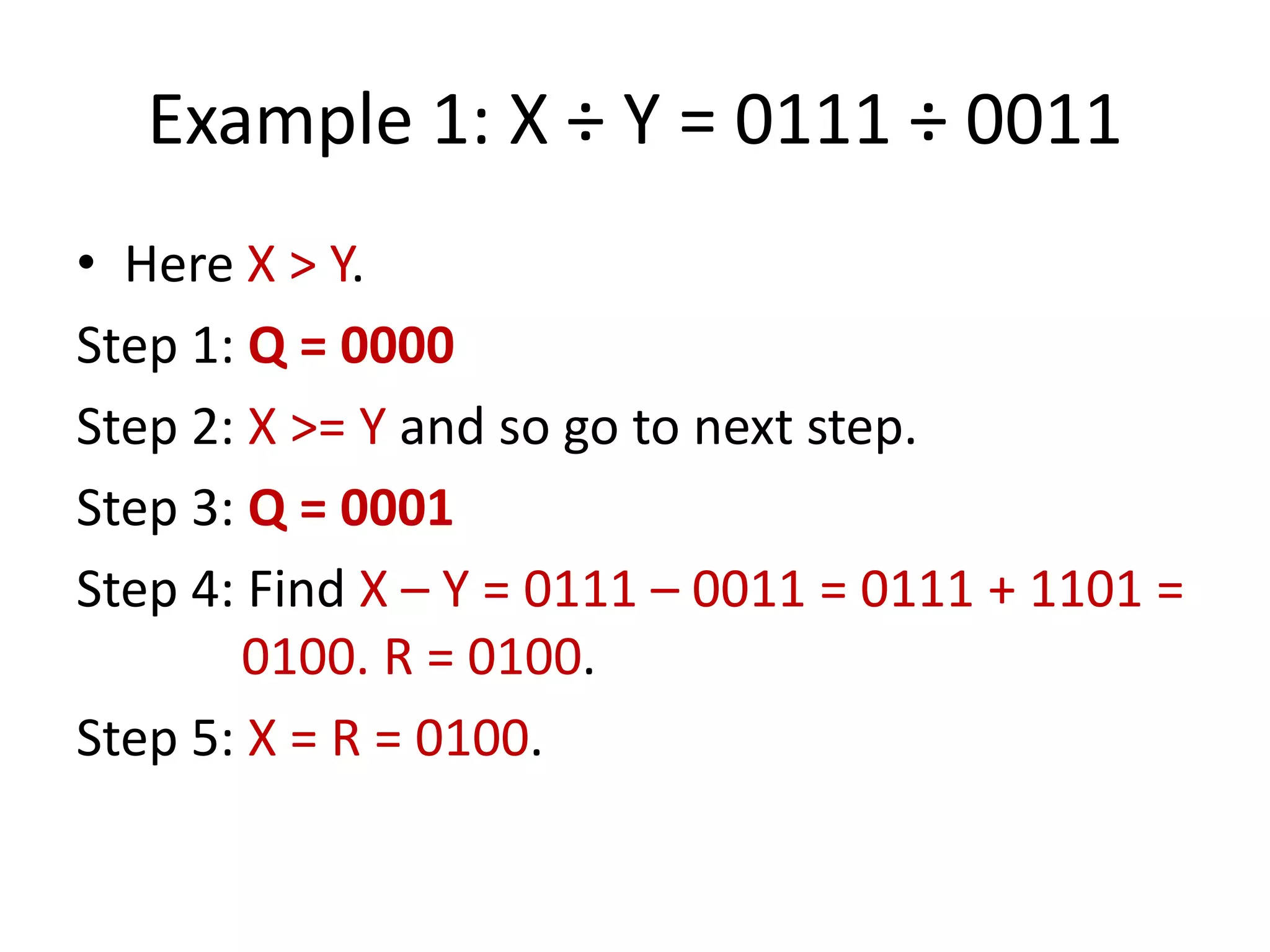

9. Example 1: X ÷ Y = 0111 ÷ 0011
• Here X > Y.
Step 1: Q = 0000
Step 2: X >= Y and so go to next step.
Step 3: Q = 0001
Step 4: Find X – Y = 0111 – 0011 = 0111 + 1101 =
0100. R = 0100.
Step 5: X = R = 0100.

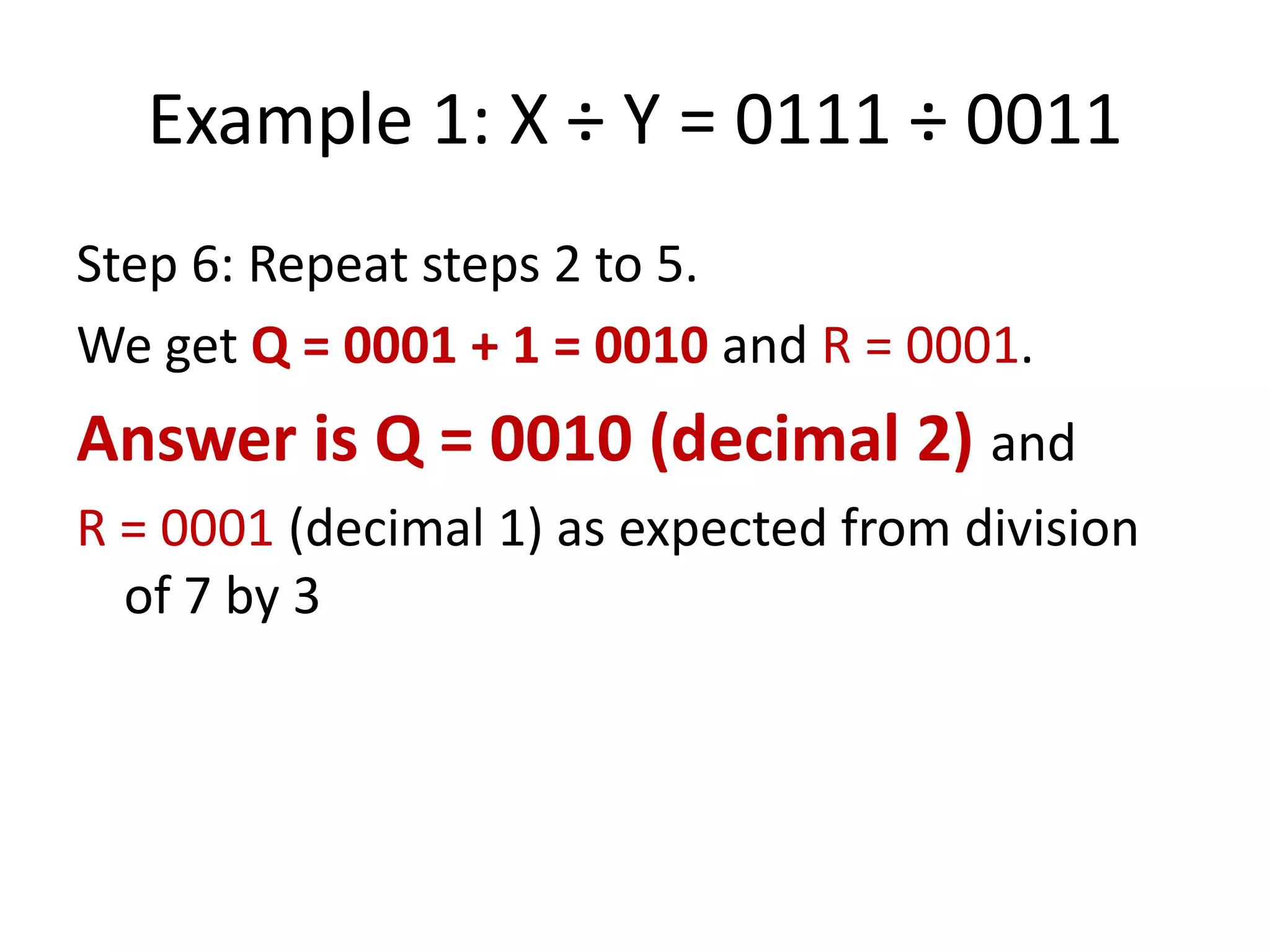

10. Example 1: X ÷ Y = 0111 ÷ 0011
Step 6: Repeat steps 2 to 5.
We get Q = 0001 + 1 = 0010 and R = 0001.
Answer is Q = 0010 (decimal 2) and
R = 0001 (decimal 1) as expected from division
of 7 by 3

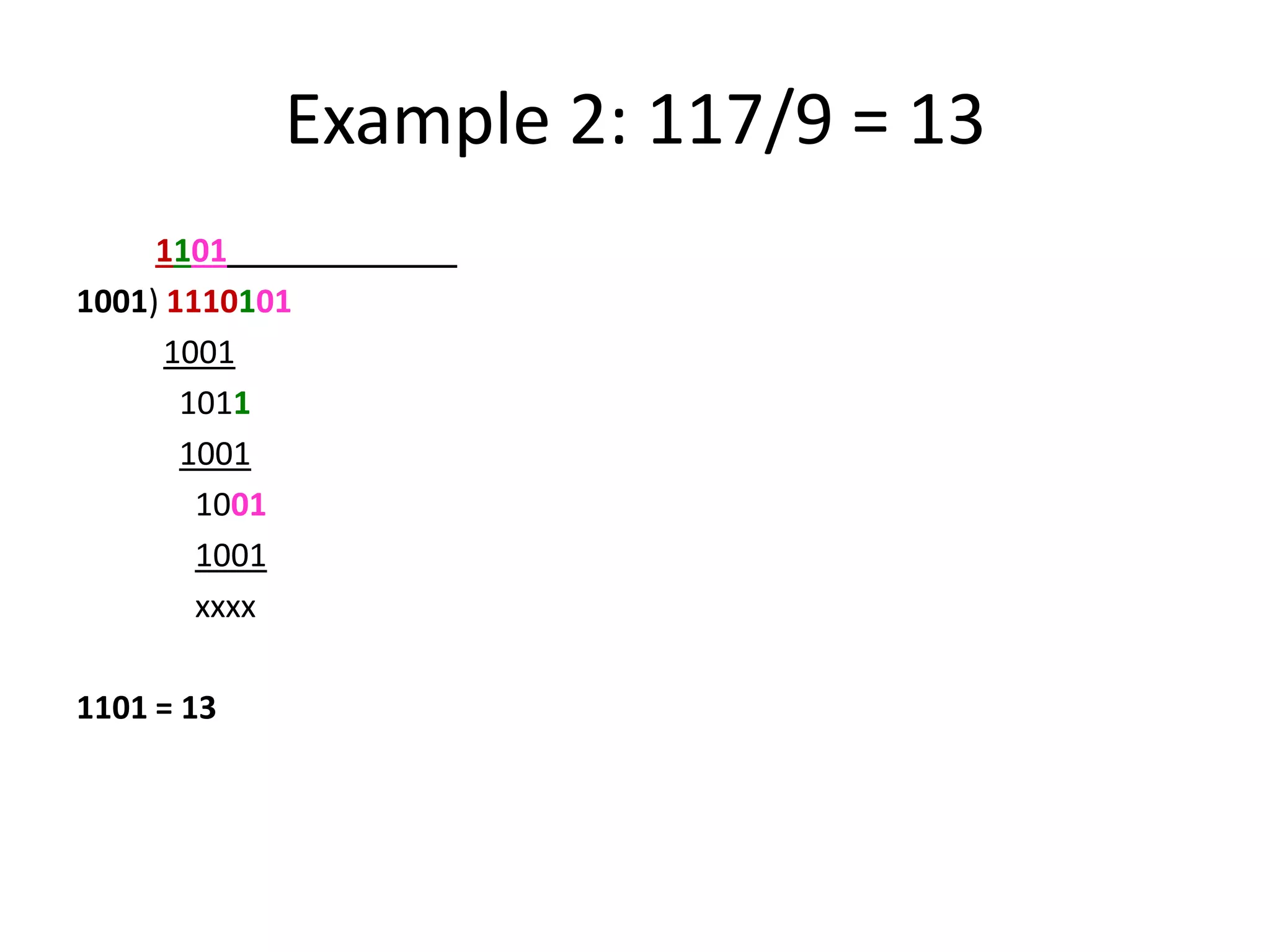

11. Example 2: 117/9 = 13
1101
1001) 1110101
1001
1011
1001
1001
1001
xxxx
1101 = 13

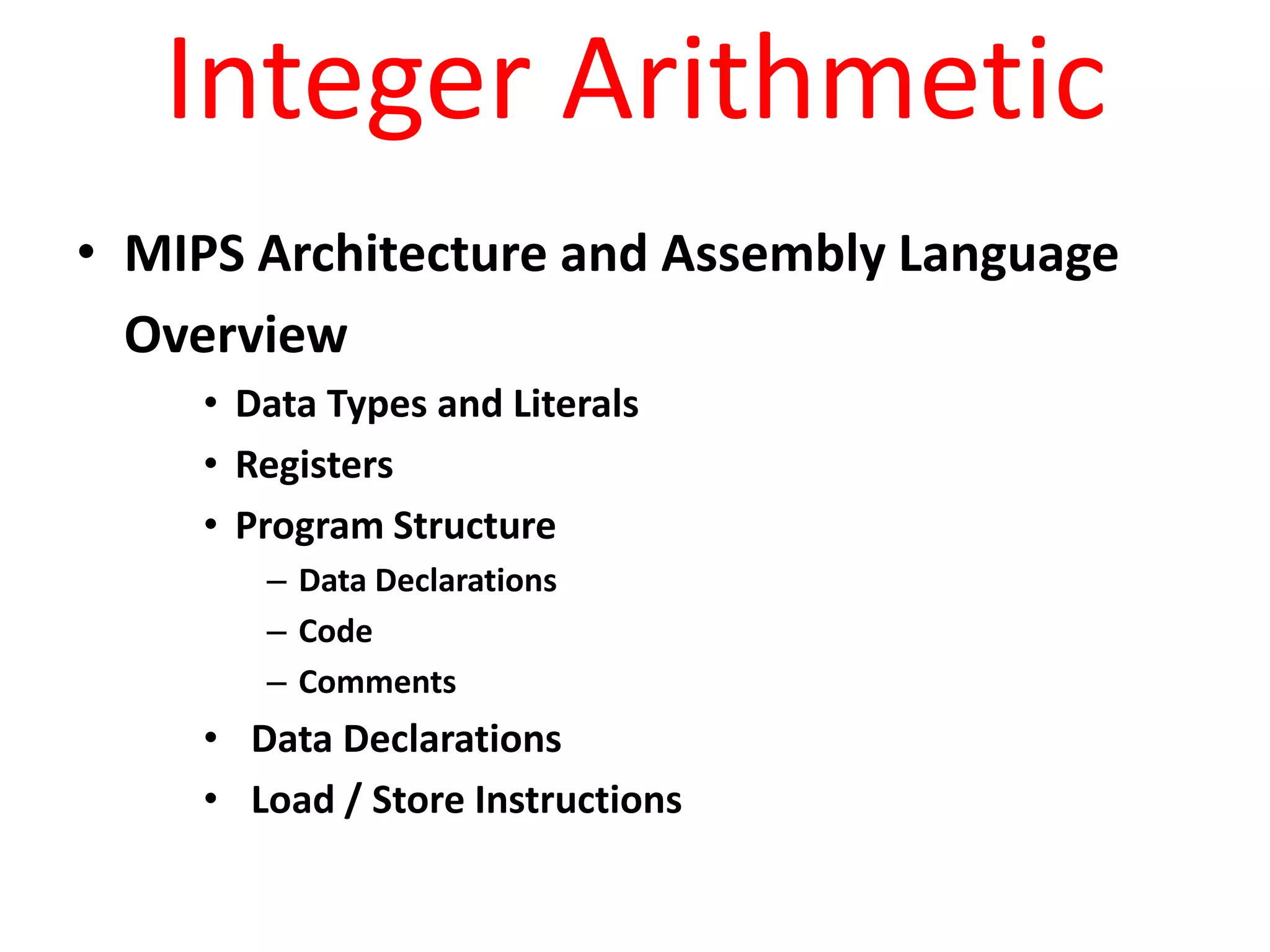

12. Integer Arithmetic
• MIPS Architecture and Assembly Language
Overview
• Data Types and Literals
• Registers
• Program Structure
– Data Declarations
– Code
– Comments
• Data Declarations
• Load / Store Instructions

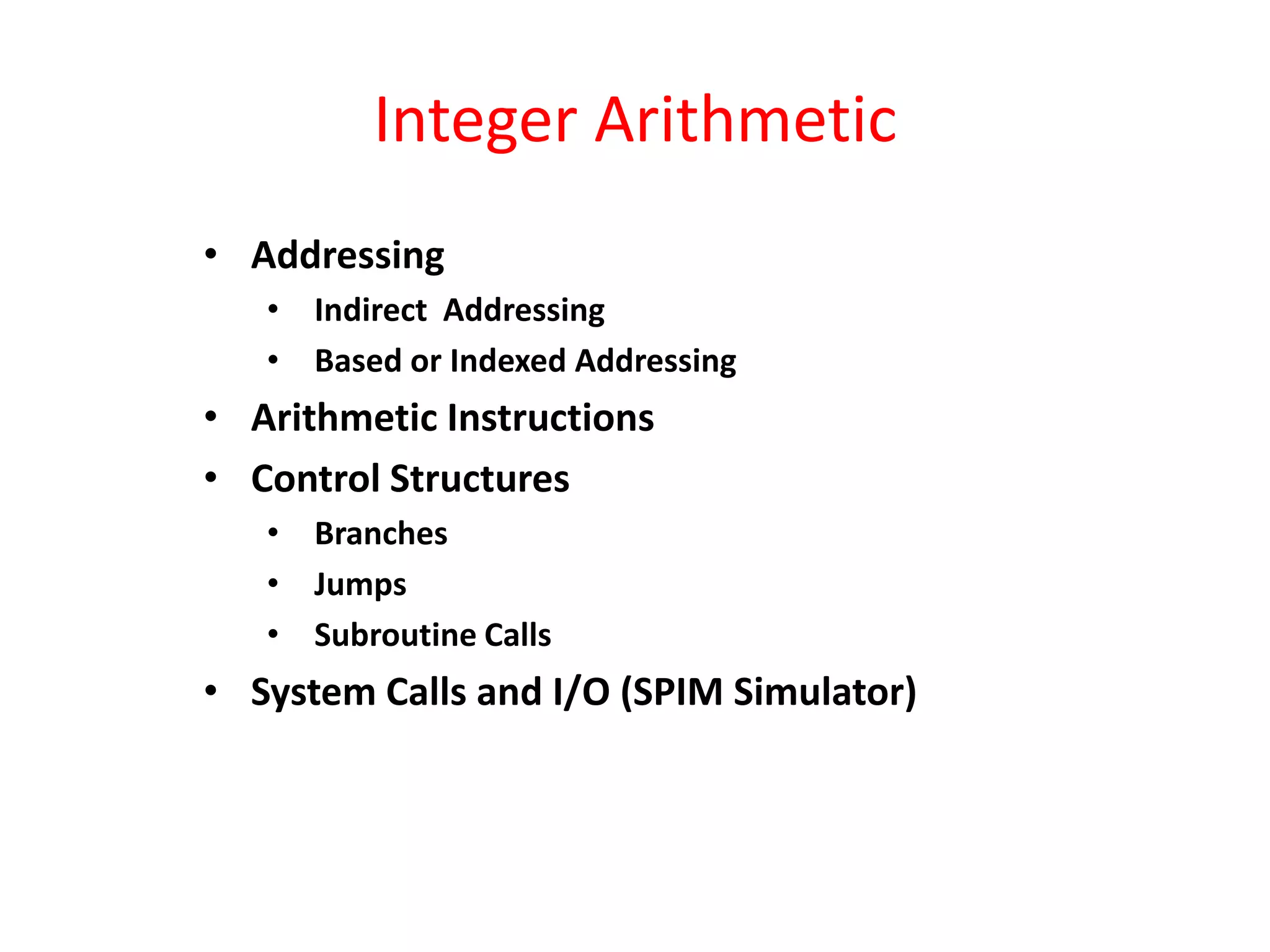

13. Integer Arithmetic
• Addressing
• Indirect Addressing
• Based or Indexed Addressing
• Arithmetic Instructions
• Control Structures
• Branches
• Jumps
• Subroutine Calls

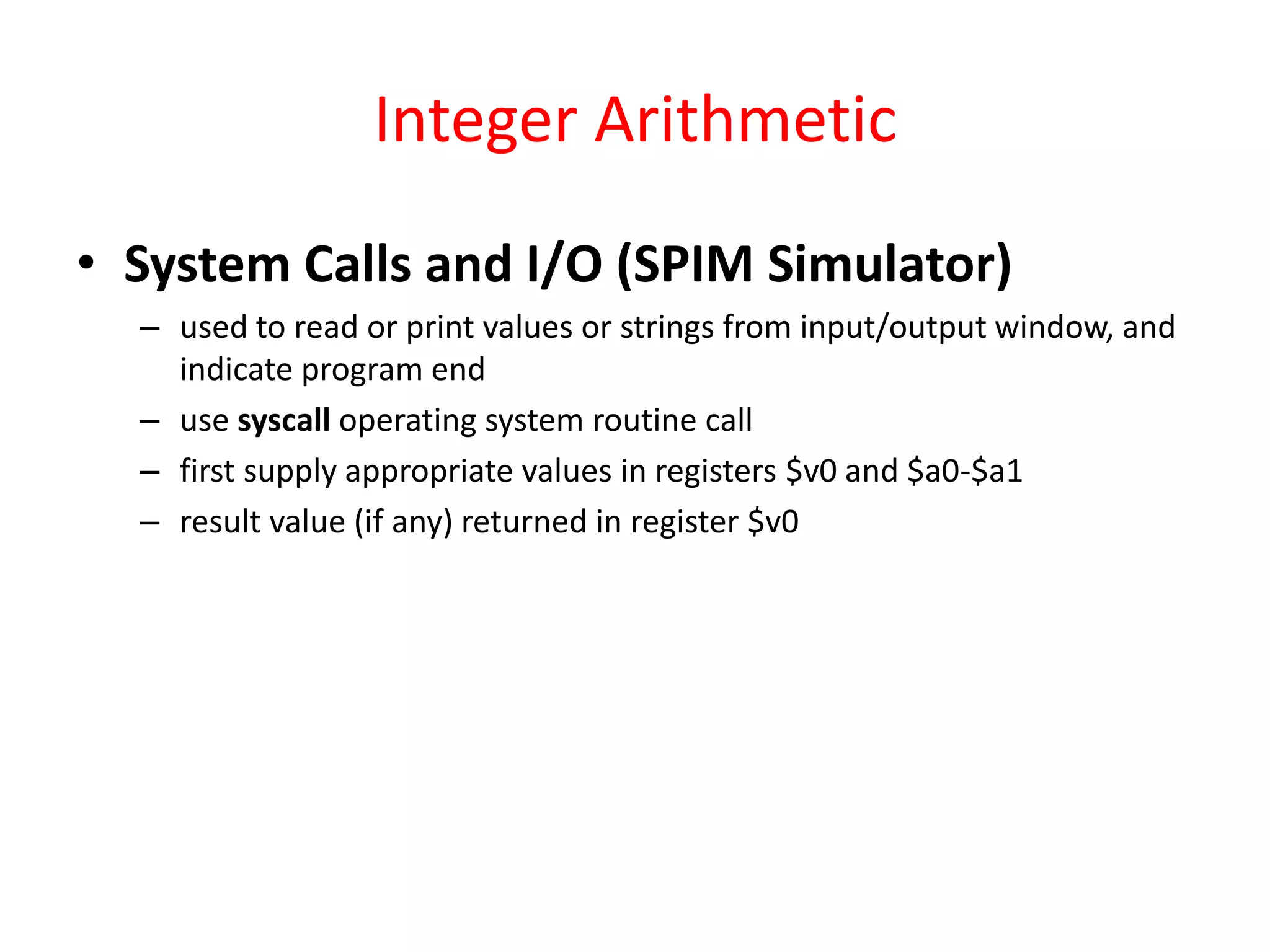

• System Calls and I/O (SPIM Simulator)

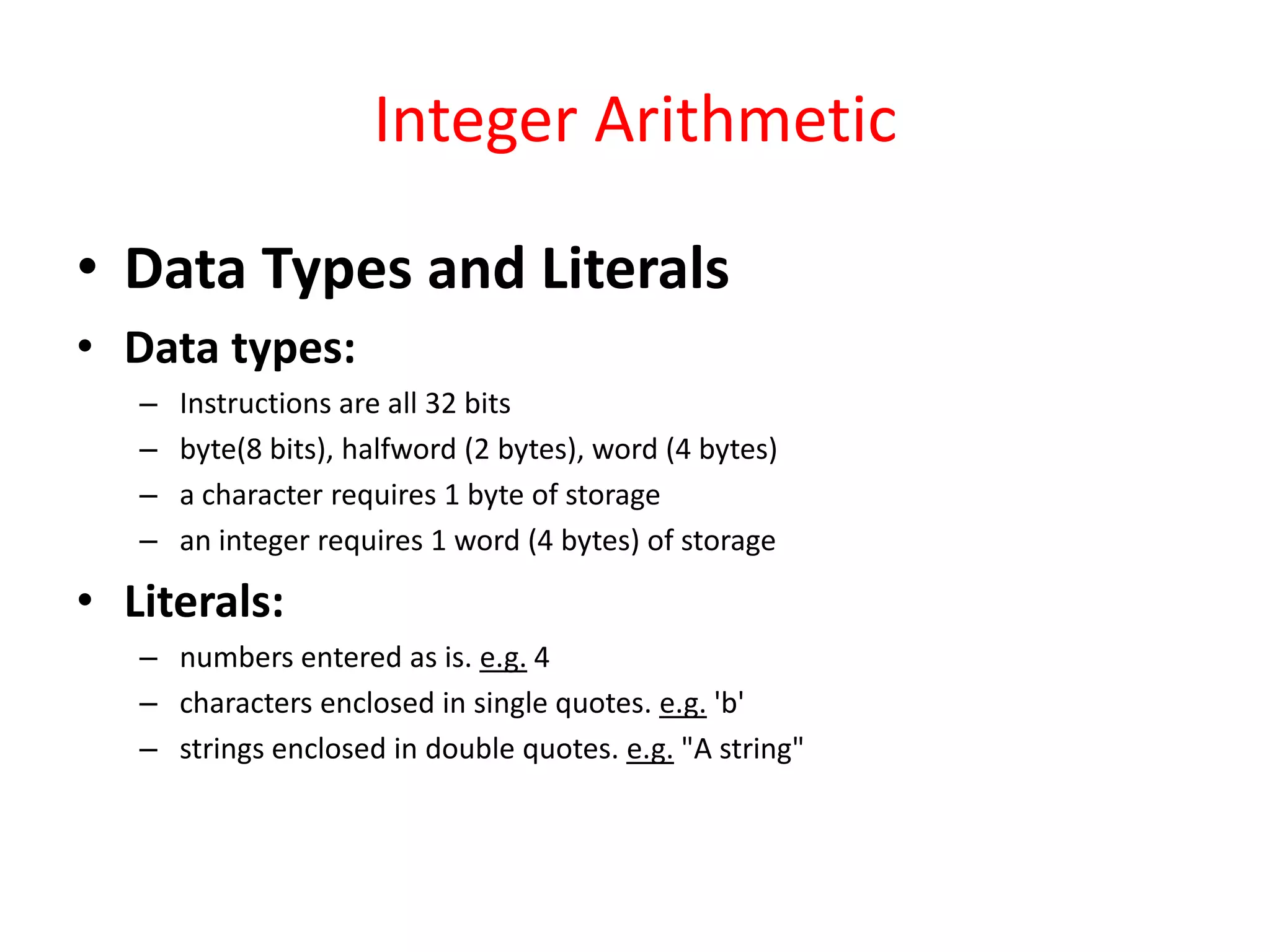

14. Integer Arithmetic
• Data Types and Literals
• Data types:
–
–
–
–
Instructions are all 32 bits
byte(8 bits), halfword (2 bytes), word (4 bytes)
a character requires 1 byte of storage
an integer requires 1 word (4 bytes) of storage
• Literals:
– numbers entered as is. e.g. 4
– characters enclosed in single quotes. e.g. 'b'
– strings enclosed in double quotes. e.g. "A string"

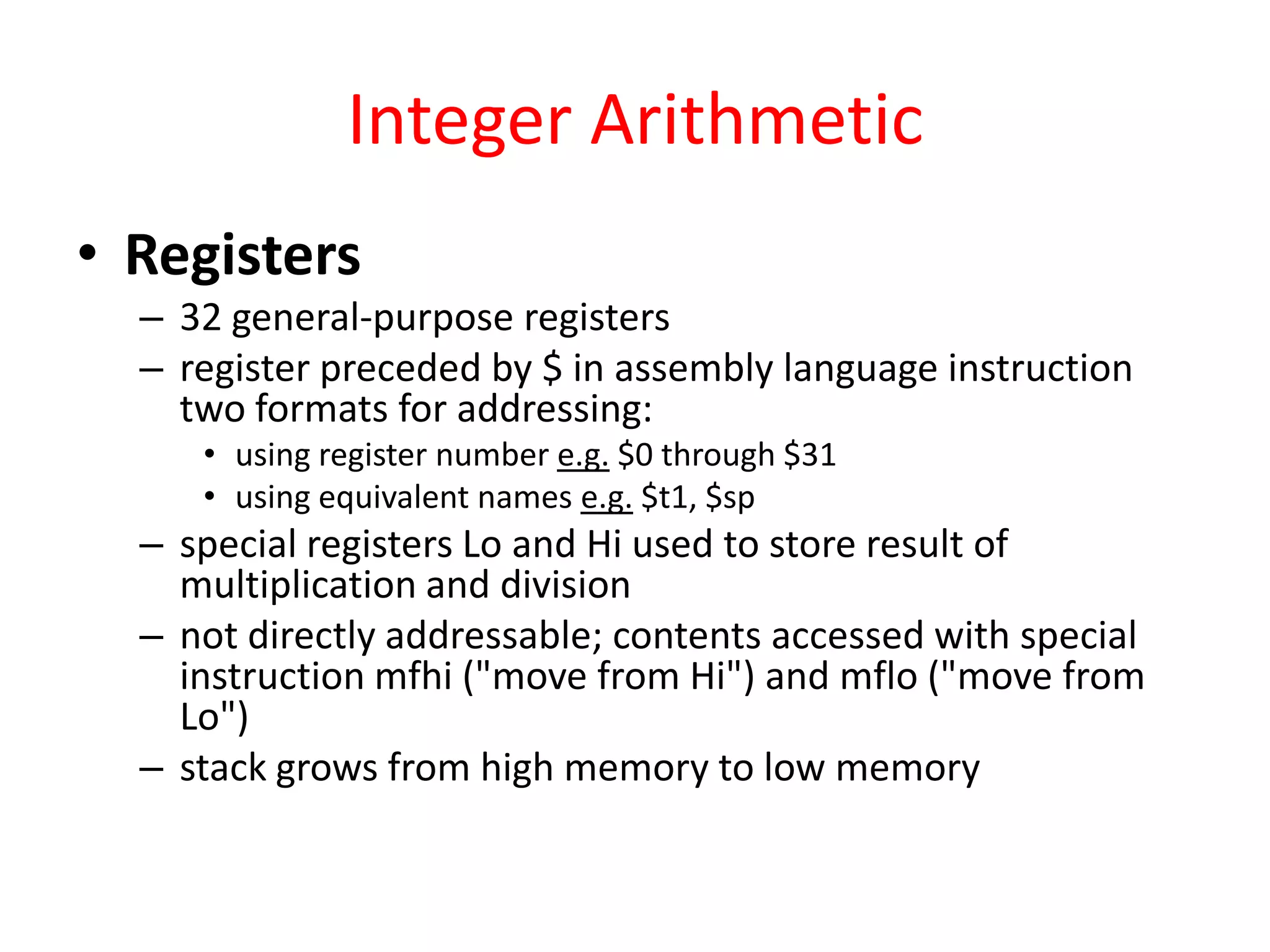

15. Integer Arithmetic
• Registers
– 32 general-purpose registers
– register preceded by $ in assembly language instruction
two formats for addressing:
• using register number e.g. $0 through $31
• using equivalent names e.g. $t1, $sp
– special registers Lo and Hi used to store result of
multiplication and division
– not directly addressable; contents accessed with special
instruction mfhi ("move from Hi") and mflo ("move from
Lo")
– stack grows from high memory to low memory

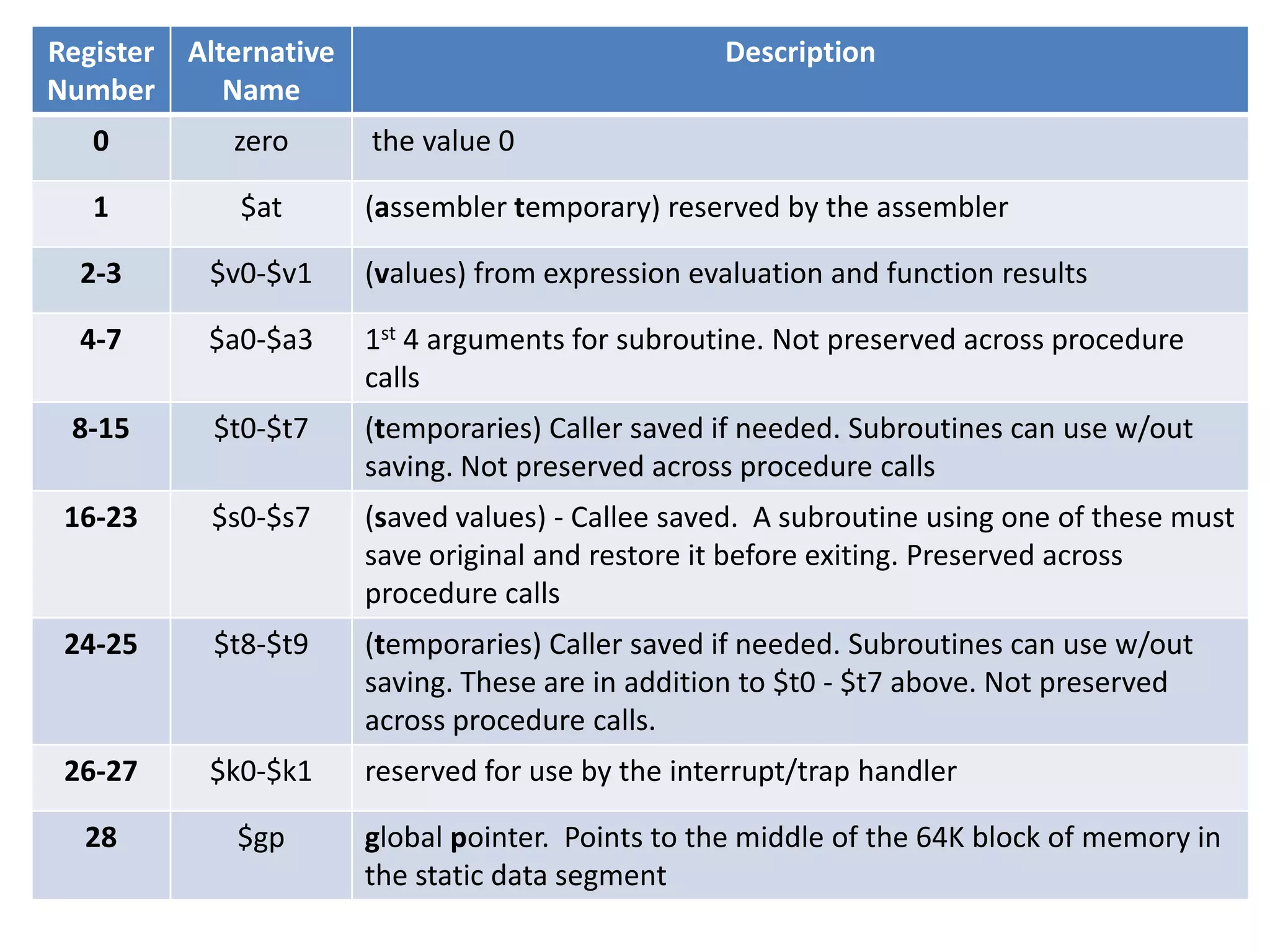

16. Register
Number
Alternative
Name
Description
0
zero
the value 0
1
$at
(assembler temporary) reserved by the assembler
2-3
$v0-$v1
(values) from expression evaluation and function results
4-7
$a0-$a3
1st 4 arguments for subroutine. Not preserved across procedure
calls
8-15
$t0-$t7
(temporaries) Caller saved if needed. Subroutines can use w/out
saving. Not preserved across procedure calls
16-23
$s0-$s7
(saved values) - Callee saved. A subroutine using one of these must
save original and restore it before exiting. Preserved across
procedure calls
24-25
$t8-$t9
(temporaries) Caller saved if needed. Subroutines can use w/out
saving. These are in addition to $t0 - $t7 above. Not preserved
across procedure calls.
26-27
$k0-$k1
reserved for use by the interrupt/trap handler
28
$gp
global pointer. Points to the middle of the 64K block of memory in
the static data segment

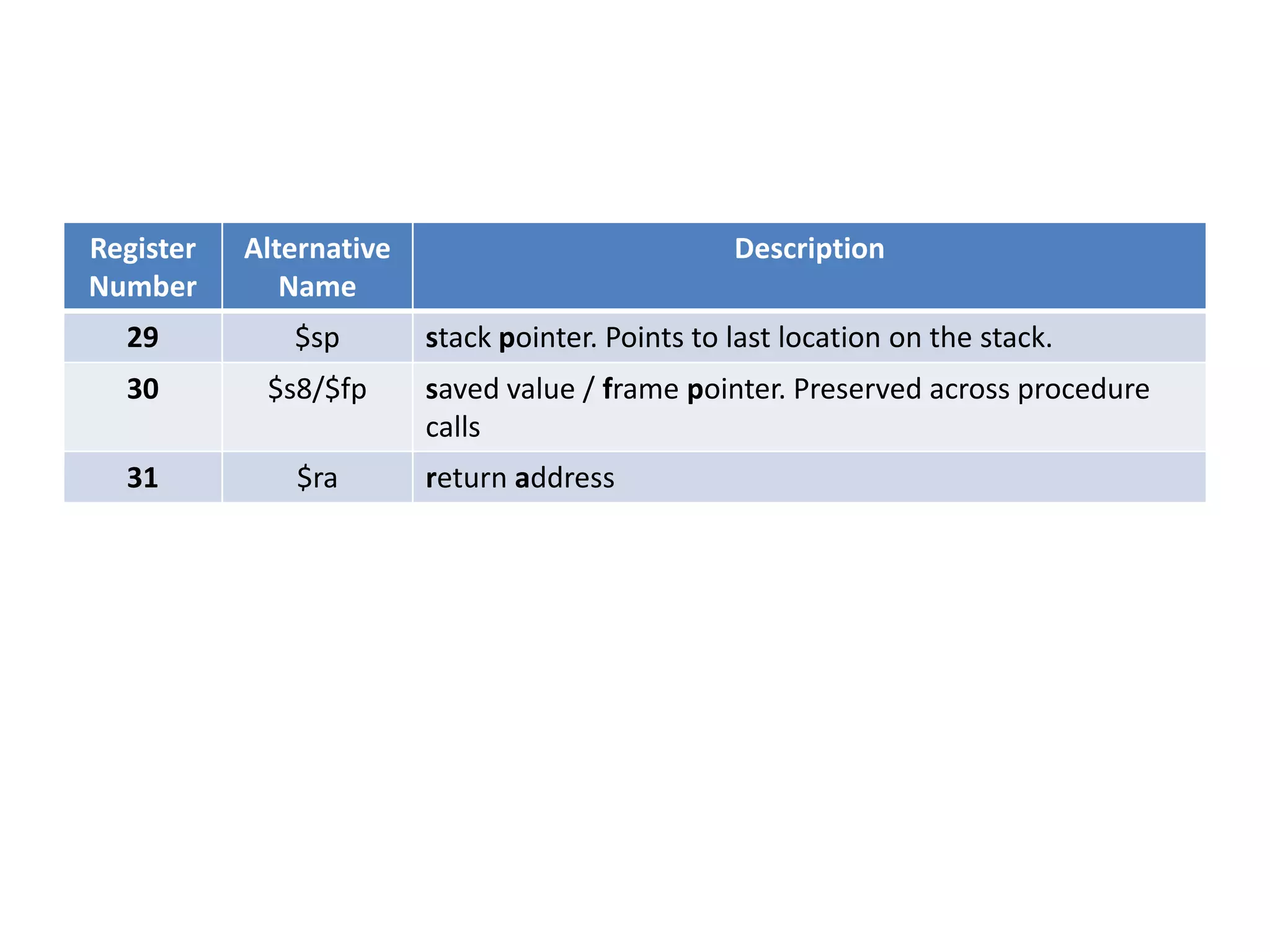

17. Register
Number
Alternative
Name
29
$sp
30
$s8/$fp
31
$ra
Description
stack pointer. Points to last location on the stack.
saved value / frame pointer. Preserved across procedure
calls
return address

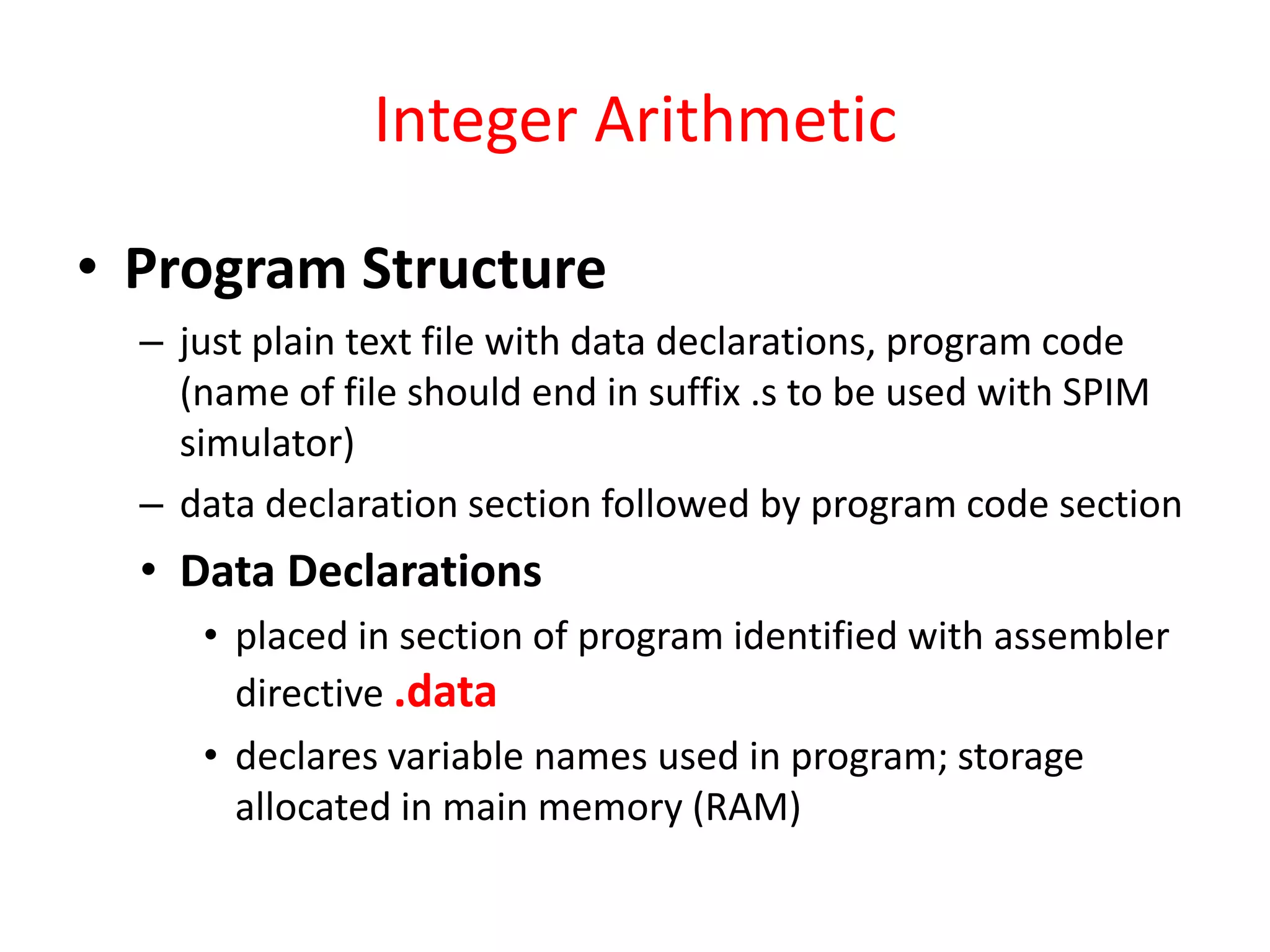

18. Integer Arithmetic
• Program Structure
– just plain text file with data declarations, program code
(name of file should end in suffix .s to be used with SPIM
simulator)
– data declaration section followed by program code section
• Data Declarations
• placed in section of program identified with assembler
directive .data
• declares variable names used in program; storage
allocated in main memory (RAM)

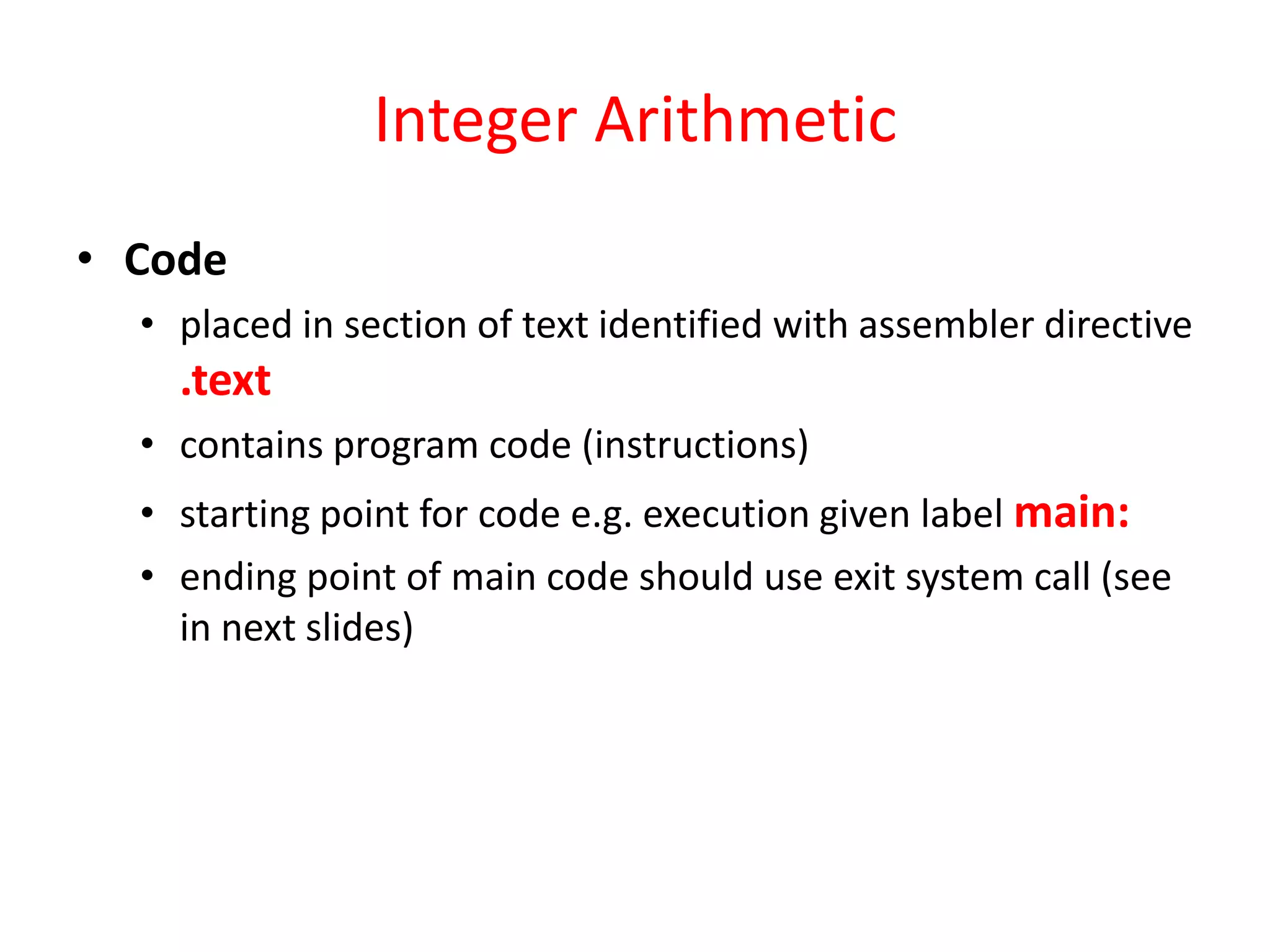

19. Integer Arithmetic
• Code
• placed in section of text identified with assembler directive
.text
• contains program code (instructions)
• starting point for code e.g. execution given label main:
• ending point of main code should use exit system call (see
in next slides)

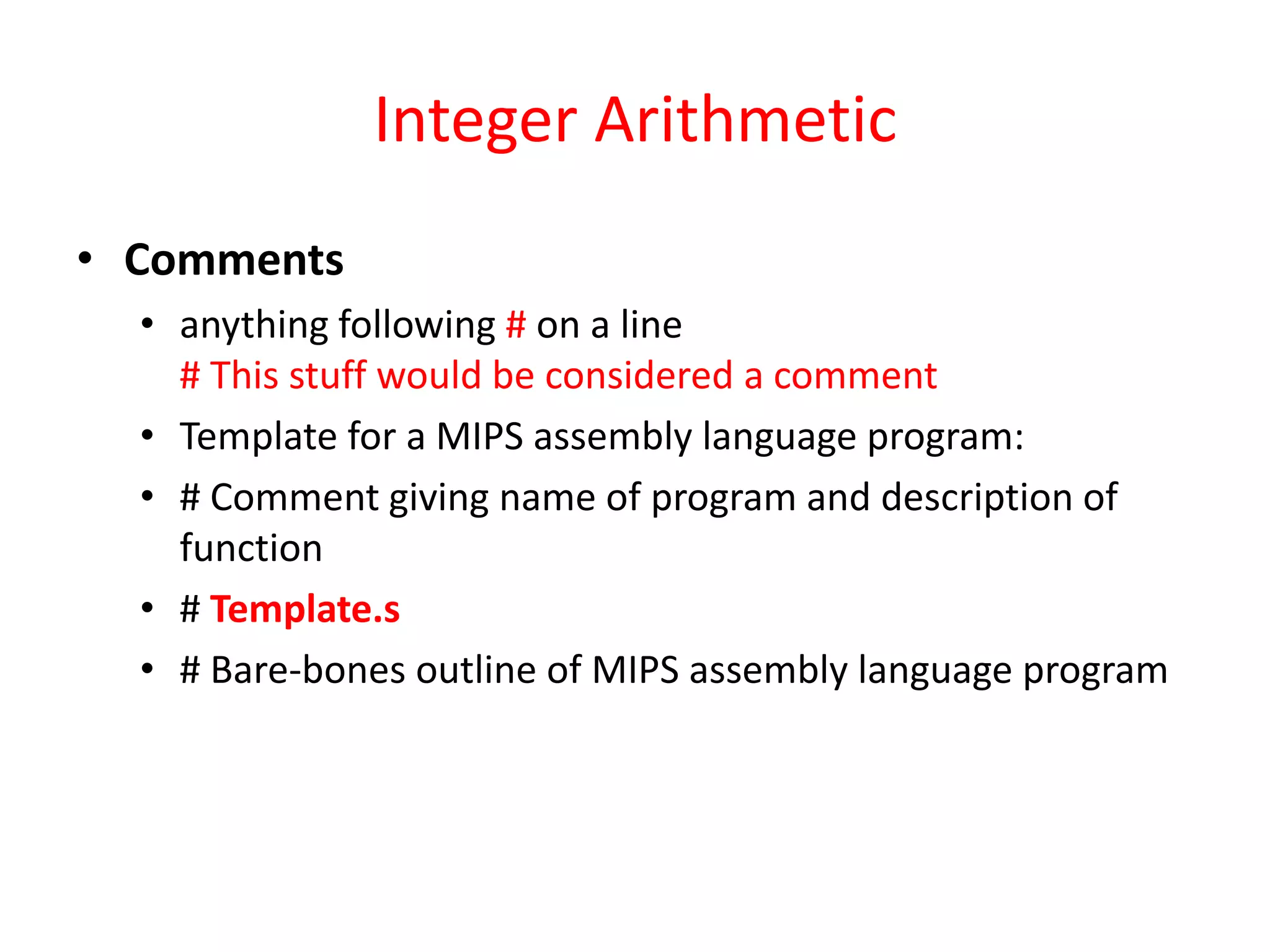

20. Integer Arithmetic
• Comments
• anything following # on a line
# This stuff would be considered a comment
• Template for a MIPS assembly language program:
• # Comment giving name of program and description of
function
• # Template.s
• # Bare-bones outline of MIPS assembly language program

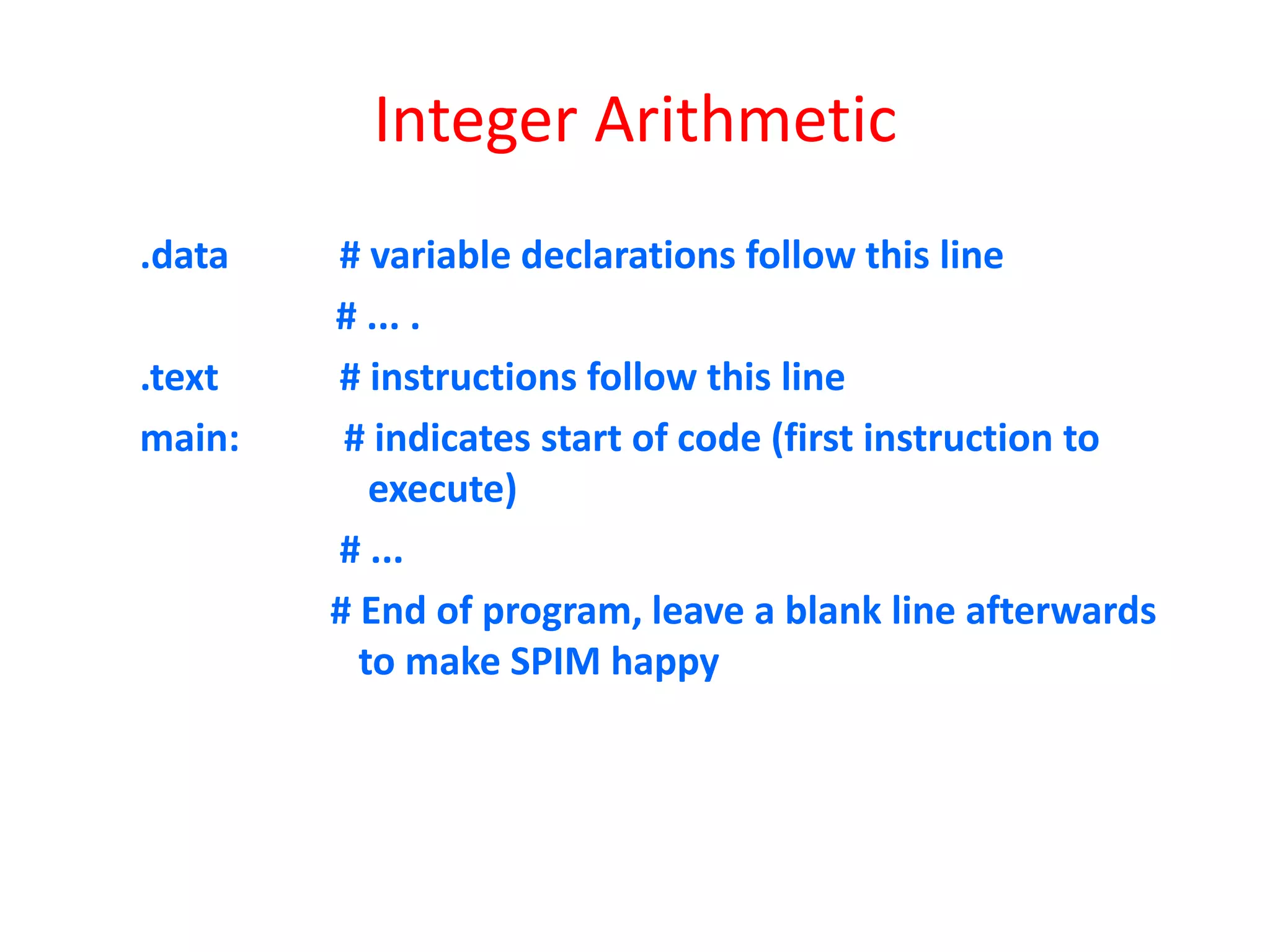

21. Integer Arithmetic
.data
.text
main:
# variable declarations follow this line
# ... .
# instructions follow this line
# indicates start of code (first instruction to
execute)
# ...
# End of program, leave a blank line afterwards
to make SPIM happy

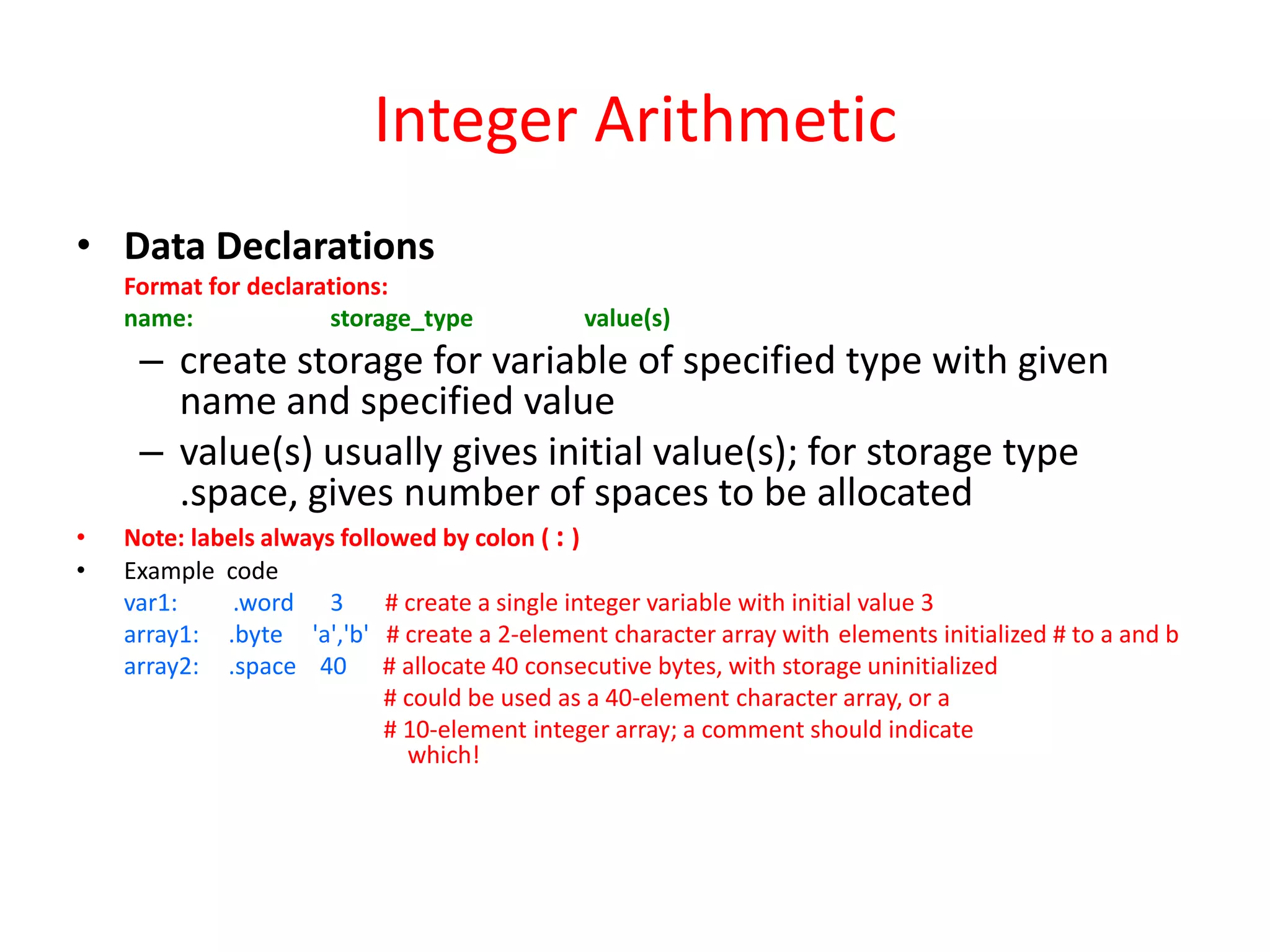

22. Integer Arithmetic
• Data Declarations
Format for declarations:
name:
storage_type
value(s)
– create storage for variable of specified type with given
name and specified value
– value(s) usually gives initial value(s); for storage type
.space, gives number of spaces to be allocated
•
•
Note: labels always followed by colon ( : )
Example code
var1:
.word 3
# create a single integer variable with initial value 3
array1: .byte 'a','b' # create a 2-element character array with elements initialized # to a and b
array2: .space 40 # allocate 40 consecutive bytes, with storage uninitialized
# could be used as a 40-element character array, or a
# 10-element integer array; a comment should indicate
which!

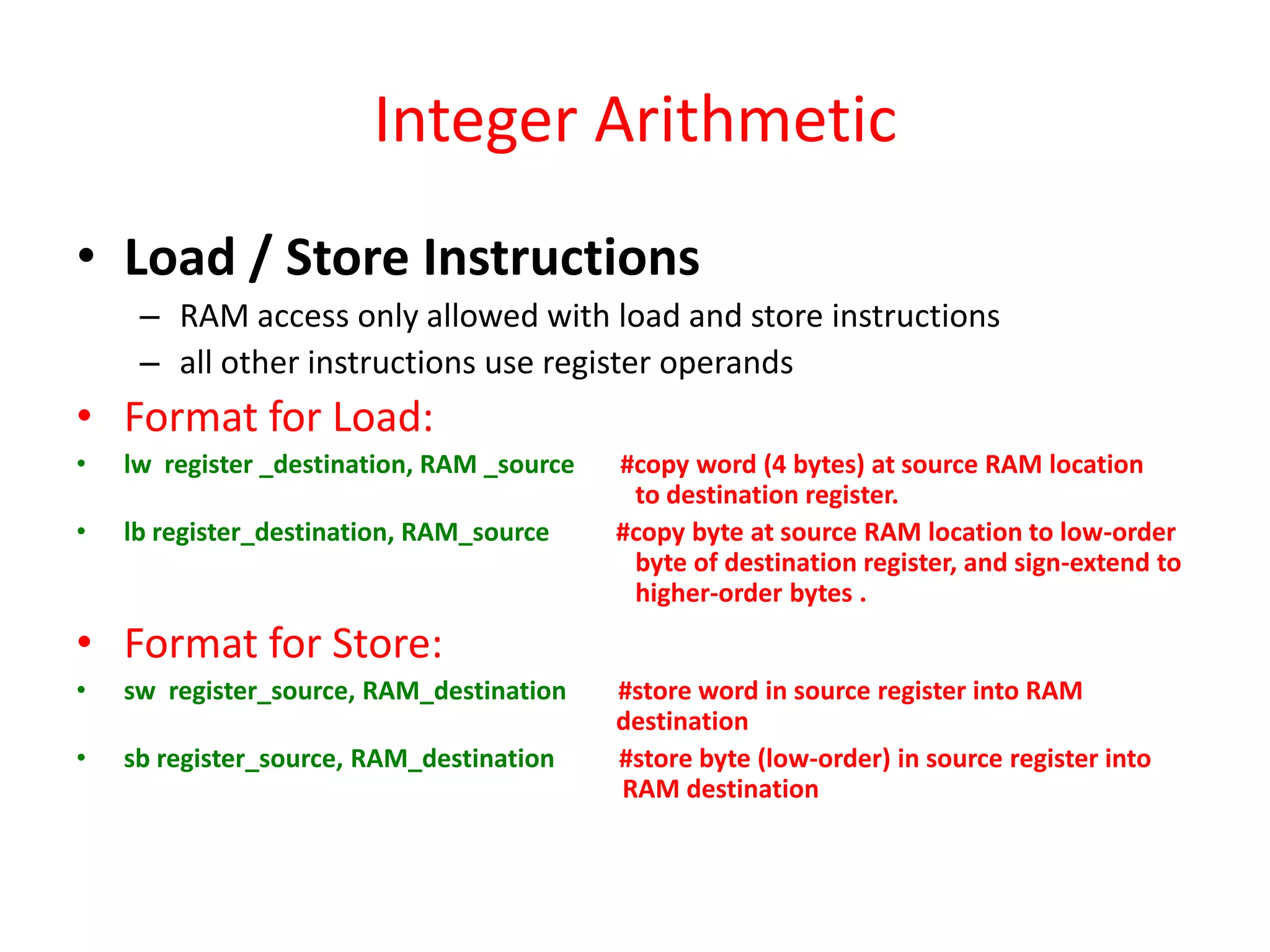

23. Integer Arithmetic
• Load / Store Instructions
– RAM access only allowed with load and store instructions
– all other instructions use register operands
• Format for Load:
•
lw register _destination, RAM _source
•
lb register_destination, RAM_source
#copy word (4 bytes) at source RAM location
to destination register.
#copy byte at source RAM location to low-order
byte of destination register, and sign-extend to
higher-order bytes .
• Format for Store:
•
sw register_source, RAM_destination
•
sb register_source, RAM_destination
#store word in source register into RAM
destination
#store byte (low-order) in source register into
RAM destination

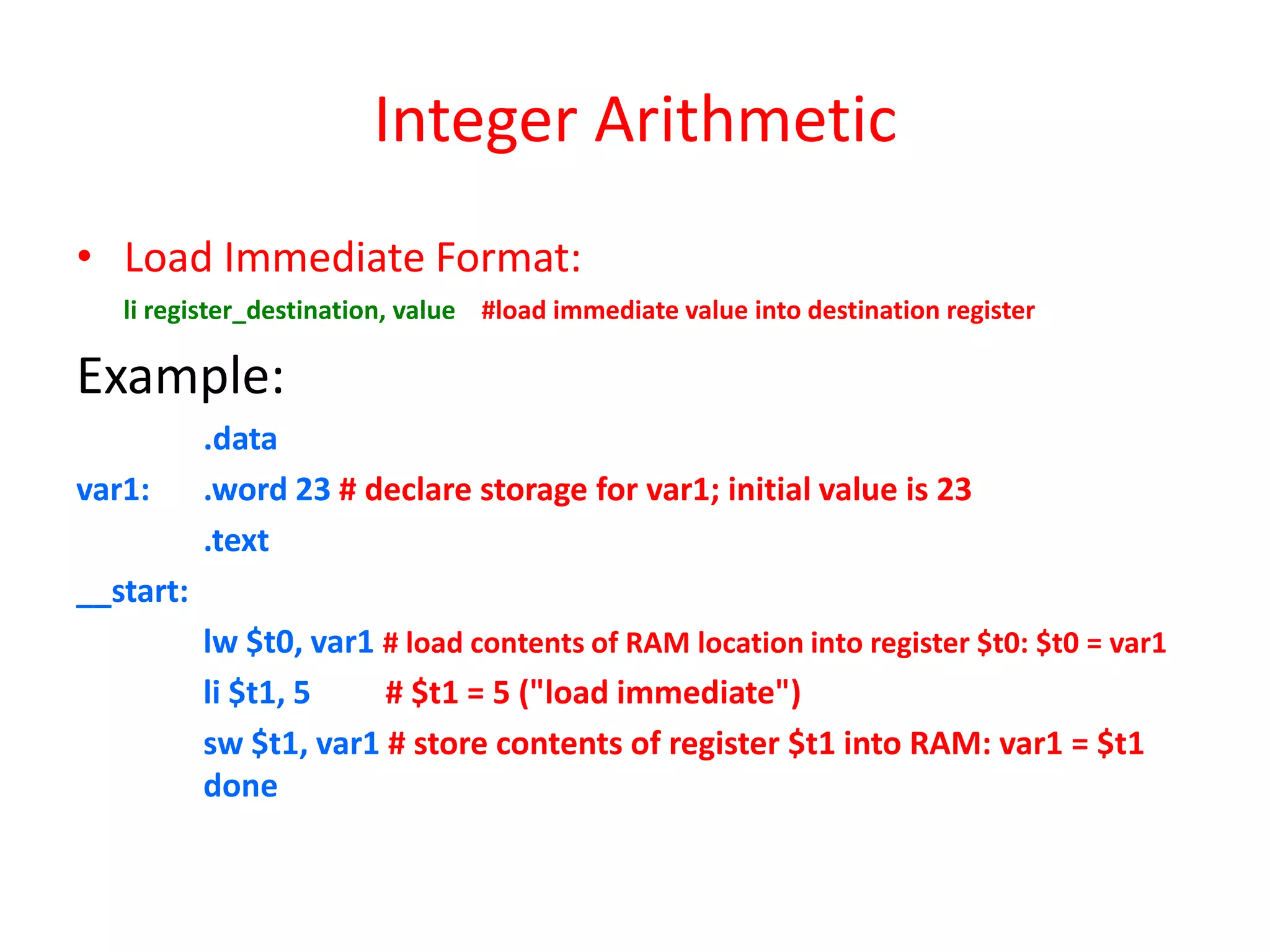

24. Integer Arithmetic
• Load Immediate Format:
li register_destination, value #load immediate value into destination register
Example:
var1:
.data
.word 23 # declare storage for var1; initial value is 23
.text
__start:
lw $t0, var1 # load contents of RAM location into register $t0: $t0 = var1
li $t1, 5
# $t1 = 5 ("load immediate")
sw $t1, var1 # store contents of register $t1 into RAM: var1 = $t1
done

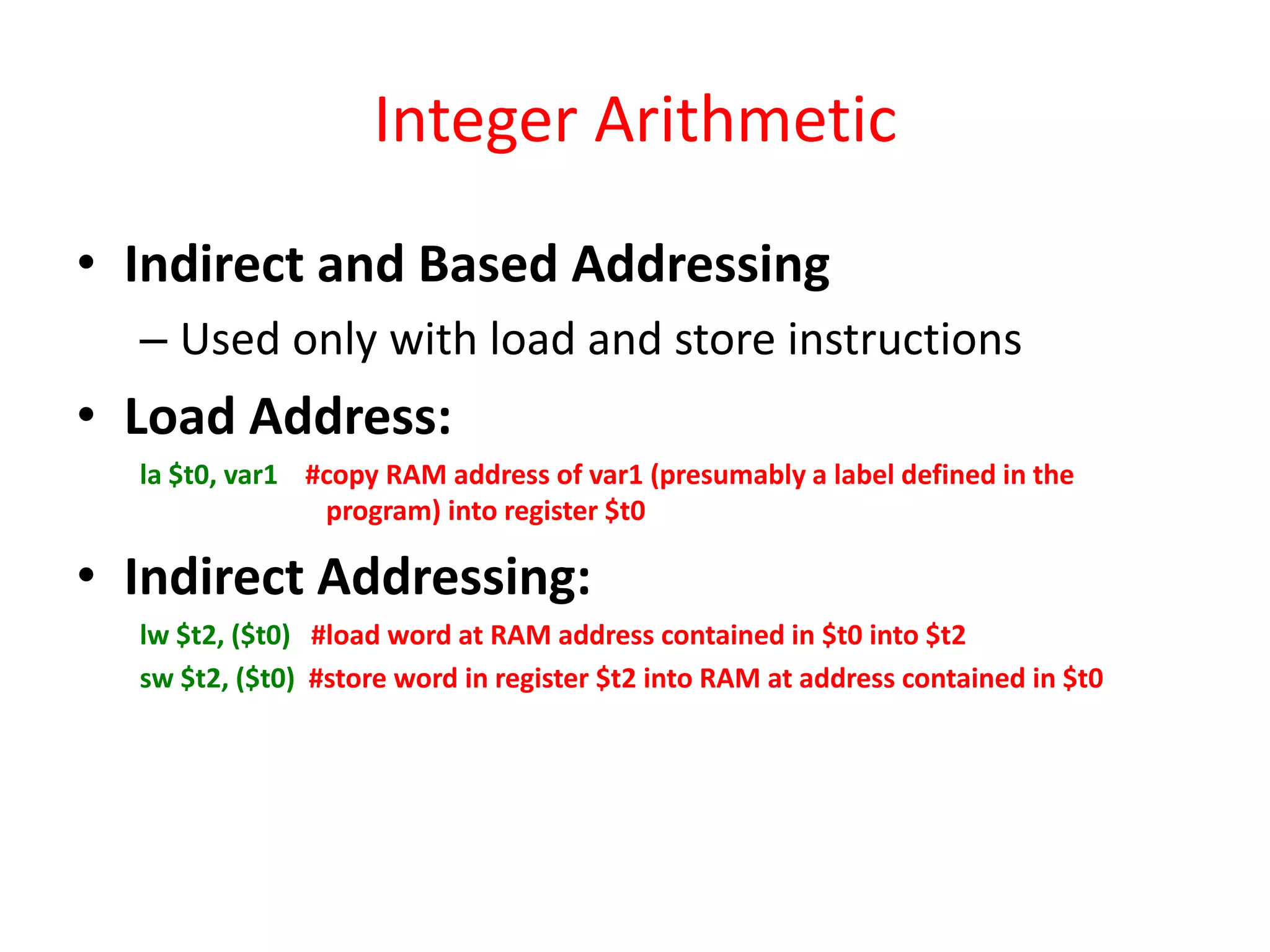

25. Integer Arithmetic
• Indirect and Based Addressing
– Used only with load and store instructions
• Load Address:
la $t0, var1 #copy RAM address of var1 (presumably a label defined in the
program) into register $t0
• Indirect Addressing:
lw $t2, ($t0) #load word at RAM address contained in $t0 into $t2
sw $t2, ($t0) #store word in register $t2 into RAM at address contained in $t0

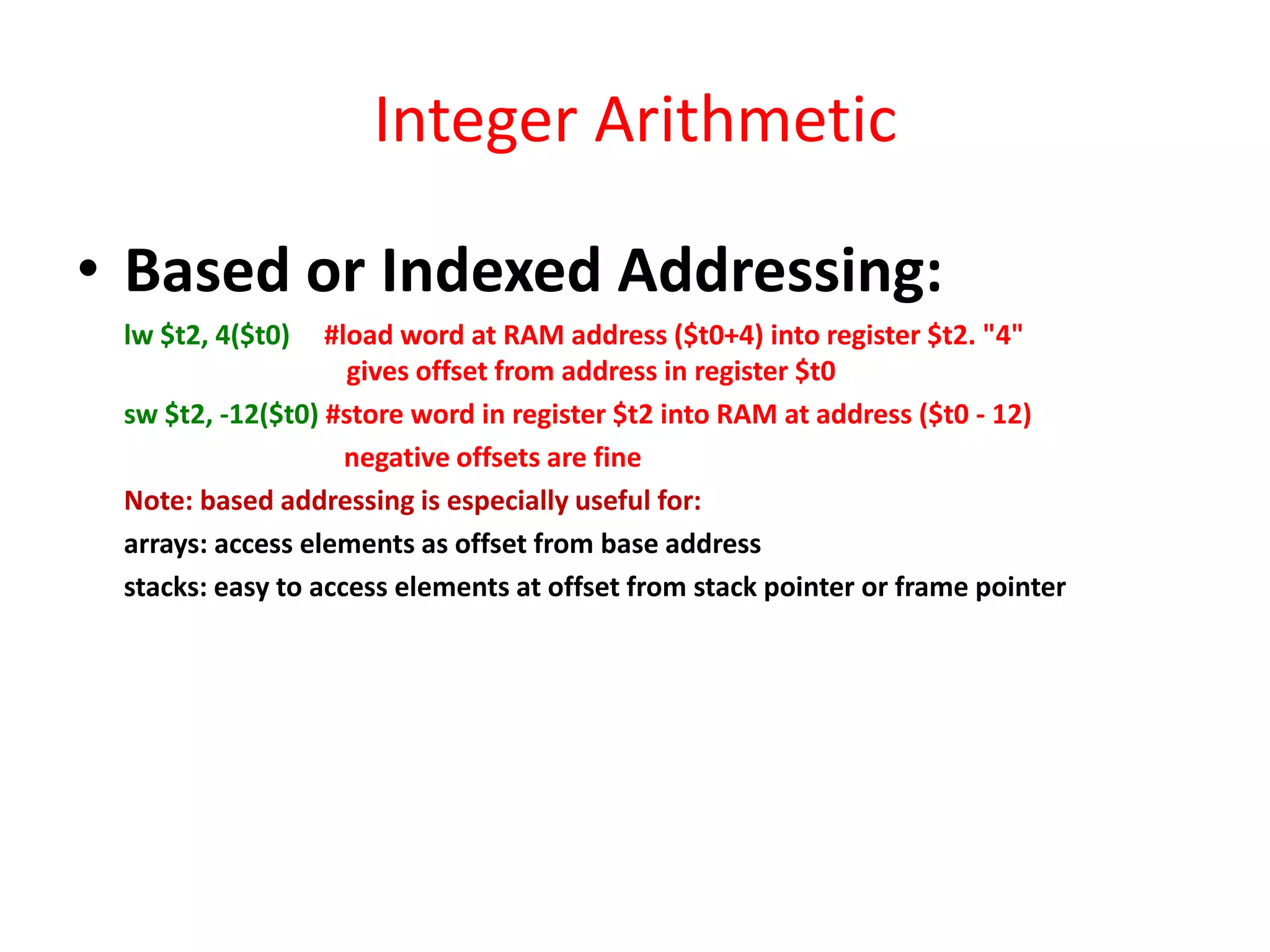

26. Integer Arithmetic
• Based or Indexed Addressing:
lw $t2, 4($t0)
#load word at RAM address ($t0+4) into register $t2. "4"
gives offset from address in register $t0
sw $t2, -12($t0) #store word in register $t2 into RAM at address ($t0 - 12)
negative offsets are fine
Note: based addressing is especially useful for:
arrays: access elements as offset from base address
stacks: easy to access elements at offset from stack pointer or frame pointer

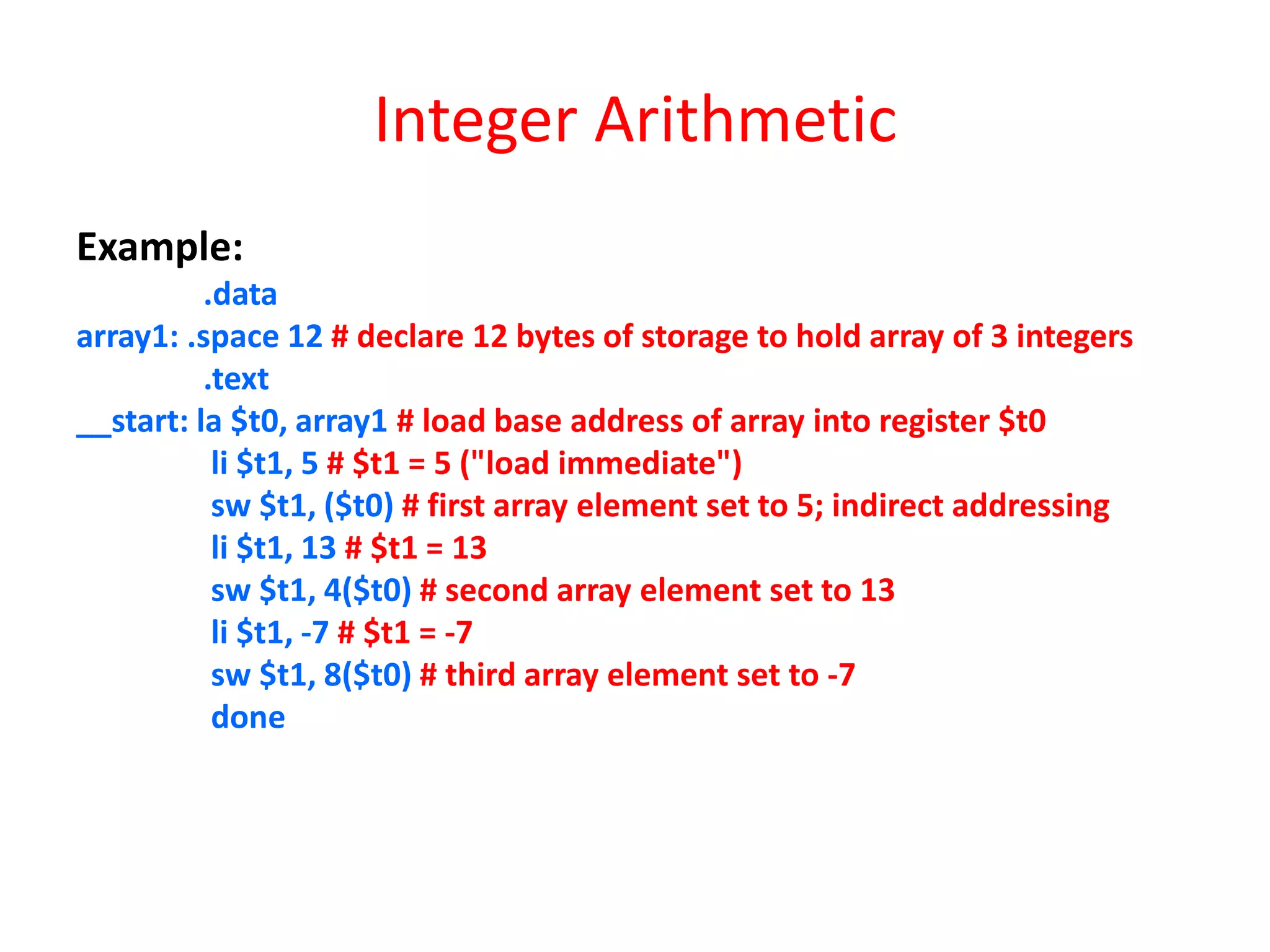

27. Integer Arithmetic
Example:
.data
array1: .space 12 # declare 12 bytes of storage to hold array of 3 integers
.text
__start: la $t0, array1 # load base address of array into register $t0
li $t1, 5 # $t1 = 5 ("load immediate")
sw $t1, ($t0) # first array element set to 5; indirect addressing
li $t1, 13 # $t1 = 13
sw $t1, 4($t0) # second array element set to 13
li $t1, -7 # $t1 = -7
sw $t1, 8($t0) # third array element set to -7
done

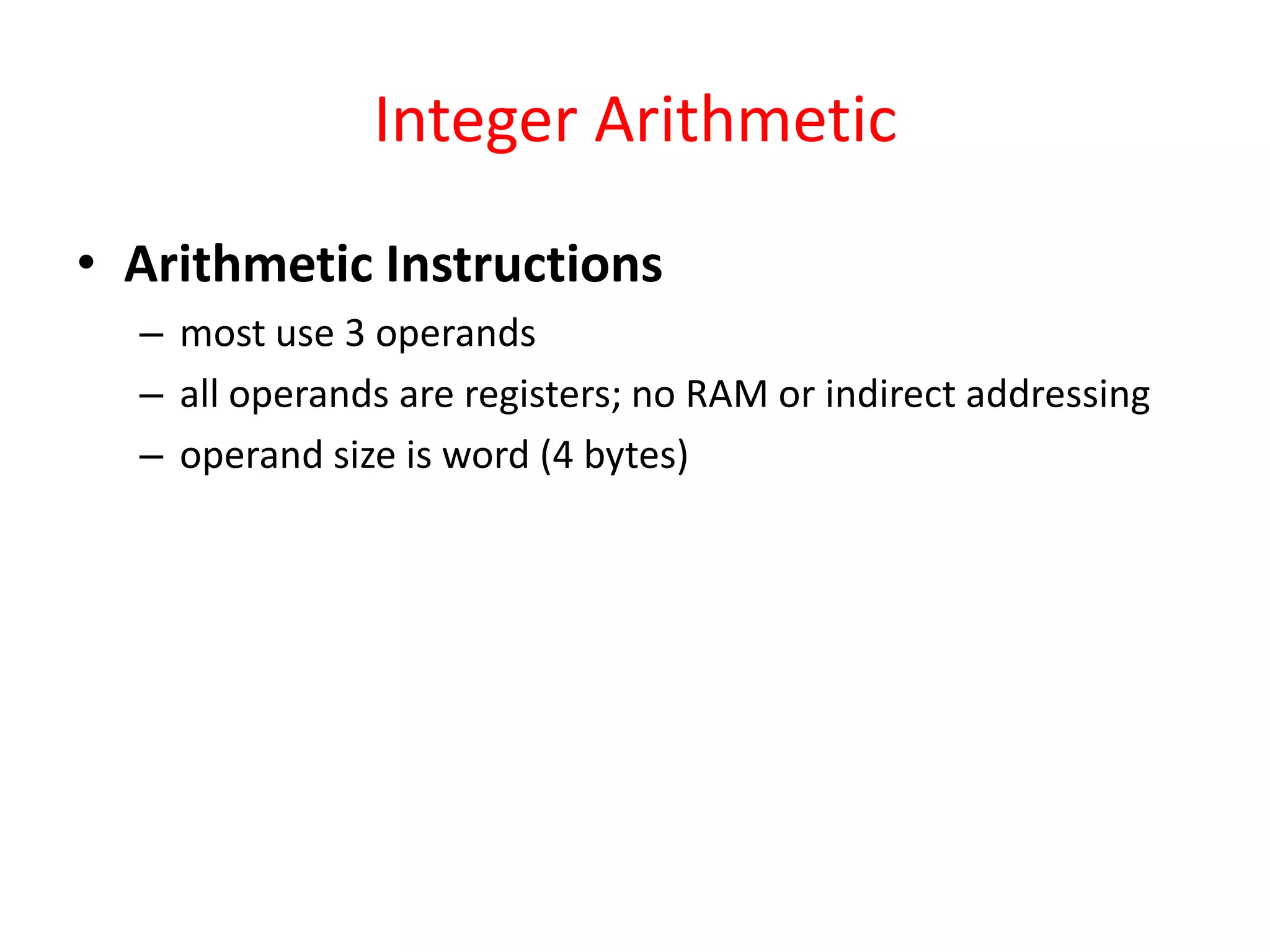

28. Integer Arithmetic
• Arithmetic Instructions
– most use 3 operands
– all operands are registers; no RAM or indirect addressing
– operand size is word (4 bytes)

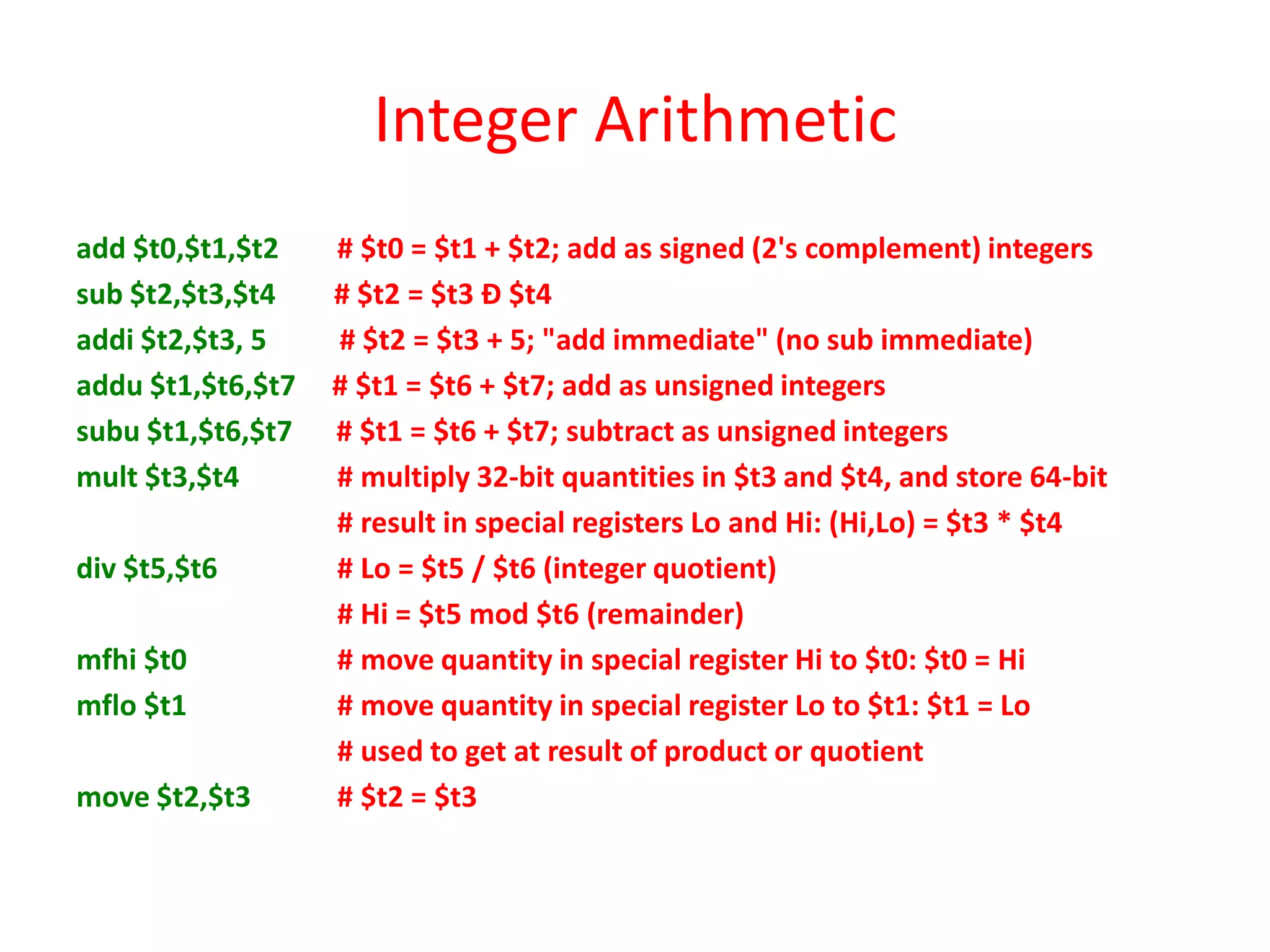

29. Integer Arithmetic
add $t0,$t1,$t2
sub $t2,$t3,$t4
addi $t2,$t3, 5
addu $t1,$t6,$t7
subu $t1,$t6,$t7
mult $t3,$t4
div $t5,$t6
mfhi $t0
mflo $t1
move $t2,$t3
# $t0 = $t1 + $t2; add as signed (2's complement) integers
# $t2 = $t3 Ð $t4
# $t2 = $t3 + 5; "add immediate" (no sub immediate)
# $t1 = $t6 + $t7; add as unsigned integers
# $t1 = $t6 + $t7; subtract as unsigned integers
# multiply 32-bit quantities in $t3 and $t4, and store 64-bit
# result in special registers Lo and Hi: (Hi,Lo) = $t3 * $t4
# Lo = $t5 / $t6 (integer quotient)
# Hi = $t5 mod $t6 (remainder)
# move quantity in special register Hi to $t0: $t0 = Hi
# move quantity in special register Lo to $t1: $t1 = Lo
# used to get at result of product or quotient
# $t2 = $t3

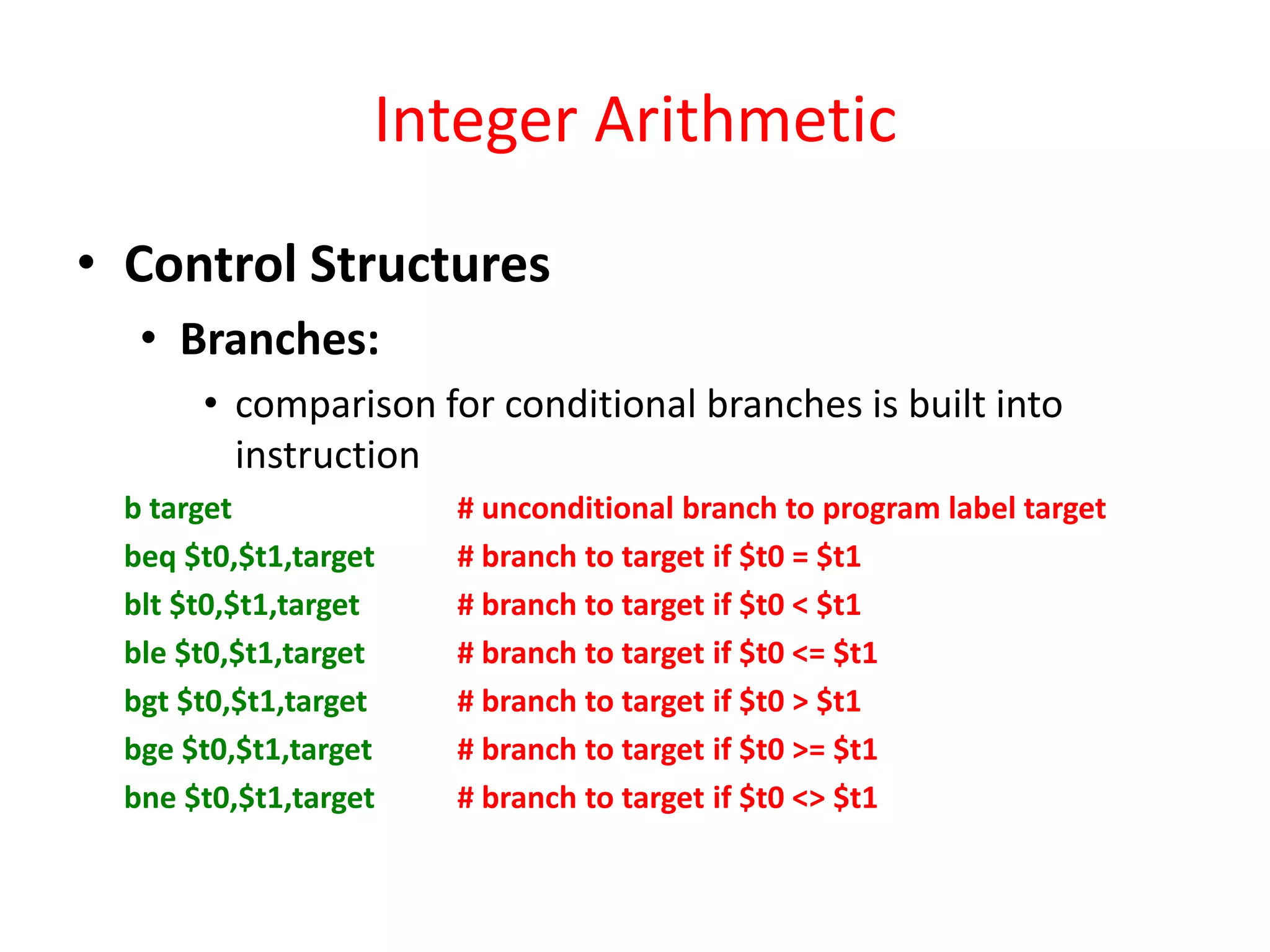

30. Integer Arithmetic
• Control Structures
• Branches:
• comparison for conditional branches is built into
instruction
b target
beq $t0,$t1,target
blt $t0,$t1,target
ble $t0,$t1,target
bgt $t0,$t1,target
bge $t0,$t1,target
bne $t0,$t1,target
# unconditional branch to program label target
# branch to target if $t0 = $t1
# branch to target if $t0 < $t1
# branch to target if $t0 <= $t1
# branch to target if $t0 > $t1
# branch to target if $t0 >= $t1
# branch to target if $t0 <> $t1

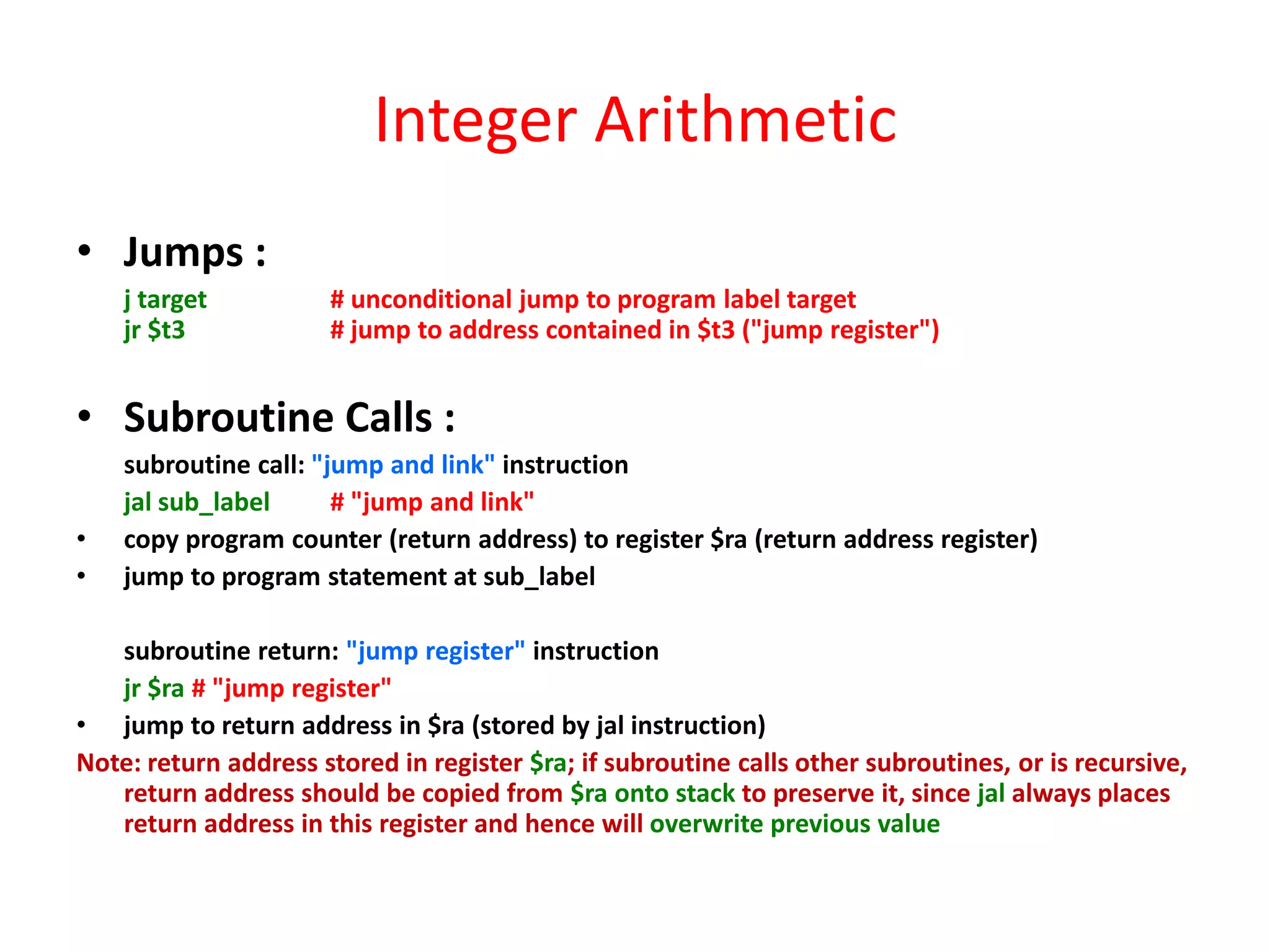

31. Integer Arithmetic
• Jumps :
j target
jr $t3
# unconditional jump to program label target
# jump to address contained in $t3 ("jump register")
• Subroutine Calls :
•
•
subroutine call: "jump and link" instruction
jal sub_label
# "jump and link"
copy program counter (return address) to register $ra (return address register)
jump to program statement at sub_label
subroutine return: "jump register" instruction
jr $ra # "jump register"
• jump to return address in $ra (stored by jal instruction)
Note: return address stored in register $ra; if subroutine calls other subroutines, or is recursive,
return address should be copied from $ra onto stack to preserve it, since jal always places
return address in this register and hence will overwrite previous value

32. Integer Arithmetic
• System Calls and I/O (SPIM Simulator)
– used to read or print values or strings from input/output window, and
indicate program end
– use syscall operating system routine call
– first supply appropriate values in registers $v0 and $a0-$a1
– result value (if any) returned in register $v0

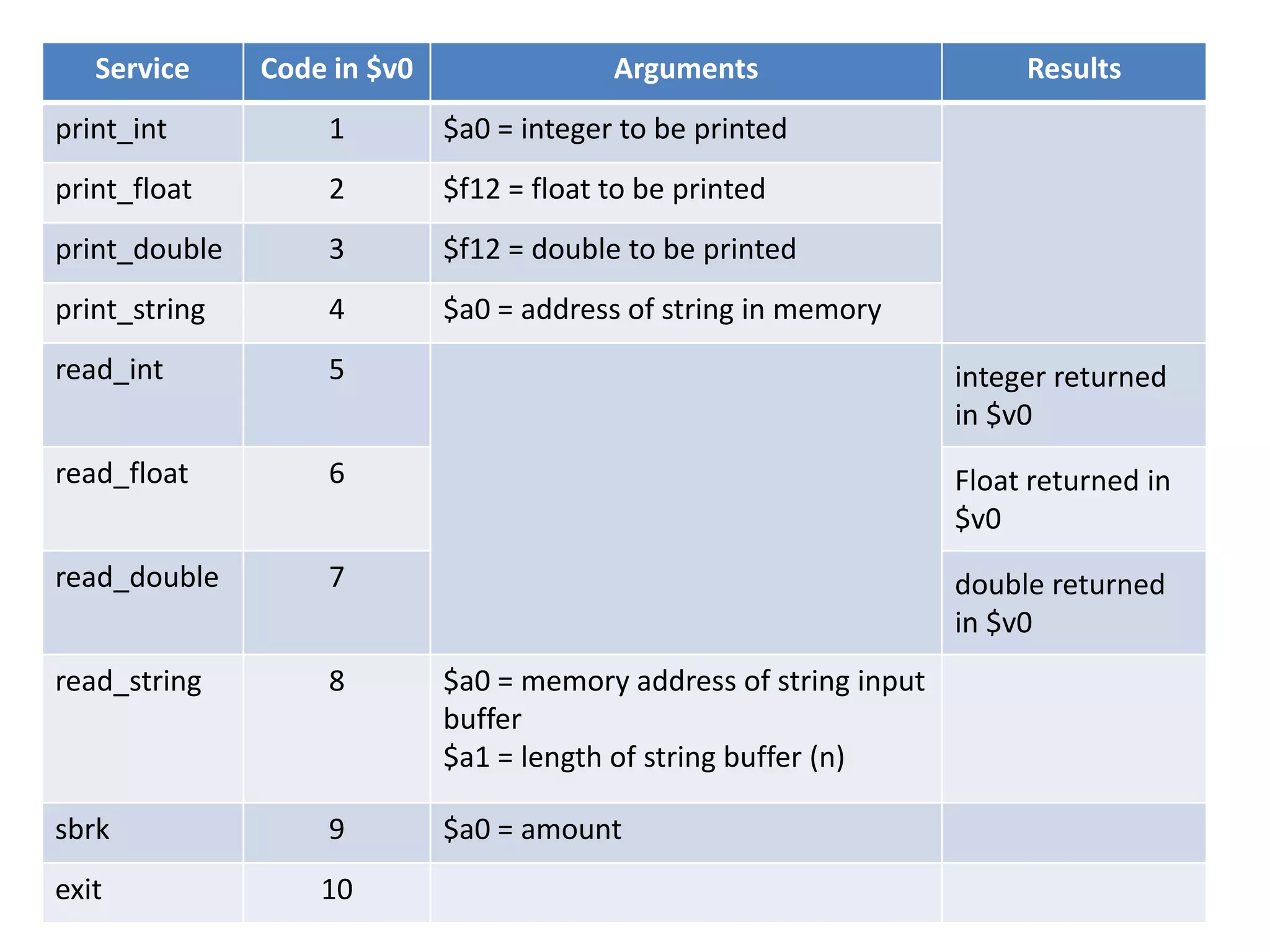

33. Service
Code in $v0
Arguments
Results
print_int
1
$a0 = integer to be printed
print_float
2
$f12 = float to be printed
print_double
3
$f12 = double to be printed
print_string
4
$a0 = address of string in memory
read_int
5
integer returned
in $v0
read_float
6
Float returned in
$v0
read_double
7
double returned
in $v0
read_string
8
$a0 = memory address of string input
buffer
$a1 = length of string buffer (n)
sbrk
9
$a0 = amount
exit
10

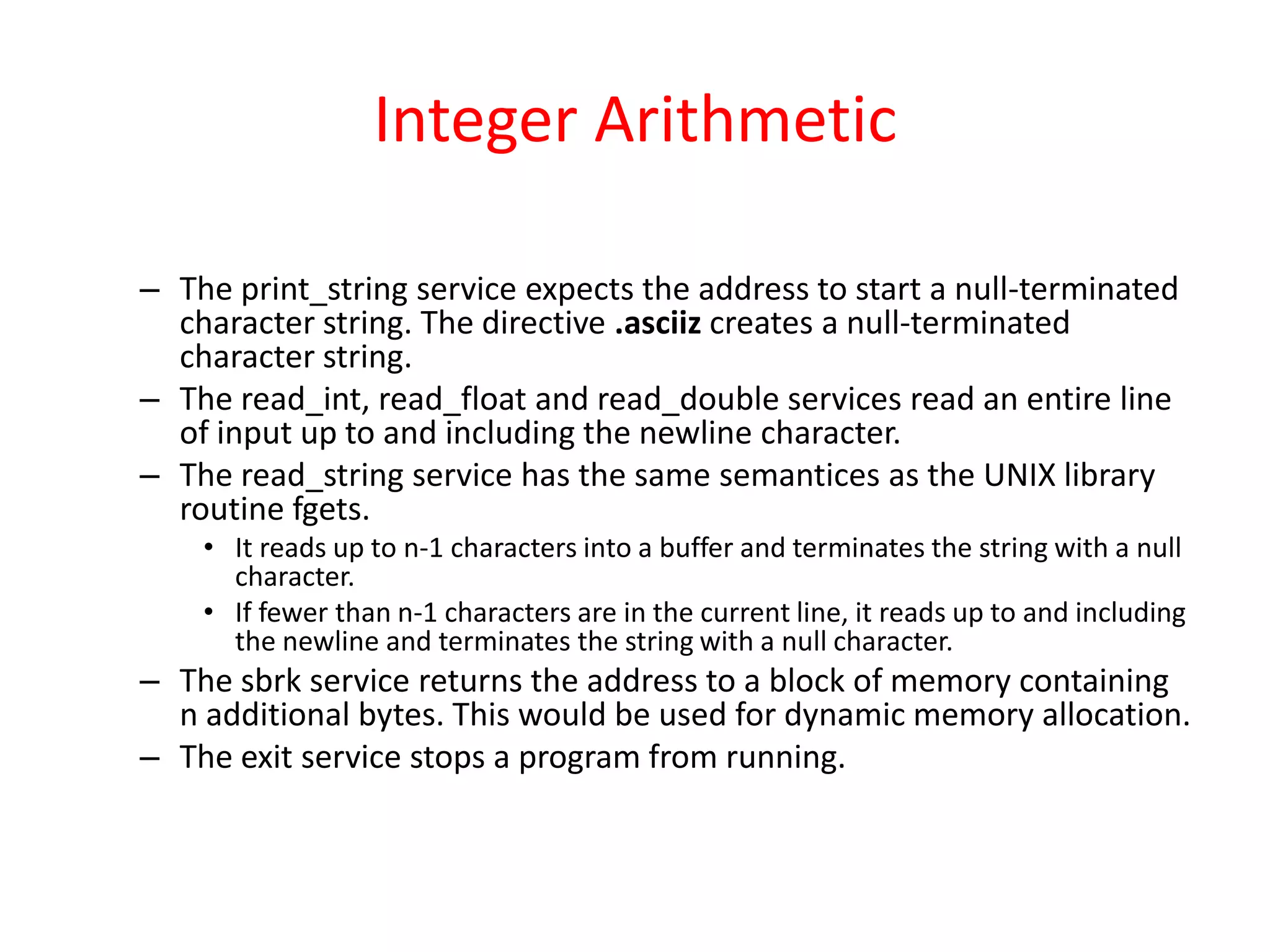

34. Integer Arithmetic
– The print_string service expects the address to start a null-terminated
character string. The directive .asciiz creates a null-terminated
character string.
– The read_int, read_float and read_double services read an entire line
of input up to and including the newline character.
– The read_string service has the same semantices as the UNIX library
routine fgets.
• It reads up to n-1 characters into a buffer and terminates the string with a null
character.
• If fewer than n-1 characters are in the current line, it reads up to and including
the newline and terminates the string with a null character.
– The sbrk service returns the address to a block of memory containing
n additional bytes. This would be used for dynamic memory allocation.
– The exit service stops a program from running.

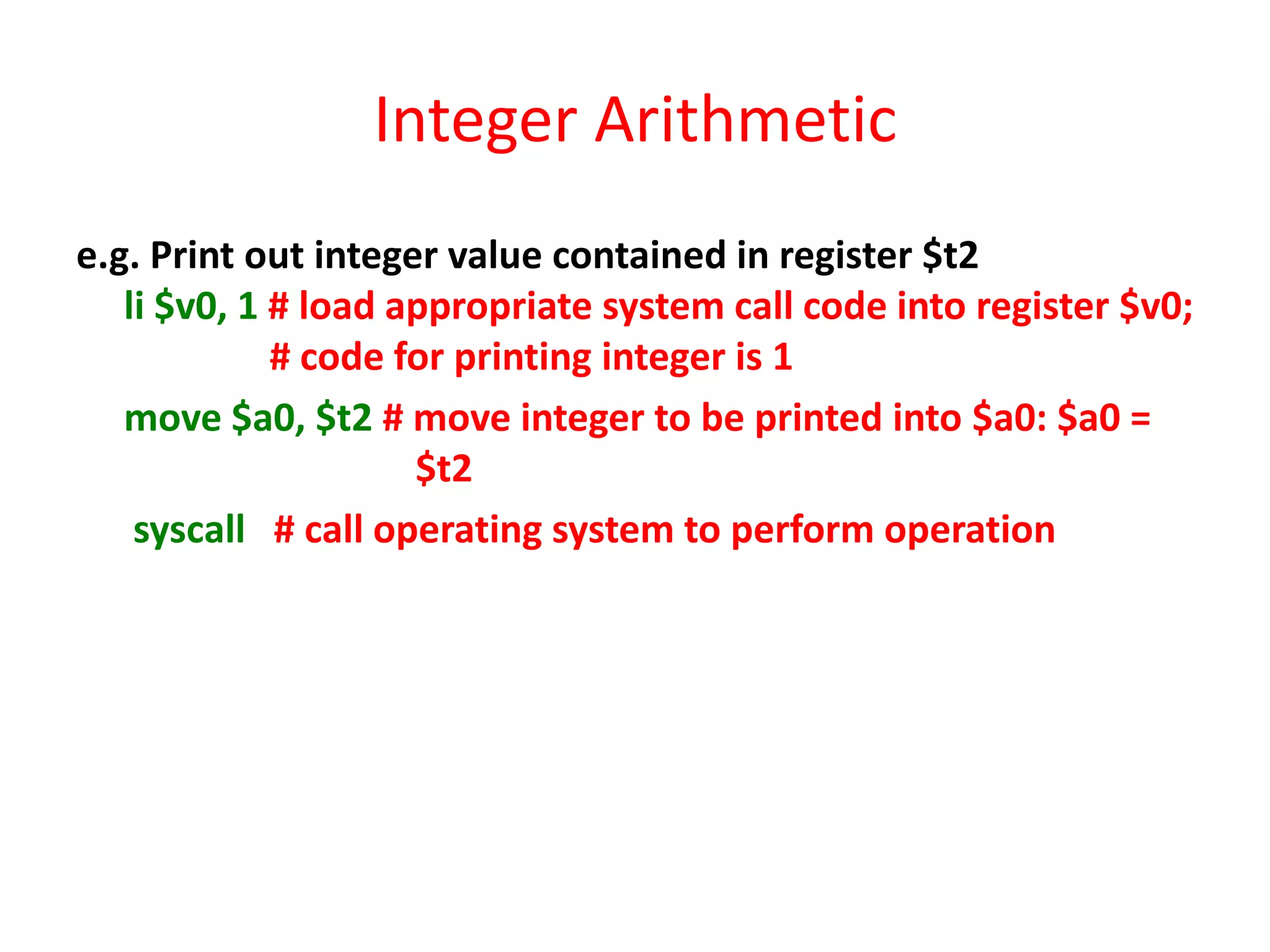

35. Integer Arithmetic
e.g. Print out integer value contained in register $t2
li $v0, 1 # load appropriate system call code into register $v0;
# code for printing integer is 1
move $a0, $t2 # move integer to be printed into $a0: $a0 =
$t2
syscall # call operating system to perform operation

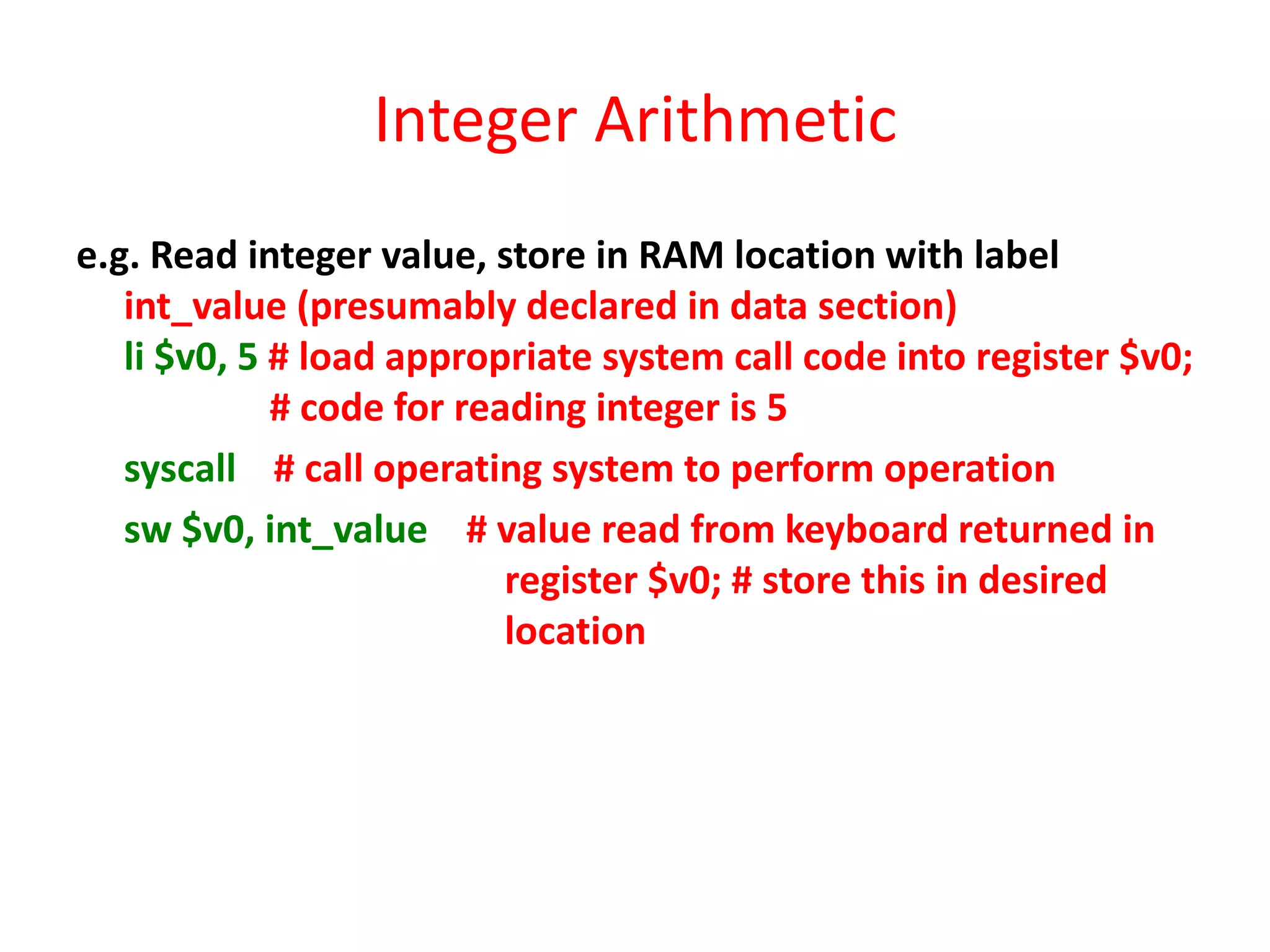

36. Integer Arithmetic
e.g. Read integer value, store in RAM location with label
int_value (presumably declared in data section)
li $v0, 5 # load appropriate system call code into register $v0;
# code for reading integer is 5
syscall # call operating system to perform operation
sw $v0, int_value # value read from keyboard returned in
register $v0; # store this in desired
location

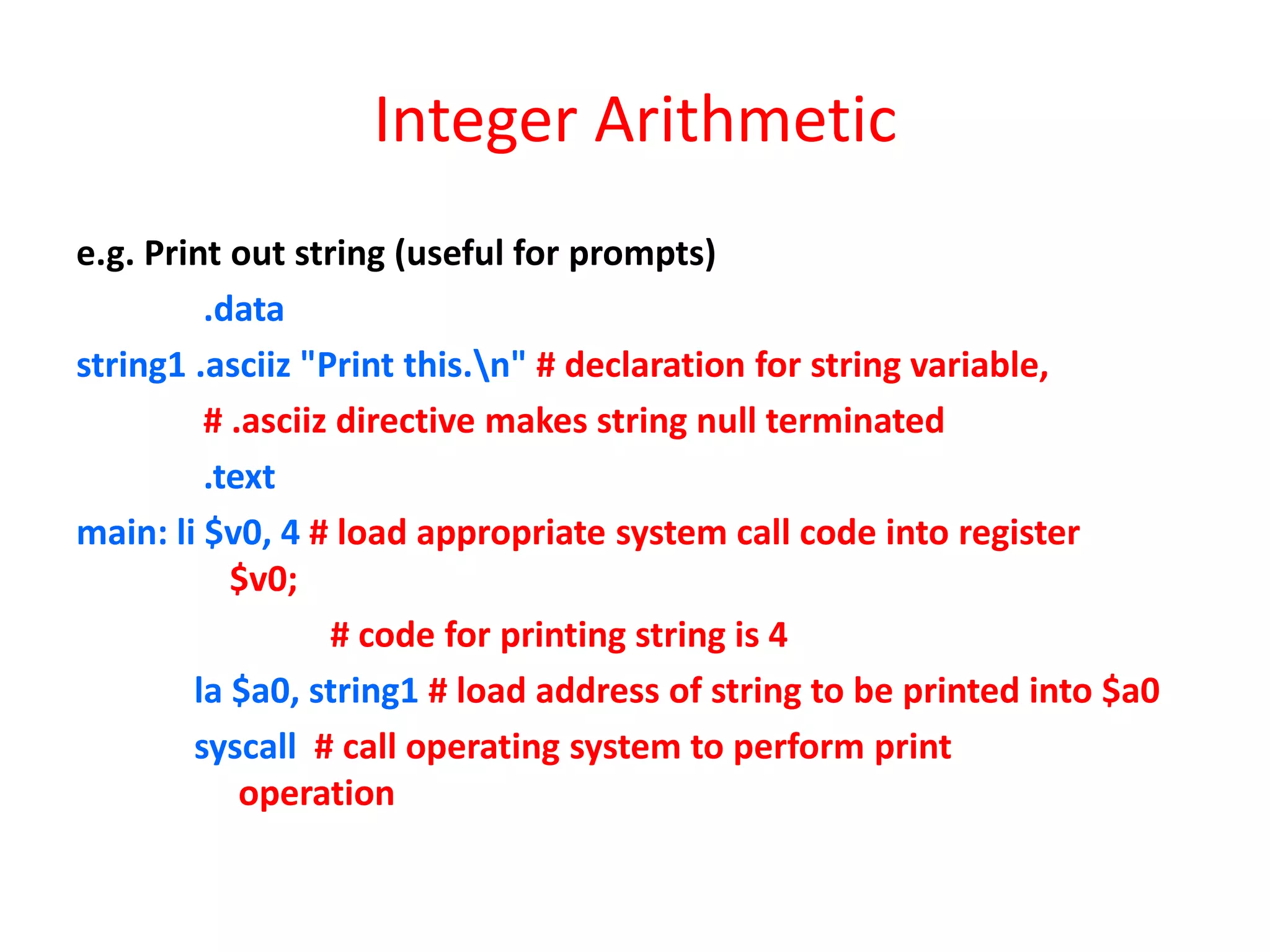

37. Integer Arithmetic
e.g. Print out string (useful for prompts)
.data
string1 .asciiz "Print this.n" # declaration for string variable,
# .asciiz directive makes string null terminated
.text
main: li $v0, 4 # load appropriate system call code into register
$v0;
# code for printing string is 4
la $a0, string1 # load address of string to be printed into $a0
syscall # call operating system to perform print
operation

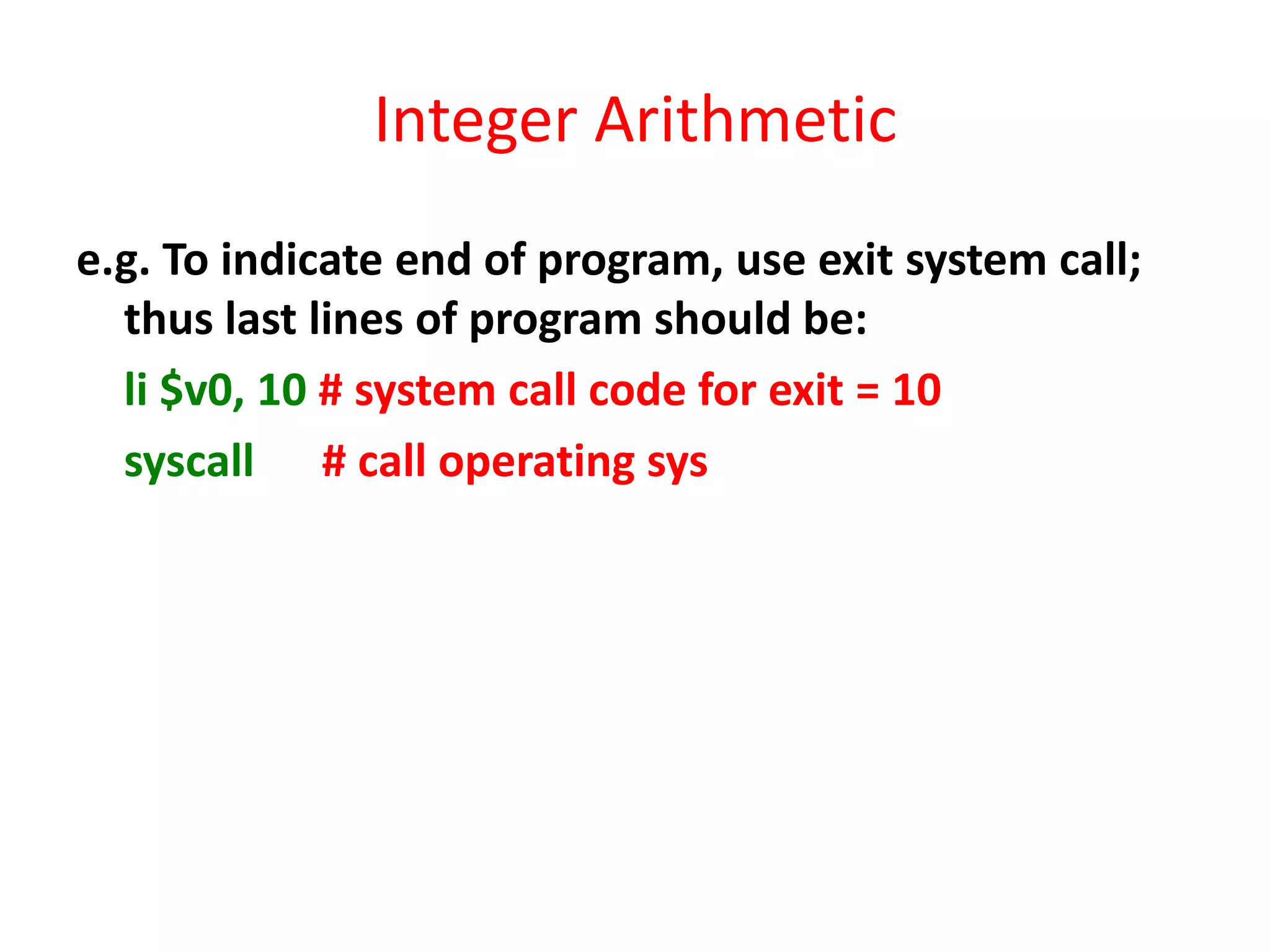

38. Integer Arithmetic
e.g. To indicate end of program, use exit system call;
thus last lines of program should be:
li $v0, 10 # system call code for exit = 10
syscall # call operating sys

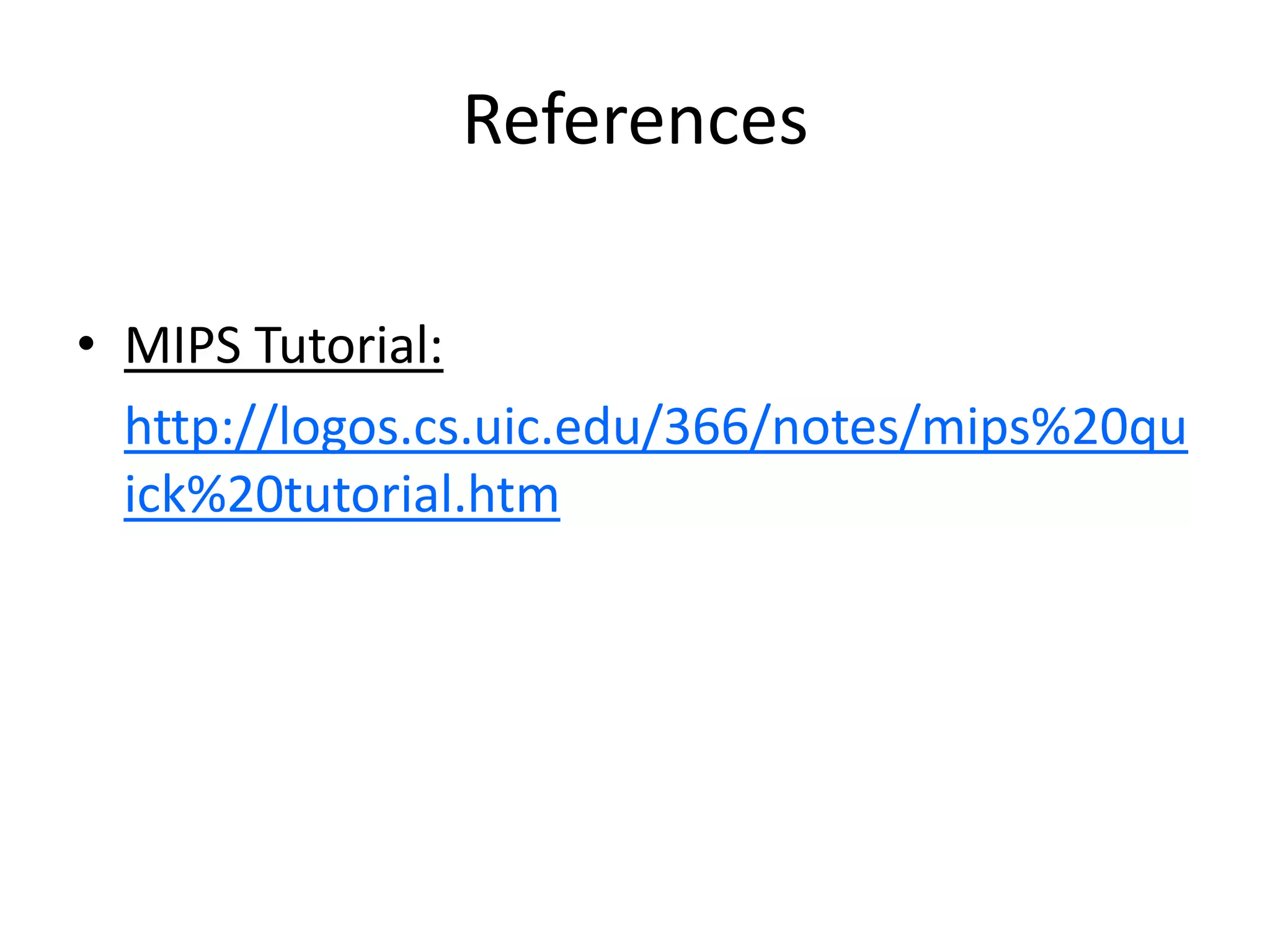

39. References
• MIPS Tutorial:
http://logos.cs.uic.edu/366/notes/mips%20qu
ick%20tutorial.htm
