1. Exploring lambdas and
invokedynamic for embedded
systems
Stephan E. Korsholm
sek@viauc.dk
VIA University College, Horsens, DK
seminar, CISS
Aalborg November 24th 2014 1

2. Overview
• What I have discovered about lambda expressions (closures)
and invokedynamic
- as seen from Java space
- and from the class files
• Current support in the HVM (an embedded execution
environment for Java)
• The Java virtual machine specification and why it violates
common software design principles, especially for
invokedynamic
• Comments, discussions and on-the-fly experimentation
encouraged!
2

3. Closures in Java
3
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
public static void main(String[] args) {
Action action = () -> print("Hello Lambda!");
action.doIt();
}
}
Functional interface
The closure
Executing the closure

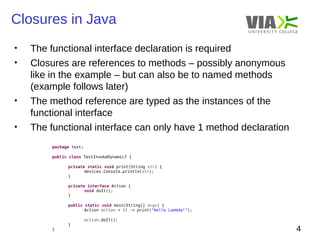

4. Closures in Java
4
• The functional interface declaration is required
• Closures are references to methods – possibly anonymous
like in the example – but can also be to named methods
(example follows later)
• The method reference are typed as the instances of the
functional interface
• The functional interface can only have 1 method declaration
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
public static void main(String[] args) {
Action action = () -> print("Hello Lambda!");
action.doIt();
}
}

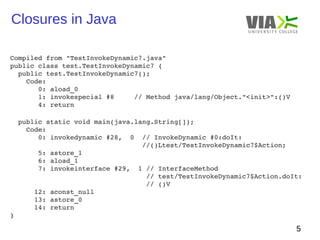

5. Closures in Java
5
Compiled from "TestInvokeDynamic7.java"
public class test.TestInvokeDynamic7 {
public test.TestInvokeDynamic7();
Code:
0: aload_0
1: invokespecial #8 // Method java/lang/Object."<init>":()V
4: return
public static void main(java.lang.String[]);
Code:
0: invokedynamic #28, 0 // InvokeDynamic #0:doIt:
//()Ltest/TestInvokeDynamic7$Action;
5: astore_1
6: aload_1
7: invokeinterface #29, 1 // InterfaceMethod
// test/TestInvokeDynamic7$Action.doIt:
// ()V
12: aconst_null
13: astore_0
14: return
}

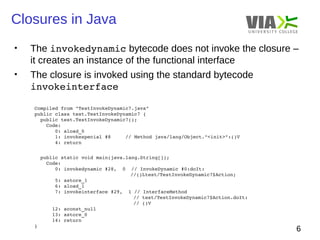

6. Closures in Java
• The invokedynamic bytecode does not invoke the closure –
6
it creates an instance of the functional interface
• The closure is invoked using the standard bytecode
invokeinterface
Compiled from "TestInvokeDynamic7.java"
public class test.TestInvokeDynamic7 {
public test.TestInvokeDynamic7();
Code:
0: aload_0
1: invokespecial #8 // Method java/lang/Object."<init>":()V
4: return
public static void main(java.lang.String[]);
Code:
0: invokedynamic #28, 0 // InvokeDynamic #0:doIt:
//()Ltest/TestInvokeDynamic7$Action;
5: astore_1
6: aload_1
7: invokeinterface #29, 1 // InterfaceMethod
// test/TestInvokeDynamic7$Action.doIt:
// ()V
12: aconst_null
13: astore_0
14: return
}

7. Closures in Java
7
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static class MyAction implements Action
{
@Override
public void doIt() {
print("Hello Lambda!");
}
}
public static void main(String[] args) {
MyAction myAction = new MyAction();
Action action = myAction::doIt;
action.doIt();
}
}

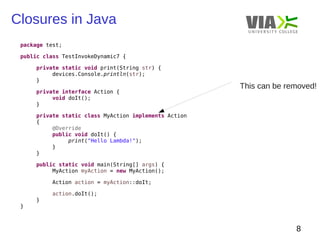

8. Closures in Java
8
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static class MyAction implements Action
{
@Override
public void doIt() {
print("Hello Lambda!");
}
}
public static void main(String[] args) {
MyAction myAction = new MyAction();
Action action = myAction::doIt;
action.doIt();
}
}
This can be removed!

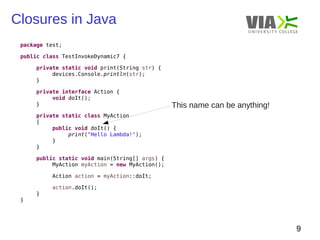

9. Closures in Java
9
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static class MyAction
{
public void doIt() {
print("Hello Lambda!");
}
}
public static void main(String[] args) {
MyAction myAction = new MyAction();
Action action = myAction::doIt;
action.doIt();
}
}
This name can be anything!

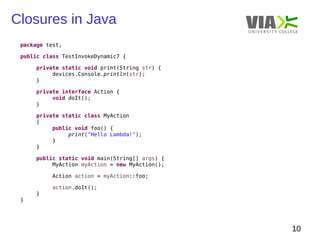

10. Closures in Java
10
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static class MyAction
{
public void foo() {
print("Hello Lambda!");
}
}
public static void main(String[] args) {
MyAction myAction = new MyAction();
Action action = myAction::foo;
action.doIt();
}
}

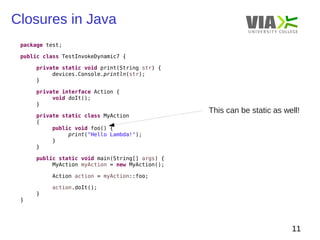

11. Closures in Java
11
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static class MyAction
{
public void foo() {
print("Hello Lambda!");
}
}
public static void main(String[] args) {
MyAction myAction = new MyAction();
Action action = myAction::foo;
action.doIt();
}
}
This can be static as well!

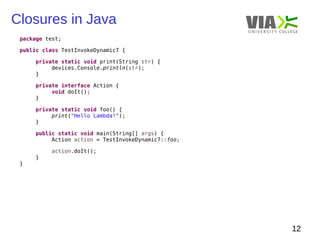

12. Closures in Java
12
package test;
public class TestInvokeDynamic7 {
private static void print(String str) {
devices.Console.println(str);
}
private interface Action {
void doIt();
}
private static void foo() {
print("Hello Lambda!");
}
public static void main(String[] args) {
Action action = TestInvokeDynamic7::foo;
action.doIt();
}
}

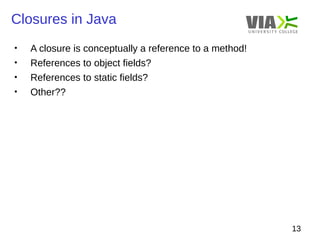

13. Closures in Java
13
• A closure is conceptually a reference to a method!
• References to object fields?
• References to static fields?
• Other??

14. Closures in Java
• The invokedynamic bytecode is similar to new in its effect –
it creates an instance of a class (that has 1 method declared)
• To implement invokedynamic in the JVM the following must
14
be known,
- Which functional interface is being instantiated?
- Which method (class name, method name, method
signature)?
• The JVM calls a bootstrap method with a series of arguments
- The bootstrap method is
LambdaMethodFactory.metafactory
- It generates a CallSite instance
- This has a MethodHandle that returns an instance of the
functional interface when invoked

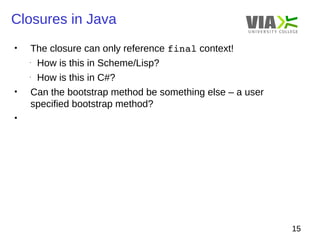

15. Closures in Java
15
• The closure can only reference final context!
- How is this in Scheme/Lisp?
- How is this in C#?
• Can the bootstrap method be something else – a user
specified bootstrap method?
•

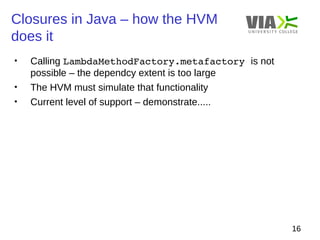

16. Closures in Java – how the HVM
does it
16
• Calling LambdaMethodFactory.metafactory is not
possible – the dependcy extent is too large
• The HVM must simulate that functionality
• Current level of support – demonstrate.....

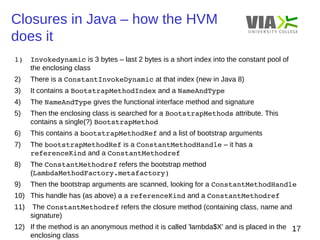

17. Closures in Java – how the HVM
does it
17
1) Invokedynamic is 3 bytes – last 2 bytes is a short index into the constant pool of
the enclosing class
2) There is a ConstantInvokeDynamic at that index (new in Java 8)
3) It contains a BootstrapMethodIndex and a NameAndType
4) The NameAndType gives the functional interface method and signature
5) Then the enclosing class is searched for a BootstrapMethods attribute. This
contains a single(?) BootstrapMethod
6) This contains a bootstrapMethodRef and a list of bootstrap arguments
7) The bootstrapMethodRef is a ConstantMethodHandle – it has a
referenceKind and a ConstantMethodref
8) The ConstantMethodref refers the bootstrap method
(LambdaMethodFactory.metafactory)
9) Then the bootstrap arguments are scanned, looking for a ConstantMethodHandle
10) This handle has (as above) a a referenceKind and a ConstantMethodref
11) The ConstantMethodref refers the closure method (containing class, name and
signature)
12) If the method is an anonymous method it is called 'lambda$X' and is placed in the
enclosing class

18. Closures in Java – how the HVM
does it
• We now have (1) the functional interface being implemented,
• (2) The bootstrap method, and
• (3) The actual method containing the bytecode of the closure
• Now the HVM does the following,
╶ Throws away the bootstrap method (not used)
╶ Creates a synthetic class containing one method which is the
method with the bytecode of the closure
╶ Changes the name of the method to be the same as the name
declared in the interface
╶ Now this class is added to the pool of classes managed by
the HVM as if it were an ordinary class
╶ Invokedynamic becomes the same as new, we know which
class to instantiate (the synthetic class)
18

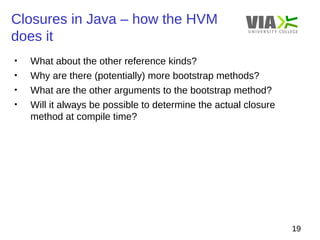

19. Closures in Java – how the HVM
does it
19
• What about the other reference kinds?
• Why are there (potentially) more bootstrap methods?
• What are the other arguments to the bootstrap method?
• Will it always be possible to determine the actual closure
method at compile time?

20. The Java VM spec and software
design principles
20
• Layered software architecture. Only references down the
stack (DECT, TCP, …)
• iadd is a good well behaved byte code
• idiv is not quite so well behaved – requires the presence of
java.lang.ArithmeticException
• invokedynamic is not well behaved – requires the presence
of a multitude of API classes
• Dependencies are up the stack – not down
