2013-09-24 Java ByteCode 1
Yohan BESCHI – Java Developer
@yohanbeschi
+Yohan Beschi
A word about me
⦿ Started coding more than 15 years ago
⦿ Expertise
⦿ RIAs
⦿ Performances
⦿ Industrialization
⦿ Writings
⦿ So@t Blogger
⦿ Developpez.com Writer
⦿ InfoQ FR Editor
2013-09-24 Java ByteCode 2
2013-09-24 Java ByteCode 3

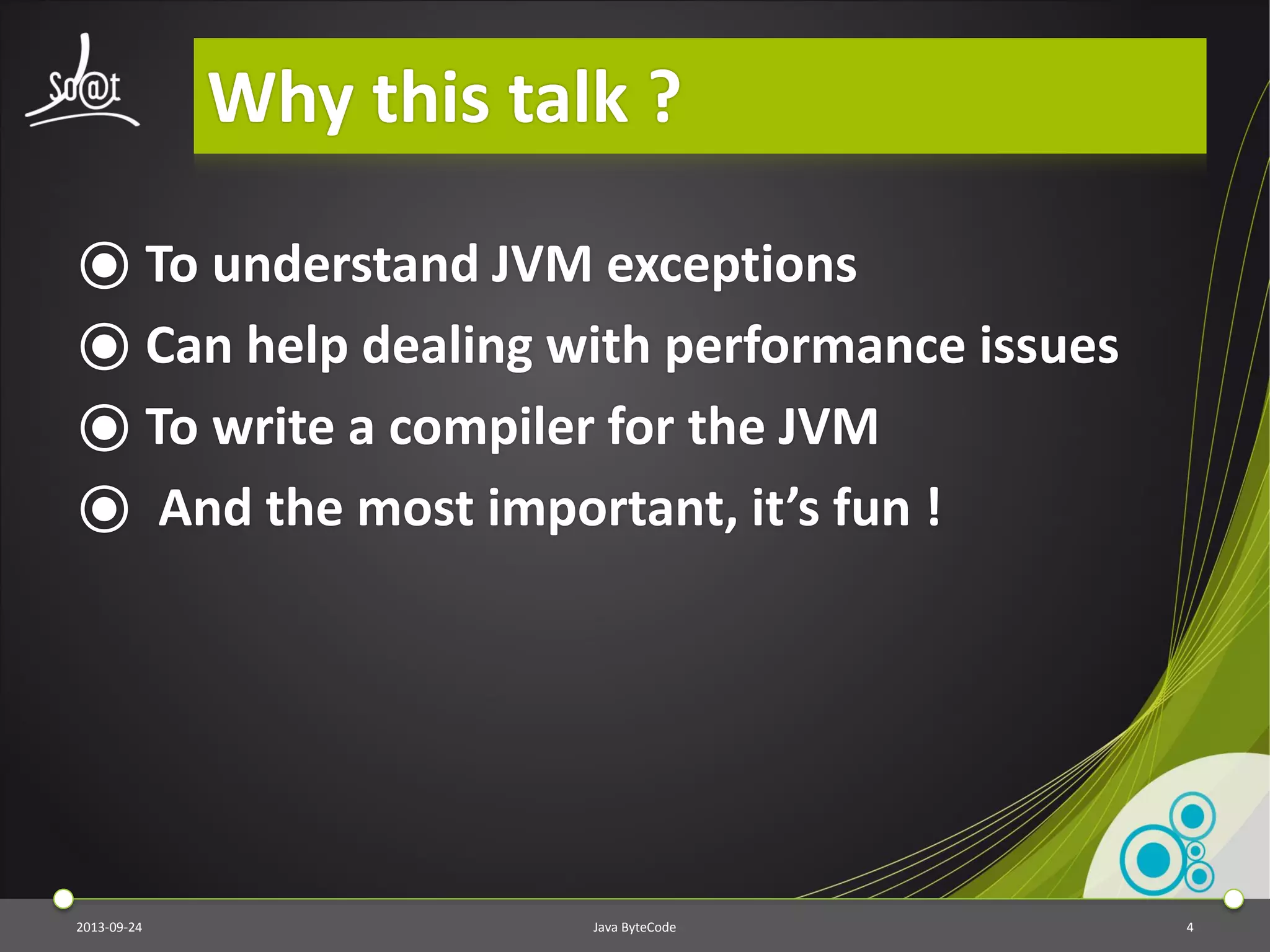

Why this talk ?
⦿ To understand JVM exceptions
⦿ Can help dealing with performance issues
⦿ To write a compiler for the JVM
⦿ And the most important, it’s fun !
2013-09-24 Java ByteCode 4

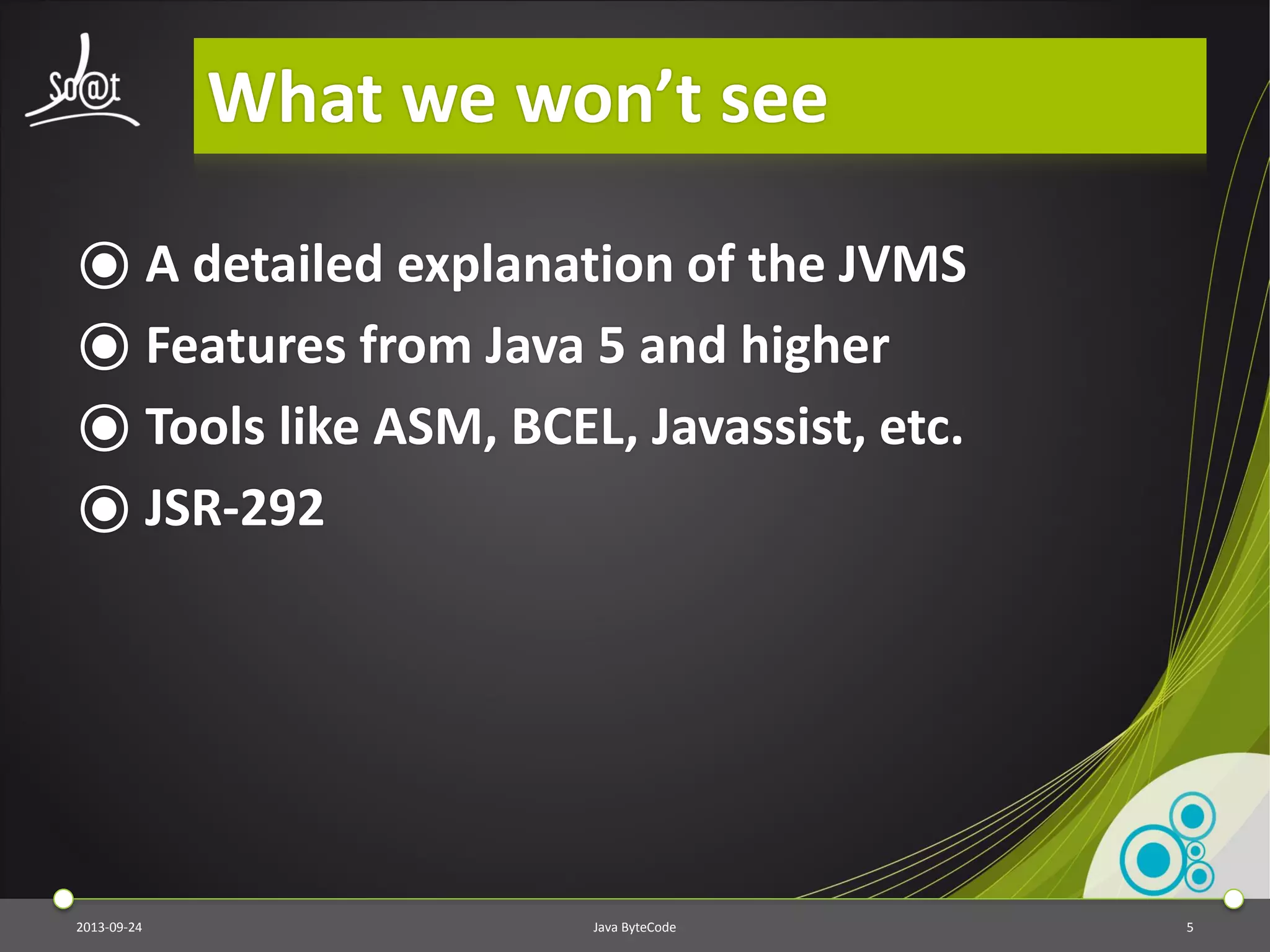

What we won’t see
⦿ A detailed explanation of the JVMS
⦿ Features from Java 5 and higher
⦿ Tools like ASM, BCEL, Javassist, etc.
⦿ JSR-292
2013-09-24 Java ByteCode 5

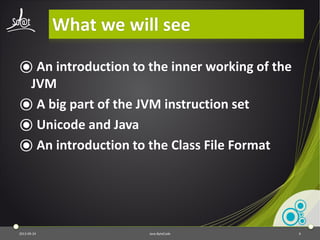

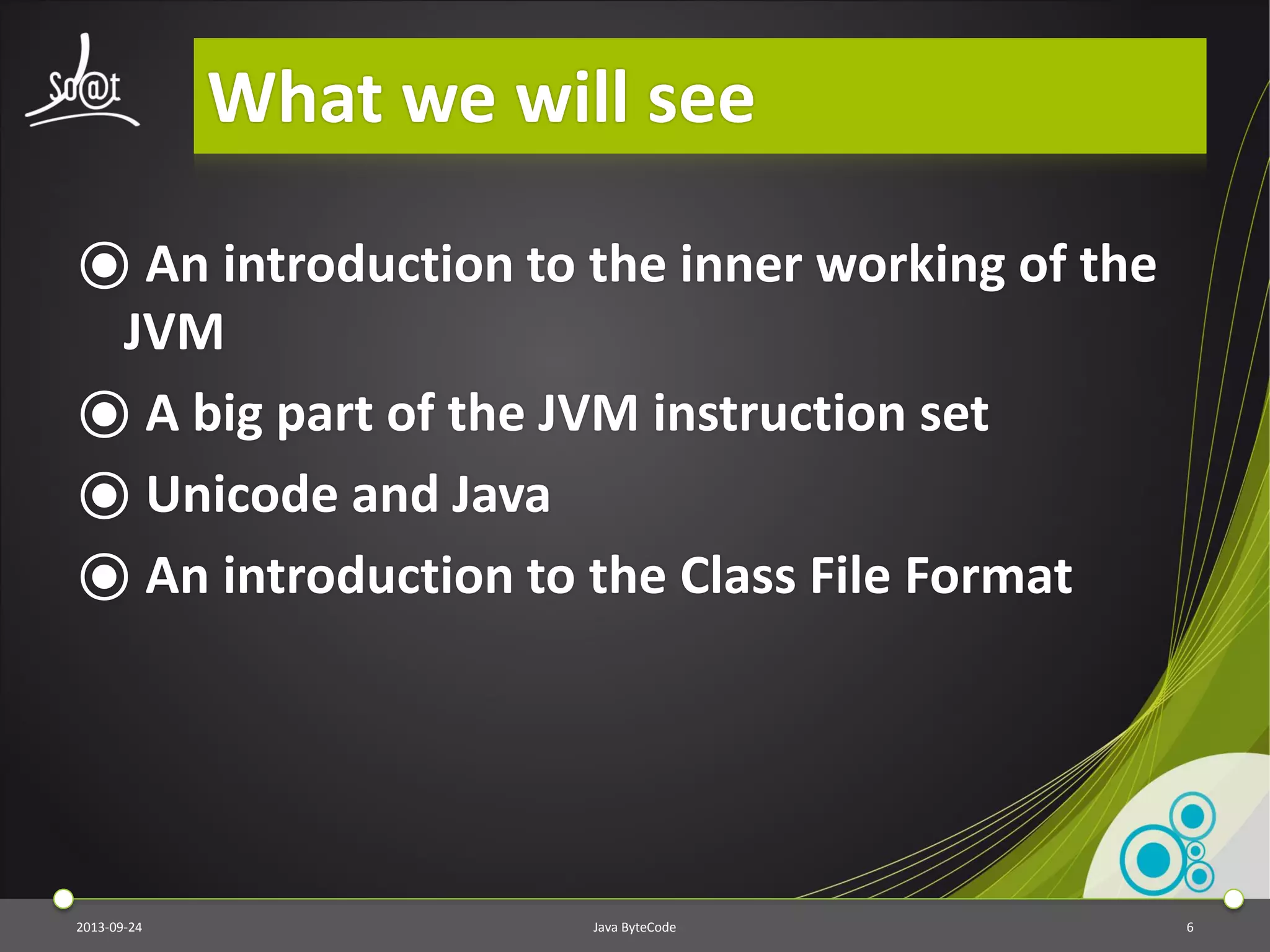

What we will see
⦿ An introduction to the inner working of the
JVM
⦿ A big part of the JVM instruction set
⦿ Unicode and Java
⦿ An introduction to the Class File Format
2013-09-24 Java ByteCode 6

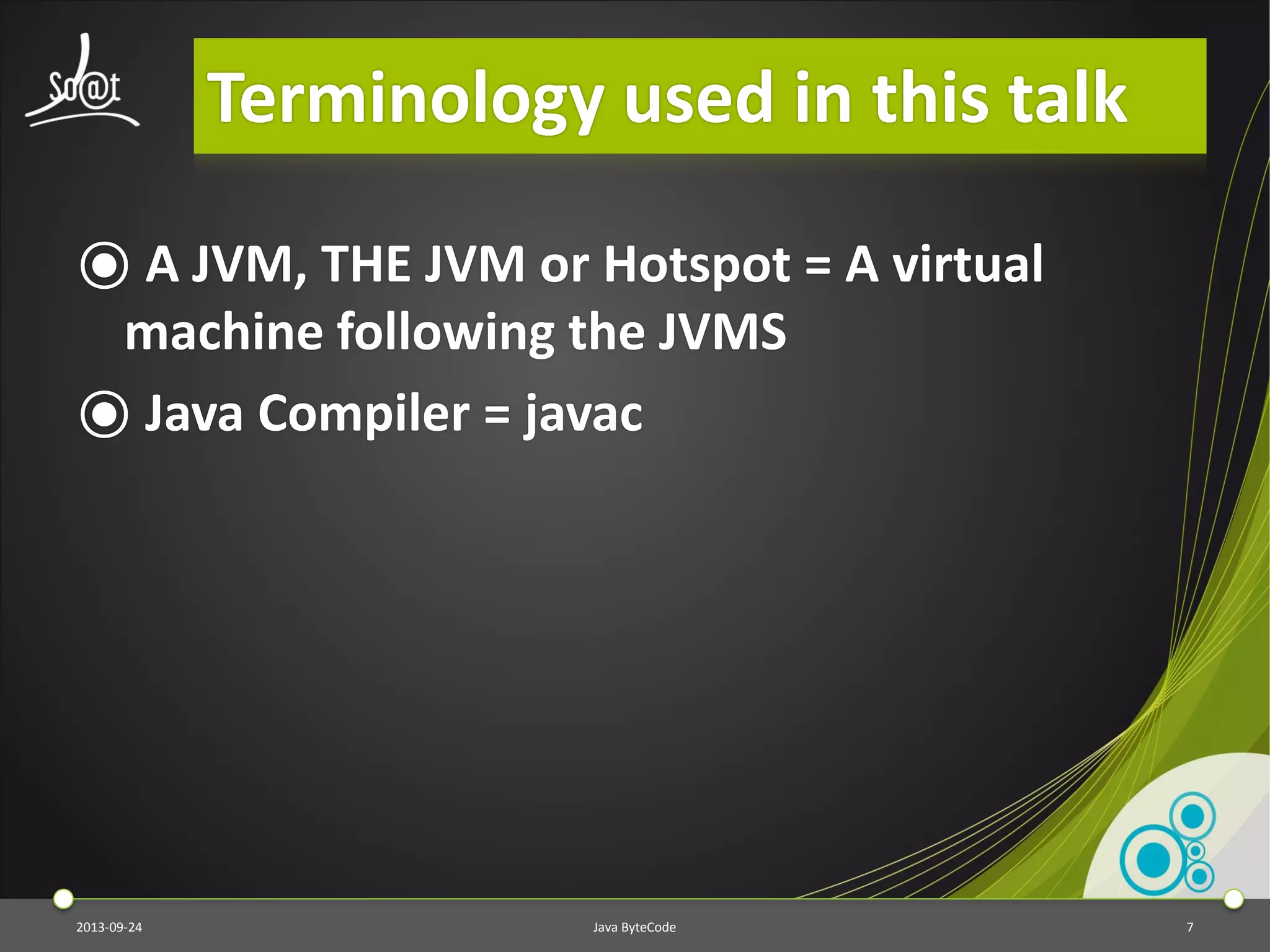

Terminology used in this talk
⦿ A JVM, THE JVM or Hotspot = A virtual
machine following the JVMS
⦿ Java Compiler = javac
2013-09-24 Java ByteCode 7

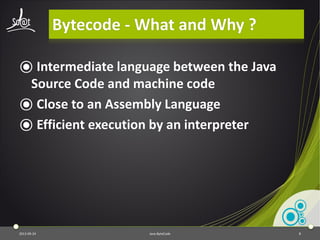

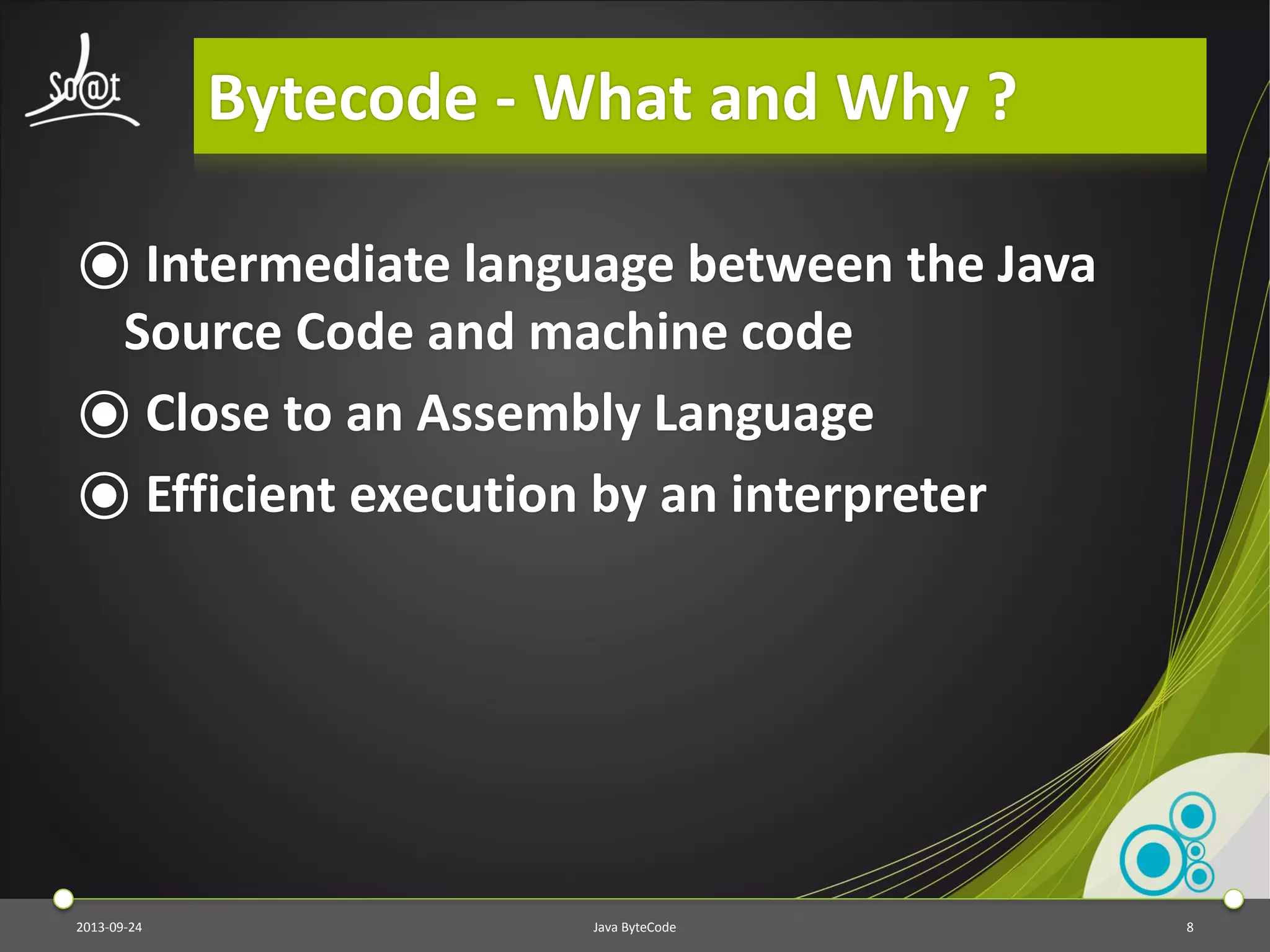

Bytecode - What and Why ?
⦿ Intermediate language between the Java
Source Code and machine code
⦿ Close to an Assembly Language
⦿ Efficient execution by an interpreter
2013-09-24 Java ByteCode 8

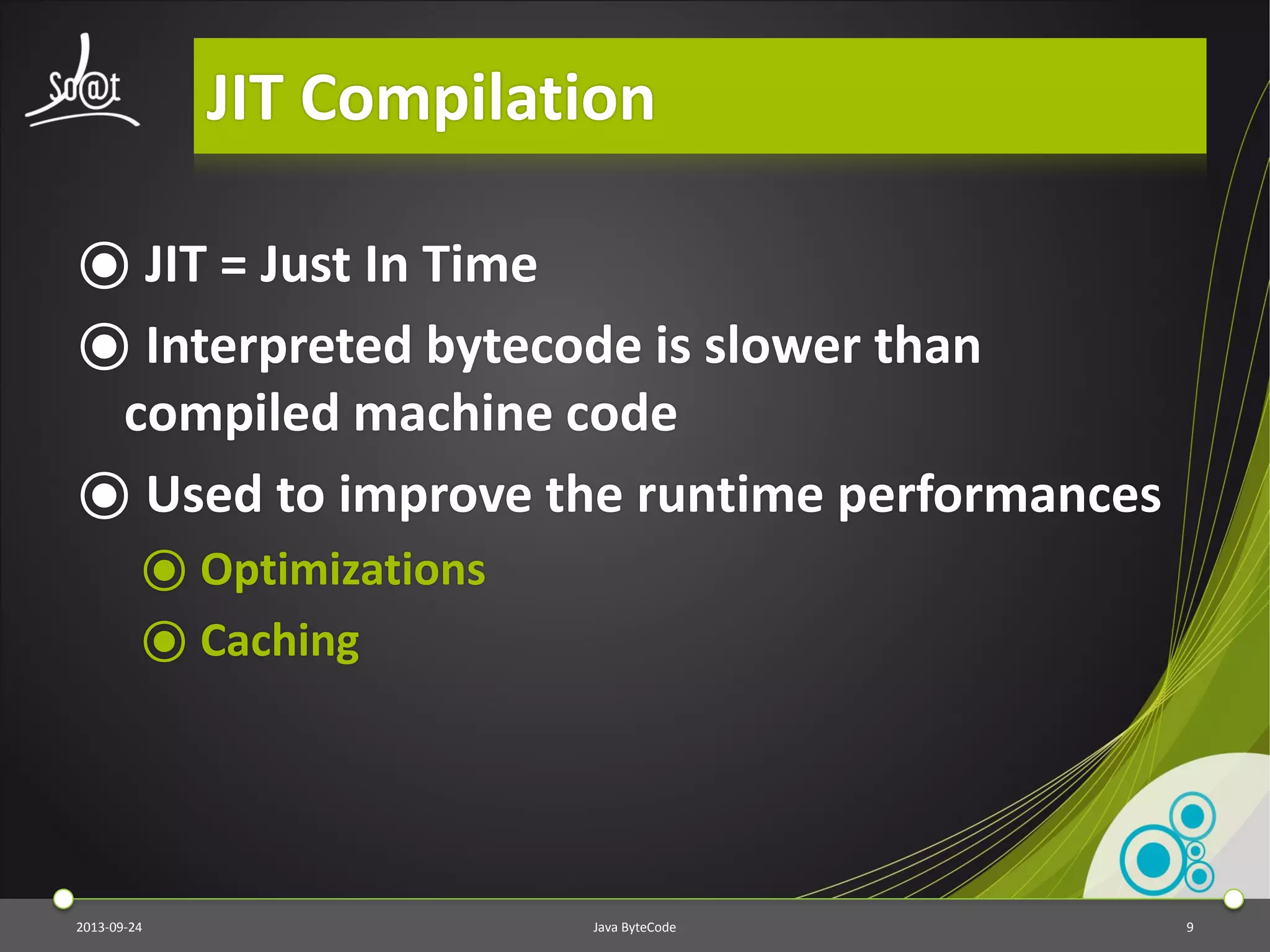

JIT Compilation
⦿ JIT = Just In Time
⦿ Interpreted bytecode is slower than
compiled machine code
⦿ Used to improve the runtime performances
⦿ Optimizations
⦿ Caching
2013-09-24 Java ByteCode 9

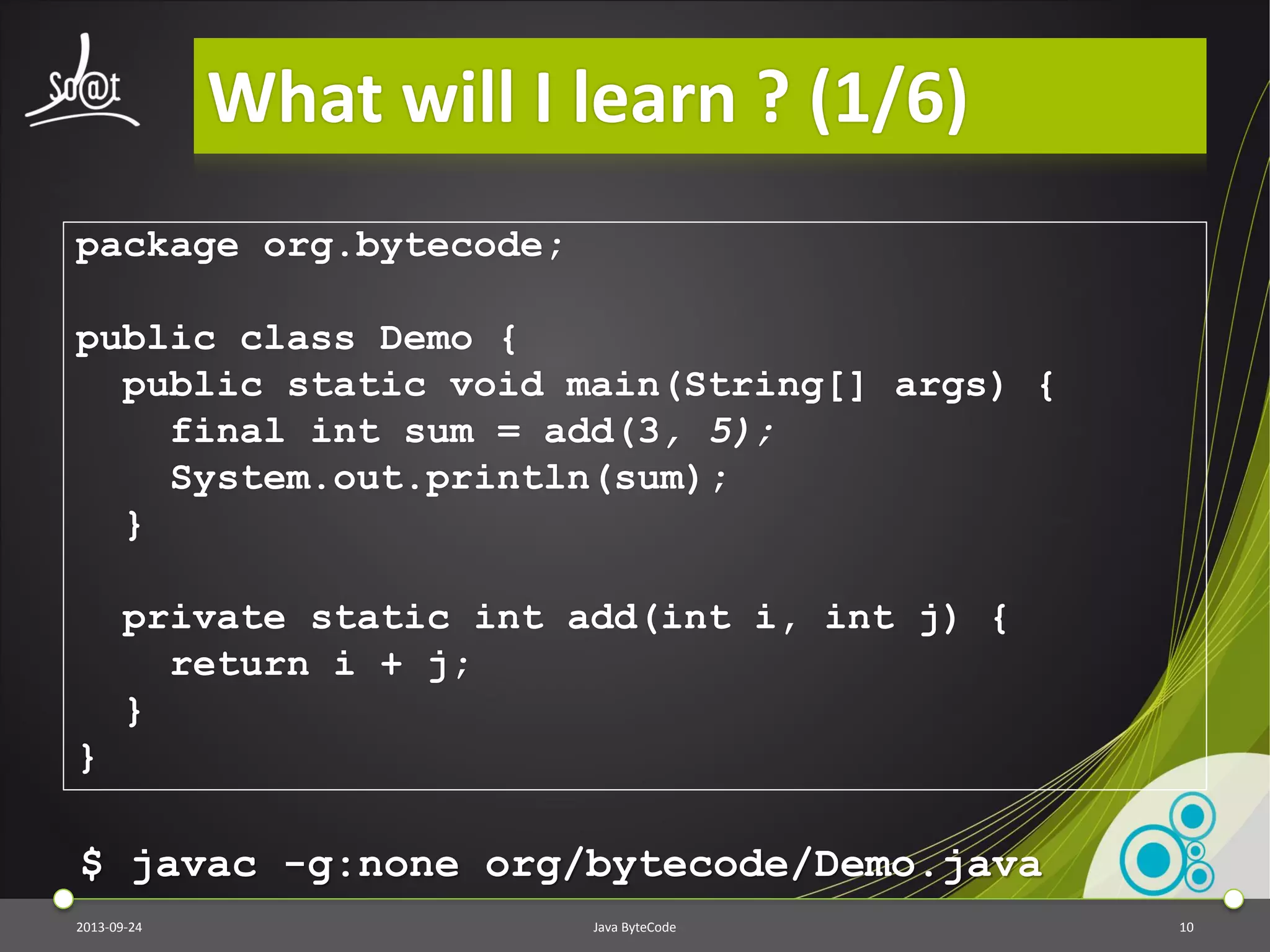

What will I learn ? (1/6)
package org.bytecode;
public class Demo {
public static void main(String[] args) {
final int sum = add(3, 5);
System.out.println(sum);
}
private static int add(int i, int j) {
return i + j;
}
}
2013-09-24 Java ByteCode 10
$ javac -g:none org/bytecode/Demo.java

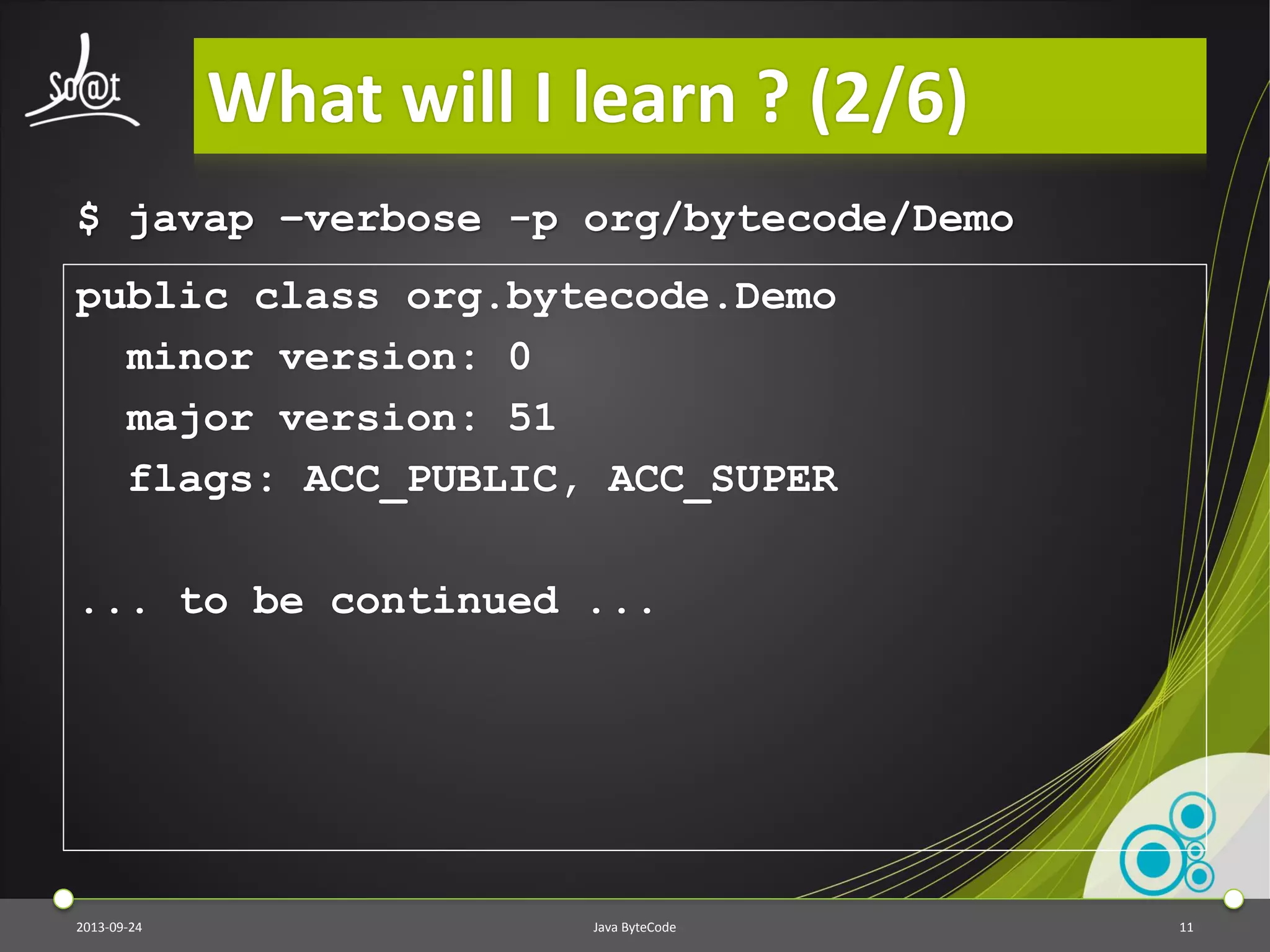

What will I learn ? (2/6)
public class org.bytecode.Demo
minor version: 0
major version: 51
flags: ACC_PUBLIC, ACC_SUPER
... to be continued ...
2013-09-24 Java ByteCode 11
$ javap –verbose -p org/bytecode/Demo

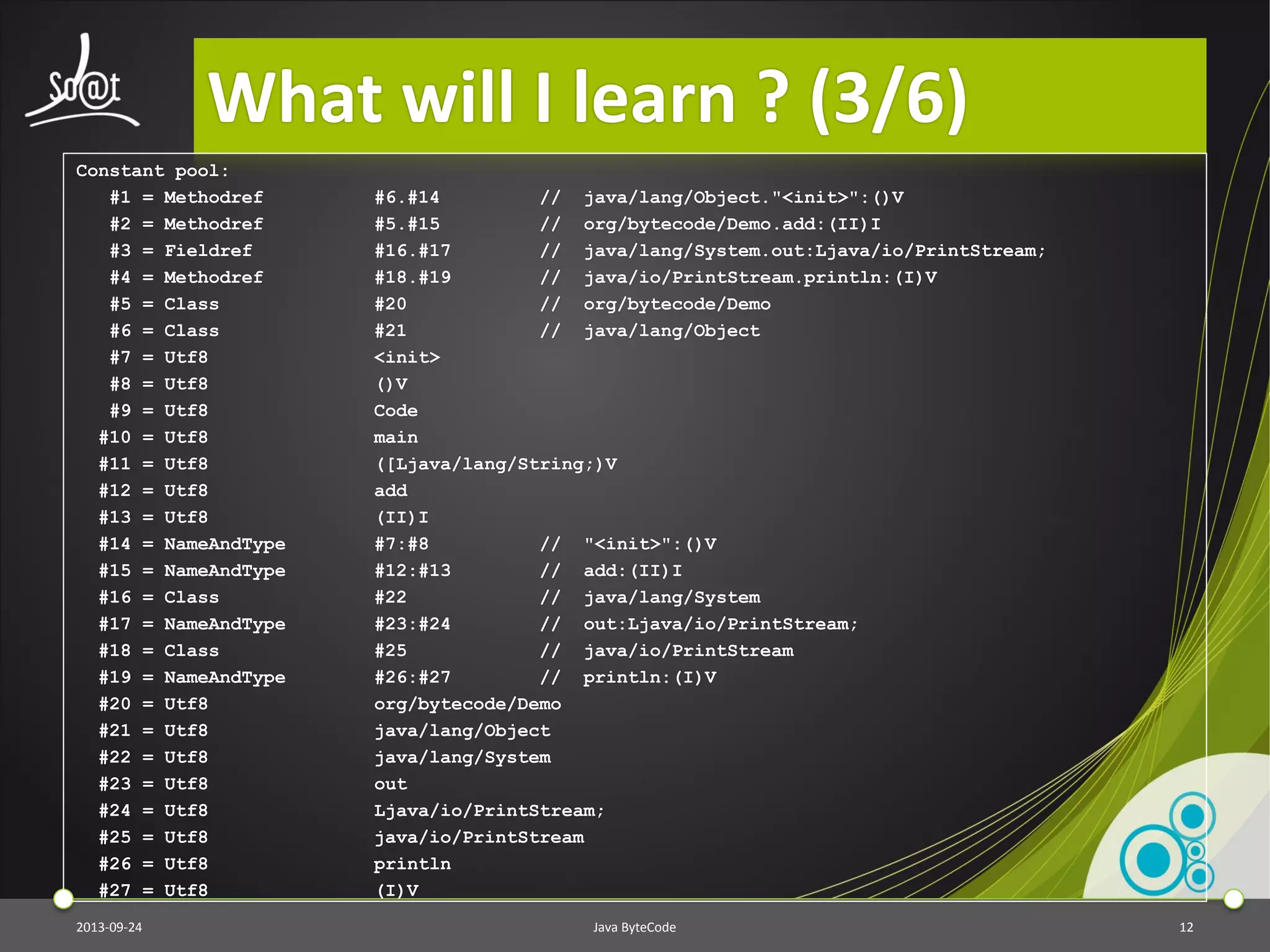

What will I learn ? (3/6)
Constant pool:
#1 = Methodref #6.#14 // java/lang/Object."<init>":()V
#2 = Methodref #5.#15 // org/bytecode/Demo.add:(II)I
#3 = Fieldref #16.#17 // java/lang/System.out:Ljava/io/PrintStream;
#4 = Methodref #18.#19 // java/io/PrintStream.println:(I)V
#5 = Class #20 // org/bytecode/Demo
#6 = Class #21 // java/lang/Object
#7 = Utf8 <init>
#8 = Utf8 ()V
#9 = Utf8 Code
#10 = Utf8 main
#11 = Utf8 ([Ljava/lang/String;)V
#12 = Utf8 add
#13 = Utf8 (II)I
#14 = NameAndType #7:#8 // "<init>":()V
#15 = NameAndType #12:#13 // add:(II)I
#16 = Class #22 // java/lang/System
#17 = NameAndType #23:#24 // out:Ljava/io/PrintStream;
#18 = Class #25 // java/io/PrintStream
#19 = NameAndType #26:#27 // println:(I)V
#20 = Utf8 org/bytecode/Demo
#21 = Utf8 java/lang/Object
#22 = Utf8 java/lang/System
#23 = Utf8 out
#24 = Utf8 Ljava/io/PrintStream;
#25 = Utf8 java/io/PrintStream
#26 = Utf8 println
#27 = Utf8 (I)V
2013-09-24 Java ByteCode 12
What will I learn ? (4/6)
{
public org.bytecode.Demo();
flags: ACC_PUBLIC
Code:
stack=1, locals=1, args_size=1
0: aload_0
1: invokespecial #1 // Method java/lang/Object."<init>":()V
4: return
... to be continued ...
2013-09-24 Java ByteCode 13

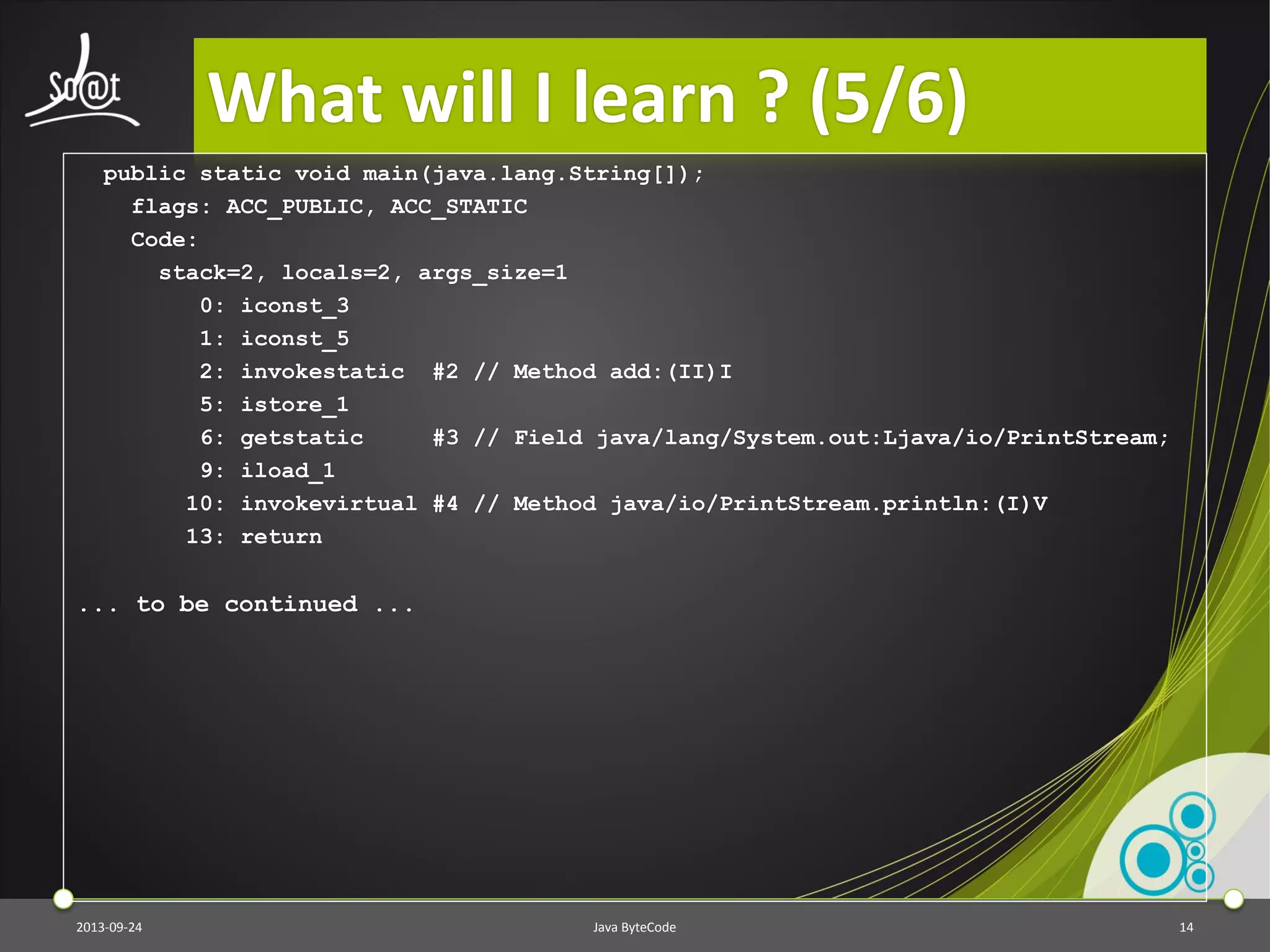

What will I learn ? (5/6)
public static void main(java.lang.String[]);
flags: ACC_PUBLIC, ACC_STATIC
Code:
stack=2, locals=2, args_size=1
0: iconst_3
1: iconst_5
2: invokestatic #2 // Method add:(II)I
5: istore_1
6: getstatic #3 // Field java/lang/System.out:Ljava/io/PrintStream;
9: iload_1
10: invokevirtual #4 // Method java/io/PrintStream.println:(I)V
13: return
... to be continued ...
2013-09-24 Java ByteCode 14
What will I learn ? (6/6)

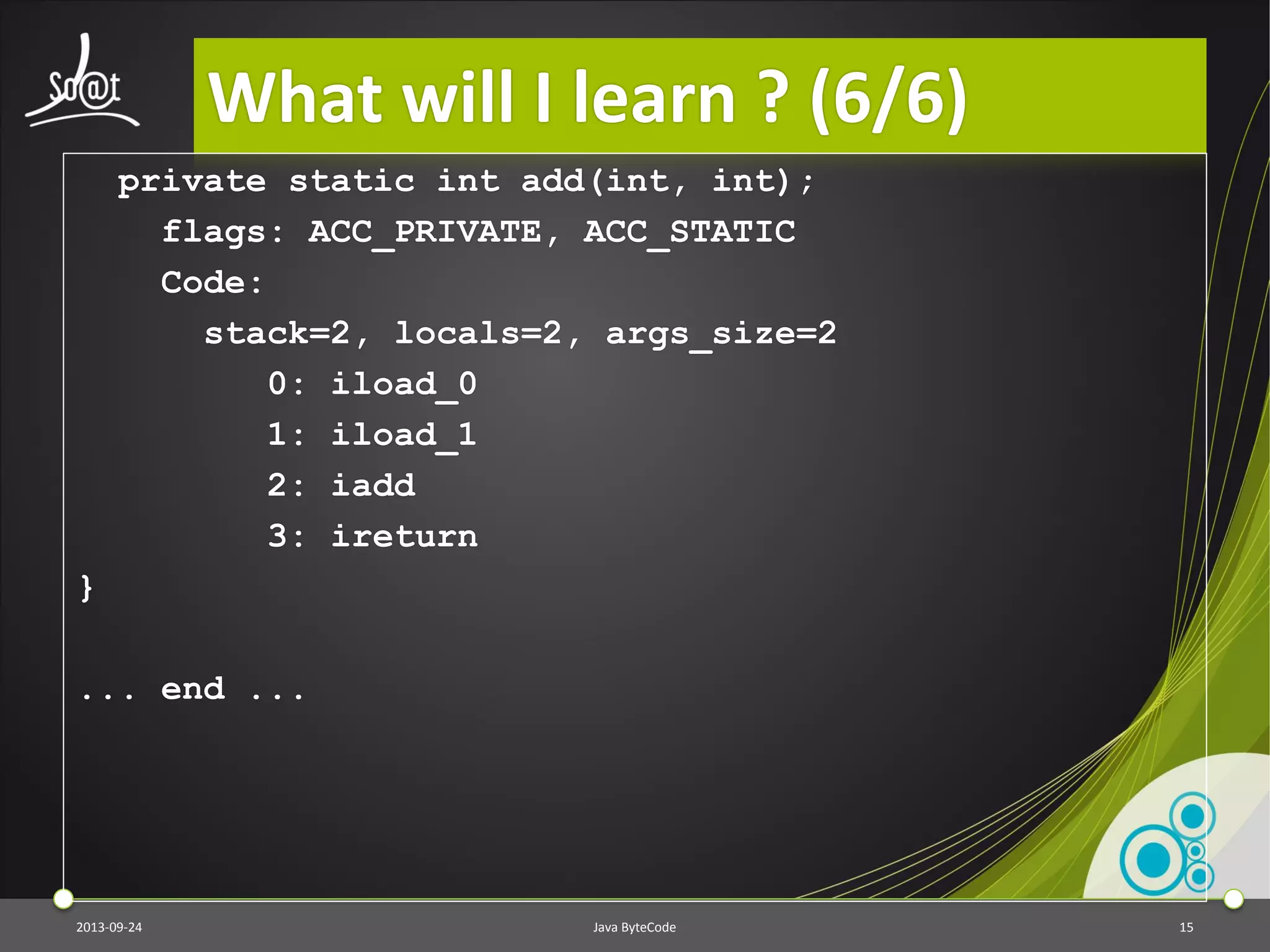

private static int add(int, int);
flags: ACC_PRIVATE, ACC_STATIC
Code:
stack=2, locals=2, args_size=2
0: iload_0
1: iload_1
2: iadd
3: ireturn
}
... end ...
2013-09-24 Java ByteCode 15

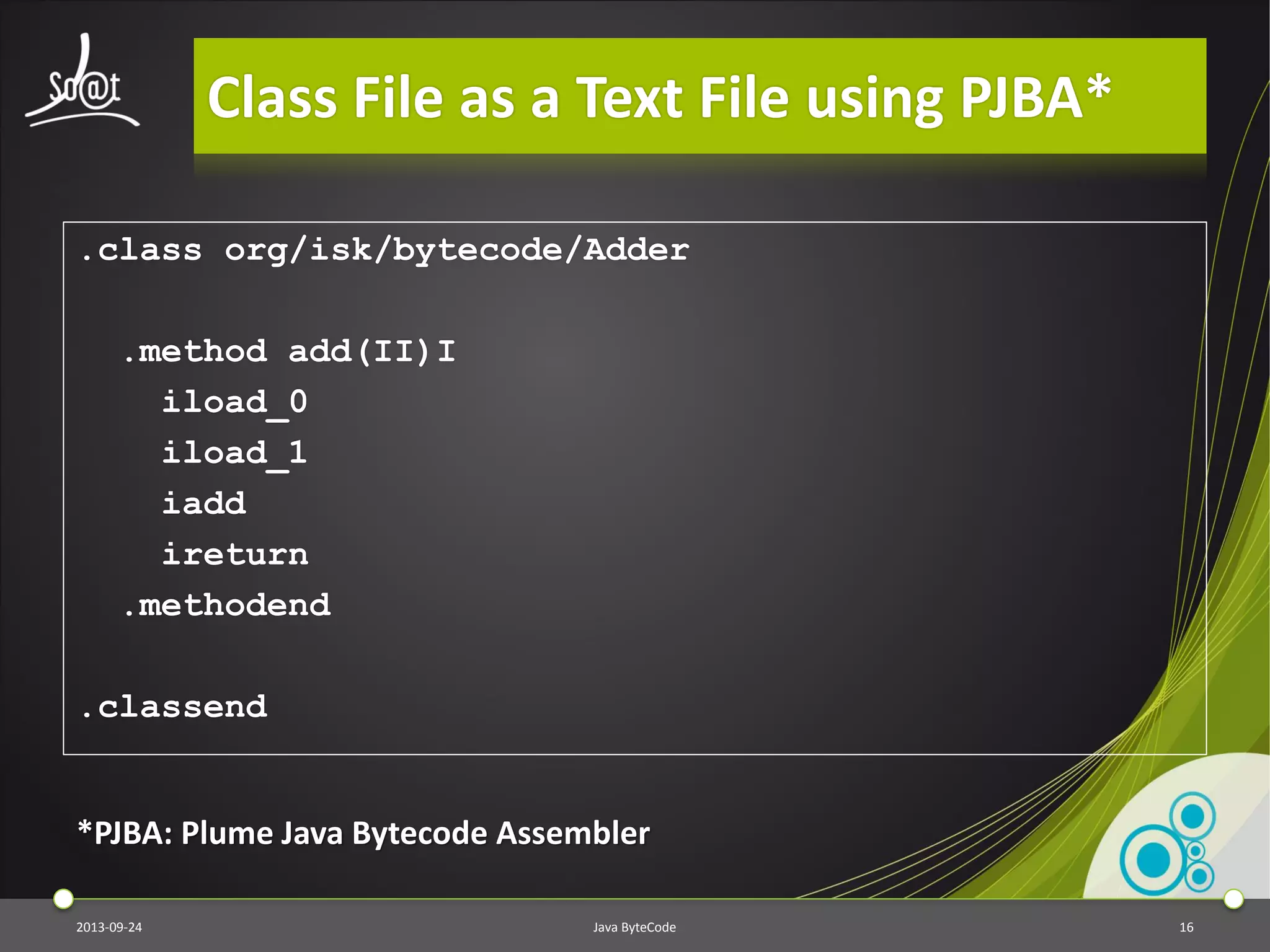

Class File as a Text File using PJBA*
.class org/isk/bytecode/Adder
.method add(II)I
iload_0
iload_1
iadd
ireturn
.methodend
.classend
2013-09-24 Java ByteCode 16
*PJBA: Plume Java Bytecode Assembler

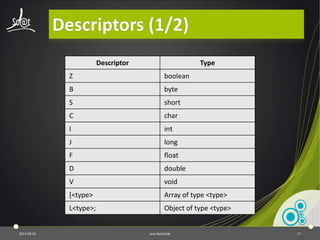

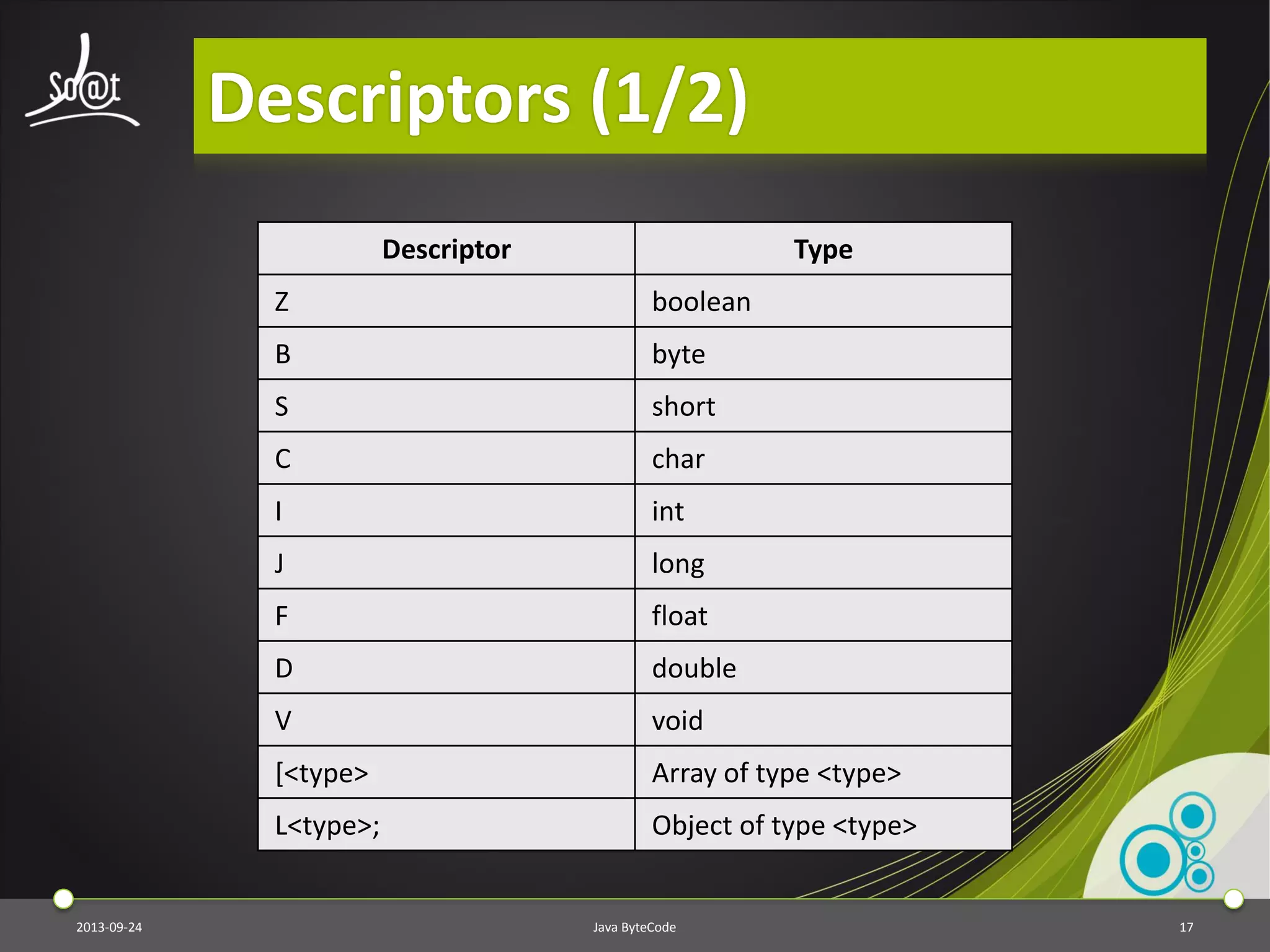

Descriptors (1/2)
2013-09-24 Java ByteCode 17
Descriptor Type
Z boolean
B byte
S short
C char
I int
J long
F float
D double
V void
[<type> Array of type <type>
L<type>; Object of type <type>

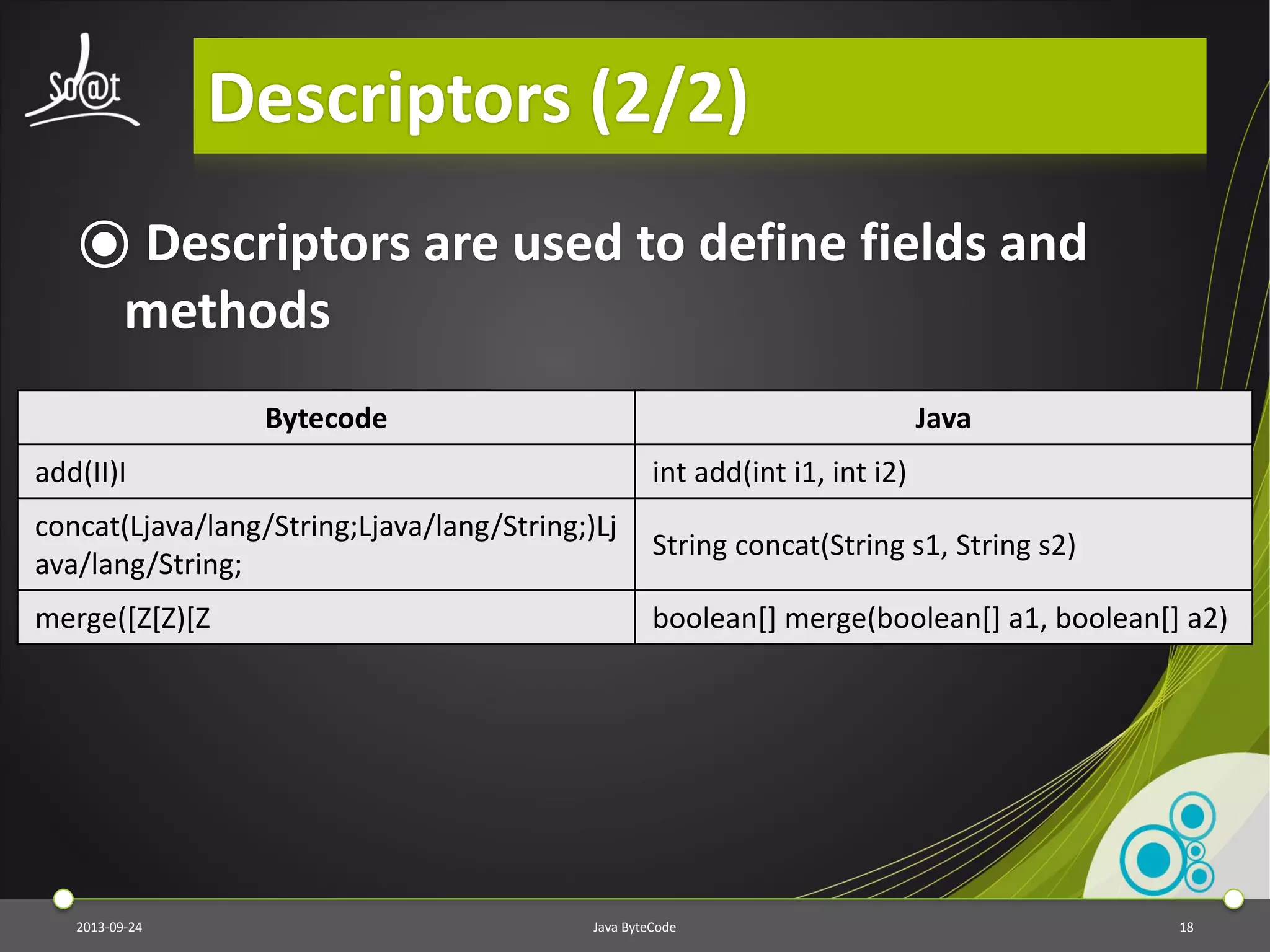

Descriptors (2/2)
⦿ Descriptors are used to define fields and
methods
2013-09-24 Java ByteCode 18
Bytecode Java
add(II)I int add(int i1, int i2)
concat(Ljava/lang/String;Ljava/lang/String;)Lj
ava/lang/String;
String concat(String s1, String s2)
merge([Z[Z)[Z boolean[] merge(boolean[] a1, boolean[] a2)
Introduction to
the JVM
2013-09-24 Java ByteCode 19

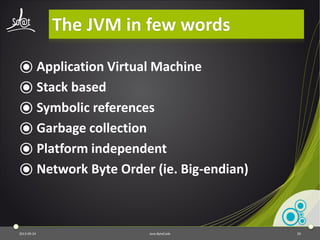

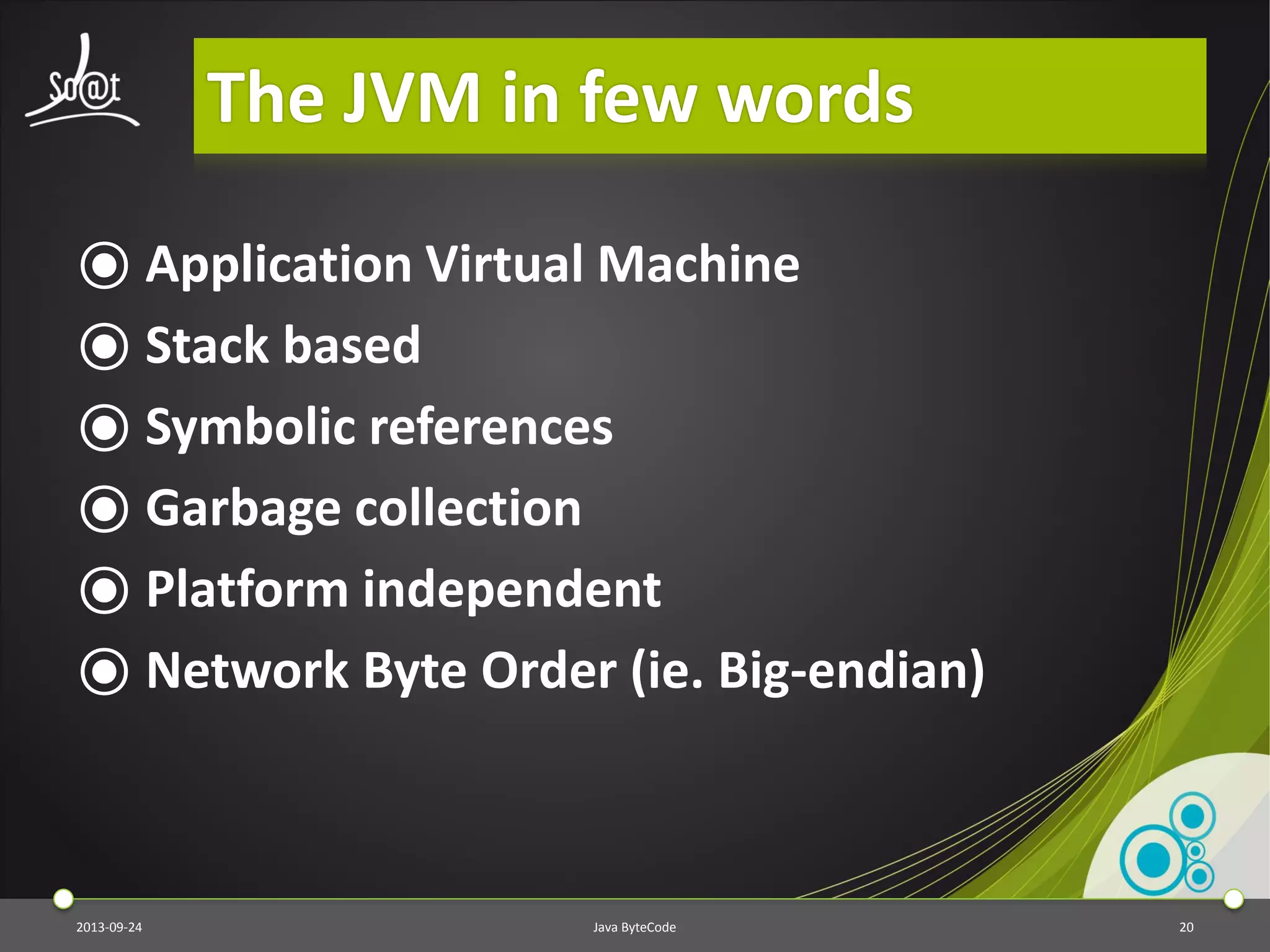

The JVM in few words
⦿ Application Virtual Machine
⦿ Stack based
⦿ Symbolic references
⦿ Garbage collection
⦿ Platform independent
⦿ Network Byte Order (ie. Big-endian)
2013-09-24 Java ByteCode 20

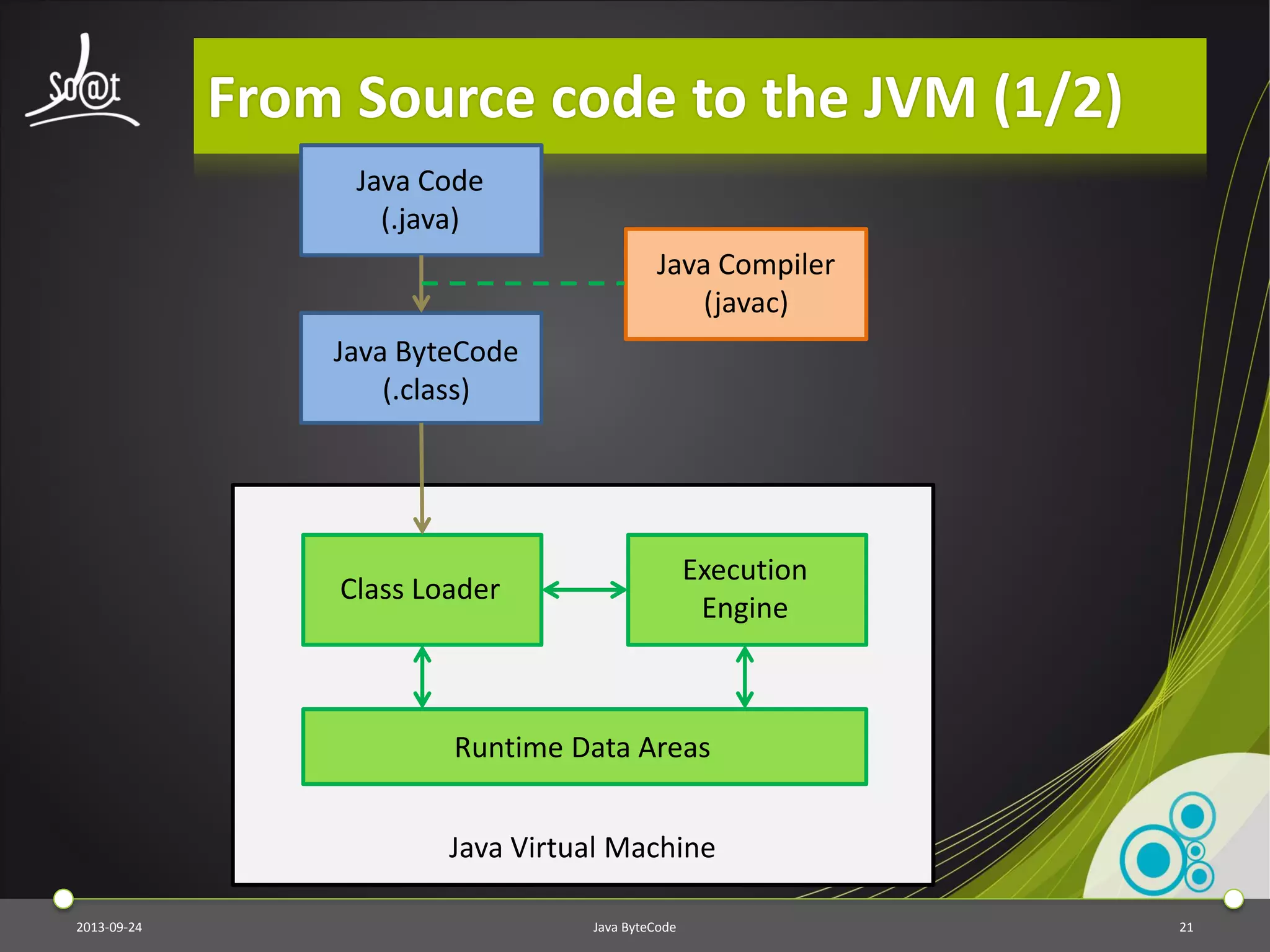

From Source code to the JVM (1/2)
2013-09-24 Java ByteCode 21
Java Code
(.java)
Java ByteCode
(.class)
Java Compiler
(javac)
Class Loader
Execution
Engine
Runtime Data Areas
Java Virtual Machine

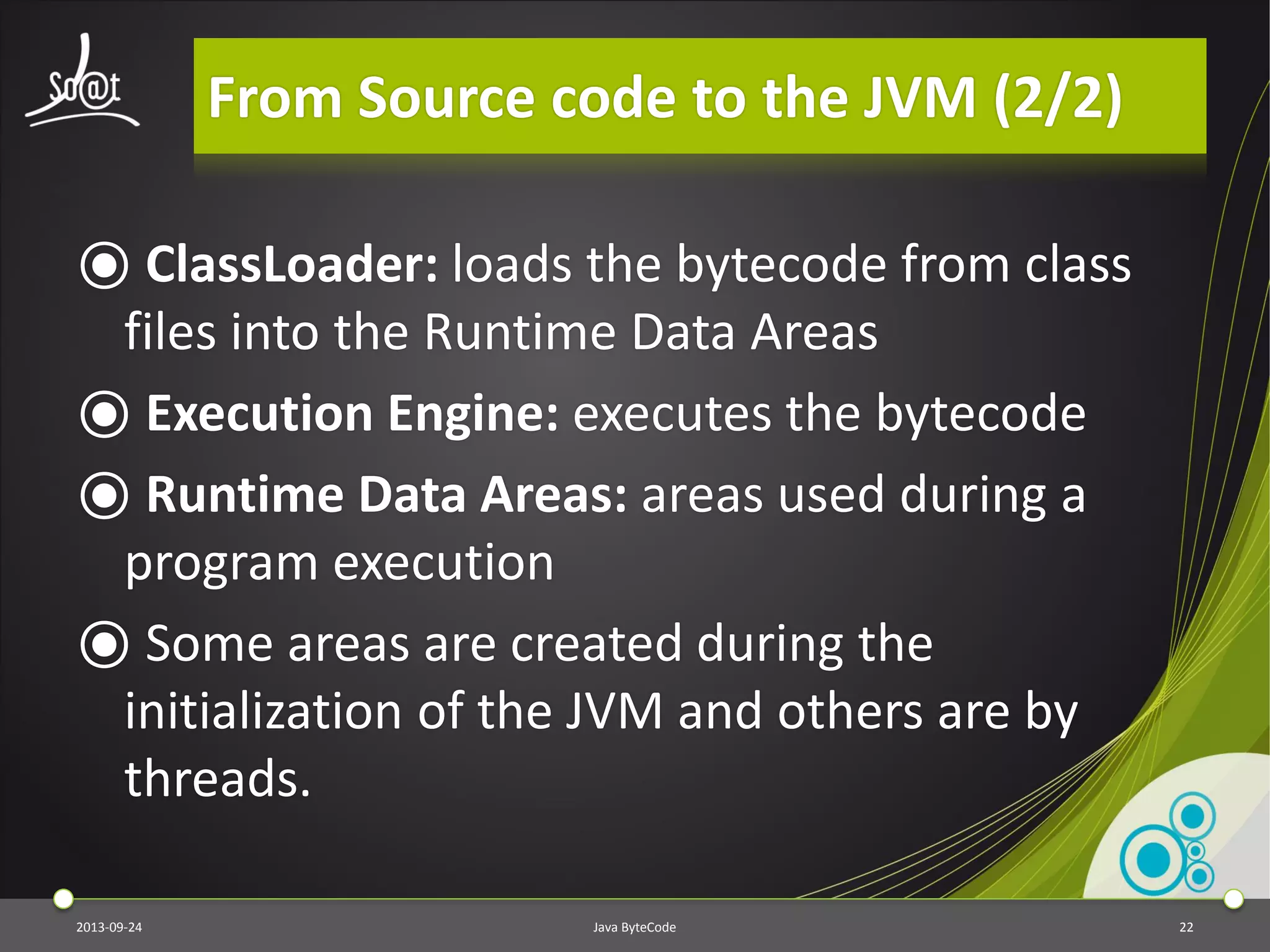

From Source code to the JVM (2/2)
⦿ ClassLoader: loads the bytecode from class
files into the Runtime Data Areas
⦿ Execution Engine: executes the bytecode
⦿ Runtime Data Areas: areas used during a
program execution
⦿ Some areas are created during the
initialization of the JVM and others are by
threads.
2013-09-24 Java ByteCode 22

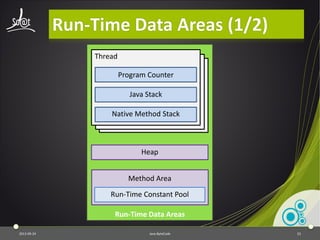

Run-Time Data Areas (1/2)

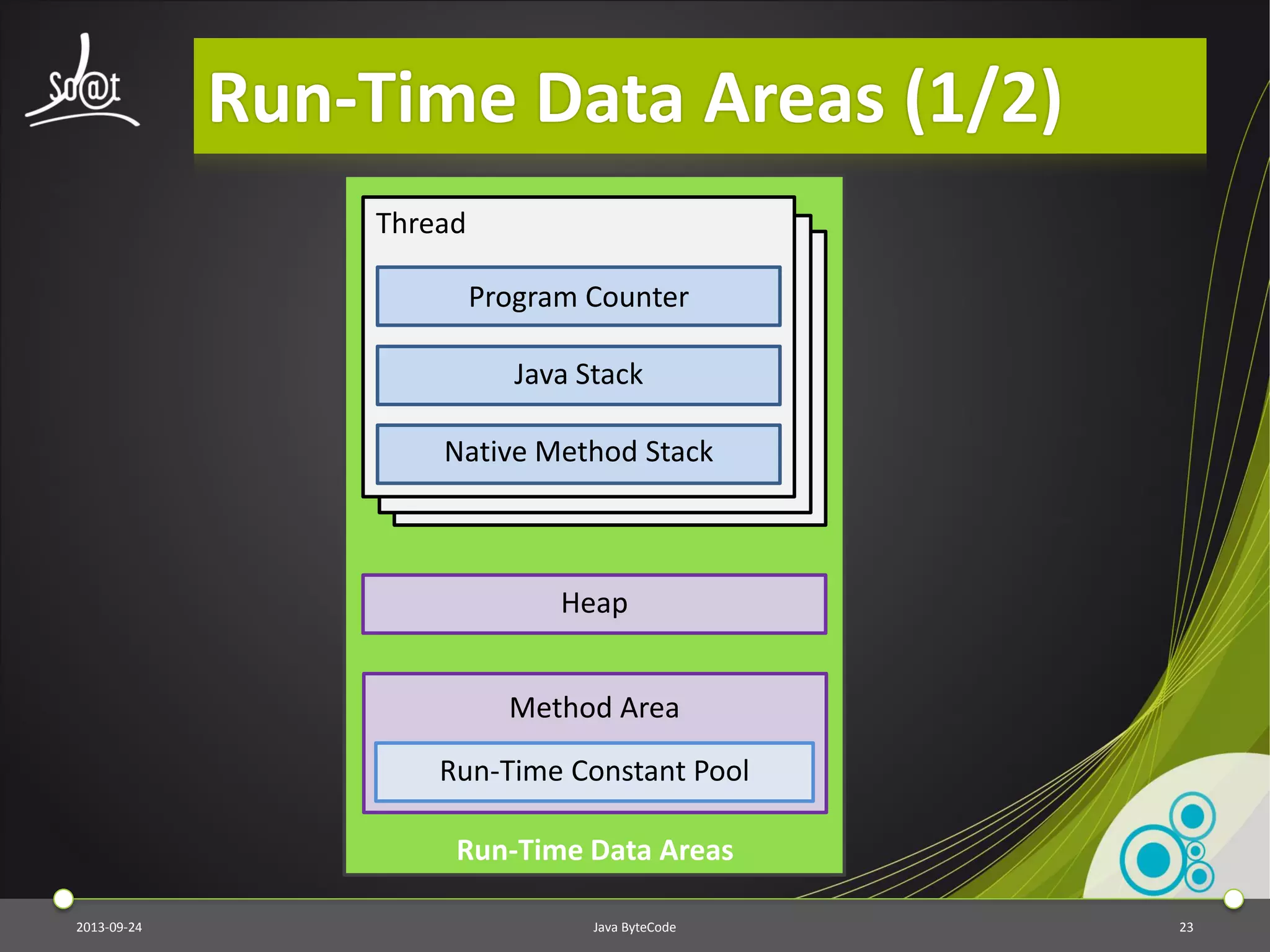

2013-09-24 Java ByteCode 23
Run-Time Data Areas
Thread
Program Counter
Java Stack
Native Method Stack
Heap
Method Area
Run-Time Constant Pool
Run-Time Data Areas (2/2)

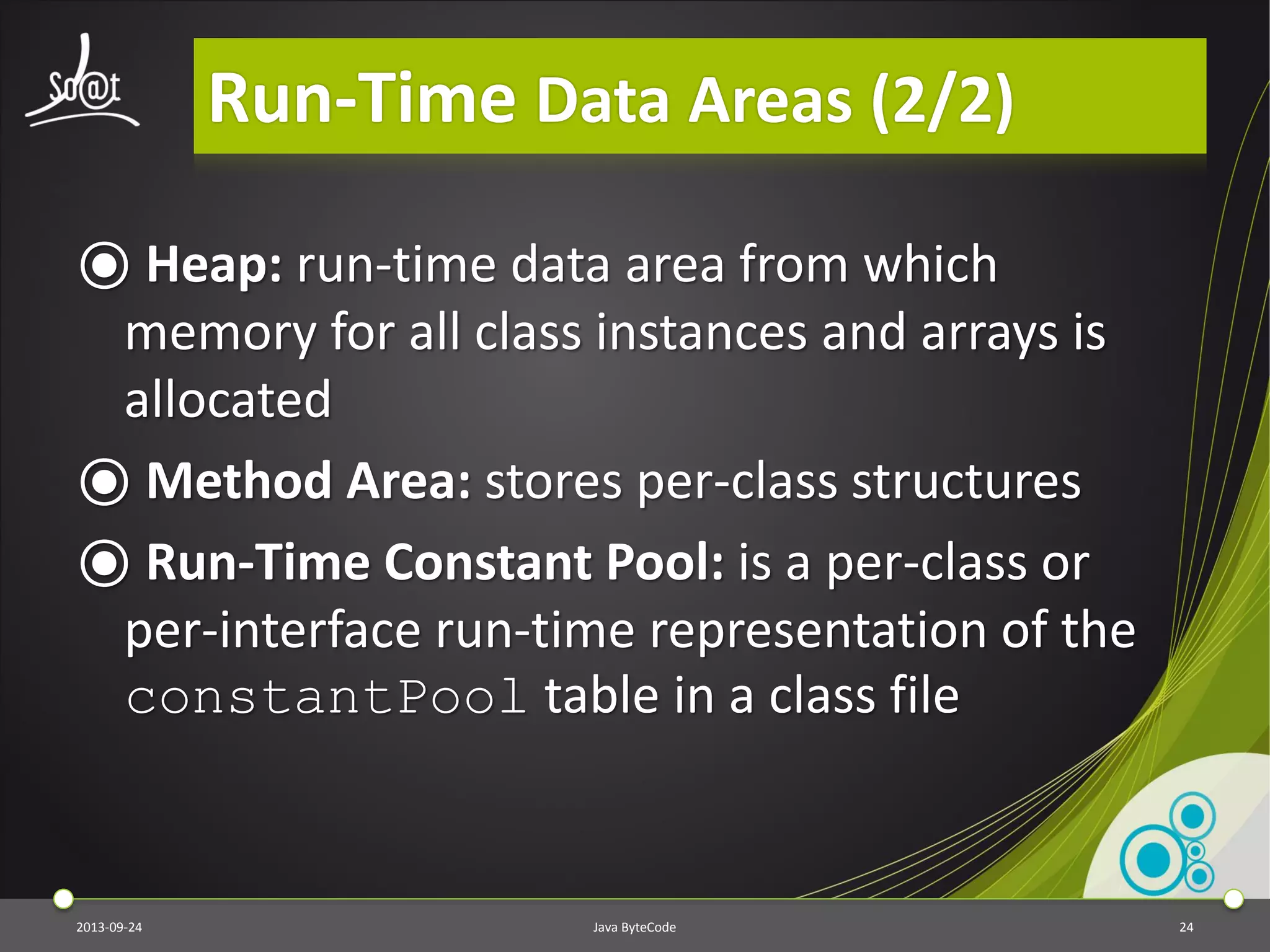

⦿ Heap: run-time data area from which
memory for all class instances and arrays is
allocated
⦿ Method Area: stores per-class structures
⦿ Run-Time Constant Pool: is a per-class or
per-interface run-time representation of the
constantPool table in a class file
2013-09-24 Java ByteCode 24
Runtime Data Areas (2/2)

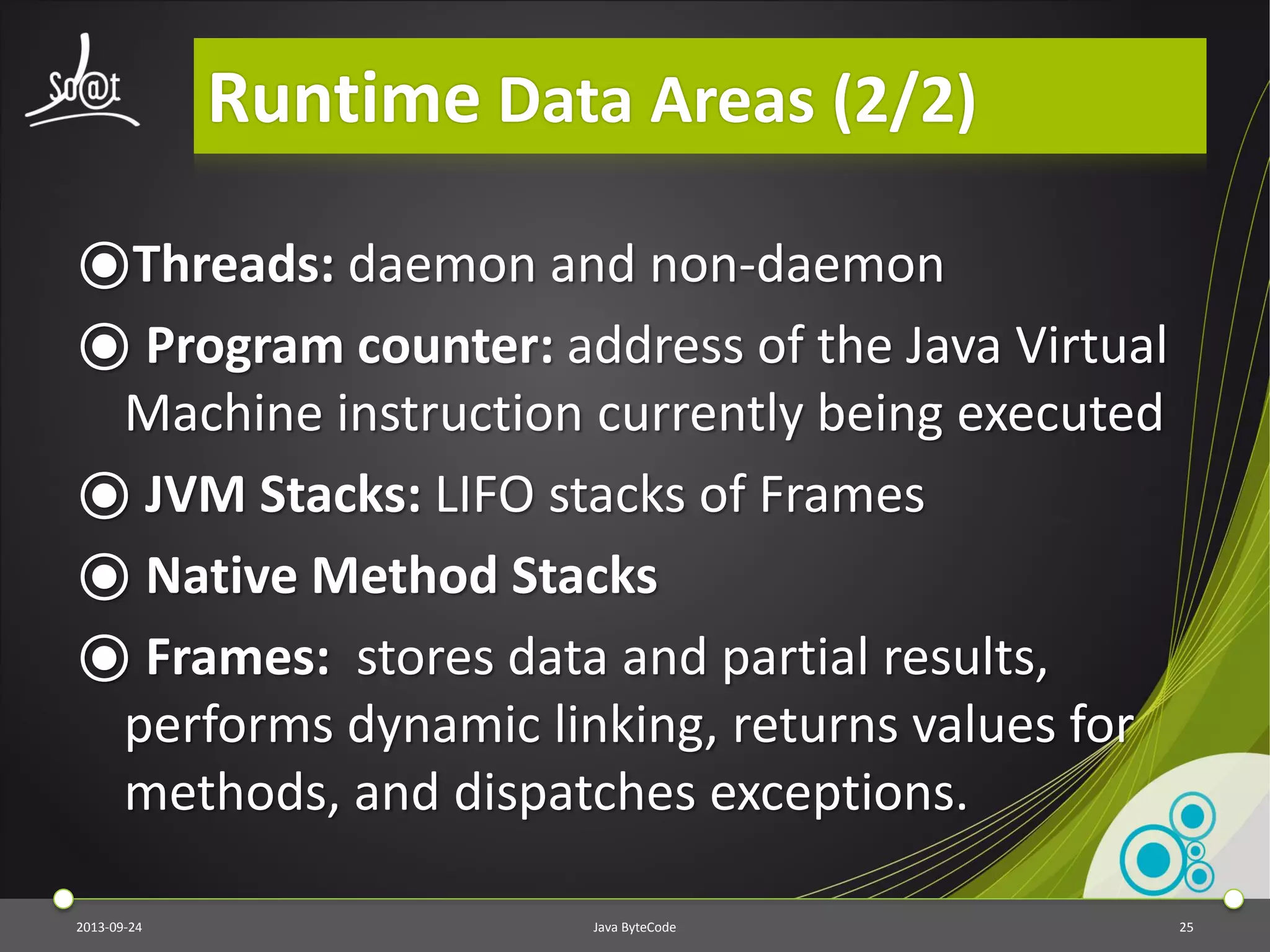

⦿Threads: daemon and non-daemon
⦿ Program counter: address of the Java Virtual
Machine instruction currently being executed
⦿ JVM Stacks: LIFO stacks of Frames
⦿ Native Method Stacks
⦿ Frames: stores data and partial results,
performs dynamic linking, returns values for
methods, and dispatches exceptions.
2013-09-24 Java ByteCode 25

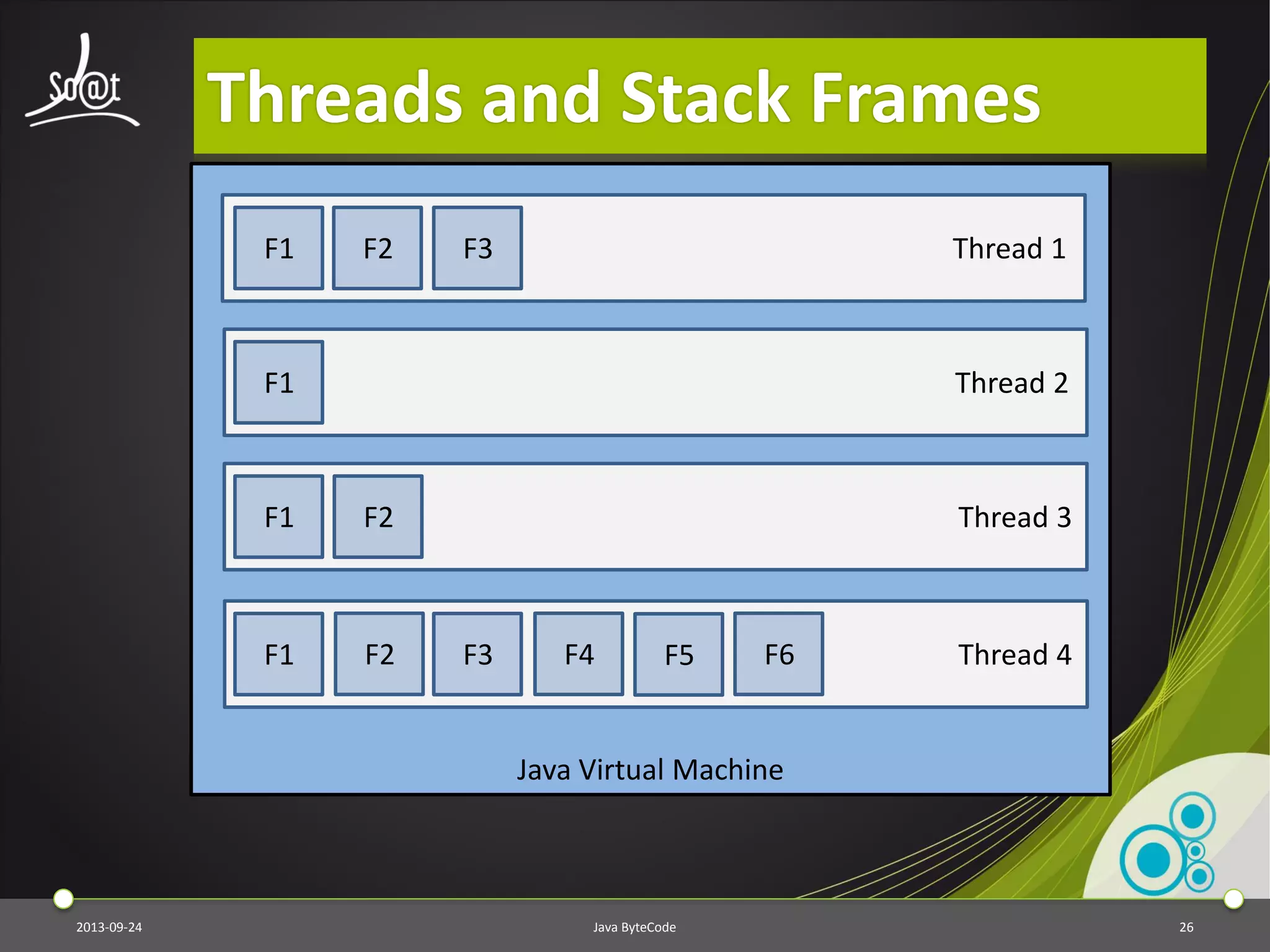

Threads and Stack Frames
2013-09-24 Java ByteCode 26
Java Virtual Machine
Thread 4
Thread 3
Thread 2
Thread 1F1
F1
F1
F1
F2 F3
F2
F2 F3 F4 F5 F6

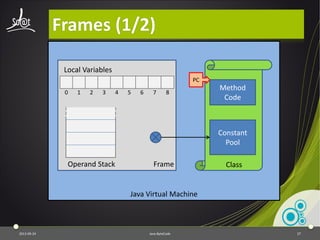

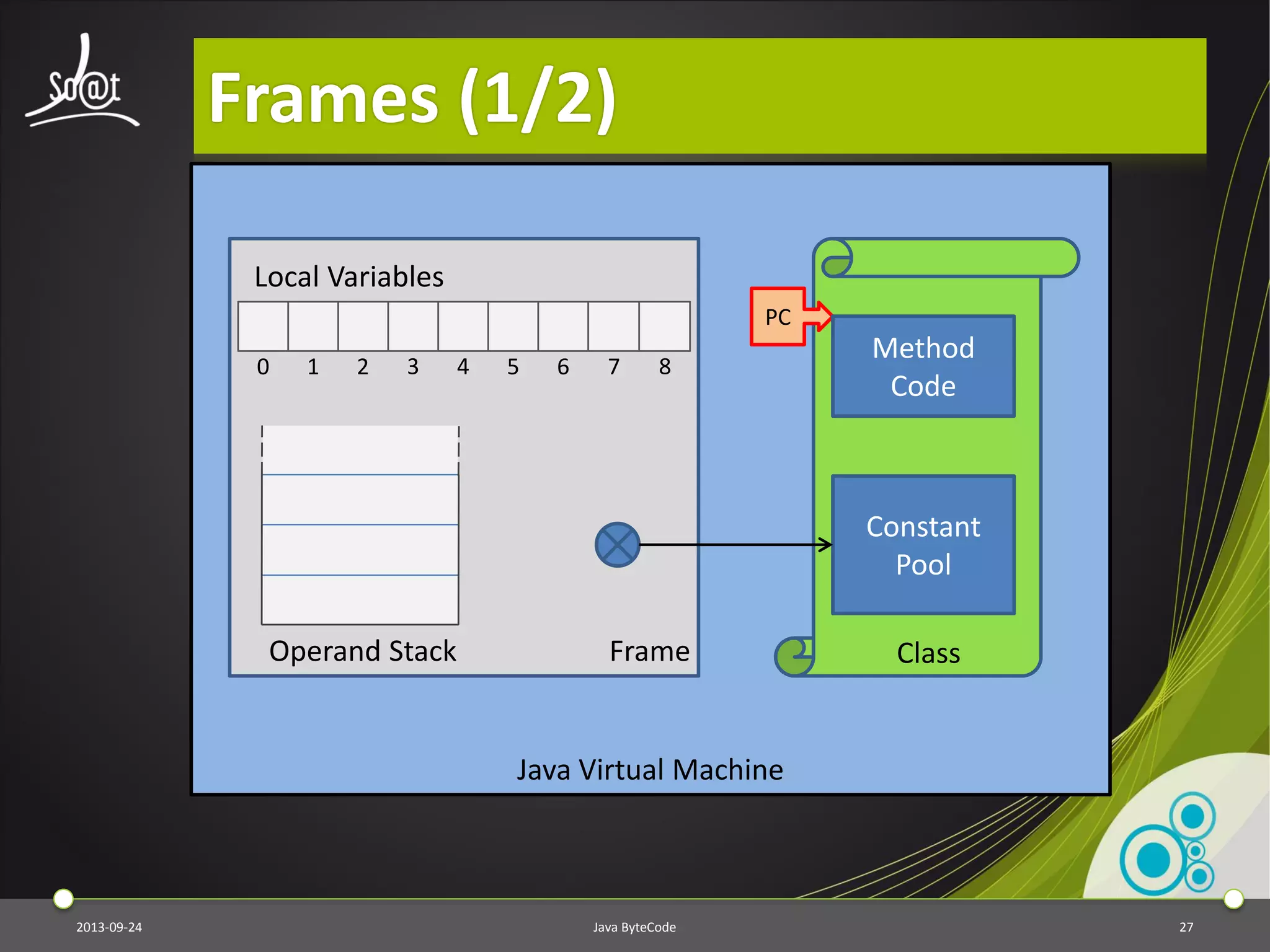

Frames (1/2)
2013-09-24 Java ByteCode 27
Java Virtual Machine
PC
Frame Class
Local Variables
0 1 2 3 4 5 6 7 8
Operand Stack
Method
Code
Constant
Pool

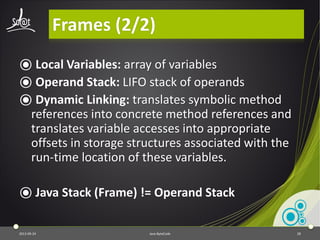

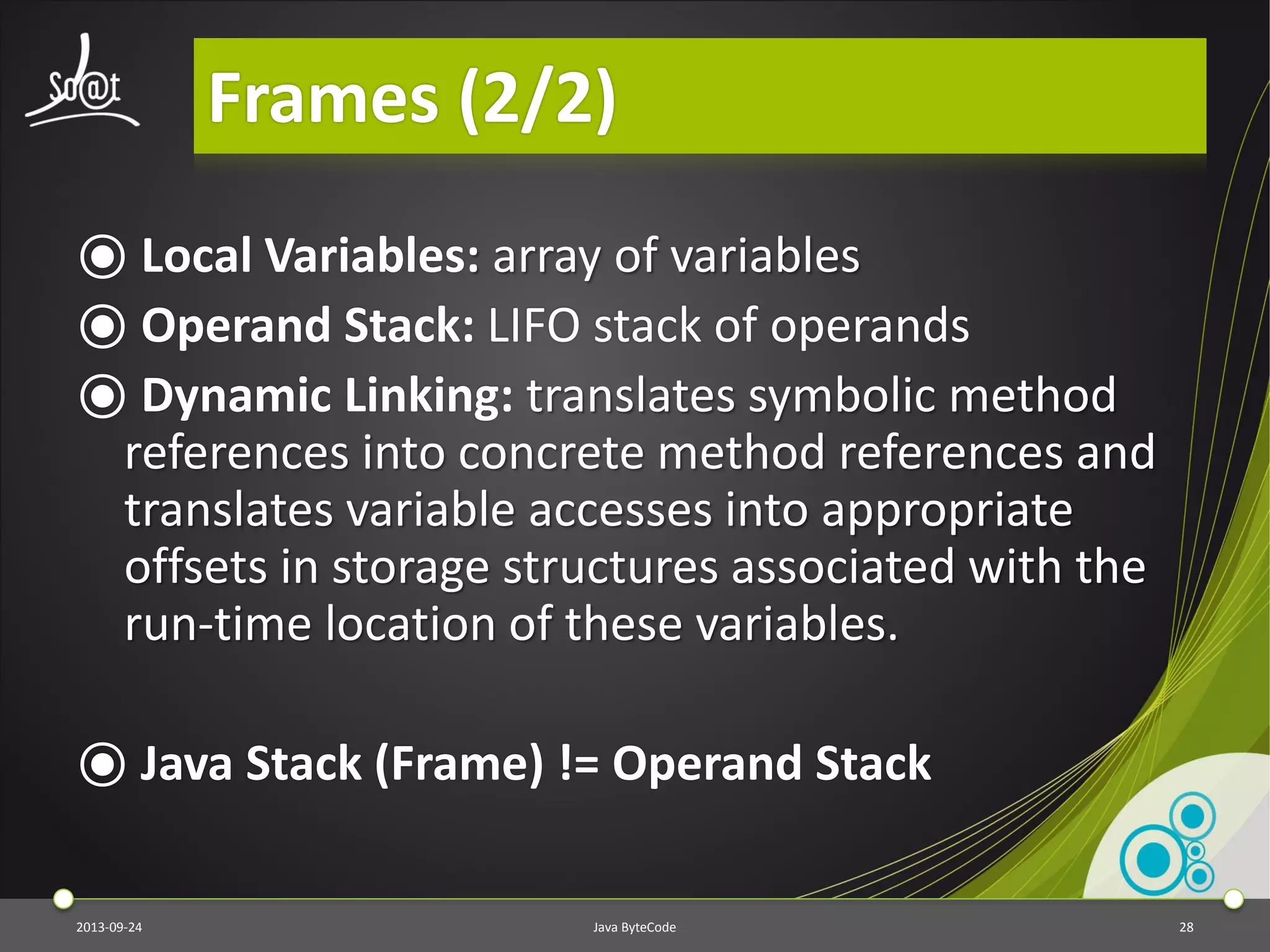

Frames (2/2)
⦿ Local Variables: array of variables
⦿ Operand Stack: LIFO stack of operands
⦿ Dynamic Linking: translates symbolic method
references into concrete method references and
translates variable accesses into appropriate
offsets in storage structures associated with the
run-time location of these variables.
⦿ Java Stack (Frame) != Operand Stack
2013-09-24 Java ByteCode 28
Frame 1 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
ra
PC

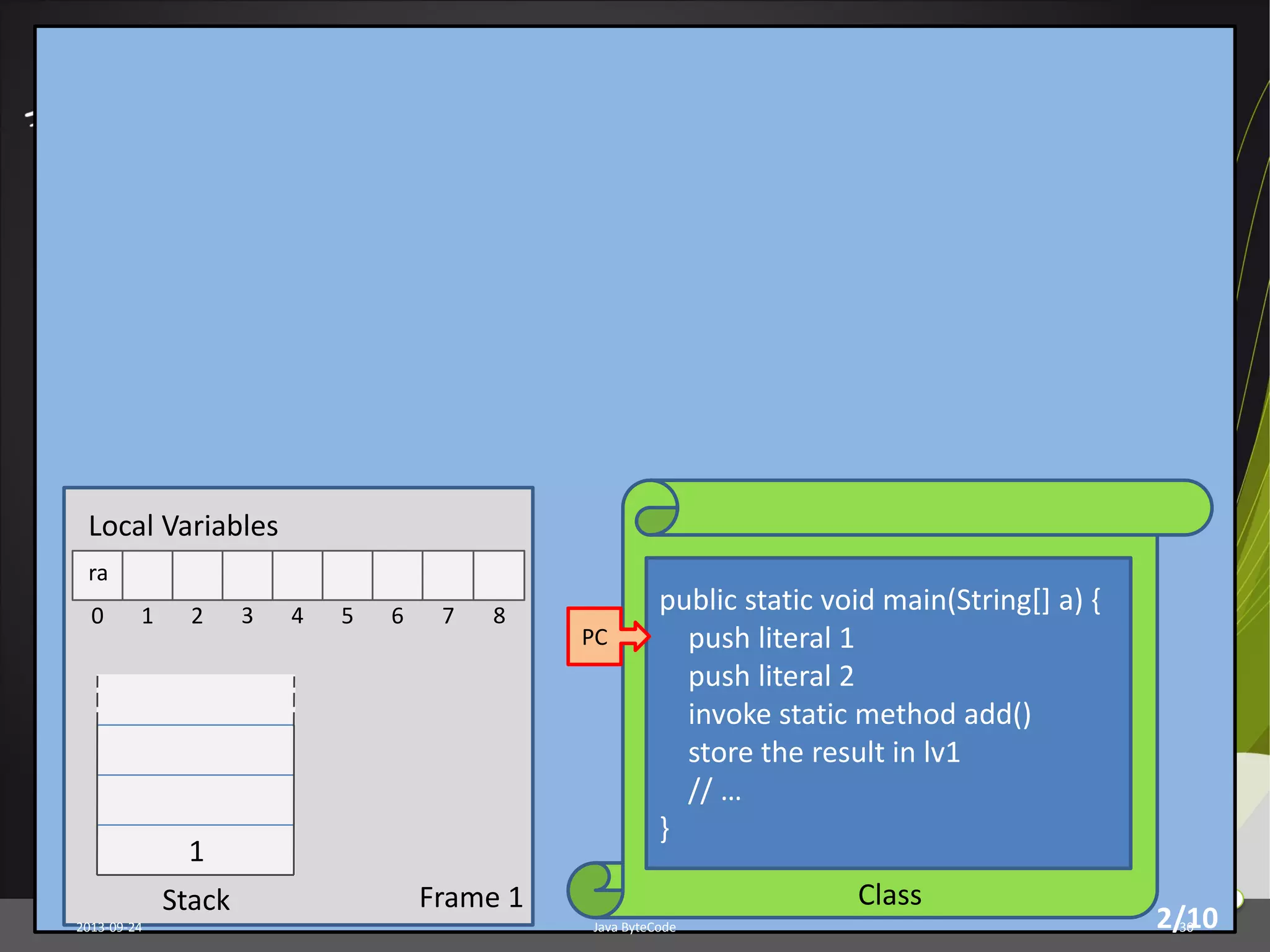

1/102013-09-24 Java ByteCode 29
Frame 1 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
ra
PC
1
2/102013-09-24 Java ByteCode 30
Frame 1 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
ra
PC
2
1
3/102013-09-24 Java ByteCode 31
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
4/102013-09-24 Java ByteCode 32
Cadre 1 Class
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
ra
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
2
1
Cadre inactif
Frame 1
Local Variable
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame

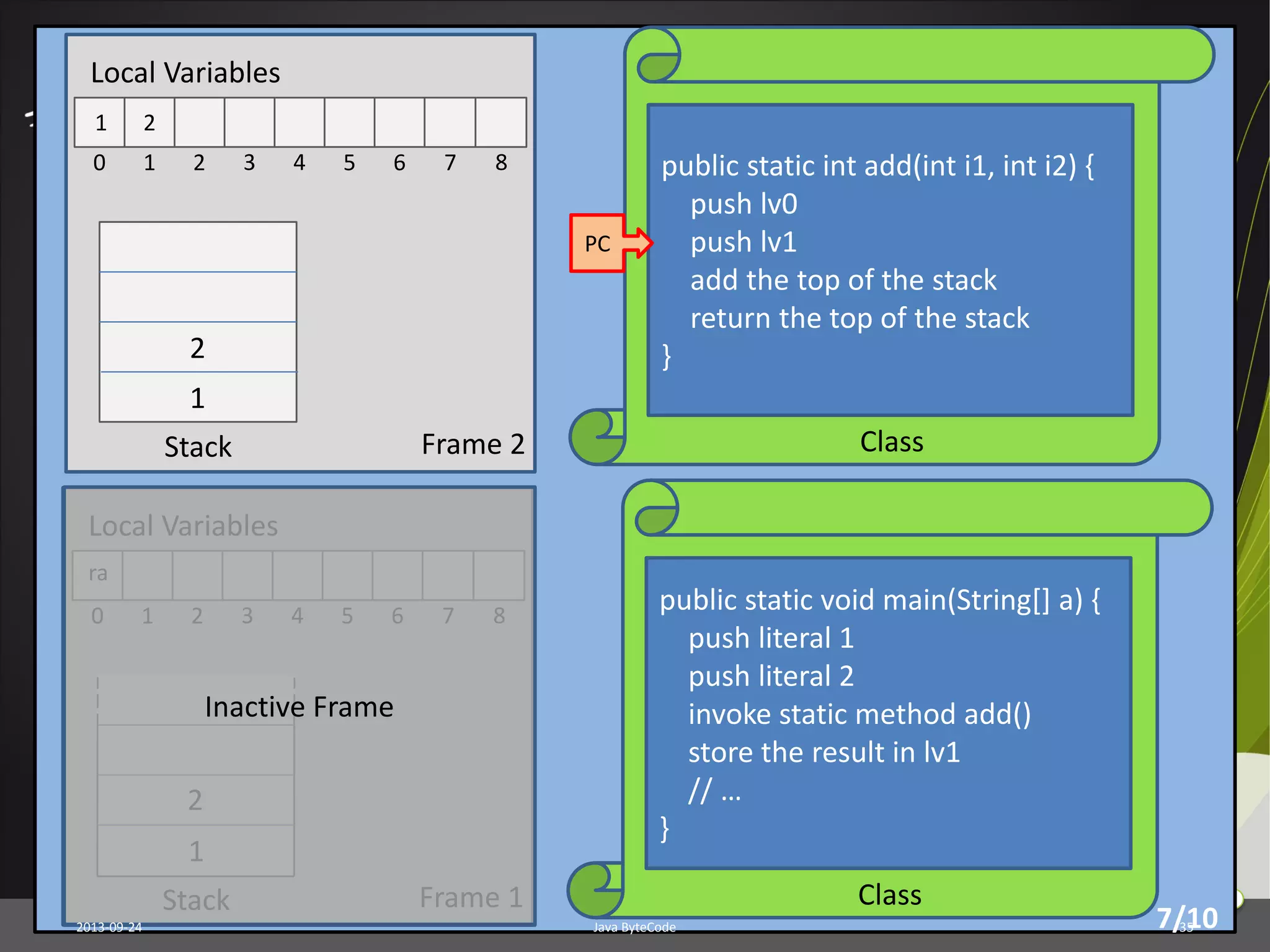

5/102013-09-24 Java ByteCode 33
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
1
Cadre 1
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
ra
2
1
Cadre inactif
Cadre 1
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
ra
2
1
Cadre inactif
Frame 1
Local Variable
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
6/102013-09-24 Java ByteCode 34
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
2
1
Cadre 1
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
ra
2
1
Cadre inactif
Frame 1
Local Variable
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
7/102013-09-24 Java ByteCode 35
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
3
Cadre 1
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
ra
2
1
Cadre inactif
Frame 1
Local Variable
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
8/102013-09-24 Java ByteCode 36
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
Frame 2 Class
Local Variables
0 1 2 3 4 5 6 7 8
Stack
public static int add(int i1, int i2) {
push lv0
push lv1
add the top of the stack
return the top of the stack
}
1
PC
2
3
Cadre 1
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
ra
3
Cadre inactif
Frame 1
Local Variable
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
2
1
Inactive Frame
9/102013-09-24 Java ByteCode 37
Class
public static void main(String[] a) {
push literal 1
push literal 2
invoke static method add()
store the result in lv1
// …
}
PC
Frame 1
Local Variables
0 1 2 3 4 5 6 7 8
Stack
ra
3
3
10/102013-09-24 Java ByteCode 38

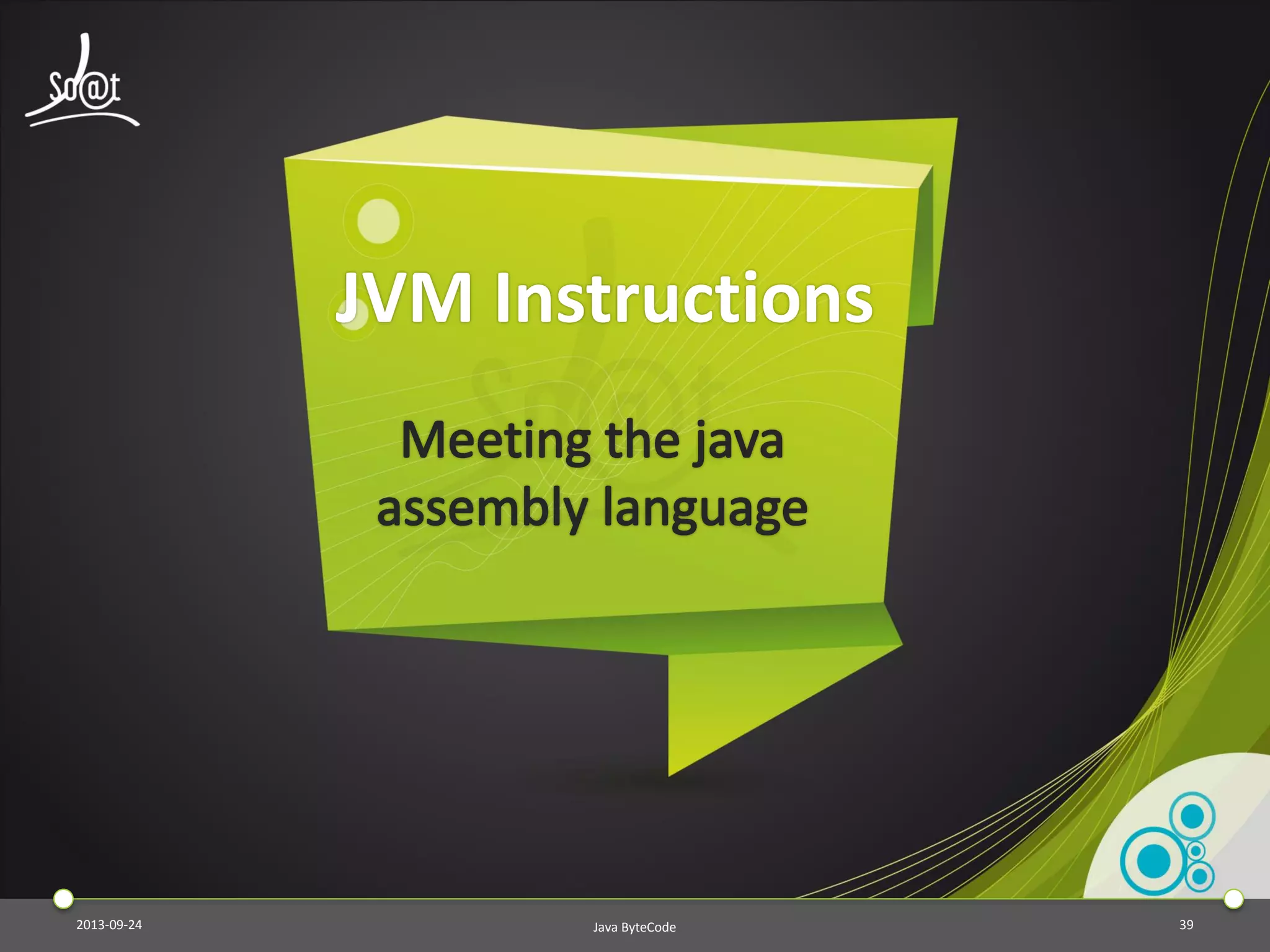

JVM Instructions
2013-09-24 Java ByteCode 39

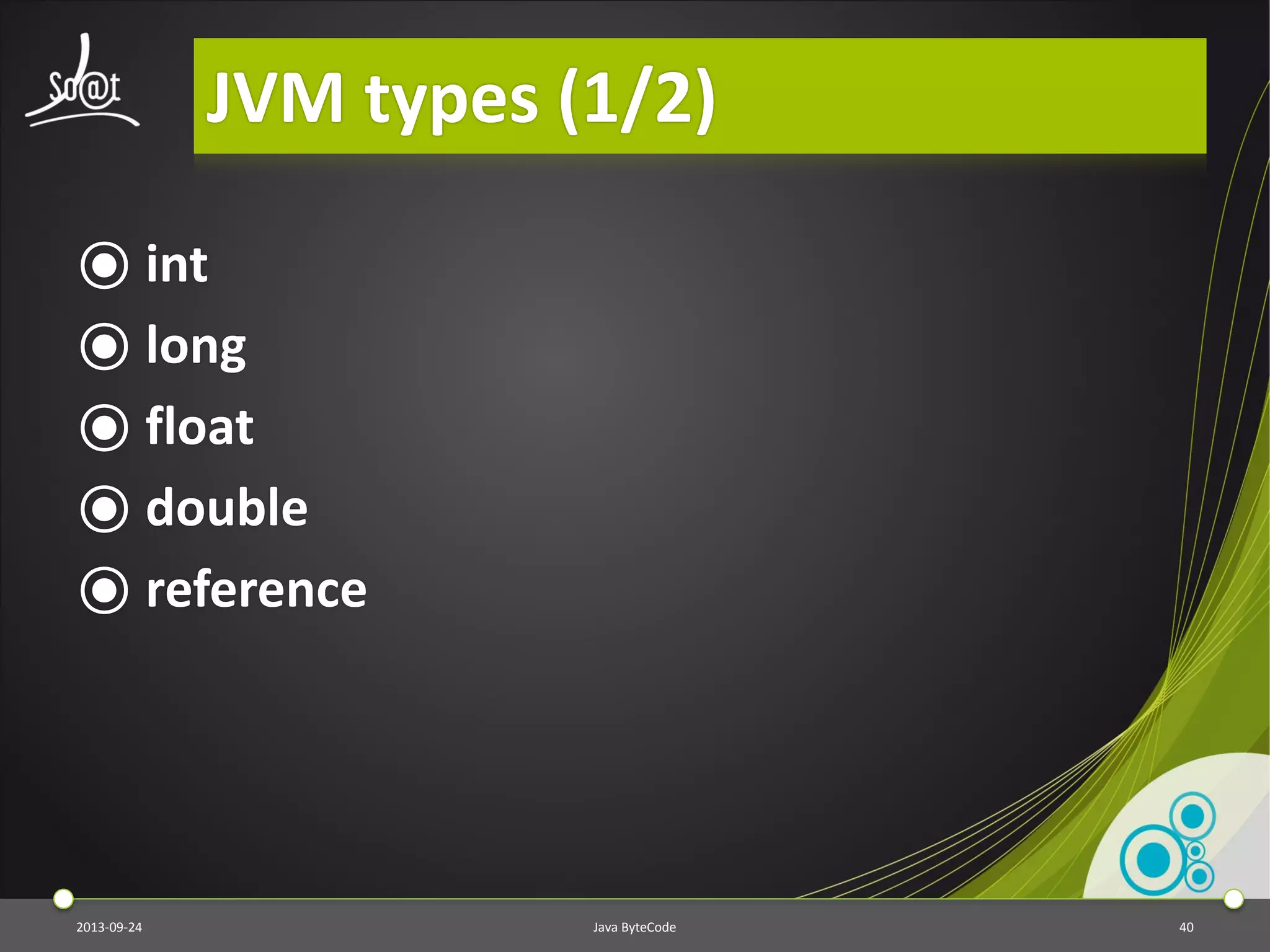

JVM types (1/2)
⦿ int
⦿ long
⦿ float
⦿ double
⦿ reference

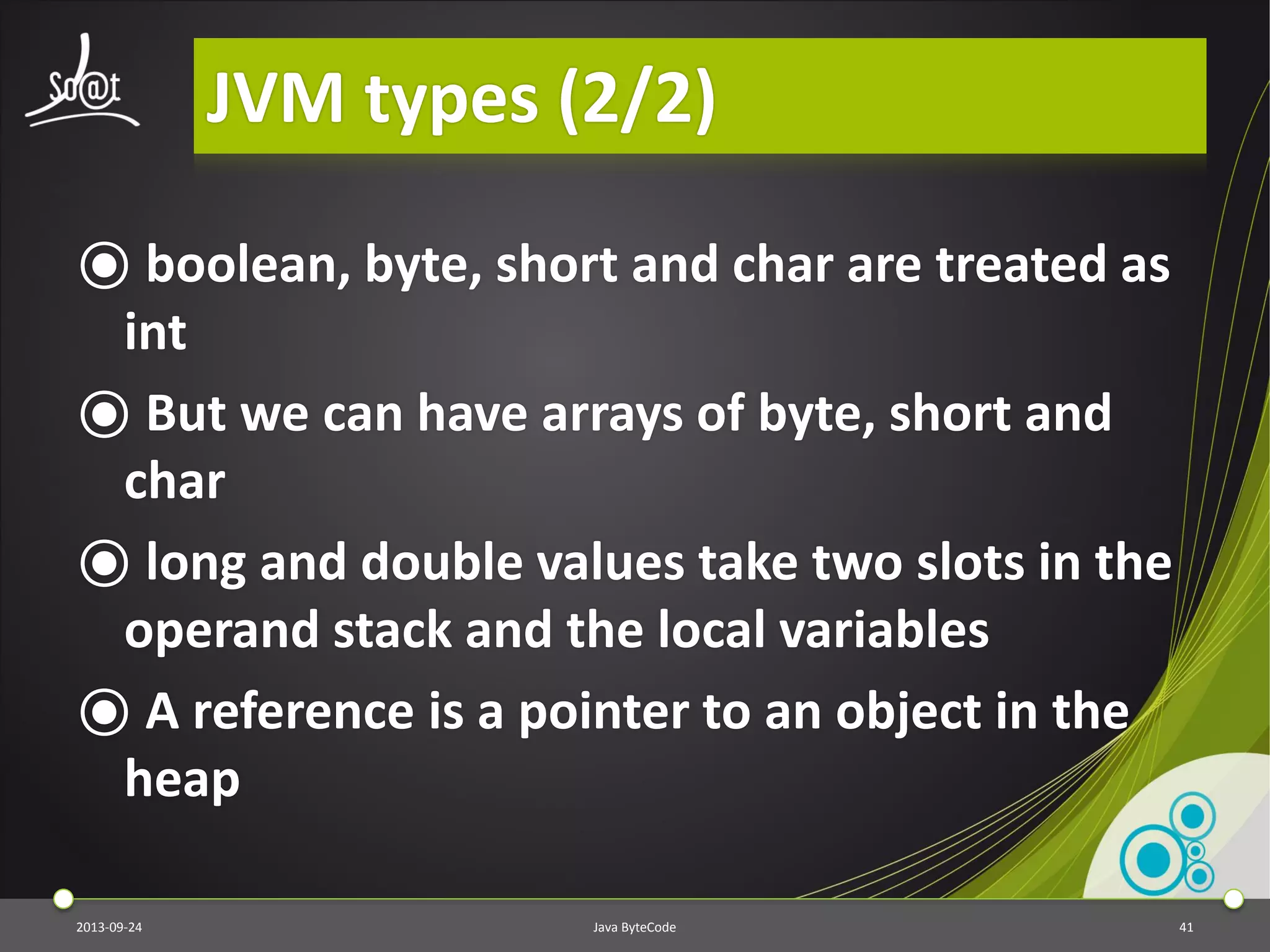

2013-09-24 Java ByteCode 40
JVM types (2/2)
⦿ boolean, byte, short and char are treated as
int
⦿ But we can have arrays of byte, short and
char
⦿ long and double values take two slots in the
operand stack and the local variables
⦿ A reference is a pointer to an object in the
heap
2013-09-24 Java ByteCode 41

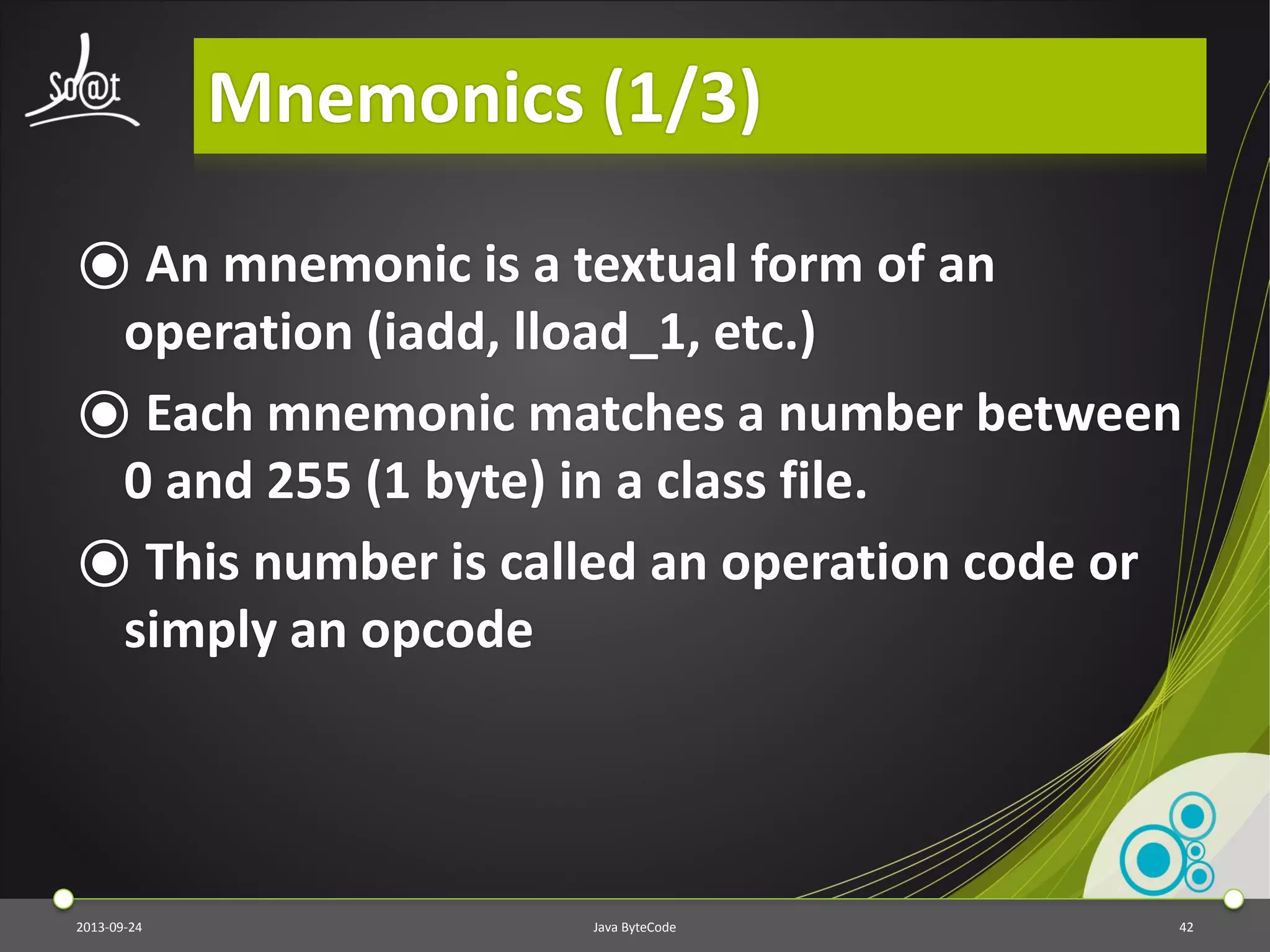

Mnemonics (1/3)
⦿ An mnemonic is a textual form of an
operation (iadd, lload_1, etc.)
⦿ Each mnemonic matches a number between
0 and 255 (1 byte) in a class file.
⦿ This number is called an operation code or
simply an opcode
2013-09-24 Java ByteCode 42

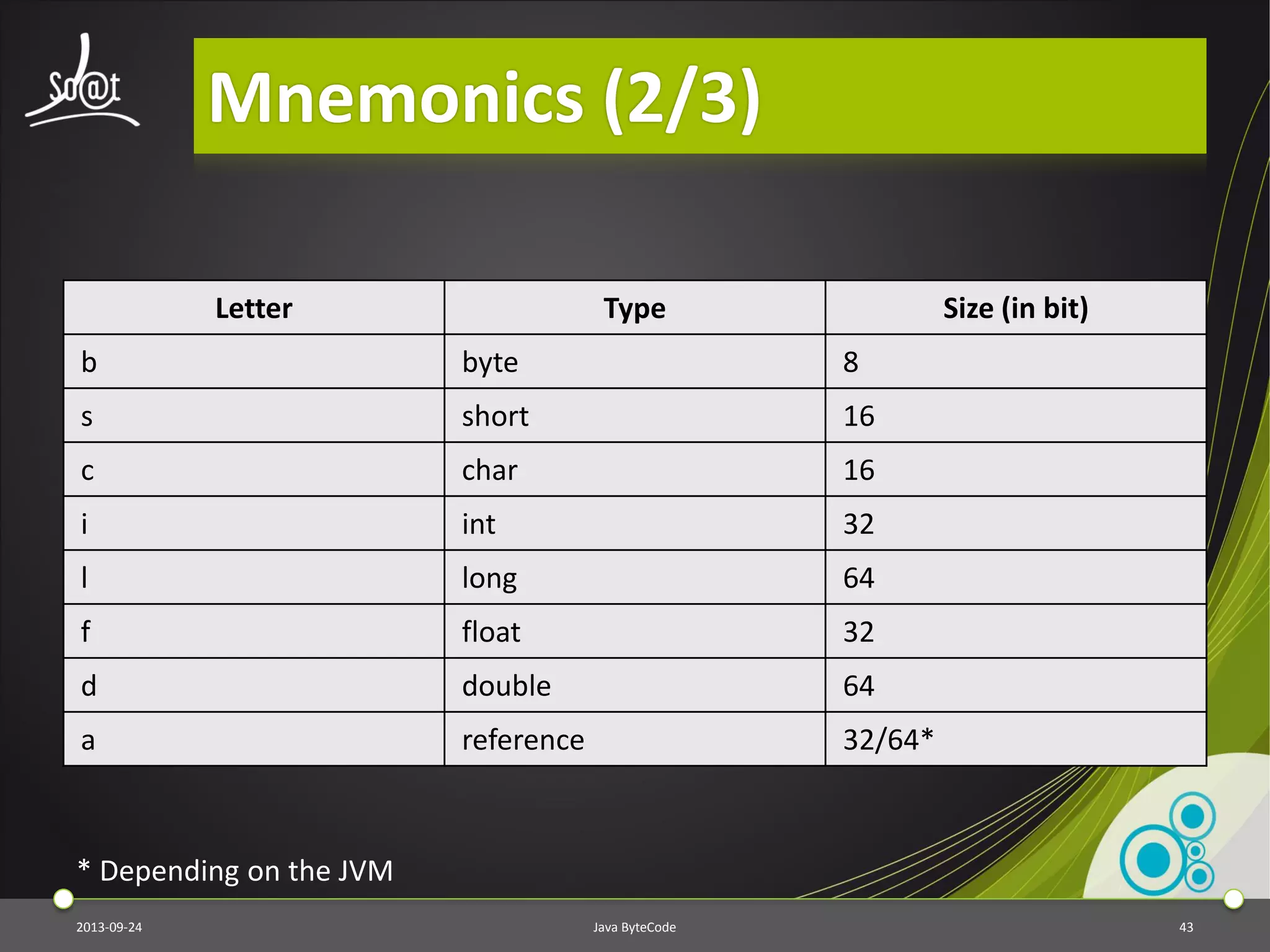

Mnemonics (2/3)
2013-09-24 Java ByteCode 43
Letter Type Size (in bit)
b byte 8
s short 16
c char 16
i int 32
l long 64
f float 32
d double 64
a reference 32/64*
* Depending on the JVM

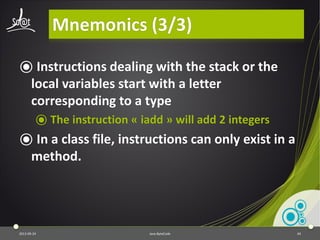

Mnemonics (3/3)

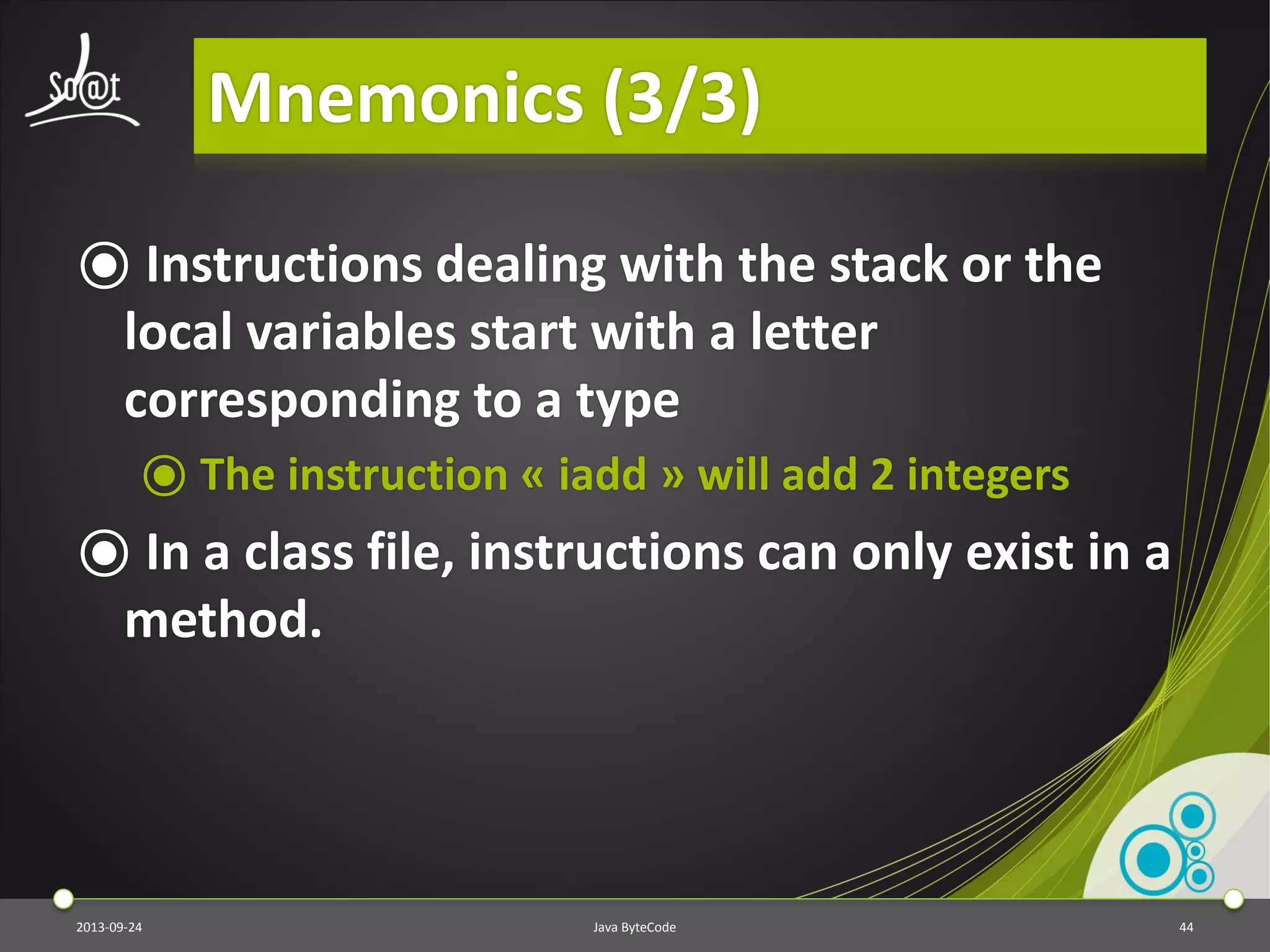

⦿ Instructions dealing with the stack or the
local variables start with a letter
corresponding to a type
⦿ The instruction « iadd » will add 2 integers
⦿ In a class file, instructions can only exist in a
method.
2013-09-24 Java ByteCode 44

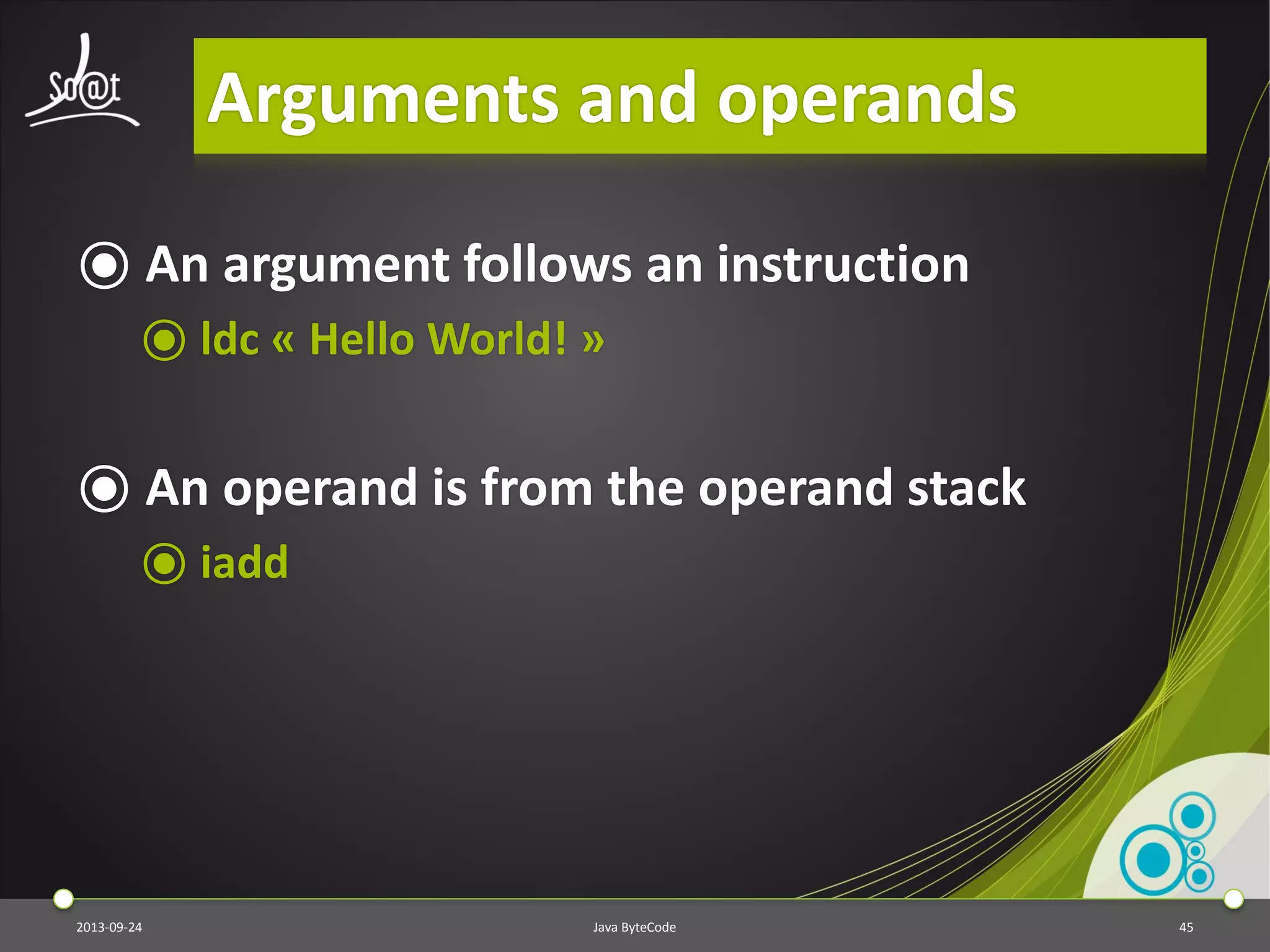

Arguments and operands
⦿ An argument follows an instruction
⦿ ldc « Hello World! »
⦿ An operand is from the operand stack
⦿ iadd
2013-09-24 Java ByteCode 45

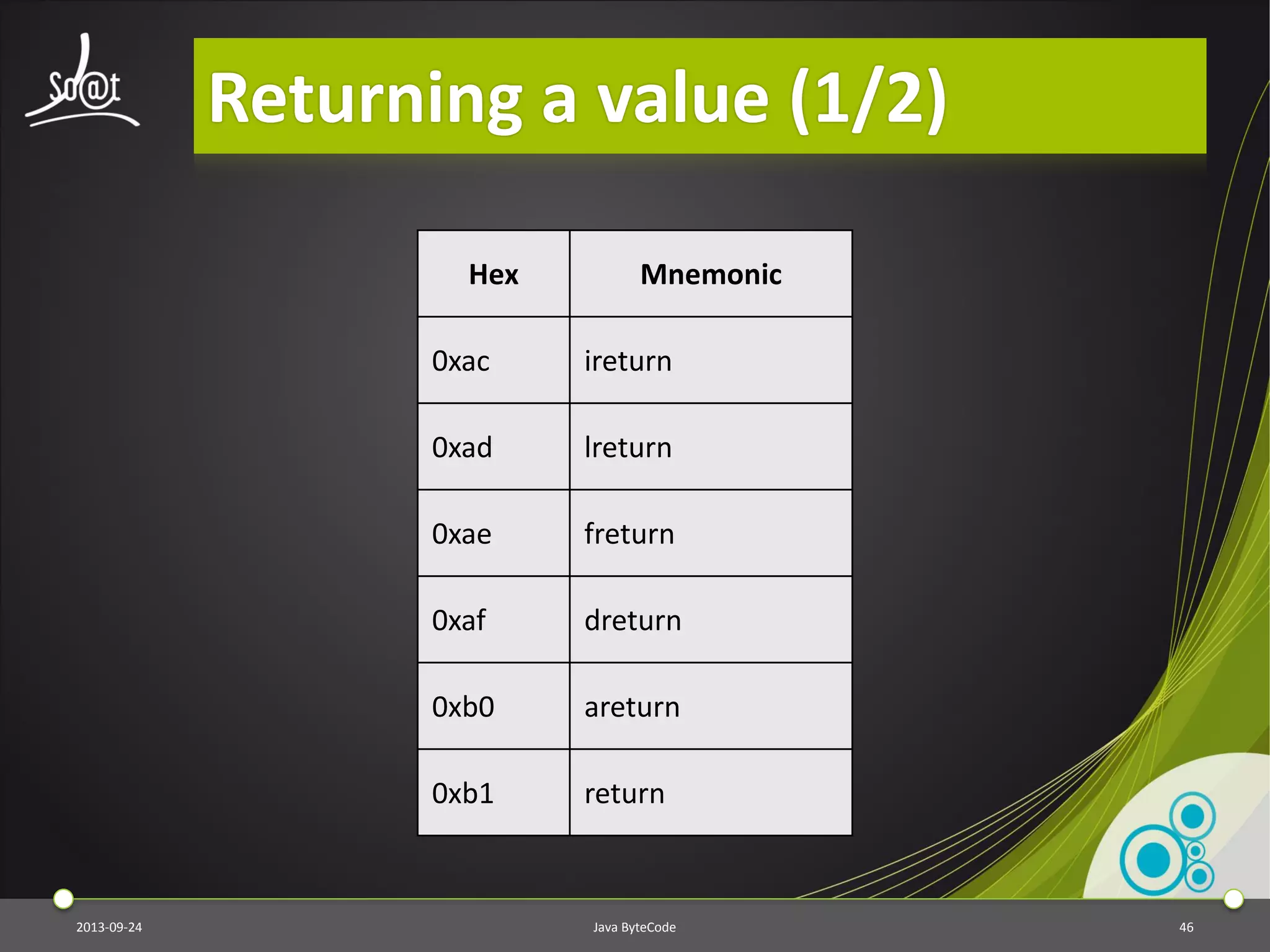

Returning a value (1/2)
2013-09-24 Java ByteCode 46
Hex Mnemonic
0xac ireturn
0xad lreturn
0xae freturn
0xaf dreturn
0xb0 areturn
0xb1 return

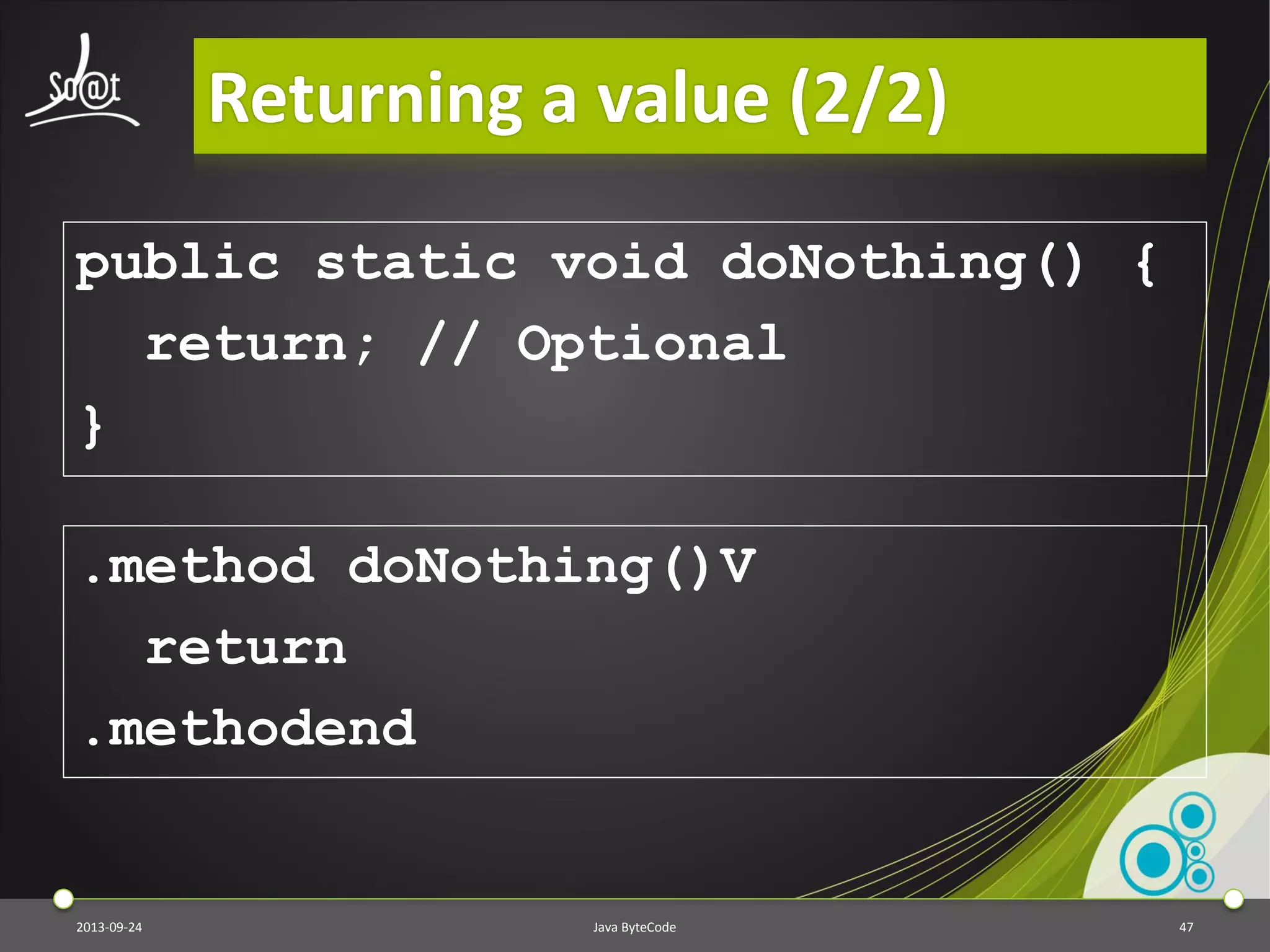

Returning a value (2/2)
public static void doNothing() {
return; // Optional
}
2013-09-24 Java ByteCode 47
.method doNothing()V
return
.methodend

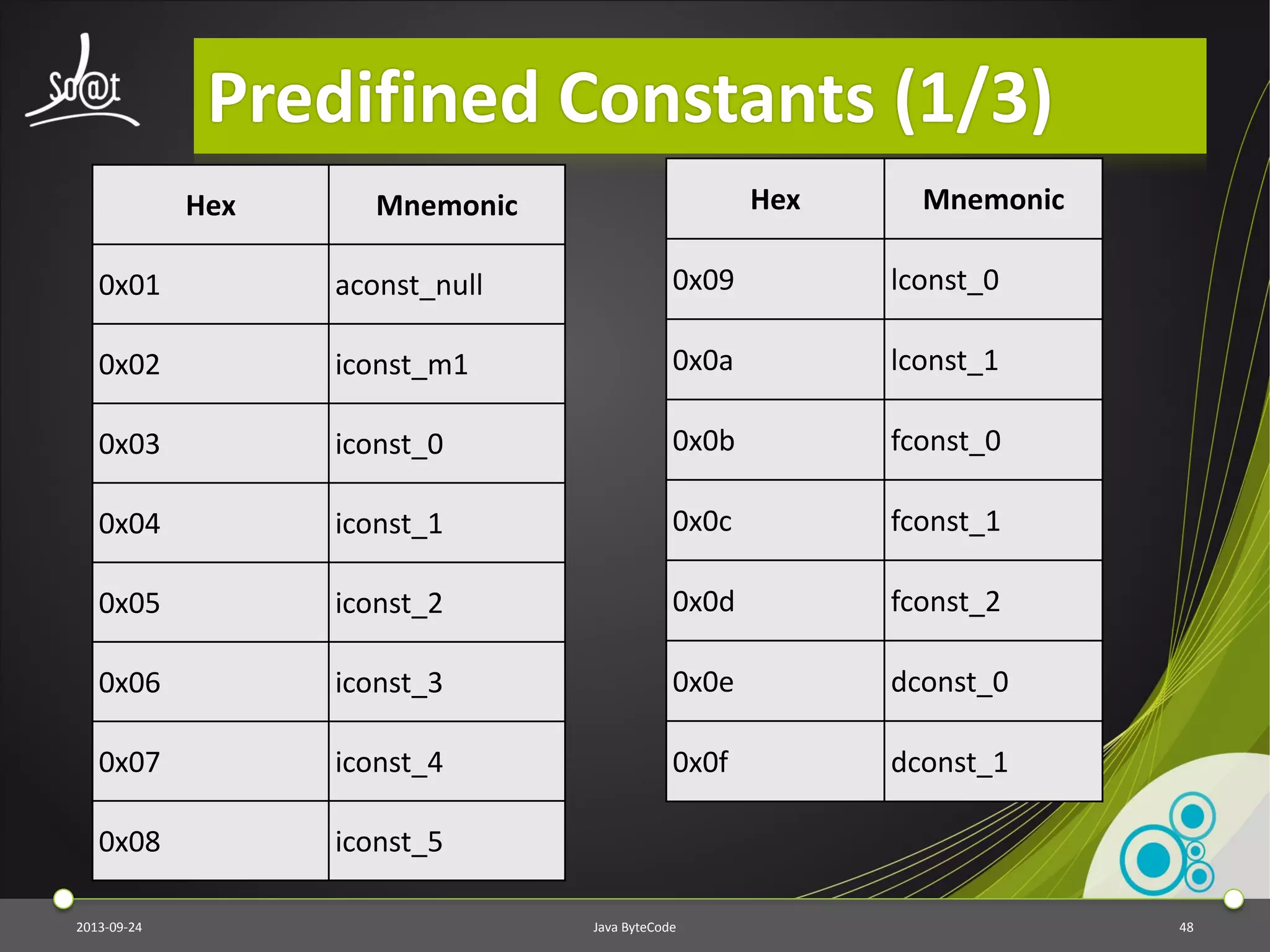

Predifined Constants (1/3)
2013-09-24 Java ByteCode 48
Hex Mnemonic
0x01 aconst_null
0x02 iconst_m1
0x03 iconst_0
0x04 iconst_1
0x05 iconst_2
0x06 iconst_3
0x07 iconst_4
0x08 iconst_5
Hex Mnemonic
0x09 lconst_0
0x0a lconst_1
0x0b fconst_0
0x0c fconst_1
0x0d fconst_2
0x0e dconst_0
0x0f dconst_1
Predifined Constants (2/3)

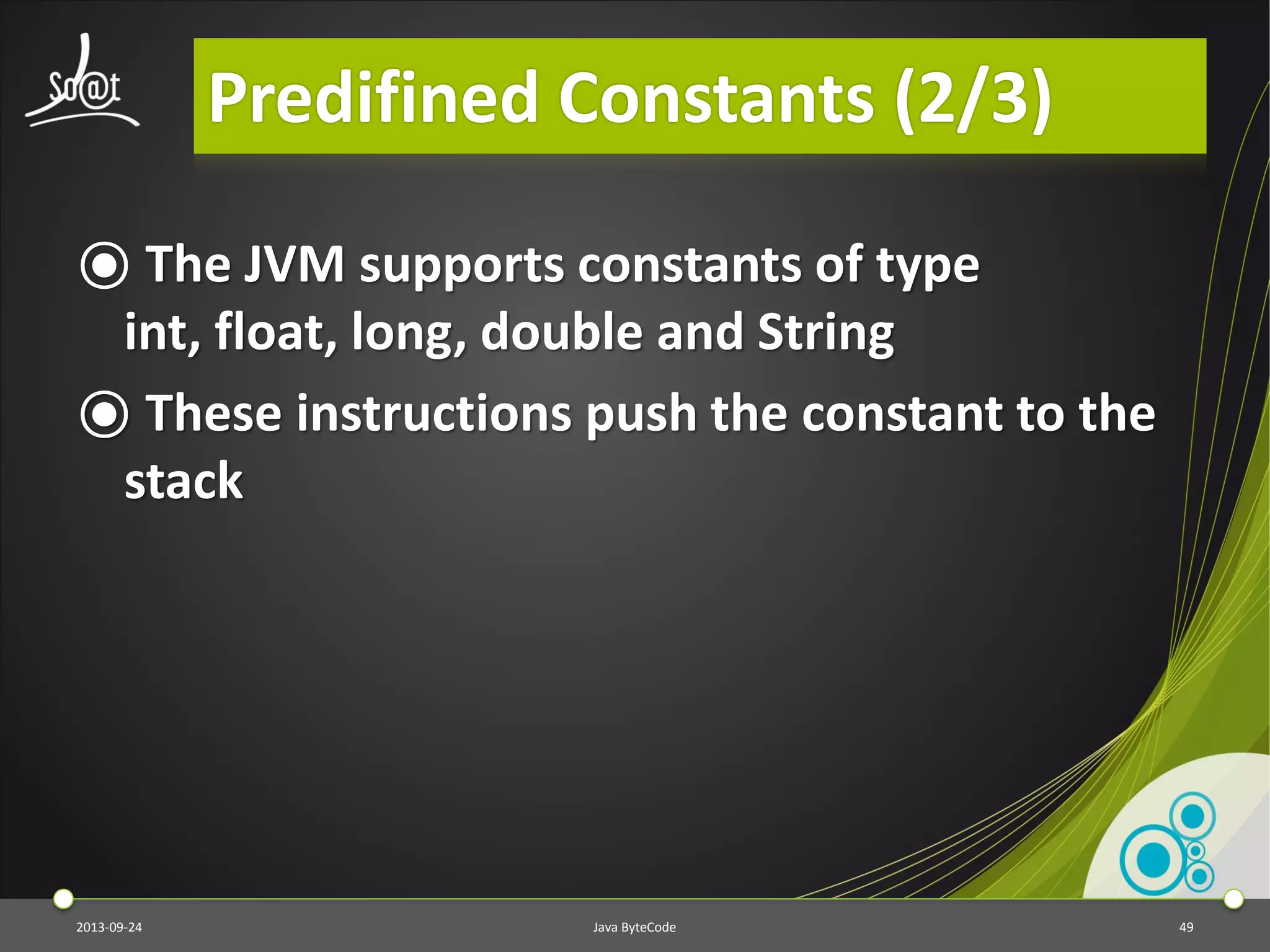

⦿ The JVM supports constants of type
int, float, long, double and String
⦿ These instructions push the constant to the
stack
2013-09-24 Java ByteCode 49

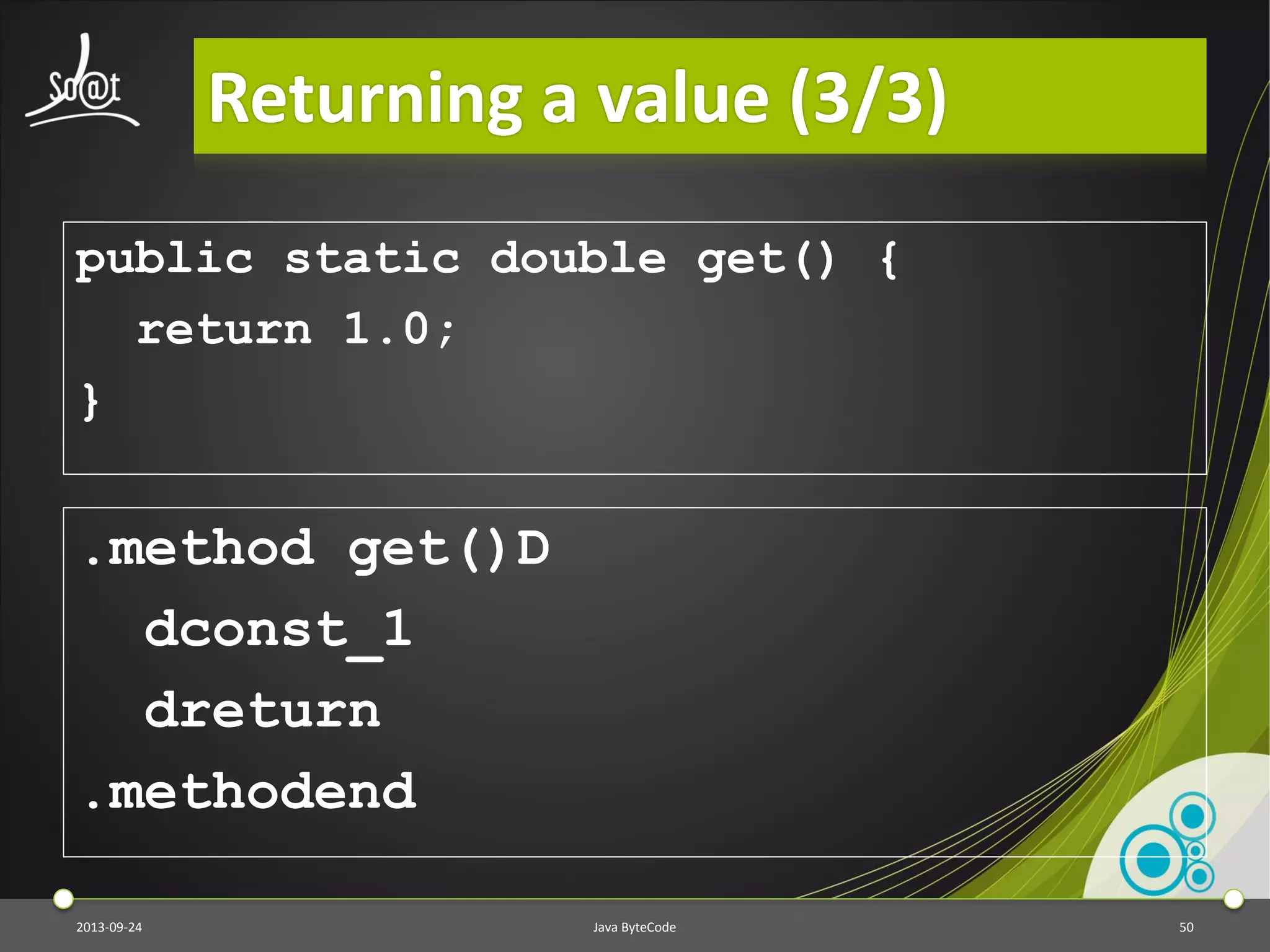

Returning a value (3/3)
public static double get() {
return 1.0;
}
2013-09-24 Java ByteCode 50
.method get()D
dconst_1
dreturn
.methodend

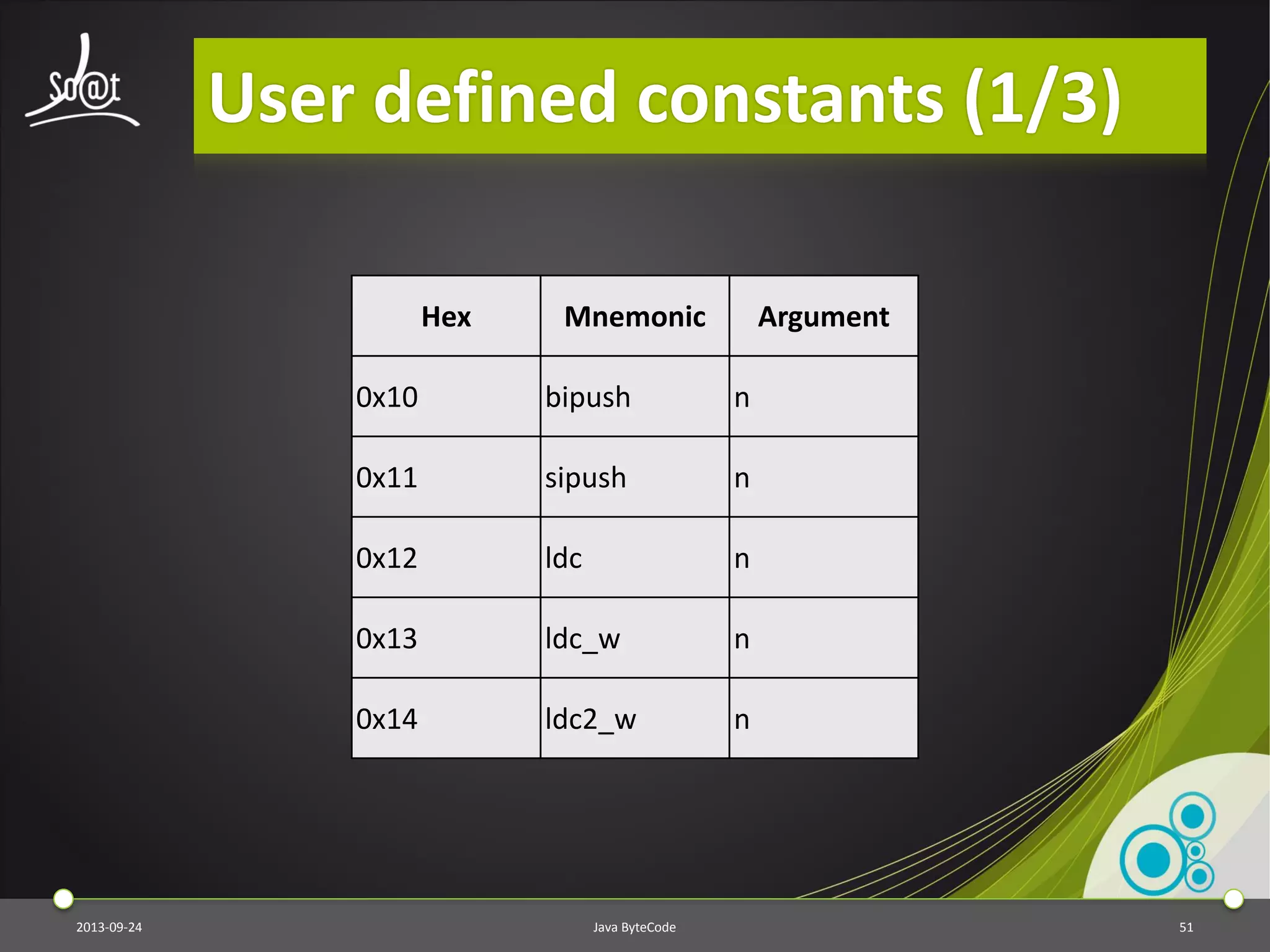

User defined constants (1/3)
2013-09-24 Java ByteCode 51
Hex Mnemonic Argument
0x10 bipush n
0x11 sipush n
0x12 ldc n
0x13 ldc_w n
0x14 ldc2_w n

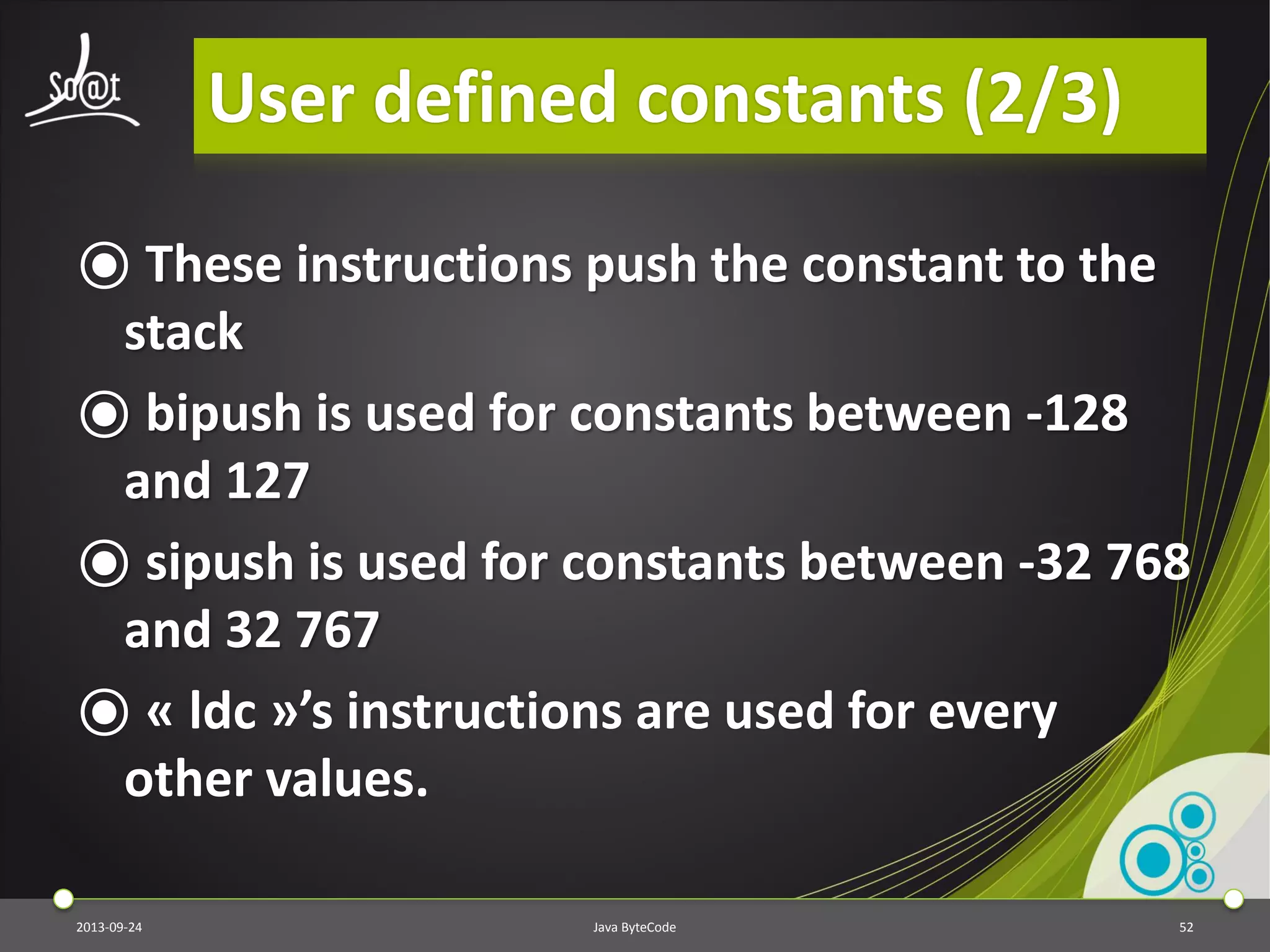

User defined constants (2/3)
⦿ These instructions push the constant to the
stack
⦿ bipush is used for constants between -128
and 127
⦿ sipush is used for constants between -32 768
and 32 767
⦿ « ldc »’s instructions are used for every
other values.
2013-09-24 Java ByteCode 52

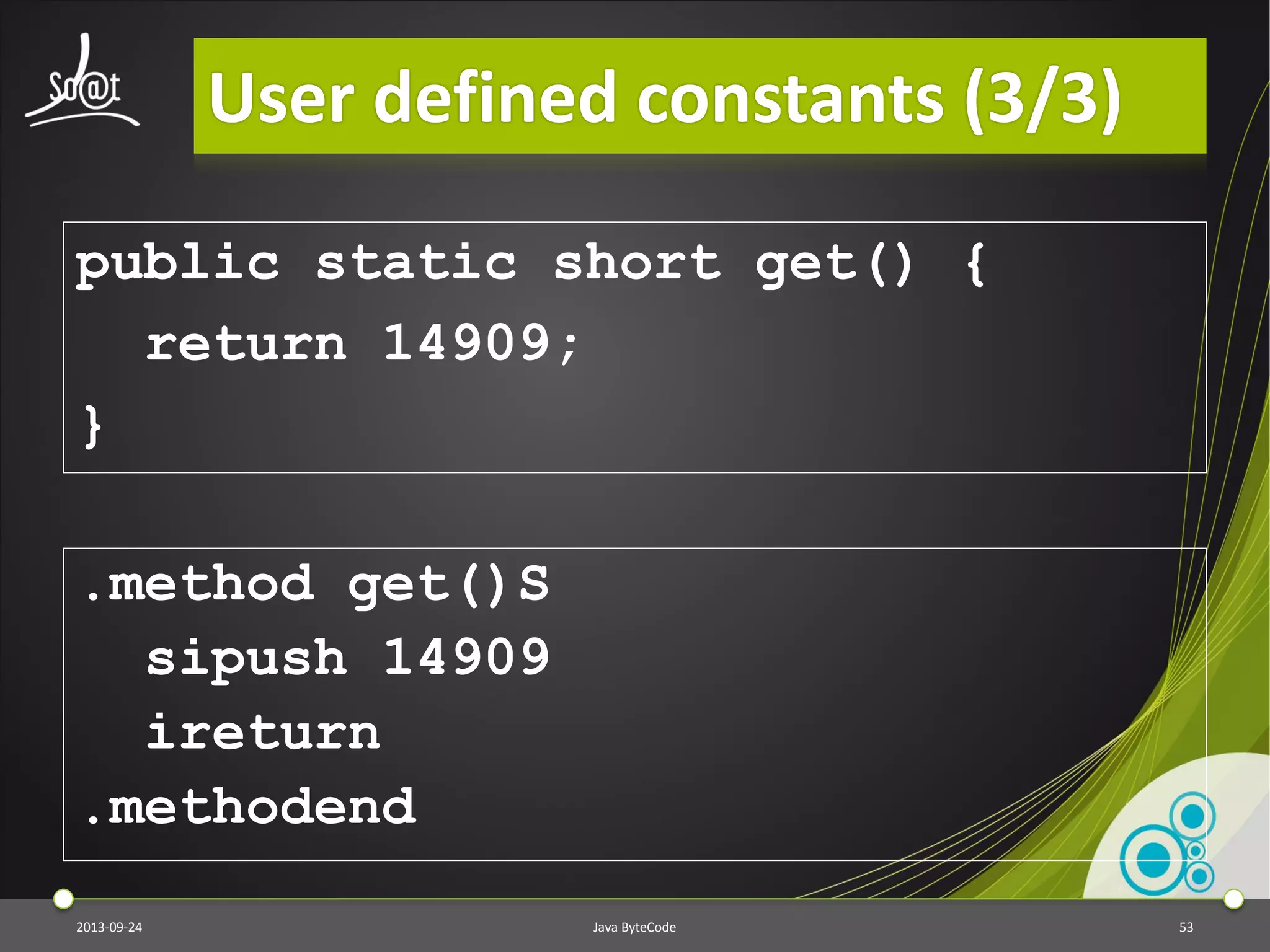

User defined constants (3/3)
public static short get() {
return 14909;
}
2013-09-24 Java ByteCode 53
.method get()S
sipush 14909
ireturn
.methodend

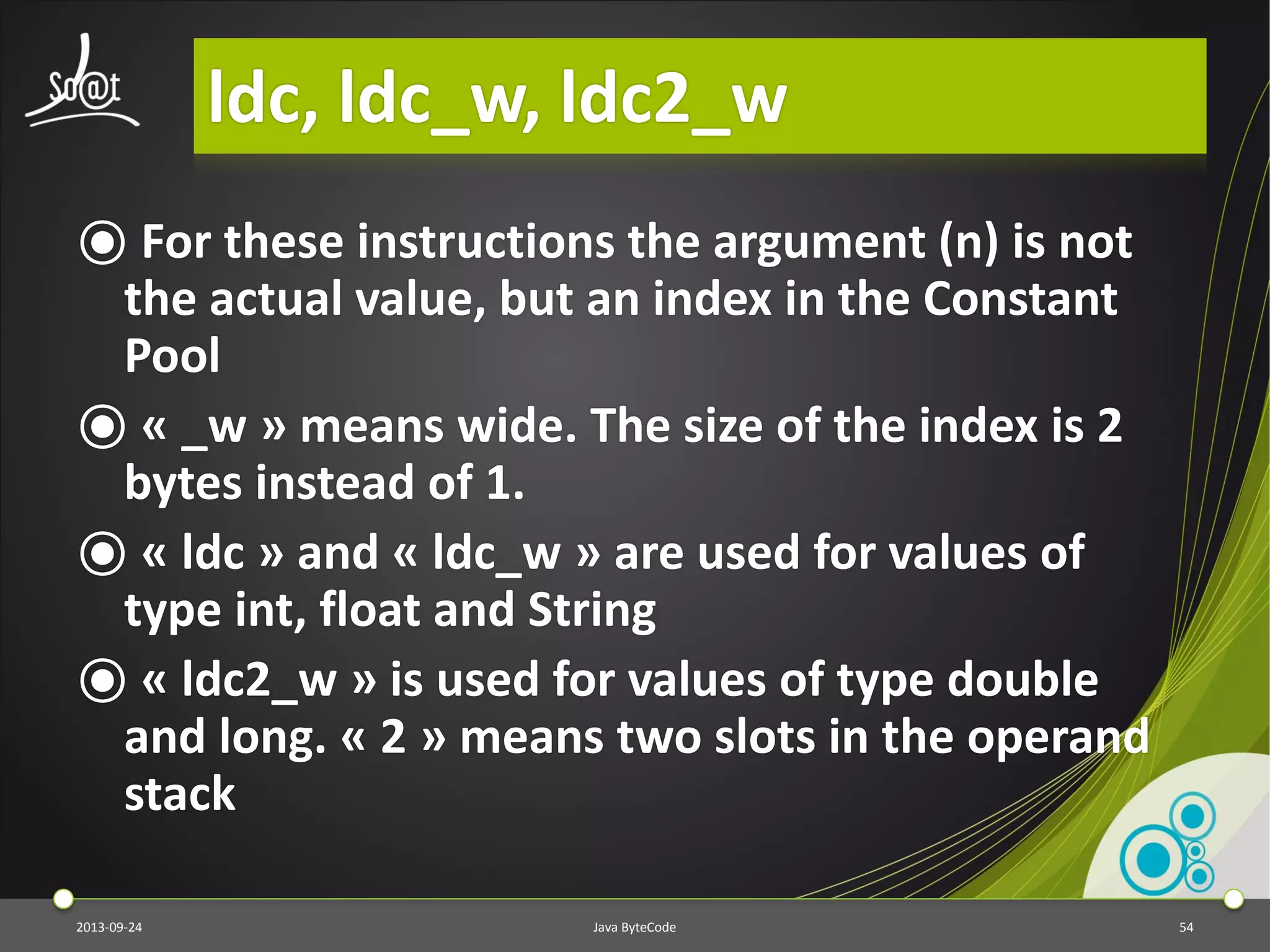

ldc, ldc_w, ldc2_w
⦿ For these instructions the argument (n) is not
the actual value, but an index in the Constant
Pool
⦿ « _w » means wide. The size of the index is 2
bytes instead of 1.
⦿ « ldc » and « ldc_w » are used for values of
type int, float and String
⦿ « ldc2_w » is used for values of type double
and long. « 2 » means two slots in the operand
stack
2013-09-24 Java ByteCode 54

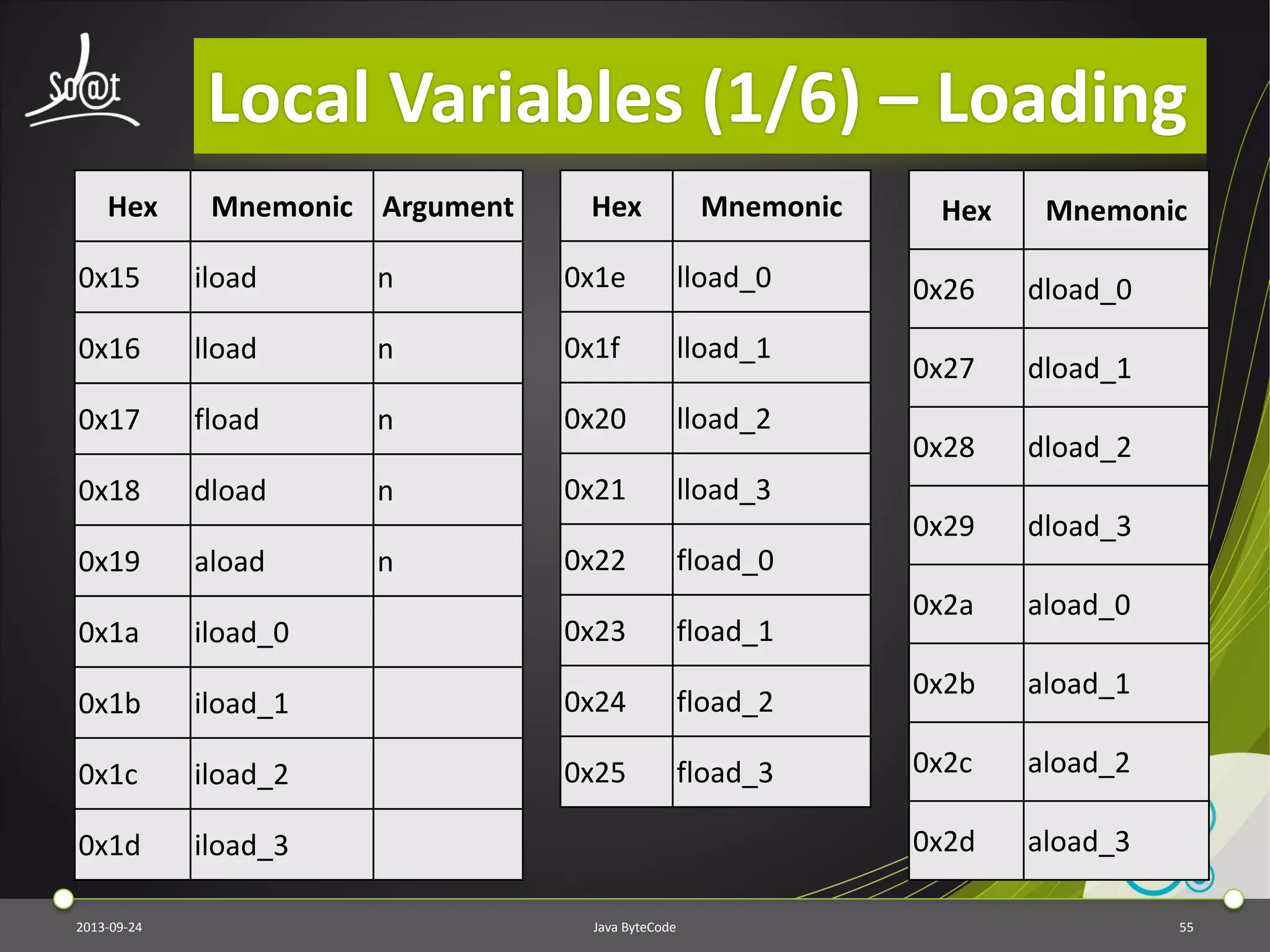

Local Variables (1/6) – Loading
2013-09-24 Java ByteCode 55
Hex Mnemonic Argument
0x15 iload n
0x16 lload n
0x17 fload n
0x18 dload n
0x19 aload n
0x1a iload_0
0x1b iload_1
0x1c iload_2
0x1d iload_3
Hex Mnemonic
0x1e lload_0
0x1f lload_1
0x20 lload_2
0x21 lload_3
0x22 fload_0
0x23 fload_1
0x24 fload_2
0x25 fload_3
Hex Mnemonic
0x26 dload_0
0x27 dload_1
0x28 dload_2
0x29 dload_3
0x2a aload_0
0x2b aload_1
0x2c aload_2
0x2d aload_3
Local Variables (2/6) – Loading

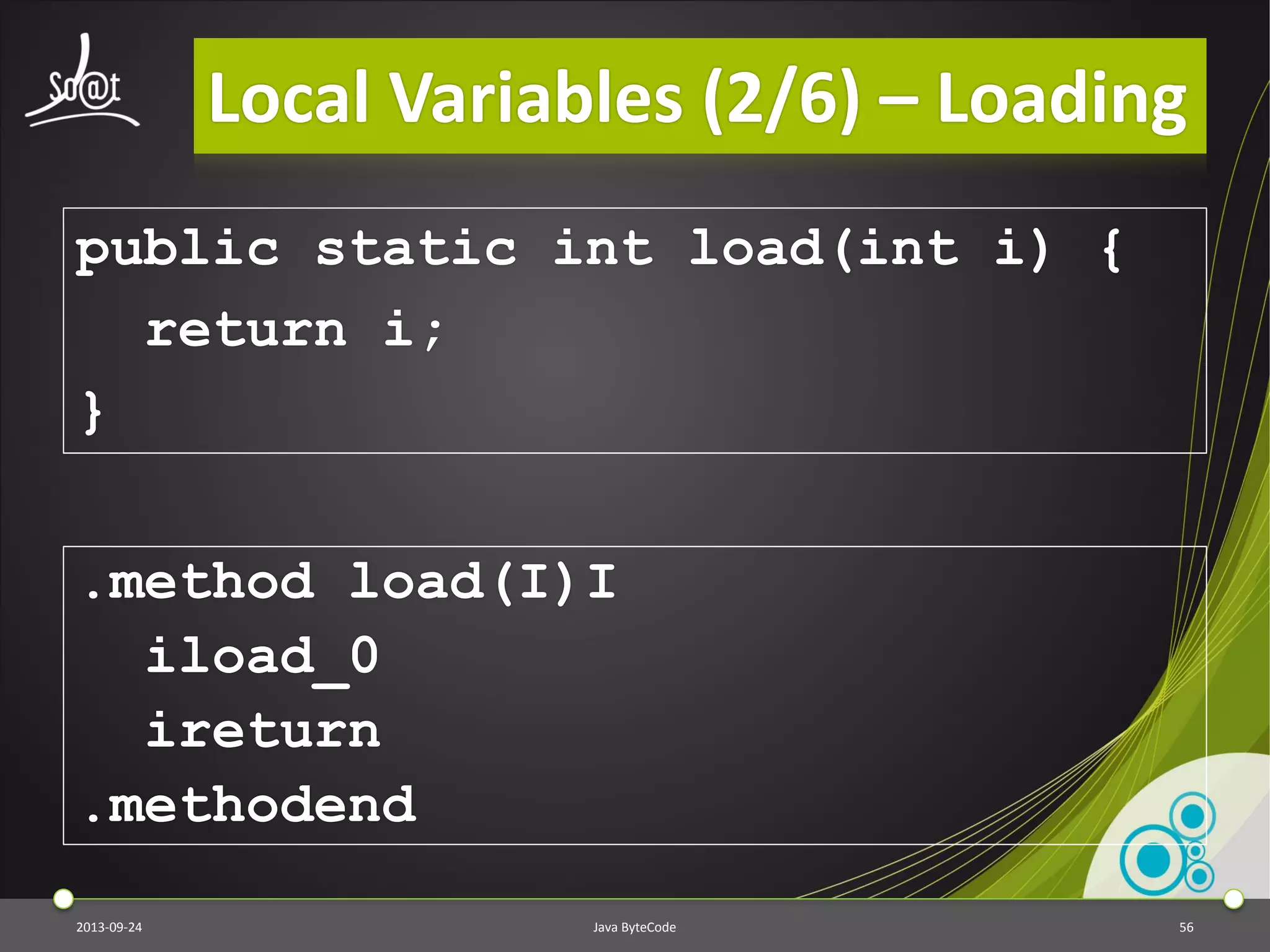

public static int load(int i) {
return i;
}
2013-09-24 Java ByteCode 56
.method load(I)I
iload_0
ireturn
.methodend

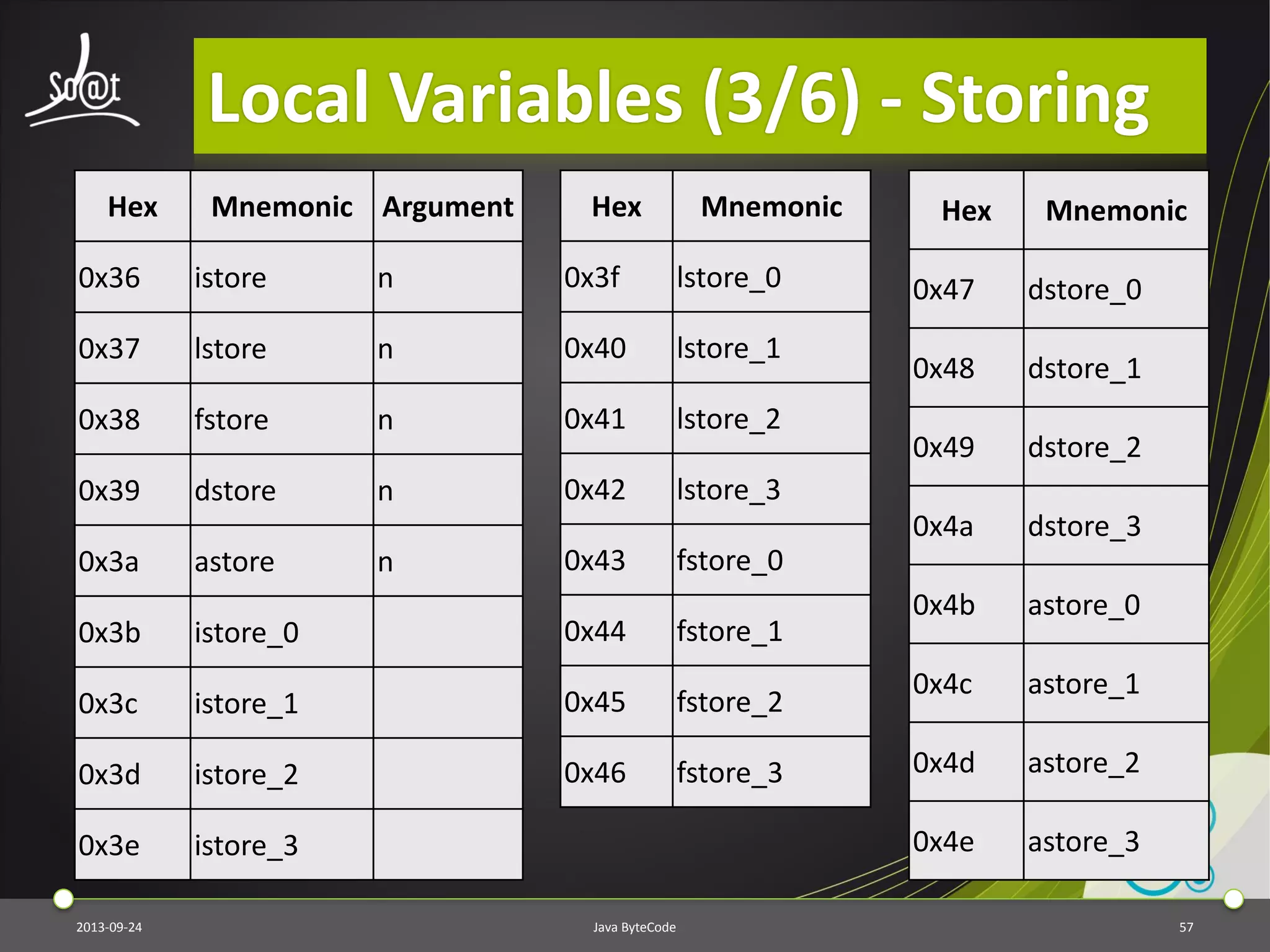

Local Variables (3/6) - Storing
2013-09-24 Java ByteCode 57
Hex Mnemonic Argument
0x36 istore n
0x37 lstore n
0x38 fstore n
0x39 dstore n
0x3a astore n
0x3b istore_0
0x3c istore_1
0x3d istore_2
0x3e istore_3
Hex Mnemonic
0x3f lstore_0
0x40 lstore_1
0x41 lstore_2
0x42 lstore_3
0x43 fstore_0
0x44 fstore_1
0x45 fstore_2
0x46 fstore_3
Hex Mnemonic
0x47 dstore_0
0x48 dstore_1
0x49 dstore_2
0x4a dstore_3
0x4b astore_0
0x4c astore_1
0x4d astore_2
0x4e astore_3

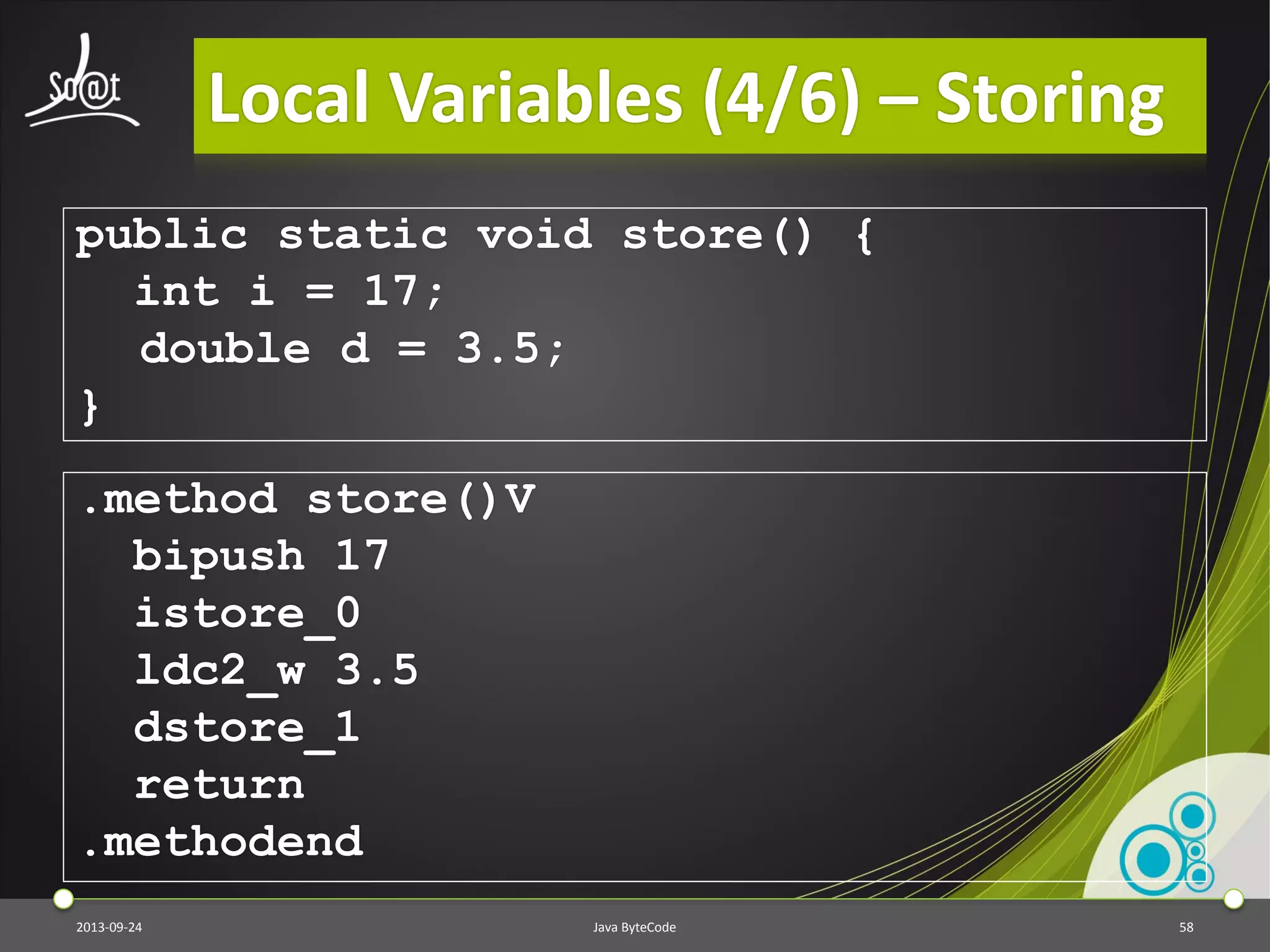

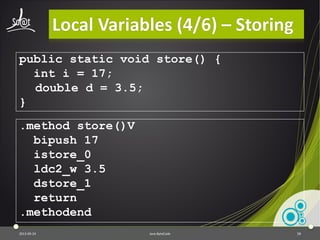

Local Variables (4/6) – Storing
public static void store() {
int i = 17;
double d = 3.5;
}
2013-09-24 Java ByteCode 58
.method store()V
bipush 17
istore_0
ldc2_w 3.5
dstore_1
return
.methodend

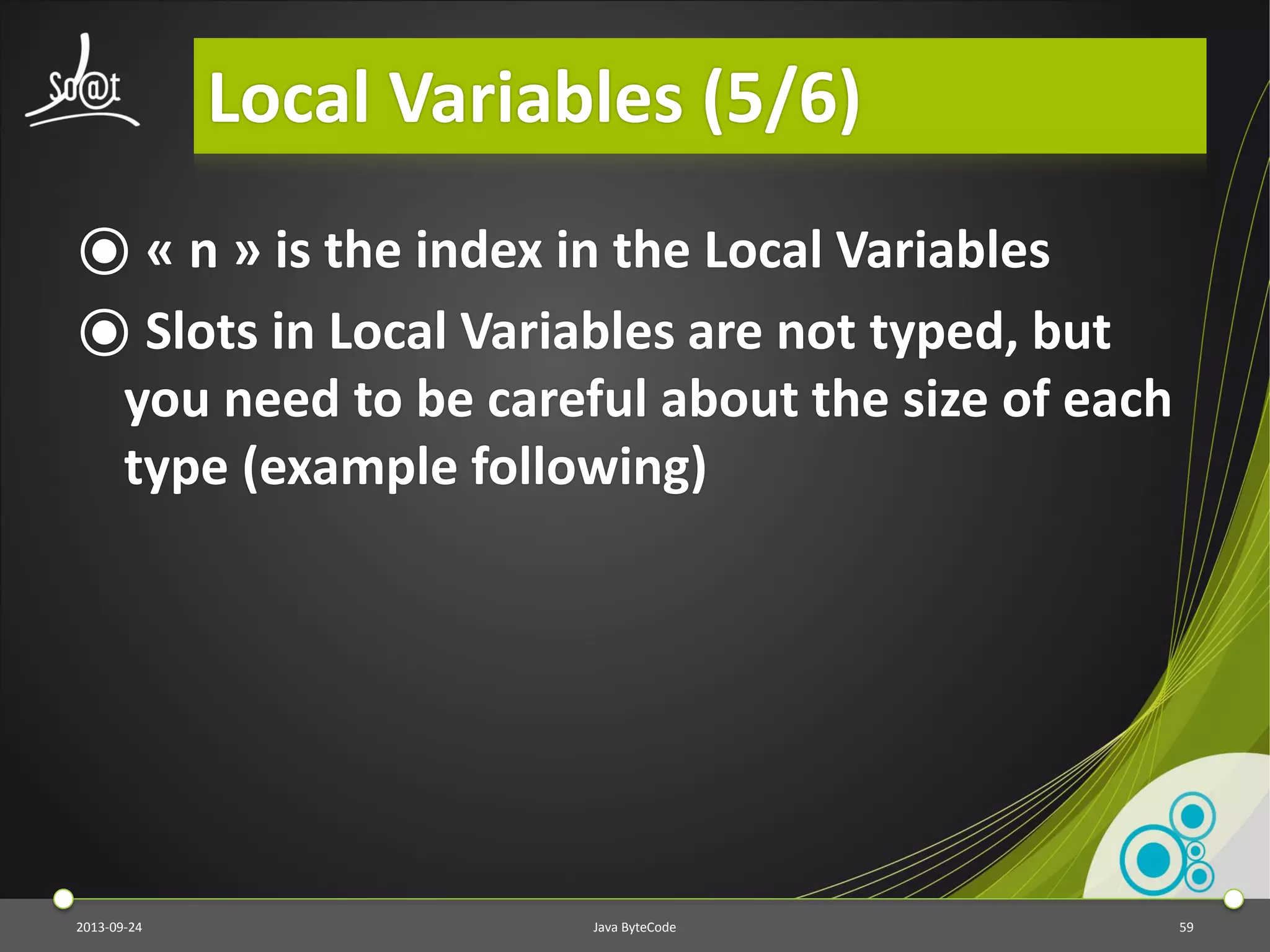

Local Variables (5/6)
⦿ « n » is the index in the Local Variables
⦿ Slots in Local Variables are not typed, but
you need to be careful about the size of each
type (example following)
2013-09-24 Java ByteCode 59
Local Variables (6/6)
ldc "hello world"
astore_2
ldc2_w 3.14d
dstore_1
aload_2 # error!
# dstore_1 stored a double at index
1 and 2. Therefore, we can’t access
to the String anymore
2013-09-24 Java ByteCode 60

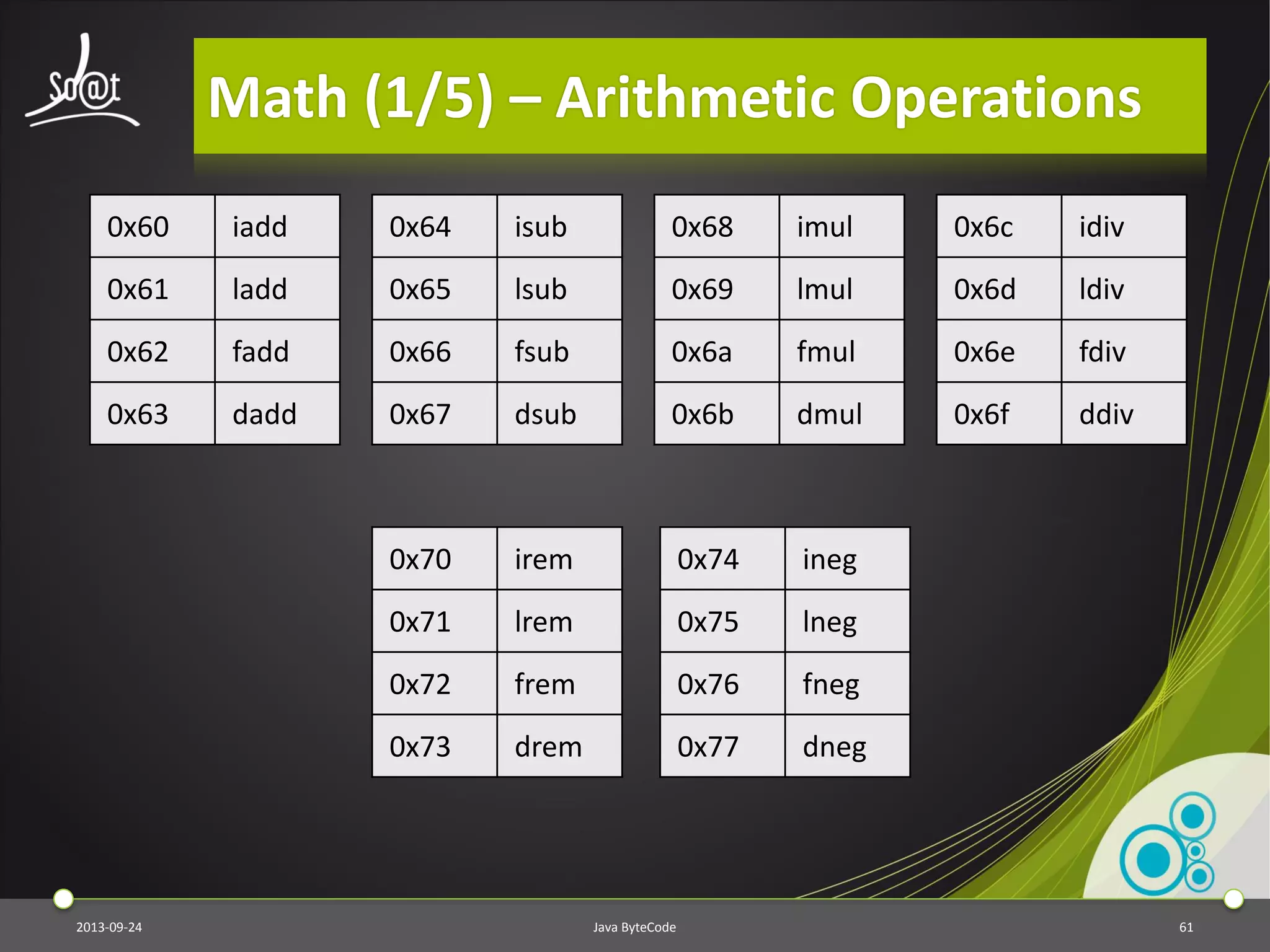

Math (1/5) – Arithmetic Operations
2013-09-24 Java ByteCode 61
0x60 iadd
0x61 ladd
0x62 fadd
0x63 dadd
0x64 isub
0x65 lsub
0x66 fsub
0x67 dsub
0x68 imul
0x69 lmul
0x6a fmul
0x6b dmul
0x6c idiv
0x6d ldiv
0x6e fdiv
0x6f ddiv
0x70 irem
0x71 lrem
0x72 frem
0x73 drem
0x74 ineg
0x75 lneg
0x76 fneg
0x77 dneg

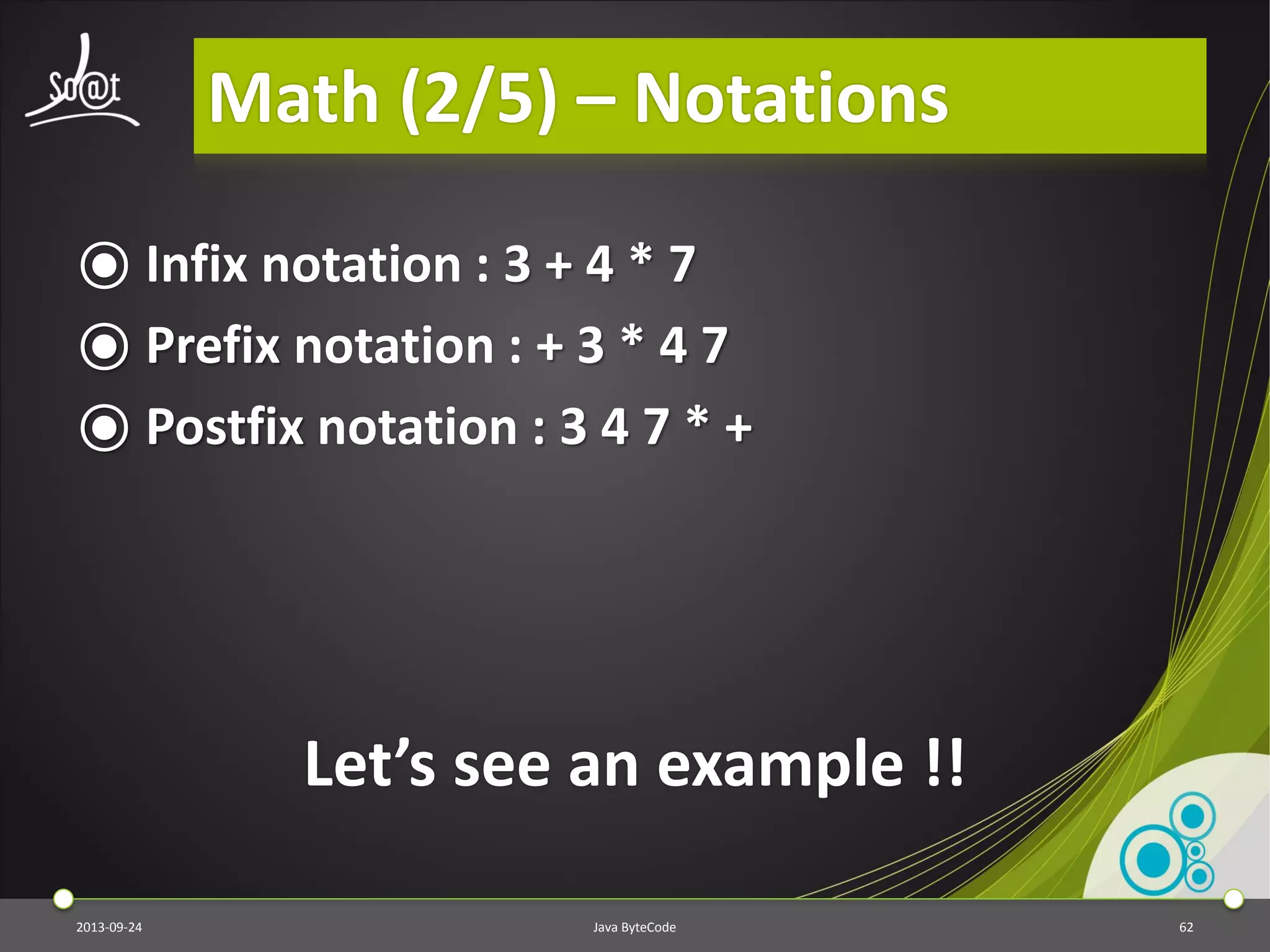

Math (2/5) – Notations
⦿ Infix notation : 3 + 4 * 7
⦿ Prefix notation : + 3 * 4 7
⦿ Postfix notation : 3 4 7 * +
Let’s see an example !!
2013-09-24 Java ByteCode 62

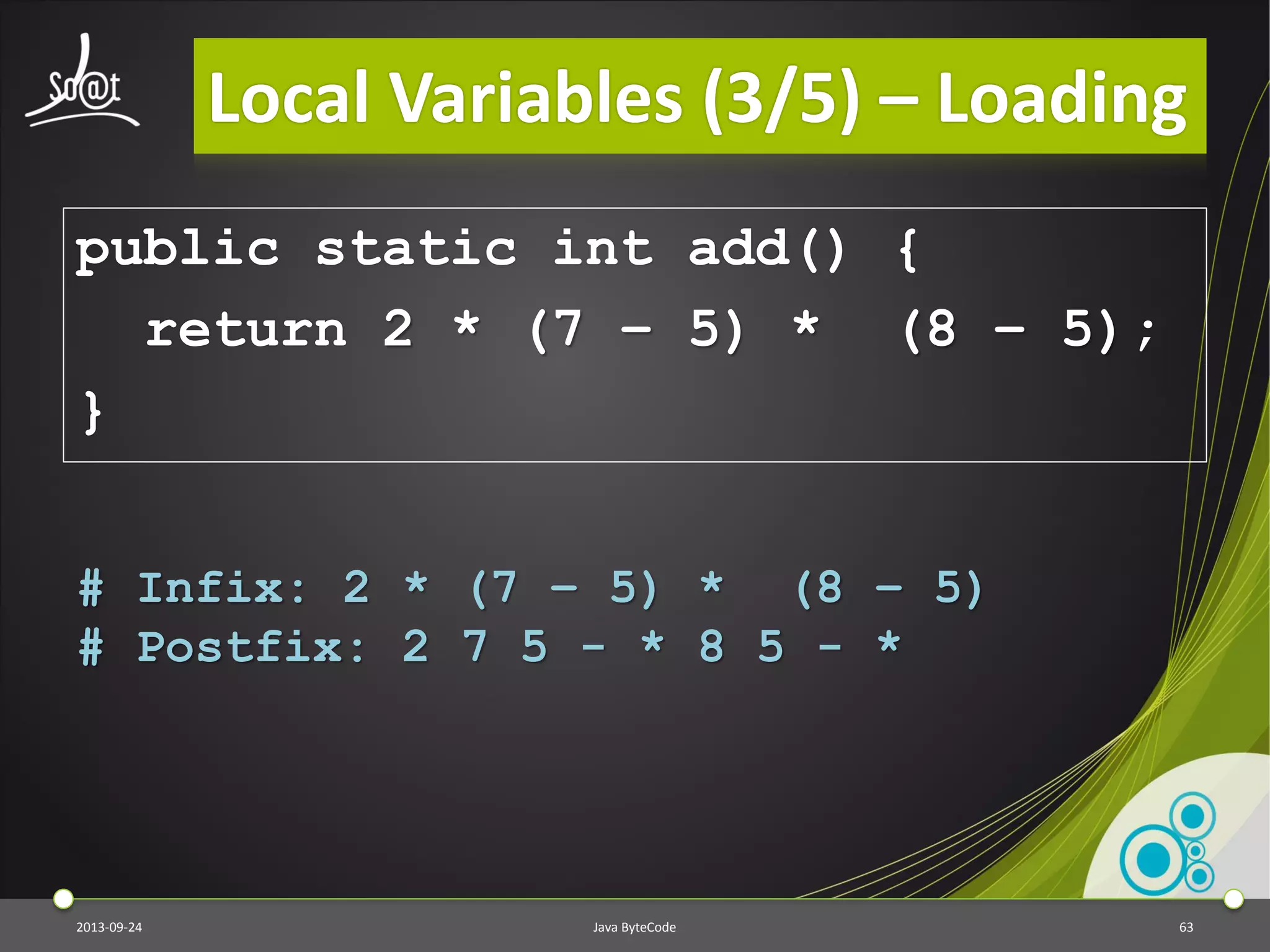

Local Variables (3/5) – Loading
public static int add() {
return 2 * (7 – 5) * (8 – 5);
}
2013-09-24 Java ByteCode 63
# Infix: 2 * (7 – 5) * (8 – 5)
# Postfix: 2 7 5 - * 8 5 - *
Math (4/5) – Notations

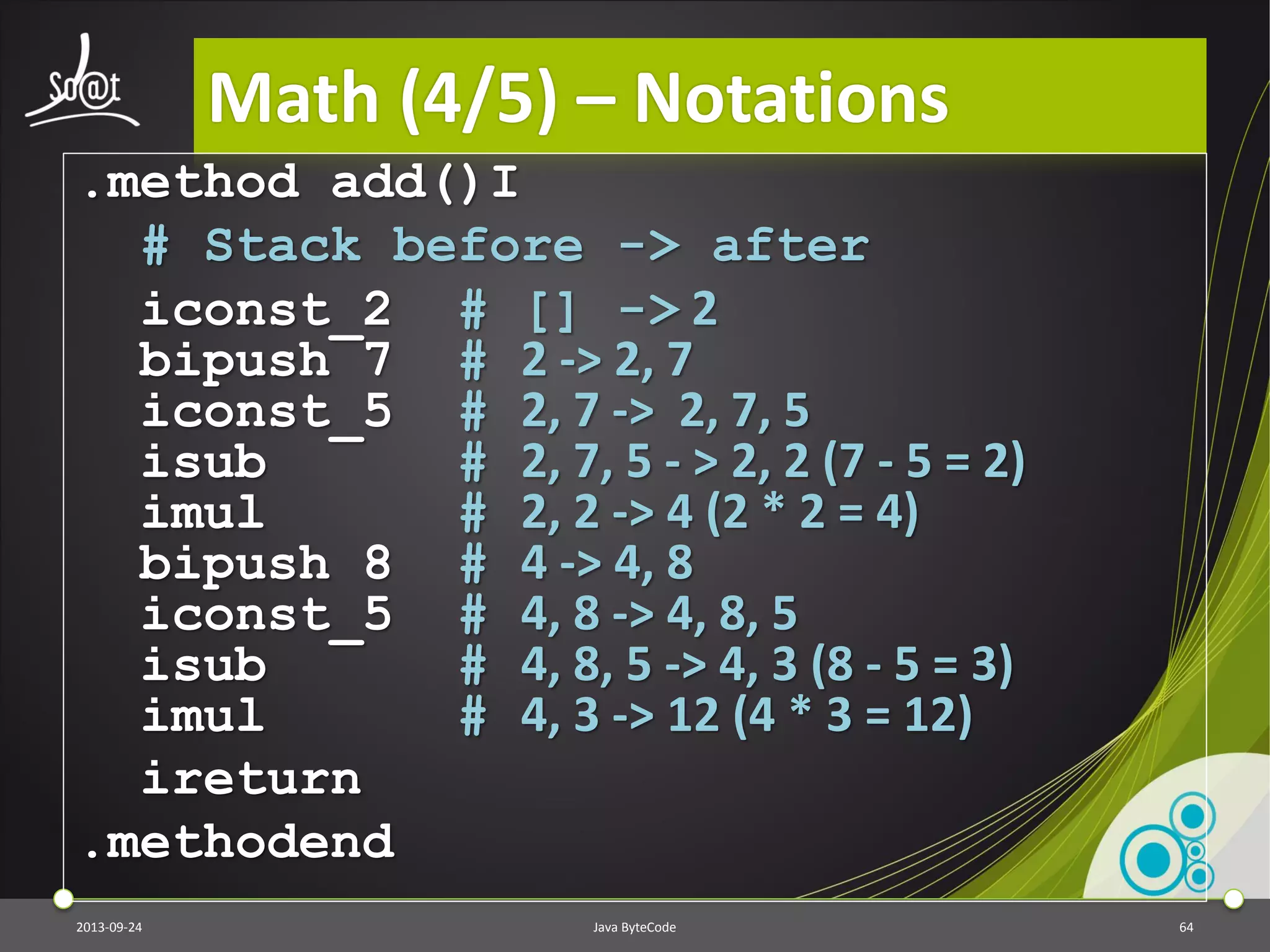

.method add()I
# Stack before -> after
iconst_2 # [] -> 2
bipush 7 # 2 -> 2, 7
iconst_5 # 2, 7 -> 2, 7, 5
isub # 2, 7, 5 - > 2, 2 (7 - 5 = 2)
imul # 2, 2 -> 4 (2 * 2 = 4)
bipush 8 # 4 -> 4, 8
iconst_5 # 4, 8 -> 4, 8, 5
isub # 4, 8, 5 -> 4, 3 (8 - 5 = 3)
imul # 4, 3 -> 12 (4 * 3 = 12)
ireturn
.methodend
2013-09-24 Java ByteCode 64

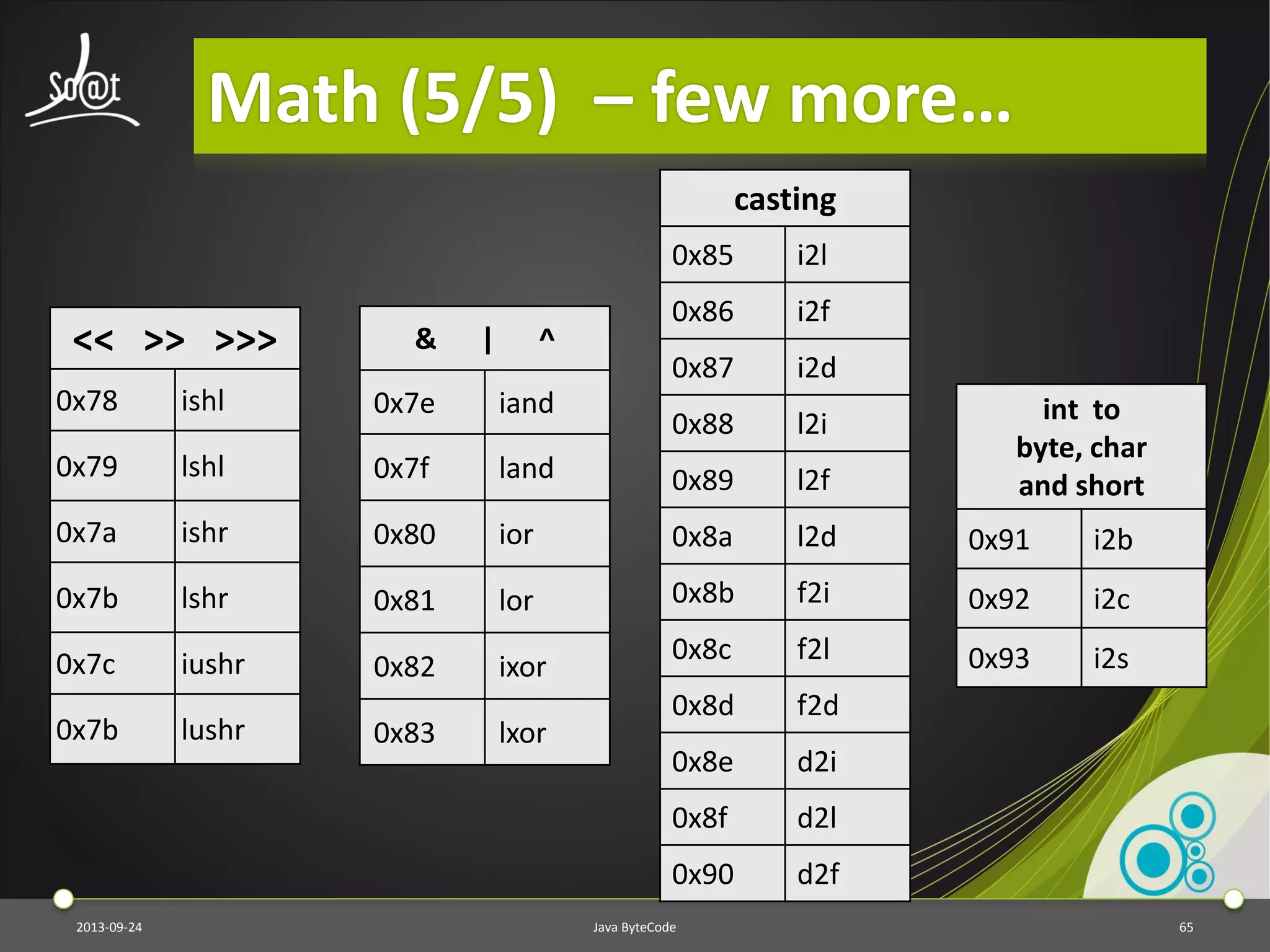

Math (5/5) – few more…
2013-09-24 Java ByteCode 65
<< >> >>>
0x78 ishl
0x79 lshl
0x7a ishr
0x7b lshr
0x7c iushr
0x7b lushr
& | ^
0x7e iand
0x7f land
0x80 ior
0x81 lor
0x82 ixor
0x83 lxor
casting
0x85 i2l
0x86 i2f
0x87 i2d
0x88 l2i
0x89 l2f
0x8a l2d
0x8b f2i
0x8c f2l
0x8d f2d
0x8e d2i
0x8f d2l
0x90 d2f
int to
byte, char
and short
0x91 i2b
0x92 i2c
0x93 i2s

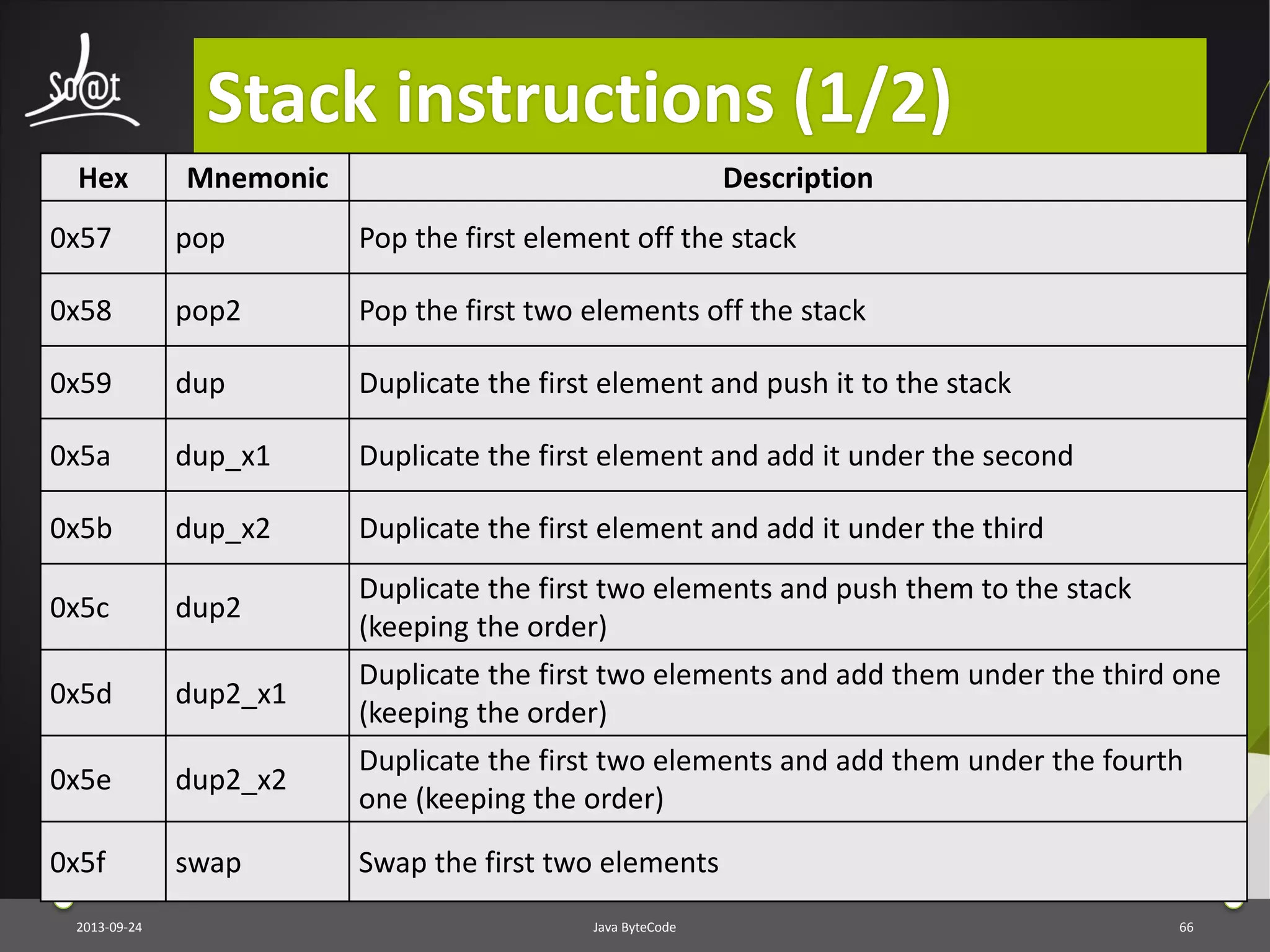

Stack instructions (1/2)
2013-09-24 Java ByteCode 66
Hex Mnemonic Description
0x57 pop Pop the first element off the stack
0x58 pop2 Pop the first two elements off the stack
0x59 dup Duplicate the first element and push it to the stack
0x5a dup_x1 Duplicate the first element and add it under the second
0x5b dup_x2 Duplicate the first element and add it under the third
0x5c dup2
Duplicate the first two elements and push them to the stack
(keeping the order)
0x5d dup2_x1
Duplicate the first two elements and add them under the third one
(keeping the order)
0x5e dup2_x2
Duplicate the first two elements and add them under the fourth
one (keeping the order)
0x5f swap Swap the first two elements

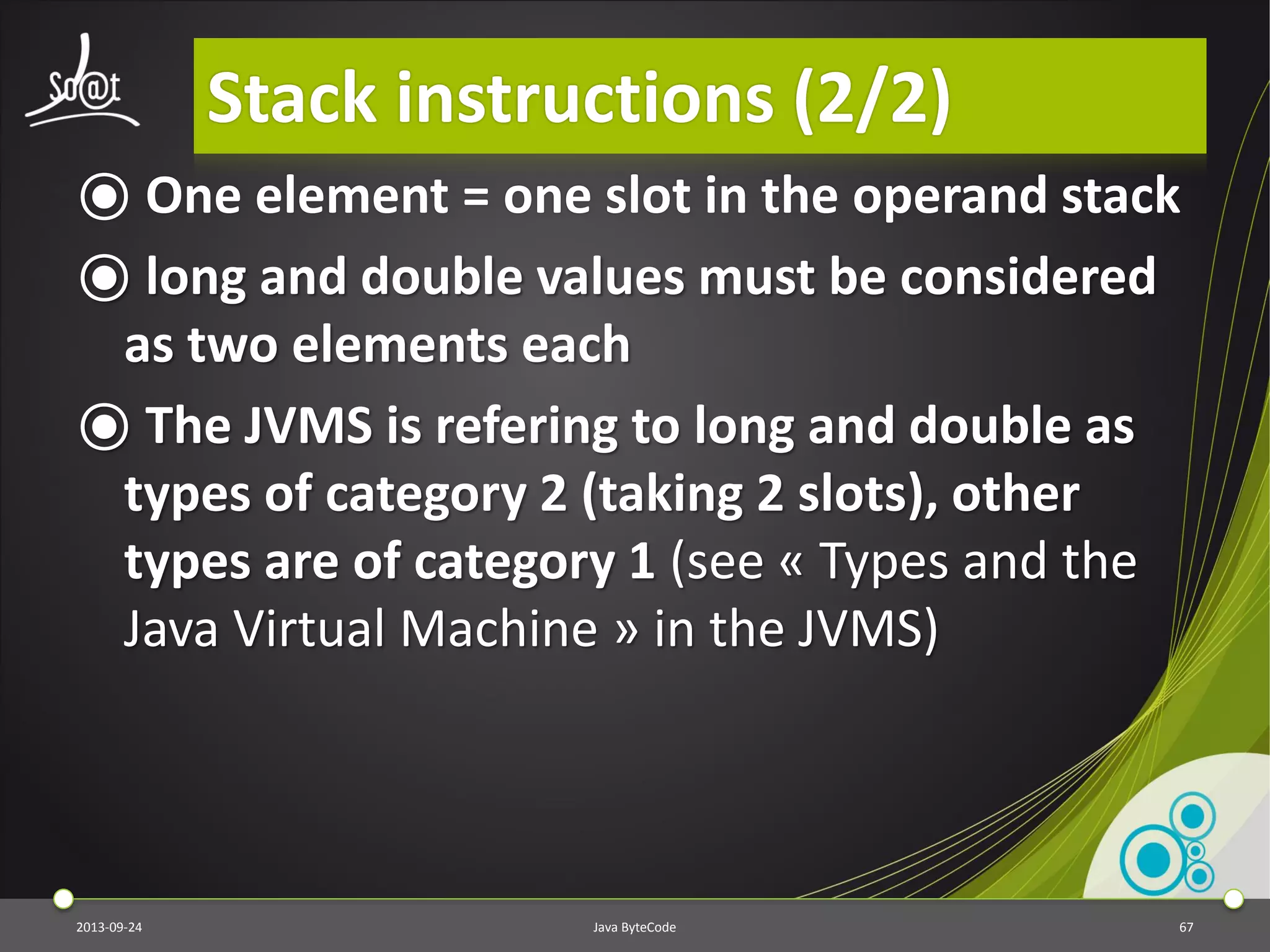

Stack instructions (2/2)
⦿ One element = one slot in the operand stack
⦿ long and double values must be considered
as two elements each
⦿ The JVMS is refering to long and double as
types of category 2 (taking 2 slots), other
types are of category 1 (see « Types and the
Java Virtual Machine » in the JVMS)
2013-09-24 Java ByteCode 67
pop - 1/2
2013-09-24 Java ByteCode 68
Cadre 1
Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
iconst_1
pop
PC
1
pop - 2/2
2013-09-24 Java ByteCode 69
Cadre 1
Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
iconst_1
popPC

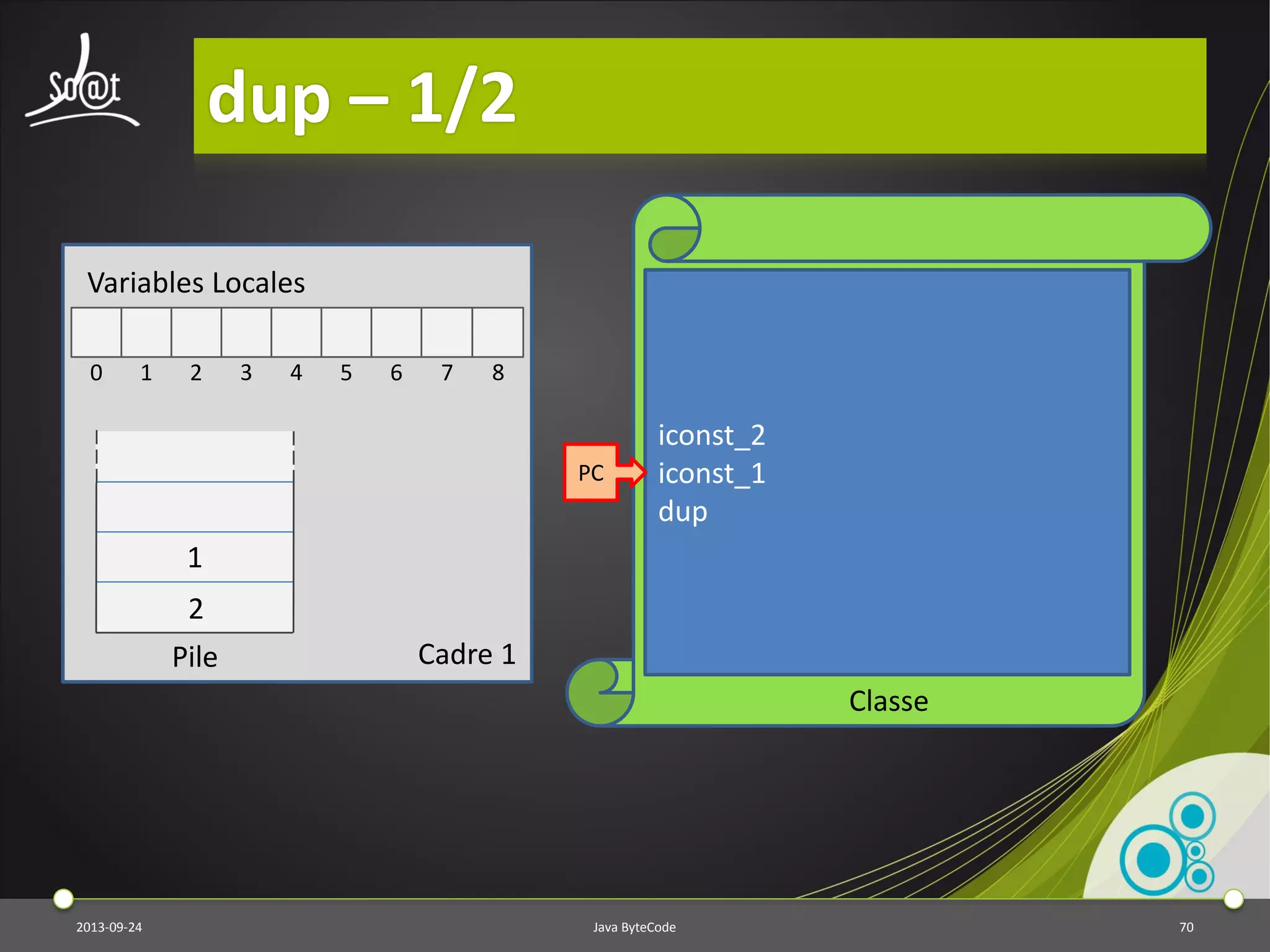

dup – 1/2
2013-09-24 Java ByteCode 70
Cadre 1
Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
iconst_2
iconst_1
dup
PC
2
1

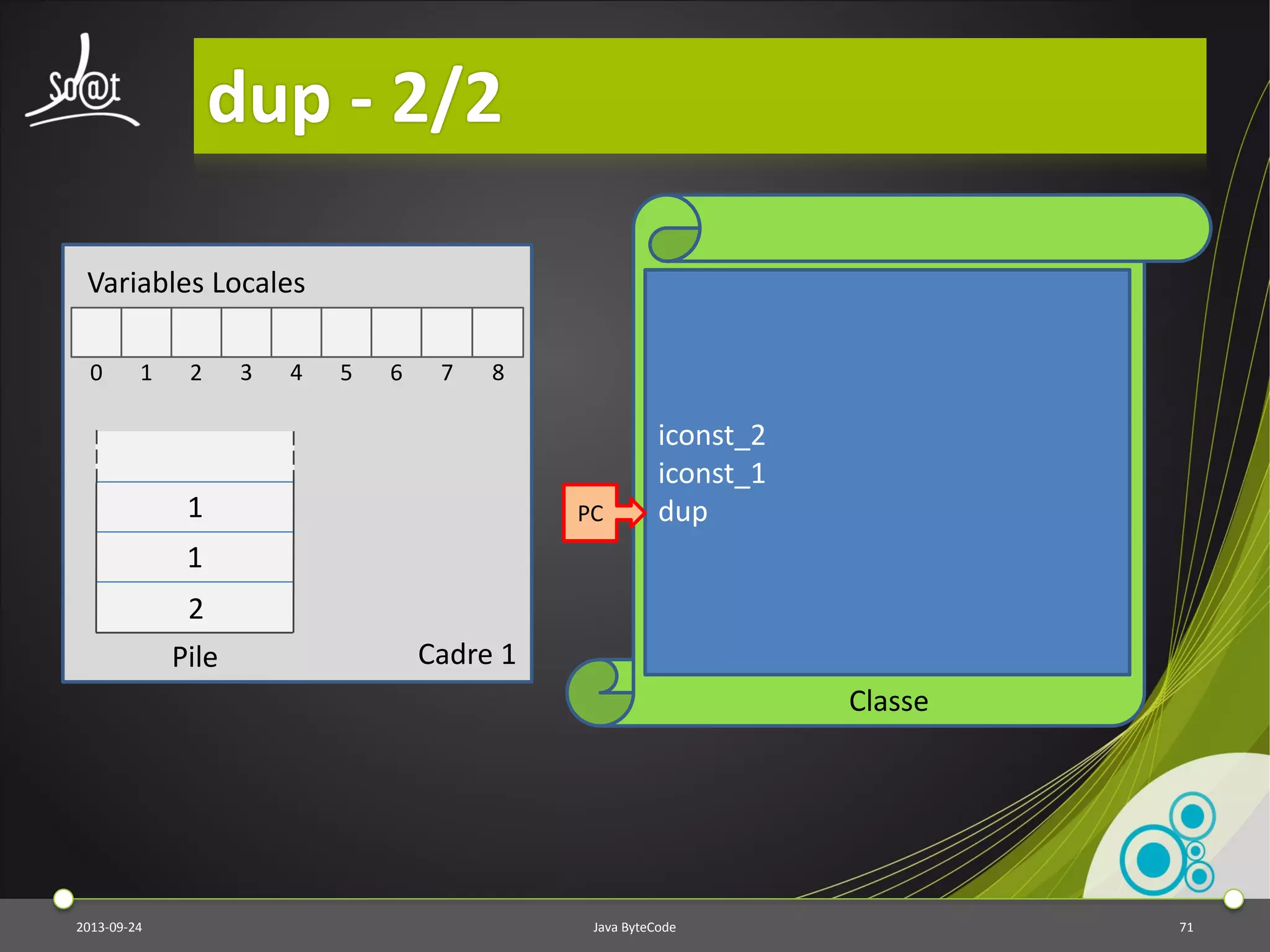

dup - 2/2
2013-09-24 Java ByteCode 71
Cadre 1
Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
iconst_2
iconst_1
dupPC
2
1
1

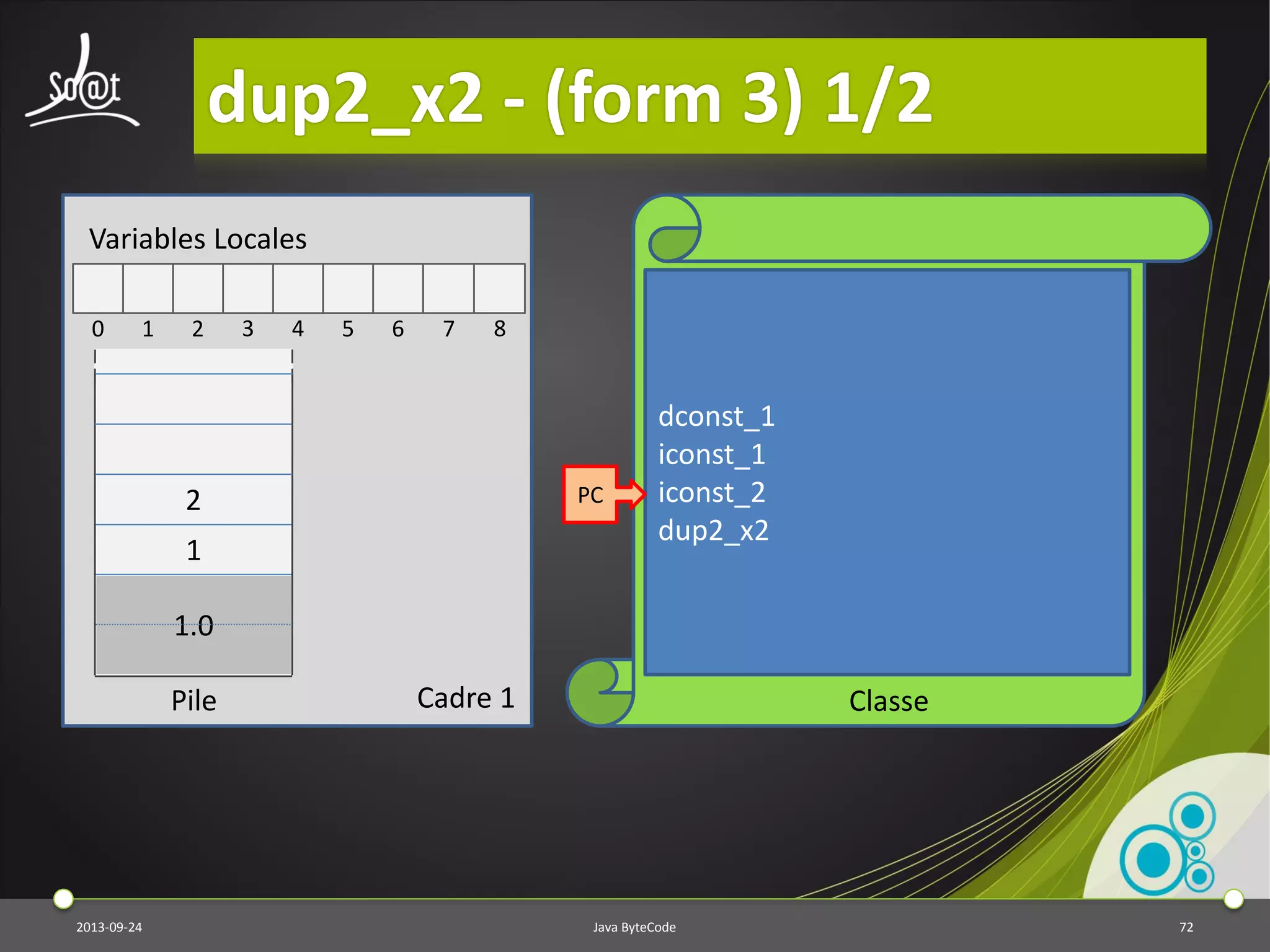

dup2_x2 - (form 3) 1/2
2013-09-24 Java ByteCode 72
Cadre 1 Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
dconst_1
iconst_1
iconst_2
dup2_x2
PC
1
2
1.0

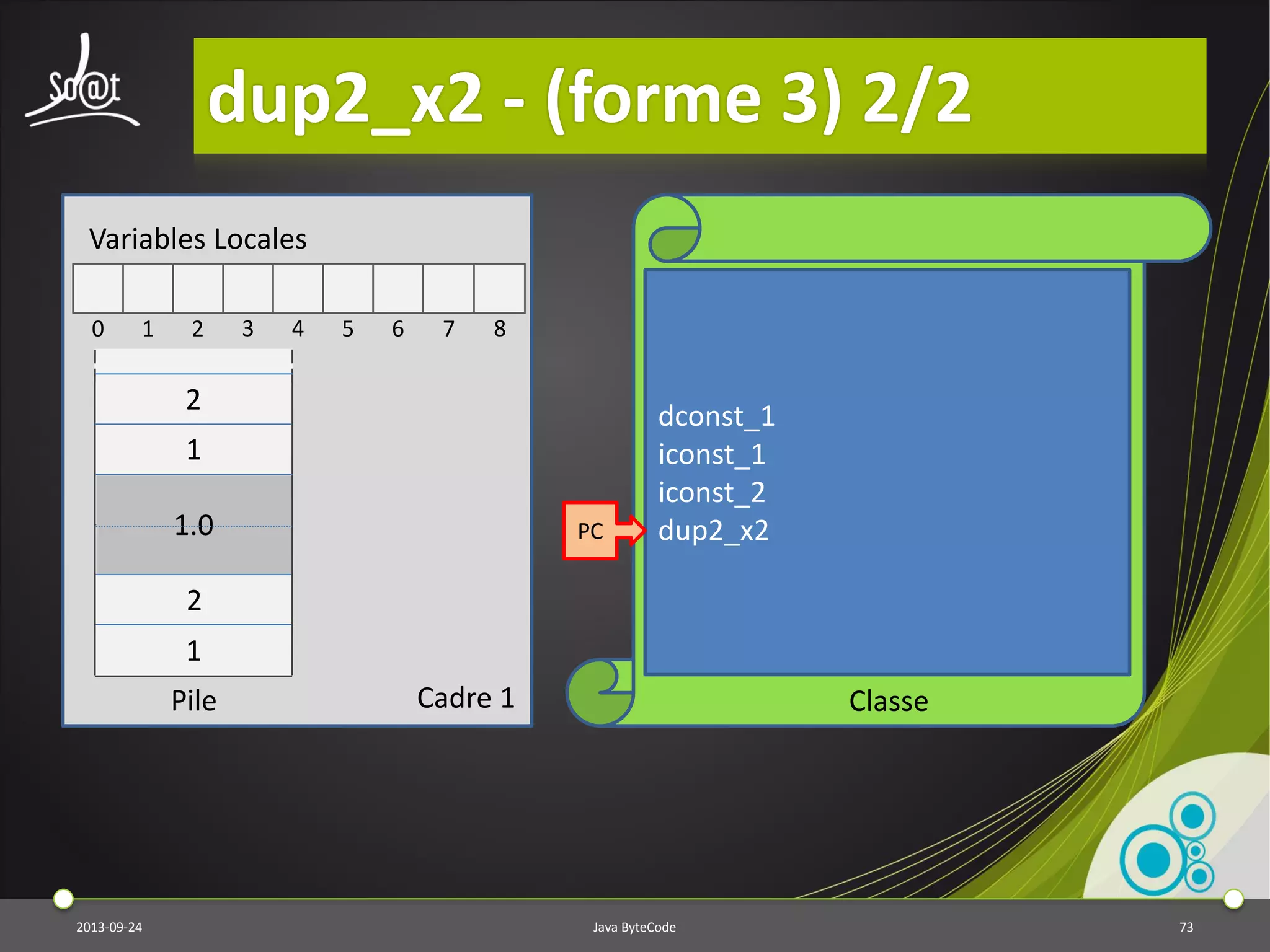

dup2_x2 - (forme 3) 2/2
2013-09-24 Java ByteCode 73
Cadre 1 Classe
Variables Locales
0 1 2 3 4 5 6 7 8
Pile
dconst_1
iconst_1
iconst_2
dup2_x2PC
1
2
1.0
2
1

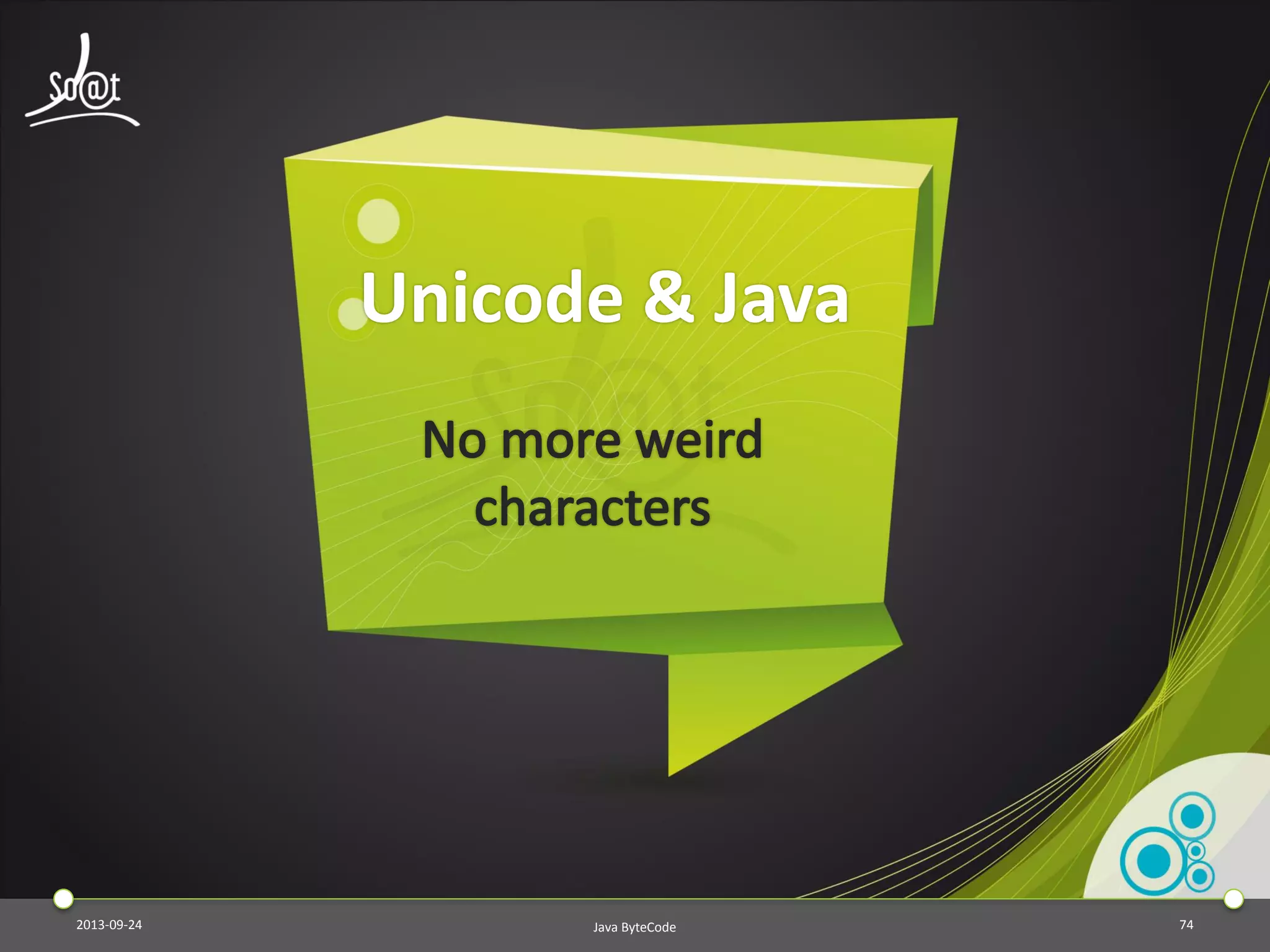

Unicode & Java
2013-09-24 Java ByteCode 74

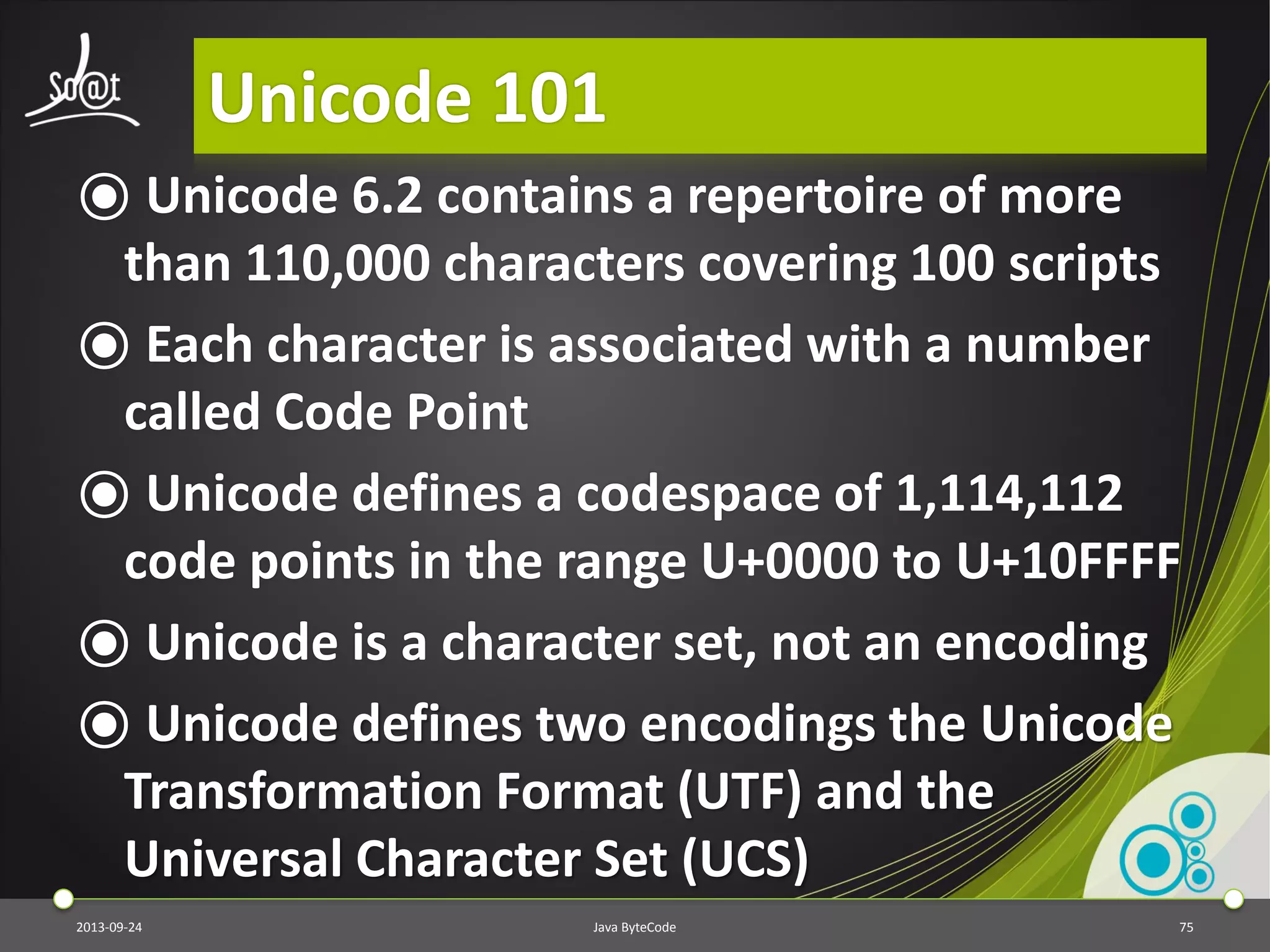

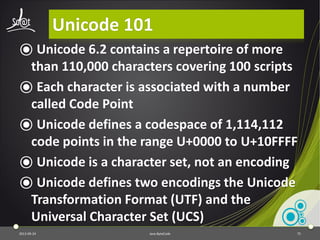

Unicode 101
⦿ Unicode 6.2 contains a repertoire of more
than 110,000 characters covering 100 scripts
⦿ Each character is associated with a number
called Code Point
⦿ Unicode defines a codespace of 1,114,112
code points in the range U+0000 to U+10FFFF
⦿ Unicode is a character set, not an encoding
⦿ Unicode defines two encodings the Unicode
Transformation Format (UTF) and the
Universal Character Set (UCS)
2013-09-24 Java ByteCode 75

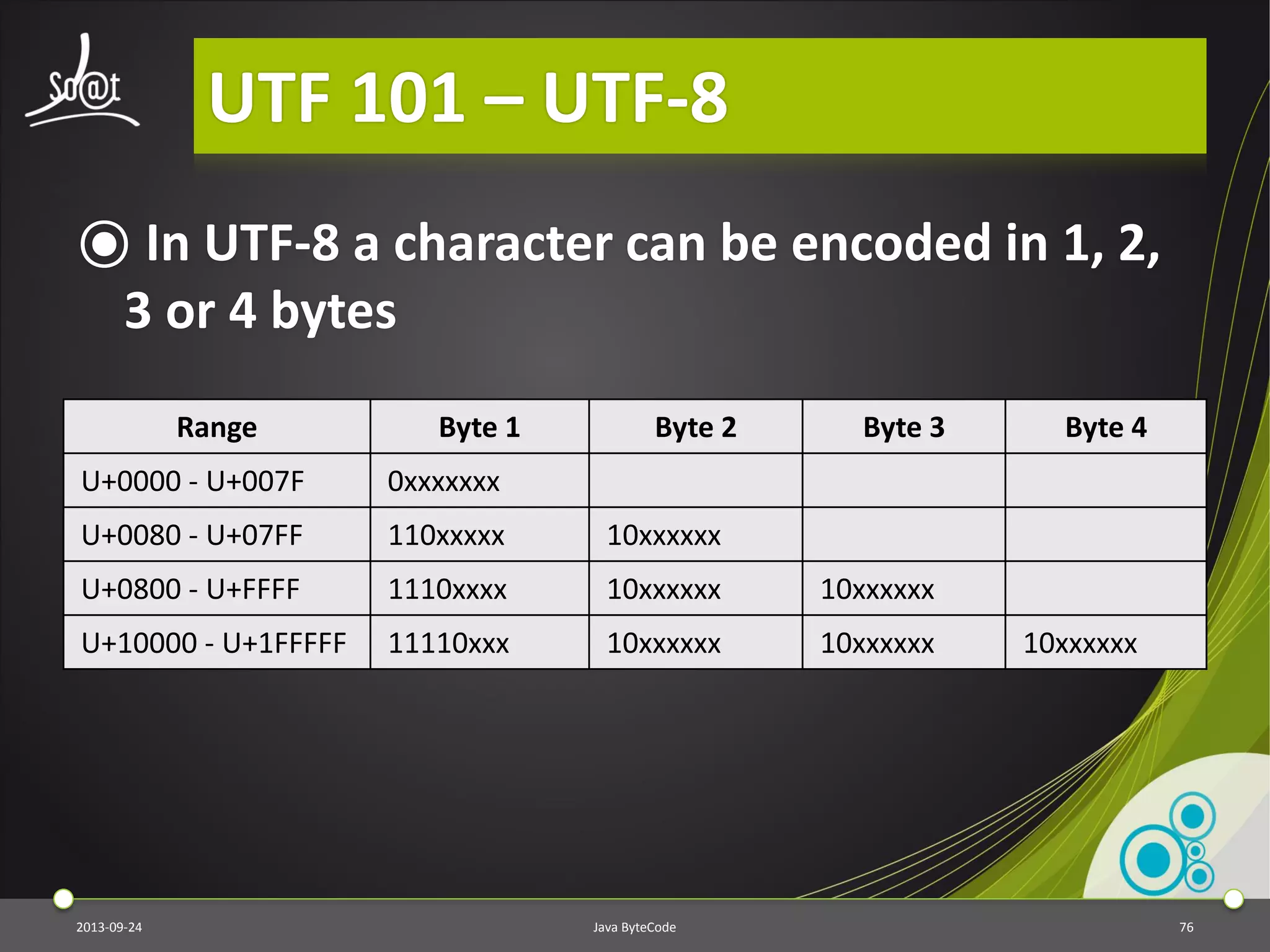

UTF 101 – UTF-8
⦿ In UTF-8 a character can be encoded in 1, 2,
3 or 4 bytes
2013-09-24 Java ByteCode 76
Range Byte 1 Byte 2 Byte 3 Byte 4
U+0000 - U+007F 0xxxxxxx
U+0080 - U+07FF 110xxxxx 10xxxxxx
U+0800 - U+FFFF 1110xxxx 10xxxxxx 10xxxxxx
U+10000 - U+1FFFFF 11110xxx 10xxxxxx 10xxxxxx 10xxxxxx

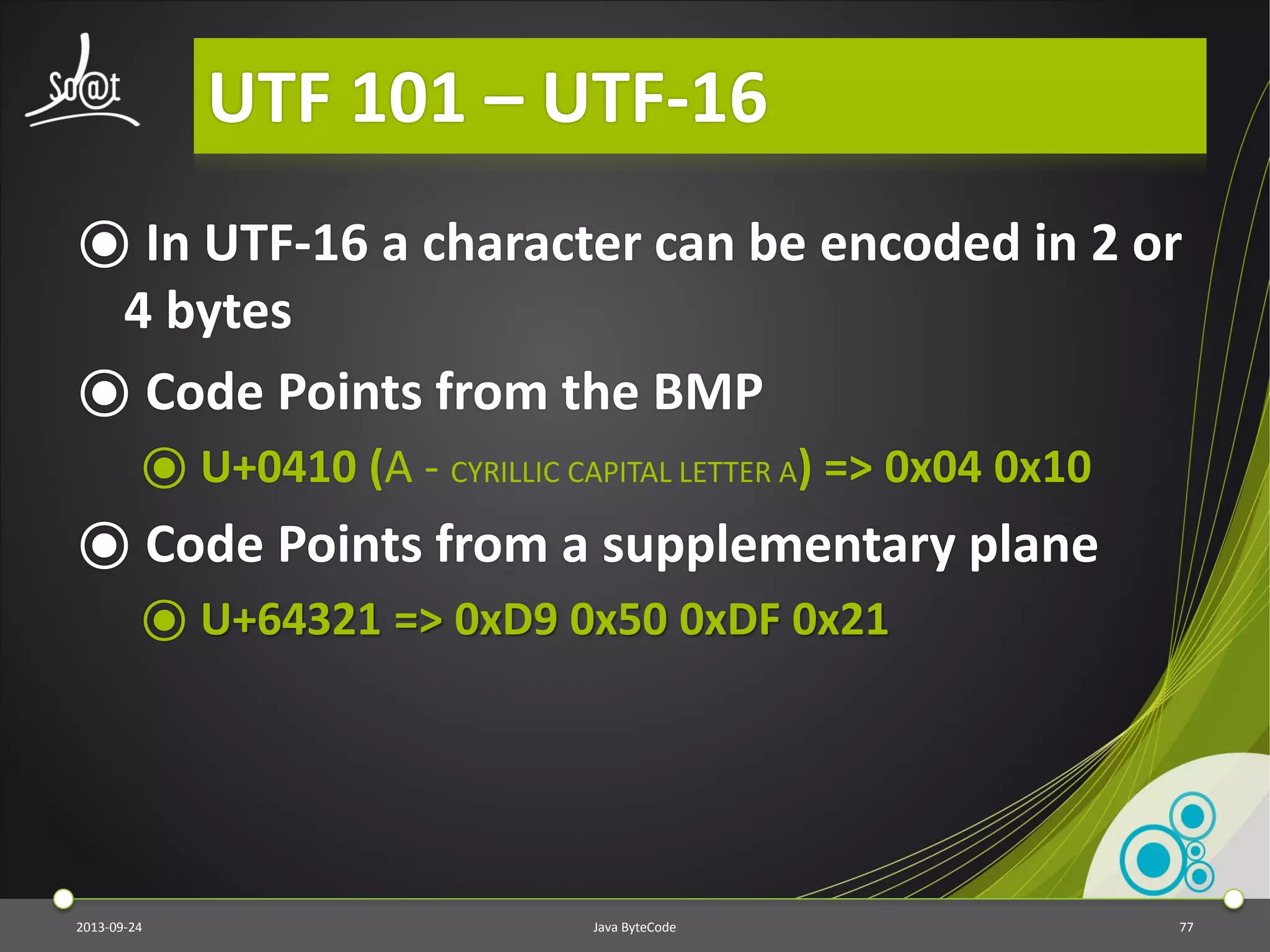

UTF 101 – UTF-16
⦿ In UTF-16 a character can be encoded in 2 or
4 bytes
⦿ Code Points from the BMP
⦿ U+0410 (А - CYRILLIC CAPITAL LETTER A) => 0x04 0x10
⦿ Code Points from a supplementary plane
⦿ U+64321 => 0xD9 0x50 0xDF 0x21
2013-09-24 Java ByteCode 77

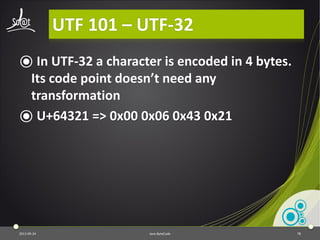

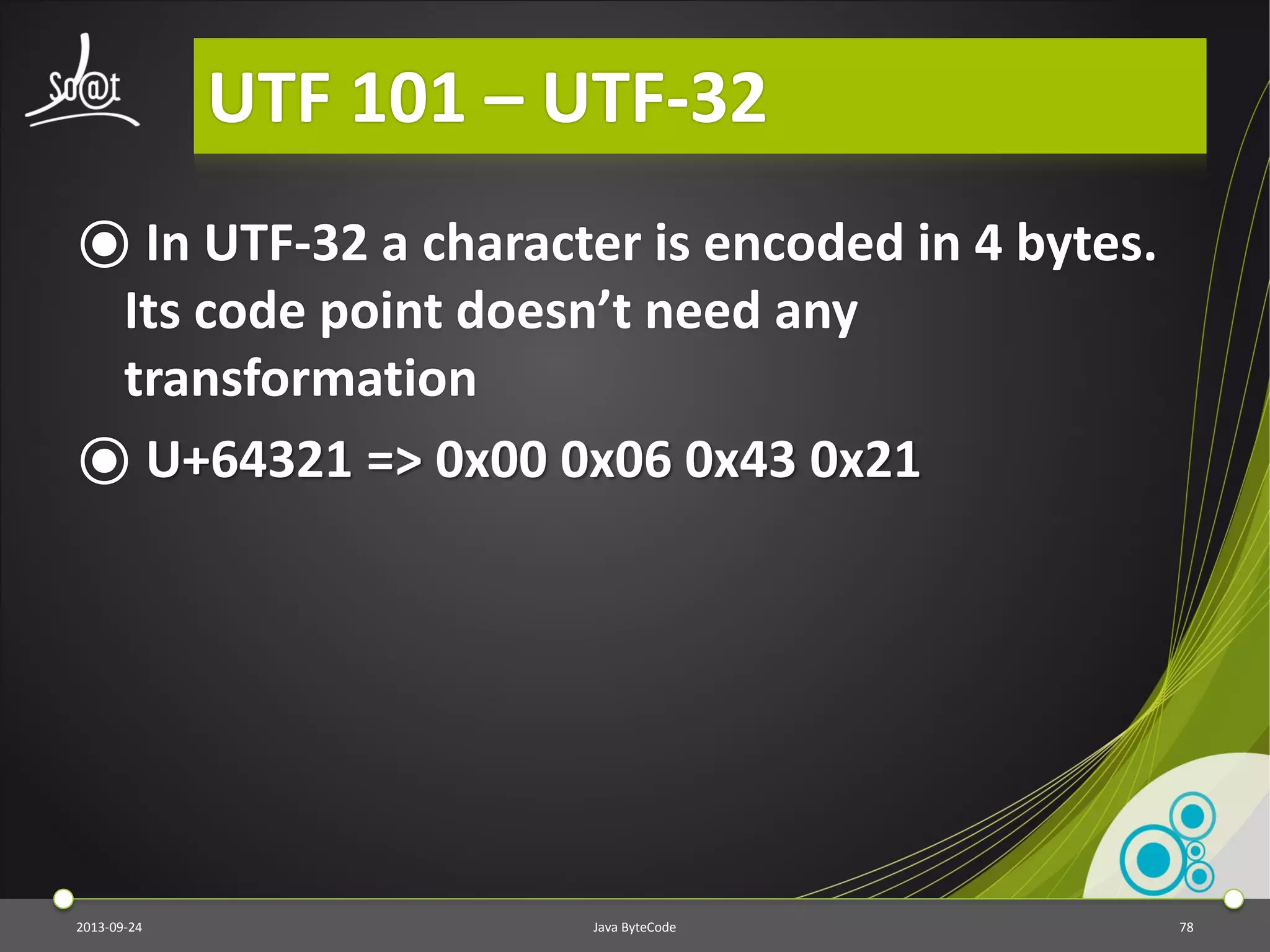

UTF 101 – UTF-32
⦿ In UTF-32 a character is encoded in 4 bytes.
Its code point doesn’t need any
transformation
⦿ U+64321 => 0x00 0x06 0x43 0x21
2013-09-24 Java ByteCode 78
2013-09-24 Java ByteCode 79
Why should I
care about
Unicode ?
Java Source File encoding

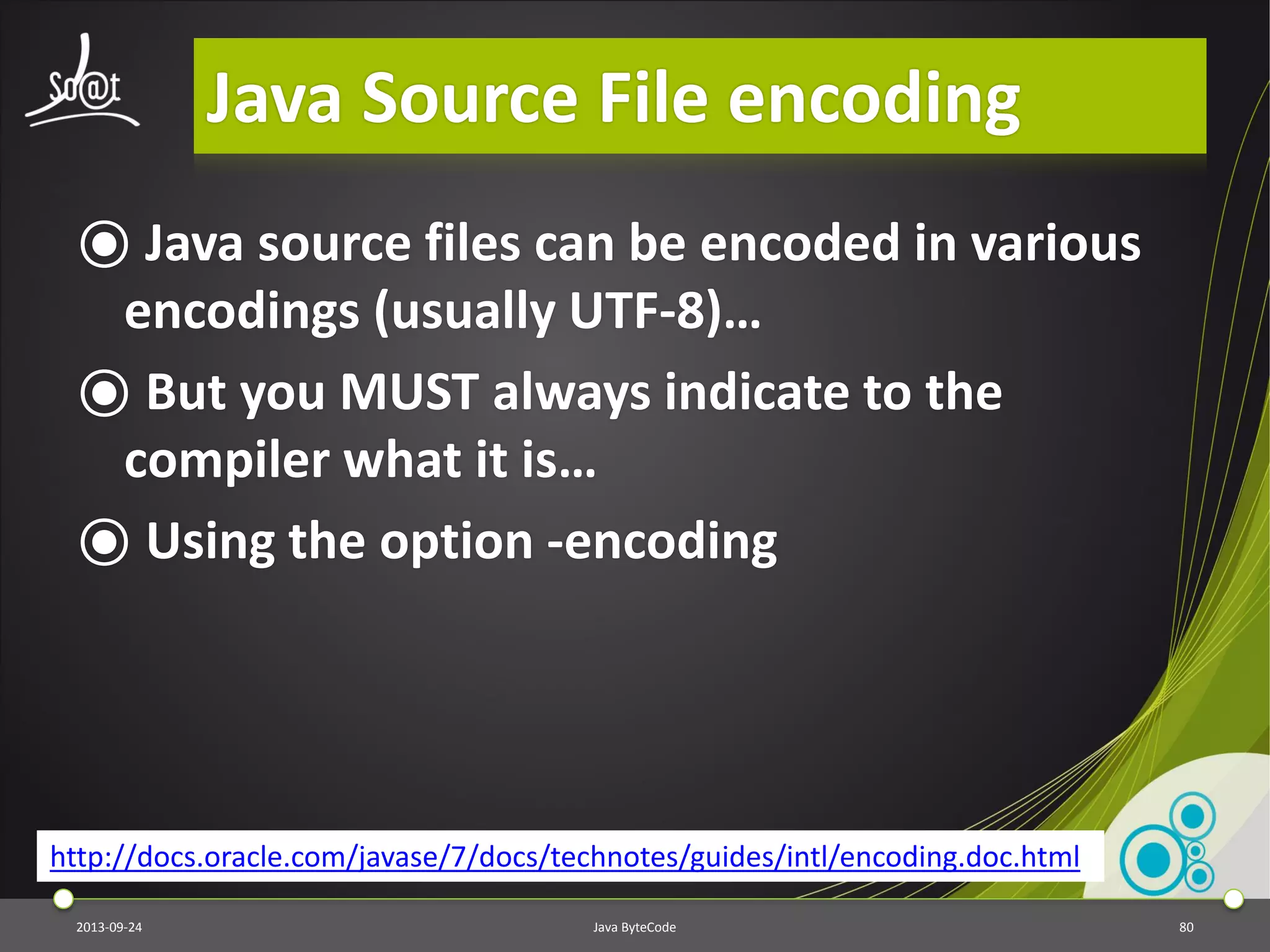

⦿ Java source files can be encoded in various
encodings (usually UTF-8)…
⦿ But you MUST always indicate to the
compiler what it is…
⦿ Using the option -encoding
2013-09-24 Java ByteCode 80
http://docs.oracle.com/javase/7/docs/technotes/guides/intl/encoding.doc.html

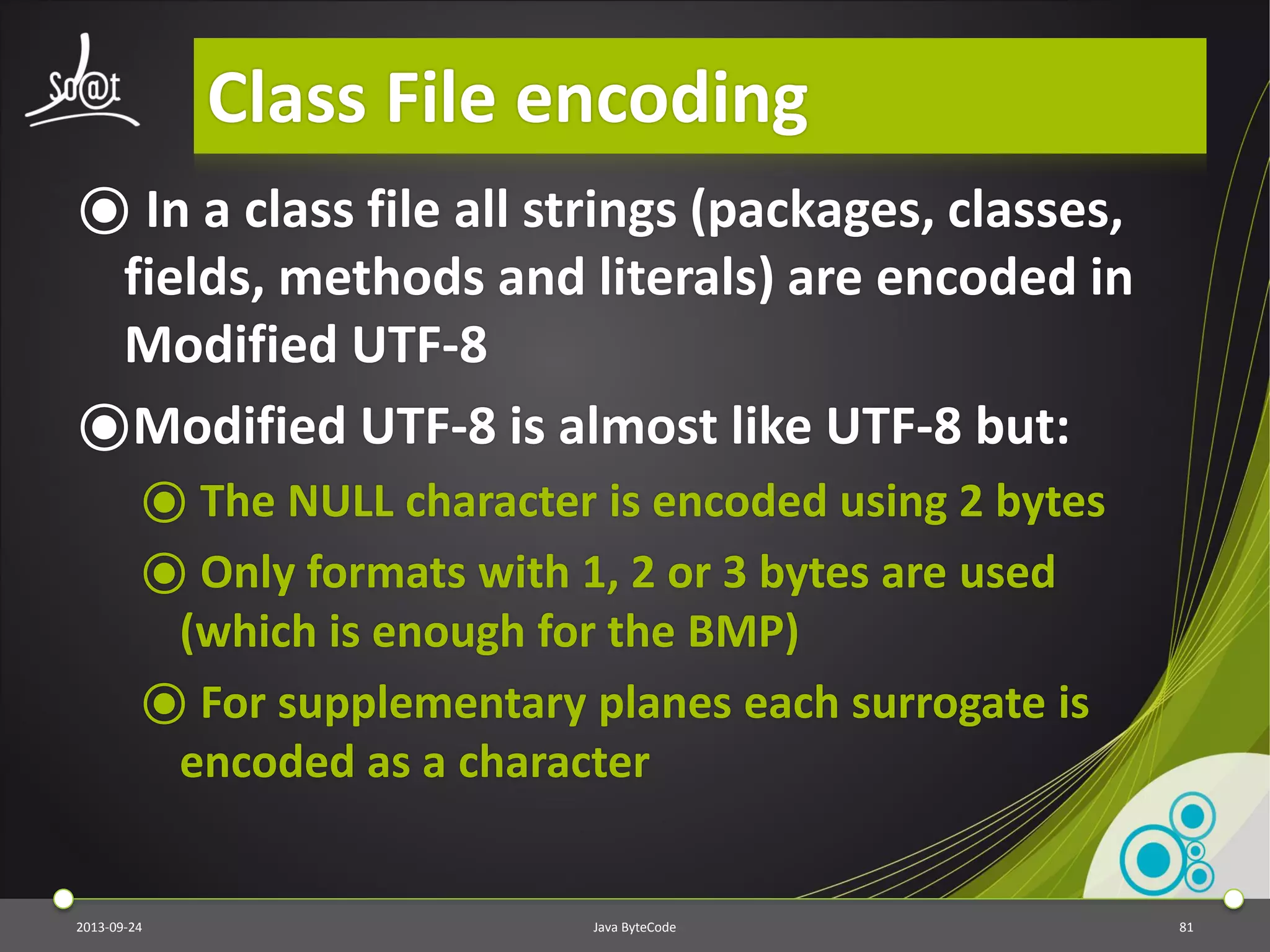

Class File encoding
⦿ In a class file all strings (packages, classes,
fields, methods and literals) are encoded in
Modified UTF-8
⦿Modified UTF-8 is almost like UTF-8 but:
⦿ The NULL character is encoded using 2 bytes
⦿ Only formats with 1, 2 or 3 bytes are used
(which is enough for the BMP)
⦿ For supplementary planes each surrogate is
encoded as a character
2013-09-24 Java ByteCode 81
JVM encoding
⦿ The JVM encodes Strings in UTF-16…
⦿ Therefore extreme care should be taken
when handling an external stream of data (a
file or from the network)
2013-09-24 Java ByteCode 82
Class File Format
2013-09-24 Java ByteCode 83

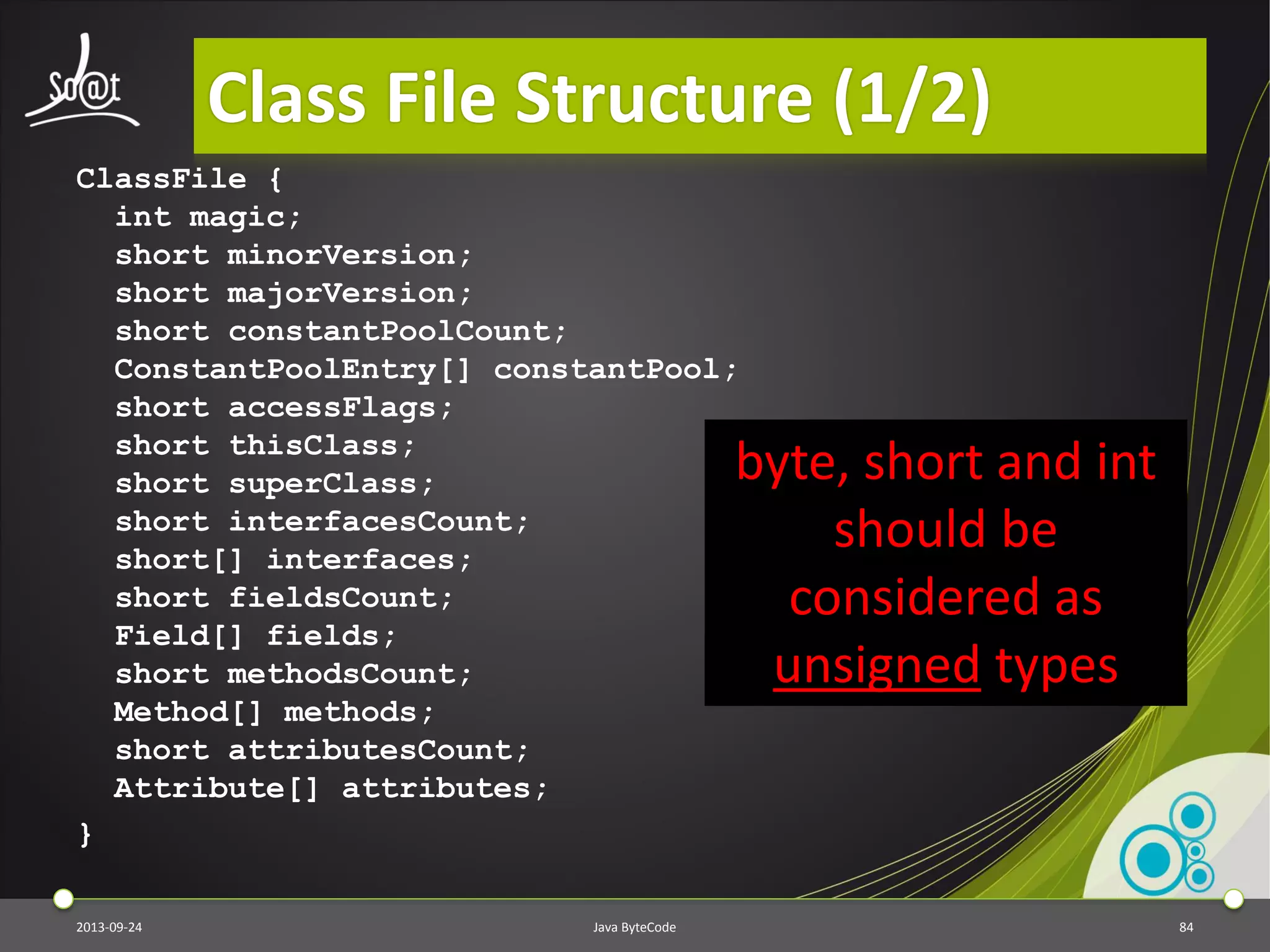

Class File Structure (1/2)
2013-09-24 Java ByteCode 84
ClassFile {
int magic;
short minorVersion;
short majorVersion;
short constantPoolCount;
ConstantPoolEntry[] constantPool;
short accessFlags;
short thisClass;
short superClass;
short interfacesCount;
short[] interfaces;
short fieldsCount;
Field[] fields;
short methodsCount;
Method[] methods;
short attributesCount;
Attribute[] attributes;
}
byte, short and int
should be
considered as
unsigned types

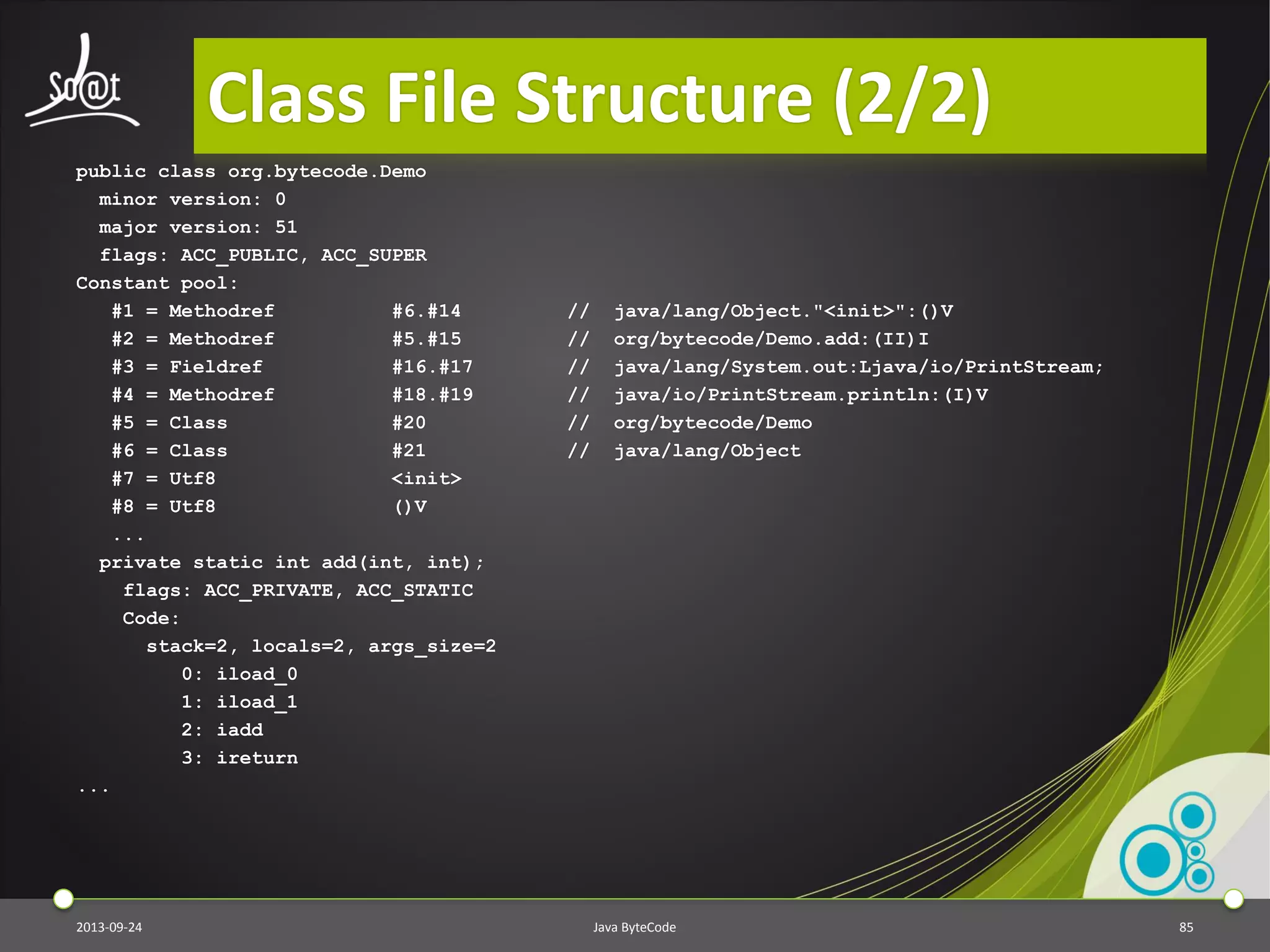

Class File Structure (2/2)
2013-09-24 Java ByteCode 85
public class org.bytecode.Demo
minor version: 0
major version: 51
flags: ACC_PUBLIC, ACC_SUPER
Constant pool:
#1 = Methodref #6.#14 // java/lang/Object."<init>":()V
#2 = Methodref #5.#15 // org/bytecode/Demo.add:(II)I
#3 = Fieldref #16.#17 // java/lang/System.out:Ljava/io/PrintStream;
#4 = Methodref #18.#19 // java/io/PrintStream.println:(I)V
#5 = Class #20 // org/bytecode/Demo
#6 = Class #21 // java/lang/Object
#7 = Utf8 <init>
#8 = Utf8 ()V
...
private static int add(int, int);
flags: ACC_PRIVATE, ACC_STATIC
Code:
stack=2, locals=2, args_size=2
0: iload_0
1: iload_1
2: iadd
3: ireturn
...

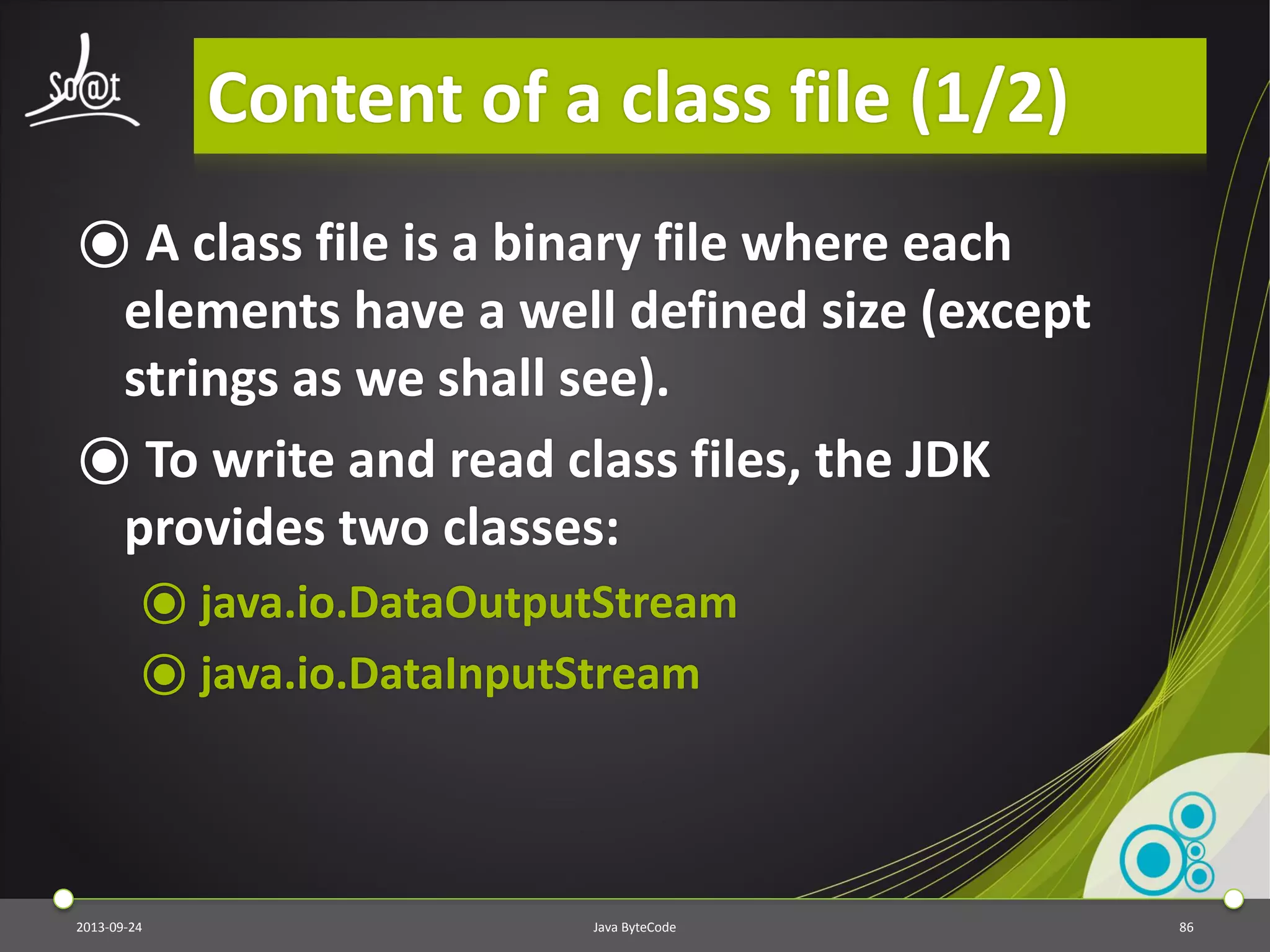

Content of a class file (1/2)
⦿ A class file is a binary file where each
elements have a well defined size (except
strings as we shall see).
⦿ To write and read class files, the JDK
provides two classes:
⦿ java.io.DataOutputStream
⦿ java.io.DataInputStream
2013-09-24 Java ByteCode 86

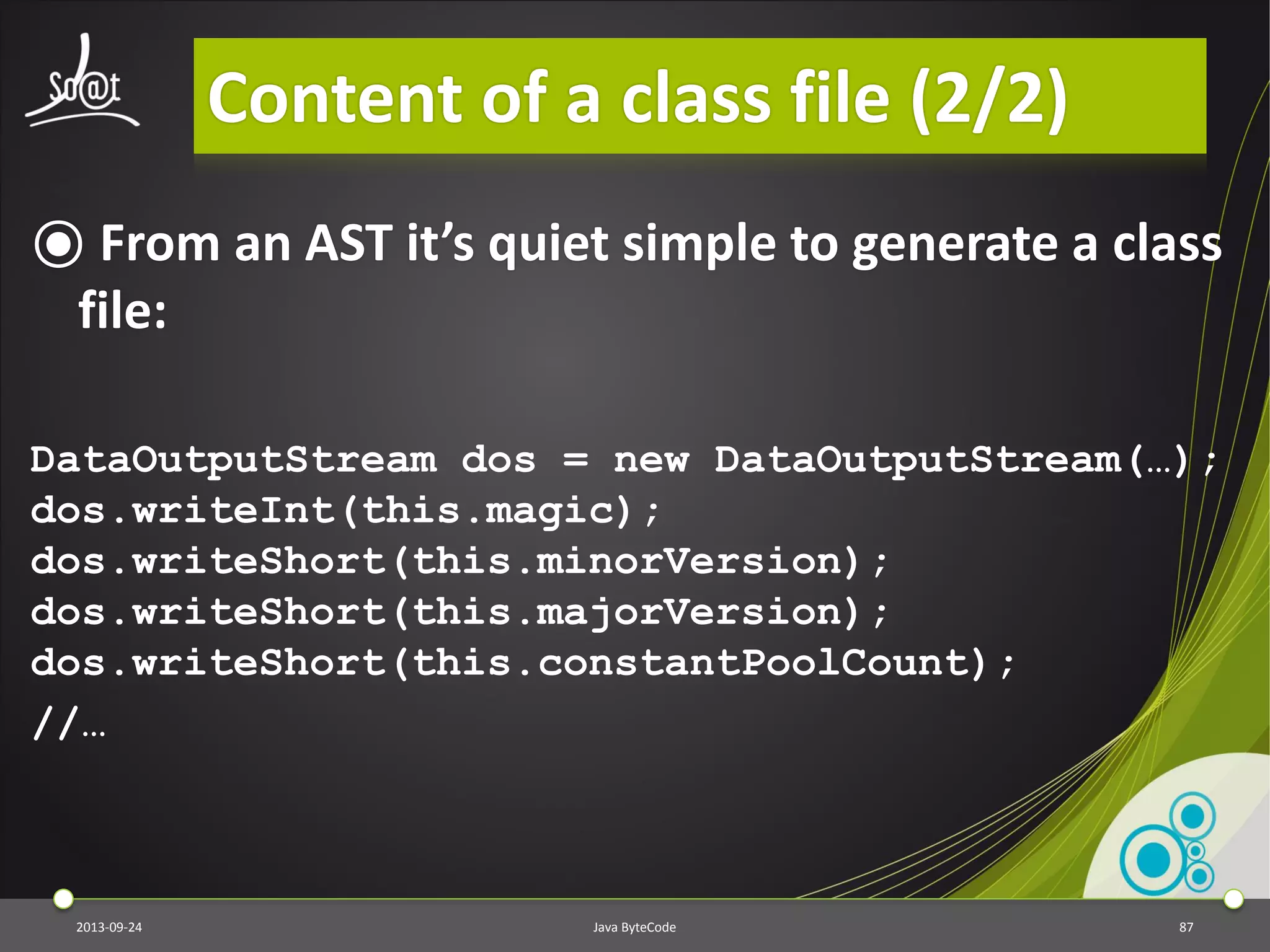

Content of a class file (2/2)
⦿ From an AST it’s quiet simple to generate a class
file:
DataOutputStream dos = new DataOutputStream(…);
dos.writeInt(this.magic);
dos.writeShort(this.minorVersion);
dos.writeShort(this.majorVersion);
dos.writeShort(this.constantPoolCount);
//…
2013-09-24 Java ByteCode 87

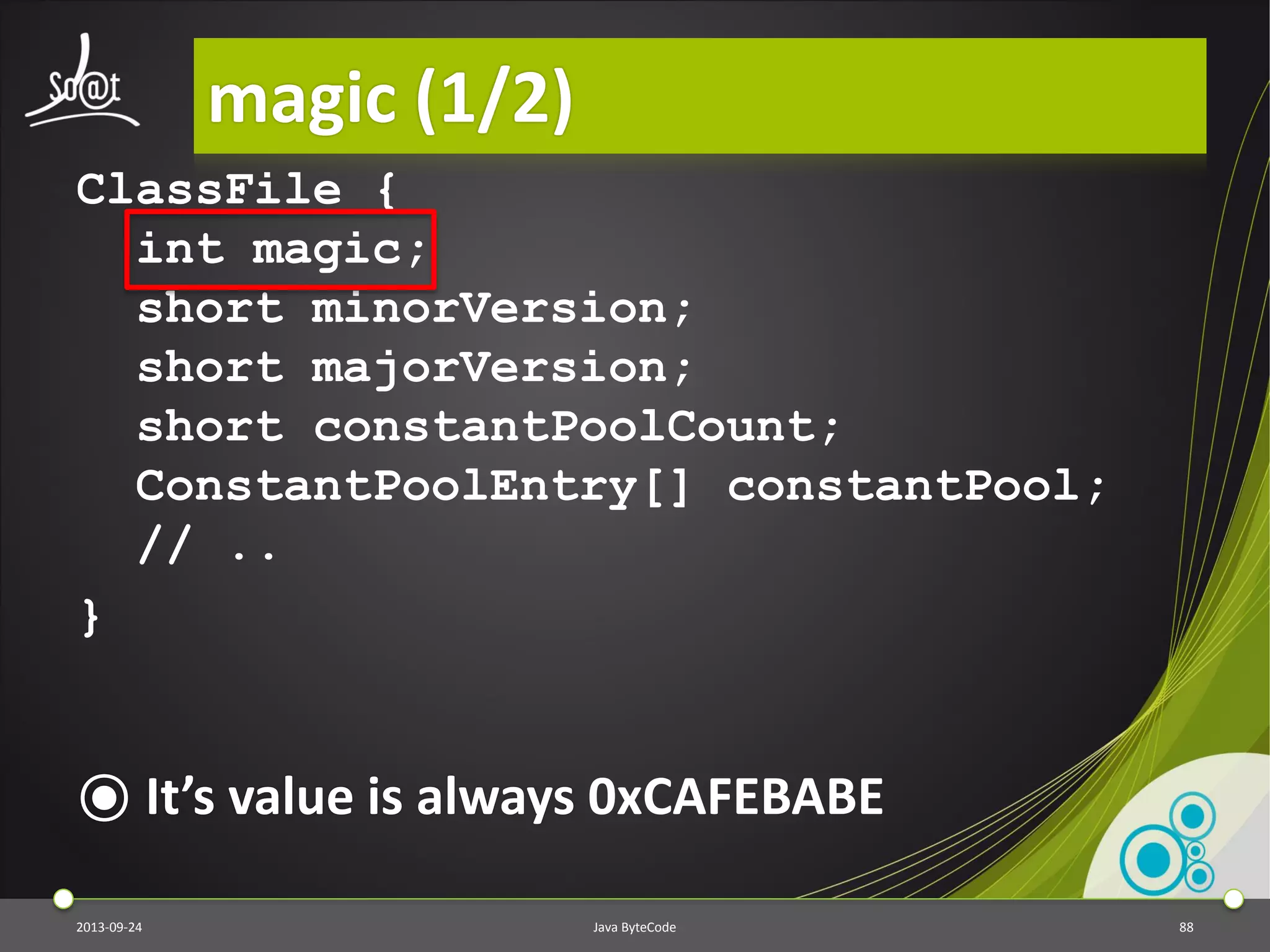

magic (1/2)
2013-09-24 Java ByteCode 88
ClassFile {
int magic;
short minorVersion;
short majorVersion;
short constantPoolCount;
ConstantPoolEntry[] constantPool;
// ..
}
⦿ It’s value is always 0xCAFEBABE

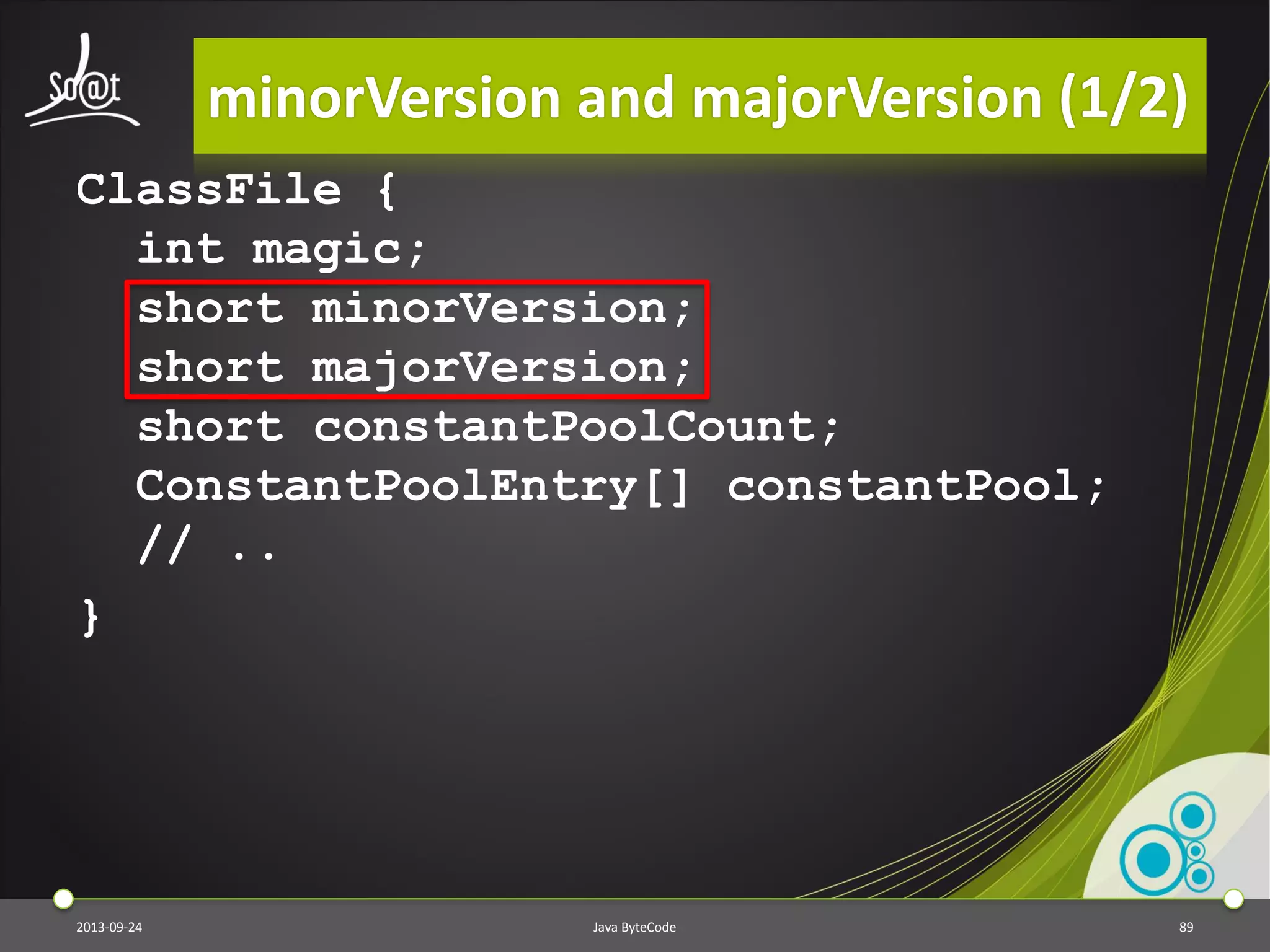

minorVersion and majorVersion (1/2)
2013-09-24 Java ByteCode 89
ClassFile {
int magic;
short minorVersion;
short majorVersion;
short constantPoolCount;
ConstantPoolEntry[] constantPool;
// ..
}
minorVersion and majorVersion (2/2)

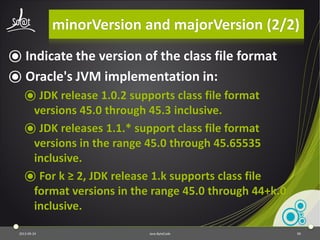

2013-09-24 Java ByteCode 90

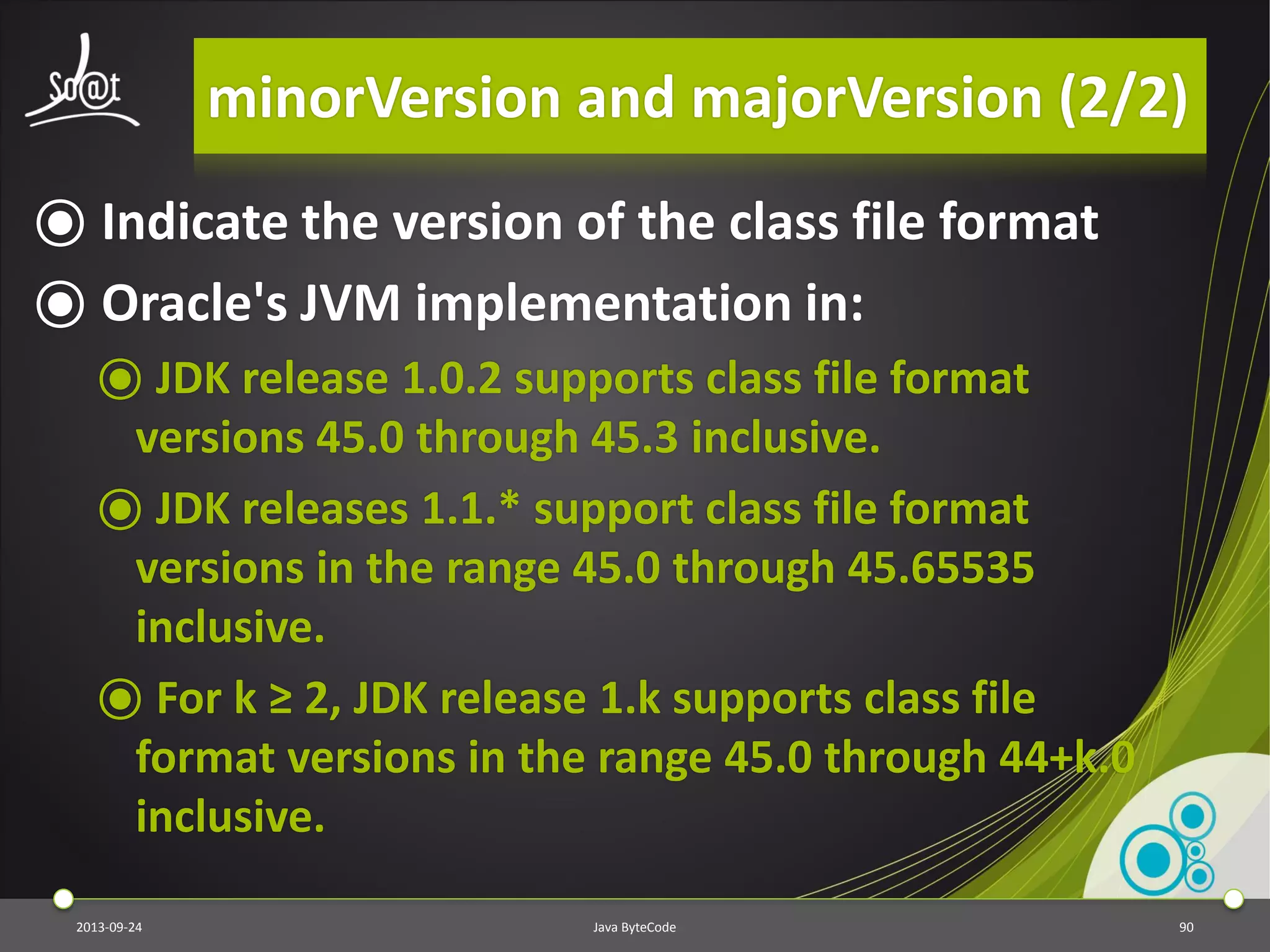

⦿ Indicate the version of the class file format
⦿ Oracle's JVM implementation in:
⦿ JDK release 1.0.2 supports class file format
versions 45.0 through 45.3 inclusive.
⦿ JDK releases 1.1.* support class file format
versions in the range 45.0 through 45.65535
inclusive.
⦿ For k ≥ 2, JDK release 1.k supports class file
format versions in the range 45.0 through 44+k.0
inclusive.

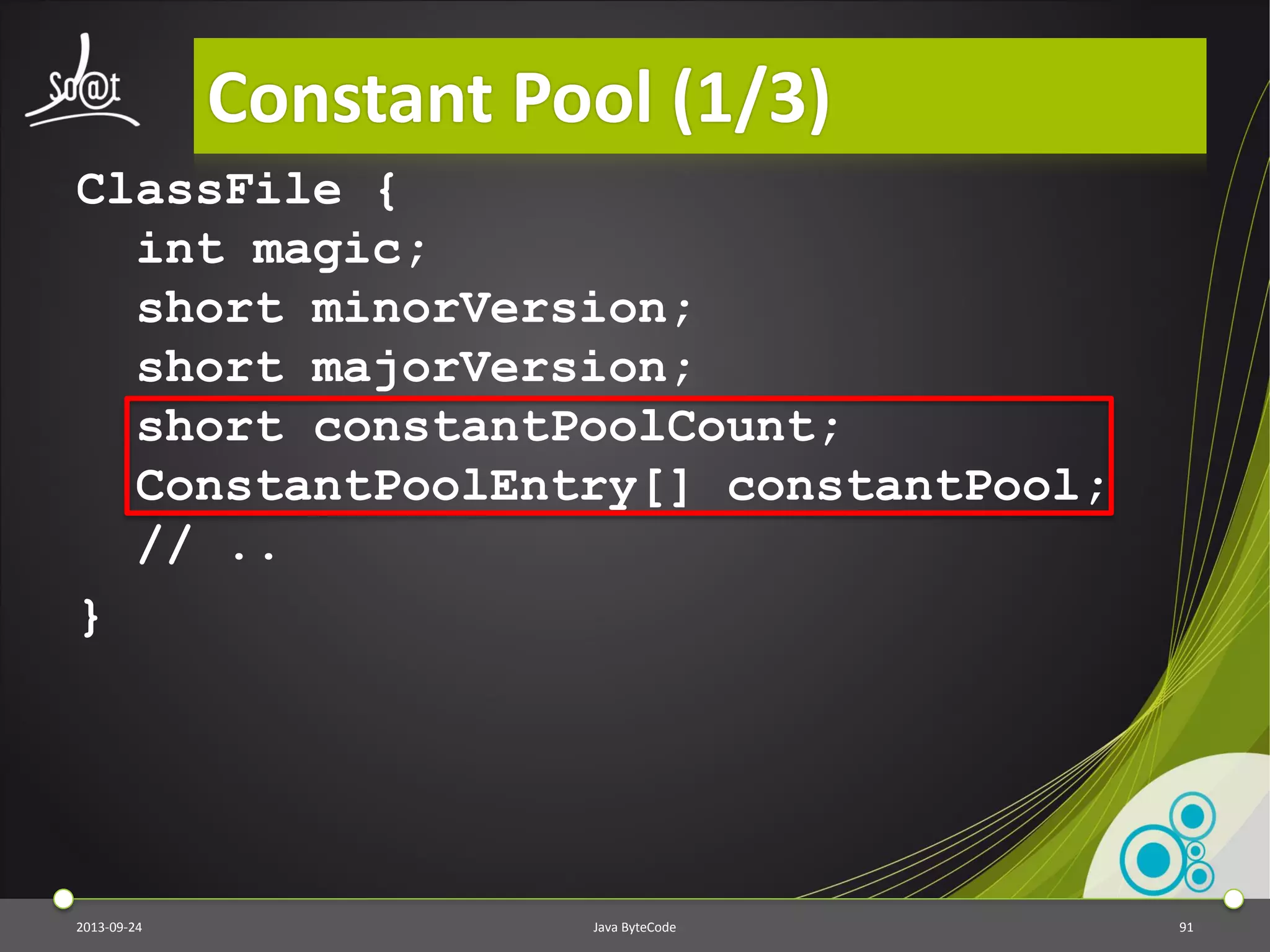

Constant Pool (1/3)
2013-09-24 Java ByteCode 91
ClassFile {
int magic;
short minorVersion;
short majorVersion;
short constantPoolCount;
ConstantPoolEntry[] constantPool;
// ..
}

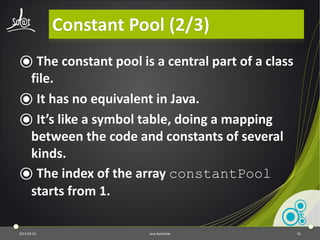

Constant Pool (2/3)

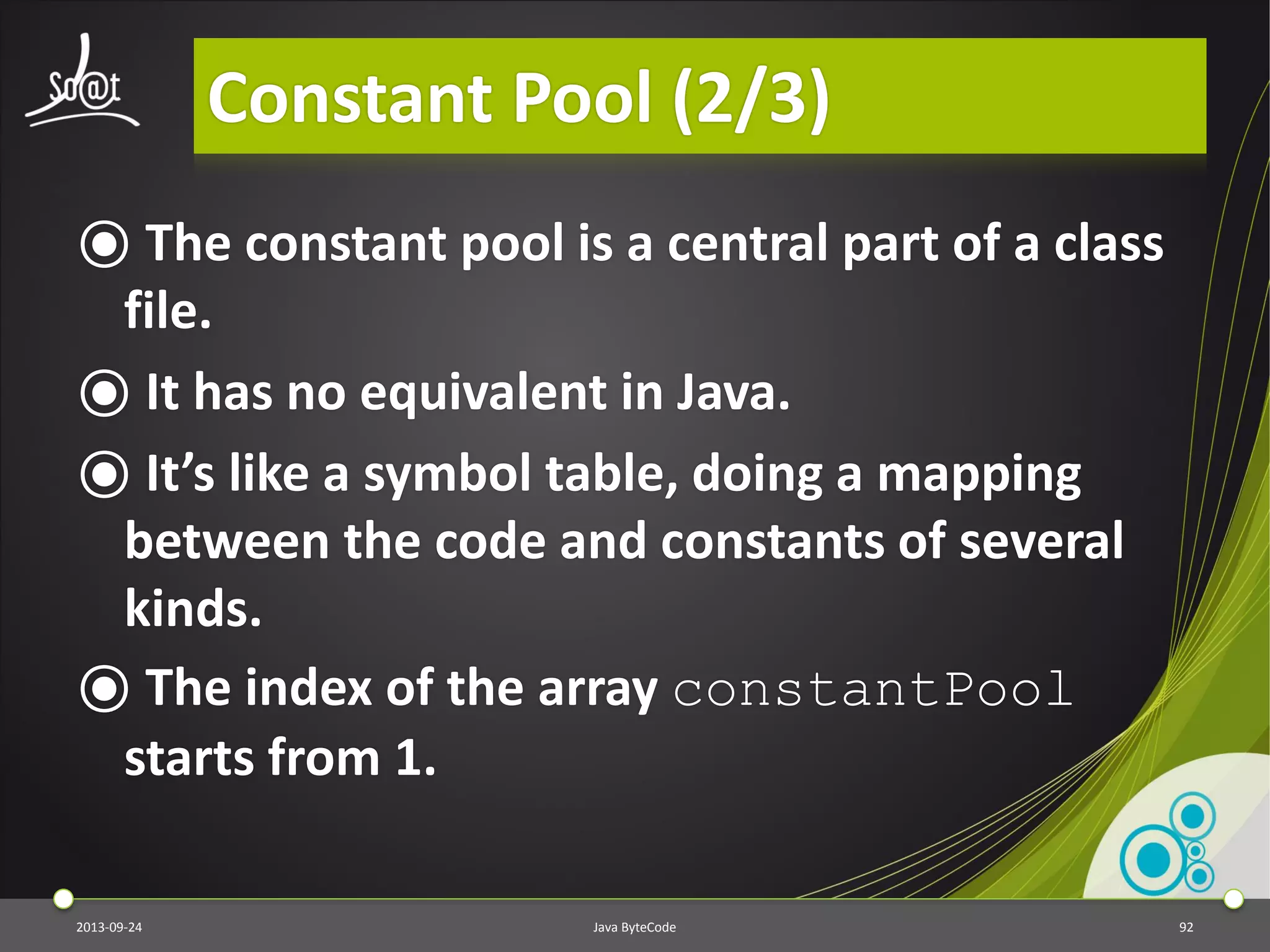

⦿ The constant pool is a central part of a class
file.
⦿ It has no equivalent in Java.
⦿ It’s like a symbol table, doing a mapping
between the code and constants of several
kinds.
⦿ The index of the array constantPool
starts from 1.
2013-09-24 Java ByteCode 92

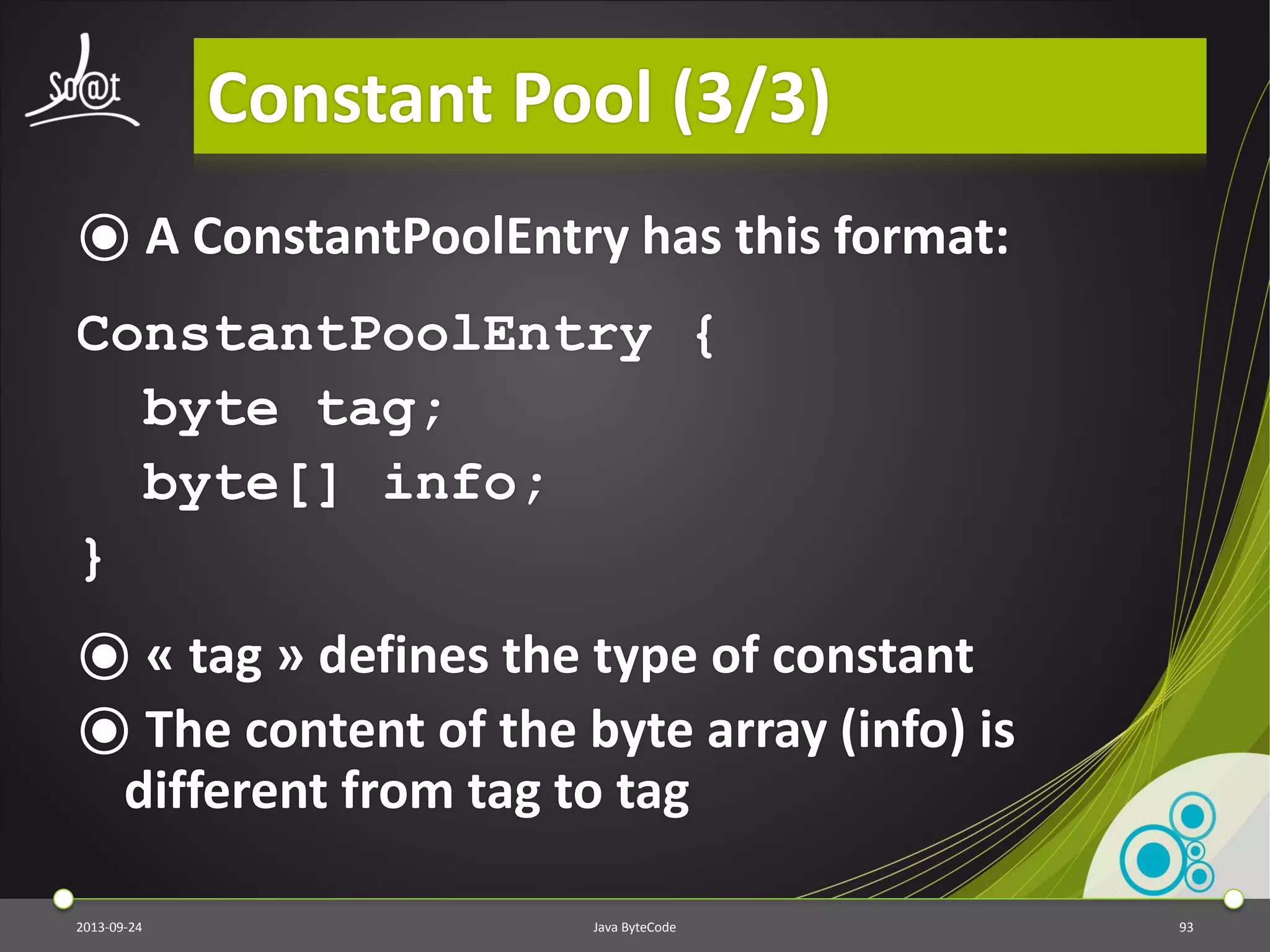

Constant Pool (3/3)
⦿ A ConstantPoolEntry has this format:
ConstantPoolEntry {
byte tag;
byte[] info;
}
⦿ « tag » defines the type of constant
⦿ The content of the byte array (info) is
different from tag to tag
2013-09-24 Java ByteCode 93

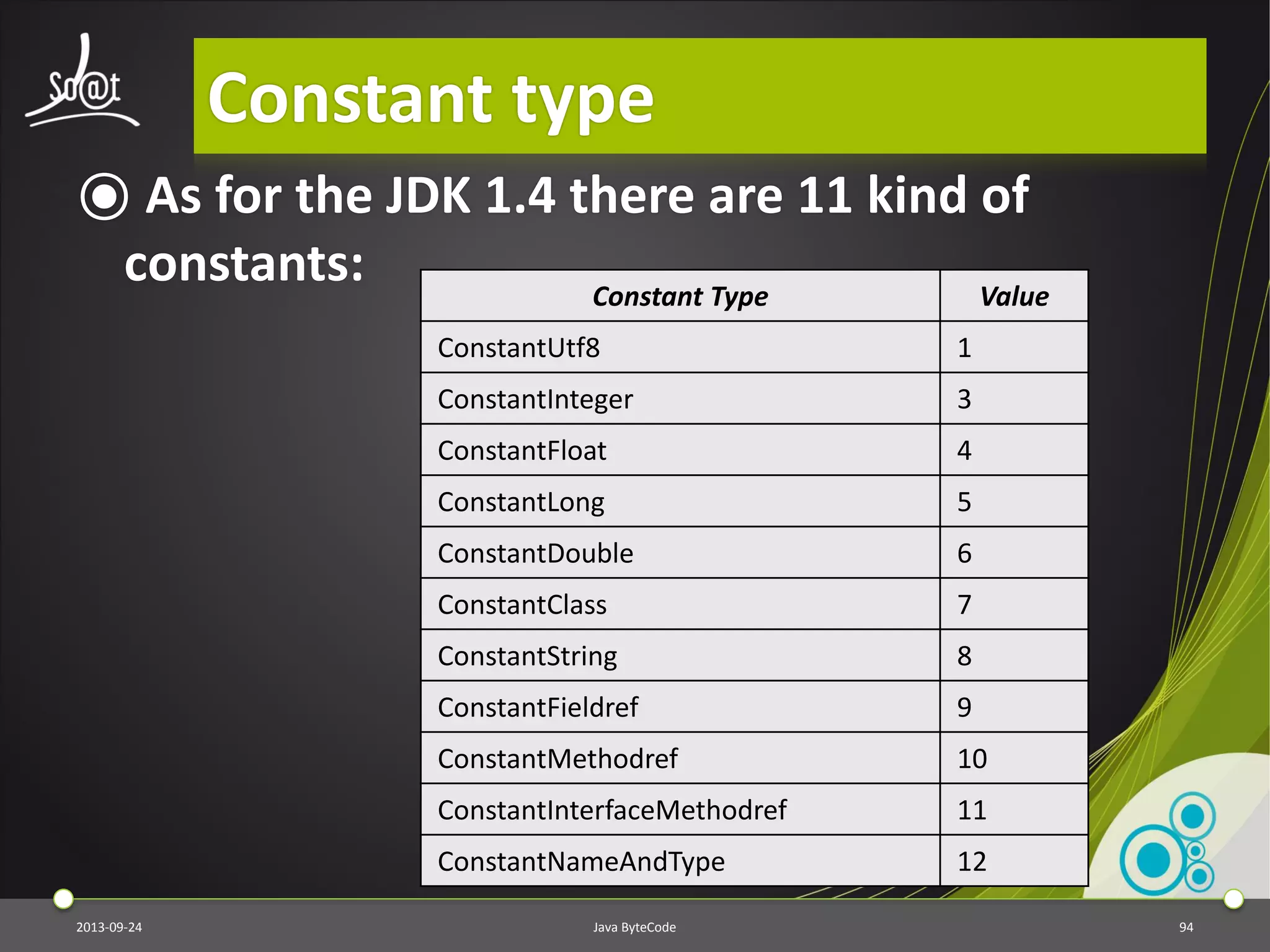

Constant type
⦿ As for the JDK 1.4 there are 11 kind of
constants:
2013-09-24 Java ByteCode 94
Constant Type Value
ConstantUtf8 1
ConstantInteger 3
ConstantFloat 4
ConstantLong 5
ConstantDouble 6
ConstantClass 7
ConstantString 8
ConstantFieldref 9
ConstantMethodref 10
ConstantInterfaceMethodref 11
ConstantNameAndType 12
ConstantUTF8

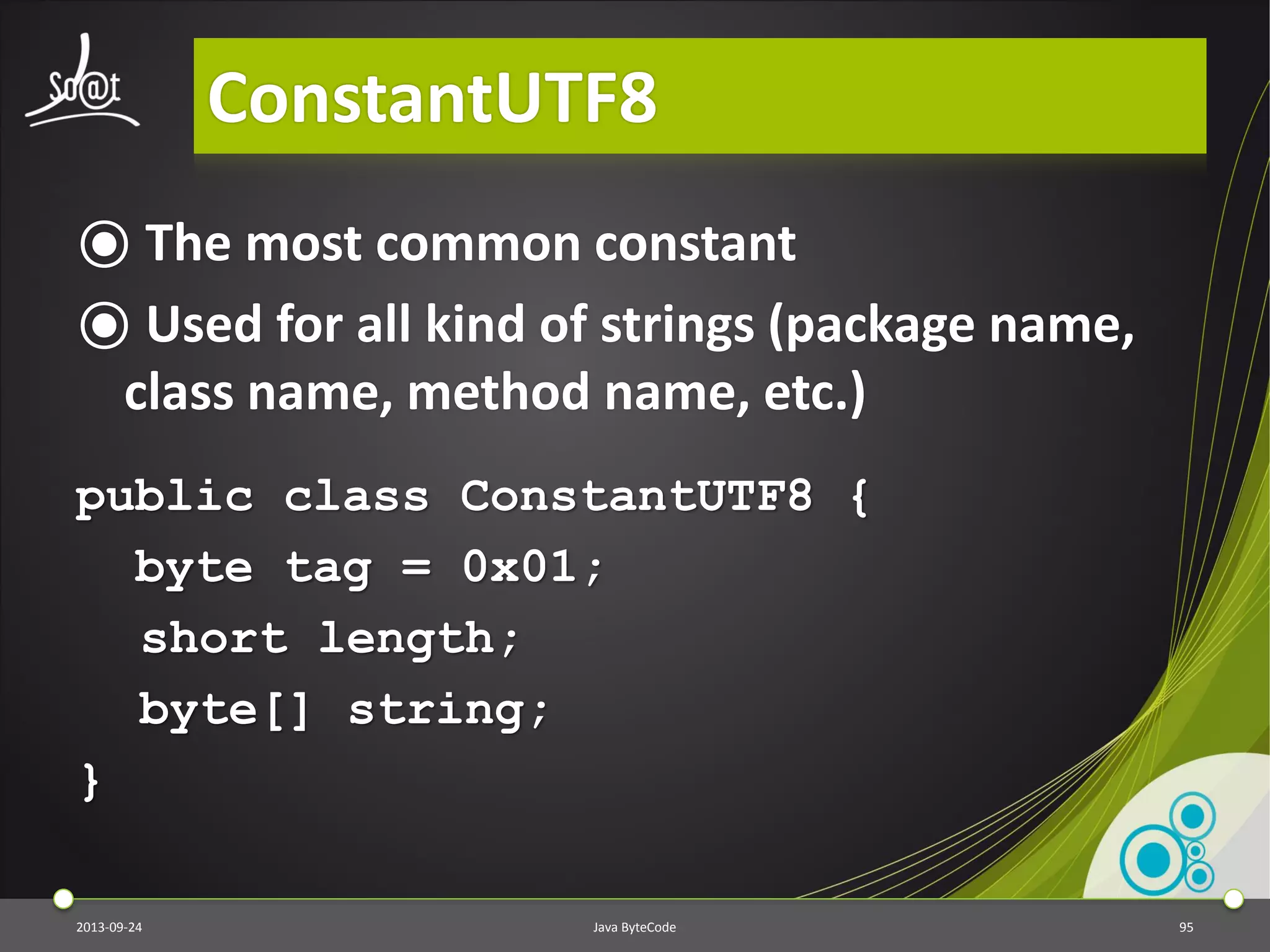

⦿ The most common constant
⦿ Used for all kind of strings (package name,
class name, method name, etc.)
public class ConstantUTF8 {
byte tag = 0x01;
short length;
byte[] string;
}
2013-09-24 Java ByteCode 95

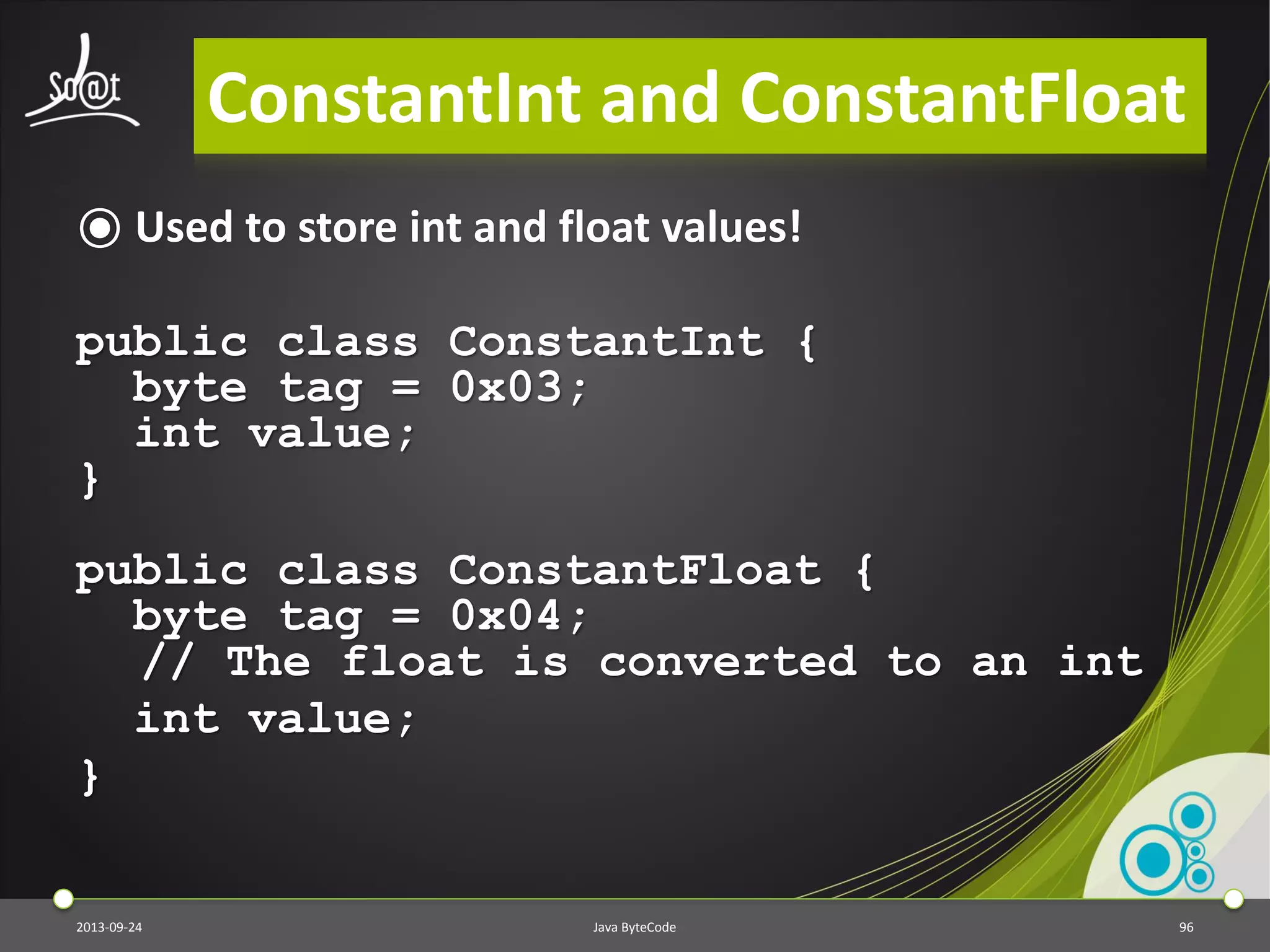

ConstantInt and ConstantFloat
⦿ Used to store int and float values!
public class ConstantInt {
byte tag = 0x03;
int value;
}
public class ConstantFloat {
byte tag = 0x04;
// The float is converted to an int
int value;
}
2013-09-24 Java ByteCode 96
ConstantLong and ConstantDouble
⦿ Used to store long and double values!
public class ConstantLong {
byte tag = 0x03;
long value;
}
public class ConstantDouble {
byte tag = 0x04;
// The double is converted to a long
long value;
}
2013-09-24 Java ByteCode 97

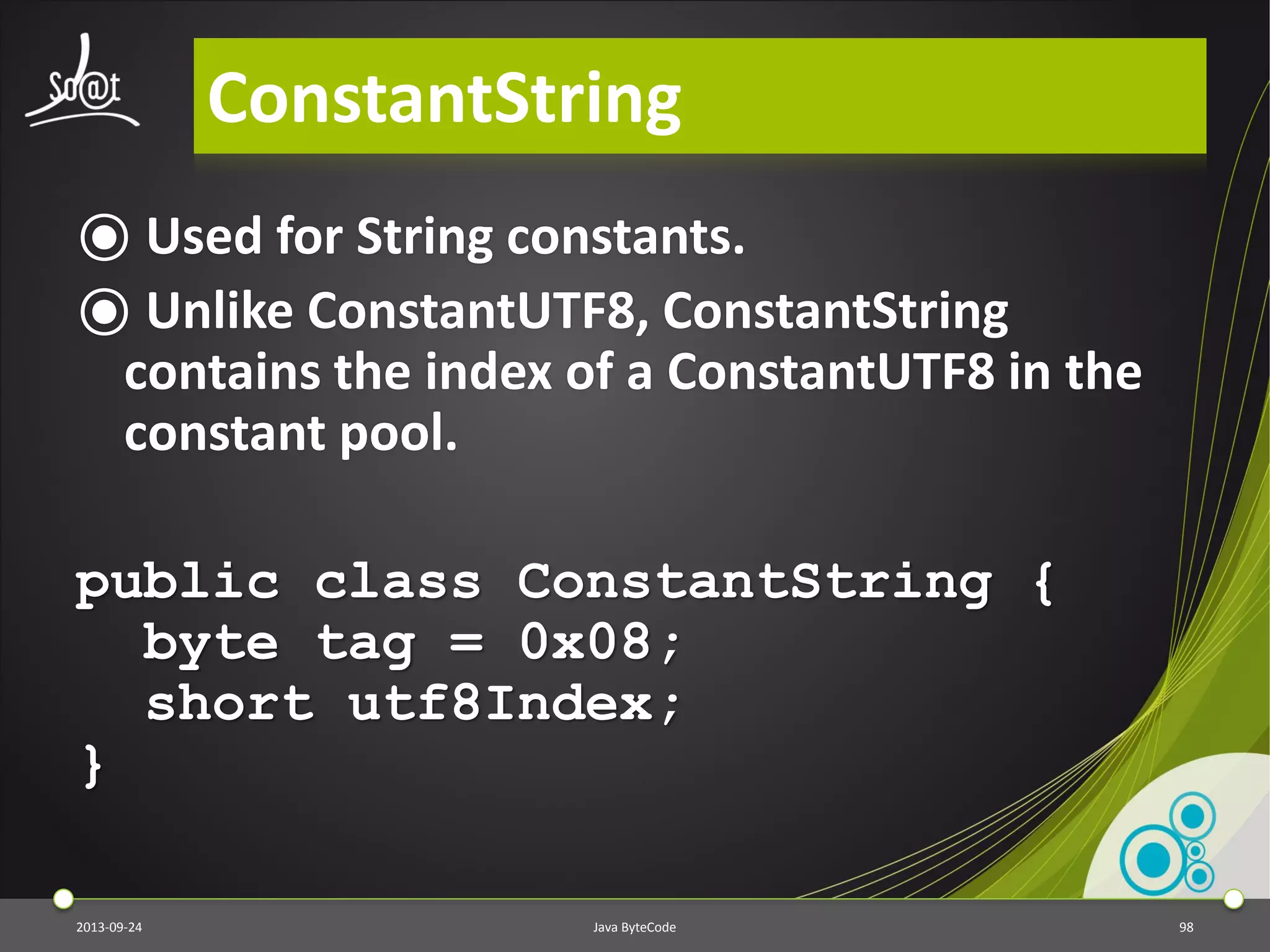

ConstantString
⦿ Used for String constants.
⦿ Unlike ConstantUTF8, ConstantString
contains the index of a ConstantUTF8 in the
constant pool.
public class ConstantString {
byte tag = 0x08;
short utf8Index;
}
2013-09-24 Java ByteCode 98

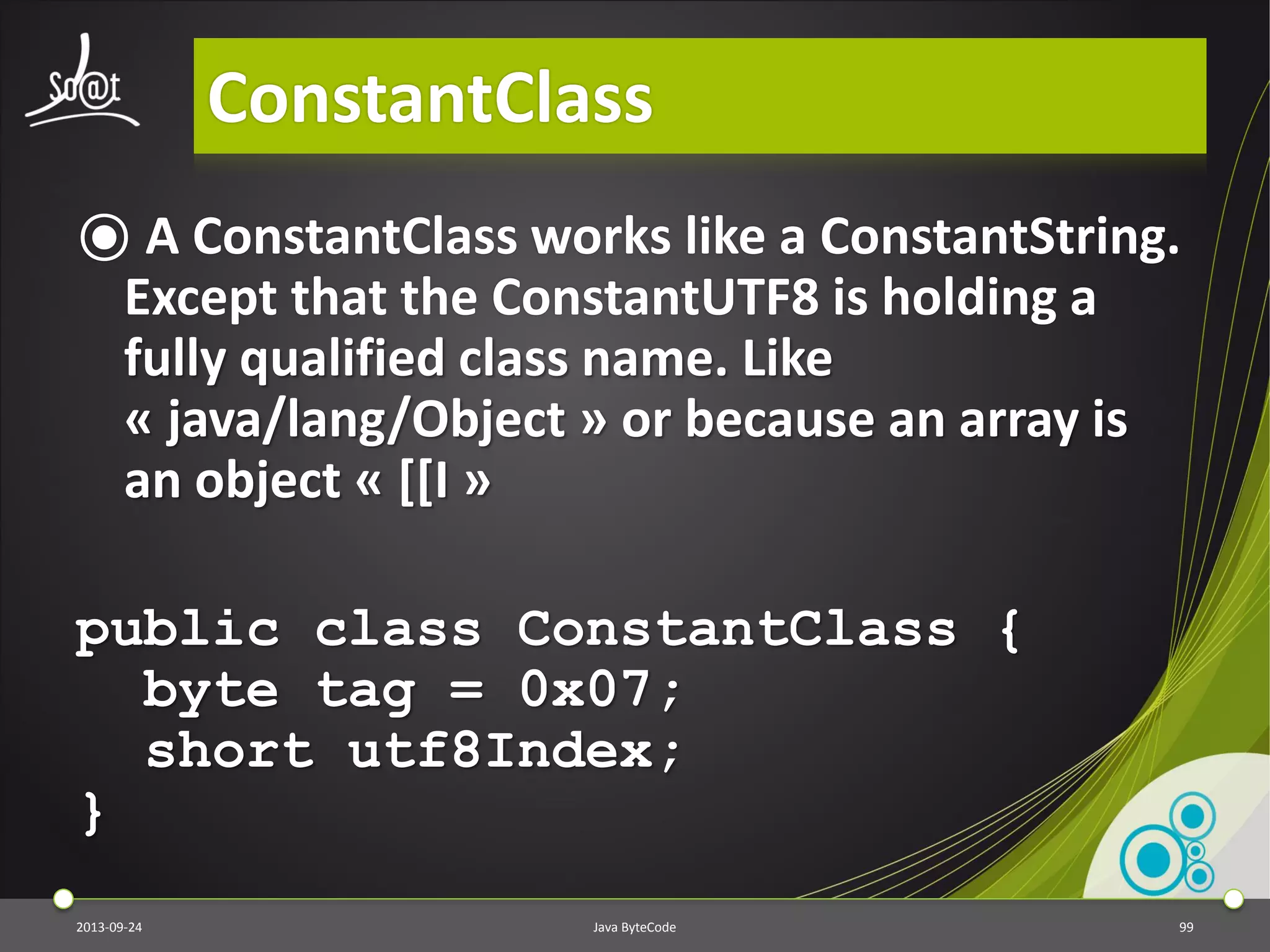

ConstantClass
⦿ A ConstantClass works like a ConstantString.
Except that the ConstantUTF8 is holding a
fully qualified class name. Like
« java/lang/Object » or because an array is
an object « [[I »
public class ConstantClass {
byte tag = 0x07;
short utf8Index;
}
2013-09-24 Java ByteCode 99
ConstantNameAndType

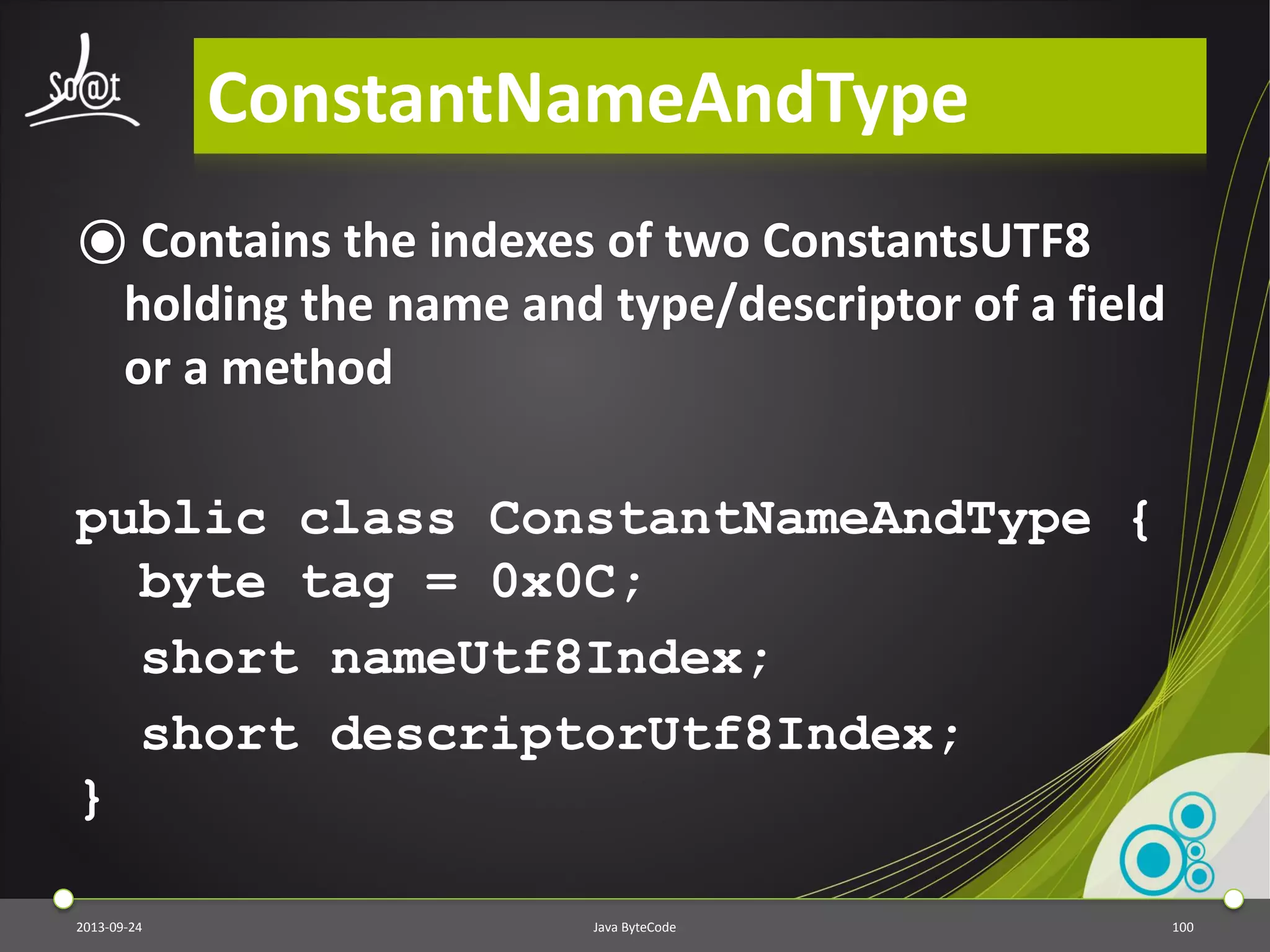

⦿ Contains the indexes of two ConstantsUTF8
holding the name and type/descriptor of a field
or a method
public class ConstantNameAndType {
byte tag = 0x0C;
short nameUtf8Index;
short descriptorUtf8Index;
}
2013-09-24 Java ByteCode 100

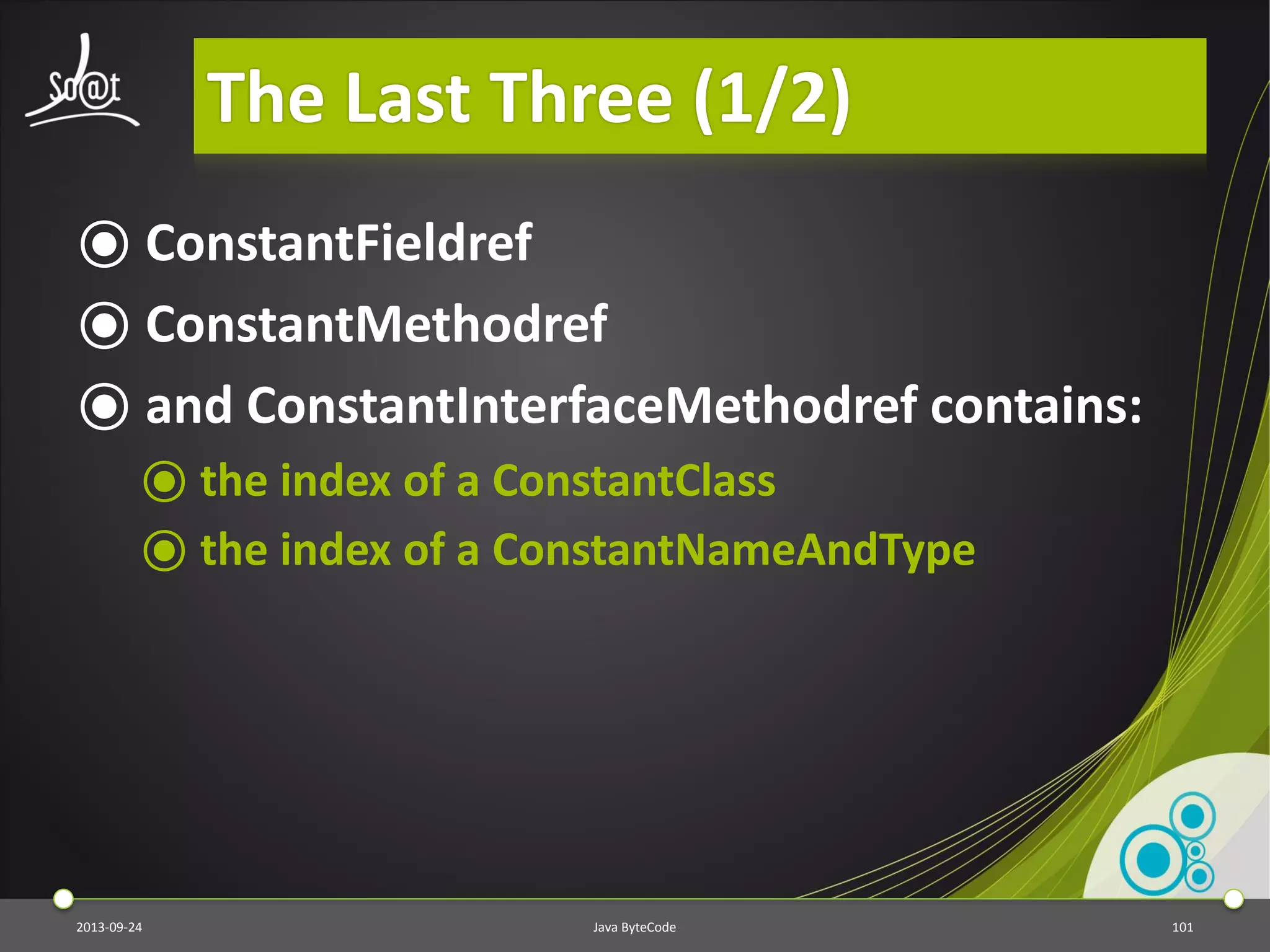

The Last Three (1/2)
⦿ ConstantFieldref
⦿ ConstantMethodref
⦿ and ConstantInterfaceMethodref contains:
⦿ the index of a ConstantClass
⦿ the index of a ConstantNameAndType
2013-09-24 Java ByteCode 101
The Last Three (2/2)

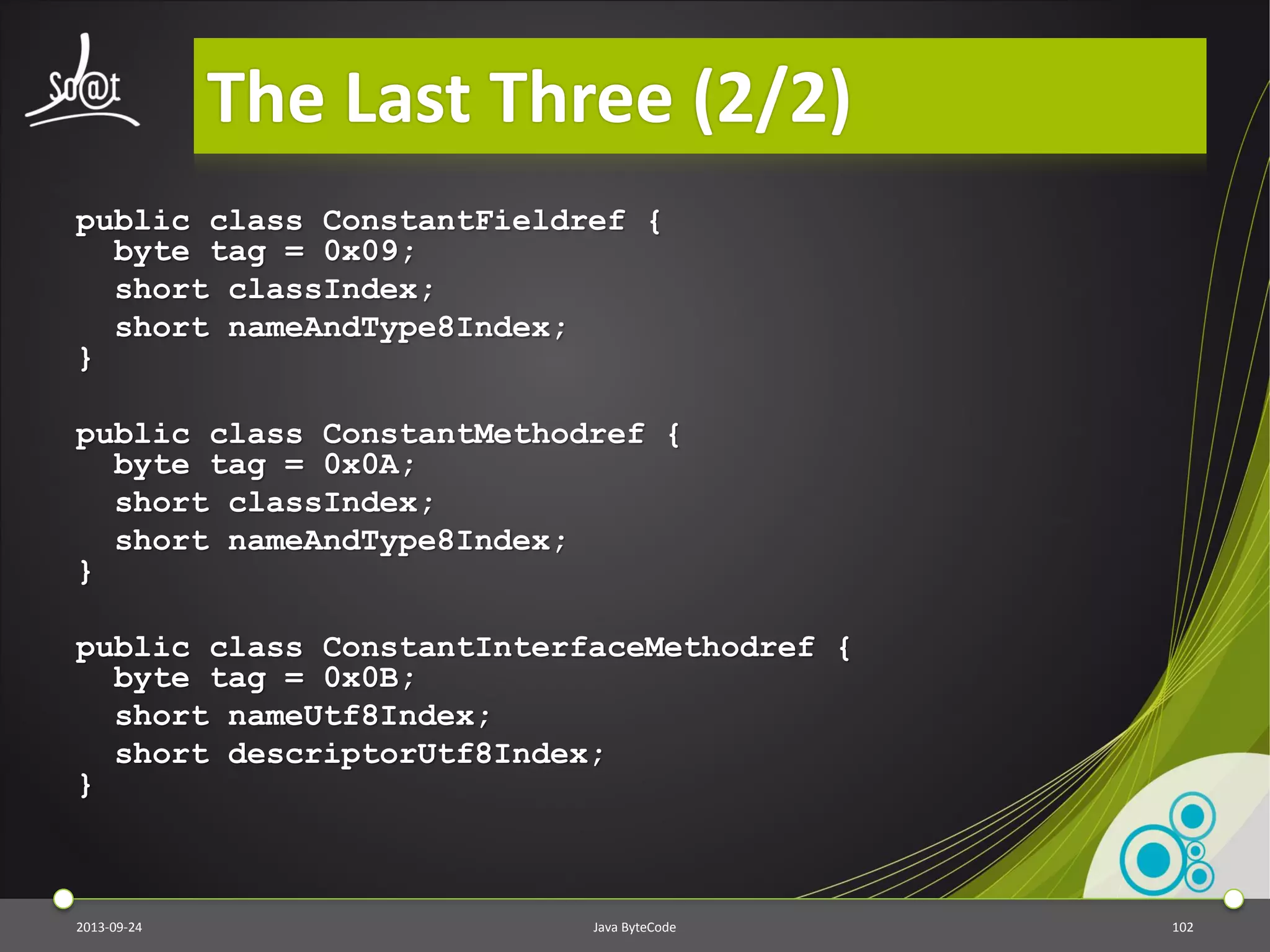

public class ConstantFieldref {
byte tag = 0x09;
short classIndex;
short nameAndType8Index;
}
public class ConstantMethodref {
byte tag = 0x0A;
short classIndex;
short nameAndType8Index;
}
public class ConstantInterfaceMethodref {
byte tag = 0x0B;
short nameUtf8Index;
short descriptorUtf8Index;
}
2013-09-24 Java ByteCode 102

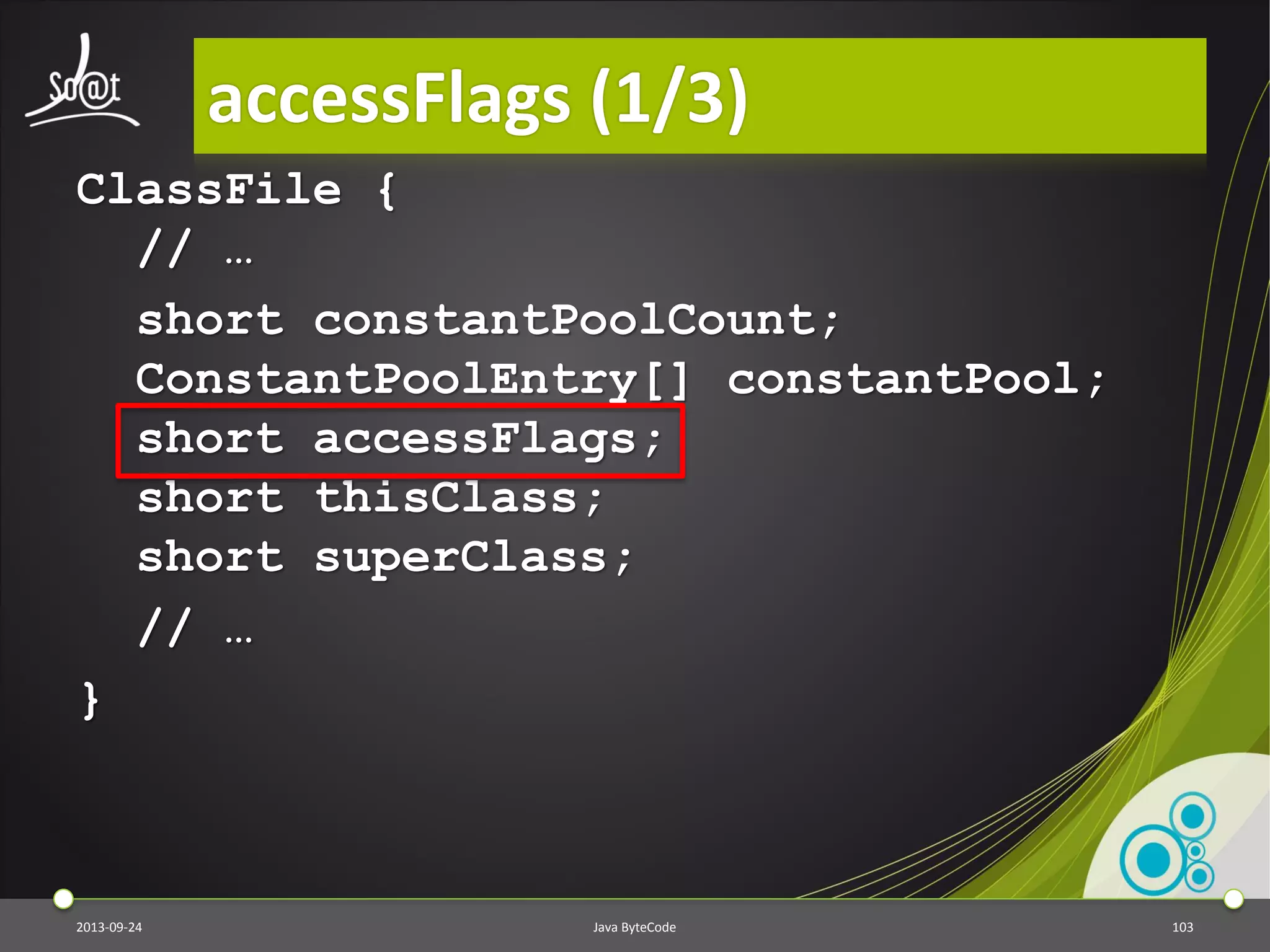

accessFlags (1/3)
2013-09-24 Java ByteCode 103
ClassFile {
// …
short constantPoolCount;
ConstantPoolEntry[] constantPool;
short accessFlags;
short thisClass;
short superClass;
// …
}
accessFlags (2/3)

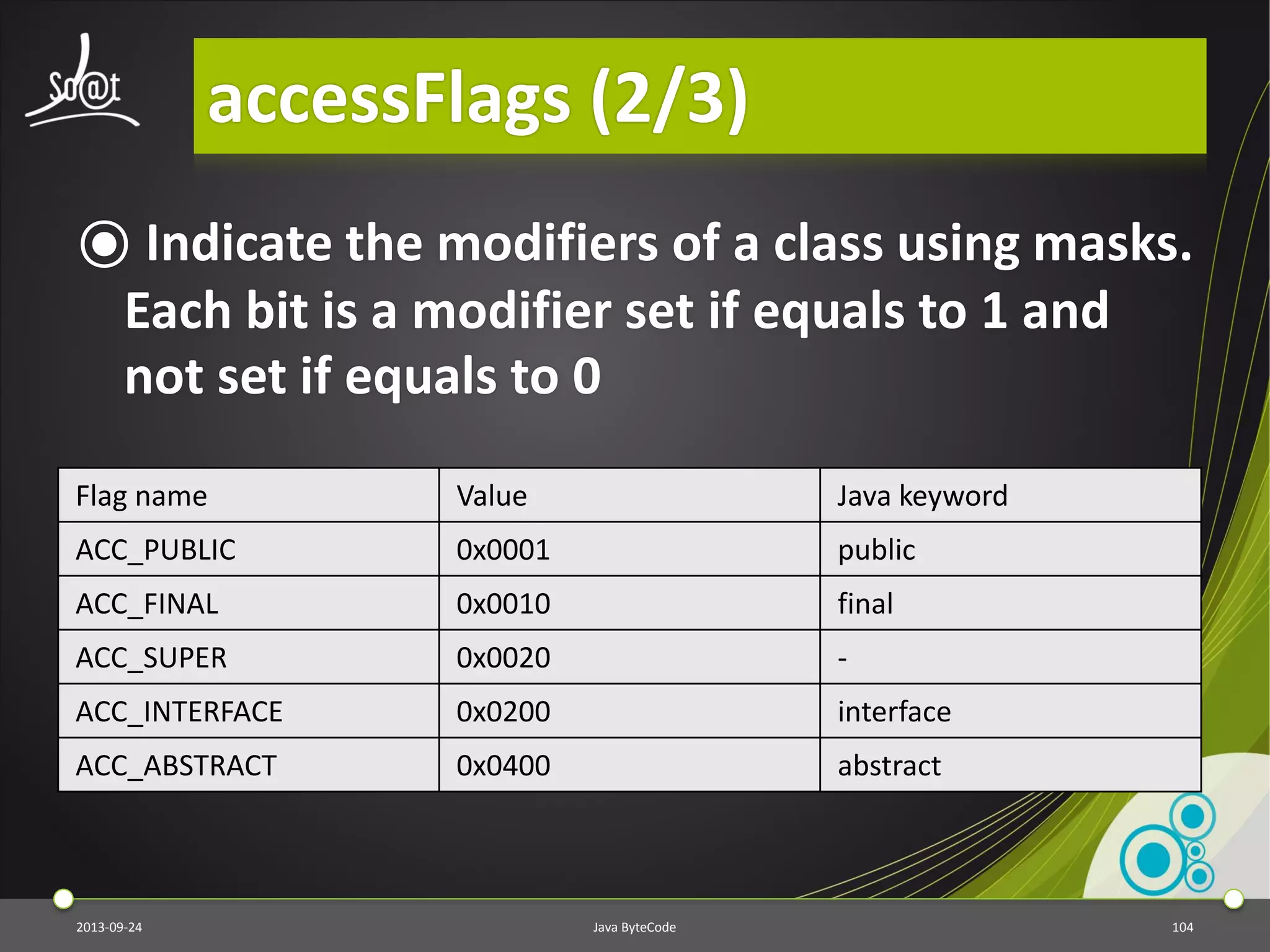

⦿ Indicate the modifiers of a class using masks.
Each bit is a modifier set if equals to 1 and
not set if equals to 0
2013-09-24 Java ByteCode 104
Flag name Value Java keyword
ACC_PUBLIC 0x0001 public
ACC_FINAL 0x0010 final
ACC_SUPER 0x0020 -
ACC_INTERFACE 0x0200 interface
ACC_ABSTRACT 0x0400 abstract
accessFlags (3/3)

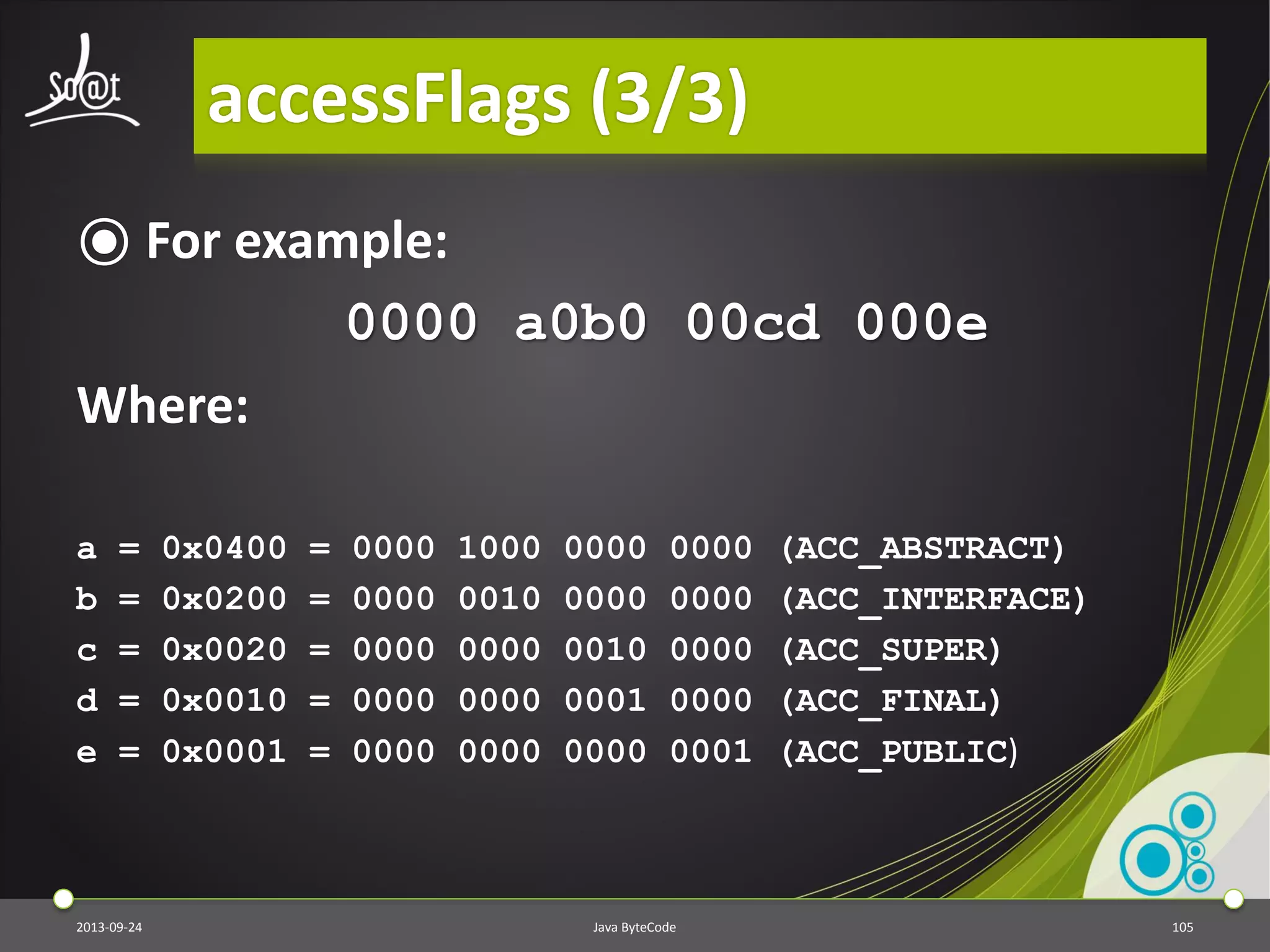

⦿ For example:
0000 a0b0 00cd 000e
Where:
a = 0x0400 = 0000 1000 0000 0000 (ACC_ABSTRACT)
b = 0x0200 = 0000 0010 0000 0000 (ACC_INTERFACE)
c = 0x0020 = 0000 0000 0010 0000 (ACC_SUPER)
d = 0x0010 = 0000 0000 0001 0000 (ACC_FINAL)
e = 0x0001 = 0000 0000 0000 0001 (ACC_PUBLIC)
2013-09-24 Java ByteCode 105

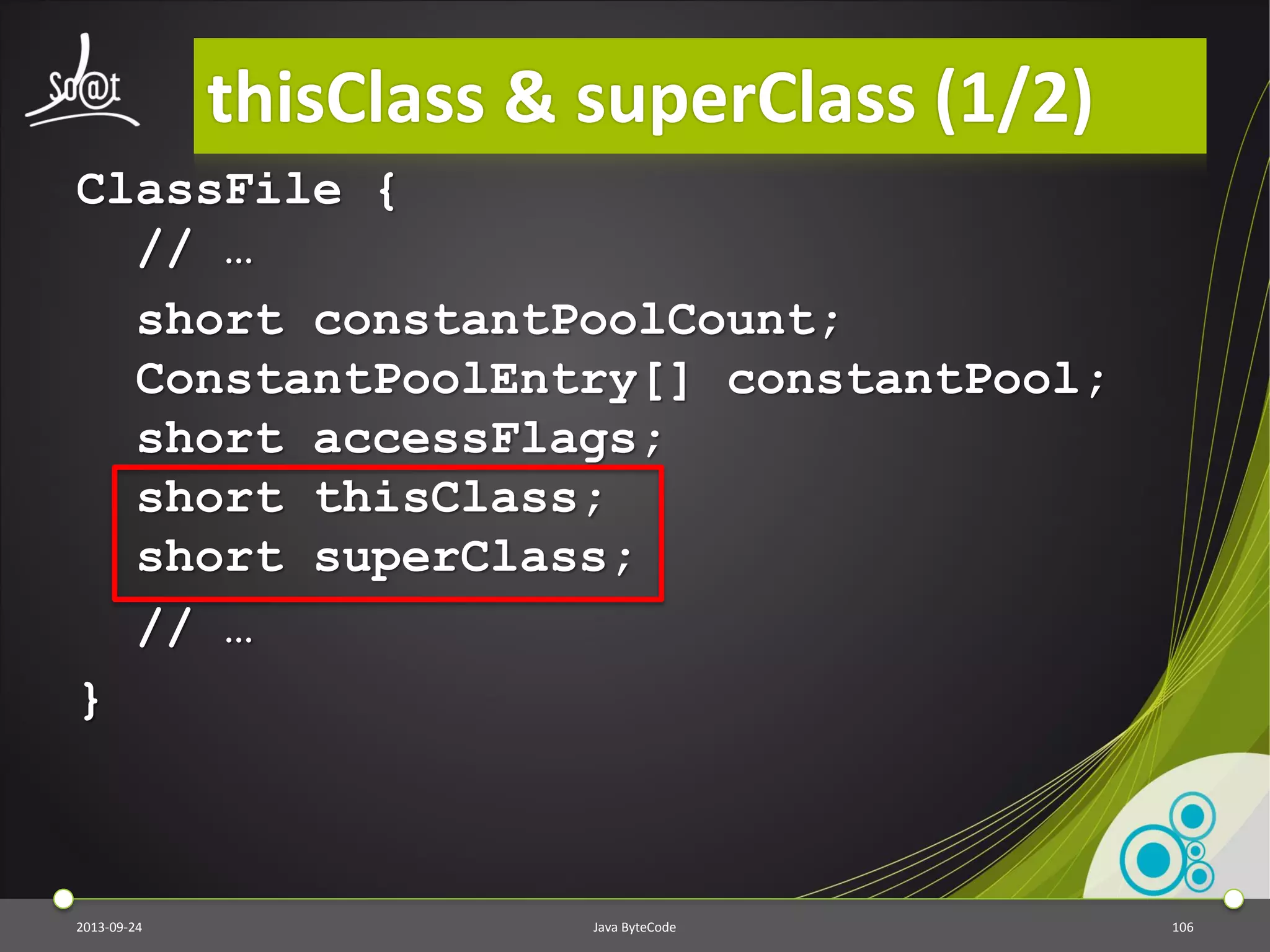

thisClass & superClass (1/2)
2013-09-24 Java ByteCode 106
ClassFile {
// …
short constantPoolCount;
ConstantPoolEntry[] constantPool;
short accessFlags;
short thisClass;
short superClass;
// …
}

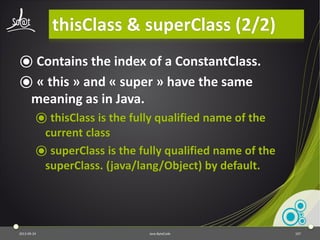

thisClass & superClass (2/2)

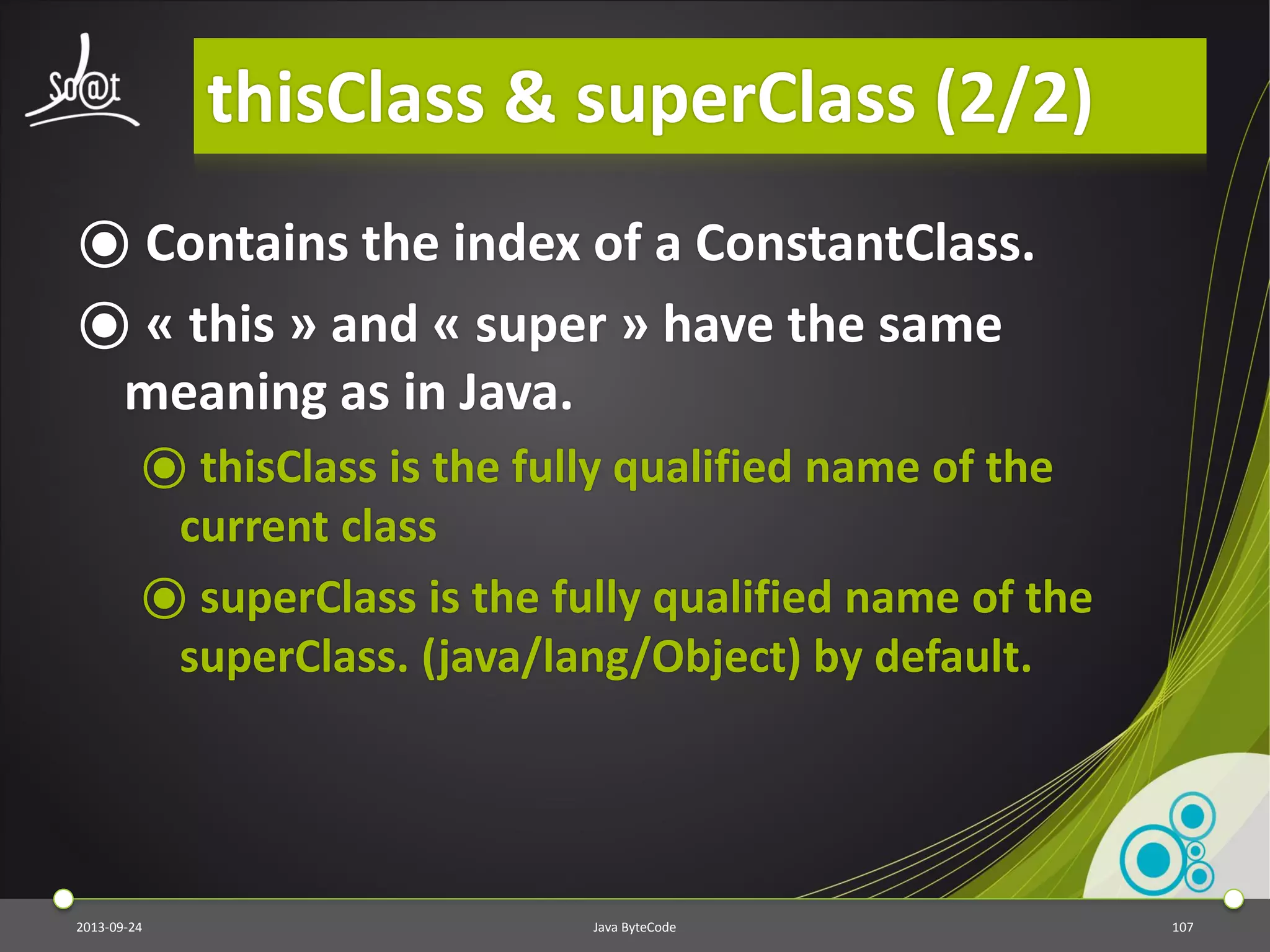

⦿ Contains the index of a ConstantClass.
⦿ « this » and « super » have the same
meaning as in Java.
⦿ thisClass is the fully qualified name of the
current class
⦿ superClass is the fully qualified name of the
superClass. (java/lang/Object) by default.
2013-09-24 Java ByteCode 107
Not this time…
2013-09-24 Java ByteCode 108
ClassFile {
// …
short interfacesCount;
short[] interfaces;
short fieldsCount;
Field[] fields;
// …
short attributesCount;
Attribute[] attributes;
}
methods

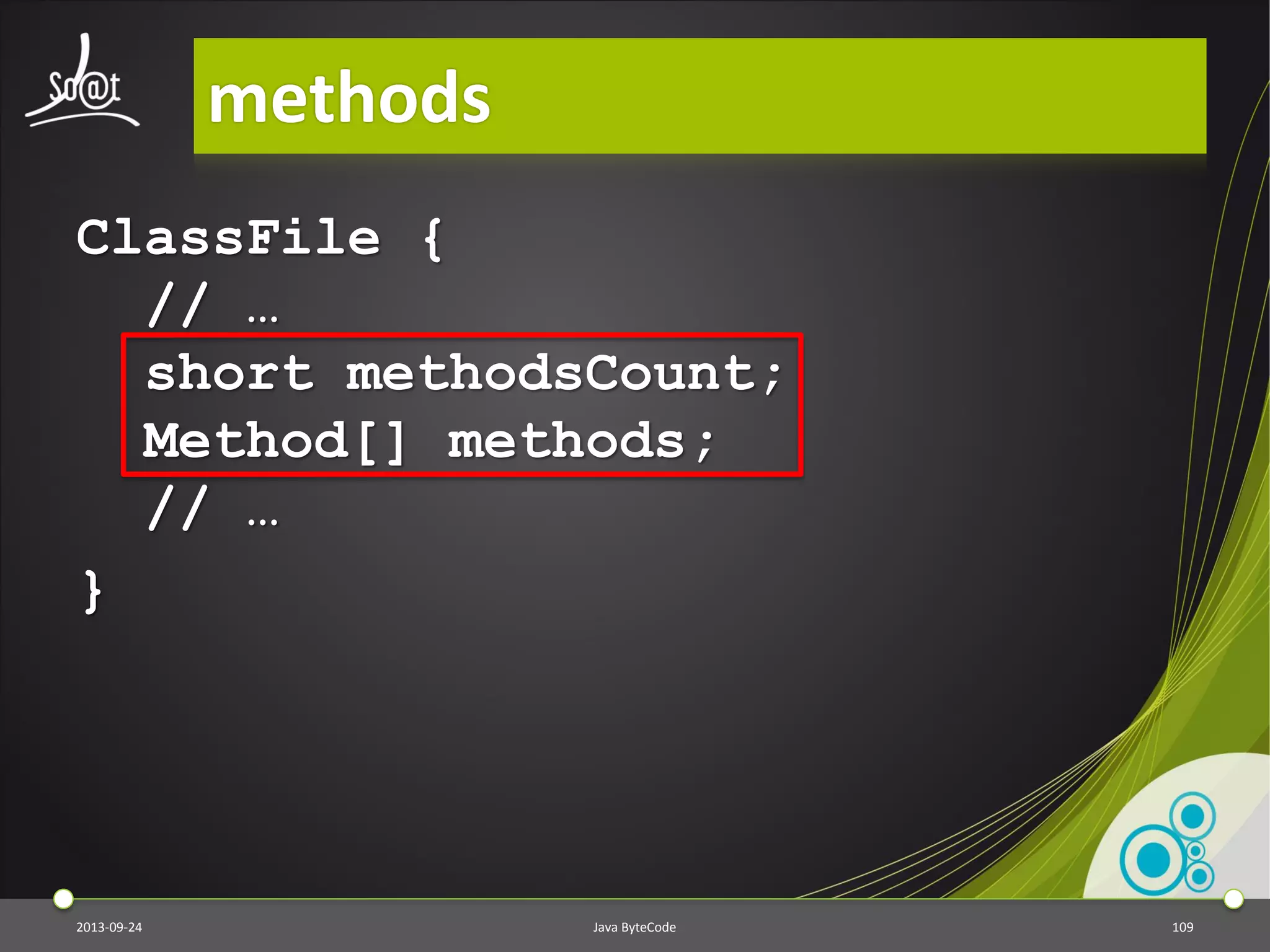

2013-09-24 Java ByteCode 109
ClassFile {
// …
short methodsCount;
Method[] methods;
// …
}
methods

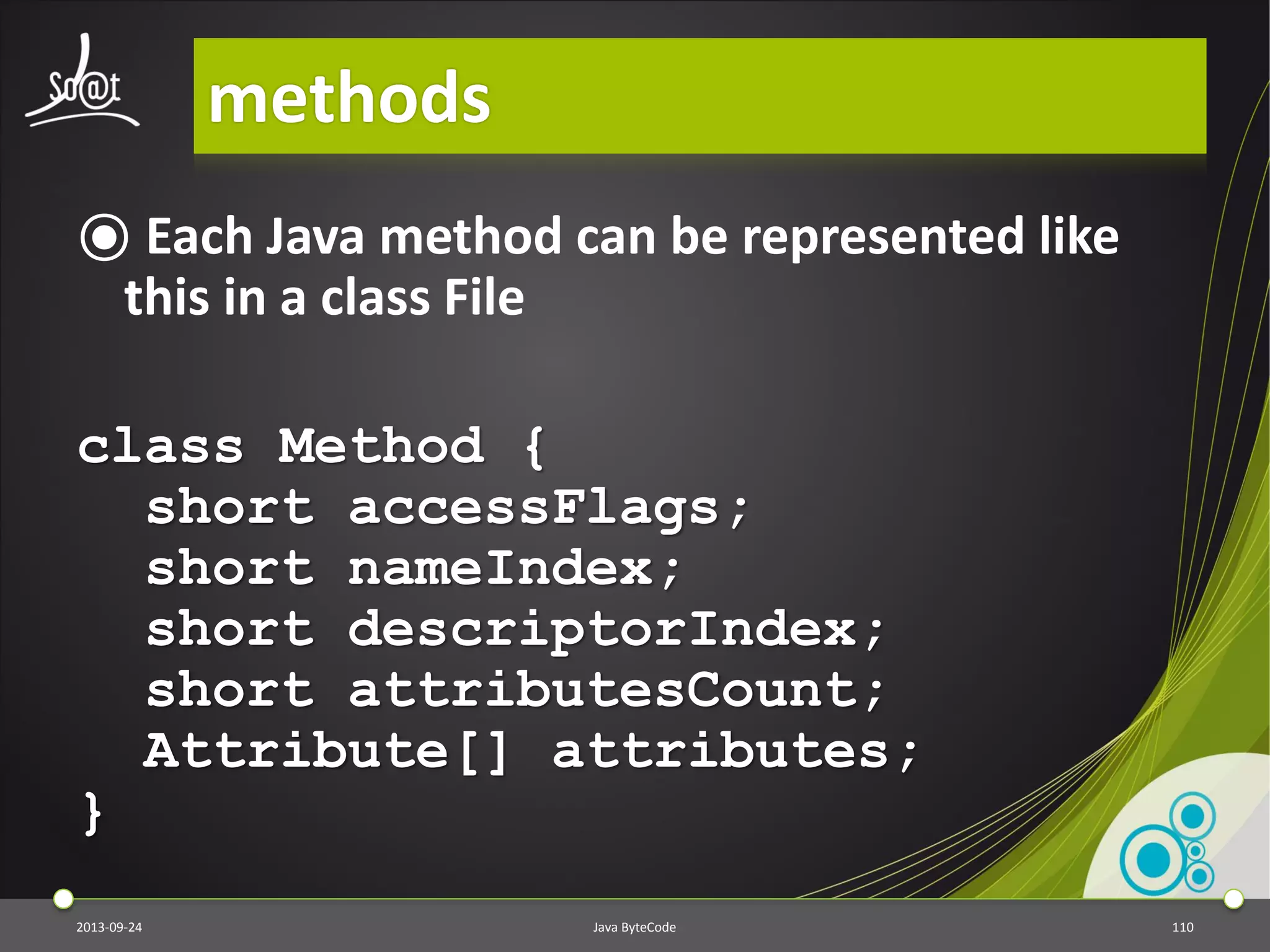

⦿ Each Java method can be represented like
this in a class File
class Method {
short accessFlags;
short nameIndex;
short descriptorIndex;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 110
Method – accessFlags (1/2)

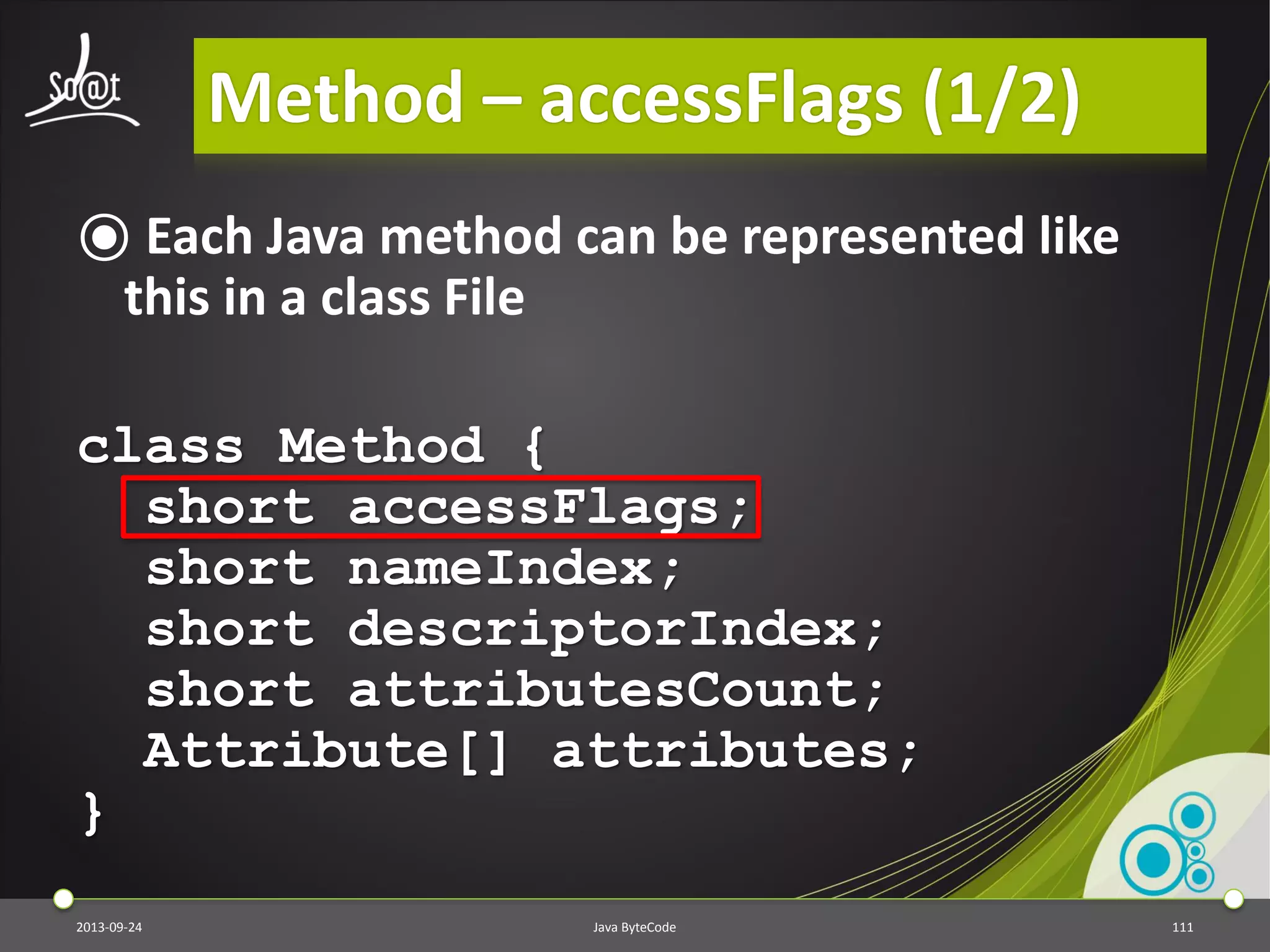

⦿ Each Java method can be represented like
this in a class File
class Method {
short accessFlags;
short nameIndex;
short descriptorIndex;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 111

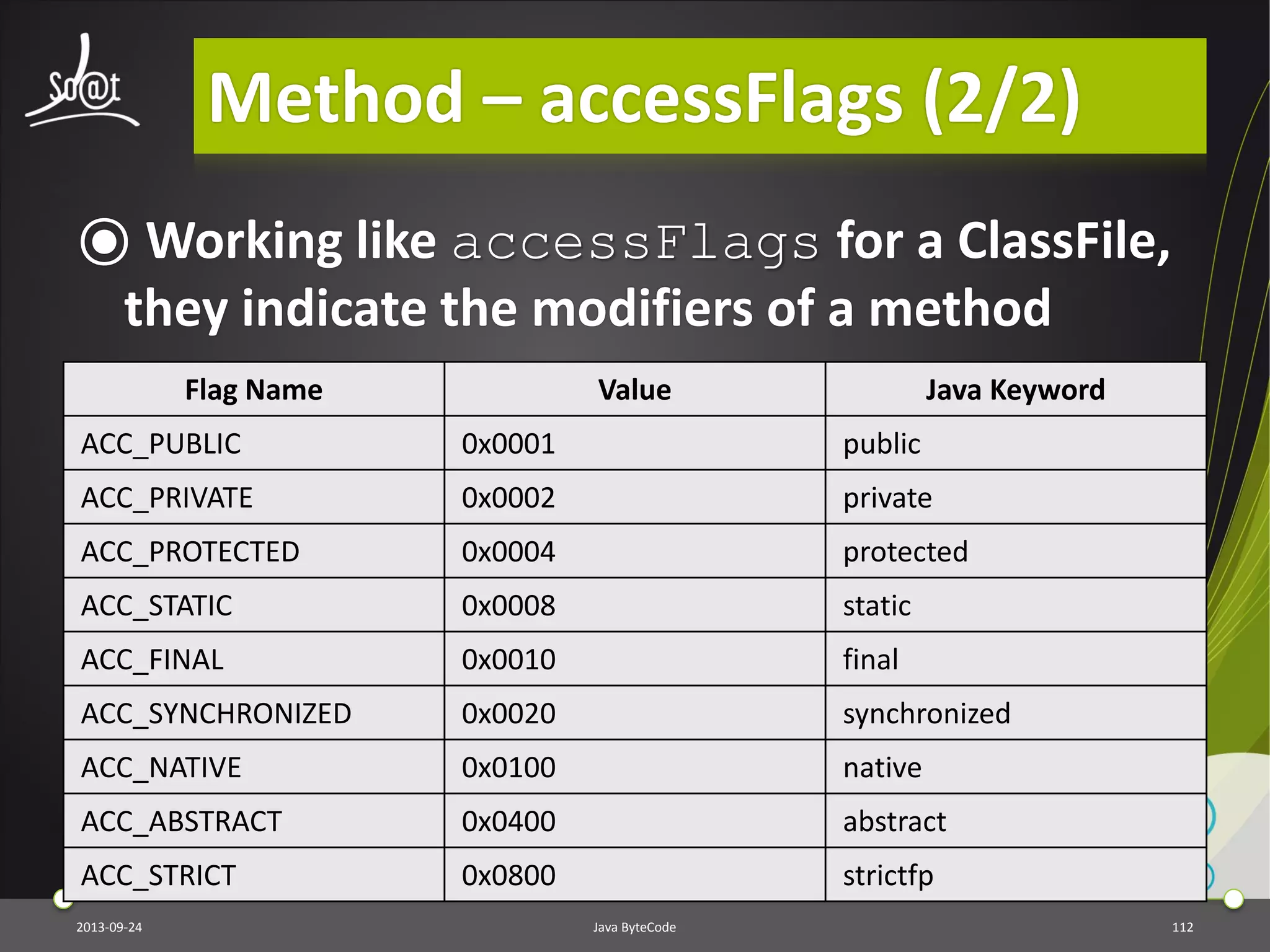

Method – accessFlags (2/2)
⦿ Working like accessFlags for a ClassFile,
they indicate the modifiers of a method
2013-09-24 Java ByteCode 112
Flag Name Value Java Keyword
ACC_PUBLIC 0x0001 public
ACC_PRIVATE 0x0002 private
ACC_PROTECTED 0x0004 protected
ACC_STATIC 0x0008 static
ACC_FINAL 0x0010 final
ACC_SYNCHRONIZED 0x0020 synchronized
ACC_NATIVE 0x0100 native
ACC_ABSTRACT 0x0400 abstract
ACC_STRICT 0x0800 strictfp
nameIndex & descriptorIndex (1/2)
⦿ Each Java method can be represented like
this in a class File
class Method {
short accessFlags;
short nameIndex;
short descriptorIndex;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 113

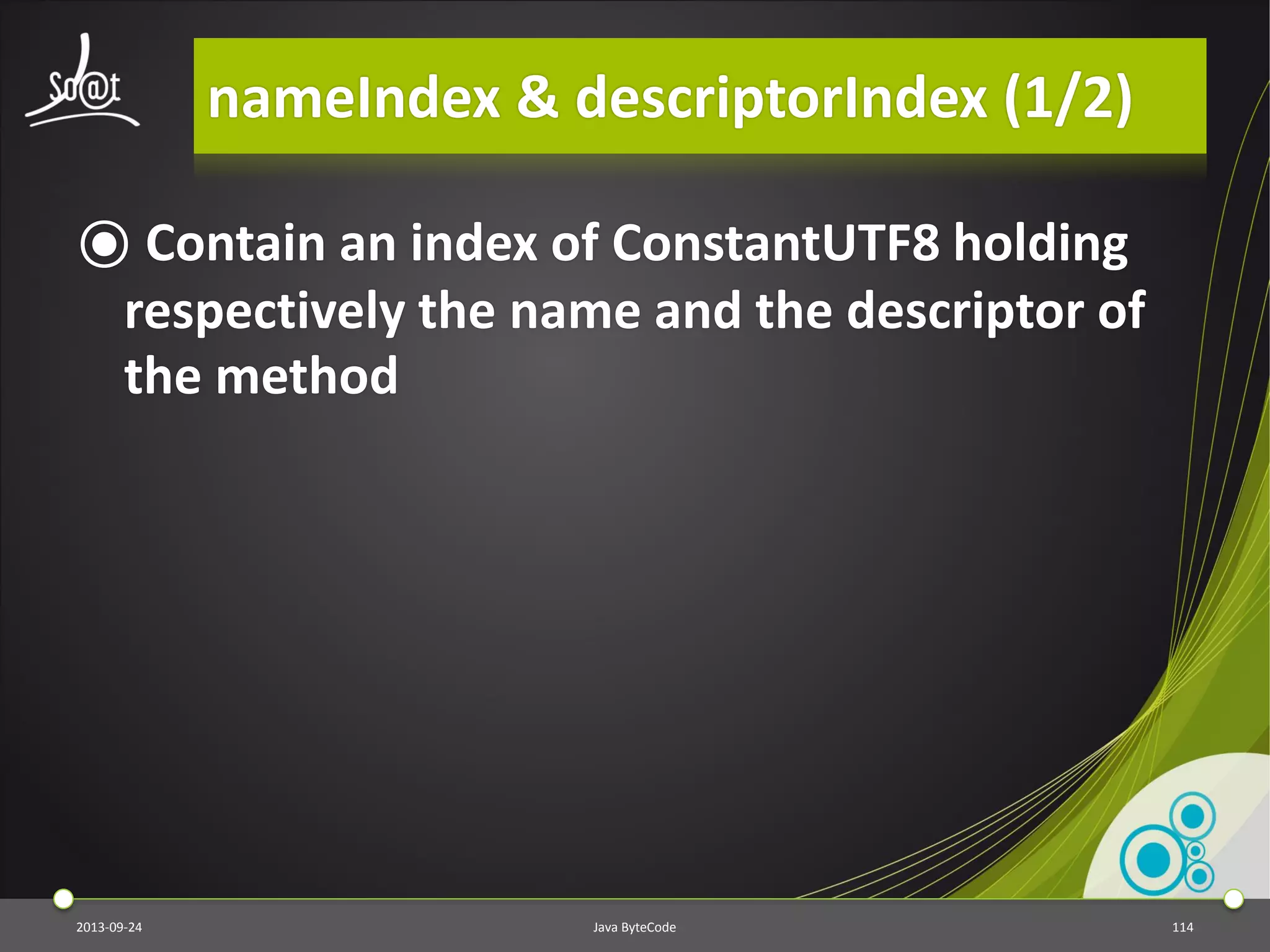

nameIndex & descriptorIndex (1/2)
⦿ Contain an index of ConstantUTF8 holding
respectively the name and the descriptor of
the method
2013-09-24 Java ByteCode 114
attributes
⦿ Each Java method can be represented like
this in a class File
class Method {
short accessFlags;
short nameIndex;
short descriptorIndex;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 115

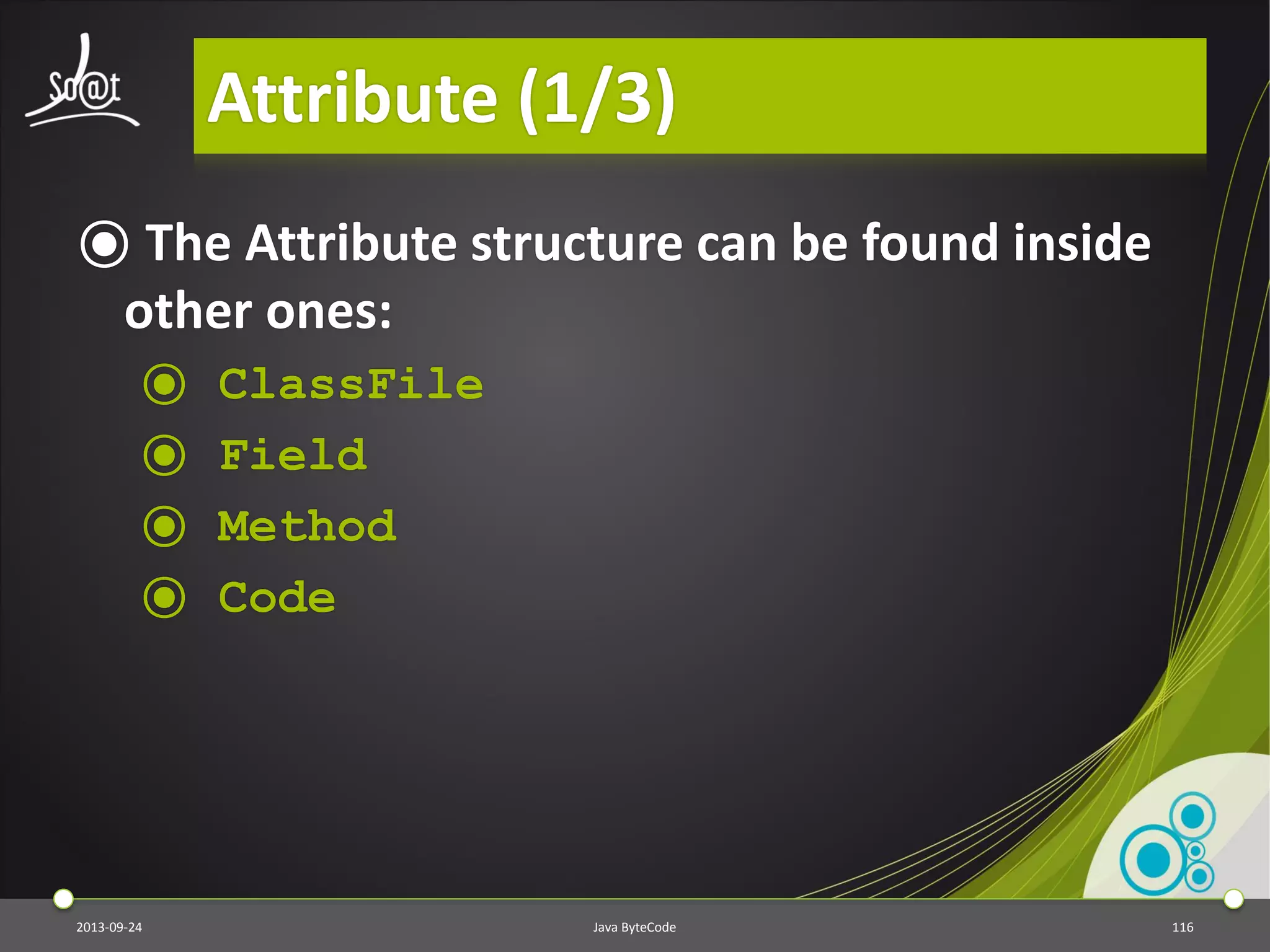

Attribute (1/3)
⦿ The Attribute structure can be found inside
other ones:
⦿ ClassFile
⦿ Field
⦿ Method
⦿ Code
2013-09-24 Java ByteCode 116

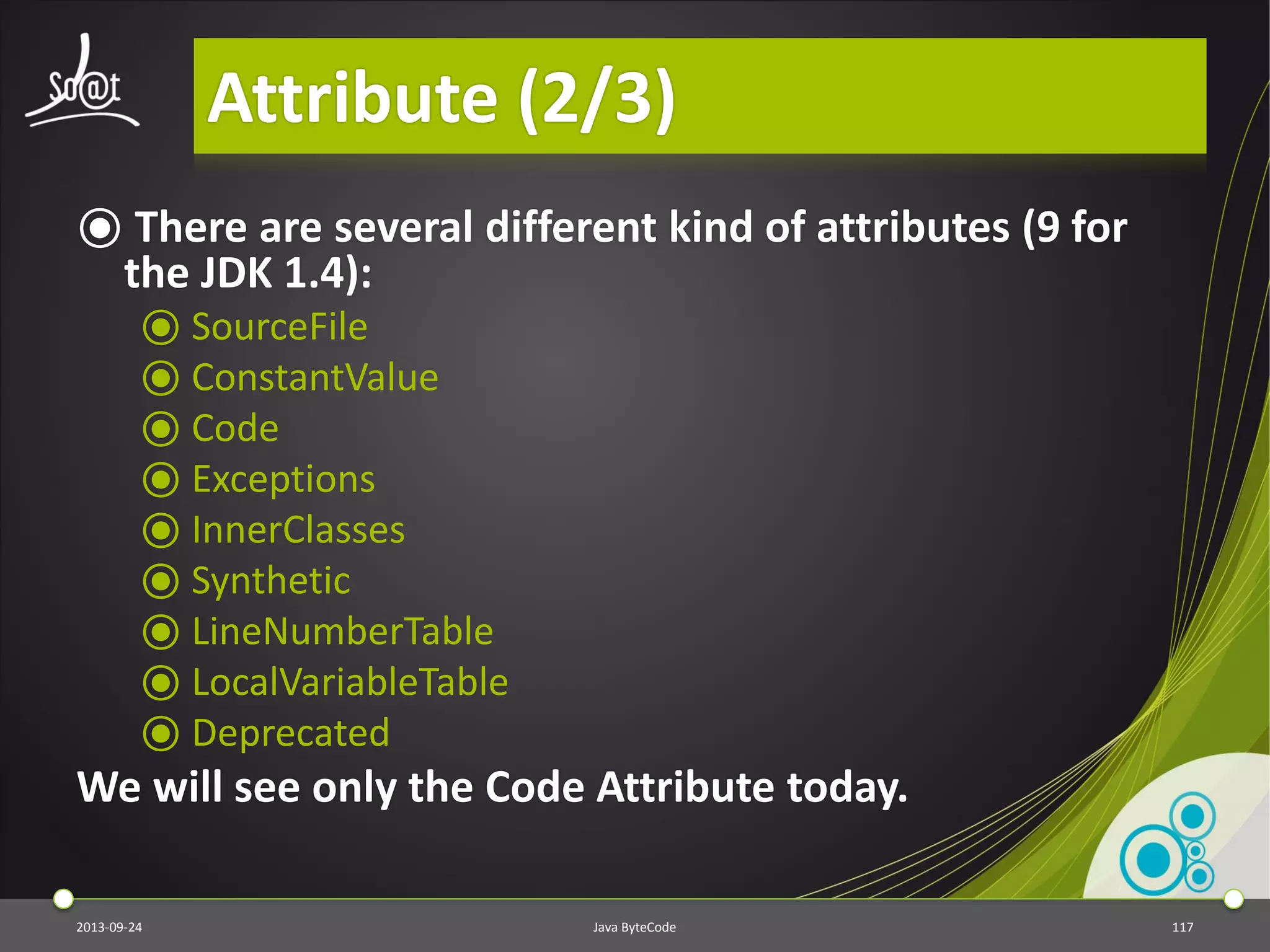

Attribute (2/3)
⦿ There are several different kind of attributes (9 for
the JDK 1.4):
⦿ SourceFile
⦿ ConstantValue
⦿ Code
⦿ Exceptions
⦿ InnerClasses
⦿ Synthetic
⦿ LineNumberTable
⦿ LocalVariableTable
⦿ Deprecated
We will see only the Code Attribute today.
2013-09-24 Java ByteCode 117

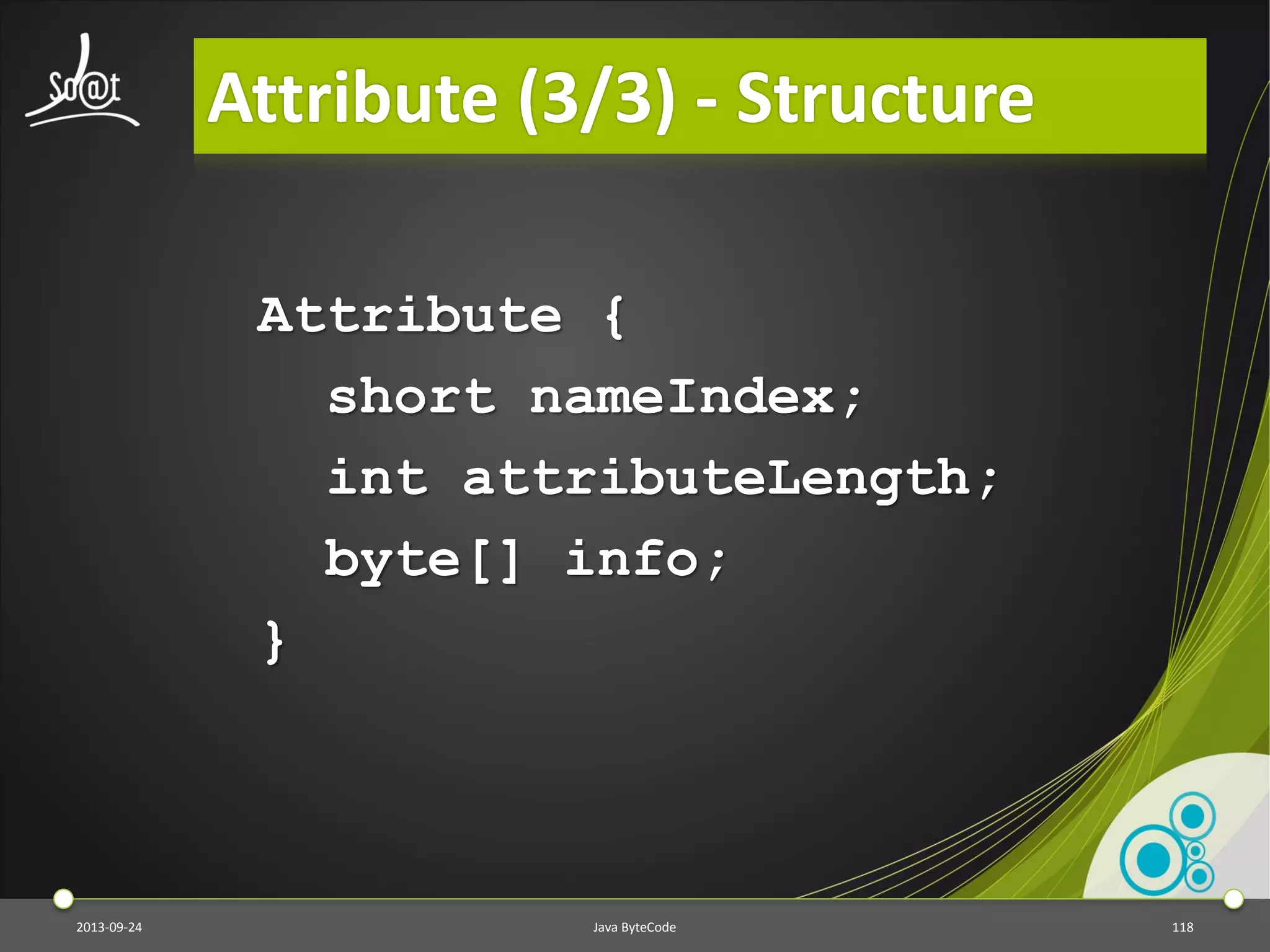

Attribute (3/3) - Structure
Attribute {
short nameIndex;
int attributeLength;
byte[] info;
}
2013-09-24 Java ByteCode 118

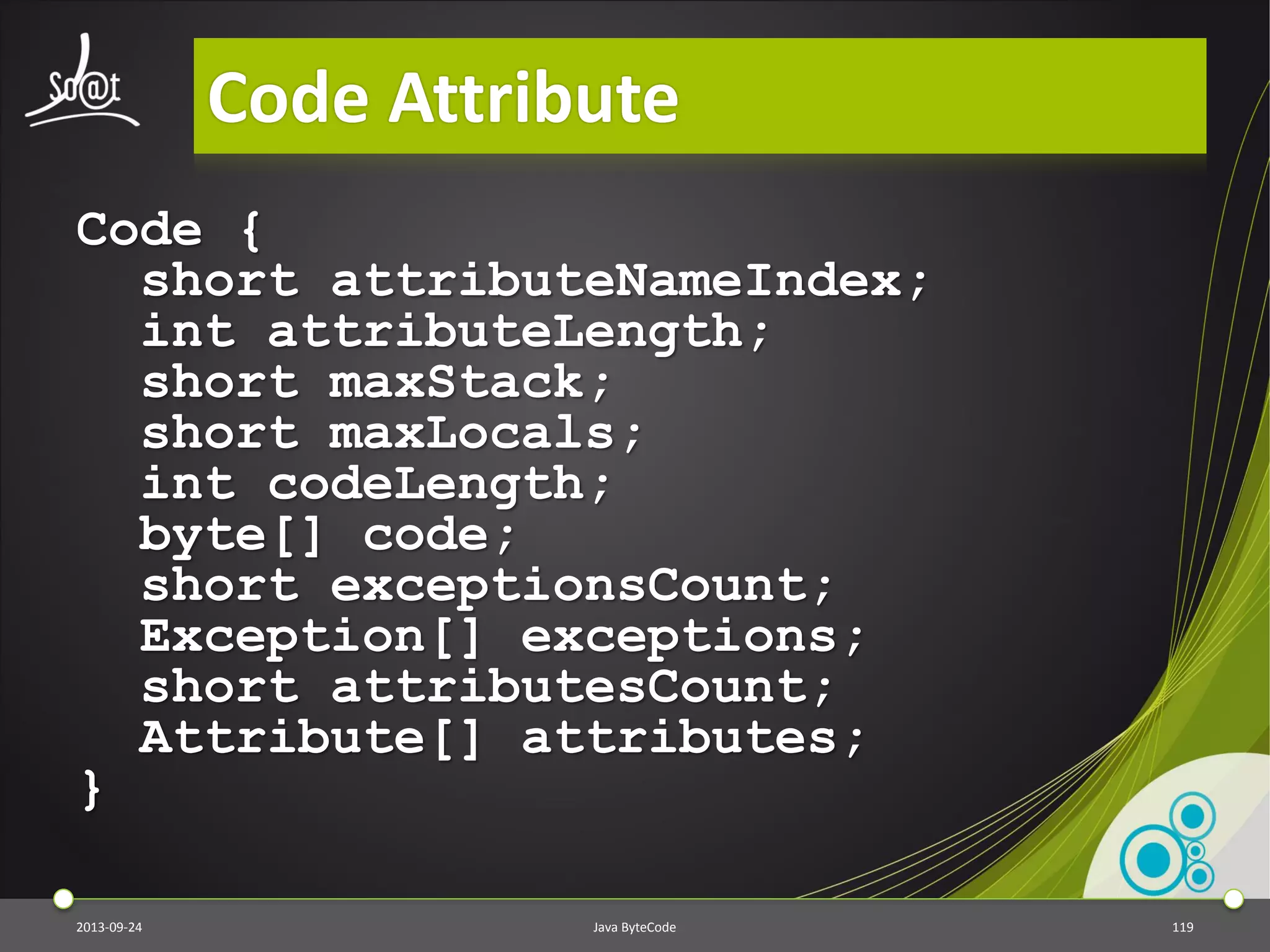

Code Attribute
Code {
short attributeNameIndex;
int attributeLength;
short maxStack;
short maxLocals;
int codeLength;
byte[] code;
short exceptionsCount;
Exception[] exceptions;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 119
attributeIndex (1/2)
Code {
short attributeNameIndex;
int attributeLength;
short maxStack;
short maxLocals;
int codeLength;
byte[] code;
short exceptionsCount;
Exception[] exceptions;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 120

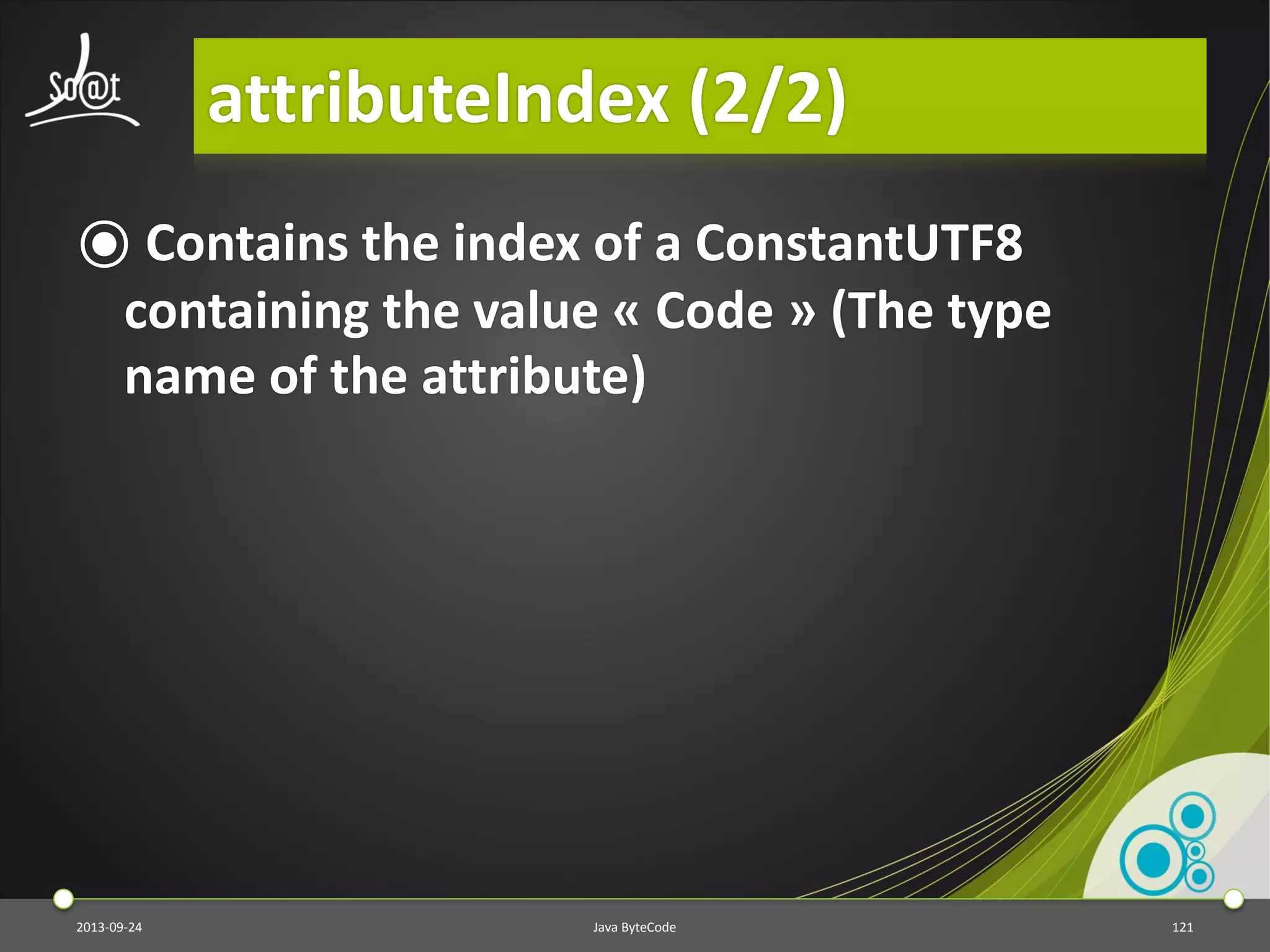

attributeIndex (2/2)
⦿ Contains the index of a ConstantUTF8
containing the value « Code » (The type
name of the attribute)
2013-09-24 Java ByteCode 121

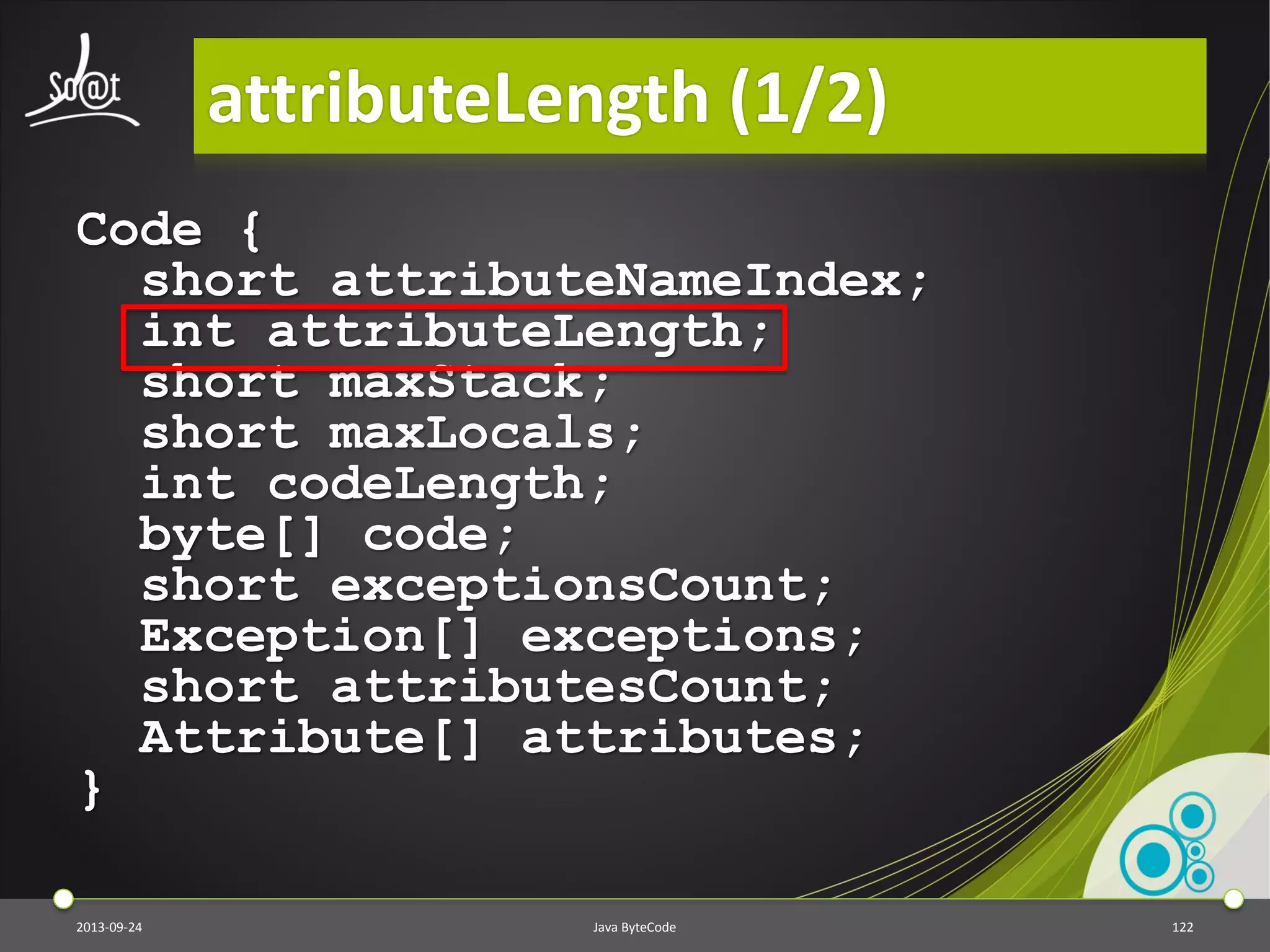

attributeLength (1/2)
Code {
short attributeNameIndex;
int attributeLength;
short maxStack;
short maxLocals;
int codeLength;
byte[] code;
short exceptionsCount;
Exception[] exceptions;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 122

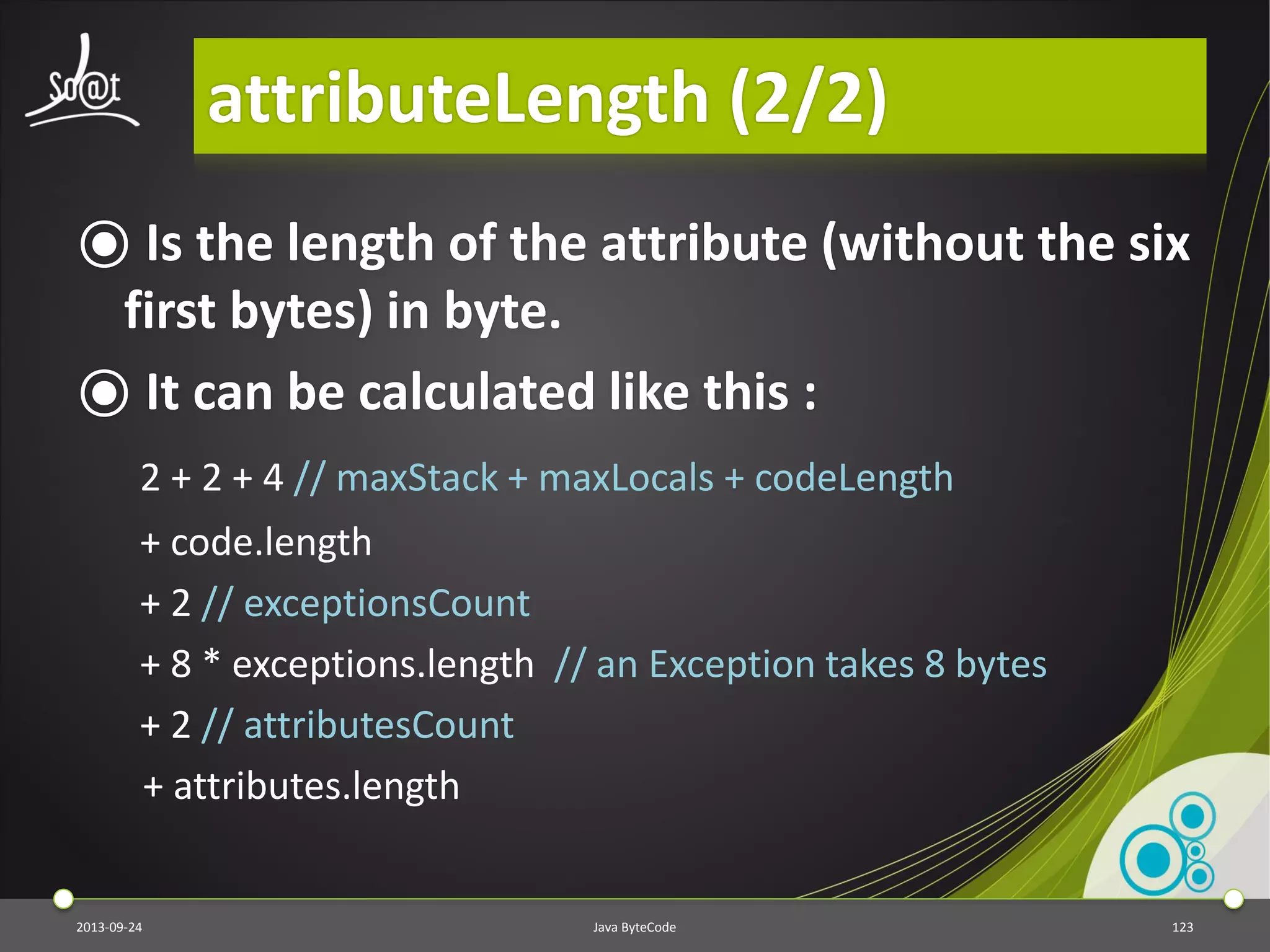

attributeLength (2/2)
⦿ Is the length of the attribute (without the six
first bytes) in byte.
⦿ It can be calculated like this :
2 + 2 + 4 // maxStack + maxLocals + codeLength
+ code.length
+ 2 // exceptionsCount
+ 8 * exceptions.length // an Exception takes 8 bytes
+ 2 // attributesCount
+ attributes.length
2013-09-24 Java ByteCode 123
maxStack & maxLocals (1/2)
Code {
short attributeNameIndex;
int attributeLength;
short maxStack;
short maxLocals;
int codeLength;
byte[] code;
short exceptionsCount;
Exception[] exceptions;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 124

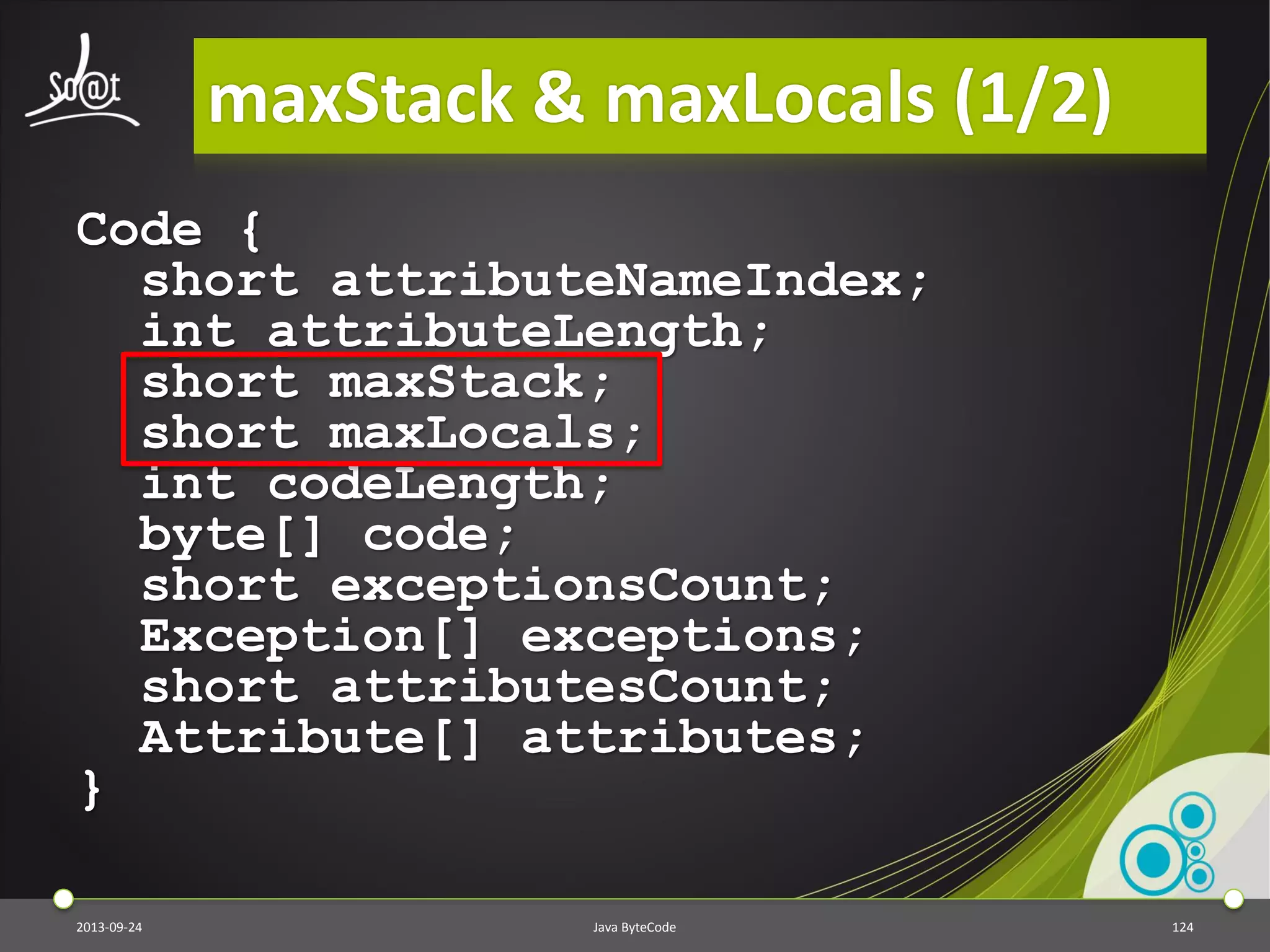

maxStack & maxLocals (2/2)
⦿ Respectively the maximum size of the
operand stack and the local variables
⦿ These sizes can be find out with the
instructions used in the method.
2013-09-24 Java ByteCode 125
code (1/2)
Code {
short attributeNameIndex;
int attributeLength;
short maxStack;
short maxLocals;
int codeLength;
byte[] code;
short exceptionsCount;
Exception[] exceptions;
short attributesCount;
Attribute[] attributes;
}
2013-09-24 Java ByteCode 126

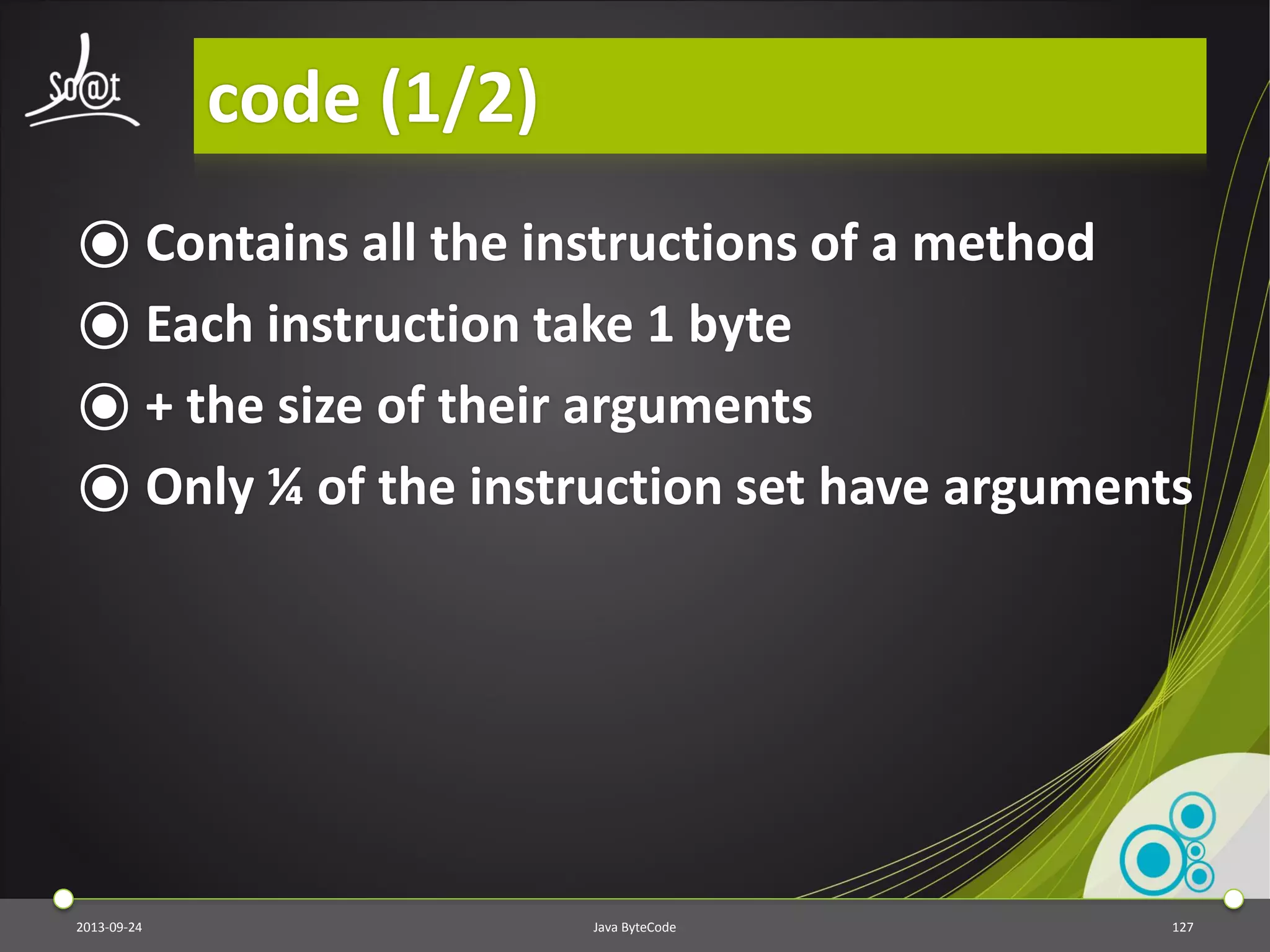

code (1/2)
⦿ Contains all the instructions of a method
⦿ Each instruction take 1 byte
⦿ + the size of their arguments
⦿ Only ¼ of the instruction set have arguments
2013-09-24 Java ByteCode 127
It’s only the beginning
2013-09-24 Java ByteCode 128

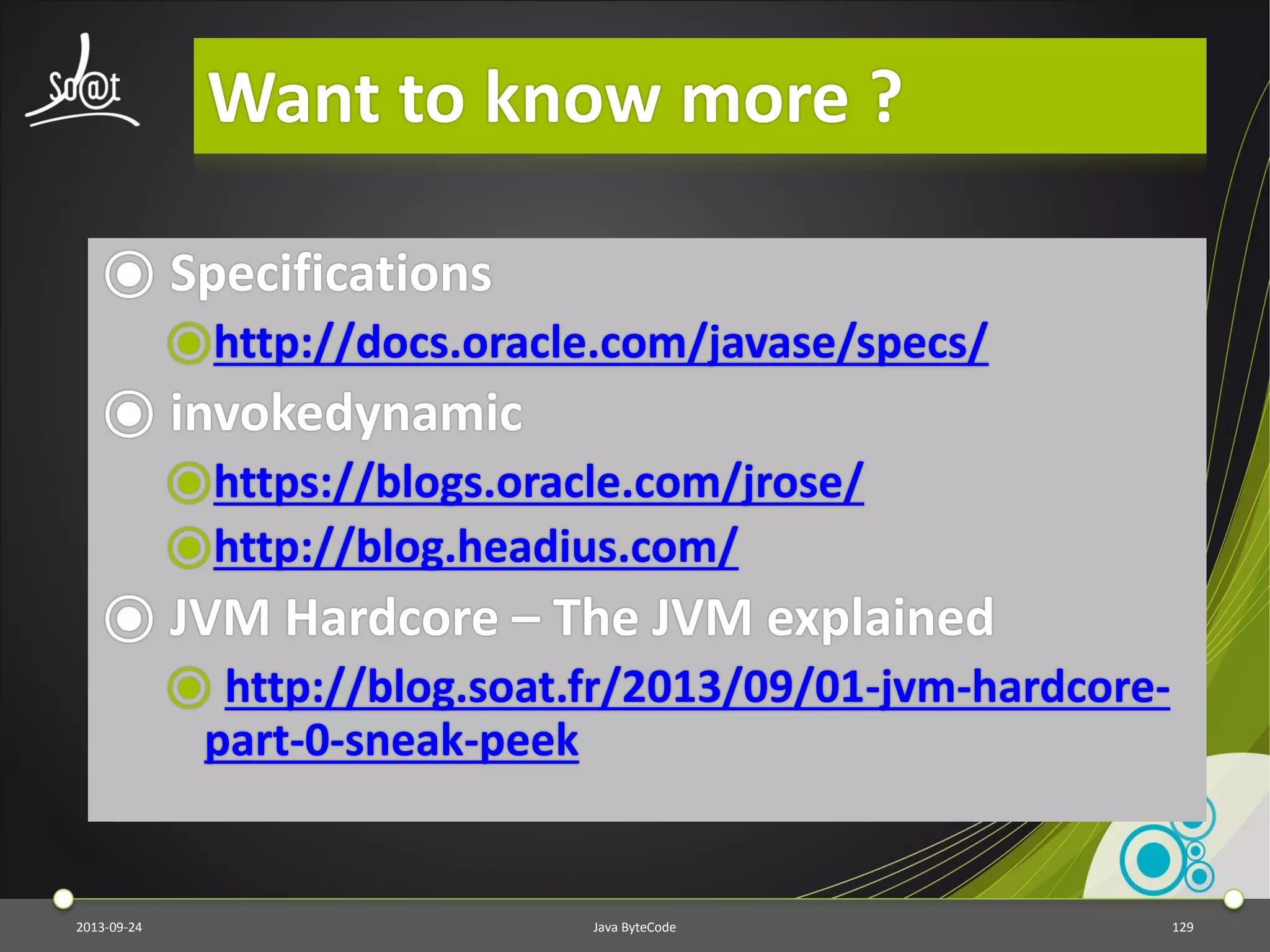

Want to know more ?
⦿ Specifications
⦿http://docs.oracle.com/javase/specs/
⦿ invokedynamic
⦿https://blogs.oracle.com/jrose/
⦿http://blog.headius.com/
⦿ JVM Hardcore – The JVM explained
⦿ http://blog.soat.fr/2013/09/01-jvm-hardcore-
part-0-sneak-peek
2013-09-24 Java ByteCode 129
2013-09-24 Java ByteCode 130

More Related Content

What's hot

Invoke dynamics
Invoke dynamicsInvoke dynamics
Invoke dynamics
Balamurugan Soundararajan

JVM
JVMJVM
Java history, versions, types of errors and exception, quiz
Java history, versions, types of errors and exception, quiz Java history, versions, types of errors and exception, quiz
Java history, versions, types of errors and exception, quiz
SAurabh PRajapati

Playing with Java Classes and Bytecode
Playing with Java Classes and BytecodePlaying with Java Classes and Bytecode
Playing with Java Classes and Bytecode
Yoav Avrahami

Understanding Java Dynamic Proxies
Understanding Java Dynamic ProxiesUnderstanding Java Dynamic Proxies
Understanding Java Dynamic Proxies
Rafael Luque Leiva

Java byte code presentation
Java byte code presentationJava byte code presentation
Java byte code presentation
Mahnoor Hashmi

Java and Java platforms
Java and Java platformsJava and Java platforms
Java and Java platforms
Ilio Catallo

Ppl for students unit 4 and 5
Ppl for students unit 4 and 5Ppl for students unit 4 and 5
Ppl for students unit 4 and 5
Akshay Nagpurkar

camel-scala.pdf
camel-scala.pdfcamel-scala.pdf
camel-scala.pdf
Hiroshi Ono

Java Virtual Machine
Java Virtual MachineJava Virtual Machine
Java Virtual Machine
Taha Malampatti

Jvm Architecture
Jvm ArchitectureJvm Architecture
Jvm Architecture
ThirupathiReddy Vajjala

CS Lesson: Introduction to the Java virtual Machine
CS Lesson: Introduction to the Java virtual MachineCS Lesson: Introduction to the Java virtual Machine
CS Lesson: Introduction to the Java virtual Machine
Katrin Becker

02 basic java programming and operators
02 basic java programming and operators02 basic java programming and operators
02 basic java programming and operators
Danairat Thanabodithammachari

Introduction to Java programming - Java tutorial for beginners to teach Java ...
Introduction to Java programming - Java tutorial for beginners to teach Java ...Introduction to Java programming - Java tutorial for beginners to teach Java ...
Introduction to Java programming - Java tutorial for beginners to teach Java ...
Duckademy IT courses

Java essential notes
Java essential notesJava essential notes
Java essential notes
Habitamu Asimare

Java virtual machine
Java virtual machineJava virtual machine
Java virtual machine
Nikhil Sharma

Java basics notes
Java basics notesJava basics notes
Java basics notes
poonguzhali1826

Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov
Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov
Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov
Nayden Gochev

3. jvm
3. jvm3. jvm
Bytecode Manipulation with a Java Agent and Byte Buddy
Bytecode Manipulation with a Java Agent and Byte BuddyBytecode Manipulation with a Java Agent and Byte Buddy
Bytecode Manipulation with a Java Agent and Byte Buddy
Koichi Sakata


What's hot (20)

Invoke dynamics
Invoke dynamicsInvoke dynamics
Invoke dynamics

JVM
JVMJVM
JVM

Java history, versions, types of errors and exception, quiz
Java history, versions, types of errors and exception, quiz Java history, versions, types of errors and exception, quiz
Java history, versions, types of errors and exception, quiz

Playing with Java Classes and Bytecode
Playing with Java Classes and BytecodePlaying with Java Classes and Bytecode
Playing with Java Classes and Bytecode

Understanding Java Dynamic Proxies
Understanding Java Dynamic ProxiesUnderstanding Java Dynamic Proxies
Understanding Java Dynamic Proxies

Java byte code presentation
Java byte code presentationJava byte code presentation
Java byte code presentation

Java and Java platforms
Java and Java platformsJava and Java platforms
Java and Java platforms

Ppl for students unit 4 and 5
Ppl for students unit 4 and 5Ppl for students unit 4 and 5
Ppl for students unit 4 and 5

camel-scala.pdf
camel-scala.pdfcamel-scala.pdf
camel-scala.pdf

Java Virtual Machine
Java Virtual MachineJava Virtual Machine
Java Virtual Machine

Jvm Architecture
Jvm ArchitectureJvm Architecture
Jvm Architecture

CS Lesson: Introduction to the Java virtual Machine
CS Lesson: Introduction to the Java virtual MachineCS Lesson: Introduction to the Java virtual Machine
CS Lesson: Introduction to the Java virtual Machine

02 basic java programming and operators
02 basic java programming and operators02 basic java programming and operators
02 basic java programming and operators

Introduction to Java programming - Java tutorial for beginners to teach Java ...
Introduction to Java programming - Java tutorial for beginners to teach Java ...Introduction to Java programming - Java tutorial for beginners to teach Java ...
Introduction to Java programming - Java tutorial for beginners to teach Java ...

Java essential notes
Java essential notesJava essential notes
Java essential notes

Java virtual machine
Java virtual machineJava virtual machine
Java virtual machine

Java basics notes
Java basics notesJava basics notes
Java basics notes

Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov
Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov
Lecture from javaday.bg by Nayden Gochev/ Ivan Ivanov and Mitia Alexandrov

3. jvm
3. jvm3. jvm
3. jvm

Bytecode Manipulation with a Java Agent and Byte Buddy
Bytecode Manipulation with a Java Agent and Byte BuddyBytecode Manipulation with a Java Agent and Byte Buddy
Bytecode Manipulation with a Java Agent and Byte Buddy


Similar to Introduction to the Java bytecode - So@t - 20130924

4CS4-25-Java-Lab-Manual.pdf
4CS4-25-Java-Lab-Manual.pdf4CS4-25-Java-Lab-Manual.pdf
4CS4-25-Java-Lab-Manual.pdf
amitbhachne

Improving Java performance at JBCNConf 2015
Improving Java performance at JBCNConf 2015Improving Java performance at JBCNConf 2015
Improving Java performance at JBCNConf 2015
Raimon Ràfols

Native Java with GraalVM
Native Java with GraalVMNative Java with GraalVM
Native Java with GraalVM
Sylvain Wallez

Improving Android Performance at Mobiconf 2014
Improving Android Performance at Mobiconf 2014Improving Android Performance at Mobiconf 2014
Improving Android Performance at Mobiconf 2014
Raimon Ràfols

java basic for begginers
java basic for begginersjava basic for begginers
java basic for begginers
divaskrgupta007

Java introduction
Java introductionJava introduction
Java introduction
The icfai university jaipur

Java programming concept
Java programming conceptJava programming concept
Java programming concept
Sanjay Gunjal

Improving Android Performance at Droidcon UK 2014
Improving Android Performance at Droidcon UK 2014Improving Android Performance at Droidcon UK 2014
Improving Android Performance at Droidcon UK 2014
Raimon Ràfols

Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, TuningJava 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Carol McDonald

Mastering Java ByteCode
Mastering Java ByteCodeMastering Java ByteCode
Mastering Java ByteCode
Ecommerce Solution Provider SysIQ

Java review00
Java review00Java review00
Java review00
saryu2011

DevNexus 2020: Discover Modern Java
DevNexus 2020: Discover Modern JavaDevNexus 2020: Discover Modern Java
DevNexus 2020: Discover Modern Java
Henri Tremblay

L Fu - Dao: a novel programming language for bioinformatics
L Fu - Dao: a novel programming language for bioinformaticsL Fu - Dao: a novel programming language for bioinformatics
L Fu - Dao: a novel programming language for bioinformatics
Jan Aerts

Java Bytecode For Discriminating Developers - GeeCON 2011
Java Bytecode For Discriminating Developers - GeeCON 2011Java Bytecode For Discriminating Developers - GeeCON 2011
Java Bytecode For Discriminating Developers - GeeCON 2011
Anton Arhipov

Java Bytecode for Discriminating Developers - JavaZone 2011
Java Bytecode for Discriminating Developers - JavaZone 2011Java Bytecode for Discriminating Developers - JavaZone 2011
Java Bytecode for Discriminating Developers - JavaZone 2011
Anton Arhipov

コミュニティ開発に参加しよう!
コミュニティ開発に参加しよう!コミュニティ開発に参加しよう!
コミュニティ開発に参加しよう!
Takahiro Itagaki

Java Cloud and Container Ready
Java Cloud and Container ReadyJava Cloud and Container Ready
Java Cloud and Container Ready
CodeOps Technologies LLP

Pure Java RAD and Scaffolding Tools Race
Pure Java RAD and Scaffolding Tools RacePure Java RAD and Scaffolding Tools Race
Pure Java RAD and Scaffolding Tools Race
Baruch Sadogursky

What's New in Groovy 1.6?
What's New in Groovy 1.6?What's New in Groovy 1.6?
What's New in Groovy 1.6?
Guillaume Laforge

Java introduction
Java introductionJava introduction
Java introduction
Migrant Systems


Similar to Introduction to the Java bytecode - So@t - 20130924 (20)

4CS4-25-Java-Lab-Manual.pdf
4CS4-25-Java-Lab-Manual.pdf4CS4-25-Java-Lab-Manual.pdf
4CS4-25-Java-Lab-Manual.pdf

Improving Java performance at JBCNConf 2015
Improving Java performance at JBCNConf 2015Improving Java performance at JBCNConf 2015
Improving Java performance at JBCNConf 2015

Native Java with GraalVM
Native Java with GraalVMNative Java with GraalVM
Native Java with GraalVM

Improving Android Performance at Mobiconf 2014
Improving Android Performance at Mobiconf 2014Improving Android Performance at Mobiconf 2014
Improving Android Performance at Mobiconf 2014

java basic for begginers
java basic for begginersjava basic for begginers
java basic for begginers

Java introduction
Java introductionJava introduction
Java introduction

Java programming concept
Java programming conceptJava programming concept
Java programming concept

Improving Android Performance at Droidcon UK 2014
Improving Android Performance at Droidcon UK 2014Improving Android Performance at Droidcon UK 2014
Improving Android Performance at Droidcon UK 2014

Java 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, TuningJava 5 6 Generics, Concurrency, Garbage Collection, Tuning
Java 5 6 Generics, Concurrency, Garbage Collection, Tuning

Mastering Java ByteCode
Mastering Java ByteCodeMastering Java ByteCode
Mastering Java ByteCode

Java review00
Java review00Java review00
Java review00

DevNexus 2020: Discover Modern Java
DevNexus 2020: Discover Modern JavaDevNexus 2020: Discover Modern Java
DevNexus 2020: Discover Modern Java

L Fu - Dao: a novel programming language for bioinformatics
L Fu - Dao: a novel programming language for bioinformaticsL Fu - Dao: a novel programming language for bioinformatics
L Fu - Dao: a novel programming language for bioinformatics

Java Bytecode For Discriminating Developers - GeeCON 2011
Java Bytecode For Discriminating Developers - GeeCON 2011Java Bytecode For Discriminating Developers - GeeCON 2011
Java Bytecode For Discriminating Developers - GeeCON 2011

Java Bytecode for Discriminating Developers - JavaZone 2011
Java Bytecode for Discriminating Developers - JavaZone 2011Java Bytecode for Discriminating Developers - JavaZone 2011
Java Bytecode for Discriminating Developers - JavaZone 2011

コミュニティ開発に参加しよう!
コミュニティ開発に参加しよう!コミュニティ開発に参加しよう!
コミュニティ開発に参加しよう!

Java Cloud and Container Ready
Java Cloud and Container ReadyJava Cloud and Container Ready
Java Cloud and Container Ready

Pure Java RAD and Scaffolding Tools Race
Pure Java RAD and Scaffolding Tools RacePure Java RAD and Scaffolding Tools Race
Pure Java RAD and Scaffolding Tools Race

What's New in Groovy 1.6?
What's New in Groovy 1.6?What's New in Groovy 1.6?
What's New in Groovy 1.6?

Java introduction
Java introductionJava introduction
Java introduction


More from yohanbeschi

VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free
VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and freeVoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free
VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free
yohanbeschi

Java 8 - Nuts and Bold - SFEIR Benelux
Java 8 - Nuts and Bold - SFEIR BeneluxJava 8 - Nuts and Bold - SFEIR Benelux
Java 8 - Nuts and Bold - SFEIR Benelux
yohanbeschi

JVM Hardcore - Part 18 - Converting a logical expression into bytecode
JVM Hardcore - Part 18 - Converting a logical expression into bytecodeJVM Hardcore - Part 18 - Converting a logical expression into bytecode
JVM Hardcore - Part 18 - Converting a logical expression into bytecodeyohanbeschi

JVM Hardcore - Part 07 - Parsing (Productions stack states)
JVM Hardcore - Part 07 - Parsing (Productions stack states)JVM Hardcore - Part 07 - Parsing (Productions stack states)
JVM Hardcore - Part 07 - Parsing (Productions stack states)yohanbeschi

JVM Hardcode - Part 01 - How Frames work
JVM Hardcode - Part 01 - How Frames workJVM Hardcode - Part 01 - How Frames work
JVM Hardcode - Part 01 - How Frames workyohanbeschi

Introduction to dart - So@t - 20130410
Introduction to dart - So@t - 20130410Introduction to dart - So@t - 20130410
Introduction to dart - So@t - 20130410
yohanbeschi

Dart - web_ui & Programmatic components - Paris JUG - 20130409
Dart - web_ui & Programmatic components - Paris JUG - 20130409Dart - web_ui & Programmatic components - Paris JUG - 20130409
Dart - web_ui & Programmatic components - Paris JUG - 20130409
yohanbeschi

Building Single-Page Web Appplications in dart - Devoxx France 2013
Building Single-Page Web Appplications in dart - Devoxx France 2013Building Single-Page Web Appplications in dart - Devoxx France 2013
Building Single-Page Web Appplications in dart - Devoxx France 2013
yohanbeschi

Introduction à dart
Introduction à dartIntroduction à dart
Introduction à dart
yohanbeschi


More from yohanbeschi (9)

VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free
VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and freeVoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free
VoxxedDays LU 2016 - Thoughtworks Go - Continuous Deployment made easy and free

Java 8 - Nuts and Bold - SFEIR Benelux
Java 8 - Nuts and Bold - SFEIR BeneluxJava 8 - Nuts and Bold - SFEIR Benelux
Java 8 - Nuts and Bold - SFEIR Benelux

JVM Hardcore - Part 18 - Converting a logical expression into bytecode
JVM Hardcore - Part 18 - Converting a logical expression into bytecodeJVM Hardcore - Part 18 - Converting a logical expression into bytecode
JVM Hardcore - Part 18 - Converting a logical expression into bytecode

JVM Hardcore - Part 07 - Parsing (Productions stack states)
JVM Hardcore - Part 07 - Parsing (Productions stack states)JVM Hardcore - Part 07 - Parsing (Productions stack states)
JVM Hardcore - Part 07 - Parsing (Productions stack states)

JVM Hardcode - Part 01 - How Frames work
JVM Hardcode - Part 01 - How Frames workJVM Hardcode - Part 01 - How Frames work
JVM Hardcode - Part 01 - How Frames work

Introduction to dart - So@t - 20130410
Introduction to dart - So@t - 20130410Introduction to dart - So@t - 20130410
Introduction to dart - So@t - 20130410

Dart - web_ui & Programmatic components - Paris JUG - 20130409
Dart - web_ui & Programmatic components - Paris JUG - 20130409Dart - web_ui & Programmatic components - Paris JUG - 20130409
Dart - web_ui & Programmatic components - Paris JUG - 20130409

Building Single-Page Web Appplications in dart - Devoxx France 2013
Building Single-Page Web Appplications in dart - Devoxx France 2013Building Single-Page Web Appplications in dart - Devoxx France 2013
Building Single-Page Web Appplications in dart - Devoxx France 2013

Introduction à dart
Introduction à dartIntroduction à dart
Introduction à dart


Recently uploaded

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
Nguyen Thanh Tu Collection

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology
paigestewart1632

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
PECB

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
GeorgeMilliken2

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
สมใจ จันสุกสี

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf
Priyankaranawat4

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx
HajraNaeem15

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience
Wahiba Chair Training & Consulting

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery


Recently uploaded (20)

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 9 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2024-2025 - ...

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience How to Create a More Engaging and Human Online Learning Experience
How to Create a More Engaging and Human Online Learning Experience

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie


Introduction to the Java bytecode - So@t - 20130924

  • 1. 2013-09-24 Java ByteCode 1 Yohan BESCHI – Java Developer @yohanbeschi +Yohan Beschi
  • 2. A word about me ⦿ Started coding more than 15 years ago ⦿ Expertise ⦿ RIAs ⦿ Performances ⦿ Industrialization ⦿ Writings ⦿ So@t Blogger ⦿ Developpez.com Writer ⦿ InfoQ FR Editor 2013-09-24 Java ByteCode 2
  • 4. Why this talk ? ⦿ To understand JVM exceptions ⦿ Can help dealing with performance issues ⦿ To write a compiler for the JVM ⦿ And the most important, it’s fun ! 2013-09-24 Java ByteCode 4
  • 5. What we won’t see ⦿ A detailed explanation of the JVMS ⦿ Features from Java 5 and higher ⦿ Tools like ASM, BCEL, Javassist, etc. ⦿ JSR-292 2013-09-24 Java ByteCode 5
  • 6. What we will see ⦿ An introduction to the inner working of the JVM ⦿ A big part of the JVM instruction set ⦿ Unicode and Java ⦿ An introduction to the Class File Format 2013-09-24 Java ByteCode 6
  • 7. Terminology used in this talk ⦿ A JVM, THE JVM or Hotspot = A virtual machine following the JVMS ⦿ Java Compiler = javac 2013-09-24 Java ByteCode 7
  • 8. Bytecode - What and Why ? ⦿ Intermediate language between the Java Source Code and machine code ⦿ Close to an Assembly Language ⦿ Efficient execution by an interpreter 2013-09-24 Java ByteCode 8
  • 9. JIT Compilation ⦿ JIT = Just In Time ⦿ Interpreted bytecode is slower than compiled machine code ⦿ Used to improve the runtime performances ⦿ Optimizations ⦿ Caching 2013-09-24 Java ByteCode 9
  • 10. What will I learn ? (1/6) package org.bytecode; public class Demo { public static void main(String[] args) { final int sum = add(3, 5); System.out.println(sum); } private static int add(int i, int j) { return i + j; } } 2013-09-24 Java ByteCode 10 $ javac -g:none org/bytecode/Demo.java
  • 11. What will I learn ? (2/6) public class org.bytecode.Demo minor version: 0 major version: 51 flags: ACC_PUBLIC, ACC_SUPER ... to be continued ... 2013-09-24 Java ByteCode 11 $ javap –verbose -p org/bytecode/Demo
  • 12. What will I learn ? (3/6) Constant pool: #1 = Methodref #6.#14 // java/lang/Object."<init>":()V #2 = Methodref #5.#15 // org/bytecode/Demo.add:(II)I #3 = Fieldref #16.#17 // java/lang/System.out:Ljava/io/PrintStream; #4 = Methodref #18.#19 // java/io/PrintStream.println:(I)V #5 = Class #20 // org/bytecode/Demo #6 = Class #21 // java/lang/Object #7 = Utf8 <init> #8 = Utf8 ()V #9 = Utf8 Code #10 = Utf8 main #11 = Utf8 ([Ljava/lang/String;)V #12 = Utf8 add #13 = Utf8 (II)I #14 = NameAndType #7:#8 // "<init>":()V #15 = NameAndType #12:#13 // add:(II)I #16 = Class #22 // java/lang/System #17 = NameAndType #23:#24 // out:Ljava/io/PrintStream; #18 = Class #25 // java/io/PrintStream #19 = NameAndType #26:#27 // println:(I)V #20 = Utf8 org/bytecode/Demo #21 = Utf8 java/lang/Object #22 = Utf8 java/lang/System #23 = Utf8 out #24 = Utf8 Ljava/io/PrintStream; #25 = Utf8 java/io/PrintStream #26 = Utf8 println #27 = Utf8 (I)V 2013-09-24 Java ByteCode 12
  • 13. What will I learn ? (4/6) { public org.bytecode.Demo(); flags: ACC_PUBLIC Code: stack=1, locals=1, args_size=1 0: aload_0 1: invokespecial #1 // Method java/lang/Object."<init>":()V 4: return ... to be continued ... 2013-09-24 Java ByteCode 13
  • 14. What will I learn ? (5/6) public static void main(java.lang.String[]); flags: ACC_PUBLIC, ACC_STATIC Code: stack=2, locals=2, args_size=1 0: iconst_3 1: iconst_5 2: invokestatic #2 // Method add:(II)I 5: istore_1 6: getstatic #3 // Field java/lang/System.out:Ljava/io/PrintStream; 9: iload_1 10: invokevirtual #4 // Method java/io/PrintStream.println:(I)V 13: return ... to be continued ... 2013-09-24 Java ByteCode 14
  • 15. What will I learn ? (6/6) private static int add(int, int); flags: ACC_PRIVATE, ACC_STATIC Code: stack=2, locals=2, args_size=2 0: iload_0 1: iload_1 2: iadd 3: ireturn } ... end ... 2013-09-24 Java ByteCode 15
  • 16. Class File as a Text File using PJBA* .class org/isk/bytecode/Adder .method add(II)I iload_0 iload_1 iadd ireturn .methodend .classend 2013-09-24 Java ByteCode 16 *PJBA: Plume Java Bytecode Assembler
  • 17. Descriptors (1/2) 2013-09-24 Java ByteCode 17 Descriptor Type Z boolean B byte S short C char I int J long F float D double V void [<type> Array of type <type> L<type>; Object of type <type>
  • 18. Descriptors (2/2) ⦿ Descriptors are used to define fields and methods 2013-09-24 Java ByteCode 18 Bytecode Java add(II)I int add(int i1, int i2) concat(Ljava/lang/String;Ljava/lang/String;)Lj ava/lang/String; String concat(String s1, String s2) merge([Z[Z)[Z boolean[] merge(boolean[] a1, boolean[] a2)
  • 20. The JVM in few words ⦿ Application Virtual Machine ⦿ Stack based ⦿ Symbolic references ⦿ Garbage collection ⦿ Platform independent ⦿ Network Byte Order (ie. Big-endian) 2013-09-24 Java ByteCode 20
  • 21. From Source code to the JVM (1/2) 2013-09-24 Java ByteCode 21 Java Code (.java) Java ByteCode (.class) Java Compiler (javac) Class Loader Execution Engine Runtime Data Areas Java Virtual Machine
  • 22. From Source code to the JVM (2/2) ⦿ ClassLoader: loads the bytecode from class files into the Runtime Data Areas ⦿ Execution Engine: executes the bytecode ⦿ Runtime Data Areas: areas used during a program execution ⦿ Some areas are created during the initialization of the JVM and others are by threads. 2013-09-24 Java ByteCode 22
  • 23. Run-Time Data Areas (1/2) 2013-09-24 Java ByteCode 23 Run-Time Data Areas Thread Program Counter Java Stack Native Method Stack Heap Method Area Run-Time Constant Pool
  • 24. Run-Time Data Areas (2/2) ⦿ Heap: run-time data area from which memory for all class instances and arrays is allocated ⦿ Method Area: stores per-class structures ⦿ Run-Time Constant Pool: is a per-class or per-interface run-time representation of the constantPool table in a class file 2013-09-24 Java ByteCode 24
  • 25. Runtime Data Areas (2/2) ⦿Threads: daemon and non-daemon ⦿ Program counter: address of the Java Virtual Machine instruction currently being executed ⦿ JVM Stacks: LIFO stacks of Frames ⦿ Native Method Stacks ⦿ Frames: stores data and partial results, performs dynamic linking, returns values for methods, and dispatches exceptions. 2013-09-24 Java ByteCode 25
  • 26. Threads and Stack Frames 2013-09-24 Java ByteCode 26 Java Virtual Machine Thread 4 Thread 3 Thread 2 Thread 1F1 F1 F1 F1 F2 F3 F2 F2 F3 F4 F5 F6
  • 27. Frames (1/2) 2013-09-24 Java ByteCode 27 Java Virtual Machine PC Frame Class Local Variables 0 1 2 3 4 5 6 7 8 Operand Stack Method Code Constant Pool
  • 28. Frames (2/2) ⦿ Local Variables: array of variables ⦿ Operand Stack: LIFO stack of operands ⦿ Dynamic Linking: translates symbolic method references into concrete method references and translates variable accesses into appropriate offsets in storage structures associated with the run-time location of these variables. ⦿ Java Stack (Frame) != Operand Stack 2013-09-24 Java ByteCode 28
  • 29. Frame 1 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } ra PC 1/102013-09-24 Java ByteCode 29
  • 30. Frame 1 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } ra PC 1 2/102013-09-24 Java ByteCode 30
  • 31. Frame 1 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } ra PC 2 1 3/102013-09-24 Java ByteCode 31
  • 32. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 4/102013-09-24 Java ByteCode 32
  • 33. Cadre 1 Class Variables Locales 0 1 2 3 4 5 6 7 8 Pile public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } ra Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 2 1 Cadre inactif Frame 1 Local Variable 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 5/102013-09-24 Java ByteCode 33
  • 34. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 1 Cadre 1 Variables Locales 0 1 2 3 4 5 6 7 8 Pile ra 2 1 Cadre inactif Cadre 1 Variables Locales 0 1 2 3 4 5 6 7 8 Pile ra 2 1 Cadre inactif Frame 1 Local Variable 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 6/102013-09-24 Java ByteCode 34
  • 35. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 2 1 Cadre 1 Variables Locales 0 1 2 3 4 5 6 7 8 Pile ra 2 1 Cadre inactif Frame 1 Local Variable 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 7/102013-09-24 Java ByteCode 35
  • 36. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 3 Cadre 1 Variables Locales 0 1 2 3 4 5 6 7 8 Pile ra 2 1 Cadre inactif Frame 1 Local Variable 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 8/102013-09-24 Java ByteCode 36
  • 37. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } Frame 2 Class Local Variables 0 1 2 3 4 5 6 7 8 Stack public static int add(int i1, int i2) { push lv0 push lv1 add the top of the stack return the top of the stack } 1 PC 2 3 Cadre 1 Variables Locales 0 1 2 3 4 5 6 7 8 Pile ra 3 Cadre inactif Frame 1 Local Variable 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 2 1 Inactive Frame 9/102013-09-24 Java ByteCode 37
  • 38. Class public static void main(String[] a) { push literal 1 push literal 2 invoke static method add() store the result in lv1 // … } PC Frame 1 Local Variables 0 1 2 3 4 5 6 7 8 Stack ra 3 3 10/102013-09-24 Java ByteCode 38
  • 40. JVM types (1/2) ⦿ int ⦿ long ⦿ float ⦿ double ⦿ reference 2013-09-24 Java ByteCode 40
  • 41. JVM types (2/2) ⦿ boolean, byte, short and char are treated as int ⦿ But we can have arrays of byte, short and char ⦿ long and double values take two slots in the operand stack and the local variables ⦿ A reference is a pointer to an object in the heap 2013-09-24 Java ByteCode 41
  • 42. Mnemonics (1/3) ⦿ An mnemonic is a textual form of an operation (iadd, lload_1, etc.) ⦿ Each mnemonic matches a number between 0 and 255 (1 byte) in a class file. ⦿ This number is called an operation code or simply an opcode 2013-09-24 Java ByteCode 42
  • 43. Mnemonics (2/3) 2013-09-24 Java ByteCode 43 Letter Type Size (in bit) b byte 8 s short 16 c char 16 i int 32 l long 64 f float 32 d double 64 a reference 32/64* * Depending on the JVM
  • 44. Mnemonics (3/3) ⦿ Instructions dealing with the stack or the local variables start with a letter corresponding to a type ⦿ The instruction « iadd » will add 2 integers ⦿ In a class file, instructions can only exist in a method. 2013-09-24 Java ByteCode 44
  • 45. Arguments and operands ⦿ An argument follows an instruction ⦿ ldc « Hello World! » ⦿ An operand is from the operand stack ⦿ iadd 2013-09-24 Java ByteCode 45
  • 46. Returning a value (1/2) 2013-09-24 Java ByteCode 46 Hex Mnemonic 0xac ireturn 0xad lreturn 0xae freturn 0xaf dreturn 0xb0 areturn 0xb1 return
  • 47. Returning a value (2/2) public static void doNothing() { return; // Optional } 2013-09-24 Java ByteCode 47 .method doNothing()V return .methodend
  • 48. Predifined Constants (1/3) 2013-09-24 Java ByteCode 48 Hex Mnemonic 0x01 aconst_null 0x02 iconst_m1 0x03 iconst_0 0x04 iconst_1 0x05 iconst_2 0x06 iconst_3 0x07 iconst_4 0x08 iconst_5 Hex Mnemonic 0x09 lconst_0 0x0a lconst_1 0x0b fconst_0 0x0c fconst_1 0x0d fconst_2 0x0e dconst_0 0x0f dconst_1
  • 49. Predifined Constants (2/3) ⦿ The JVM supports constants of type int, float, long, double and String ⦿ These instructions push the constant to the stack 2013-09-24 Java ByteCode 49
  • 50. Returning a value (3/3) public static double get() { return 1.0; } 2013-09-24 Java ByteCode 50 .method get()D dconst_1 dreturn .methodend
  • 51. User defined constants (1/3) 2013-09-24 Java ByteCode 51 Hex Mnemonic Argument 0x10 bipush n 0x11 sipush n 0x12 ldc n 0x13 ldc_w n 0x14 ldc2_w n
  • 52. User defined constants (2/3) ⦿ These instructions push the constant to the stack ⦿ bipush is used for constants between -128 and 127 ⦿ sipush is used for constants between -32 768 and 32 767 ⦿ « ldc »’s instructions are used for every other values. 2013-09-24 Java ByteCode 52
  • 53. User defined constants (3/3) public static short get() { return 14909; } 2013-09-24 Java ByteCode 53 .method get()S sipush 14909 ireturn .methodend
  • 54. ldc, ldc_w, ldc2_w ⦿ For these instructions the argument (n) is not the actual value, but an index in the Constant Pool ⦿ « _w » means wide. The size of the index is 2 bytes instead of 1. ⦿ « ldc » and « ldc_w » are used for values of type int, float and String ⦿ « ldc2_w » is used for values of type double and long. « 2 » means two slots in the operand stack 2013-09-24 Java ByteCode 54
  • 55. Local Variables (1/6) – Loading 2013-09-24 Java ByteCode 55 Hex Mnemonic Argument 0x15 iload n 0x16 lload n 0x17 fload n 0x18 dload n 0x19 aload n 0x1a iload_0 0x1b iload_1 0x1c iload_2 0x1d iload_3 Hex Mnemonic 0x1e lload_0 0x1f lload_1 0x20 lload_2 0x21 lload_3 0x22 fload_0 0x23 fload_1 0x24 fload_2 0x25 fload_3 Hex Mnemonic 0x26 dload_0 0x27 dload_1 0x28 dload_2 0x29 dload_3 0x2a aload_0 0x2b aload_1 0x2c aload_2 0x2d aload_3
  • 56. Local Variables (2/6) – Loading public static int load(int i) { return i; } 2013-09-24 Java ByteCode 56 .method load(I)I iload_0 ireturn .methodend
  • 57. Local Variables (3/6) - Storing 2013-09-24 Java ByteCode 57 Hex Mnemonic Argument 0x36 istore n 0x37 lstore n 0x38 fstore n 0x39 dstore n 0x3a astore n 0x3b istore_0 0x3c istore_1 0x3d istore_2 0x3e istore_3 Hex Mnemonic 0x3f lstore_0 0x40 lstore_1 0x41 lstore_2 0x42 lstore_3 0x43 fstore_0 0x44 fstore_1 0x45 fstore_2 0x46 fstore_3 Hex Mnemonic 0x47 dstore_0 0x48 dstore_1 0x49 dstore_2 0x4a dstore_3 0x4b astore_0 0x4c astore_1 0x4d astore_2 0x4e astore_3
  • 58. Local Variables (4/6) – Storing public static void store() { int i = 17; double d = 3.5; } 2013-09-24 Java ByteCode 58 .method store()V bipush 17 istore_0 ldc2_w 3.5 dstore_1 return .methodend
  • 59. Local Variables (5/6) ⦿ « n » is the index in the Local Variables ⦿ Slots in Local Variables are not typed, but you need to be careful about the size of each type (example following) 2013-09-24 Java ByteCode 59
  • 60. Local Variables (6/6) ldc "hello world" astore_2 ldc2_w 3.14d dstore_1 aload_2 # error! # dstore_1 stored a double at index 1 and 2. Therefore, we can’t access to the String anymore 2013-09-24 Java ByteCode 60
  • 61. Math (1/5) – Arithmetic Operations 2013-09-24 Java ByteCode 61 0x60 iadd 0x61 ladd 0x62 fadd 0x63 dadd 0x64 isub 0x65 lsub 0x66 fsub 0x67 dsub 0x68 imul 0x69 lmul 0x6a fmul 0x6b dmul 0x6c idiv 0x6d ldiv 0x6e fdiv 0x6f ddiv 0x70 irem 0x71 lrem 0x72 frem 0x73 drem 0x74 ineg 0x75 lneg 0x76 fneg 0x77 dneg
  • 62. Math (2/5) – Notations ⦿ Infix notation : 3 + 4 * 7 ⦿ Prefix notation : + 3 * 4 7 ⦿ Postfix notation : 3 4 7 * + Let’s see an example !! 2013-09-24 Java ByteCode 62
  • 63. Local Variables (3/5) – Loading public static int add() { return 2 * (7 – 5) * (8 – 5); } 2013-09-24 Java ByteCode 63 # Infix: 2 * (7 – 5) * (8 – 5) # Postfix: 2 7 5 - * 8 5 - *
  • 64. Math (4/5) – Notations .method add()I # Stack before -> after iconst_2 # [] -> 2 bipush 7 # 2 -> 2, 7 iconst_5 # 2, 7 -> 2, 7, 5 isub # 2, 7, 5 - > 2, 2 (7 - 5 = 2) imul # 2, 2 -> 4 (2 * 2 = 4) bipush 8 # 4 -> 4, 8 iconst_5 # 4, 8 -> 4, 8, 5 isub # 4, 8, 5 -> 4, 3 (8 - 5 = 3) imul # 4, 3 -> 12 (4 * 3 = 12) ireturn .methodend 2013-09-24 Java ByteCode 64
  • 65. Math (5/5) – few more… 2013-09-24 Java ByteCode 65 << >> >>> 0x78 ishl 0x79 lshl 0x7a ishr 0x7b lshr 0x7c iushr 0x7b lushr & | ^ 0x7e iand 0x7f land 0x80 ior 0x81 lor 0x82 ixor 0x83 lxor casting 0x85 i2l 0x86 i2f 0x87 i2d 0x88 l2i 0x89 l2f 0x8a l2d 0x8b f2i 0x8c f2l 0x8d f2d 0x8e d2i 0x8f d2l 0x90 d2f int to byte, char and short 0x91 i2b 0x92 i2c 0x93 i2s
  • 66. Stack instructions (1/2) 2013-09-24 Java ByteCode 66 Hex Mnemonic Description 0x57 pop Pop the first element off the stack 0x58 pop2 Pop the first two elements off the stack 0x59 dup Duplicate the first element and push it to the stack 0x5a dup_x1 Duplicate the first element and add it under the second 0x5b dup_x2 Duplicate the first element and add it under the third 0x5c dup2 Duplicate the first two elements and push them to the stack (keeping the order) 0x5d dup2_x1 Duplicate the first two elements and add them under the third one (keeping the order) 0x5e dup2_x2 Duplicate the first two elements and add them under the fourth one (keeping the order) 0x5f swap Swap the first two elements
  • 67. Stack instructions (2/2) ⦿ One element = one slot in the operand stack ⦿ long and double values must be considered as two elements each ⦿ The JVMS is refering to long and double as types of category 2 (taking 2 slots), other types are of category 1 (see « Types and the Java Virtual Machine » in the JVMS) 2013-09-24 Java ByteCode 67
  • 68. pop - 1/2 2013-09-24 Java ByteCode 68 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile iconst_1 pop PC 1
  • 69. pop - 2/2 2013-09-24 Java ByteCode 69 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile iconst_1 popPC
  • 70. dup – 1/2 2013-09-24 Java ByteCode 70 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile iconst_2 iconst_1 dup PC 2 1
  • 71. dup - 2/2 2013-09-24 Java ByteCode 71 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile iconst_2 iconst_1 dupPC 2 1 1
  • 72. dup2_x2 - (form 3) 1/2 2013-09-24 Java ByteCode 72 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile dconst_1 iconst_1 iconst_2 dup2_x2 PC 1 2 1.0
  • 73. dup2_x2 - (forme 3) 2/2 2013-09-24 Java ByteCode 73 Cadre 1 Classe Variables Locales 0 1 2 3 4 5 6 7 8 Pile dconst_1 iconst_1 iconst_2 dup2_x2PC 1 2 1.0 2 1
  • 74. Unicode & Java 2013-09-24 Java ByteCode 74
  • 75. Unicode 101 ⦿ Unicode 6.2 contains a repertoire of more than 110,000 characters covering 100 scripts ⦿ Each character is associated with a number called Code Point ⦿ Unicode defines a codespace of 1,114,112 code points in the range U+0000 to U+10FFFF ⦿ Unicode is a character set, not an encoding ⦿ Unicode defines two encodings the Unicode Transformation Format (UTF) and the Universal Character Set (UCS) 2013-09-24 Java ByteCode 75
  • 76. UTF 101 – UTF-8 ⦿ In UTF-8 a character can be encoded in 1, 2, 3 or 4 bytes 2013-09-24 Java ByteCode 76 Range Byte 1 Byte 2 Byte 3 Byte 4 U+0000 - U+007F 0xxxxxxx U+0080 - U+07FF 110xxxxx 10xxxxxx U+0800 - U+FFFF 1110xxxx 10xxxxxx 10xxxxxx U+10000 - U+1FFFFF 11110xxx 10xxxxxx 10xxxxxx 10xxxxxx
  • 77. UTF 101 – UTF-16 ⦿ In UTF-16 a character can be encoded in 2 or 4 bytes ⦿ Code Points from the BMP ⦿ U+0410 (А - CYRILLIC CAPITAL LETTER A) => 0x04 0x10 ⦿ Code Points from a supplementary plane ⦿ U+64321 => 0xD9 0x50 0xDF 0x21 2013-09-24 Java ByteCode 77
  • 78. UTF 101 – UTF-32 ⦿ In UTF-32 a character is encoded in 4 bytes. Its code point doesn’t need any transformation ⦿ U+64321 => 0x00 0x06 0x43 0x21 2013-09-24 Java ByteCode 78
  • 79. 2013-09-24 Java ByteCode 79 Why should I care about Unicode ?
  • 80. Java Source File encoding ⦿ Java source files can be encoded in various encodings (usually UTF-8)… ⦿ But you MUST always indicate to the compiler what it is… ⦿ Using the option -encoding 2013-09-24 Java ByteCode 80 http://docs.oracle.com/javase/7/docs/technotes/guides/intl/encoding.doc.html
  • 81. Class File encoding ⦿ In a class file all strings (packages, classes, fields, methods and literals) are encoded in Modified UTF-8 ⦿Modified UTF-8 is almost like UTF-8 but: ⦿ The NULL character is encoded using 2 bytes ⦿ Only formats with 1, 2 or 3 bytes are used (which is enough for the BMP) ⦿ For supplementary planes each surrogate is encoded as a character 2013-09-24 Java ByteCode 81
  • 82. JVM encoding ⦿ The JVM encodes Strings in UTF-16… ⦿ Therefore extreme care should be taken when handling an external stream of data (a file or from the network) 2013-09-24 Java ByteCode 82
  • 83. Class File Format 2013-09-24 Java ByteCode 83
  • 84. Class File Structure (1/2) 2013-09-24 Java ByteCode 84 ClassFile { int magic; short minorVersion; short majorVersion; short constantPoolCount; ConstantPoolEntry[] constantPool; short accessFlags; short thisClass; short superClass; short interfacesCount; short[] interfaces; short fieldsCount; Field[] fields; short methodsCount; Method[] methods; short attributesCount; Attribute[] attributes; } byte, short and int should be considered as unsigned types
  • 85. Class File Structure (2/2) 2013-09-24 Java ByteCode 85 public class org.bytecode.Demo minor version: 0 major version: 51 flags: ACC_PUBLIC, ACC_SUPER Constant pool: #1 = Methodref #6.#14 // java/lang/Object."<init>":()V #2 = Methodref #5.#15 // org/bytecode/Demo.add:(II)I #3 = Fieldref #16.#17 // java/lang/System.out:Ljava/io/PrintStream; #4 = Methodref #18.#19 // java/io/PrintStream.println:(I)V #5 = Class #20 // org/bytecode/Demo #6 = Class #21 // java/lang/Object #7 = Utf8 <init> #8 = Utf8 ()V ... private static int add(int, int); flags: ACC_PRIVATE, ACC_STATIC Code: stack=2, locals=2, args_size=2 0: iload_0 1: iload_1 2: iadd 3: ireturn ...
  • 86. Content of a class file (1/2) ⦿ A class file is a binary file where each elements have a well defined size (except strings as we shall see). ⦿ To write and read class files, the JDK provides two classes: ⦿ java.io.DataOutputStream ⦿ java.io.DataInputStream 2013-09-24 Java ByteCode 86
  • 87. Content of a class file (2/2) ⦿ From an AST it’s quiet simple to generate a class file: DataOutputStream dos = new DataOutputStream(…); dos.writeInt(this.magic); dos.writeShort(this.minorVersion); dos.writeShort(this.majorVersion); dos.writeShort(this.constantPoolCount); //… 2013-09-24 Java ByteCode 87
  • 88. magic (1/2) 2013-09-24 Java ByteCode 88 ClassFile { int magic; short minorVersion; short majorVersion; short constantPoolCount; ConstantPoolEntry[] constantPool; // .. } ⦿ It’s value is always 0xCAFEBABE
  • 89. minorVersion and majorVersion (1/2) 2013-09-24 Java ByteCode 89 ClassFile { int magic; short minorVersion; short majorVersion; short constantPoolCount; ConstantPoolEntry[] constantPool; // .. }
  • 90. minorVersion and majorVersion (2/2) 2013-09-24 Java ByteCode 90 ⦿ Indicate the version of the class file format ⦿ Oracle's JVM implementation in: ⦿ JDK release 1.0.2 supports class file format versions 45.0 through 45.3 inclusive. ⦿ JDK releases 1.1.* support class file format versions in the range 45.0 through 45.65535 inclusive. ⦿ For k ≥ 2, JDK release 1.k supports class file format versions in the range 45.0 through 44+k.0 inclusive.
  • 91. Constant Pool (1/3) 2013-09-24 Java ByteCode 91 ClassFile { int magic; short minorVersion; short majorVersion; short constantPoolCount; ConstantPoolEntry[] constantPool; // .. }
  • 92. Constant Pool (2/3) ⦿ The constant pool is a central part of a class file. ⦿ It has no equivalent in Java. ⦿ It’s like a symbol table, doing a mapping between the code and constants of several kinds. ⦿ The index of the array constantPool starts from 1. 2013-09-24 Java ByteCode 92
  • 93. Constant Pool (3/3) ⦿ A ConstantPoolEntry has this format: ConstantPoolEntry { byte tag; byte[] info; } ⦿ « tag » defines the type of constant ⦿ The content of the byte array (info) is different from tag to tag 2013-09-24 Java ByteCode 93
  • 94. Constant type ⦿ As for the JDK 1.4 there are 11 kind of constants: 2013-09-24 Java ByteCode 94 Constant Type Value ConstantUtf8 1 ConstantInteger 3 ConstantFloat 4 ConstantLong 5 ConstantDouble 6 ConstantClass 7 ConstantString 8 ConstantFieldref 9 ConstantMethodref 10 ConstantInterfaceMethodref 11 ConstantNameAndType 12
  • 95. ConstantUTF8 ⦿ The most common constant ⦿ Used for all kind of strings (package name, class name, method name, etc.) public class ConstantUTF8 { byte tag = 0x01; short length; byte[] string; } 2013-09-24 Java ByteCode 95
  • 96. ConstantInt and ConstantFloat ⦿ Used to store int and float values! public class ConstantInt { byte tag = 0x03; int value; } public class ConstantFloat { byte tag = 0x04; // The float is converted to an int int value; } 2013-09-24 Java ByteCode 96
  • 97. ConstantLong and ConstantDouble ⦿ Used to store long and double values! public class ConstantLong { byte tag = 0x03; long value; } public class ConstantDouble { byte tag = 0x04; // The double is converted to a long long value; } 2013-09-24 Java ByteCode 97
  • 98. ConstantString ⦿ Used for String constants. ⦿ Unlike ConstantUTF8, ConstantString contains the index of a ConstantUTF8 in the constant pool. public class ConstantString { byte tag = 0x08; short utf8Index; } 2013-09-24 Java ByteCode 98
  • 99. ConstantClass ⦿ A ConstantClass works like a ConstantString. Except that the ConstantUTF8 is holding a fully qualified class name. Like « java/lang/Object » or because an array is an object « [[I » public class ConstantClass { byte tag = 0x07; short utf8Index; } 2013-09-24 Java ByteCode 99
  • 100. ConstantNameAndType ⦿ Contains the indexes of two ConstantsUTF8 holding the name and type/descriptor of a field or a method public class ConstantNameAndType { byte tag = 0x0C; short nameUtf8Index; short descriptorUtf8Index; } 2013-09-24 Java ByteCode 100
  • 101. The Last Three (1/2) ⦿ ConstantFieldref ⦿ ConstantMethodref ⦿ and ConstantInterfaceMethodref contains: ⦿ the index of a ConstantClass ⦿ the index of a ConstantNameAndType 2013-09-24 Java ByteCode 101
  • 102. The Last Three (2/2) public class ConstantFieldref { byte tag = 0x09; short classIndex; short nameAndType8Index; } public class ConstantMethodref { byte tag = 0x0A; short classIndex; short nameAndType8Index; } public class ConstantInterfaceMethodref { byte tag = 0x0B; short nameUtf8Index; short descriptorUtf8Index; } 2013-09-24 Java ByteCode 102
  • 103. accessFlags (1/3) 2013-09-24 Java ByteCode 103 ClassFile { // … short constantPoolCount; ConstantPoolEntry[] constantPool; short accessFlags; short thisClass; short superClass; // … }
  • 104. accessFlags (2/3) ⦿ Indicate the modifiers of a class using masks. Each bit is a modifier set if equals to 1 and not set if equals to 0 2013-09-24 Java ByteCode 104 Flag name Value Java keyword ACC_PUBLIC 0x0001 public ACC_FINAL 0x0010 final ACC_SUPER 0x0020 - ACC_INTERFACE 0x0200 interface ACC_ABSTRACT 0x0400 abstract
  • 105. accessFlags (3/3) ⦿ For example: 0000 a0b0 00cd 000e Where: a = 0x0400 = 0000 1000 0000 0000 (ACC_ABSTRACT) b = 0x0200 = 0000 0010 0000 0000 (ACC_INTERFACE) c = 0x0020 = 0000 0000 0010 0000 (ACC_SUPER) d = 0x0010 = 0000 0000 0001 0000 (ACC_FINAL) e = 0x0001 = 0000 0000 0000 0001 (ACC_PUBLIC) 2013-09-24 Java ByteCode 105
  • 106. thisClass & superClass (1/2) 2013-09-24 Java ByteCode 106 ClassFile { // … short constantPoolCount; ConstantPoolEntry[] constantPool; short accessFlags; short thisClass; short superClass; // … }
  • 107. thisClass & superClass (2/2) ⦿ Contains the index of a ConstantClass. ⦿ « this » and « super » have the same meaning as in Java. ⦿ thisClass is the fully qualified name of the current class ⦿ superClass is the fully qualified name of the superClass. (java/lang/Object) by default. 2013-09-24 Java ByteCode 107
  • 108. Not this time… 2013-09-24 Java ByteCode 108 ClassFile { // … short interfacesCount; short[] interfaces; short fieldsCount; Field[] fields; // … short attributesCount; Attribute[] attributes; }
  • 109. methods 2013-09-24 Java ByteCode 109 ClassFile { // … short methodsCount; Method[] methods; // … }
  • 110. methods ⦿ Each Java method can be represented like this in a class File class Method { short accessFlags; short nameIndex; short descriptorIndex; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 110
  • 111. Method – accessFlags (1/2) ⦿ Each Java method can be represented like this in a class File class Method { short accessFlags; short nameIndex; short descriptorIndex; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 111
  • 112. Method – accessFlags (2/2) ⦿ Working like accessFlags for a ClassFile, they indicate the modifiers of a method 2013-09-24 Java ByteCode 112 Flag Name Value Java Keyword ACC_PUBLIC 0x0001 public ACC_PRIVATE 0x0002 private ACC_PROTECTED 0x0004 protected ACC_STATIC 0x0008 static ACC_FINAL 0x0010 final ACC_SYNCHRONIZED 0x0020 synchronized ACC_NATIVE 0x0100 native ACC_ABSTRACT 0x0400 abstract ACC_STRICT 0x0800 strictfp
  • 113. nameIndex & descriptorIndex (1/2) ⦿ Each Java method can be represented like this in a class File class Method { short accessFlags; short nameIndex; short descriptorIndex; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 113
  • 114. nameIndex & descriptorIndex (1/2) ⦿ Contain an index of ConstantUTF8 holding respectively the name and the descriptor of the method 2013-09-24 Java ByteCode 114
  • 115. attributes ⦿ Each Java method can be represented like this in a class File class Method { short accessFlags; short nameIndex; short descriptorIndex; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 115
  • 116. Attribute (1/3) ⦿ The Attribute structure can be found inside other ones: ⦿ ClassFile ⦿ Field ⦿ Method ⦿ Code 2013-09-24 Java ByteCode 116
  • 117. Attribute (2/3) ⦿ There are several different kind of attributes (9 for the JDK 1.4): ⦿ SourceFile ⦿ ConstantValue ⦿ Code ⦿ Exceptions ⦿ InnerClasses ⦿ Synthetic ⦿ LineNumberTable ⦿ LocalVariableTable ⦿ Deprecated We will see only the Code Attribute today. 2013-09-24 Java ByteCode 117
  • 118. Attribute (3/3) - Structure Attribute { short nameIndex; int attributeLength; byte[] info; } 2013-09-24 Java ByteCode 118
  • 119. Code Attribute Code { short attributeNameIndex; int attributeLength; short maxStack; short maxLocals; int codeLength; byte[] code; short exceptionsCount; Exception[] exceptions; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 119
  • 120. attributeIndex (1/2) Code { short attributeNameIndex; int attributeLength; short maxStack; short maxLocals; int codeLength; byte[] code; short exceptionsCount; Exception[] exceptions; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 120
  • 121. attributeIndex (2/2) ⦿ Contains the index of a ConstantUTF8 containing the value « Code » (The type name of the attribute) 2013-09-24 Java ByteCode 121
  • 122. attributeLength (1/2) Code { short attributeNameIndex; int attributeLength; short maxStack; short maxLocals; int codeLength; byte[] code; short exceptionsCount; Exception[] exceptions; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 122
  • 123. attributeLength (2/2) ⦿ Is the length of the attribute (without the six first bytes) in byte. ⦿ It can be calculated like this : 2 + 2 + 4 // maxStack + maxLocals + codeLength + code.length + 2 // exceptionsCount + 8 * exceptions.length // an Exception takes 8 bytes + 2 // attributesCount + attributes.length 2013-09-24 Java ByteCode 123
  • 124. maxStack & maxLocals (1/2) Code { short attributeNameIndex; int attributeLength; short maxStack; short maxLocals; int codeLength; byte[] code; short exceptionsCount; Exception[] exceptions; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 124
  • 125. maxStack & maxLocals (2/2) ⦿ Respectively the maximum size of the operand stack and the local variables ⦿ These sizes can be find out with the instructions used in the method. 2013-09-24 Java ByteCode 125
  • 126. code (1/2) Code { short attributeNameIndex; int attributeLength; short maxStack; short maxLocals; int codeLength; byte[] code; short exceptionsCount; Exception[] exceptions; short attributesCount; Attribute[] attributes; } 2013-09-24 Java ByteCode 126
  • 127. code (1/2) ⦿ Contains all the instructions of a method ⦿ Each instruction take 1 byte ⦿ + the size of their arguments ⦿ Only ¼ of the instruction set have arguments 2013-09-24 Java ByteCode 127
  • 128. It’s only the beginning 2013-09-24 Java ByteCode 128
  • 129. Want to know more ? ⦿ Specifications ⦿http://docs.oracle.com/javase/specs/ ⦿ invokedynamic ⦿https://blogs.oracle.com/jrose/ ⦿http://blog.headius.com/ ⦿ JVM Hardcore – The JVM explained ⦿ http://blog.soat.fr/2013/09/01-jvm-hardcore- part-0-sneak-peek 2013-09-24 Java ByteCode 129
