The document discusses moving iron type instruments, which have attraction and repulsion types. They work by having a soft iron vane that moves when current flows through a coil, with the attraction type moving towards the stronger magnetic field and the repulsion type having two soft iron rods that repel each other. Moving iron type instruments are cheap, sturdy, and reliable but have less precision for DC measurements due to iron hysteresis. Dynamo type wattmeters also measure power by having the torque produced by the current proportional to the voltage times the cosine of the phase angle.
The armature winding is the main current-carrying winding in which the electromotive force or counter-emf of rotation is induced.
The current in the armature winding is known as the armature current.
The location of the winding depends upon the type of machine.
The armature windings of dc motors are located on the rotor, since they must operate in union with the commutator.
In DC rotating machines other than brushless DC machines, it is usually rotating.
The armature winding is the main current-carrying winding in which the electromotive force or counter-emf of rotation is induced.
The current in the armature winding is known as the armature current.
The location of the winding depends upon the type of machine.
The armature windings of dc motors are located on the rotor, since they must operate in union with the commutator.
In DC rotating machines other than brushless DC machines, it is usually rotating.
This presentation is about the whole pricipal about DC machine. It explain the various important parts of dc machine.It tells about how many types of losses are present in DC machine.
Winding
What is Armature winding?
Terms related to armature winding.
Single layer and double layer windings.
Comparison between closed and open windings.
Types of DC armature winding.
Types of AC armature winding.
This presentation is about the whole pricipal about DC machine. It explain the various important parts of dc machine.It tells about how many types of losses are present in DC machine.
Winding
What is Armature winding?
Terms related to armature winding.
Single layer and double layer windings.
Comparison between closed and open windings.
Types of DC armature winding.
Types of AC armature winding.
Voltmeter & Transformers: Types and Applications.Diksha Prakash
This presentation gives an insight into the various types of voltmeters and transformers that exist. The are both electronic measuring instruments. All the types of voltmeters and transformers have been discussed alogwith numerical examples and their solutions.
Basics of Transformers, DC machine, Single phase and Three phase induction motors and Universal motors are provided here. Students of APJ Abdul Kalam Technological University (KTU) may find this helpful for their fifth module preparation.
The Art of the Pitch: WordPress Relationships and SalesLaura Byrne
Clients don’t know what they don’t know. What web solutions are right for them? How does WordPress come into the picture? How do you make sure you understand scope and timeline? What do you do if sometime changes?
All these questions and more will be explored as we talk about matching clients’ needs with what your agency offers without pulling teeth or pulling your hair out. Practical tips, and strategies for successful relationship building that leads to closing the deal.
Elevating Tactical DDD Patterns Through Object CalisthenicsDorra BARTAGUIZ
After immersing yourself in the blue book and its red counterpart, attending DDD-focused conferences, and applying tactical patterns, you're left with a crucial question: How do I ensure my design is effective? Tactical patterns within Domain-Driven Design (DDD) serve as guiding principles for creating clear and manageable domain models. However, achieving success with these patterns requires additional guidance. Interestingly, we've observed that a set of constraints initially designed for training purposes remarkably aligns with effective pattern implementation, offering a more ‘mechanical’ approach. Let's explore together how Object Calisthenics can elevate the design of your tactical DDD patterns, offering concrete help for those venturing into DDD for the first time!
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Jeffrey Haguewood
Sidekick Solutions uses Bonterra Impact Management (fka Social Solutions Apricot) and automation solutions to integrate data for business workflows.
We believe integration and automation are essential to user experience and the promise of efficient work through technology. Automation is the critical ingredient to realizing that full vision. We develop integration products and services for Bonterra Case Management software to support the deployment of automations for a variety of use cases.
This video focuses on the notifications, alerts, and approval requests using Slack for Bonterra Impact Management. The solutions covered in this webinar can also be deployed for Microsoft Teams.
Interested in deploying notification automations for Bonterra Impact Management? Contact us at sales@sidekicksolutionsllc.com to discuss next steps.
Generating a custom Ruby SDK for your web service or Rails API using Smithyg2nightmarescribd
Have you ever wanted a Ruby client API to communicate with your web service? Smithy is a protocol-agnostic language for defining services and SDKs. Smithy Ruby is an implementation of Smithy that generates a Ruby SDK using a Smithy model. In this talk, we will explore Smithy and Smithy Ruby to learn how to generate custom feature-rich SDKs that can communicate with any web service, such as a Rails JSON API.
Key Trends Shaping the Future of Infrastructure.pdfCheryl Hung
Keynote at DIGIT West Expo, Glasgow on 29 May 2024.
Cheryl Hung, ochery.com
Sr Director, Infrastructure Ecosystem, Arm.
The key trends across hardware, cloud and open-source; exploring how these areas are likely to mature and develop over the short and long-term, and then considering how organisations can position themselves to adapt and thrive.
DevOps and Testing slides at DASA ConnectKari Kakkonen
My and Rik Marselis slides at 30.5.2024 DASA Connect conference. We discuss about what is testing, then what is agile testing and finally what is Testing in DevOps. Finally we had lovely workshop with the participants trying to find out different ways to think about quality and testing in different parts of the DevOps infinity loop.
UiPath Test Automation using UiPath Test Suite series, part 4DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 4. In this session, we will cover Test Manager overview along with SAP heatmap.
The UiPath Test Manager overview with SAP heatmap webinar offers a concise yet comprehensive exploration of the role of a Test Manager within SAP environments, coupled with the utilization of heatmaps for effective testing strategies.
Participants will gain insights into the responsibilities, challenges, and best practices associated with test management in SAP projects. Additionally, the webinar delves into the significance of heatmaps as a visual aid for identifying testing priorities, areas of risk, and resource allocation within SAP landscapes. Through this session, attendees can expect to enhance their understanding of test management principles while learning practical approaches to optimize testing processes in SAP environments using heatmap visualization techniques
What will you get from this session?
1. Insights into SAP testing best practices
2. Heatmap utilization for testing
3. Optimization of testing processes
4. Demo
Topics covered:
Execution from the test manager
Orchestrator execution result
Defect reporting
SAP heatmap example with demo
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Tobias Schneck
As AI technology is pushing into IT I was wondering myself, as an “infrastructure container kubernetes guy”, how get this fancy AI technology get managed from an infrastructure operational view? Is it possible to apply our lovely cloud native principals as well? What benefit’s both technologies could bring to each other?
Let me take this questions and provide you a short journey through existing deployment models and use cases for AI software. On practical examples, we discuss what cloud/on-premise strategy we may need for applying it to our own infrastructure to get it to work from an enterprise perspective. I want to give an overview about infrastructure requirements and technologies, what could be beneficial or limiting your AI use cases in an enterprise environment. An interactive Demo will give you some insides, what approaches I got already working for real.
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Albert Hoitingh
In this session I delve into the encryption technology used in Microsoft 365 and Microsoft Purview. Including the concepts of Customer Key and Double Key Encryption.
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP

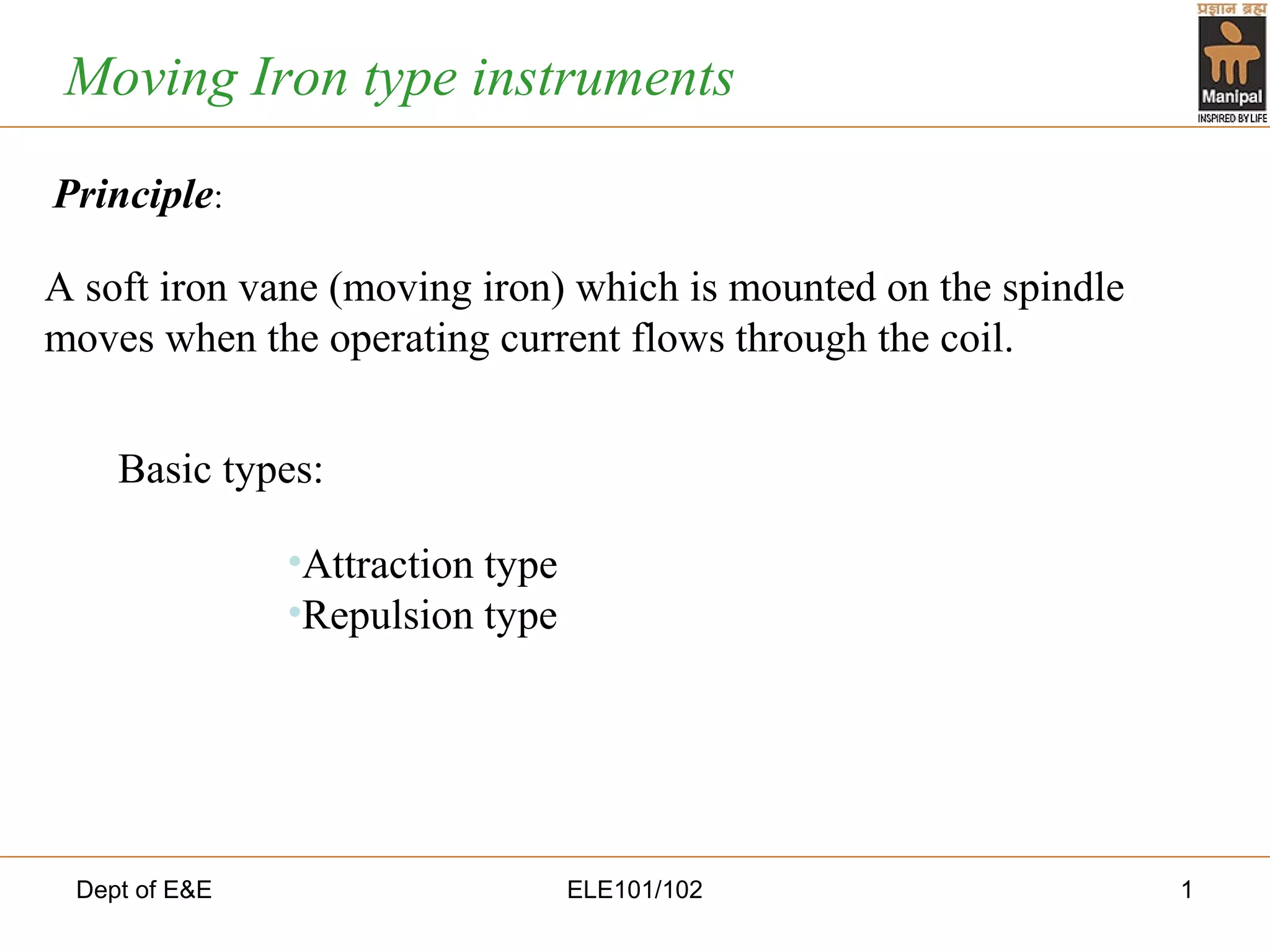

1. Dept of E&E ELE101/102 1
Moving Iron type instruments
•Attraction type
•Repulsion type
Basic types:
Principle:
A soft iron vane (moving iron) which is mounted on the spindle
moves when the operating current flows through the coil.
2. Dept of E&E ELE101/102 2
Attraction typeMoving Iron type instruments:
Construction:
When current flows through the coil, a soft iron piece moves from
the weaker magnetic field towards the stronger field.
3. Dept of E&E ELE101/102 3
Attraction typeMoving Iron type instruments:
Working:
Td α mean of i2
over a cycle.
Tc α θ
In steady state, Tc=Td
θ α mean of i2
over a cycle
Scale is not uniform
4. Dept of E&E ELE101/102 4
Repulsion type
θ α mean of i2
over a cycle
Scale is not uniform
Moving Iron type instruments:
When current flows through the coil, Two soft iron rods get
magnetized similarly, causing them to repel each other.
5. Dept of E&E ELE101/102 5
•Cheap and sturdy.
•Possess a good degree of reliability.
•Less friction errors
Advantages:
Disadvantages:
•Degree of precision of calibration is not high for dc
measurements due to hysteresis in iron parts
Moving Iron type instruments
6. Dept of E&E ELE101/102 6
Measurement of POWER:
Construction:
Dynamo type Wattmeter
7. Dept of E&E ELE101/102 7
Measurement of POWER:
Tdmean α VI cos φ
Since Spring control is used ; Tc α θ
At steady state, Td = Tc
Hence, θ α VI cos φ
Dynamo type Wattmeter
Working:
