1. Khamsin Virtual Racecar Challenge 2014
Submission Portal Presentation
Hangout on Air, 22nd January 2014
Start 7pm, AEST

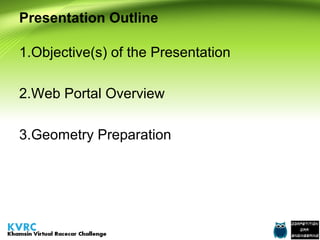

2. Presentation Outline
1.Objective(s) of the Presentation
2.Web Portal Overview
3.Geometry Preparation

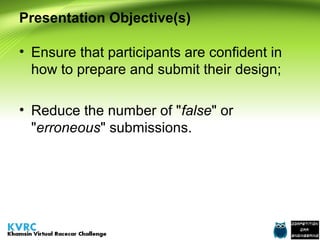

3. Presentation Objective(s)
• Ensure that participants are confident in
how to prepare and submit their design;
• Reduce the number of "false" or
"erroneous" submissions.

4. Web Portal

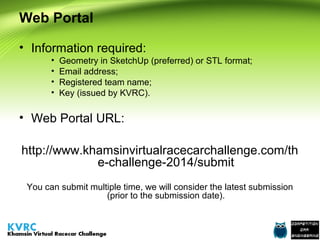

• Information required:
•
•
•
•
Geometry in SketchUp (preferred) or STL format;
Email address;
Registered team name;
Key (issued by KVRC).
• Web Portal URL:
http://www.khamsinvirtualracecarchallenge.com/th
e-challenge-2014/submit
You can submit multiple time, we will consider the latest submission
(prior to the submission date).

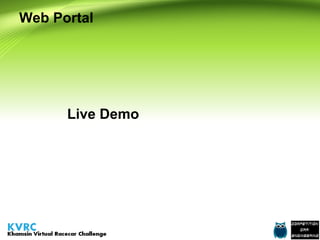

5. Web Portal

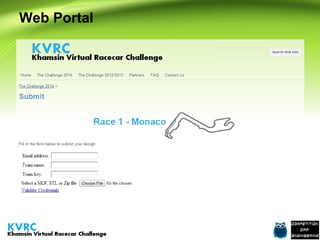

6. Web Portal
Live Demo

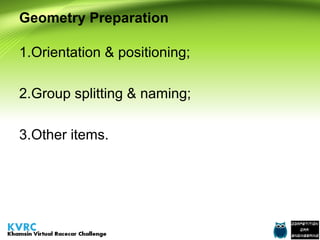

7. Geometry Preparation
1.Orientation & positioning;
2.Group splitting & naming;
3.Other items.

8. Geometry Preparation

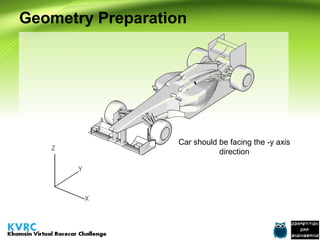

Car should be facing the -y axis
direction

9. Geometry Preparation

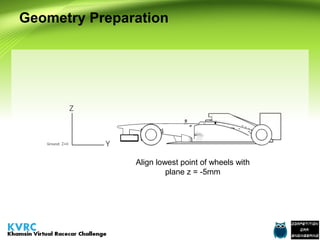

Align lowest point of wheels with
plane z = -5mm

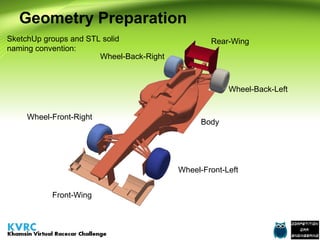

10. Geometry Preparation
SketchUp groups and STL solid
naming convention:
Wheel-Back-Right
Rear-Wing
Wheel-Back-Left
Wheel-Front-Right
Body
Wheel-Front-Left
Front-Wing

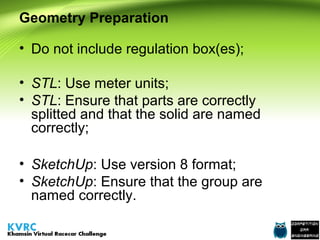

11. Geometry Preparation
• Do not include regulation box(es);
• STL: Use meter units;
• STL: Ensure that parts are correctly
splitted and that the solid are named
correctly;
• SketchUp: Use version 8 format;
• SketchUp: Ensure that the group are
named correctly.

12. KVRC 2014 Portal Presentation
Thank you for your time and attention,
Question(s)?
