- 1. Copyright © 2016Mirantis, Inc. All rights reserved www.mirantis.com Kubernetes SDN Performance and Architecture Jakub Pavlik Marek Celoud

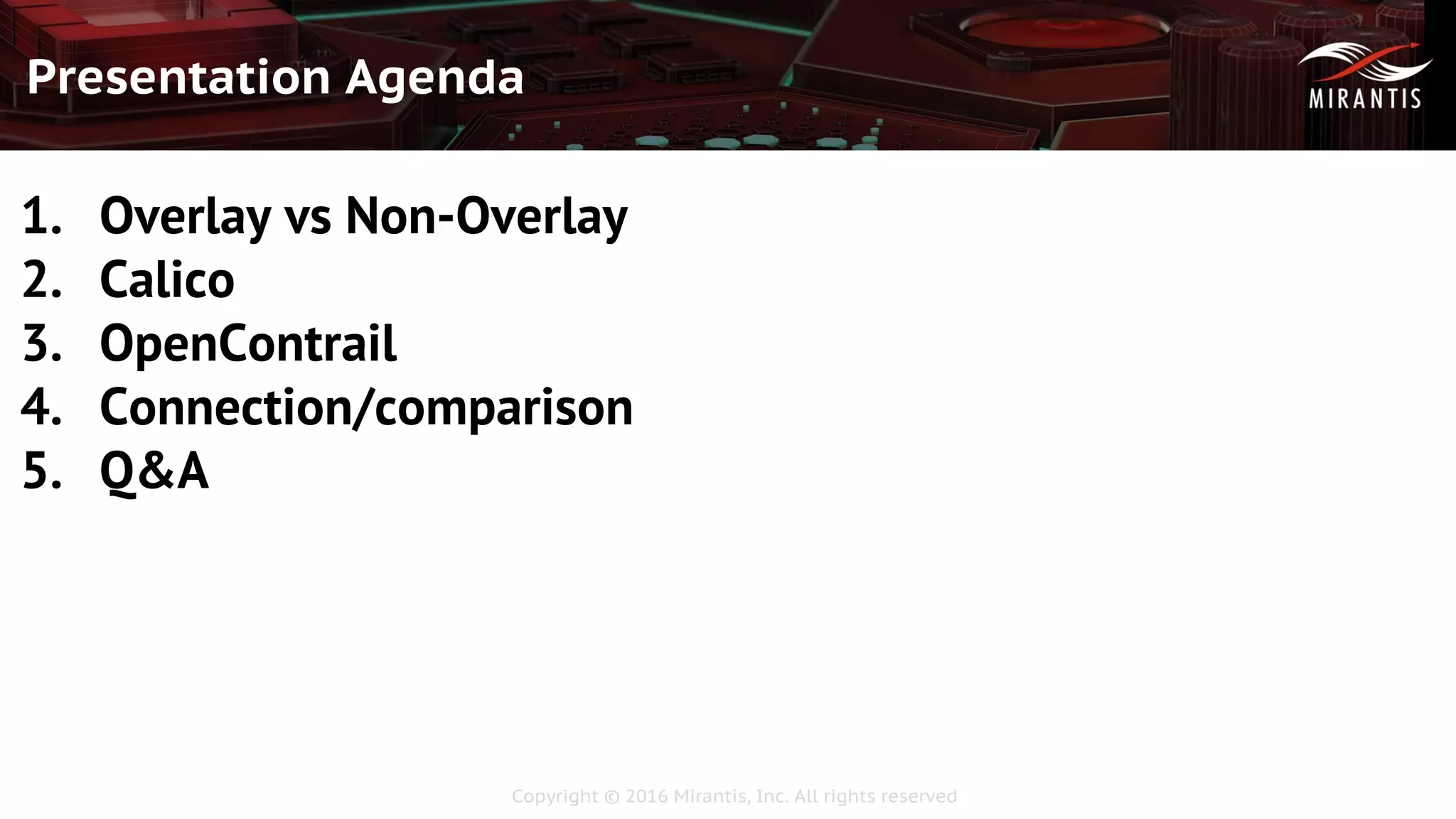

- 2. Copyright © 2016Mirantis, Inc. All rights reserved Presentation Agenda 1. Overlay vs Non-Overlay 2. Calico 3. OpenContrail 4. Connection/comparison 5. Q&A
- 3. Copyright © 2016Mirantis, Inc. All rights reserved About us Marek Celoud mceloud@mirantis.com @MCeloud Jakub Pavlík jpavlik@mirantis.com @JakubPav

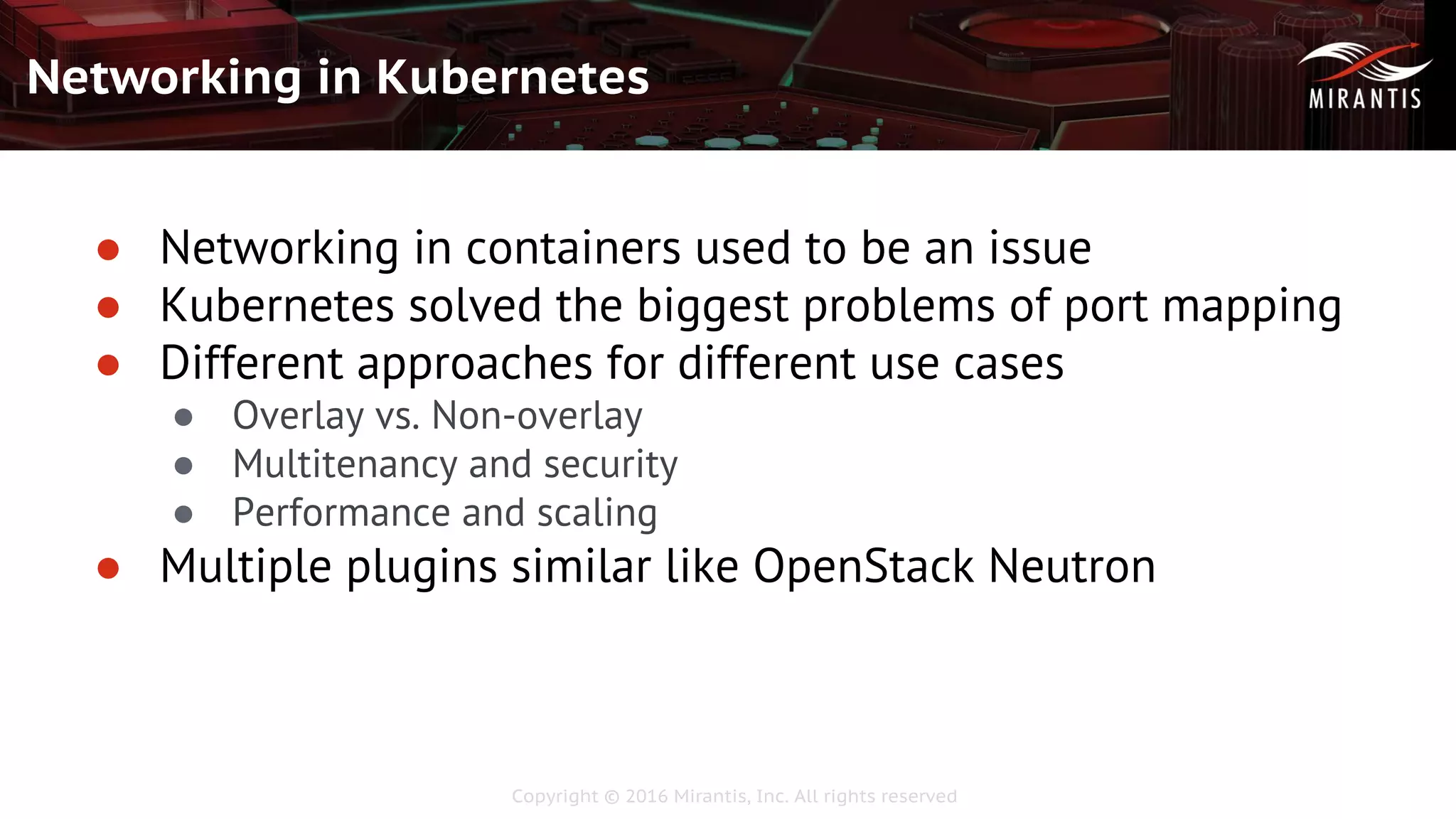

- 4. Copyright © 2016Mirantis, Inc. All rights reserved Networking in Kubernetes ● Networking in containers used to be an issue ● Kubernetes solved the biggest problems of port mapping ● Different approaches for different use cases ● Overlay vs. Non-overlay ● Multitenancy and security ● Performance and scaling ● Multiple plugins similar like OpenStack Neutron

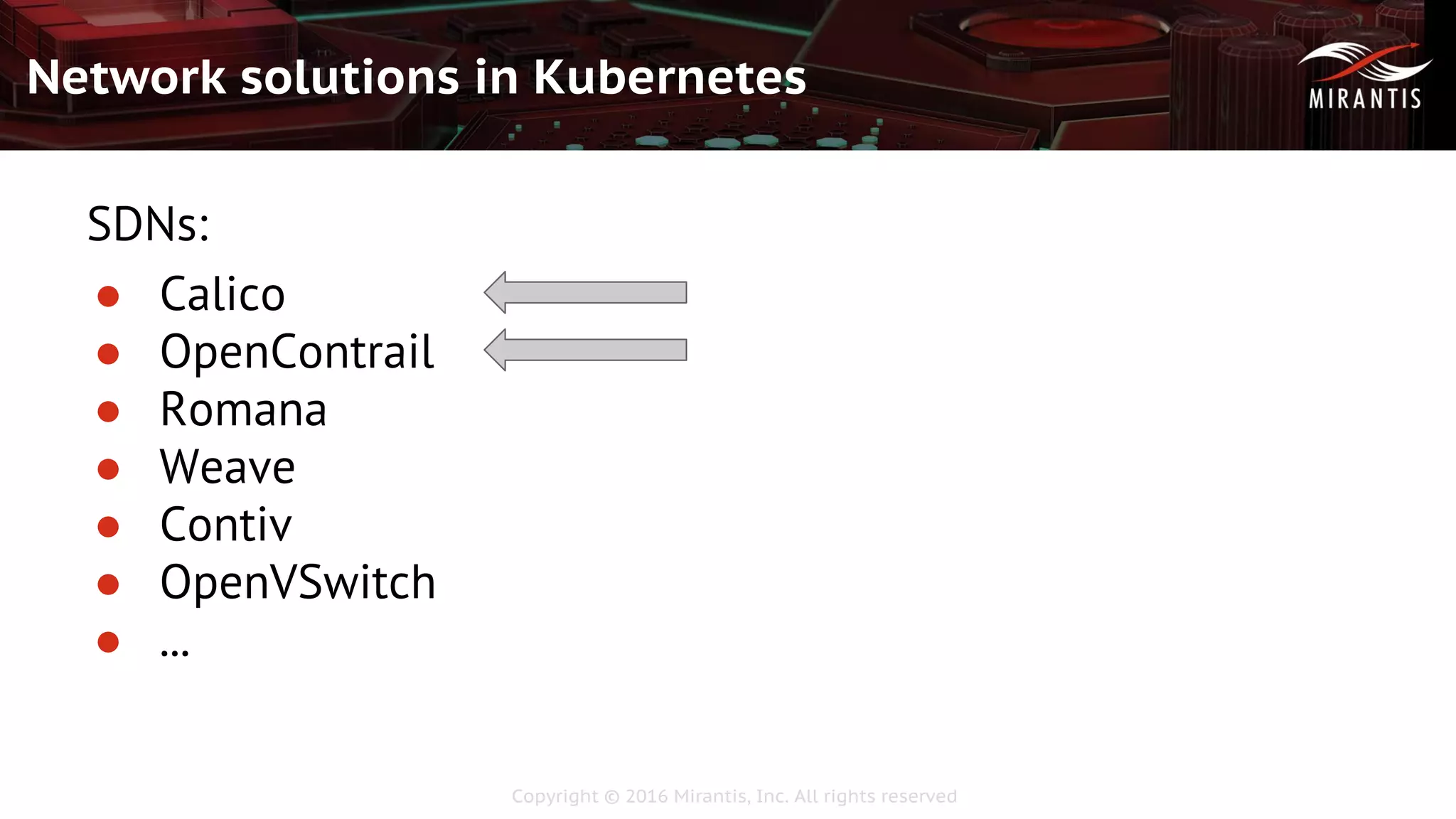

- 5. Copyright © 2016Mirantis, Inc. All rights reserved Network solutions in Kubernetes SDNs: ● Calico ● OpenContrail ● Romana ● Weave ● Contiv ● OpenVSwitch ● ...

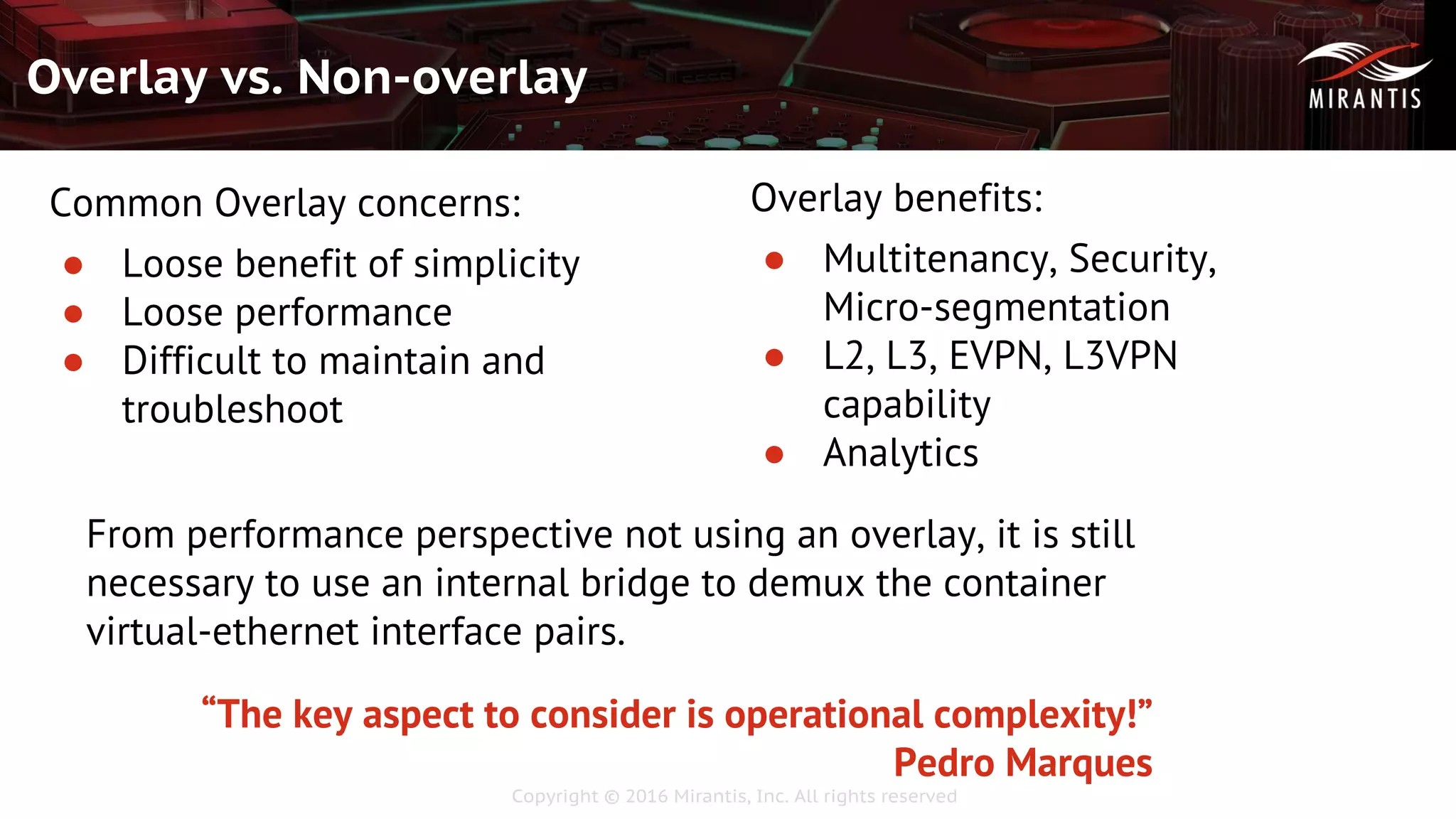

- 6. Copyright © 2016Mirantis, Inc. All rights reserved Overlay vs. Non-overlay Common Overlay concerns: ● Loose benefit of simplicity ● Loose performance ● Difficult to maintain and troubleshoot Overlay benefits: ● Multitenancy, Security, Micro-segmentation ● L2, L3, EVPN, L3VPN capability ● Analytics From performance perspective not using an overlay, it is still necessary to use an internal bridge to demux the container virtual-ethernet interface pairs. “The key aspect to consider is operational complexity!” Pedro Marques

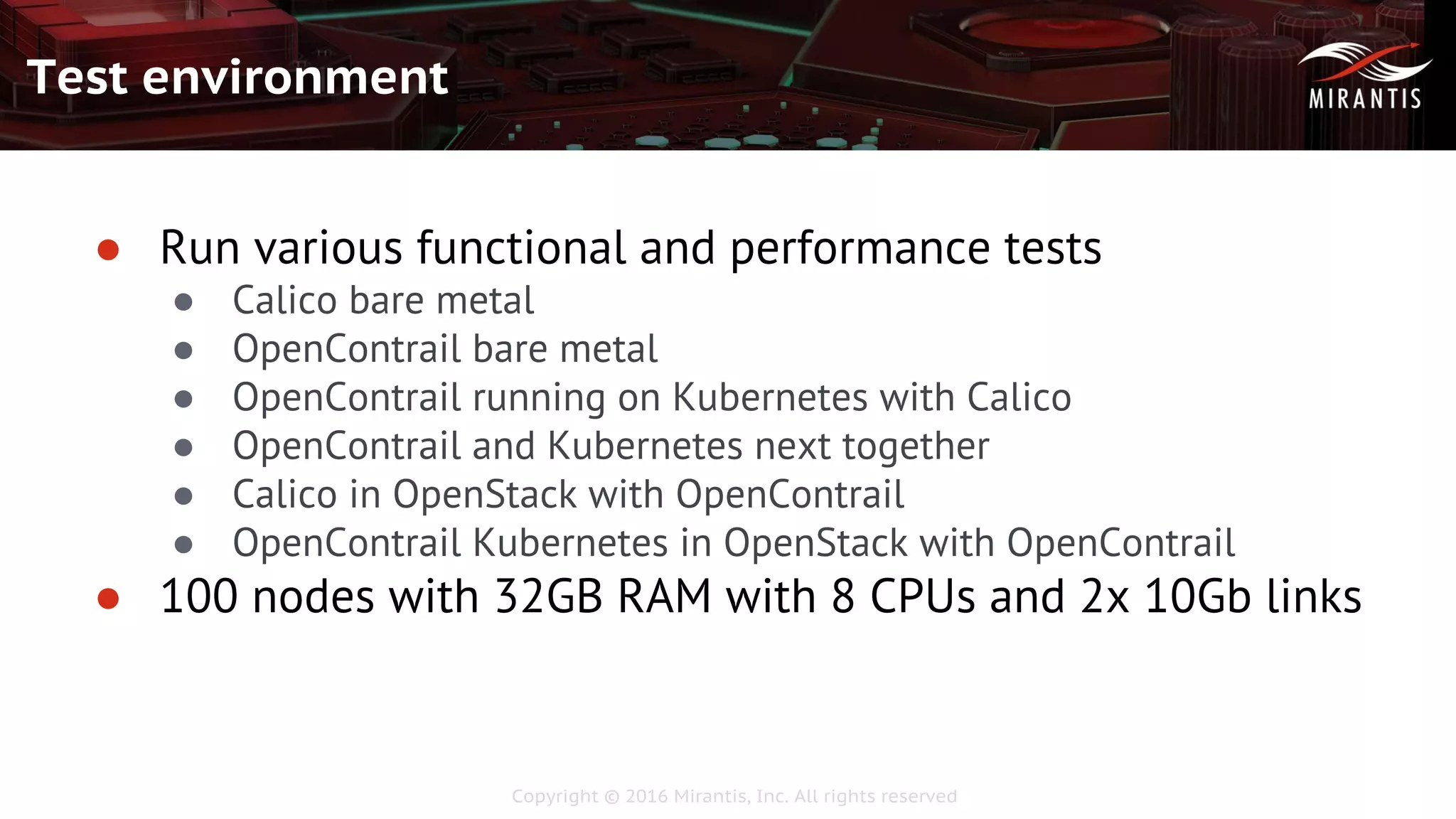

- 7. Copyright © 2016Mirantis, Inc. All rights reserved Test environment ● Run various functional and performance tests ● Calico bare metal ● OpenContrail bare metal ● OpenContrail running on Kubernetes with Calico ● OpenContrail and Kubernetes next together ● Calico in OpenStack with OpenContrail ● OpenContrail Kubernetes in OpenStack with OpenContrail ● 100 nodes with 32GB RAM with 8 CPUs and 2x 10Gb links
- 8. Copyright © 2016Mirantis, Inc. All rights reserved Calico

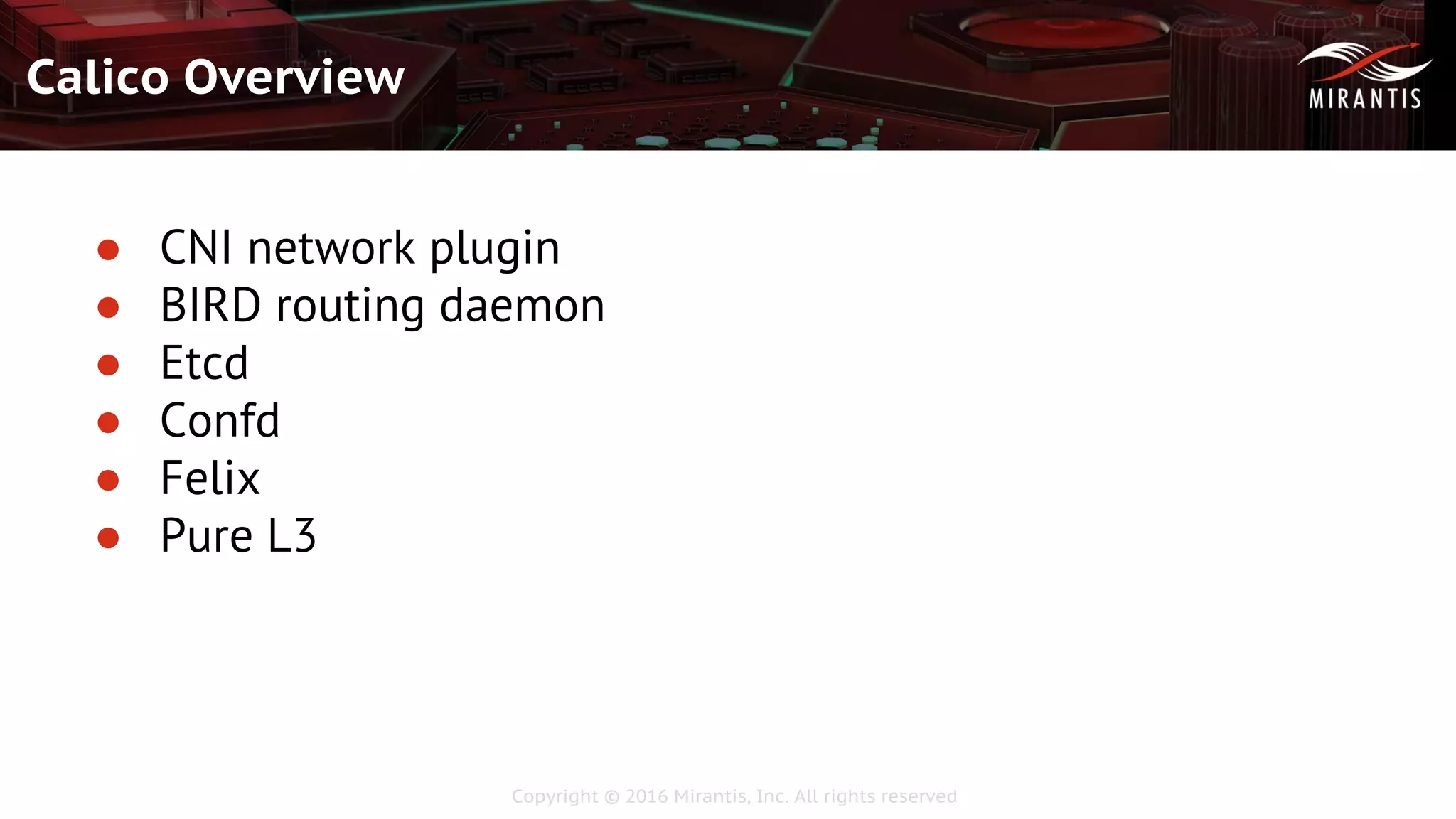

- 9. Copyright © 2016Mirantis, Inc. All rights reserved Calico Overview ● CNI network plugin ● BIRD routing daemon ● Etcd ● Confd ● Felix ● Pure L3

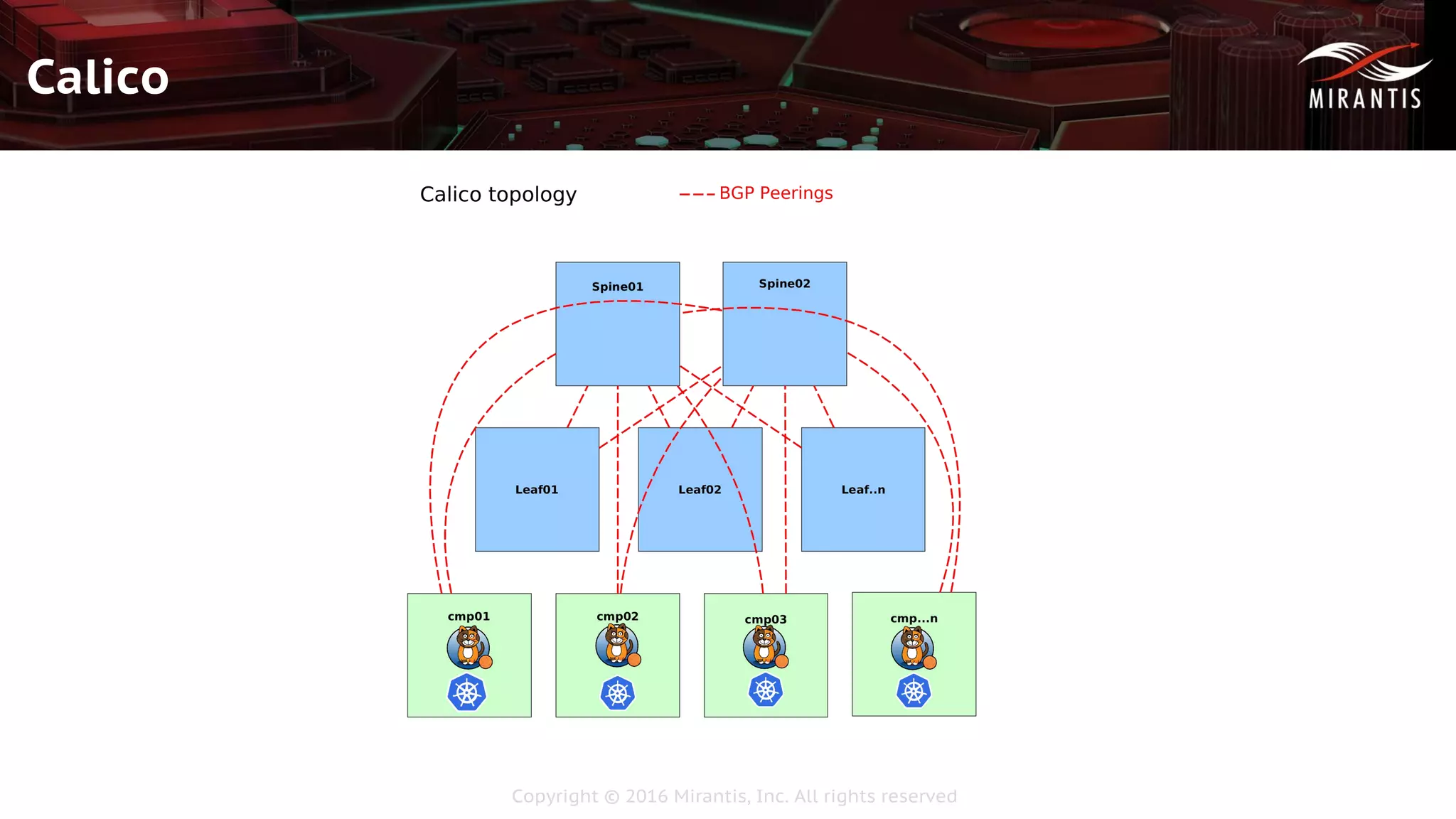

- 10. Copyright © 2016Mirantis, Inc. All rights reserved Calico

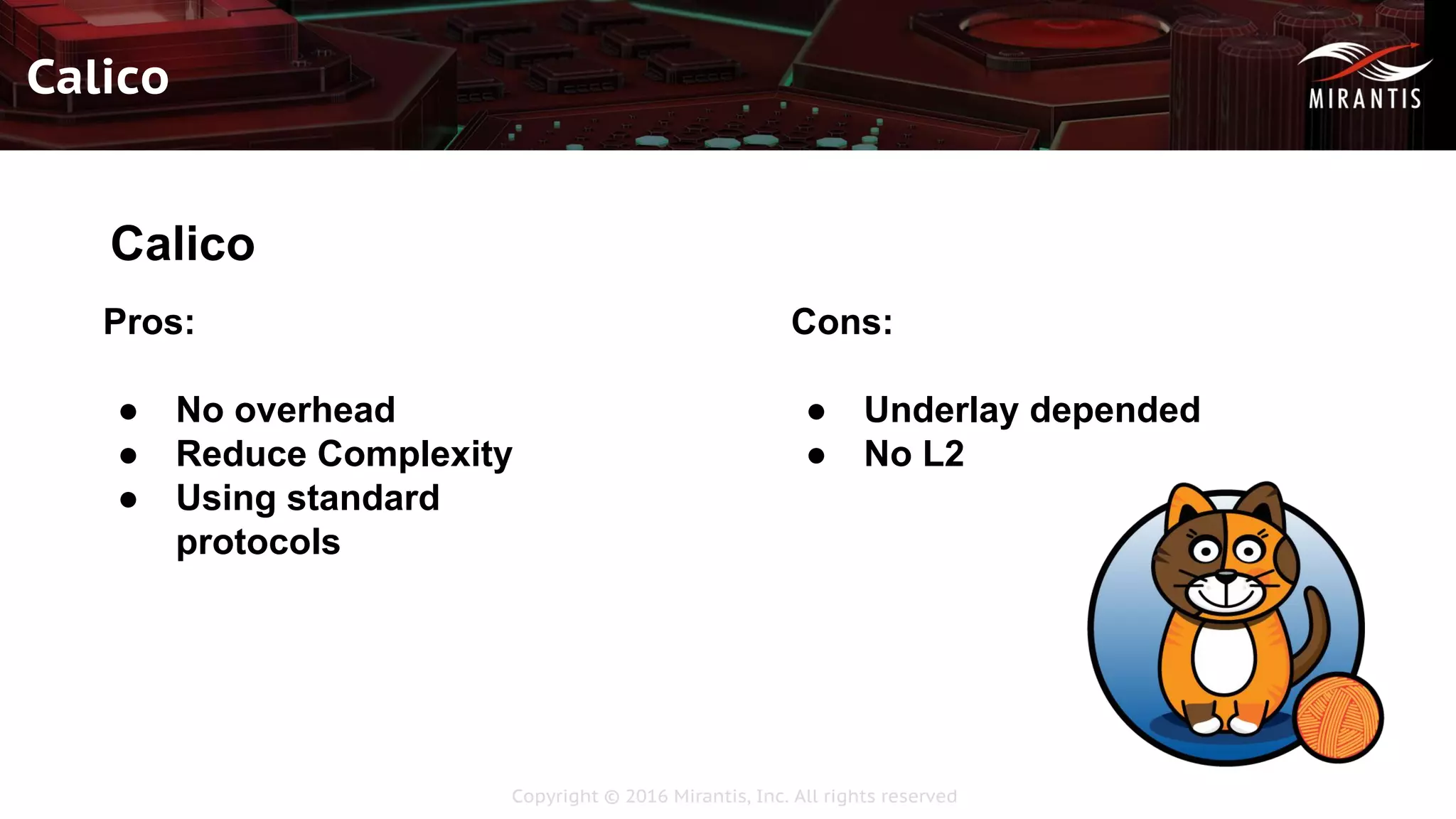

- 11. Copyright © 2016Mirantis, Inc. All rights reserved Calico Calico Pros: ● No overhead ● Reduce Complexity ● Using standard protocols Cons: ● Underlay depended ● No L2

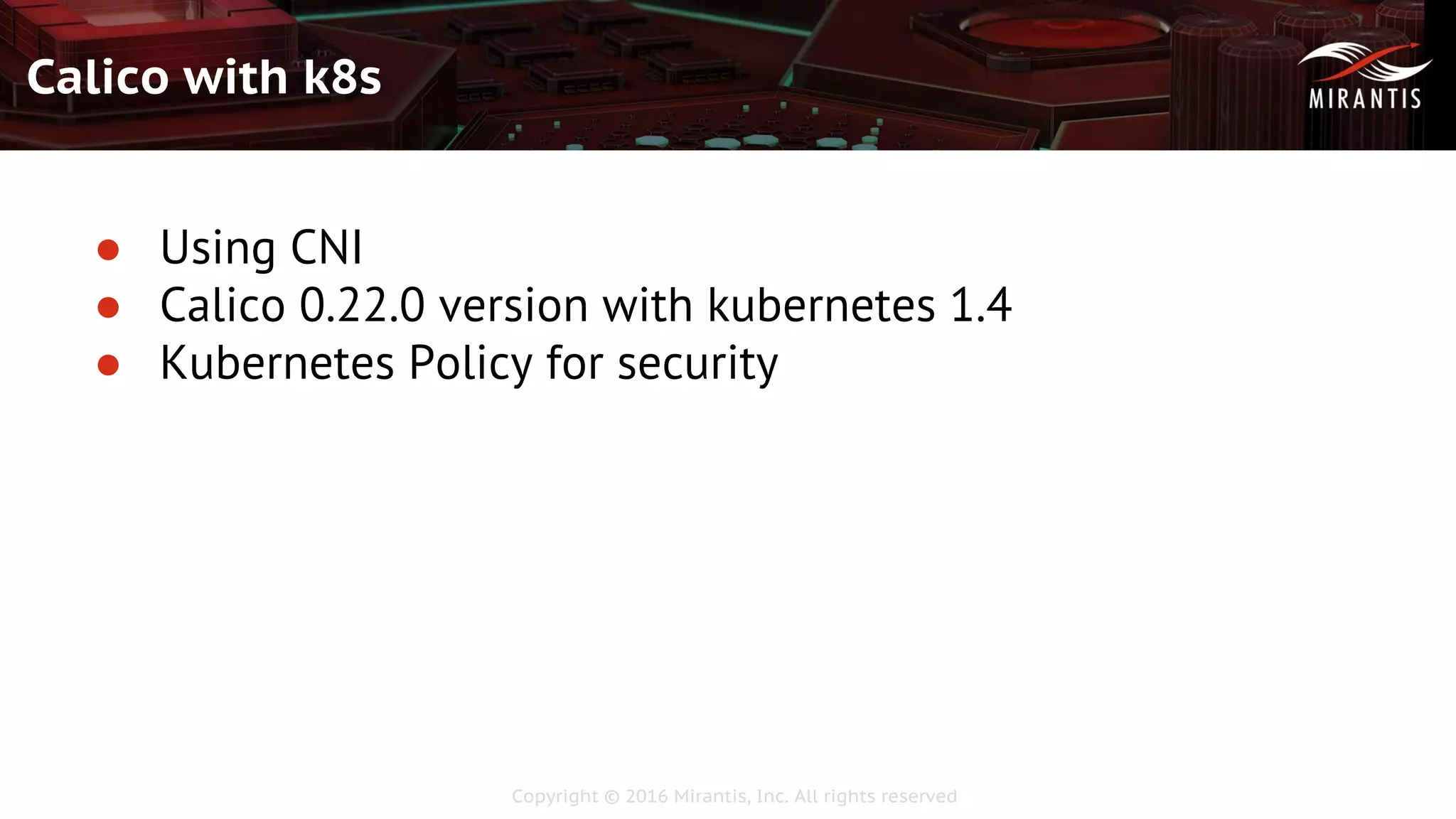

- 12. Copyright © 2016Mirantis, Inc. All rights reserved Calico with k8s ● Using CNI ● Calico 0.22.0 version with kubernetes 1.4 ● Kubernetes Policy for security

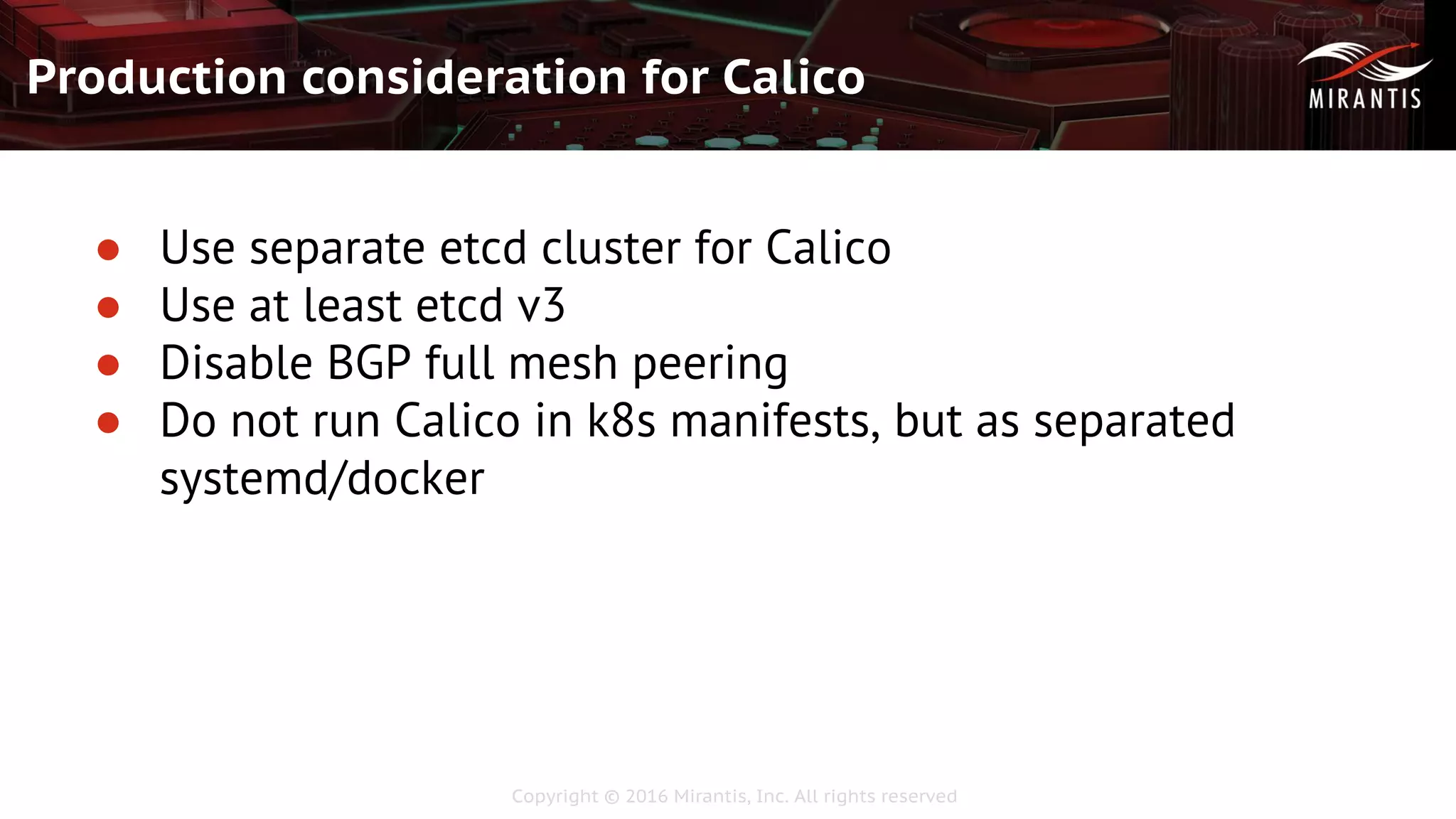

- 13. Copyright © 2016Mirantis, Inc. All rights reserved Production consideration for Calico ● Use separate etcd cluster for Calico ● Use at least etcd v3 ● Disable BGP full mesh peering ● Do not run Calico in k8s manifests, but as separated systemd/docker
- 14. Copyright © 2016Mirantis, Inc. All rights reserved OpenContrail

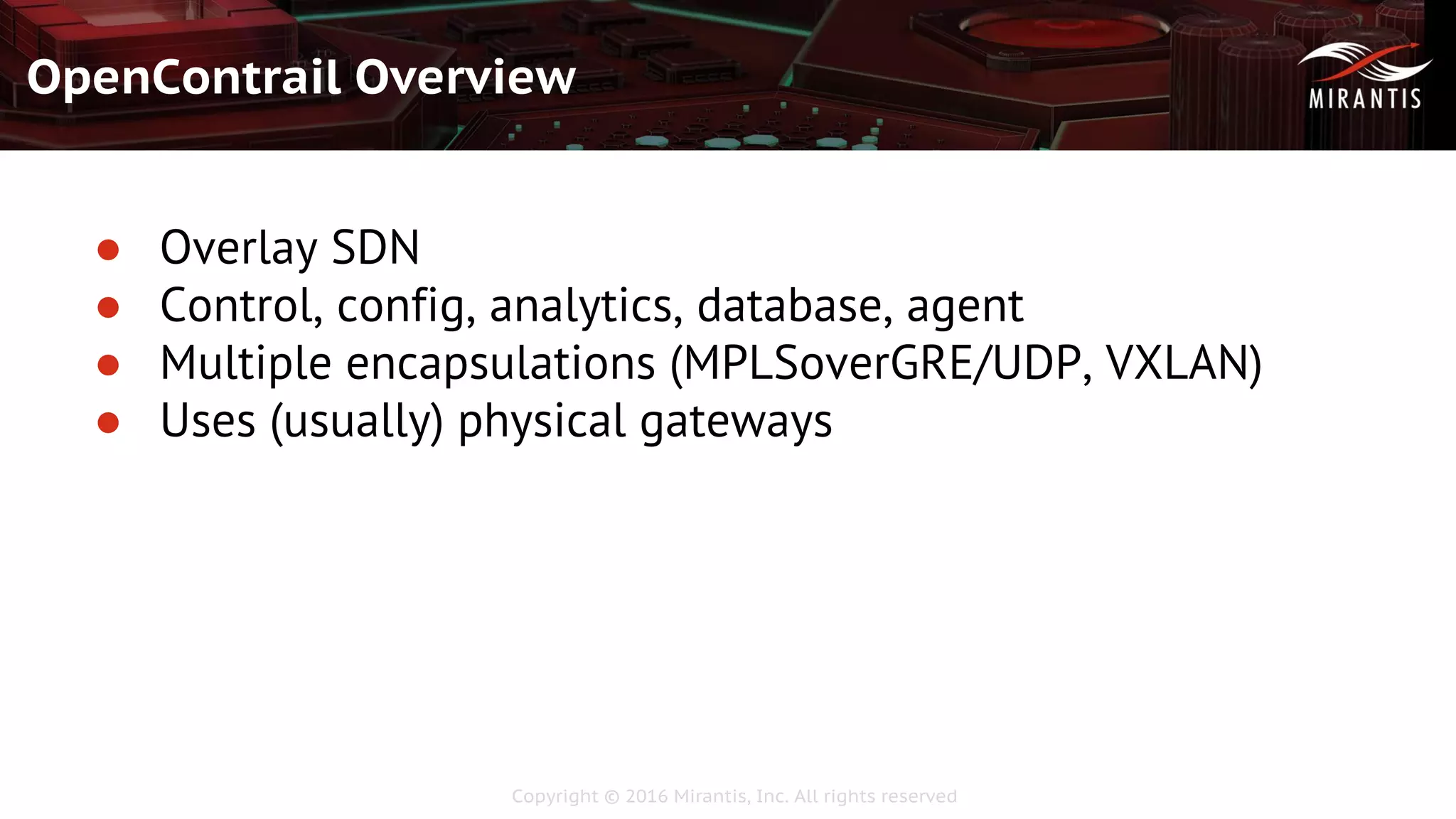

- 15. Copyright © 2016Mirantis, Inc. All rights reserved OpenContrail Overview ● Overlay SDN ● Control, config, analytics, database, agent ● Multiple encapsulations (MPLSoverGRE/UDP, VXLAN) ● Uses (usually) physical gateways

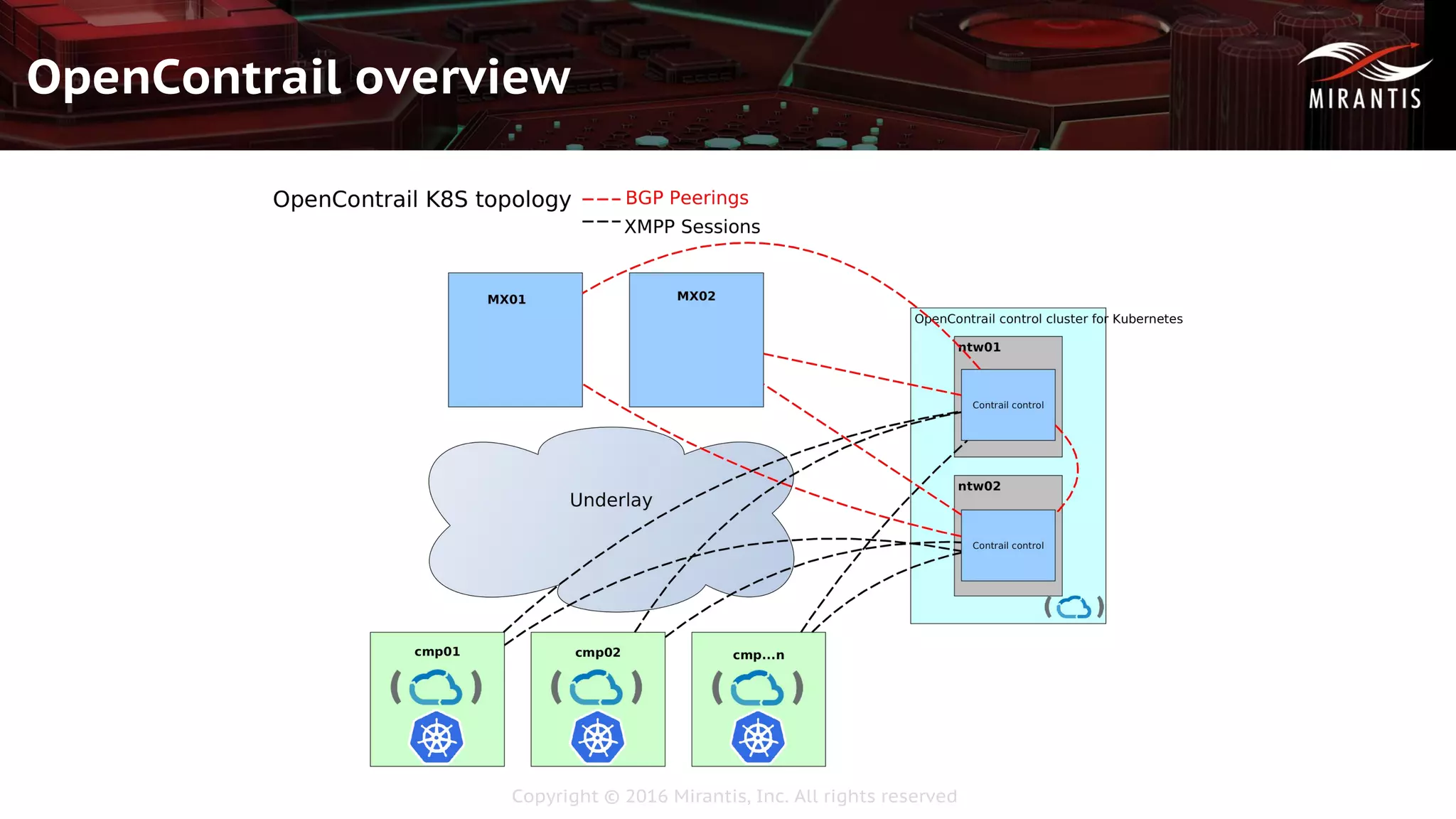

- 16. Copyright © 2016Mirantis, Inc. All rights reserved OpenContrail overview

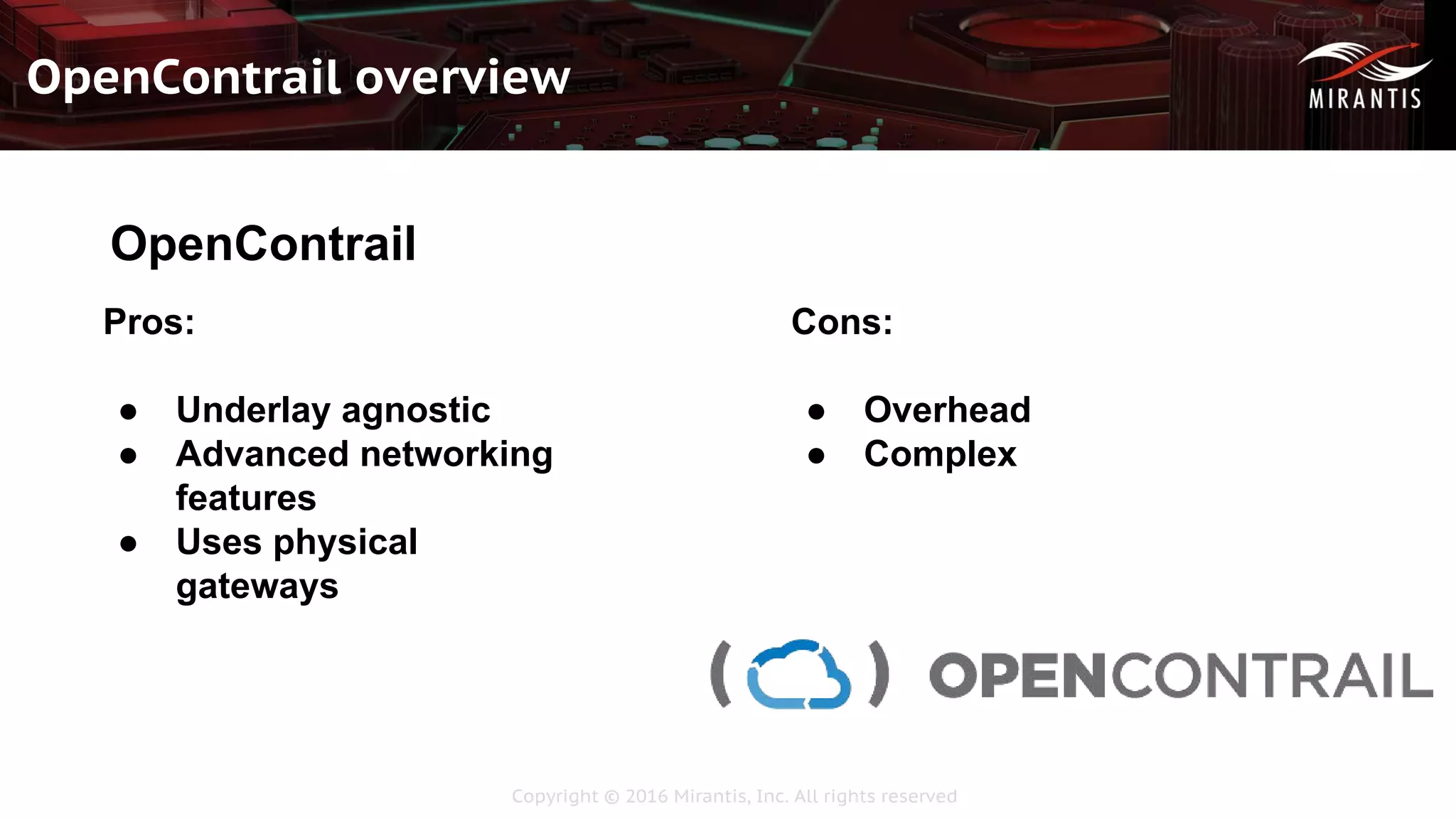

- 17. Copyright © 2016Mirantis, Inc. All rights reserved OpenContrail overview OpenContrail Pros: ● Underlay agnostic ● Advanced networking features ● Uses physical gateways Cons: ● Overhead ● Complex

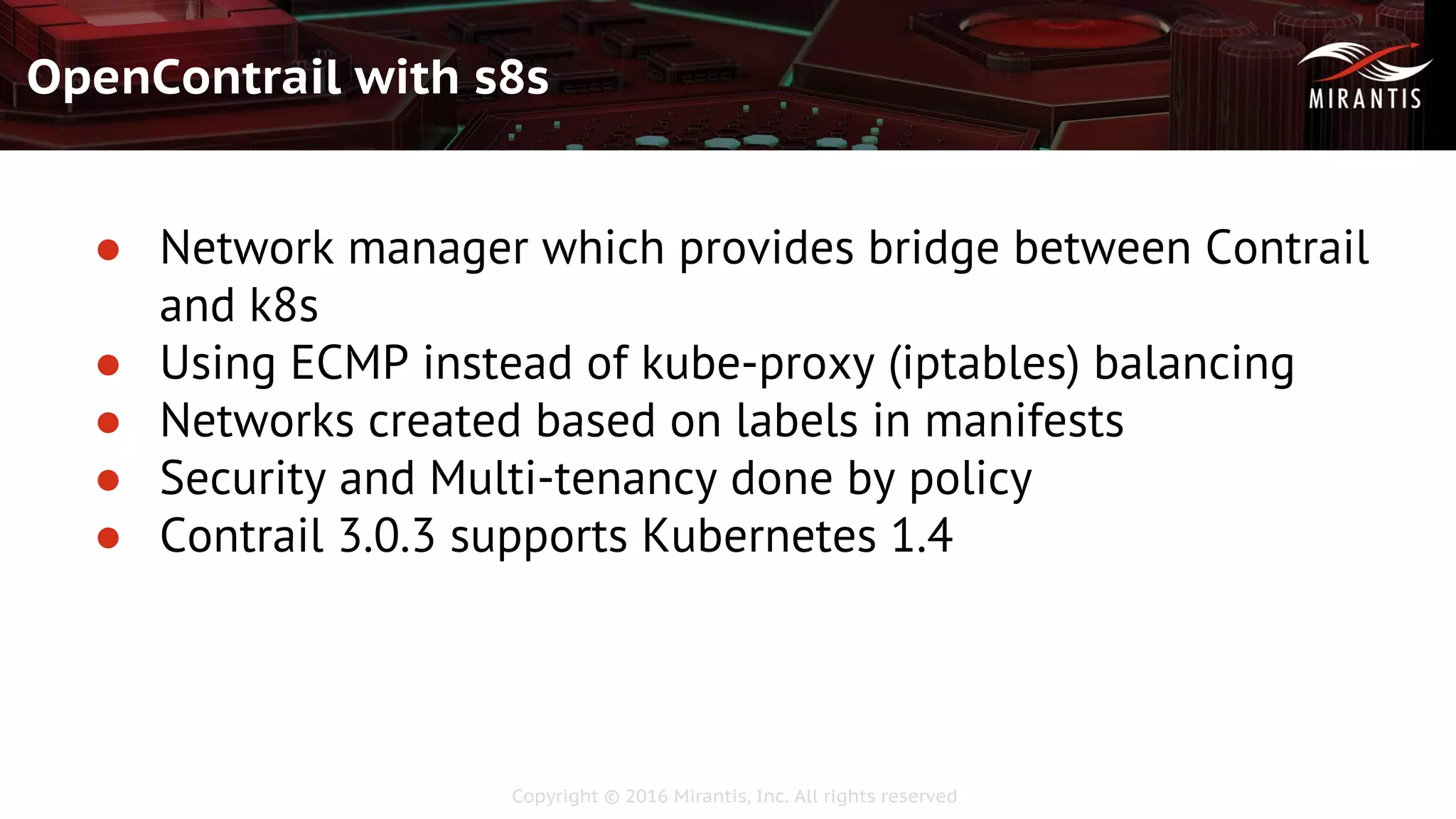

- 18. Copyright © 2016Mirantis, Inc. All rights reserved OpenContrail with s8s ● Network manager which provides bridge between Contrail and k8s ● Using ECMP instead of kube-proxy (iptables) balancing ● Networks created based on labels in manifests ● Security and Multi-tenancy done by policy ● Contrail 3.0.3 supports Kubernetes 1.4

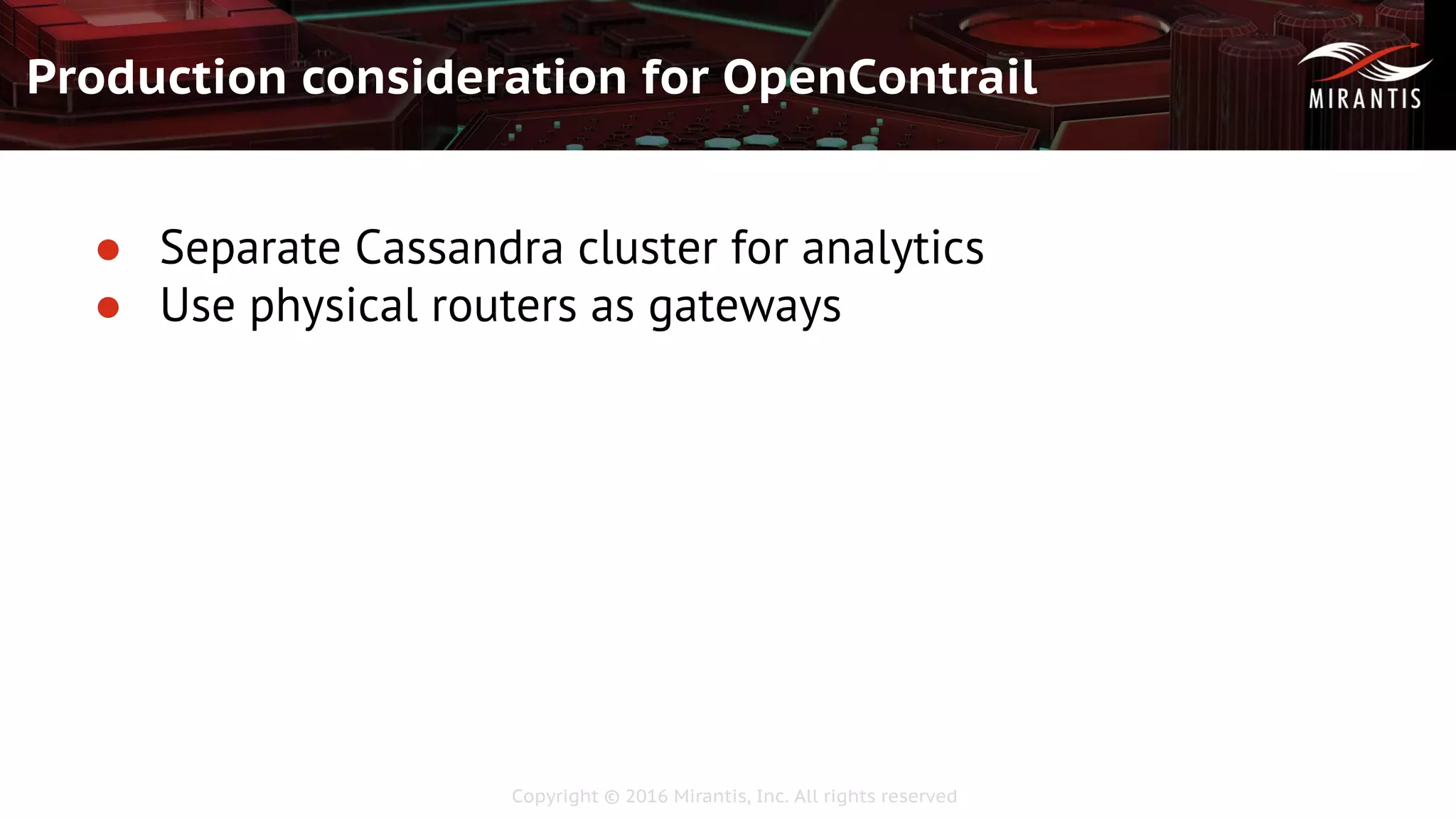

- 19. Copyright © 2016Mirantis, Inc. All rights reserved Production consideration for OpenContrail ● Separate Cassandra cluster for analytics ● Use physical routers as gateways
- 20. Copyright © 2016Mirantis, Inc. All rights reserved Comparison

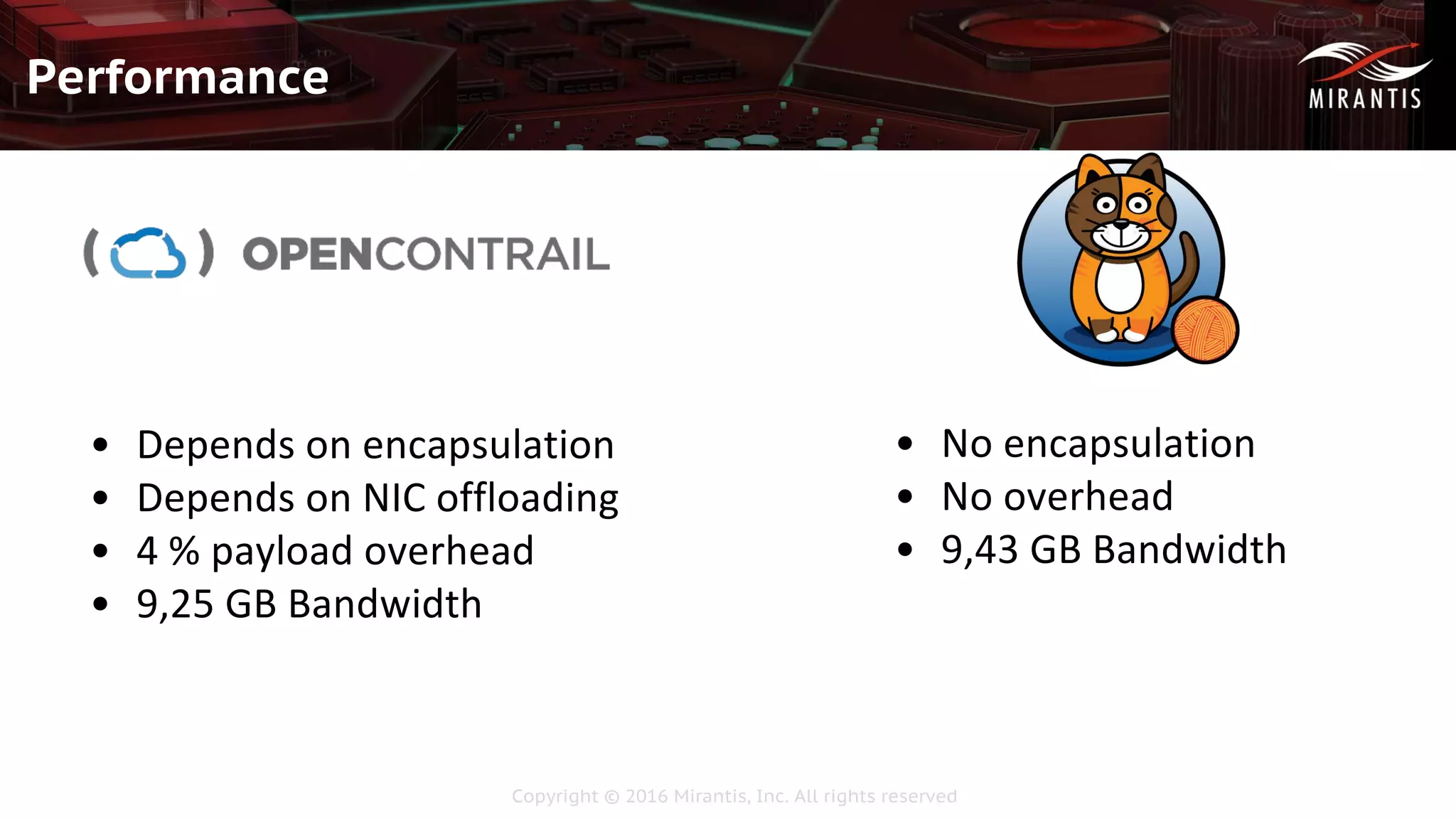

- 21. Copyright © 2016Mirantis, Inc. All rights reserved Performance

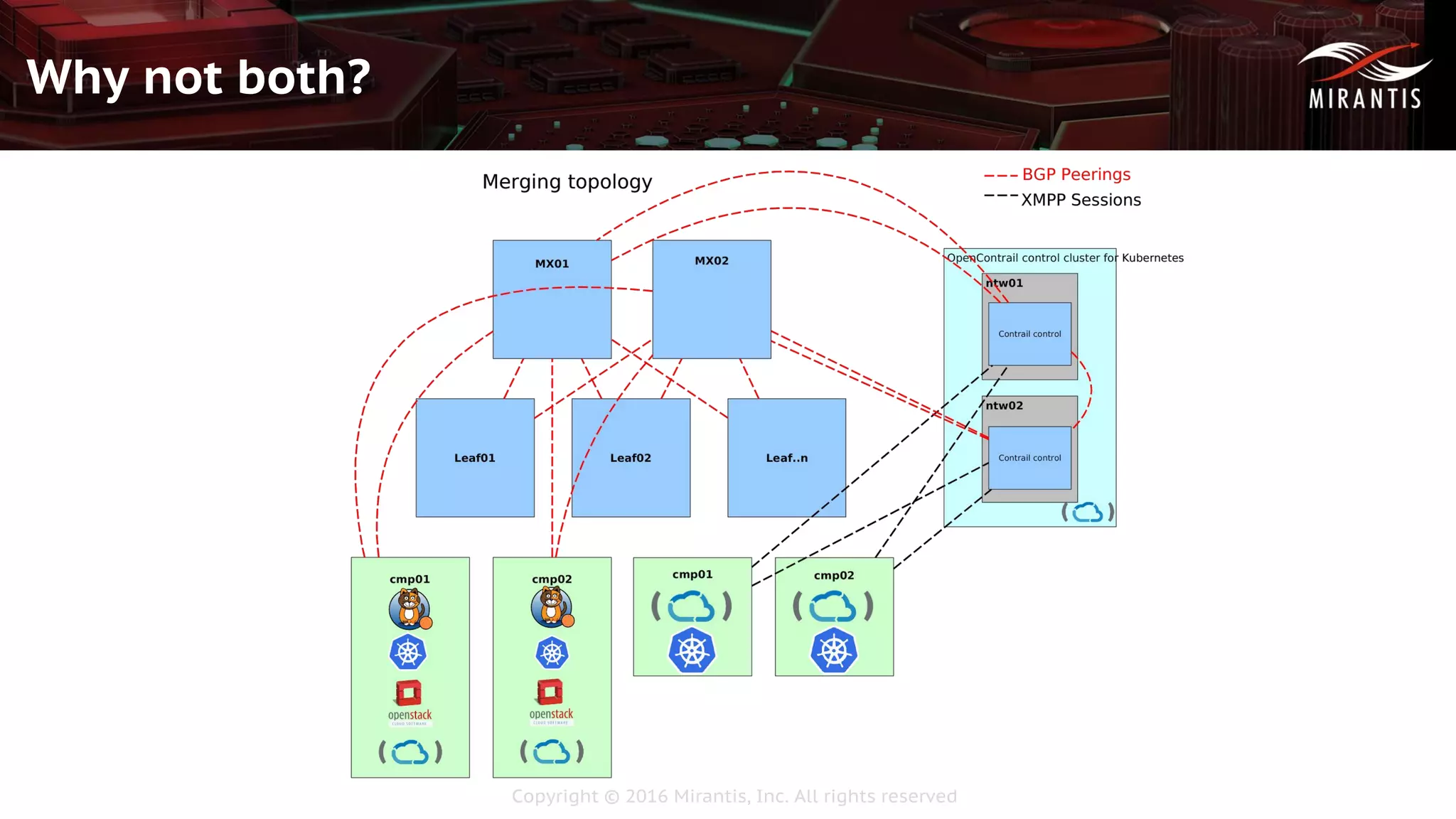

- 22. Copyright © 2016Mirantis, Inc. All rights reserved Why not both?

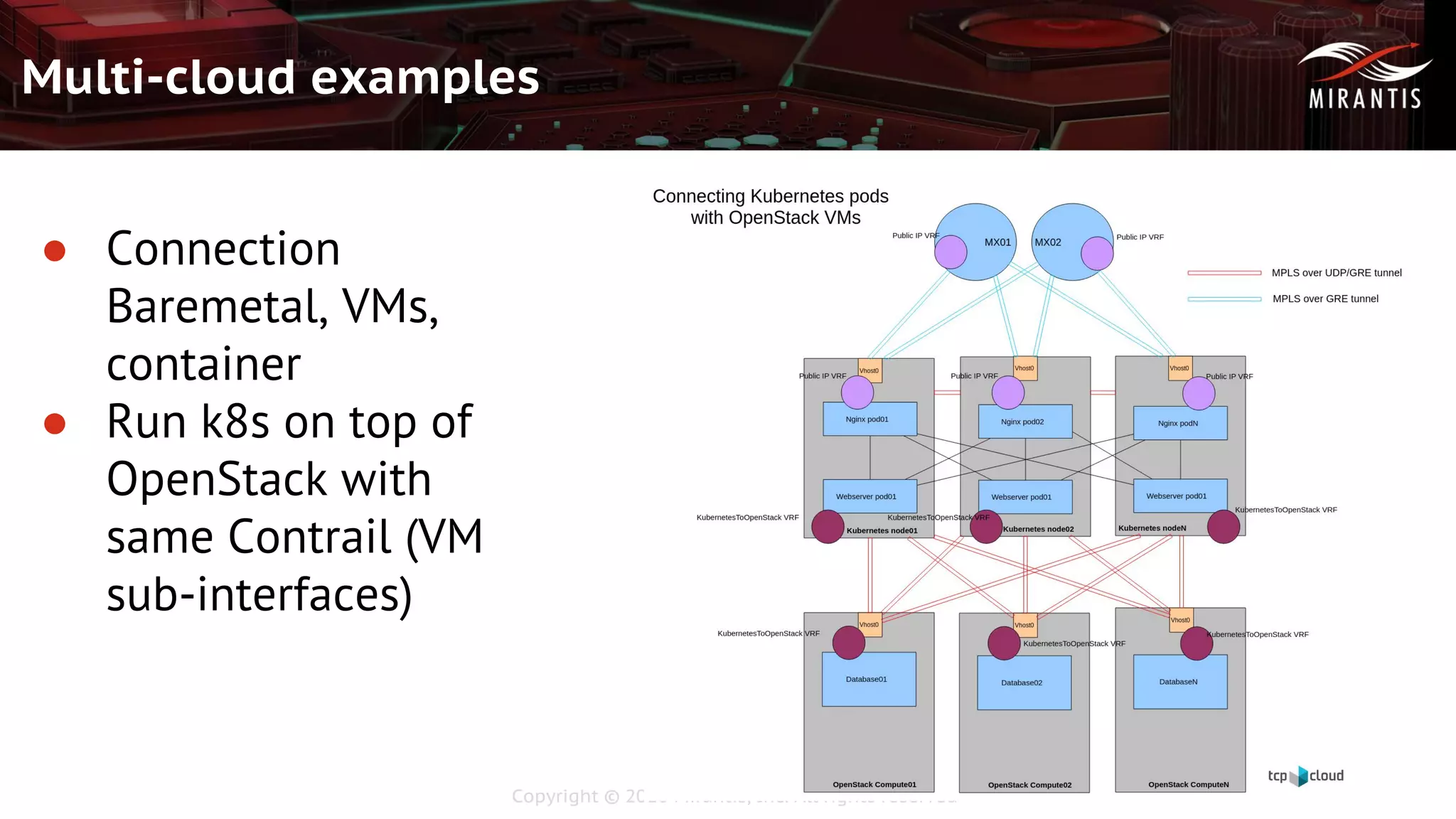

- 23. Copyright © 2016Mirantis, Inc. All rights reserved Multi-cloud examples ● Connection Baremetal, VMs, container ● Run k8s on top of OpenStack with same Contrail (VM sub-interfaces)

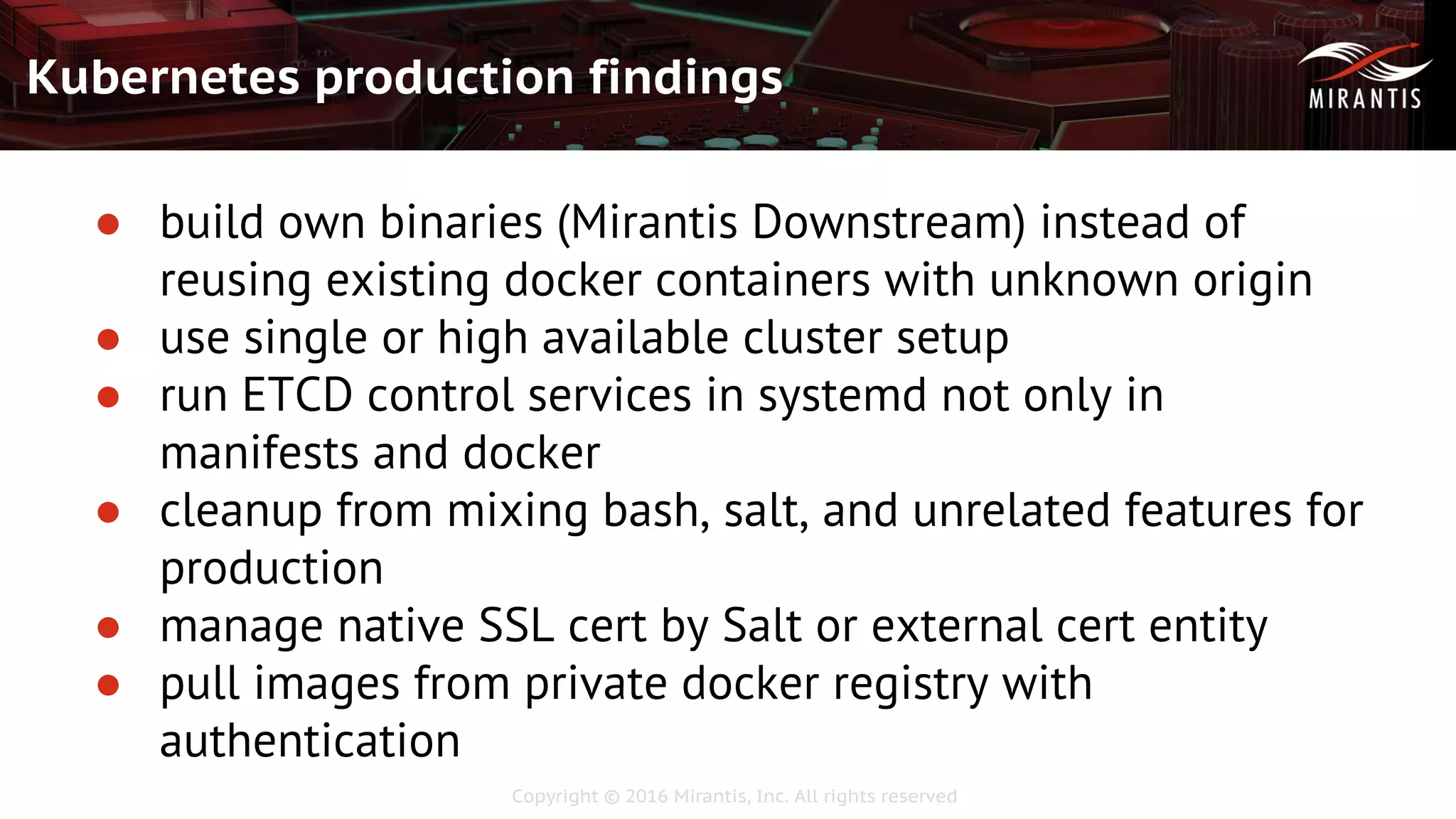

- 24. Copyright © 2016Mirantis, Inc. All rights reserved Kubernetes production findings ● build own binaries (Mirantis Downstream) instead of reusing existing docker containers with unknown origin ● use single or high available cluster setup ● run ETCD control services in systemd not only in manifests and docker ● cleanup from mixing bash, salt, and unrelated features for production ● manage native SSL cert by Salt or external cert entity ● pull images from private docker registry with authentication

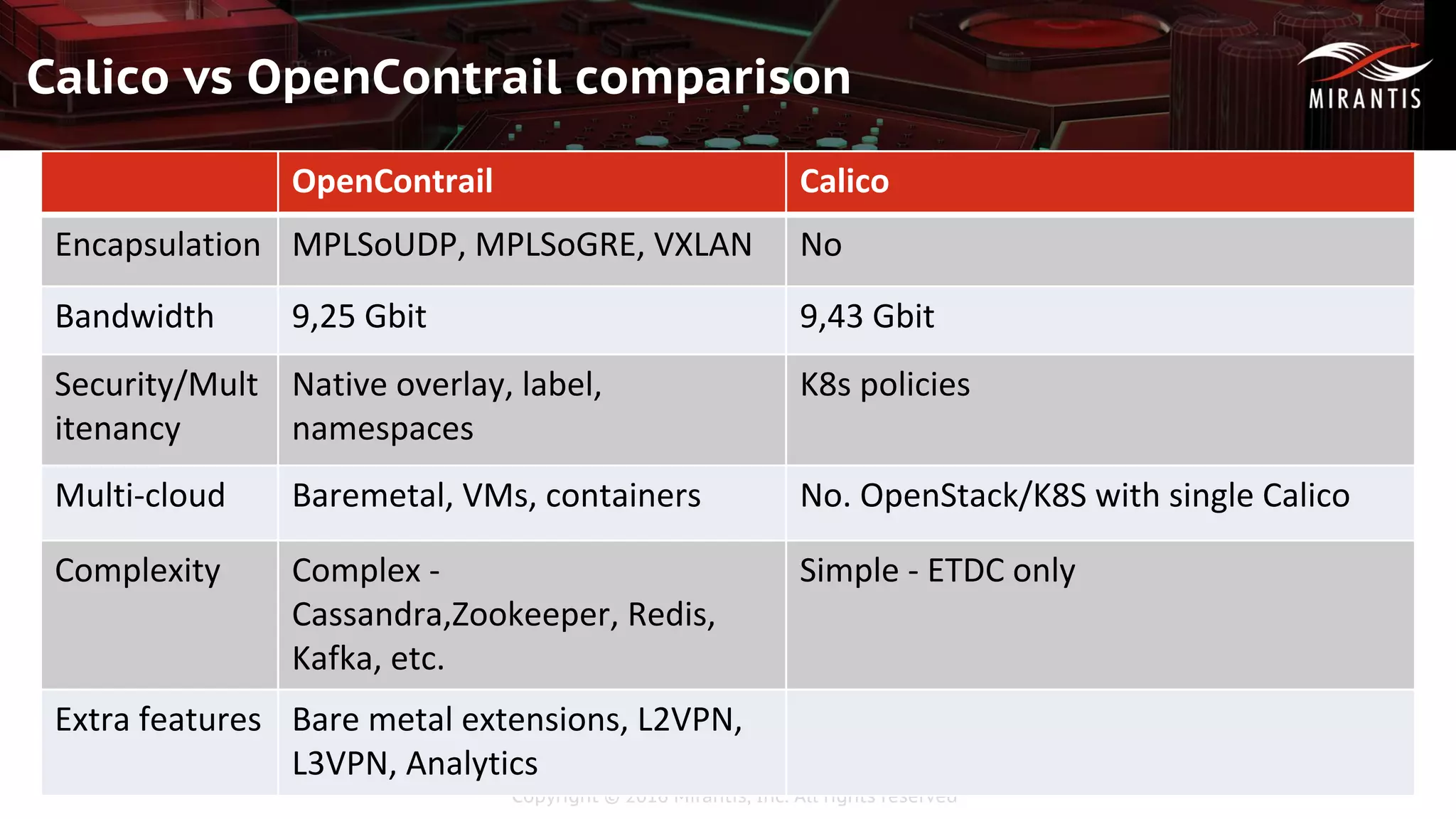

- 25. Copyright © 2016Mirantis, Inc. All rights reserved Calico vs OpenContrail comparison

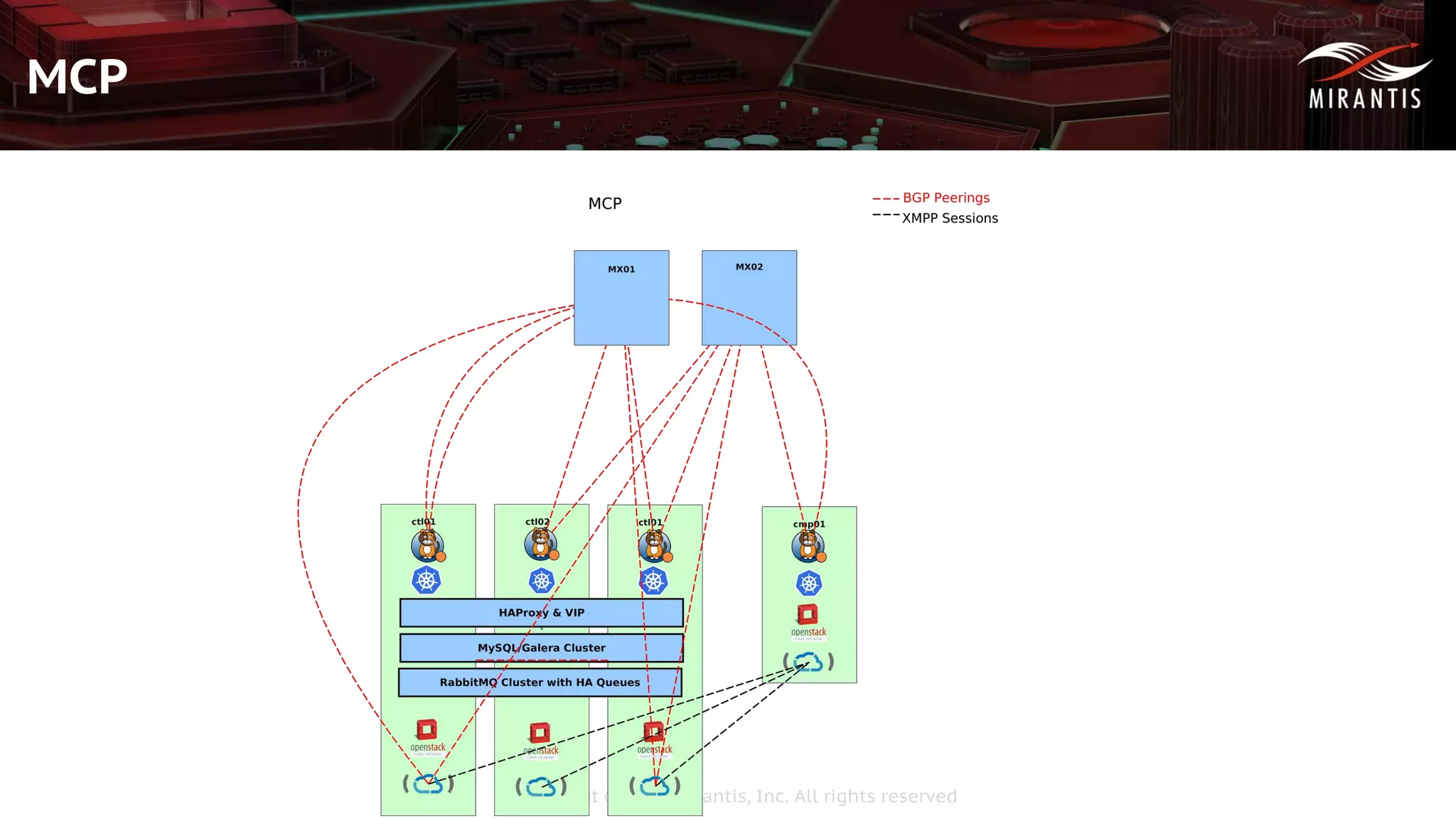

- 26. Copyright © 2016Mirantis, Inc. All rights reserved MCP
