This document introduces container networking and some of the challenges it poses. It discusses how Docker's default bridge networking works but has limitations around port constraints and lack of "real IP networking". Overlay networks are presented as an alternative but have drawbacks around state, isolation between networks, and requiring developers to be networking experts. Project Calico is then introduced as an open source project that aims to enable scalable, simple and secure IP networking for containers through features like equal cost multi-path routing and rich micro-service policy frameworks.

1. @projectcalico
Sponsored by
CONTAINER NETWORKING
AN INTRODUCTION
Ed Harrison
@eepyaich
2nd February
2016

2. @projectcalico
Host
Host

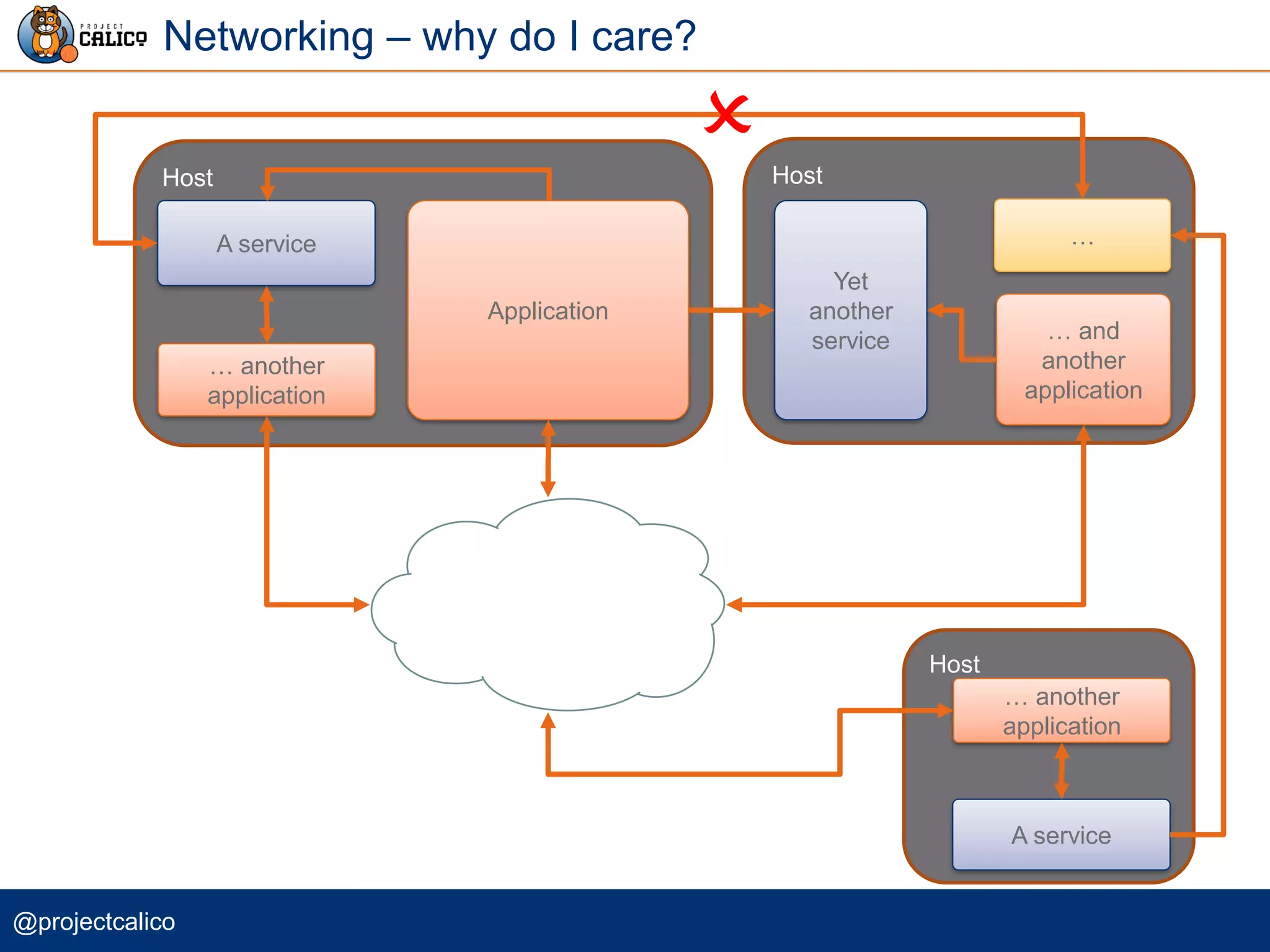

Networking – why do I care?
Application
A service
Host
Yet
another
service … and
another
application
…
… another
application

A service
… another
application

3. @projectcalico

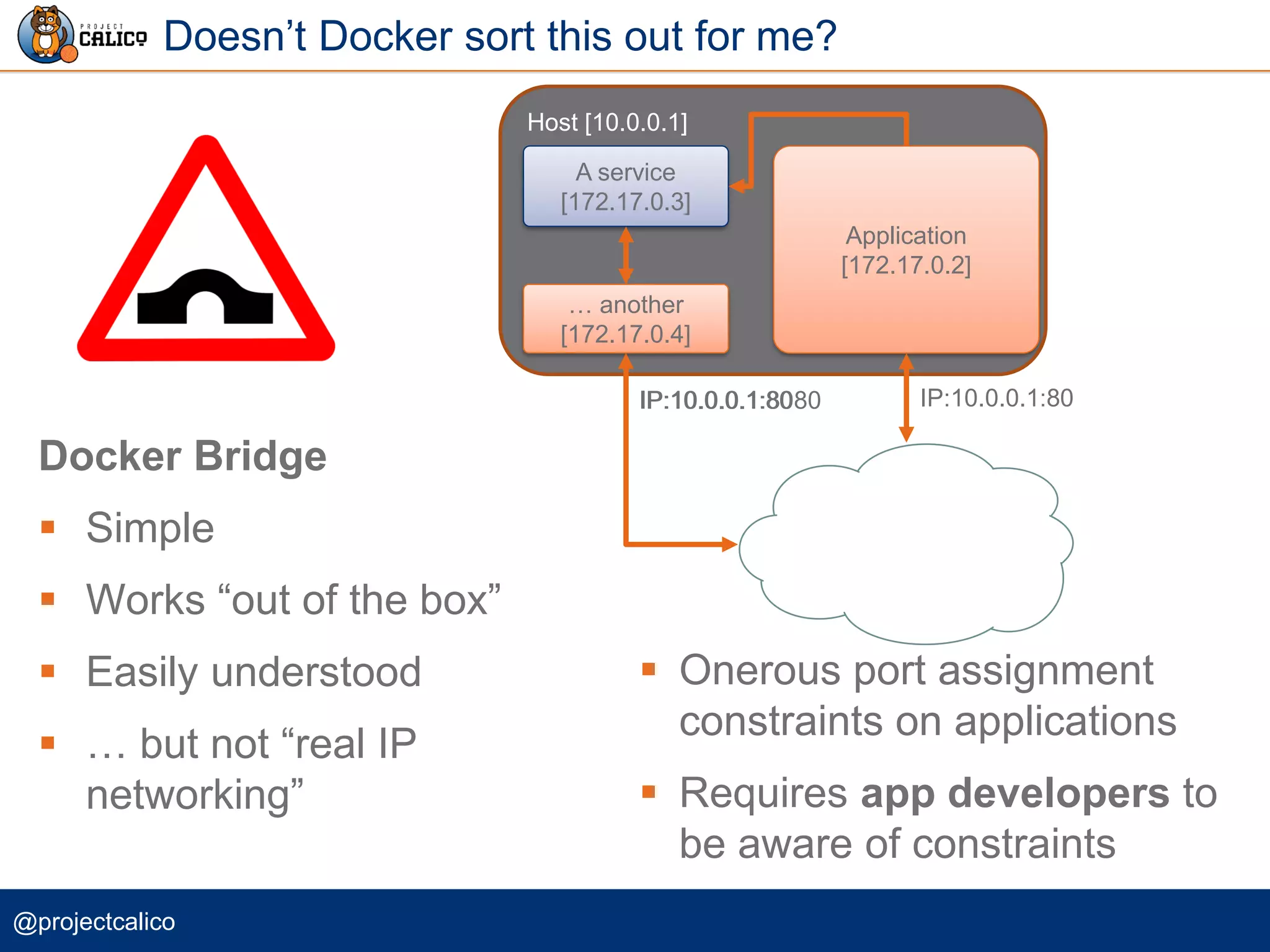

Doesn’t Docker sort this out for me?
Host [10.0.0.1]
Application
[172.17.0.2]
A service
[172.17.0.3]
… another
[172.17.0.4]
Docker Bridge
 Simple
 Works “out of the box”
 Easily understood
 … but not “real IP
networking”
 Onerous port assignment
constraints on applications
 Requires app developers to
be aware of constraints
IP:10.0.0.1:80IP:10.0.0.1:80IP:10.0.0.1:8080

4. @projectcalico

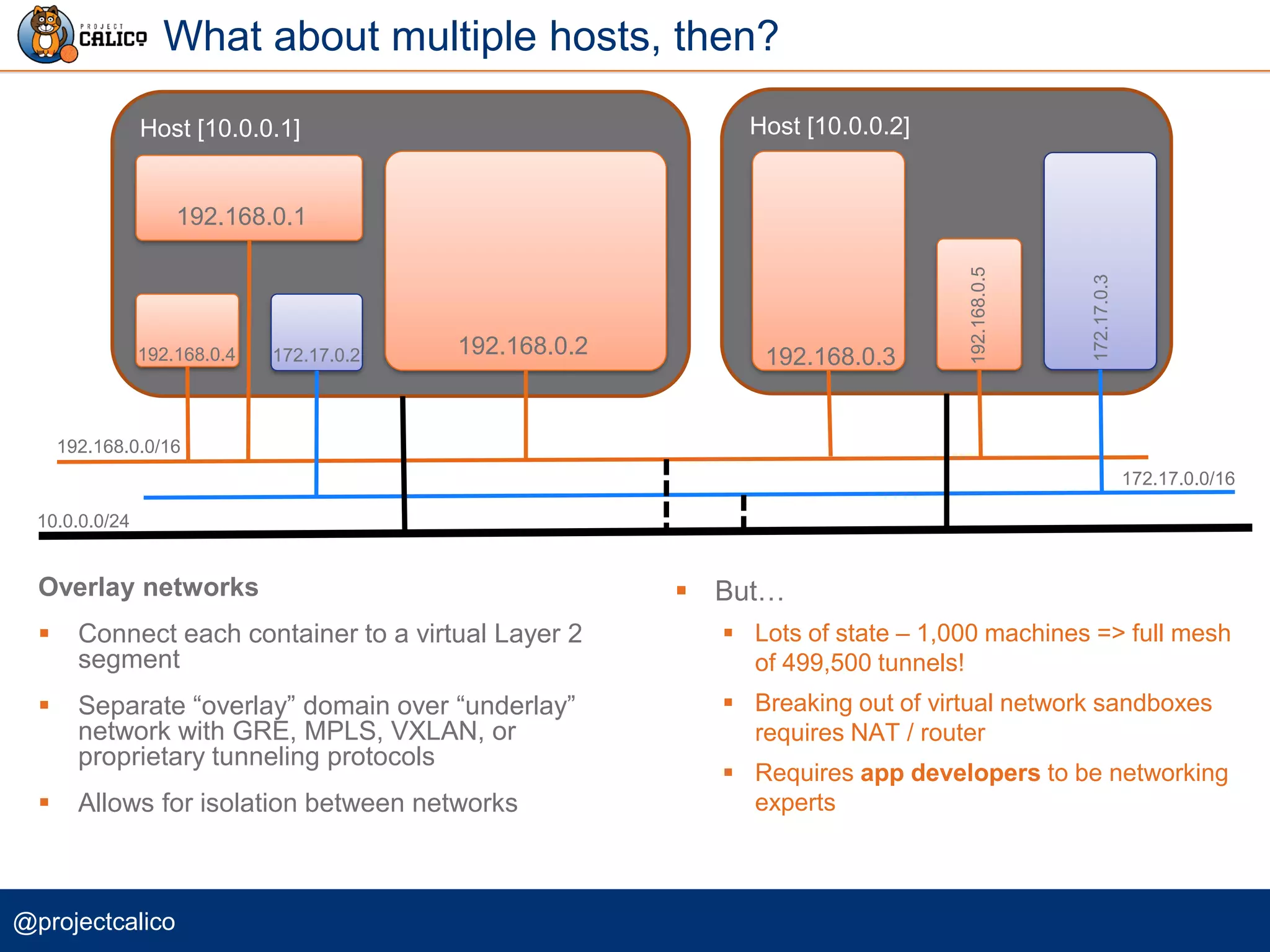

What about multiple hosts, then?
Overlay networks
 Connect each container to a virtual Layer 2
segment
 Separate “overlay” domain over “underlay”
network with GRE, MPLS, VXLAN, or
proprietary tunneling protocols
 Allows for isolation between networks
 But…
 Lots of state – 1,000 machines => full mesh
of 499,500 tunnels!
 Breaking out of virtual network sandboxes
requires NAT / router
 Requires app developers to be networking
experts
Host [10.0.0.1] Host [10.0.0.2]
192.168.0.1
192.168.0.2
192.168.0.5
192.168.0.3192.168.0.4 172.17.0.2
172.17.0.3
192.168.0.0/16
172.17.0.0/16
10.0.0.0/24

5. @projectcalico

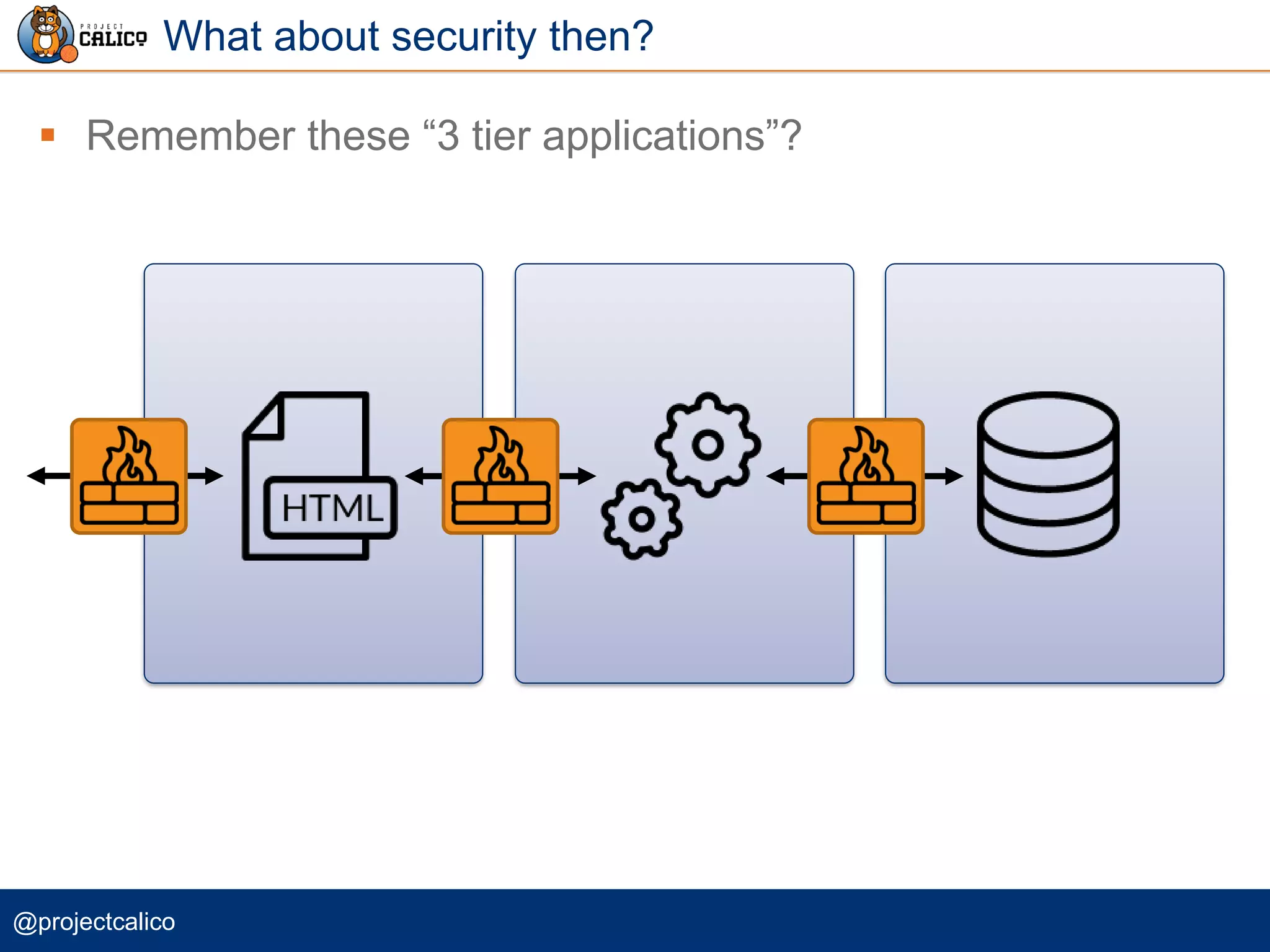

 Remember these “3 tier applications”?
What about security then?

6. @projectcalico
Getting Medieval

7. @projectcalico

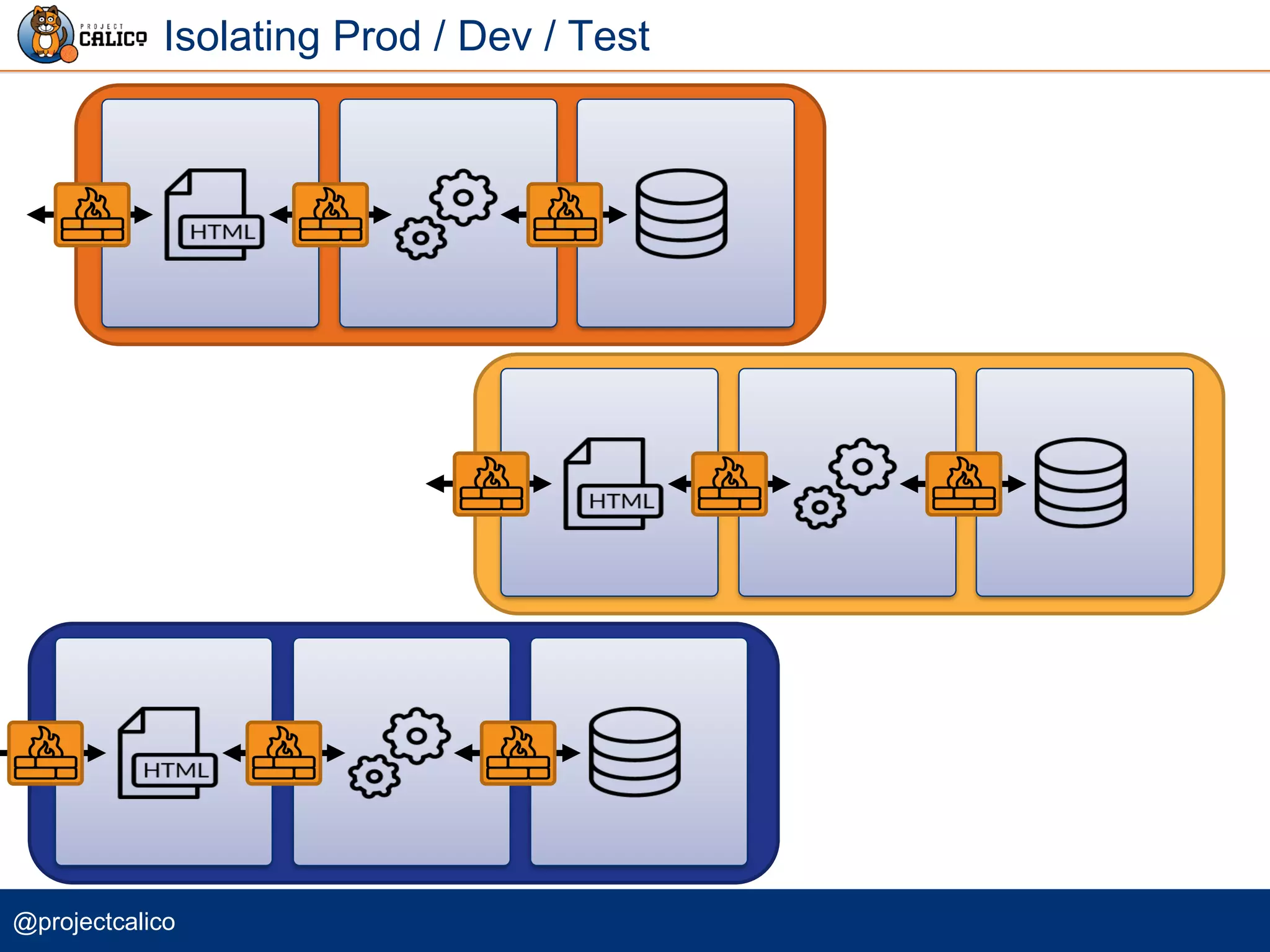

Isolating Prod / Dev / Test

8. @projectcalico

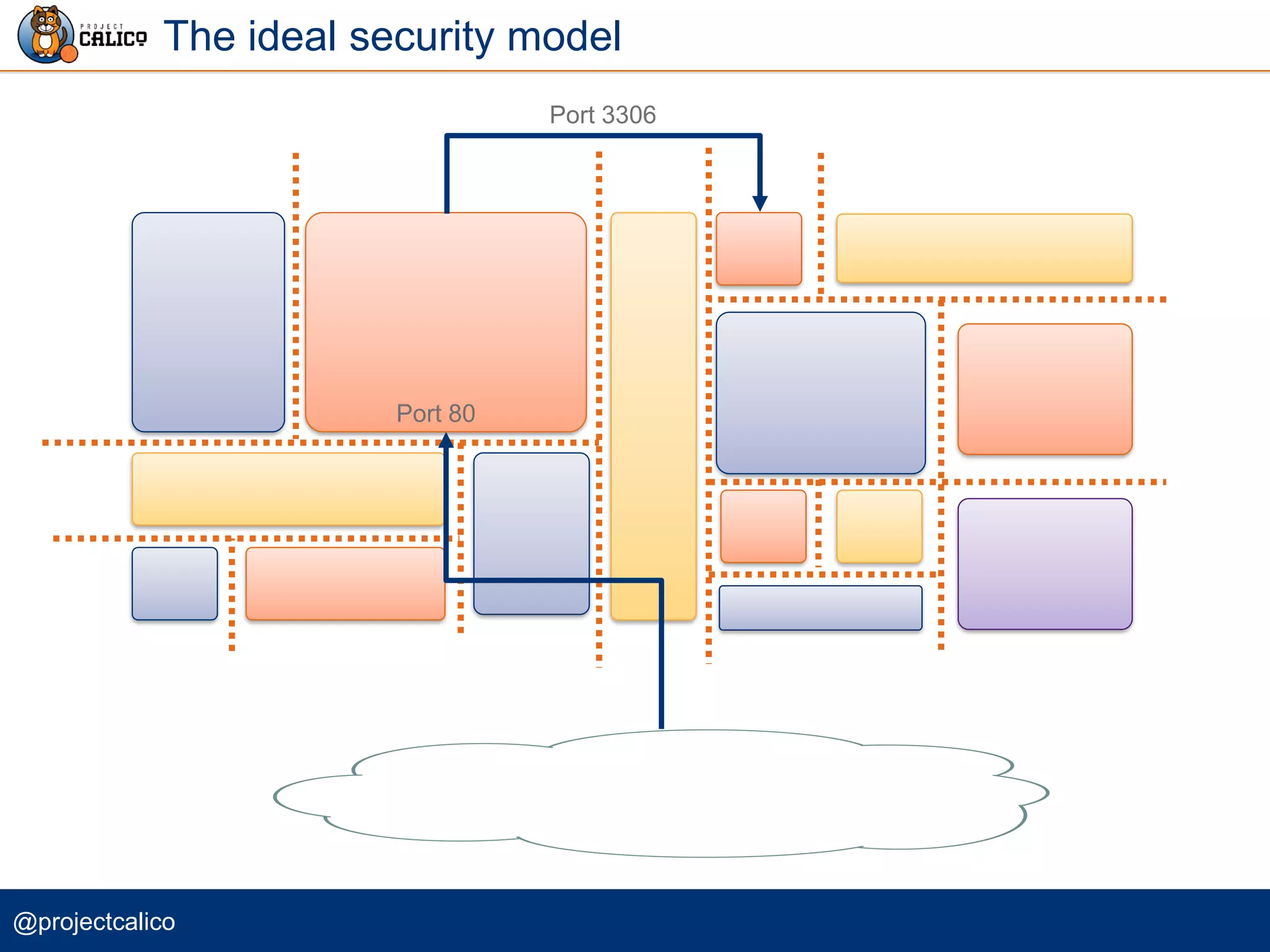

The ideal security model
Port 3306
Port 80

9. @projectcalico Metaswitch Networks | Proprietary and
confidential | © 2014 | 9

10. @projectcalico

11. @projectcalico

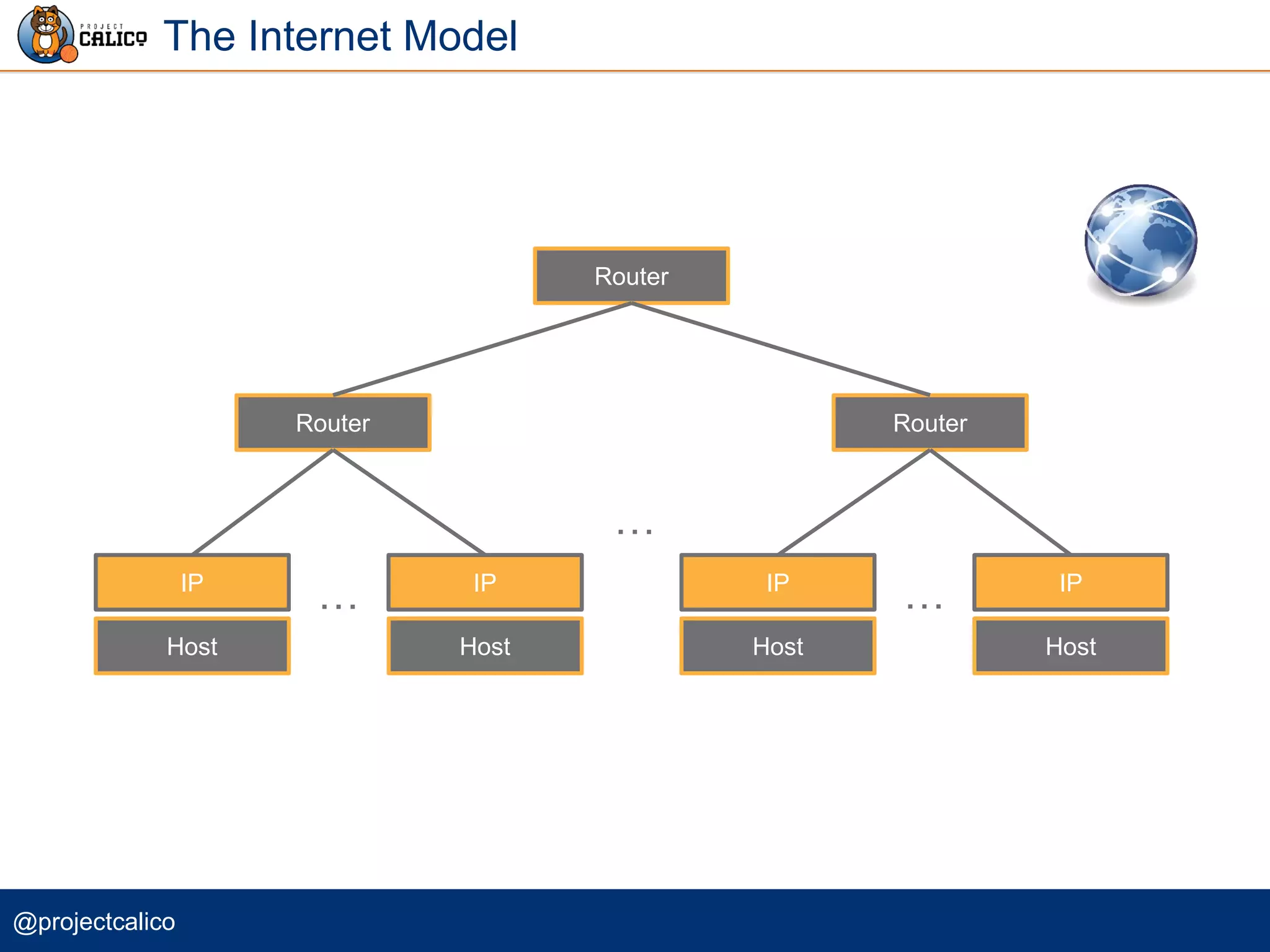

The Internet Model
Router
Host Host Host Host
RouterRouter
IP IP IP IP
… …
…

12. @projectcalico

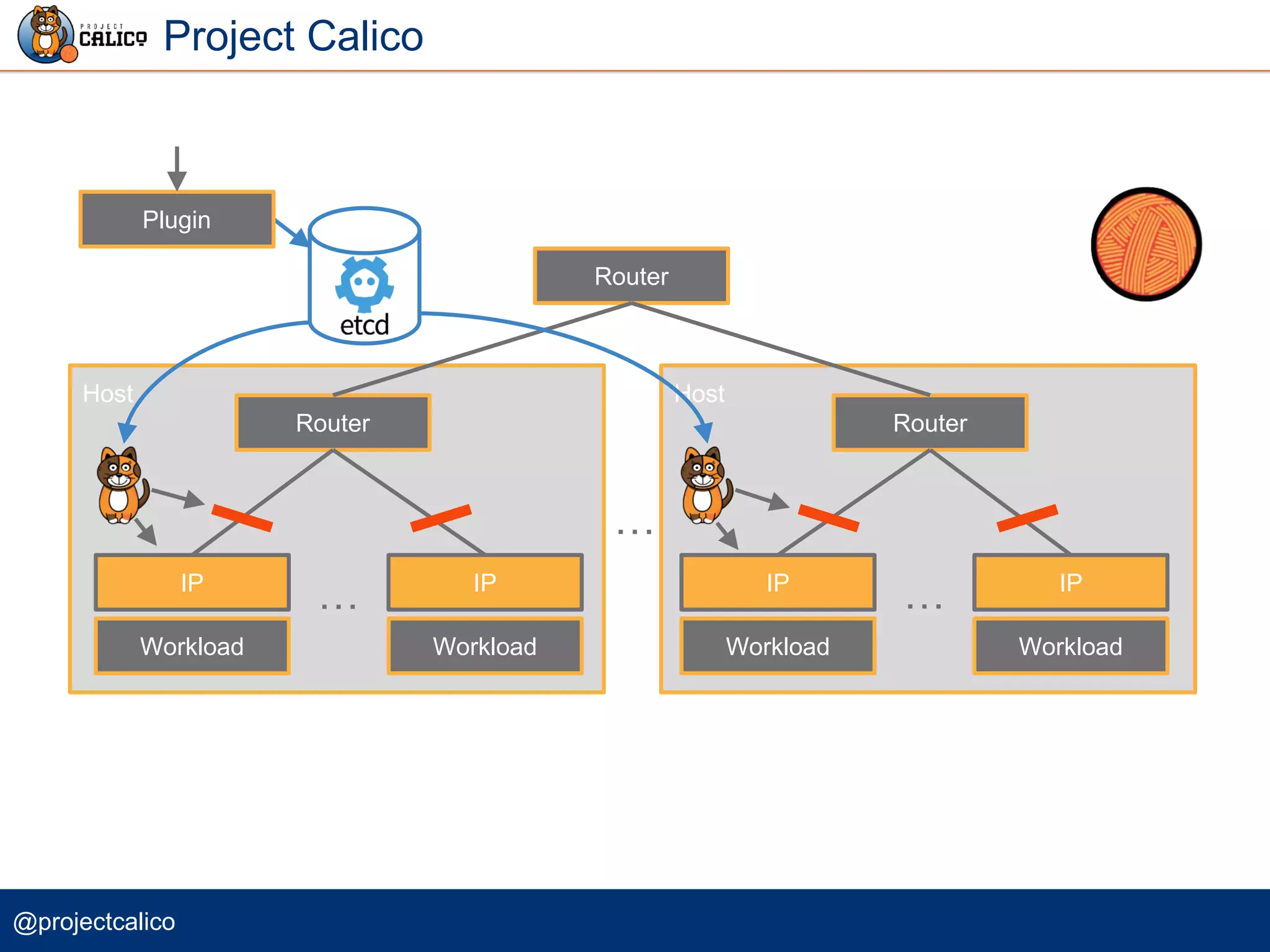

Project Calico
HostHost
Router
Workload Workload Workload Workload
RouterRouter
IP IP IP IP
Plugin
… …
…

13. @projectcalico
An open source project to enable
scalable, simple and secure IP
networking in a data center / cloud
environment
What is Calico?
SimpleScalable Secure
Thousands of servers,
100k’s of workloads
Don’t demand users to
be networking experts
Rich micro-service
policy framework

14. @projectcalico

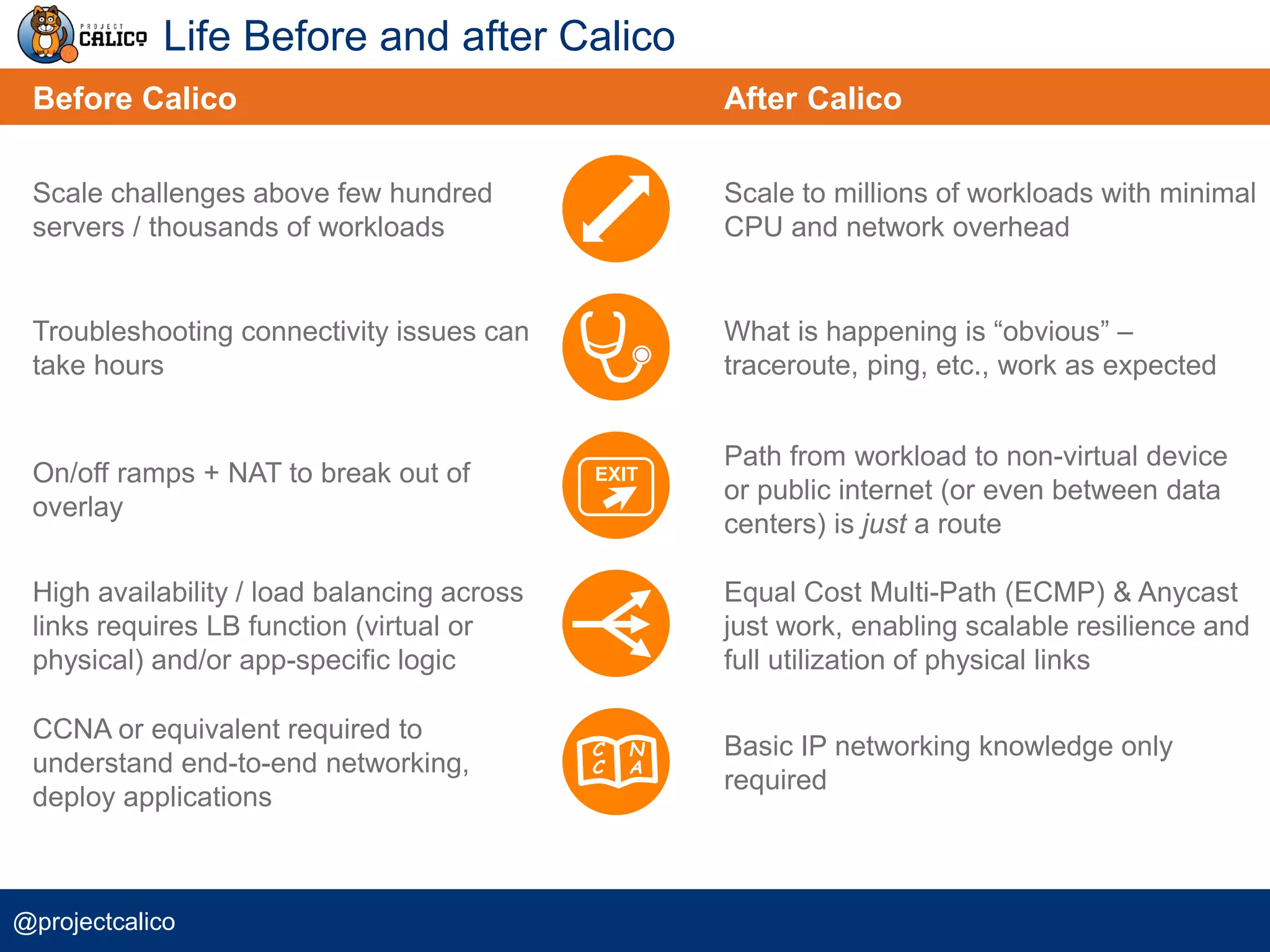

Life Before and after Calico
Before Calico After Calico
Scale challenges above few hundred
servers / thousands of workloads
Scale to millions of workloads with minimal
CPU and network overhead
Troubleshooting connectivity issues can
take hours
What is happening is “obvious” –
traceroute, ping, etc., work as expected
EXITOn/off ramps + NAT to break out of
overlay
Path from workload to non-virtual device
or public internet (or even between data
centers) is just a route
High availability / load balancing across
links requires LB function (virtual or
physical) and/or app-specific logic
Equal Cost Multi-Path (ECMP) & Anycast
just work, enabling scalable resilience and
full utilization of physical links
C
C
N
A
CCNA or equivalent required to
understand end-to-end networking,
deploy applications
Basic IP networking knowledge only
required

15. @projectcalico

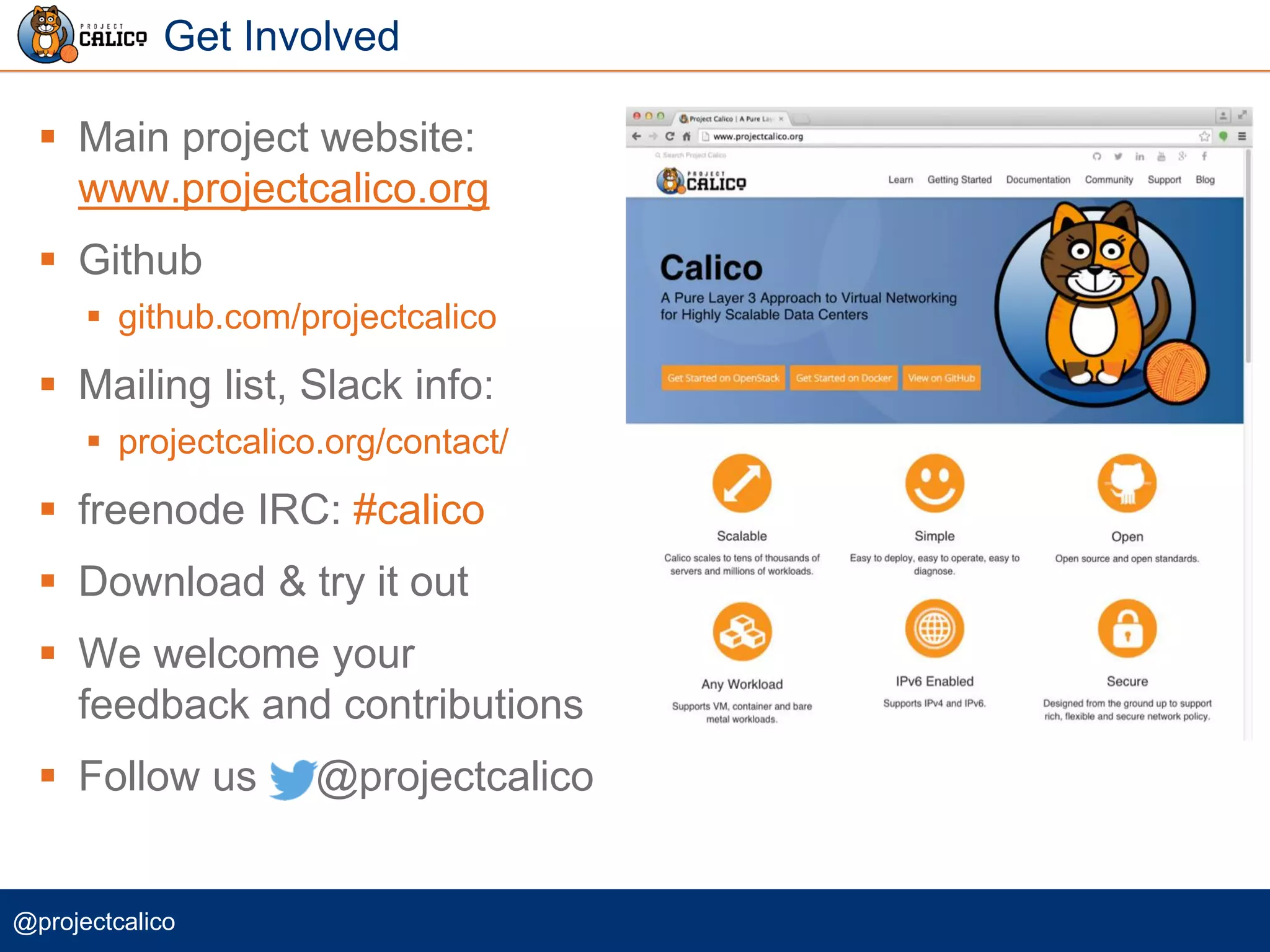

Get Involved
 Main project website:
www.projectcalico.org
 Github
 github.com/projectcalico
 Mailing list, Slack info:
 projectcalico.org/contact/
 freenode IRC: #calico
 Download & try it out
 We welcome your
feedback and contributions
 Follow us @projectcalico
