Why Kubernetes for Serverless?
by Krishna Kumar, Huawei India
CNCF Ambassador

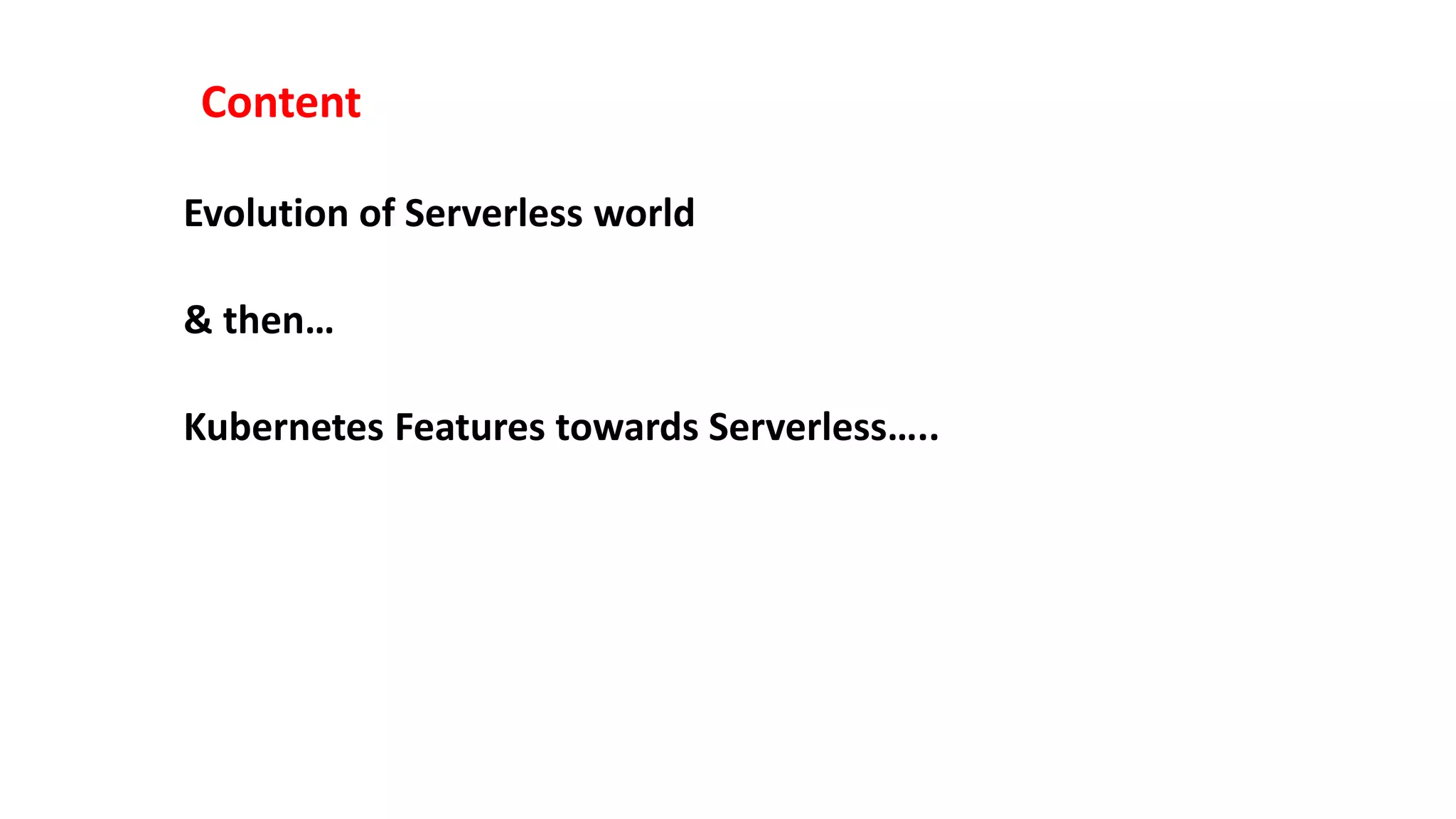

Content
Evolution of Serverless world
& then…
Kubernetes Features towards Serverless…..
Containers – The History Highlights
1979
UNIX
chroot
provide an
isolated disk
space for each
process. Later in
1982 this was
added to BSD
FreeBSD
Jails
additional
process
sandboxing
features for
isolating the
filesystem, users,
networking, etc
2000 2001
Linux
VServer
securely partition
resources on a
computer system
(file system, CPU
time, network
addresses and
memory)
2004
Solaris
Containers
combination of
system resource
controls and the
boundary
separation
provided by
zones
2005
OpenVZ
isolated file
system, users
and user groups,
a process tree,
network, devices,
and IPC objects.
2006
Process
Containers
limiting,
accounting, and
isolating resource
usage (CPU,
memory, disk I/O,
network, etc.) of a
collection of
processes
2007
Control
Groups
Control Groups AKA
cgroups was
implemented by
Google and added to
the Linux Kernel in
2007
2011
Warden
Warden was
implemented by
CloudFoundry in
year 2011 by
using LXC at the
initial stage
2013
LMCTFY
lmctfy stands for
“Let Me Contain
That For You”. It is
the open source
version of Google’s
container stack
LXC
LXC stands for
LinuX Containers
and it is the first,
most complete
implementation of
Linux container
manager
2008 2013
Docker
Docker is the
most popular and
widely used
container
management
system as of
January 2016
2014
Rocket
Rocket is a much
similar initiative to
Docker started by
CoreOS for fixing
some of the
drawbacks
2016
Windows
Containers
Run Docker
containers on
Windows natively
without having to
run a virtual
machine to run
Docker
Virtual Machines, Containers and Unikernels
Evolution of Applications Development
MainFrame Client/Server SOA MSA Serverless
Serverless Evolution
2014-11 2015-10 2016-01 2016-2 2016-4 2016-5
Serverless
2016-6
OpenLambda
2016-7
DC/OS serverlessApcera
AWS Lambda
2016-3
Why kubernetes for Serverless (FaaS)
https://www.cncf.io/
Serverless From BIG Players
• AWS lambda - https://aws.amazon.com/lambda/
• Azure Functions - https://azure.microsoft.com/en-in/services/functions/
• Google Cloud Functions - https://cloud.google.com/functions/
• IBM OpenWhisk - https://www.ibm.com/cloud-computing/bluemix/openwhisk
• Oracle Fn - https://blogs.oracle.com/emeapartnerweblogic/serverless-architecture-on-the-oracle-
paas-cloud-by-lucas-jellema
Serverless Implementations - Others
 Fission.io (https://github.com/fission/fission)
 Kubeless (https://github.com/bitnami/kubeless)
 Iron Functions (https://github.com/iron-io/functions)
 Fabric8’s (https://github.com/funktionio/funktion)
 Alex’s (https://github.com/alexellis/faas) (Use Docker Swarm)
 Galactic fog (https://github.com/GalacticFog)
 Ovrclk.com (not open source)
 Lightbend - www.lightbend.com
 Iceroad www.iceroad.io
 AuthO Webtasks - https://auth0.com/blog/building-serverless-apps-with-webtask/
https://github.com/anaibol/awesome-serverless
A Severless Architecture (Amazon Lambda)
Severless Architecture Benefits & Drawback
(From AWS)
Serverless is misnormal…...
It is Functions as a Service (FaaS)
Why Kubernetes for FaaS?
Kubernetes Orchestration Engine1
Setup
• On Cloud infrastructure
• Google
• AWS
• Azure
• IBM Blue Mix
• On local machine
• MiniKube
• Ubuntu on LXD
• Kubeadm
• IBM Cloud Private CE
Kubernetes – AutoScale with custom metrics
• With Horizontal Pod Autoscaling, Kubernetes
automatically scales the number of pods in a replication
controller, deployment or replica set based on observed
CPU utilization (or, with custom metrics support, on
some other application-provided metrics).
• Needs Heapster and Cadvisor (already a part of
Kubernetes)
• Resource Metric Source (CPU or Memory). Per-pod
resource metrics (like CPU),
• The key operational difference between FaaS and PaaS
is scaling. With most PaaS’s you still need to think about
scale.
• FaaS needs infrastructure and k8s supports that well.
From Function it creates services and manage its life
cycle.
• https://kubernetes.io/docs/tasks/run-
application/horizontal-pod-autoscale/
2
Kubernetes – Workloads
• StatefulSet - Stateful Application that needs reasonable handling
• Like Database
• In-memory Cache
• Peer – Peer applications that needs
storage
• Any application that needs network
identity
• Stateless - For stateless application to deal with complex workflow
• Like webservers
• Are stateless in nature that needs on-
demand scale
• Needs rolling update
• Jobs - Run once type of workloads
• Useful for running scripts, reports
and batch jobs
• Like DB-Query
• Like Spark / Hadoop processing
• CornJobs – Run once type of Jobs by repeat in a frequency
• Just like unix CornJob
• Runs a job at a given schedule
• DaemonSet – Run on all the Nodes as much as possible
• Runs in every node in the cluster.
• For starting monitoring applications
on every node.
• ReplicaSet – Run and manage multiple Pods lifecycle.
• Elementry Controller for managing
PODs
• Used by Deployment.
FaaS Workloads
• Time based processing/CRON job
• Time based recurring jobs, clean up etc.
• Event processing
• Servicing SaaS & cloud events like changes is
Storage, DB, etc. and to display it in graphical
way
• Web applications
• Single web page apps, that manage user
data store/display/customization.
• Mobile backend
• Mobile client can use HTTP APIs to
store/process, eg. Photos
• Real-time stream processing
• IoT devices can send messages for
stream analytics
• Real-time bot messaging
• Chat/Message bots
• Answer questions using AI (Cortana)
 FaaS functions are stateless. The ‘Twelve-
Factor App’ concept is also same.
3
12 factors
(solid
principle for
Cloud
Software
Architecture)
Codebase One codebase tracked in
revision control, many
deploys
Dependencies Explicitly declare and
isolate dependencies
Config Store configuration in
the environment
Backing Services Treat backing services as
attached resources
Build, release, run Strictly separate build
and run stages
Processes Execute the app as one
or more stateless
processes
Port binding Export services via port
binding
Concurrency Scale out via the process
model
Disposability Maximize robustness
with fast startup and
graceful shutdown
Dev/prod parity Keep development,
staging, and production
as similar as possible
Logs Treat logs as event
streams
Admin processes Run admin/management
tasks as one-off
processes
K8s Cloud Native and Serverless has same Workload Characteristics
Expose Service from Function4
 A Service in Kubernetes is an abstraction which defines a logical set of Pods and a
policy by which to access them.
 Services enable a loose coupling between dependent Pods. A Service is defined using
YAML (preferred) or JSON, like all Kubernetes objects.
 The set of Pods targeted by a Service is usually determined by a LabelSelector
 Although each Pod has a unique IP address, those IPs are not exposed outside the
cluster without a Service. Services allow your applications to receive traffic. Services
can be exposed in different ways by specifying a type in the ServiceSpec (ClusterIP,
NodePort, LoadBalancer, External Name)
 HTTP services from k8s from functions very easy to create.
 API based calls – deal with event handlers (notification from other services)
 Idle function only use storage and consume only CPU/memory when at use – trigger
fires.
Function can run at source level, or as buildpack or as docker images.
https://kubernetes.io/docs/tutorials/kubernetes-basics/expose-intro/
Associate functions with k8s watches, triggers, HTTP routes5
Watch resource from k8s API – Native integration with k8s
•POD problem
•Other events
•Do something
Create function and add them using CLI/etc.. Then associate functions with k8s watches, triggers, HTTP
routes.
Issue a watch request using normal http request - the API consumes and returns JSON messages.
Labels can be used to organize and to select subsets of objects. Labels can be attached to objects at
creation time and subsequently added and modified at any time.
Funktion – Apache Camel Connector (some thing happens do something)
Step Functions – One after another events. Call in sequence order.
https://stackoverflow.com/questions/35192712/kubernetes-watch-pod-events-with-api
Init Container6
A Pod can have multiple Containers
running apps within it, but it can also have
one or more Init Containers, which are
run before the app Containers are started.
Init Containers are exactly like regular
Containers, except:
•They always run to completion.
•Each one must complete successfully
before the next one is started. They all
must run to completion before the Pod
can be ready.
https://kubernetes.io/docs/concepts/workloads/pods/i
nit-containers/
Init Containers
Can be used for
- Sleep
- Register Pod
- Clone a git
- Place value to config file
Kuberntes Config Map7
Config map to inject function's code to the runtime pod.
The ConfigMap API resource provides mechanisms to inject
containers with configuration data while keeping containers
agnostic of Kubernetes
ConfigMaps allow you to decouple configuration artifacts
from image content to keep application portable.
ConfigMap is similar to Secrets, but provides a means of
working with strings that don’t contain sensitive
information
The ConfigMap’s data field contains the configuration data.
As shown in the example, this can be simple – like
individual properties defined using --from-literal – or
complex – like configuration files or JSON blobs defined
using --from-file. There is size limitations exists.
https://kubernetes.io/docs/tasks/configure-pod-
container/configmap/
Custom Resource Definitions (CRD) to simulate function's metadata8
From Kubeless documents (how they run):
•There is a CRD endpoint being deploy called function.k8s.io:
•Then function custom objects will be created under this CRD endpoint.
•function.spec contains function's metadata including code, handler, runtime, type (http or pubsub) and
probably its dependency file.
•Custom controller watch changes of function objects and react accordingly to deploy/delete K8S
deployment/svc/configmap. These containers fetch all the dependencies and share them with the function
runtimes using volumes.
•The runtimes are pre-built docker images that wrap the functions in an HTTP server or in a Kafka
consumer. Indeed, to be able to trigger functions via events we currently use Kafka.
•There are currently two type of functions supported in Kubeless: http-based and pubsub-based. A set of
Kafka and Zookeeper is installed into the kubeless namespace to handle the pubsub-based functions.
https://github.com/kubeless/kubeless/blob/master/docs/architecture.md
May be useful in some implementations………
Volume mount / storage for custom source load9
On-disk files in a container are ephemeral, which presents some problems for non-trivial
applications when running in containers. First, when a container crashes, kubelet will
restart it, but the files will be lost - the container starts with a clean state. Second, when
running containers together in a Pod it is often necessary to share files between those
containers. The Kubernetes Volume abstraction solves both of these problems.
https://kubernetes.io/docs/concepts/storage/volumes/
Runtime Source/Function
Everything is API Driven
Serverless Architecture
 Kubernetes is API Driven Model
 Functions in FaaS are triggered by event types defined by the
provider.
 Functions to be triggered as a response to inbound http requests,
typically in some kind of API gateway. (e.g. AWS API
Gateway, Webtask)
 Fundamentally FaaS is about running back end code without
managing your own server systems or your own server
applications. That is the key difference when comparing with other
modern architectural trends like containers and PaaS (Platform as a
Service.)
 FaaS is seen as a better choice for event driven style with few event
types per application component, and containers are seen as a better
choice for synchronous-request driven components with many entry
points.
 https://martinfowler.com/articles/serverless.html - Must read article!
10
Kubernetes properties for FaaS!
1) Automatic orchestration - Seemless Deployments of Install and remove.
2) Horizontal Autoscale - Custom metrics can be pulled out easily for scaling.
3) K8s Cloud Native and serverless has same Workload Characteristics.
4) Expose service from function - HTTP services from k8s functions very easy to create.
5) Associate functions with k8s watches, triggers, HTTP routes.
6) Init container to load the dependencies that function might have.
7) ConfigMap for runtime load.
8) Custom Resource Definitions (CRD) to simulate function's metadata.
9) Volume mount / storage for custom source load.
10)Everything Remote API Driven!
Fission on K8S
Put together you get - Kubernetes Serverless Architecture Models
Custom
Commercial
Deployments
Open Source Serverless comparison
Commercial Serverless Feature comparison
https://cloudacademy.com/blog/microsoft-azure-functions-vs-google-cloud-functions-fight-for-serverless-cloud-domination-continues/
Why kubernetes for Serverless (FaaS)
Container Orchestration Comparison
Container Orchestration Comparison
https://apprenda.com/white-papers/container-orchestration-comparison-guide
Container Orchestration Comparison
Astonishing growth
Kubernetes still lead the pack
in comparison to other container orchestration!
Some of the materials used in this presentation are taken from web.
Its used here just for educational purpose only. Thanks to all for those wonderful contents.  
Thanks……

More Related Content

What's hot

Docker & kubernetes
Docker & kubernetesDocker & kubernetes
Docker & kubernetes
NexThoughts Technologies

LISA2017 Kubernetes: Hit the Ground Running
LISA2017 Kubernetes: Hit the Ground RunningLISA2017 Kubernetes: Hit the Ground Running
LISA2017 Kubernetes: Hit the Ground Running
Chris McEniry

Open shift enterprise 3.1 paas on kubernetes
Open shift enterprise 3.1   paas on kubernetesOpen shift enterprise 3.1   paas on kubernetes
Open shift enterprise 3.1 paas on kubernetes
Samuel Terburg

GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...
GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...
GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...
Oleg Shalygin

Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...
Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...
Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...
Docker, Inc.

OpenShift Enterprise 3.1 vs kubernetes
OpenShift Enterprise 3.1 vs kubernetesOpenShift Enterprise 3.1 vs kubernetes
OpenShift Enterprise 3.1 vs kubernetes
Samuel Terburg

The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...
The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...
The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...
Daniel Krook

DCEU 18: Docker Container Networking
DCEU 18: Docker Container NetworkingDCEU 18: Docker Container Networking
DCEU 18: Docker Container Networking
Docker, Inc.

Cloud Native Landscape (CNCF and OCI)
Cloud Native Landscape (CNCF and OCI)Cloud Native Landscape (CNCF and OCI)
Cloud Native Landscape (CNCF and OCI)
Chris Aniszczyk

Containers and microservices for realists
Containers and microservices for realistsContainers and microservices for realists
Containers and microservices for realists
Karthik Gaekwad

Introduction to kubernetes
Introduction to kubernetesIntroduction to kubernetes
Introduction to kubernetes
Gabriel Carro

Multi-Container Apps spanning Docker, Mesos and OpenStack
Multi-Container Apps spanning Docker, Mesos and OpenStackMulti-Container Apps spanning Docker, Mesos and OpenStack
Multi-Container Apps spanning Docker, Mesos and OpenStack
Docker, Inc.

On Prem Container Cloud - Lessons Learned
On Prem Container Cloud - Lessons LearnedOn Prem Container Cloud - Lessons Learned
On Prem Container Cloud - Lessons Learned
CodeOps Technologies LLP

Containers vs. VMs: It's All About the Apps!
Containers vs. VMs: It's All About the Apps!Containers vs. VMs: It's All About the Apps!
Containers vs. VMs: It's All About the Apps!
Steve Wilson

DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...
DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...
DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...
Docker, Inc.

Docker Federal Summit 2017 General Session
Docker Federal Summit 2017 General SessionDocker Federal Summit 2017 General Session
Docker Federal Summit 2017 General Session
Docker, Inc.

OpenStack 101 update
OpenStack 101 updateOpenStack 101 update
OpenStack 101 update
Kamesh Pemmaraju

A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17
A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17
A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17
Mario-Leander Reimer

Containers Docker Kind Kubernetes Istio
Containers Docker Kind Kubernetes IstioContainers Docker Kind Kubernetes Istio
Containers Docker Kind Kubernetes Istio
Araf Karsh Hamid

Cloud spanner architecture and use cases
Cloud spanner architecture and use casesCloud spanner architecture and use cases
Cloud spanner architecture and use cases
GDG Cloud Bengaluru


What's hot (20)

Docker & kubernetes
Docker & kubernetesDocker & kubernetes
Docker & kubernetes

LISA2017 Kubernetes: Hit the Ground Running
LISA2017 Kubernetes: Hit the Ground RunningLISA2017 Kubernetes: Hit the Ground Running
LISA2017 Kubernetes: Hit the Ground Running

Open shift enterprise 3.1 paas on kubernetes
Open shift enterprise 3.1   paas on kubernetesOpen shift enterprise 3.1   paas on kubernetes
Open shift enterprise 3.1 paas on kubernetes

GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...
GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...
GCP - Continuous Integration and Delivery into Kubernetes with GitHub, Travis...

Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...
Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...
Evénement Docker Paris: Anticipez les nouveaux business model et réduisez vos...

OpenShift Enterprise 3.1 vs kubernetes
OpenShift Enterprise 3.1 vs kubernetesOpenShift Enterprise 3.1 vs kubernetes
OpenShift Enterprise 3.1 vs kubernetes

The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...
The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...
The Containers Ecosystem, the OpenStack Magnum Project, the Open Container In...

DCEU 18: Docker Container Networking
DCEU 18: Docker Container NetworkingDCEU 18: Docker Container Networking
DCEU 18: Docker Container Networking

Cloud Native Landscape (CNCF and OCI)
Cloud Native Landscape (CNCF and OCI)Cloud Native Landscape (CNCF and OCI)
Cloud Native Landscape (CNCF and OCI)

Containers and microservices for realists
Containers and microservices for realistsContainers and microservices for realists
Containers and microservices for realists

Introduction to kubernetes
Introduction to kubernetesIntroduction to kubernetes
Introduction to kubernetes

Multi-Container Apps spanning Docker, Mesos and OpenStack
Multi-Container Apps spanning Docker, Mesos and OpenStackMulti-Container Apps spanning Docker, Mesos and OpenStack
Multi-Container Apps spanning Docker, Mesos and OpenStack

On Prem Container Cloud - Lessons Learned
On Prem Container Cloud - Lessons LearnedOn Prem Container Cloud - Lessons Learned
On Prem Container Cloud - Lessons Learned

Containers vs. VMs: It's All About the Apps!
Containers vs. VMs: It's All About the Apps!Containers vs. VMs: It's All About the Apps!
Containers vs. VMs: It's All About the Apps!

DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...
DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...
DCEU 18: From Legacy Mainframe to the Cloud: The Finnish Railways Evolution w...

Docker Federal Summit 2017 General Session
Docker Federal Summit 2017 General SessionDocker Federal Summit 2017 General Session
Docker Federal Summit 2017 General Session

OpenStack 101 update
OpenStack 101 updateOpenStack 101 update
OpenStack 101 update

A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17
A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17
A Hitchhiker’s Guide to the Cloud Native Stack. #CDS17

Containers Docker Kind Kubernetes Istio
Containers Docker Kind Kubernetes IstioContainers Docker Kind Kubernetes Istio
Containers Docker Kind Kubernetes Istio

Cloud spanner architecture and use cases
Cloud spanner architecture and use casesCloud spanner architecture and use cases
Cloud spanner architecture and use cases


Similar to Why kubernetes for Serverless (FaaS)

Introduction to Kubernetes
Introduction to KubernetesIntroduction to Kubernetes
Introduction to Kubernetes
Vishal Biyani

Oscon 2017: Build your own container-based system with the Moby project
Oscon 2017: Build your own container-based system with the Moby projectOscon 2017: Build your own container-based system with the Moby project
Oscon 2017: Build your own container-based system with the Moby project
Patrick Chanezon

Containers, Serverless and Functions in a nutshell
Containers, Serverless and Functions in a nutshellContainers, Serverless and Functions in a nutshell
Containers, Serverless and Functions in a nutshell
Eugene Fedorenko

'Cloud-Native' Ecosystem - Aug 2015
'Cloud-Native' Ecosystem - Aug 2015'Cloud-Native' Ecosystem - Aug 2015
'Cloud-Native' Ecosystem - Aug 2015
Lenny Pruss

Open shift and docker - october,2014
Open shift and docker - october,2014Open shift and docker - october,2014
Open shift and docker - october,2014
Hojoong Kim

Cloud technology with practical knowledge
Cloud technology with practical knowledgeCloud technology with practical knowledge
Cloud technology with practical knowledge
AnshikaNigam8

Dockerization of Azure Platform
Dockerization of Azure PlatformDockerization of Azure Platform
Dockerization of Azure Platform
nirajrules

IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx
IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptxIBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx
IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx
Georg Ember

Docker and kubernetes
Docker and kubernetesDocker and kubernetes
Docker and kubernetes
Meiyappan Kannappa

01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware
01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware
01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware
VMUG IT

Intro to kubernetes
Intro to kubernetesIntro to kubernetes
Intro to kubernetes
Elad Hirsch

State of the Container Ecosystem
State of the Container EcosystemState of the Container Ecosystem
State of the Container Ecosystem
Vinay Rao

Centralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container OperationsCentralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container Operations
Kublr

Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka
Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka
Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka
Mario Ishara Fernando

Kubernetes
KubernetesKubernetes
Kubernetes
Linjith Kunnon

Openshift Workshop
Openshift Workshop Openshift Workshop
Openshift Workshop
PT Datacomm Diangraha

Building Cloud-Native Applications with Kubernetes, Helm and Kubeless
Building Cloud-Native Applications with Kubernetes, Helm and KubelessBuilding Cloud-Native Applications with Kubernetes, Helm and Kubeless
Building Cloud-Native Applications with Kubernetes, Helm and Kubeless
Bitnami

KubernetesPPT.pptx
KubernetesPPT.pptxKubernetesPPT.pptx
KubernetesPPT.pptx
Ryuzaki360

Moby KubeCon 2017
Moby KubeCon 2017Moby KubeCon 2017
Moby KubeCon 2017
Patrick Chanezon

Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...
Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...
Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...
PT Datacomm Diangraha


Similar to Why kubernetes for Serverless (FaaS) (20)

Introduction to Kubernetes
Introduction to KubernetesIntroduction to Kubernetes
Introduction to Kubernetes

Oscon 2017: Build your own container-based system with the Moby project
Oscon 2017: Build your own container-based system with the Moby projectOscon 2017: Build your own container-based system with the Moby project
Oscon 2017: Build your own container-based system with the Moby project

Containers, Serverless and Functions in a nutshell
Containers, Serverless and Functions in a nutshellContainers, Serverless and Functions in a nutshell
Containers, Serverless and Functions in a nutshell

'Cloud-Native' Ecosystem - Aug 2015
'Cloud-Native' Ecosystem - Aug 2015'Cloud-Native' Ecosystem - Aug 2015
'Cloud-Native' Ecosystem - Aug 2015

Open shift and docker - october,2014
Open shift and docker - october,2014Open shift and docker - october,2014
Open shift and docker - october,2014

Cloud technology with practical knowledge
Cloud technology with practical knowledgeCloud technology with practical knowledge
Cloud technology with practical knowledge

Dockerization of Azure Platform
Dockerization of Azure PlatformDockerization of Azure Platform
Dockerization of Azure Platform

IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx
IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptxIBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx
IBM BP Session - Multiple CLoud Paks and Cloud Paks Foundational Services.pptx

Docker and kubernetes
Docker and kubernetesDocker and kubernetes
Docker and kubernetes

01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware
01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware
01 - VMUGIT - Lecce 2018 - Fabio Rapposelli, VMware

Intro to kubernetes
Intro to kubernetesIntro to kubernetes
Intro to kubernetes

State of the Container Ecosystem
State of the Container EcosystemState of the Container Ecosystem
State of the Container Ecosystem

Centralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container OperationsCentralizing Kubernetes and Container Operations
Centralizing Kubernetes and Container Operations

Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka
Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka
Microservices , Docker , CI/CD , Kubernetes Seminar - Sri Lanka

Kubernetes
KubernetesKubernetes
Kubernetes

Openshift Workshop
Openshift Workshop Openshift Workshop
Openshift Workshop

Building Cloud-Native Applications with Kubernetes, Helm and Kubeless
Building Cloud-Native Applications with Kubernetes, Helm and KubelessBuilding Cloud-Native Applications with Kubernetes, Helm and Kubeless
Building Cloud-Native Applications with Kubernetes, Helm and Kubeless

KubernetesPPT.pptx
KubernetesPPT.pptxKubernetesPPT.pptx
KubernetesPPT.pptx

Moby KubeCon 2017
Moby KubeCon 2017Moby KubeCon 2017
Moby KubeCon 2017

Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...
Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...
Creating Microservices Application with IBM Cloud Private (ICP) - ICP Archite...


More from Krishna-Kumar

SODA Ambassadors & Community Ecosystem
SODA Ambassadors & Community EcosystemSODA Ambassadors & Community Ecosystem
SODA Ambassadors & Community Ecosystem
Krishna-Kumar

Open Source Building Career and Competency
Open Source Building Career and CompetencyOpen Source Building Career and Competency
Open Source Building Career and Competency
Krishna-Kumar

CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0
CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0
CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0
Krishna-Kumar

Google Anthos - Azure Stack - AWS Outposts :Comparison
Google Anthos - Azure Stack - AWS Outposts :ComparisonGoogle Anthos - Azure Stack - AWS Outposts :Comparison
Google Anthos - Azure Stack - AWS Outposts :Comparison
Krishna-Kumar

Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP
Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAPCloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP
Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP
Krishna-Kumar

Cloud interoperability and open standards for digital india open infrasummit
Cloud interoperability and open standards for digital india open infrasummitCloud interoperability and open standards for digital india open infrasummit
Cloud interoperability and open standards for digital india open infrasummit
Krishna-Kumar

Google Cloud Container Security Quick Overview
Google Cloud Container Security Quick OverviewGoogle Cloud Container Security Quick Overview
Google Cloud Container Security Quick Overview
Krishna-Kumar

Kubernetes Application Deployment with Helm - A beginner Guide!
Kubernetes Application Deployment with Helm - A beginner Guide!Kubernetes Application Deployment with Helm - A beginner Guide!
Kubernetes Application Deployment with Helm - A beginner Guide!
Krishna-Kumar

KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights
KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - HighlightsKubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights
KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights
Krishna-Kumar

Introduction to ieee standards development - Bangalore Section
Introduction to ieee standards development - Bangalore SectionIntroduction to ieee standards development - Bangalore Section
Introduction to ieee standards development - Bangalore Section
Krishna-Kumar

IEEE Standards Association - Introduction
IEEE Standards Association - IntroductionIEEE Standards Association - Introduction
IEEE Standards Association - Introduction
Krishna-Kumar

IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.
IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.
IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.
Krishna-Kumar

Open Source Edge Computing Platforms - Overview
Open Source Edge Computing Platforms - OverviewOpen Source Edge Computing Platforms - Overview
Open Source Edge Computing Platforms - Overview
Krishna-Kumar

cncf overview and building edge computing using kubernetes
cncf overview and building edge computing using kubernetescncf overview and building edge computing using kubernetes
cncf overview and building edge computing using kubernetes
Krishna-Kumar

Evolution of containers to kubernetes
Evolution of containers to kubernetesEvolution of containers to kubernetes
Evolution of containers to kubernetes
Krishna-Kumar

My Ladakh Marathon Run 2018
My Ladakh Marathon Run 2018My Ladakh Marathon Run 2018
My Ladakh Marathon Run 2018
Krishna-Kumar

Containers and workload security an overview
Containers and workload security an overview Containers and workload security an overview
Containers and workload security an overview
Krishna-Kumar

Now yoga - a study on where why what how
Now yoga  - a study on where why what howNow yoga  - a study on where why what how
Now yoga - a study on where why what how
Krishna-Kumar

Yoga for confused IT engineer
Yoga for confused IT engineerYoga for confused IT engineer
Yoga for confused IT engineer
Krishna-Kumar

Cloud, Big Data, IoT, ML - together to build a real world use case!
Cloud, Big Data, IoT, ML - together to build a real world use case!Cloud, Big Data, IoT, ML - together to build a real world use case!
Cloud, Big Data, IoT, ML - together to build a real world use case!
Krishna-Kumar


More from Krishna-Kumar (20)

SODA Ambassadors & Community Ecosystem
SODA Ambassadors & Community EcosystemSODA Ambassadors & Community Ecosystem
SODA Ambassadors & Community Ecosystem

Open Source Building Career and Competency
Open Source Building Career and CompetencyOpen Source Building Career and Competency
Open Source Building Career and Competency

CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0
CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0
CCICI CIP 1.0 Testbed - Security access implementation and reference - v1.0

Google Anthos - Azure Stack - AWS Outposts :Comparison
Google Anthos - Azure Stack - AWS Outposts :ComparisonGoogle Anthos - Azure Stack - AWS Outposts :Comparison
Google Anthos - Azure Stack - AWS Outposts :Comparison

Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP
Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAPCloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP
Cloud Native Use Cases / Case Studies - KubeCon 2019 San Diego - RECAP

Cloud interoperability and open standards for digital india open infrasummit
Cloud interoperability and open standards for digital india open infrasummitCloud interoperability and open standards for digital india open infrasummit
Cloud interoperability and open standards for digital india open infrasummit

Google Cloud Container Security Quick Overview
Google Cloud Container Security Quick OverviewGoogle Cloud Container Security Quick Overview
Google Cloud Container Security Quick Overview

Kubernetes Application Deployment with Helm - A beginner Guide!
Kubernetes Application Deployment with Helm - A beginner Guide!Kubernetes Application Deployment with Helm - A beginner Guide!
Kubernetes Application Deployment with Helm - A beginner Guide!

KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights
KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - HighlightsKubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights
KubeCon + CloudNativeCon Barcelona and Shanghai 2019 - Highlights

Introduction to ieee standards development - Bangalore Section
Introduction to ieee standards development - Bangalore SectionIntroduction to ieee standards development - Bangalore Section
Introduction to ieee standards development - Bangalore Section

IEEE Standards Association - Introduction
IEEE Standards Association - IntroductionIEEE Standards Association - Introduction
IEEE Standards Association - Introduction

IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.
IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.
IoTShow.in Bangalore 2019 - a Recap on 'IoT and Edge' Talk.

Open Source Edge Computing Platforms - Overview
Open Source Edge Computing Platforms - OverviewOpen Source Edge Computing Platforms - Overview
Open Source Edge Computing Platforms - Overview

cncf overview and building edge computing using kubernetes
cncf overview and building edge computing using kubernetescncf overview and building edge computing using kubernetes
cncf overview and building edge computing using kubernetes

Evolution of containers to kubernetes
Evolution of containers to kubernetesEvolution of containers to kubernetes
Evolution of containers to kubernetes

My Ladakh Marathon Run 2018
My Ladakh Marathon Run 2018My Ladakh Marathon Run 2018
My Ladakh Marathon Run 2018

Containers and workload security an overview
Containers and workload security an overview Containers and workload security an overview
Containers and workload security an overview

Now yoga - a study on where why what how
Now yoga  - a study on where why what howNow yoga  - a study on where why what how
Now yoga - a study on where why what how

Yoga for confused IT engineer
Yoga for confused IT engineerYoga for confused IT engineer
Yoga for confused IT engineer

Cloud, Big Data, IoT, ML - together to build a real world use case!
Cloud, Big Data, IoT, ML - together to build a real world use case!Cloud, Big Data, IoT, ML - together to build a real world use case!
Cloud, Big Data, IoT, ML - together to build a real world use case!


Recently uploaded

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)
miso_uam

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.
shivamt017

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
ThousandEyes

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
902basic

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System
SSTech System

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides
jhkdigitalmarketing

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
mohitd6

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
kiara pandey

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
bahubalikumar09988

Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...
Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...
Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...
norina2645

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
bhumivarma35300

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore
Nextskill Technologies

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript
attueb

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
3610stuck

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Natsoft Corporation

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups
SOCRadar

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx
SimonedeGijt

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
45unexpected


Recently uploaded (20)

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.

Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024
Cisco Live Announcements: New ThousandEyes Release Highlights - July 2024

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf

Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9930687706 Unlimited Short Providing Girls Servic...

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...

Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...
Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...
Celebrity Girls Call Mumbai 🛵🚡9910780858 💃 Choose Best And Top Girl Service A...

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups

Wired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptxWired_2.0_Create_AmsterdamJUG_09072024.pptx
Wired_2.0_Create_AmsterdamJUG_09072024.pptx

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...


Why kubernetes for Serverless (FaaS)

  • 1. Why Kubernetes for Serverless? by Krishna Kumar, Huawei India CNCF Ambassador
  • 2. Content Evolution of Serverless world & then… Kubernetes Features towards Serverless…..
  • 3. Containers – The History Highlights 1979 UNIX chroot provide an isolated disk space for each process. Later in 1982 this was added to BSD FreeBSD Jails additional process sandboxing features for isolating the filesystem, users, networking, etc 2000 2001 Linux VServer securely partition resources on a computer system (file system, CPU time, network addresses and memory) 2004 Solaris Containers combination of system resource controls and the boundary separation provided by zones 2005 OpenVZ isolated file system, users and user groups, a process tree, network, devices, and IPC objects. 2006 Process Containers limiting, accounting, and isolating resource usage (CPU, memory, disk I/O, network, etc.) of a collection of processes 2007 Control Groups Control Groups AKA cgroups was implemented by Google and added to the Linux Kernel in 2007 2011 Warden Warden was implemented by CloudFoundry in year 2011 by using LXC at the initial stage 2013 LMCTFY lmctfy stands for “Let Me Contain That For You”. It is the open source version of Google’s container stack LXC LXC stands for LinuX Containers and it is the first, most complete implementation of Linux container manager 2008 2013 Docker Docker is the most popular and widely used container management system as of January 2016 2014 Rocket Rocket is a much similar initiative to Docker started by CoreOS for fixing some of the drawbacks 2016 Windows Containers Run Docker containers on Windows natively without having to run a virtual machine to run Docker
  • 5. Evolution of Applications Development MainFrame Client/Server SOA MSA Serverless
  • 6. Serverless Evolution 2014-11 2015-10 2016-01 2016-2 2016-4 2016-5 Serverless 2016-6 OpenLambda 2016-7 DC/OS serverlessApcera AWS Lambda 2016-3
  • 9. Serverless From BIG Players • AWS lambda - https://aws.amazon.com/lambda/ • Azure Functions - https://azure.microsoft.com/en-in/services/functions/ • Google Cloud Functions - https://cloud.google.com/functions/ • IBM OpenWhisk - https://www.ibm.com/cloud-computing/bluemix/openwhisk • Oracle Fn - https://blogs.oracle.com/emeapartnerweblogic/serverless-architecture-on-the-oracle- paas-cloud-by-lucas-jellema
  • 10. Serverless Implementations - Others  Fission.io (https://github.com/fission/fission)  Kubeless (https://github.com/bitnami/kubeless)  Iron Functions (https://github.com/iron-io/functions)  Fabric8’s (https://github.com/funktionio/funktion)  Alex’s (https://github.com/alexellis/faas) (Use Docker Swarm)  Galactic fog (https://github.com/GalacticFog)  Ovrclk.com (not open source)  Lightbend - www.lightbend.com  Iceroad www.iceroad.io  AuthO Webtasks - https://auth0.com/blog/building-serverless-apps-with-webtask/
  • 12. A Severless Architecture (Amazon Lambda)
  • 13. Severless Architecture Benefits & Drawback (From AWS)
  • 14. Serverless is misnormal…... It is Functions as a Service (FaaS)
  • 16. Kubernetes Orchestration Engine1 Setup • On Cloud infrastructure • Google • AWS • Azure • IBM Blue Mix • On local machine • MiniKube • Ubuntu on LXD • Kubeadm • IBM Cloud Private CE
  • 17. Kubernetes – AutoScale with custom metrics • With Horizontal Pod Autoscaling, Kubernetes automatically scales the number of pods in a replication controller, deployment or replica set based on observed CPU utilization (or, with custom metrics support, on some other application-provided metrics). • Needs Heapster and Cadvisor (already a part of Kubernetes) • Resource Metric Source (CPU or Memory). Per-pod resource metrics (like CPU), • The key operational difference between FaaS and PaaS is scaling. With most PaaS’s you still need to think about scale. • FaaS needs infrastructure and k8s supports that well. From Function it creates services and manage its life cycle. • https://kubernetes.io/docs/tasks/run- application/horizontal-pod-autoscale/ 2
  • 18. Kubernetes – Workloads • StatefulSet - Stateful Application that needs reasonable handling • Like Database • In-memory Cache • Peer – Peer applications that needs storage • Any application that needs network identity • Stateless - For stateless application to deal with complex workflow • Like webservers • Are stateless in nature that needs on- demand scale • Needs rolling update • Jobs - Run once type of workloads • Useful for running scripts, reports and batch jobs • Like DB-Query • Like Spark / Hadoop processing • CornJobs – Run once type of Jobs by repeat in a frequency • Just like unix CornJob • Runs a job at a given schedule • DaemonSet – Run on all the Nodes as much as possible • Runs in every node in the cluster. • For starting monitoring applications on every node. • ReplicaSet – Run and manage multiple Pods lifecycle. • Elementry Controller for managing PODs • Used by Deployment. FaaS Workloads • Time based processing/CRON job • Time based recurring jobs, clean up etc. • Event processing • Servicing SaaS & cloud events like changes is Storage, DB, etc. and to display it in graphical way • Web applications • Single web page apps, that manage user data store/display/customization. • Mobile backend • Mobile client can use HTTP APIs to store/process, eg. Photos • Real-time stream processing • IoT devices can send messages for stream analytics • Real-time bot messaging • Chat/Message bots • Answer questions using AI (Cortana)  FaaS functions are stateless. The ‘Twelve- Factor App’ concept is also same. 3 12 factors (solid principle for Cloud Software Architecture) Codebase One codebase tracked in revision control, many deploys Dependencies Explicitly declare and isolate dependencies Config Store configuration in the environment Backing Services Treat backing services as attached resources Build, release, run Strictly separate build and run stages Processes Execute the app as one or more stateless processes Port binding Export services via port binding Concurrency Scale out via the process model Disposability Maximize robustness with fast startup and graceful shutdown Dev/prod parity Keep development, staging, and production as similar as possible Logs Treat logs as event streams Admin processes Run admin/management tasks as one-off processes K8s Cloud Native and Serverless has same Workload Characteristics
  • 19. Expose Service from Function4  A Service in Kubernetes is an abstraction which defines a logical set of Pods and a policy by which to access them.  Services enable a loose coupling between dependent Pods. A Service is defined using YAML (preferred) or JSON, like all Kubernetes objects.  The set of Pods targeted by a Service is usually determined by a LabelSelector  Although each Pod has a unique IP address, those IPs are not exposed outside the cluster without a Service. Services allow your applications to receive traffic. Services can be exposed in different ways by specifying a type in the ServiceSpec (ClusterIP, NodePort, LoadBalancer, External Name)  HTTP services from k8s from functions very easy to create.  API based calls – deal with event handlers (notification from other services)  Idle function only use storage and consume only CPU/memory when at use – trigger fires. Function can run at source level, or as buildpack or as docker images. https://kubernetes.io/docs/tutorials/kubernetes-basics/expose-intro/
  • 20. Associate functions with k8s watches, triggers, HTTP routes5 Watch resource from k8s API – Native integration with k8s •POD problem •Other events •Do something Create function and add them using CLI/etc.. Then associate functions with k8s watches, triggers, HTTP routes. Issue a watch request using normal http request - the API consumes and returns JSON messages. Labels can be used to organize and to select subsets of objects. Labels can be attached to objects at creation time and subsequently added and modified at any time. Funktion – Apache Camel Connector (some thing happens do something) Step Functions – One after another events. Call in sequence order. https://stackoverflow.com/questions/35192712/kubernetes-watch-pod-events-with-api
  • 21. Init Container6 A Pod can have multiple Containers running apps within it, but it can also have one or more Init Containers, which are run before the app Containers are started. Init Containers are exactly like regular Containers, except: •They always run to completion. •Each one must complete successfully before the next one is started. They all must run to completion before the Pod can be ready. https://kubernetes.io/docs/concepts/workloads/pods/i nit-containers/ Init Containers Can be used for - Sleep - Register Pod - Clone a git - Place value to config file
  • 22. Kuberntes Config Map7 Config map to inject function's code to the runtime pod. The ConfigMap API resource provides mechanisms to inject containers with configuration data while keeping containers agnostic of Kubernetes ConfigMaps allow you to decouple configuration artifacts from image content to keep application portable. ConfigMap is similar to Secrets, but provides a means of working with strings that don’t contain sensitive information The ConfigMap’s data field contains the configuration data. As shown in the example, this can be simple – like individual properties defined using --from-literal – or complex – like configuration files or JSON blobs defined using --from-file. There is size limitations exists. https://kubernetes.io/docs/tasks/configure-pod- container/configmap/
  • 23. Custom Resource Definitions (CRD) to simulate function's metadata8 From Kubeless documents (how they run): •There is a CRD endpoint being deploy called function.k8s.io: •Then function custom objects will be created under this CRD endpoint. •function.spec contains function's metadata including code, handler, runtime, type (http or pubsub) and probably its dependency file. •Custom controller watch changes of function objects and react accordingly to deploy/delete K8S deployment/svc/configmap. These containers fetch all the dependencies and share them with the function runtimes using volumes. •The runtimes are pre-built docker images that wrap the functions in an HTTP server or in a Kafka consumer. Indeed, to be able to trigger functions via events we currently use Kafka. •There are currently two type of functions supported in Kubeless: http-based and pubsub-based. A set of Kafka and Zookeeper is installed into the kubeless namespace to handle the pubsub-based functions. https://github.com/kubeless/kubeless/blob/master/docs/architecture.md May be useful in some implementations………
  • 24. Volume mount / storage for custom source load9 On-disk files in a container are ephemeral, which presents some problems for non-trivial applications when running in containers. First, when a container crashes, kubelet will restart it, but the files will be lost - the container starts with a clean state. Second, when running containers together in a Pod it is often necessary to share files between those containers. The Kubernetes Volume abstraction solves both of these problems. https://kubernetes.io/docs/concepts/storage/volumes/ Runtime Source/Function
  • 25. Everything is API Driven Serverless Architecture  Kubernetes is API Driven Model  Functions in FaaS are triggered by event types defined by the provider.  Functions to be triggered as a response to inbound http requests, typically in some kind of API gateway. (e.g. AWS API Gateway, Webtask)  Fundamentally FaaS is about running back end code without managing your own server systems or your own server applications. That is the key difference when comparing with other modern architectural trends like containers and PaaS (Platform as a Service.)  FaaS is seen as a better choice for event driven style with few event types per application component, and containers are seen as a better choice for synchronous-request driven components with many entry points.  https://martinfowler.com/articles/serverless.html - Must read article! 10
  • 26. Kubernetes properties for FaaS! 1) Automatic orchestration - Seemless Deployments of Install and remove. 2) Horizontal Autoscale - Custom metrics can be pulled out easily for scaling. 3) K8s Cloud Native and serverless has same Workload Characteristics. 4) Expose service from function - HTTP services from k8s functions very easy to create. 5) Associate functions with k8s watches, triggers, HTTP routes. 6) Init container to load the dependencies that function might have. 7) ConfigMap for runtime load. 8) Custom Resource Definitions (CRD) to simulate function's metadata. 9) Volume mount / storage for custom source load. 10)Everything Remote API Driven!
  • 27. Fission on K8S Put together you get - Kubernetes Serverless Architecture Models Custom Commercial Deployments
  • 29. Commercial Serverless Feature comparison https://cloudacademy.com/blog/microsoft-azure-functions-vs-google-cloud-functions-fight-for-serverless-cloud-domination-continues/
  • 34. Kubernetes still lead the pack in comparison to other container orchestration! Some of the materials used in this presentation are taken from web. Its used here just for educational purpose only. Thanks to all for those wonderful contents.   Thanks……
