1. KQL AND THE CONTENT
SEARCH WEB PART (CSWP)
IT Pro Solutions leveraging SharePoint 2013
search abilities (and KQL,REST and jQuery).

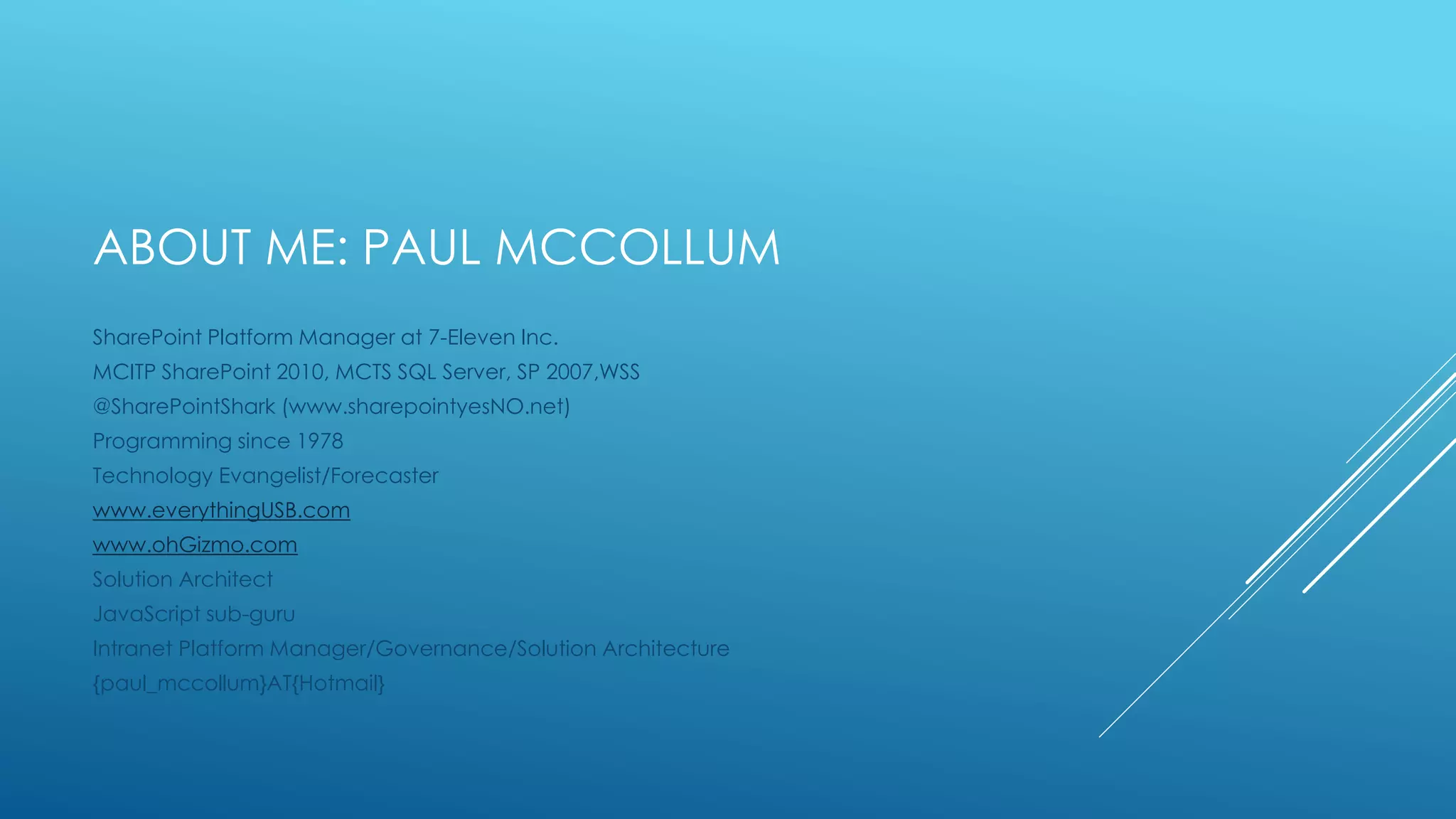

2. ABOUT ME: PAUL MCCOLLUM
SharePoint Platform Manager at 7-Eleven Inc.
MCITP SharePoint 2010, MCTS SQL Server, SP 2007,WSS
@SharePointShark (www.sharepointyesNO.net)
Programming since 1978
Technology Evangelist/Forecaster
www.everythingUSB.com
www.ohGizmo.com
Solution Architect
JavaScript sub-guru
Intranet Platform Manager/Governance/Solution Architecture
{paul_mccollum}AT{Hotmail}

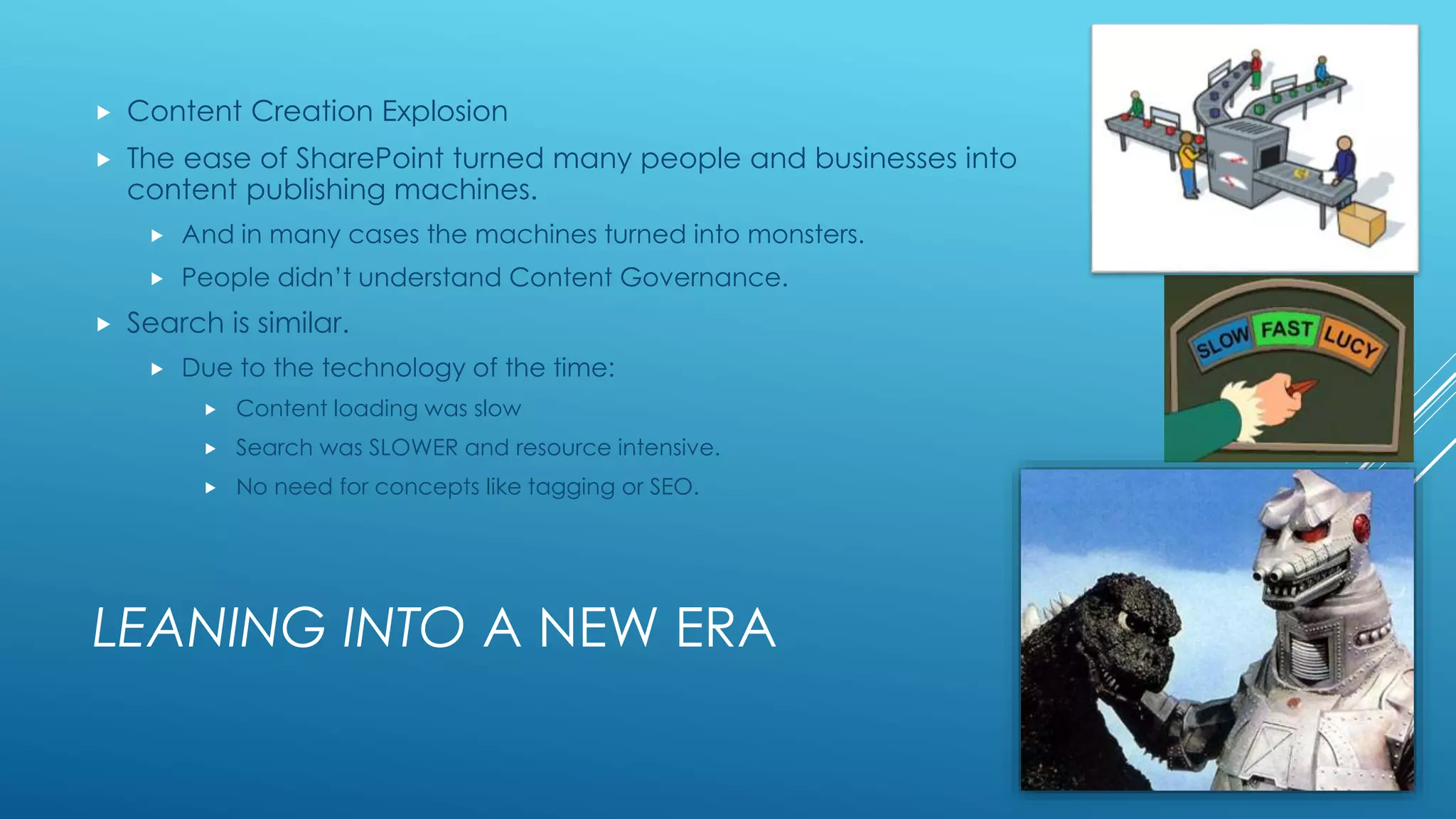

3. LEANING INTO A NEW ERA
 Content Creation Explosion
 The ease of SharePoint turned many people and businesses into
content publishing machines.
 And in many cases the machines turned into monsters.
 People didn’t understand Content Governance.
 Search is similar.
 Due to the technology of the time:
 Content loading was slow
 Search was SLOWER and resource intensive.
 No need for concepts like tagging or SEO.

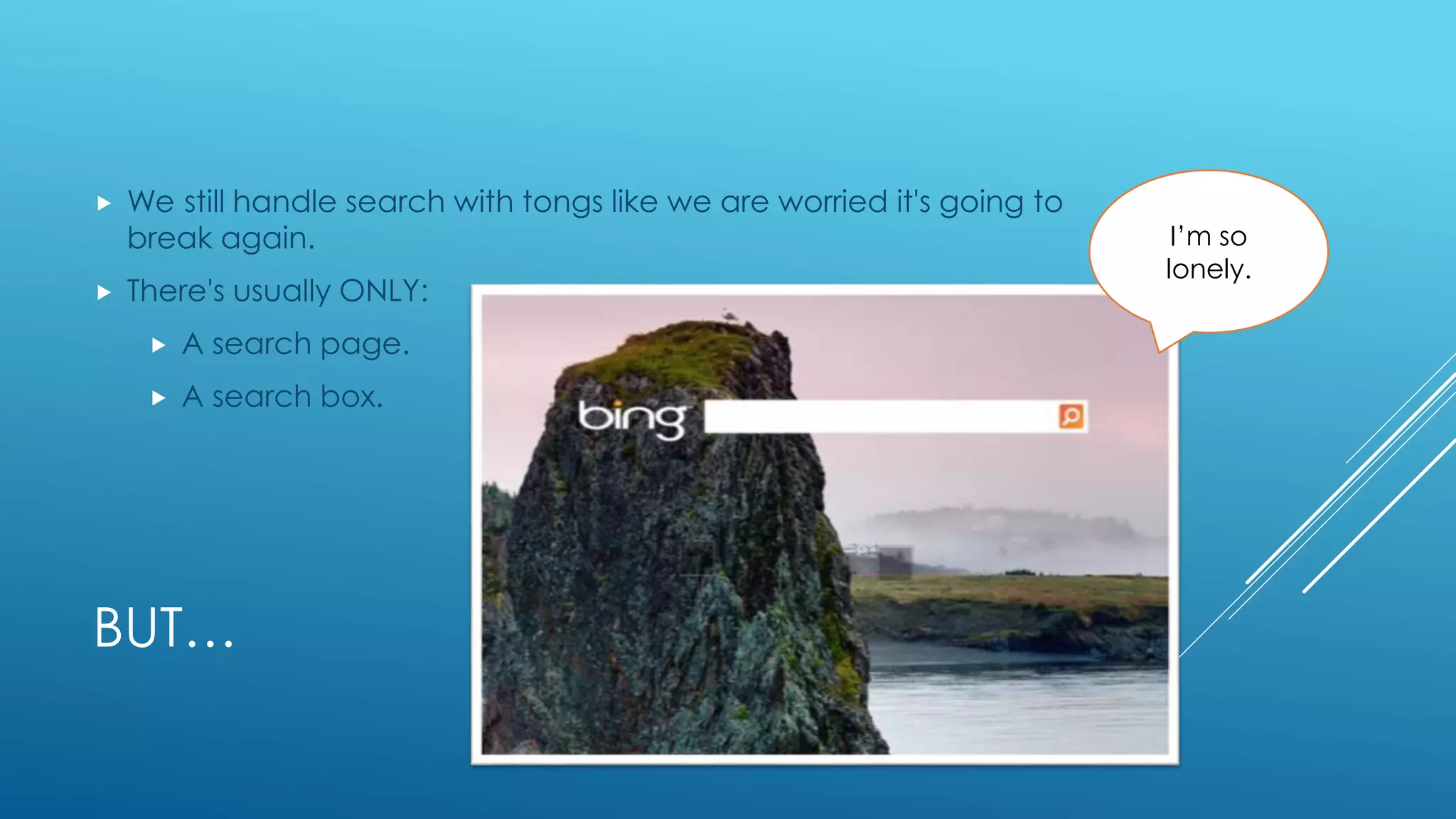

4. BUT…
 We still handle search with tongs like we are worried it's going to
break again.
 There's usually ONLY:
 A search page.
 A search box.
I’m so
lonely.

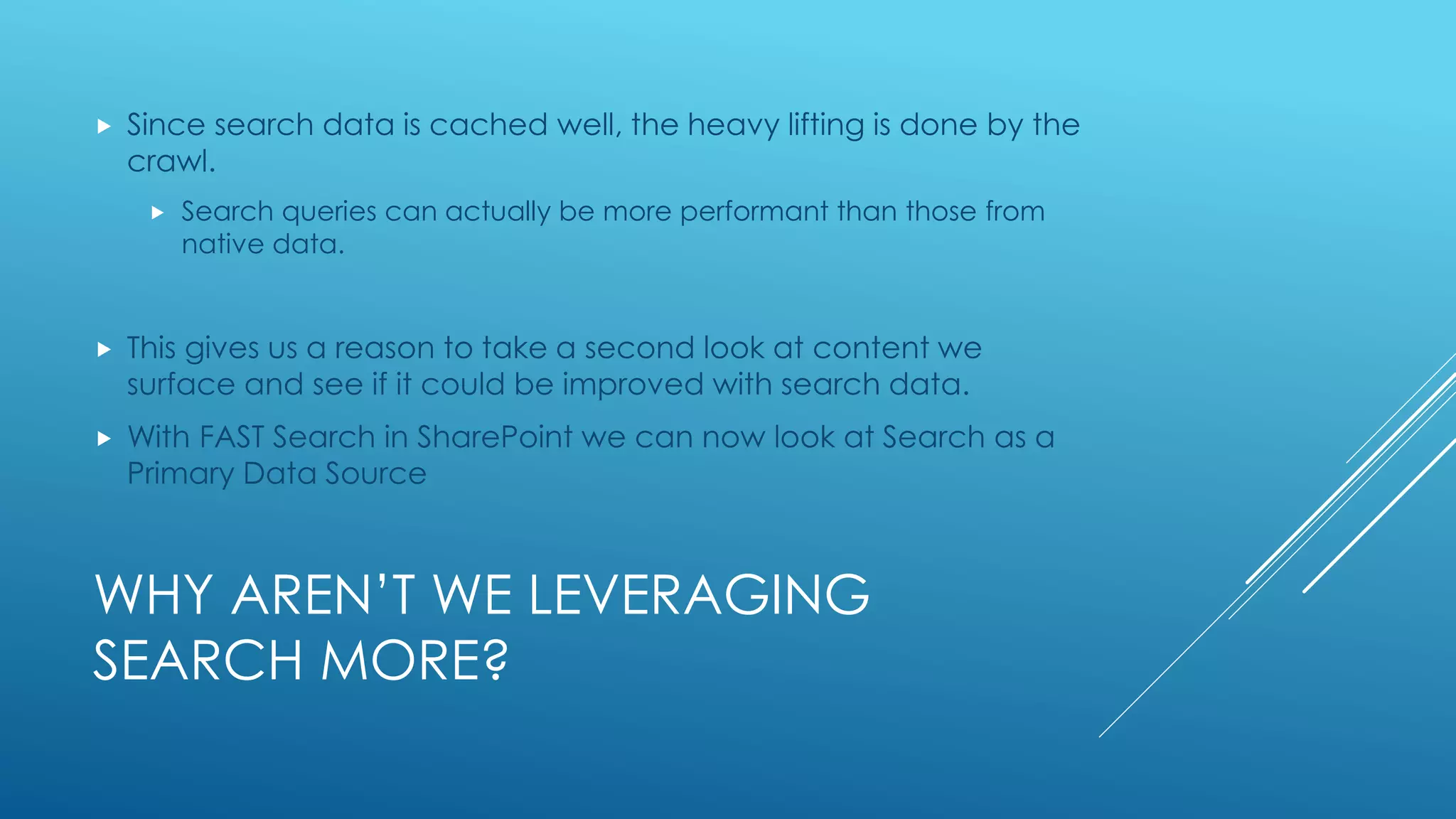

5. WHY AREN’T WE LEVERAGING
SEARCH MORE?
 Since search data is cached well, the heavy lifting is done by the
crawl.
 Search queries can actually be more performant than those from
native data.
 This gives us a reason to take a second look at content we
surface and see if it could be improved with search data.
 With FAST Search in SharePoint we can now look at Search as a
Primary Data Source

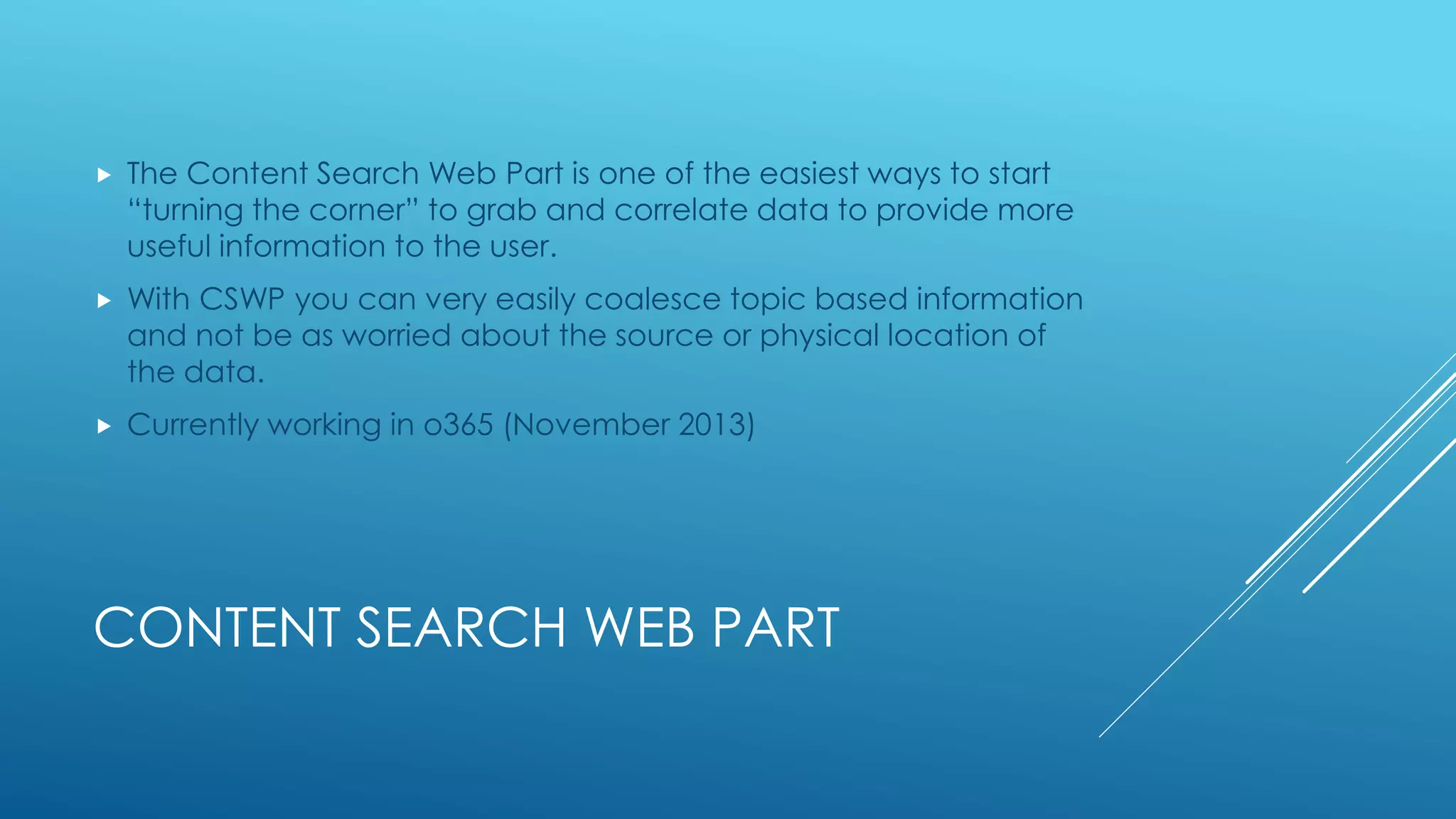

6. CONTENT SEARCH WEB PART
 The Content Search Web Part is one of the easiest ways to start
“turning the corner” to grab and correlate data to provide more
useful information to the user.
 With CSWP you can very easily coalesce topic based information
and not be as worried about the source or physical location of
the data.
 Currently working in o365 (November 2013)

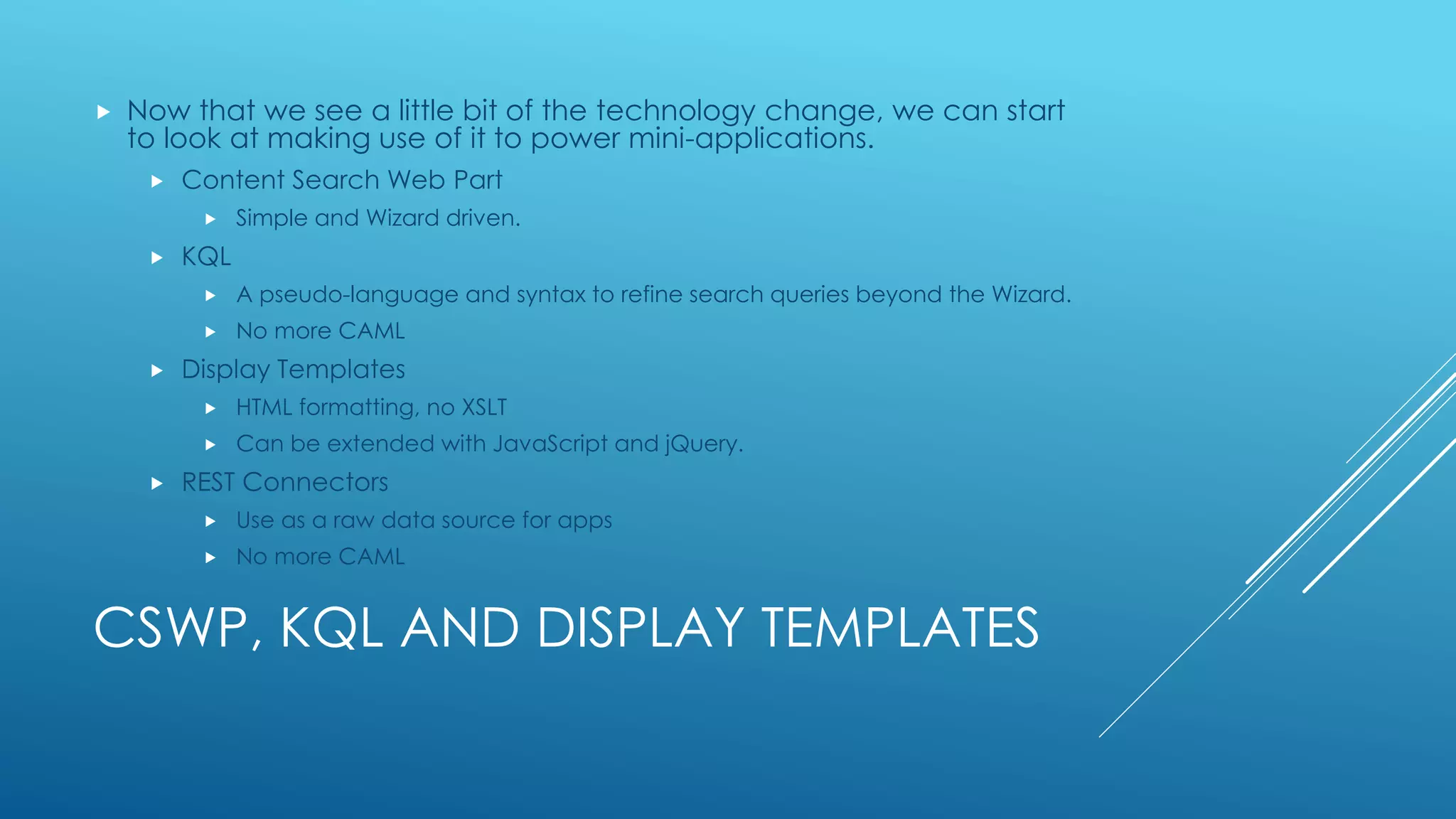

7. CSWP, KQL AND DISPLAY TEMPLATES
 Now that we see a little bit of the technology change, we can start
to look at making use of it to power mini-applications.
 Content Search Web Part
 Simple and Wizard driven.
 KQL
 A pseudo-language and syntax to refine search queries beyond the Wizard.
 No more CAML
 Display Templates
 HTML formatting, no XSLT
 Can be extended with JavaScript and jQuery.
 REST Connectors
 Use as a raw data source for apps
 No more CAML

8. OUT OF THE BOX,
IT LEAVES A LOT TO BE DESIRED.

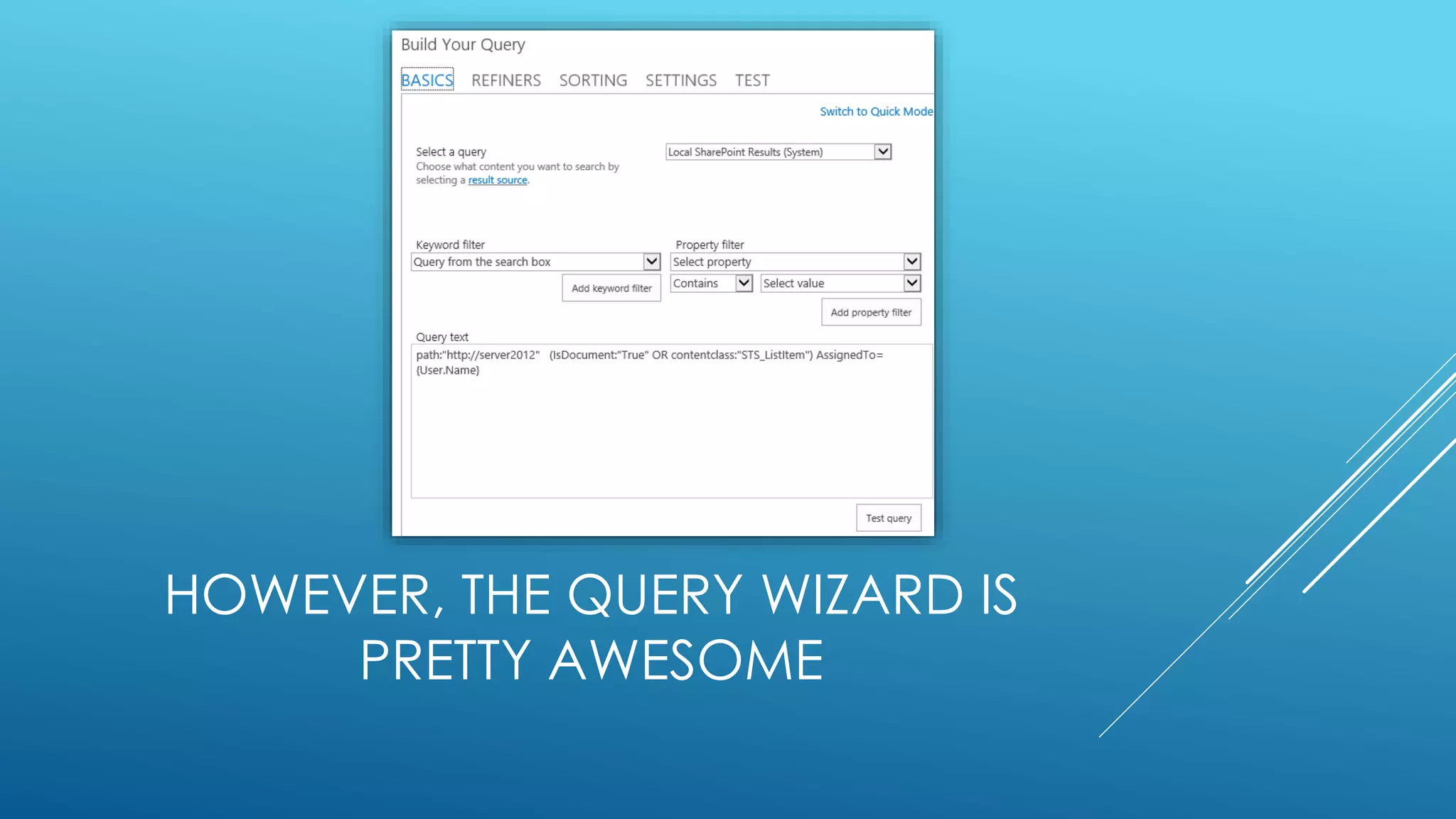

9. HOWEVER, THE QUERY WIZARD IS
PRETTY AWESOME

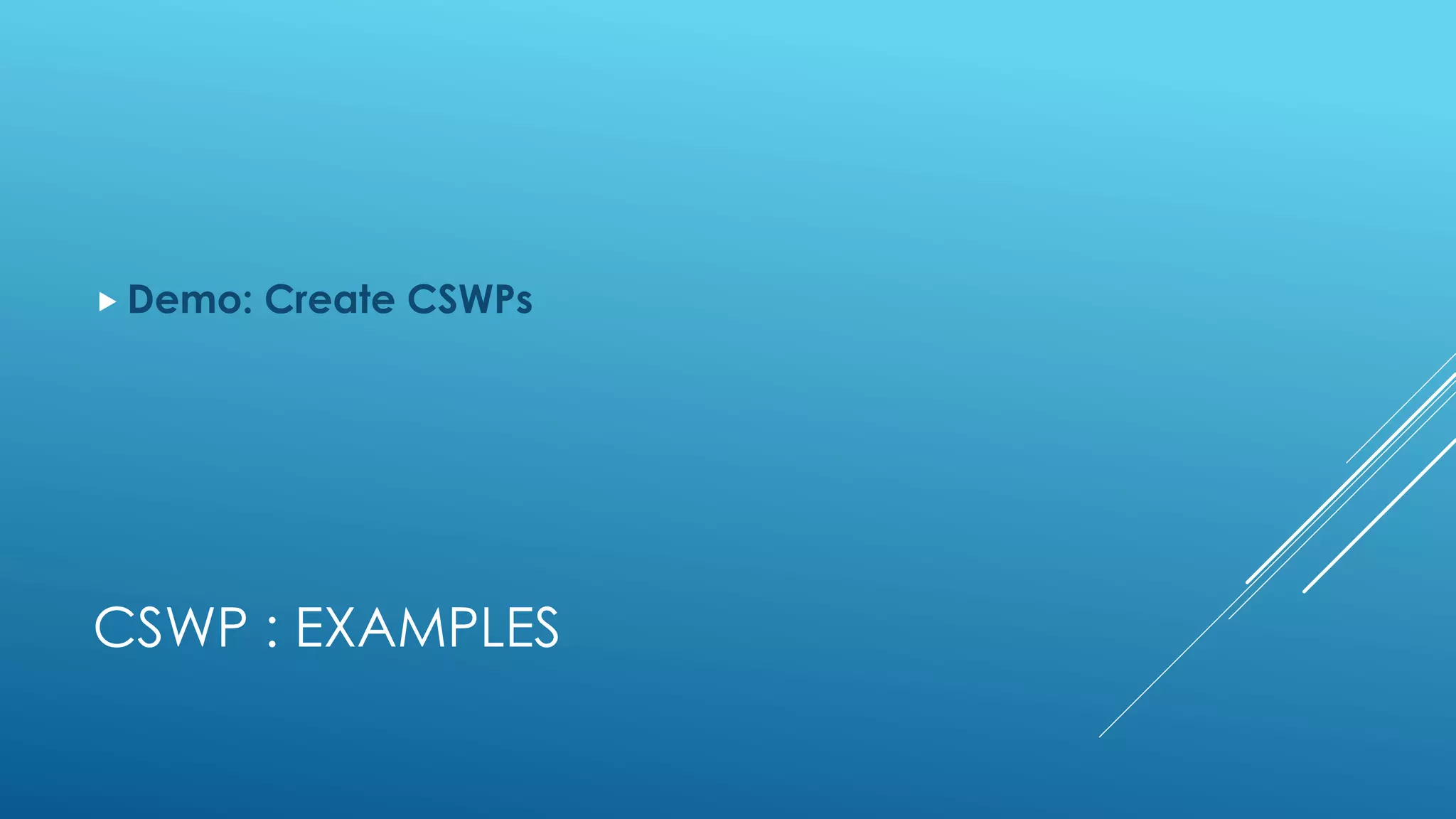

10. CSWP : EXAMPLES
 Demo: Create CSWPs

11. CSWP : EXAMPLES

12. CSWP : VS. WMS
 WMS (Work Management Service)
 Limited
 Fast
 Tied to User Profile, Search and WMS Services
 CSWP
 Flexible
 Predictable
 Only dependent on Search Service

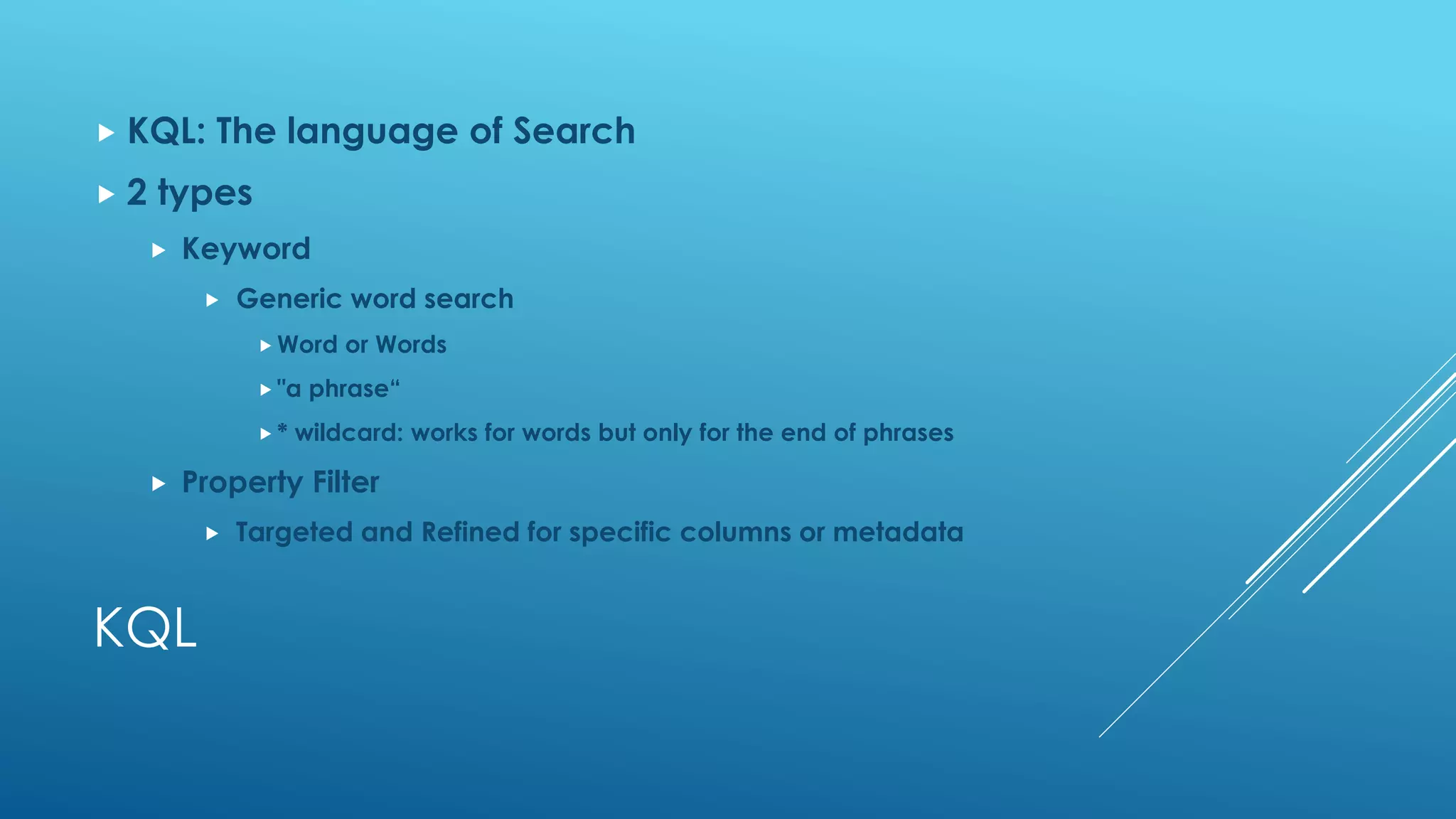

13. KQL
 KQL: The language of Search
 2 types
 Keyword
 Generic word search
 Word or Words
 "a phrase“
 * wildcard: works for words but only for the end of phrases
 Property Filter
 Targeted and Refined for specific columns or metadata

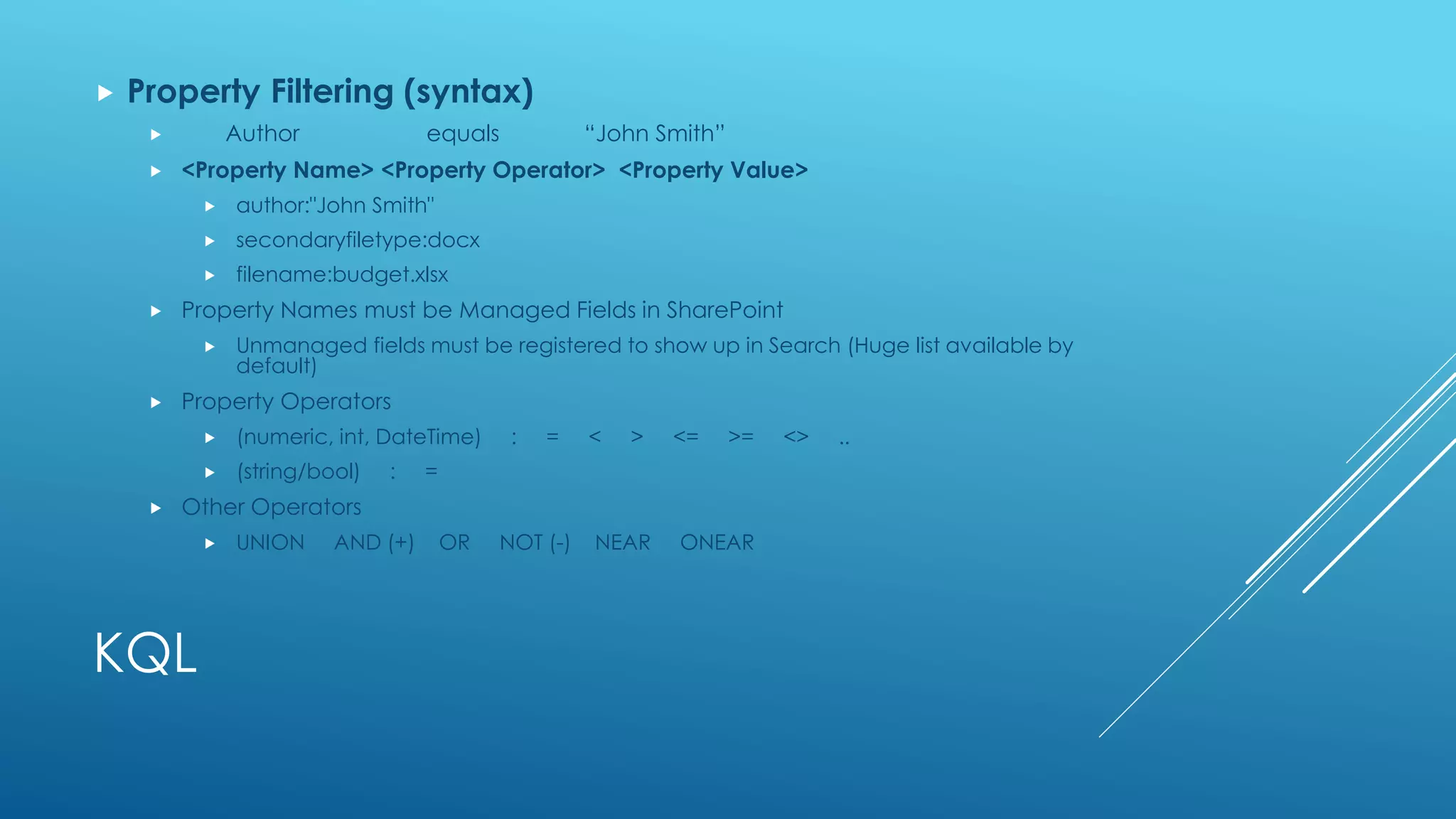

14. KQL
 Property Filtering (syntax)
 Author equals “John Smith”
 <Property Name> <Property Operator> <Property Value>
 author:"John Smith"
 secondaryfiletype:docx
 filename:budget.xlsx
 Property Names must be Managed Fields in SharePoint
 Unmanaged fields must be registered to show up in Search (Huge list available by
default)
 Property Operators
 (numeric, int, DateTime) : = < > <= >= <> ..
 (string/bool) : =
 Other Operators
 UNION AND (+) OR NOT (-) NEAR ONEAR

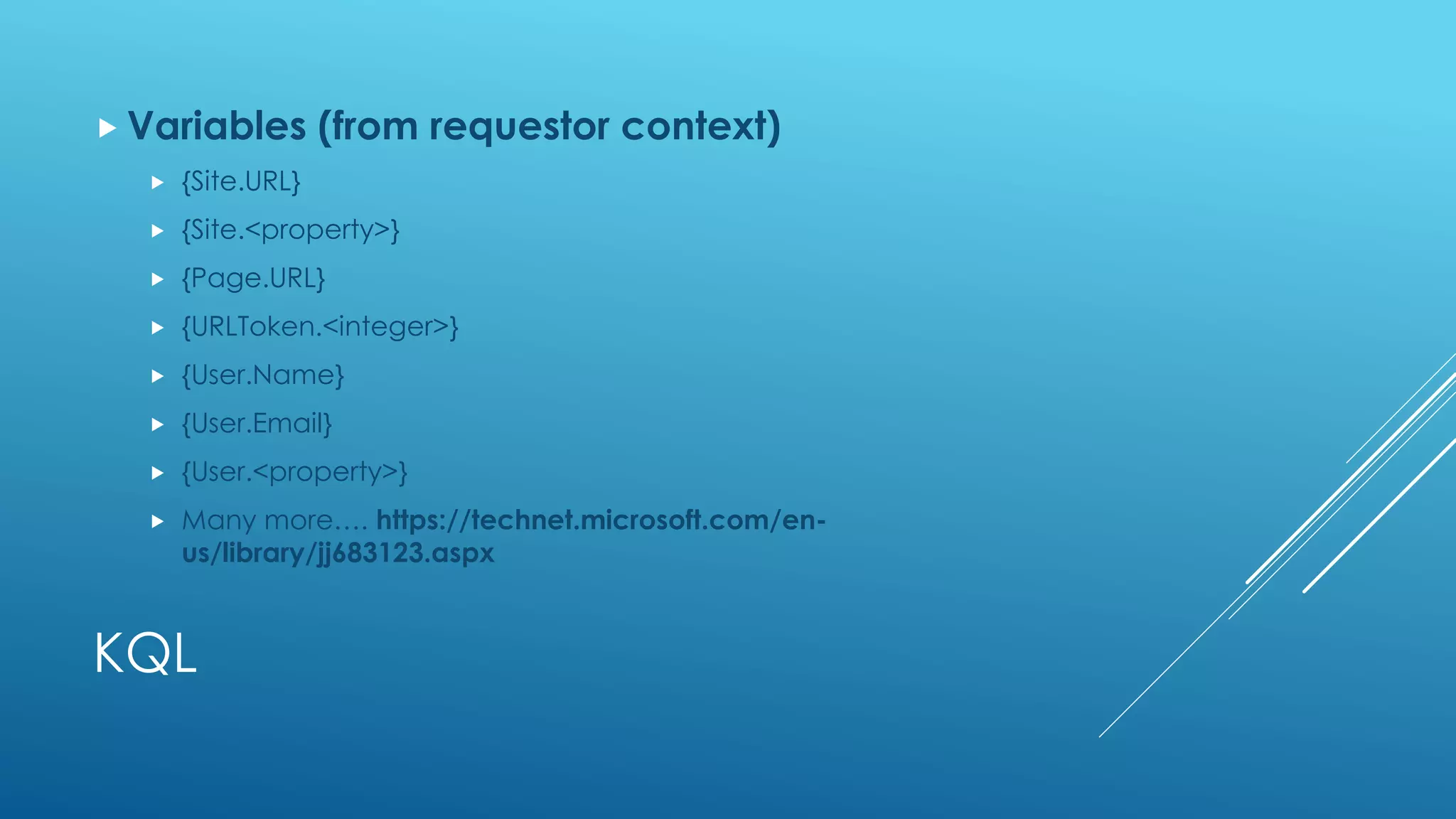

15. KQL
 Variables (from requestor context)
 {Site.URL}
 {Site.<property>}
 {Page.URL}
 {URLToken.<integer>}
 {User.Name}
 {User.Email}
 {User.<property>}
 Many more…. https://technet.microsoft.com/en-
us/library/jj683123.aspx

16. KQL
 Attributes (from result set)
 https://technet.microsoft.com/en-us/library/jj219630.aspx

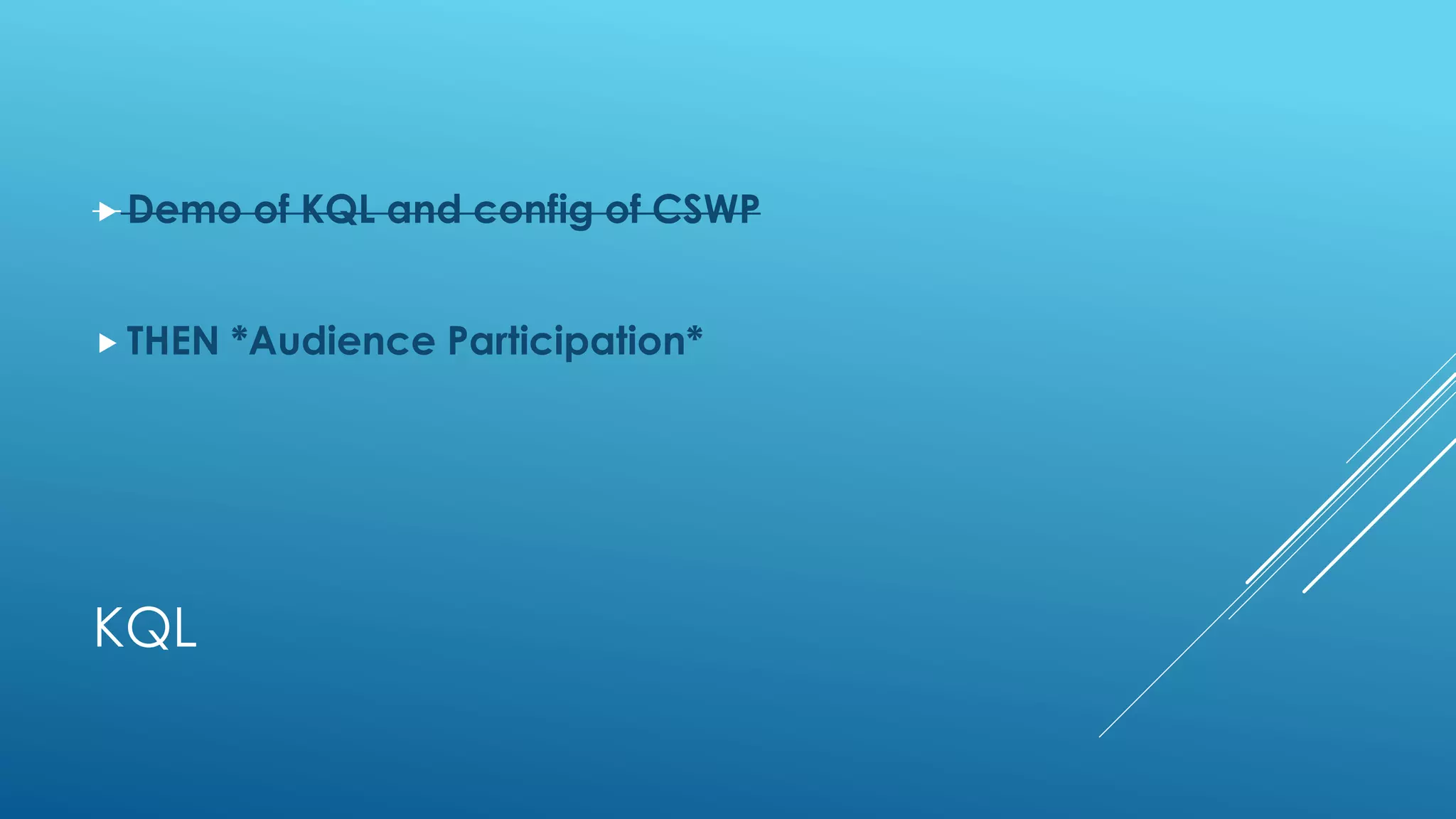

17. KQL
 Demo of KQL and config of CSWP
 THEN *Audience Participation*

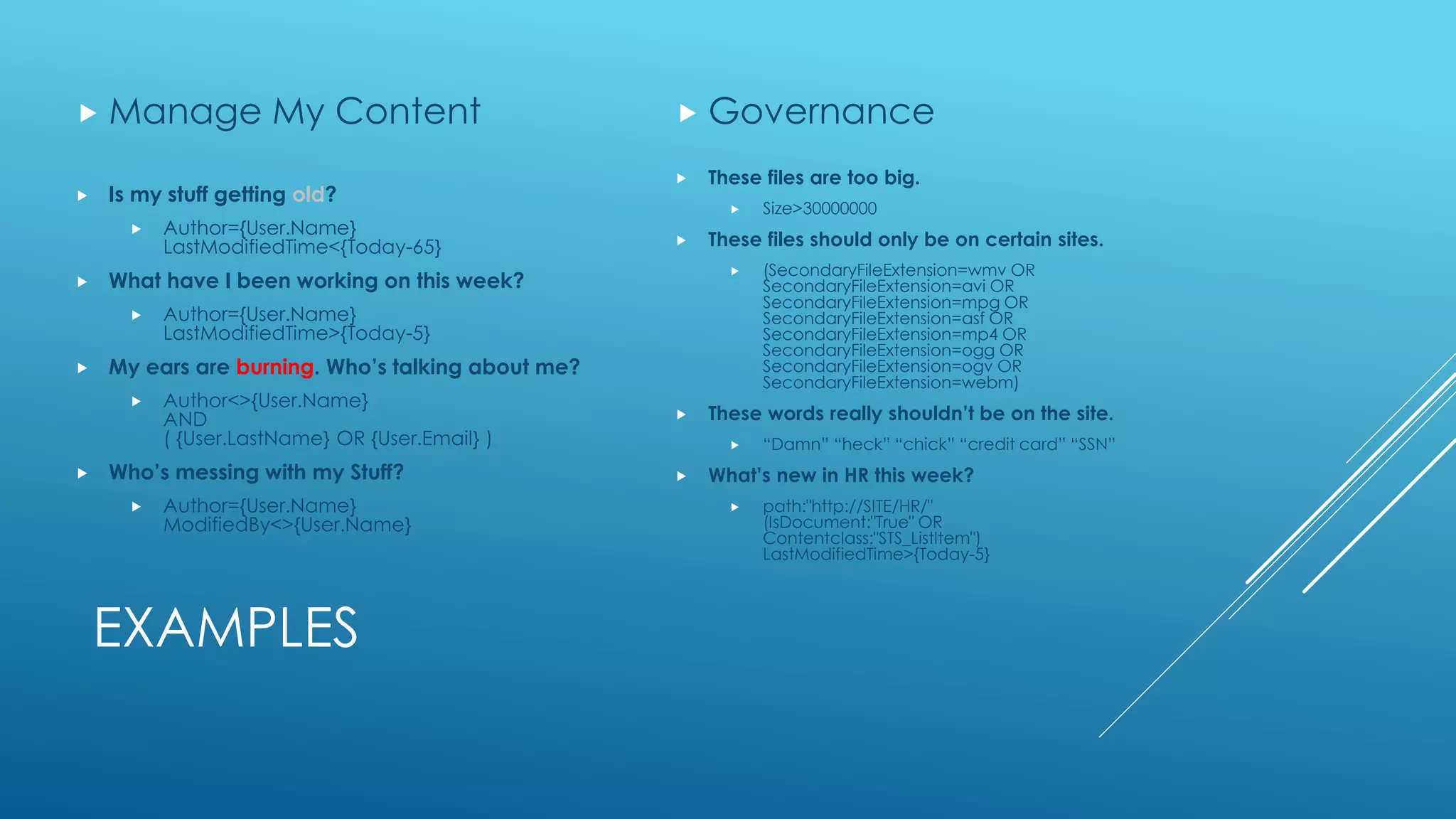

18. EXAMPLES
 Is my stuff getting old?
 Author={User.Name}
LastModifiedTime<{Today-65}
 What have I been working on this week?
 Author={User.Name}
LastModifiedTime>{Today-5}
 My ears are burning. Who’s talking about me?
 Author<>{User.Name}
AND
( {User.LastName} OR {User.Email} )
 Who’s messing with my Stuff?
 Author={User.Name}
ModifiedBy<>{User.Name}
 Manage My Content
 These files are too big.
 Size>30000000
 These files should only be on certain sites.
 (SecondaryFileExtension=wmv OR
SecondaryFileExtension=avi OR
SecondaryFileExtension=mpg OR
SecondaryFileExtension=asf OR
SecondaryFileExtension=mp4 OR
SecondaryFileExtension=ogg OR
SecondaryFileExtension=ogv OR
SecondaryFileExtension=webm)
 These words really shouldn’t be on the site.
 “Damn” “heck” “chick” “credit card” “SSN”
 What’s new in HR this week?
 path:"http://SITE/HR/"
(IsDocument:"True" OR
Contentclass:"STS_ListItem")
LastModifiedTime>{Today-5}
 Governance

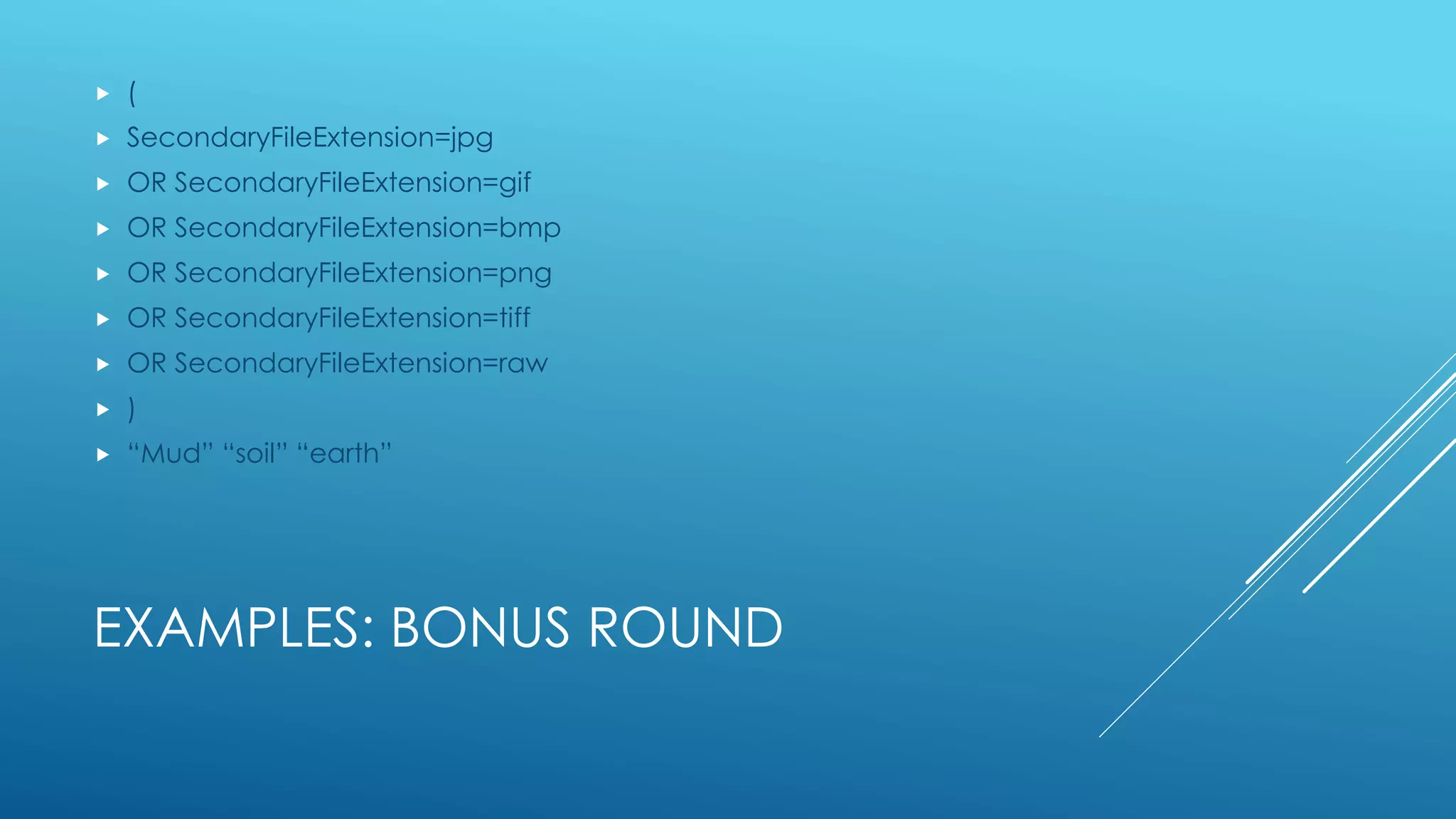

19. EXAMPLES: BONUS ROUND
 (
 SecondaryFileExtension=jpg
 OR SecondaryFileExtension=gif
 OR SecondaryFileExtension=bmp
 OR SecondaryFileExtension=png
 OR SecondaryFileExtension=tiff
 OR SecondaryFileExtension=raw
 )
 “Mud” “soil” “earth”

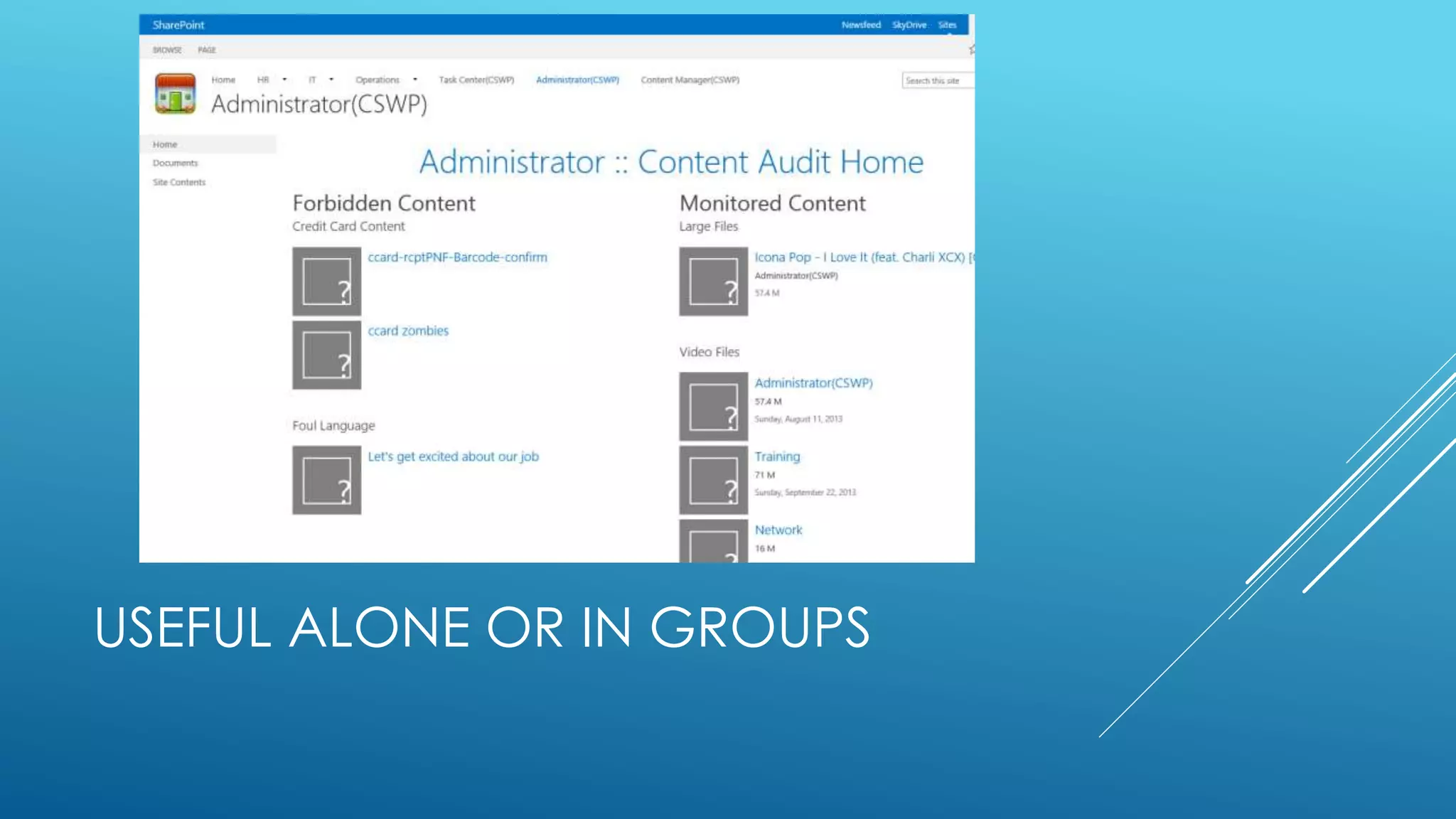

20. USEFUL ALONE OR IN GROUPS

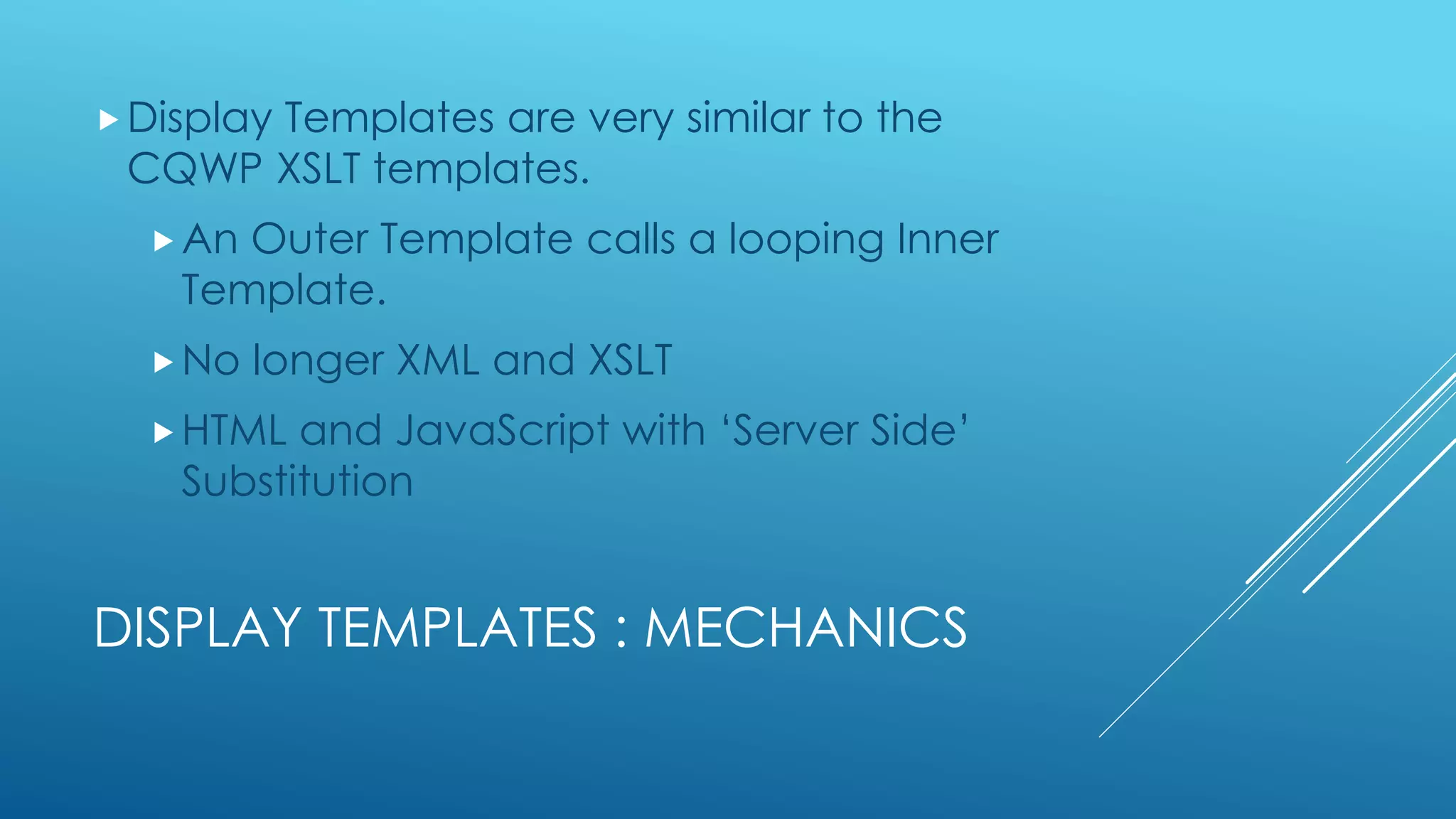

21. DISPLAY TEMPLATES : MECHANICS
Display Templates are very similar to the
CQWP XSLT templates.
An Outer Template calls a looping Inner
Template.
No longer XML and XSLT
HTML and JavaScript with ‘Server Side’
Substitution

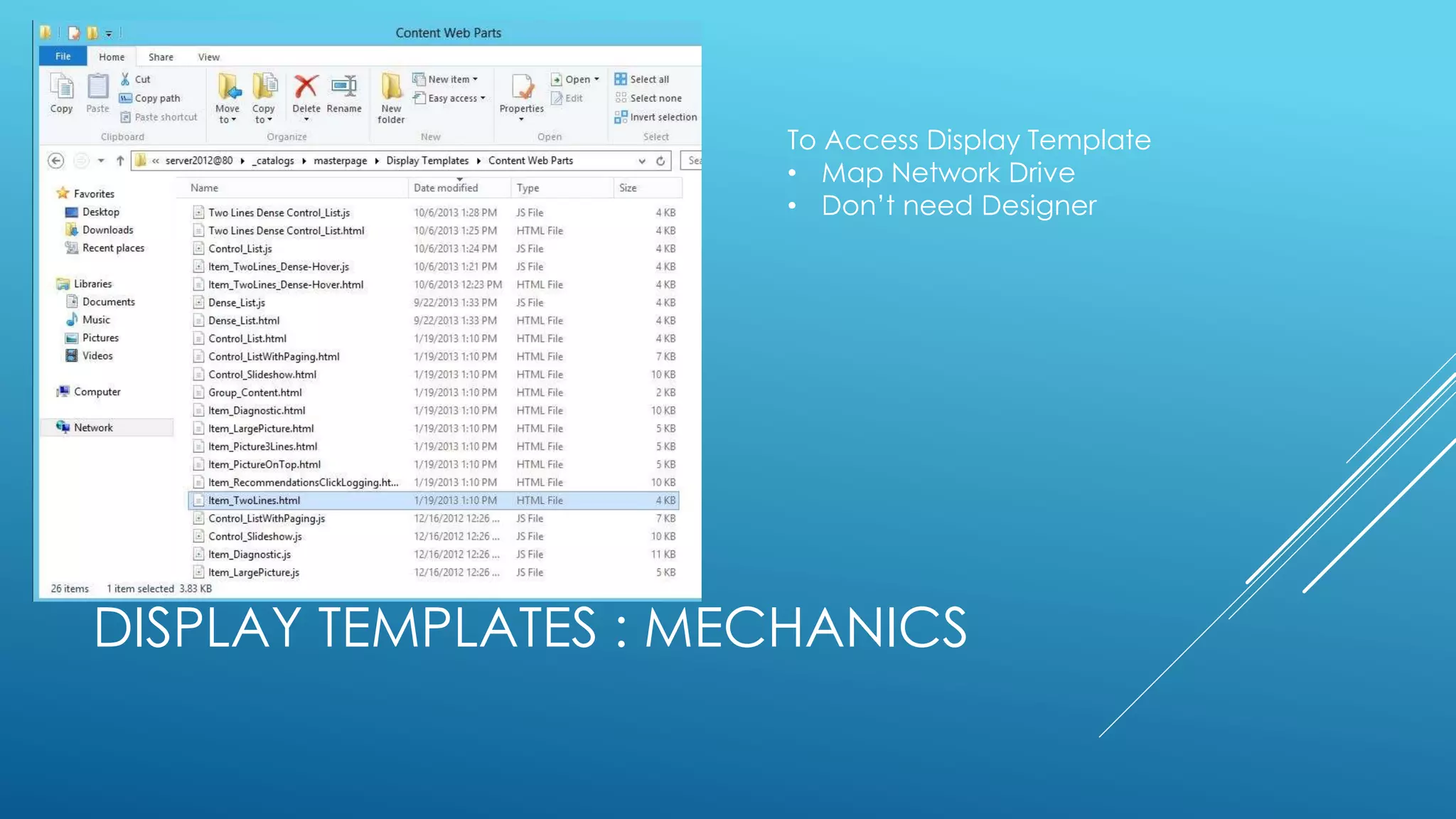

22. DISPLAY TEMPLATES : MECHANICS
To Access Display Template
• Map Network Drive
• Don’t need Designer

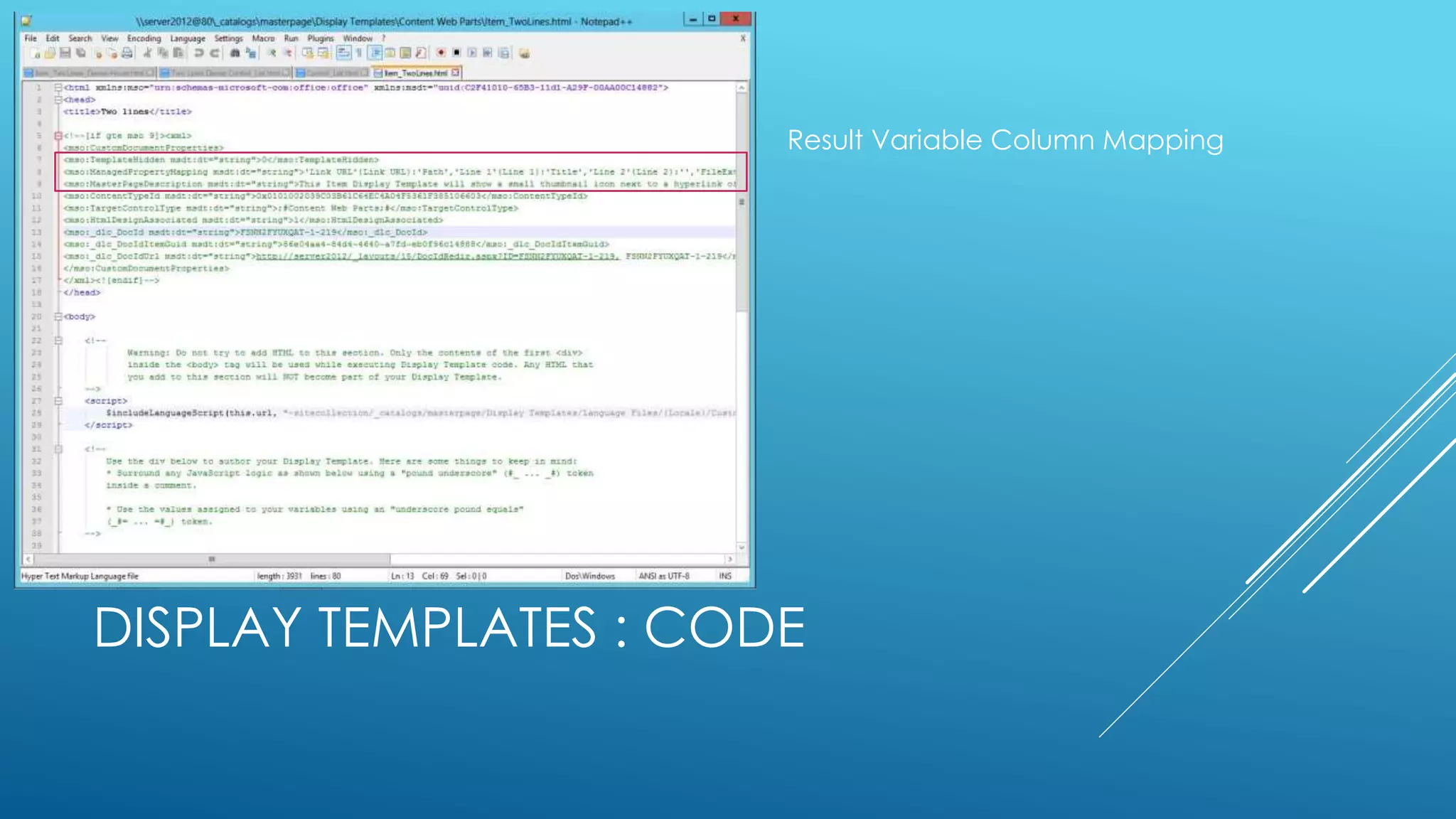

23. DISPLAY TEMPLATES : CODE
Result Variable Column Mapping

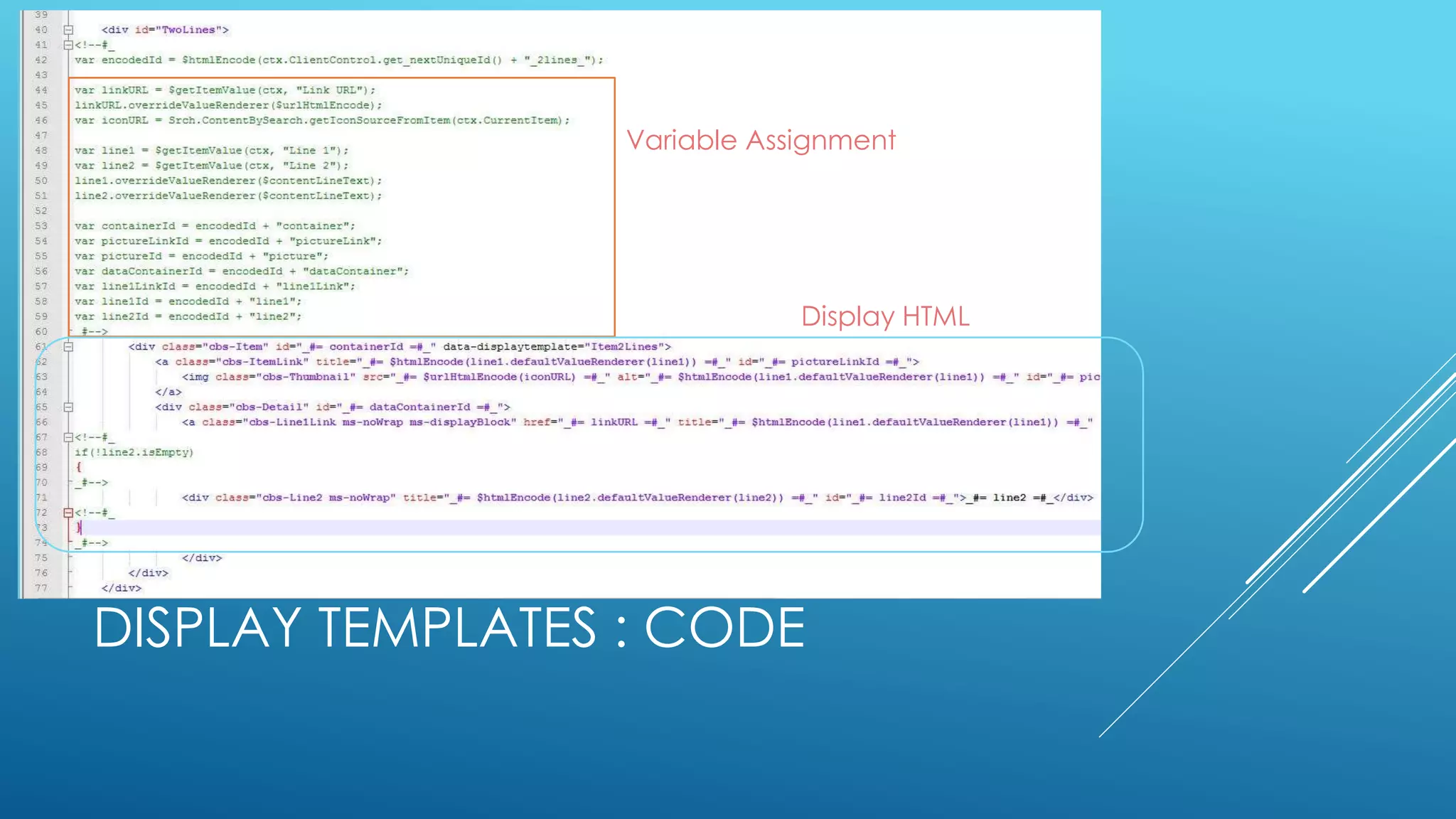

24. DISPLAY TEMPLATES : CODE
Variable Assignment
Display HTML

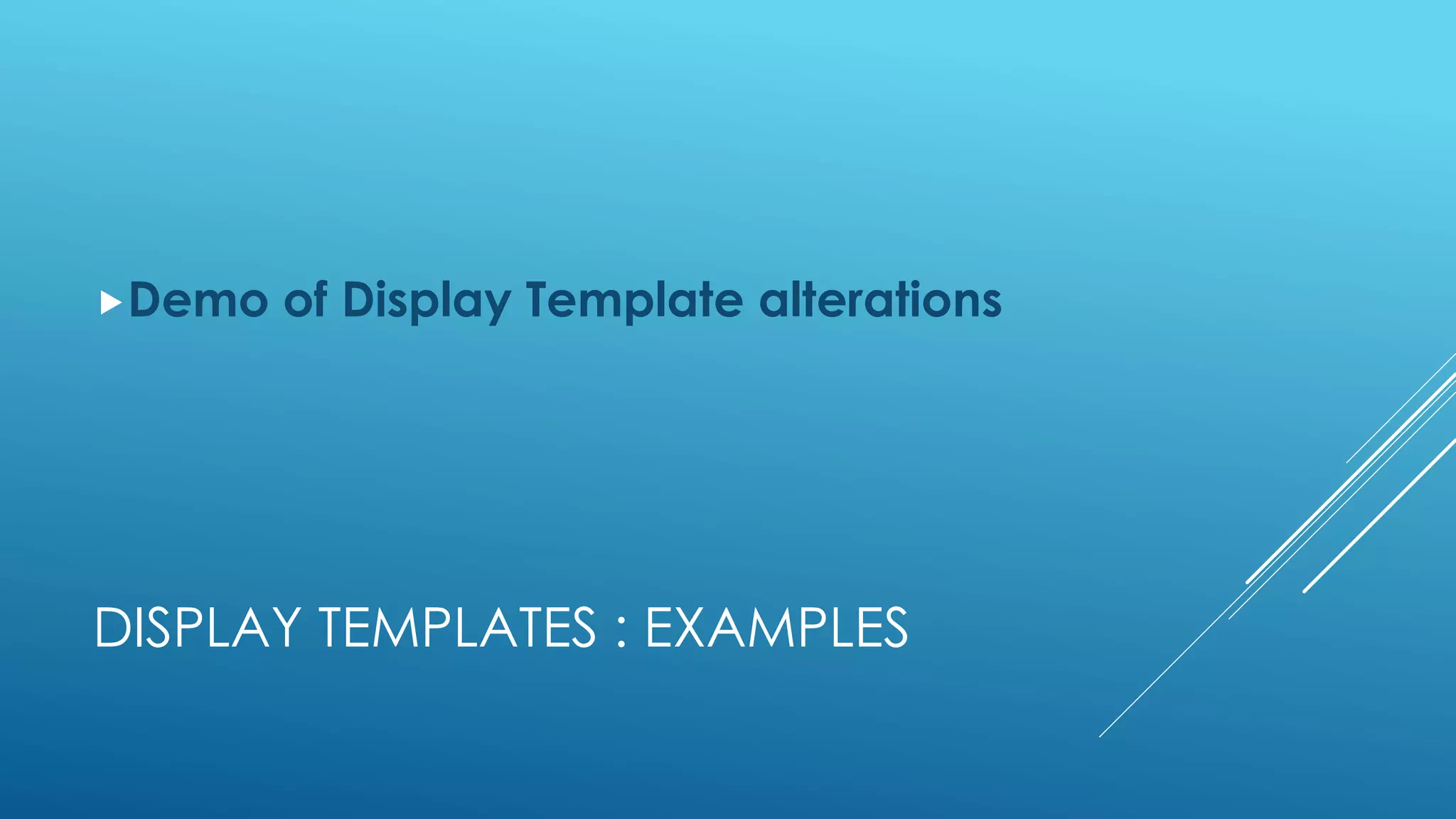

25. DISPLAY TEMPLATES : EXAMPLES
Demo of Display Template alterations

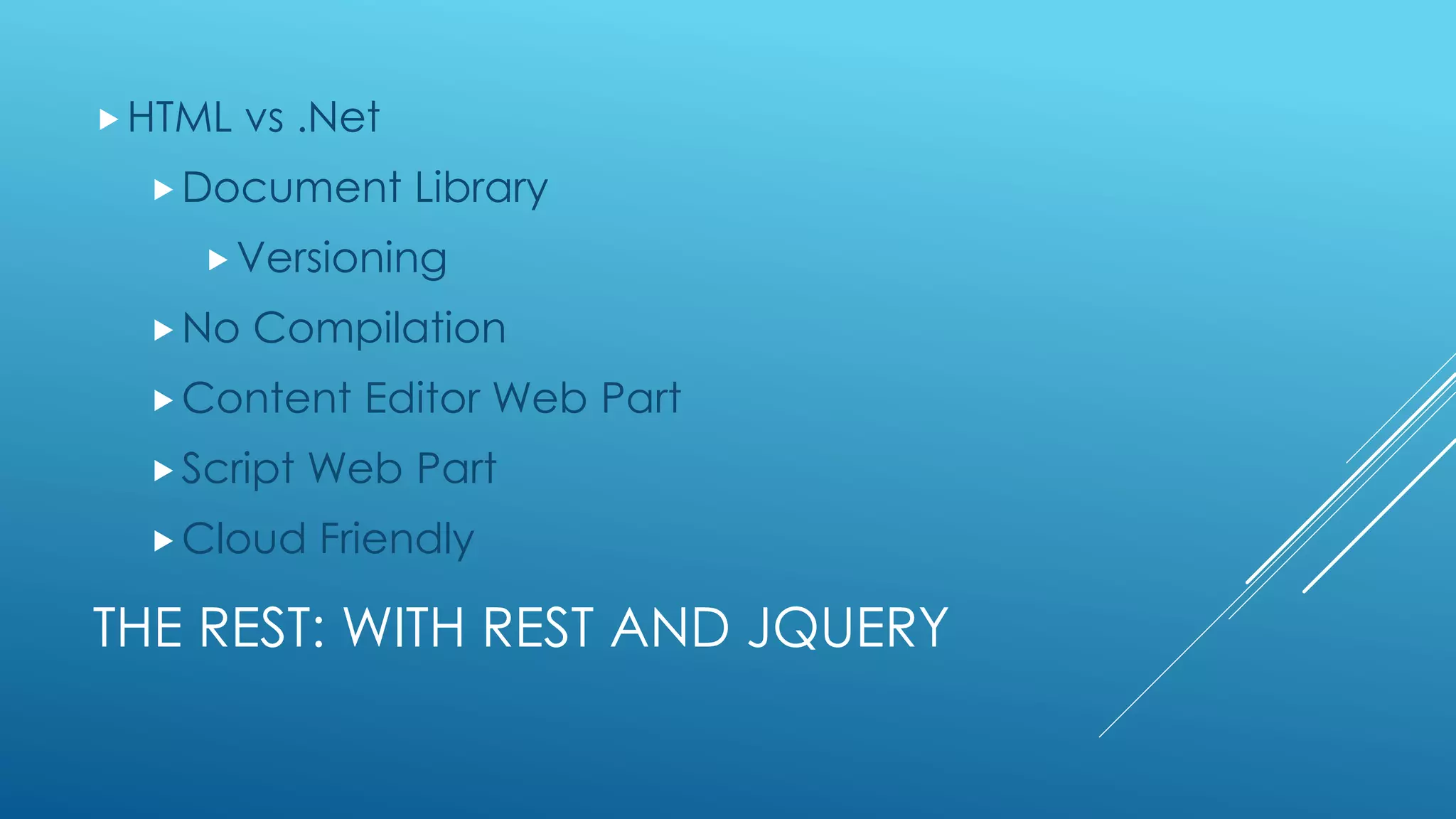

26. THE REST: WITH REST AND JQUERY
HTML vs .Net
Document Library
Versioning
No Compilation
Content Editor Web Part
Script Web Part
Cloud Friendly

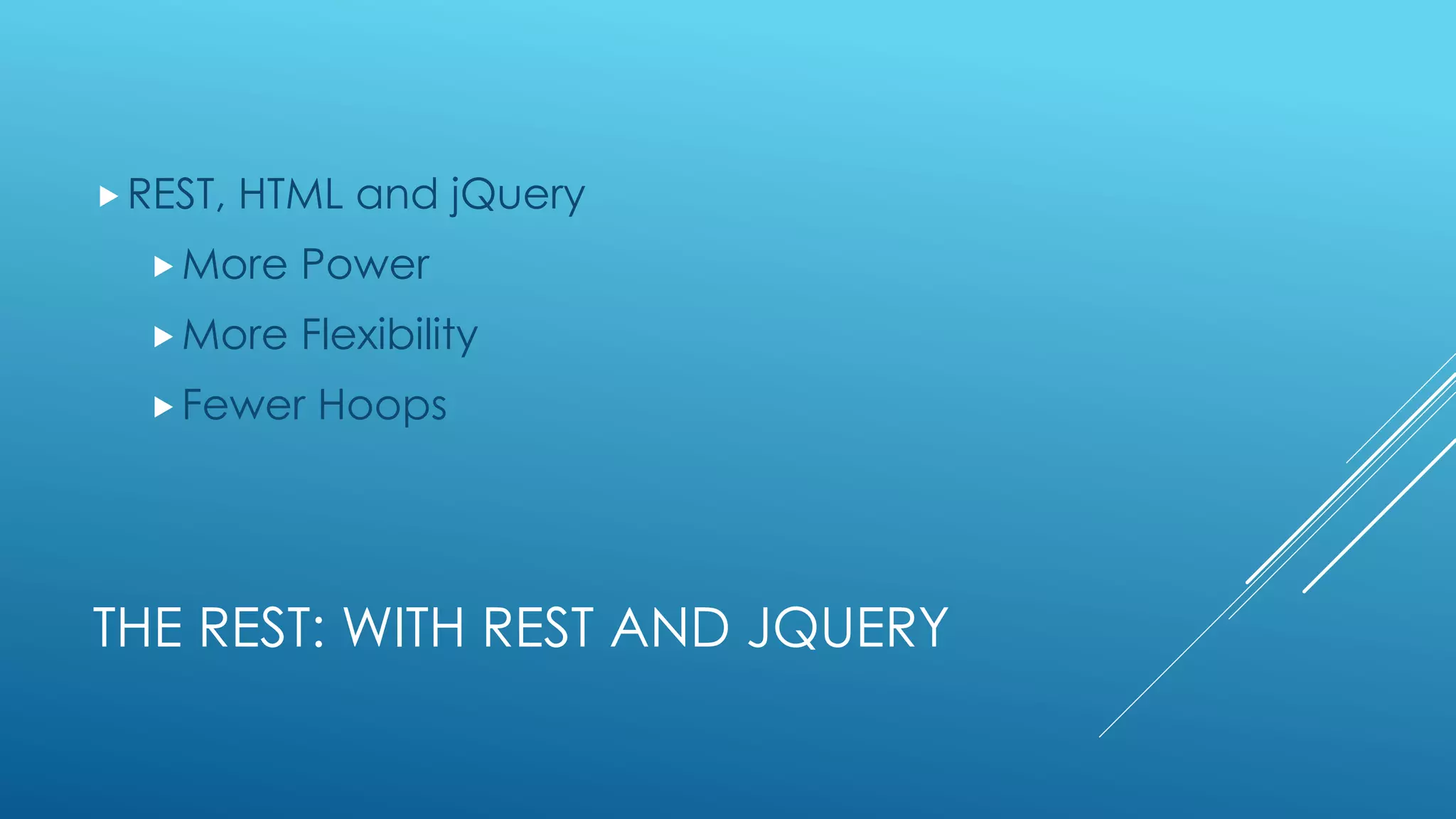

27. THE REST: WITH REST AND JQUERY
REST, HTML and jQuery
More Power
More Flexibility
Fewer Hoops

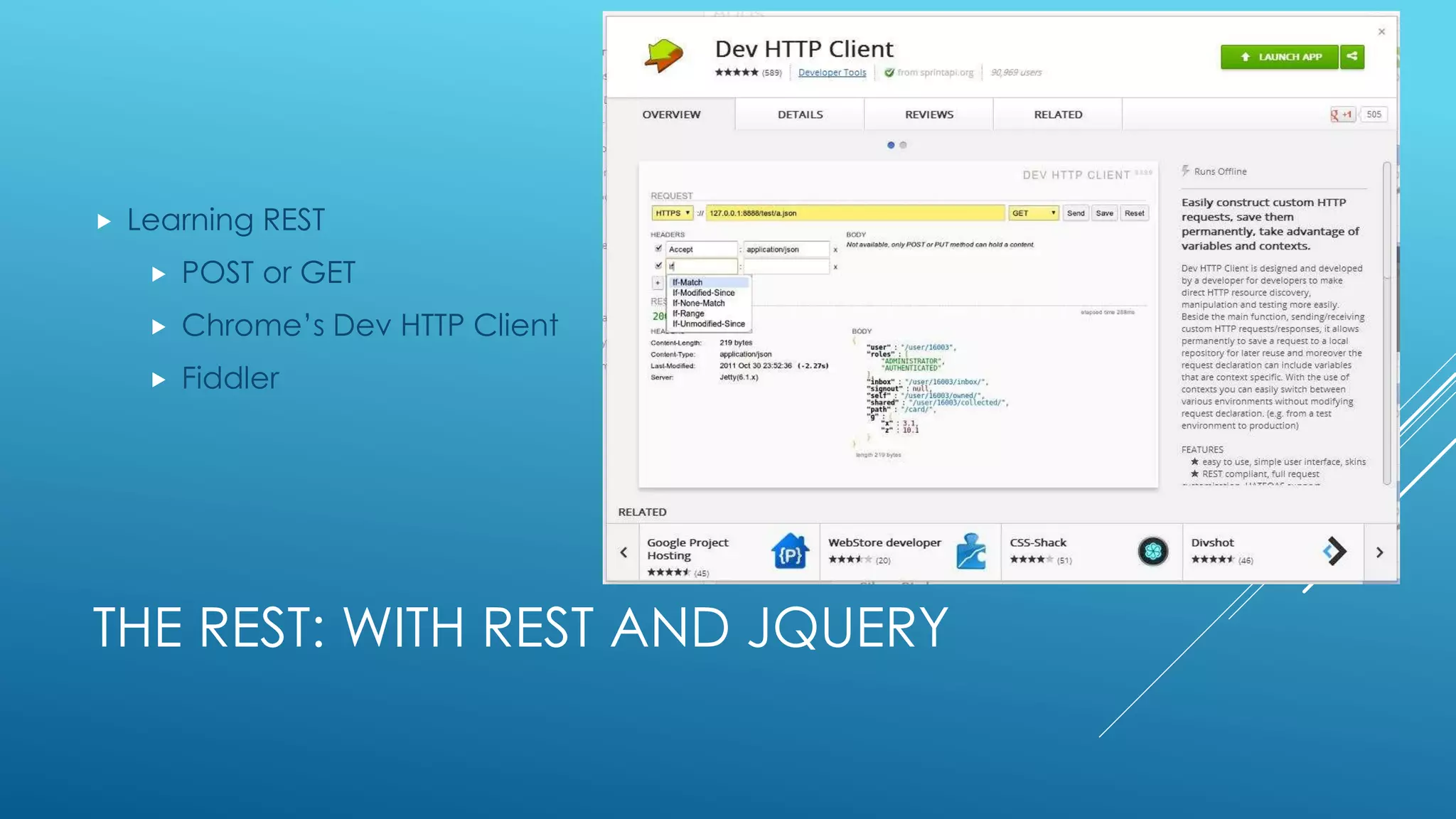

28. THE REST: WITH REST AND JQUERY
 Learning REST
 POST or GET
 Chrome’s Dev HTTP Client
 Fiddler

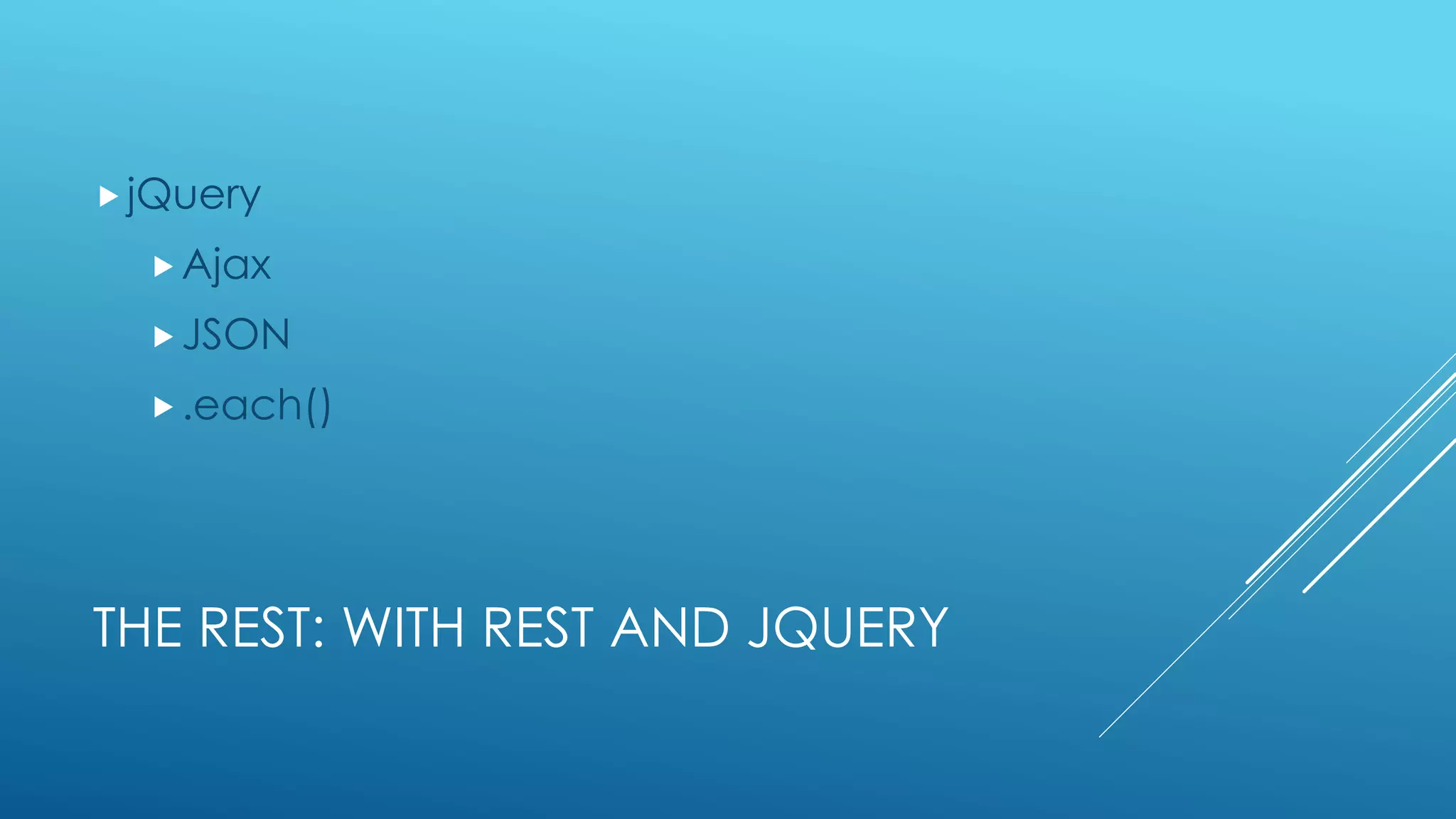

29. THE REST: WITH REST AND JQUERY
jQuery
Ajax
JSON
.each()

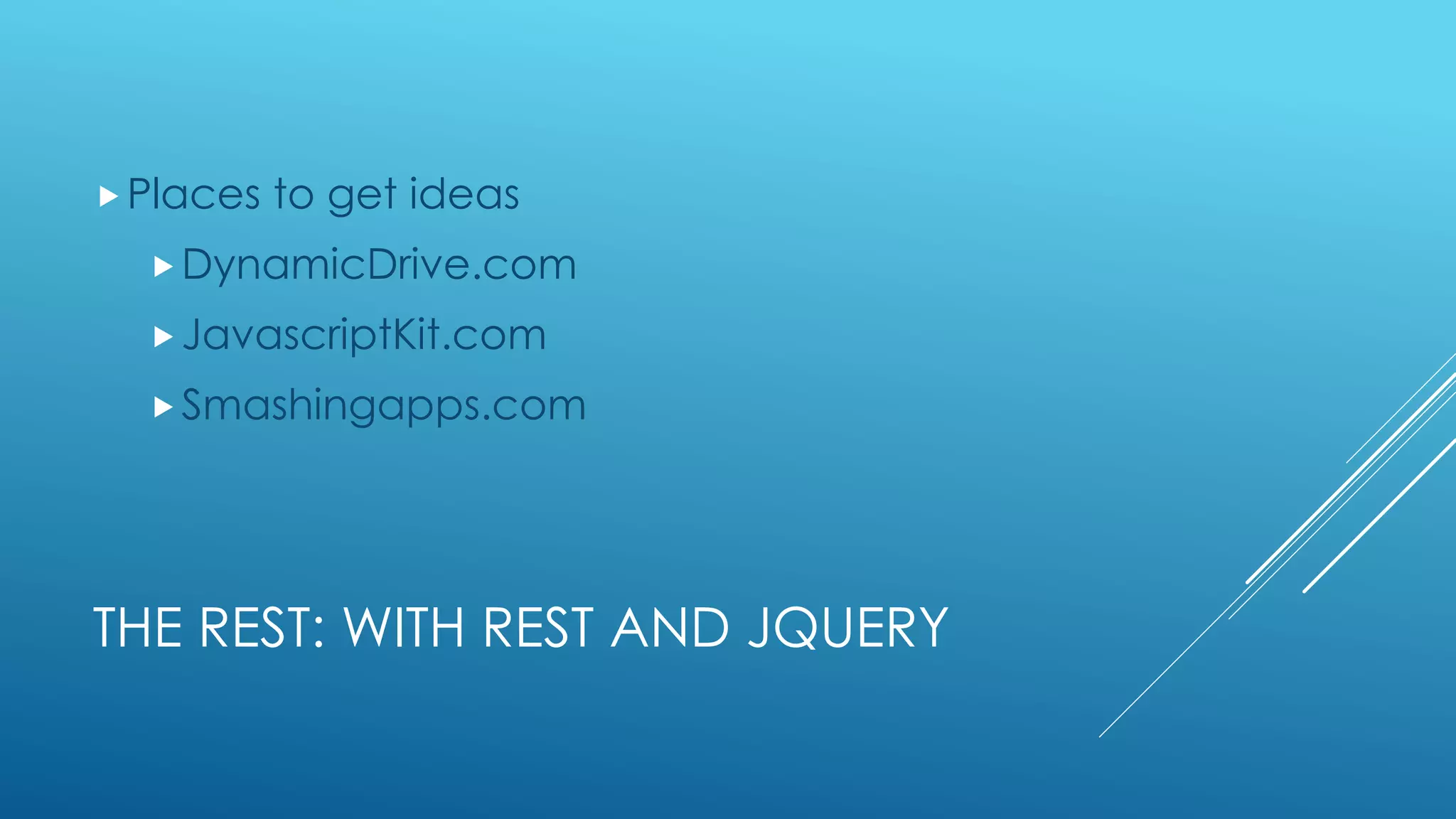

30. THE REST: WITH REST AND JQUERY
Places to get ideas
DynamicDrive.com
JavascriptKit.com
Smashingapps.com

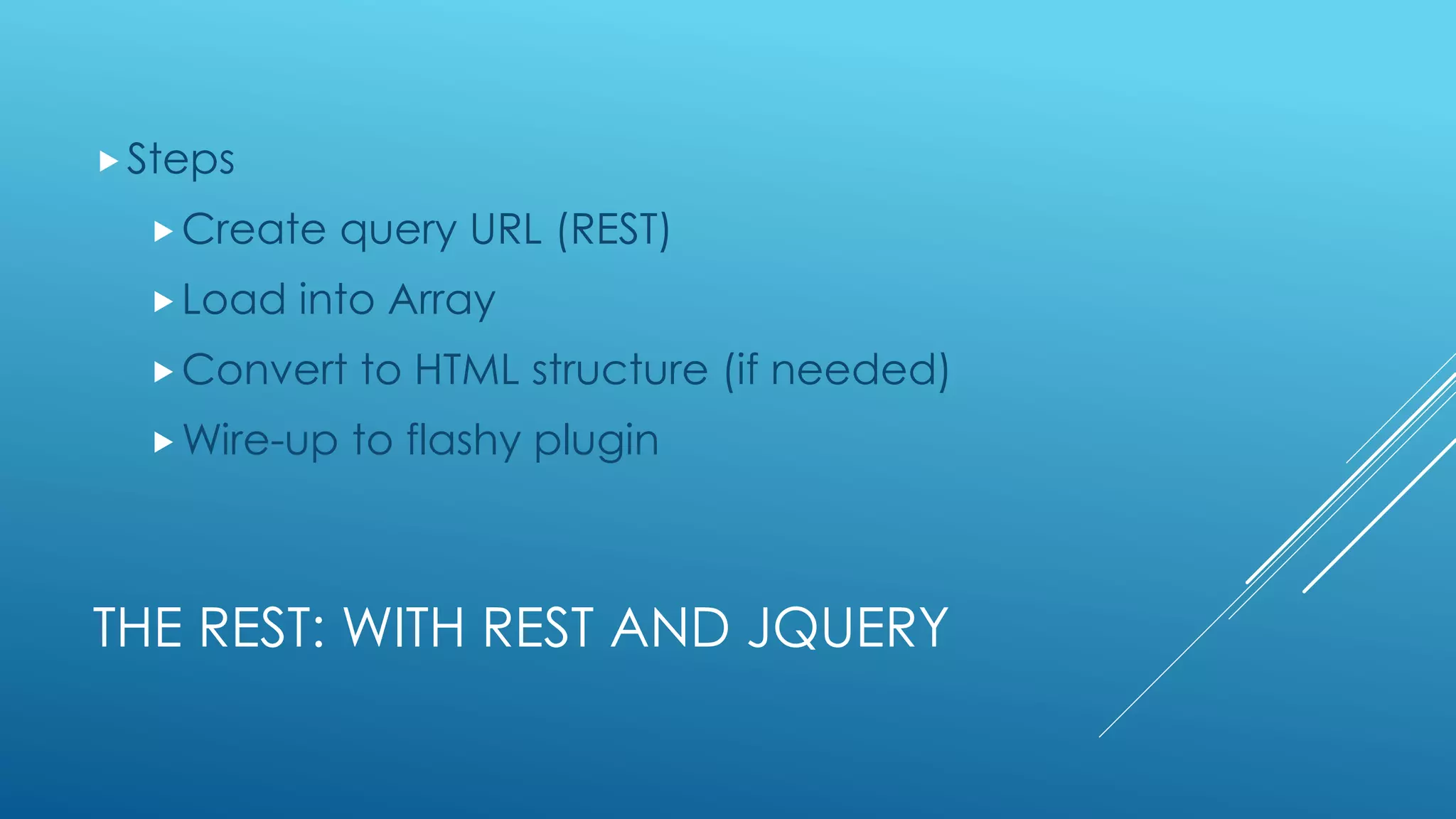

31. THE REST: WITH REST AND JQUERY
Steps
Create query URL (REST)
Load into Array
Convert to HTML structure (if needed)
Wire-up to flashy plugin

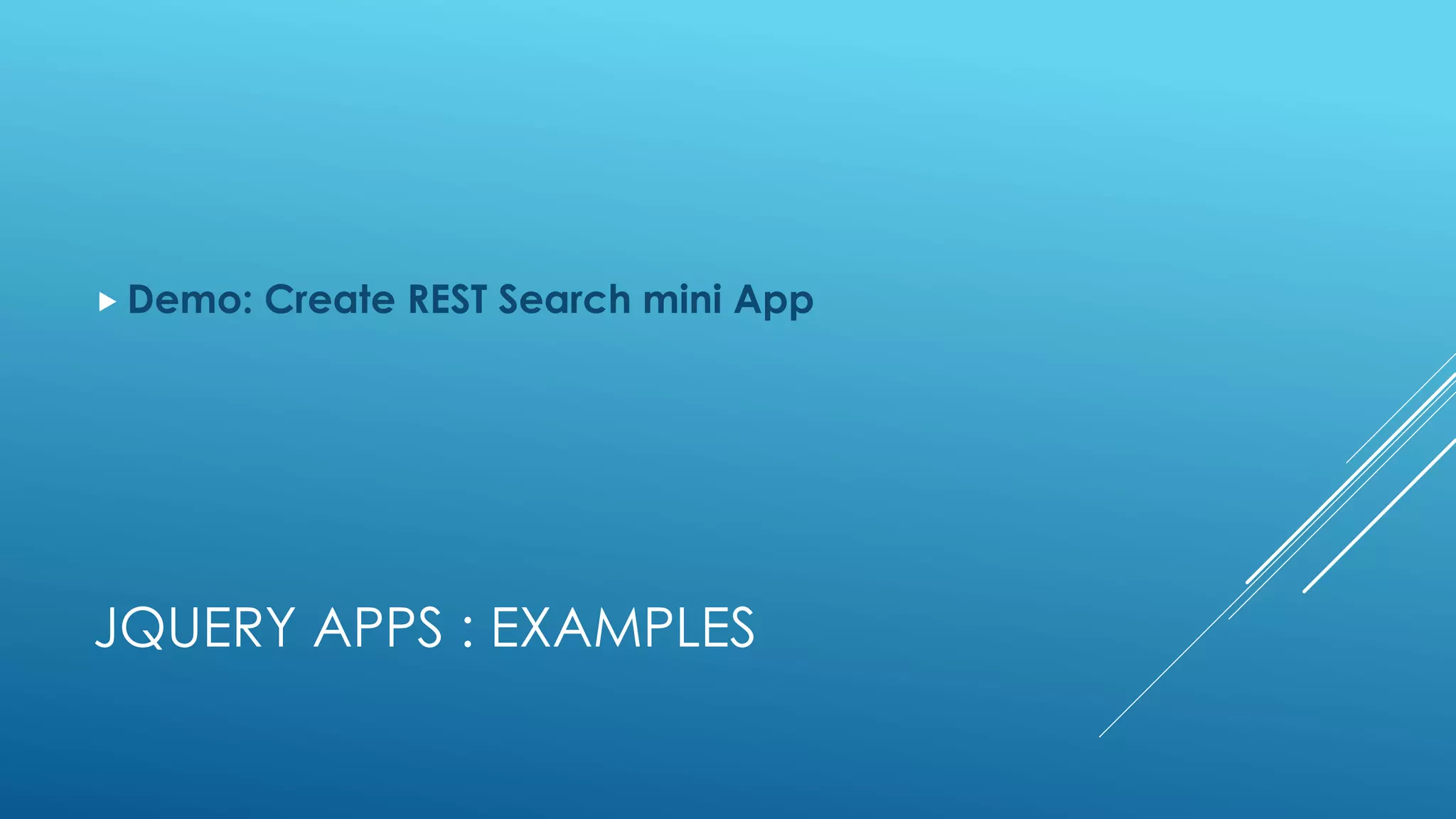

32. JQUERY APPS : EXAMPLES
 Demo: Create REST Search mini App

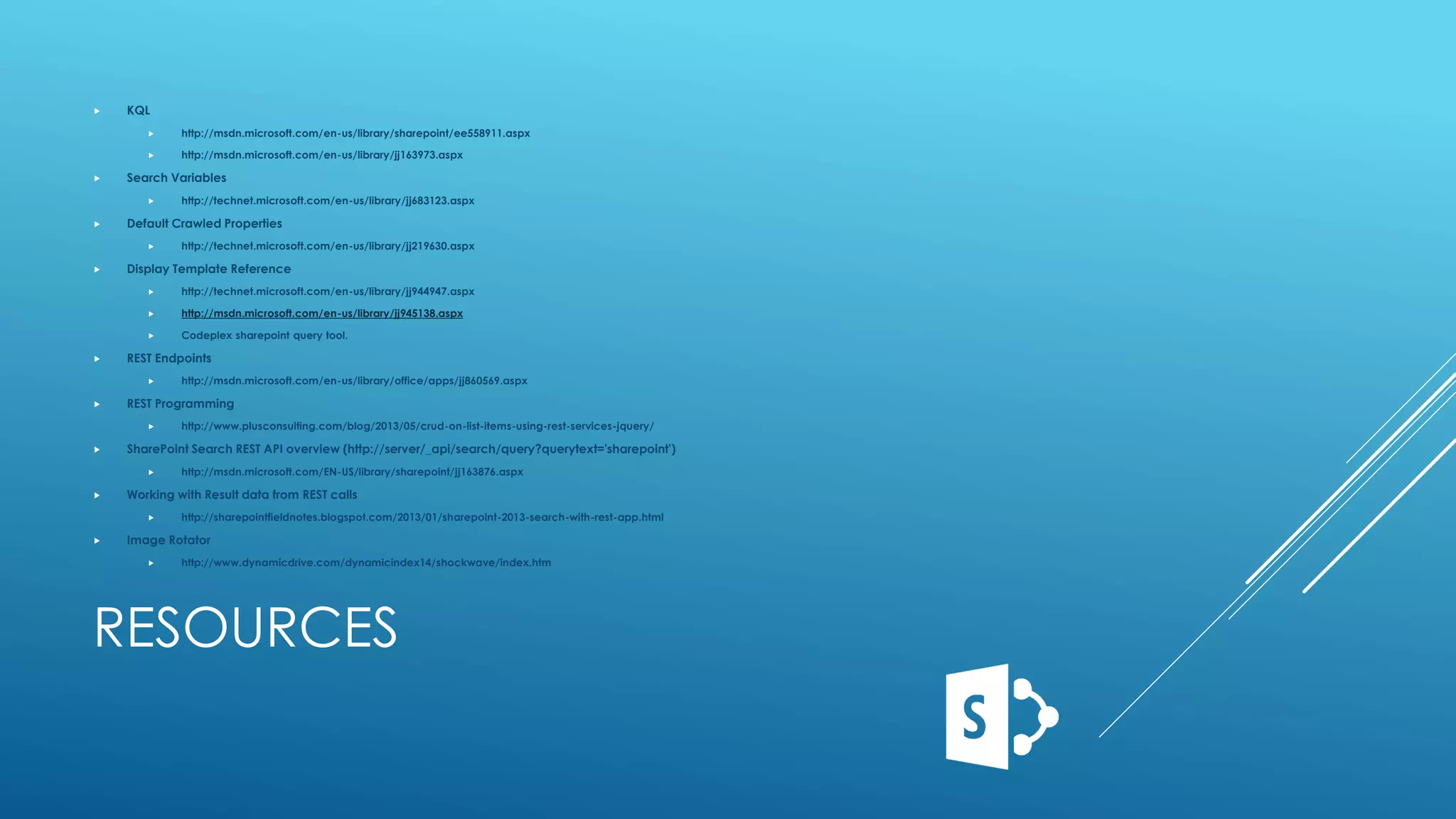

33. RESOURCES
 KQL
 http://msdn.microsoft.com/en-us/library/sharepoint/ee558911.aspx
 http://msdn.microsoft.com/en-us/library/jj163973.aspx
 Search Variables
 http://technet.microsoft.com/en-us/library/jj683123.aspx
 Default Crawled Properties
 http://technet.microsoft.com/en-us/library/jj219630.aspx
 Display Template Reference
 http://technet.microsoft.com/en-us/library/jj944947.aspx
 http://msdn.microsoft.com/en-us/library/jj945138.aspx
 Codeplex sharepoint query tool.
 REST Endpoints
 http://msdn.microsoft.com/en-us/library/office/apps/jj860569.aspx
 REST Programming
 http://www.plusconsulting.com/blog/2013/05/crud-on-list-items-using-rest-services-jquery/
 SharePoint Search REST API overview (http://server/_api/search/query?querytext='sharepoint')
 http://msdn.microsoft.com/EN-US/library/sharepoint/jj163876.aspx
 Working with Result data from REST calls
 http://sharepointfieldnotes.blogspot.com/2013/01/sharepoint-2013-search-with-rest-app.html
 Image Rotator
 http://www.dynamicdrive.com/dynamicindex14/shockwave/index.htm
