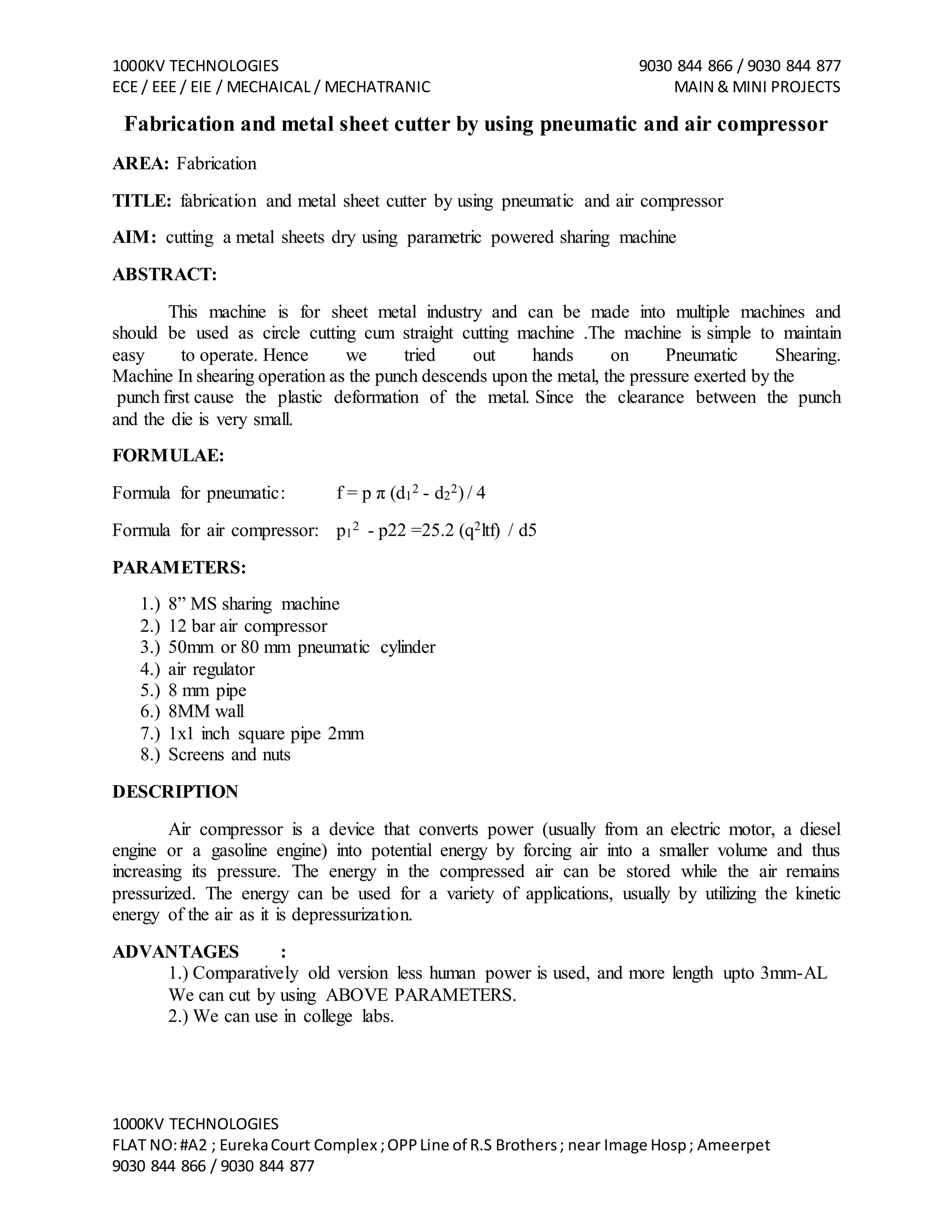

Fabrication and metal sheet cutter by using pneumatic and air compressor
AREA: Fabrication
TITLE: fabrication and metal sheet cutter by using pneumatic and air compressor
AIM: cutting a metal sheets dry using parametric powered sharing machine
ABSTRACT:
This machine is for sheet metal industry and can be made into multiple machines and
should be used as circle cutting cum straight cutting machine .The machine is simple to maintain
easy to operate. Hence we tried out hands on Pneumatic Shearing.
Machine In shearing operation as the punch descends upon the metal, the pressure exerted by the
punch first cause the plastic deformation of the metal. Since the clearance between the punch
and the die is very small.
FORMULAE:
Formula for pneumatic: f = p π (d1
2 - d2
2) / 4
Formula for air compressor: p1
2 - p22 =25.2 (q2ltf) / d5
PARAMETERS:
1.) 8” MS sharing machine
2.) 12 bar air compressor
3.) 50mm or 80 mm pneumatic cylinder
4.) air regulator
5.) 8 mm pipe
6.) 8MM wall
7.) 1x1 inch square pipe 2mm
8.) Screens and nuts
DESCRIPTION
Air compressor is a device that converts power (usually from an electric motor, a diesel
engine or a gasoline engine) into potential energy by forcing air into a smaller volume and thus
increasing its pressure. The energy in the compressed air can be stored while the air remains
pressurized. The energy can be used for a variety of applications, usually by utilizing the kinetic
energy of the air as it is depressurization.
ADVANTAGES :
1.) Comparatively old version less human power is used, and more length upto 3mm-AL
We can cut by using ABOVE PARAMETERS.
2.) We can use in college labs.

2. 1000KV TECHNOLOGIES 9030 844 866 / 9030 844 877
ECE / EEE / EIE / MECHAICAL / MECHATRANIC MAIN & MINI PROJECTS
1000KV TECHNOLOGIES
FLAT NO:#A2 ; EurekaCourt Complex ;OPPLine of R.S Brothers; near Image Hosp; Ameerpet
9030 844 866 / 9030 844 877

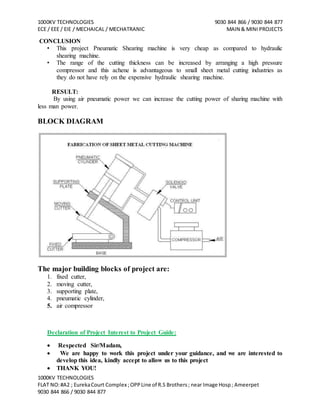

CONCLUSION
• This project Pneumatic Shearing machine is very cheap as compared to hydraulic
shearing machine.
• The range of the cutting thickness can be increased by arranging a high pressure
compressor and this achene is advantageous to small sheet metal cutting industries as
they do not have rely on the expensive hydraulic shearing machine.
RESULT:
By using air pneumatic power we can increase the cutting power of sharing machine with
less man power.
BLOCK DIAGRAM
The major building blocks of project are:
1. fixed cutter,
2. moving cutter,
3. supporting plate,
4. pneumatic cylinder,
5. air compressor
Declaration of Project Interest to Project Guide:
 Respected Sir/Madam,
 We are happy to work this project under your guidance, and we are interested to
develop this idea, kindly accept to allow us to this project
 THANK YOU!

3. 1000KV TECHNOLOGIES 9030 844 866 / 9030 844 877
ECE / EEE / EIE / MECHAICAL / MECHATRANIC MAIN & MINI PROJECTS
1000KV TECHNOLOGIES
FLAT NO:#A2 ; EurekaCourt Complex ;OPPLine of R.S Brothers; near Image Hosp; Ameerpet
9030 844 866 / 9030 844 877

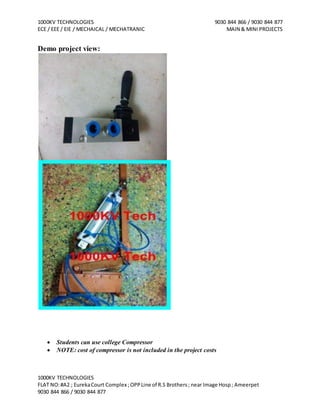

Demo project view:
 Students can use college Compressor
 NOTE: cost of compressor is not included in the project costs

4. 1000KV TECHNOLOGIES 9030 844 866 / 9030 844 877
ECE / EEE / EIE / MECHAICAL / MECHATRANIC MAIN & MINI PROJECTS
1000KV TECHNOLOGIES
FLAT NO:#A2 ; EurekaCourt Complex ;OPPLine of R.S Brothers; near Image Hosp; Ameerpet
9030 844 866 / 9030 844 877
Project Video Reference Links:
(Video proves the working of project only, size depends on cost effective)
https://www.youtube.com/watch?v=0CbNOx7VyvM
https://www.youtube.com/watch?v=yyy6LBgkNWY
