This document discusses using Maven to manage the build and deployment of Java EE applications. It covers: 1. The components of Java EE applications like EJBs, web services, WARs, and EARs and how to structure them in Maven. 2. How to configure the Maven plugins for each type of artifact like the maven-ejb-plugin, maven-war-plugin, and maven-ear-plugin. 3. Tips for testing the different types of artifacts and deploying the finished application with tools like Cargo.

1. Juggling Java EE with
Enterprise Apache Maven
Jesse McConnell -
jmcconnell@apache.org

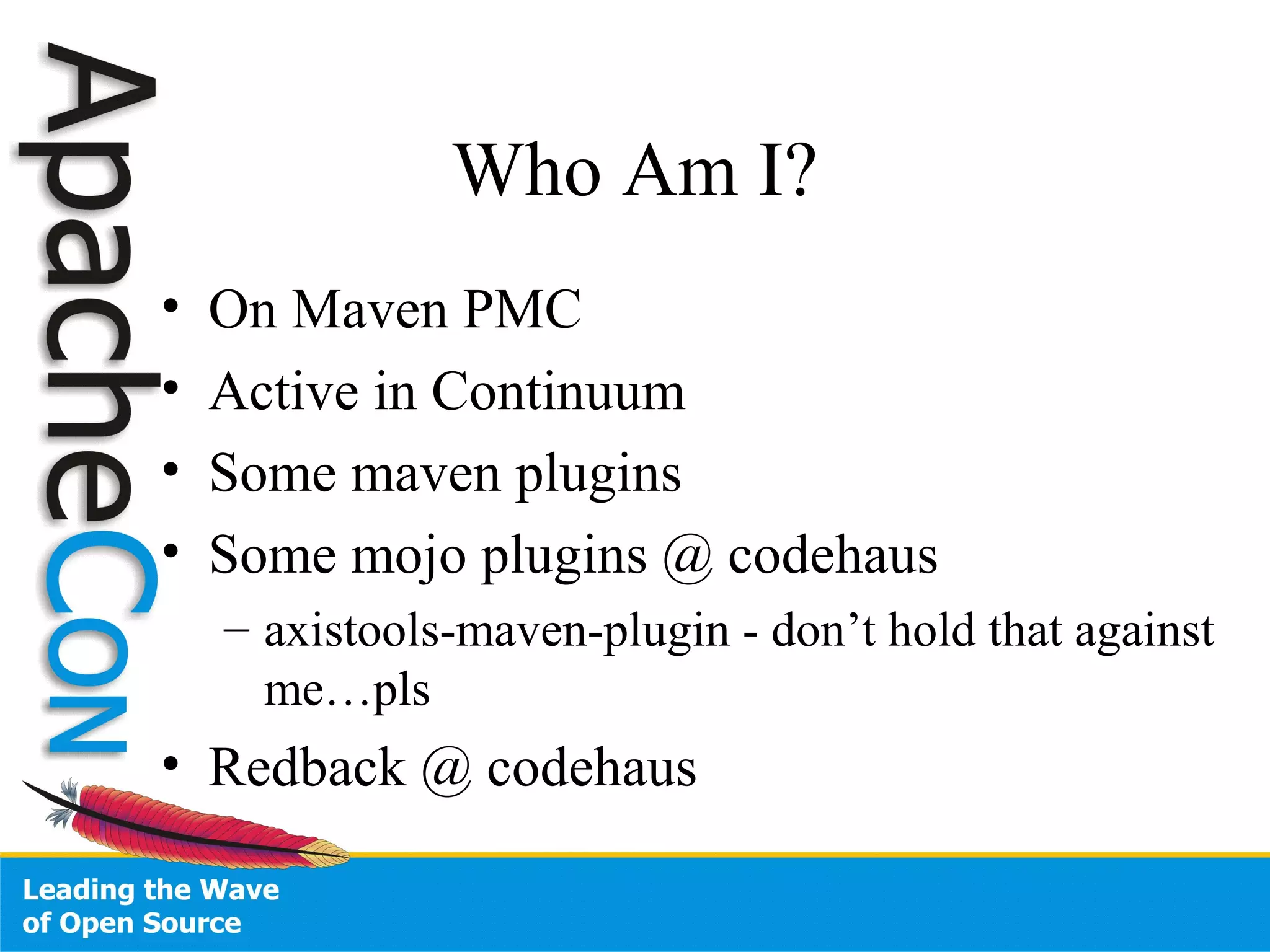

2. Who Am I?
• On Maven PMC
• Active in Continuum
• Some maven plugins
• Some mojo plugins @ codehaus
– axistools-maven-plugin - don’t hold that against
me…pls
• Redback @ codehaus

3. Is this you?

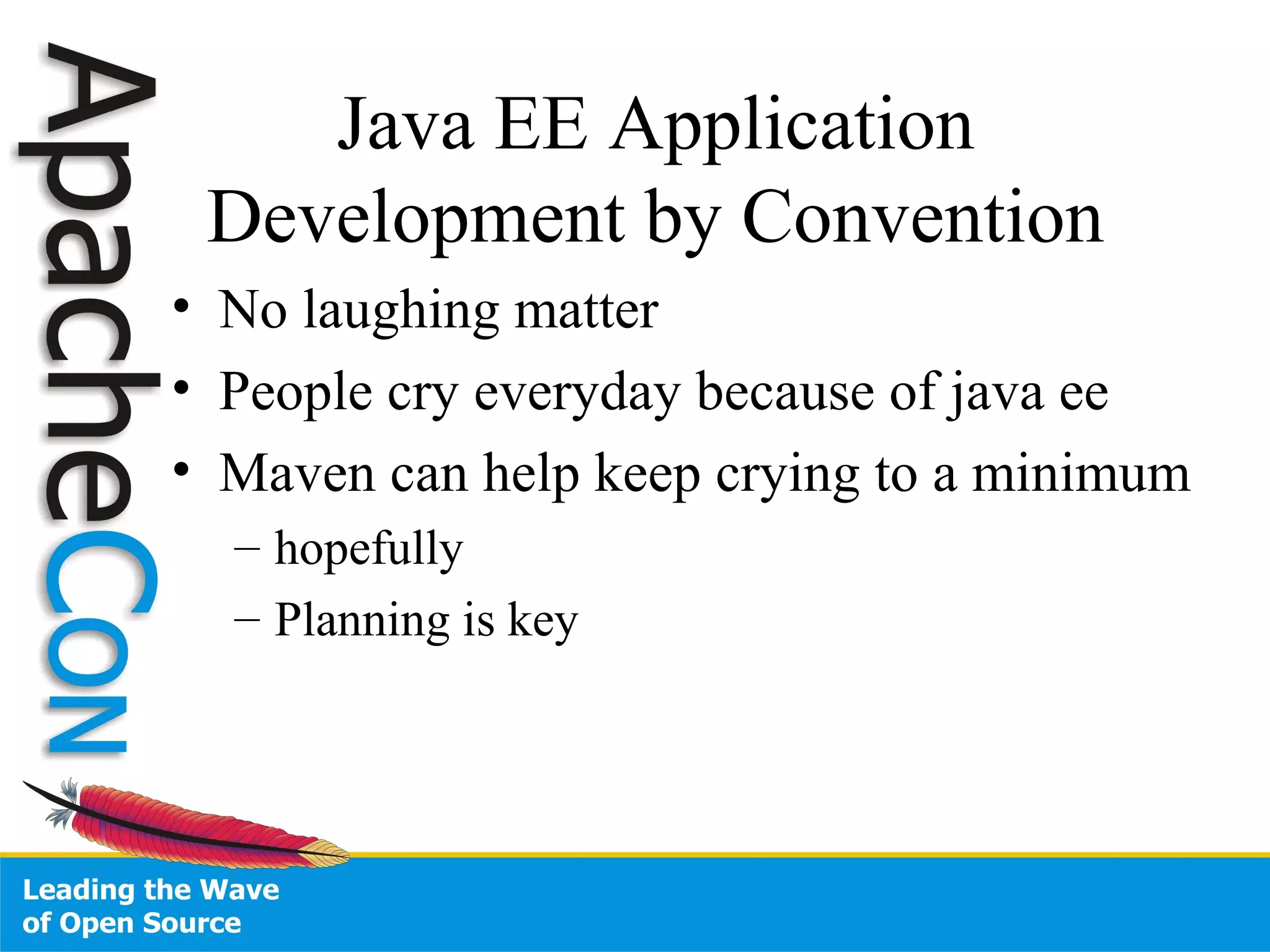

4. Java EE Application
Development by Convention
• No laughing matter
• People cry everyday because of java ee
• Maven can help keep crying to a minimum
– hopefully
– Planning is key

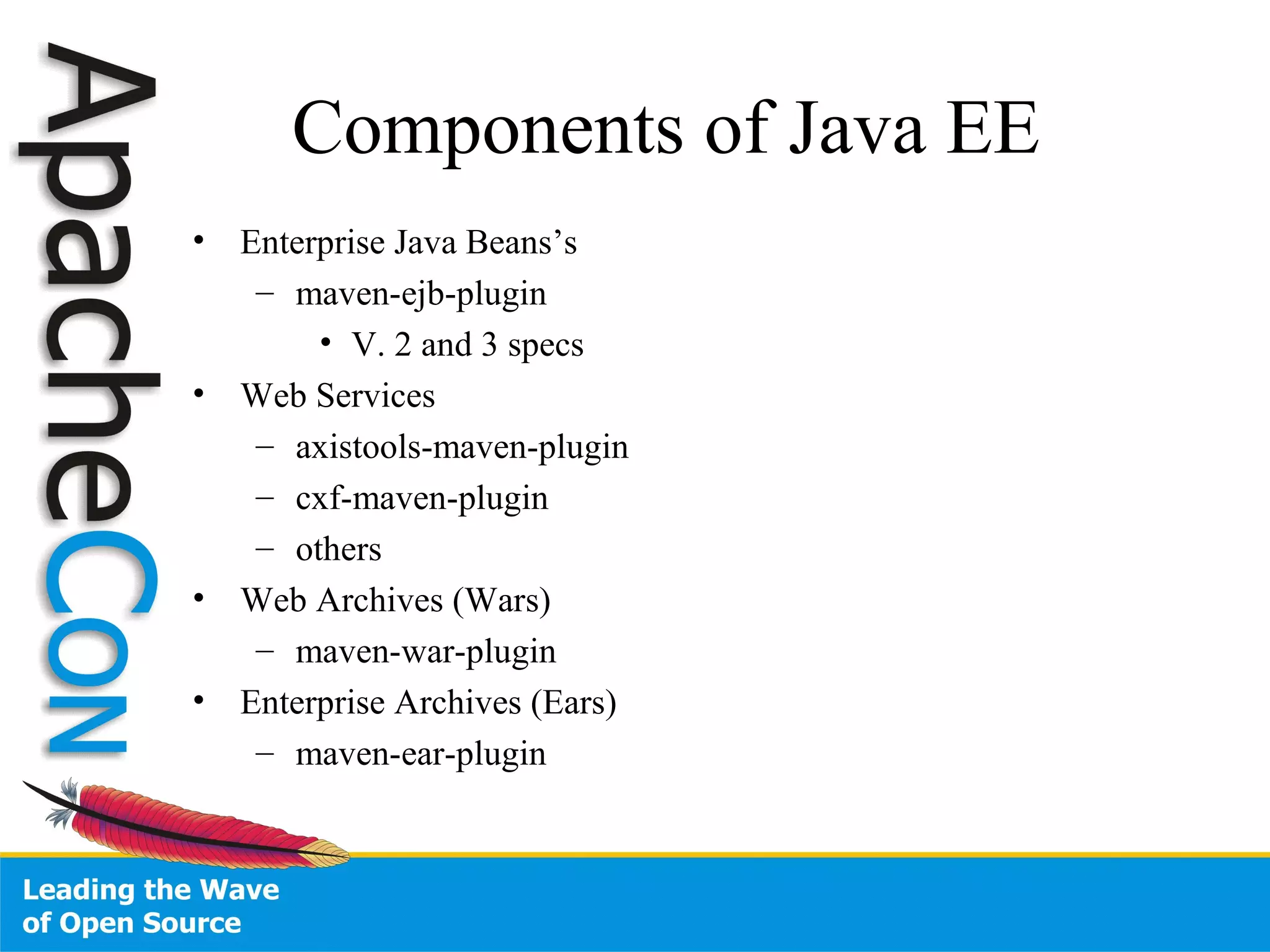

5. Components of Java EE
• Enterprise Java Beans’s
– maven-ejb-plugin
• V. 2 and 3 specs
• Web Services
– axistools-maven-plugin
– cxf-maven-plugin
– others
• Web Archives (Wars)
– maven-war-plugin
• Enterprise Archives (Ears)
– maven-ear-plugin

6. You should end up with…

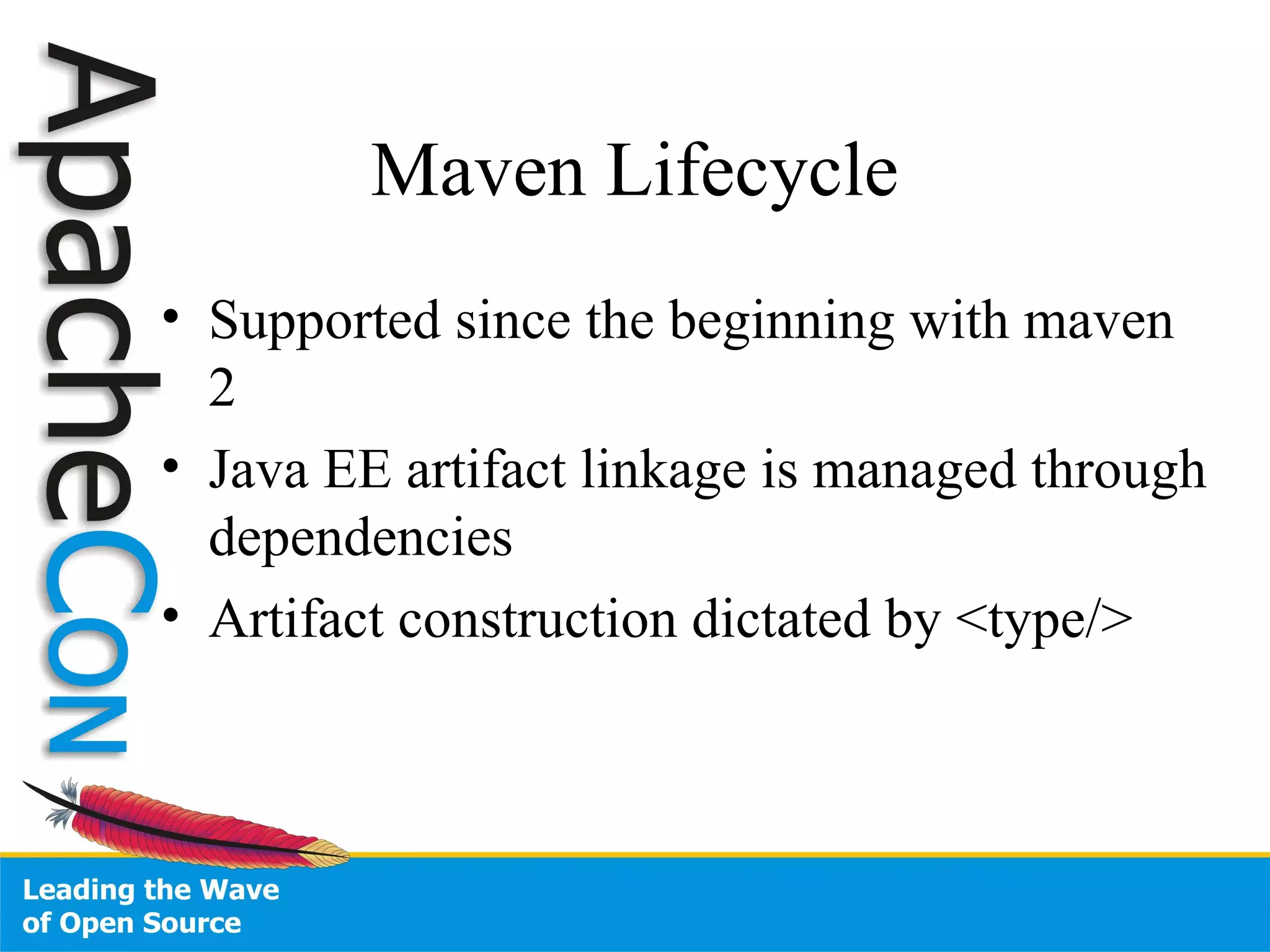

7. Maven Lifecycle
• Supported since the beginning with maven
2
• Java EE artifact linkage is managed through
dependencies
• Artifact construction dictated by <type/>

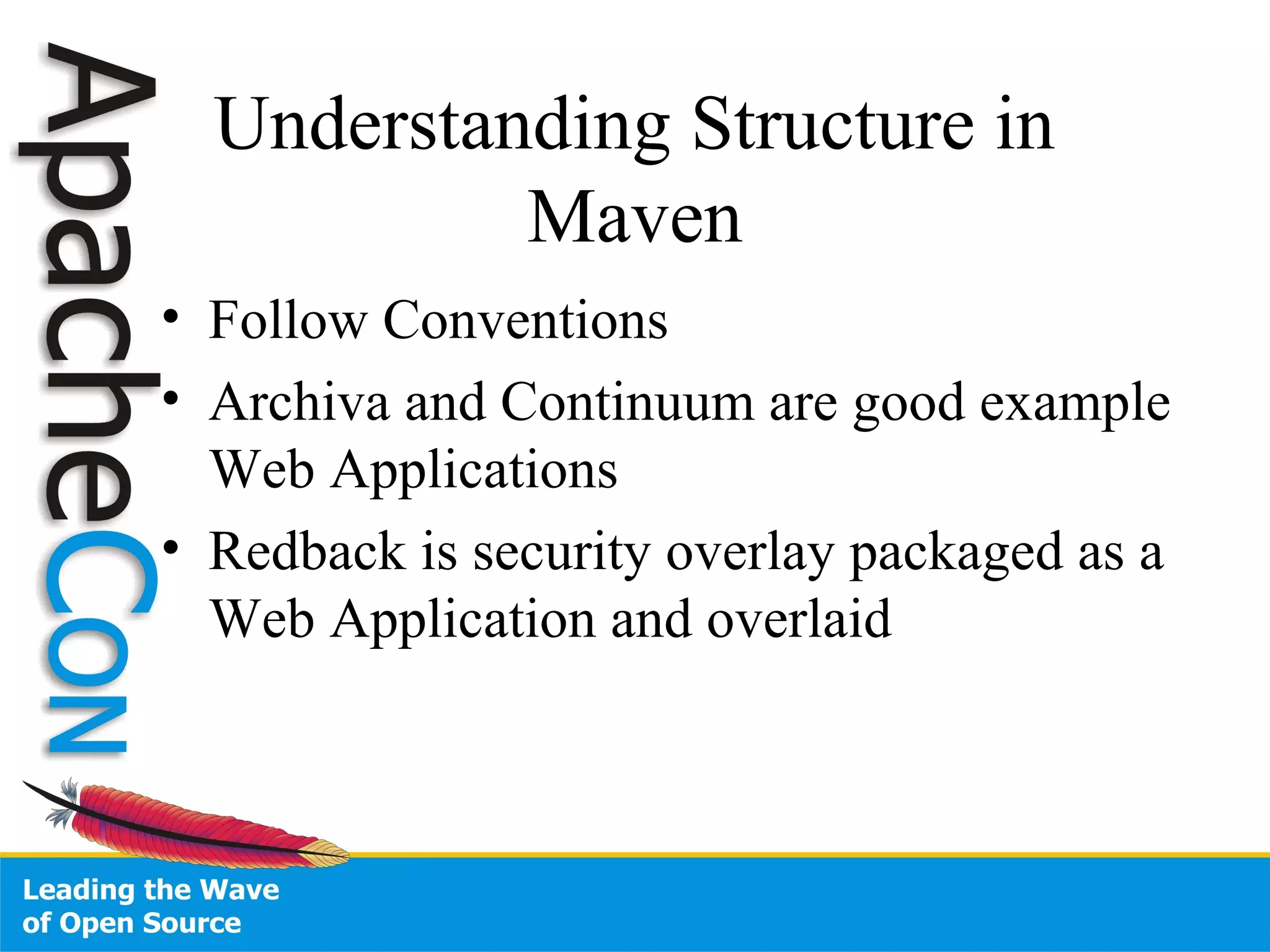

8. Understanding Structure in
Maven
• Follow Conventions
• Archiva and Continuum are good example
Web Applications
• Redback is security overlay packaged as a
Web Application and overlaid

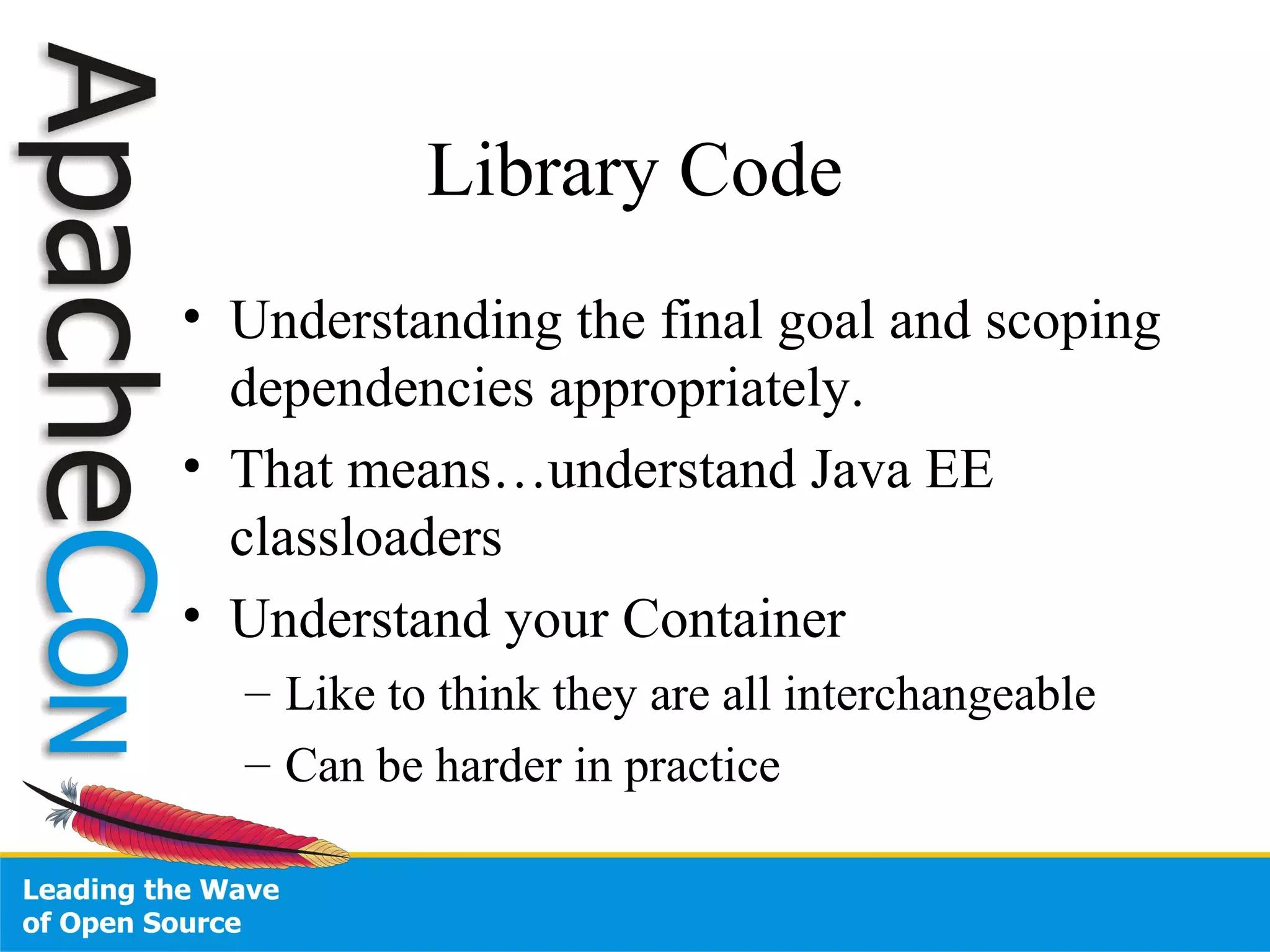

9. Library Code
• Understanding the final goal and scoping
dependencies appropriately.
• That means…understand Java EE
classloaders
• Understand your Container
– Like to think they are all interchangeable
– Can be harder in practice

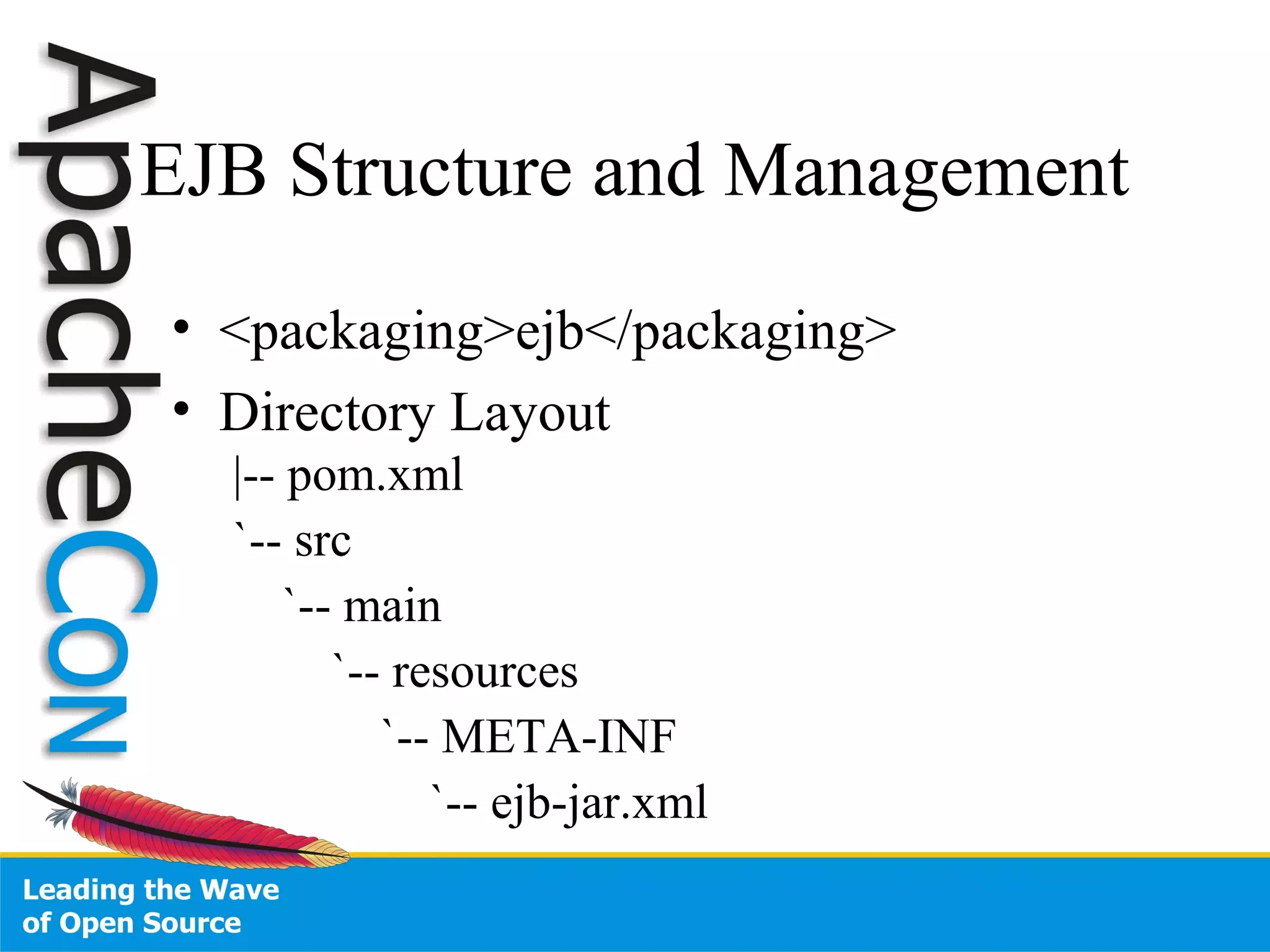

10. EJB Structure and Management
• <packaging>ejb</packaging>
• Directory Layout
|-- pom.xml
`-- src
`-- main
`-- resources
`-- META-INF
`-- ejb-jar.xml

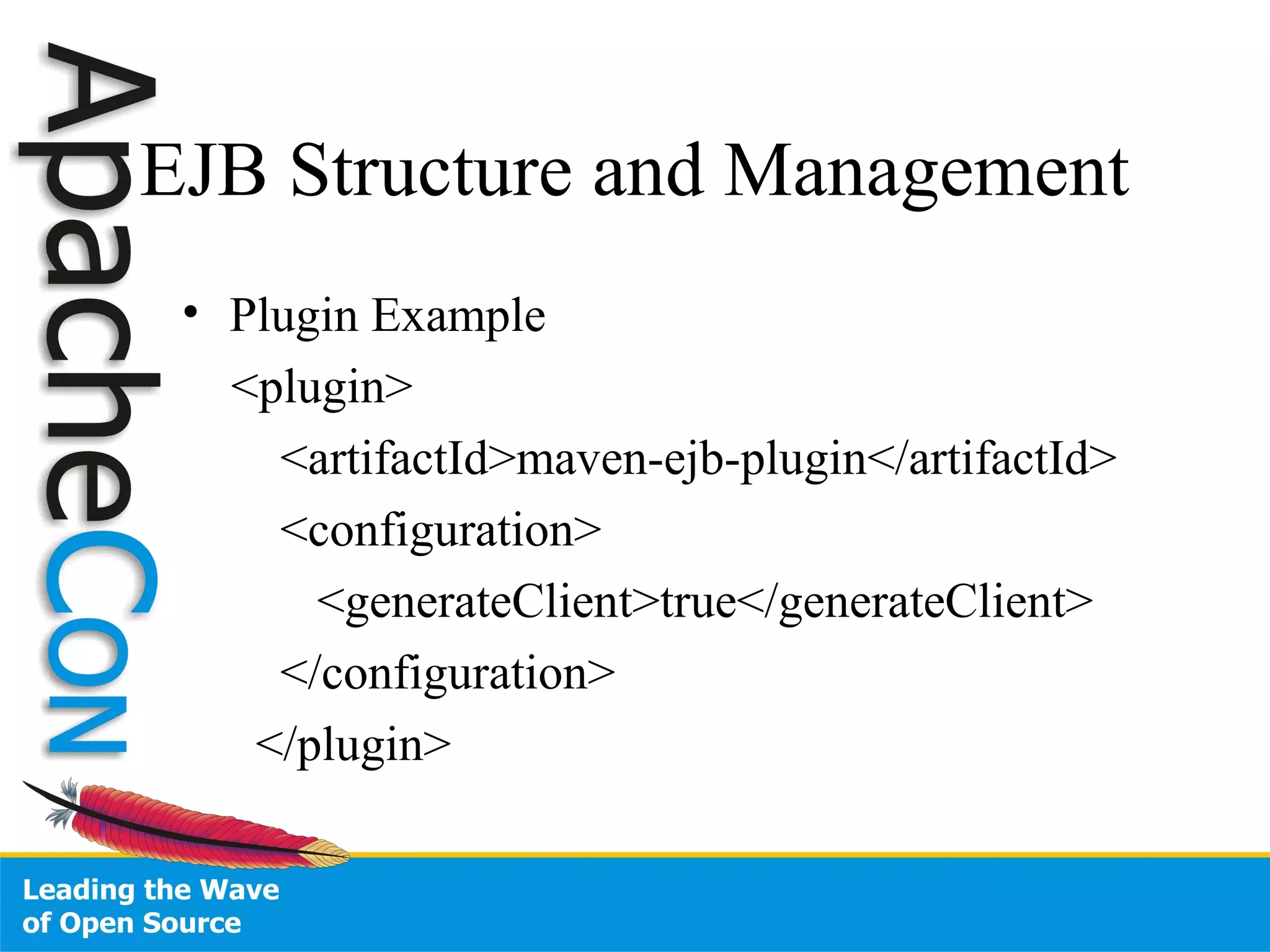

11. EJB Structure and Management
• Plugin Example
<plugin>
<artifactId>maven-ejb-plugin</artifactId>
<configuration>
<generateClient>true</generateClient>
</configuration>
</plugin>

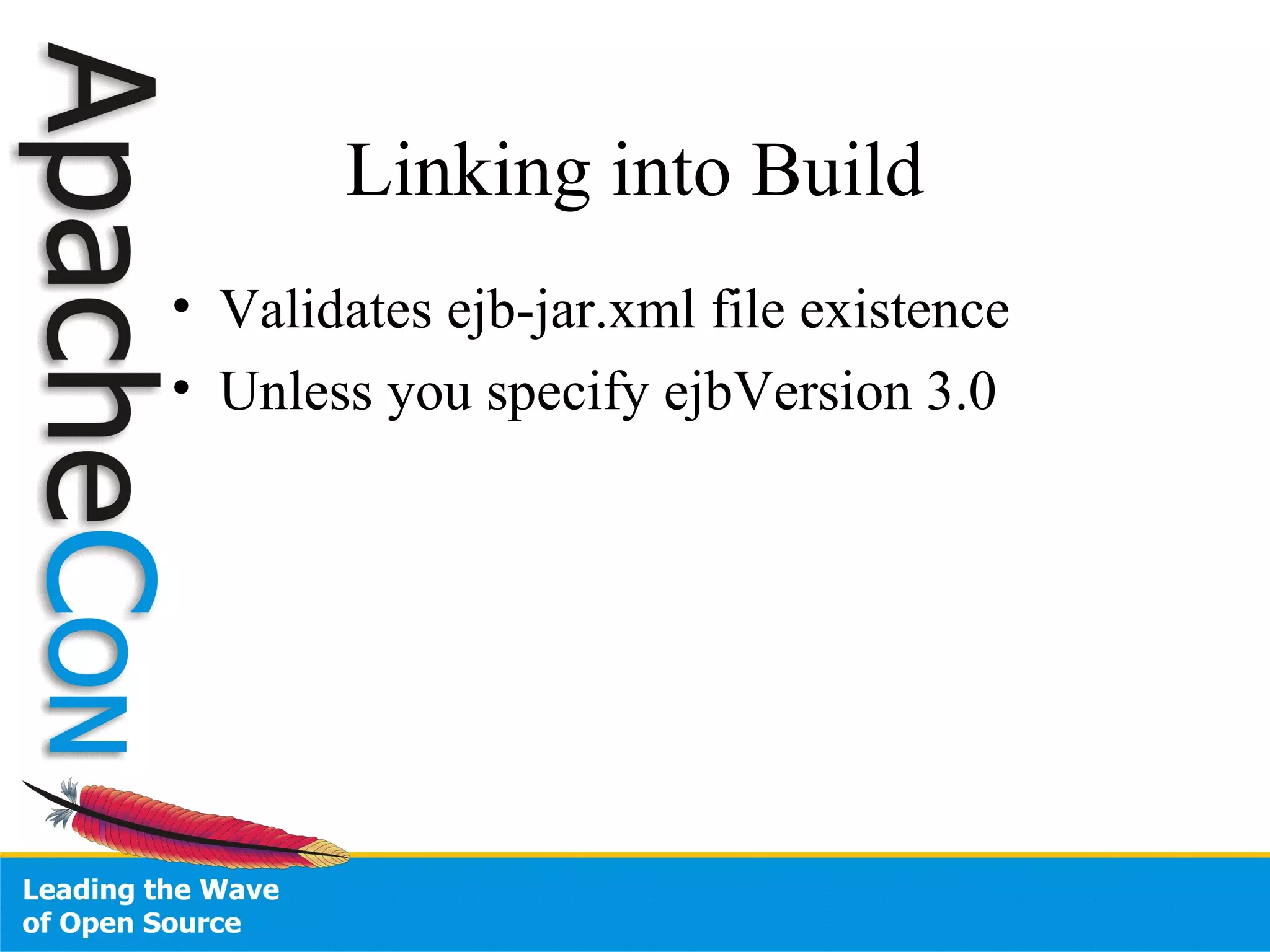

12. Linking into Build
• Validates ejb-jar.xml file existence
• Unless you specify ejbVersion 3.0

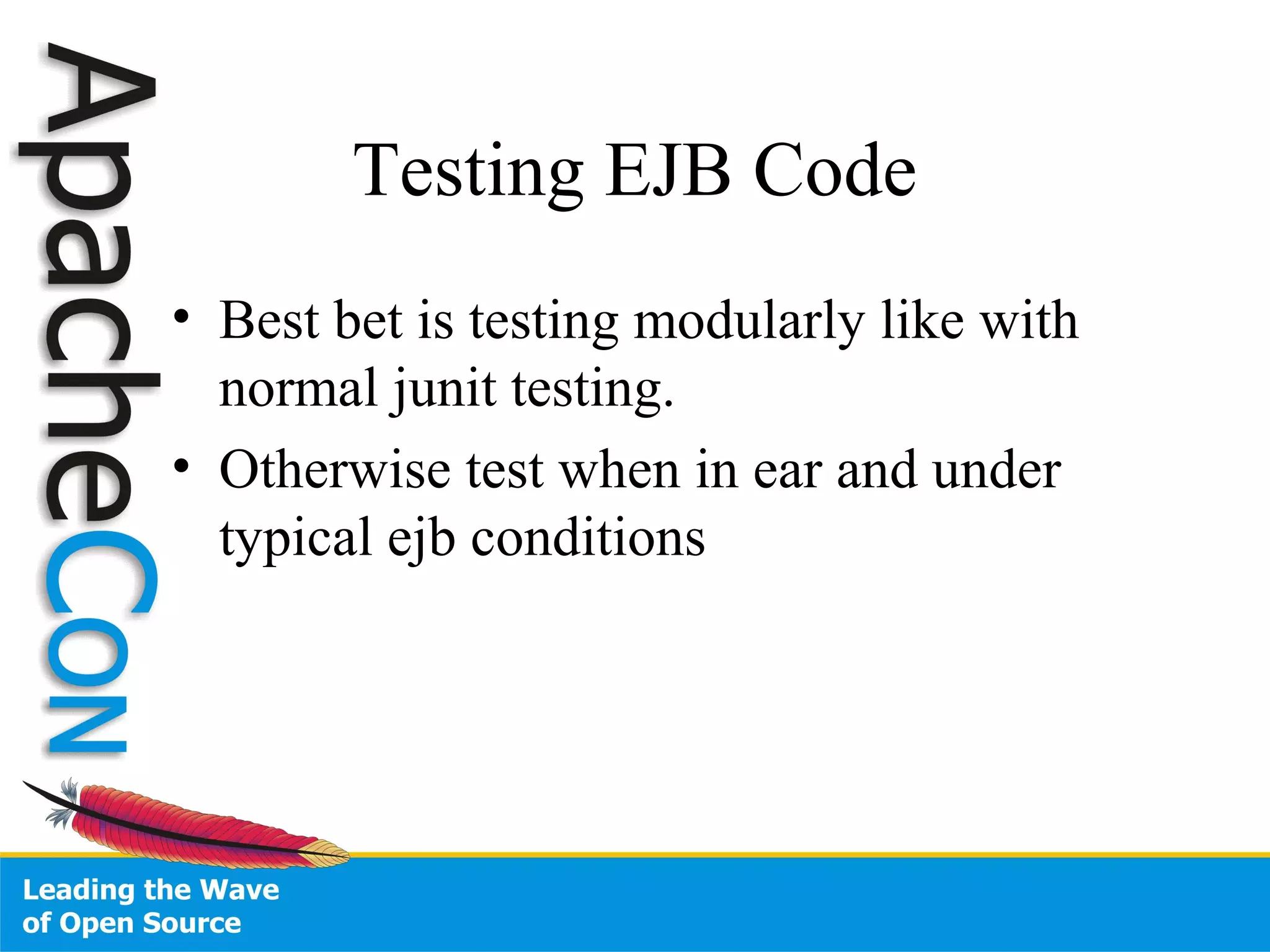

13. Testing EJB Code
• Best bet is testing modularly like with
normal junit testing.
• Otherwise test when in ear and under
typical ejb conditions

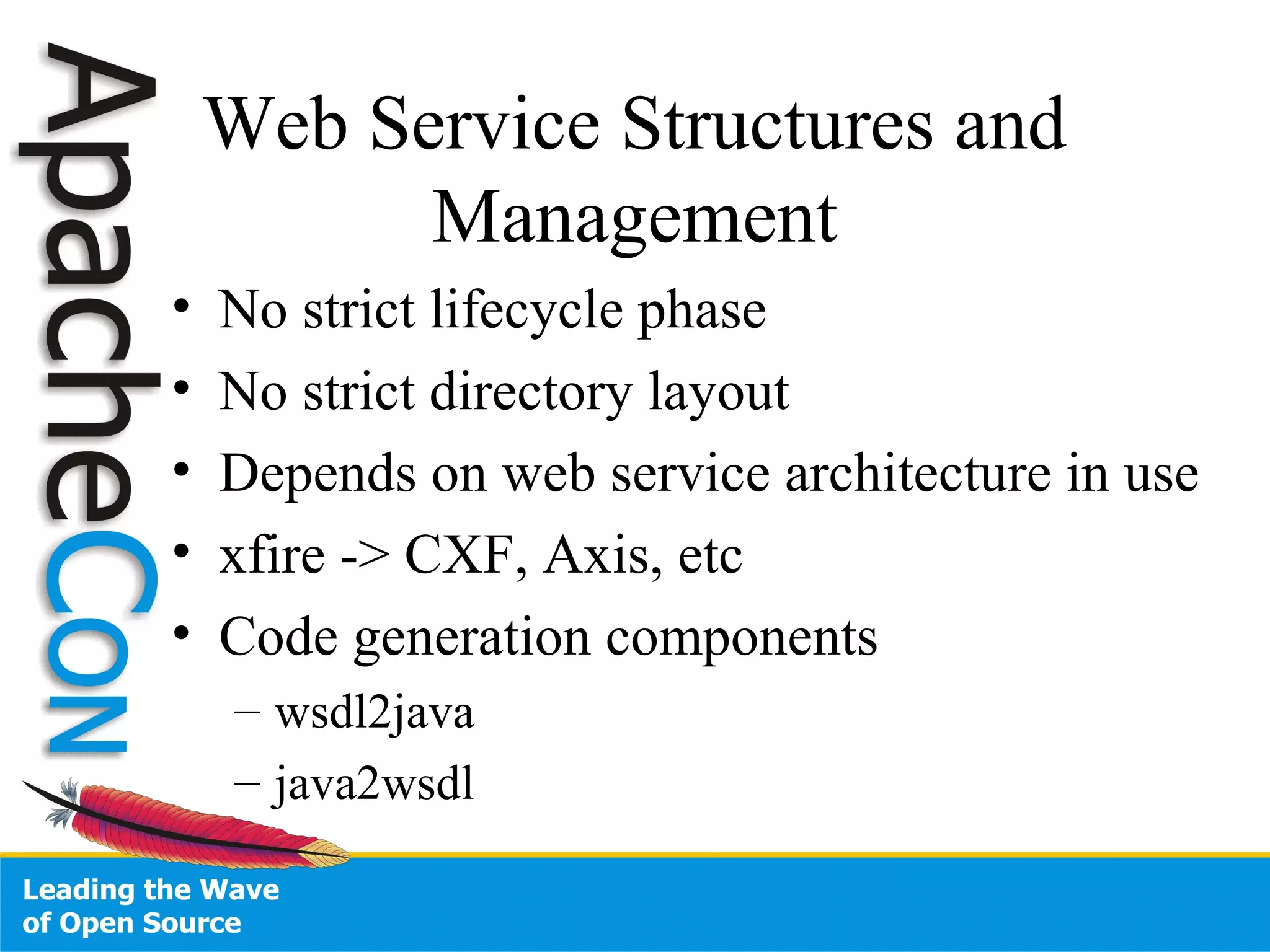

14. Web Service Structures and
Management
• No strict lifecycle phase
• No strict directory layout
• Depends on web service architecture in use
• xfire -> CXF, Axis, etc
• Code generation components
– wsdl2java
– java2wsdl

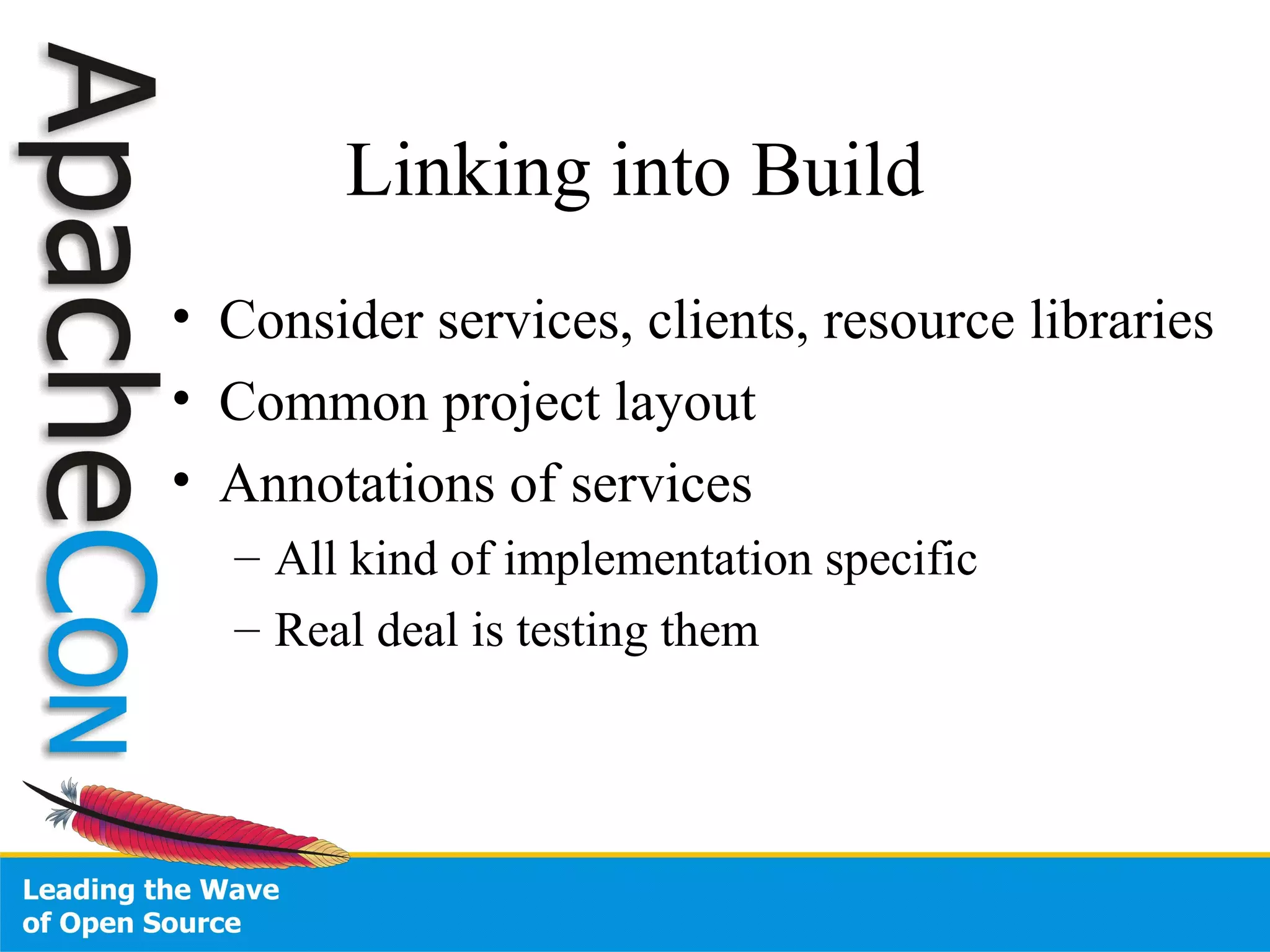

15. Linking into Build
• Consider services, clients, resource libraries
• Common project layout
• Annotations of services
– All kind of implementation specific
– Real deal is testing them

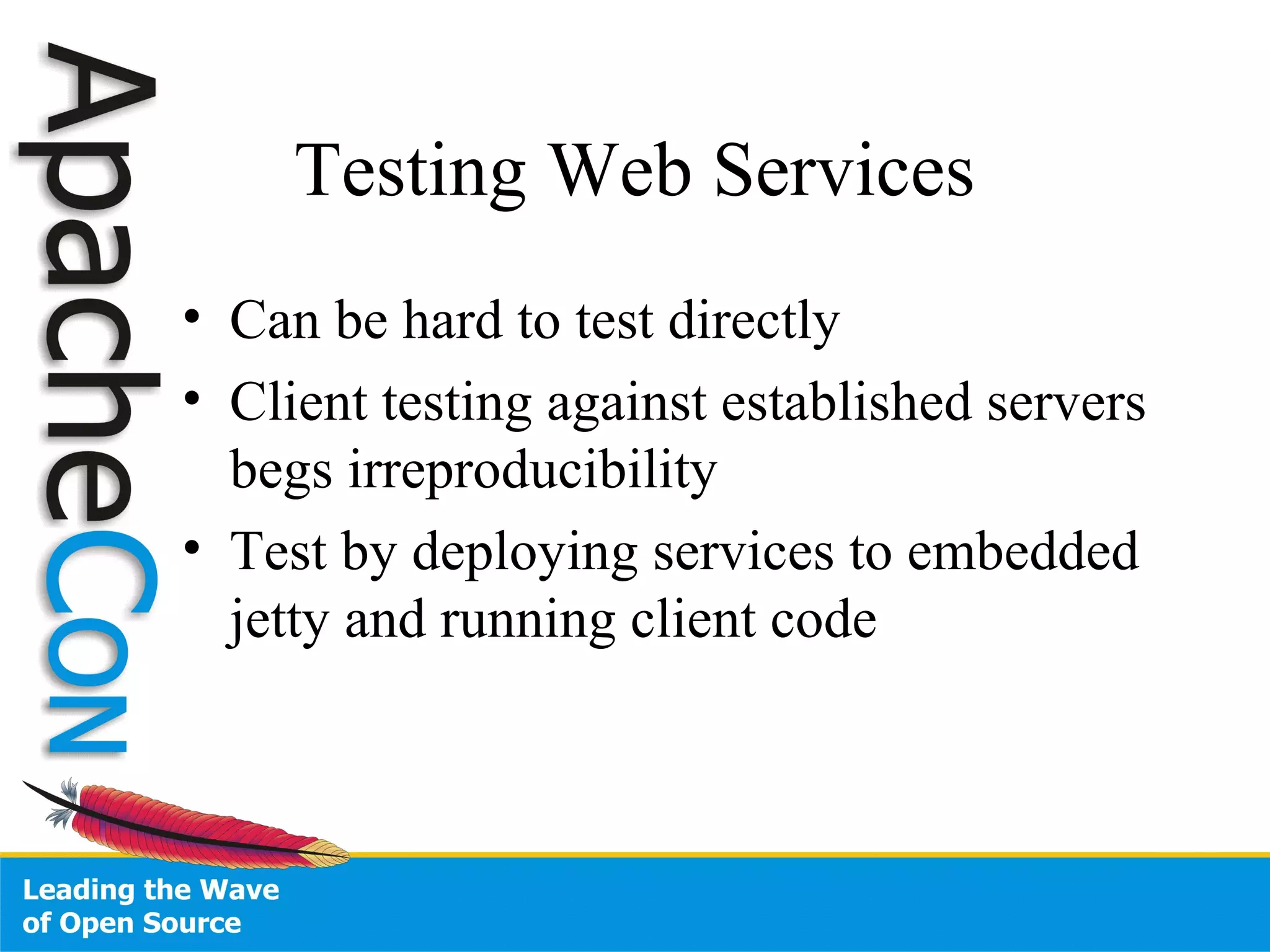

16. Testing Web Services
• Can be hard to test directly
• Client testing against established servers
begs irreproducibility
• Test by deploying services to embedded
jetty and running client code

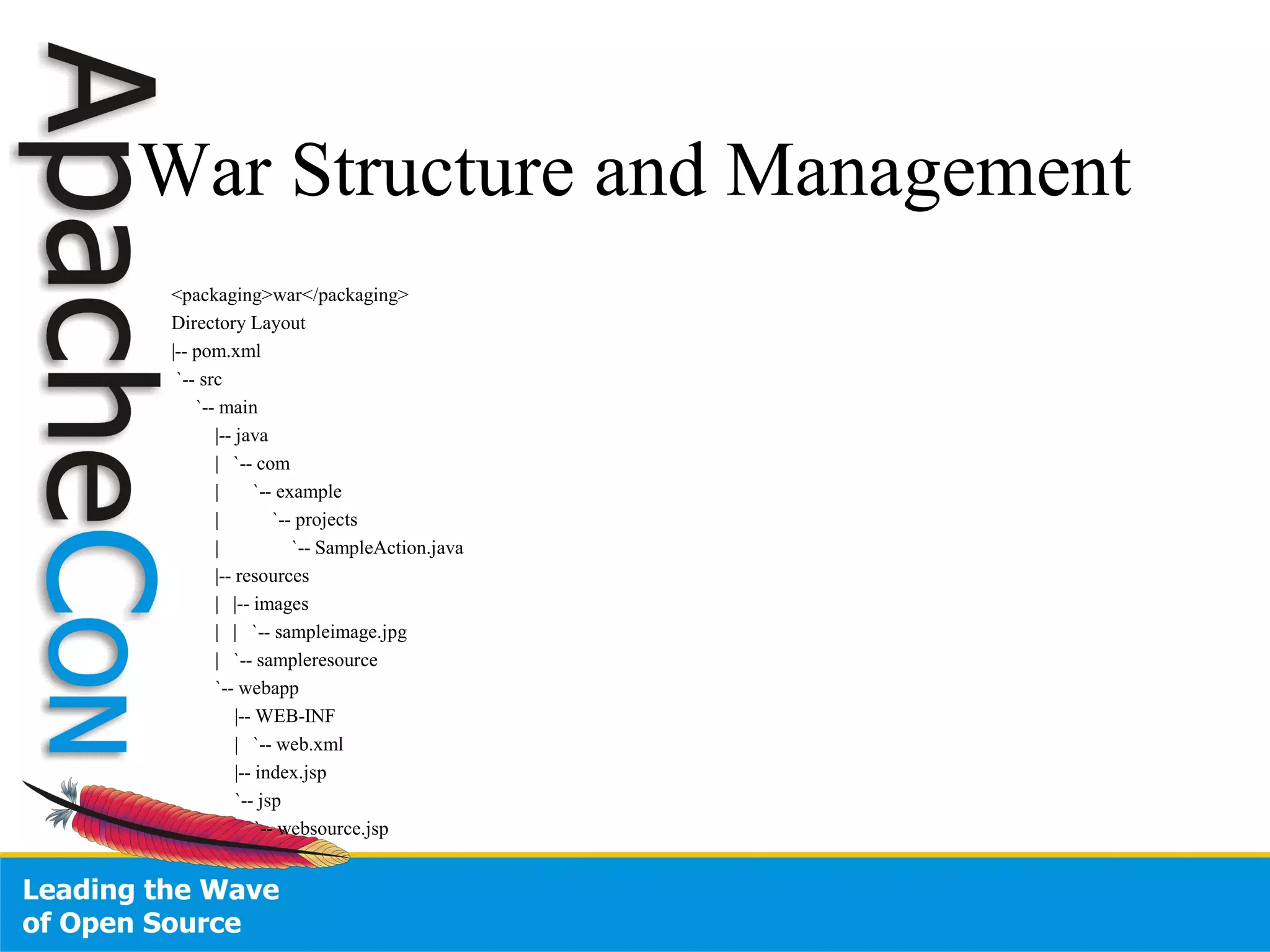

17. War Structure and Management
<packaging>war</packaging>
Directory Layout
|-- pom.xml
`-- src
`-- main
|-- java
| `-- com
| `-- example
| `-- projects
| `-- SampleAction.java
|-- resources
| |-- images
| | `-- sampleimage.jpg
| `-- sampleresource
`-- webapp
|-- WEB-INF
| `-- web.xml
|-- index.jsp
`-- jsp
`-- websource.jsp

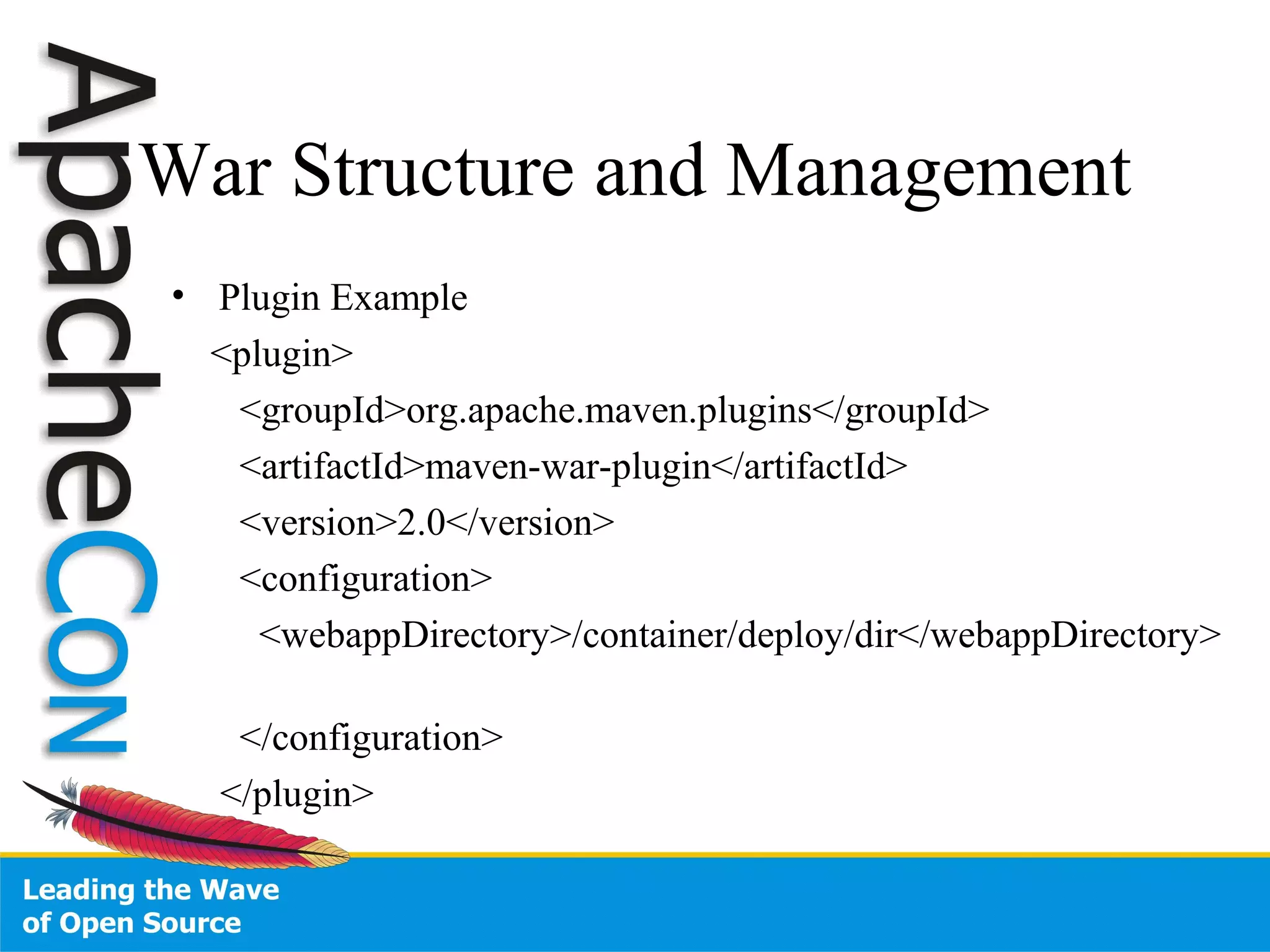

18. War Structure and Management
• Plugin Example
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>2.0</version>
<configuration>
<webappDirectory>/container/deploy/dir</webappDirectory>
</configuration>
</plugin>

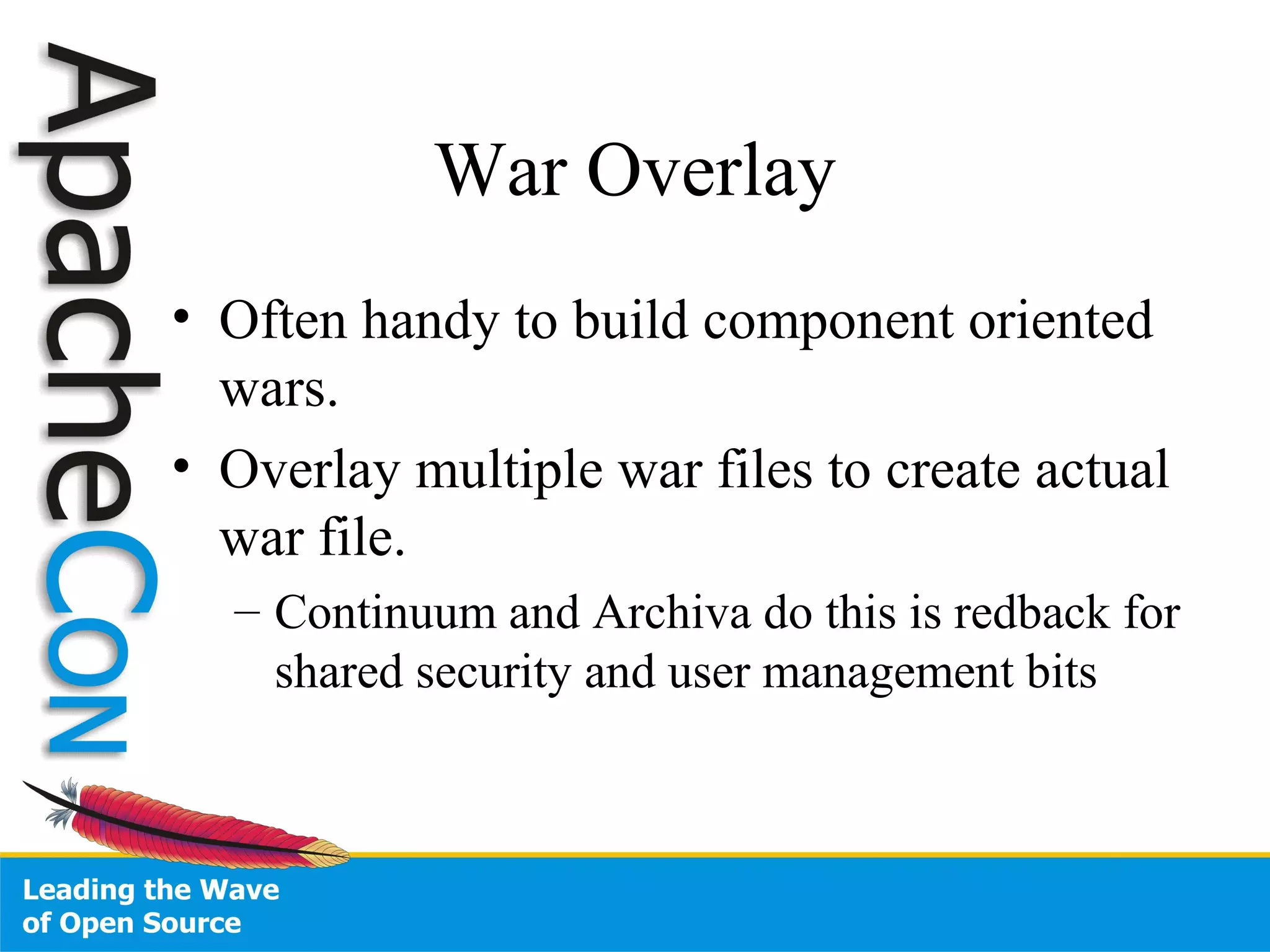

19. War Overlay
• Often handy to build component oriented
wars.
• Overlay multiple war files to create actual
war file.
– Continuum and Archiva do this is redback for
shared security and user management bits

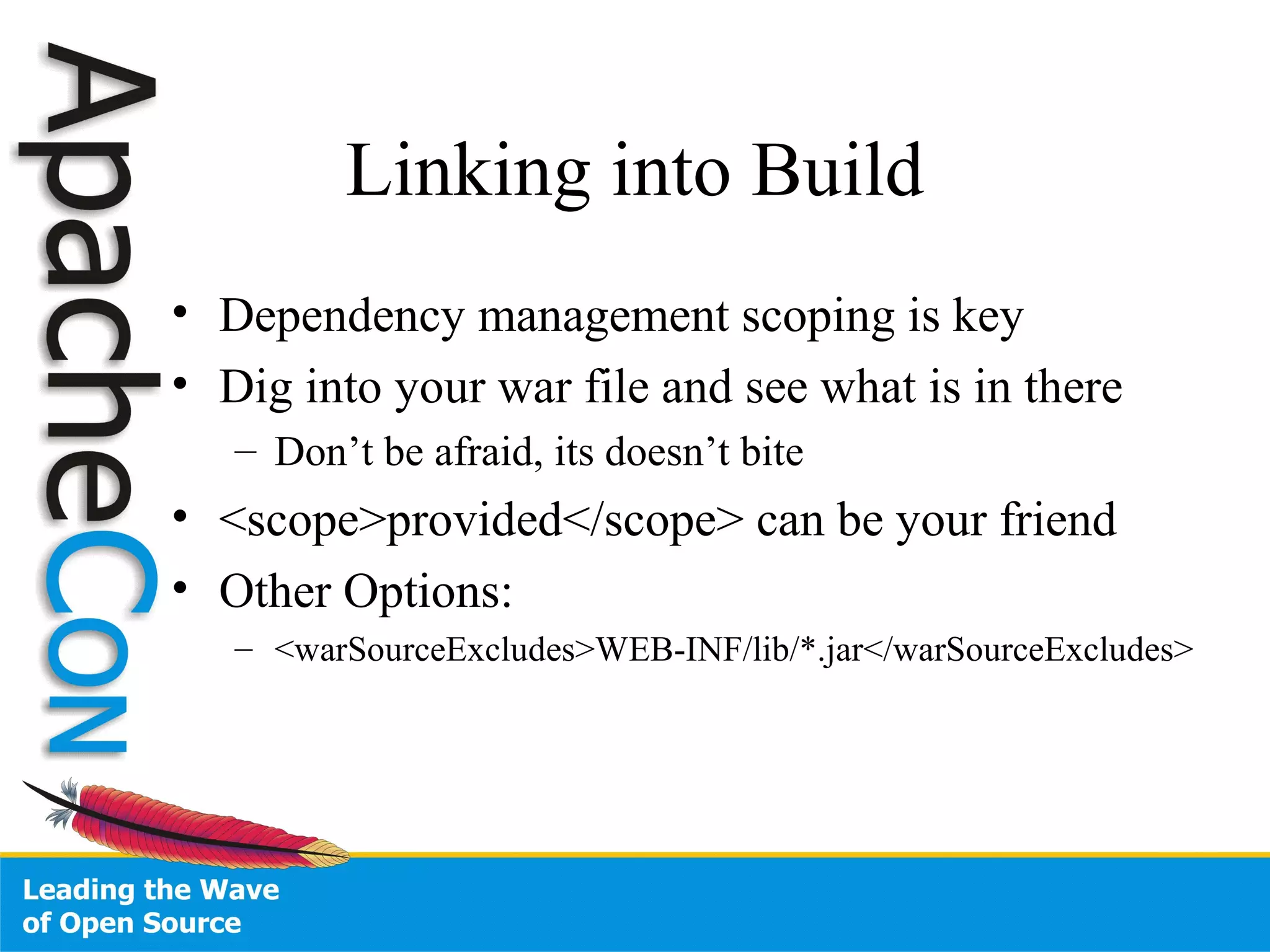

20. Linking into Build
• Dependency management scoping is key
• Dig into your war file and see what is in there
– Don’t be afraid, its doesn’t bite
• <scope>provided</scope> can be your friend
• Other Options:
– <warSourceExcludes>WEB-INF/lib/*.jar</warSourceExcludes>

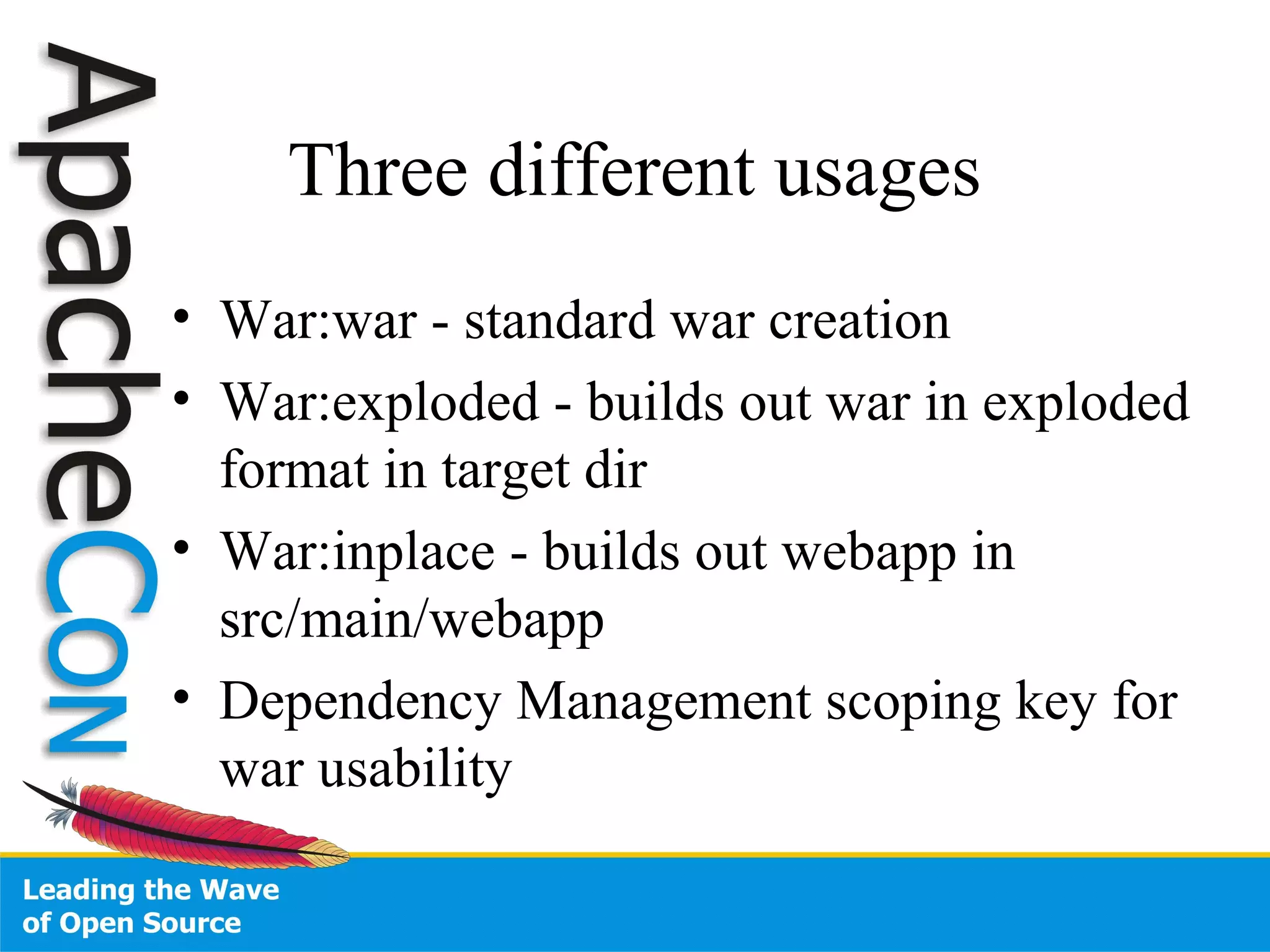

21. Three different usages
• War:war - standard war creation
• War:exploded - builds out war in exploded
format in target dir
• War:inplace - builds out webapp in
src/main/webapp
• Dependency Management scoping key for
war usability

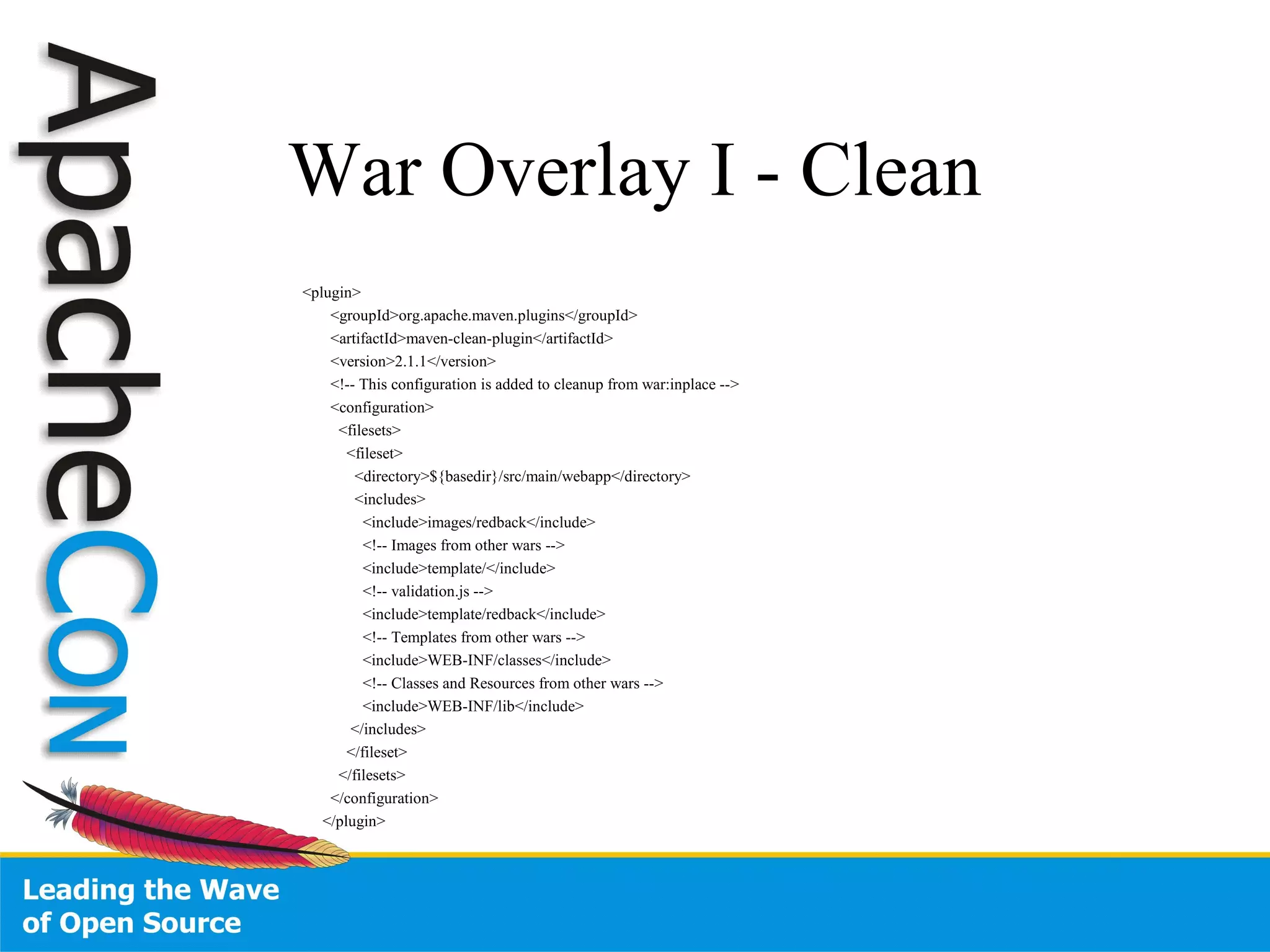

22. War Overlay I - Clean
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-clean-plugin</artifactId>
<version>2.1.1</version>
<!-- This configuration is added to cleanup from war:inplace -->
<configuration>
<filesets>
<fileset>
<directory>${basedir}/src/main/webapp</directory>
<includes>
<include>images/redback</include>
<!-- Images from other wars -->
<include>template/</include>
<!-- validation.js -->
<include>template/redback</include>
<!-- Templates from other wars -->
<include>WEB-INF/classes</include>
<!-- Classes and Resources from other wars -->
<include>WEB-INF/lib</include>
</includes>
</fileset>
</filesets>
</configuration>
</plugin>

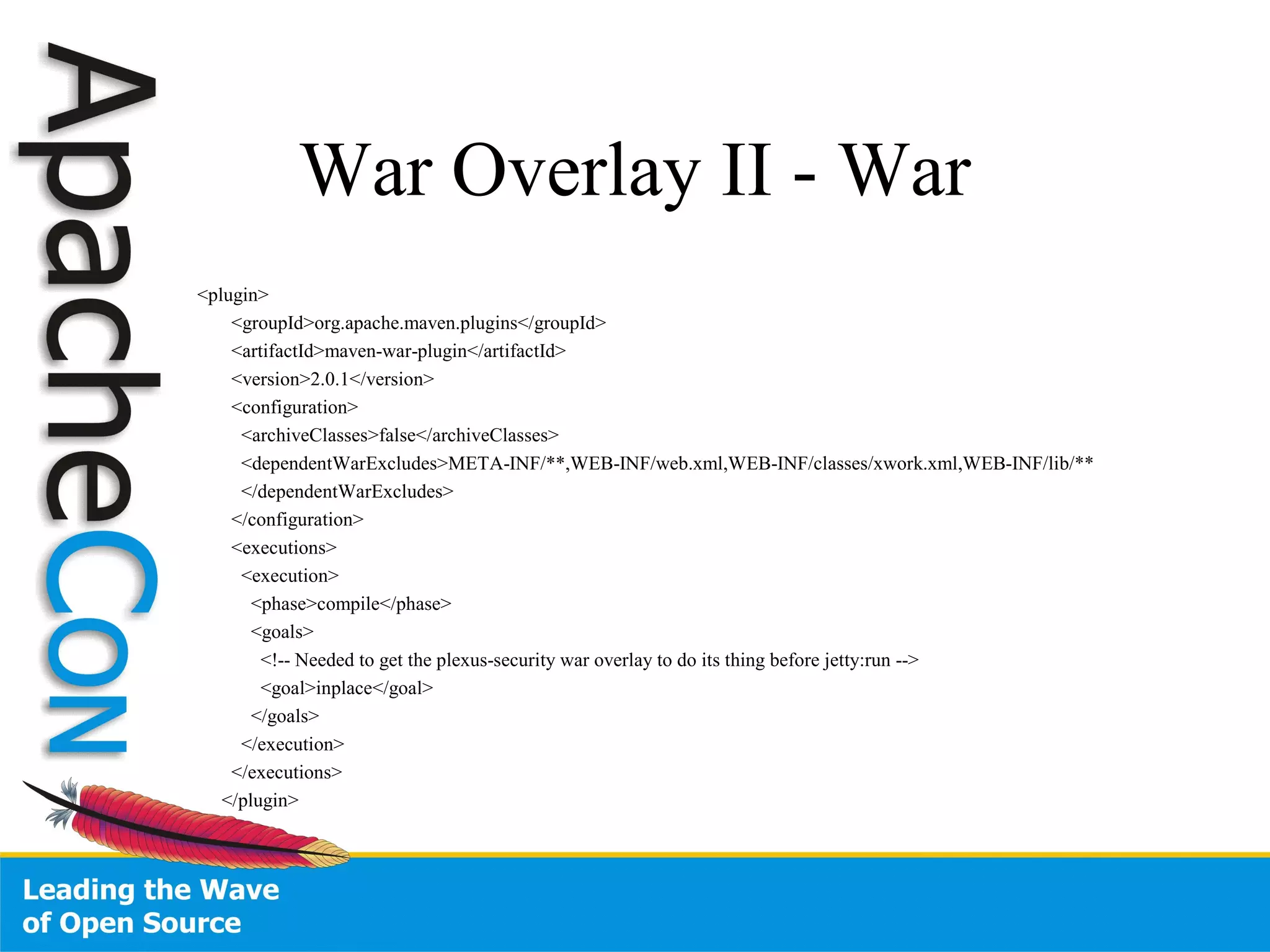

23. War Overlay II - War
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>2.0.1</version>
<configuration>
<archiveClasses>false</archiveClasses>
<dependentWarExcludes>META-INF/**,WEB-INF/web.xml,WEB-INF/classes/xwork.xml,WEB-INF/lib/**
</dependentWarExcludes>
</configuration>
<executions>
<execution>
<phase>compile</phase>
<goals>
<!-- Needed to get the plexus-security war overlay to do its thing before jetty:run -->
<goal>inplace</goal>
</goals>
</execution>
</executions>
</plugin>

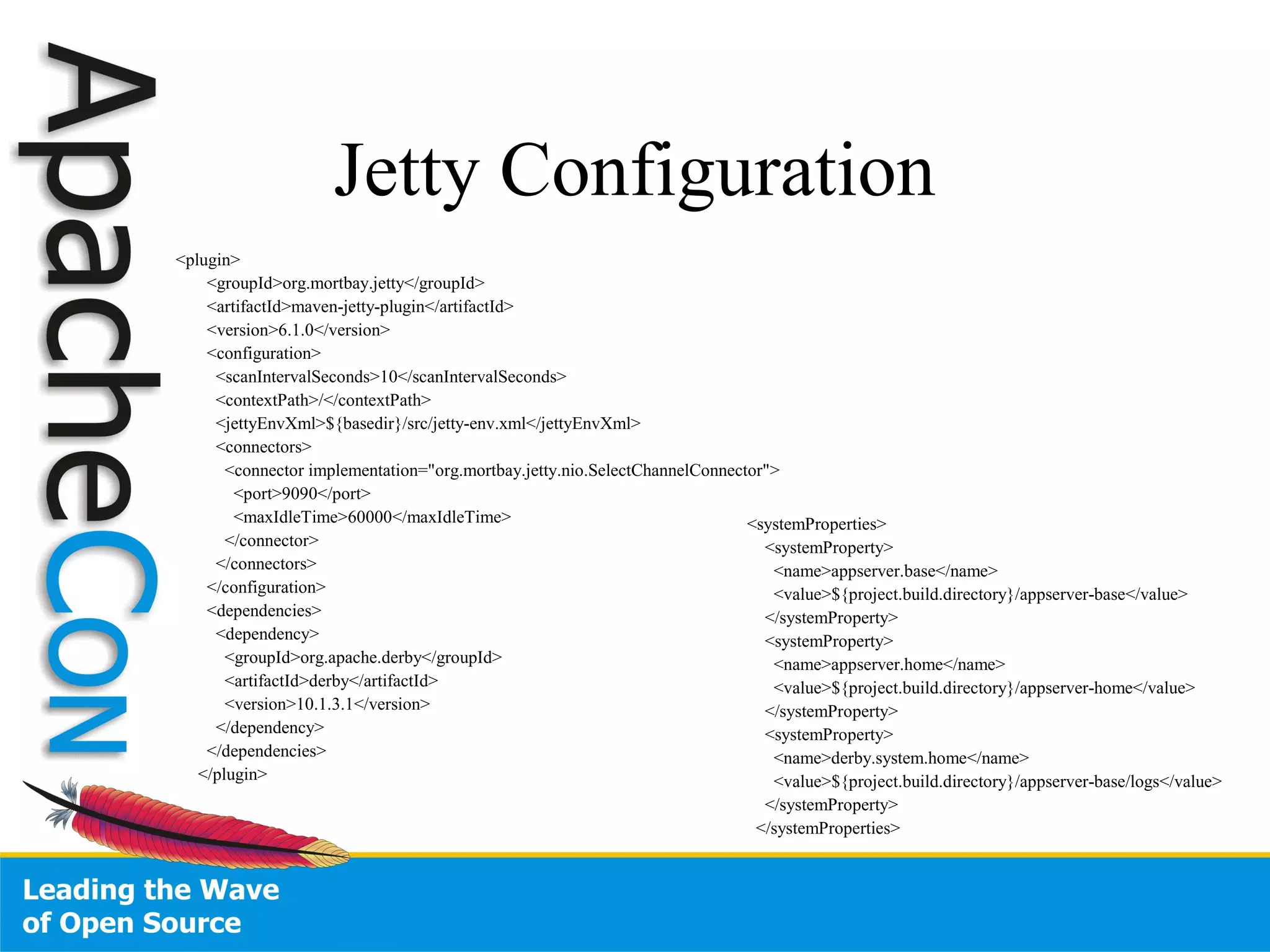

24. Jetty Configuration
<plugin>
<groupId>org.mortbay.jetty</groupId>
<artifactId>maven-jetty-plugin</artifactId>
<version>6.1.0</version>
<configuration>
<scanIntervalSeconds>10</scanIntervalSeconds>
<contextPath>/</contextPath>
<jettyEnvXml>${basedir}/src/jetty-env.xml</jettyEnvXml>
<connectors>
<connector implementation="org.mortbay.jetty.nio.SelectChannelConnector">
<port>9090</port>
<maxIdleTime>60000</maxIdleTime>
</connector>
</connectors>
</configuration>
<dependencies>
<dependency>
<groupId>org.apache.derby</groupId>
<artifactId>derby</artifactId>
<version>10.1.3.1</version>
</dependency>
</dependencies>
</plugin>
<systemProperties>
<systemProperty>
<name>appserver.base</name>
<value>${project.build.directory}/appserver-base</value>
</systemProperty>
<systemProperty>
<name>appserver.home</name>
<value>${project.build.directory}/appserver-home</value>
</systemProperty>
<systemProperty>
<name>derby.system.home</name>
<value>${project.build.directory}/appserver-base/logs</value>
</systemProperty>
</systemProperties>

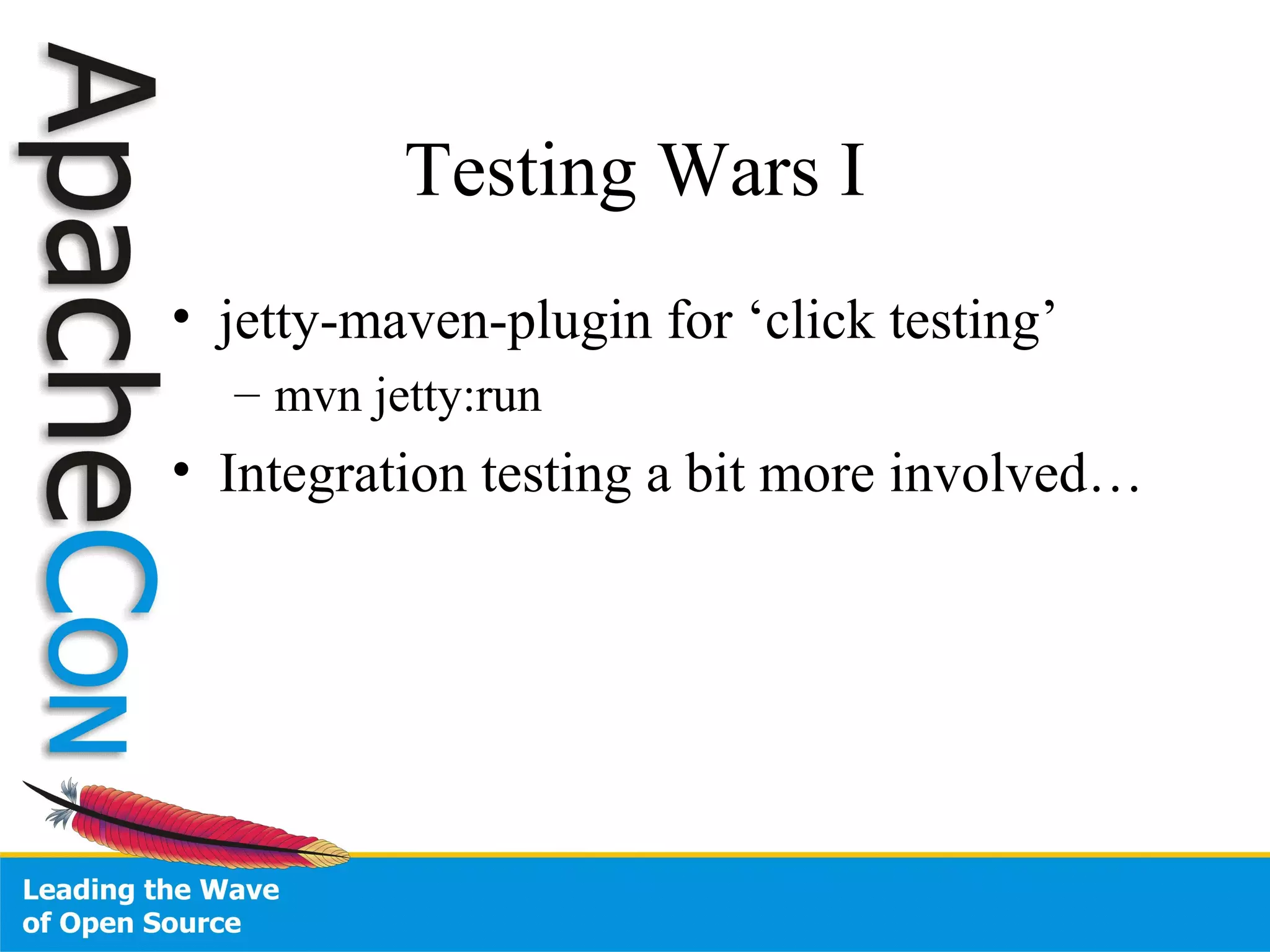

25. Testing Wars I
• jetty-maven-plugin for ‘click testing’
– mvn jetty:run
• Integration testing a bit more involved…

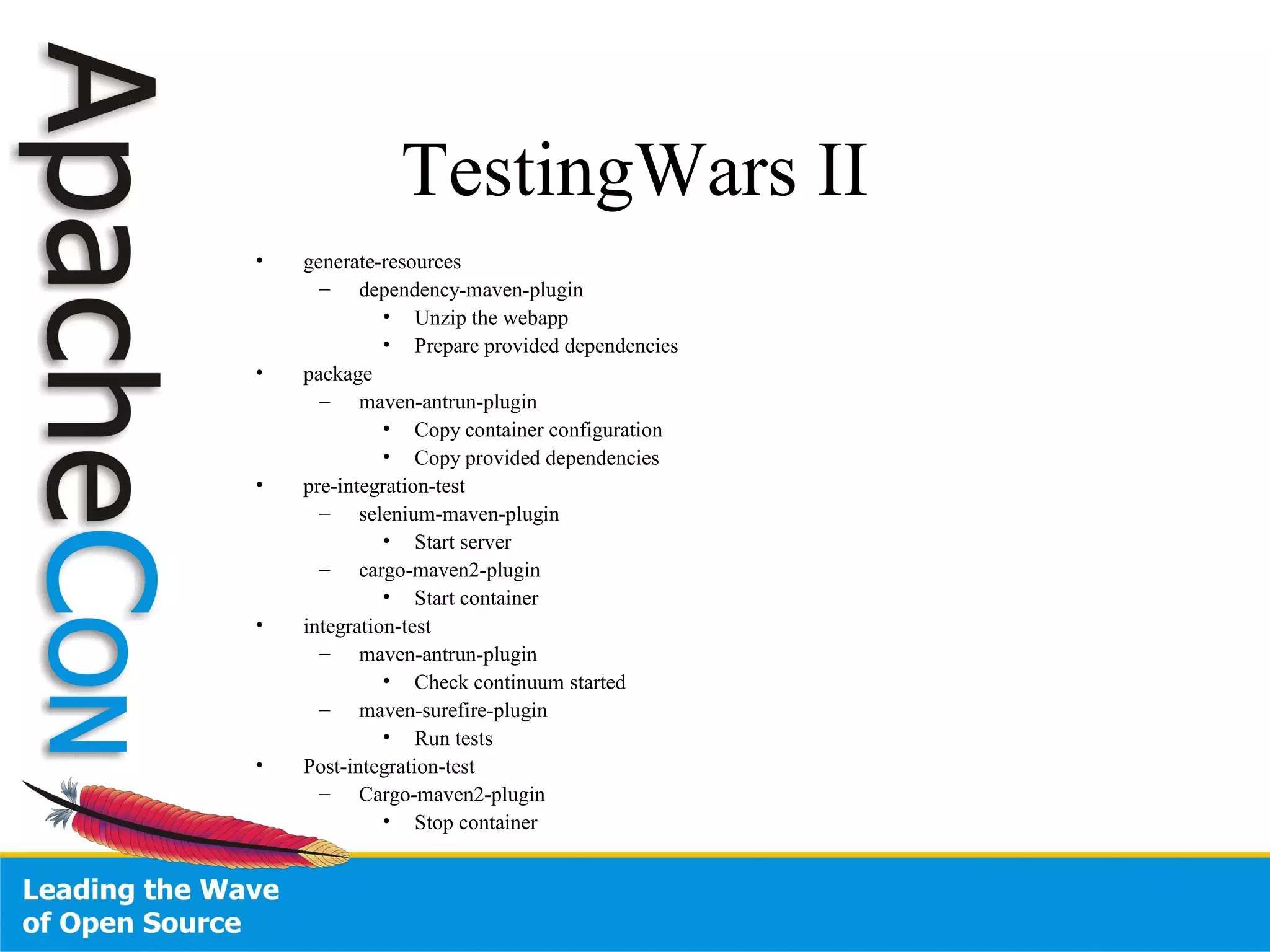

26. TestingWars II
• generate-resources
– dependency-maven-plugin
• Unzip the webapp
• Prepare provided dependencies
• package
– maven-antrun-plugin
• Copy container configuration
• Copy provided dependencies
• pre-integration-test
– selenium-maven-plugin
• Start server
– cargo-maven2-plugin
• Start container
• integration-test
– maven-antrun-plugin
• Check continuum started
– maven-surefire-plugin
• Run tests
• Post-integration-test
– Cargo-maven2-plugin
• Stop container

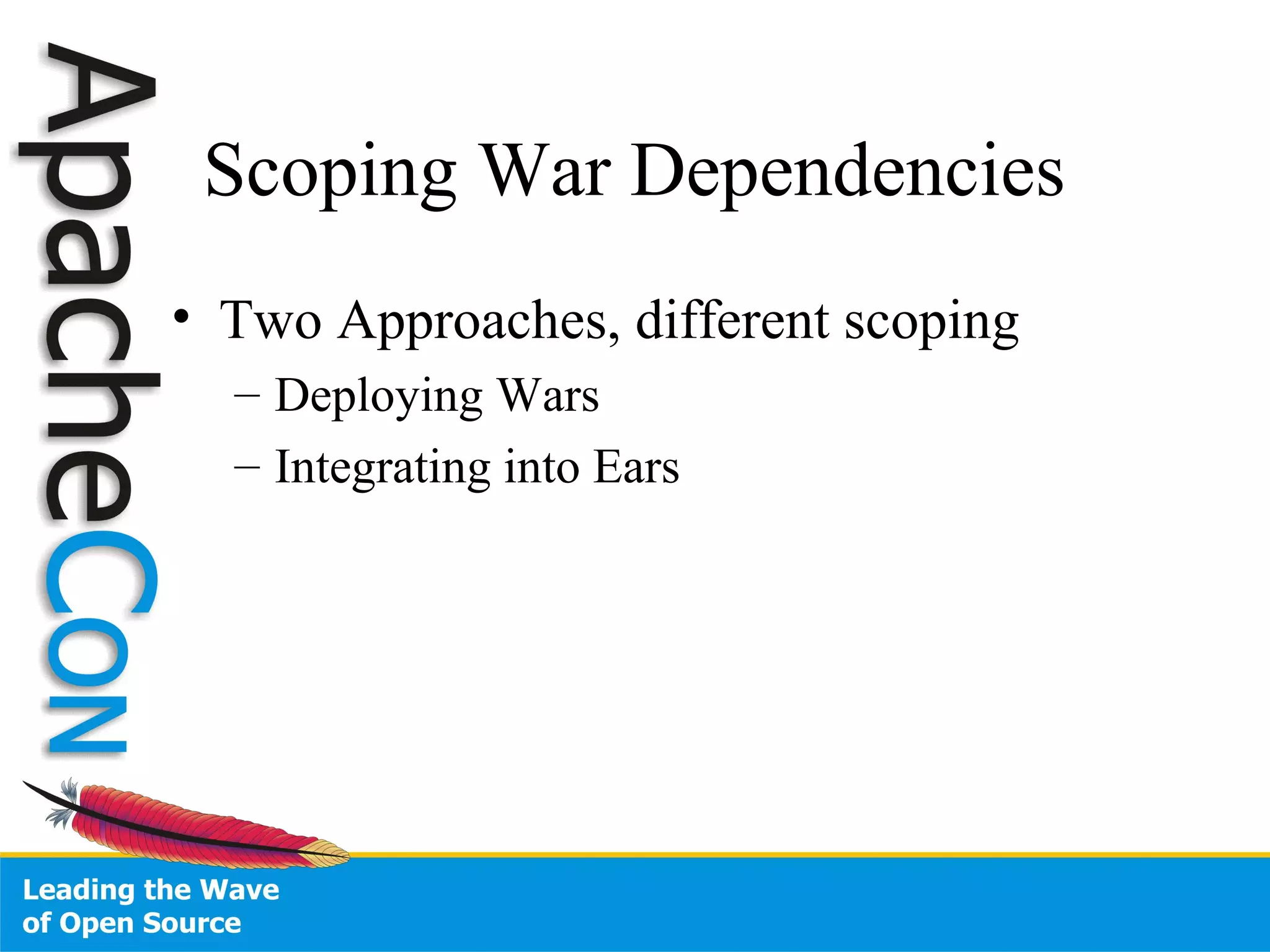

27. Scoping War Dependencies
• Two Approaches, different scoping
– Deploying Wars
– Integrating into Ears

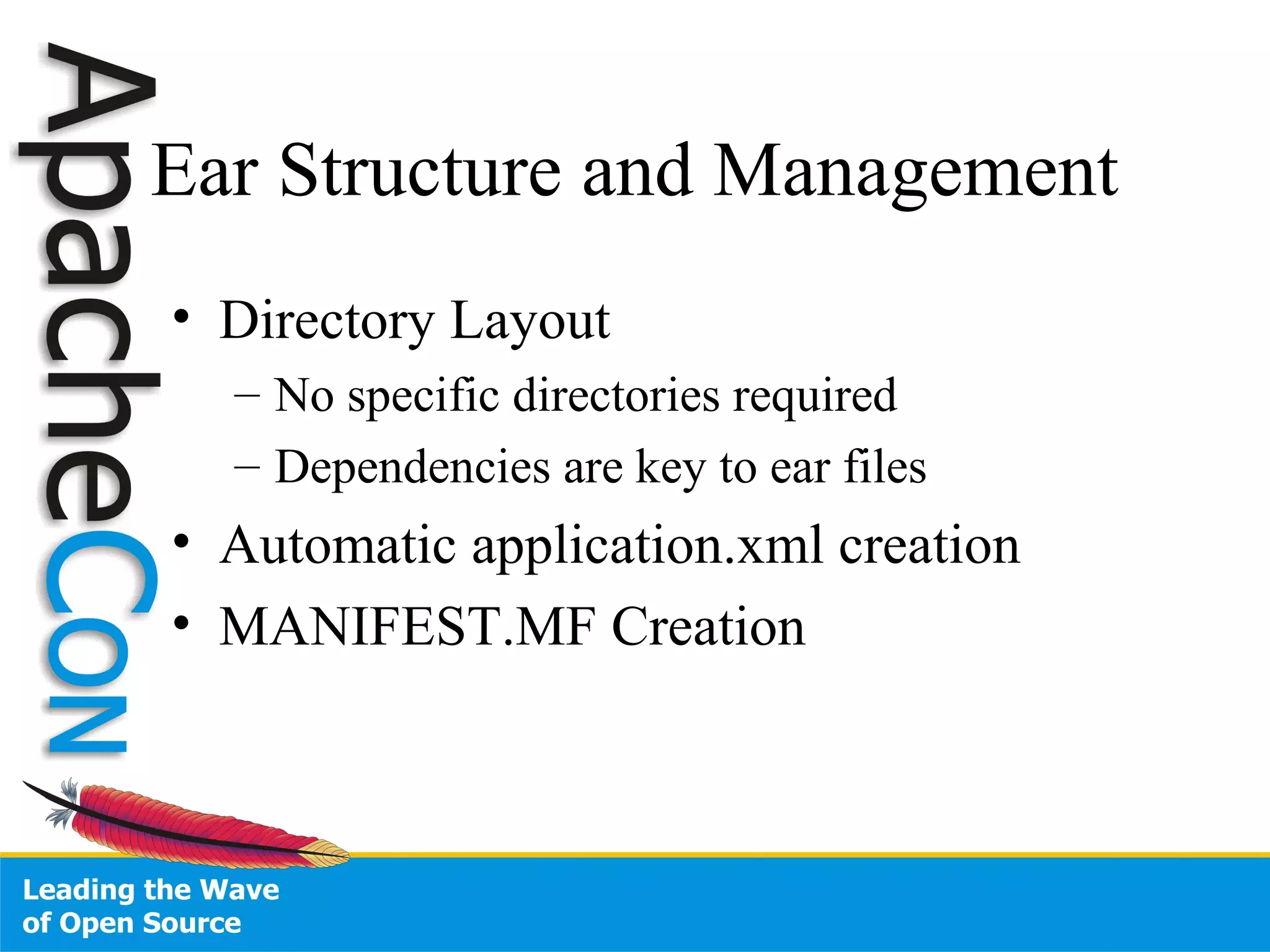

28. Ear Structure and Management
• Directory Layout
– No specific directories required
– Dependencies are key to ear files
• Automatic application.xml creation
• MANIFEST.MF Creation

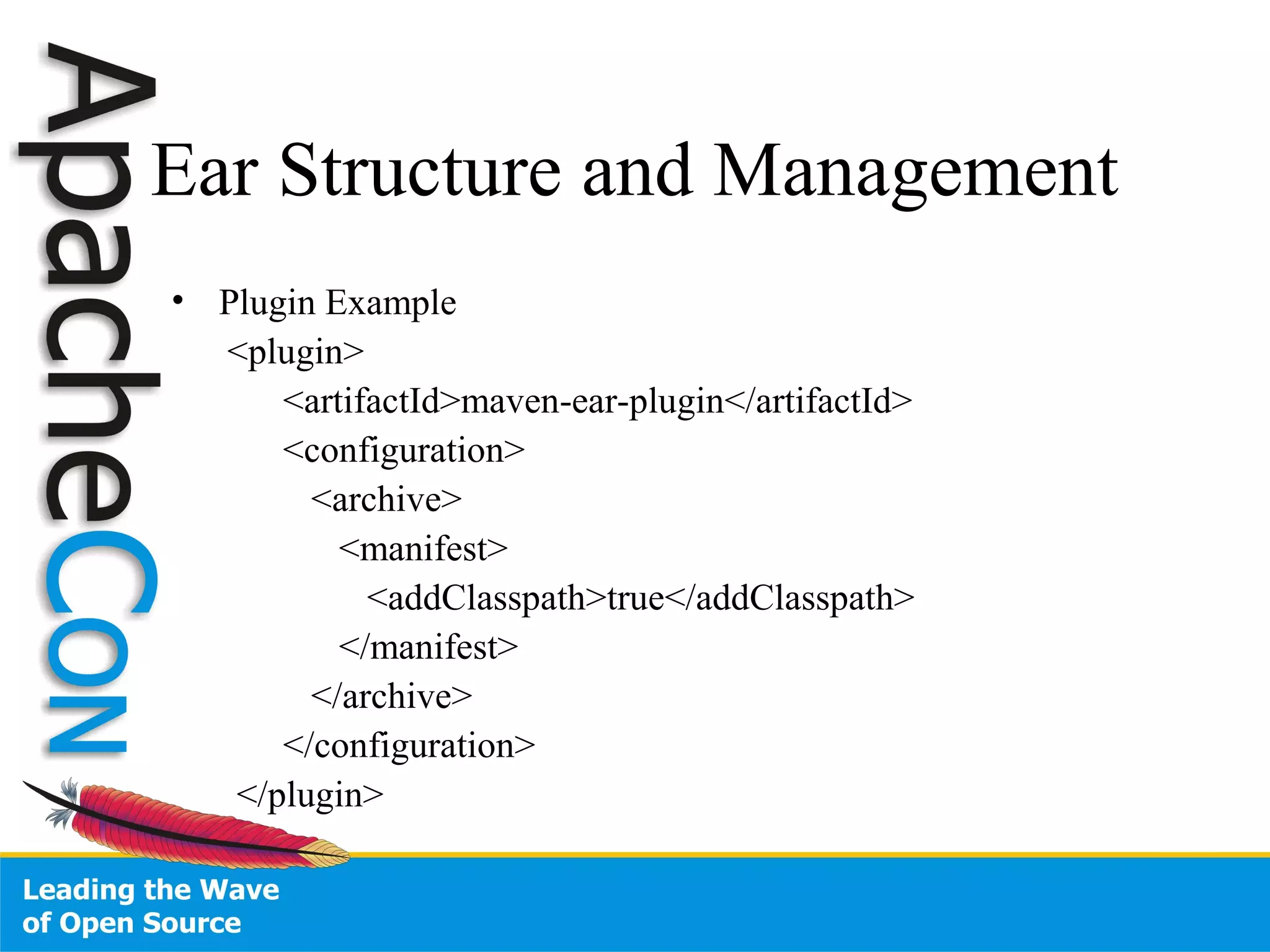

29. Ear Structure and Management
• Plugin Example
<plugin>
<artifactId>maven-ear-plugin</artifactId>
<configuration>
<archive>
<manifest>
<addClasspath>true</addClasspath>
</manifest>
</archive>
</configuration>
</plugin>

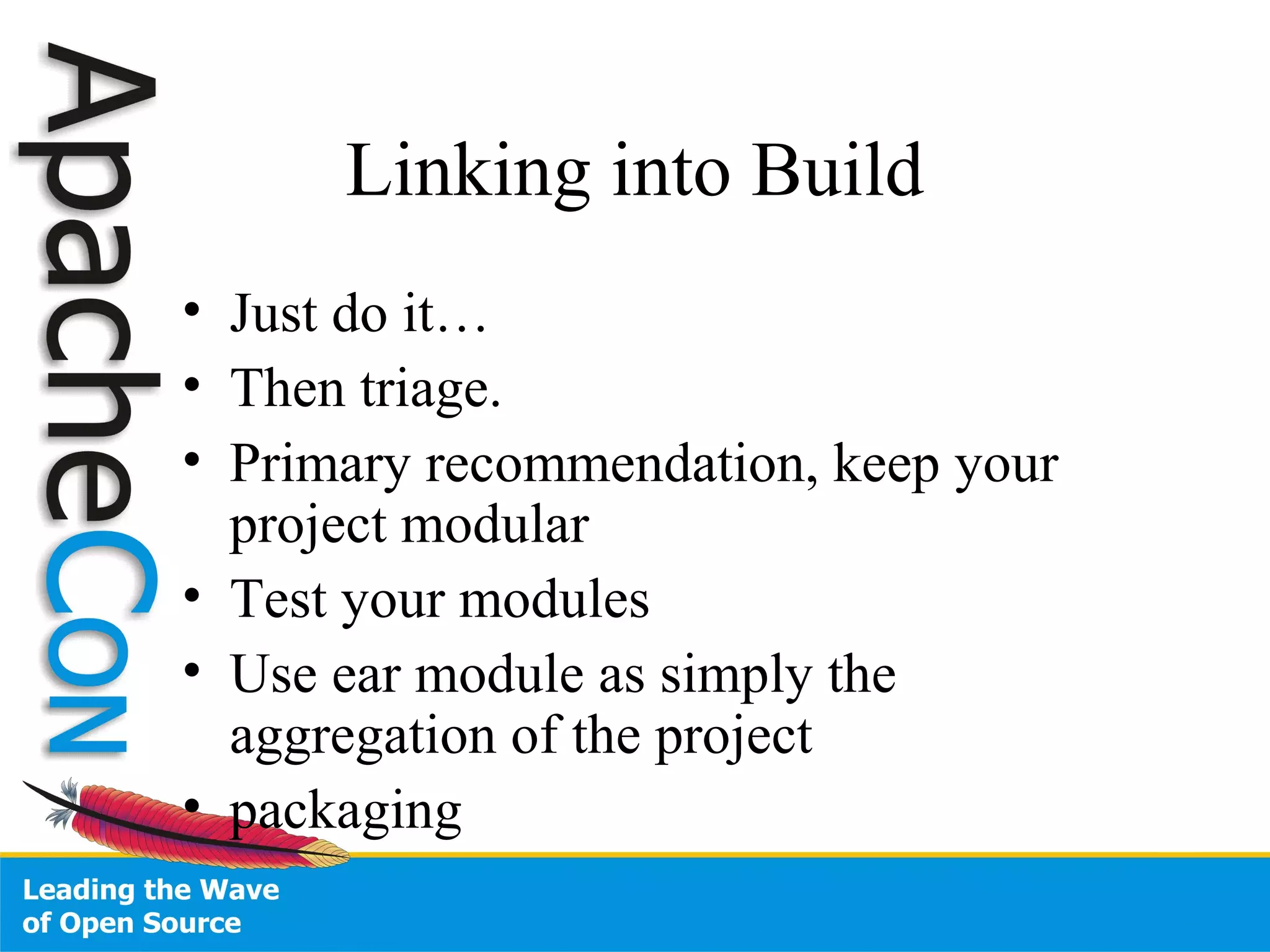

30. Linking into Build
• Just do it…
• Then triage.
• Primary recommendation, keep your
project modular
• Test your modules
• Use ear module as simply the
aggregation of the project
• packaging

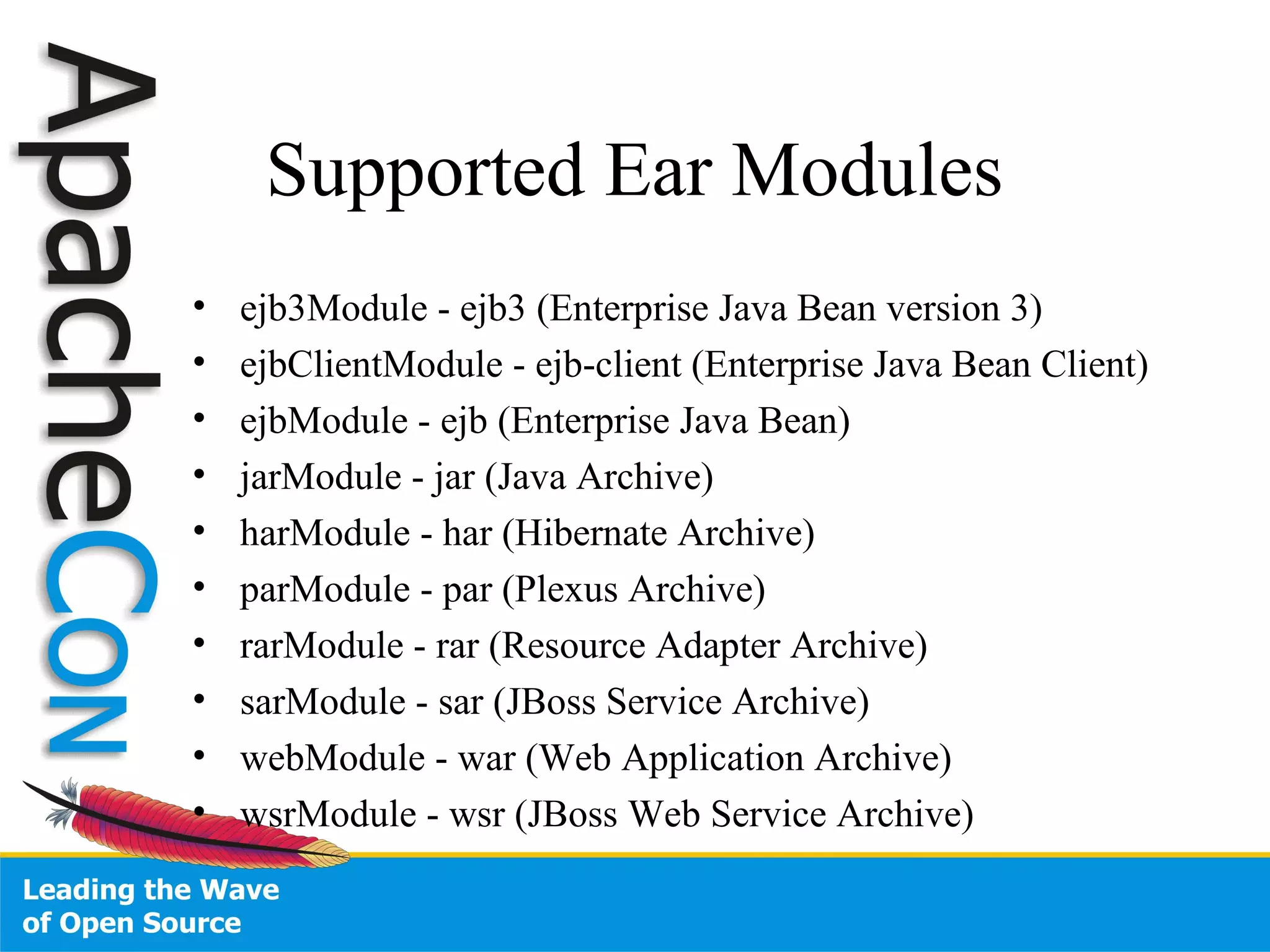

31. Supported Ear Modules
• ejb3Module - ejb3 (Enterprise Java Bean version 3)
• ejbClientModule - ejb-client (Enterprise Java Bean Client)
• ejbModule - ejb (Enterprise Java Bean)
• jarModule - jar (Java Archive)
• harModule - har (Hibernate Archive)
• parModule - par (Plexus Archive)
• rarModule - rar (Resource Adapter Archive)
• sarModule - sar (JBoss Service Archive)
• webModule - war (Web Application Archive)
• wsrModule - wsr (JBoss Web Service Archive)

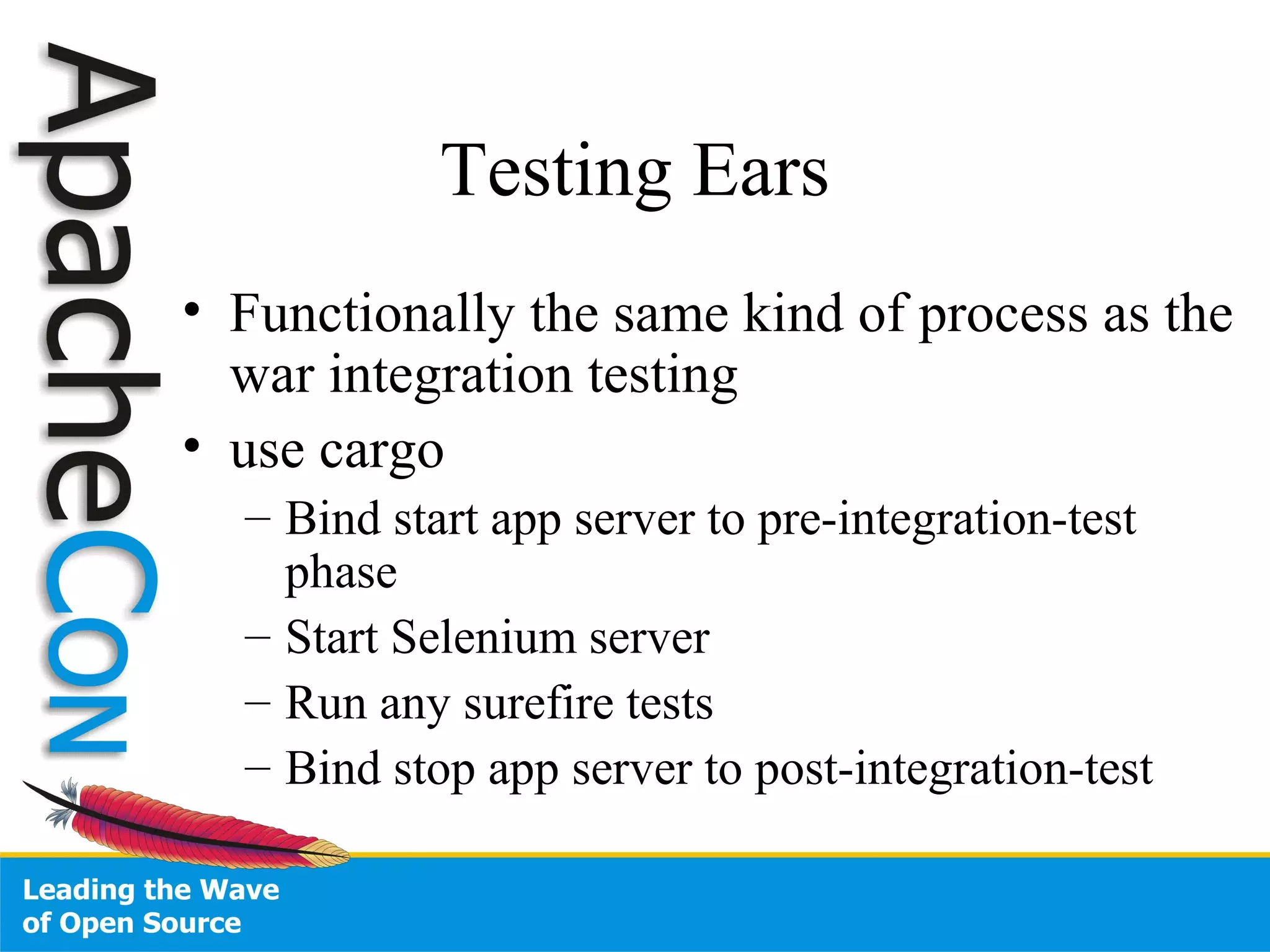

32. Testing Ears
• Functionally the same kind of process as the
war integration testing
• use cargo
– Bind start app server to pre-integration-test
phase
– Start Selenium server
– Run any surefire tests
– Bind stop app server to post-integration-test

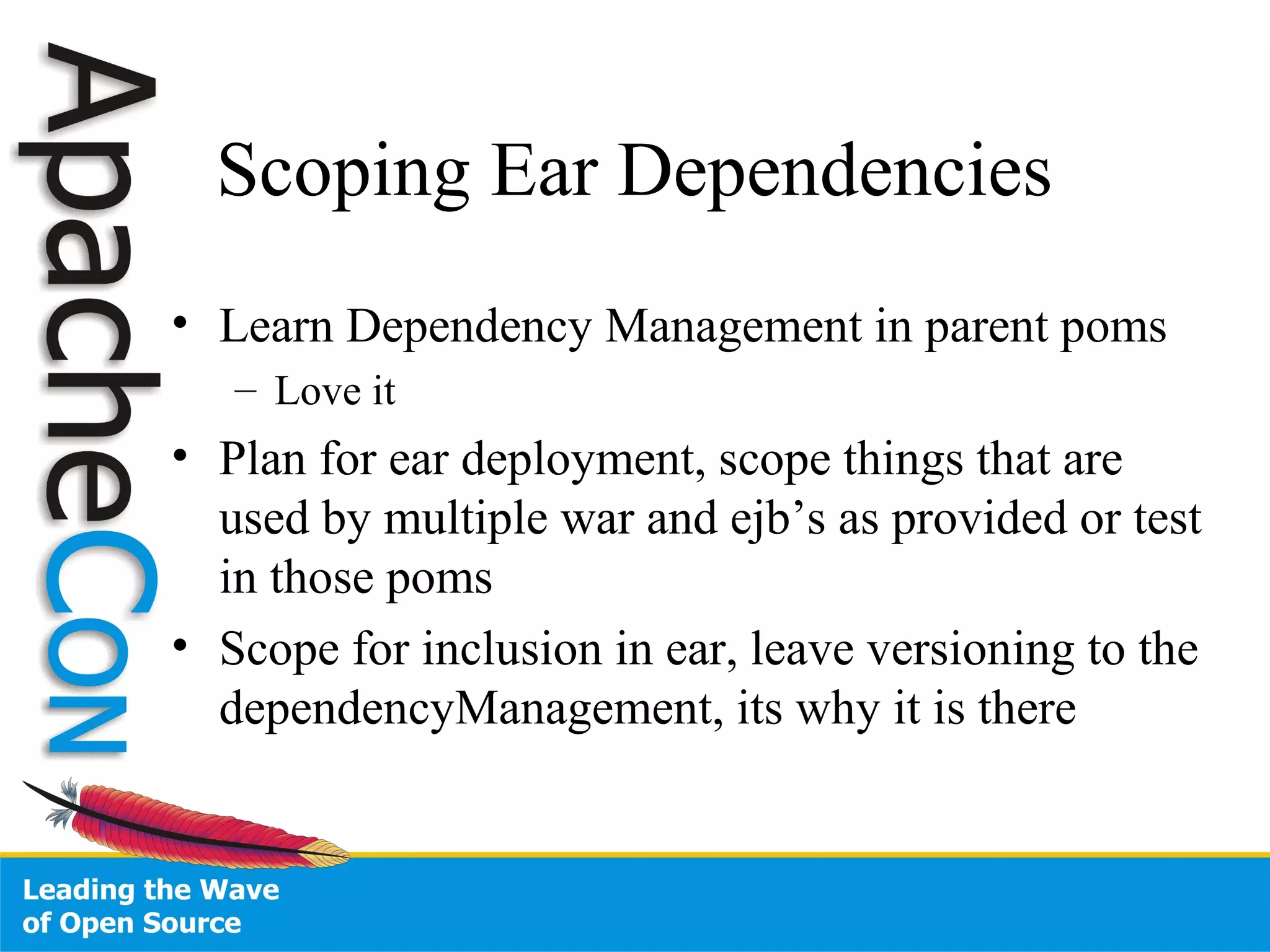

33. Scoping Ear Dependencies
• Learn Dependency Management in parent poms
– Love it
• Plan for ear deployment, scope things that are
used by multiple war and ejb’s as provided or test
in those poms
• Scope for inclusion in ear, leave versioning to the
dependencyManagement, its why it is there

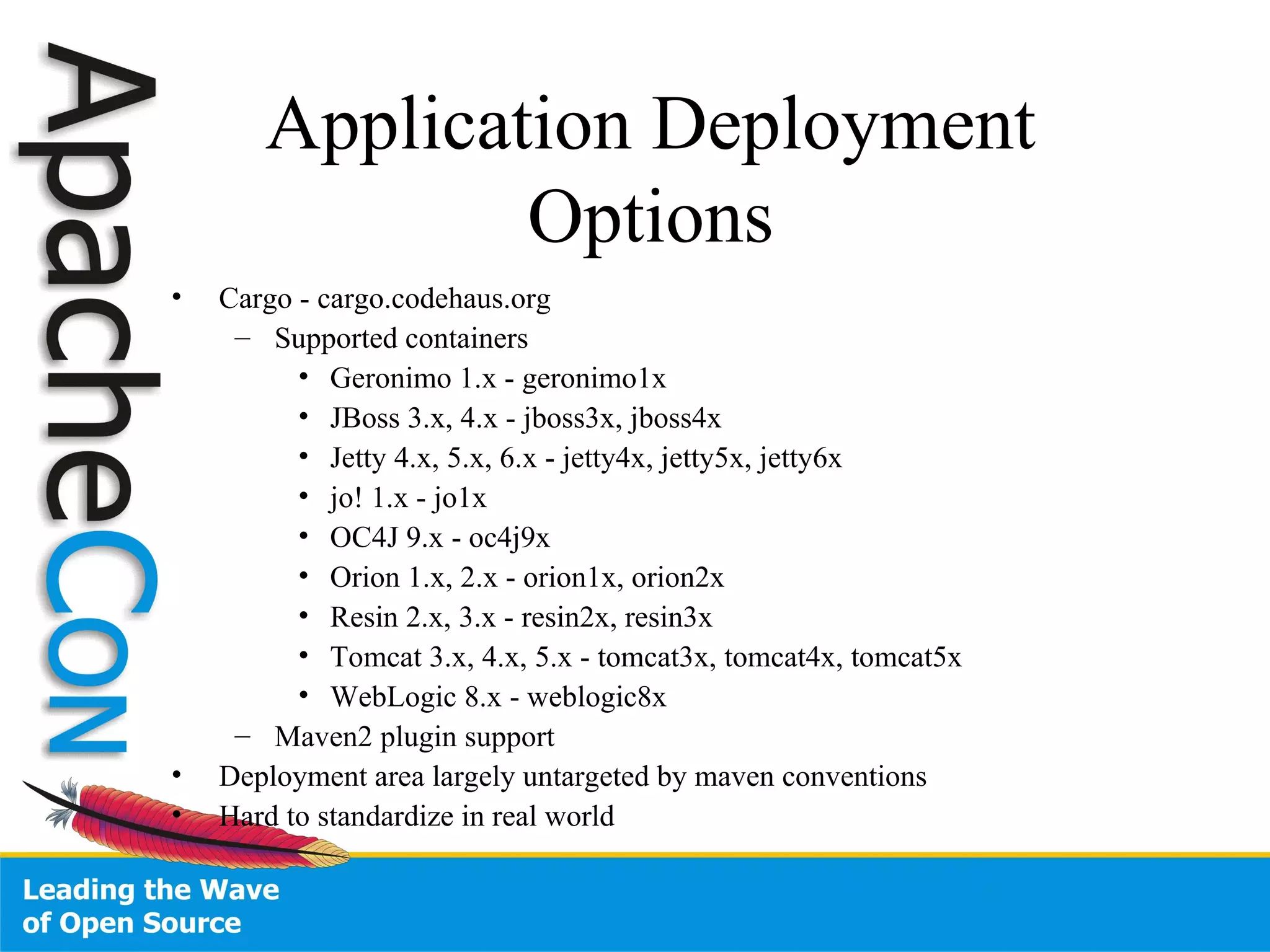

34. Application Deployment
Options
• Cargo - cargo.codehaus.org
– Supported containers
• Geronimo 1.x - geronimo1x
• JBoss 3.x, 4.x - jboss3x, jboss4x
• Jetty 4.x, 5.x, 6.x - jetty4x, jetty5x, jetty6x
• jo! 1.x - jo1x
• OC4J 9.x - oc4j9x
• Orion 1.x, 2.x - orion1x, orion2x
• Resin 2.x, 3.x - resin2x, resin3x
• Tomcat 3.x, 4.x, 5.x - tomcat3x, tomcat4x, tomcat5x
• WebLogic 8.x - weblogic8x
– Maven2 plugin support
• Deployment area largely untargeted by maven conventions
• Hard to standardize in real world

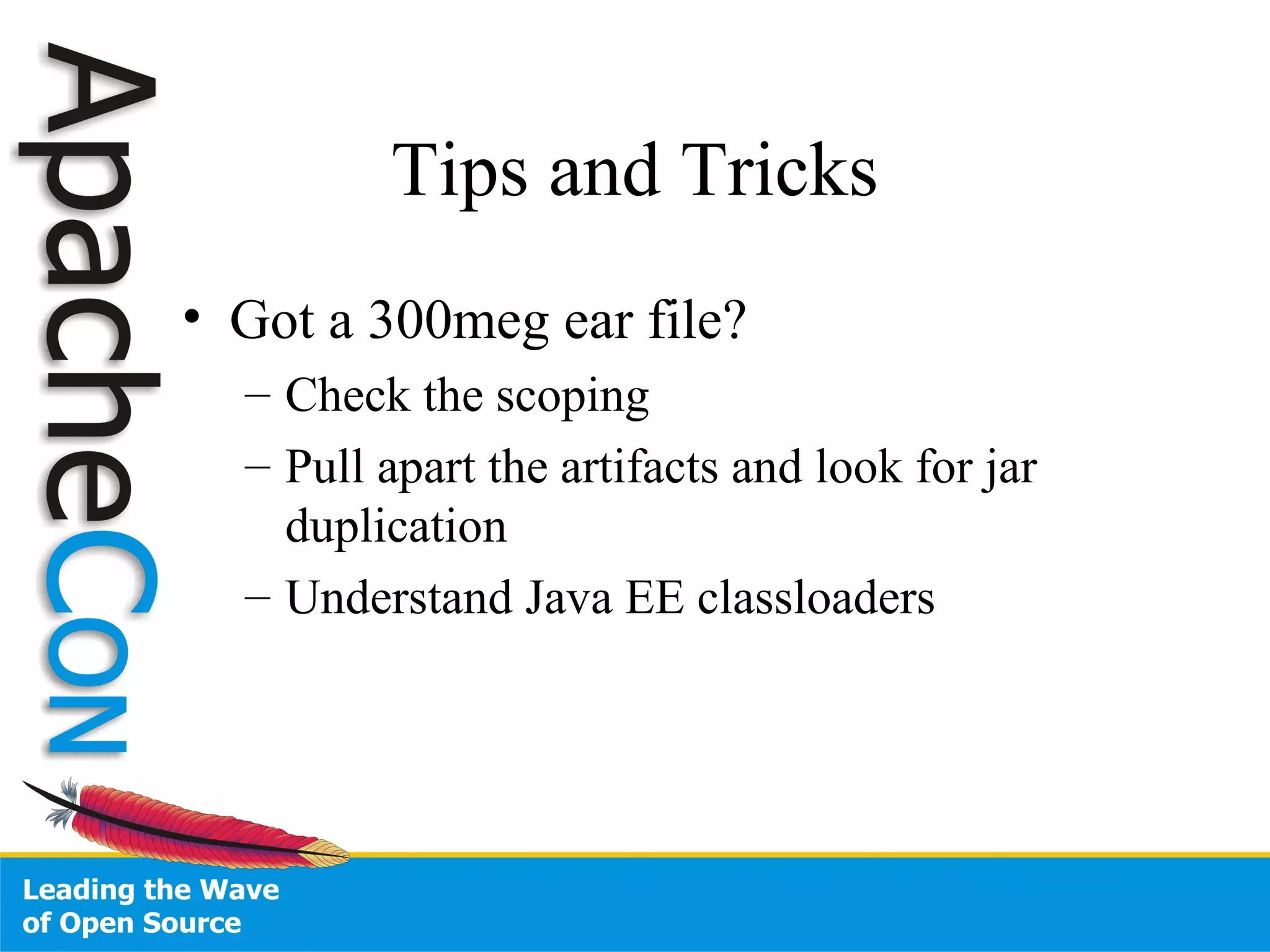

35. Tips and Tricks
• Got a 300meg ear file?
– Check the scoping
– Pull apart the artifacts and look for jar
duplication
– Understand Java EE classloaders

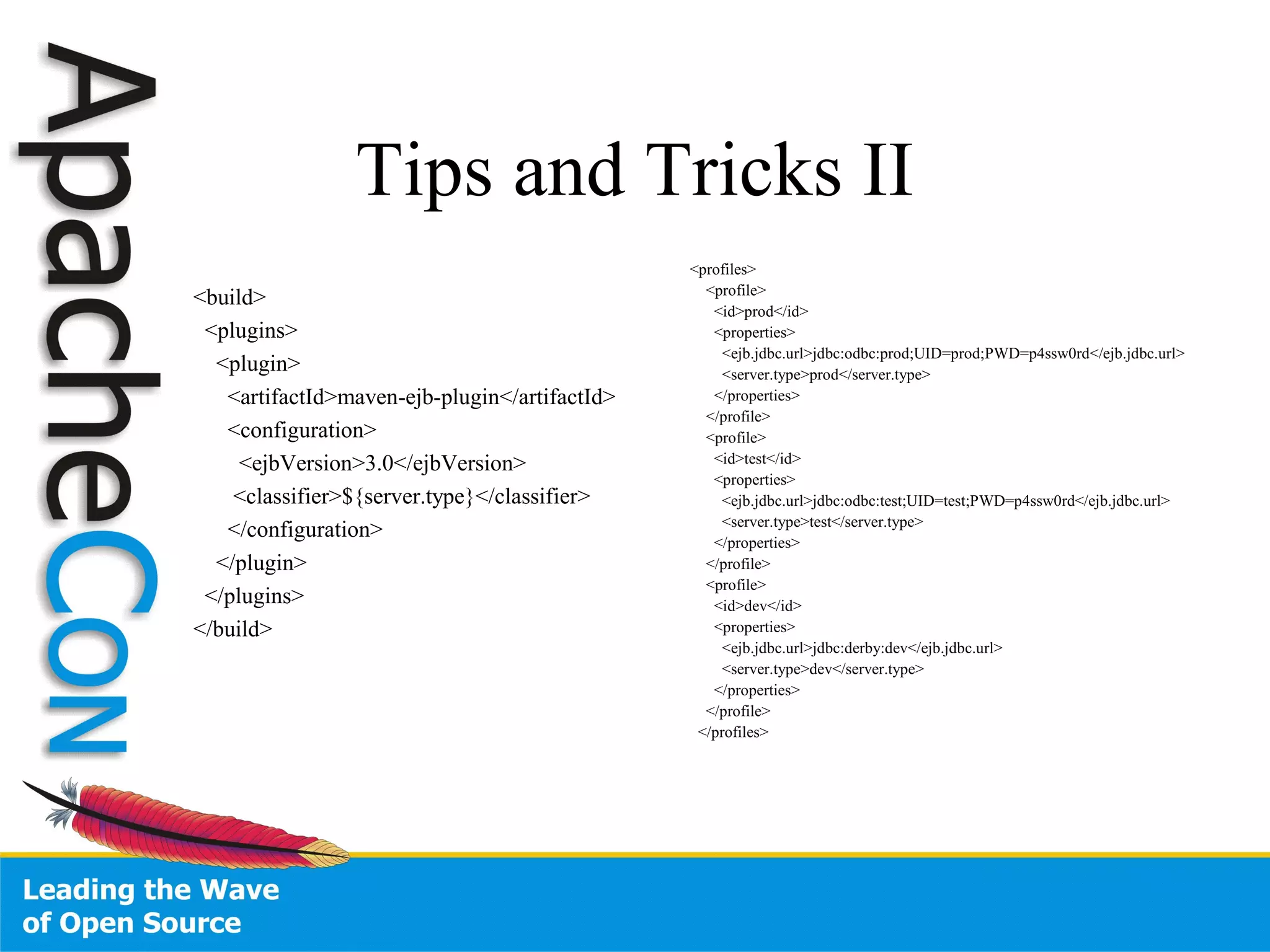

36. Tips and Tricks II
<build>
<plugins>
<plugin>
<artifactId>maven-ejb-plugin</artifactId>
<configuration>
<ejbVersion>3.0</ejbVersion>
<classifier>${server.type}</classifier>
</configuration>
</plugin>
</plugins>
</build>
<profiles>
<profile>
<id>prod</id>
<properties>
<ejb.jdbc.url>jdbc:odbc:prod;UID=prod;PWD=p4ssw0rd</ejb.jdbc.url>
<server.type>prod</server.type>
</properties>
</profile>
<profile>
<id>test</id>
<properties>
<ejb.jdbc.url>jdbc:odbc:test;UID=test;PWD=p4ssw0rd</ejb.jdbc.url>
<server.type>test</server.type>
</properties>
</profile>
<profile>
<id>dev</id>
<properties>
<ejb.jdbc.url>jdbc:derby:dev</ejb.jdbc.url>
<server.type>dev</server.type>
</properties>
</profile>
</profiles>

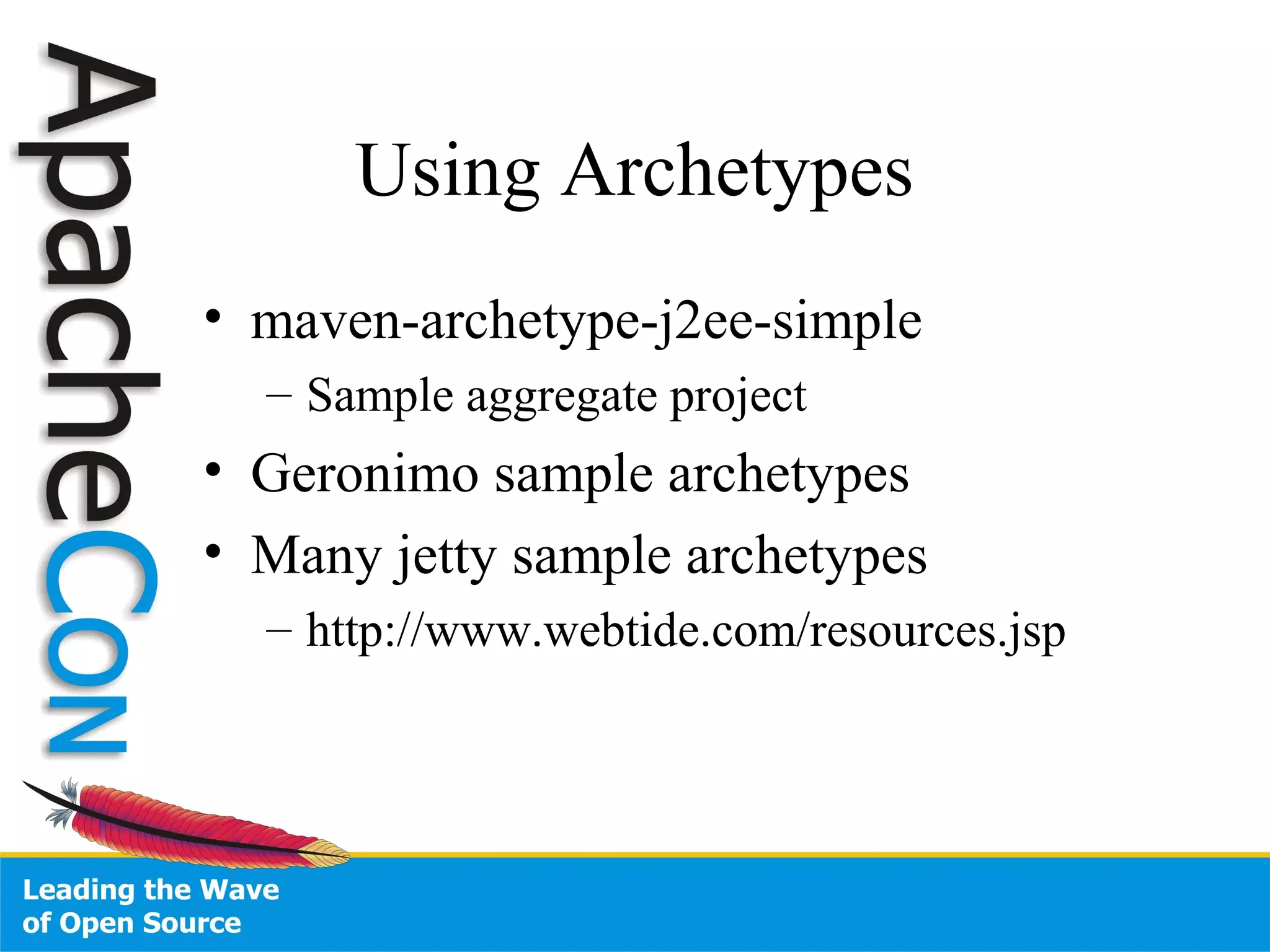

37. Using Archetypes
• maven-archetype-j2ee-simple
– Sample aggregate project
• Geronimo sample archetypes
• Many jetty sample archetypes
– http://www.webtide.com/resources.jsp

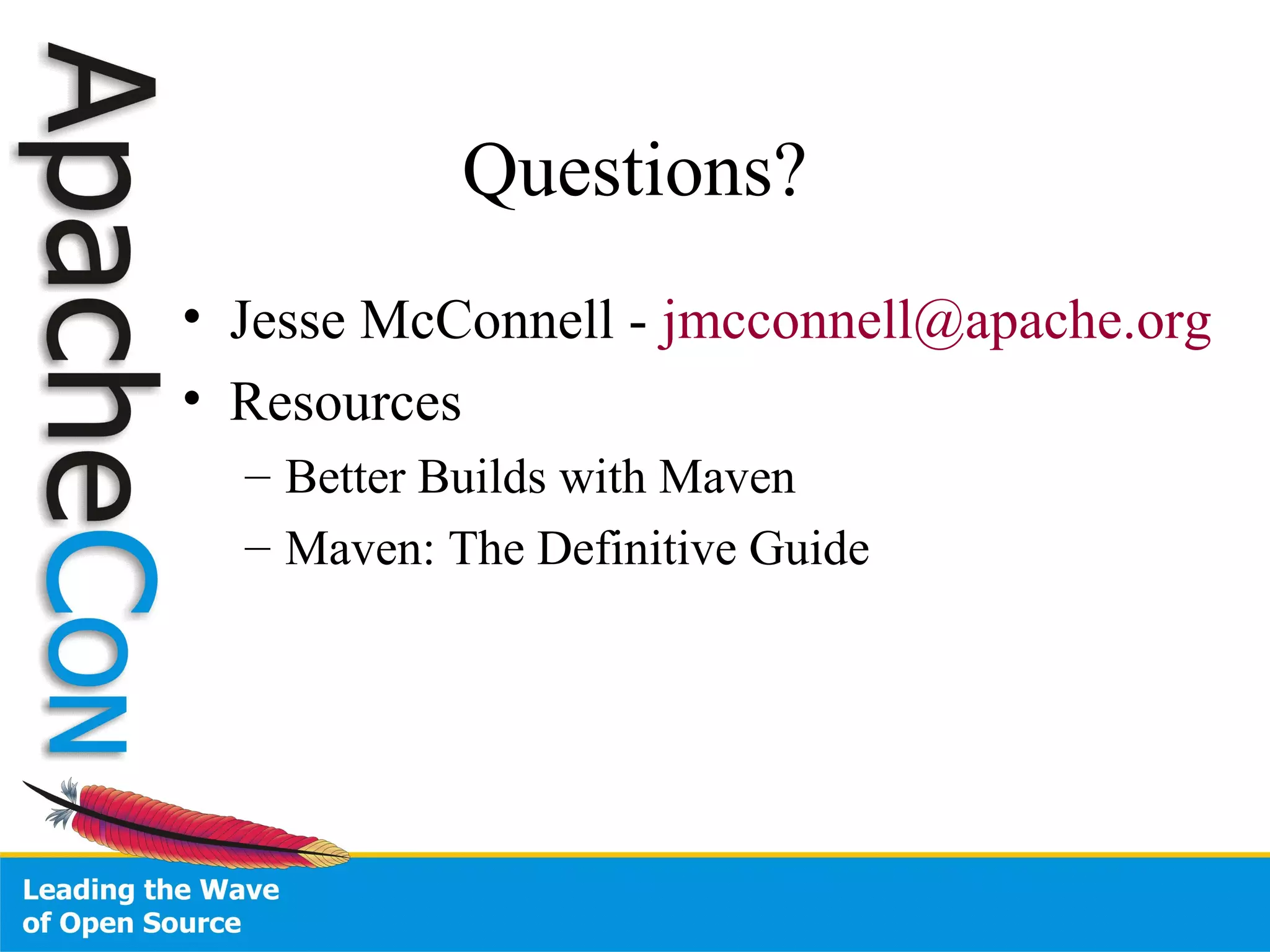

38. Questions?
• Jesse McConnell - jmcconnell@apache.org
• Resources
– Better Builds with Maven
– Maven: The Definitive Guide
