1. Configuring CB Connections
Links:
• Joomlapolis
• Community Builder
• Membership
• Tutorials
Promotion:
• Use “pic-book”
coupon code and
get 15% off any
Joomlapolis
product or
subscription
How to configure the CB Connections
feature
© 2004-2012 Joomlapolis.com

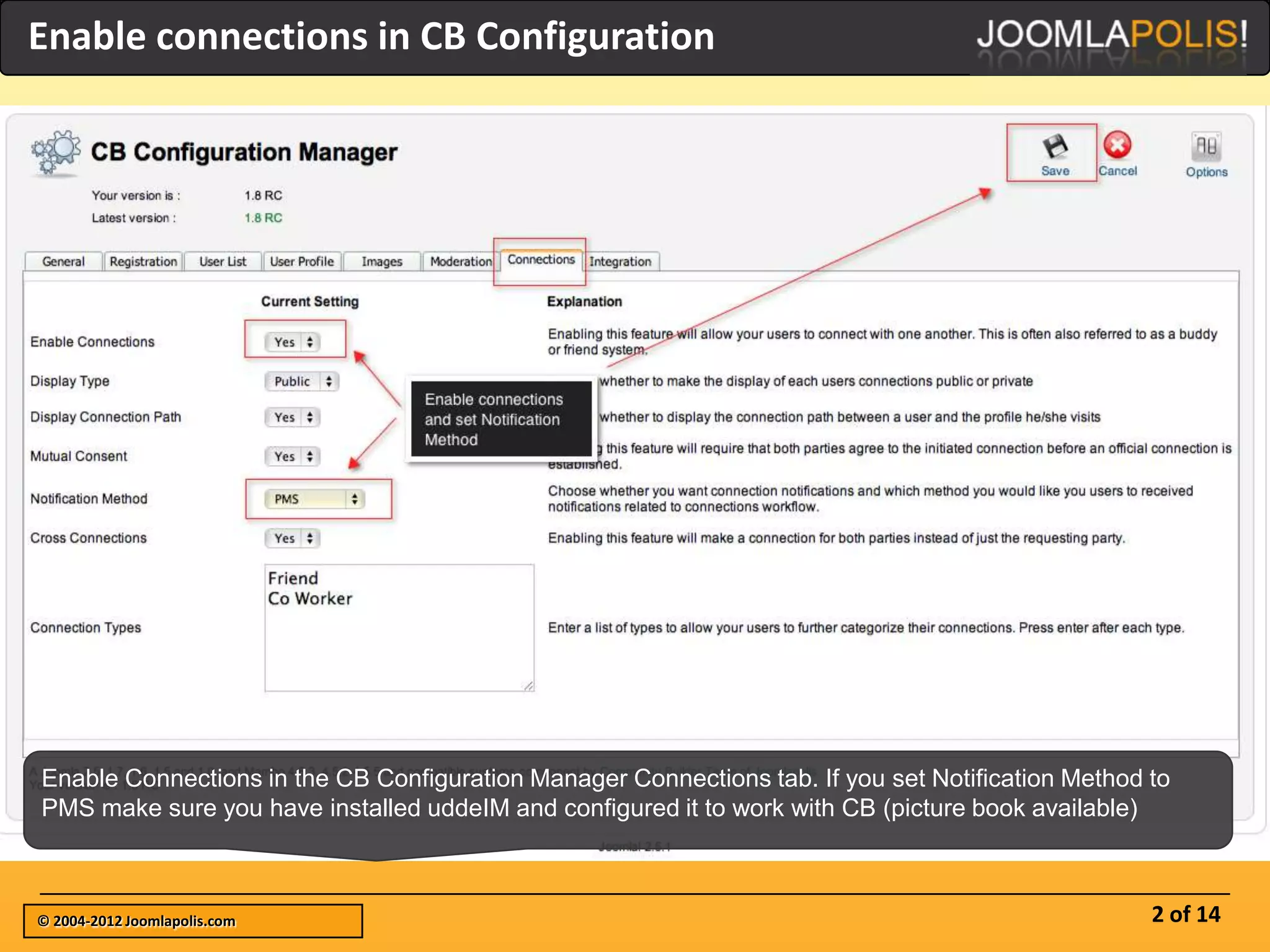

2. Enable connections in CB Configuration
Enable Connections in the CB Configuration Manager Connections tab. If you set Notification Method to
PMS make sure you have installed uddeIM and configured it to work with CB (picture book available)
© 2004-2012 Joomlapolis.com 2 of 14

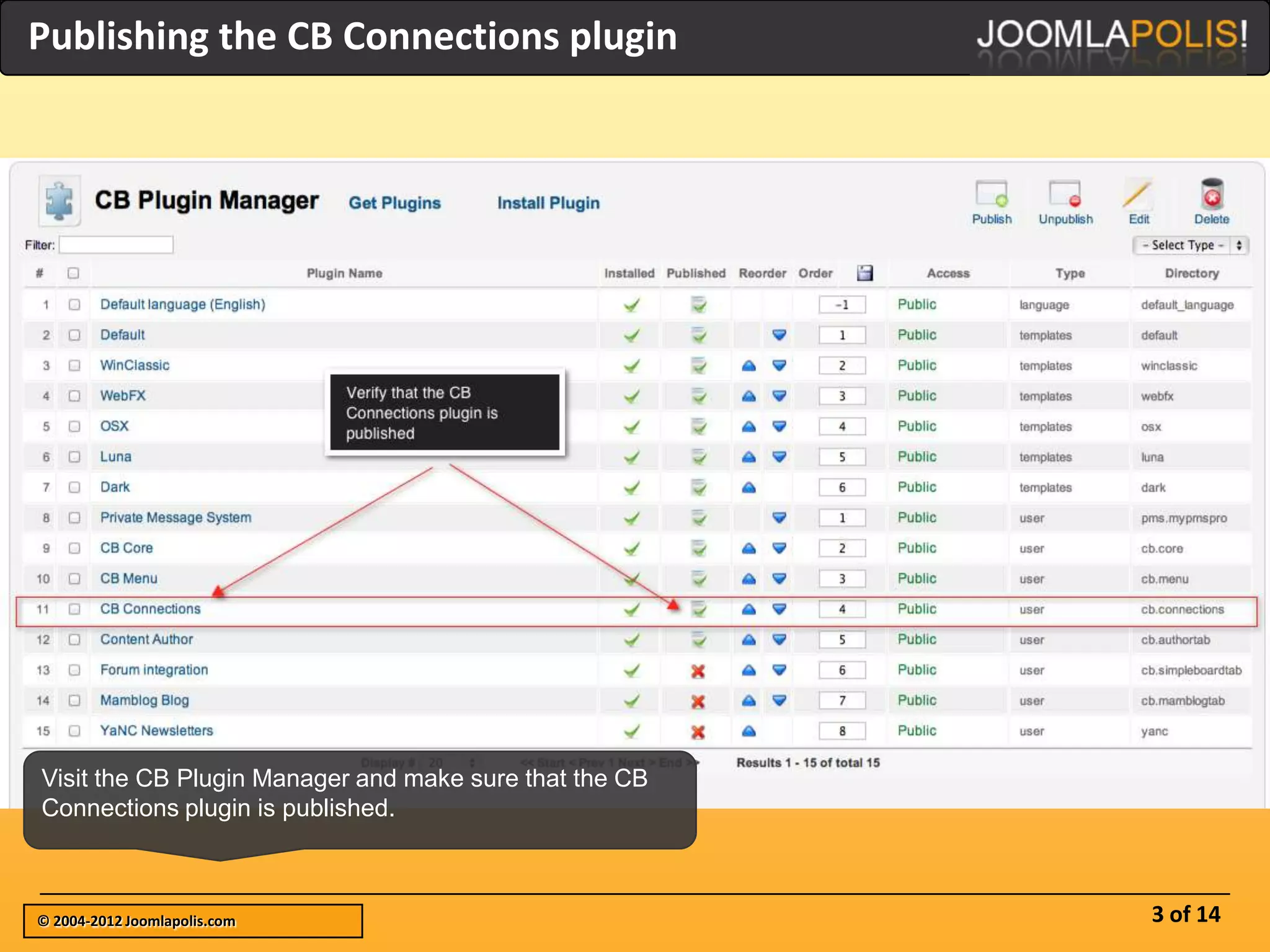

3. Publishing the CB Connections plugin
Visit the CB Plugin Manager and make sure that the CB
Connections plugin is published.
© 2004-2012 Joomlapolis.com 3 of 14

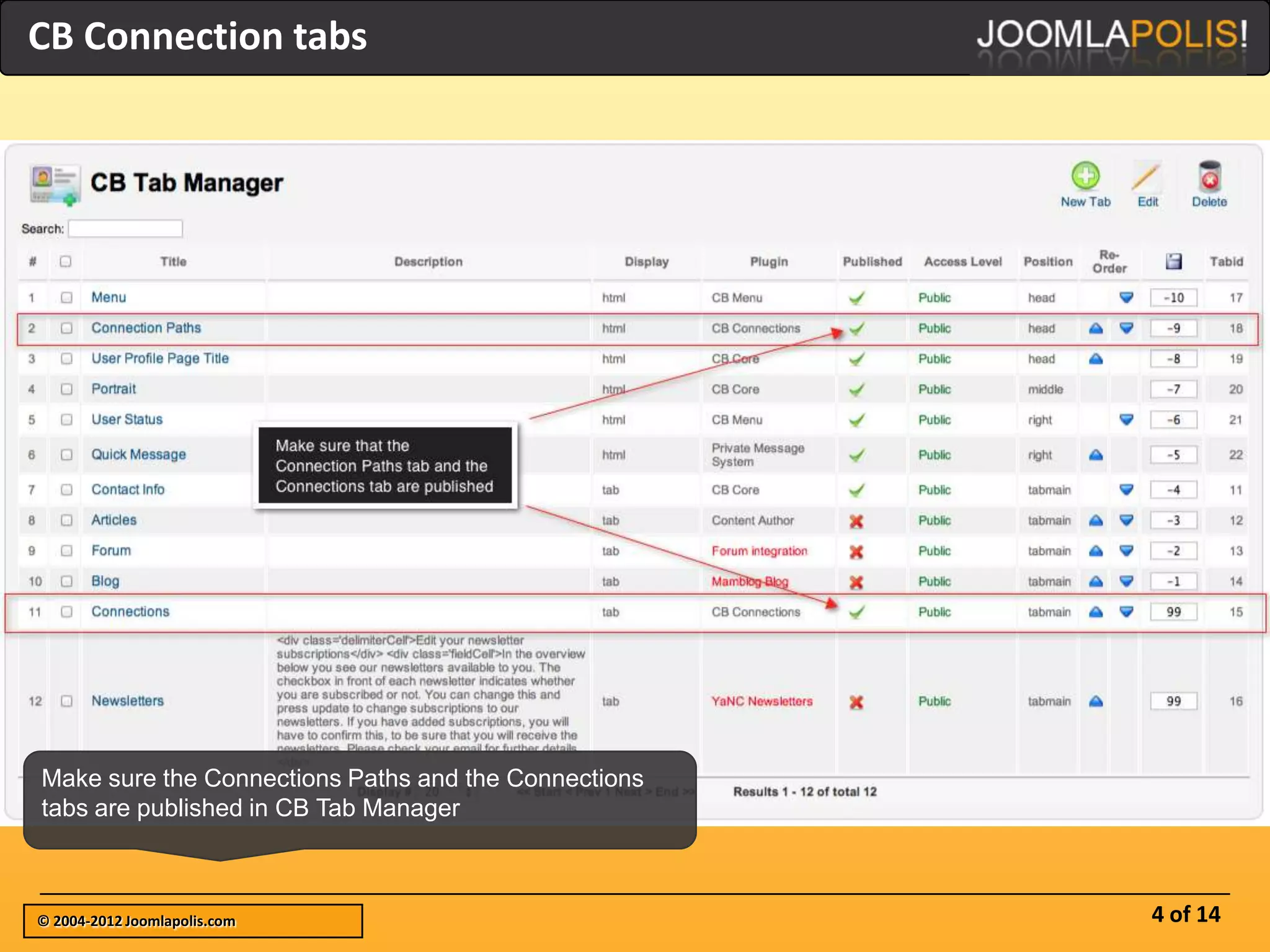

4. CB Connection tabs
Make sure the Connections Paths and the Connections
tabs are published in CB Tab Manager
© 2004-2012 Joomlapolis.com 4 of 14

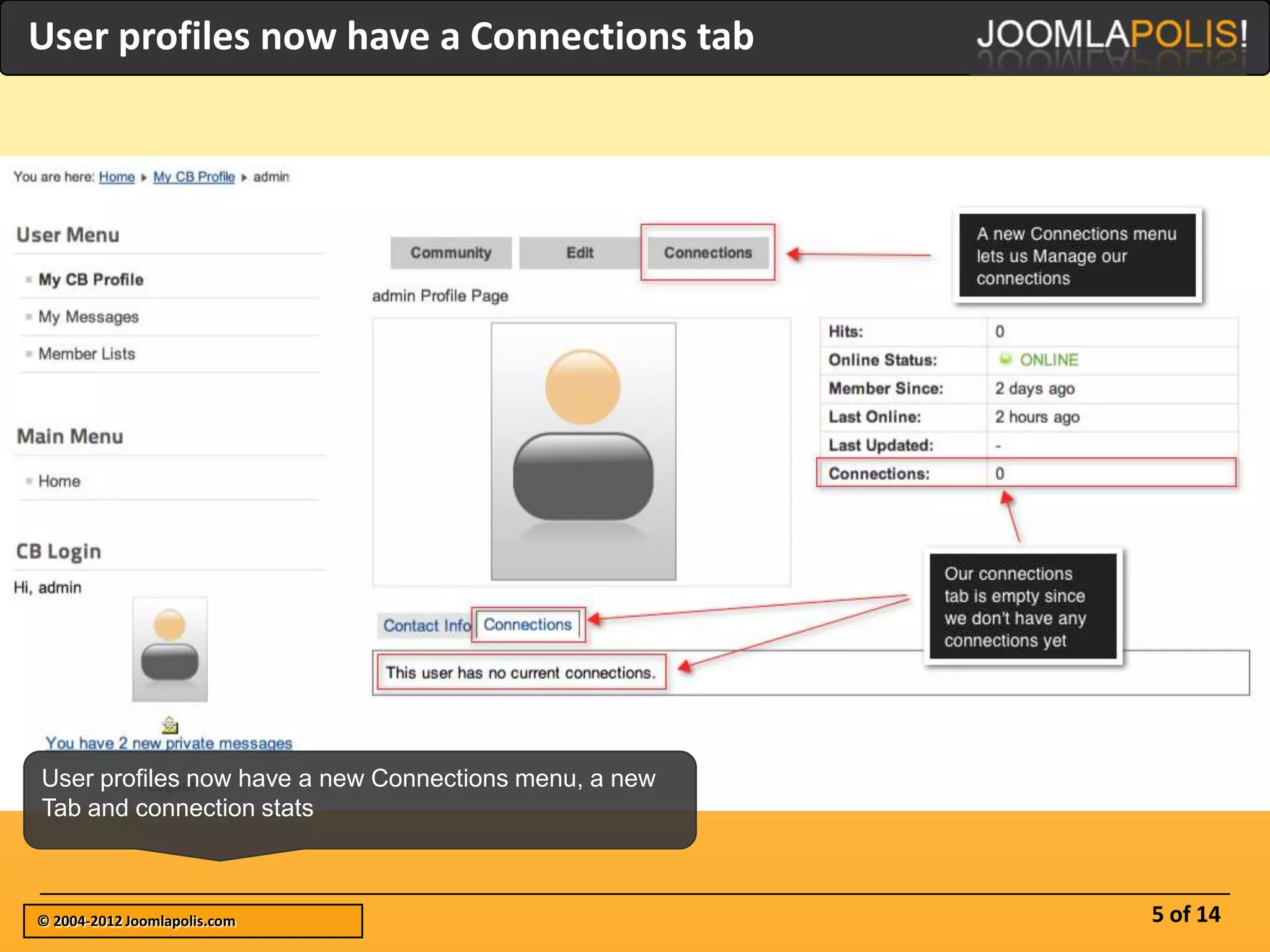

5. User profiles now have a Connections tab
User profiles now have a new Connections menu, a new
Tab and connection stats
© 2004-2012 Joomlapolis.com 5 of 14

6. Use member list to find a user to connect with
Logged in user can display user list to find someone to connect to and click on list row to get to this user’s
profile page
© 2004-2012 Joomlapolis.com 6 of 14

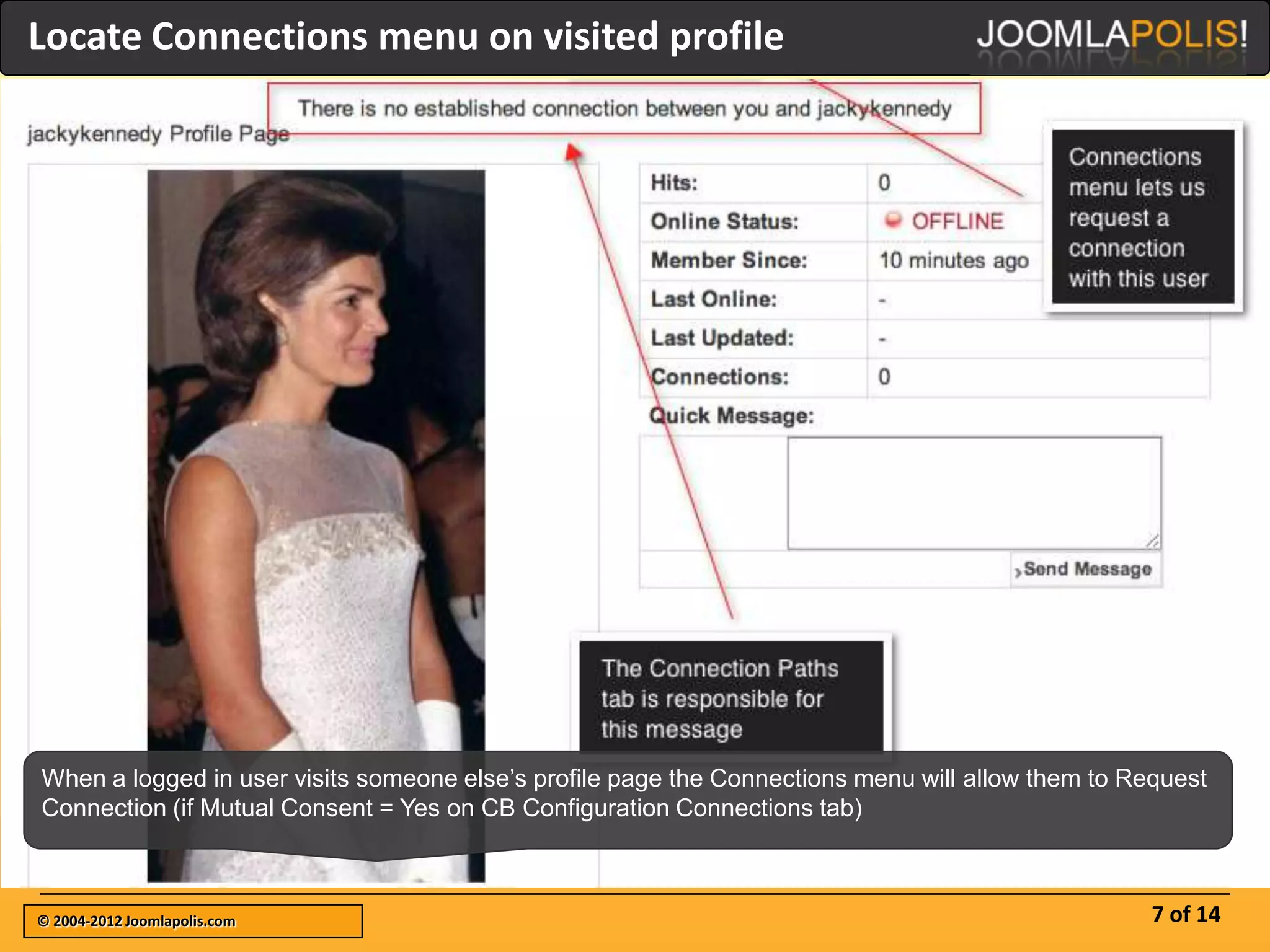

7. Locate Connections menu on visited profile
When a logged in user visits someone else’s profile page the Connections menu will allow them to Request
Connection (if Mutual Consent = Yes on CB Configuration Connections tab)
© 2004-2012 Joomlapolis.com 7 of 14

8. Requesting connection with personal message
When you visit a profile and select Request Connection from Connections menu you are presented with a popup
window to add a personal request message. Request message is sent using method(s) set in CB Configuration
© 2004-2012 Joomlapolis.com 8 of 14

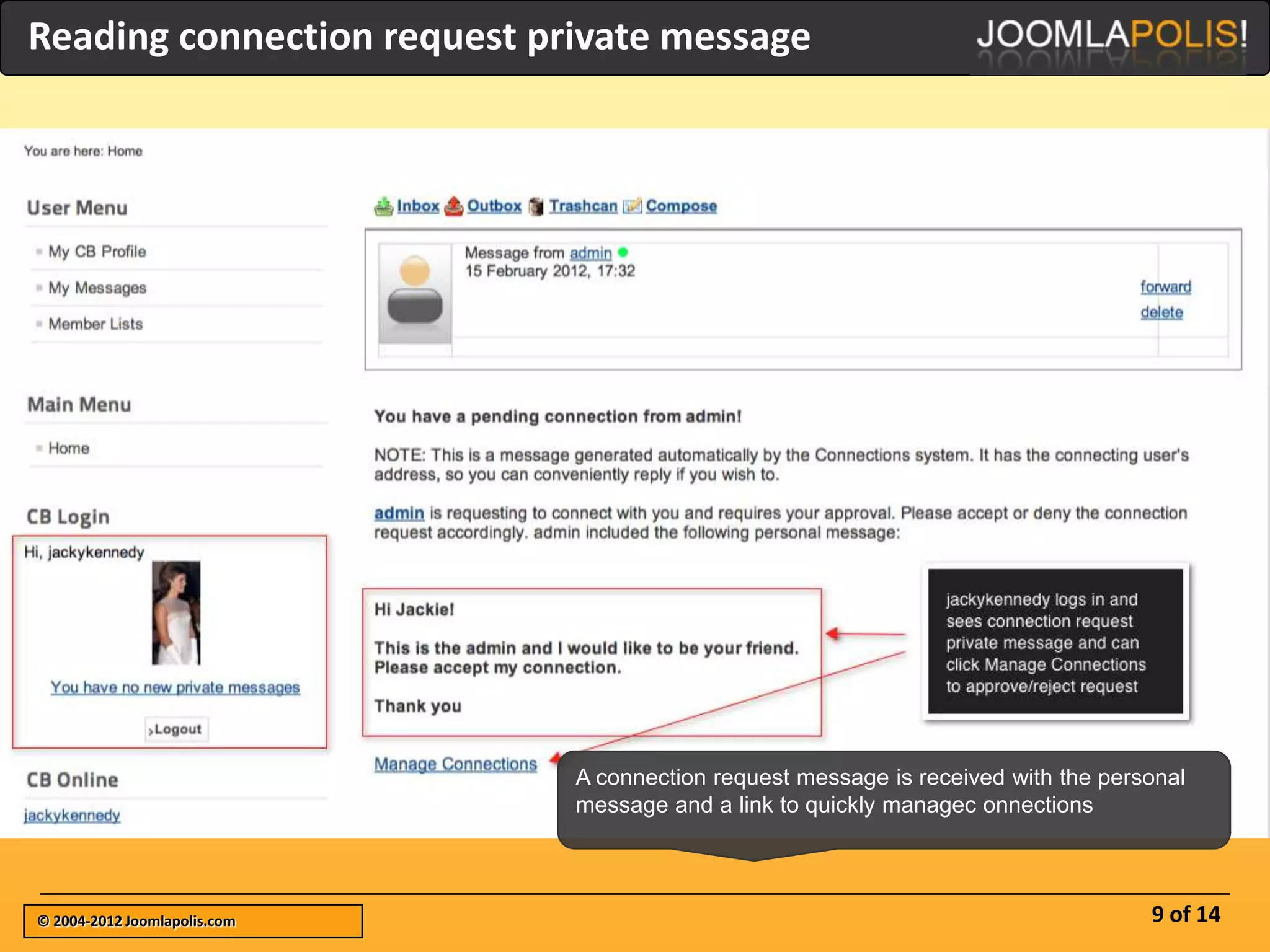

9. Reading connection request private message
A connection request message is received with the personal
message and a link to quickly managec onnections
© 2004-2012 Joomlapolis.com 9 of 14

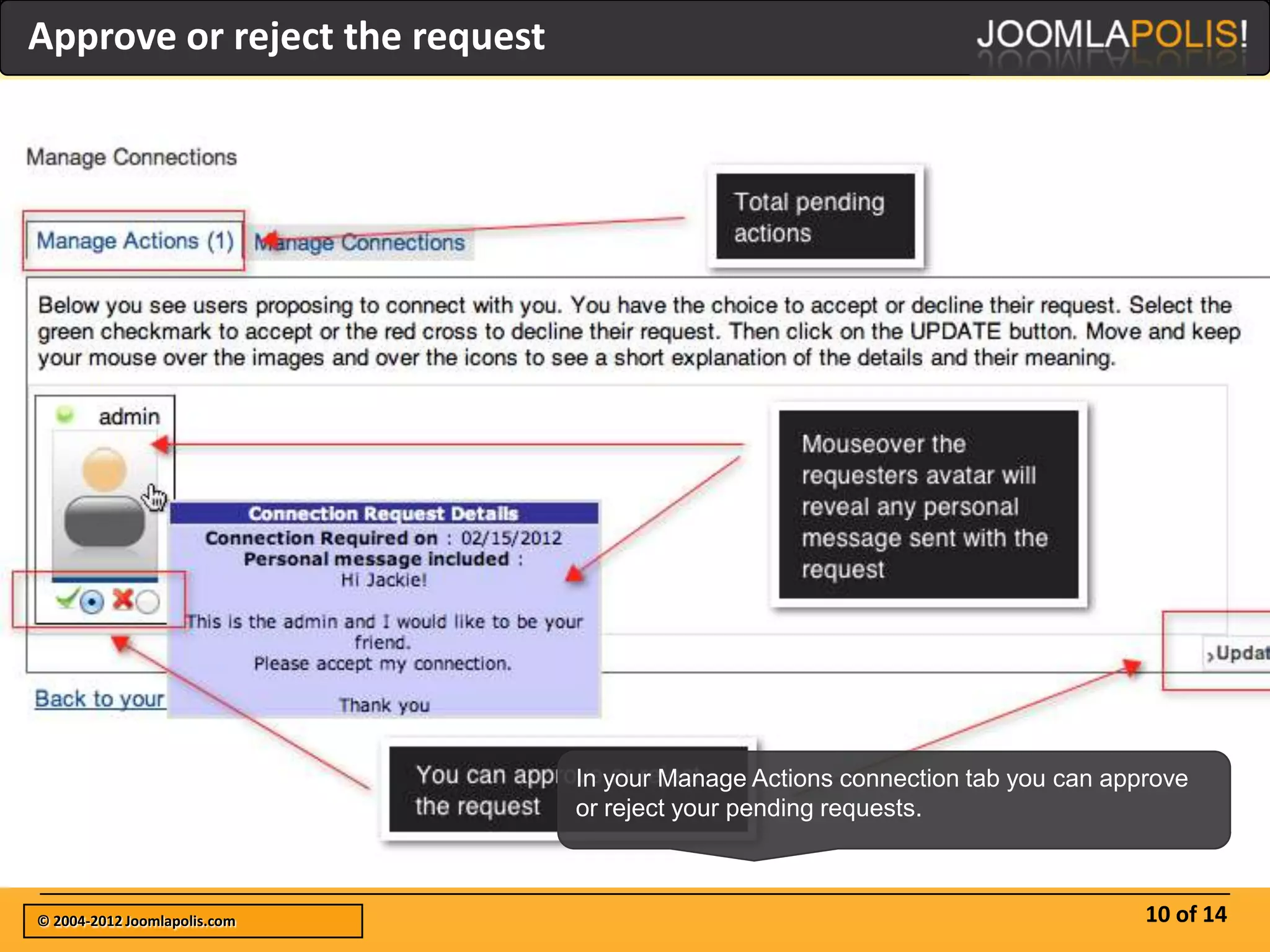

10. Approve or reject the request
In your Manage Actions connection tab you can approve
or reject your pending requests.
© 2004-2012 Joomlapolis.com 10 of 14

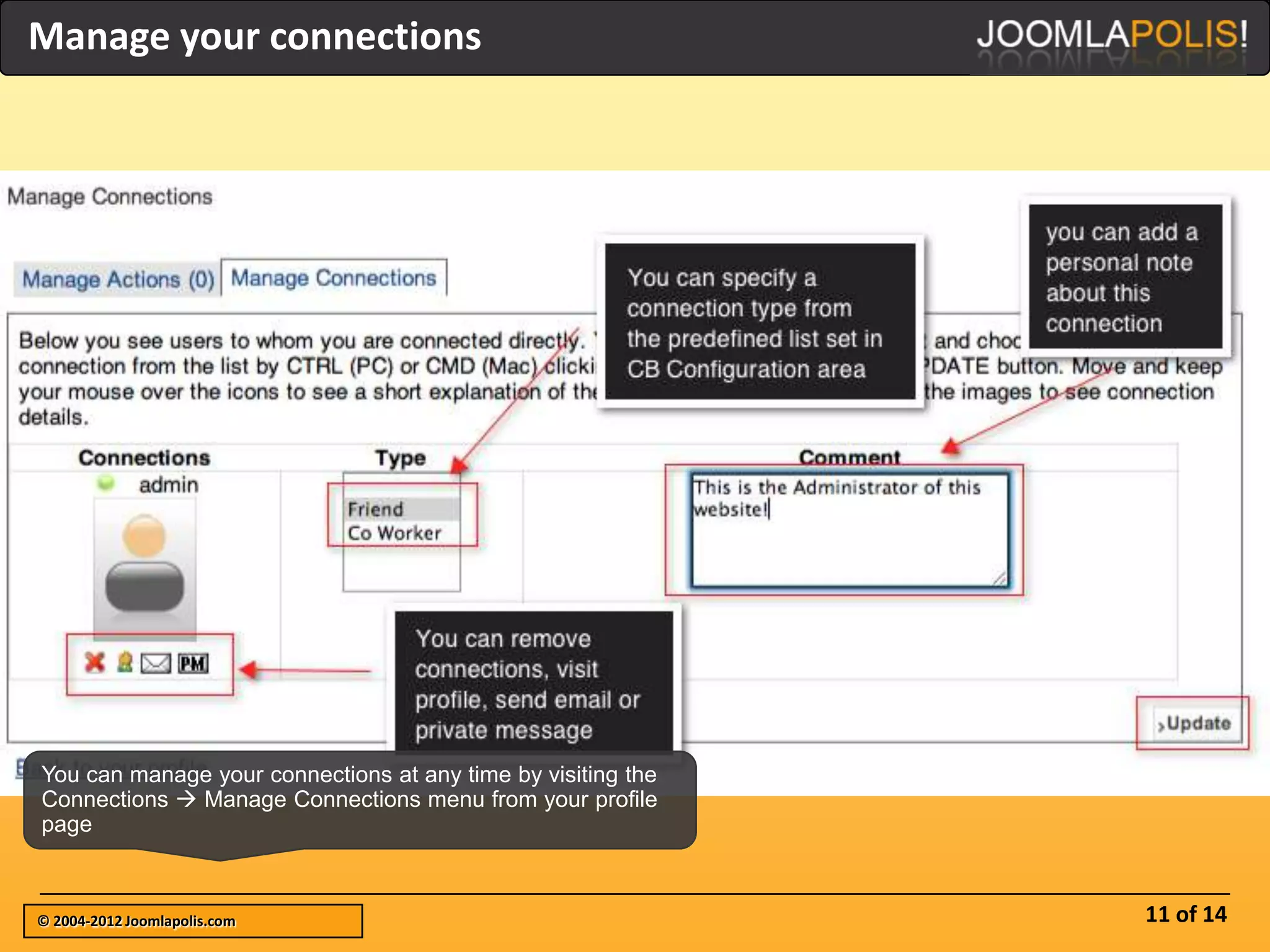

11. Manage your connections
You can manage your connections at any time by visiting the
Connections  Manage Connections menu from your profile
page
© 2004-2012 Joomlapolis.com 11 of 14

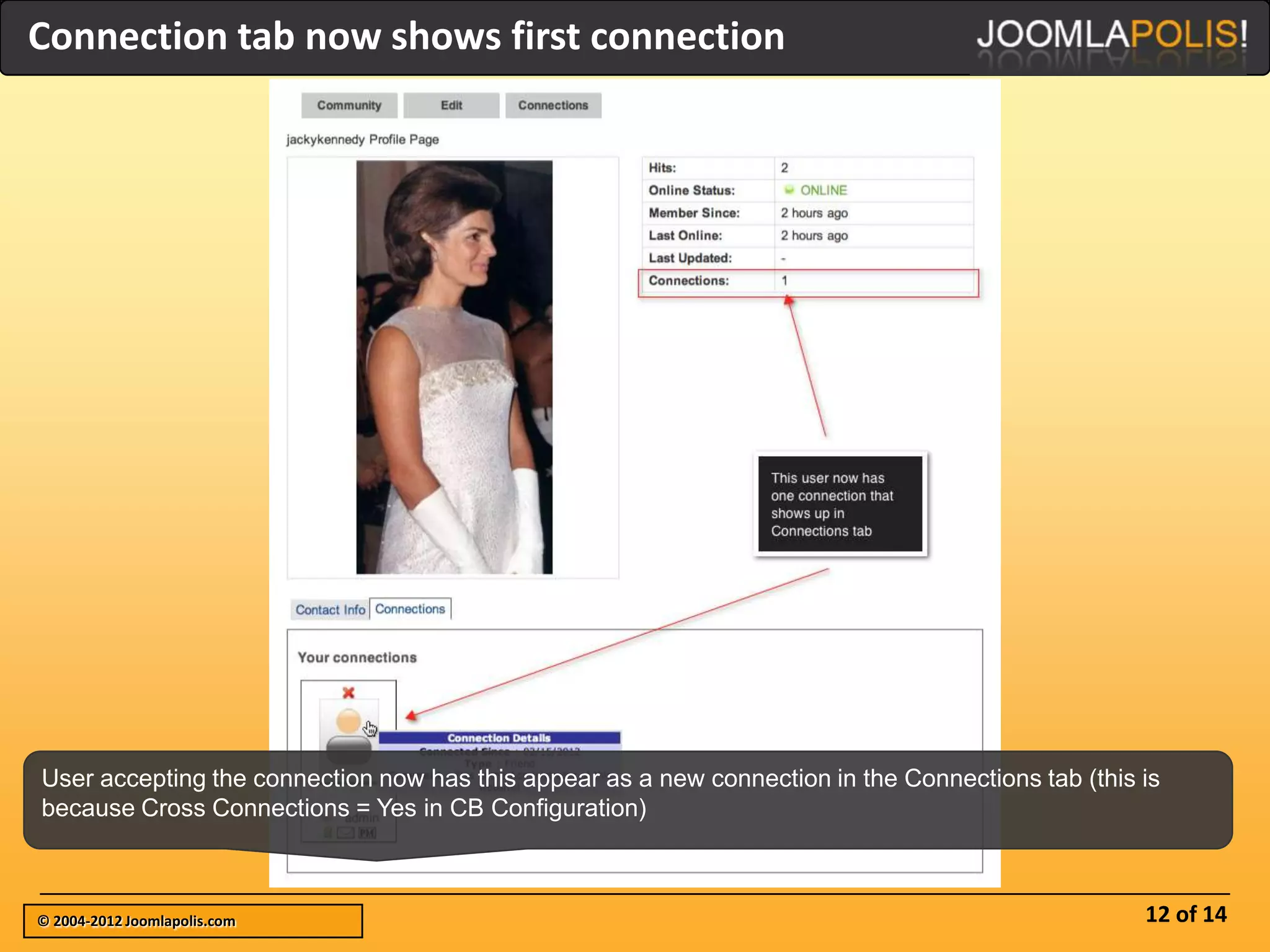

12. Connection tab now shows first connection
User accepting the connection now has this appear as a new connection in the Connections tab (this is
because Cross Connections = Yes in CB Configuration)
© 2004-2012 Joomlapolis.com 12 of 14

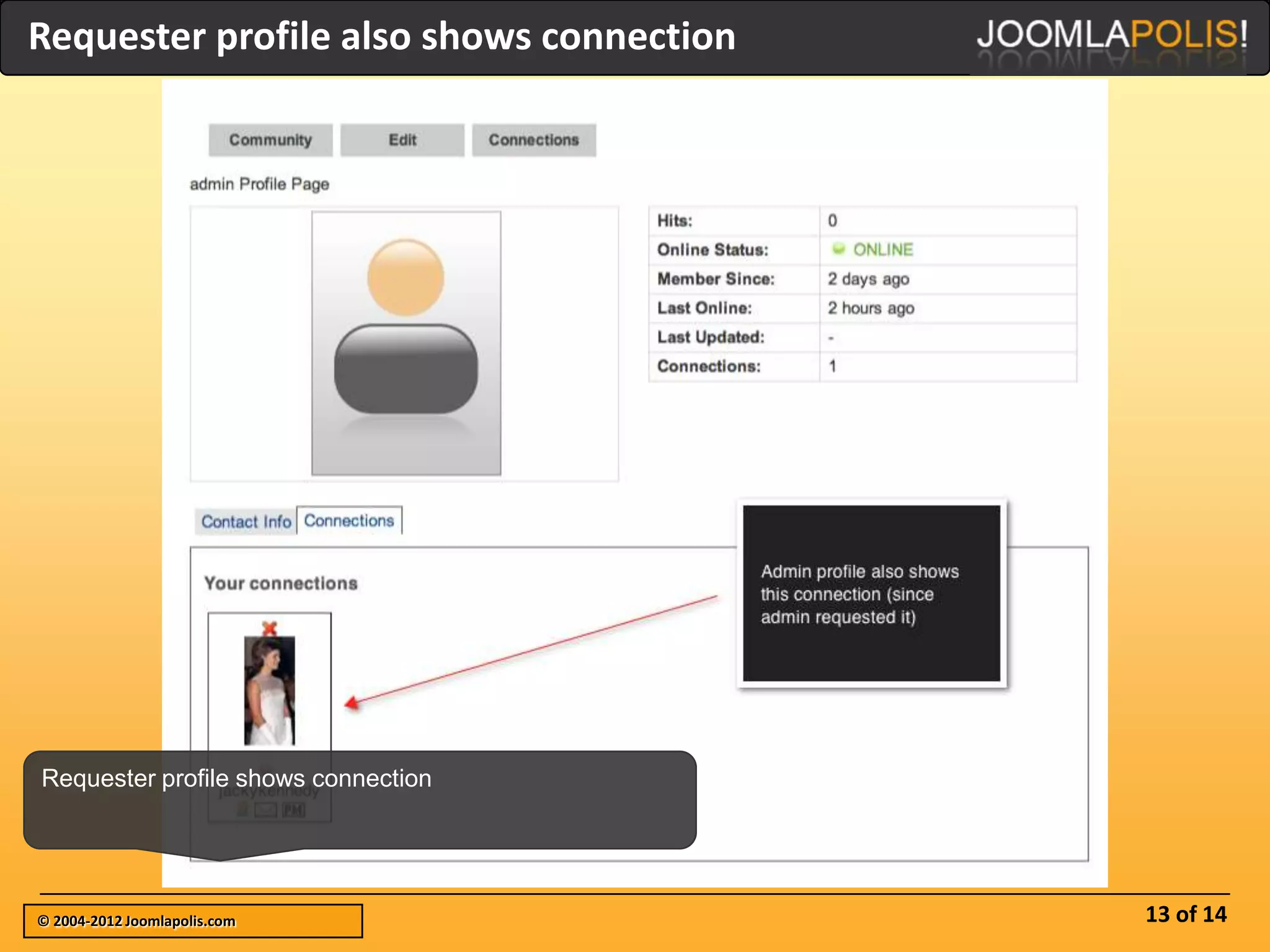

13. Requester profile also shows connection
Requester profile shows connection
© 2004-2012 Joomlapolis.com 13 of 14

14. Thank you for viewing
Did you like this?
Other available books • Comment here
• Vote for CB
• Become a member
• More picture-
books
• GroupJive Quick-start • Kunena Quick-start
• Installation • uddeIM Quick-start • Installation
• Basic configuration • CB integration • CB Integration
• CB Connections
• Configuration • CB User Lists • GropJive & Kunena
• Operations • Basic configuration • GroupJive & uddeIM
New Joomlapolis Picture-books are being continuously created
Click here to see full list
© 2004-2012 Joomlapolis.com 14 of 14
