1. JMX Tools
Ferramentas de Monitoração

2. 2

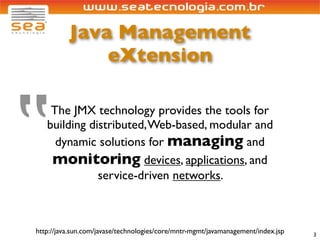

3. Java Management
eXtension
‟
The JMX technology provides the tools for
building distributed, Web-based, modular and
dynamic solutions for managing and
monitoring devices, applications, and
service-driven networks.
http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement/index.jsp 3

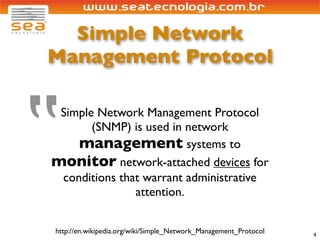

4. Simple Network
Management Protocol
‟
Simple Network Management Protocol
(SNMP) is used in network
management systems to
monitor network-attached devices for
conditions that warrant administrative
attention.
http://en.wikipedia.org/wiki/Simple_Network_Management_Protocol 4

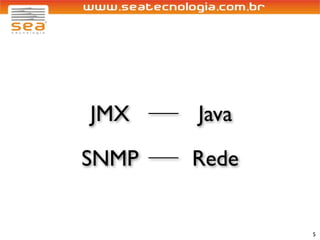

5. JMX Java
SNMP Rede
5

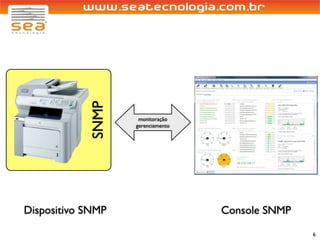

6. SNMP
monitoração
gerenciamento
Dispositivo SNMP Console SNMP
6

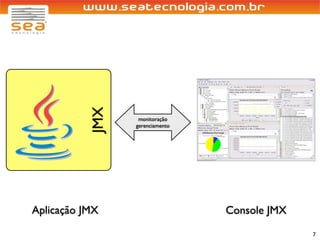

7. JMX
monitoração
gerenciamento
Aplicação JMX Console JMX
7

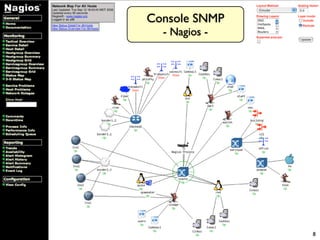

8. Console SNMP
- Nagios -
8

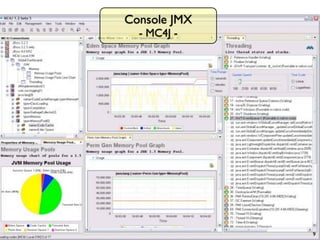

9. Console JMX
- MC4J -
9

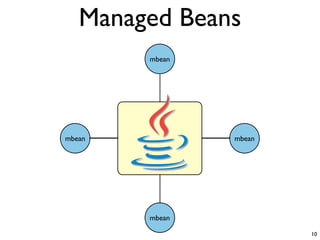

10. Managed Beans
mbean
mbean mbean
mbean
10

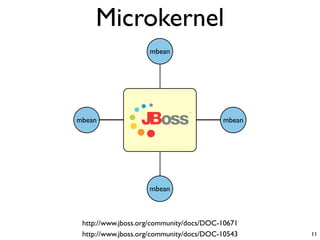

11. Microkernel
mbean
mbean mbean
mbean
http://www.jboss.org/community/docs/DOC-10671
http://www.jboss.org/community/docs/DOC-10543 11

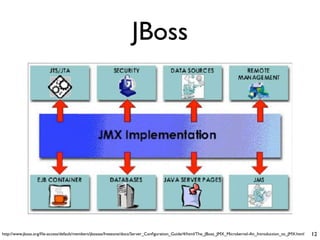

12. JBoss
http://www.jboss.org/file-access/default/members/jbossas/freezone/docs/Server_Configuration_Guide/4/html/The_JBoss_JMX_Microkernel-An_Introduction_to_JMX.html 12

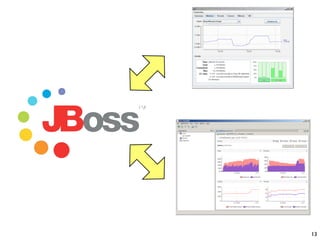

13. 13

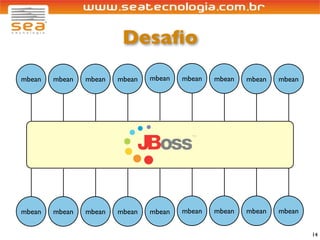

14. Desafio
mbean mbean mbean mbean mbean mbean mbean mbean mbean
mbean mbean mbean mbean mbean mbean mbean mbean mbean
14

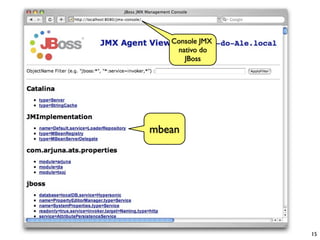

15. Console JMX
nativo do
JBoss
mbean
15

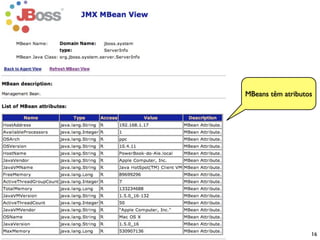

16. MBeans têm atributos
16

17. MBeans têm operações
17

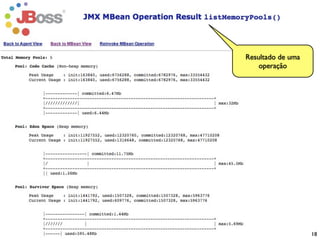

18. Resultado de uma
operação
18

19. Outros
Consoles JMX
19

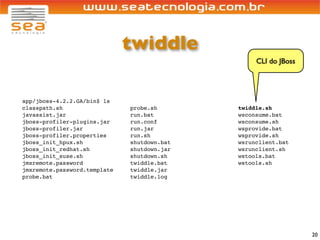

20. twiddle
CLI do JBoss
app/jboss-4.2.2.GA/bin$ ls
classpath.sh probe.sh twiddle.sh
javassist.jar run.bat wsconsume.bat
jboss-profiler-plugins.jar run.conf wsconsume.sh
jboss-profiler.jar run.jar wsprovide.bat
jboss-profiler.properties run.sh wsprovide.sh
jboss_init_hpux.sh shutdown.bat wsrunclient.bat
jboss_init_redhat.sh shutdown.jar wsrunclient.sh
jboss_init_suse.sh shutdown.sh wstools.bat
jmxremote.password twiddle.bat wstools.sh
jmxremote.password.template twiddle.jar
probe.bat twiddle.log
20

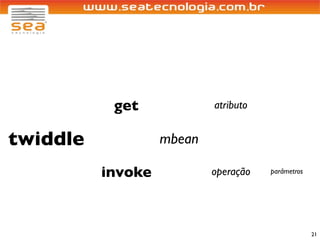

21. get atributo
twiddle mbean
invoke operação parâmetros
21

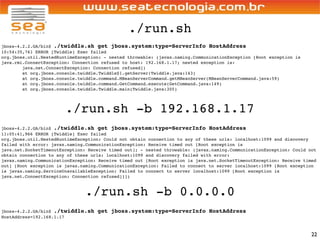

22. ./run.sh
jboss-4.2.2.GA/bin$ ./twiddle.sh get jboss.system:type=ServerInfo HostAddress
10:54:35,761 ERROR [Twiddle] Exec failed
org.jboss.util.NestedRuntimeException: - nested throwable: (javax.naming.CommunicationException [Root exception is
java.rmi.ConnectException: Connection refused to host: 192.168.1.17; nested exception is:
java.net.ConnectException: Connection refused])
at org.jboss.console.twiddle.Twiddle$1.getServer(Twiddle.java:143)
at org.jboss.console.twiddle.command.MBeanServerCommand.getMBeanServer(MBeanServerCommand.java:59)
at org.jboss.console.twiddle.command.GetCommand.execute(GetCommand.java:149)
at org.jboss.console.twiddle.Twiddle.main(Twiddle.java:305)
./run.sh -b 192.168.1.17
jboss-4.2.2.GA/bin$ ./twiddle.sh get jboss.system:type=ServerInfo HostAddress
11:05:41,966 ERROR [Twiddle] Exec failed
org.jboss.util.NestedRuntimeException: Could not obtain connection to any of these urls: localhost:1099 and discovery
failed with error: javax.naming.CommunicationException: Receive timed out [Root exception is
java.net.SocketTimeoutException: Receive timed out]; - nested throwable: (javax.naming.CommunicationException: Could not
obtain connection to any of these urls: localhost:1099 and discovery failed with error:
javax.naming.CommunicationException: Receive timed out [Root exception is java.net.SocketTimeoutException: Receive timed
out] [Root exception is javax.naming.CommunicationException: Failed to connect to server localhost:1099 [Root exception
is javax.naming.ServiceUnavailableException: Failed to connect to server localhost:1099 [Root exception is
java.net.ConnectException: Connection refused]]])
./run.sh -b 0.0.0.0
jboss-4.2.2.GA/bin$ ./twiddle.sh get jboss.system:type=ServerInfo HostAddress
HostAddress=192.168.1.17
22

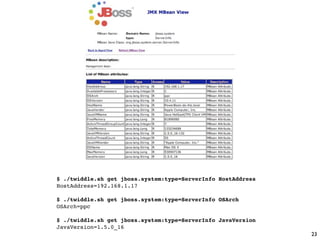

23. $ ./twiddle.sh get jboss.system:type=ServerInfo HostAddress
HostAddress=192.168.1.17
$ ./twiddle.sh get jboss.system:type=ServerInfo OSArch
OSArch=ppc
$ ./twiddle.sh get jboss.system:type=ServerInfo JavaVersion
JavaVersion=1.5.0_16
23

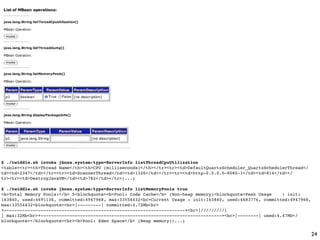

24. $ ./twiddle.sh invoke jboss.system:type=ServerInfo listThreadCpuUtilization
<table><tr><th>Thread Name</th><th>CPU (milliseconds)</th></tr><tr><td>DefaultQuartzScheduler_QuartzSchedulerThread</
td><td>2347</td></tr><tr><td>ScannerThread</td><td>1326</td></tr><tr><td>http-0.0.0.0-8080-1</td><td>814</td></
tr><tr><td>DestroyJavaVM</td><td>782</td></tr>(...)
$ ./twiddle.sh invoke jboss.system:type=ServerInfo listMemoryPools true
<b>Total Memory Pools:</b> 5<blockquote><b>Pool: Code Cache</b> (Non-heap memory)<blockquote>Peak Usage : init:
163840, used:4691136, committed:4947968, max:33554432<br>Current Usage : init:163840, used:4683776, committed:4947968,
max:33554432<blockquote><br>|---------| committed:4.72Mb<br>
+---------------------------------------------------------------------+<br>|/////////|
| max:32Mb<br>+---------------------------------------------------------------------+<br>|--------| used:4.47Mb</
blockquote></blockquote><br><b>Pool: Eden Space</b> (Heap memory)(...)
24

25. JConsole
http://java.sun.com/j2se/1.5.0/docs/guide/management/jconsole.html 25

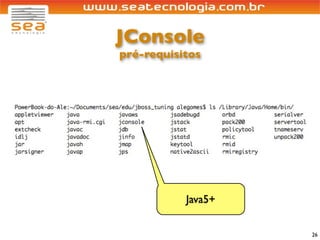

26. JConsole
pré-requisitos
Java5+
26

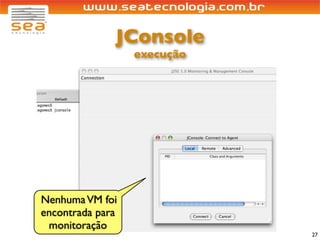

27. JConsole
execução
Nenhuma VM foi
encontrada para
monitoração
27

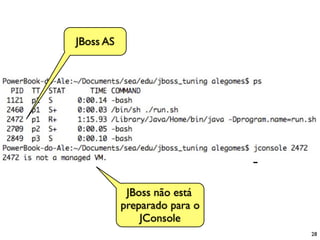

28. JBoss AS
JBoss não está
preparado para o
JConsole
28

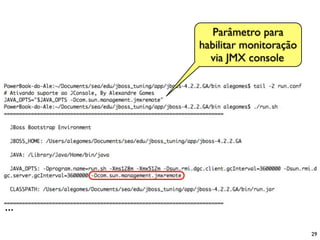

29. Parâmetro para
habilitar monitoração
via JMX console
...
29

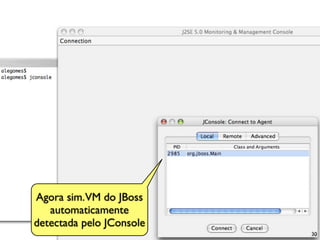

30. Agora sim. VM do JBoss
automaticamente
detectada pelo JConsole
30

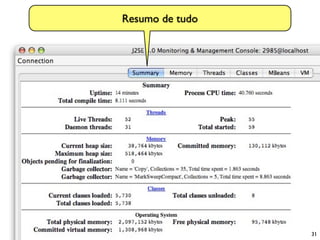

31. Resumo de tudo
31

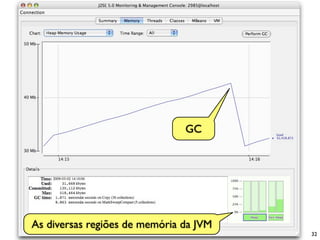

32. GC
As diversas regiões de memória da JVM
32

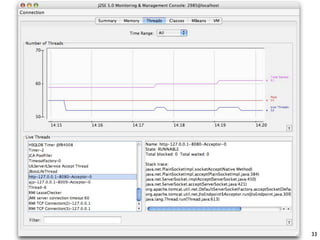

33. 33

34. 34

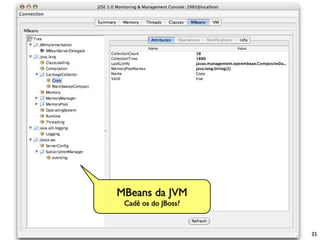

35. MBeans da JVM
Cadê os do JBoss?
35

36. Por padrão, o JBoss não usa
o MBean Server da VM, mas
uma implementação própria,
chamada JBossMX
36

37. Agora sim!
37

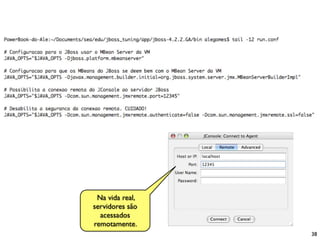

38. Na vida real,
servidores são
acessados
remotamente.
38

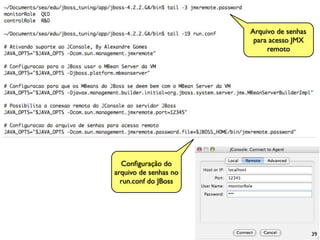

39. Arquivo de senhas
para acesso JMX
remoto
Configuração do
arquivo de senhas no
run.conf do JBoss
39

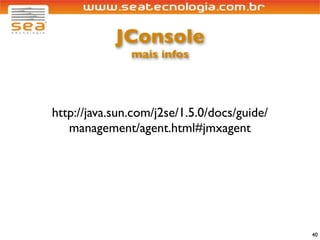

40. JConsole
mais infos
http://java.sun.com/j2se/1.5.0/docs/guide/
management/agent.html#jmxagent
40

41. Usar o JConsole para monitoração das mesmas
informações monitoradas pela linha de comando nos
exercícios anteriores.
41

42. MC4J
http://mc4j.org 42

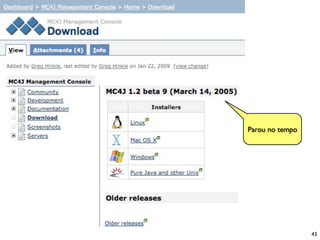

43. Parou no tempo
43

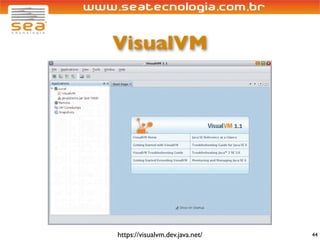

44. VisualVM
https://visualvm.dev.java.net/ 44

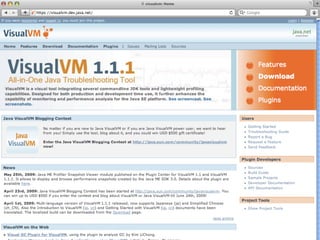

45. 45

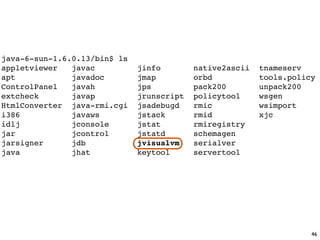

46. java-6-sun-1.6.0.13/bin$ ls
appletviewer javac jinfo native2ascii tnameserv
apt javadoc jmap orbd tools.policy
ControlPanel javah jps pack200 unpack200
extcheck javap jrunscript policytool wsgen
HtmlConverter java-rmi.cgi jsadebugd rmic wsimport
i386 javaws jstack rmid xjc
idlj jconsole jstat rmiregistry
jar jcontrol jstatd schemagen
jarsigner jdb jvisualvm serialver
java jhat keytool servertool
46

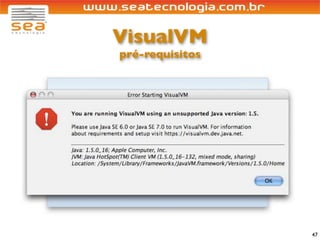

47. VisualVM
pré-requisitos
47

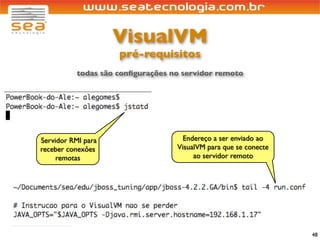

48. VisualVM
pré-requisitos
todas são configurações no servidor remoto
Servidor RMI para Endereço a ser enviado ao
receber conexões VisualVM para que se conecte
remotas ao servidor remoto
48

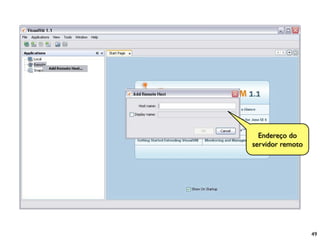

49. Endereço do
servidor remoto
49

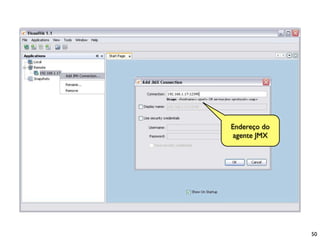

50. Endereço do
agente JMX
50

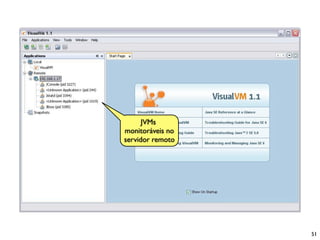

51. JVMs
monitoráveis no
servidor remoto
51

52. Resumo da
monitoração do
JBoss
52

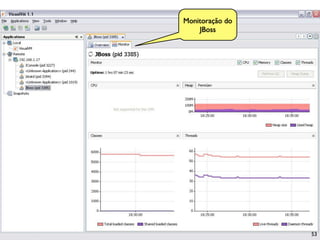

53. Monitoração do
JBoss
53

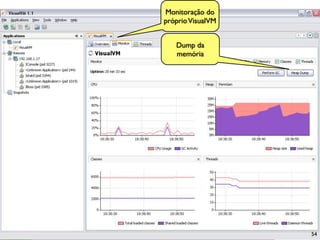

54. Monitoração do
próprio VisualVM
Dump da
memória
54

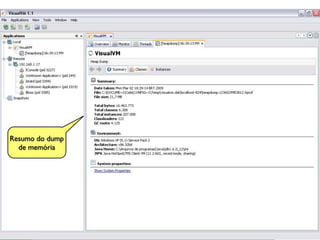

55. Resumo do dump
de memória
55

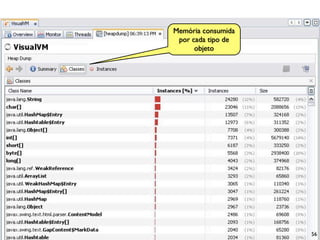

56. Memória consumida
por cada tipo de
objeto
56

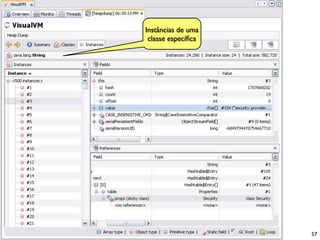

57. Instâncias de uma
classe específica
57

58. Threads do Snapshot das
servidor threads
58

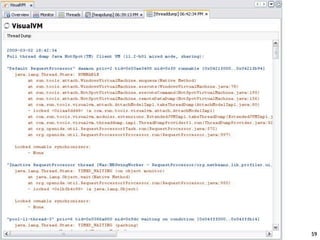

59. 59

60. A graça do
VisualVM está em
seus plugins
60

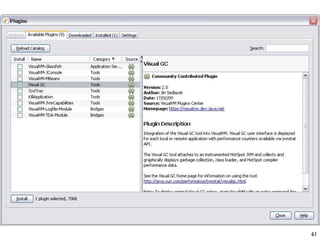

61. 61

62. 62

63. 63

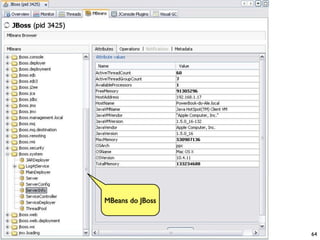

64. MBeans do JBoss
64

65. 65

66. Troubleshooting
porque os problemas virão
66

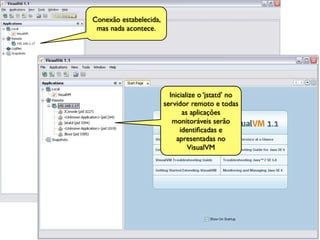

67. Conexão estabelecida,
mas nada acontece.
Inicialize o ‘jstatd’ no
servidor remoto e todas
as aplicações
monitoráveis serão
identificadas e
apresentadas no
VisualVM
67

68. Problema de conexão com o
agente JMX da JVM remota.
Configure o parâmetro
java.rmi.server.hostname
no run.conf do servidor remoto 68

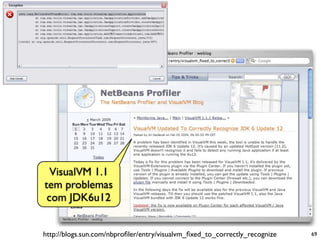

69. VisualVM 1.1
tem problemas
com JDK6u12
http://blogs.sun.com/nbprofiler/entry/visualvm_fixed_to_correctly_recognize 69

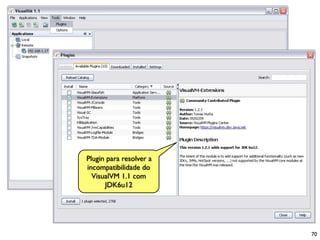

70. Plugin para resolver a
incompatibilidade do
VisualVM 1.1 com
JDK6u12
70

71. $ jstatd
Could not create remote object
access denied (java.util.PropertyPermission java.rmi.server.ignoreSubClasses write)
java.security.AccessControlException: access denied (java.util.PropertyPermission
java.rmi.server.ignoreSubClasses write)
at java.security.AccessControlContext.checkPermission(AccessControlContext.java:323)
at java.security.AccessController.checkPermission(AccessController.java:546)
at java.lang.SecurityManager.checkPermission(SecurityManager.java:532)
at java.lang.System.setProperty(System.java:727)
at sun.tools.jstatd.Jstatd.main(Jstatd.java:122)
grant codebase "file:${java.home}/../lib/tools.jar" {
permission java.security.AllPermission;
};
$JAVA_HOME/bin/tools.policy
$sudo jstatd -J-Djava.security.policy=$JAVA_HOME/bin/tools.policy
71

72. eclipse-jmx
http://code.google.com/p/eclipse-jmx/
72

73. Pelo VisualVM,
acompanhar métricas
de memória, threads
e processamento
durante os testes de
carga.
73

74. P&R
