1. JBoss Web Services
Alessio Soldano
alessio.soldano@jboss.com
Principal Software Eng.
JBoss - Red Hat
April 28th, 2010

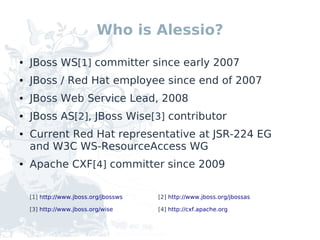

2. Who is Alessio?
● JBoss WS[1] committer since early 2007
● JBoss / Red Hat employee since end of 2007
● JBoss Web Service Lead, 2008
● JBoss AS[2], JBoss Wise[3] contributor
● Current Red Hat representative at JSR-224 EG
and W3C WS-ResourceAccess WG
● Apache CXF[4] committer since 2009
[1] http://www.jboss.org/jbossws [2] http://www.jboss.org/jbossas
[3] http://www.jboss.org/wise [4] http://cxf.apache.org

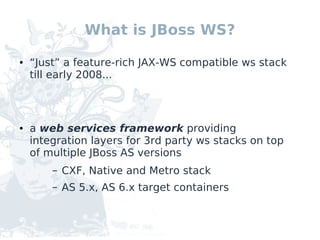

3. What is JBoss WS?
● “Just” a feature-rich JAX-WS compatible ws stack
till early 2008...
● a web services framework providing
integration layers for 3rd party ws stacks on top
of multiple JBoss AS versions
– CXF, Native and Metro stack
– AS 5.x, AS 6.x target containers

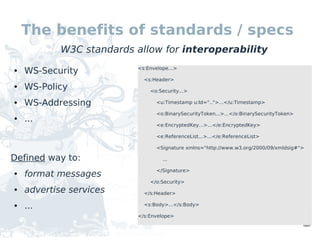

4. The benefits of standards / specs
W3C standards allow for interoperability
● WS-Security <s:Envelope...>
<s:Header>
● WS-Policy <o:Security...>
● WS-Addressing <u:Timestamp u:Id="..">...</u:Timestamp>
<o:BinarySecurityToken...>...</o:BinarySecurityToken>
● ...
<e:EncryptedKey...>...</e:EncryptedKey>
<e:ReferenceList...>...</e:ReferenceList>
<Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
Defined way to: ...
</Signature>
● format messages
</o:Security>
● advertise services </s:Header>
● ... <s:Body>...</s:Body>
</s:Envelope>

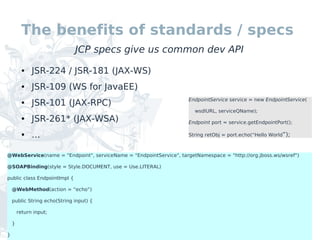

5. The benefits of standards / specs
JCP specs give us common dev API
● JSR-224 / JSR-181 (JAX-WS)
● JSR-109 (WS for JavaEE)
EndpointService service = new EndpointService(
● JSR-101 (JAX-RPC)
wsdlURL, serviceQName);
● JSR-261* (JAX-WSA) Endpoint port = service.getEndpointPort();
● ... String retObj = port.echo(“Hello World”);
@WebService(name = "Endpoint", serviceName = "EndpointService", targetNamespace = "http://org.jboss.ws/wsref")
@SOAPBinding(style = Style.DOCUMENT, use = Use.LITERAL)
public class EndpointImpl {
@WebMethod(action = “echo”)
public String echo(String input) {
return input;
}
}

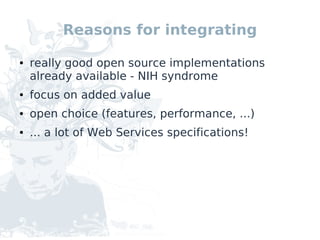

6. Reasons for integrating
● really good open source implementations
already available - NIH syndrome
● focus on added value
● open choice (features, performance, ...)
● ... a lot of Web Services specifications!

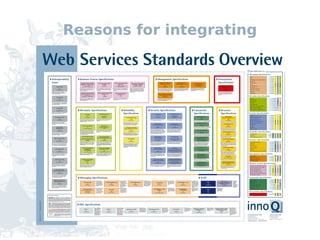

7. Reasons for integrating

8. Who benefits from this move?
● The JBoss community:
– different choices depending on needs
– greater joint community support
– core devs can work on added value
● The integrated ws projects and their community:
– additional tests
– bugs detection and fix
– ...

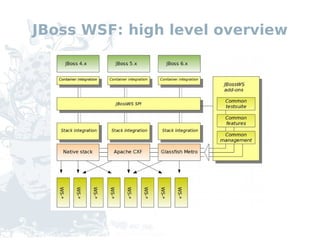

9. JBoss WSF: high level overview

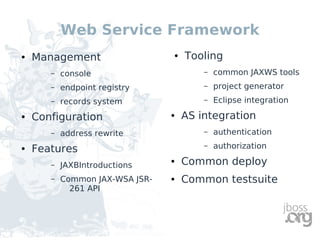

10. Web Service Framework
● Management ● Tooling
– console – common JAXWS tools
– endpoint registry – project generator
– records system – Eclipse integration
● Configuration ● AS integration
– address rewrite – authentication
● Features – authorization
– JAXBIntroductions
● Common deploy
– Common JAX-WSA JSR- ● Common testsuite
261 API

11. Do I really need your integration
layer?
● Home-brew solutions for running CXF / Metro on
JBossAS might work for specific usecases, but
you...
– need to embed the stack in your apps
– will suffer from classloading issues
– can just use pojo endpoints
– have no webserviceref injection in ejb3
– loose additional WSF features ;-)
– ...

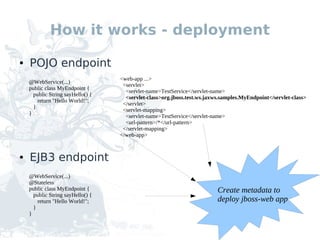

12. How it works - deployment
● POJO endpoint
<web-app ...>
@WebService(...)
<servlet>
public class MyEndpoint {
<servlet-name>TestService</servlet-name>
public String sayHello() {
<servlet-class>org.jboss.test.ws.jaxws.samples.MyEndpoint</servlet-class>
return "Hello World!";
</servlet>
}
<servlet-mapping>
}
<servlet-name>TestService</servlet-name>
<url-pattern>/*</url-pattern>
</servlet-mapping>
</web-app>
● EJB3 endpoint
@WebService(...)
@Stateless
public class MyEndpoint { Create metadata to
public String sayHello() {
return "Hello World!"; deploy jboss-web app
}
}

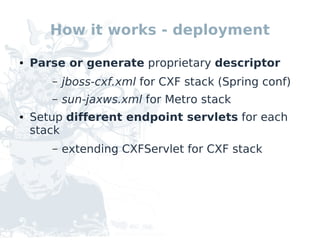

13. How it works - deployment
● Parse or generate proprietary descriptor
– jboss-cxf.xml for CXF stack (Spring conf)
– sun-jaxws.xml for Metro stack
● Setup different endpoint servlets for each
stack
– extending CXFServlet for CXF stack

14. How it works - runtime
● Request handlers: called by enpdoint servlet
to serve GET / POST requests; delegate to
– CXF ServletController
– Metro ServletAdapter
● Invokers: route invocation to JBossAS (JBoss
EJB3 layer for ejb3 endpoints)
– configured during proprietary descriptor
processing / creation

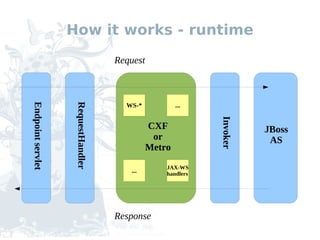

15. How it works - runtime
Request
Endpoint servlet
RequestHandler
WS-* ...
Invoker
CXF JBoss
or AS
Metro
JAX-WS
... handlers
Response

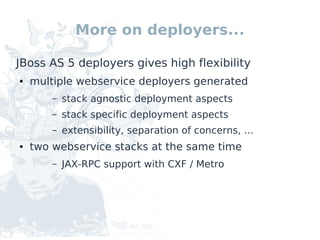

16. More on deployers...
JBoss AS 5 deployers gives high flexibility
● multiple webservice deployers generated
– stack agnostic deployment aspects
– stack specific deployment aspects
– extensibility, separation of concerns, ...
● two webservice stacks at the same time
– JAX-RPC support with CXF / Metro

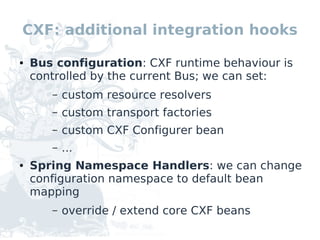

17. CXF: additional integration hooks
● Bus configuration: CXF runtime behaviour is
controlled by the current Bus; we can set:
– custom resource resolvers
– custom transport factories
– custom CXF Configurer bean
– ...
● Spring Namespace Handlers: we can change
configuration namespace to default bean
mapping
– override / extend core CXF beans

18. Some links...
● http://www.jboss.org/jbossws
● http://community.jboss.org/wiki/JBossWS
● http://jbossws.blogspot.com/

19. Q&A
