1. JON Plugins

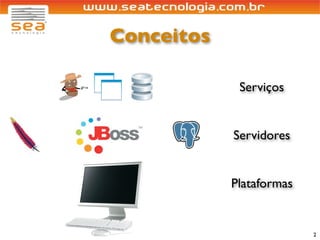

2. Conceitos
Serviços
Servidores
Plataformas
2

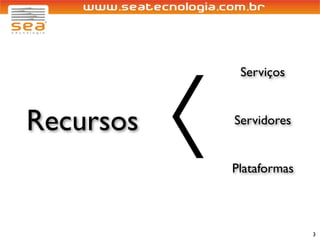

3. Serviços
Recursos Servidores
Plataformas
3

4. Hierarquia entre Recursos
4

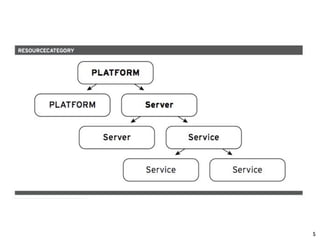

5. 5

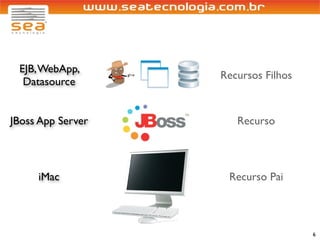

6. EJB, WebApp,
Recursos Filhos
Datasource
JBoss App Server Recurso
iMac Recurso Pai
6

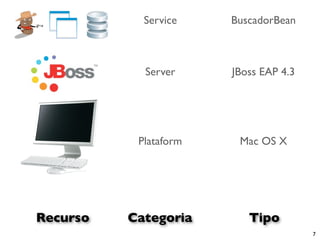

7. Service BuscadorBean
Server JBoss EAP 4.3
Plataform Mac OS X
Recurso Categoria Tipo
7

8. ?

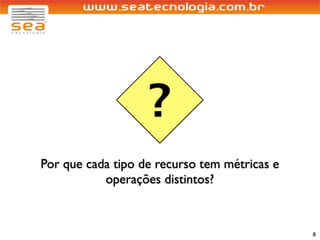

Por que cada tipo de recurso tem métricas e
operações distintos?
8

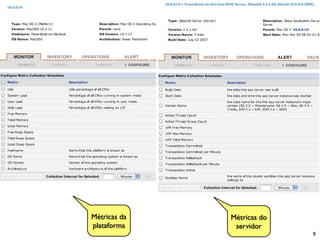

9. Métricas da Métricas do
plataforma servidor
9

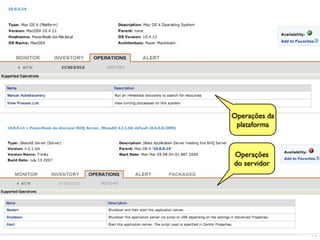

10. Operações da
plataforma
Operações
do servidor
10

11. ?
Por que alguns recursos são automaticamente
descobertos e outros não?
11

12. É tudo culpa do agente!
12

13. Arquitetura do
RHQ/Jopr/JON
http://www.redhat.com/f/pdf/Write_A_Plugin_WP_web.pdf 13

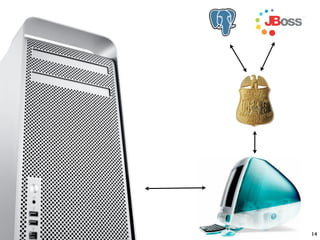

14. 14

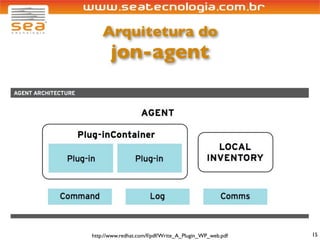

15. Arquitetura do
jon-agent
http://www.redhat.com/f/pdf/Write_A_Plugin_WP_web.pdf 15

16. Serviços só são descobertos e
monitorados pelo JON devido à
existência de plugins específicos
jon-agent
plugins
...
16

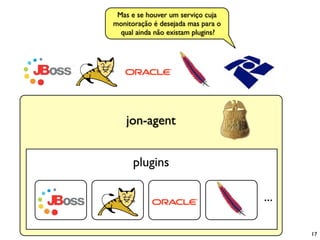

17. Mas e se houver um serviço cuja
monitoração é desejada mas para o
qual ainda não existam plugins?
jon-agent
plugins
...
17

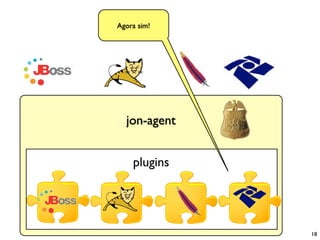

18. Agora sim!
jon-agent
plugins
18

19. B AM
u c o
s t n
i i i
n v t
e i o
s t r
s y i
n
g
19

20. business intelligence?
20

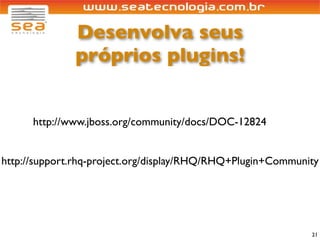

21. Desenvolva seus
próprios plugins!
http://www.jboss.org/community/docs/DOC-12824
http://support.rhq-project.org/display/RHQ/RHQ+Plugin+Community
21

22. a
ert
cob
des
mé
tric
as
op
er
aç
ões
22

23. facets
23

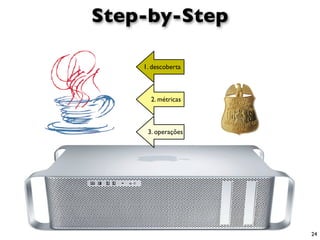

24. Step-by-Step
1. descoberta
2. métricas
3. operações
24

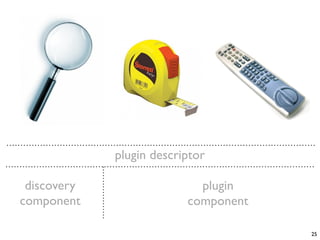

25. plugin descriptor
discovery plugin
component component
25

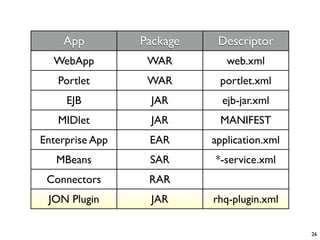

26. App Package Descriptor
WebApp WAR web.xml
Portlet WAR portlet.xml
EJB JAR ejb-jar.xml
MIDlet JAR MANIFEST
Enterprise App EAR application.xml
MBeans SAR *-service.xml
Connectors RAR
JON Plugin JAR rhq-plugin.xml
26

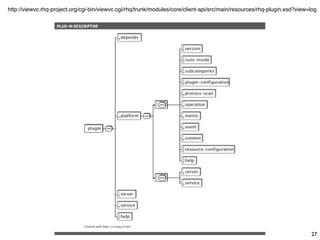

27. http://viewvc.rhq-project.org/cgi-bin/viewvc.cgi/rhq/trunk/modules/core/client-api/src/main/resources/rhq-plugin.xsd?view=log
27

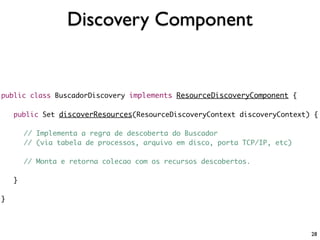

28. Discovery Component
public class BuscadorDiscovery implements ResourceDiscoveryComponent {
public Set discoverResources(ResourceDiscoveryContext discoveryContext) {
// Implementa a regra de descoberta do Buscador
// (via tabela de processos, arquivo em disco, porta TCP/IP, etc)
// Monta e retorna colecao com os recursos descobertos.
}
}
28

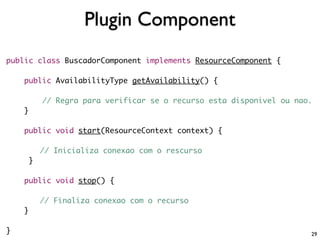

29. Plugin Component
public class BuscadorComponent implements ResourceComponent {
public AvailabilityType getAvailability() {
// Regra para verificar se o recurso esta disponivel ou nao.
}
public void start(ResourceContext context) {
// Inicializa conexao com o rescurso
}
public void stop() {
// Finaliza conexao com o recurso
}
} 29

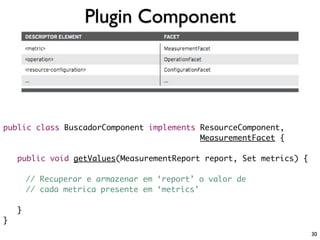

30. Plugin Component
public class BuscadorComponent implements ResourceComponent,
MeasurementFacet {
public void getValues(MeasurementReport report, Set metrics) {
// Recuperar e armazenar em ‘report’ o valor de
// cada metrica presente em ‘metrics’
}
}
30

31. Primeiro
Plugin
...a gente nunca esquece...
31

32. $ svn co http://anonsvn.jboss.org/repos/jopr/trunk
A trunk/.classpath
A trunk/LICENSE_LGPL
A trunk/LICENSE
A trunk/.project
A trunk/LICENSE_GPL é preciso obter o
A trunk/modules código fonte do Jopr ou
A trunk/modules/plugins do RHQ Project
A trunk/modules/plugins/hibernate
A trunk/modules/plugins/hibernate/src
A trunk/modules/plugins/hibernate/src/test
A trunk/modules/plugins/hibernate/src/test/java
A trunk/modules/plugins/hibernate/src/test/java/org
A trunk/modules/plugins/hibernate/src/test/java/org/rhq
A trunk/modules/plugins/hibernate/src/test/java/org/rhq/plugins
A trunk/modules/plugins/hibernate/src/test/java/org/rhq/plugins/hibernate
...
A trunk/etc/jbas5-ejb-client/src/main/java
A trunk/etc/jbas5-ejb-client/src/main/java/test
A trunk/etc/jbas5-ejb-client/src/main/java/test/EjbClient.java
A trunk/etc/jbas5-ejb-client/pom.xml
A trunk/.settings
A trunk/.settings/org.eclipse.jdt.core.prefs
A trunk/.settings/org.maven.ide.eclipse.prefs
U trunk
Checked out revision 673.
32

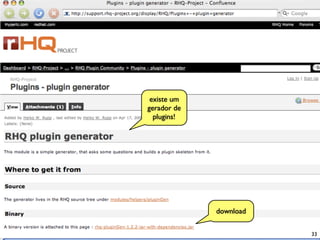

33. existe um
gerador de
plugins!
download
33

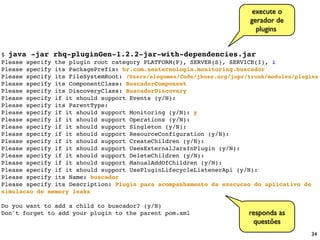

34. execute o
gerador de
plugins
$ java -jar rhq-pluginGen-1.2.2-jar-with-dependencies.jar
Please specify the plugin root category PLATFORM(P), SERVER(S), SERVICE(I), i
Please specify its PackagePrefix: br.com.seatecnologia.monitoring.buscador
Please specify its FileSystemRoot: /Users/alegomes/Code/jboss.org/jopr/trunk/modules/plugins
Please specify its ComponentClass: BuscadorComponent
Please specify its DiscoveryClass: BuscadorDiscovery
Please specify if it should support Events (y/N):
Please specify its ParentType:
Please specify if it should support Monitoring (y/N): y
Please specify if it should support Operations (y/N):
Please specify if it should support Singleton (y/N):
Please specify if it should support ResourceConfiguration (y/N):
Please specify if it should support CreateChildren (y/N):
Please specify if it should support UsesExternalJarsInPlugin (y/N):
Please specify if it should support DeleteChildren (y/N):
Please specify if it should support ManualAddOfChildren (y/N):
Please specify if it should support UsePluginLifecycleListenerApi (y/N):
Please specify its Name: buscador
Please specify its Description: Plugin para acompanhamento da execucao do aplicativo de
simulacao de memory leaks
Do you want to add a child to buscador? (y/N)
Don't forget to add your plugin to the parent pom.xml responda as
questões
34

35. $ ls -1 /Users/alegomes/Code/jboss.org/jopr/trunk/modules/plugins
JBossOSGi
buscador
hibernate
jboss-as
jboss-as-5 plugin gerado já na pasta
jboss-cache de plugins do Jopr
pluginGen.log
pom.xml
rhq-server
tomcat
$ ls -1 /Users/alegomes/Code/jboss.org/jopr/trunk/modules/plugins/buscador
pom.xml
src
plugin gerado como
projeto Maven
35

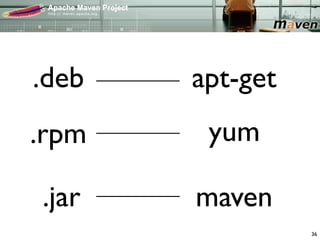

36. .deb apt-get
.rpm yum
.jar maven
36

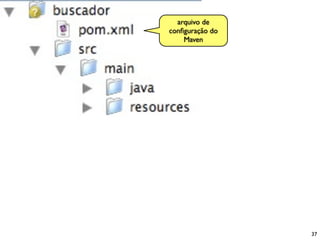

37. arquivo de
configuração do
Maven
37

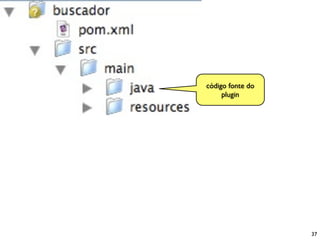

38. código fonte do
plugin
37

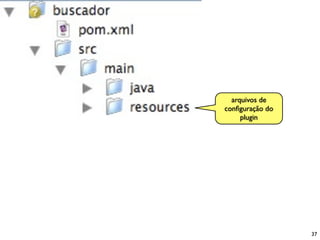

39. arquivos de
configuração do
plugin
37

40. Discovery e Plugin
Components
38

41. descritor do

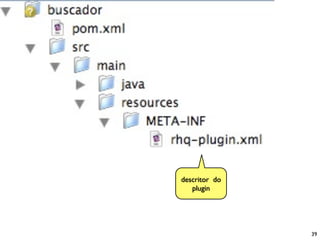

plugin
39

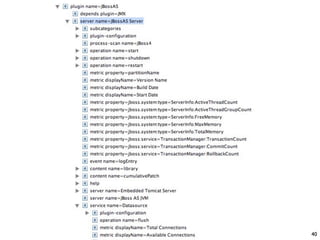

42. 40

43. src/main/resources/META-INF/rhq-plugin.xml
<plugin-configuration>
<!-- TODO add your own here -->
</plugin-configuration>
comente isto por
enquanto para testarmos
apenas o build e deploy
do plugin
<!-- plugin-configuration>
<!- TODO add your own here ->
</plugin-configuration -->
41

44. mvn compile
mvn package
mvn clean
...
http://maven.apache.org/guides/introduction/introduction-to-the-lifecycle.html
42

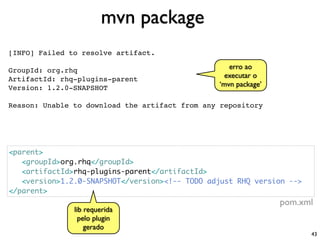

45. mvn package
[INFO] Failed to resolve artifact.
GroupId: org.rhq erro ao
ArtifactId: rhq-plugins-parent executar o
Version: 1.2.0-SNAPSHOT ‘mvn package’
Reason: Unable to download the artifact from any repository
<parent>
<groupId>org.rhq</groupId>
<artifactId>rhq-plugins-parent</artifactId>
<version>1.2.0-SNAPSHOT</version><!-- TODO adjust RHQ version -->
</parent>
pom.xml
lib requerida
pelo plugin
gerado
43

46. Repositórios JBoss
http://repository.jboss.org/maven2
Releases oficiais de libs JBoss
e.g. 1.2.0.GA
http://snapshots.jboss.org/maven2
Libs JBoss ainda em desenvolvimento
e.g. 1.3.0-SNAPSHOT
44

47. repositório oficial
não possui a versão
1.2.0-SNAPSHOT
repositório de
snapshots até
possui a versão
1.2.0-SNAPSHOT,
mas já estão
desenvolvendo a
1.3.0-SNAPSHOT
45

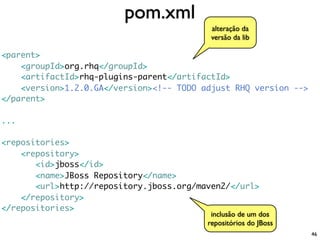

48. pom.xml
alteração da
versão da lib
<parent>
<groupId>org.rhq</groupId>
<artifactId>rhq-plugins-parent</artifactId>
<version>1.2.0.GA</version><!-- TODO adjust RHQ version -->
</parent>
...
<repositories>
<repository>
<id>jboss</id>
<name>JBoss Repository</name>
<url>http://repository.jboss.org/maven2/</url>
</repository>
</repositories>
inclusão de um dos
repositórios do JBoss
46

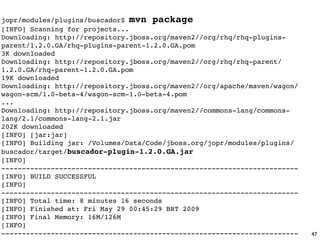

49. jopr/modules/plugins/buscador$ mvn package
[INFO] Scanning for projects...
Downloading: http://repository.jboss.org/maven2//org/rhq/rhq-plugins-
parent/1.2.0.GA/rhq-plugins-parent-1.2.0.GA.pom
3K downloaded
Downloading: http://repository.jboss.org/maven2//org/rhq/rhq-parent/
1.2.0.GA/rhq-parent-1.2.0.GA.pom
19K downloaded
Downloading: http://repository.jboss.org/maven2//org/apache/maven/wagon/
wagon-scm/1.0-beta-4/wagon-scm-1.0-beta-4.pom
...
Downloading: http://repository.jboss.org/maven2//commons-lang/commons-
lang/2.1/commons-lang-2.1.jar
202K downloaded
[INFO] [jar:jar]
[INFO] Building jar: /Volumes/Data/Code/jboss.org/jopr/modules/plugins/
buscador/target/buscador-plugin-1.2.0.GA.jar
[INFO]
------------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO]
------------------------------------------------------------------------
[INFO] Total time: 8 minutes 16 seconds
[INFO] Finished at: Fri May 29 00:45:29 BRT 2009
[INFO] Final Memory: 16M/126M
[INFO]
------------------------------------------------------------------------ 47

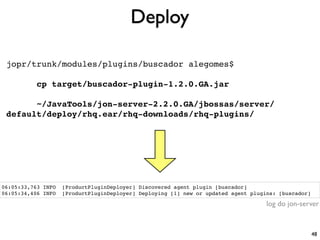

50. Deploy
jopr/trunk/modules/plugins/buscador alegomes$
cp target/buscador-plugin-1.2.0.GA.jar
~/JavaTools/jon-server-2.2.0.GA/jbossas/server/
default/deploy/rhq.ear/rhq-downloads/rhq-plugins/
06:05:33,763 INFO [ProductPluginDeployer] Discovered agent plugin [buscador]
06:05:34,406 INFO [ProductPluginDeployer] Deploying [1] new or updated agent plugins: [buscador]
log do jon-server
48

51. ./rhq-server.sh console
...
07:22:52,375 INFO [EARDeployer] Init J2EE application: file:/Volumes/Data/Applications/JavaTools/
jon-server-2.2.0.GA/jbossas/server/default/deploy/rhq.ear/
07:23:01,581 INFO [SchedulerService] Scheduler has a default operation timeout of [600] seconds.
07:23:03,094 INFO [CoreServer] Version=[1.2.0.GA], Build Number=[3862], Build Date=[27.Apr.2009
16.56.25 EDT]
07:23:20,790 INFO [ProductPluginDeployer] Discovered agent plugin [buscador]
07:23:22,726 INFO [ProductPluginDeployer] Discovered agent plugin [Hibernate]
07:23:24,821 INFO [ProductPluginDeployer] Discovered agent plugin [JBossAS]
07:23:25,988 INFO [ProductPluginDeployer] Discovered agent plugin [RHQServer]
07:23:27,329 INFO [ProductPluginDeployer] Discovered agent plugin [RHQAgent]
07:23:28,437 INFO [ProductPluginDeployer] Discovered agent plugin [Apache]
07:23:29,579 INFO [ProductPluginDeployer] Discovered agent plugin [Database]
07:23:30,776 INFO [ProductPluginDeployer] Discovered agent plugin [IIS]
07:23:31,938 INFO [ProductPluginDeployer] Discovered agent plugin [JMX]
07:23:32,947 INFO [ProductPluginDeployer] Discovered agent plugin [Platforms]
07:23:33,940 INFO [ProductPluginDeployer] Discovered agent plugin [Postgres]
07:23:34,366 INFO [PersistenceUnitDeployment] Starting persistence unit
persistence.units:ear=rhq.ear,unitName=rhqpu
07:23:34,786 INFO [Version] Hibernate EntityManager 3.2.1.GA
...
49

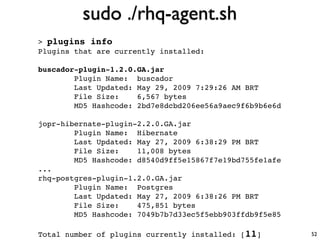

52. sudo ./rhq-agent.sh
rhq-agent-jon-2.2.0/bin alegomes$ sudo ./rhq-agent.sh
RHQ 1.2.0.GA [3862] (Mon Apr 27 17:55:22 BRT 2009)
>
> plugins info
Plugins that are currently installed:
jopr-hibernate-plugin-2.2.0.GA.jar
Plugin Name: Hibernate
Last Updated: May 27, 2009 6:38:29 PM BRT
File Size: 11,008 bytes
MD5 Hashcode: d8540d9ff5e15867f7e19bd755fe1afe
...
rhq-postgres-plugin-1.2.0.GA.jar
Plugin Name: Postgres
Last Updated: May 27, 2009 6:38:26 PM BRT
File Size: 475,851 bytes
MD5 Hashcode: 7049b7b7d33ec5f5ebb903ffdb9f5e85
Total number of plugins currently installed: [10]
> 50

53. sudo ./rhq-agent.sh
> plugins update
The plugin container has been stopped.
Updating plugins to their latest versions.
The plugin [buscador-plugin-1.2.0.GA.jar] has been updated.
Completed updating the plugins to their latest versions.
The plugin container has been started.
>
51

54. sudo ./rhq-agent.sh
> plugins info
Plugins that are currently installed:
buscador-plugin-1.2.0.GA.jar
Plugin Name: buscador
Last Updated: May 29, 2009 7:29:26 AM BRT
File Size: 6,567 bytes
MD5 Hashcode: 2bd7e8dcbd206ee56a9aec9f6b9b6e6d
jopr-hibernate-plugin-2.2.0.GA.jar
Plugin Name: Hibernate
Last Updated: May 27, 2009 6:38:29 PM BRT
File Size: 11,008 bytes
MD5 Hashcode: d8540d9ff5e15867f7e19bd755fe1afe
...
rhq-postgres-plugin-1.2.0.GA.jar
Plugin Name: Postgres
Last Updated: May 27, 2009 6:38:26 PM BRT
File Size: 475,851 bytes
MD5 Hashcode: 7049b7b7d33ec5f5ebb903ffdb9f5e85
Total number of plugins currently installed: [11] 52

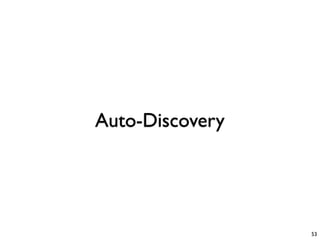

55. Auto-Discovery
53

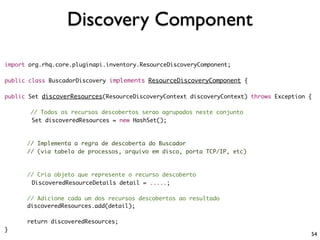

56. Discovery Component
import org.rhq.core.pluginapi.inventory.ResourceDiscoveryComponent;
public class BuscadorDiscovery implements ResourceDiscoveryComponent {
public Set discoverResources(ResourceDiscoveryContext discoveryContext) throws Exception {
// Todos os recursos descobertos serao agrupados neste conjunto
Set discoveredResources = new HashSet();
// Implementa a regra de descoberta do Buscador
// (via tabela de processos, arquivo em disco, porta TCP/IP, etc)
// Cria objeto que represente o recurso descoberto
DiscoveredResourceDetails detail = .....;
// Adicione cada um dos recursos descobertos ao resultado
discoveredResources.add(detail);
return discoveredResources;
}
54

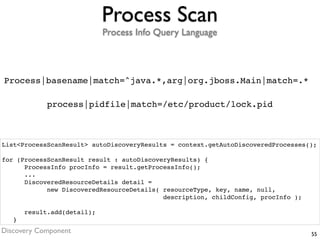

57. Process Scan
Process Info Query Language
Process|basename|match=^java.*,arg|org.jboss.Main|match=.*
process|pidfile|match=/etc/product/lock.pid
List<ProcessScanResult> autoDiscoveryResults = context.getAutoDiscoveredProcesses();
for (ProcessScanResult result : autoDiscoveryResults) {
ProcessInfo procInfo = result.getProcessInfo();
...
DiscoveredResourceDetails detail =
new DiscoveredResourceDetails( resourceType, key, name, null,
description, childConfig, procInfo );
result.add(detail);
}
Discovery Component 55

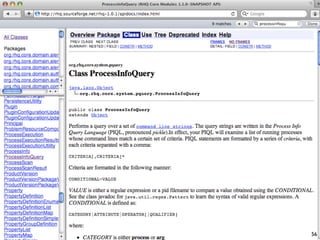

58. 56

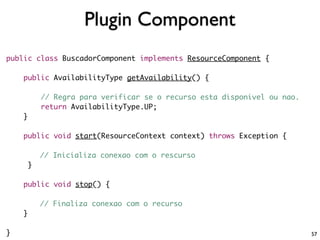

59. Plugin Component
public class BuscadorComponent implements ResourceComponent {
public AvailabilityType getAvailability() {
// Regra para verificar se o recurso esta disponivel ou nao.
return AvailabilityType.UP;
}
public void start(ResourceContext context) throws Exception {
// Inicializa conexao com o rescurso
}
public void stop() {
// Finaliza conexao com o recurso
}
} 57

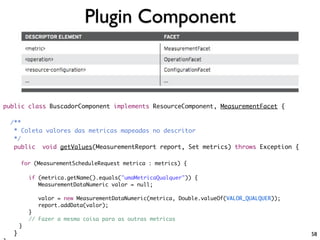

60. Plugin Component
public class BuscadorComponent implements ResourceComponent, MeasurementFacet {
/**
* Coleta valores das metricas mapeadas no descritor
*/
public void getValues(MeasurementReport report, Set metrics) throws Exception {
for (MeasurementScheduleRequest metrica : metrics) {
if (metrica.getName().equals("umaMetricaQualquer")) {
MeasurementDataNumeric valor = null;
valor = new MeasurementDataNumeric(metrica, Double.valueOf(VALOR_QUALQUER));
report.addData(valor);
}
// Fazer a mesma coisa para as outras metricas
}
} 58

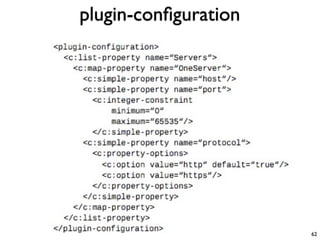

61. plugin-configuration
<plugin-configuration>
</plugin-configuration>
59

62. plugin-configuration
60

63. plugin-configuration
<plugin-configuration>
<c:simple-property name="contexto" type="string" required="true" />
</plugin-configuration>
61

64. plugin-configuration
62

65. Measurement Facet
<!-- jboss.web:name=http-0.0.0.0-8080,type=ThreadPool:currentThreadsBusy -->
<metric property="jboss.web:name=%schema%%dash%%address%-%port%,type=ThreadPool:currentThreadsBusy"
displayName="Threads Active"
defaultOn="true" category="utilization" displayType="summary"/>
public void getValues(MeasurementReport report,
Set<MeasurementScheduleRequest> requests) {
...
}
63

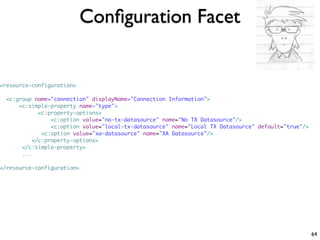

66. Configuration Facet
<resource-configuration>
<c:group name="connection" displayName="Connection Information">
<c:simple-property name="type">
<c:property-options>
<c:option value="no-tx-datasource" name="No TX Datasource"/>
<c:option value="local-tx-datasource" name="Local TX Datasource" default="true"/>
<c:option value="xa-datasource" name="XA Datasource"/>
</c:property-options>
</c:simple-property>
...
</resource-configuration>
64

67. Operation Facet
<operation name="start" displayName="Start"
description="Start this application server.
The script used is specified in the Operations
group of connection properties.">
<results>
<c:simple-property name="operationResult"
description="Outcome of starting the server."/>
</results>
</operation>
public OperationResult invokeOperation(String name, Configuration configuration) throws InterruptedException {
JBossASServerSupportedOperations operation =
Enum.valueOf(JBossASServerSupportedOperations.class,
name.toUpperCase());
return operationsDelegate.invoke(operation, configuration);
}
65

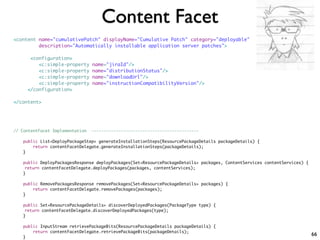

68. Content Facet
<content name="cumulativePatch" displayName="Cumulative Patch" category="deployable"
description="Automatically installable application server patches">
<configuration>
<c:simple-property name="jiraId"/>
<c:simple-property name="distributionStatus"/>
<c:simple-property name="downloadUrl"/>
<c:simple-property name="instructionCompatibilityVersion"/>
</configuration>
</content>
// ContentFacet Implementation --------------------------------------------
public List<DeployPackageStep> generateInstallationSteps(ResourcePackageDetails packageDetails) {
return contentFacetDelegate.generateInstallationSteps(packageDetails);
}
public DeployPackagesResponse deployPackages(Set<ResourcePackageDetails> packages, ContentServices contentServices) {
return contentFacetDelegate.deployPackages(packages, contentServices);
}
public RemovePackagesResponse removePackages(Set<ResourcePackageDetails> packages) {
return contentFacetDelegate.removePackages(packages);
}
public Set<ResourcePackageDetails> discoverDeployedPackages(PackageType type) {
return contentFacetDelegate.discoverDeployedPackages(type);
}
public InputStream retrievePackageBits(ResourcePackageDetails packageDetails) {
return contentFacetDelegate.retrievePackageBits(packageDetails);
}
66

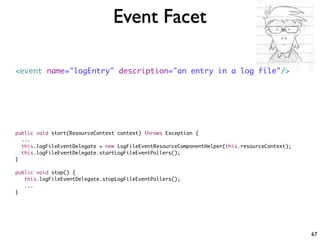

69. Event Facet
<event name="logEntry" description="an entry in a log file"/>
public void start(ResourceContext context) throws Exception {
...
this.logFileEventDelegate = new LogFileEventResourceComponentHelper(this.resourceContext);
this.logFileEventDelegate.startLogFileEventPollers();
}
public void stop() {
this.logFileEventDelegate.stopLogFileEventPollers();
...
}
67

70. Baixe, instale e configure o Maven
Baixe e descompacte o código fonte do Jopr
Baixe e execute o gerador de plugins
Faça o deploy do plugin gerado
Experimente a PIQL
Explore suas facetas
68

71. JUST DO IT
69
Sugestão: inspire-se no exemplo RHQ_httptest2.zip, disponível no servidor.

72. Q&A
