1. la révolution
Alexis Hassler

2. @AlexisHassler

4. Alexis
Hassler

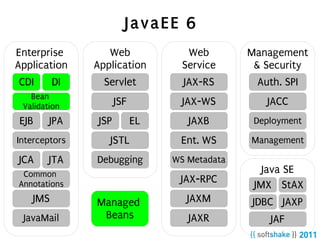

5. JavaEE 6
Enterprise Web Web Management
Application Application Service & Security
CDI DI Servlet JAX-RS Auth. SPI
Bean
Validation JAX-WS
JSF JAX-WS JAX-WS
JACC
EJB JPA JSP EL JAXB Deployment
Interceptors JSTL Ent. WS Management
JCA JTA Debugging WS Metadata
Common Java SE
JAX-RPC
Annotations JMX StAX
JMS Managed JAXM JDBC JAXP
JavaMail Beans JAXR JAF

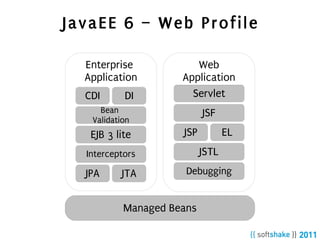

6. JavaEE 6 – Web Profile
Enterprise Web
Application Application
CDI DI Servlet
Bean JAX-WS
JSF
Validation
EJB 3 lite JSP EL
Interceptors JSTL
JPA JTA Debugging
Managed Beans

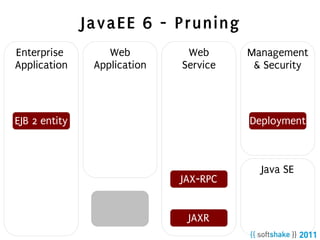

7. JavaEE 6 - Pruning
Enterprise Web Web Management
Application Application Service & Security
EJB 2 entity Deployment
Java SE
JAX-RPC
JAXR

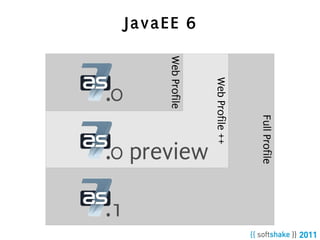

8. Full Profile
Web Profile ++
.0 preview
JavaEE 6
Web Profile
.0
.1

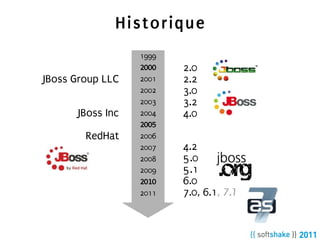

9. Historique
1999
2000 2.0
JBoss Group LLC 2001 2.2
2002 3.0
2003 3.2
JBoss Inc 2004 4.0
2005
RedHat 2006
2007 4.2
2008 5.0
2009 5.1
2010 6.0
2011 7.0, 6.1, 7.1

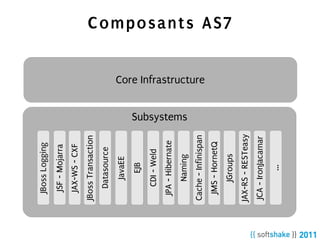

10. JBoss Logging
JSF - Mojarra
JAX-WS - CXF
JBoss Transaction
Datasource
JavaEE
EJB
CDI - Weld
JPA - Hibernate
Subsystems
Naming
Cache - Infinispan
Core Infrastructure
JMS - HornetQ
Composants AS7
JGroups
JAX-RS - RESTeasy
JCA - IronJacamar
...

11. JBoss Logging
JSF - Mojarra
JAX-WS - CXF
JBoss Transaction
Datasource
JavaEE
EJB
CDI - Weld
JPA - Hibernate
Services
Naming
Micro container
Cache - Infinispan
JMS - HornetQ
Composants AS6
JGroups
JAX-RS - RESTeasy
JCA
...

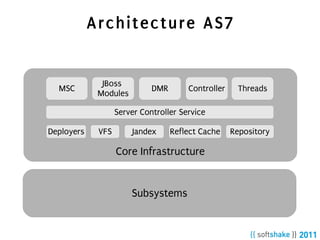

12. Architecture AS7
JBoss
MSC DMR Controller Threads
Modules
Server Controller Service
Deployers VFS Jandex Reflect Cache Repository
Core Infrastructure
Subsystems

13. Startup
50 s AS 6.0
45 s
AS 5.1
40 s
35 s
30 s
25 s
20 s
15 s AS 4.2
AS 4.0
10 s AS 7.0
5s
0s

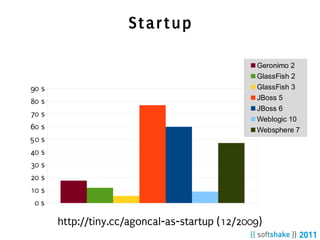

14. Startup
Geronimo 2
GlassFish 2
90 s GlassFish 3
JBoss 5
80 s
JBoss 6
70 s
Weblogic 10
60 s Websphere 7
50 s
40 s
30 s
20 s
10 s
0s
http://tiny.cc/agoncal-as-startup (12/2009)

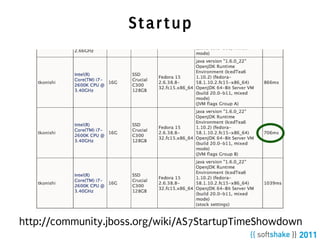

15. Startup
http://community.jboss.org/wiki/AS7StartupTimeShowdown

16. Lightweight
Heap used
180 Mo
160 Mo
140 Mo AS 5.1
120 Mo AS 6.0
100 Mo
80 Mo
60 Mo
40 Mo AS 4.0 AS 4.2
20 Mo AS 7.0
0 Mo

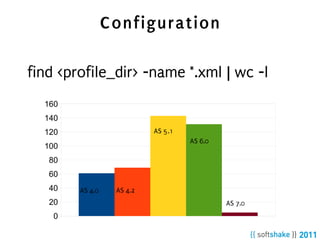

17. Configuration
find <profile_dir> -name *.xml | wc -l
160
140
120 AS 5.1
AS 6.0
100
80
60
40 AS 4.0 AS 4.2
20 AS 7.0
0

18. Configuration
bin
client bin
lib
bundles
server
default modules
conf standalone
data configuration
deploy
deployers data
lib deployments
standard lib/ext
all domain
jbossweb-standalone
minimal welcome-content
common docs
deploy
lib
docs

19. Configuration
standalone/configutation/standalone.xml

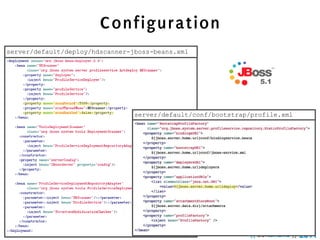

20. Configuration
server/default/deploy/hdscanner-jboss-beans.xml
server/default/conf/bootstrap/profile.xml

21. ✔ Configuration (réseau)
✔ Démarrage

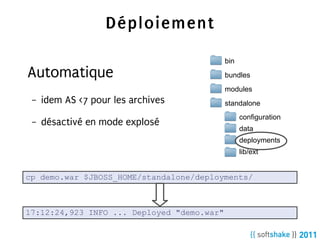

22. Déploiement
bin
Automatique bundles
modules
– idem AS <7 pour les archives standalone
configuration
– désactivé en mode explosé
data
deployments
lib/ext
cp demo.war $JBOSS_HOME/standalone/deployments/
17:12:24,923 INFO ... Deployed "demo.war"

23. Déploiement
État
.dodeploy
.pending .skipdeploy
.isdeploying .isundeploying
.deployed .failed .undeployed

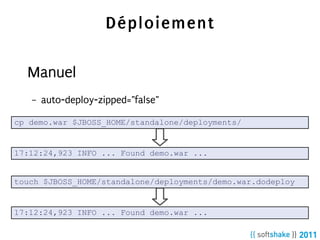

24. Déploiement
Manuel
– auto-deploy-zipped="false"
cp demo.war $JBOSS_HOME/standalone/deployments/
17:12:24,923 INFO ... Found demo.war ...
touch $JBOSS_HOME/standalone/deployments/demo.war.dodeploy
17:12:24,923 INFO ... Found demo.war ...

25. ✔ Déploiement automatique
✔ Déploiement manuel

26. Administration
Console CLI
HTTP / JSON Java API

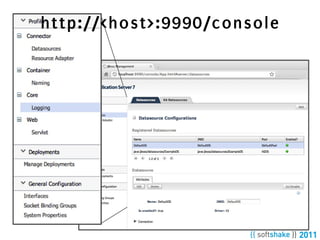

27. http://<host>:9990/console

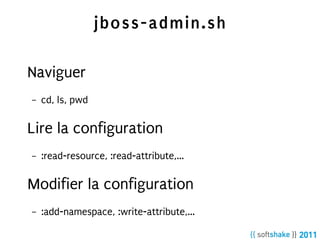

28. jboss-admin.sh
Naviguer
– cd, ls, pwd
Lire la configuration
– :read-resource, :read-attribute,...
Modifier la configuration
– :add-namespace, :write-attribute,...

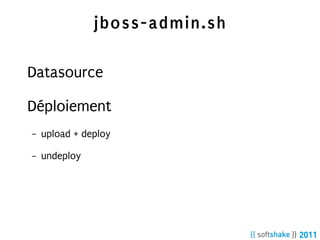

29. jboss-admin.sh
Datasource
Déploiement
– upload + deploy
– undeploy

30. ✔ Datasource

31. Modules
"Classpath is dead!"
Mark Reinhold, JavaOne 2009
http://java.sun.com/javaone/2009/general_sessions.jsp

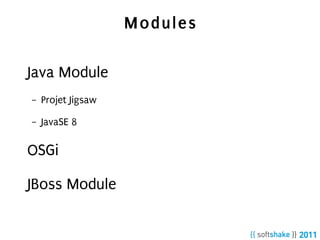

32. Modules
Java Module
– Projet Jigsaw
– JavaSE 8
OSGi
JBoss Module

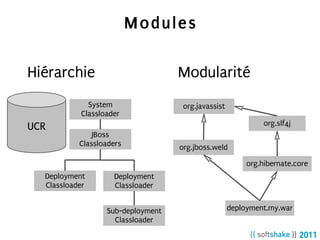

33. Modules
Hiérarchie Modularité
System org.javassist
Classloader
UCR org.slf4j
JBoss
Classloaders org.jboss.weld
org.hibernate.core
Deployment Deployment
Classloader Classloader
Sub-deployment deployment.my.war
Classloader

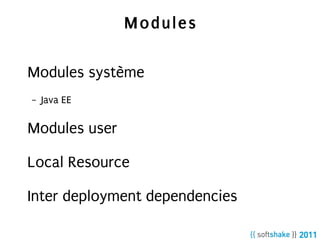

34. Modules
Modules système
– Java EE
Modules user
Local Resource
Inter deployment dependencies

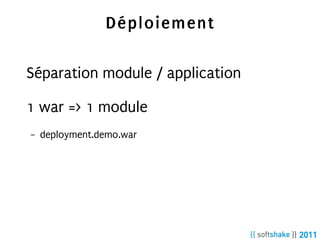

35. Déploiement
Séparation module / application
1 war => 1 module
– deployment.demo.war

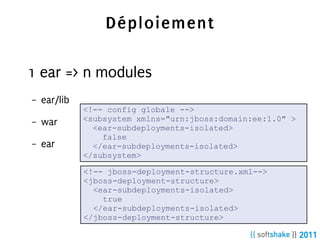

36. Déploiement
1 ear => n modules
– ear/lib
<!-- config globale -->
– war <subsystem xmlns="urn:jboss:domain:ee:1.0" >
<ear-subdeployments-isolated>
false
– ear </ear-subdeployments-isolated>
</subsystem>
<!-- jboss-deployment-structure.xml-->
<jboss-deployment-structure>
<ear-subdeployments-isolated>
true
</ear-subdeployments-isolated>
</jboss-deployment-structure>

37. Module global
standalone.xml ou domain.xml
– Slot = version
<subsystem xmlns="urn:jboss:domain:ee:1.0" >
<global-modules>
<module name="org.javassist" slot="main" />
</global-modules>
</subsystem>

38. ✔ SLF4J

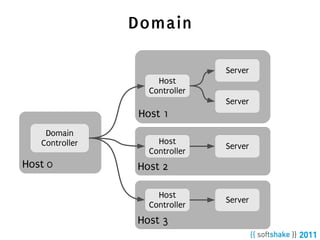

39. Domain
Server
Host
Controller
Server
Host 1
Domain
Controller Host
Server
Controller
Host 0 Host 2
Host
Server
Controller
Host 3

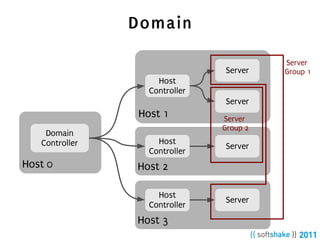

40. Domain
Server
Server Group 1
Host
Controller
Server
Host 1 Server
Group 2
Domain
Controller Host
Server
Controller
Host 0 Host 2
Host
Server
Controller
Host 3

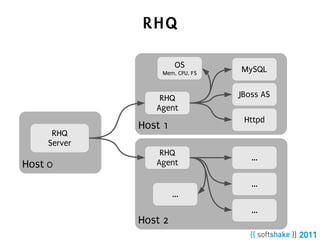

41. RHQ
OS MySQL
Mem, CPU, FS
RHQ JBoss AS
Agent
Httpd
Host 1
RHQ
Server
RHQ
...
Host 0 Agent
...
...
...
Host 2

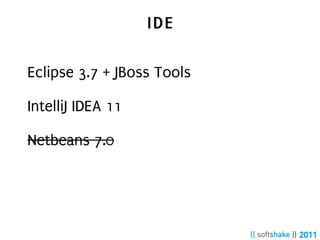

42. IDE
Eclipse 3.7 + JBoss Tools
IntelliJ IDEA 11
Netbeans 7.0

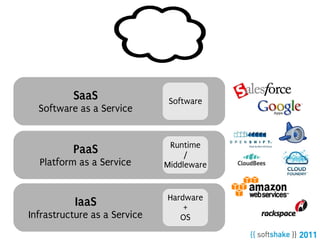

44. Cloud
SaaS Software
Software as a Service
Runtime
PaaS /
Platform as a Service Middleware
Hardware
IaaS +
Infrastructure as a Service OS

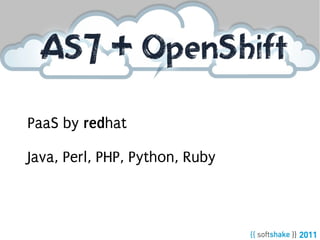

45. PaaS by redhat
Java, Perl, PHP, Python, Ruby

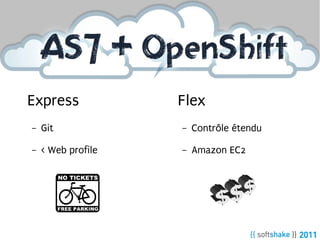

46. Express Flex
– Git – Contrôle étendu
– < Web profile – Amazon EC2

48. ✔ OpenShift Express

49. JBoss EAP 6
Q1 2012 (TBC)
Dérivé de AS 7.1
– JavaEE 6 full profile
… à suivre

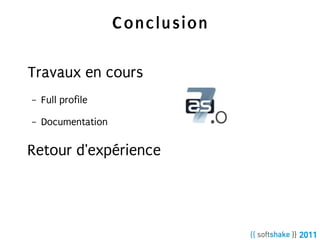

50. Conclusion
Travaux en cours
– Full profile
– Documentation .0
Retour d'expérience

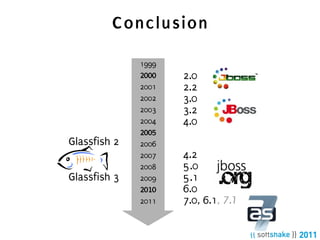

51. Conclusion
1999
2000 2.0
2001 2.2
2002 3.0
2003 3.2
2004 4.0
2005
Glassfish 2 2006
2007 4.2
2008 5.0
Glassfish 3 2009 5.1
2010 6.0
2011 7.0, 6.1, 7.1

52. http://www.jboss.org/as7.html
http://www.jboss.org/openshift/

53. Auto-promotion
http://www.sewatech.fr/formation-jboss-7.html
http://blog.alexis-hassler.com
