1. Satish Prasad
Working Example GitHub Repo
rpabotsworld.com/implementing-ci-cd-uipath-using-jenkins-plugin/
Implementing CI CD UiPath Using Jenkins Plugin
(Step by step guide to Implement CI CD UiPath Using Jenkins Plugins)
In this article, I have tried to give a simplistic view of the integration required for the
implementation of CI-CD tools- GIT and Jenkins with UiPath. A similar guide is already
published for Azure Pipelines.
In this article, we have covered –
1. Basic of Jenkins to get started
2. Key Jenkins concepts to remember
3. Install and configure UiPath Jenkins Plugin
4. Building pipeline using Jenkins for Build, Test and Deploy
5. Working example (Jenkins files)
6. Further Improvements
Let’s get started!
1/15

2. Pre-requisites
You should have Jenkins server Up and Running (You can install fresh or Use
existing …follow the installation step for windows as we need a window-based
agent for UiPath)
UiPath should be installed in a machine that would be used for DevOps.
Your Source code should be kept in Version Control System (Such as Git, GitHub
etc.…)
You should have administrative access on UiPath Orchestrator Instance.
You should have (Required User API Keys) for Orchestrator API access
Table of Contents
Why Jenkins
Jenkins introduces a domain-specific language (DSL) based on ‘Groovy’, which can be
used to define a new pipeline as a script.
1. Using Jenkins Pipeline to automate CI/CD pipelines dramatically increases
repeat-ability, reliability, efficiency, and quality.
2. The Pipeline allows managing the process code like any other production code,
facilitating iterative development for pipelines, along with access control, code
review, audit trails, and a single source for truth that is review-able (and
potentially an approval/promotion process) by multiple project members.
3. Multi-branch pipelines are also possible to configure different jobs for different
branches within a single project
Few Requirements to be considered
Similar to Azure UiPath Pipelines Example, we have two options to create our pipelines.
1. You can use UiRobot.Exe (Or UiPath PowerShell Utility) to perform various tasks.
This method will require you to write PowerShell snippet using cmdlet to perform
tasks.
2. You can use the “UiPath Jenkins Plugin” to perform the required Build, Test and
Publish tasks… all you need to do is utilize “UiPathPack”, “UiPathTest” and
“UiPathDeploy” with required configuration.
3. You can create pipeline using the classic Jenkins UI to define your build and other
stages …Or simply creating Jenkins File inside your source code to perform your
task…
For this article, we are going to use the “UiPath Jenkins Plugin” to create pipelines
using the “Jenkins File” kept inside project folder…
Why Using a Jenkinsfile
2/15

3. Jenkinsfile is a text file that contains the definition of a Jenkins Pipeline.The different
organization has a different approach to building pipelines, however creating a
Jenkinsfile, which is checked into source control provides below benefits –
As Pipelines continue to grow, it would be difficult to maintain them, by using the
text area present in the Jenkins job configuration page only. A better option is to
store them in specific files versioned within your project repository.
Complex Pipelines are difficult to write and maintain within the classic UI’s Script
text area of the Pipeline configuration page.
You can review/add additional stages for pipelines
You should be able to have audit trails of pipeline changes inside the version
control system
Jenkinsfile is not a replacement for existing build tools it only binds the multiple
phases of project life cycle…Not only this it can be also utilized to perform various
post-deployment actions.
Key Jenkins Pipeline concepts
[You can skip this section if you are already aware of basic terminologies of DevOps
implementation]
As discussed above, the definition of a Jenkins Pipeline is written into a text file (called
a Jenkinsfile) which in turn can be committed to a project’s source control repository.
The following concepts are key aspects of Jenkins Pipeline-
1. Pipeline – A Pipeline’s code defines your entire integration and build process,
which typically includes stages, steps for building an application, testing it and
then delivering it.
2. Node– A node is a machine which is part of the Jenkins environment and is
capable of executing a Pipeline. (You can treat node as Agent which is configured
and contains all the required tool to build your project.)
3. Stages – A Stage Block logically separate the tasks performed through the entire
process, for Example “Build”, “Test” and “Deploy” stages.
4. Steps – A single task. Fundamentally, a step tells Jenkins what to do at a
particular point in time (or “step” in the process).
5. Directives – The environment directive specifies a sequence of key-value pairs
which will be defined as environment variables for all steps, or stage-specific
steps, depending on where the environment directive is located within the
Pipeline.
6. Post – The post section defines one or more additional steps that are run upon
the completion of a Pipeline’s or stage’s run (depending on the location of the post
section within the Pipeline). post can support any of the following post-condition
blocks: always, changed, fixed, regression, aborted, failure, success, unstable,
unsuccessful, and cleanup.
3/15

4. There are few other levels and options which are also required if you wish to create
more complex example. You can read the syntax of Pipeline here. (Pipelines syntax)
Declarative versus Scripted Pipeline syntax
A Jenkins file (Pipeline) can be written in two types of syntax-
Declarative – is a relatively new addition to pipeline syntax and provide a simplified
way to get started with the configuration to perform various steps.
(Imposes limitations to the user with a much stricter and pre-defined structure)
Its start within a pipeline block, for example, pipeline {/* Insert Details inside */}
It follows the same rules as Groovy’s syntax
Blocks must only consist of Sections, Directives, Steps, or assignment statements.
Scripted– Scripted Pipelines can include and make use of any valid Groovy code.
Scripted Pipelines are wrapped in a node block. Here a node refers to a system
that contains the Jenkins agent pieces and can run jobs(example node{/* Insert
Details here */} )
Most functionality provided by the Groovy language is made available to users of
Scripted Pipeline, which means it can be a very expressive and flexible tool with
which one can author continuous delivery pipelines.
Syntax Comparison:
Scripted Pipeline offers a tremendous amount of flexibility and extensibility to
Jenkins users. The Groovy learning-curve isn’t typically desirable for all members
of a given team, so Declarative Pipeline was created to offer a simpler and more
opinionated syntax for authoring Jenkins Pipeline.
Both are fundamentally the same Pipeline sub-system underneath. They are both
durable implementations of “Pipeline as code.” They are both able to use steps
built into Pipeline or provided by plugins.
Pipeline Example Syntax
Consider the following Pipeline which implements a basic three-stage continuous
delivery pipeline.
The most fundamental part of a pipeline is “steps”, which tell Jenkins what to do and
serve as a basic building block.
You should be able to construct a more complex example using Directives and Steps.
4/15

5. pipeline {
agent any
stages {
stage('Build') {
steps {
echo 'Building...'
}
}
stage('Test') {
steps {
echo 'Testing...'
}
}
stage('Deploy') {
steps {
echo 'Deploying....'
}
}
}
}
We will see this in details in next section when we create pipeline for UiPath project.
UiPath Jenkins Plugin
The UiPath Jenkins Plugin allows you to integrate RPA development and Software
Testing with UiPath into Jenkins.
It provides build tasks to pack UiPath projects into nuget packages, deploy them to
Orchestrator and run Test Sets on Orchestrator.
Installing and enabling the plugin
1. You can install UiPath Plugin using the Plugin Manager screen.
2. Once Plugin is Installed you can use Snippet Generator also to create snippets of
code for practically all the steps available within a pipeline.
Using Global and Local Environment Variables
5/15

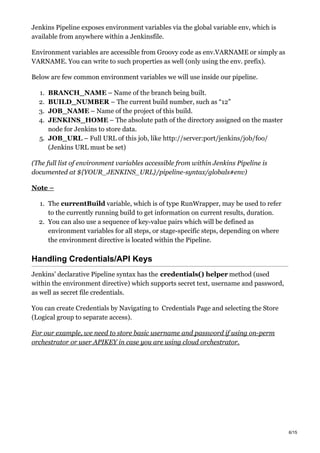

6. Jenkins Pipeline exposes environment variables via the global variable env, which is
available from anywhere within a Jenkinsfile.
Environment variables are accessible from Groovy code as env.VARNAME or simply as
VARNAME. You can write to such properties as well (only using the env. prefix).
Below are few common environment variables we will use inside our pipeline.
1. BRANCH_NAME – Name of the branch being built.
2. BUILD_NUMBER – The current build number, such as “12”
3. JOB_NAME – Name of the project of this build.
4. JENKINS_HOME – The absolute path of the directory assigned on the master
node for Jenkins to store data.
5. JOB_URL – Full URL of this job, like http://server:port/jenkins/job/foo/
(Jenkins URL must be set)
(The full list of environment variables accessible from within Jenkins Pipeline is
documented at ${YOUR_JENKINS_URL}/pipeline-syntax/globals#env)
Note –
1. The currentBuild variable, which is of type RunWrapper, may be used to refer
to the currently running build to get information on current results, duration.
2. You can also use a sequence of key-value pairs which will be defined as
environment variables for all steps, or stage-specific steps, depending on where
the environment directive is located within the Pipeline.
Handling Credentials/API Keys
Jenkins’ declarative Pipeline syntax has the credentials() helper method (used
within the environment directive) which supports secret text, username and password,
as well as secret file credentials.
You can create Credentials by Navigating to Credentials Page and selecting the Store
(Logical group to separate access).
For our example, we need to store basic username and password if using on-perm
orchestrator or user APIKEY in case you are using cloud orchestrator.
6/15

7. Supported Credentials Type:
Secret Text – Can be used to store API Keys
Secret File – Can be used to access location of the file.
Username and password – the environment variable specified will be set to
username:password and two additional environment variables will be
automatically defined: MYVARNAME_USR and MYVARNAME_PSW
respectively.
SSH with Private Key – environment variable specified will be set to the location
of the SSH key file
Handling Failure/Notification/Cleanup
Declarative Pipeline supports robust failure handling by default via its post section
which allows declaring a number of different “post conditions” such as: always,
unstable, success, failure, and changed.
Example Syntax.(You can do many steps here like sending email, approval, Slack
Notification etc…)
7/15

8. post
{
changed
{
echo "Status has changed"
}
failure
{
echo "Status is failure"
//You can post your failure message here
}
success
{
echo "Status is success"
//You can post your failure message here and probably you wish to send email to
notification
}
unstable
{
echo "Status is unstable"
}
aborted
{
echo "Status is aborted"
//Good to send Slack Notification when aborted
}
always {
script {
BUILD_USER = getBuildUser()
}
echo 'I will always say hello in the console.'
slackSend channel: '#slack-test-channel',
color: COLOR_MAP[currentBuild.currentResult],
message: "*${currentBuild.currentResult}:* Job ${env.JOB_NAME} build
${env.BUILD_NUMBER} by ${BUILD_USER}n More info at: ${env.BUILD_URL}"
}
}
Working Example (Using Jenkinsfile Declarative Pipeline)
So far so good, we have covered almost all the basic details we need to Build our UiPath
Pipeline.
At this point of article, I assume you have.
1. Jenkins Installed locally or On Network (for testing we installed it locally on the
same machine where we have UiPath)
2. You have your source code available in Git or any Version control system.
8/15

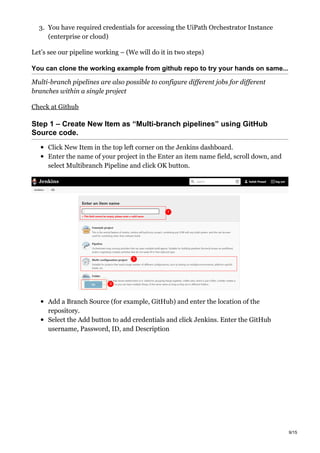

9. 3. You have required credentials for accessing the UiPath Orchestrator Instance
(enterprise or cloud)
Let’s see our pipeline working – (We will do it in two steps)
You can clone the working example from github repo to try your hands on same...
Multi-branch pipelines are also possible to configure different jobs for different
branches within a single project
Check at Github
Step 1 – Create New Item as “Multi-branch pipelines” using GitHub
Source code.
Click New Item in the top left corner on the Jenkins dashboard.
Enter the name of your project in the Enter an item name field, scroll down, and
select Multibranch Pipeline and click OK button.
Add a Branch Source (for example, GitHub) and enter the location of the
repository.
Select the Add button to add credentials and click Jenkins. Enter the GitHub
username, Password, ID, and Description
9/15

10. You also need to configure the Build; you can select the Mode as by Jenkinsfile
and Script Path as you wish to name it.
Jenkins automatically scans the designated repository and does some indexing for
organization folders. You might need to configure the webhooks to communicate
with our GitHub repository.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec
ullamcorper mattis, pulvinar dapibus leo.
Step 2- Create your initial Pipeline as a Jenkinsfile with build and test
stages
You’re now ready to create the Pipeline that will automate building your UiPath Project
in Jenkins.
10/15

11. Use your favourite text editor or IDE, open the existing Jenkinsfile at the root of
your project or create new Jenkinsfile
Copy the following Declarative Pipeline code and paste it into your empty
Jenkinsfile:
pipeline {
agent any
// Environment Variables
environment {
MAJOR = '1'
MINOR = '0'
//Orchestrator Services
UIPATH_ORCH_URL = "https://cloud.uipath.com/"
UIPATH_ORCH_LOGICAL_NAME = "AIFabricDemo"
UIPATH_ORCH_TENANT_NAME = "UATdfds611009"
UIPATH_ORCH_FOLDER_NAME = "Shared"
}
stages {
// Printing Basic Information
stage('Preparing'){
steps {
echo "Jenkins Home ${env.JENKINS_HOME}"
echo "Jenkins URL ${env.JENKINS_URL}"
echo "Jenkins JOB Number ${env.BUILD_NUMBER}"
echo "Jenkins JOB Name ${env.JOB_NAME}"
echo "GitHub BranhName ${env.BRANCH_NAME}"
checkout scm
}
}
// Build Stages
stage('Build') {
steps {
echo "Building..with ${WORKSPACE}"
UiPathPack (
outputPath: "Output${env.BUILD_NUMBER}",
projectJsonPath: "project.json",
version: [$class: 'ManualVersionEntry', version:
"${MAJOR}.${MINOR}.${env.BUILD_NUMBER}"],
useOrchestrator: false
)
}
}
// Test Stages
stage('Test') {
11/15

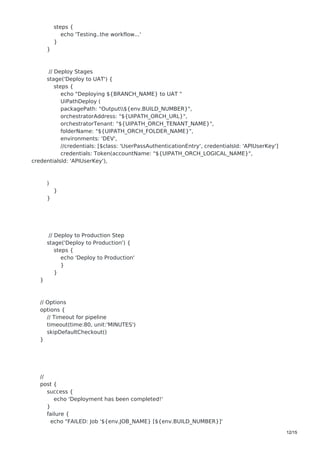

12. steps {
echo 'Testing..the workflow...'
}
}
// Deploy Stages
stage('Deploy to UAT') {
steps {
echo "Deploying ${BRANCH_NAME} to UAT "
UiPathDeploy (
packagePath: "Output${env.BUILD_NUMBER}",
orchestratorAddress: "${UIPATH_ORCH_URL}",
orchestratorTenant: "${UIPATH_ORCH_TENANT_NAME}",
folderName: "${UIPATH_ORCH_FOLDER_NAME}",
environments: 'DEV',
//credentials: [$class: 'UserPassAuthenticationEntry', credentialsId: 'APIUserKey']
credentials: Token(accountName: "${UIPATH_ORCH_LOGICAL_NAME}",
credentialsId: 'APIUserKey'),
)
}
}
// Deploy to Production Step
stage('Deploy to Production') {
steps {
echo 'Deploy to Production'
}
}
}
// Options
options {
// Timeout for pipeline
timeout(time:80, unit:'MINUTES')
skipDefaultCheckout()
}
//
post {
success {
echo 'Deployment has been completed!'
}
failure {
echo "FAILED: Job '${env.JOB_NAME} [${env.BUILD_NUMBER}]'
12/15

13. (${env.JOB_DISPLAY_URL})"
}
always {
/* Clean workspace if success */
cleanWs()
}
}
}
Save your edited Jenkinsfile and commit it the Git Repo. That’s all you need to do
for now.
Lets quickly run the Build to see the results.
If everything goes well you should be able to see the published package inside your
orchestrator instance.
Running you Build Pipeline
1. Go back to the repository and change to the Branch and Update any of the files. In
our example, we update the README.md file.
2. You will see that the Jenkins job will trigger automatically. (it scans the repo and
create Build Queues)
3. You can also run the “pipeline” by manually scanning the Repository.
13/15

14. Stage Wise Build status
You can see the console logs by navigating to Build history.
How do I configure a user account to have ‘logon as a service’
permissions?
When installing a service to run under a domain user account, the account must have
the right to logon as a service on the local.
Perform the following to edit the Local Security Policy of the computer you want to
define the ‘logon as a service’ permission:
14/15

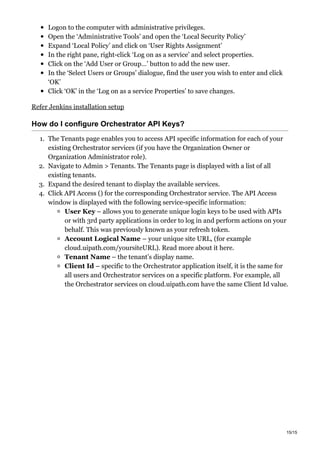

15. Logon to the computer with administrative privileges.
Open the ‘Administrative Tools’ and open the ‘Local Security Policy’
Expand ‘Local Policy’ and click on ‘User Rights Assignment’
In the right pane, right-click ‘Log on as a service’ and select properties.
Click on the ‘Add User or Group…’ button to add the new user.
In the ‘Select Users or Groups’ dialogue, find the user you wish to enter and click
‘OK’
Click ‘OK’ in the ‘Log on as a service Properties’ to save changes.
Refer Jenkins installation setup
How do I configure Orchestrator API Keys?
1. The Tenants page enables you to access API specific information for each of your
existing Orchestrator services (if you have the Organization Owner or
Organization Administrator role).
2. Navigate to Admin > Tenants. The Tenants page is displayed with a list of all
existing tenants.
3. Expand the desired tenant to display the available services.
4. Click API Access () for the corresponding Orchestrator service. The API Access
window is displayed with the following service-specific information:
User Key – allows you to generate unique login keys to be used with APIs
or with 3rd party applications in order to log in and perform actions on your
behalf. This was previously known as your refresh token.
Account Logical Name – your unique site URL, (for example
cloud.uipath.com/yoursiteURL). Read more about it here.
Tenant Name – the tenant’s display name.
Client Id – specific to the Orchestrator application itself, it is the same for
all users and Orchestrator services on a specific platform. For example, all
the Orchestrator services on cloud.uipath.com have the same Client Id value.
15/15
