1. Google Dataflow
在雲端大資料處理的應用
Simon Su @ QNAP
https://goo.gl/YuXCw5

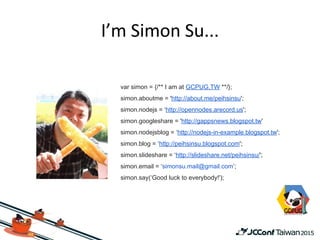

2. var simon = {/** I am at GCPUG.TW **/};
simon.aboutme = 'http://about.me/peihsinsu';
simon.nodejs = ‘http://opennodes.arecord.us';
simon.googleshare = 'http://gappsnews.blogspot.tw'
simon.nodejsblog = ‘http://nodejs-in-example.blogspot.tw';
simon.blog = ‘http://peihsinsu.blogspot.com';
simon.slideshare = ‘http://slideshare.net/peihsinsu/';
simon.email = ‘simonsu.mail@gmail.com’;
simon.say(‘Good luck to everybody!');

3. var sunny = {};
sunny.aboutme = 'https://plus.google.com/u/0/+sunnyHU/posts';
sunny.email = sunnyhu@mitac.com.tw’;
sunny.language =[‘Java’,’.NET’,’NodeJS’,’SQL’ ]
sunny.skill = [ ‘Project management’,’System Analysis’,
’System design’,’Car ho lan’]
sunny.say(‘寫code太苦悶，心情要sunny');

6. https://www.facebook.com/groups/GCPUG.TW/
https://plus.google.com/u/0/communities/116100913832589966421
Google Cloud Platform User Group Taiwan
我們是Google Cloud Platform Taiwan User Group。在Google雲端服務在台灣地區展露頭角之後，
有許多新的服務、新的知識、新的創意，歡迎大家一起分享，一起了解 Google雲端服務...
GCPUG透過網際網路串聯喜好 Google Cloud的使用者，分享與交流使用 GCP的點滴鑑驗。如果您
是Google Cloud Platform的初學者，您應該來聽聽前輩們的使用經驗；如果您是 Google Cloud
Platform的Expert，您應該來分享一下寶貴的經驗，並與更多高手互相交流；如果您還沒開始用
Google Cloud Platform，那麼您應該馬上來聽聽我們是怎麼使用 Google Cloud的！

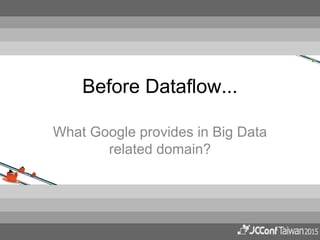

7. Before Dataflow...
What Google provides in Big Data
related domain?

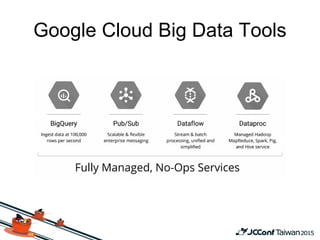

8. Google Cloud Big Data Tools

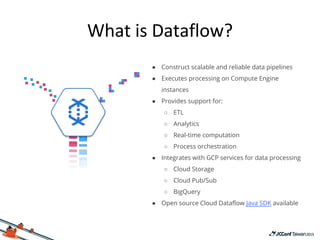

9. ● Construct scalable and reliable data pipelines
● Executes processing on Compute Engine
instances
● Provides support for:
○ ETL
○ Analytics
○ Real-time computation
○ Process orchestration
● Integrates with GCP services for data processing
○ Cloud Storage
○ Cloud Pub/Sub
○ BigQuery
● Open source Cloud Dataflow Java SDK available

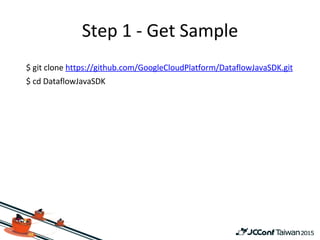

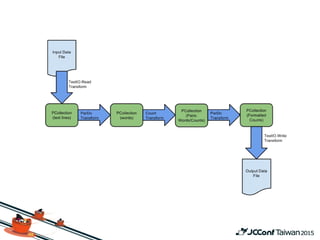

10. Demo
Run a word count example...

12. •
•
•

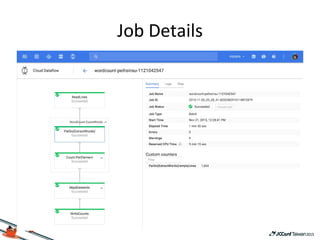

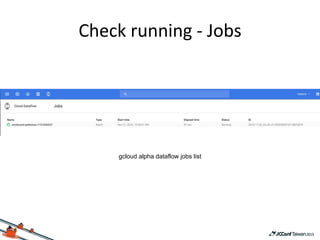

16. gcloud alpha dataflow jobs list

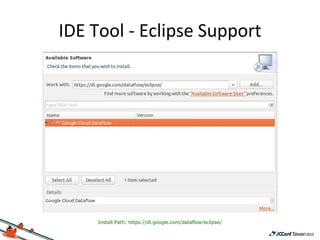

22. Install Path: https://dl.google.com/dataflow/eclipse/

23. Dataflow Programming
Models
Pipeline, PCollections,
Transforms, Pipeline I/O

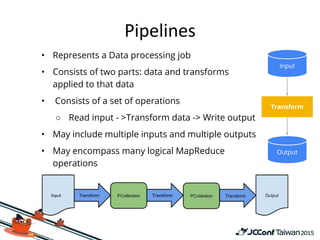

24. • Represents a Data processing job
• Consists of two parts: data and transforms
applied to that data
• Consists of a set of operations
○ Read input - >Transform data -> Write output
• May include multiple inputs and multiple outputs
• May encompass many logical MapReduce
operations
Transform
Output
Input

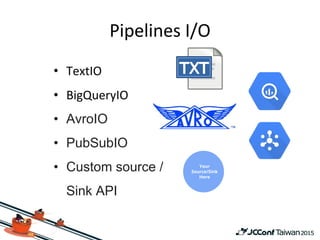

25. •
•
• AvroIO
• PubSubIO
• Custom source /
Sink API
Your
Source/Sink
Here

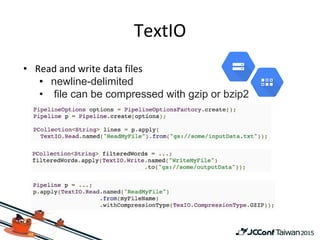

26. •
• newline-delimited
• file can be compressed with gzip or bzip2

27. •

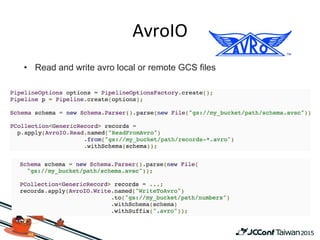

28. • Read and write avro local or remote GCS files

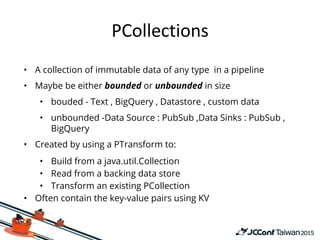

30. • A collection of immutable data of any type in a pipeline
• Maybe be either bounded or unbounded in size
• bouded - Text , BigQuery , Datastore , custom data
• unbounded -Data Source : PubSub ,Data Sinks : PubSub ,
BigQuery
• Created by using a PTransform to:
• Build from a java.util.Collection
• Read from a backing data store
• Transform an existing PCollection
• Often contain the key-value pairs using KV

31. ● A step, or a processing operation that transforms data
○ convert format , group , filter data
● Type of Transforms
○ ParDo
■ For generic parallel processing ,processing style is similar “Mapper”
○ GroupByKey
■ Is analogous to the Shuffle phase of a Map/Shuffle/Reduce-style algorithm
■ Use GroupByKey to collect all of the values associated with a unique key
○ Combine
■ Combine the values in your pipeline's PCollectionobjects or to combine
key-grouped values.
○ Flatten
■ Multiple PCollection objects that contain the same data type, you can
merge them into a single logical PCollection using the Flatten transform

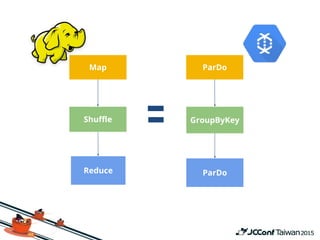

32. Map
Shuffle
Reduce
ParDo
GroupByKey
ParDo

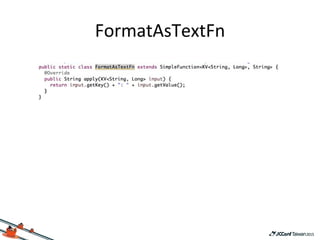

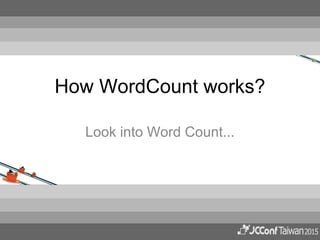

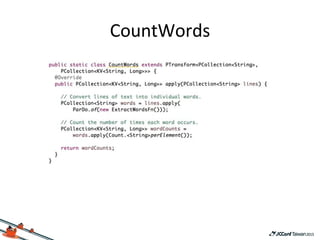

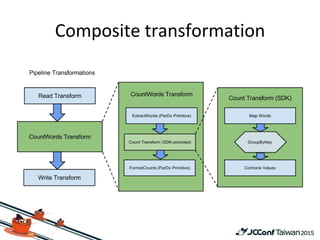

34. How WordCount works?
Look into Word Count...

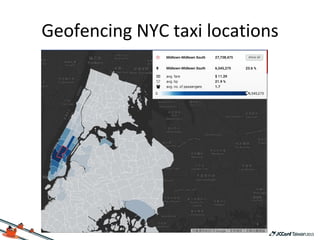

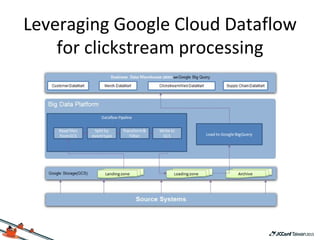

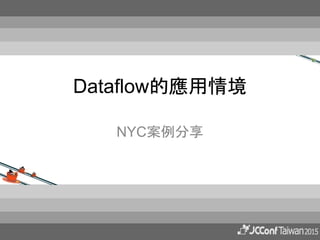

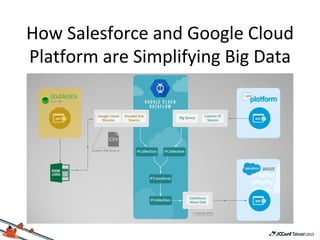

39. Dataflow的應用情境
NYC案例分享

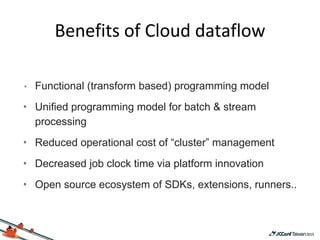

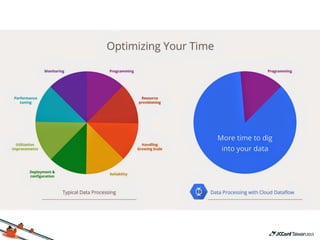

44. • Functional (transform based) programming model
• Unified programming model for batch & stream
processing
• Reduced operational cost of “cluster” management
• Decreased job clock time via platform innovation
• Open source ecosystem of SDKs, extensions, runners..

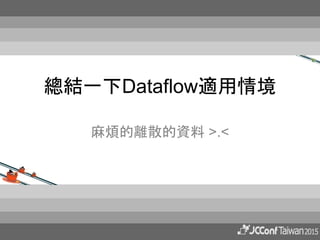

46. 總結一下Dataflow適用情境
麻煩的離散的資料 >.<

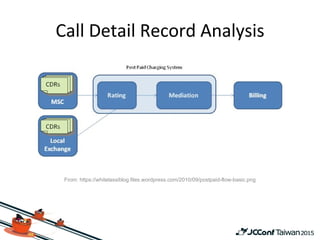

47. From: https://whitelassiblog.files.wordpress.com/2010/09/postpaid-flow-basic.png

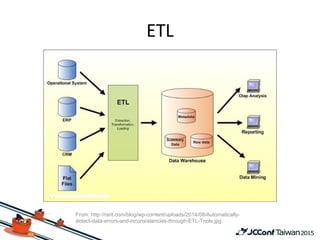

48. From: http://rsrit.com/blog/wp-content/uploads/2014/08/Automatically-

49. 使用Dataflow後，得到了？
親愛的，我把資料變簡單了～
