1. MiTAC MiCloud - Google Cloud Platform Partner @ APAC2014Q1 GCP Introduction
Google Cloud Platform - Starter Guide

3. Start from Create Google Cloud Platform Project
Start from Google Cloud Project

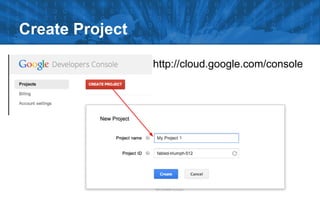

4. Create Project
http://cloud.google.com/console

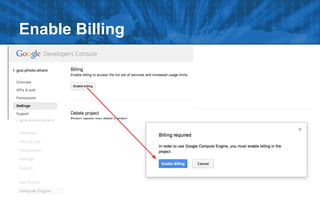

5. Enable Billing

6. Related SDK / Tool Installation

7. Google Cloud Storage -
Object storage service, without limit and global deployed
watch videos, screen casts,
and presentations that walk
through how to use Google
Cloud Storage.
VIDEOS
download sample
applications, read howto
guides, and learn how to use
Google Cloud Storage with
other Google products.
SAMPLES
ask questions, discuss
solutions, and join our
vibrant community of
developers.
COMMUNITY
Google Cloud Storage

8. GCS - Features
● High Capacity and Scalability
● Strong Data Consistency
● Google Cloud Console Projects
● Bucket Locations
● REST APIS
● OAuth 2.0 Authentication
● Authenticated Browser Downloads
● Google Account Support for Sharing

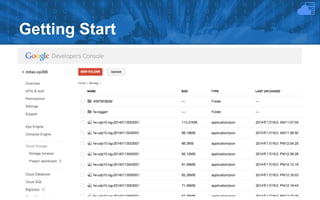

9. Getting Start

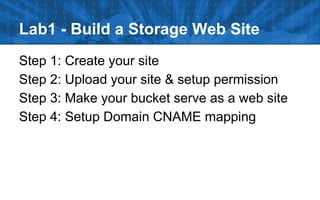

10. Lab1 - Build a Storage Web Site
Step 1: Create your site
Step 2: Upload your site & setup permission
Step 3: Make your bucket serve as a web site
Step 4: Setup Domain CNAME mapping

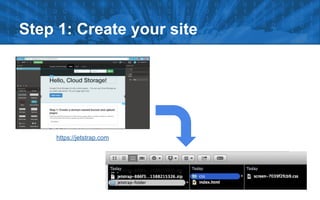

11. Step 1: Create your site
https://jetstrap.com

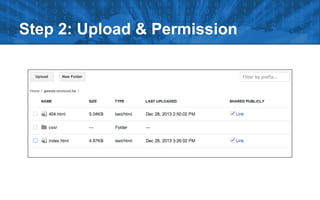

12. Step 2: Upload & Permission

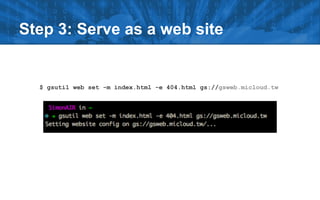

13. Step 3: Serve as a web site
$ gsutil web set -m index.html -e 404.html gs://gsweb.micloud.tw

14. Step 4: Setup CNAME mapping

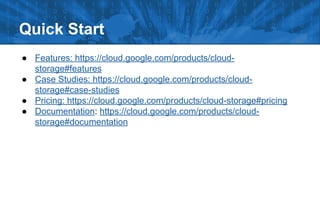

15. Quick Start
● Features: https://cloud.google.com/products/cloud-
storage#features
● Case Studies: https://cloud.google.com/products/cloud-
storage#case-studies
● Pricing: https://cloud.google.com/products/cloud-storage#pricing
● Documentation: https://cloud.google.com/products/cloud-
storage#documentation

16. Google Cloud SQL - Full managed MySQL database instance
Google Cloud SQL

17. Features
● Familiar Infrastructure
● Flexible Charging
● Security, Availability, Durability
● EU and US Data Centers
● Easier Migration; No Lock-in
● Managed by Google

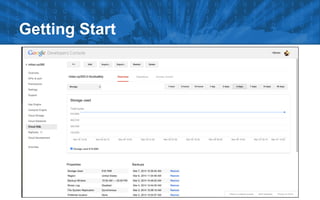

18. Getting Start

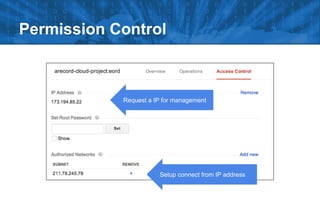

19. Permission Control
Request a IP for management
Setup connect from IP address

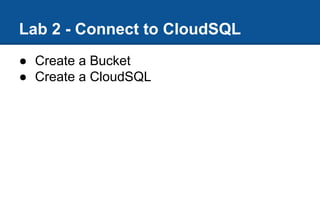

20. ● Create a Bucket
● Create a CloudSQL
Lab 2 - Connect to CloudSQL

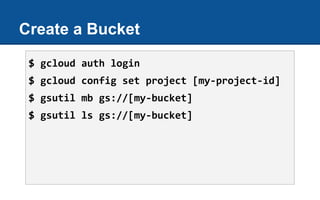

21. Create a Bucket
$ gcloud auth login
$ gcloud config set project [my-project-id]
$ gsutil mb gs://[my-bucket]
$ gsutil ls gs://[my-bucket]

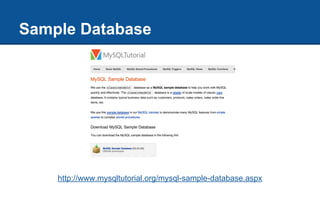

22. Sample Database
http://www.mysqltutorial.org/mysql-sample-database.aspx

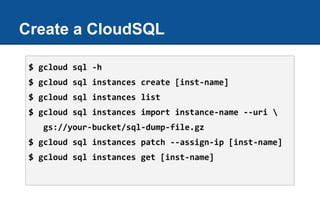

23. Create a CloudSQL
$ gcloud sql -h
$ gcloud sql instances create [inst-name]
$ gcloud sql instances list
$ gcloud sql instances import instance-name --uri
gs://your-bucket/sql-dump-file.gz
$ gcloud sql instances patch --assign-ip [inst-name]
$ gcloud sql instances get [inst-name]

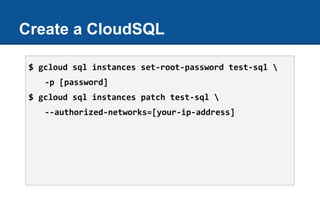

24. Create a CloudSQL
$ gcloud sql instances set-root-password test-sql
-p [password]
$ gcloud sql instances patch test-sql
--authorized-networks=[your-ip-address]

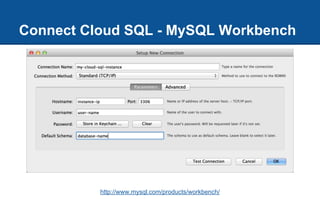

25. Connect Cloud SQL - MySQL Workbench
http://www.mysql.com/products/workbench/

26. Advance Connect - SSH Tunnel

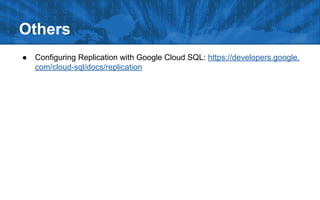

27. ● Configuring Replication with Google Cloud SQL: https://developers.google.
com/cloud-sql/docs/replication
Others

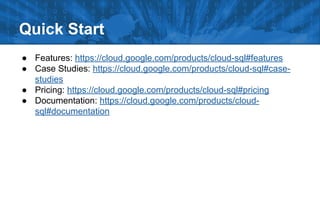

28. Quick Start
● Features: https://cloud.google.com/products/cloud-sql#features
● Case Studies: https://cloud.google.com/products/cloud-sql#case-
studies
● Pricing: https://cloud.google.com/products/cloud-sql#pricing
● Documentation: https://cloud.google.com/products/cloud-
sql#documentation

29. Google BigQuery - Big data with SQL like query feature, but fast...
Google BigQuery

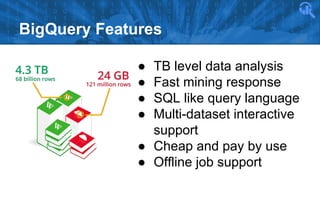

30. BigQuery Features
● TB level data analysis
● Fast mining response
● SQL like query language
● Multi-dataset interactive
support
● Cheap and pay by use
● Offline job support

31. Getting Start

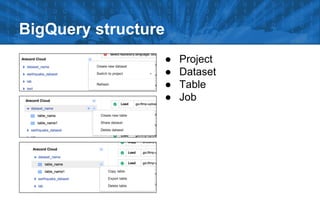

32. BigQuery structure
● Project
● Dataset
● Table
● Job

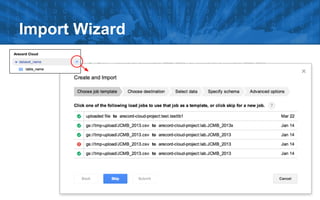

33. Import Wizard

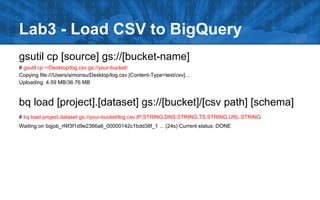

34. Lab3 - Load CSV to BigQuery
gsutil cp [source] gs://[bucket-name]
# gsutil cp ~/Desktop/log.csv gs://your-bucket/
Copying file:///Users/simonsu/Desktop/log.csv [Content-Type=text/csv]...
Uploading: 4.59 MB/36.76 MB
bq load [project].[dataset] gs://[bucket]/[csv path] [schema]
# bq load project.dataset gs://your-bucket/log.csv IP:STRING,DNS:STRING,TS:STRING,URL:STRING
Waiting on bqjob_rf4f3f1d9e2366a6_00000142c1bdd36f_1 ... (24s) Current status: DONE

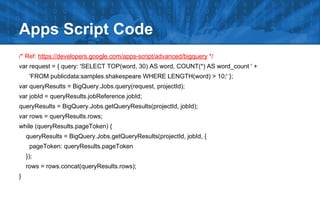

35. /* Ref: https://developers.google.com/apps-script/advanced/bigquery */
var request = { query: 'SELECT TOP(word, 30) AS word, COUNT(*) AS word_count ' +
'FROM publicdata:samples.shakespeare WHERE LENGTH(word) > 10;' };
var queryResults = BigQuery.Jobs.query(request, projectId);
var jobId = queryResults.jobReference.jobId;
queryResults = BigQuery.Jobs.getQueryResults(projectId, jobId);
var rows = queryResults.rows;
while (queryResults.pageToken) {
queryResults = BigQuery.Jobs.getQueryResults(projectId, jobId, {
pageToken: queryResults.pageToken
});
rows = rows.concat(queryResults.rows);
}
Apps Script Code

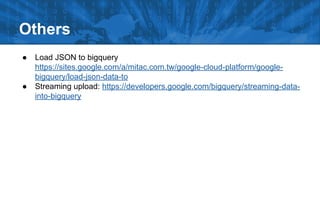

36. Others
● Load JSON to bigquery
https://sites.google.com/a/mitac.com.tw/google-cloud-platform/google-
bigquery/load-json-data-to
● Streaming upload: https://developers.google.com/bigquery/streaming-data-
into-bigquery

37. Quick Start
● Features: https://cloud.google.com/products/bigquery#features
● Case Studies: https://cloud.google.com/products/bigquery#case-
studies
● Pricing: https://cloud.google.com/products/bigquery#pricing
● Documentation: https://cloud.google.
com/products/bigquery#documentation

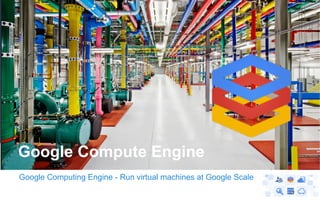

38. Google Computing Engine - Run virtual machines at Google Scale
Google Compute Engine

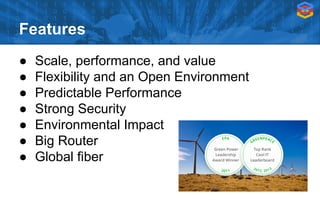

39. Features
● Scale, performance, and value
● Flexibility and an Open Environment
● Predictable Performance
● Strong Security
● Environmental Impact
● Big Router
● Global fiber

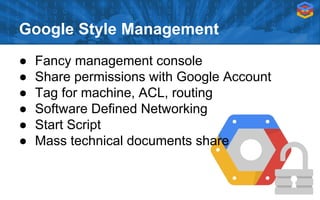

40. Google Style Management
● Fancy management console
● Share permissions with Google Account
● Tag for machine, ACL, routing
● Software Defined Networking
● Start Script
● Mass technical documents share

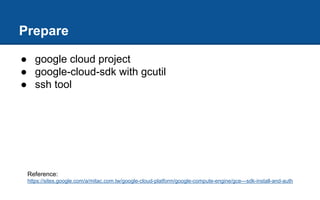

41. Prepare
● google cloud project
● google-cloud-sdk with gcutil
● ssh tool
Reference:
https://sites.google.com/a/mitac.com.tw/google-cloud-platform/google-compute-engine/gce---sdk-install-and-auth

42. ● GCE architecture
● GCE web UI to GCE CLI tool
○ Create, Snapshot, Create from Disk or Snapshot
● Network & FW
○ 3-tier network implements
● Instance option - start script
○ Using start script build a auto scale service
Today’s Objective

43. Compute Engine Architecture
Network
Firewall
Instances
IP(Static,
Dynamic)
L3 Load
Balancing

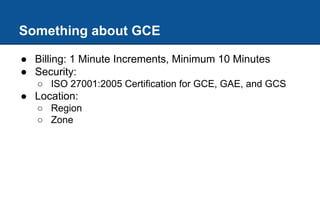

44. Something about GCE
● Billing: 1 Minute Increments, Minimum 10 Minutes
● Security:
○ ISO 27001:2005 Certification for GCE, GAE, and GCS
● Location:
○ Region
○ Zone

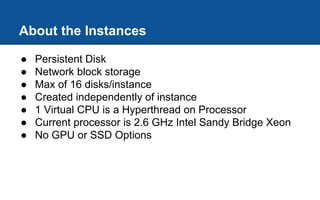

45. About the Instances
● Persistent Disk
● Network block storage
● Max of 16 disks/instance
● Created independently of instance
● 1 Virtual CPU is a Hyperthread on Processor
● Current processor is 2.6 GHz Intel Sandy Bridge Xeon
● No GPU or SSD Options

46. About utility - web ui, gcutil, restful

47. Compute Engine Web UI

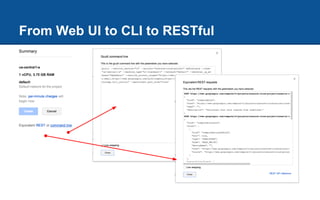

48. From Web UI to CLI to RESTful

49. gcutil - Get HELP
➔ gcutil --help
➔ gcutil help listinstances
◆ ex: gcutil listinstances --columns=all --format=json
➔ https://developers.google.com/compute/docs/gcutil/tips

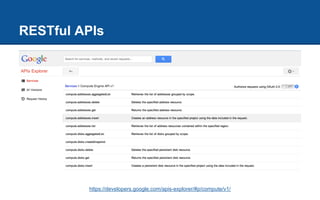

50. RESTful APIs
https://developers.google.com/apis-explorer/#p/compute/v1/

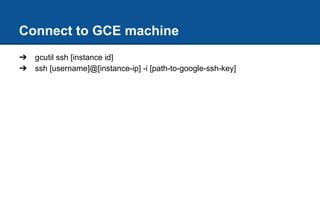

51. Connect to GCE machine
➔ gcutil ssh [instance id]
➔ ssh [username]@[instance-ip] -i [path-to-google-ssh-key]

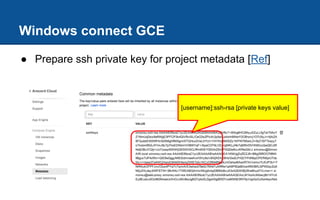

52. Windows connect GCE
● Prepare ssh private key for project metadata [Ref]
[username]:ssh-rsa [private keys value]

53. Network & Firewall & Instance Scripts

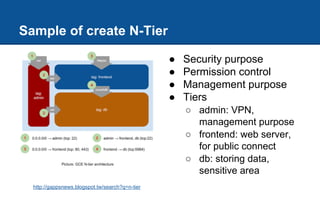

54. Sample of create N-Tier
● Security purpose
● Permission control
● Management purpose
● Tiers
○ admin: VPN,
management purpose
○ frontend: web server,
for public connect
○ db: storing data,
sensitive area
http://gappsnews.blogspot.tw/search?q=n-tier

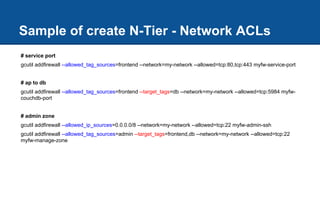

55. # service port
gcutil addfirewall --allowed_tag_sources=frontend --network=my-network --allowed=tcp:80,tcp:443 myfw-service-port
# ap to db
gcutil addfirewall --allowed_tag_sources=frontend --target_tags=db --network=my-network --allowed=tcp:5984 myfw-
couchdb-port
# admin zone
gcutil addfirewall --allowed_ip_sources=0.0.0.0/8 --network=my-network --allowed=tcp:22 myfw-admin-ssh
gcutil addfirewall --allowed_tag_sources=admin --target_tags=frontend,db --network=my-network --allowed=tcp:22
myfw-manage-zone
Sample of create N-Tier - Network ACLs

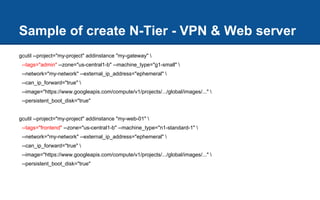

56. Sample of create N-Tier - VPN & Web server
gcutil --project="my-project" addinstance "my-gateway"
--tags="admin" --zone="us-central1-b" --machine_type="g1-small"
--network="my-network" --external_ip_address="ephemeral"
--can_ip_forward="true"
--image="https://www.googleapis.com/compute/v1/projects/.../global/images/..."
--persistent_boot_disk="true"
gcutil --project="my-project" addinstance "my-web-01"
--tags="frontend" --zone="us-central1-b" --machine_type="n1-standard-1"
--network="my-network" --external_ip_address="ephemeral"
--can_ip_forward="true"
--image="https://www.googleapis.com/compute/v1/projects/.../global/images/..."
--persistent_boot_disk="true"

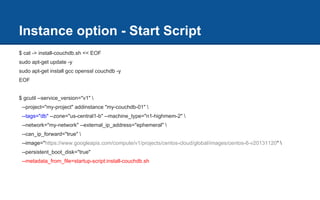

57. Instance option - Start Script
$ cat -> install-couchdb.sh << EOF
sudo apt-get update -y
sudo apt-get install gcc openssl couchdb -y
EOF
$ gcutil --service_version="v1"
--project="my-project" addinstance "my-couchdb-01"
--tags="db" --zone="us-central1-b" --machine_type="n1-highmem-2"
--network="my-network" --external_ip_address="ephemeral"
--can_ip_forward="true"
--image="https://www.googleapis.com/compute/v1/projects/centos-cloud/global/images/centos-6-v20131120"
--persistent_boot_disk="true"
--metadata_from_file=startup-script:install-couchdb.sh

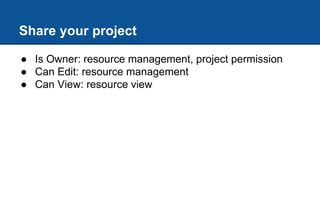

58. Share your project
● Is Owner: resource management, project permission
● Can Edit: resource management
● Can View: resource view

59. ● Add persistent disk
● Create image
● Bring your own kernel (brief)
Advance operations

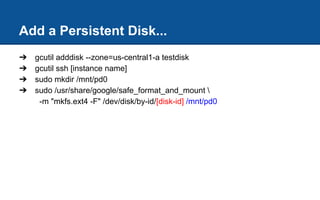

60. Add a Persistent Disk...
➔ gcutil adddisk --zone=us-central1-a testdisk
➔ gcutil ssh [instance name]
➔ sudo mkdir /mnt/pd0
➔ sudo /usr/share/google/safe_format_and_mount
-m "mkfs.ext4 -F" /dev/disk/by-id/[disk-id] /mnt/pd0

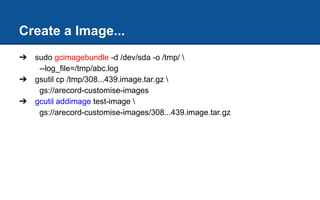

61. Create a Image...
➔ sudo gcimagebundle -d /dev/sda -o /tmp/
--log_file=/tmp/abc.log
➔ gsutil cp /tmp/308...439.image.tar.gz
gs://arecord-customise-images
➔ gcutil addimage test-image
gs://arecord-customise-images/308...439.image.tar.gz

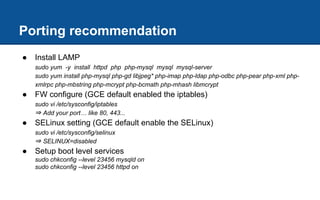

62. Porting recommendation
● Install LAMP
sudo yum -y install httpd php php-mysql mysql mysql-server
sudo yum install php-mysql php-gd libjpeg* php-imap php-ldap php-odbc php-pear php-xml php-
xmlrpc php-mbstring php-mcrypt php-bcmath php-mhash libmcrypt
● FW configure (GCE default enabled the iptables)
sudo vi /etc/sysconfig/iptables
⇒ Add your port… like 80, 443...
● SELinux setting (GCE default enable the SELinux)
sudo vi /etc/sysconfig/selinux
⇒ SELINUX=disabled
● Setup boot level services
sudo chkconfig --level 23456 mysqld on
sudo chkconfig --level 23456 httpd on

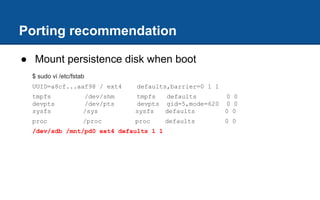

63. Porting recommendation
● Mount persistence disk when boot
$ sudo vi /etc/fstab
UUID=a8cf...aaf98 / ext4 defaults,barrier=0 1 1
tmpfs /dev/shm tmpfs defaults 0 0
devpts /dev/pts devpts gid=5,mode=620 0 0
sysfs /sys sysfs defaults 0 0
proc /proc proc defaults 0 0
/dev/sdb /mnt/pd0 ext4 defaults 1 1

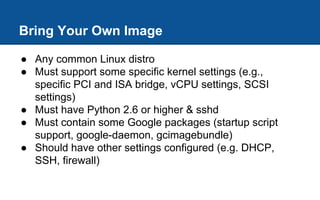

64. Bring Your Own Image
● Any common Linux distro
● Must support some specific kernel settings (e.g.,
specific PCI and ISA bridge, vCPU settings, SCSI
settings)
● Must have Python 2.6 or higher & sshd
● Must contain some Google packages (startup script
support, google-daemon, gcimagebundle)
● Should have other settings configured (e.g. DHCP,
SSH, firewall)

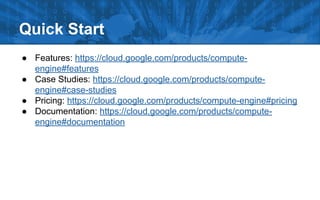

65. Quick Start
● Features: https://cloud.google.com/products/compute-
engine#features
● Case Studies: https://cloud.google.com/products/compute-
engine#case-studies
● Pricing: https://cloud.google.com/products/compute-engine#pricing
● Documentation: https://cloud.google.com/products/compute-
engine#documentation

66. More Requirement ?
