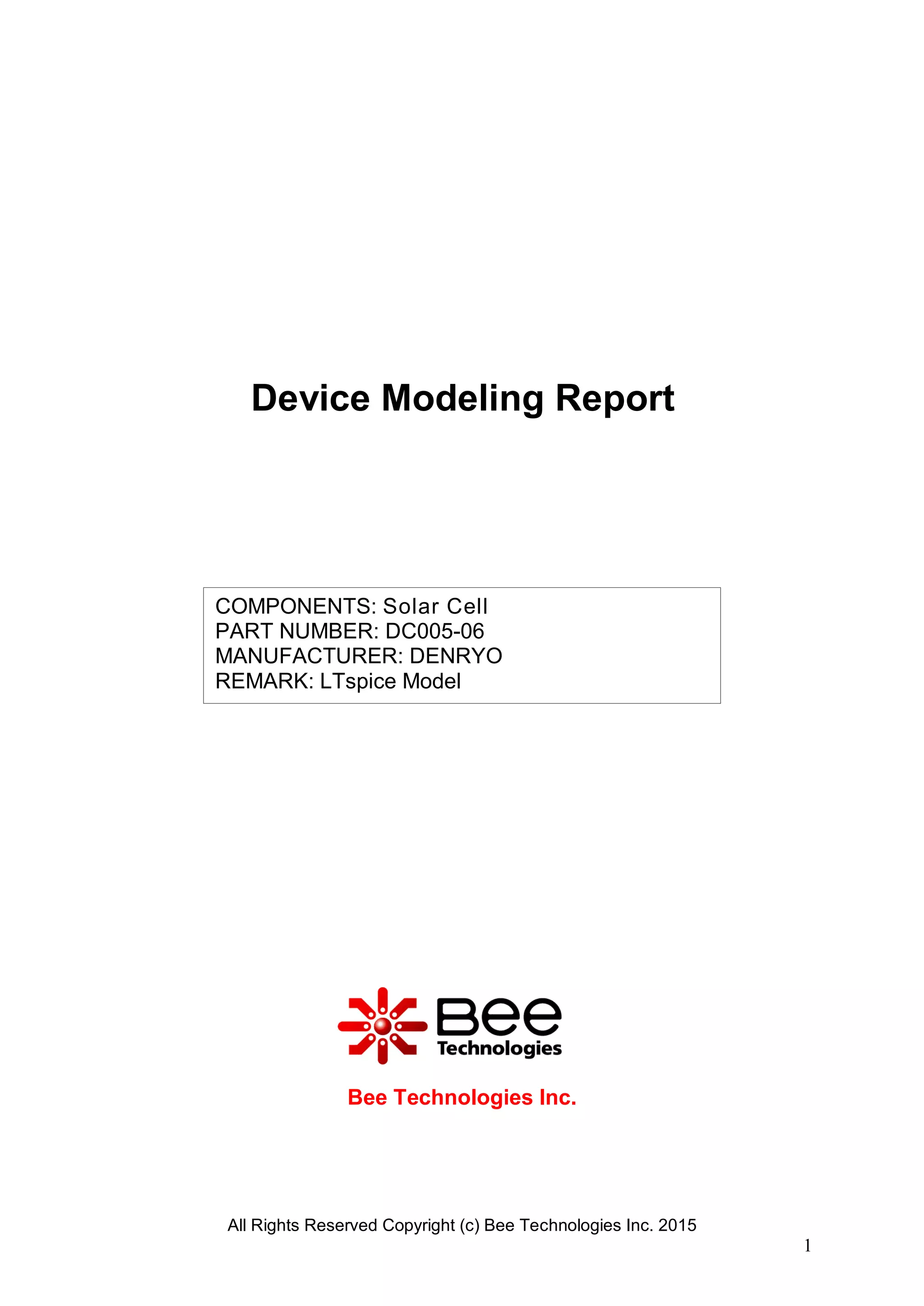

COMPONENTS: Solar Cell
PART NUMBER: DC005-06
MANUFACTURER: DENRYO
REMARK: LTspice Model
Bee Technologies Inc.
Device Modeling Report

2. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
2
Equivalent Circuit

3. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
3
V1
R2
100
Vsense
DC005-06
U1
OC
.lib DC005-06.lib
.dc V1 0 12 0.01
Output Characteristics
Simulation result
Evaluation circ

4. All Rights Reserved Copyright (c) Bee Technologies Inc. 2015
4

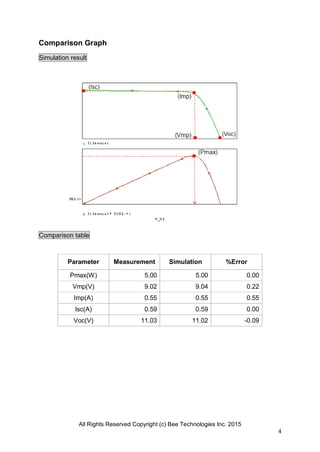

Comparison Graph
Simulation result
Comparison table
Parameter Measurement Simulation %Error
Pmax(W) 5.00 5.00 0.00
Vmp(V) 9.02 9.04 0.22
Imp(A) 0.55 0.55 0.55
Isc(A) 0.59 0.59 0.00
Voc(V) 11.03 11.02 -0.09
