jBPM5: Bringing more Power to your Business Processes
The document introduces jBPM5, an open-source business process management project. It provides a generic process engine that supports executing BPMN 2.0 processes. Key features include flexible processes using rules and events, a web-based console for management and monitoring, and integration with other domains and services. The document demonstrates the core capabilities and provides a roadmap for future versions planned to add more advanced features like simulation and adaptive processes.
More Related Content
Similar to jBPM5: Bringing more Power to your Business Processes
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
jBPM5: Bringing more Power to your Business Processes
- 1. Kris Verlaenen –jBPM Lead May 10 th , 2011 jBPM5 : Bringing more Power to your Business Processes

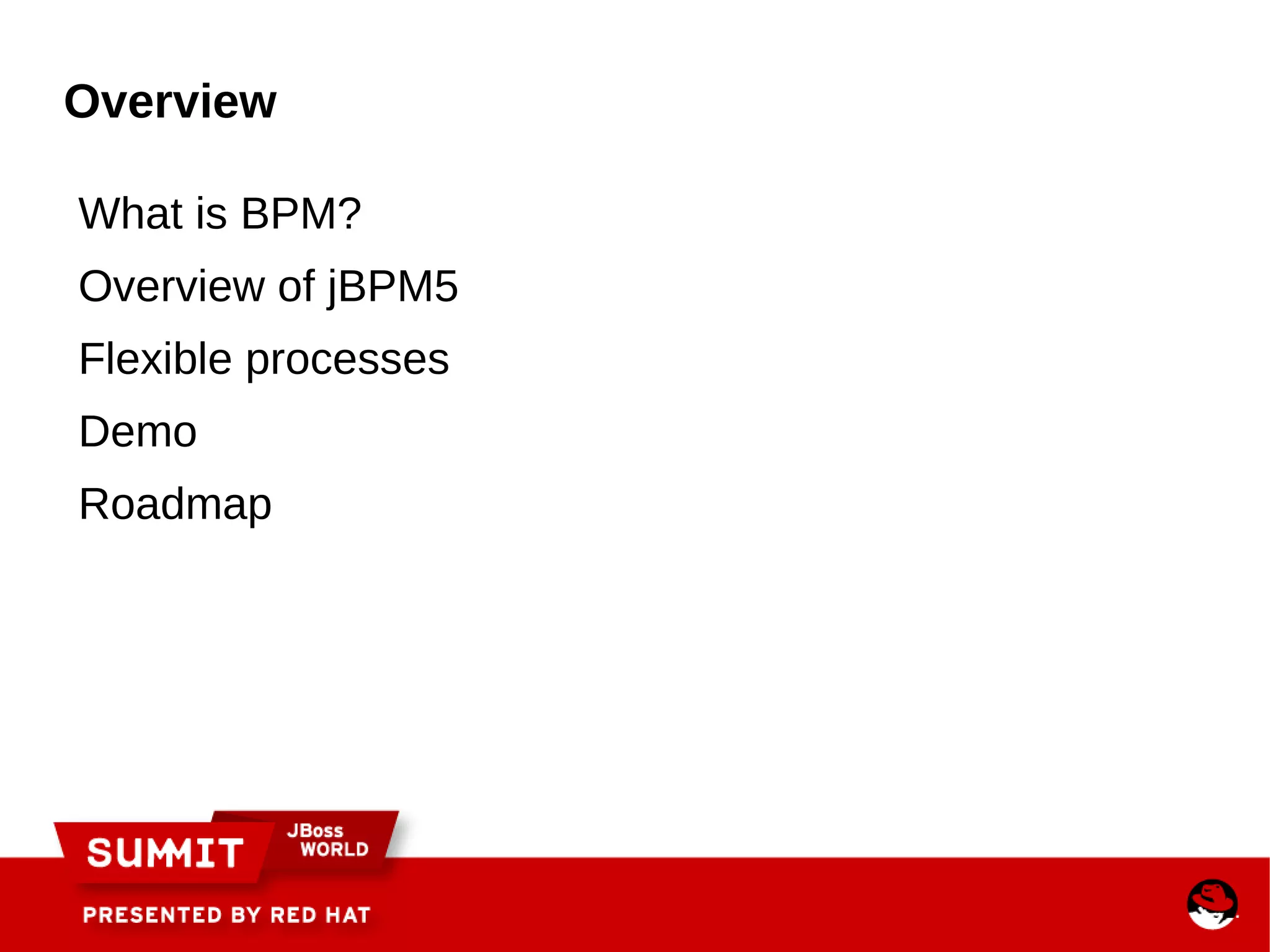

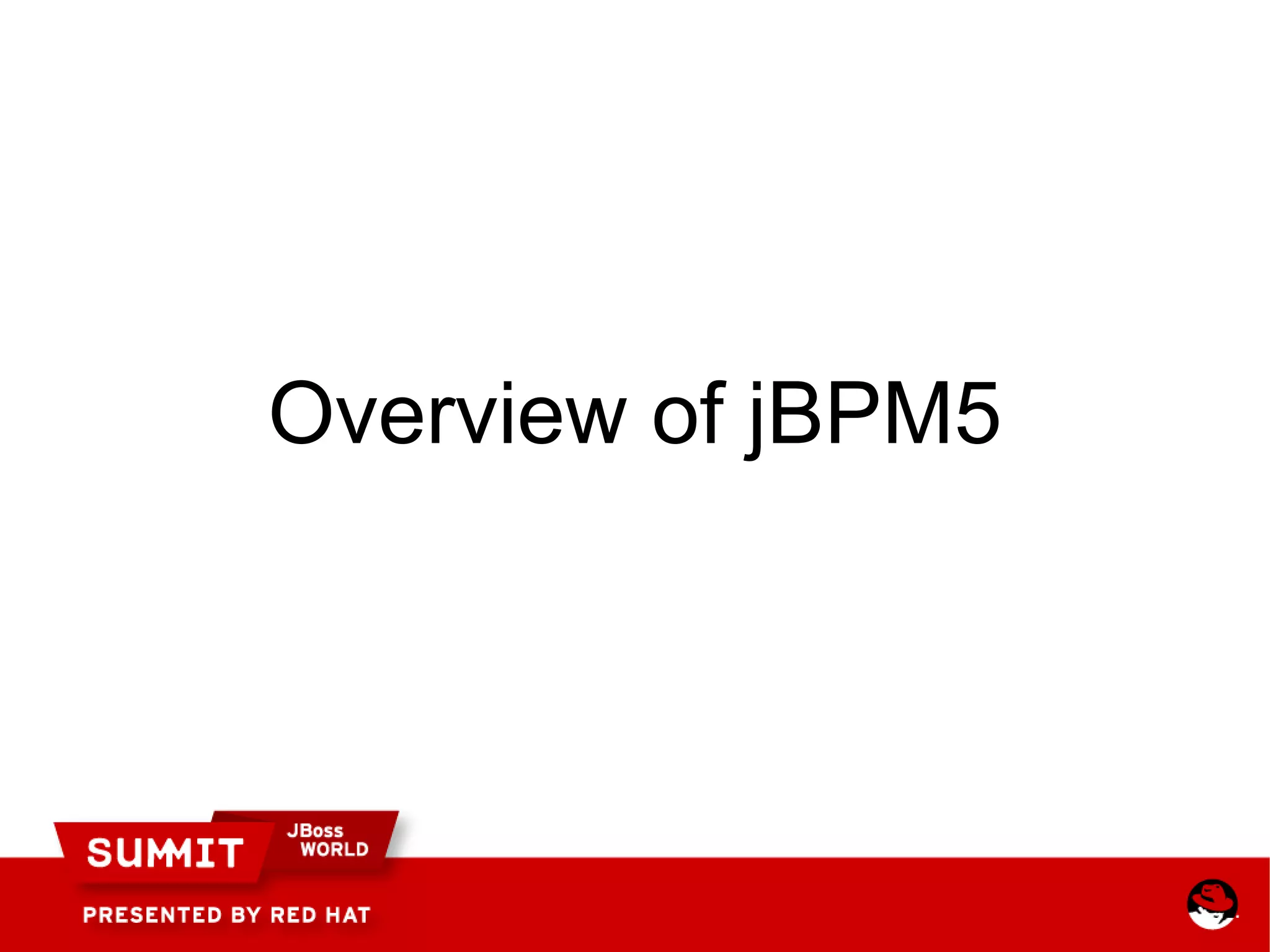

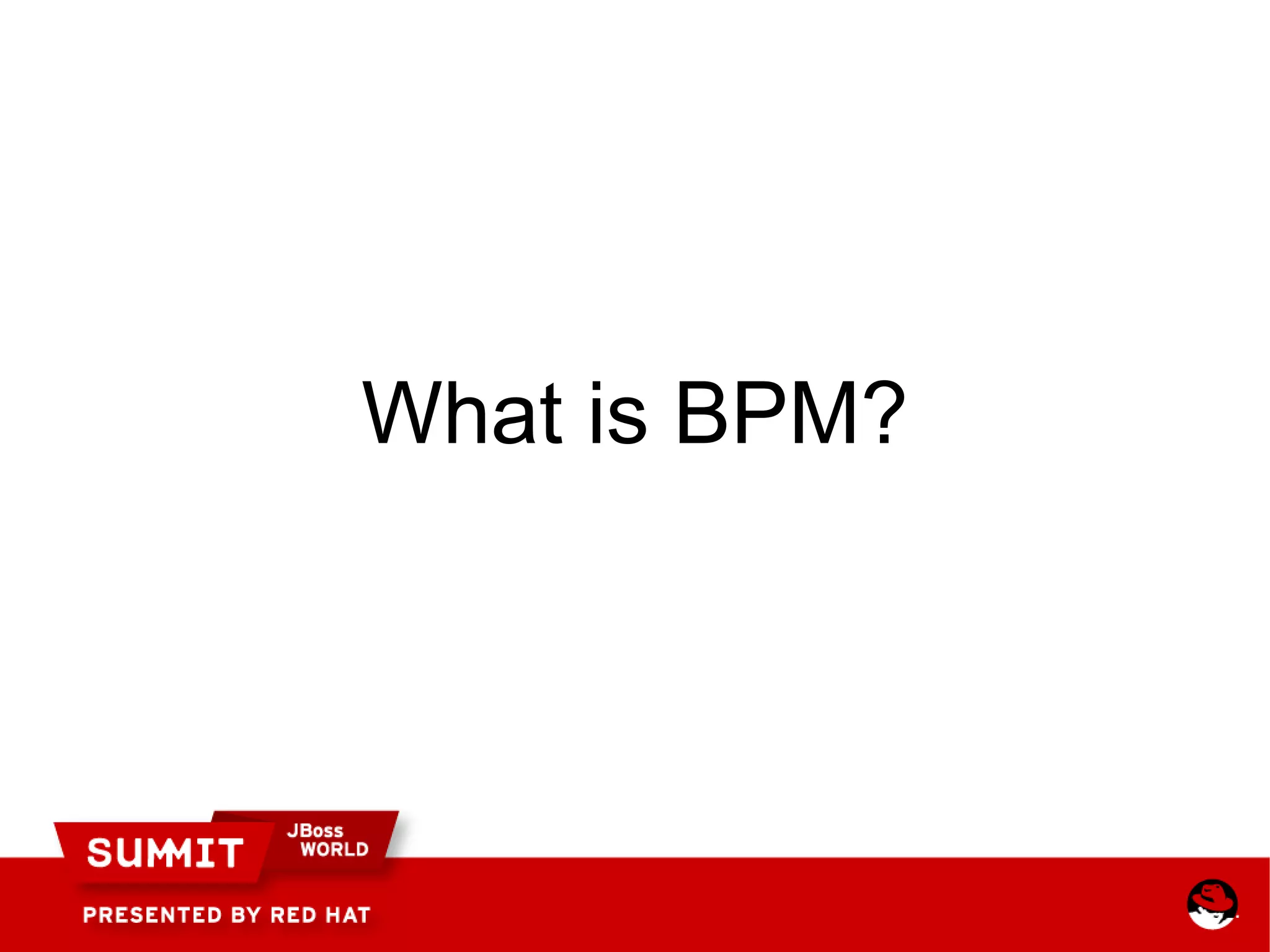

- 2. Overview What isBPM?
- 3.
- 4.
- 5.
- 6.
- 7.

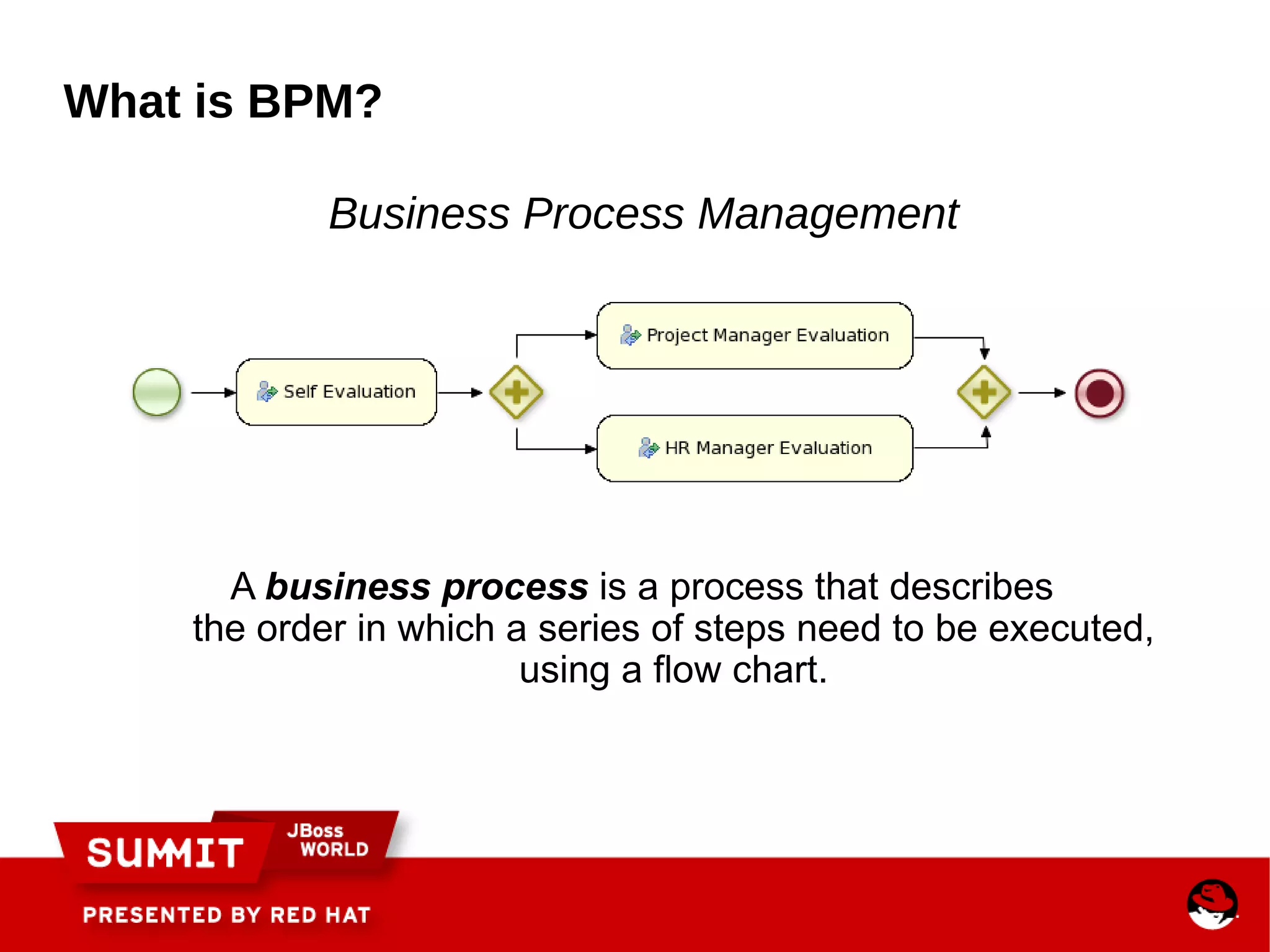

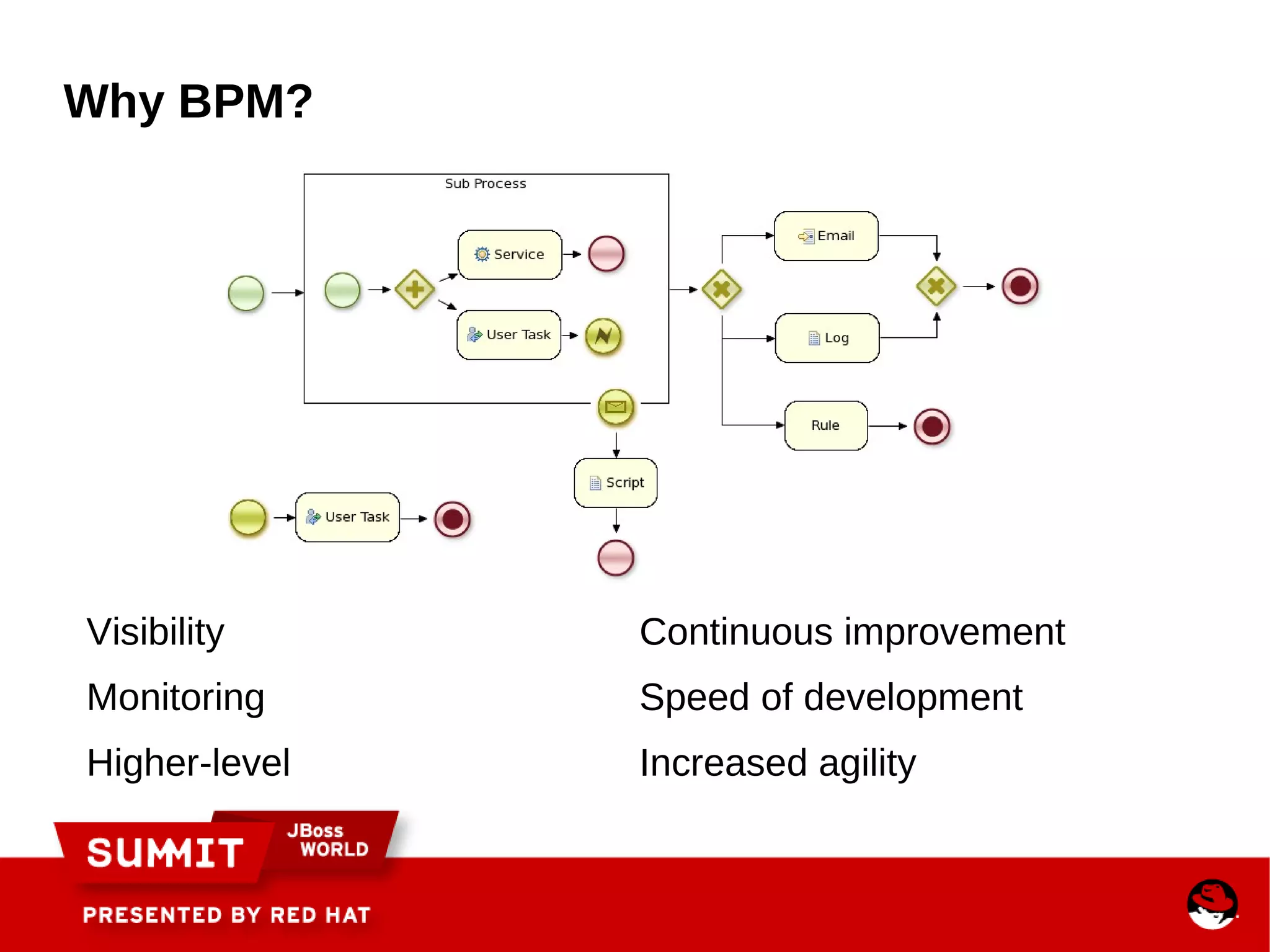

- 8. What is BPM?A business process is a process that describes the order in which a series of steps need to be executed, using a flow chart. Business Process Management
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15. Key Characteristics ofjBPM5 Open-source business process management project offering: generic process engine supporting native BPMN 2.0 execution
- 16. targeting developers andbusiness users
- 17. collaboration, management andmonitoring using web-based consoles
- 18. powerful rules andevent integration

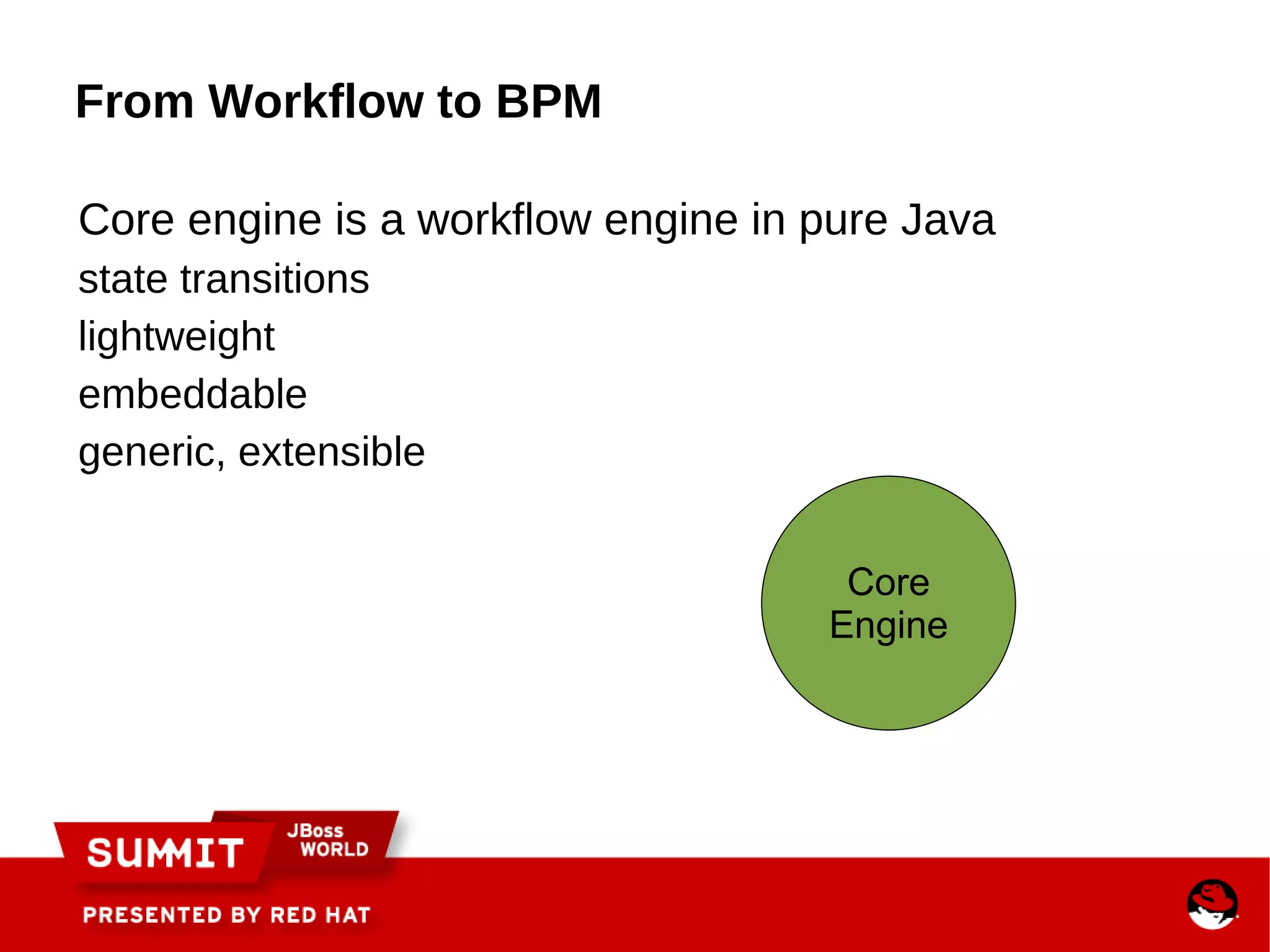

- 19. From Workflow toBPM Core engine is a workflow engine in pure Java state transitions
- 20.
- 21.
- 22. generic, extensible CoreEngine

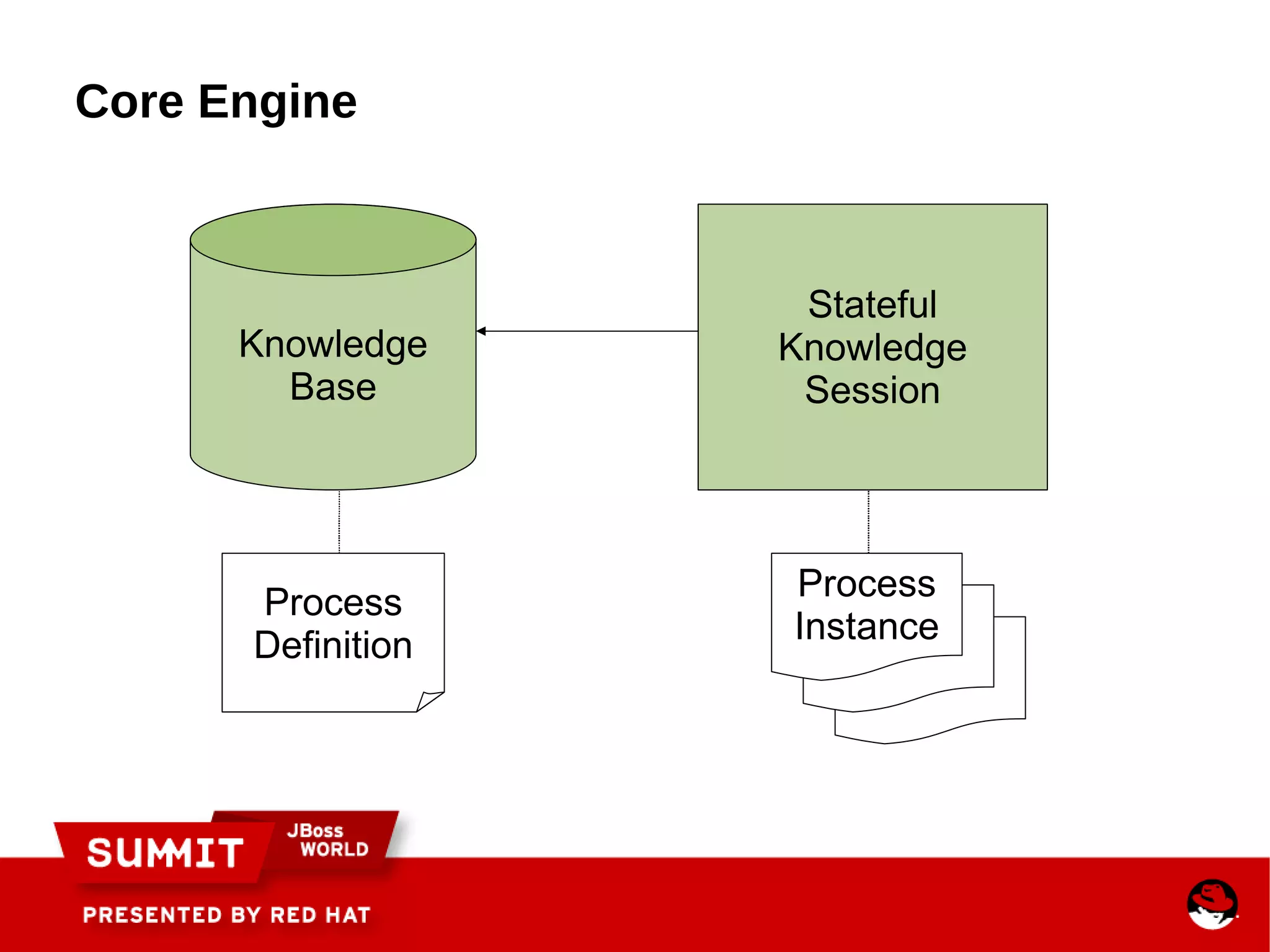

- 23. Core Engine KnowledgeBase Stateful Knowledge Session Process Definition Process Instance

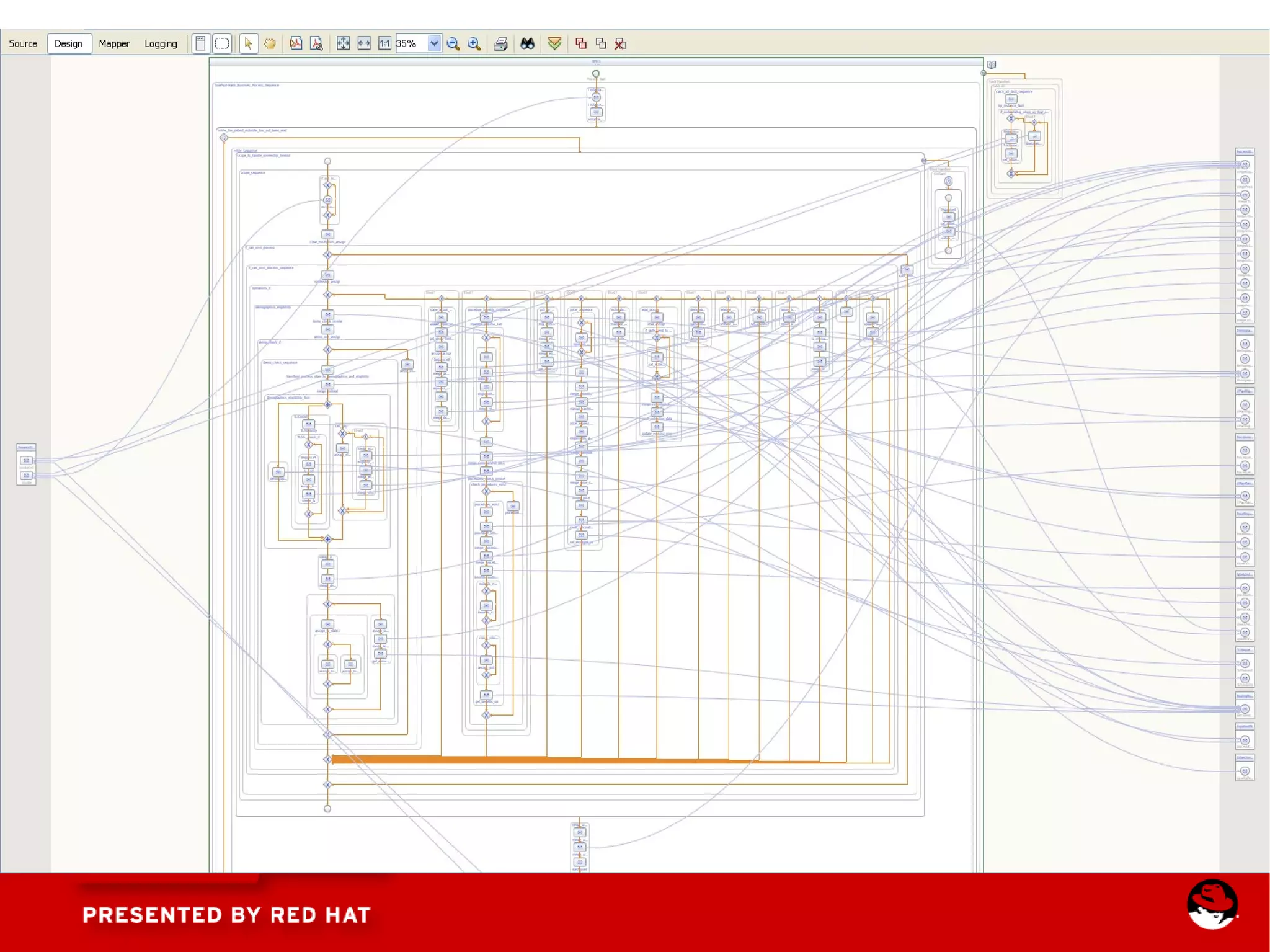

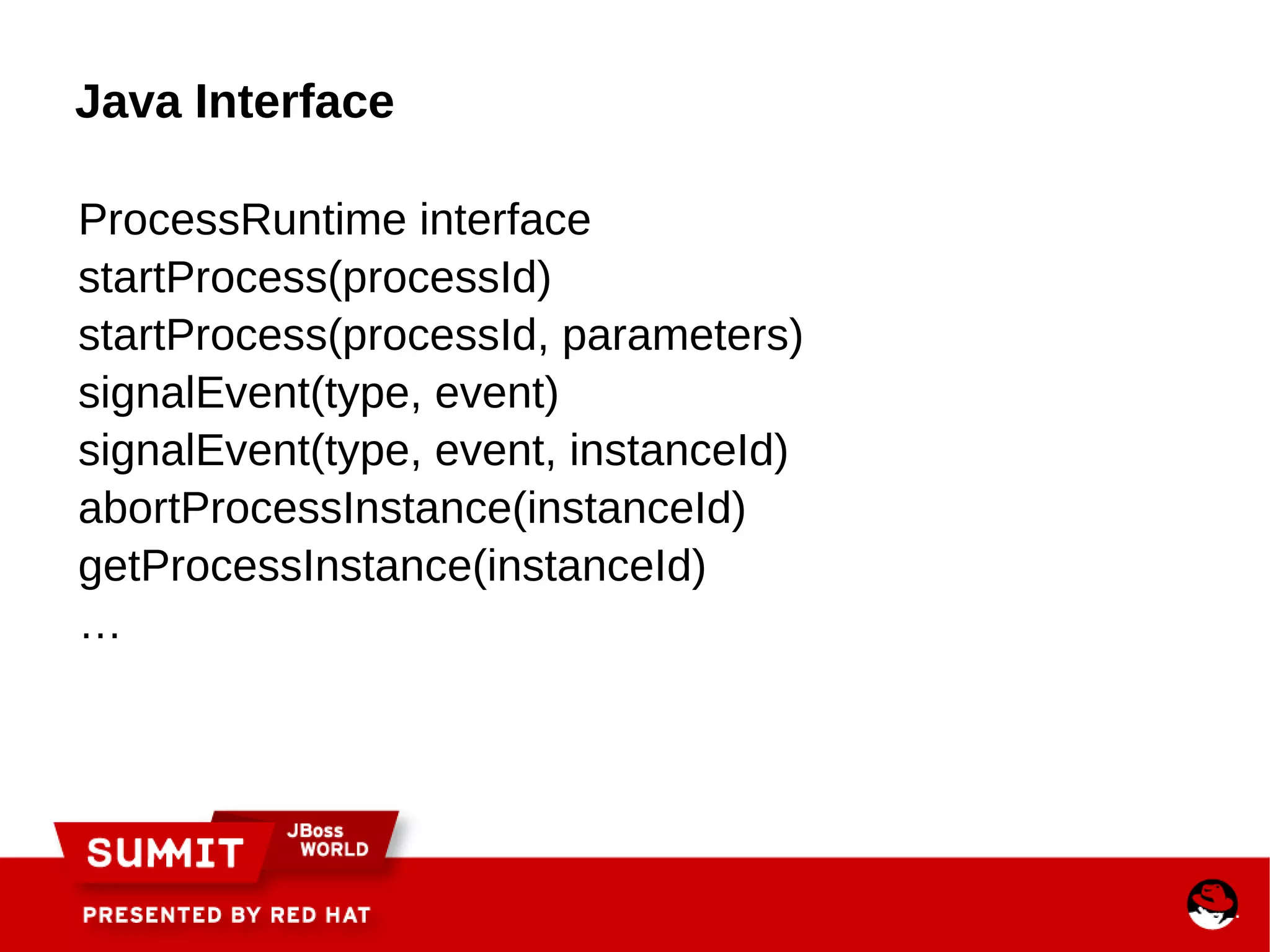

- 24. Java Interface ProcessRuntimeinterface startProcess(processId)
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.

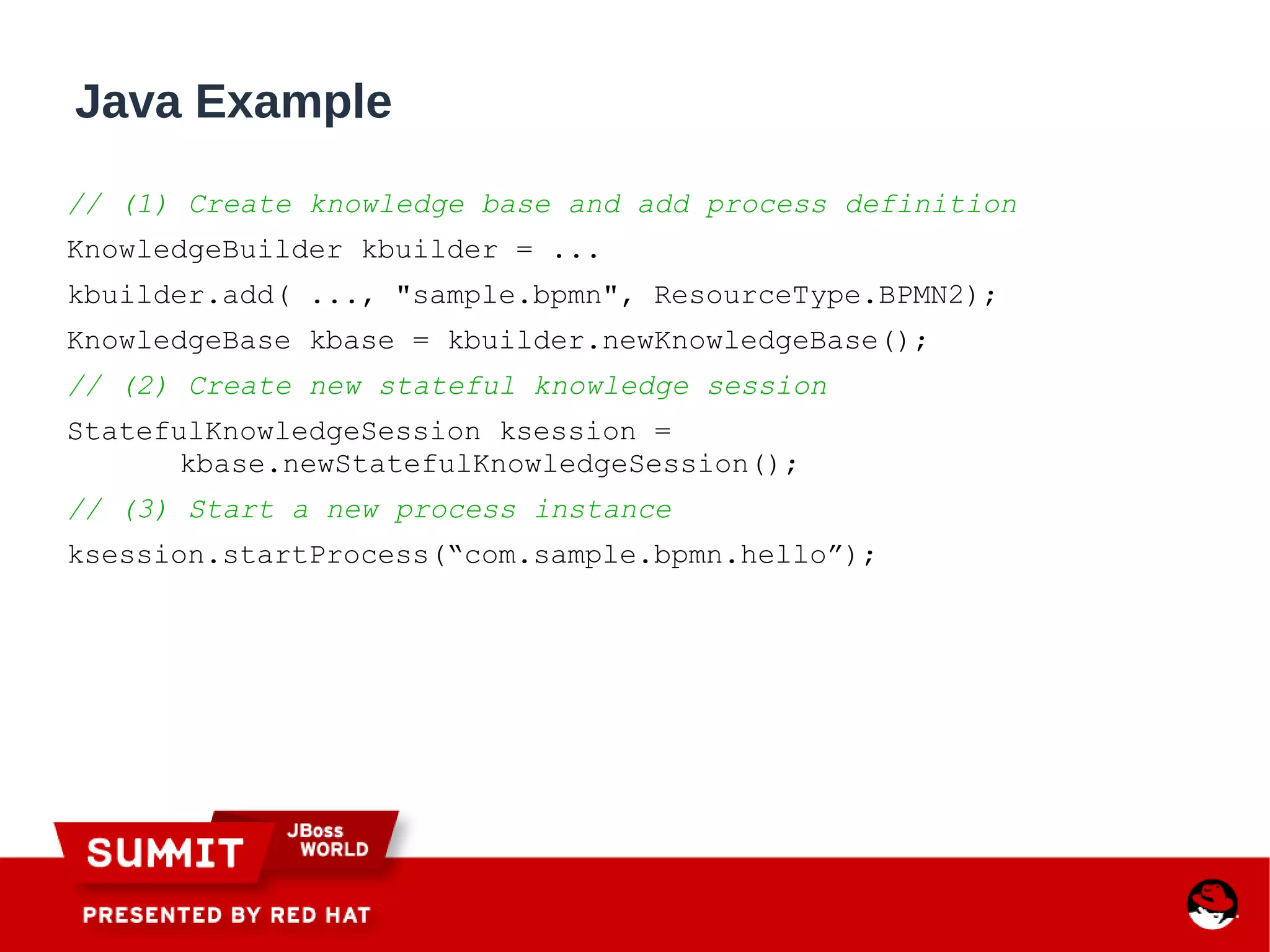

- 31. Java Example //(1) Create knowledge base and add process definition KnowledgeBuilder kbuilder = ... kbuilder.add( ..., "sample.bpmn", ResourceType.BPMN2); KnowledgeBase kbase = kbuilder.newKnowledgeBase(); // (2) Create new stateful knowledge session StatefulKnowledgeSession ksession = kbase.newStatefulKnowledgeSession(); // (3) Start a new process instance ksession.startProcess(“com.sample.bpmn.hello”);

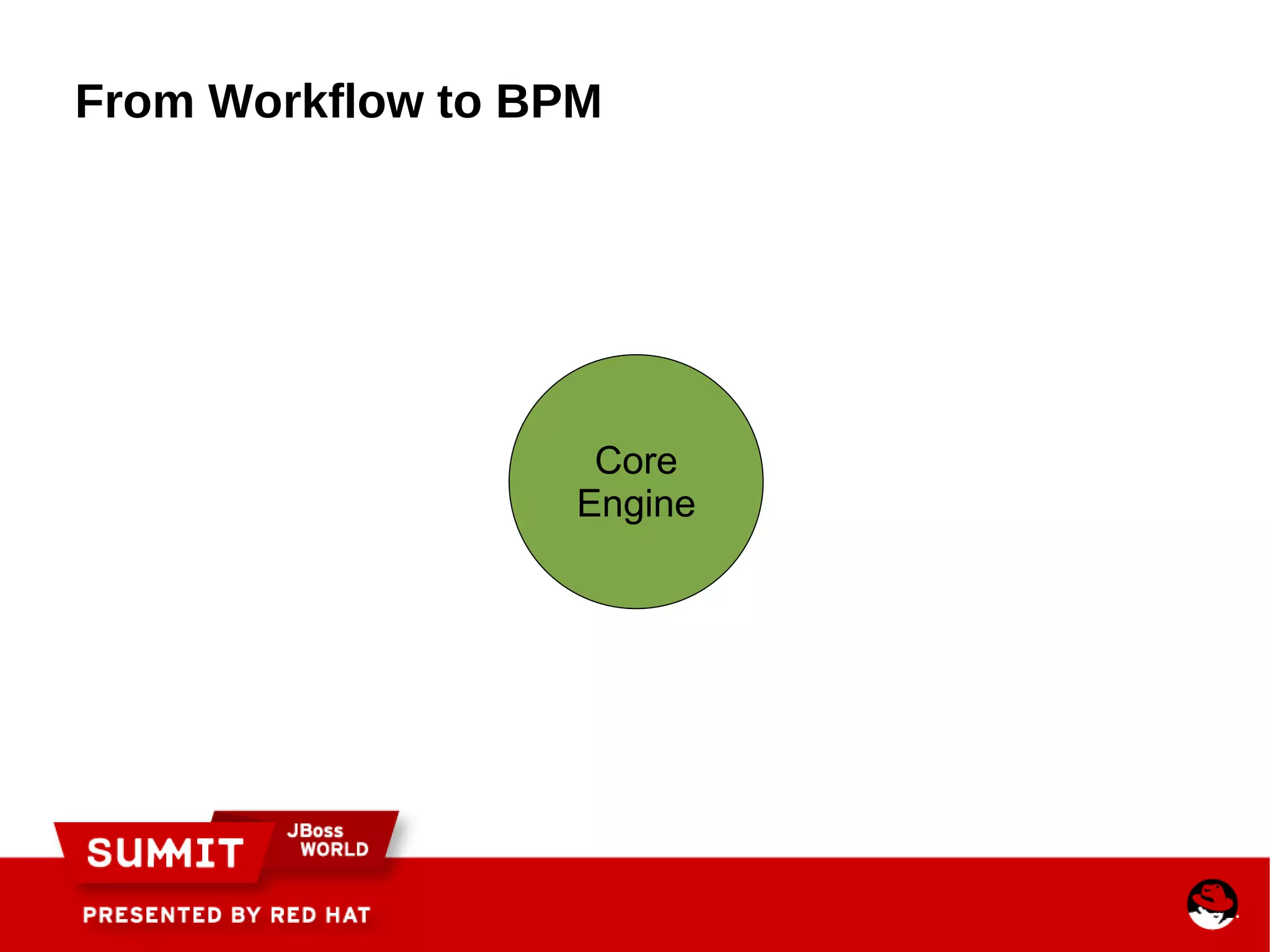

- 32. From Workflow toBPM Core Engine

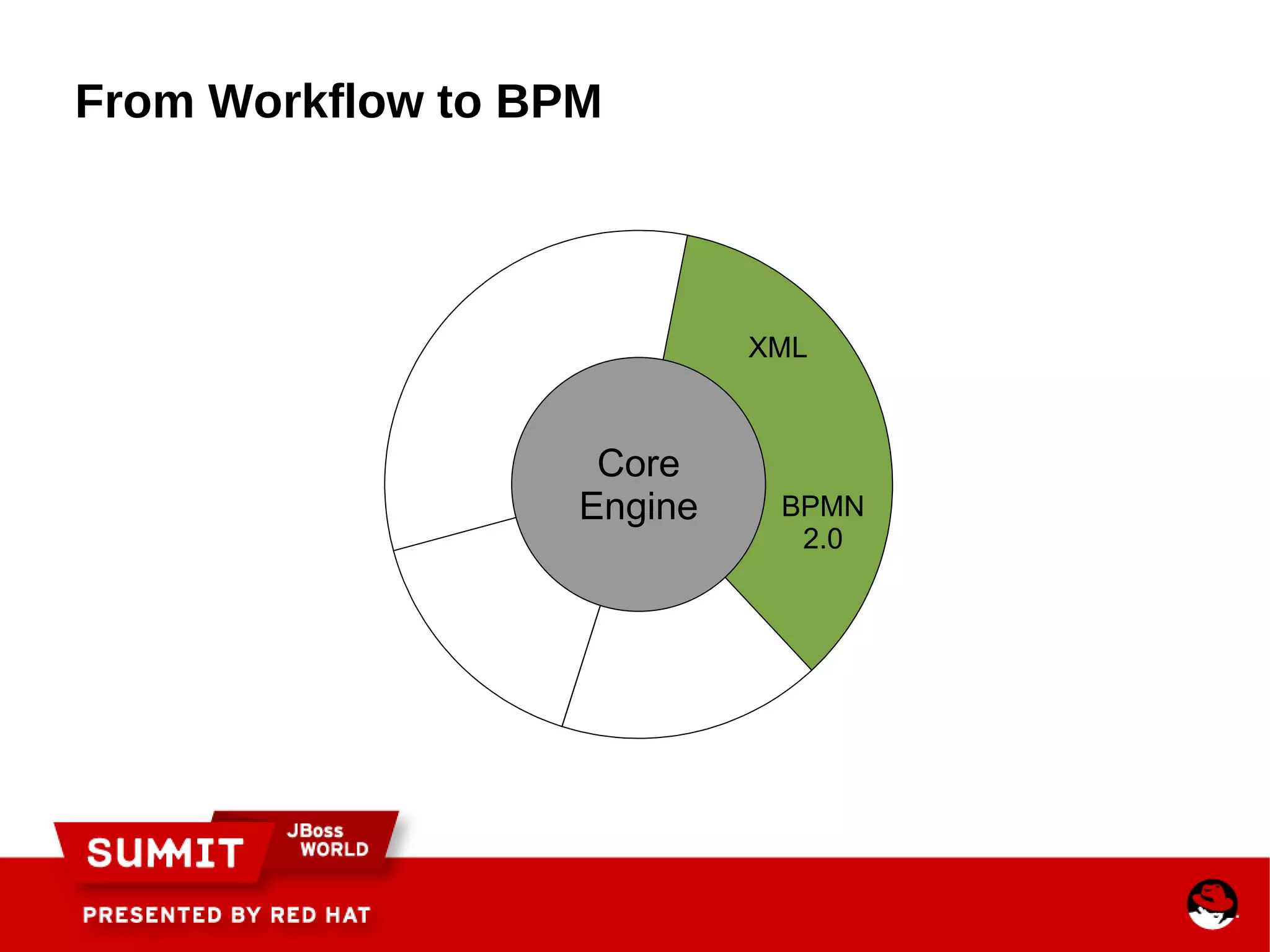

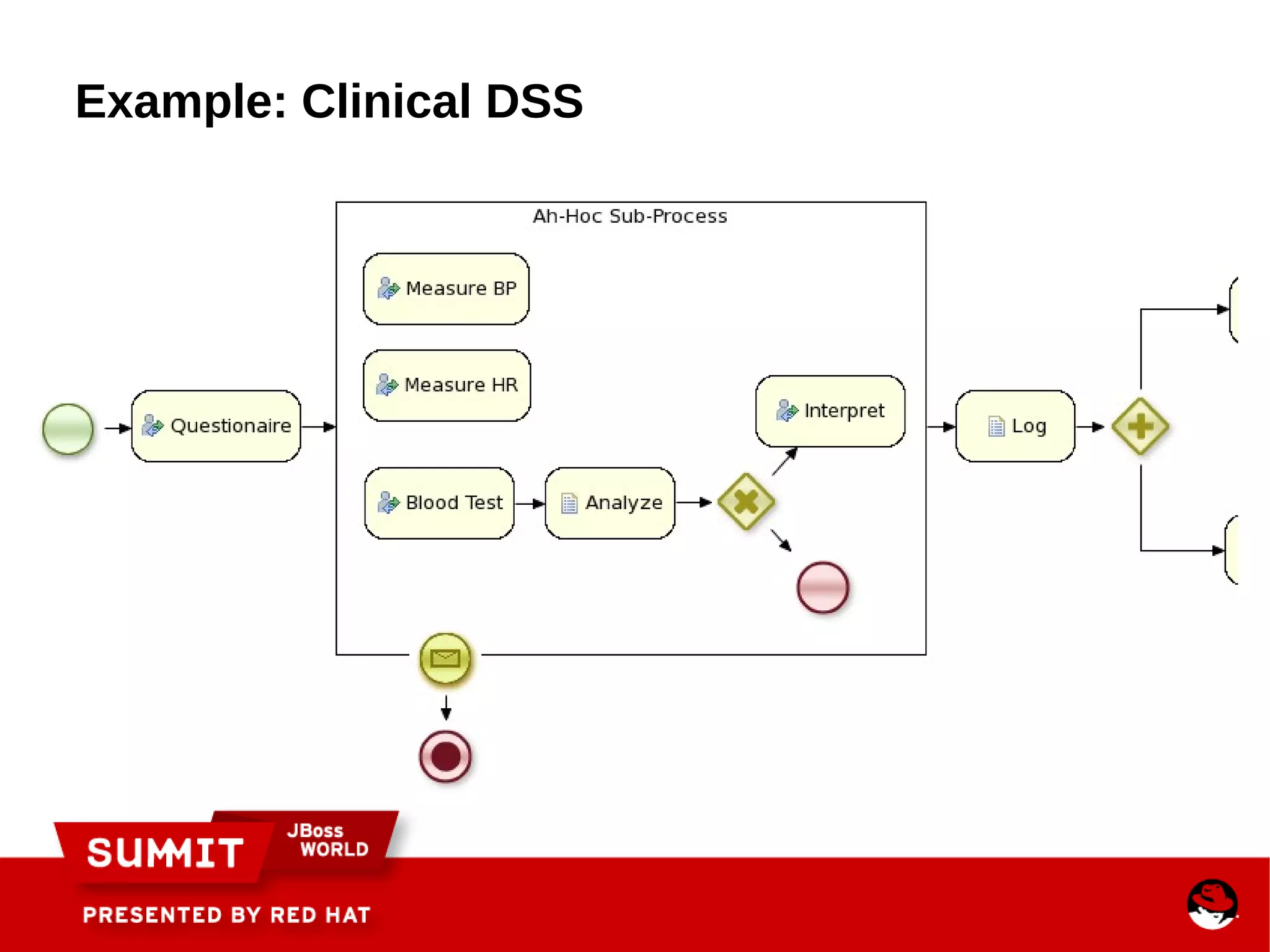

- 33. From Workflow toBPM Core Engine BPMN 2.0 XML

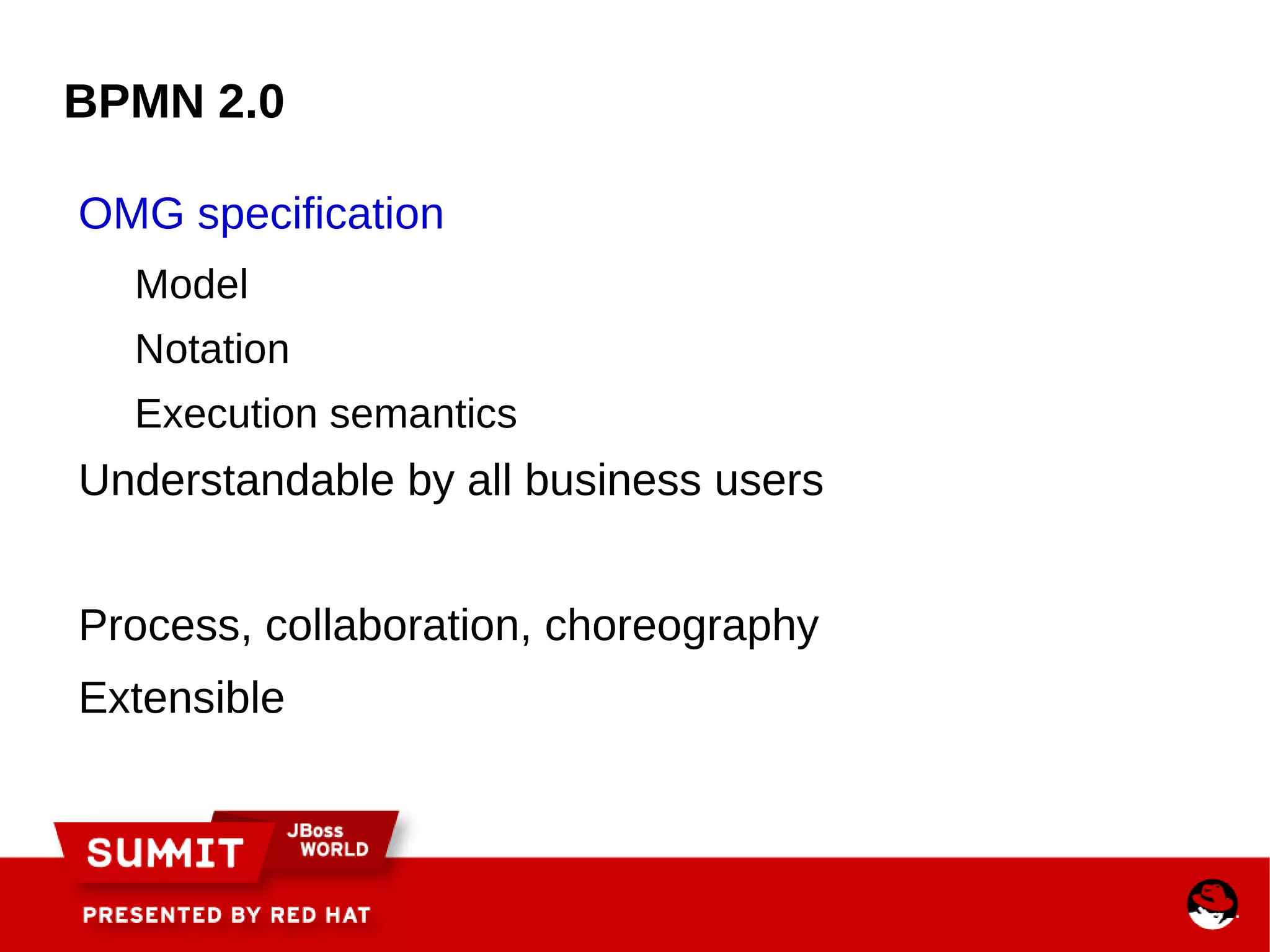

- 34. BPMN 2.0 OMGspecification Model
- 35.
- 36. Execution semantics Understandableby all business users
- 37.
- 38.

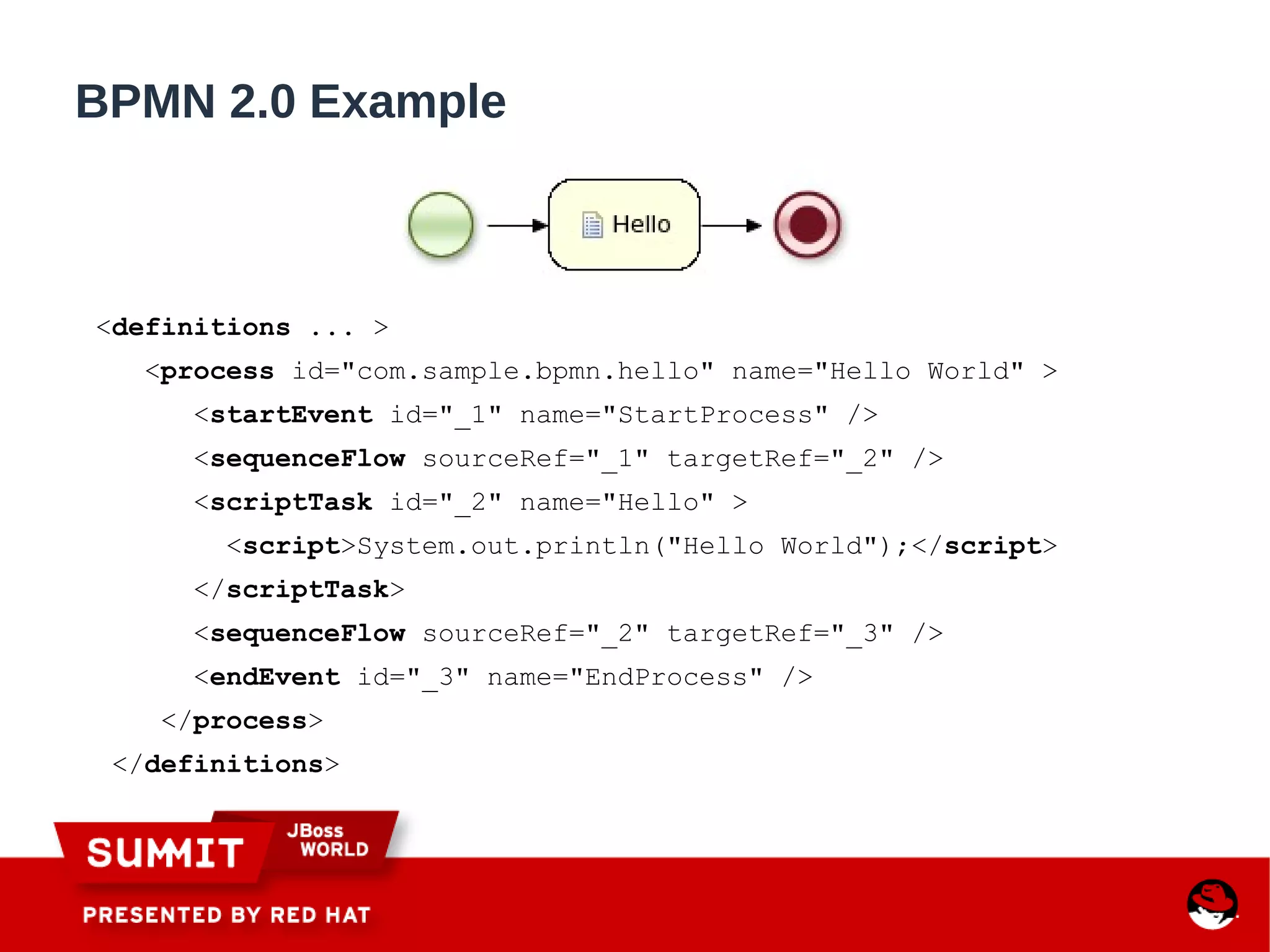

- 39. BPMN 2.0 Example< definitions ... > < process id="com.sample.bpmn.hello" name="Hello World" > < startEvent id="_1" name="StartProcess" /> < sequenceFlow sourceRef="_1" targetRef="_2" /> < scriptTask id="_2" name="Hello" > < script >System.out.println("Hello World");</ script > </ scriptTask > < sequenceFlow sourceRef="_2" targetRef="_3" /> < endEvent id="_3" name="EndProcess" /> </ process > </ definitions > < definitions ... > < process id="com.sample.bpmn.hello" name="Hello World" > < startEvent id="_1" name="StartProcess" /> < sequenceFlow sourceRef="_1" targetRef="_2" /> < scriptTask id="_2" name="Hello" > < script >System.out.println("Hello World");</ script > </ scriptTask > < sequenceFlow sourceRef="_2" targetRef="_3" /> < endEvent id="_3" name="EndProcess" /> </ process > </ definitions >

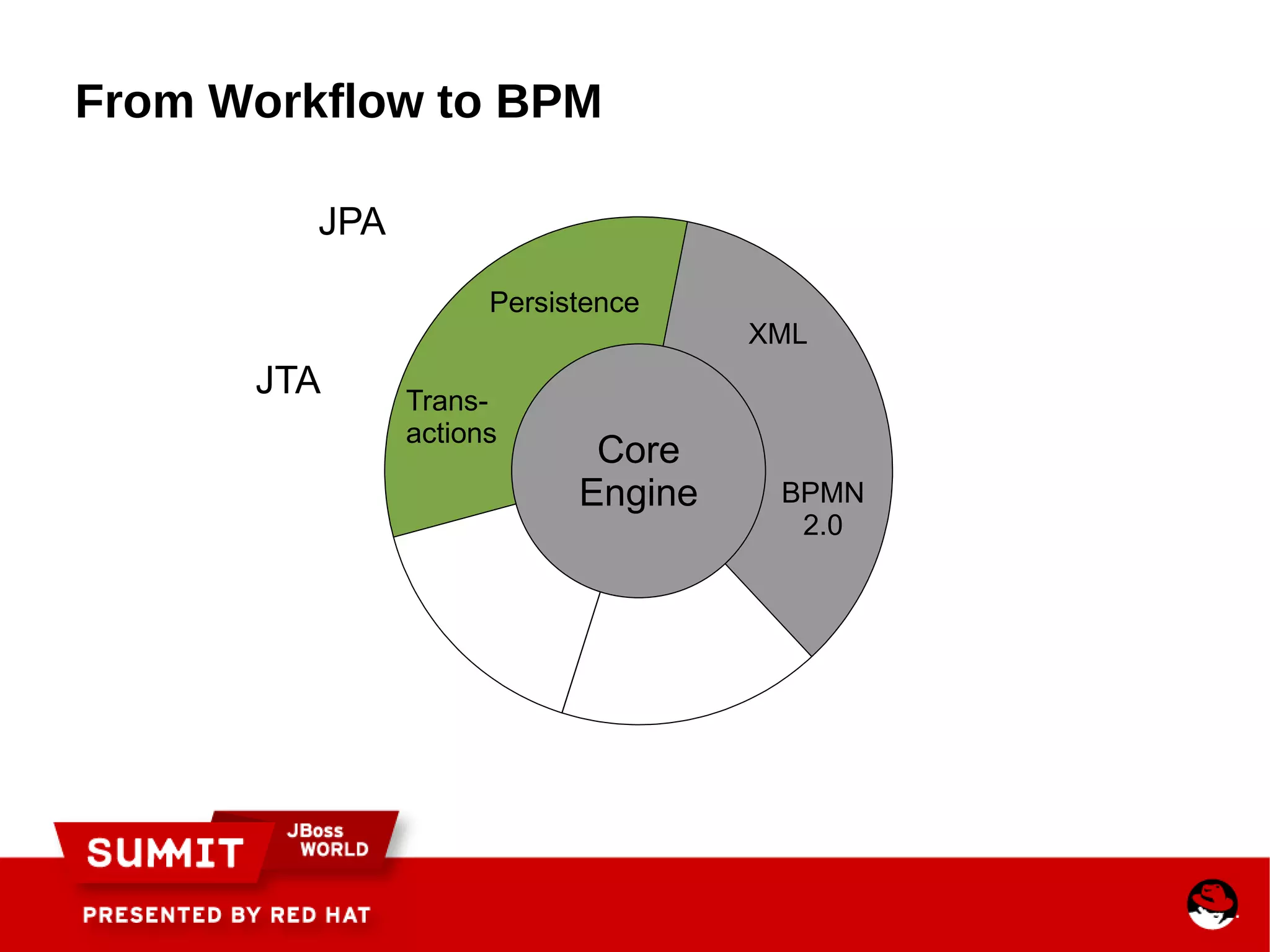

- 40. From Workflow toBPM Core Engine BPMN 2.0 XML Persistence Trans- actions JPA JTA

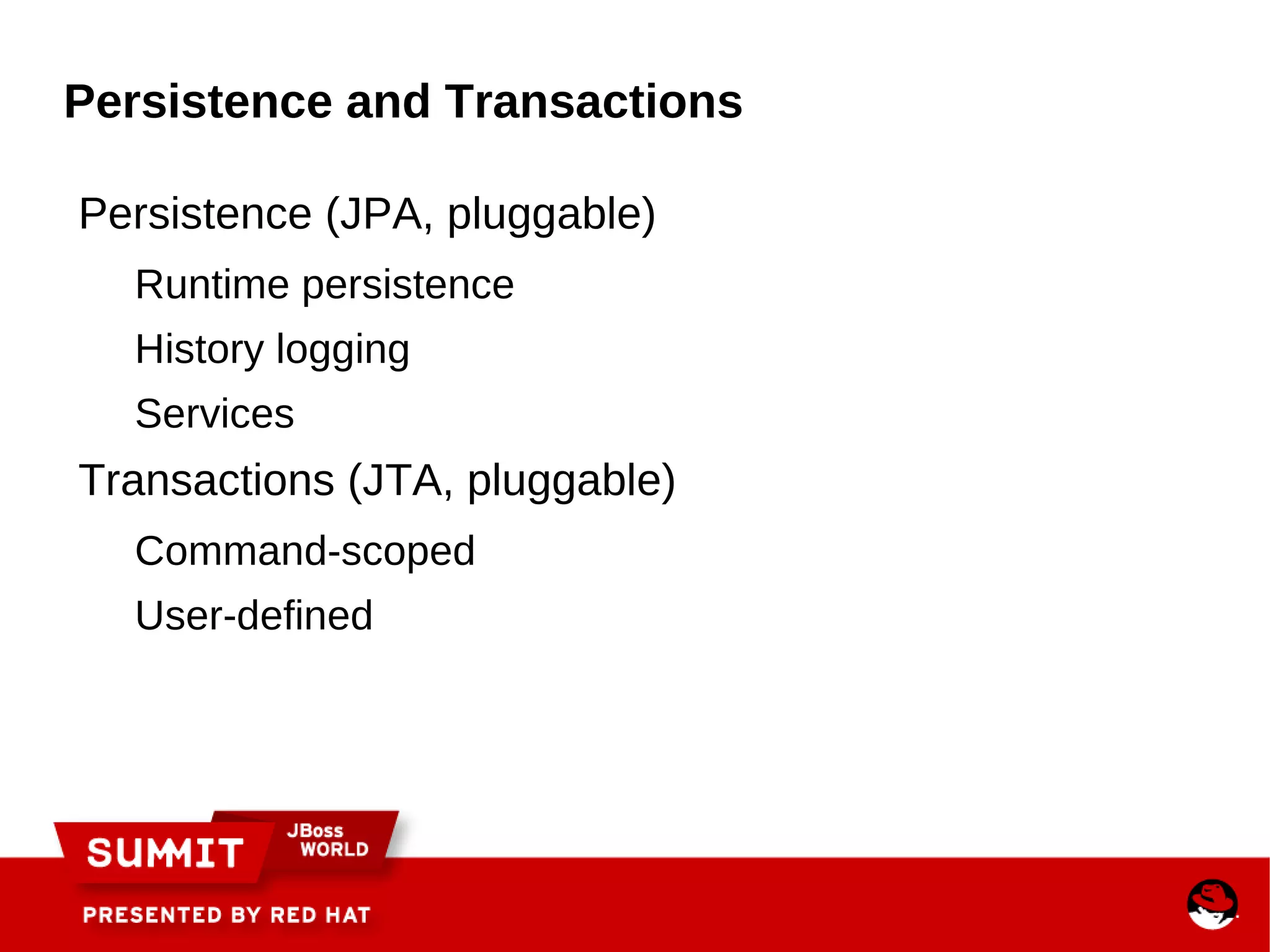

- 41. Persistence and TransactionsPersistence (JPA, pluggable) Runtime persistence
- 42.
- 43. Services Transactions (JTA,pluggable) Command-scoped
- 44.
- 45. From Workflow toBPM Core Engine BPMN 2.0 XML Persistence Trans- actions Events History Log Management Console BAM
- 46.
- 47.
- 48. Features Process instancemanagement
- 49. User task lists/ forms
- 50.
- 51. From Workflow toBPM Core Engine BPMN 2.0 XML Persistence Trans- actions Events Integration Domain-specific Processes Human Task Service ESB

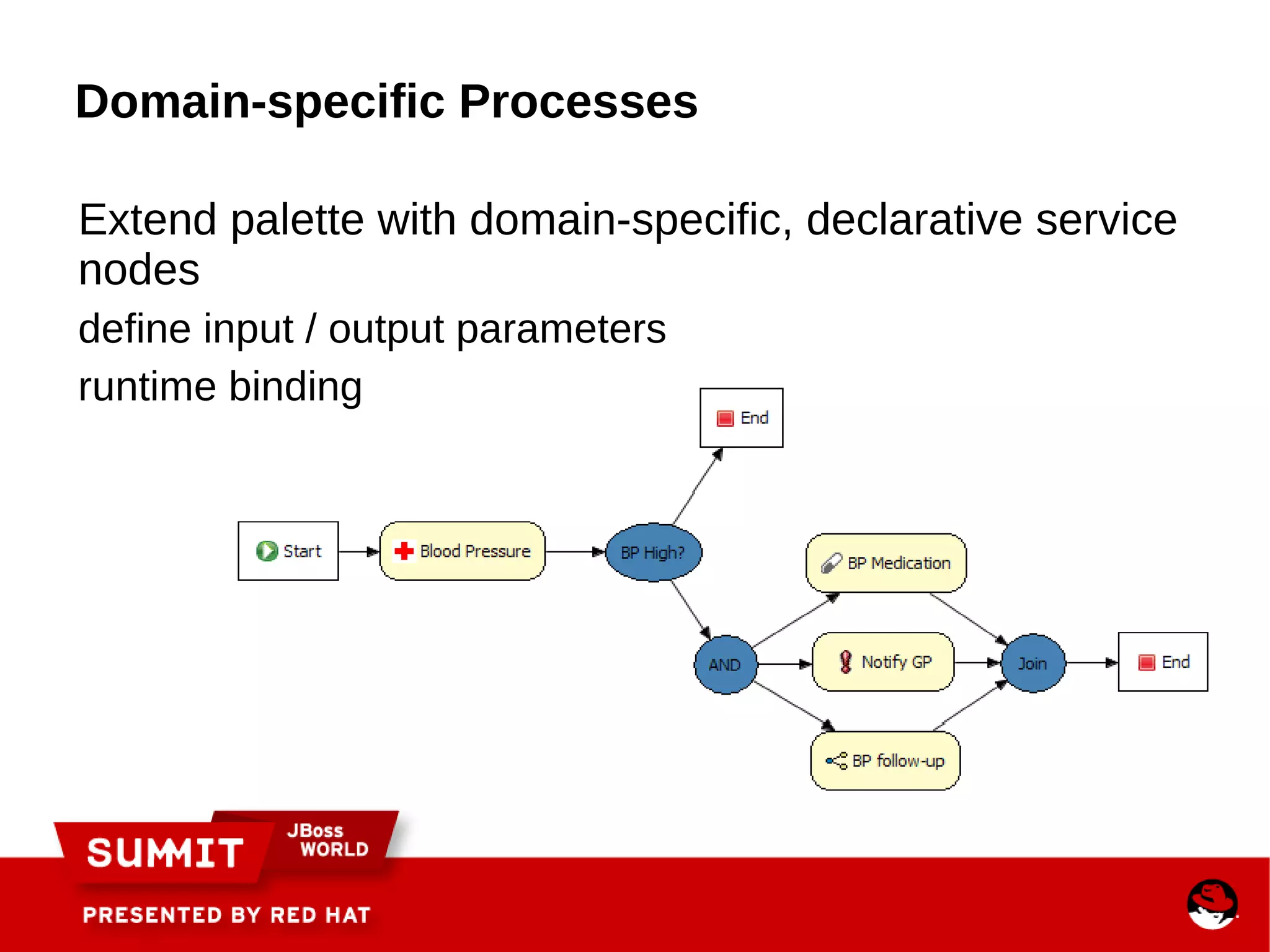

- 52. Domain-specific Processes Extendpalette with domain-specific, declarative service nodes define input / output parameters
- 53.

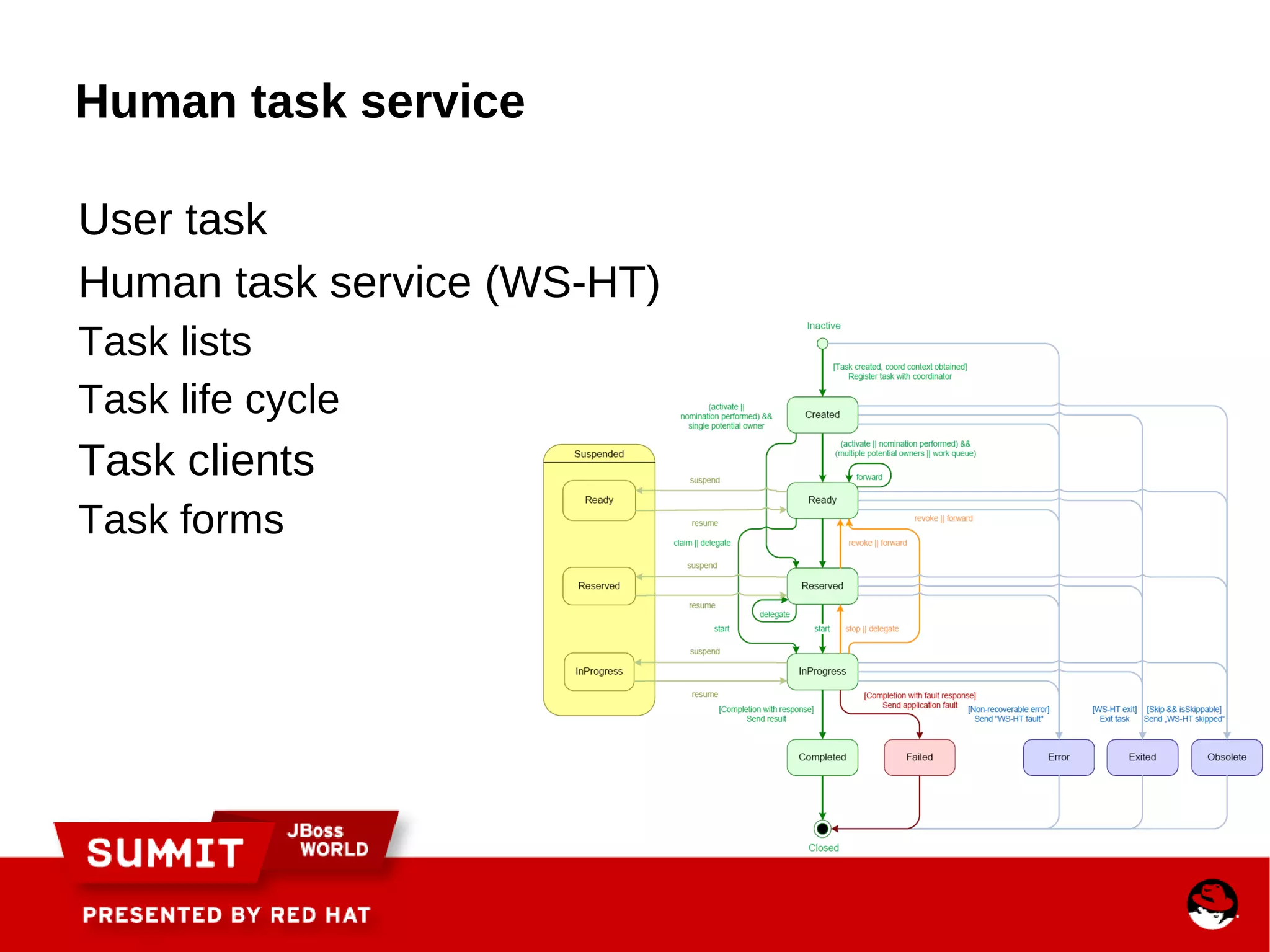

- 54. Human task serviceUser task
- 55. Human task service(WS-HT) Task lists
- 56. Task life cycleTask clients Task forms
- 57.
- 58.

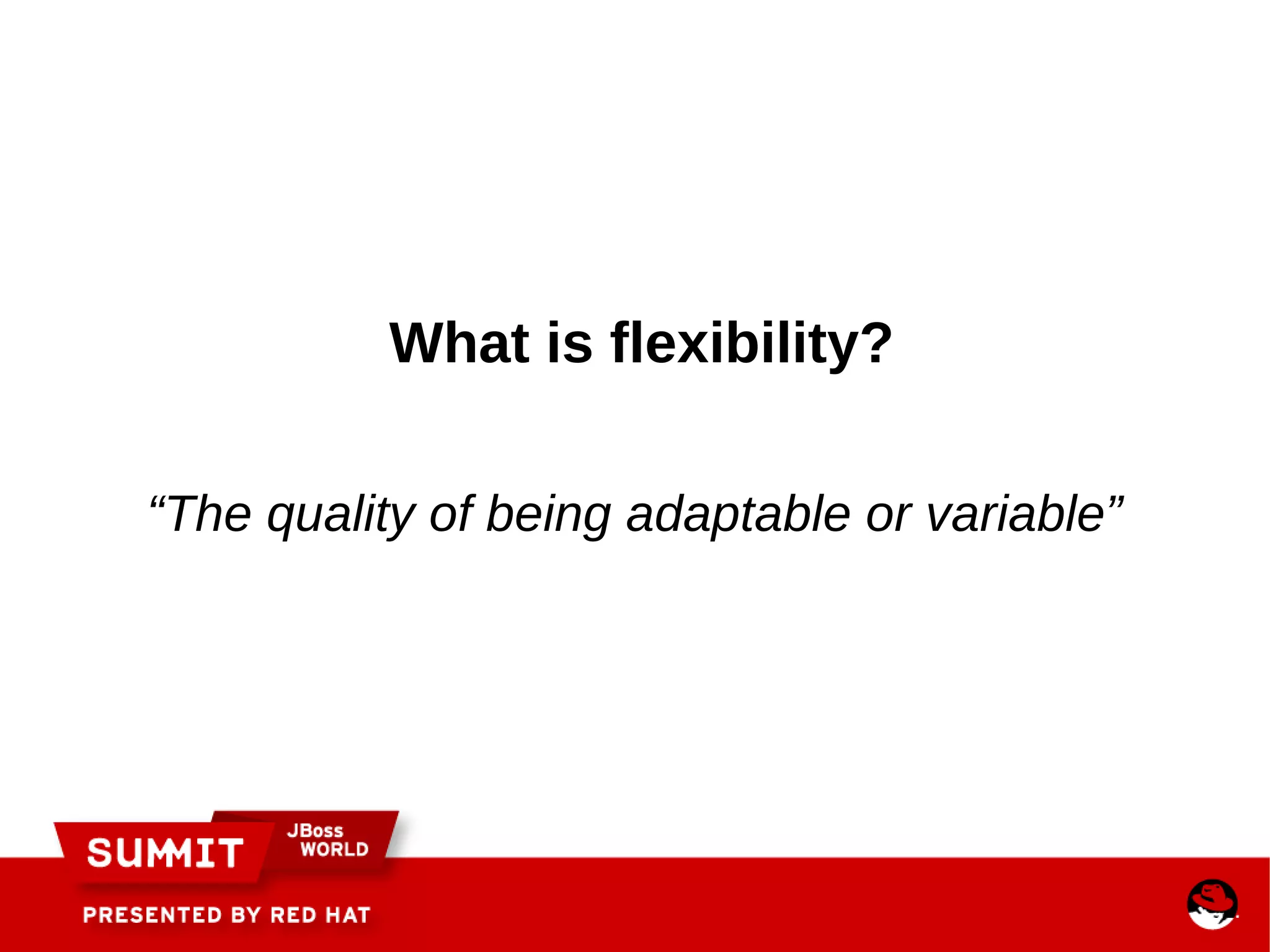

- 59. What is flexibility?“ The quality of being adaptable or variable”

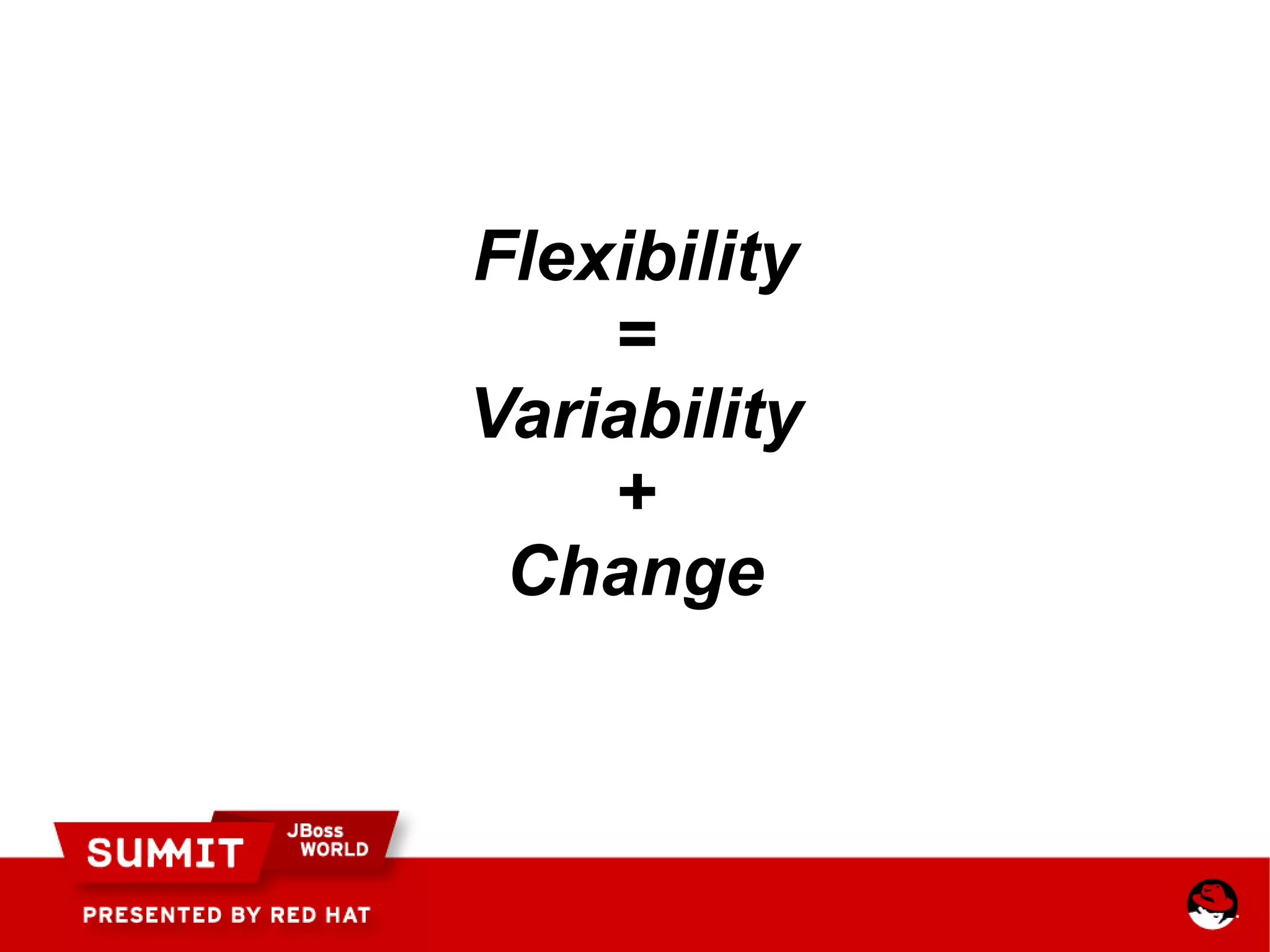

- 60. Flexibility = Variability+ Change

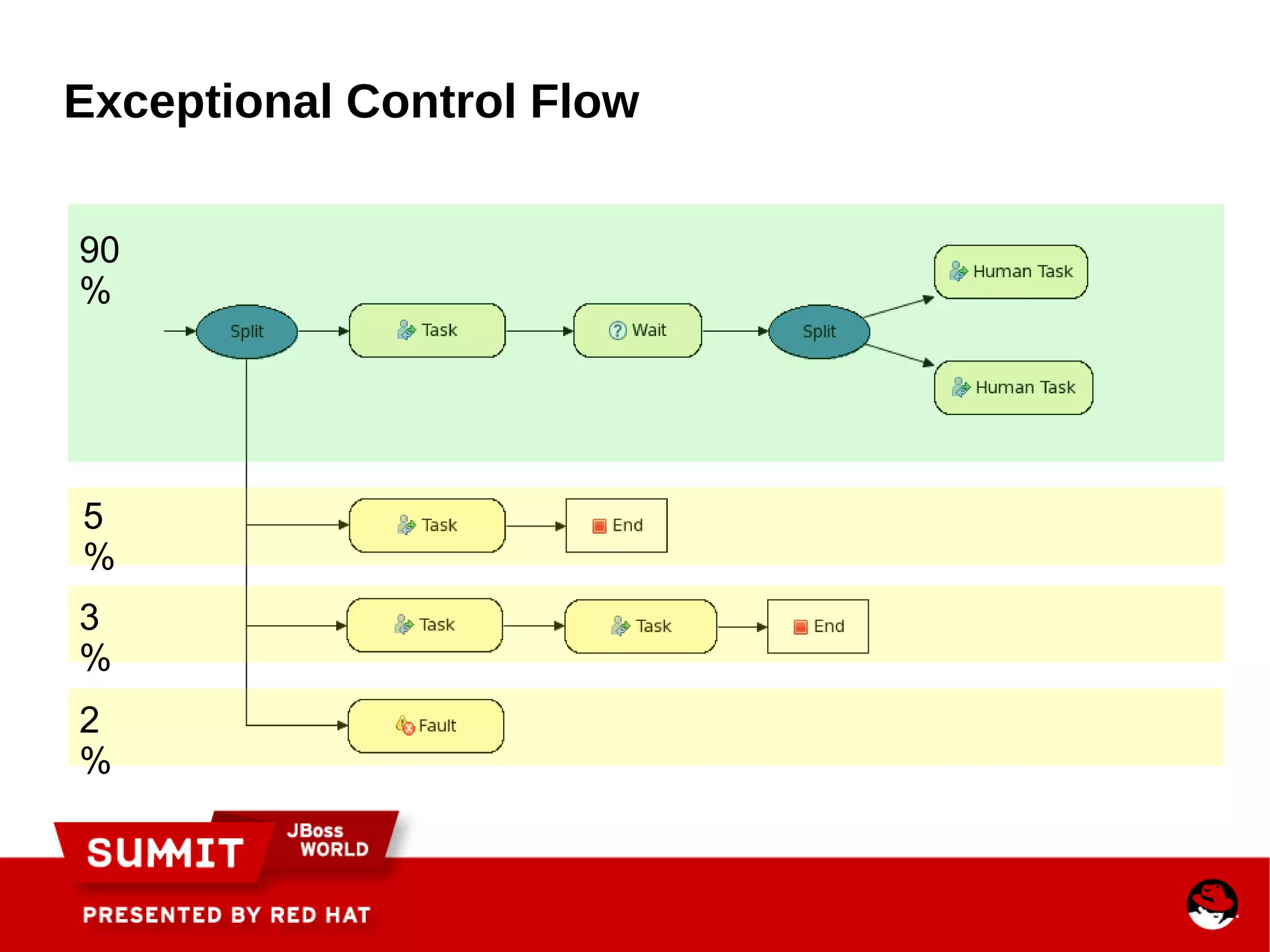

- 61. Exceptional Control Flow90% 5% 3% 2%

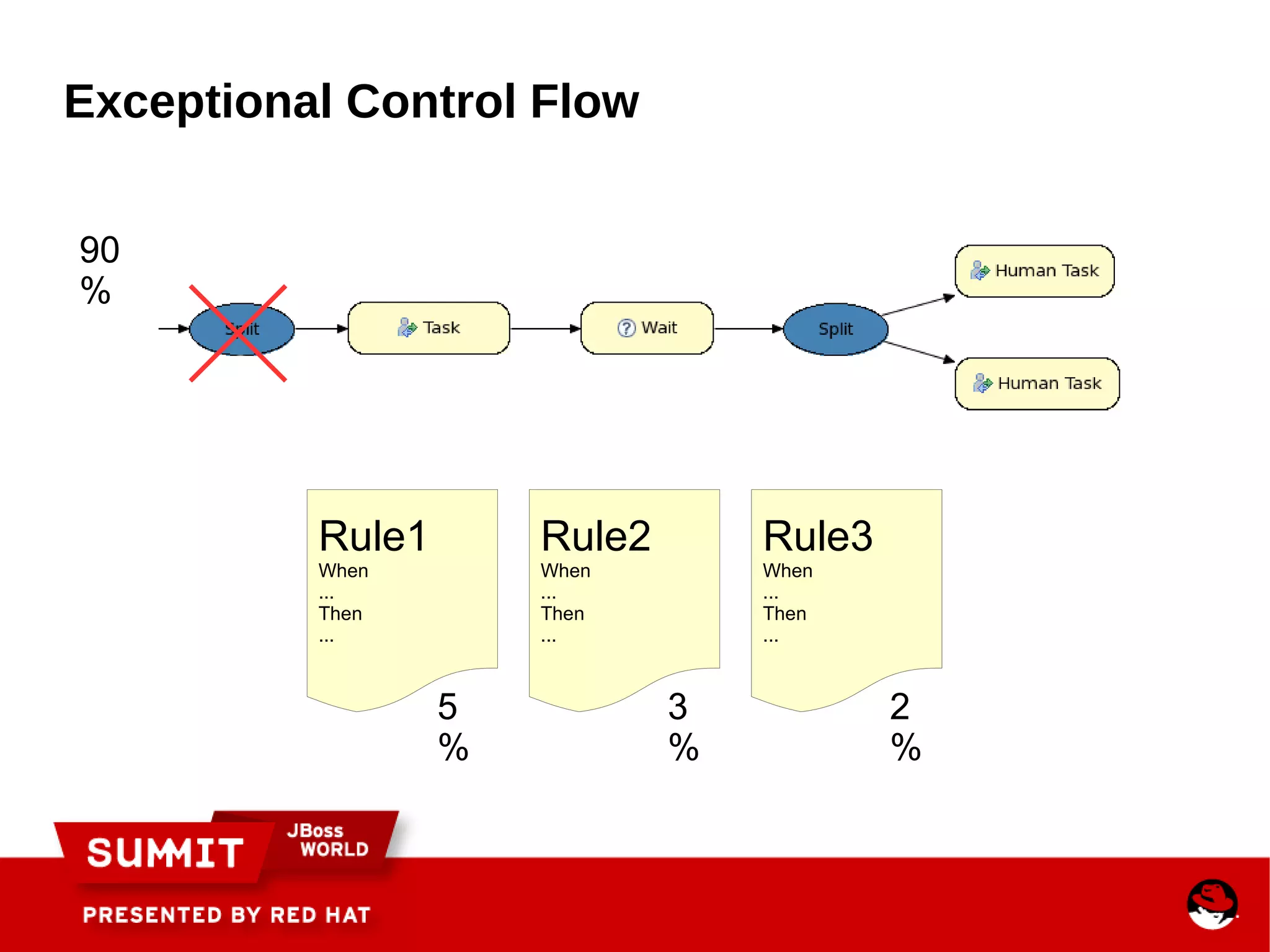

- 62. Exceptional Control Flow90% Rule1 When ... Then ... Rule2 When ... Then ... Rule3 When ... Then ... 5% 3% 2%
- 63. Processes + Rules+ Events
- 64. Combining processes andrules Integration From loose coupling (decision services)
- 65. To advanced integration(process rules) Unification Rules and processes are different types of business knowledge assets
- 66. Tooling (IDE, repository,management)

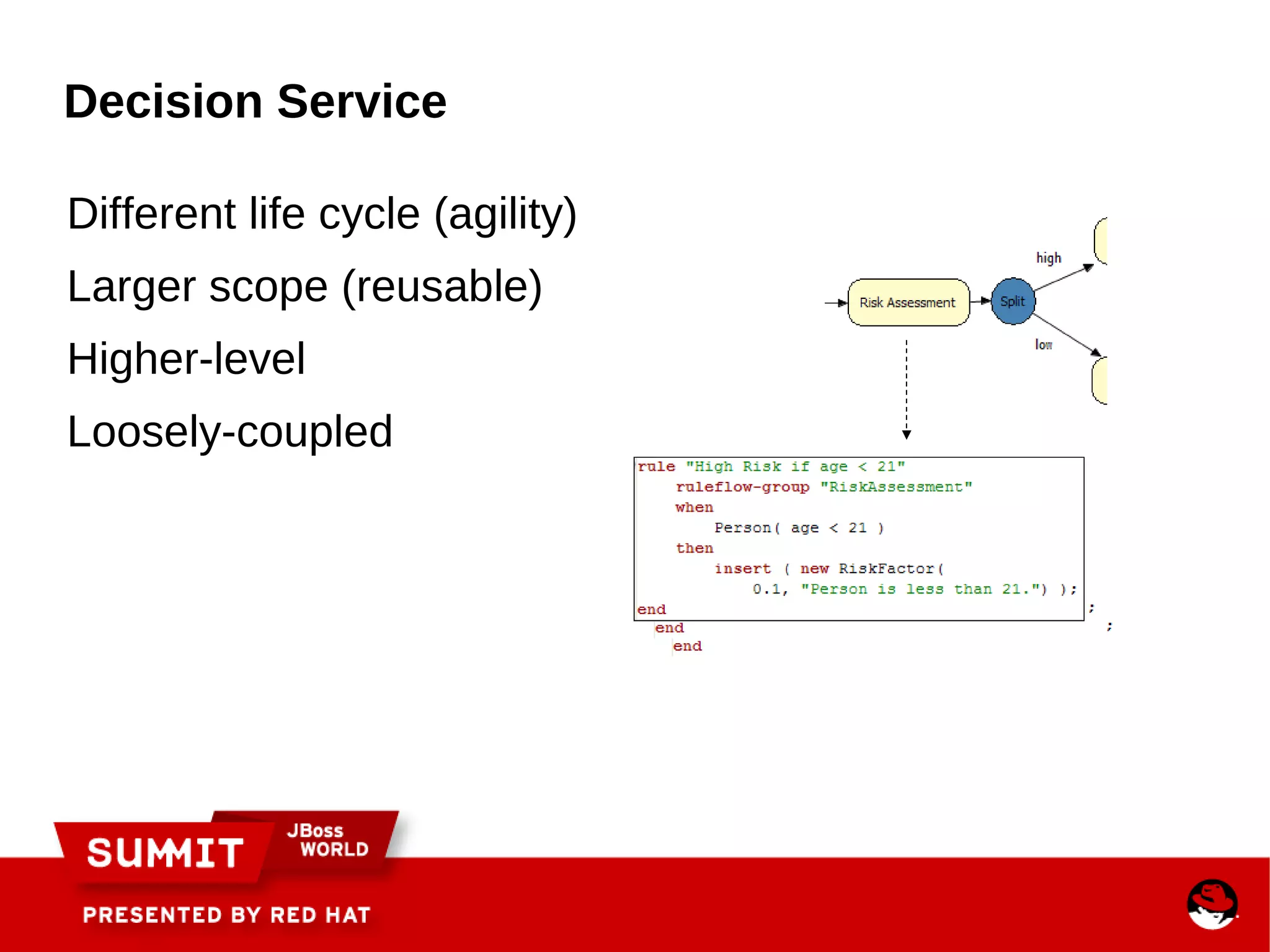

- 67. Decision Service Differentlife cycle (agility)
- 68.
- 69.
- 70.

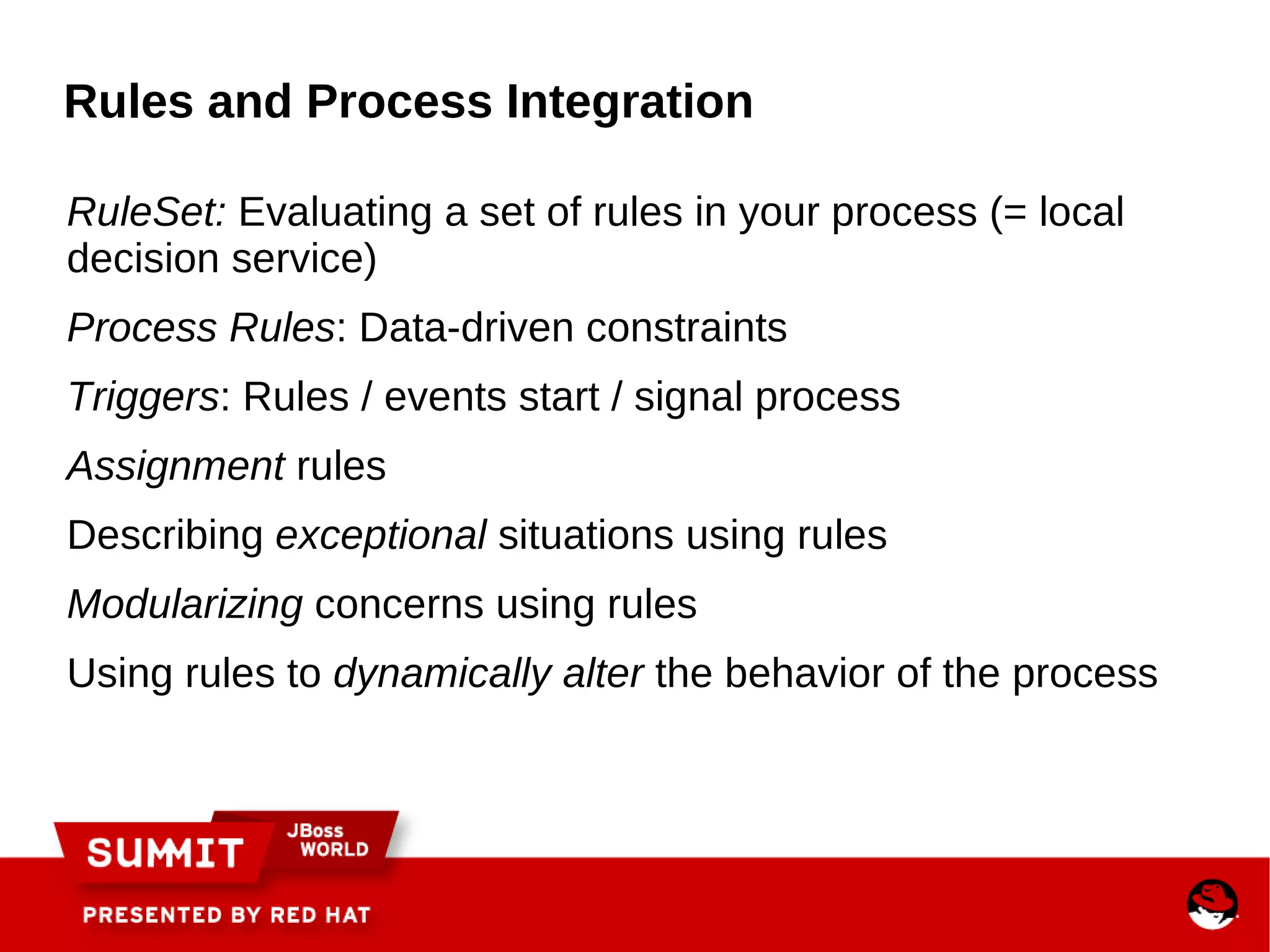

- 71. RuleSet: Evaluatinga set of rules in your process (= local decision service)
- 72. Process Rules : Data-driven constraints
- 73. Triggers : Rules/ events start / signal process
- 74.
- 75. Describing exceptional situations using rules
- 76. Modularizing concernsusing rules
- 77. Using rules to dynamically alter the behavior of the process Rules and Process Integration
- 78.

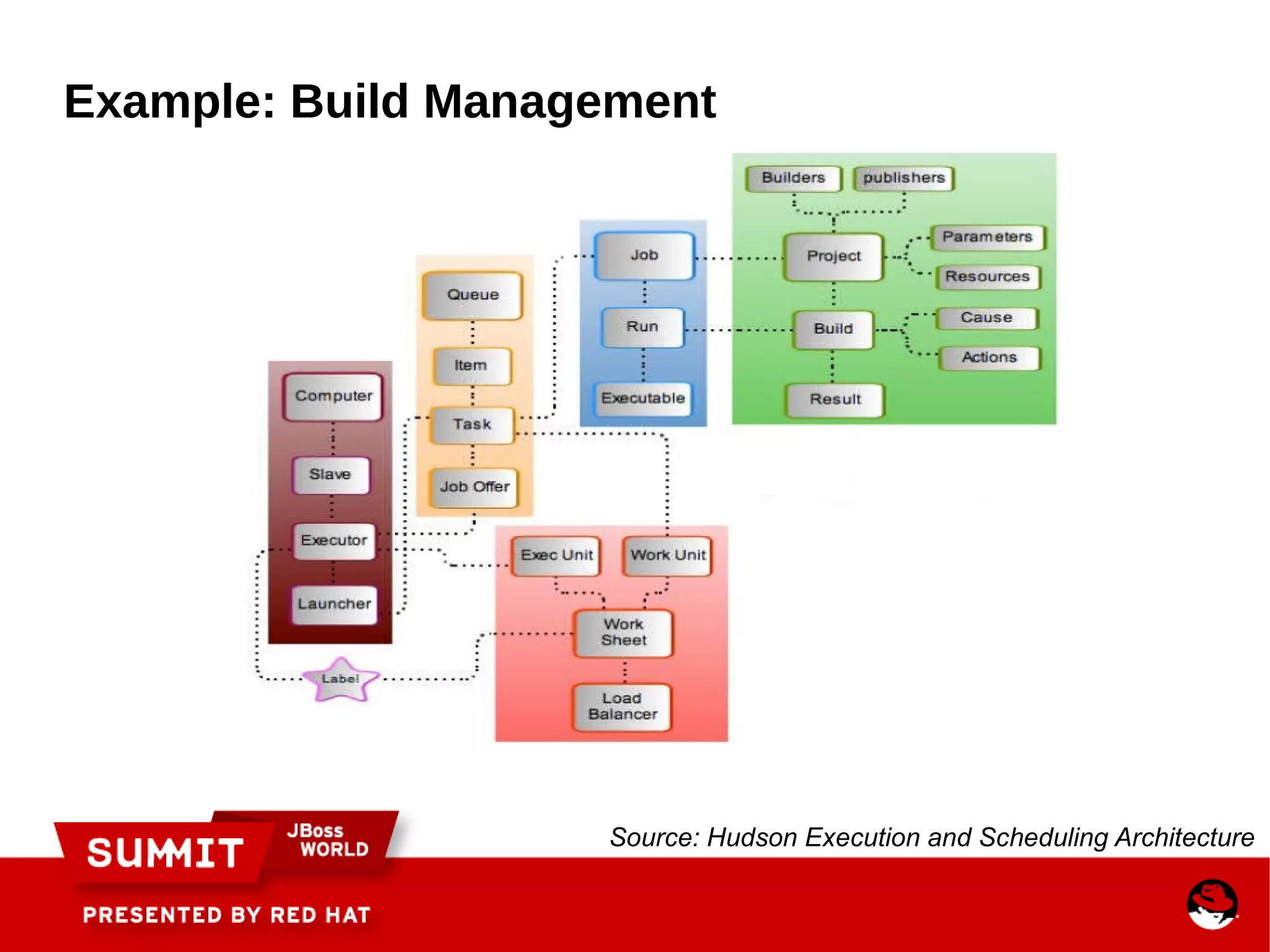

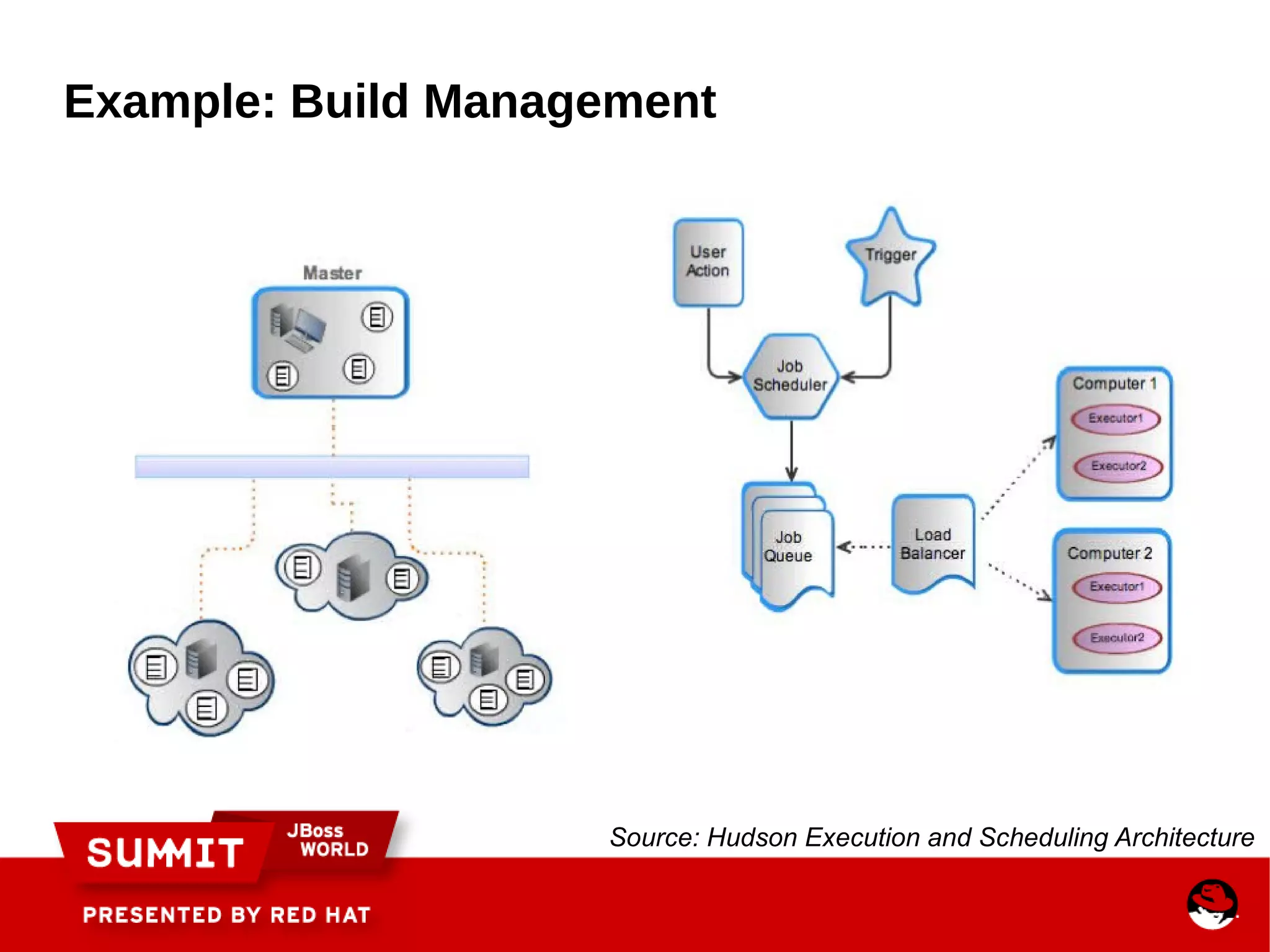

- 79. Example: Build ManagementSource: Hudson Execution and Scheduling Architecture
- 80. Example: Build ManagementSource: Hudson Execution and Scheduling Architecture

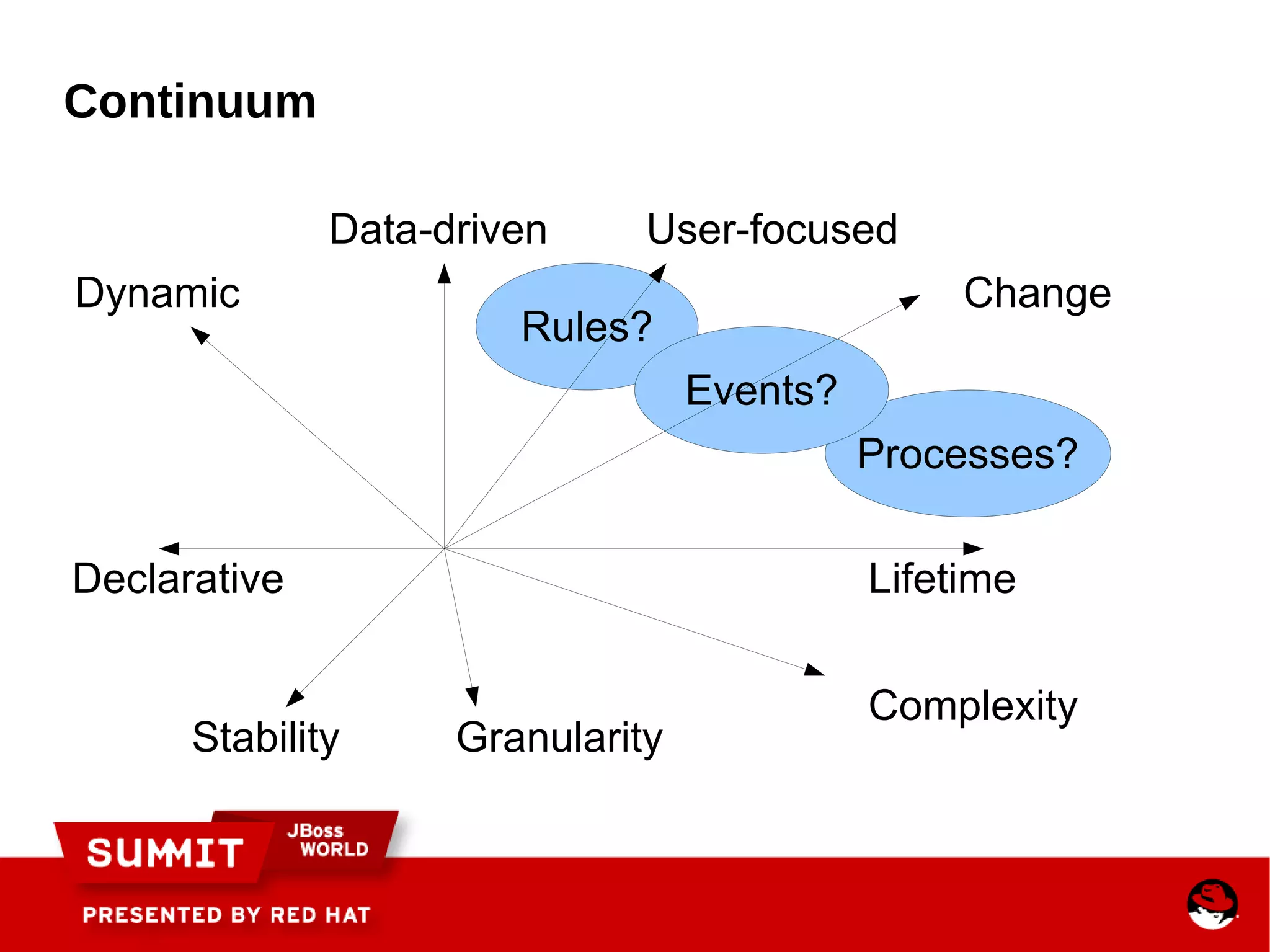

- 81. Continuum Data-driven LifetimeStability Granularity Change Dynamic Complexity Declarative User-focused
- 82. TITLE SLIDE: HEADLINEPresenter name Title, Red Hat Date Demo

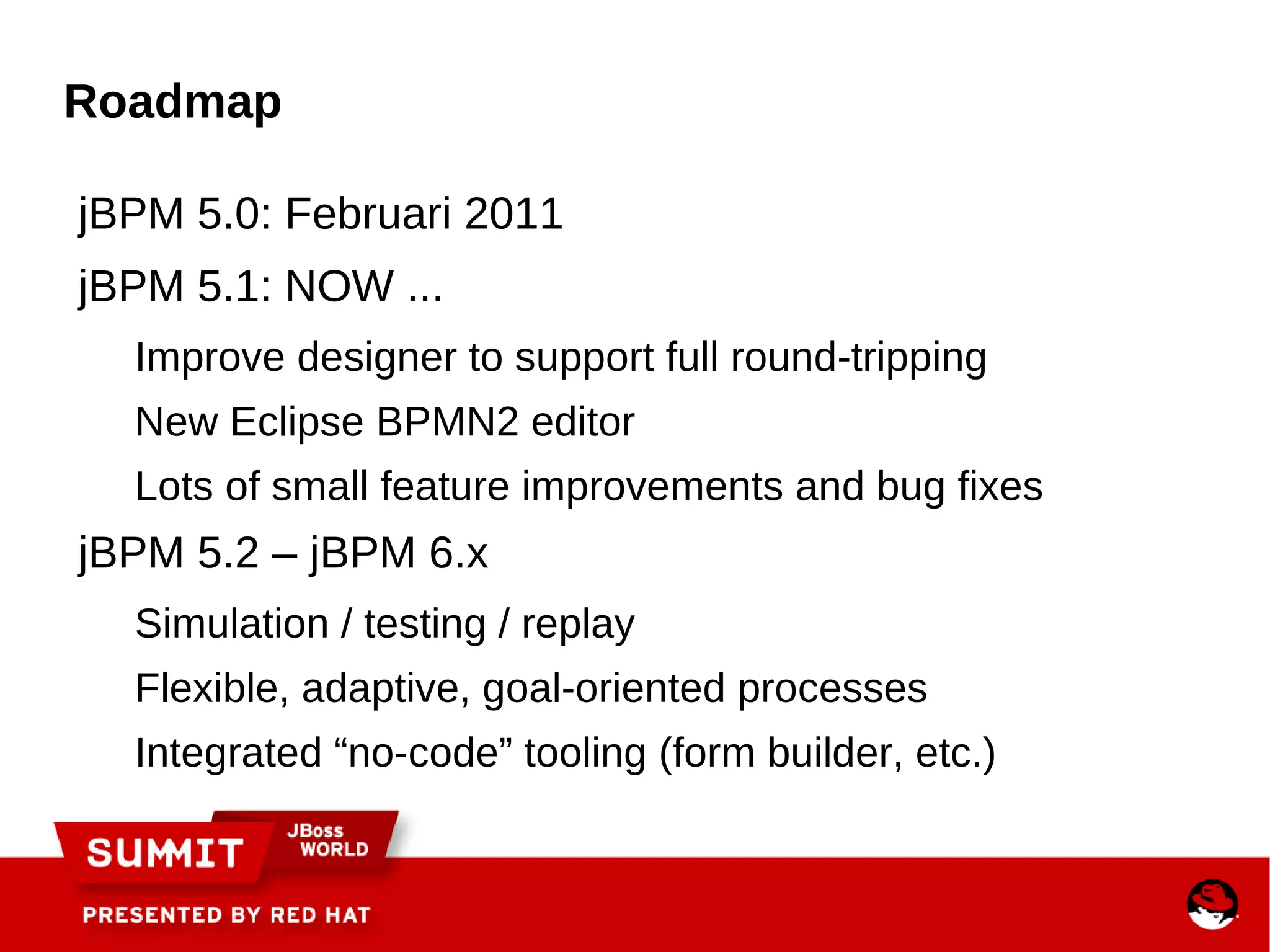

- 83. Roadmap jBPM 5.0:Februari 2011
- 84. jBPM 5.1: NOW... Improve designer to support full round-tripping
- 85. New Eclipse BPMN2editor
- 86. Lots of smallfeature improvements and bug fixes jBPM 5.2 – jBPM 6.x Simulation / testing / replay
- 87. Flexible, adaptive, goal-orientedprocesses
- 88. Integrated “no-code” tooling(form builder, etc.)

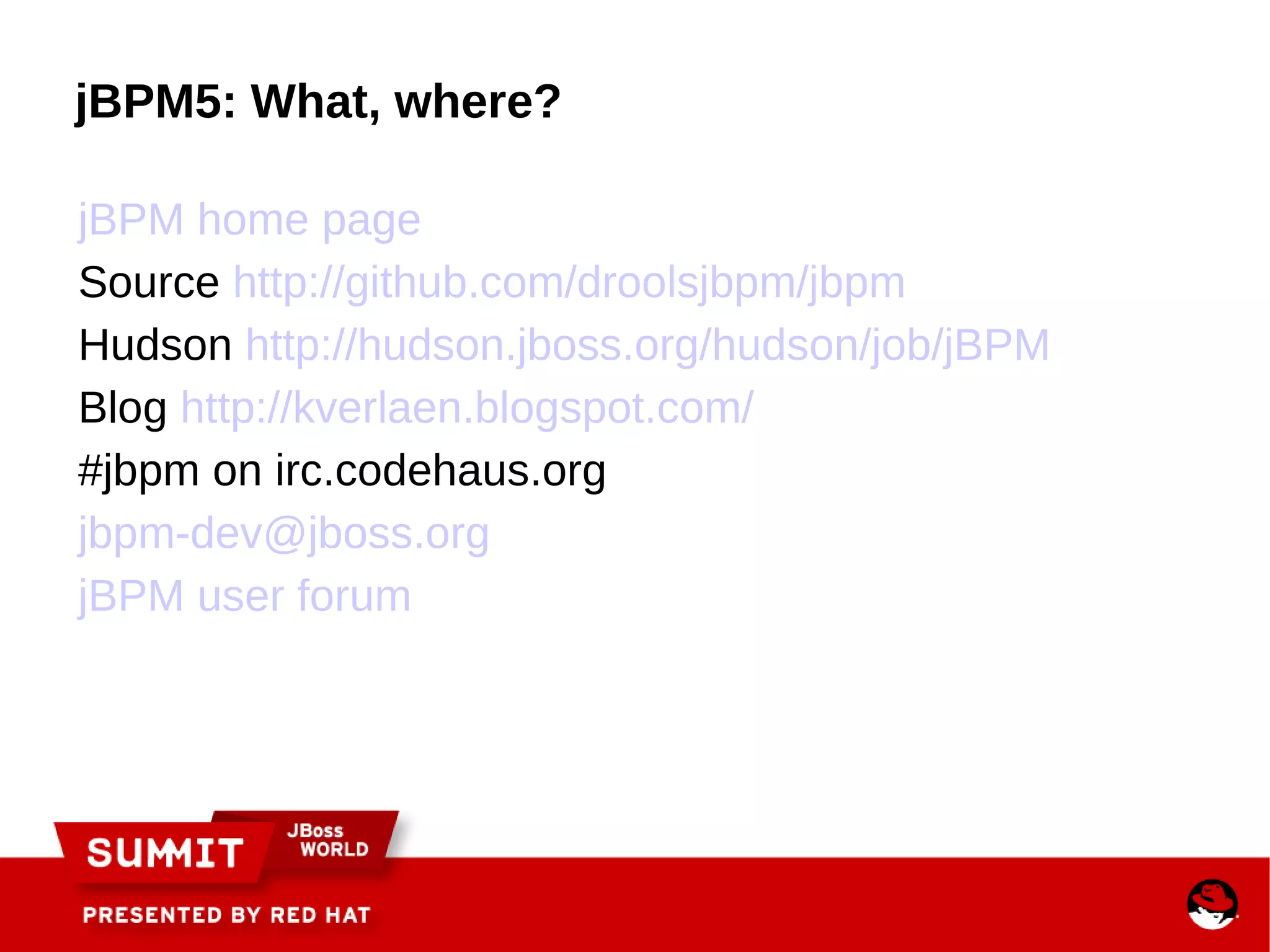

- 89. jBPM5: What, where?jBPM home page
- 90.
- 91.
- 92.
- 93.
- 94.
- 95.
