The document discusses jBPM, an open source business process management framework. It covers jBPM's approach to BPM as both a discipline and software engineering practice. Key advantages of jBPM include its embeddability within user applications, flexible modeling capabilities, and support for multiple process languages and execution modes. The current status and roadmap are also outlined.

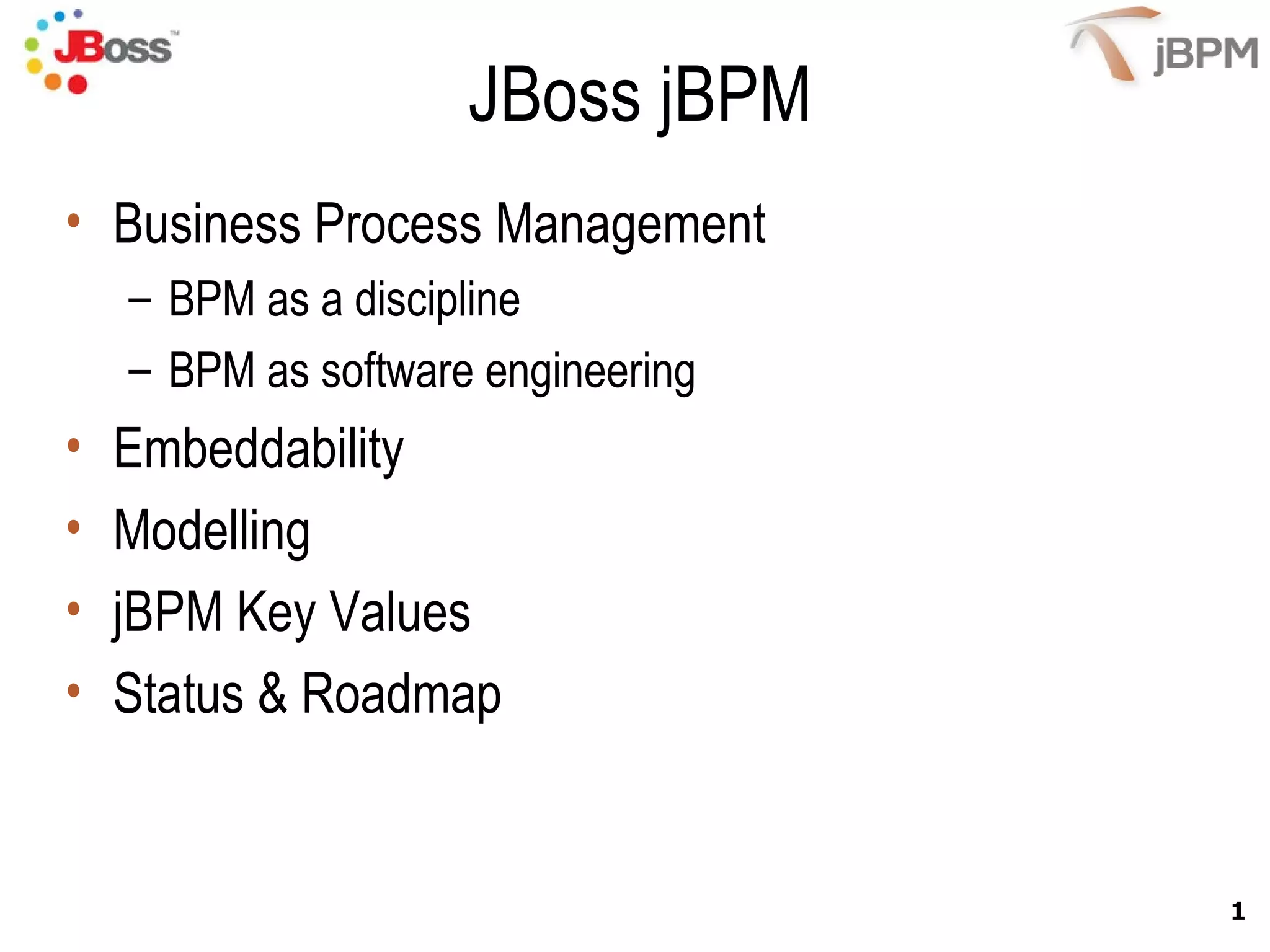

1. JBoss jBPM Business Process Management BPM as a discipline BPM as software engineering Embeddability Modelling jBPM Key Values Status & Roadmap

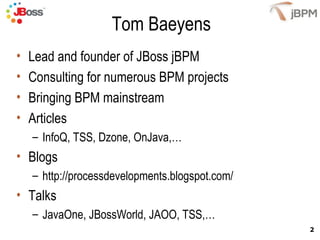

2. Tom Baeyens Lead and founder of JBoss jBPM Consulting for numerous BPM projects Bringing BPM mainstream Articles InfoQ, TSS, Dzone, OnJava,… Blogs http://processdevelopments.blogspot.com/ Talks JavaOne, JBossWorld, JAOO, TSS,…

3. BPM as a Discipline Management discipline “They all seem very busy” Non technical People to people What, not how Can be vague Unrelated to software architecture Often include diagrams

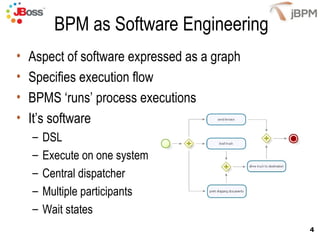

4. BPM as Software Engineering Aspect of software expressed as a graph Specifies execution flow BPMS ‘runs’ process executions It’s software DSL Execute on one system Central dispatcher Multiple participants Wait states

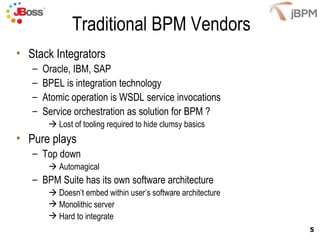

5. Traditional BPM Vendors Stack Integrators Oracle, IBM, SAP BPEL is integration technology Atomic operation is WSDL service invocations Service orchestration as solution for BPM ?  Lost of tooling required to hide clumsy basics Pure plays Top down  Automagical BPM Suite has its own software architecture  Doesn’t embed within user’s software architecture Monolithic server Hard to integrate

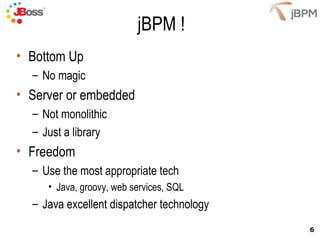

6. jBPM ! Bottom Up No magic Server or embedded Not monolithic Just a library Freedom Use the most appropriate tech Java, groovy, web services, SQL Java excellent dispatcher technology

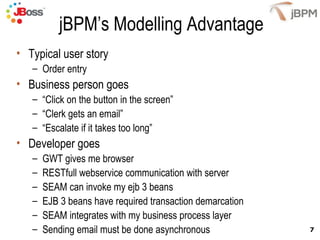

7. jBPM’s Modelling Advantage Typical user story Order entry Business person goes “ Click on the button in the screen” “ Clerk gets an email” “ Escalate if it takes too long” Developer goes GWT gives me browser RESTfull webservice communication with server SEAM can invoke my ejb 3 beans EJB 3 beans have required transaction demarcation SEAM integrates with my business process layer Sending email must be done asynchronous

8. jBPM’s Modelling Advantage No forced link between graph and transaction Embeddable Flexible transaction demarcation Hidden event listeners

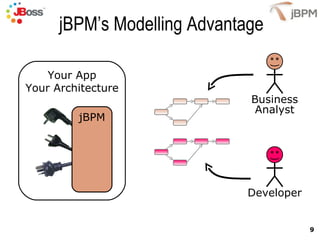

9. jBPM’s Modelling Advantage Your App Your Architecture jBPM Business Analyst Developer

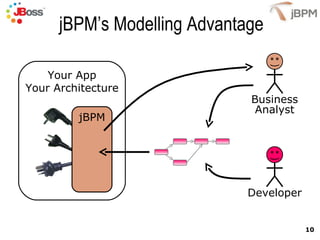

10. jBPM’s Modelling Advantage Your App Your Architecture jBPM Business Analyst Developer

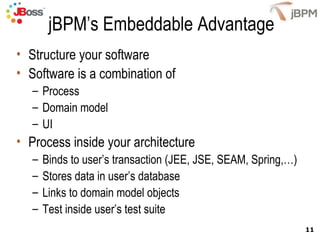

11. jBPM’s Embeddable Advantage Structure your software Software is a combination of Process Domain model UI Process inside your architecture Binds to user’s transaction (JEE, JSE, SEAM, Spring,…) Stores data in user’s database Links to domain model objects Test inside user’s test suite

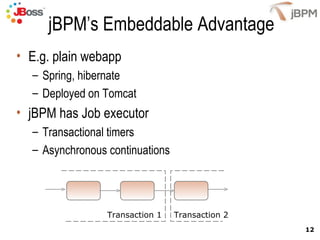

12. jBPM’s Embeddable Advantage E.g. plain webapp Spring, hibernate Deployed on Tomcat jBPM has Job executor Transactional timers Asynchronous continuations Transaction 1 Transaction 2

13. jBPM’s Embeddable Advantage Works with plain Java code High level asynchronous transactional modelling Standard Java thanks to jobexecutor Enterprise Java without deployment descriptor hell Seam Spring

14. jBPM’s Use Cases Orchestrating Human Tasks Transactional Script EJB orchestration Service orchestration Pageflow

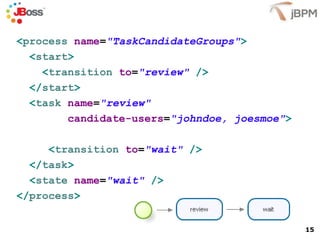

15. < process name = &quot;TaskCandidateGroups&quot; > < start > < transition to = &quot;review&quot; /> </ start > < task name = &quot;review&quot; candidate-users = &quot;johndoe, joesmoe&quot; > < transition to = &quot;wait&quot; /> </ task > < state name = &quot;wait&quot; /> </ process >

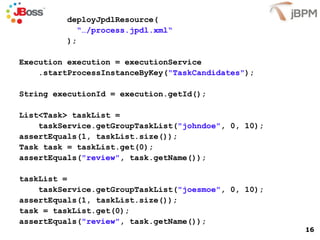

16. deployJpdlResource( “… /process.jpdl.xml“ ); Execution execution = executionService .startProcessInstanceByKey( &quot;TaskCandidates&quot; ); String executionId = execution.getId(); List<Task> taskList = taskService.getGroupTaskList( &quot;johndoe&quot; , 0, 10); assertEquals(1, taskList.size()); Task task = taskList.get(0); assertEquals( &quot;review&quot; , task.getName()); taskList = taskService.getGroupTaskList( &quot;joesmoe&quot; , 0, 10); assertEquals(1, taskList.size()); task = taskList.get(0); assertEquals( &quot;review&quot; , task.getName());

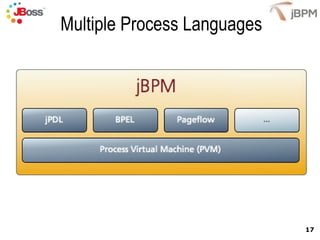

17. Multiple Process Languages

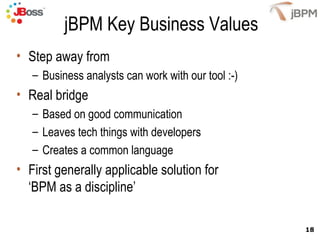

18. jBPM Key Business Values Step away from Business analysts can work with our tool :-) Real bridge Based on good communication Leaves tech things with developers Creates a common language First generally applicable solution for ‘BPM as a discipline’

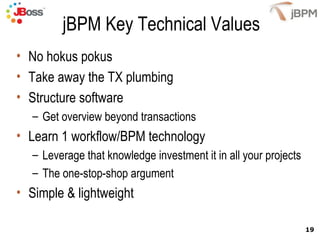

19. jBPM Key Technical Values No hokus pokus Take away the TX plumbing Structure software Get overview beyond transactions Learn 1 workflow/BPM technology Leverage that knowledge investment it in all your projects The one-stop-shop argument Simple & lightweight

20. jBPM Evolution jBPM 1 EJB state machine jBPM 2 Std Java Embeddable Hibernate state machine jBPM 3 First Activity Pluggability First Multiple Languages First Enterprise Embeddability jBPM 4 Activity Pluggability API Command Based Services Multiple Languages Many Execution modes DB Partitioning DB Evolution Full Embeddability Product Project

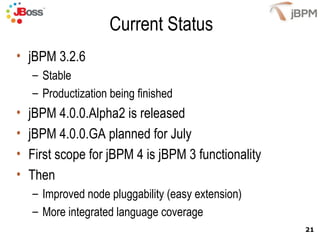

21. Current Status jBPM 3.2.6 Stable Productization being finished jBPM 4.0.0.Alpha2 is released jBPM 4.0.0.GA planned for July First scope for jBPM 4 is jBPM 3 functionality Then Improved node pluggability (easy extension) More integrated language coverage

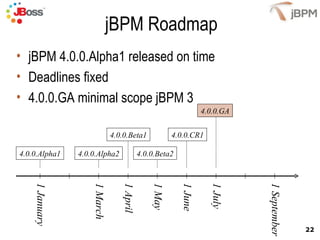

22. jBPM Roadmap jBPM 4.0.0.Alpha1 released on time Deadlines fixed 4.0.0.GA minimal scope jBPM 3 1 January 1 March 1 May 1 July 1 September 1 April 1 June 4.0.0.Alpha1 4.0.0.Alpha2 4.0.0.Beta1 4.0.0.Beta2 4.0.0.CR1 4.0.0.GA

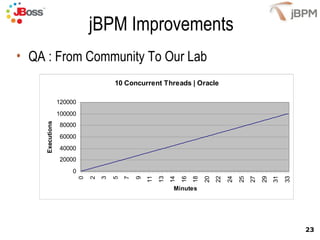

23. jBPM Improvements QA : From Community To Our Lab

24. jBPM Improvements Documentation User guide Developer guide API Basic usage Stable Supported Advanced pluggability Separated Easier to get started

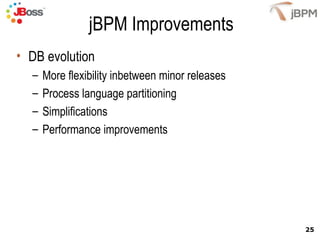

25. jBPM Improvements DB evolution More flexibility inbetween minor releases Process language partitioning Simplifications Performance improvements

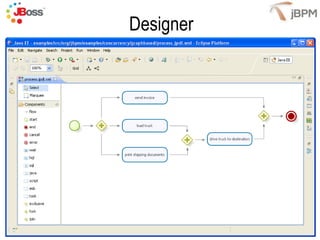

26. Designer

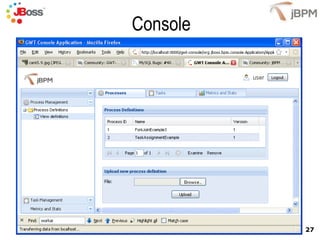

27. Console

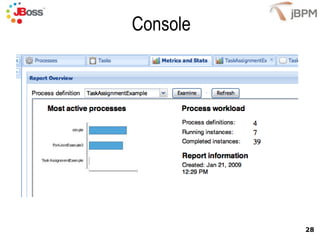

28. Console

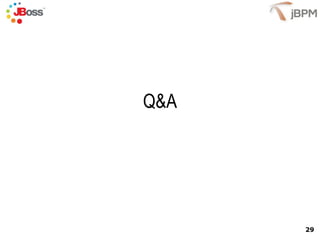

29. Q&A

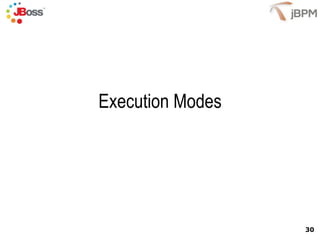

30. Execution Modes

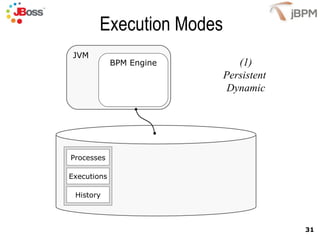

31. Execution Modes Processes Executions History JVM BPM Engine (1) Persistent Dynamic

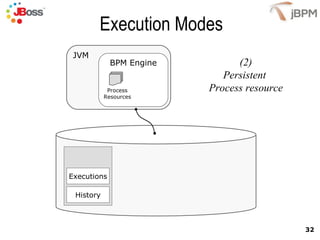

32. Execution Modes Executions History JVM BPM Engine Process Resources (2) Persistent Process resource

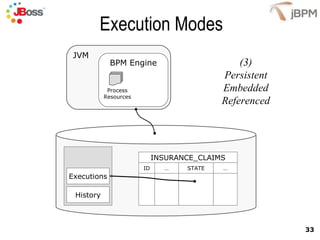

33. Execution Modes Executions History JVM BPM Engine Process Resources (3) Persistent Embedded Referenced INSURANCE_CLAIMS ID … STATE …

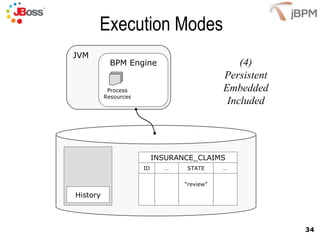

34. Execution Modes History JVM BPM Engine Process Resources (4) Persistent Embedded Included “ review” INSURANCE_CLAIMS ID … STATE …

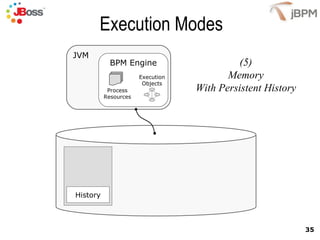

35. Execution Modes History JVM BPM Engine Process Resources Execution Objects (5) Memory With Persistent History

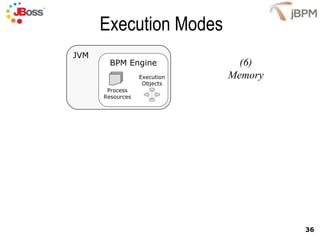

36. Execution Modes JVM BPM Engine Process Resources Execution Objects (6) Memory

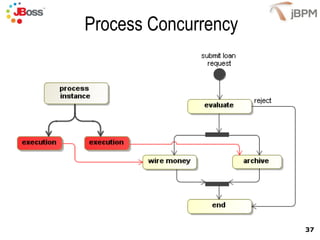

37. Process Concurrency
