Business Processes,
 Business Rules, Complex
Event Processing with JBoss
   Kris Verlaenen – jBPM Project Lead

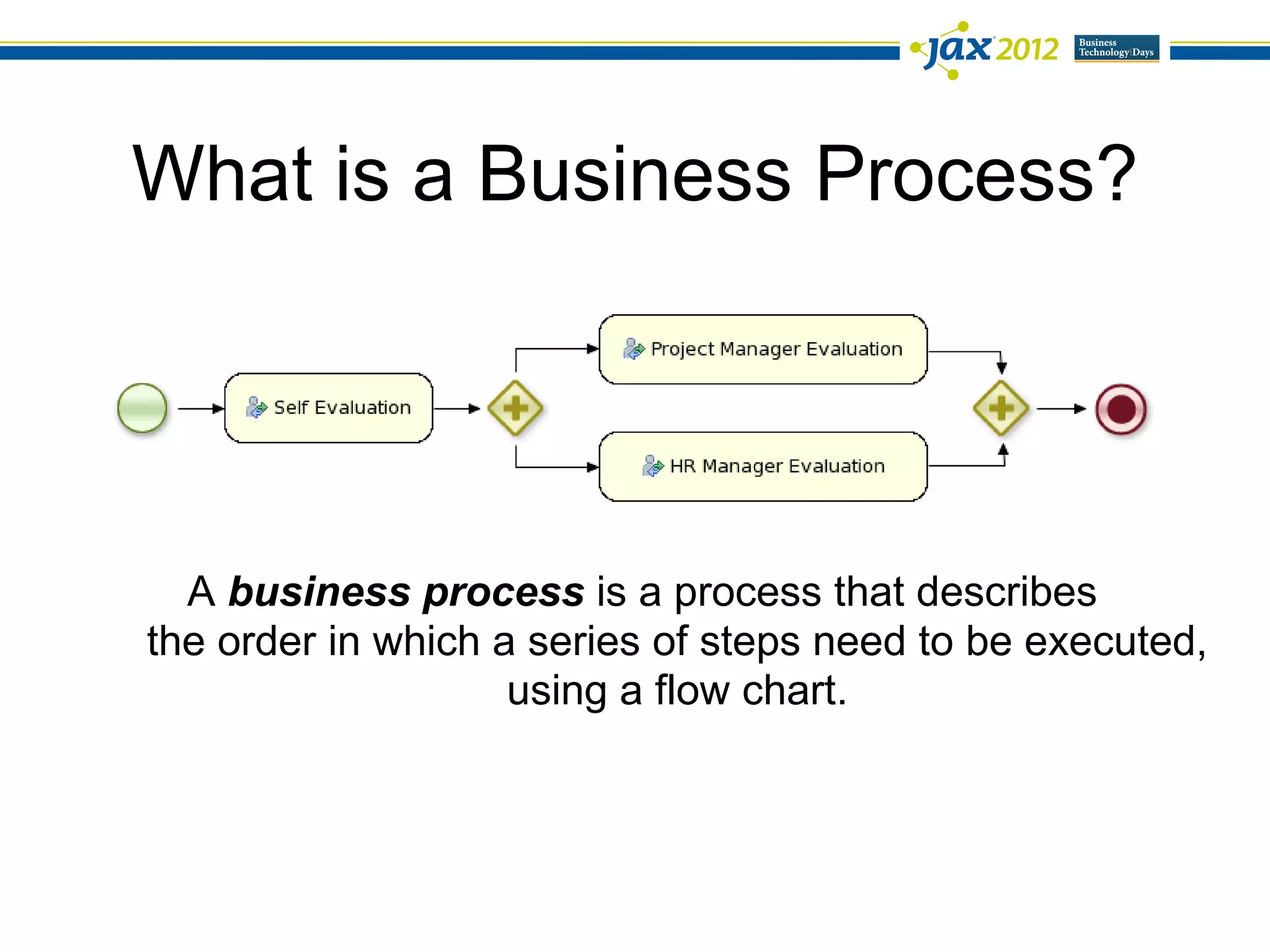

What is a Business Process?




  A business process is a process that describes
the order in which a series of steps need to be executed,
                    using a flow chart.

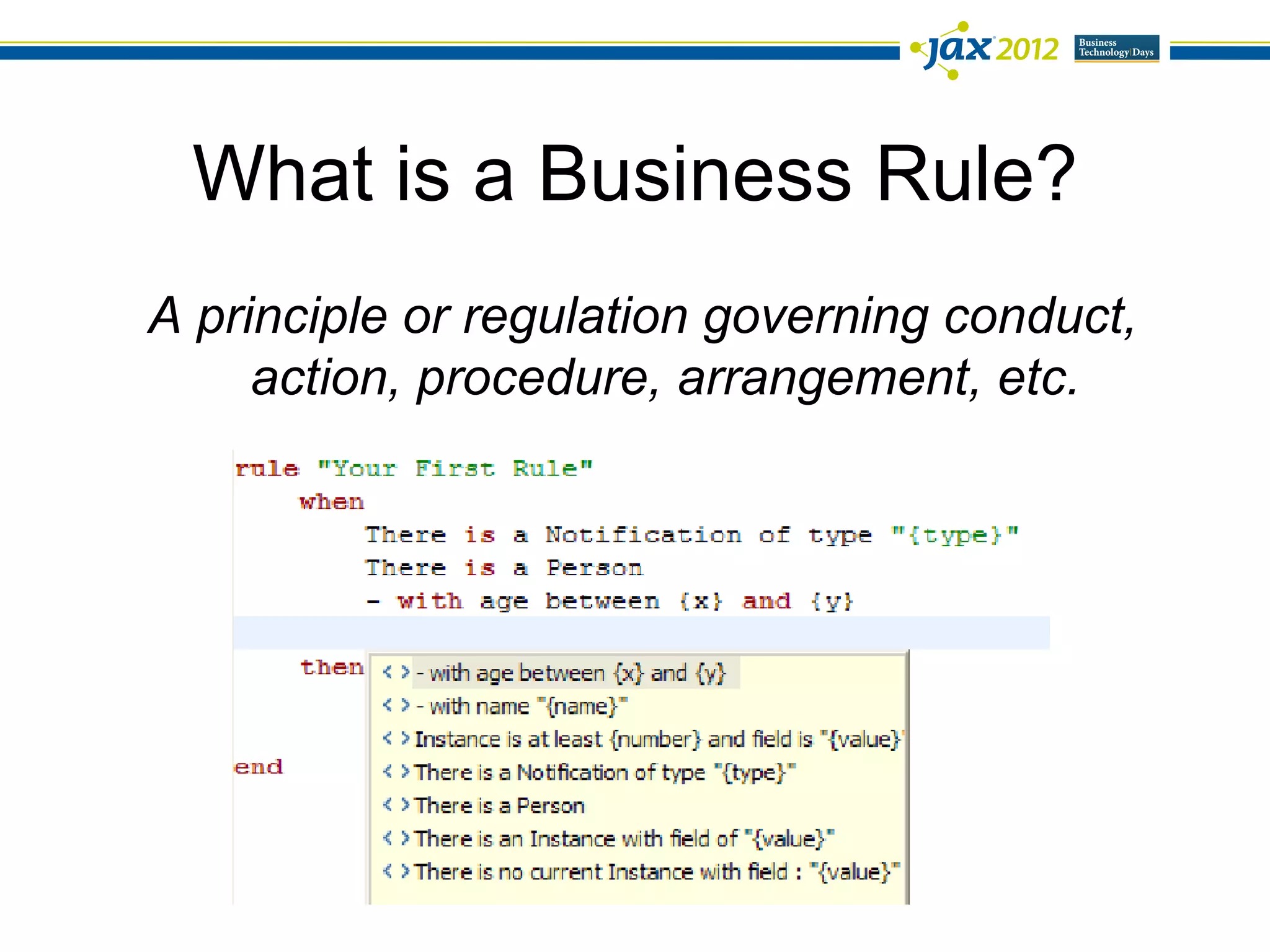

What is a Business Rule?
A principle or regulation governing conduct,
     action, procedure, arrangement, etc.

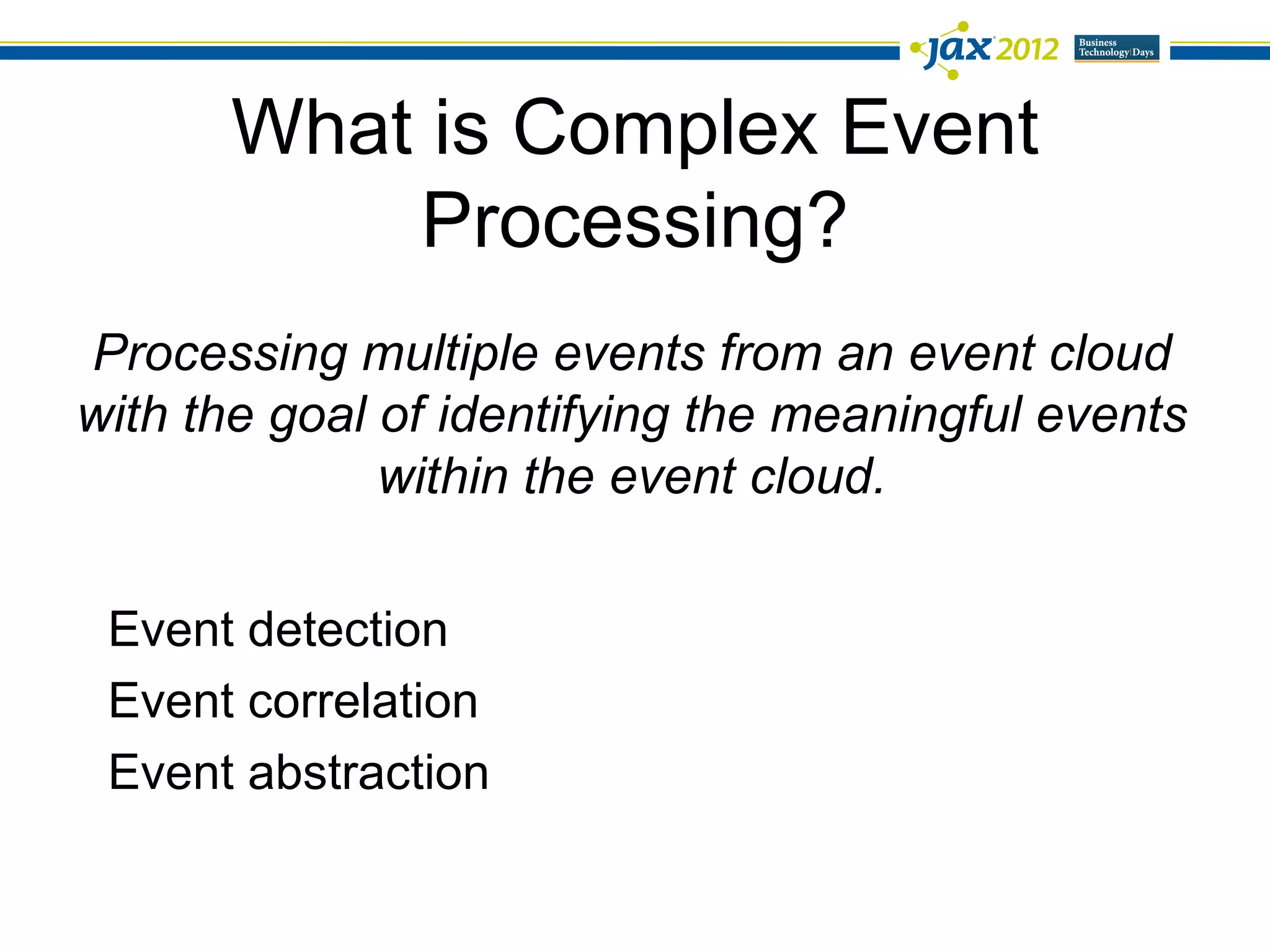

What is Complex Event
          Processing?
Processing multiple events from an event cloud
with the goal of identifying the meaningful events
              within the event cloud.

 Event detection
 Event correlation
 Event abstraction

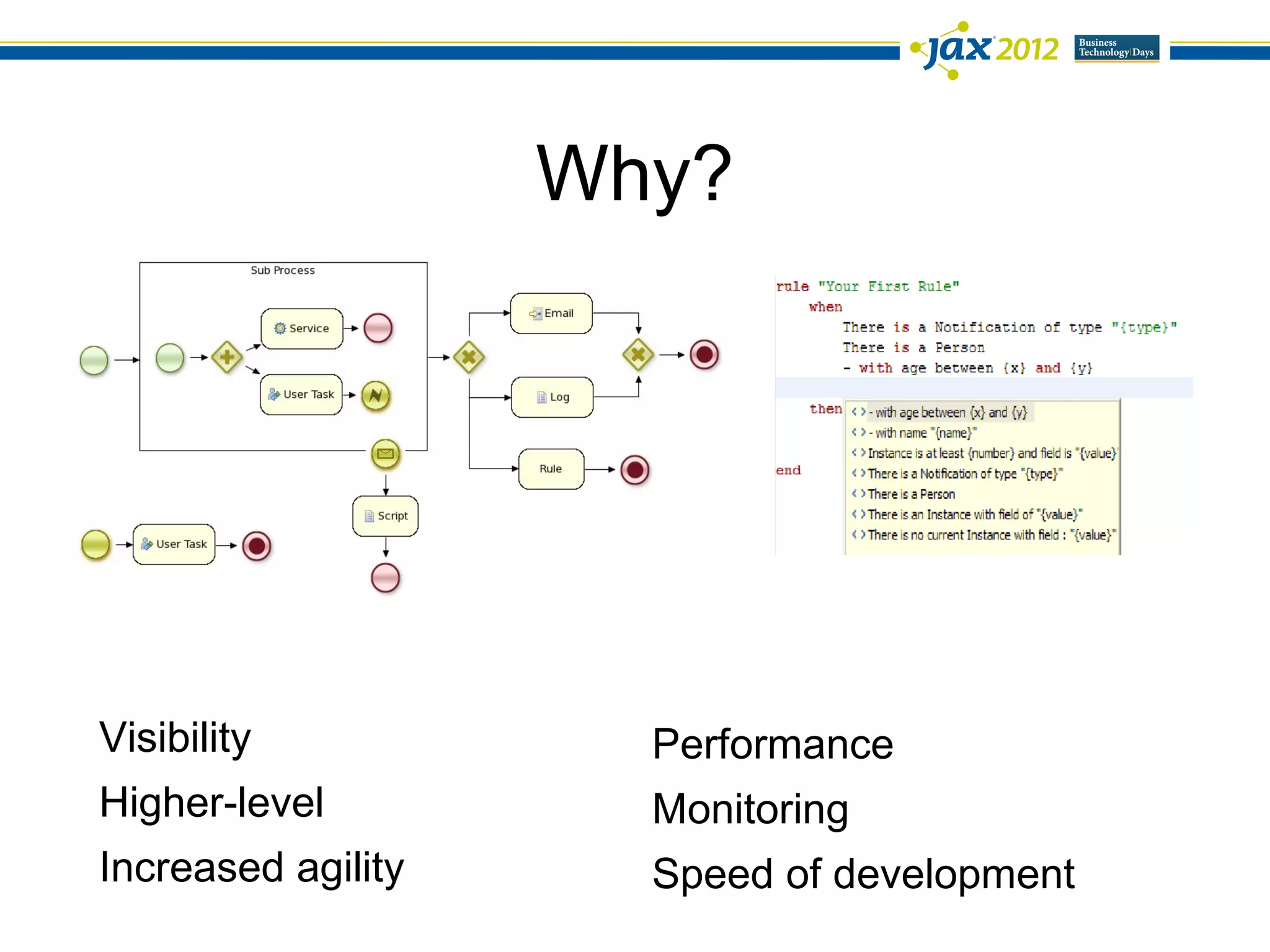

Why?




Visibility            Performance
Higher-level          Monitoring
Increased agility     Speed of development
Processes + Rules + Events

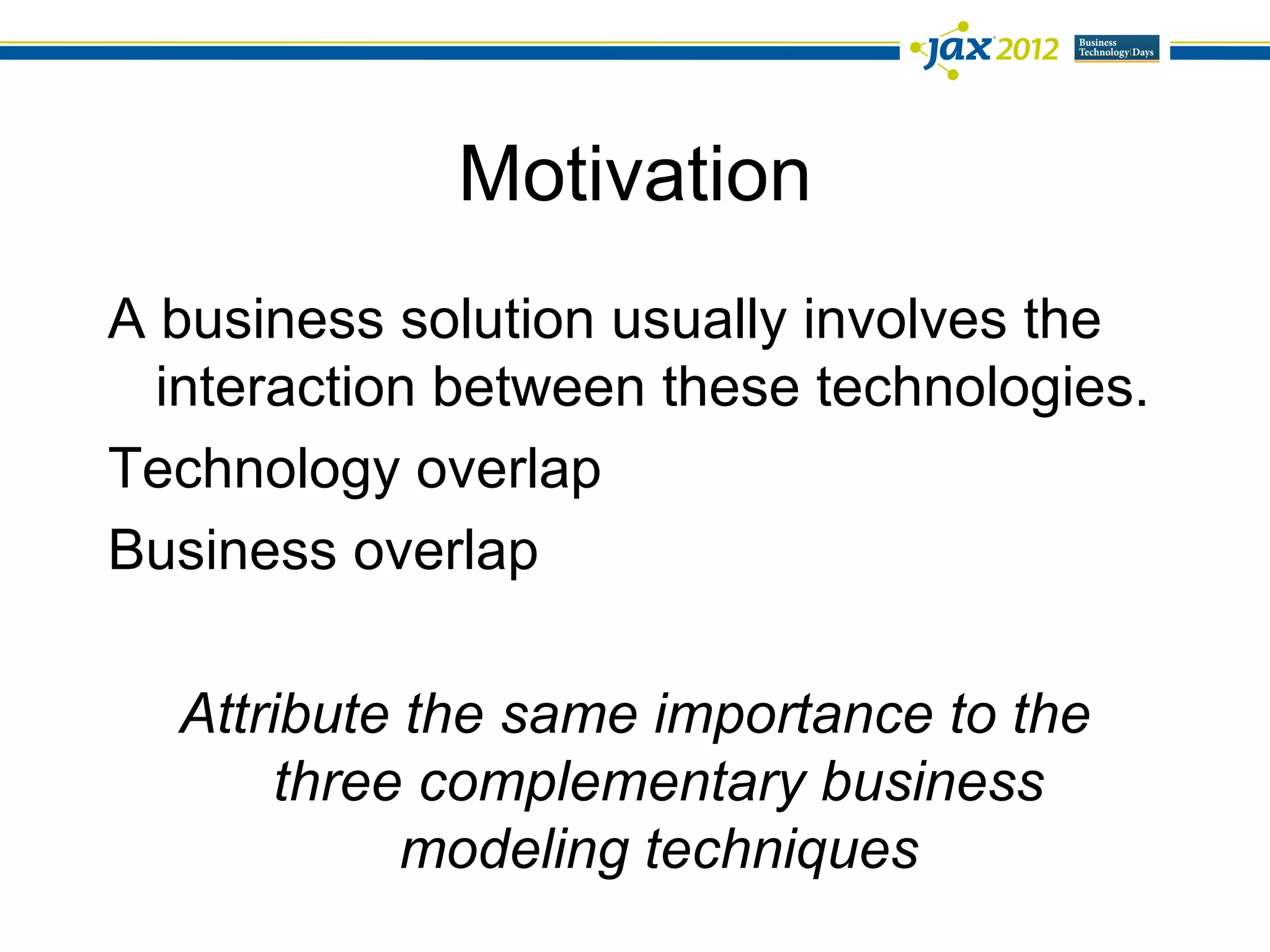

Motivation
A business solution usually involves the
  interaction between these technologies.
Technology overlap
Business overlap

  Attribute the same importance to the
       three complementary business
            modeling techniques

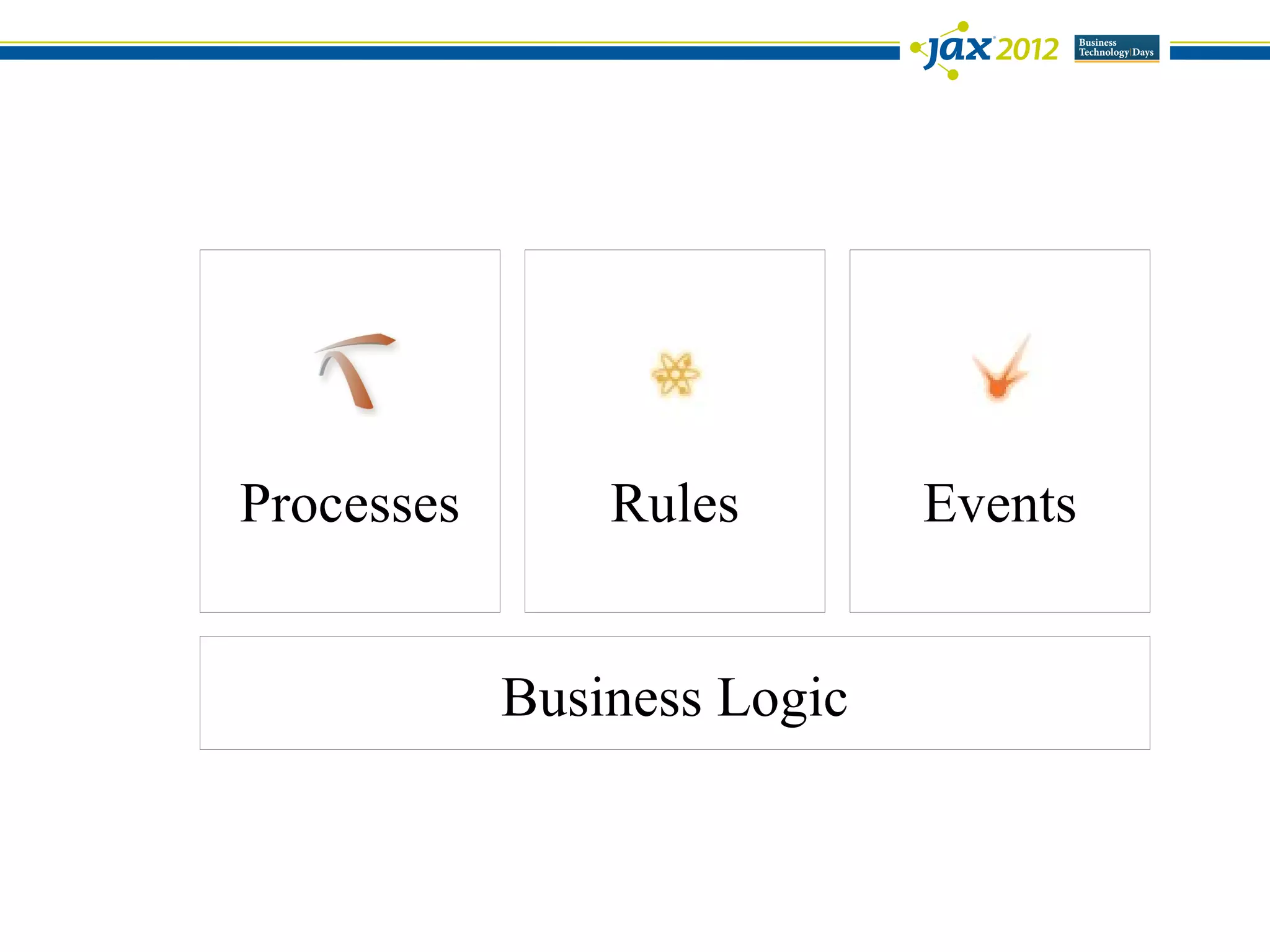

Processes       Rules        Events


            Business Logic

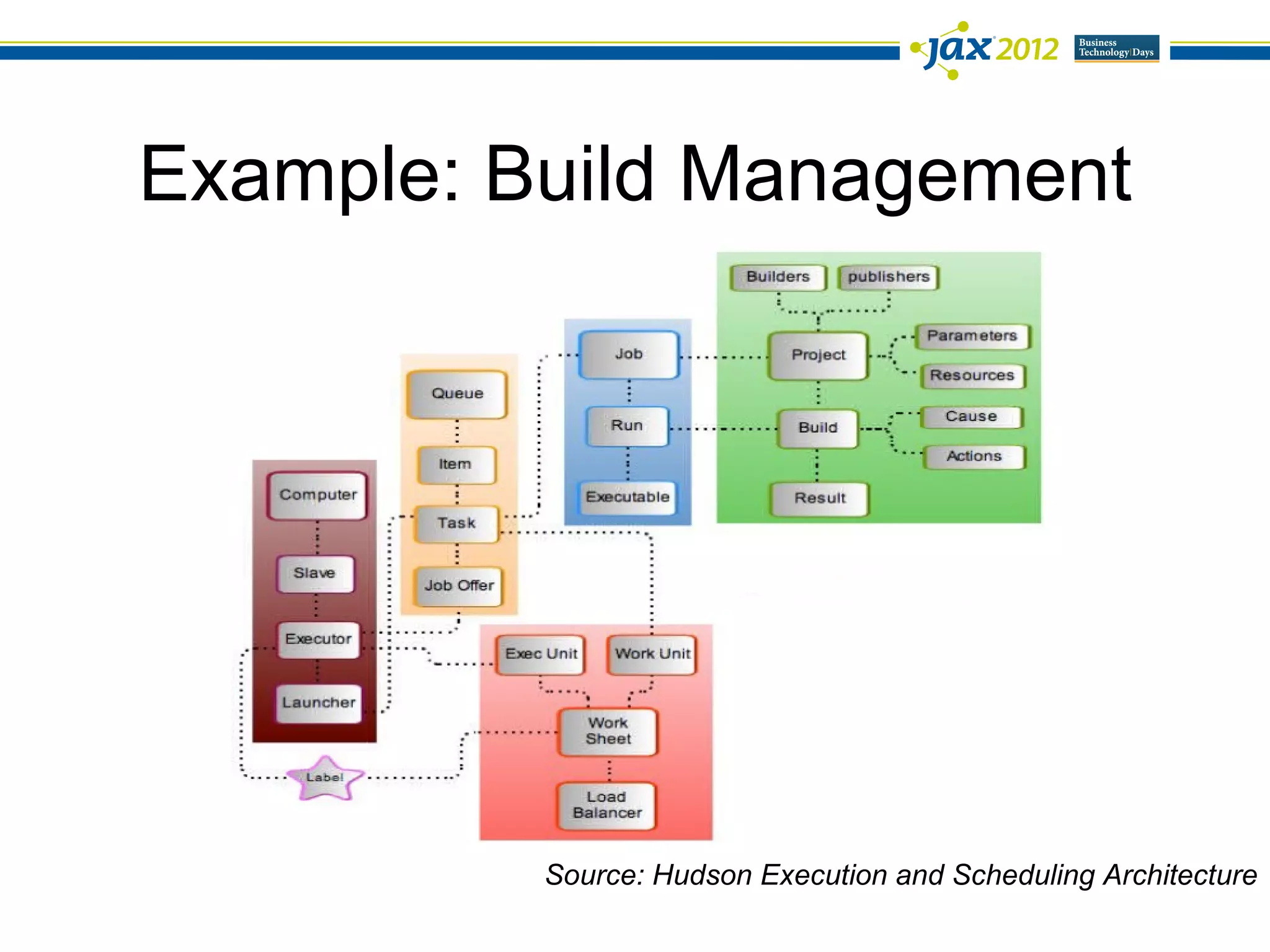

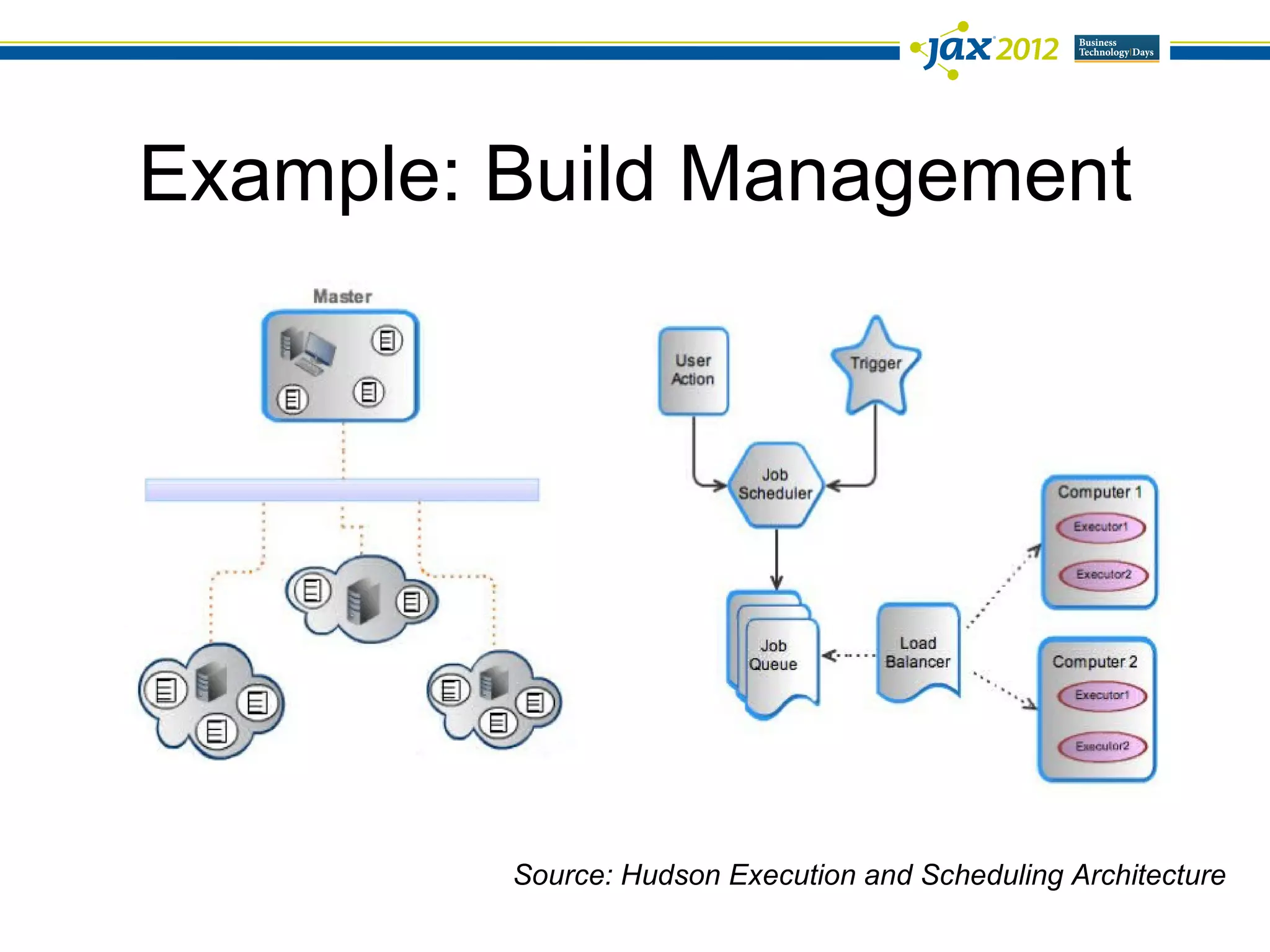

Example: Build Management




          Source: Hudson Execution and Scheduling Architecture
Example: Build Management




         Source: Hudson Execution and Scheduling Architecture

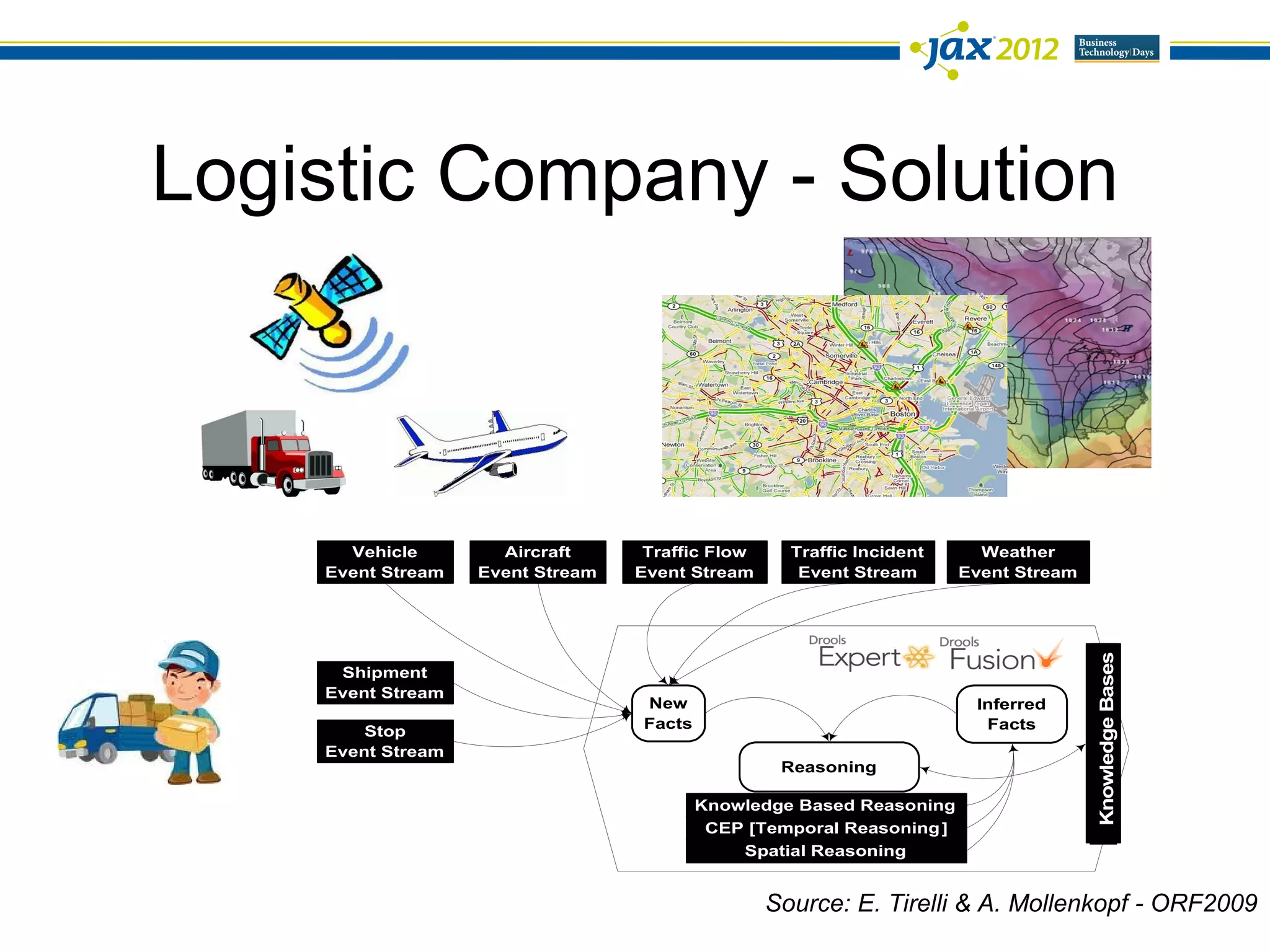

Logistic Company - Solution



      Vehicle        Aircraft      Traffic Flow     Traffic Incident     Weather
    Event Stream   Event Stream   Event Stream       Event Stream      Event Stream




                                                                                      Knowledge Bases
     Shipment
    Event Stream
                                  New                                   Inferred
                                  Facts                                  Facts
        Stop
    Event Stream
                                                   Reasoning

                                          Knowledge Based Reasoning
                                           CEP [Temporal Reasoning ]
                                              Spatial Reasoning


                                                  Source: E. Tirelli & A. Mollenkopf - ORF2009

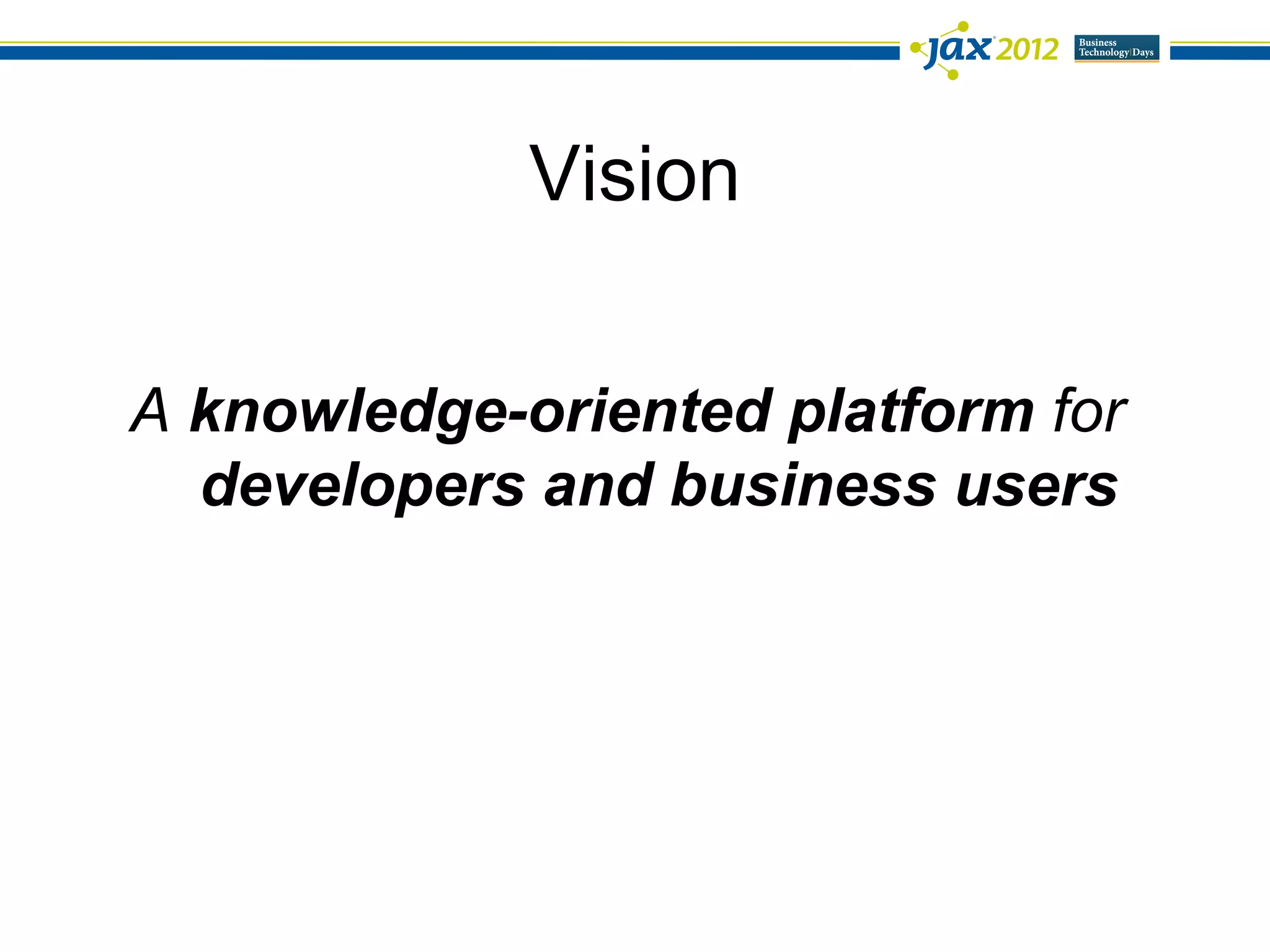

Vision

A knowledge-oriented platform for
  developers and business users

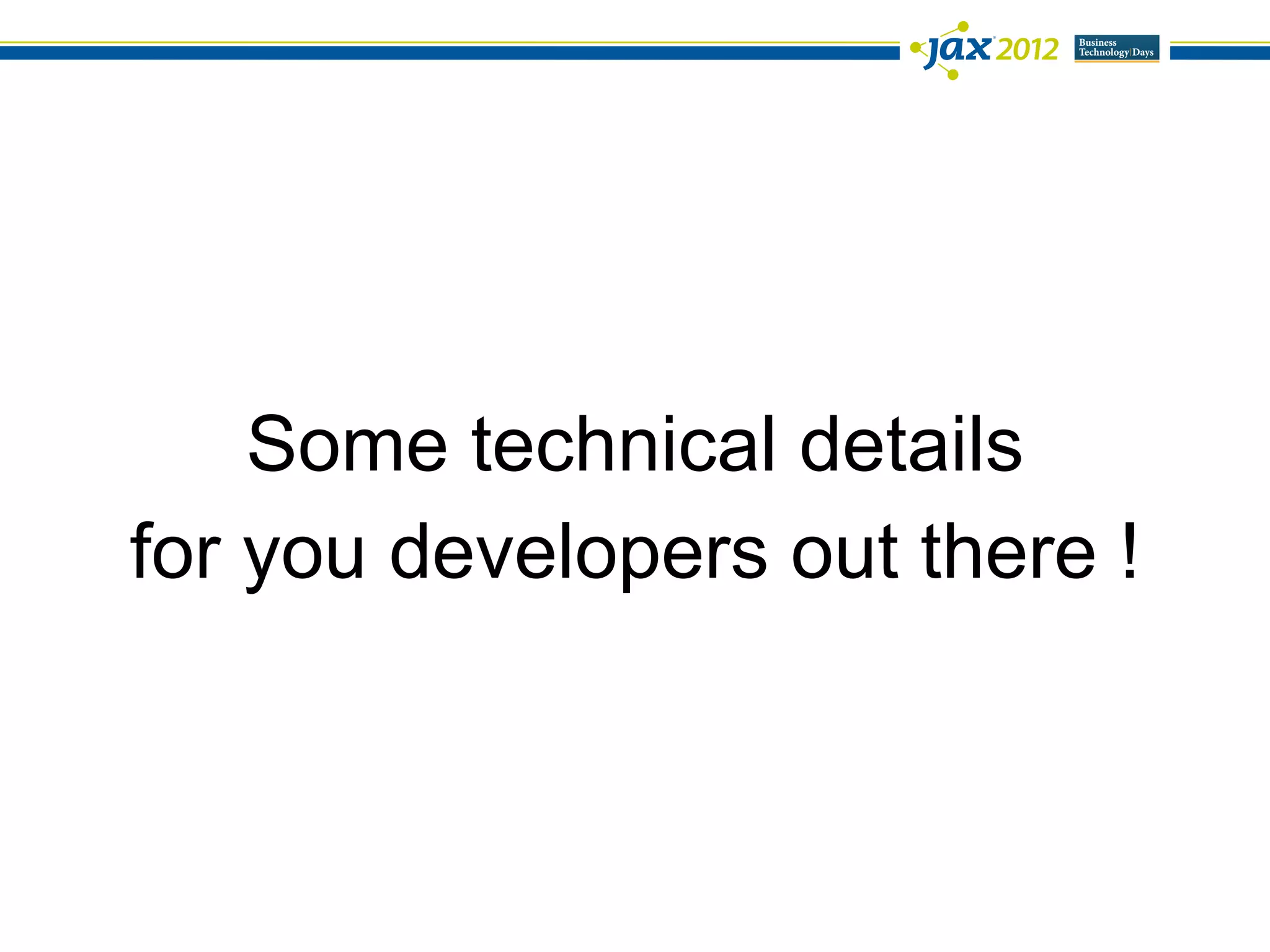

Some technical details
for you developers out there !

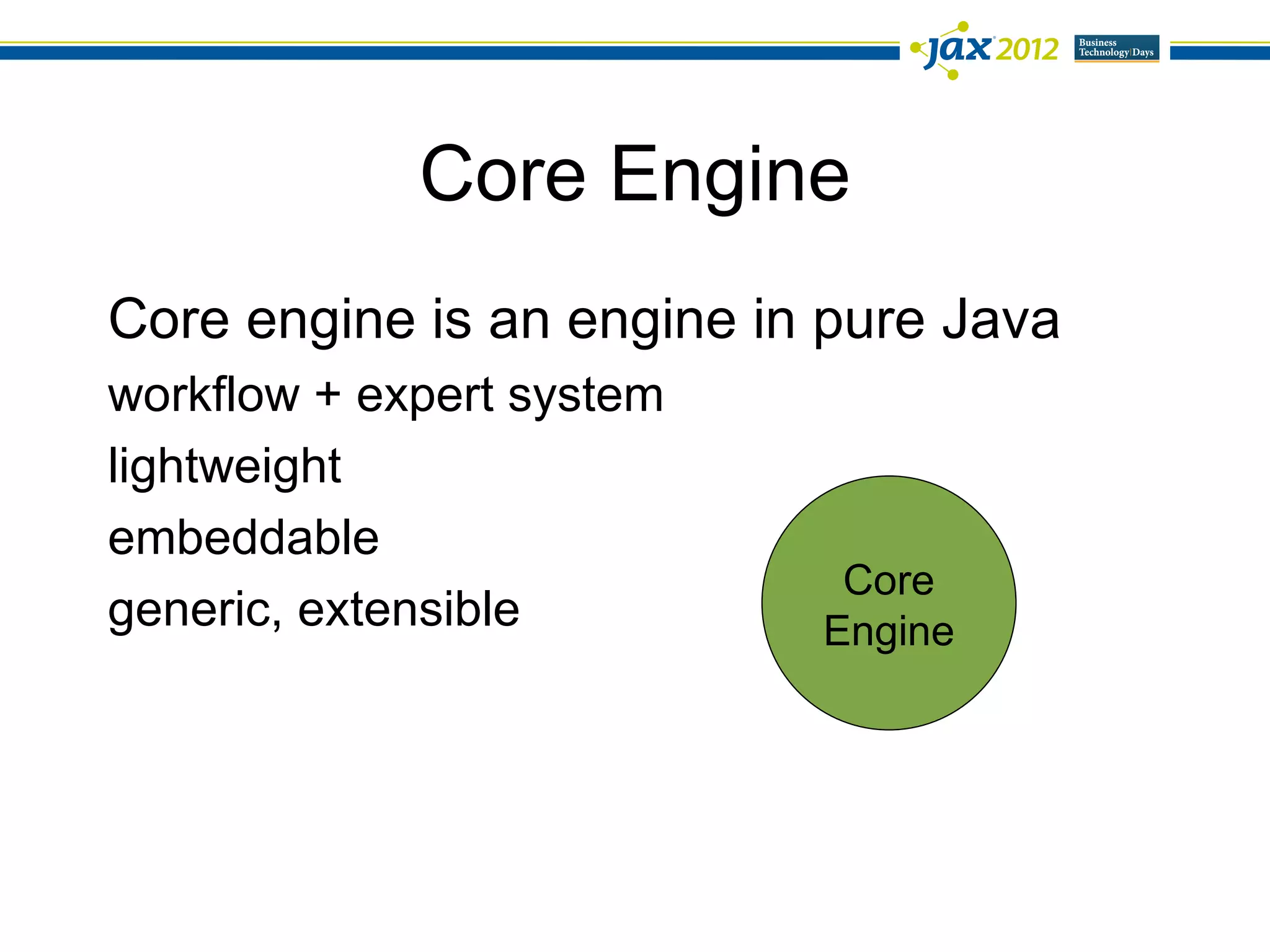

Core Engine
Core engine is an engine in pure Java
workflow + expert system
lightweight
embeddable
                            Core
generic, extensible        Engine

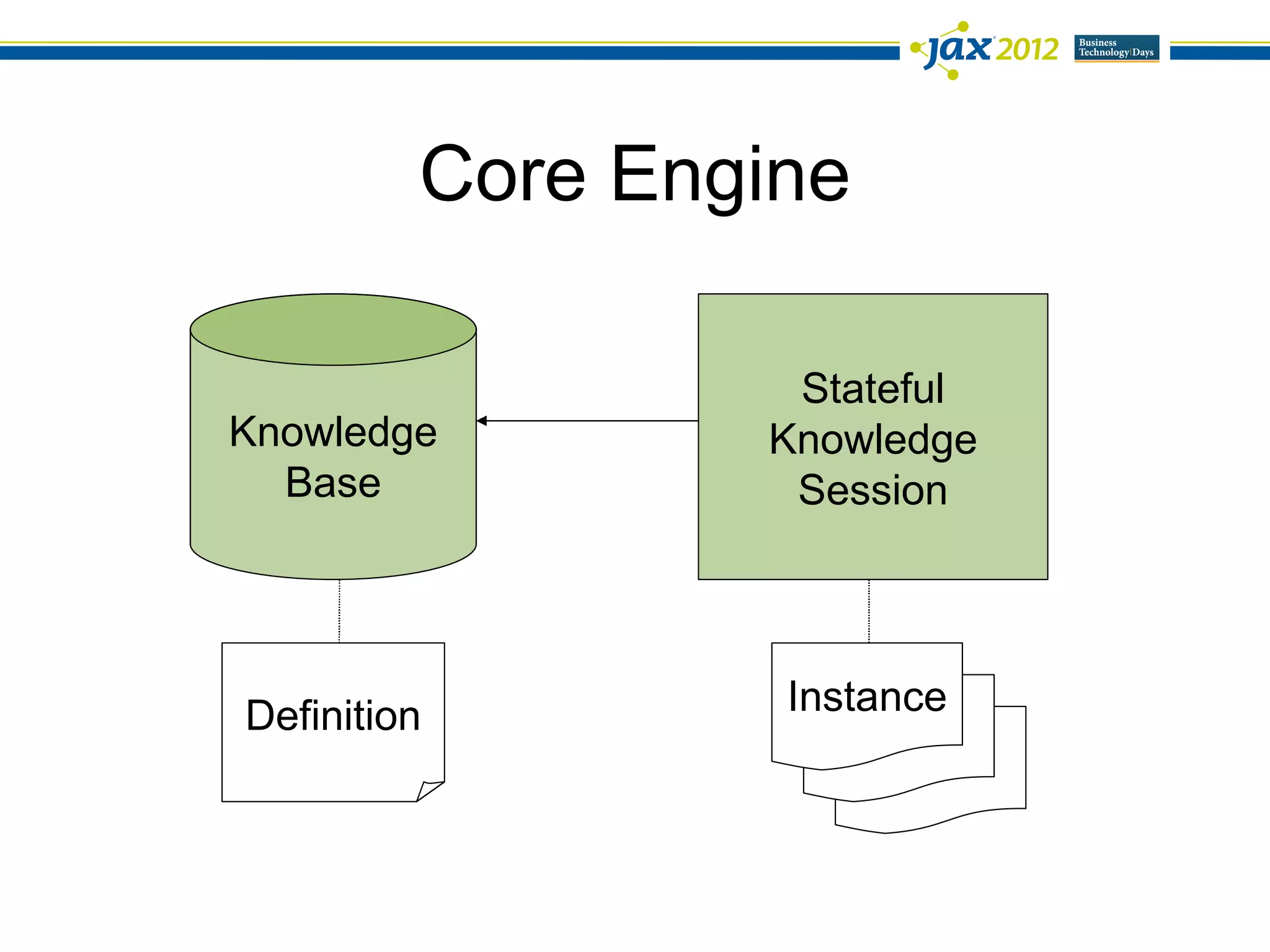

Core Engine

                  Stateful
Knowledge        Knowledge
  Base            Session




Definition        Instance

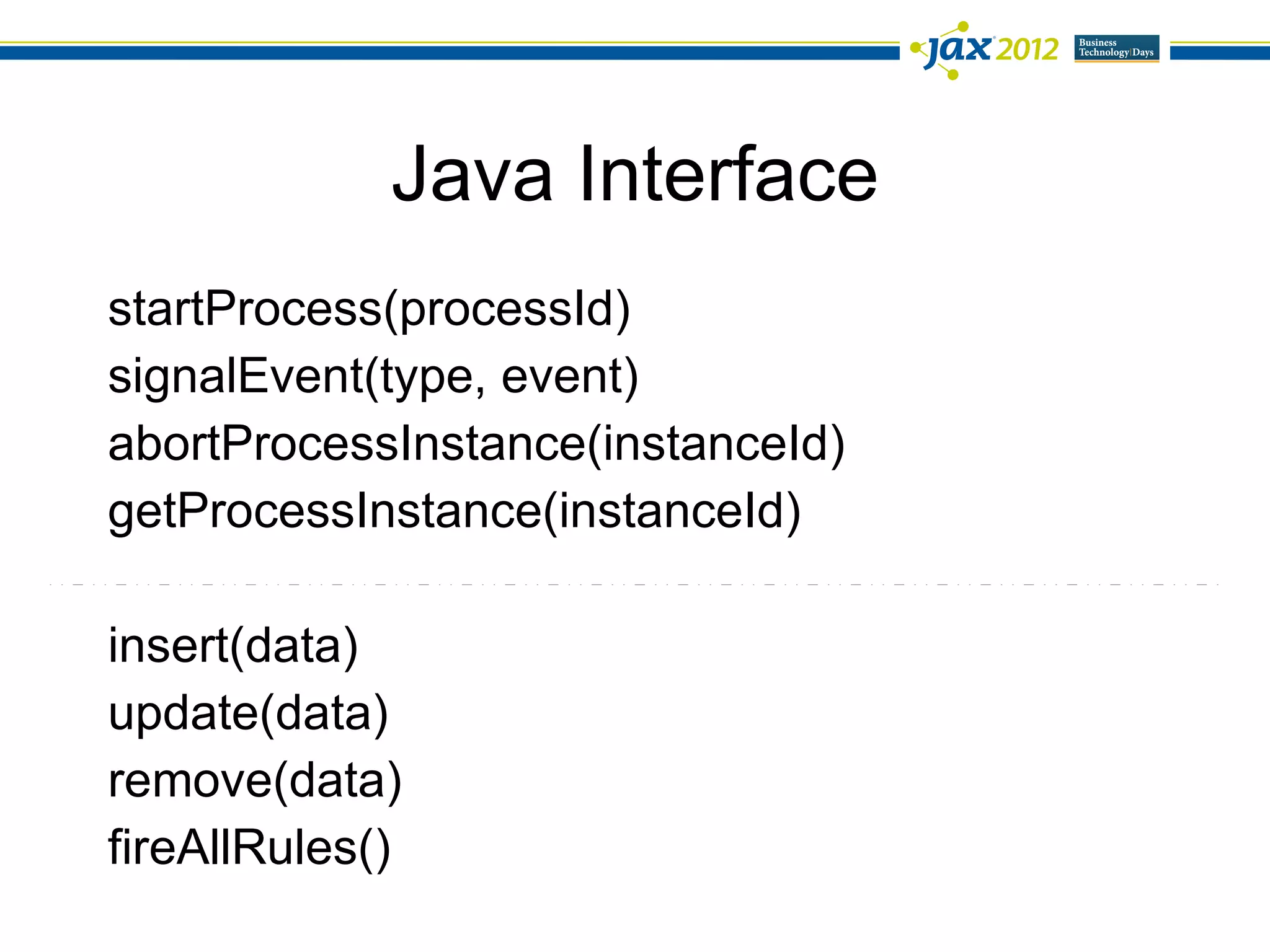

Java Interface
startProcess(processId)
signalEvent(type, event)
abortProcessInstance(instanceId)
getProcessInstance(instanceId)

insert(data)
update(data)
remove(data)
fireAllRules()

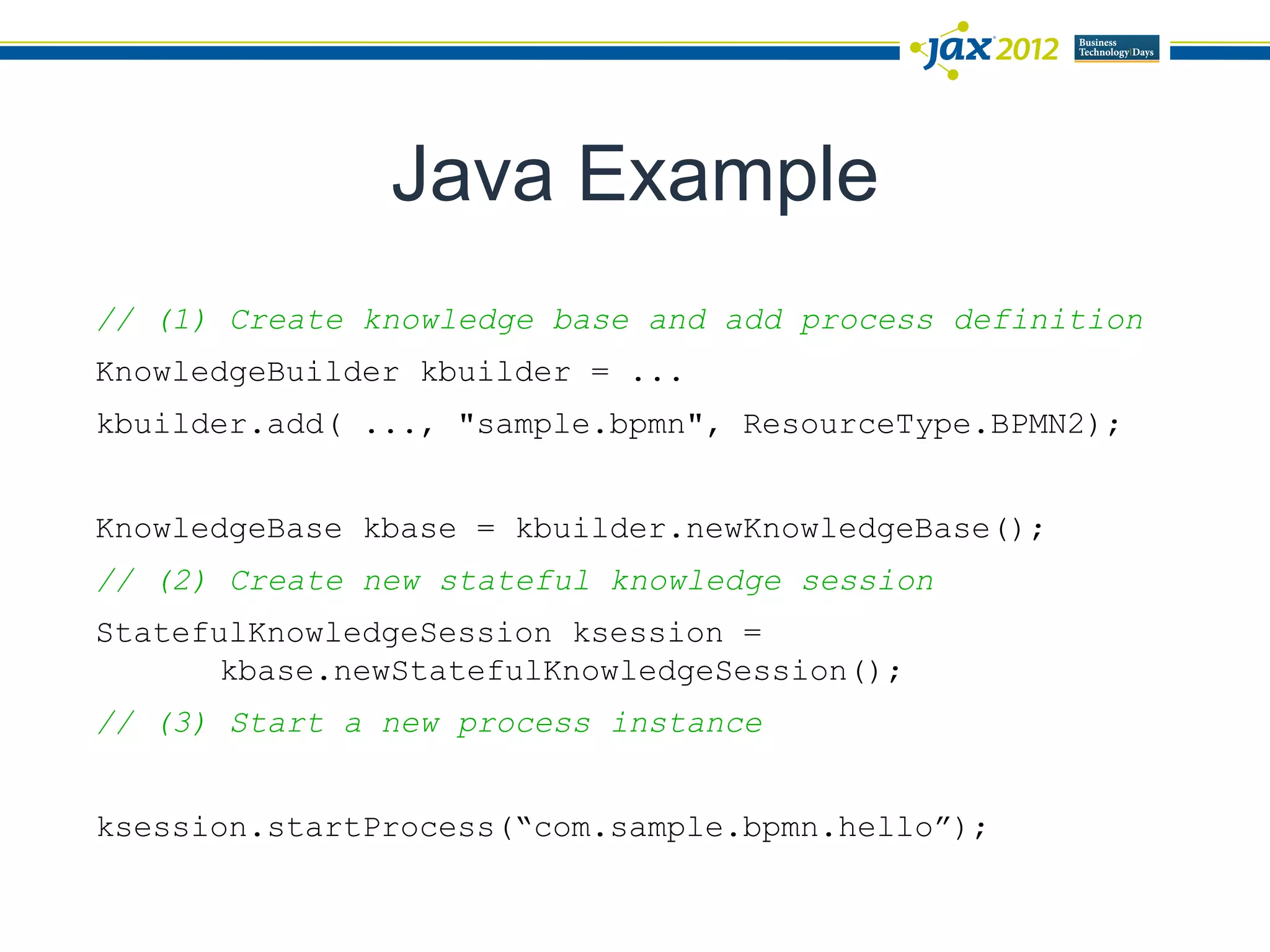

Java Example
// (1) Create knowledge base and add process definition
KnowledgeBuilder kbuilder = ...
kbuilder.add( ..., "sample.bpmn", ResourceType.BPMN2);


KnowledgeBase kbase = kbuilder.newKnowledgeBase();
// (2) Create new stateful knowledge session
StatefulKnowledgeSession ksession =
       kbase.newStatefulKnowledgeSession();
// (3) Start a new process instance


ksession.startProcess(“com.sample.bpmn.hello”);

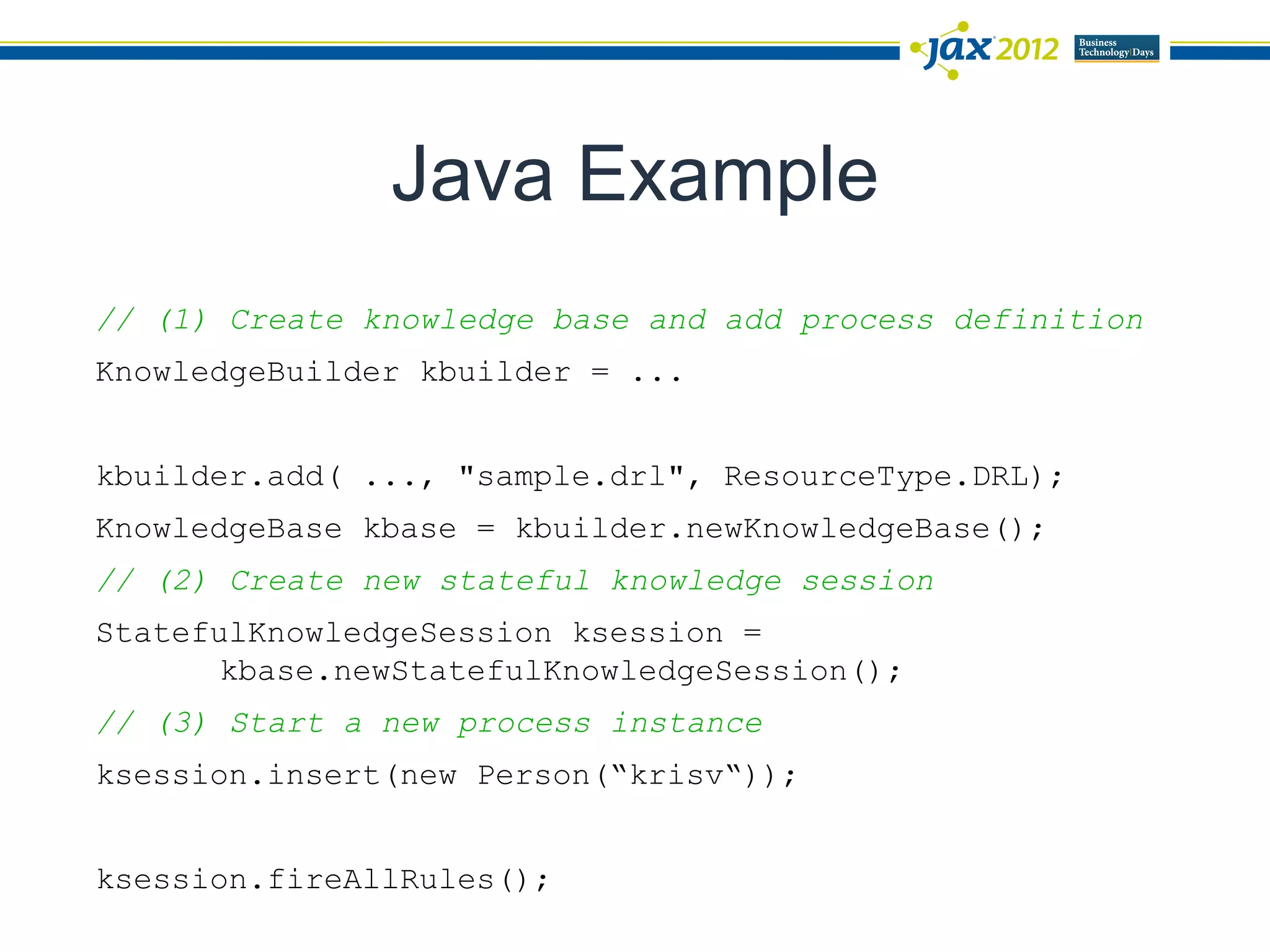

Java Example
// (1) Create knowledge base and add process definition
KnowledgeBuilder kbuilder = ...


kbuilder.add( ..., "sample.drl", ResourceType.DRL);
KnowledgeBase kbase = kbuilder.newKnowledgeBase();
// (2) Create new stateful knowledge session
StatefulKnowledgeSession ksession =
       kbase.newStatefulKnowledgeSession();
// (3) Start a new process instance
ksession.insert(new Person(“krisv“));


ksession.fireAllRules();

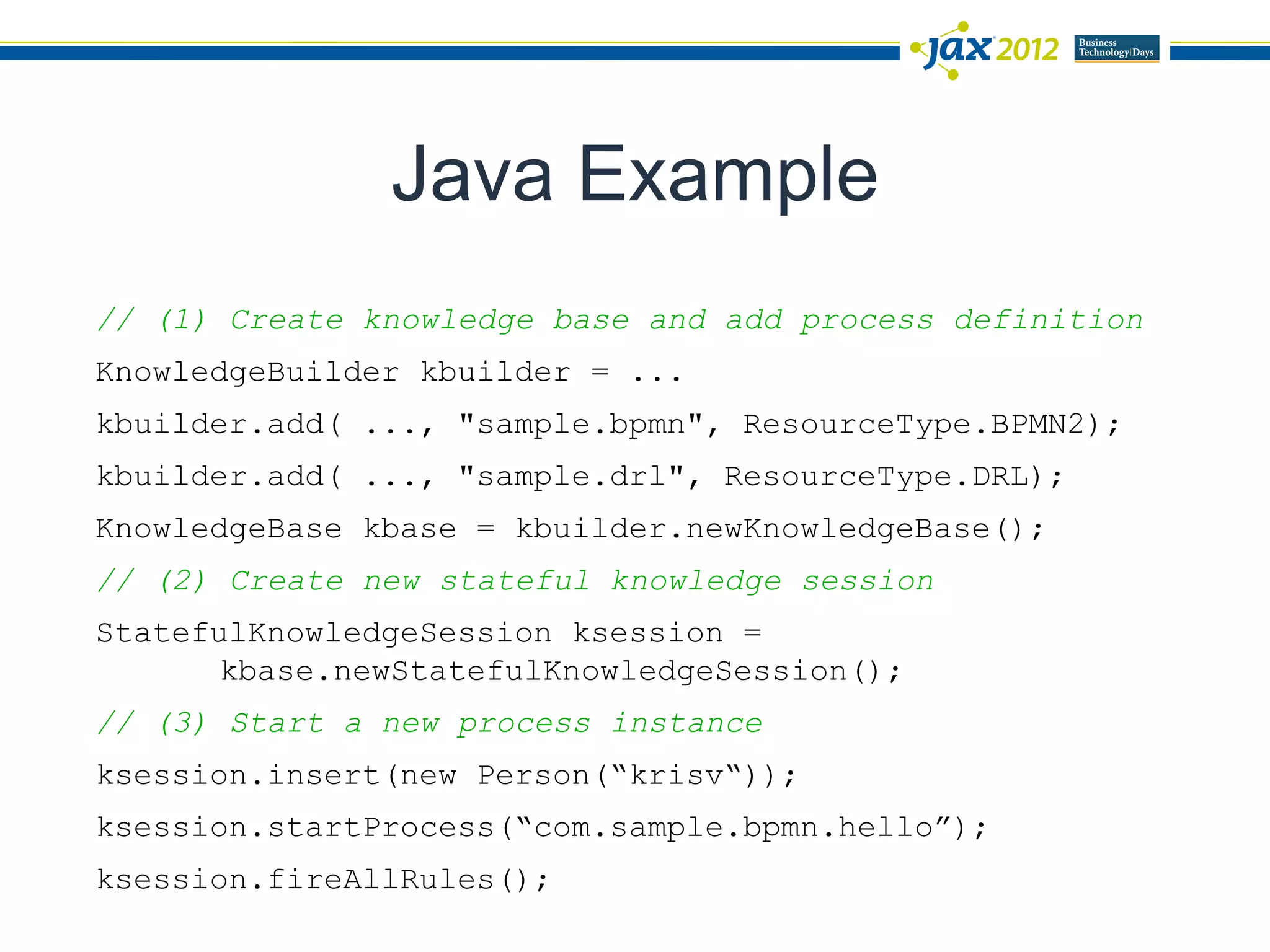

Java Example
// (1) Create knowledge base and add process definition
KnowledgeBuilder kbuilder = ...
kbuilder.add( ..., "sample.bpmn", ResourceType.BPMN2);
kbuilder.add( ..., "sample.drl", ResourceType.DRL);
KnowledgeBase kbase = kbuilder.newKnowledgeBase();
// (2) Create new stateful knowledge session
StatefulKnowledgeSession ksession =
       kbase.newStatefulKnowledgeSession();
// (3) Start a new process instance
ksession.insert(new Person(“krisv“));
ksession.startProcess(“com.sample.bpmn.hello”);
ksession.fireAllRules();

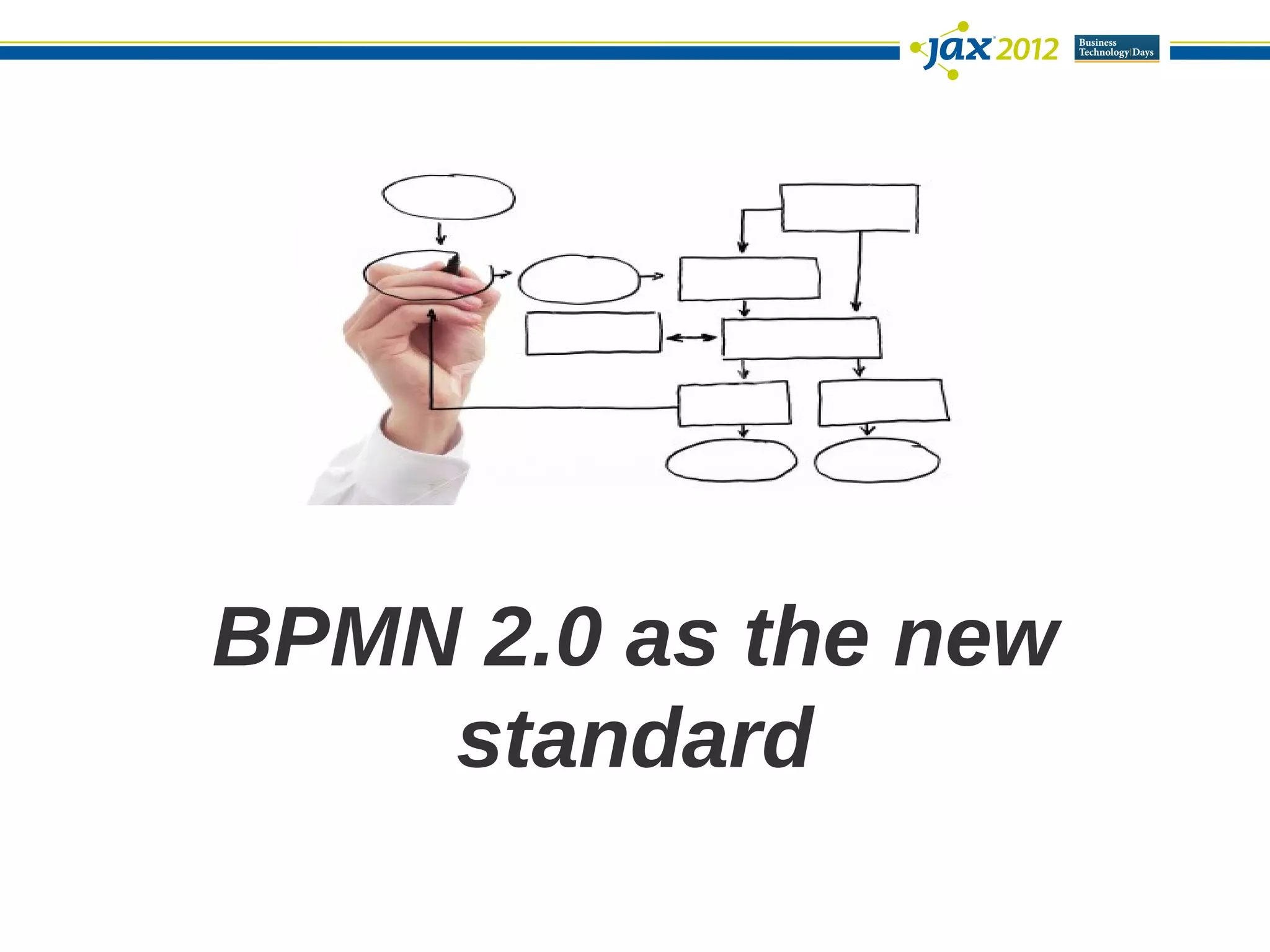

BPMN 2.0 as the new
    standard

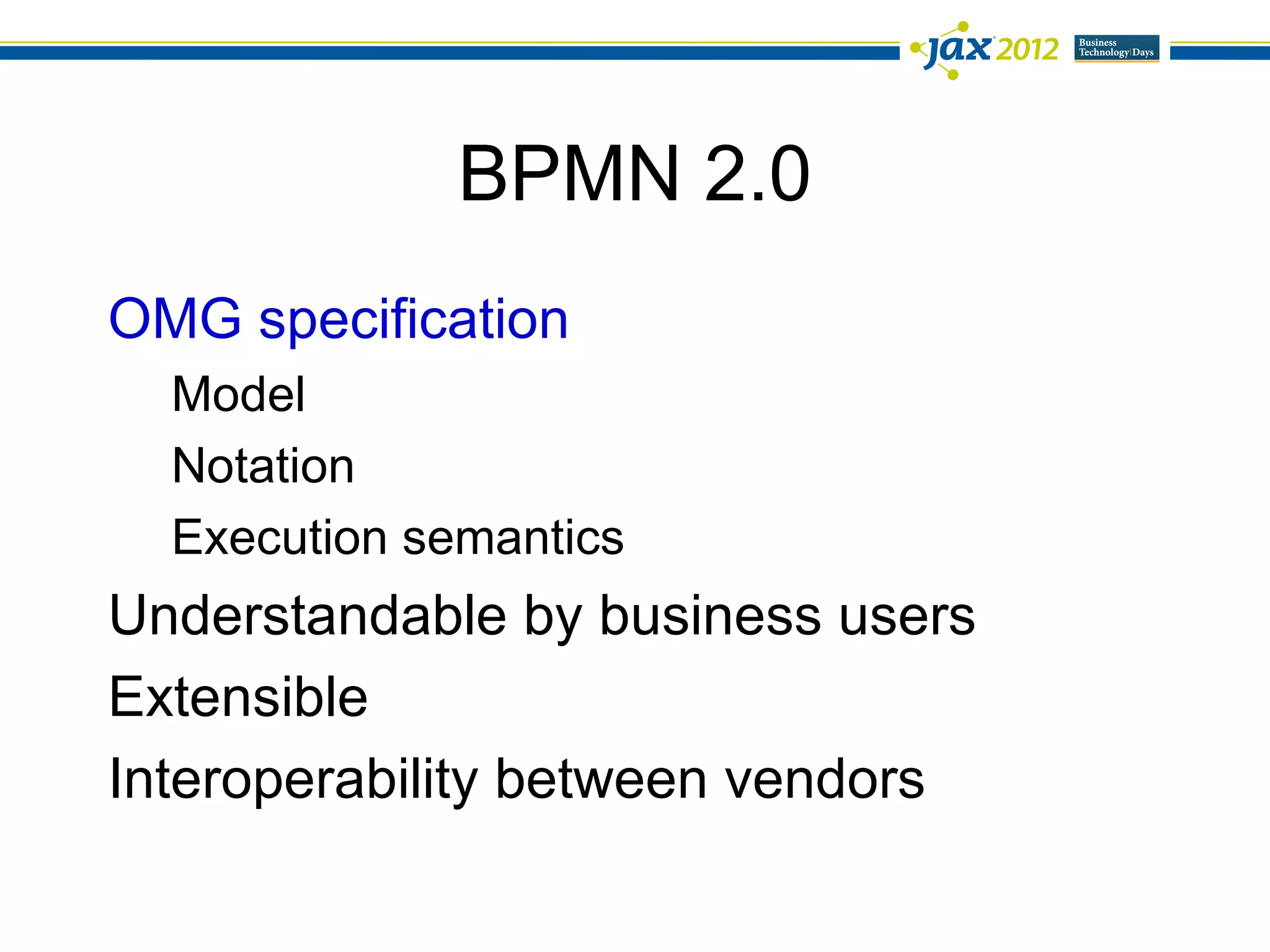

BPMN 2.0
OMG specification
  Model
  Notation
  Execution semantics
Understandable by business users
Extensible
Interoperability between vendors

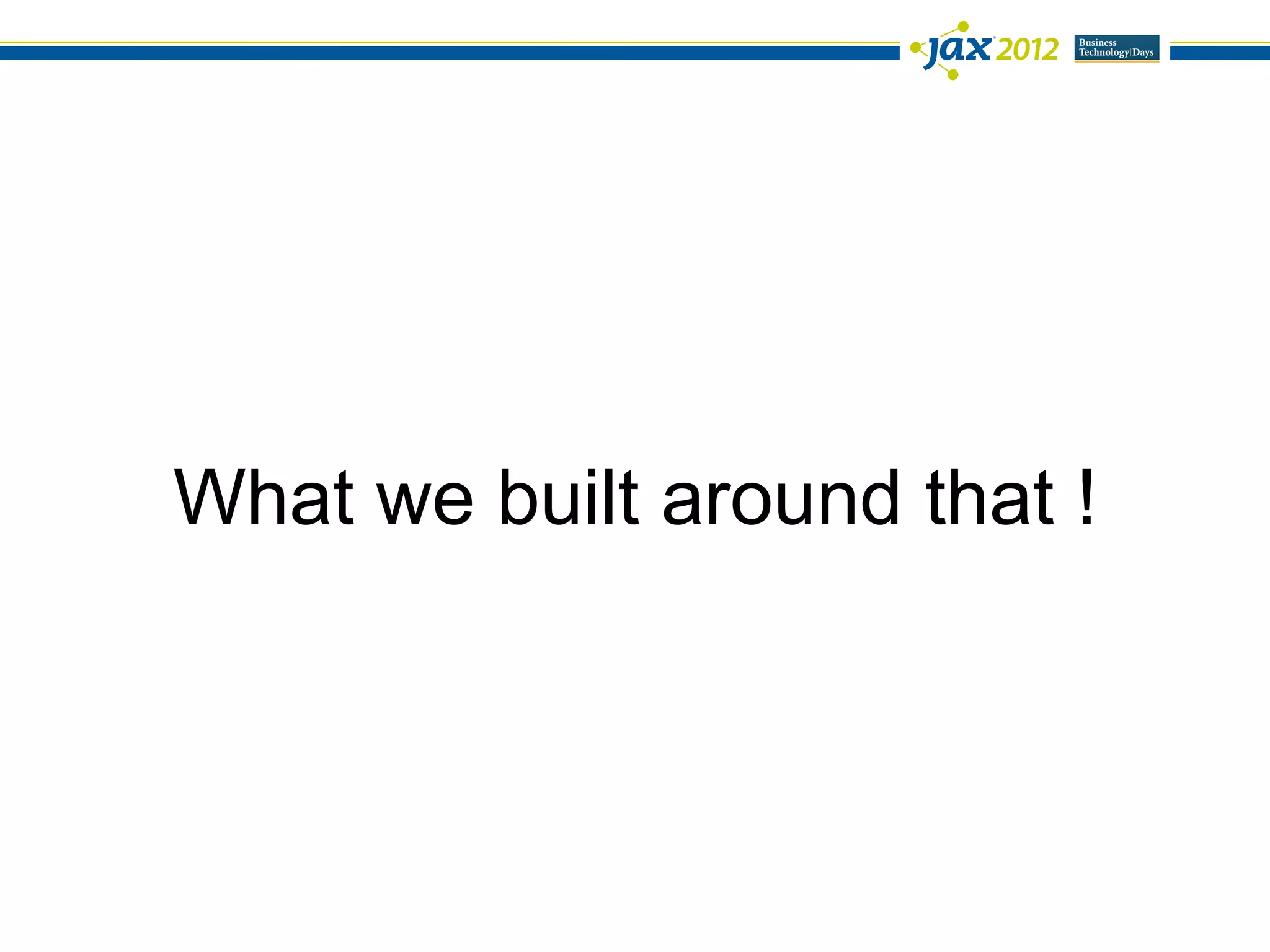

What we built around that !

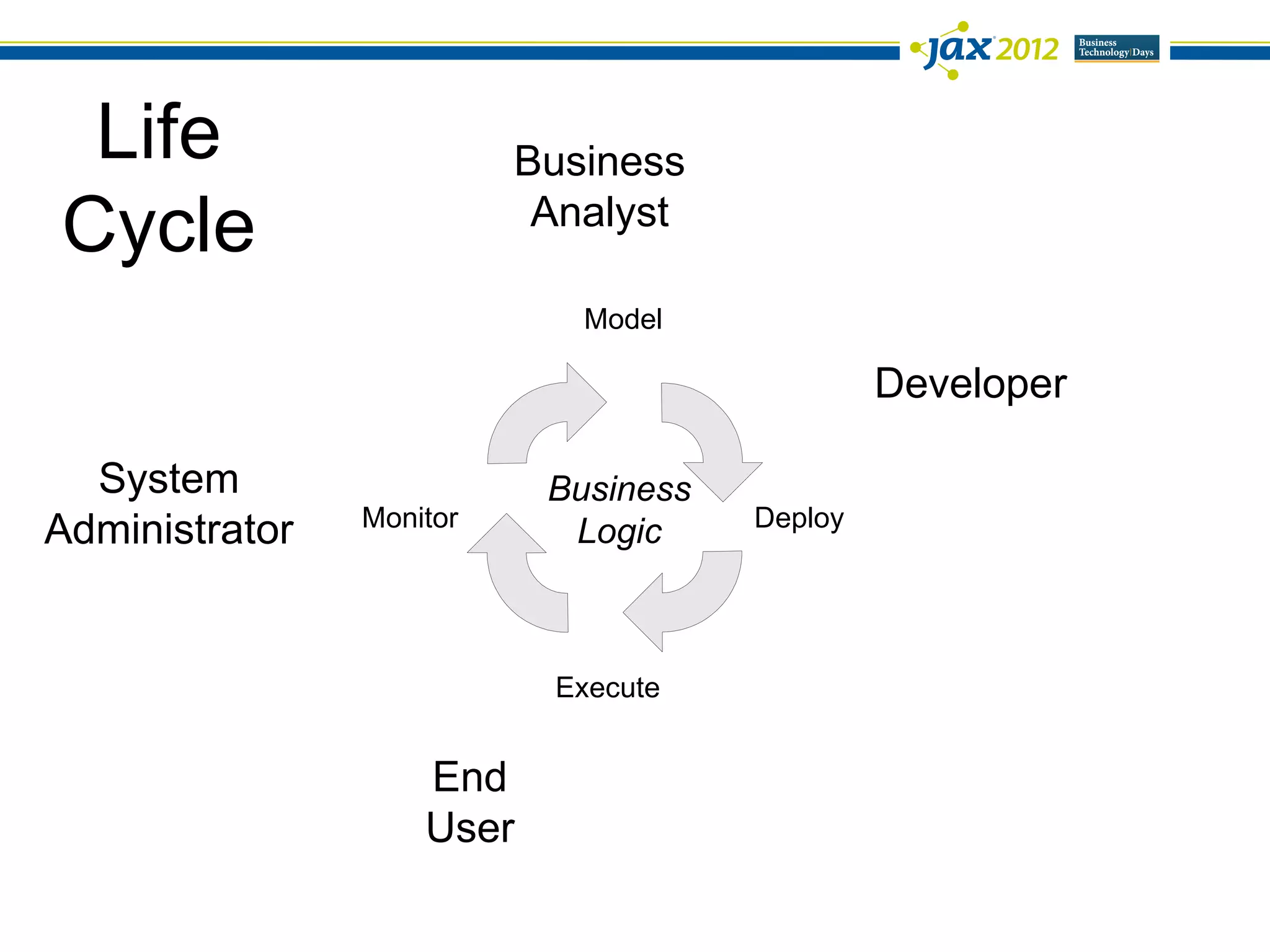

Life                     Business
Cycle                      Analyst

                             Model

                                               Developer

  System                   Business
                Monitor               Deploy
Administrator               Logic



                           Execute


                    End
                    User
r
                                ito
   Your




                              on
  Applicati                                jBPM Console




                          M
    on




                          e
                                                                Core Services

                    ut
                 ec
   Your                        Core            History     Task
              Ex
  Services                    Engine            Log       Service
                    y
                lo
              ep



                           Guvnor
          D




                          Repository
 el




                                           Web-Based
         Eclipse Editor
 od




                                            Designer
M




              Developer                    Business
                                            Analyst

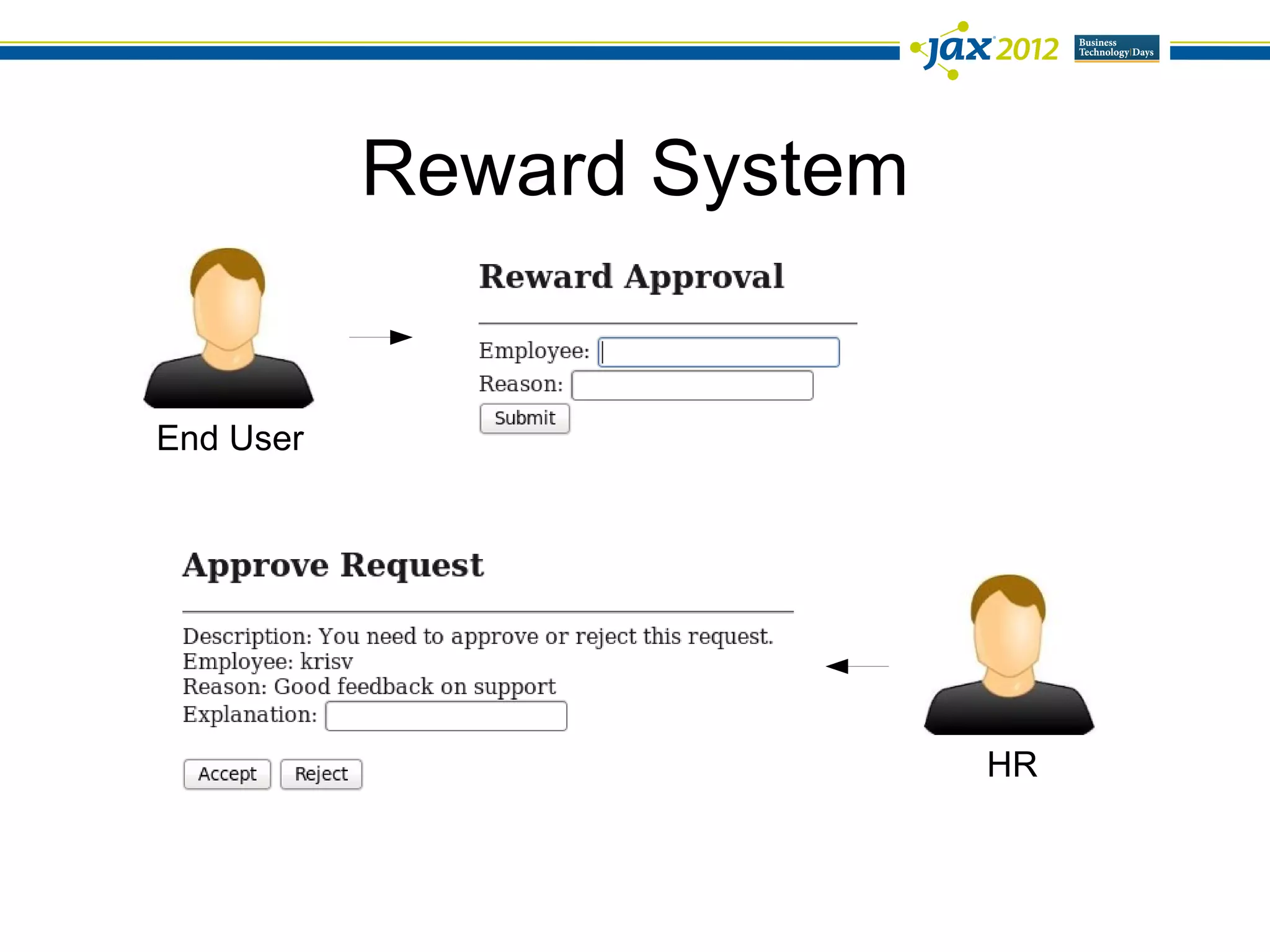

Example: Reward System

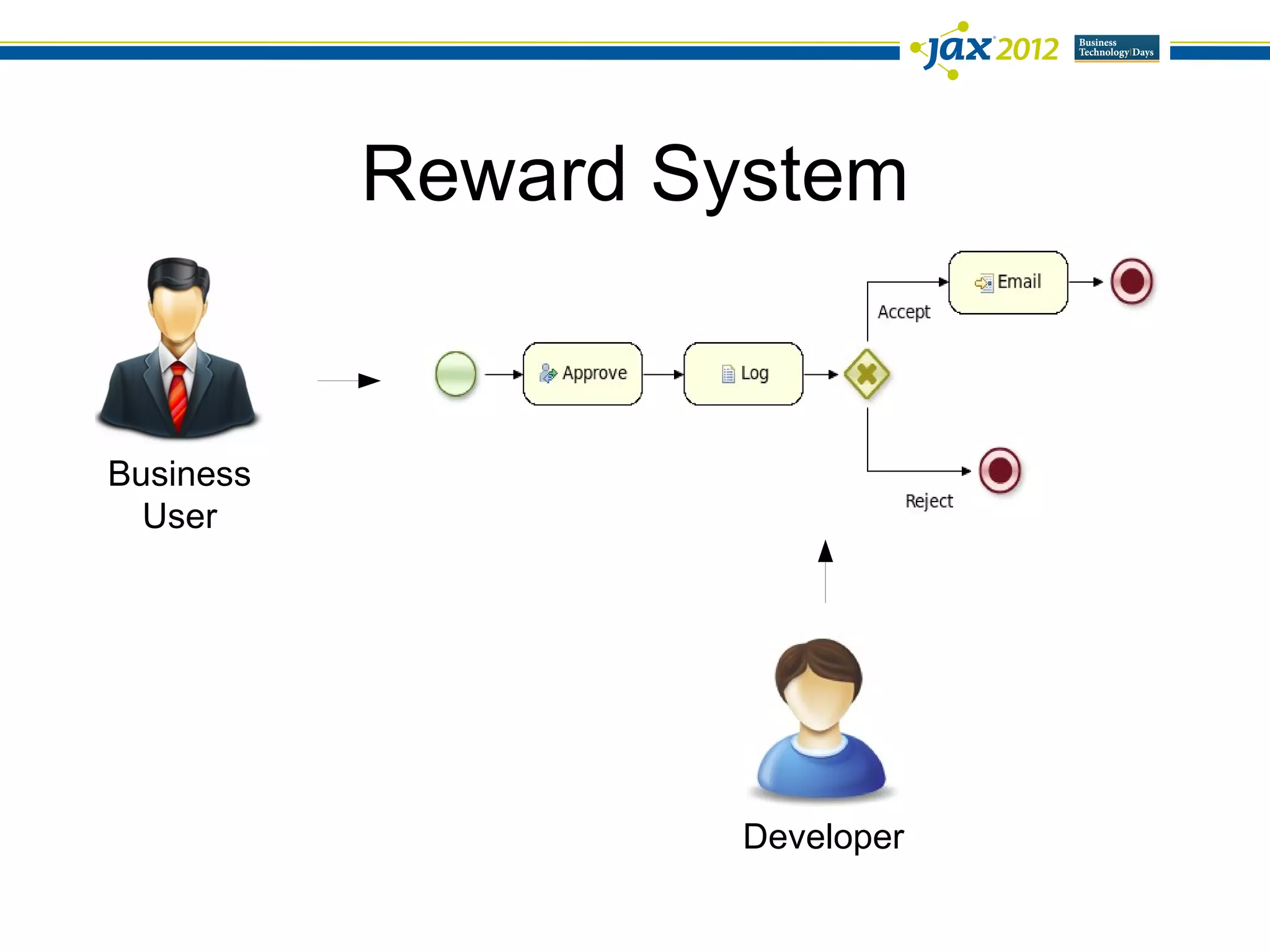

Reward System


Business
  User




                    Developer
Reward System


End User




                           HR

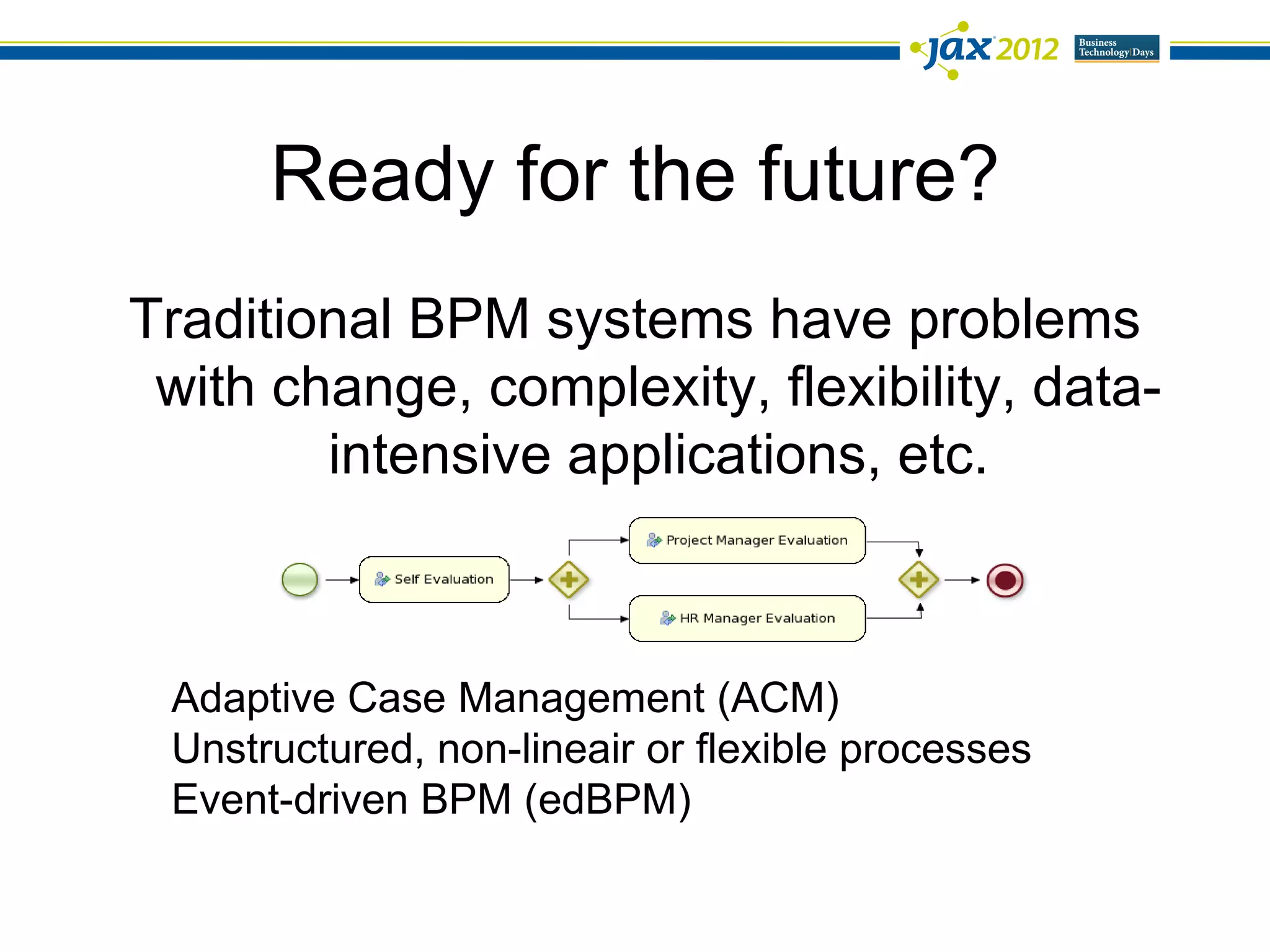

Ready for the future?
Traditional BPM systems have problems
 with change, complexity, flexibility, data-
        intensive applications, etc.



 Adaptive Case Management (ACM)
 Unstructured, non-lineair or flexible processes
 Event-driven BPM (edBPM)

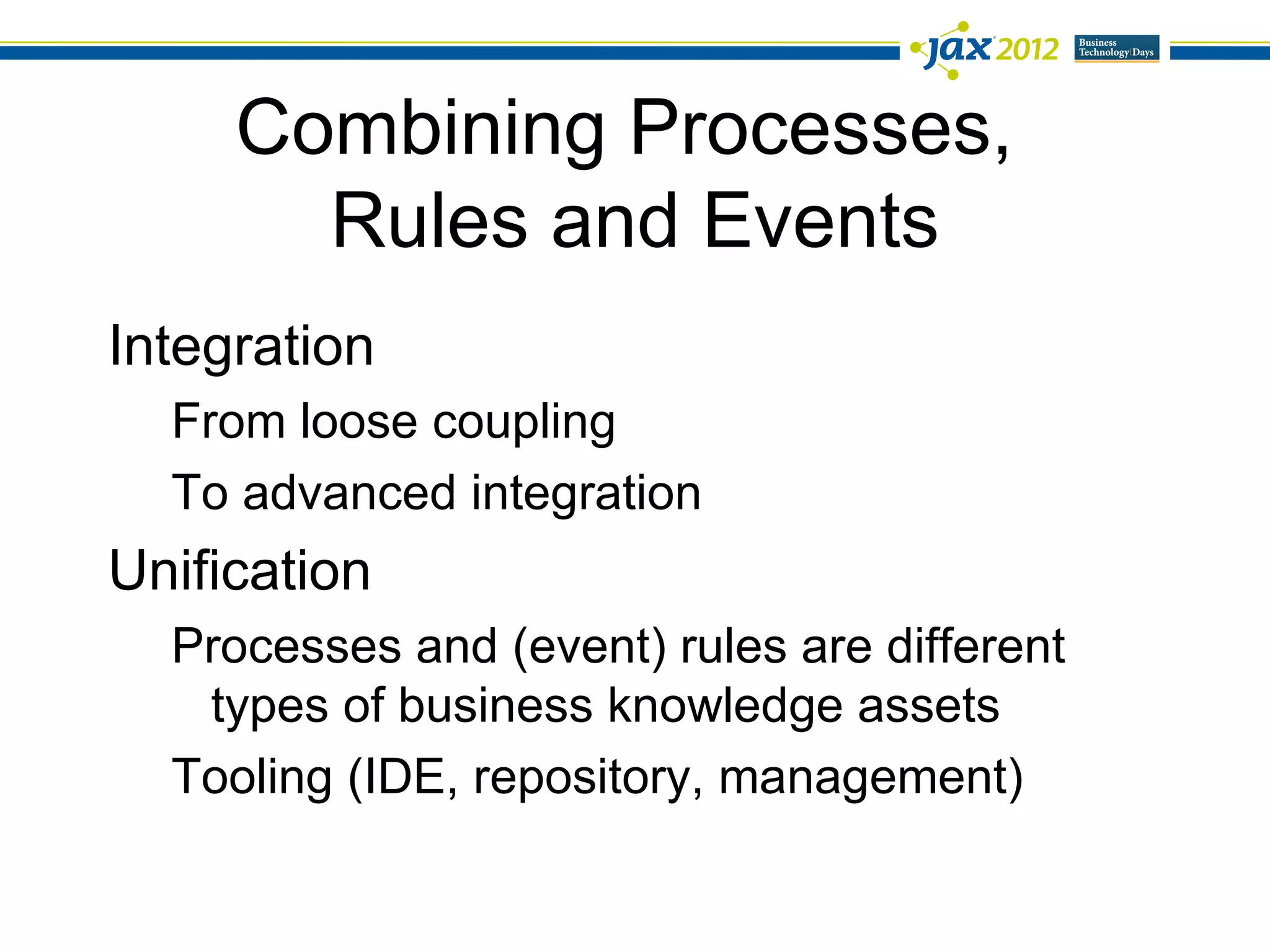

Combining Processes,
       Rules and Events
Integration
  From loose coupling
  To advanced integration
Unification
  Processes and (event) rules are different
   types of business knowledge assets
  Tooling (IDE, repository, management)

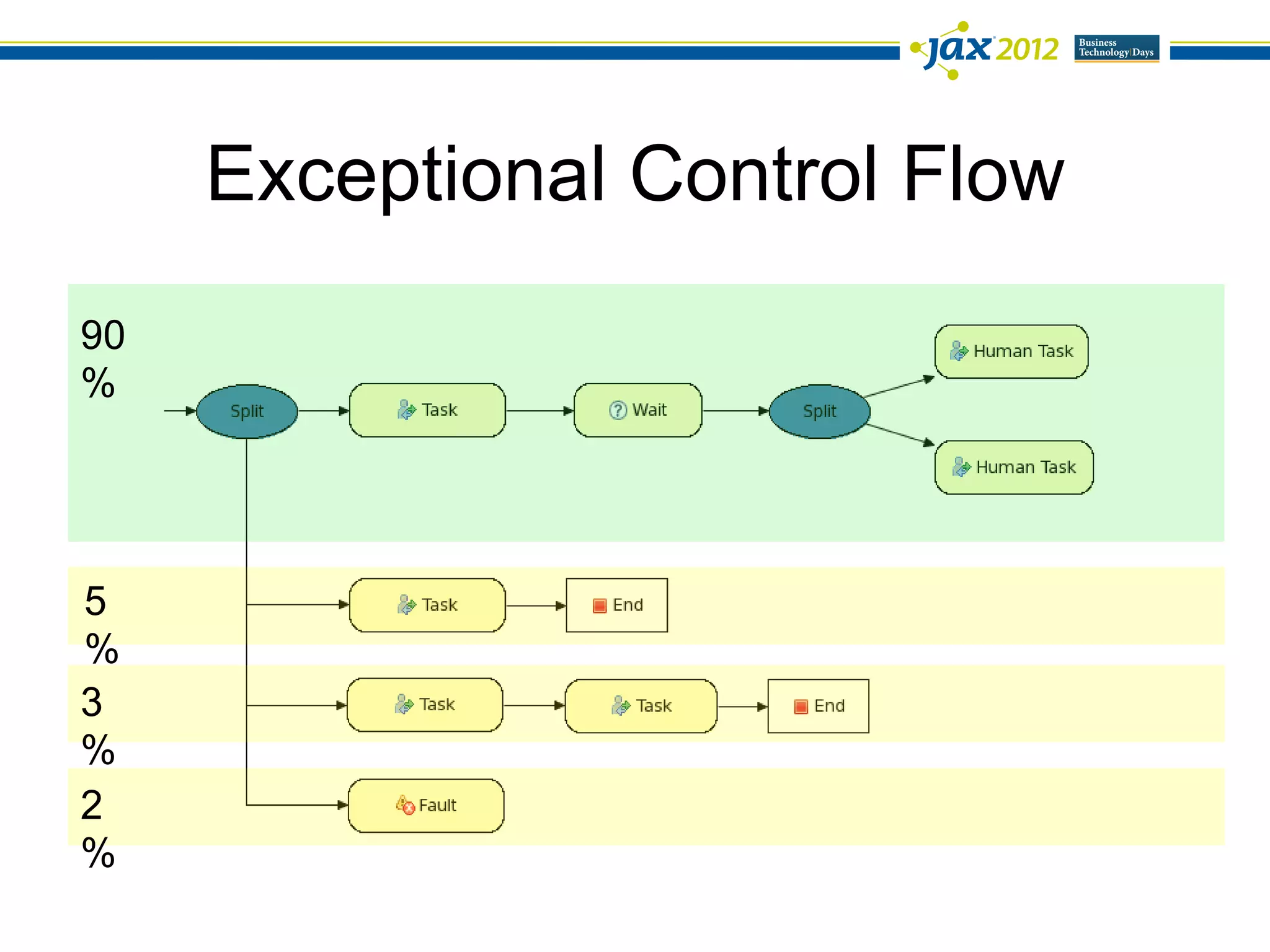

Exceptional Control Flow
90
%




5
%
3
%
2
%

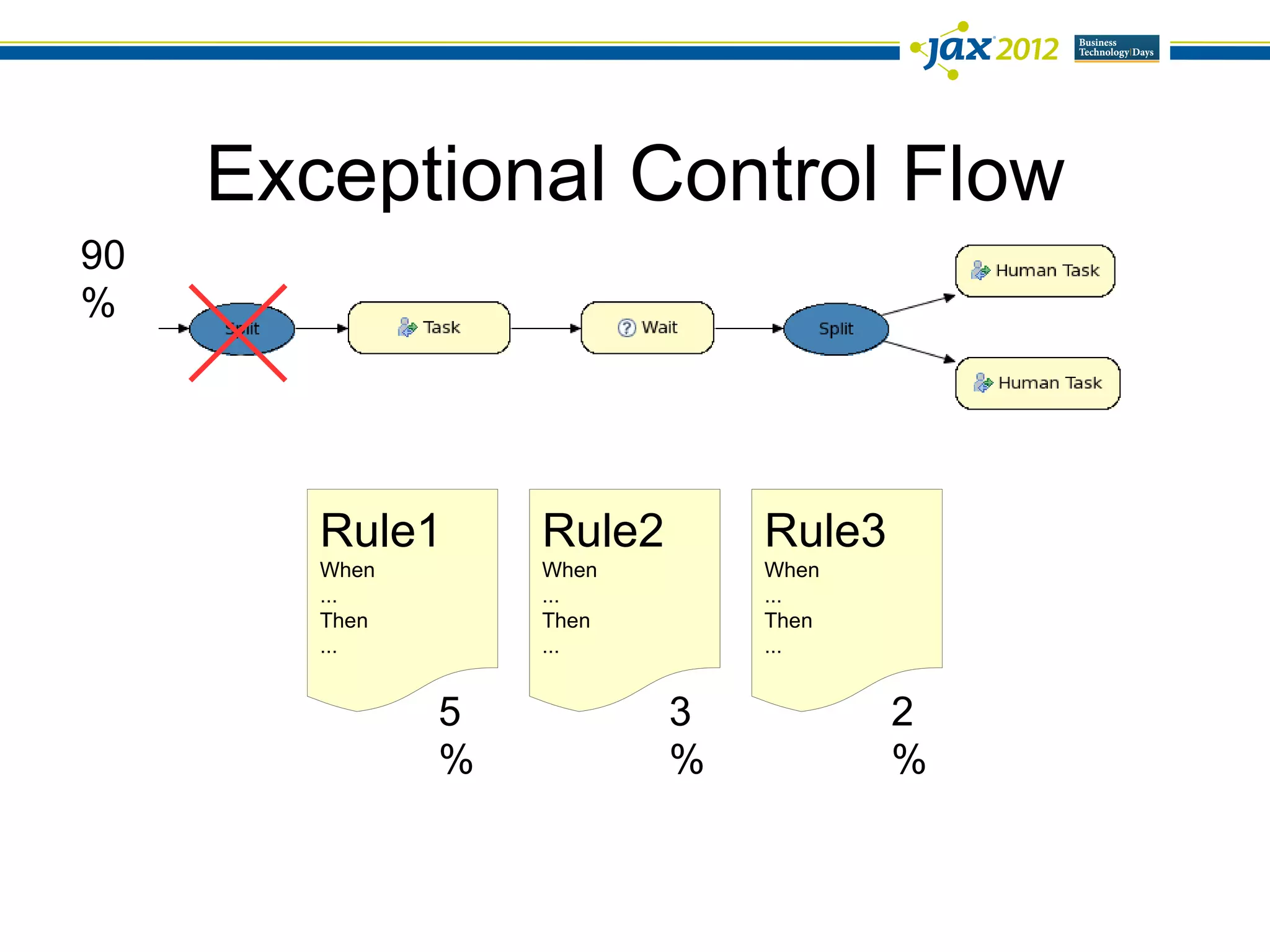

Exceptional Control Flow
90
%




        Rule1      Rule2       Rule3
        When       When        When
        ...        ...         ...
        Then       Then        Then
        ...        ...         ...


               5           3           2
               %           %           %

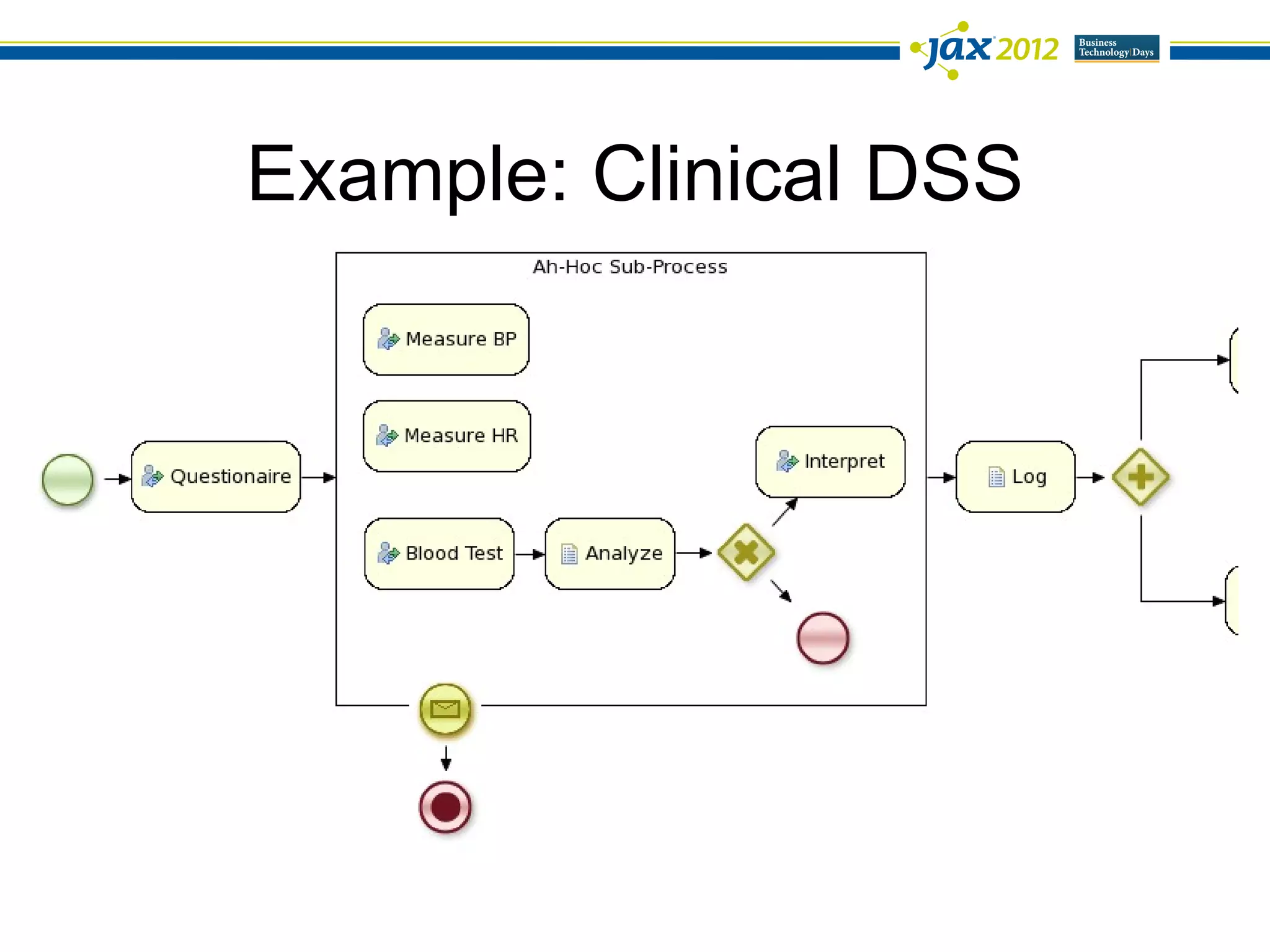

Example: Clinical DSS

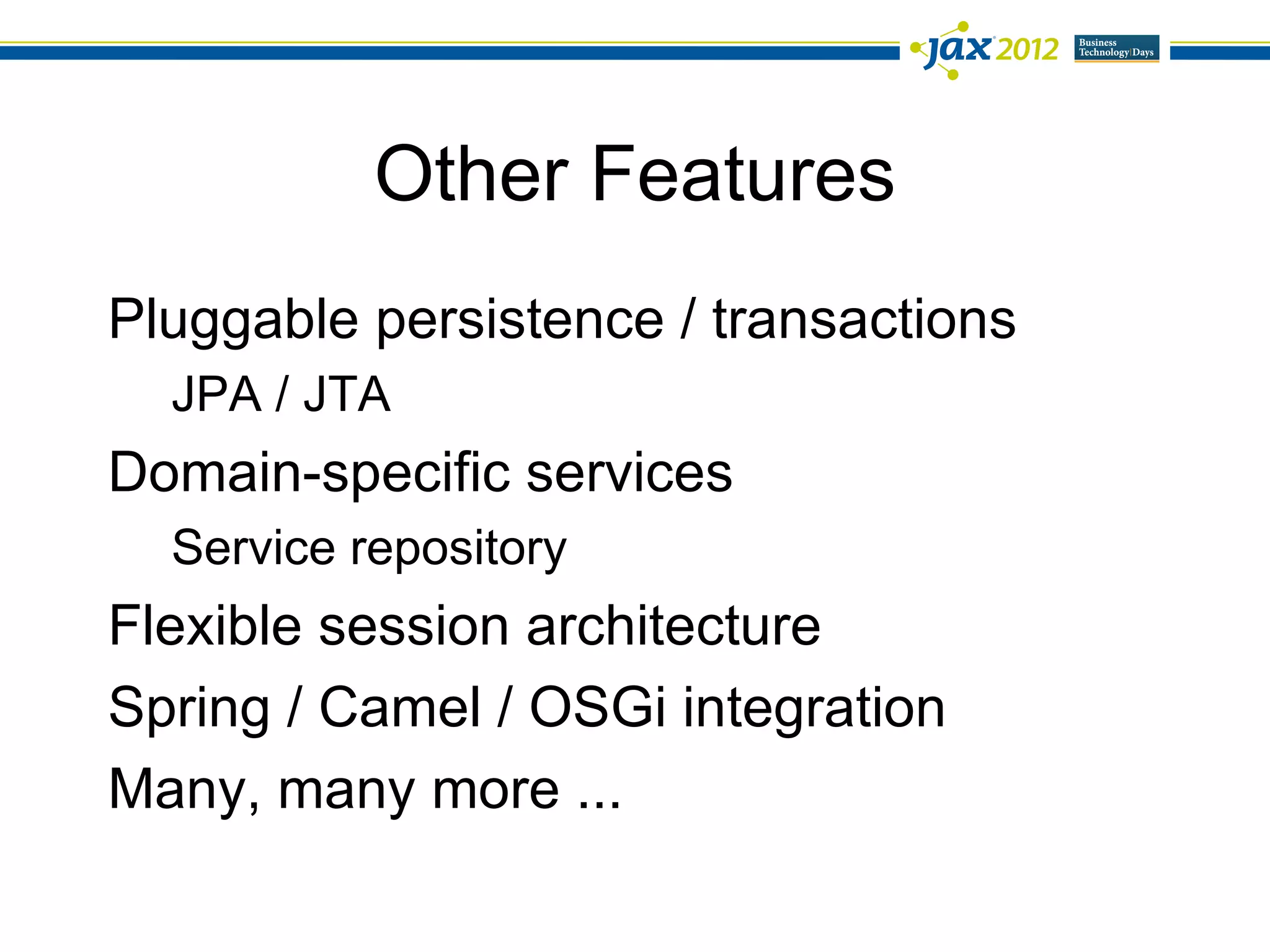

Other Features
Pluggable persistence / transactions
  JPA / JTA
Domain-specific services
  Service repository
Flexible session architecture
Spring / Camel / OSGi integration
Many, many more ...
Want to get started?

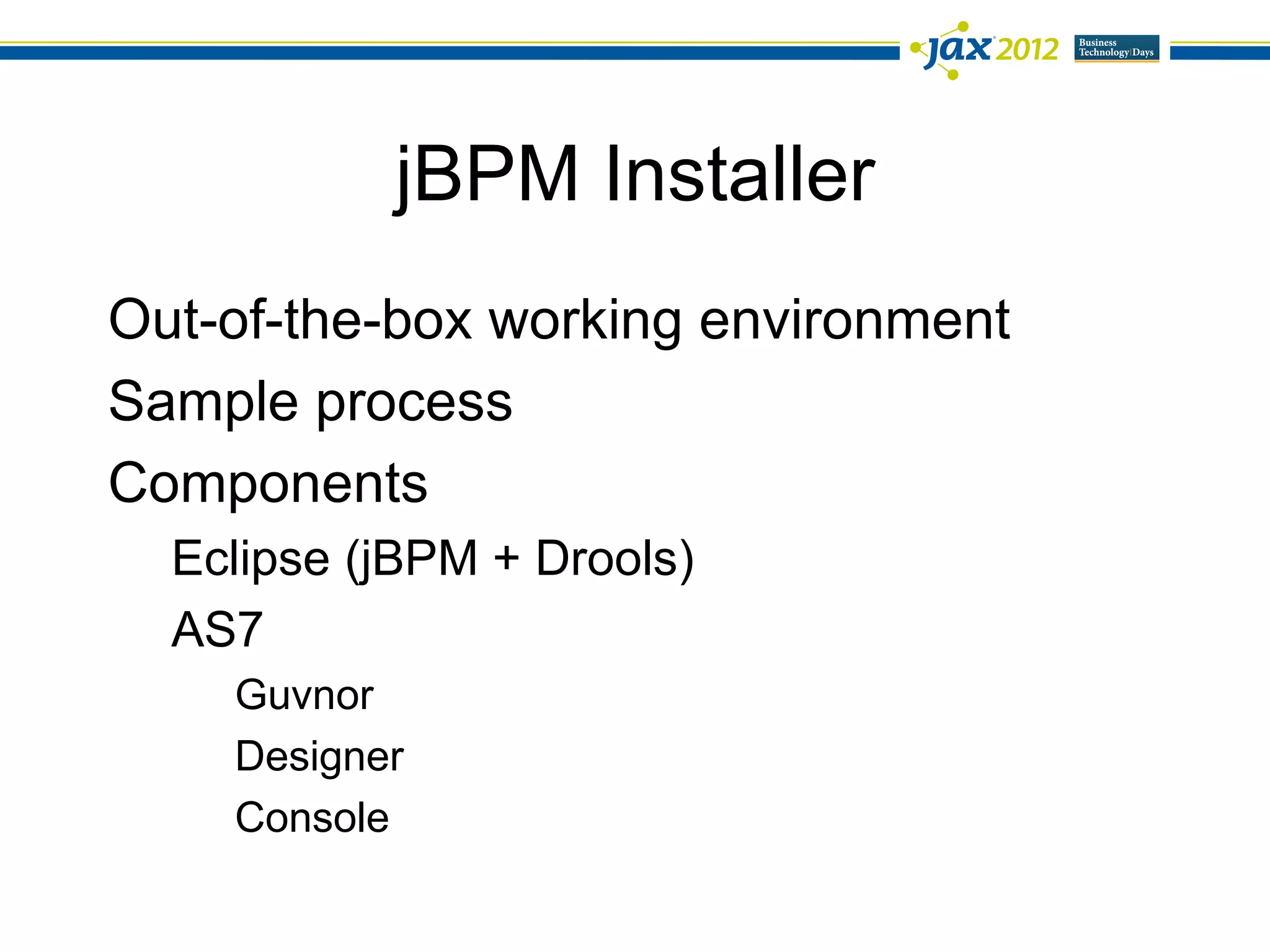

jBPM Installer
Out-of-the-box working environment
Sample process
Components
  Eclipse (jBPM + Drools)
  AS7
    Guvnor
    Designer
    Console

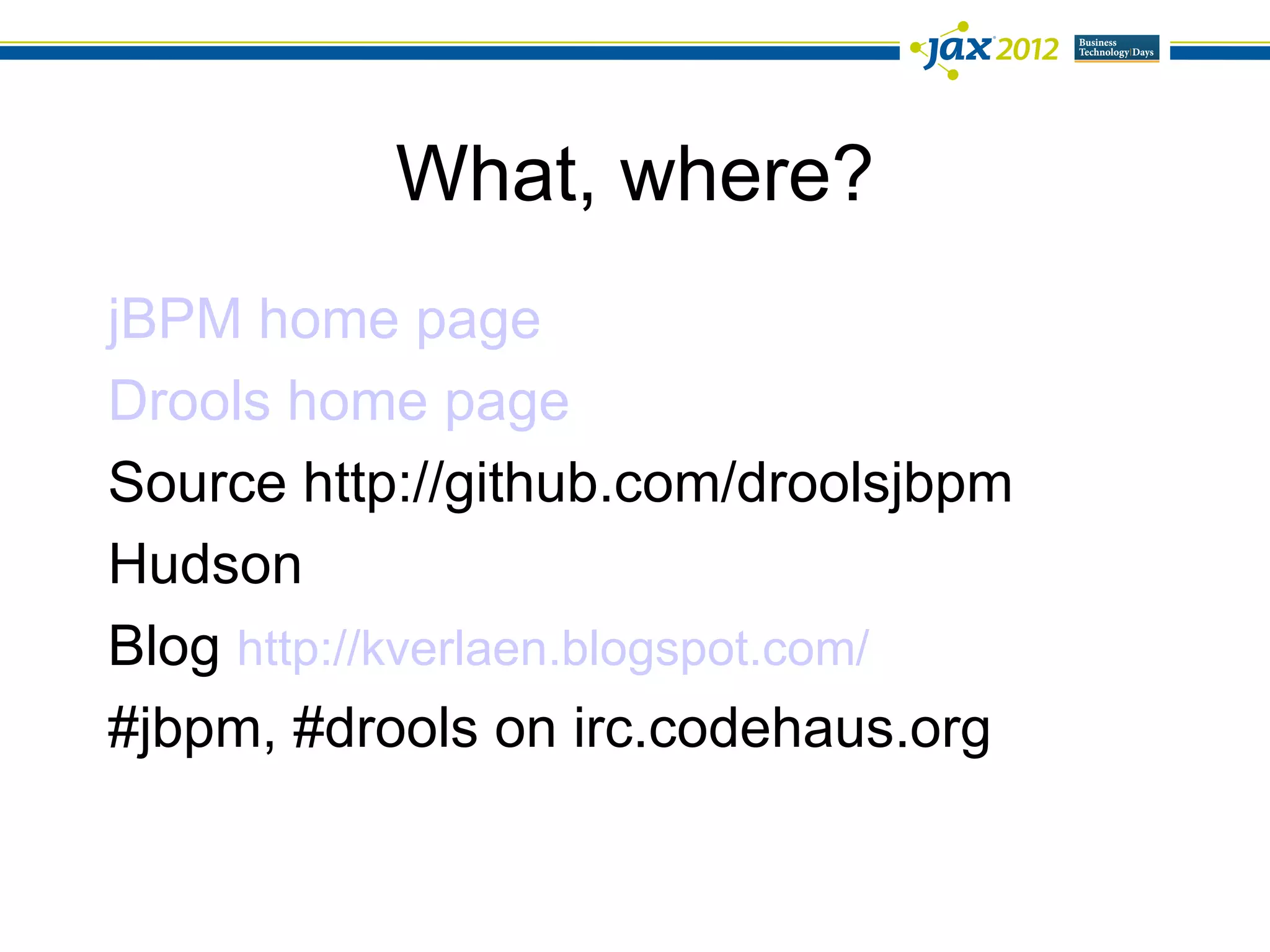

What, where?
jBPM home page
Drools home page
Source http://github.com/droolsjbpm
Hudson
Blog http://kverlaen.blogspot.com/
#jbpm, #drools on irc.codehaus.org

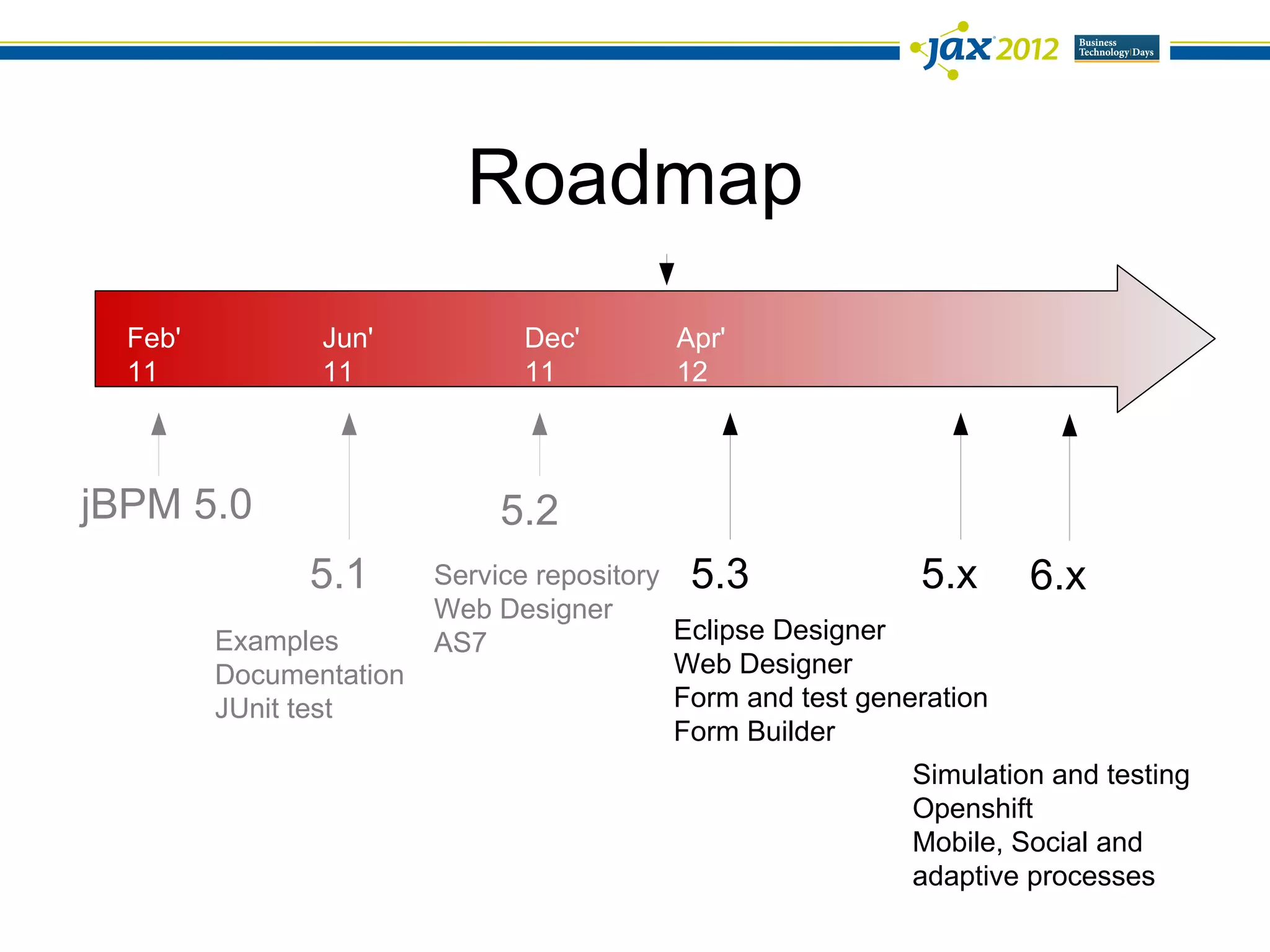

Roadmap
  Feb'          Jun'           Dec'        Apr'
  11            11             11          12



jBPM 5.0                      5.2
               5.1       Service repository 5.3              5.x      6.x
                         Web Designer
         Examples        AS7               Eclipse Designer
         Documentation                     Web Designer
         JUnit test                        Form and test generation
                                           Form Builder
                                                             Simulation and testing
                                                             Openshift
                                                             Mobile, Social and
                                                             adaptive processes

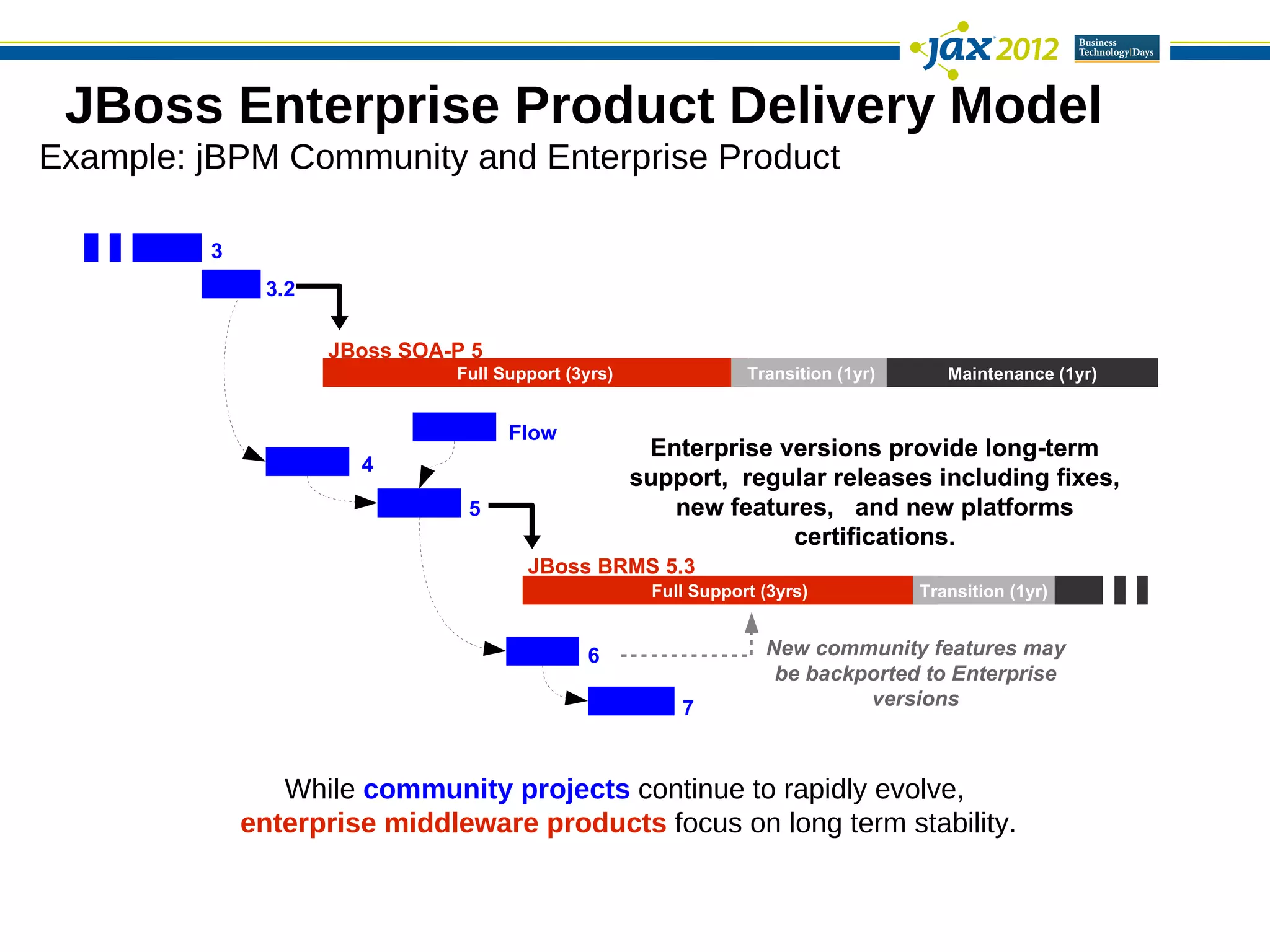

JBoss Enterprise Product Delivery Model
Example: jBPM Community and Enterprise Product

         3
              3.2

                    JBoss SOA-P 5
                              Full Support (3yrs)               Transition (1yr)      Maintenance (1yr)


                                    Flow
                                                     Enterprise versions provide long-term
                      4
                                                    support, regular releases including fixes,
                               5                       new features, and new platforms
                                                                 certifications.
                                      JBoss BRMS 5.3
                                                     Full Support (3yrs)           Transition (1yr)


                                             6                    New community features may
                                                                   be backported to Enterprise
                                                        7                  versions



                While community projects continue to rapidly evolve,
             enterprise middleware products focus on long term stability.
