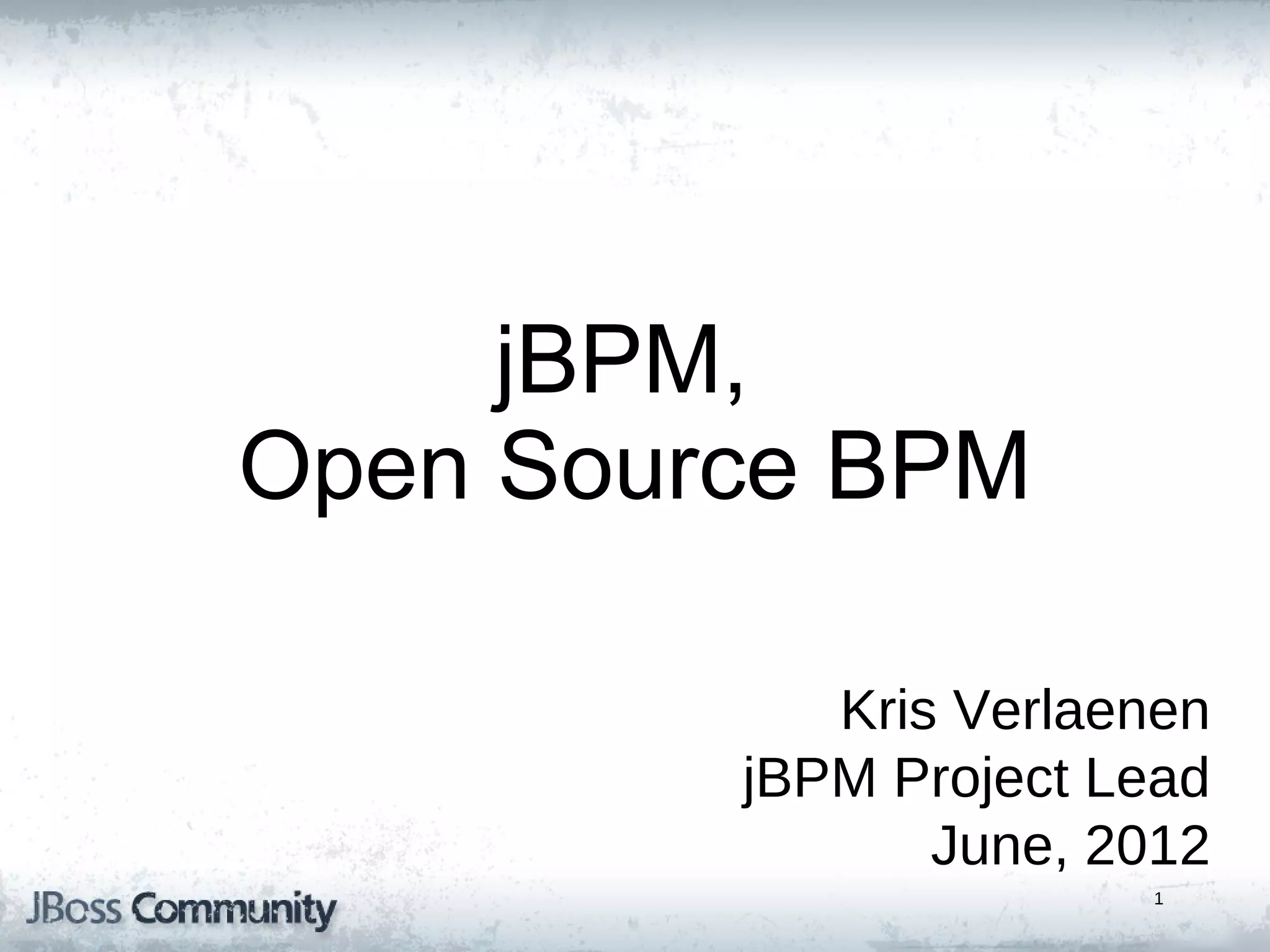

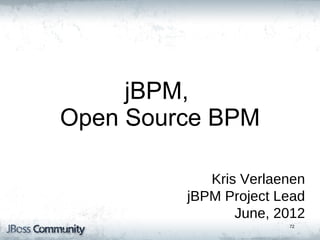

jBPM5: Bringing more
        Power
         jBPM,
  to your Business
  Open Source BPM
      Processes


                 Kris Verlaenen
              jBPM Project Lead
                     June, 2012
                            1

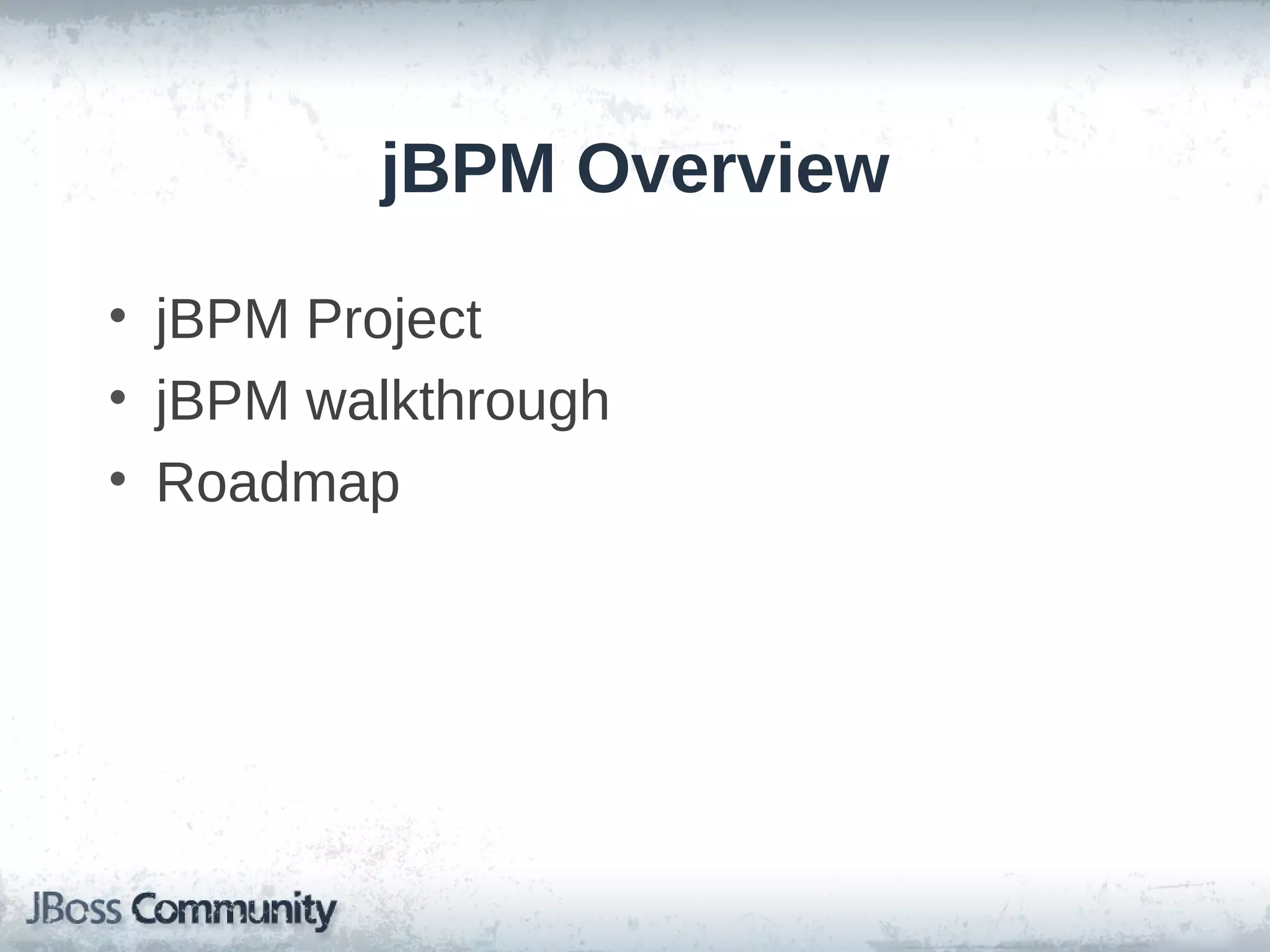

jBPM Overview

• jBPM Project
• jBPM walkthrough
• Roadmap

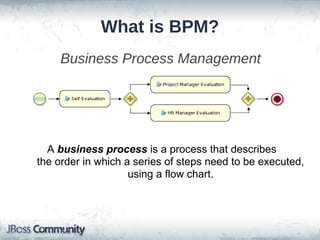

What is BPM?
     Business Process Management




  A business process is a process that describes
the order in which a series of steps need to be executed,
                    using a flow chart.

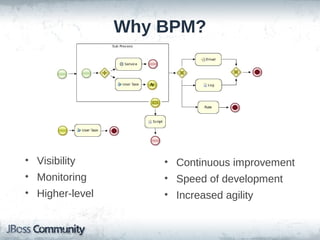

Why BPM?




• Visibility         • Continuous improvement
• Monitoring         • Speed of development
• Higher-level       • Increased agility

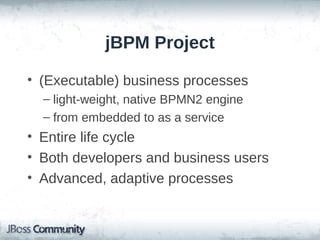

jBPM Project

• (Executable) business processes
  – light-weight, native BPMN2 engine
  – from embedded to as a service
• Entire life cycle
• Both developers and business users
• Advanced, adaptive processes

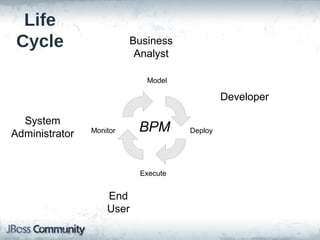

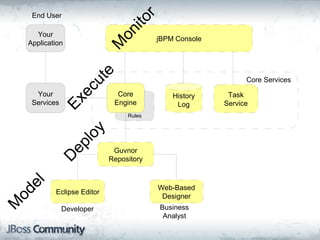

Life
 Cycle                    Business
                           Analyst

                             Model

                                              Developer

  System
Administrator   Monitor    BPM       Deploy




                           Execute


                    End
                    User
End User




                                      r
                               ito
                             on
     Your
                                          jBPM Console
   Application




                            M
                     e
                                                               Core Services

                   ut
                 ec
     Your                     Core            History     Task
               Ex
    Services                 Engine            Log       Service
                                 Rules
                      y
                   lo
            ep



                             Guvnor
           D




                            Repository
   el




                                          Web-Based
           Eclipse Editor
 od




                                           Designer
M




               Developer                  Business
                                           Analyst
Key Characteristics

•   Open-source, lightweight
•   Native BPMN 2.0
•   High-level business processes
•   Business user & developer collaborate
•   Advanced, adaptive processes
•   Modularized, pluggable, standards

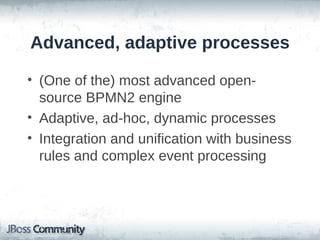

Advanced, adaptive processes

• (One of the) most advanced open-
  source BPMN2 engine
• Adaptive, ad-hoc, dynamic processes
• Integration and unification with business
  rules and complex event processing

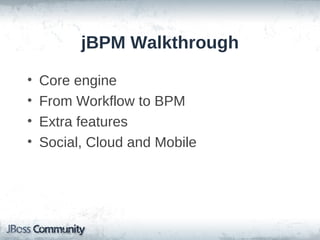

jBPM Walkthrough

•   Core engine
•   From Workflow to BPM
•   Extra features
•   Social, Cloud and Mobile
Core Engine
• Core engine is a workflow engine in pure
  Java
  – state transitions
  – lightweight
  – embeddable
  – generic, extensible       Core
                             Engine

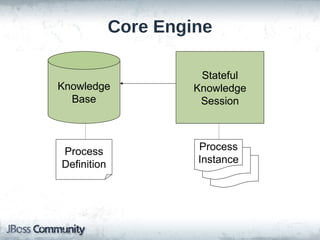

Core Engine

                       Stateful
Knowledge             Knowledge
  Base                 Session



Process               Process
Definition            Instance
Java Interface

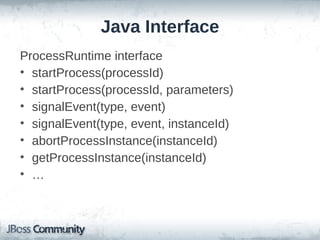

ProcessRuntime interface
• startProcess(processId)
• startProcess(processId, parameters)
• signalEvent(type, event)
• signalEvent(type, event, instanceId)
• abortProcessInstance(instanceId)
• getProcessInstance(instanceId)
• …

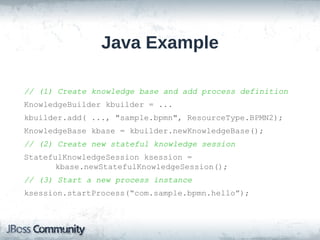

Java Example

// (1) Create knowledge base and add process definition
KnowledgeBuilder kbuilder = ...
kbuilder.add( ..., "sample.bpmn", ResourceType.BPMN2);
KnowledgeBase kbase = kbuilder.newKnowledgeBase();
// (2) Create new stateful knowledge session
StatefulKnowledgeSession ksession =
       kbase.newStatefulKnowledgeSession();
// (3) Start a new process instance
ksession.startProcess(“com.sample.bpmn.hello”);

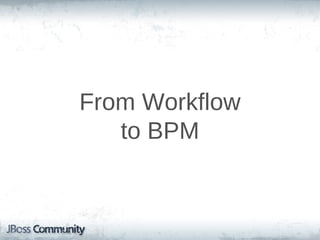

From Workflow
   to BPM

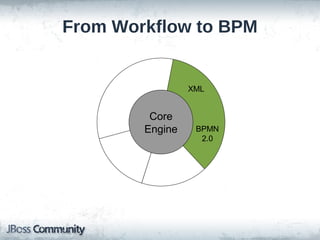

From Workflow to BPM


                 XML


         Core
        Engine    BPMN
                   2.0

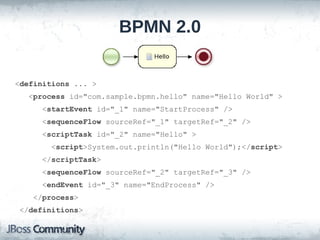

BPMN 2.0


<definitions ... >
   <process id="com.sample.bpmn.hello" name="Hello World" >
      <startEvent id="_1" name="StartProcess" />
      <sequenceFlow sourceRef="_1" targetRef="_2" />
      <scriptTask id="_2" name="Hello" >
        <script>System.out.println("Hello World");</script>
      </scriptTask>
      <sequenceFlow sourceRef="_2" targetRef="_3" />
      <endEvent id="_3" name="EndProcess" />
    </process>
 </definitions>

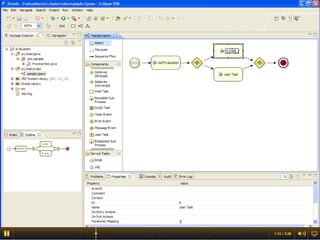

jBPM Eclipse Plugin

• Developer-focused
• Features:
  – Wizards, runtimes, perspective
  – Graphical editor
  – Testing and debugging
  – Service repository, generators
  – Guvnor integration
Web-based Designer

• Business User-focused
• Features
  – Graphical Editor
  – Visual validation
  – Service repository, generators
  – Guvnor integration
• Based on Oryx Designer
  – JavaScript, JSON

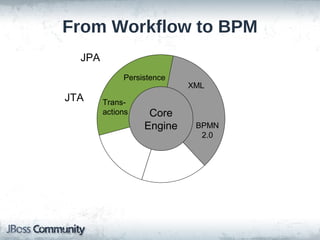

From Workflow to BPM
  JPA
             Persistence
                           XML
JTA     Trans-
        actions    Core
                  Engine    BPMN
                             2.0

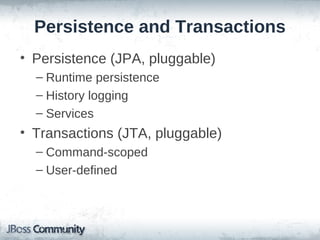

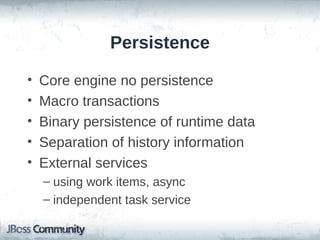

Persistence and Transactions
• Persistence (JPA, pluggable)
  – Runtime persistence
  – History logging
  – Services
• Transactions (JTA, pluggable)
  – Command-scoped
  – User-defined
Persistence

•   Core engine no persistence
•   Macro transactions
•   Binary persistence of runtime data
•   Separation of history information
•   External services
    – using work items, async
    – independent task service

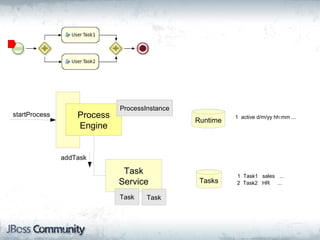

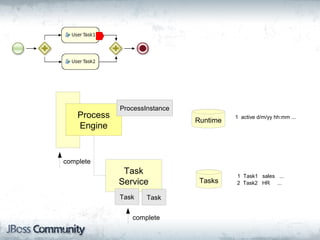

ProcessInstance
startProcess       Process                               1 active d/m/yy hh:mm ...
                                               Runtime
                   Engine


               addTask

                              Task                       1 Task1 sales ...
                             Service            Tasks    2 Task2 HR ...

                             Task    Task
ProcessInstance
    Process                               1 active d/m/yy hh:mm ...
                                Runtime
    Engine


complete
               Task                       1 Task1 sales ...
              Service            Tasks    2 Task2 HR ...

              Task    Task


                 complete
ProcessInstance
    Process                                   1 active d/m/yy hh:mm ...
                                    Runtime
    Engine


complete
               Task                           1 Task1 sales ...
              Service                Tasks    2 Task2 HR ...

              Task    Task


                         complete

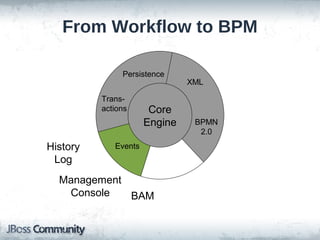

From Workflow to BPM

               Persistence
                               XML

          Trans-
          actions      Core
                      Engine    BPMN
                                 2.0
History      Events
 Log
  Management
   Console   BAM
Console

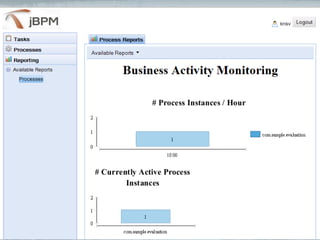

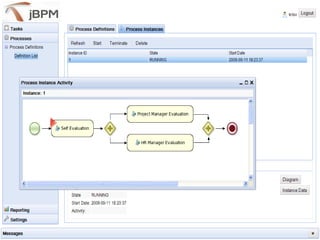

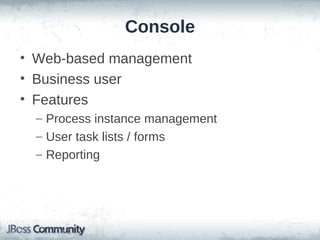

• Web-based management
• Business user
• Features
  – Process instance management
  – User task lists / forms
  – Reporting

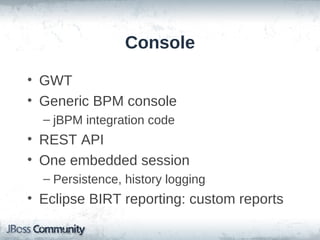

Console

• GWT
• Generic BPM console
  – jBPM integration code
• REST API
• One embedded session
  – Persistence, history logging
• Eclipse BIRT reporting: custom reports
From Workflow to BPM

        Persistence
                          XML

   Trans-
   actions      Core
               Engine          BPMN
                                2.0
      Events
                                      Domain-specific
                 Integration
                                        Processes
                               Human Task
                ESB              Service

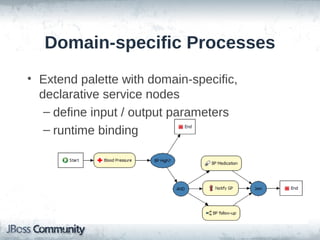

Domain-specific Processes
• Extend palette with domain-specific,
  declarative service nodes
   – define input / output parameters
   – runtime binding

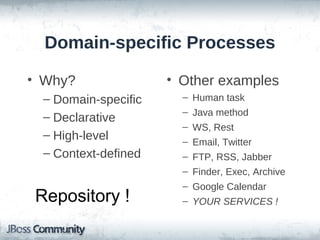

Domain-specific Processes

• Why?               • Other examples
 – Domain-specific     – Human task
                       – Java method
 – Declarative
                       – WS, Rest
 – High-level          – Email, Twitter
 – Context-defined     – FTP, RSS, Jabber
                       – Finder, Exec, Archive
                       – Google Calendar
Repository !           – YOUR SERVICES !

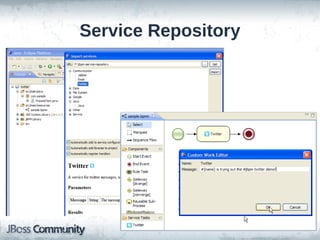

Service Repository

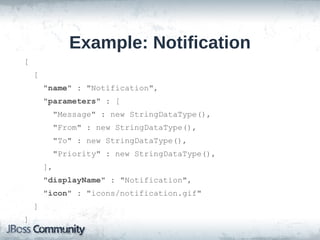

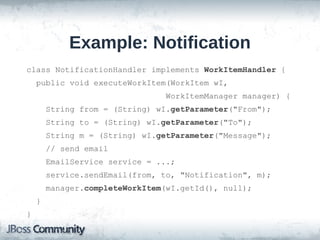

Example: Notification
[
    [
        "name" : "Notification",
        "parameters" : [
          "Message" : new StringDataType(),
          "From" : new StringDataType(),
          "To" : new StringDataType(),
          "Priority" : new StringDataType(),
        ],
        "displayName" : "Notification",
        "icon" : "icons/notification.gif"
    ]
]
Example: Notification
class NotificationHandler implements WorkItemHandler {
    public void executeWorkItem(WorkItem wI,
                                 WorkItemManager manager) {
        String from = (String) wI.getParameter("From");
        String to = (String) wI.getParameter("To");
        String m = (String) wI.getParameter("Message");
        // send email
        EmailService service = ...;
        service.sendEmail(from, to, "Notification", m);
        manager.completeWorkItem(wI.getId(), null);
    }
}

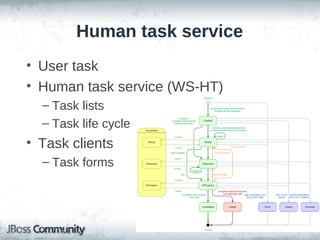

Human task service
• User task
• Human task service (WS-HT)
  – Task lists
  – Task life cycle
• Task clients
  – Task forms

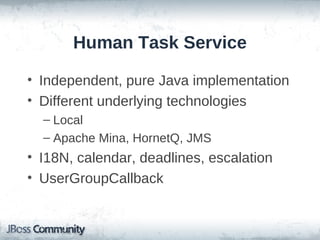

Human Task Service

• Independent, pure Java implementation
• Different underlying technologies
  – Local
  – Apache Mina, HornetQ, JMS
• I18N, calendar, deadlines, escalation
• UserGroupCallback
SwitchYard
 Lightweight service delivery
 framework providing full life
cycle support for developing,
   deploying, and managing
service-oriented applications


 • SwitchYard BPM
   component
Extra Features

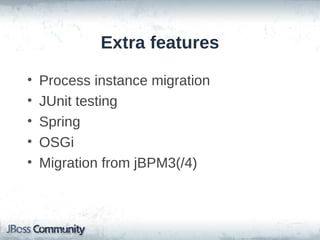

Extra features

•   Process instance migration
•   JUnit testing
•   Spring
•   OSGi
•   Migration from jBPM3(/4)

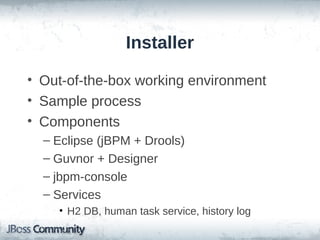

Installer

• Out-of-the-box working environment
• Sample process
• Components
  – Eclipse (jBPM + Drools)
  – Guvnor + Designer
  – jbpm-console
  – Services
    • H2 DB, human task service, history log

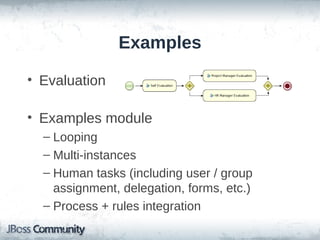

Examples

• Evaluation

• Examples module
  – Looping
  – Multi-instances
  – Human tasks (including user / group
    assignment, delegation, forms, etc.)
  – Process + rules integration
Social, Cloud
 and Mobile

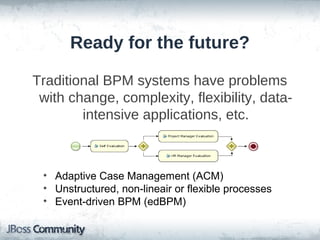

Ready for the future?

Traditional BPM systems have problems
 with change, complexity, flexibility, data-
        intensive applications, etc.



 • Adaptive Case Management (ACM)
 • Unstructured, non-lineair or flexible processes
 • Event-driven BPM (edBPM)
Motivation

A business solution usually involves the
  interaction between these technologies.

  Technology overlap

  Business overlap

  Attribute the same importance to the
       three complementary business
            modeling techniques

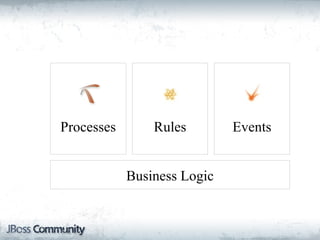

Processes       Rules        Events


            Business Logic

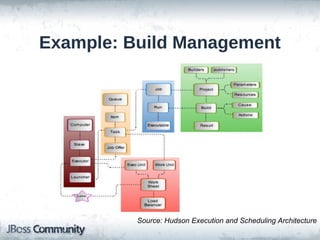

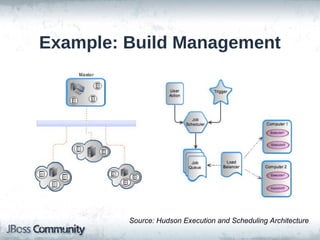

Example: Build Management




          Source: Hudson Execution and Scheduling Architecture
Example: Build Management




         Source: Hudson Execution and Scheduling Architecture

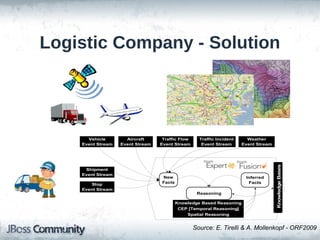

Logistic Company - Solution




      Vehicle        Aircraft      Traffic Flow     Traffic Incident     Weather
    Event Stream   Event Stream   Event Stream       Event Stream      Event Stream




                                                                                      Knowledge Bases
     Shipment
    Event Stream
                                  New                                   Inferred
                                  Facts                                  Facts
       Stop
    Event Stream
                                                   Reasoning

                                          Knowledge Based Reasoning
                                           CEP [Temporal Reasoning]
                                              Spatial Reasoning


                                                  Source: E. Tirelli & A. Mollenkopf - ORF2009
Vision


A knowledge-oriented platform for
 developers and business users

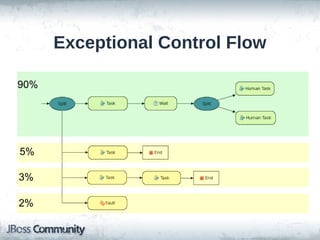

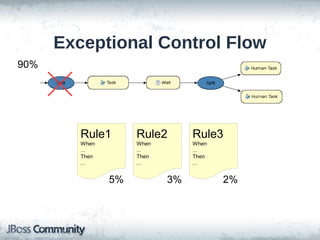

Exceptional Control Flow

90%




5%

3%

2%
Exceptional Control Flow
90%




         Rule1       Rule2       Rule3
         When        When        When
         ...         ...         ...
         Then        Then        Then
         ...         ...         ...


                5%          3%          2%

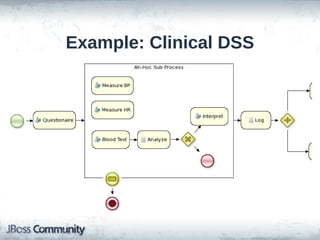

Example: Clinical DSS

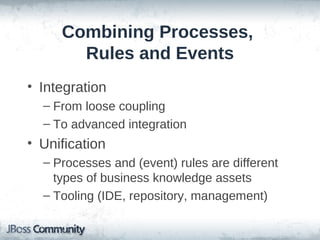

Combining Processes,
       Rules and Events
• Integration
  – From loose coupling
  – To advanced integration
• Unification
  – Processes and (event) rules are different
    types of business knowledge assets
  – Tooling (IDE, repository, management)

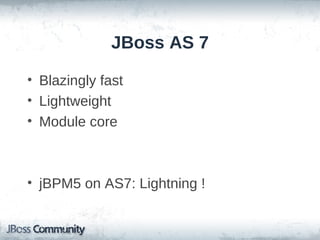

JBoss AS 7

• Blazingly fast
• Lightweight
• Module core



• jBPM5 on AS7: Lightning !

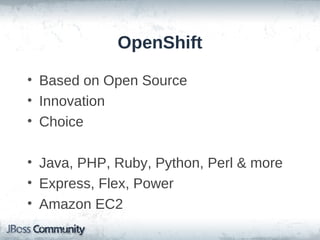

OpenShift

• Based on Open Source
• Innovation
• Choice

• Java, PHP, Ruby, Python, Perl & more
• Express, Flex, Power
• Amazon EC2

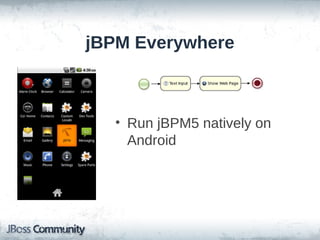

jBPM Everywhere



  • Run jBPM5 natively on
    Android

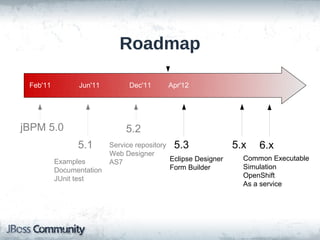

Roadmap

 Feb'11         Jun'11         Dec'11      Apr'12




jBPM 5.0                      5.2
                5.1       Service repository 5.3               5.x   6.x
                          Web Designer
          Examples                          Eclipse Designer     Common Executable
                          AS7
          Documentation                     Form Builder         Simulation
          JUnit test                                             OpenShift
                                                                 As a service
JBoss Enterprise Product Delivery Model
Example: jBPM Community and Enterprise Product

         3
              3.2

                    JBoss SOA-P 5
                              Full Support (3yrs)               Transition (1yr)      Maintenance (1yr)


                                    Flow
                                                     Enterprise versions provide long-term
                      4
                                                    support, regular releases including fixes,
                               5                       new features, and new platforms
                                                                 certifications.
                                      JBoss BRMS 5.3
                                                     Full Support (3yrs)           Transition (1yr)


                                             6                    New community features may
                                                                   be backported to Enterprise
                                                        7                  versions



                While community projects continue to rapidly evolve,
             enterprise middleware products focus on long term stability.

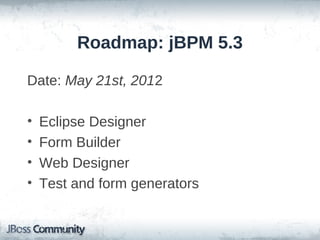

Roadmap: jBPM 5.3

Date: May 21st, 2012

•   Eclipse Designer
•   Form Builder

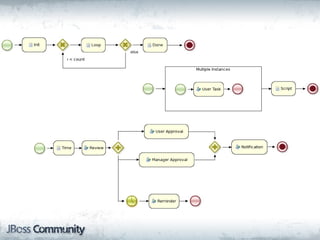

•   Web Designer
•   Test and form generators

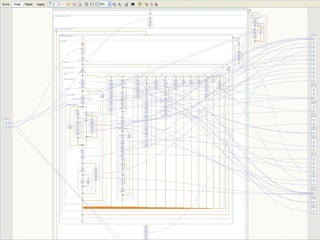

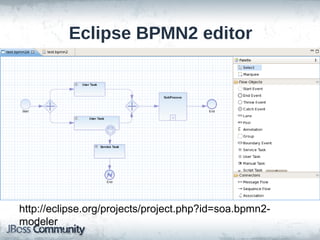

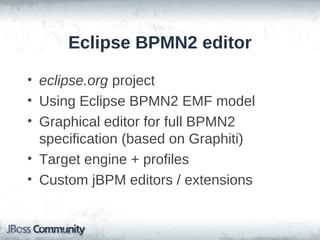

Eclipse BPMN2 editor




http://eclipse.org/projects/project.php?id=soa.bpmn2-
modeler
Eclipse BPMN2 editor

• eclipse.org project
• Using Eclipse BPMN2 EMF model
• Graphical editor for full BPMN2
  specification (based on Graphiti)
• Target engine + profiles
• Custom jBPM editors / extensions

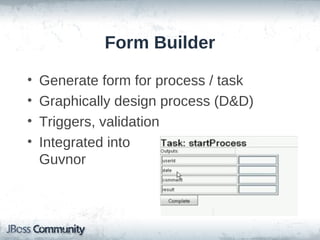

Form Builder

•   Generate form for process / task
•   Graphically design process (D&D)
•   Triggers, validation
•   Integrated into
    Guvnor
Roadmap: jBPM 5.x

• Simulation and replay
• BPM as a service
  – Expose as ...
  – Session mgmt and HA
  – Integrate with external services
• Cloud
jBPM5: Bringing more
        Power
         jBPM,
  to your Business
  Open Source BPM
      Processes


                 Kris Verlaenen
              jBPM Project Lead
                     June, 2012
                            72

More Related Content

What's hot

Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
mumrah

Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink
Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache FlinkGelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink
Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink
Vasia Kalavri

So You Want to Write an Exporter
So You Want to Write an ExporterSo You Want to Write an Exporter
So You Want to Write an Exporter
Brian Brazil

Running Airflow Workflows as ETL Processes on Hadoop
Running Airflow Workflows as ETL Processes on HadoopRunning Airflow Workflows as ETL Processes on Hadoop
Running Airflow Workflows as ETL Processes on Hadoop
clairvoyantllc

Apache Airflow
Apache AirflowApache Airflow
Apache Airflow
Sumit Maheshwari

Taking advantage of Prometheus relabeling
Taking advantage of Prometheus relabelingTaking advantage of Prometheus relabeling
Taking advantage of Prometheus relabeling
Julien Pivotto

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis
Dvir Volk

Airflow presentation
Airflow presentationAirflow presentation
Airflow presentation
Anant Corporation

JSON, JSON Schema, and OpenAPI
JSON, JSON Schema, and OpenAPIJSON, JSON Schema, and OpenAPI
JSON, JSON Schema, and OpenAPI
Octavian Nadolu

Kogito: cloud native business automation
Kogito: cloud native business automationKogito: cloud native business automation
Kogito: cloud native business automation
Mario Fusco

Evening out the uneven: dealing with skew in Flink
Evening out the uneven: dealing with skew in FlinkEvening out the uneven: dealing with skew in Flink
Evening out the uneven: dealing with skew in Flink
Flink Forward

All Aboard the Databus
All Aboard the DatabusAll Aboard the Databus
All Aboard the Databus
Amy W. Tang

Airflow - a data flow engine
Airflow - a data flow engineAirflow - a data flow engine
Airflow - a data flow engine
Walter Liu

AWS Real-Time Event Processing
AWS Real-Time Event ProcessingAWS Real-Time Event Processing
AWS Real-Time Event Processing
Amazon Web Services

Apache Airflow overview
Apache Airflow overviewApache Airflow overview
Apache Airflow overview
NikolayGrishchenkov

Streaming SQL for Data Engineers: The Next Big Thing?
Streaming SQL for Data Engineers: The Next Big Thing?Streaming SQL for Data Engineers: The Next Big Thing?
Streaming SQL for Data Engineers: The Next Big Thing?
Yaroslav Tkachenko

Introduction to MongoDB
Introduction to MongoDBIntroduction to MongoDB
Introduction to MongoDB
Mike Dirolf

Decomposing Applications for Scalability and Deployability (April 2012)
Decomposing Applications for Scalability and Deployability (April 2012)Decomposing Applications for Scalability and Deployability (April 2012)
Decomposing Applications for Scalability and Deployability (April 2012)
Chris Richardson

Introduccion a databricks
Introduccion a databricksIntroduccion a databricks
Introduccion a databricks
Eduardo Castro

Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway
Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud GatewaySpring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway
Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway
Iván López Martín


What's hot (20)

Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013

Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink
Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache FlinkGelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink
Gelly-Stream: Single-Pass Graph Streaming Analytics with Apache Flink

So You Want to Write an Exporter
So You Want to Write an ExporterSo You Want to Write an Exporter
So You Want to Write an Exporter

Running Airflow Workflows as ETL Processes on Hadoop
Running Airflow Workflows as ETL Processes on HadoopRunning Airflow Workflows as ETL Processes on Hadoop
Running Airflow Workflows as ETL Processes on Hadoop

Apache Airflow
Apache AirflowApache Airflow
Apache Airflow

Taking advantage of Prometheus relabeling
Taking advantage of Prometheus relabelingTaking advantage of Prometheus relabeling
Taking advantage of Prometheus relabeling

Introduction to Redis
Introduction to RedisIntroduction to Redis
Introduction to Redis

Airflow presentation
Airflow presentationAirflow presentation
Airflow presentation

JSON, JSON Schema, and OpenAPI
JSON, JSON Schema, and OpenAPIJSON, JSON Schema, and OpenAPI
JSON, JSON Schema, and OpenAPI

Kogito: cloud native business automation
Kogito: cloud native business automationKogito: cloud native business automation
Kogito: cloud native business automation

Evening out the uneven: dealing with skew in Flink
Evening out the uneven: dealing with skew in FlinkEvening out the uneven: dealing with skew in Flink
Evening out the uneven: dealing with skew in Flink

All Aboard the Databus
All Aboard the DatabusAll Aboard the Databus
All Aboard the Databus

Airflow - a data flow engine
Airflow - a data flow engineAirflow - a data flow engine
Airflow - a data flow engine

AWS Real-Time Event Processing
AWS Real-Time Event ProcessingAWS Real-Time Event Processing
AWS Real-Time Event Processing

Apache Airflow overview
Apache Airflow overviewApache Airflow overview
Apache Airflow overview

Streaming SQL for Data Engineers: The Next Big Thing?
Streaming SQL for Data Engineers: The Next Big Thing?Streaming SQL for Data Engineers: The Next Big Thing?
Streaming SQL for Data Engineers: The Next Big Thing?

Introduction to MongoDB
Introduction to MongoDBIntroduction to MongoDB
Introduction to MongoDB

Decomposing Applications for Scalability and Deployability (April 2012)
Decomposing Applications for Scalability and Deployability (April 2012)Decomposing Applications for Scalability and Deployability (April 2012)
Decomposing Applications for Scalability and Deployability (April 2012)

Introduccion a databricks
Introduccion a databricksIntroduccion a databricks
Introduccion a databricks

Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway
Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud GatewaySpring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway
Spring IO 2023 - Dynamic OpenAPIs with Spring Cloud Gateway


Viewers also liked

jBPM Case Mgmt v7 Roadmap
jBPM Case Mgmt v7 RoadmapjBPM Case Mgmt v7 Roadmap
jBPM Case Mgmt v7 Roadmap
Kris Verlaenen

Automate workflows with leading open-source BPM
Automate workflows with leading open-source BPMAutomate workflows with leading open-source BPM
Automate workflows with leading open-source BPM
Kris Verlaenen

jBPM5 in action - a quickstart for developers
jBPM5 in action - a quickstart for developersjBPM5 in action - a quickstart for developers
jBPM5 in action - a quickstart for developers
Kris Verlaenen

BPM and Case Management Applications
BPM and Case Management ApplicationsBPM and Case Management Applications
BPM and Case Management Applications
Kris Verlaenen

jBPM v7 Roadmap
jBPM v7 RoadmapjBPM v7 Roadmap
jBPM v7 Roadmap
Kris Verlaenen

Case management applications with BPM
Case management applications with BPMCase management applications with BPM
Case management applications with BPM
Kris Verlaenen

Process-driven applications: let BPM do (some of) your work
Process-driven applications: let BPM do (some of) your workProcess-driven applications: let BPM do (some of) your work
Process-driven applications: let BPM do (some of) your work
Kris Verlaenen

Deep dive into jBPM6
Deep dive into jBPM6Deep dive into jBPM6
Deep dive into jBPM6
Kris Verlaenen


Viewers also liked (8)

jBPM Case Mgmt v7 Roadmap
jBPM Case Mgmt v7 RoadmapjBPM Case Mgmt v7 Roadmap
jBPM Case Mgmt v7 Roadmap

Automate workflows with leading open-source BPM
Automate workflows with leading open-source BPMAutomate workflows with leading open-source BPM
Automate workflows with leading open-source BPM

jBPM5 in action - a quickstart for developers
jBPM5 in action - a quickstart for developersjBPM5 in action - a quickstart for developers
jBPM5 in action - a quickstart for developers

BPM and Case Management Applications
BPM and Case Management ApplicationsBPM and Case Management Applications
BPM and Case Management Applications

jBPM v7 Roadmap
jBPM v7 RoadmapjBPM v7 Roadmap
jBPM v7 Roadmap

Case management applications with BPM
Case management applications with BPMCase management applications with BPM
Case management applications with BPM

Process-driven applications: let BPM do (some of) your work
Process-driven applications: let BPM do (some of) your workProcess-driven applications: let BPM do (some of) your work
Process-driven applications: let BPM do (some of) your work

Deep dive into jBPM6
Deep dive into jBPM6Deep dive into jBPM6
Deep dive into jBPM6


Similar to jBPM, open source BPM

JBoss Developer Webinar jBPM5
JBoss Developer Webinar jBPM5JBoss Developer Webinar jBPM5
JBoss Developer Webinar jBPM5
Kris Verlaenen

JBoss jBPM, the future is now for all your Business Processes
JBoss jBPM, the future is now for all your Business ProcessesJBoss jBPM, the future is now for all your Business Processes
JBoss jBPM, the future is now for all your Business Processes
Eric D. Schabell

JBoss jBPM, the future is now for all your Business Processes by Eric Schabell
JBoss jBPM, the future is now for all your Business Processes by Eric SchabellJBoss jBPM, the future is now for all your Business Processes by Eric Schabell
JBoss jBPM, the future is now for all your Business Processes by Eric Schabell
JBUG London

jBPM 5 (JUDCon 2010-10-08)
jBPM 5 (JUDCon 2010-10-08)jBPM 5 (JUDCon 2010-10-08)
jBPM 5 (JUDCon 2010-10-08)
Geoffrey De Smet

BPMN2 primer
BPMN2 primerBPMN2 primer
BPMN2 primer
Kris Verlaenen

Simplify the complexity of your business processes
Simplify the complexity of your business processesSimplify the complexity of your business processes
Simplify the complexity of your business processes
Kris Verlaenen

JBoss jBPM, the future is now (YaJUG session)
JBoss jBPM, the future is now (YaJUG session)JBoss jBPM, the future is now (YaJUG session)
JBoss jBPM, the future is now (YaJUG session)
Eric D. Schabell

Ibm jbpm online training in bangalore
Ibm jbpm online training in bangaloreIbm jbpm online training in bangalore
Ibm jbpm online training in bangalore
GoLogica Technologies

Camunda BPM 7.2 - English
Camunda BPM 7.2 - EnglishCamunda BPM 7.2 - English
Camunda BPM 7.2 - English
camunda services GmbH

EMEA Partner Summit: jBPM 5 - Bringing More Power to BPM
EMEA Partner Summit: 	jBPM 5 - Bringing More Power to BPMEMEA Partner Summit: 	jBPM 5 - Bringing More Power to BPM
EMEA Partner Summit: jBPM 5 - Bringing More Power to BPM
Eric D. Schabell

Business processes, business rules, complex event processing, the JBoss way
Business processes, business rules, complex event processing, the JBoss wayBusiness processes, business rules, complex event processing, the JBoss way
Business processes, business rules, complex event processing, the JBoss way
Kris Verlaenen

Devoxx 2009 Conference session Jbpm4 In Action
Devoxx 2009 Conference session Jbpm4 In ActionDevoxx 2009 Conference session Jbpm4 In Action
Devoxx 2009 Conference session Jbpm4 In Action
Joram Barrez

2006 mm,ks,jb (miami, florida bpm summit) xpdl tutorial
2006 mm,ks,jb (miami, florida   bpm summit) xpdl tutorial2006 mm,ks,jb (miami, florida   bpm summit) xpdl tutorial
2006 mm,ks,jb (miami, florida bpm summit) xpdl tutorial
Mike Marin

JBossOneDayTalk 2011: Using jBPM to bring more power to your business processes
JBossOneDayTalk 2011: Using jBPM to bring more power to your business processesJBossOneDayTalk 2011: Using jBPM to bring more power to your business processes
JBossOneDayTalk 2011: Using jBPM to bring more power to your business processes
Kris Verlaenen

Webinar: Camunda und Liferay
Webinar: Camunda und LiferayWebinar: Camunda und Liferay
Webinar: Camunda und Liferay
camunda services GmbH

jBPM5 (Argentina workshop)
jBPM5 (Argentina workshop)jBPM5 (Argentina workshop)
jBPM5 (Argentina workshop)
Kris Verlaenen

Bonitasoft BPMN Presentation
Bonitasoft BPMN PresentationBonitasoft BPMN Presentation
Bonitasoft BPMN Presentation
Kashif Captain

OMGi application store
OMGi application storeOMGi application store
OMGi application store
tothtamas

JBUG.be jBPM4
JBUG.be jBPM4JBUG.be jBPM4
JBUG.be jBPM4
Andries Inzé

20100223 bpmn
20100223 bpmn20100223 bpmn
20100223 bpmn
camunda services GmbH


Similar to jBPM, open source BPM (20)

JBoss Developer Webinar jBPM5
JBoss Developer Webinar jBPM5JBoss Developer Webinar jBPM5
JBoss Developer Webinar jBPM5

JBoss jBPM, the future is now for all your Business Processes
JBoss jBPM, the future is now for all your Business ProcessesJBoss jBPM, the future is now for all your Business Processes
JBoss jBPM, the future is now for all your Business Processes

JBoss jBPM, the future is now for all your Business Processes by Eric Schabell
JBoss jBPM, the future is now for all your Business Processes by Eric SchabellJBoss jBPM, the future is now for all your Business Processes by Eric Schabell
JBoss jBPM, the future is now for all your Business Processes by Eric Schabell

jBPM 5 (JUDCon 2010-10-08)
jBPM 5 (JUDCon 2010-10-08)jBPM 5 (JUDCon 2010-10-08)
jBPM 5 (JUDCon 2010-10-08)

BPMN2 primer
BPMN2 primerBPMN2 primer
BPMN2 primer

Simplify the complexity of your business processes
Simplify the complexity of your business processesSimplify the complexity of your business processes
Simplify the complexity of your business processes

JBoss jBPM, the future is now (YaJUG session)
JBoss jBPM, the future is now (YaJUG session)JBoss jBPM, the future is now (YaJUG session)
JBoss jBPM, the future is now (YaJUG session)

Ibm jbpm online training in bangalore
Ibm jbpm online training in bangaloreIbm jbpm online training in bangalore
Ibm jbpm online training in bangalore

Camunda BPM 7.2 - English
Camunda BPM 7.2 - EnglishCamunda BPM 7.2 - English
Camunda BPM 7.2 - English

EMEA Partner Summit: jBPM 5 - Bringing More Power to BPM
EMEA Partner Summit: 	jBPM 5 - Bringing More Power to BPMEMEA Partner Summit: 	jBPM 5 - Bringing More Power to BPM
EMEA Partner Summit: jBPM 5 - Bringing More Power to BPM

Business processes, business rules, complex event processing, the JBoss way
Business processes, business rules, complex event processing, the JBoss wayBusiness processes, business rules, complex event processing, the JBoss way
Business processes, business rules, complex event processing, the JBoss way

Devoxx 2009 Conference session Jbpm4 In Action
Devoxx 2009 Conference session Jbpm4 In ActionDevoxx 2009 Conference session Jbpm4 In Action
Devoxx 2009 Conference session Jbpm4 In Action

2006 mm,ks,jb (miami, florida bpm summit) xpdl tutorial
2006 mm,ks,jb (miami, florida   bpm summit) xpdl tutorial2006 mm,ks,jb (miami, florida   bpm summit) xpdl tutorial
2006 mm,ks,jb (miami, florida bpm summit) xpdl tutorial

JBossOneDayTalk 2011: Using jBPM to bring more power to your business processes
JBossOneDayTalk 2011: Using jBPM to bring more power to your business processesJBossOneDayTalk 2011: Using jBPM to bring more power to your business processes
JBossOneDayTalk 2011: Using jBPM to bring more power to your business processes

Webinar: Camunda und Liferay
Webinar: Camunda und LiferayWebinar: Camunda und Liferay
Webinar: Camunda und Liferay

jBPM5 (Argentina workshop)
jBPM5 (Argentina workshop)jBPM5 (Argentina workshop)
jBPM5 (Argentina workshop)

Bonitasoft BPMN Presentation
Bonitasoft BPMN PresentationBonitasoft BPMN Presentation
Bonitasoft BPMN Presentation

OMGi application store
OMGi application storeOMGi application store
OMGi application store

JBUG.be jBPM4
JBUG.be jBPM4JBUG.be jBPM4
JBUG.be jBPM4

20100223 bpmn
20100223 bpmn20100223 bpmn
20100223 bpmn


More from Kris Verlaenen

Process Automation: an Update from the Trenches
Process Automation: an Update from the TrenchesProcess Automation: an Update from the Trenches
Process Automation: an Update from the Trenches
Kris Verlaenen

Summit 2019: "Submarine" initiative
Summit 2019: "Submarine" initiativeSummit 2019: "Submarine" initiative
Summit 2019: "Submarine" initiative
Kris Verlaenen

bpmNEXT: Automating human-centric processes with machine learning
bpmNEXT: Automating human-centric processes with machine learningbpmNEXT: Automating human-centric processes with machine learning
bpmNEXT: Automating human-centric processes with machine learning
Kris Verlaenen

bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...
bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...
bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...
Kris Verlaenen

Building advanced case-driven applications
Building advanced case-driven applicationsBuilding advanced case-driven applications
Building advanced case-driven applications
Kris Verlaenen

Building responsive and flexible applications with BPM
Building responsive and flexible applications with BPMBuilding responsive and flexible applications with BPM
Building responsive and flexible applications with BPM
Kris Verlaenen

Process-driven applications
Process-driven applicationsProcess-driven applications
Process-driven applications
Kris Verlaenen

What's new in JBoss BPM Suite 6.1
What's new in JBoss BPM Suite 6.1What's new in JBoss BPM Suite 6.1
What's new in JBoss BPM Suite 6.1
Kris Verlaenen

jBPM6 Updates
jBPM6 UpdatesjBPM6 Updates
jBPM6 Updates
Kris Verlaenen

Empowering Business Users with Process Management Tools
Empowering Business Users with Process Management ToolsEmpowering Business Users with Process Management Tools
Empowering Business Users with Process Management Tools
Kris Verlaenen

What's new in jBPM6
What's new in jBPM6What's new in jBPM6
What's new in jBPM6
Kris Verlaenen

jBPM5: Bringing more Power to your Business Processes
jBPM5: Bringing more Power to your Business ProcessesjBPM5: Bringing more Power to your Business Processes
jBPM5: Bringing more Power to your Business Processes
Kris Verlaenen

jBPM5 - Bringing more power to your business processes
jBPM5 - Bringing more power to your business processesjBPM5 - Bringing more power to your business processes
jBPM5 - Bringing more power to your business processes
Kris Verlaenen

Flexible business processes using jBPM5
Flexible business processes using jBPM5Flexible business processes using jBPM5
Flexible business processes using jBPM5
Kris Verlaenen

Event-driven BPM the JBoss way
Event-driven BPM the JBoss wayEvent-driven BPM the JBoss way
Event-driven BPM the JBoss way
Kris Verlaenen

BPMN2 and jBPM5
BPMN2 and jBPM5BPMN2 and jBPM5
BPMN2 and jBPM5
Kris Verlaenen

Streamline your business processes and enhance productivity by using jBPM
Streamline your business processes and enhance productivity by using jBPMStreamline your business processes and enhance productivity by using jBPM
Streamline your business processes and enhance productivity by using jBPM
Kris Verlaenen


More from Kris Verlaenen (17)

Process Automation: an Update from the Trenches
Process Automation: an Update from the TrenchesProcess Automation: an Update from the Trenches
Process Automation: an Update from the Trenches

Summit 2019: "Submarine" initiative
Summit 2019: "Submarine" initiativeSummit 2019: "Submarine" initiative
Summit 2019: "Submarine" initiative

bpmNEXT: Automating human-centric processes with machine learning
bpmNEXT: Automating human-centric processes with machine learningbpmNEXT: Automating human-centric processes with machine learning
bpmNEXT: Automating human-centric processes with machine learning

bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...
bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...
bpmNEXT 2018: Exploiting cloud infrastructure for efficient business process ...

Building advanced case-driven applications
Building advanced case-driven applicationsBuilding advanced case-driven applications
Building advanced case-driven applications

Building responsive and flexible applications with BPM
Building responsive and flexible applications with BPMBuilding responsive and flexible applications with BPM
Building responsive and flexible applications with BPM

Process-driven applications
Process-driven applicationsProcess-driven applications
Process-driven applications

What's new in JBoss BPM Suite 6.1
What's new in JBoss BPM Suite 6.1What's new in JBoss BPM Suite 6.1
What's new in JBoss BPM Suite 6.1

jBPM6 Updates
jBPM6 UpdatesjBPM6 Updates
jBPM6 Updates

Empowering Business Users with Process Management Tools
Empowering Business Users with Process Management ToolsEmpowering Business Users with Process Management Tools
Empowering Business Users with Process Management Tools

What's new in jBPM6
What's new in jBPM6What's new in jBPM6
What's new in jBPM6

jBPM5: Bringing more Power to your Business Processes
jBPM5: Bringing more Power to your Business ProcessesjBPM5: Bringing more Power to your Business Processes
jBPM5: Bringing more Power to your Business Processes

jBPM5 - Bringing more power to your business processes
jBPM5 - Bringing more power to your business processesjBPM5 - Bringing more power to your business processes
jBPM5 - Bringing more power to your business processes

Flexible business processes using jBPM5
Flexible business processes using jBPM5Flexible business processes using jBPM5
Flexible business processes using jBPM5

Event-driven BPM the JBoss way
Event-driven BPM the JBoss wayEvent-driven BPM the JBoss way
Event-driven BPM the JBoss way

BPMN2 and jBPM5
BPMN2 and jBPM5BPMN2 and jBPM5
BPMN2 and jBPM5

Streamline your business processes and enhance productivity by using jBPM
Streamline your business processes and enhance productivity by using jBPMStreamline your business processes and enhance productivity by using jBPM
Streamline your business processes and enhance productivity by using jBPM


Recently uploaded

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
Data Hops

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx
HarisZaheer8

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Tatiana Kojar

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz

Azure API Management to expose backend services securely
Azure API Management to expose backend services securelyAzure API Management to expose backend services securely
Azure API Management to expose backend services securely
Dinusha Kumarasiri

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining
LucaBarbaro3

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf
Shinana2

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx
marufrahmanstratejm

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Precisely

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic


Recently uploaded (20)

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus

Azure API Management to expose backend services securely
Azure API Management to expose backend services securelyAzure API Management to expose backend services securely
Azure API Management to expose backend services securely

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy


jBPM, open source BPM

  • 1. jBPM5: Bringing more Power jBPM, to your Business Open Source BPM Processes Kris Verlaenen jBPM Project Lead June, 2012 1
  • 2. jBPM Overview • jBPM Project • jBPM walkthrough • Roadmap
  • 3. What is BPM? Business Process Management A business process is a process that describes the order in which a series of steps need to be executed, using a flow chart.
  • 4. Why BPM? • Visibility • Continuous improvement • Monitoring • Speed of development • Higher-level • Increased agility
  • 5. jBPM Project • (Executable) business processes – light-weight, native BPMN2 engine – from embedded to as a service • Entire life cycle • Both developers and business users • Advanced, adaptive processes
  • 6. Life Cycle Business Analyst Model Developer System Administrator Monitor BPM Deploy Execute End User
  • 7. End User r ito on Your jBPM Console Application M e Core Services ut ec Your Core History Task Ex Services Engine Log Service Rules y lo ep Guvnor D Repository el Web-Based Eclipse Editor od Designer M Developer Business Analyst
  • 8. Key Characteristics • Open-source, lightweight • Native BPMN 2.0 • High-level business processes • Business user & developer collaborate • Advanced, adaptive processes • Modularized, pluggable, standards
  • 9. Advanced, adaptive processes • (One of the) most advanced open- source BPMN2 engine • Adaptive, ad-hoc, dynamic processes • Integration and unification with business rules and complex event processing
  • 10. jBPM Walkthrough • Core engine • From Workflow to BPM • Extra features • Social, Cloud and Mobile
  • 11. Core Engine • Core engine is a workflow engine in pure Java – state transitions – lightweight – embeddable – generic, extensible Core Engine
  • 12. Core Engine Stateful Knowledge Knowledge Base Session Process Process Definition Instance
  • 13. Java Interface ProcessRuntime interface • startProcess(processId) • startProcess(processId, parameters) • signalEvent(type, event) • signalEvent(type, event, instanceId) • abortProcessInstance(instanceId) • getProcessInstance(instanceId) • …
  • 14. Java Example // (1) Create knowledge base and add process definition KnowledgeBuilder kbuilder = ... kbuilder.add( ..., "sample.bpmn", ResourceType.BPMN2); KnowledgeBase kbase = kbuilder.newKnowledgeBase(); // (2) Create new stateful knowledge session StatefulKnowledgeSession ksession = kbase.newStatefulKnowledgeSession(); // (3) Start a new process instance ksession.startProcess(“com.sample.bpmn.hello”);
  • 15. From Workflow to BPM
  • 16. From Workflow to BPM XML Core Engine BPMN 2.0
  • 17. BPMN 2.0 <definitions ... > <process id="com.sample.bpmn.hello" name="Hello World" > <startEvent id="_1" name="StartProcess" /> <sequenceFlow sourceRef="_1" targetRef="_2" /> <scriptTask id="_2" name="Hello" > <script>System.out.println("Hello World");</script> </scriptTask> <sequenceFlow sourceRef="_2" targetRef="_3" /> <endEvent id="_3" name="EndProcess" /> </process> </definitions>
  • 18.

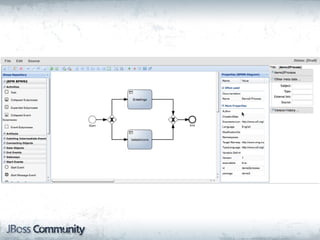

  • 19. jBPM Eclipse Plugin • Developer-focused • Features: – Wizards, runtimes, perspective – Graphical editor – Testing and debugging – Service repository, generators – Guvnor integration
  • 20.
  • 21. Web-based Designer • Business User-focused • Features – Graphical Editor – Visual validation – Service repository, generators – Guvnor integration • Based on Oryx Designer – JavaScript, JSON
  • 22. From Workflow to BPM JPA Persistence XML JTA Trans- actions Core Engine BPMN 2.0
  • 23. Persistence and Transactions • Persistence (JPA, pluggable) – Runtime persistence – History logging – Services • Transactions (JTA, pluggable) – Command-scoped – User-defined
  • 24. Persistence • Core engine no persistence • Macro transactions • Binary persistence of runtime data • Separation of history information • External services – using work items, async – independent task service
  • 25. ProcessInstance startProcess Process 1 active d/m/yy hh:mm ... Runtime Engine addTask Task 1 Task1 sales ... Service Tasks 2 Task2 HR ... Task Task
  • 26. ProcessInstance Process 1 active d/m/yy hh:mm ... Runtime Engine complete Task 1 Task1 sales ... Service Tasks 2 Task2 HR ... Task Task complete
  • 27. ProcessInstance Process 1 active d/m/yy hh:mm ... Runtime Engine complete Task 1 Task1 sales ... Service Tasks 2 Task2 HR ... Task Task complete
  • 28. From Workflow to BPM Persistence XML Trans- actions Core Engine BPMN 2.0 History Events Log Management Console BAM
  • 29. Console • Web-based management • Business user • Features – Process instance management – User task lists / forms – Reporting
  • 30.
  • 31.
  • 32.
  • 33. Console • GWT • Generic BPM console – jBPM integration code • REST API • One embedded session – Persistence, history logging • Eclipse BIRT reporting: custom reports
  • 34. From Workflow to BPM Persistence XML Trans- actions Core Engine BPMN 2.0 Events Domain-specific Integration Processes Human Task ESB Service
  • 35. Domain-specific Processes • Extend palette with domain-specific, declarative service nodes – define input / output parameters – runtime binding
  • 36. Domain-specific Processes • Why? • Other examples – Domain-specific – Human task – Java method – Declarative – WS, Rest – High-level – Email, Twitter – Context-defined – FTP, RSS, Jabber – Finder, Exec, Archive – Google Calendar Repository ! – YOUR SERVICES !
  • 38. Example: Notification [ [ "name" : "Notification", "parameters" : [ "Message" : new StringDataType(), "From" : new StringDataType(), "To" : new StringDataType(), "Priority" : new StringDataType(), ], "displayName" : "Notification", "icon" : "icons/notification.gif" ] ]
  • 39. Example: Notification class NotificationHandler implements WorkItemHandler { public void executeWorkItem(WorkItem wI, WorkItemManager manager) { String from = (String) wI.getParameter("From"); String to = (String) wI.getParameter("To"); String m = (String) wI.getParameter("Message"); // send email EmailService service = ...; service.sendEmail(from, to, "Notification", m); manager.completeWorkItem(wI.getId(), null); } }
  • 40. Human task service • User task • Human task service (WS-HT) – Task lists – Task life cycle • Task clients – Task forms
  • 41. Human Task Service • Independent, pure Java implementation • Different underlying technologies – Local – Apache Mina, HornetQ, JMS • I18N, calendar, deadlines, escalation • UserGroupCallback
  • 42. SwitchYard Lightweight service delivery framework providing full life cycle support for developing, deploying, and managing service-oriented applications • SwitchYard BPM component
  • 44. Extra features • Process instance migration • JUnit testing • Spring • OSGi • Migration from jBPM3(/4)
  • 45. Installer • Out-of-the-box working environment • Sample process • Components – Eclipse (jBPM + Drools) – Guvnor + Designer – jbpm-console – Services • H2 DB, human task service, history log
  • 46. Examples • Evaluation • Examples module – Looping – Multi-instances – Human tasks (including user / group assignment, delegation, forms, etc.) – Process + rules integration
  • 47.
  • 48.
  • 50. Ready for the future? Traditional BPM systems have problems with change, complexity, flexibility, data- intensive applications, etc. • Adaptive Case Management (ACM) • Unstructured, non-lineair or flexible processes • Event-driven BPM (edBPM)
  • 51. Motivation A business solution usually involves the interaction between these technologies.  Technology overlap  Business overlap Attribute the same importance to the three complementary business modeling techniques
  • 52. Processes Rules Events Business Logic
  • 53.
  • 54. Example: Build Management Source: Hudson Execution and Scheduling Architecture
  • 55. Example: Build Management Source: Hudson Execution and Scheduling Architecture
  • 56. Logistic Company - Solution Vehicle Aircraft Traffic Flow Traffic Incident Weather Event Stream Event Stream Event Stream Event Stream Event Stream Knowledge Bases Shipment Event Stream New Inferred Facts Facts Stop Event Stream Reasoning Knowledge Based Reasoning CEP [Temporal Reasoning] Spatial Reasoning Source: E. Tirelli & A. Mollenkopf - ORF2009
  • 57. Vision A knowledge-oriented platform for developers and business users
  • 59. Exceptional Control Flow 90% Rule1 Rule2 Rule3 When When When ... ... ... Then Then Then ... ... ... 5% 3% 2%
  • 61. Combining Processes, Rules and Events • Integration – From loose coupling – To advanced integration • Unification – Processes and (event) rules are different types of business knowledge assets – Tooling (IDE, repository, management)
  • 62. JBoss AS 7 • Blazingly fast • Lightweight • Module core • jBPM5 on AS7: Lightning !
  • 63. OpenShift • Based on Open Source • Innovation • Choice • Java, PHP, Ruby, Python, Perl & more • Express, Flex, Power • Amazon EC2
  • 64. jBPM Everywhere • Run jBPM5 natively on Android
  • 65. Roadmap Feb'11 Jun'11 Dec'11 Apr'12 jBPM 5.0 5.2 5.1 Service repository 5.3 5.x 6.x Web Designer Examples Eclipse Designer Common Executable AS7 Documentation Form Builder Simulation JUnit test OpenShift As a service
  • 66. JBoss Enterprise Product Delivery Model Example: jBPM Community and Enterprise Product 3 3.2 JBoss SOA-P 5 Full Support (3yrs) Transition (1yr) Maintenance (1yr) Flow Enterprise versions provide long-term 4 support, regular releases including fixes, 5 new features, and new platforms certifications. JBoss BRMS 5.3 Full Support (3yrs) Transition (1yr) 6 New community features may be backported to Enterprise 7 versions While community projects continue to rapidly evolve, enterprise middleware products focus on long term stability.
  • 67. Roadmap: jBPM 5.3 Date: May 21st, 2012 • Eclipse Designer • Form Builder • Web Designer • Test and form generators
  • 69. Eclipse BPMN2 editor • eclipse.org project • Using Eclipse BPMN2 EMF model • Graphical editor for full BPMN2 specification (based on Graphiti) • Target engine + profiles • Custom jBPM editors / extensions
  • 70. Form Builder • Generate form for process / task • Graphically design process (D&D) • Triggers, validation • Integrated into Guvnor
  • 71. Roadmap: jBPM 5.x • Simulation and replay • BPM as a service – Expose as ... – Session mgmt and HA – Integrate with external services • Cloud
  • 72. jBPM5: Bringing more Power jBPM, to your Business Open Source BPM Processes Kris Verlaenen jBPM Project Lead June, 2012 72
