Ekeko Technology Showdown at SoTeSoLa 2012

Ekeko
Applicative logic meta-programming
using core.logic against Eclipse

Coen De Roover
Software Languages Lab
Vrije Universiteit Brussel

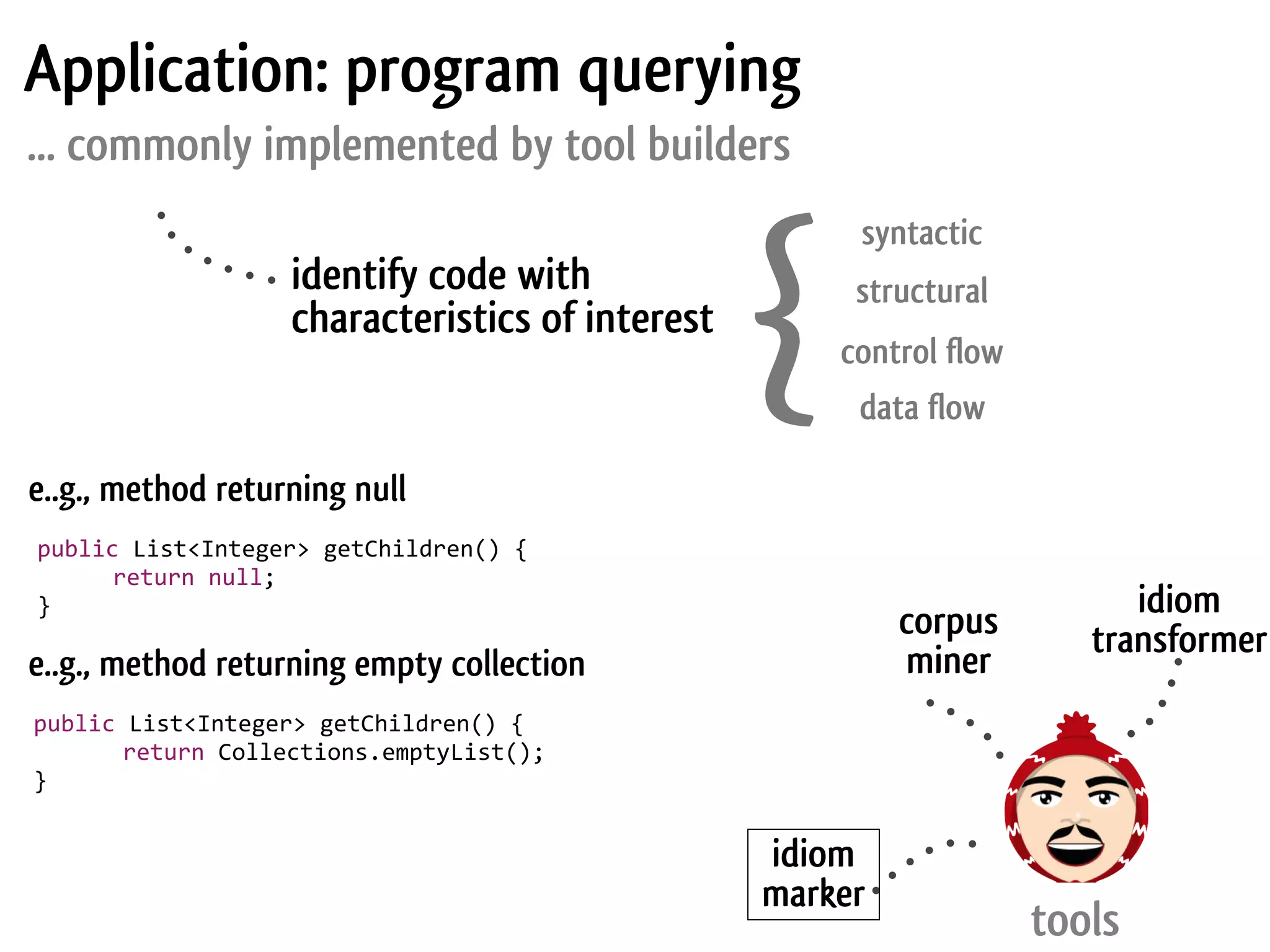

Application: program querying
... commonly implemented by tool builders

{
syntactic
identify code with structural
characteristics of interest
control flow
data flow

e..g., method returning null

public
List<Integer>
getChildren()
{

return
null;

} idiom
corpus transformer
e..g., method returning empty collection miner
public
List<Integer>
getChildren()
{

return
Collections.emptyList();
}

idiom
marker
tools

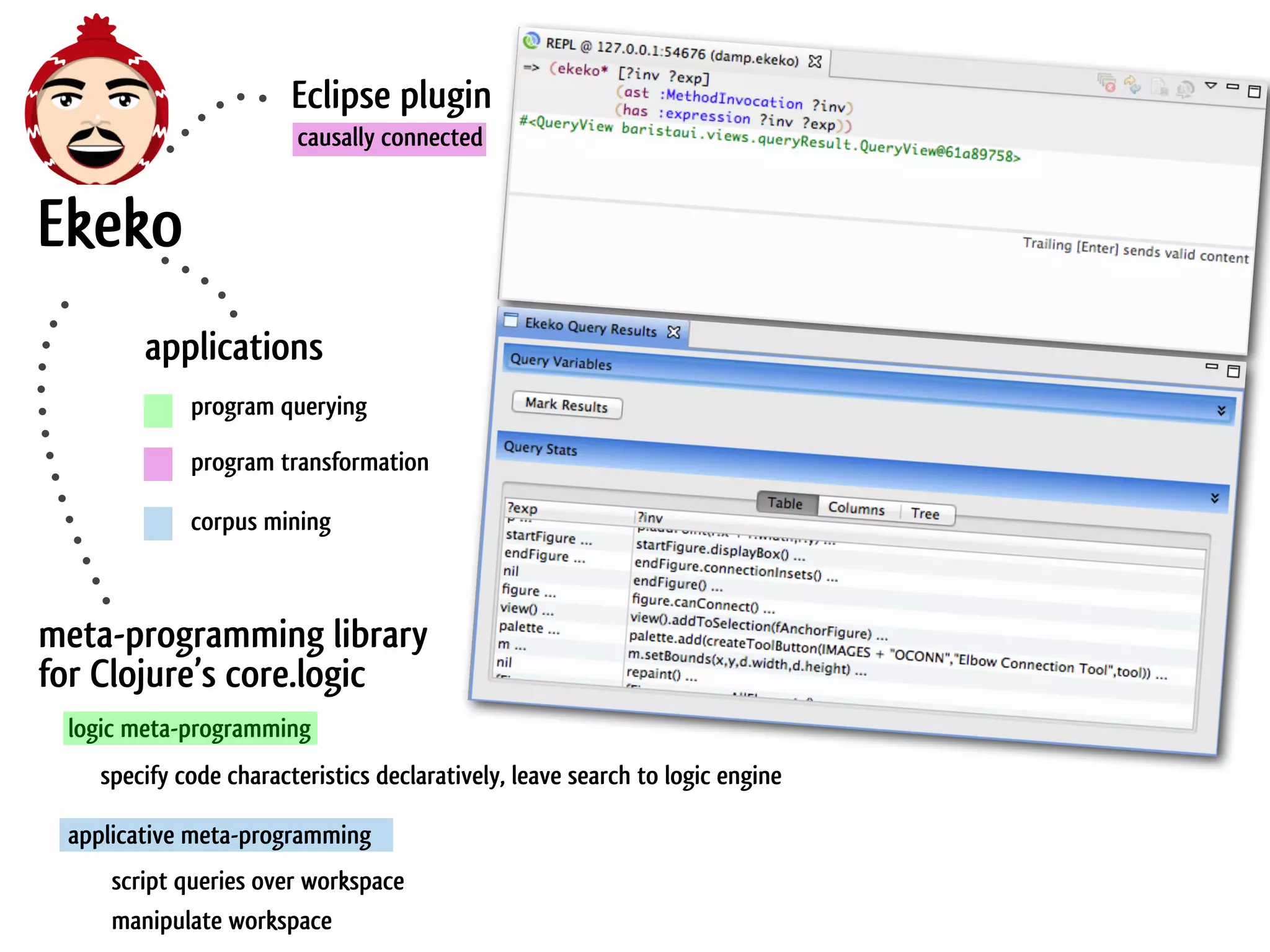

Eclipse plugin
causally connected

Ekeko
applications
program querying

program transformation

corpus mining

meta-programming library
for Clojure’s core.logic
logic meta-programming
specify code characteristics declaratively, leave search to logic engine

applicative meta-programming
script queries over workspace
manipulate workspace

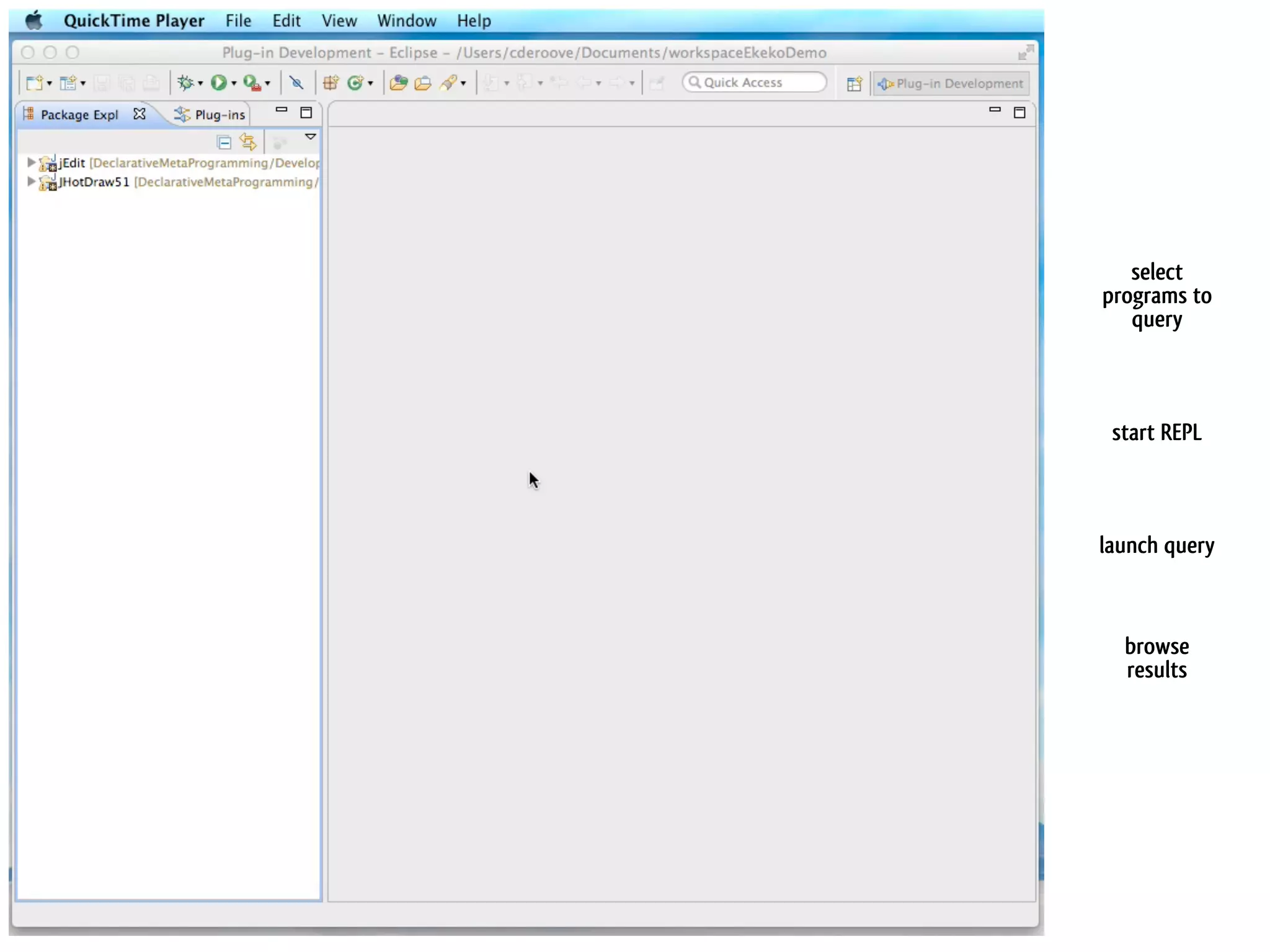

select
programs to
query

start REPL

launch query

browse
results

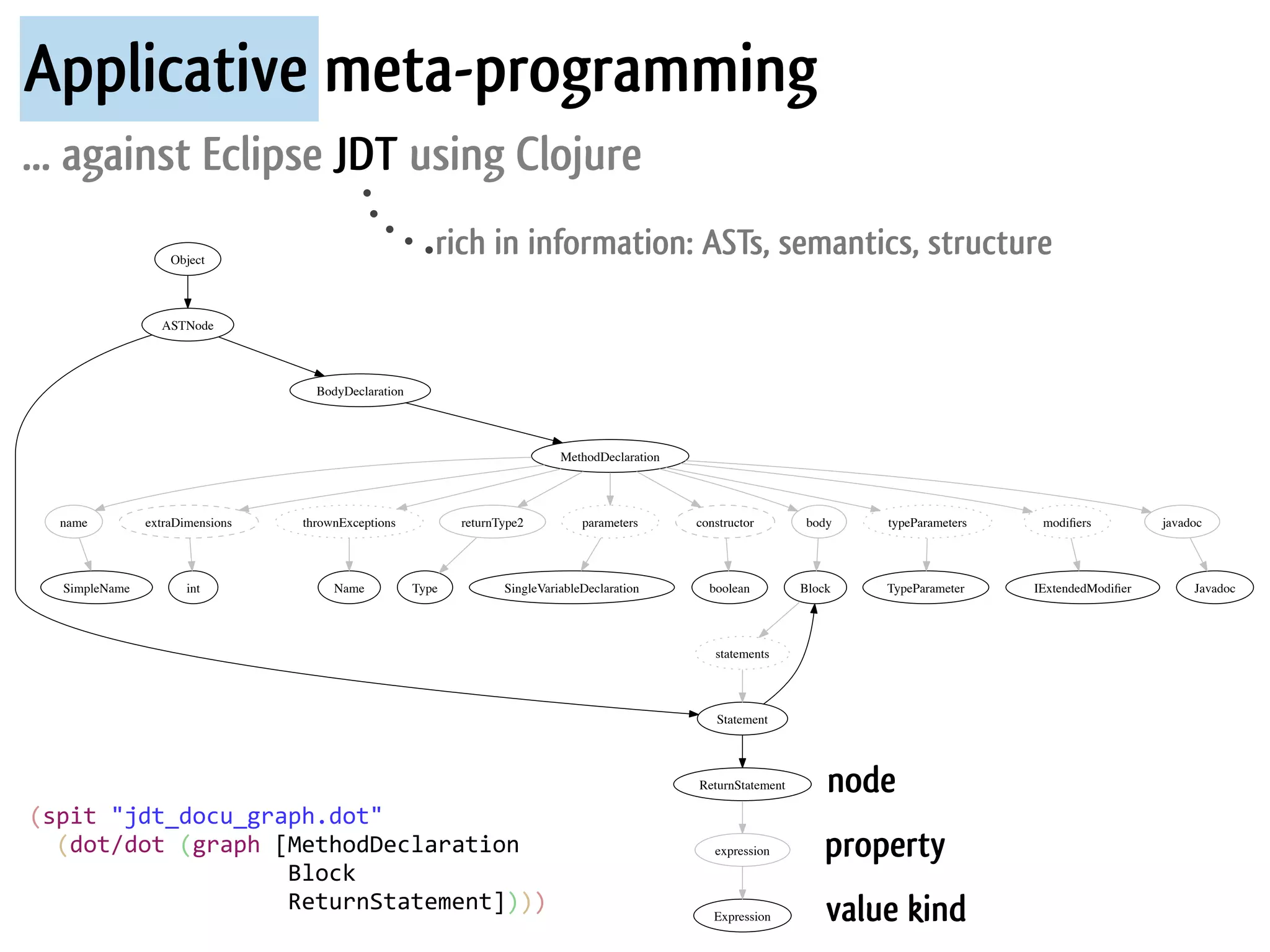

Applicative meta-programming
... against Eclipse JDT using Clojure
Object
rich in information: ASTs, semantics, structure

ASTNode

BodyDeclaration

MethodDeclaration

name extraDimensions thrownExceptions returnType2 parameters constructor body typeParameters modiﬁers javadoc

SimpleName int Name Type SingleVariableDeclaration boolean Block TypeParameter IExtendedModiﬁer Javadoc

statements

Statement

ReturnStatement node
(spit
"jdt_docu_graph.dot"

(dot/dot
(graph
[MethodDeclaration expression property

Block

ReturnStatement]))) Expression value kind

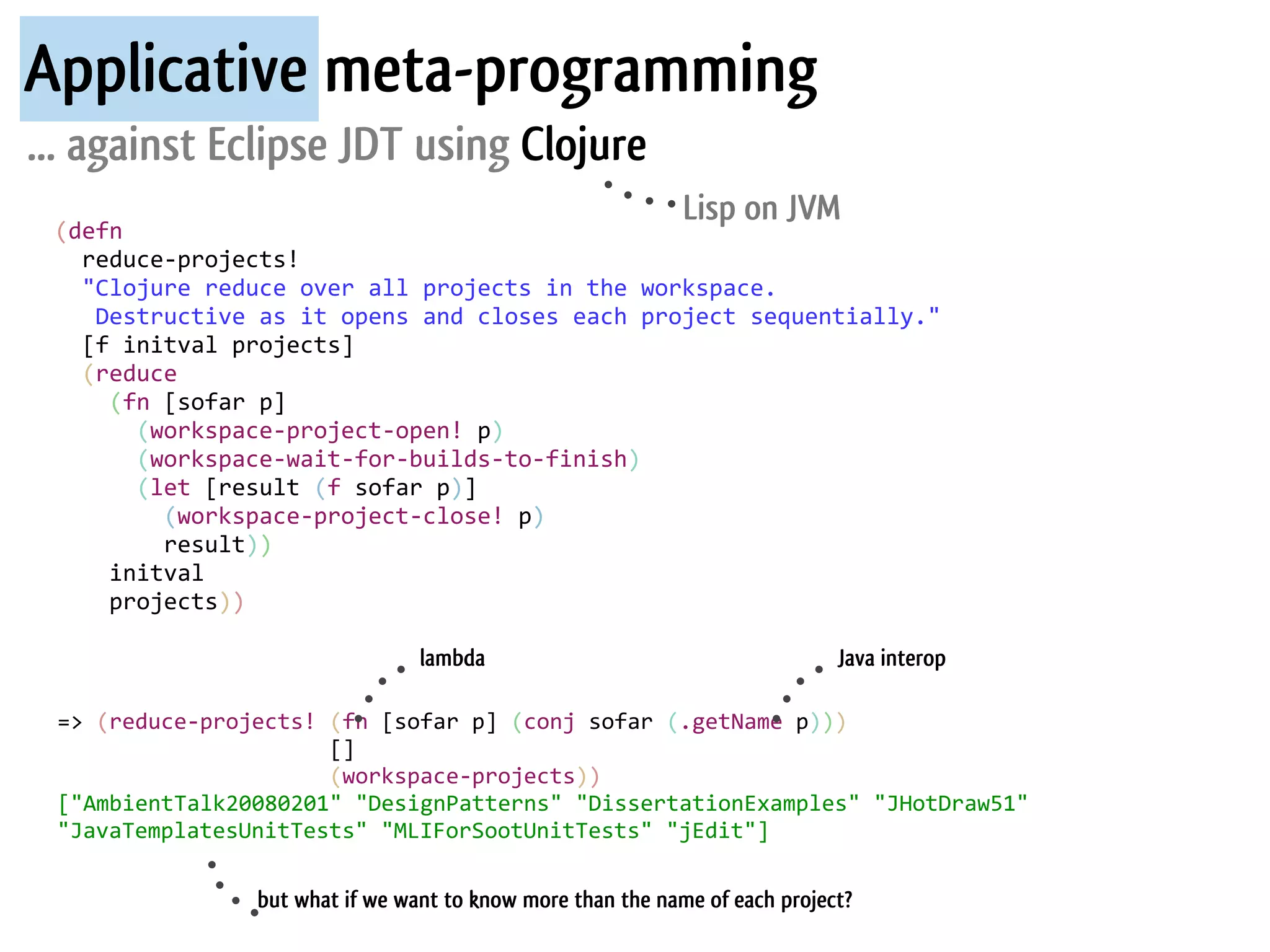

Applicative meta-programming
... against Eclipse JDT using Clojure
Lisp on JVM
(defn

reduce-‐projects!

"Clojure
reduce
over
all
projects
in
the
workspace.

Destructive
as
it
opens
and
closes
each
project
sequentially."

[f
initval
projects]

(reduce

(fn
[sofar
p]

(workspace-‐project-‐open!
p)

(workspace-‐wait-‐for-‐builds-‐to-‐finish)

(let
[result
(f
sofar
p)]

(workspace-‐project-‐close!
p)

result))

initval

projects))

lambda Java interop

=>
(reduce-‐projects!
(fn
[sofar
p]
(conj
sofar
(.getName
p)))

[]

(workspace-‐projects))
["AmbientTalk20080201"
"DesignPatterns"
"DissertationExamples"
"JHotDraw51"

"JavaTemplatesUnitTests"
"MLIForSootUnitTests"
"jEdit"]

but what if we want to know more than the name of each project?

... specify code characteristics through Ekeko relations, leave search to core.logic
collection of all substitutions for ?s and ?e

(ekeko [?s ?e]
(ast :ReturnStatement ?s)
(has :expression ?s ?e)
(ast :NullLiteral ?e))

such that the following Ekeko relations hold:
ast/2 holds for :ReturnStatement, ?s
?e is the value of the
has/3 holds for :expression, ?s, and ?e property named :expression
of ASTNode ?s
ast/2 holds for :NullLiteral, ?e
([?s1 ?e2] ... [?sn ?en])

([#<ReturnStatement return null;
#<NullLiteral null>]
...
[#<ReturnStatement return null;
#<NullLiteral null>]) actual search performed by core.logic

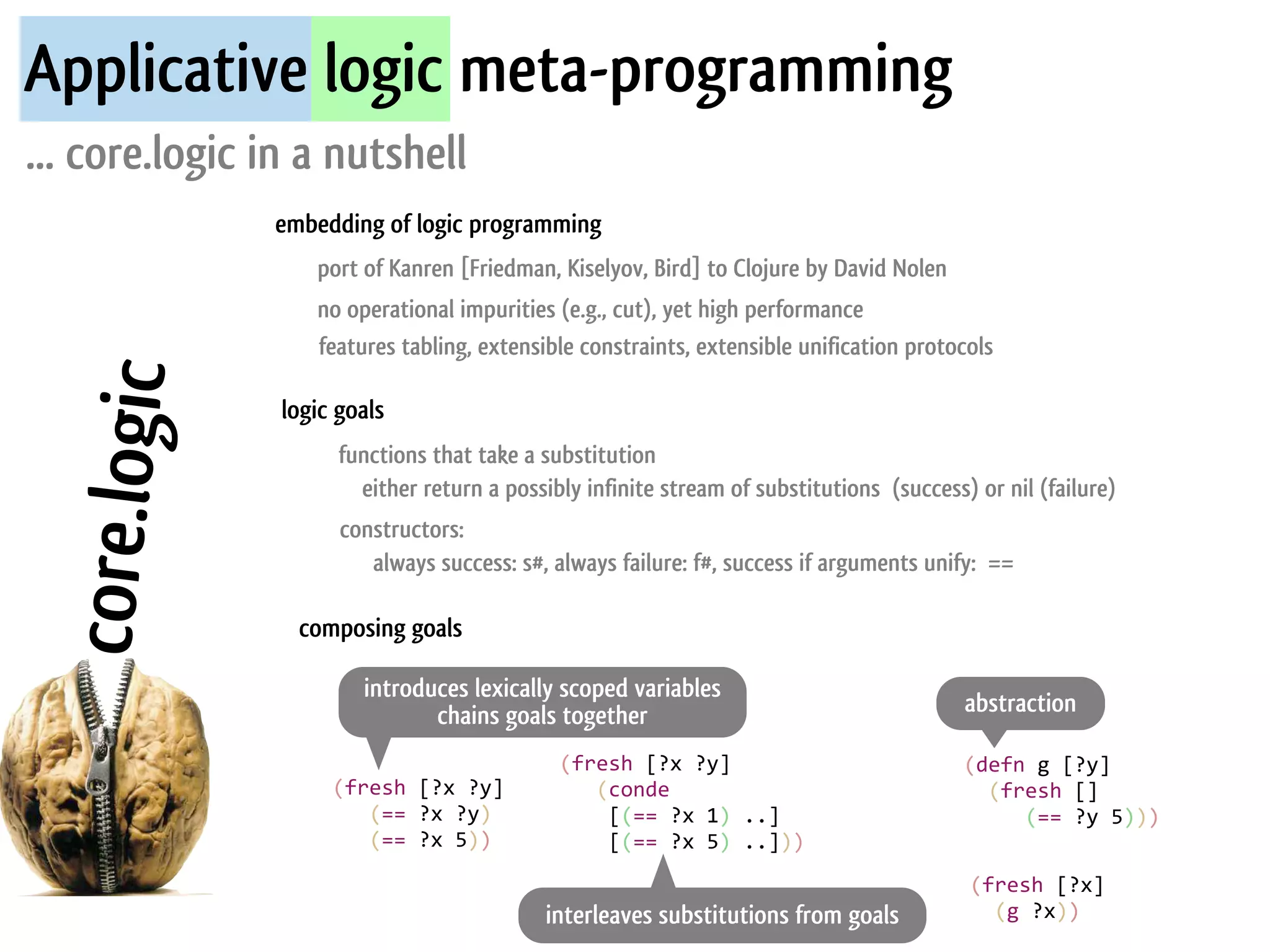

... core.logic in a nutshell
embedding of logic programming
port of Kanren [Friedman, Kiselyov, Bird] to Clojure by David Nolen
no operational impurities (e.g., cut), yet high performance
features tabling, extensible constraints, extensible unification protocols
core.logic

logic goals
functions that take a substitution
either return a possibly infinite stream of substitutions (success) or nil (failure)
constructors:
always success: s#, always failure: f#, success if arguments unify: ==

composing goals

introduces lexically scoped variables
chains goals together abstraction

(fresh
[?x
?y] (defn
g
[?y]
(fresh
[?x
?y]

(conde

(fresh
[]

(==
?x
?y)

[(==
?x
1)
..]

(==
?y
5)))

(==
?x
5))

[(==
?x
5)
..]))

(fresh
[?x]
interleaves substitutions from goals

(g
?x))

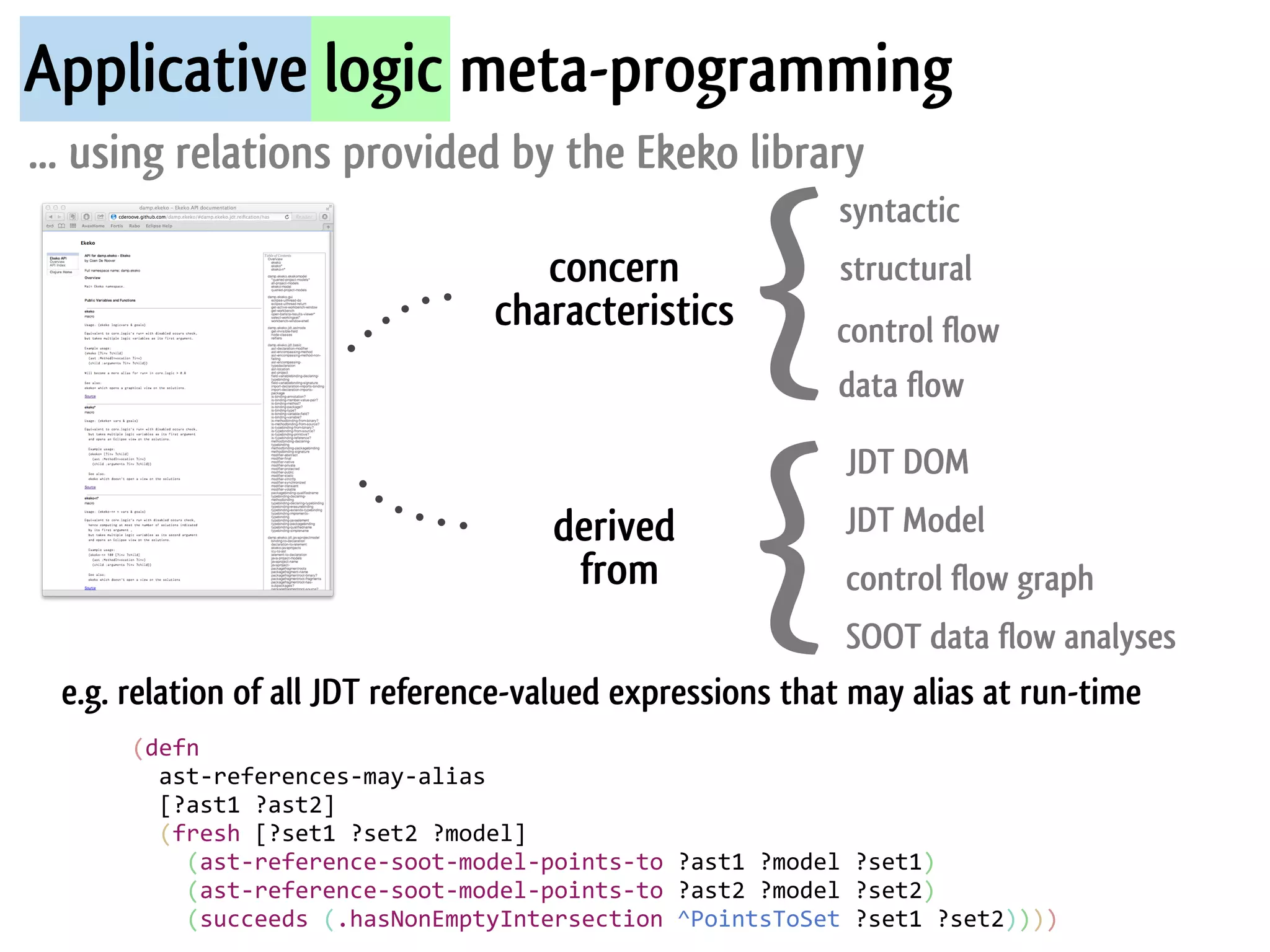

... using relations provided by the Ekeko library

{
syntactic
concern structural
characteristics control flow
data flow

{
JDT DOM
derived JDT Model
from control flow graph
SOOT data flow analyses
e.g. relation of all JDT reference-valued expressions that may alias at run-time
(defn

ast-‐references-‐may-‐alias

[?ast1
?ast2]

(fresh
[?set1
?set2
?model]

(ast-‐reference-‐soot-‐model-‐points-‐to
?ast1
?model
?set1)

(ast-‐reference-‐soot-‐model-‐points-‐to
?ast2
?model
?set2)

(succeeds
(.hasNonEmptyIntersection
^PointsToSet
?set1
?set2))))

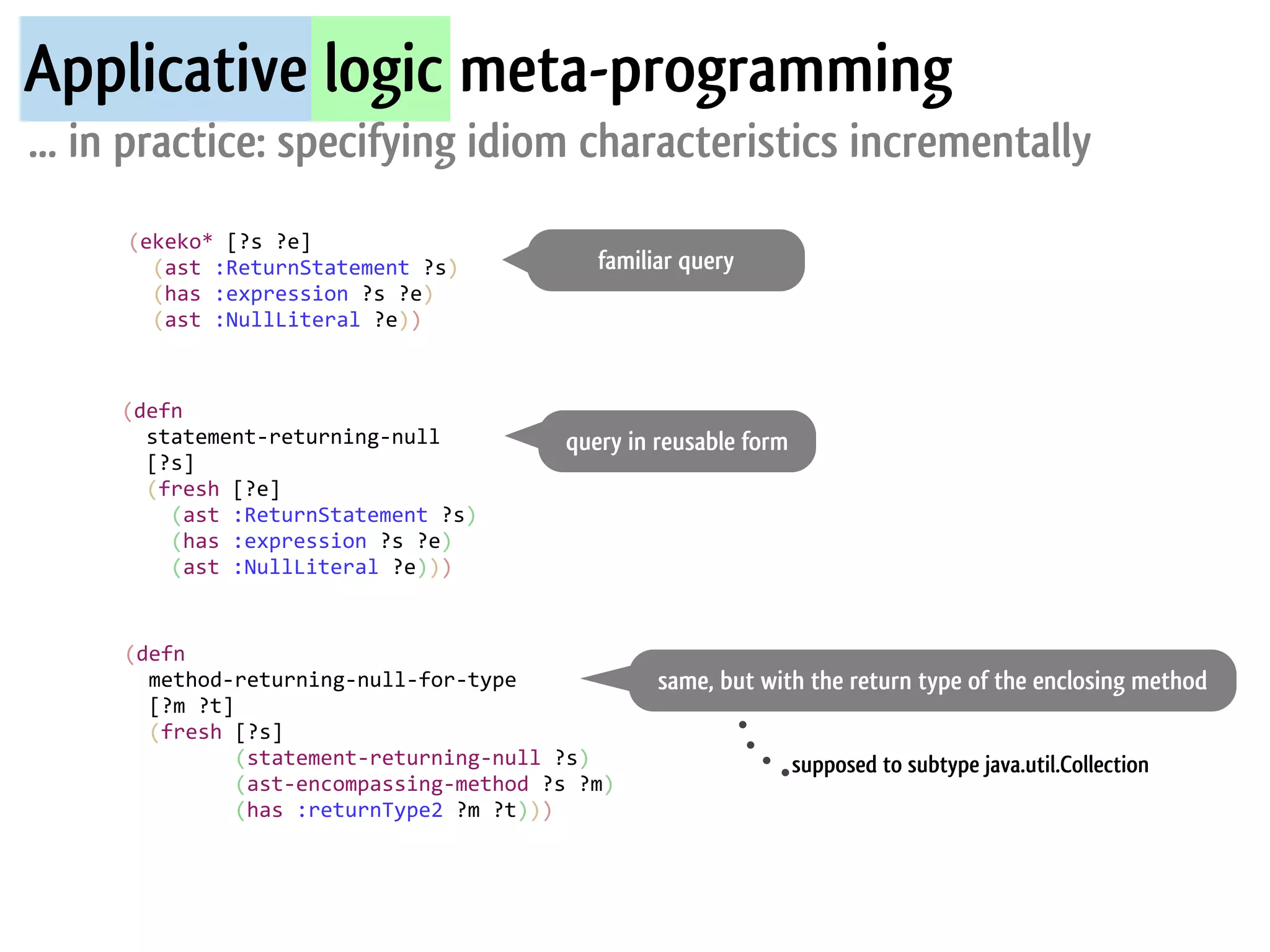

... in practice: specifying idiom characteristics incrementally
(ekeko*
[?s
?e]

(ast
:ReturnStatement
?s)
familiar query

(has
:expression
?s
?e)

(ast
:NullLiteral
?e))

(defn

statement-‐returning-‐null query in reusable form

[?s]

(fresh
[?e]

(ast
:ReturnStatement
?s)

(has
:expression
?s
?e)

(ast
:NullLiteral
?e)))

(defn

method-‐returning-‐null-‐for-‐type same, but with the return type of the enclosing method

[?m
?t]

(fresh
[?s]

(statement-‐returning-‐null
?s) supposed to subtype java.util.Collection

(ast-‐encompassing-‐method
?s
?m)

(has
:returnType2
?m
?t)))

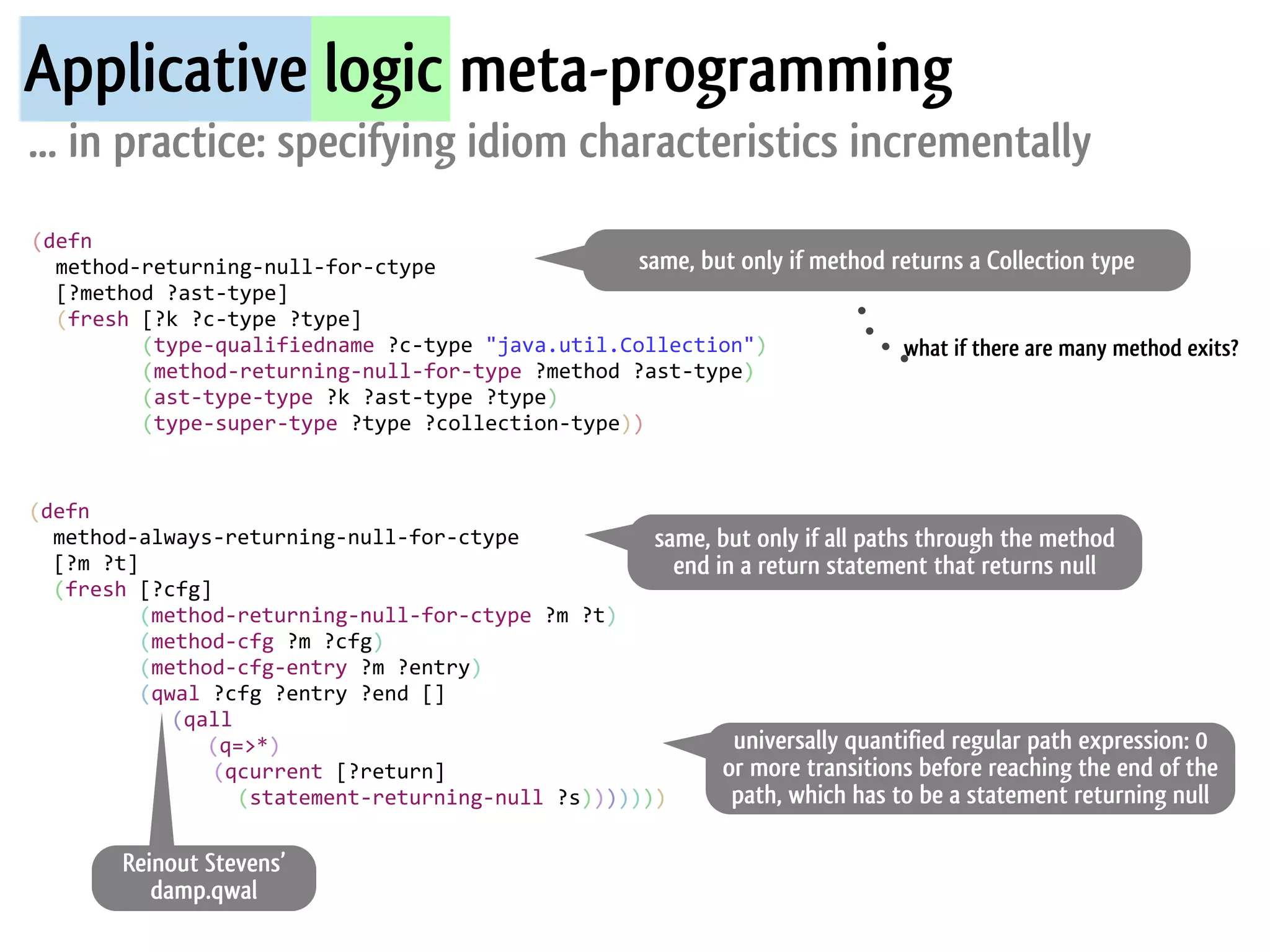

... in practice: specifying idiom characteristics incrementally
(defn

method-‐returning-‐null-‐for-‐ctype same, but only if method returns a Collection type

[?method
?ast-‐type]

(fresh
[?k
?c-‐type
?type]

(type-‐qualifiedname
?c-‐type
"java.util.Collection") what if there are many method exits?

(method-‐returning-‐null-‐for-‐type
?method
?ast-‐type)

(ast-‐type-‐type
?k
?ast-‐type
?type)

(type-‐super-‐type
?type
?collection-‐type))

(defn

method-‐always-‐returning-‐null-‐for-‐ctype same, but only if all paths through the method

[?m
?t] end in a return statement that returns null

(fresh
[?cfg]

(method-‐returning-‐null-‐for-‐ctype
?m
?t)

(method-‐cfg
?m
?cfg)

(method-‐cfg-‐entry
?m
?entry)

(qwal
?cfg
?entry
?end
[]

(qall

(q=>*) universally quantified regular path expression: 0

(qcurrent
[?return] or more transitions before reaching the end of the

(statement-‐returning-‐null
?s))))))) path, which has to be a statement returning null

Reinout Stevens’
damp.qwal

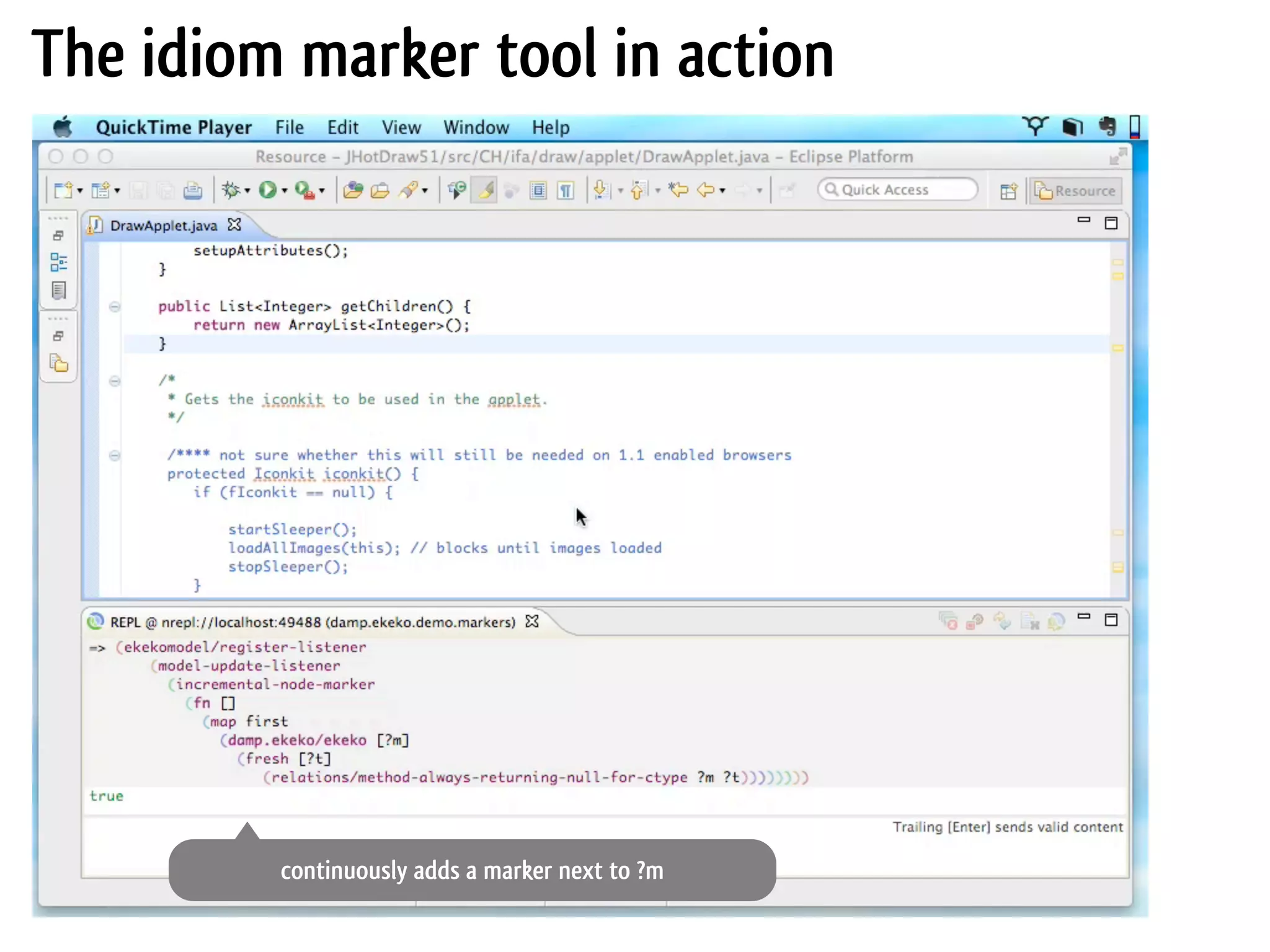

The idiom marker tool in action

continuously adds a marker next to ?m

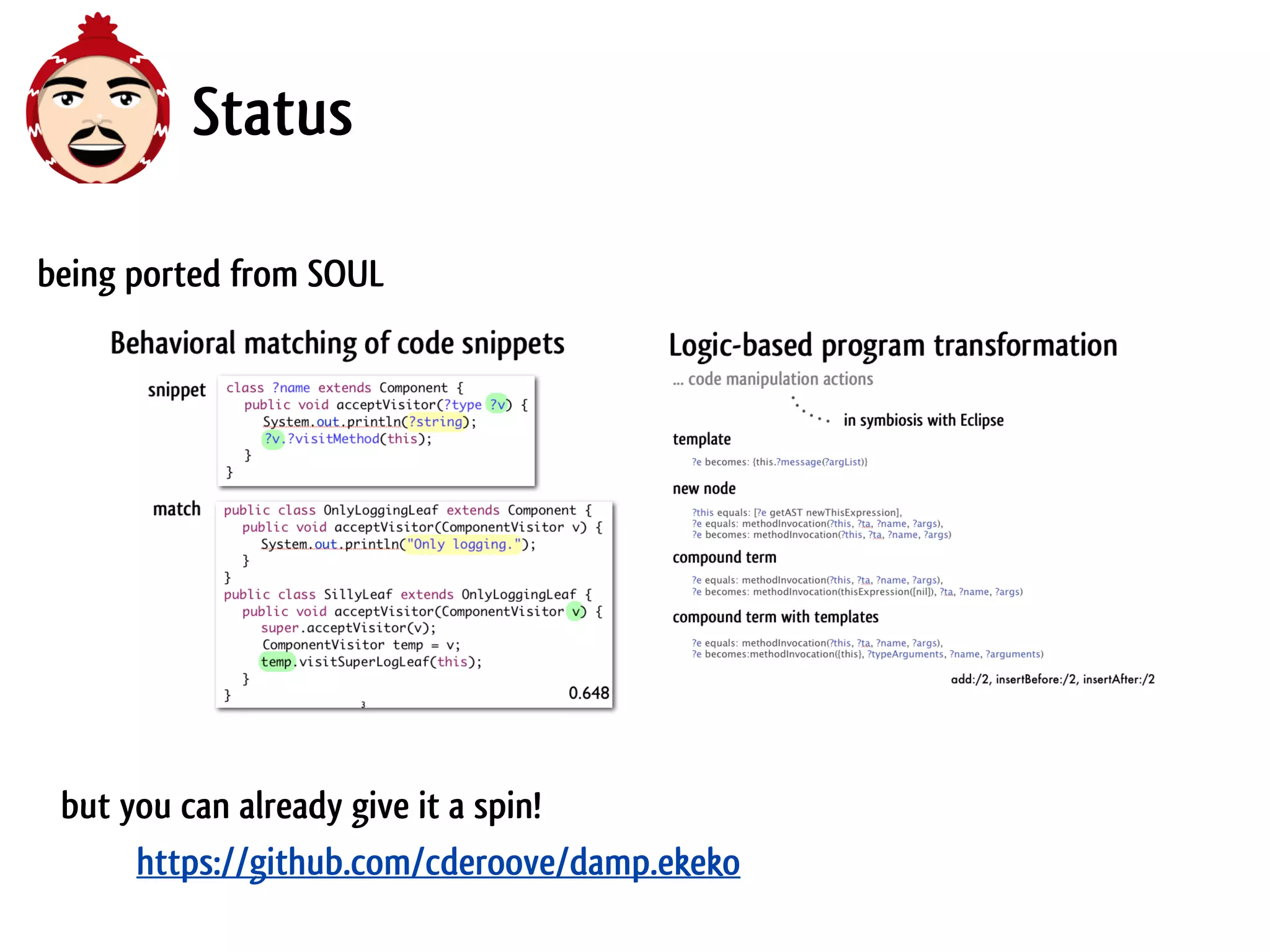

Status

being ported from SOUL

but you can already give it a spin!
https://github.com/cderoove/damp.ekeko
