Java programming lab manual

1
DEPT OF COMPUTER SCIENCE AND ENGG
B.E[INFORMATION TECHNOLOGY]
V-SEMESTER
95808- OPERATING SYSTEM AND JAVA
PROGRAMMING LAB MANUAL
Lab Incharge
Dr. P. Aruna
Professor
Dept of CSE

2
Annamalai University
CYCLE-I
JAVA PROGRAMMING
Ex.no Name of the Exercises
1. Classes and Objects
2. Command Line Argument
3. Bitwise Operators
4. Method Overloading
5. Packages
6.
Interface
7. Inheritance

3

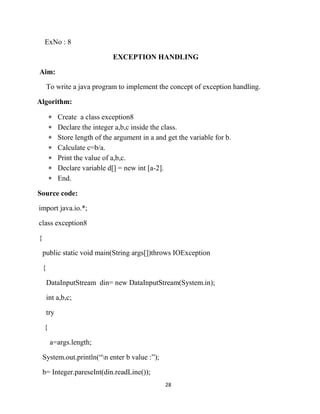

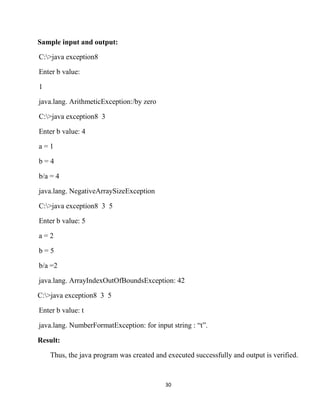

8. Exception Handling

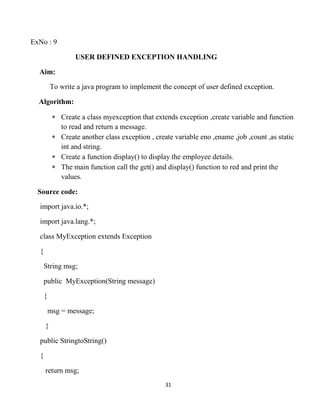

9. User Defined Exception Handling

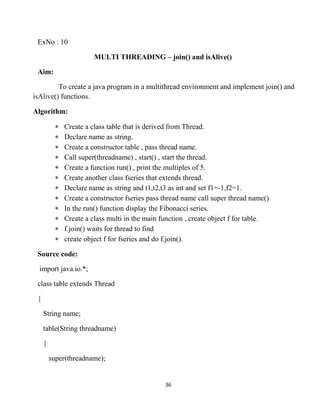

10. Multithreading:join() and isAlive()

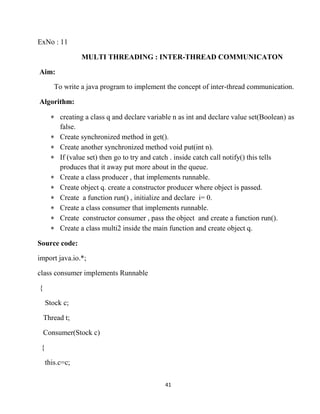

11. Multithreading:Inter thread
communications
12. Addition of Two Numbers using Applet

4
CYCLE-II
UNIX PROGRAMMING
Ex.no Name of the Exercises

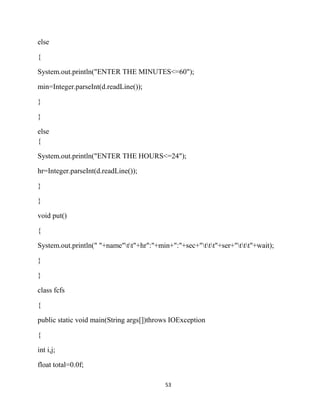

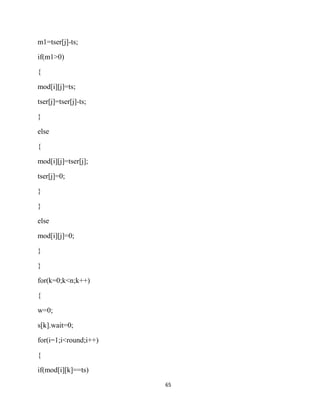

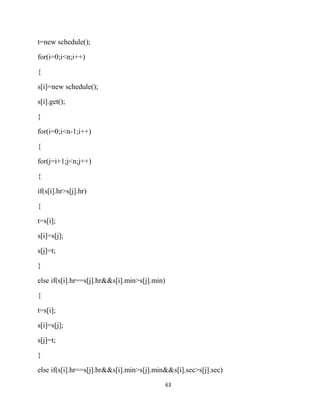

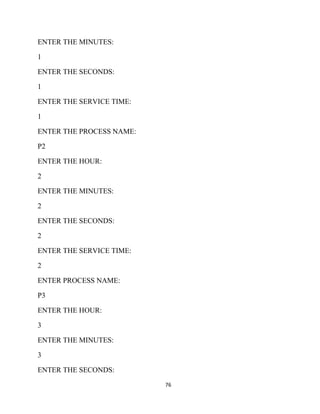

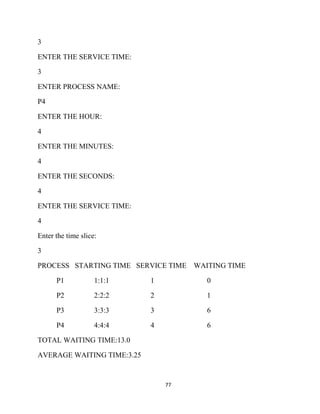

1. Job scheduling techniques
2.

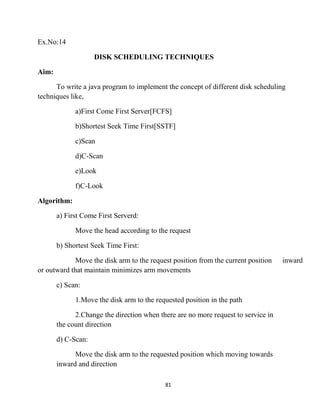

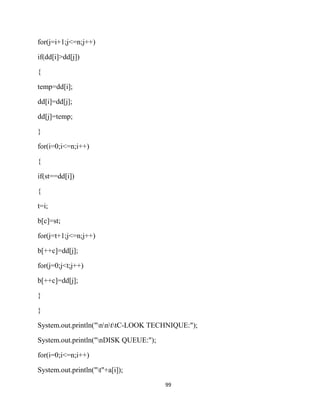

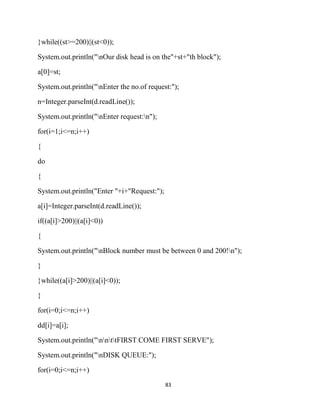

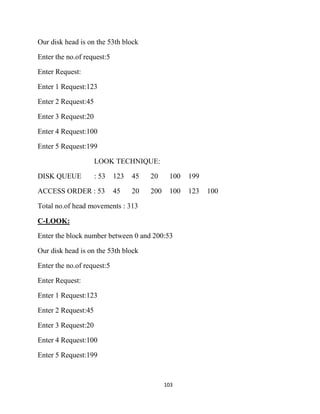

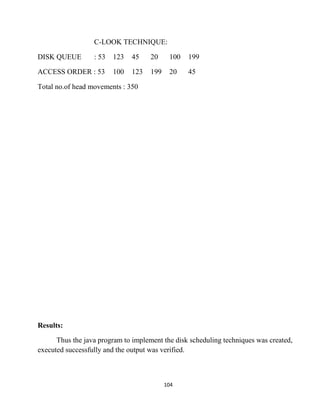

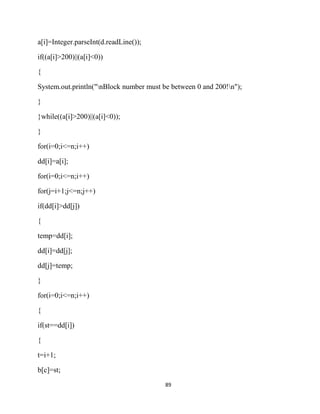

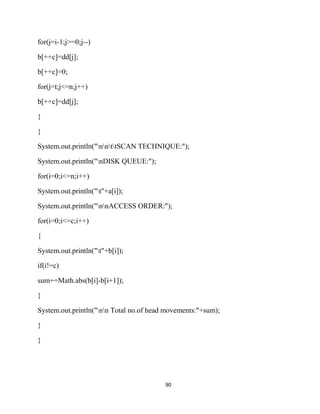

Disk scheduling techniques
3.

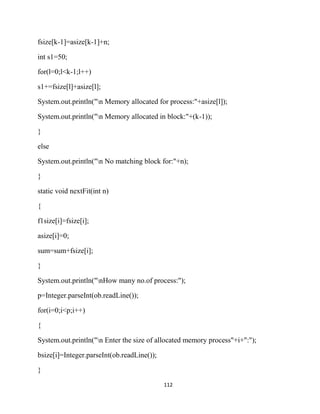

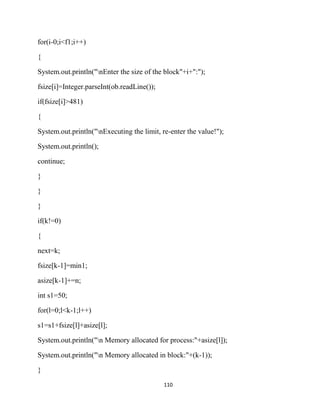

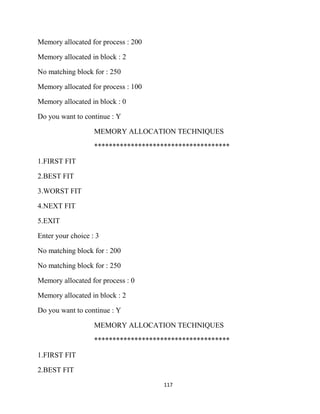

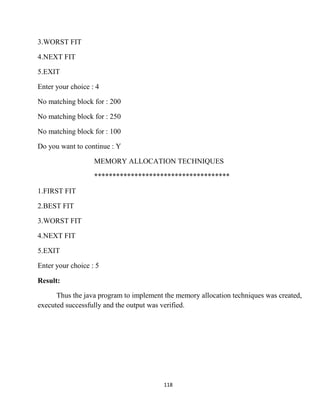

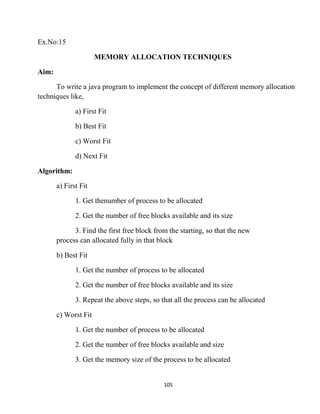

Memory allocation techniques
4.
Memory management techniques
5.

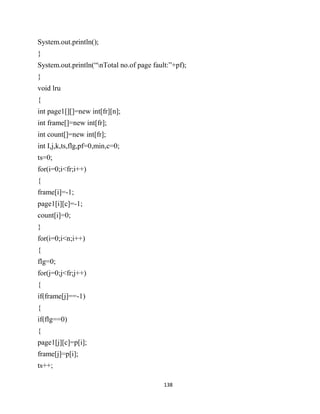

Page replacement techniques

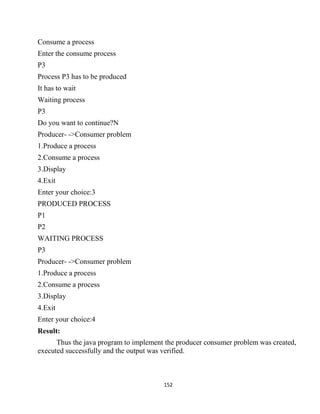

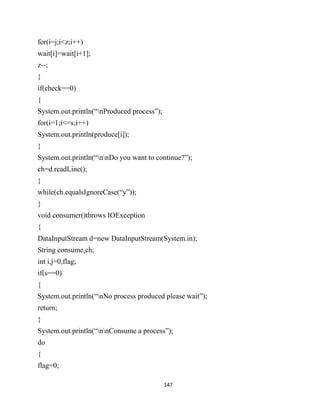

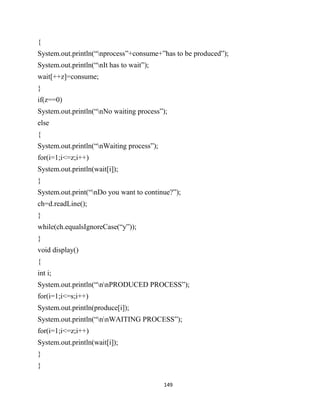

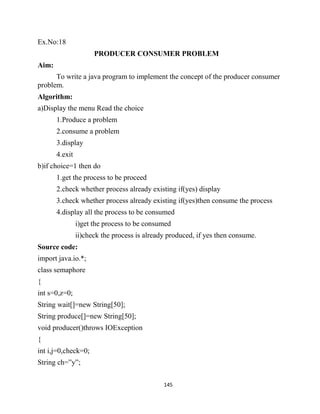

6. Producer consumer problem
7.

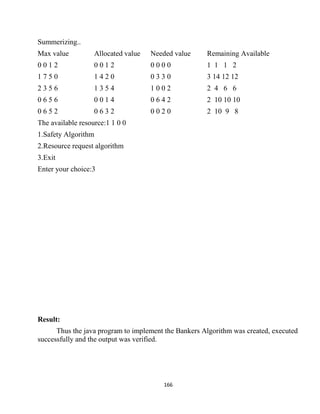

Bankers algorithm
8.

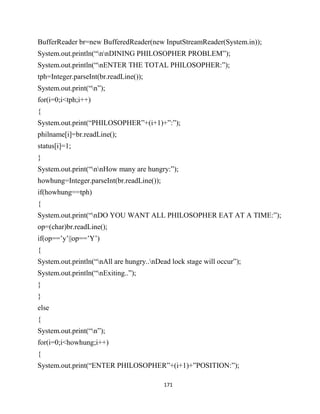

Dining Philosophers problem

5

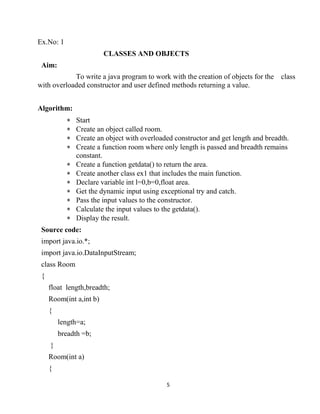

Ex.No: 1
CLASSES AND OBJECTS
Aim:
To write a java program to work with the creation of objects for the class
with overloaded constructor and user defined methods returning a value.
Algorithm:
 Start
 Create an object called room.
 Create an object with overloaded constructor and get length and breadth.
 Create a function room where only length is passed and breadth remains
constant.
 Create a function getdata() to return the area.
 Create another class ex1 that includes the main function.
 Declare variable int l=0,b=0,float area.
 Get the dynamic input using exceptional try and catch.
 Pass the input values to the constructor.
 Calculate the input values to the getdata().
 Display the result.
Source code:
import java.io.*;
import java.io.DataInputStream;
class Room
{
float length,breadth;
Room(int a,int b)
{
length=a;
breadth =b;
}
Room(int a)
{

6
length =a;
breadth=100;
}
float getdata()
{
Return(length*breadth);
}
}
class ex1
{
public static void main(String args[])
{
float area;
int l=0,b=0;
DataInputStream in=new DataInputStream(System.in);
try
{
System.out.println(“n enter the value for Room length:”);
l=Integer.parseInt(in.readLine());
System.out.println(“n enter the value for Room breadth:”);
b=Integer.parseInt(in.readLine());
}
Catch(Exception e)
{}
Room room1=new Room(l,b);
area=room1.getdata();
System.out.println(“n length=”+room1.length);
System.out.println(“n breadth=”+room1.breadth);
System.out.println(“n Area=”+area);

7

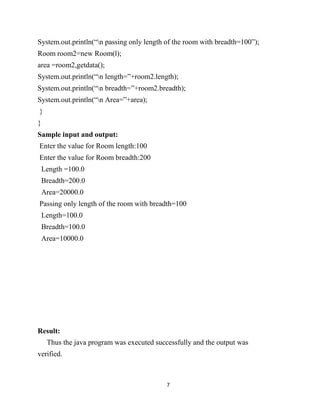

System.out.println(“n passing only length of the room with breadth=100”);
Room room2=new Room(l);
area =room2,getdata();
System.out.println(“n length=”+room2.length);
System.out.println(“n breadth=”+room2.breadth);
System.out.println(“n Area=”+area);
}
}
Sample input and output:
Enter the value for Room length:100
Enter the value for Room breadth:200
Length =100.0
Breadth=200.0
Area=20000.0
Passing only length of the room with breadth=100
Length=100.0
Breadth=100.0
Area=10000.0
Result:
Thus the java program was executed successfully and the output was
verified.

8
ExNo: 2
COMMAND LINE ARGUMENT
Aim:
To write a java program to get and sort names by command line argument.
Algorithm:
 Create a class name ex2 and declare the variables int n and string s[]
 Allocate the memory of names for variable s.
 Get total number of names to be entered in the variable n.
 Using compareTo function sort the names in alphabetical order.
 Use forloop to sort the name.
 Print the sorted name list.
Source code:
import java.io.*;
import java.lang.*;
public static void main(String args[])throws IOException
{
String t;
int n=args.length;
int i,j;
System.out.println(“n you have entered”+n+”names to sort it in ascendingorder”);
for(i=0;i<n-1;i++)
{
for(j=i+1;j<n;j++)
{
if(args[i].compareTo(args[j])>0)
{
t=args[i];
args[i]=args[j];
args[j]=t;

9
}
}
}
System.out.println(“n sorted name list is…n);
for (i=0;i<n;i++)
{
System.out.println(args[i]);
}
}
}
E:>java ex2 one two three four five six seven eight nine ten eleven twelve
You have entered 12 names to sort it in ascending order
Sorted name list is…
Eight
Eleven
Five
Four
Nine
One
Seven
Six
Ten
Three
Twelve
two
Result:
Thus the java program was executed successfully and the output was
verified

10

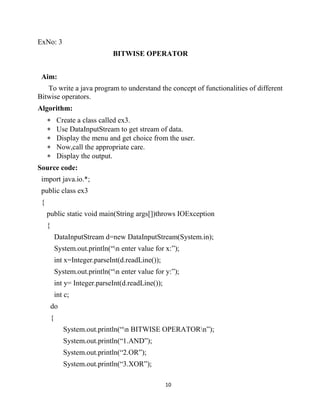

ExNo: 3
BITWISE OPERATOR
Aim:
To write a java program to understand the concept of functionalities of different
Bitwise operators.
Algorithm:
 Create a class called ex3.
 Use DataInputStream to get stream of data.
 Display the menu and get choice from the user.
 Now,call the appropriate care.
 Display the output.
Source code:
import java.io.*;
public class ex3
{
{
DataInputStream d=new DataInputStream(System.in);
System.out.println(“n enter value for x:”);
int x=Integer.parseInt(d.readLine());
System.out.println(“n enter value for y:”);
int y= Integer.parseInt(d.readLine());
int c;
do
{
System.out.println(“n BITWISE OPERATORn”);
System.out.println(“1.AND”);
System.out.println(“2.OR”);
System.out.println(“3.XOR”);

11
System.out.println(“ 4.LEFT SHIFT”);
System.out.println(“ 5.RIGHT SHIFT”);
System.out.println(“ 6.NOT”);
System.out.println(“ 7.EXITn”);
System.out.println(“ n enter your choice:”);
c=Integer.parseInt(d.readLine());
switch(c)
{
case 1:
System.out.println(“AND OPERATION:”+(x+y));
break;
case 2:
System.out.println(“OR OPERATION:”+(x|y));
break;
case 3:
System.out.println(“XOR OPERATION:”+(x^y));
break;
case 4:
System.out.println(“LEFT SHIFT:”+(x<<y));
break;
case 5:
System.out.println(“RIGHT SHIFT:”+(x>>y));
break;
case 6:
System.out.println(“NOT of x :”+(~x));
System.out.println(“NOT of y :”+(~y));
break;
case 7:
System.exit(1);

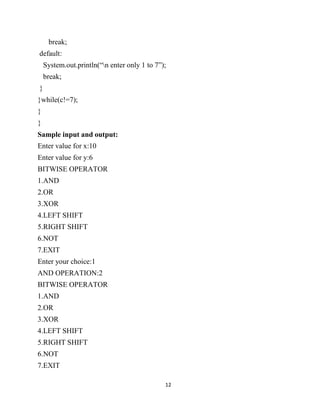

12
break;
default:
System.out.println(“n enter only 1 to 7”);
break;
}
}while(c!=7);
}
}
Enter value for x:10
Enter value for y:6
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT
Enter your choice:1
AND OPERATION:2
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT

13
Enter your choice:2
OR OPERATION:14
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT
Enter your choice:3
XOR OPERATION:12
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT
Enter your choice:4
LEFT SHIFT OPERATION:640
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT

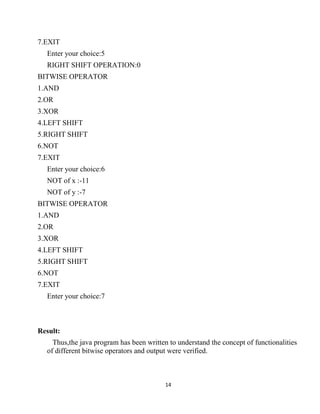

14
7.EXIT
Enter your choice:5
RIGHT SHIFT OPERATION:0
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT
Enter your choice:6
NOT of x :-11
NOT of y :-7
BITWISE OPERATOR
1.AND
2.OR
3.XOR
4.LEFT SHIFT
5.RIGHT SHIFT
6.NOT
7.EXIT
Enter your choice:7
Result:
Thus,the java program has been written to understand the concept of functionalities
of different bitwise operators and output were verified.

15

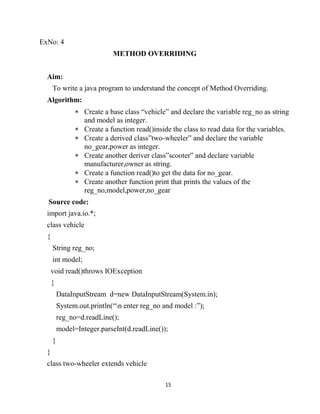

ExNo: 4
METHOD OVERRIDING
Aim:
To write a java program to understand the concept of Method Overriding.
Algorithm:
 Create a base class “vehicle” and declare the variable reg_no as string
and model as integer.
 Create a function read()inside the class to read data for the variables.
 Create a derived class”two-wheeler” and declare the variable
no_gear,power as integer.
 Create another deriver class”scooter” and declare variable
manufacturer,owner as string.
 Create a function read()to get the data for no_gear.
 Create another function print that prints the values of the
reg_no,model,power,no_gear
Source code:
import java.io.*;
class vehicle
{
String reg_no;
int model;
void read()throws IOException
{
System.out.println(“n enter reg_no and model :”);
reg_no=d.readLine();
model=Integer.parseInt(d.readLine());
}
}
class two-wheeler extends vehicle

16
{
int no_gear,power;
{
super.read();
System.out.println(“n enter no_gear and power :”);
no_gear=Integer.parseInt(d.readLine());
power= Integer.parseInt(d.readLine());
}
}
class scooter extends two-wheeler
{
String manufacturer,owner;
{
super.read();
System.out.println(“n enter manufacturer and owner :”);
manufacturer=d.readLine();
owner= d.readLine();
}
void print()
{
System.out.println(“n”);
System.out.println(“n Reg_no :”+reg_no);
System.out.println(“n Model :”+model);
System.out.println(“n No_gear :”+no_gear);
System.out.println(“n Power :”+power);

17

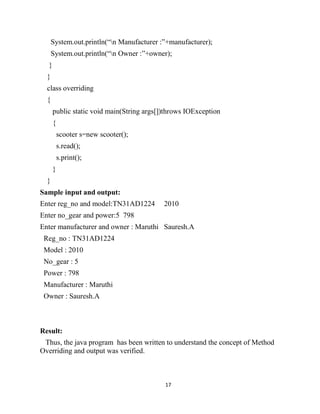

System.out.println(“n Manufacturer :”+manufacturer);
System.out.println(“n Owner :”+owner);
}
}
class overriding
{
{
scooter s=new scooter();
s.read();
s.print();
}
}
Enter reg_no and model:TN31AD1224 2010
Enter no_gear and power:5 798
Enter manufacturer and owner : Maruthi Sauresh.A
Reg_no : TN31AD1224
Model : 2010
No_gear : 5
Power : 798
Manufacturer : Maruthi
Owner : Sauresh.A
Result:
Thus, the java program has been written to understand the concept of Method
Overriding and output was verified.

18

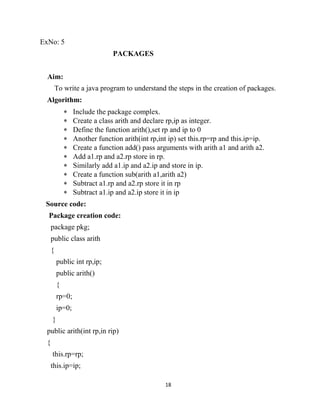

ExNo: 5
PACKAGES
Aim:
To write a java program to understand the steps in the creation of packages.
Algorithm:
 Include the package complex.
 Create a class arith and declare rp,ip as integer.
 Define the function arith(),set rp and ip to 0
 Another function arith(int rp,int ip) set this.rp=rp and this.ip=ip.
 Create a function add() pass arguments with arith a1 and arith a2.
 Add a1.rp and a2.rp store in rp.
 Similarly add a1.ip and a2.ip and store in ip.
 Create a function sub(arith a1,arith a2)
 Subtract a1.rp and a2.rp store it in rp
 Subtract a1.ip and a2.ip store it in ip
Source code:
Package creation code:
package pkg;
public class arith
{
public int rp,ip;
public arith()
{
rp=0;
ip=0;
}
public arith(int rp,in rip)
{
this.rp=rp;
this.ip=ip;

19
}

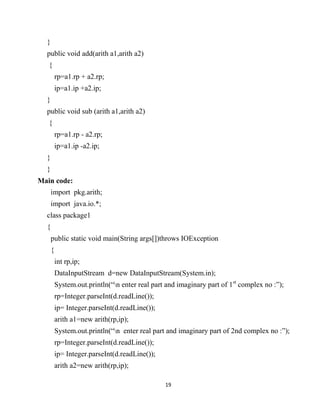

public void add(arith a1,arith a2)
{
rp=a1.rp + a2.rp;
ip=a1.ip +a2.ip;
}
public void sub (arith a1,arith a2)
{
rp=a1.rp - a2.rp;
ip=a1.ip -a2.ip;
}
}
Main code:
import pkg.arith;
import java.io.*;
class package1
{
{
int rp,ip;
System.out.println(“n enter real part and imaginary part of 1st
complex no :”);
rp=Integer.parseInt(d.readLine());
ip= Integer.parseInt(d.readLine());
arith a1=new arith(rp,ip);
System.out.println(“n enter real part and imaginary part of 2nd complex no :”);
rp=Integer.parseInt(d.readLine());
ip= Integer.parseInt(d.readLine());
arith a2=new arith(rp,ip);

20

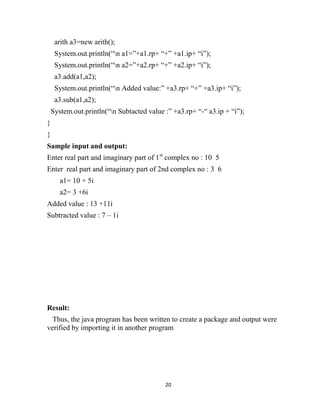

arith a3=new arith();
System.out.println(“n a1=”+a1.rp+ “+” +a1.ip+ “i”);
System.out.println(“n a2=”+a2.rp+ “+” +a2.ip+ “i”);
a3.add(a1,a2);
System.out.println(“n Added value:” +a3.rp+ “+” +a3.ip+ “i”);
a3.sub(a1,a2);
System.out.println(“n Subtacted value :” +a3.rp+ “-“ a3.ip + “i”);
}
}
Enter real part and imaginary part of 1st
complex no : 10 5
Enter real part and imaginary part of 2nd complex no : 3 6
a1= 10 + 5i
a2= 3 +6i
Added value : 13 +11i
Subtracted value : 7 – 1i
Result:
Thus, the java program has been written to create a package and output were
verified by importing it in another program

21

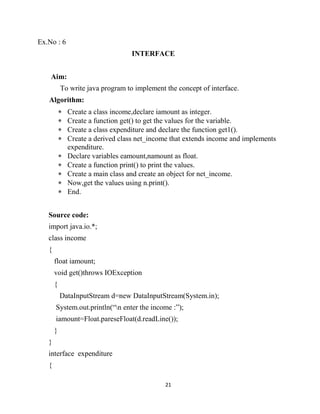

Ex.No : 6
INTERFACE
Aim:
To write java program to implement the concept of interface.
Algorithm:
 Create a class income,declare iamount as integer.
 Create a function get() to get the values for the variable.
 Create a class expenditure and declare the function get1().
 Create a derived class net_income that extends income and implements
expenditure.
 Declare variables eamount,namount as float.
 Create a function print() to print the values.
 Create a main class and create an object for net_income.
 Now,get the values using n.print().
 End.
Source code:
import java.io.*;
class income
{
float iamount;
void get()throws IOException
{
System.out.println(“n enter the income :”);
iamount=Float.pareseFloat(d.readLine());
}
}
interface expenditure
{

22

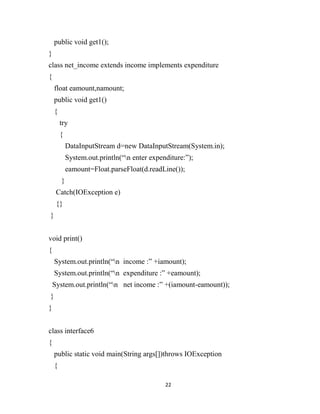

public void get1();
}
class net_income extends income implements expenditure
{
float eamount,namount;
public void get1()
{
try
{
System.out.println(“n enter expenditure:”);
eamount=Float.parseFloat(d.readLine());
}
Catch(IOException e)
{}
}
void print()
{
System.out.println(“n income :” +iamount);
System.out.println(“n expenditure :” +eamount);
System.out.println(“n net income :” +(iamount-eamount));
}
}
class interface6
{
{

23

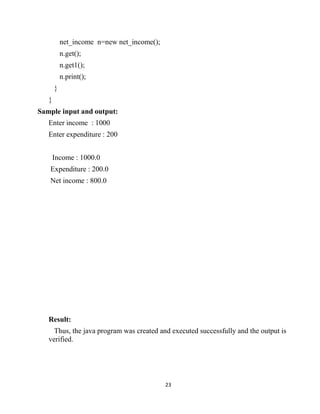

net_income n=new net_income();
n.get();
n.get1();
n.print();
}
}
Enter income : 1000
Enter expenditure : 200
Income : 1000.0
Expenditure : 200.0
Net income : 800.0
Result:
Thus, the java program was created and executed successfully and the output is
verified.

24

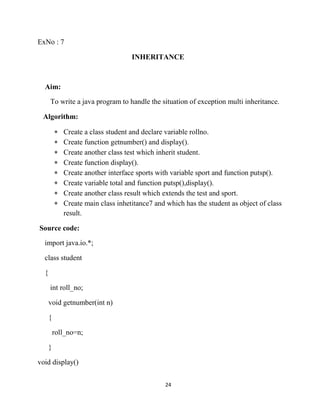

ExNo : 7
INHERITANCE
Aim:
To write a java program to handle the situation of exception multi inheritance.
Algorithm:
 Create a class student and declare variable rollno.
 Create function getnumber() and display().
 Create another class test which inherit student.
 Create function display().
 Create another interface sports with variable sport and function putsp().
 Create variable total and function putsp(),display().
 Create another class result which extends the test and sport.
 Create main class inhetitance7 and which has the student as object of class
result.
Source code:
import java.io.*;
class student
{
int roll_no;
void getnumber(int n)
{
roll_no=n;
}
void display()

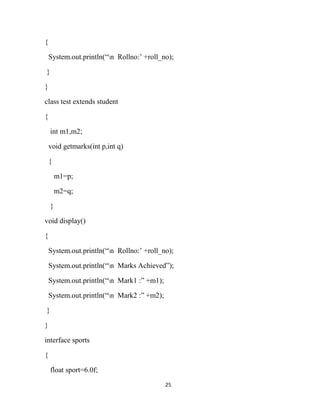

25
{
System.out.println(“n Rollno:’ +roll_no);
}
}
class test extends student
{
int m1,m2;
void getmarks(int p,int q)
{
m1=p;
m2=q;
}
void display()
{
System.out.println(“n Rollno:’ +roll_no);
System.out.println(“n Marks Achieved”);
System.out.println(“n Mark1 :” +m1);
System.out.println(“n Mark2 :” +m2);
}
}
interface sports
{
float sport=6.0f;

26

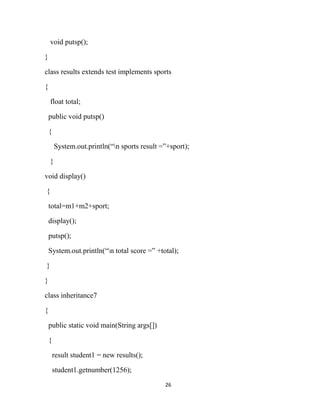

void putsp();
}
class results extends test implements sports
{
float total;
public void putsp()
{
System.out.println(“n sports result =”+sport);
}
void display()
{
total=m1+m2+sport;
display();
putsp();
System.out.println(“n total score =” +total);
}
}
class inheritance7
{
{
result student1 = new results();
student1.getnumber(1256);

27
student1.getmarks(30,40);
student1.display();
}
}
Rollno :1256
Marks Achieved
Marks1 = 30
Marks2 =40
Sports result =6.0
Total score = 76.0
Result:
Thus, the java program was created and executed successfully and output is verified.

28
ExNo : 8
EXCEPTION HANDLING
Aim:
To write a java program to implement the concept of exception handling.
Algorithm:
 Create a class exception8
 Declare the integer a,b,c inside the class.
 Store length of the argument in a and get the variable for b.
 Calculate c=b/a.
 Print the value of a,b,c.
 Declare variable d[] = new int [a-2].
 End.
Source code:
import java.io.*;
class exception8
{
{
DataInputStream din= new DataInputStream(System.in);
int a,b,c;
try
{
a=args.length;
System.out.println(“n enter b value :”);
b= Integer.pareseInt(din.readLine());

29

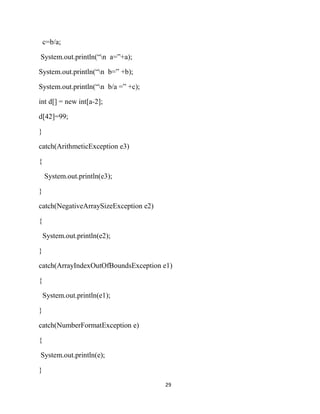

c=b/a;
System.out.println(“n a=”+a);
System.out.println(“n b=” +b);
System.out.println(“n b/a =” +c);
int d[] = new int[a-2];
d[42]=99;
}
catch(ArithmeticException e3)
{
System.out.println(e3);
}
catch(NegativeArraySizeException e2)
{
}
catch(ArrayIndexOutOfBoundsException e1)
{
}
catch(NumberFormatException e)
{
System.out.println(e);
}

30
C:>java exception8
Enter b value:
1
java.lang. ArithmeticException:/by zero
C:>java exception8 3
Enter b value: 4
a = 1
b = 4
b/a = 4
java.lang. NegativeArraySizeException
C:>java exception8 3 5
Enter b value: 5
a = 2
b = 5
b/a =2
java.lang. ArrayIndexOutOfBoundsException: 42
C:>java exception8 3 5
Enter b value: t
java.lang. NumberFormatException: for input string : “t”.
Result:

31
ExNo : 9
USER DEFINED EXCEPTION HANDLING
Aim:
To write a java program to implement the concept of user defined exception.
Algorithm:
 Create a class myexception that extends exception ,create variable and function
to read and return a message.
 Create another class exception , create variable eno ,ename ,job ,count ,as static
int and string.
 Create a function display() to display the employee details.
 The main function call the get() and display() function to red and print the
values.
Source code:
import java.io.*;
import java.lang.*;
class MyException extends Exception
{
String msg;
public MyException(String message)
{
msg = message;
}
public StringtoString()
{
return msg;

32
}
}

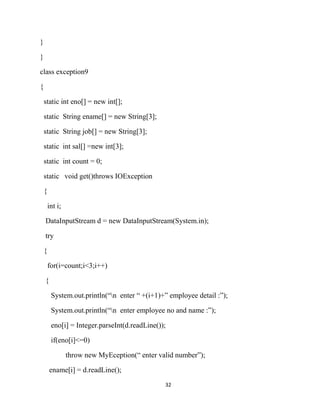

class exception9
{
static int eno[] = new int[];
static String ename[] = new String[3];
static String job[] = new String[3];
static int sal[] =new int[3];
static int count = 0;
static void get()throws IOException
{
int i;
DataInputStream d = new DataInputStream(System.in);
try
{
for(i=count;i<3;i++)
{
System.out.println(“n enter “ +(i+1)+” employee detail :”);
System.out.println(“n enter employee no and name :”);
eno[i] = Integer.parseInt(d.readLine());
if(eno[i]<=0)
throw new MyEception(“ enter valid number”);
ename[i] = d.readLine();

33
System.out.println(“n enter job and salary :”);
job[i] = d.readLine();
sal[i] = Integer.parseInt(d.readLine());
if(sal[i]<0)
throw new MyEception(“ enter valid salary”);
count++;
}
}
catch(MyException e)
{
System.out.println(“ Exception caught :” +e);
get();
}
}
static void disp()
{
for(int i=0;i<3;i++)
{
System.out.println(eno[i]+ “tt” +ename[i]+ “tt” +job[i]+ “tt”+ sal[i]);
}
}
{

34
get();
System.out.println(“n ENOtt ENAMEtt JOBtt SALARYn”);
disp();
}
}
Enter 1 employee details:
Enter employee no and name : -5554
Exception caught : enter valid number
Enter 1 employee detail :
Enter employee no and name : 3001
R.Haricharan
Enter job and salary : lecturer 25000
S.Kalaiselvan
Enter job and salary : reader
20000
S.Rajadurai
Enter job and salary : director
23000

35

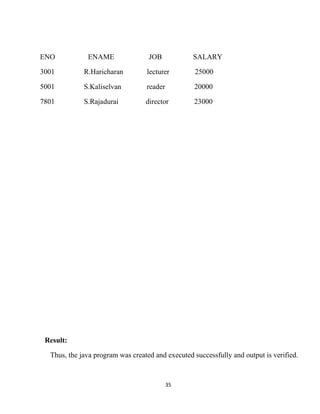

ENO ENAME JOB SALARY
3001 R.Haricharan lecturer 25000
5001 S.Kaliselvan reader 20000
7801 S.Rajadurai director 23000
Result:

36
ExNo : 10
MULTI THREADING – join() and isAlive()
Aim:
To create a java program in a multithread environment and implement join() and
isAlive() functions.
Algorithm:
 Create a class table that is derived from Thread.
 Declare name as string.
 Create a constructor table , pass thread name.
 Call super(threadname) , start() , start the thread.
 Create a function run() , print the multiples of 5.
 Create another class fseries that extends thread.
 Declare name as string and t1,t2,t3 as int and set f1=-1,f2=1.
 Create a constructor fseries pass thread name call super thread name()
 In the run() function display the Fibonacci series.
 Create a class multi in the main function , create object f for table.
 f.join() waits for thread to find
 create object f for fseries and do f.join().
Source code:
import java.io.*;
class table extends Thread
{
String name;
table(String threadname)
{
super(threadname);

37
name = threadname;
System.out.println(“n New thread :’ +this);
start();
}
public void run()
{
System.out.println(“n Five Table”);
for(int i=0;i<=10;i++)
{
System.out.println(“n i+ “*5=” +(i*5));
}
}
}
class fseries extends Thread
{
String name;
int f1 = -1 , f2 = 1 , f3;
fseries(String threadname)
{
super(threadname);
name = threadname;
System.out.println(“n New thread :” + this);
start();

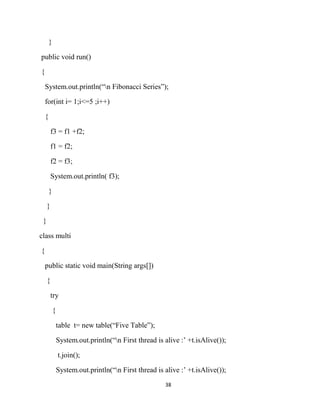

38
}
public void run()
{
System.out.println(“n Fibonacci Series”);
for(int i= 1;i<=5 ;i++)
{
f3 = f1 +f2;
f1 = f2;
f2 = f3;
System.out.println( f3);
}
}
}
class multi
{
{
try
{
table t= new table(“Five Table”);
System.out.println(“n First thread is alive :’ +t.isAlive());
t.join();
System.out.println(“n First thread is alive :’ +t.isAlive());

39
fseries f = new fseries(“Fibonacci Series”);
System.out.println(“n Second thread is alive :” +f.isAlive());
}
catch(InterruptedException e)
{
System.out.println(“n Main thread is interrupted”);
}
System.out.println(“n Main thread is exiting”);
}
}
New thread : Thread[Five Table , 5, main]
First thread is alive : true
Five Table
1*5=5
2*5=10
3*5=15
4*5=20
5*5=25
6*5=30
7*5=35
8*5=40
9*5=45

40

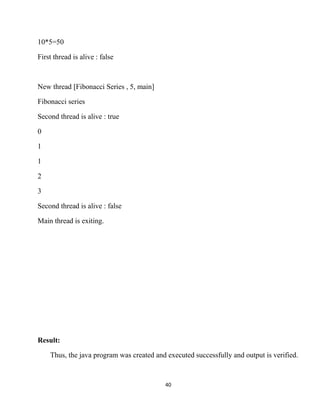

10*5=50
First thread is alive : false
New thread [Fibonacci Series , 5, main]
Fibonacci series
Second thread is alive : true
0
1
1
2
3
Second thread is alive : false
Main thread is exiting.
Result:

41
ExNo : 11
MULTI THREADING : INTER-THREAD COMMUNICATON
Aim:
To write a java program to implement the concept of inter-thread communication.
Algorithm:
 creating a class q and declare variable n as int and declare value set(Boolean) as
false.
 Create synchronized method in get().
 Create another synchronized method void put(int n).
 If (value set) then go to try and catch . inside catch call notify() this tells
produces that it away put more about in the queue.
 Create a class producer , that implements runnable.
 Create object q. create a constructor producer where object is passed.
 Create a function run() , initialize and declare i= 0.
 Create a class consumer that implements runnable.
 Create constructor consumer , pass the object and create a function run().
 Create a class multi2 inside the main function and create object q.
Source code:
import java.io.*;
class consumer implements Runnable
{
Stock c;
Thread t;
Consumer(Stock c)
{
this.c=c;

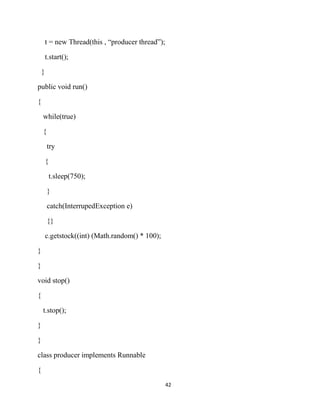

42
t = new Thread(this , “producer thread”);
t.start();
}
public void run()
{
while(true)
{
try
{
t.sleep(750);
}
catch(InterrupedException e)
{}
c.getstock((int) (Math.random() * 100);
}
}
void stop()
{
t.stop();
}
}
class producer implements Runnable
{

43
Stock s;
Thread t;
producer(Stock s)
{
this.s=s;
t= new Thread(this , “producer thread”);
t.start();
}
public void run()
{
while(true)
{
try
{
t.sleep(750);
}
{}
c.getstock((int) (Math.random() * 100);
}
}
void stop()
{

44
t.stop();
}
}

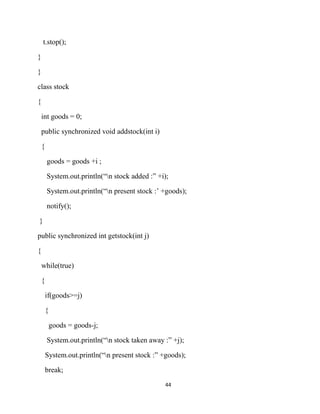

class stock
{
int goods = 0;
public synchronized void addstock(int i)
{
goods = goods +i ;
System.out.println(“n stock added :” +i);
System.out.println(“n present stock :’ +goods);
notify();
}
public synchronized int getstock(int j)
{
while(true)
{
if(goods>=j)
{
goods = goods-j;
System.out.println(“n stock taken away :” +j);
System.out.println(“n present stock :” +goods);
break;

45
}
else
{
System.out.println(“n stock not enough…”);
System.out.println(“n waiting for stock to come..”);
try
{
wait();
}
{}
}
}
return goods;
}
{
stock j = new stock();
producer p = new producer (j);
consumer c =new consumer (j);
try
{
Thread.sleep(20000);

46

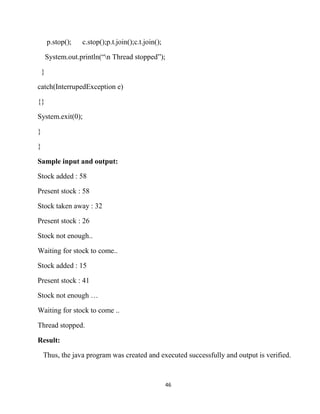

p.stop(); c.stop();p.t.join();c.t.join();
System.out.println(“n Thread stopped”);
}
{}
System.exit(0);
}
}
Stock added : 58
Present stock : 58
Stock taken away : 32
Present stock : 26
Stock not enough..
Waiting for stock to come..
Stock added : 15
Present stock : 41
Stock not enough …
Waiting for stock to come ..
Thread stopped.
Result:

47
Ex.No:12
ADDITION OF TWO NUMBERS USING APPLET
Aim:
To write a java program to implement applet concept.
Algorithm:
1. Start
2. Create a object for input stream class
3. Compile the program in java
4. Run the program using applet viewer
5. Enter the values
6. End.
Source Code:
import java.awt.*;
import java.applet.*;
public class userin extends applet
{
TextField text1,text2;
public void init()
{
text1=new TextField(8);
text2=new TextField(8);
add(text1);
add(text2);

48

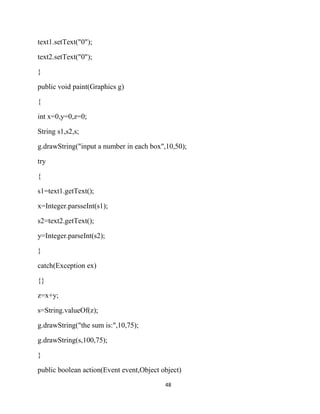

text1.setText("0");
text2.setText("0");
}
public void paint(Graphics g)
{
int x=0,y=0,z=0;
String s1,s2,s;
g.drawString("input a number in each box",10,50);
try
{
s1=text1.getText();
x=Integer.parsseInt(s1);
s2=text2.getText();
y=Integer.parseInt(s2);
}
catch(Exception ex)
{}
z=x+y;
s=String.valueOf(z);
g.drawString("the sum is:",10,75);
g.drawString(s,100,75);
}
public boolean action(Event event,Object object)

49
{
repaint();
return true;
}
/*<applet
code="userin"
width=300
height=200>
</applet>*/
}
Execution Method:
C:j2sdk1.4.1_06bin>javac userin.java
Note:userin.java uses or overrides a deprecated API
Note:recpmpile with-deprecation for details
C:j2sdk1.4.1_06bin>appletviewer userin.java
Result:
Thus the java program to add two numbers using applet was created and executed
successfully and the output was verified.

50
Ex.No:13
JOB SCHEDULING TECHNIQUES
Aim:
To write a java program to implement the concept of different job scheduling
techniques like,
a) First Come First Served[FCFS]
b) Shortest Job First[SJF]
c) Round Robin
d) Priority Scheduling
Algorithm:
a) First Come First Served:
1. Get the number by jobs to be scheduled
2. Get the arrival time and service time of each and every job
3. Get the job according time as zero for each jobs
4. Initialize the waiting time as zero for each jobs
5. Compute each job and find the average waiting by dividing
total compute each job and find number of jobs
b) Shortest Job First:
1. Get the number of jobs to be scheduled
2. Get the arrival time and service time of each job
3. sort the job according to its service time
4. Intialize the waiting time as zero for each job
c) Round Robin:

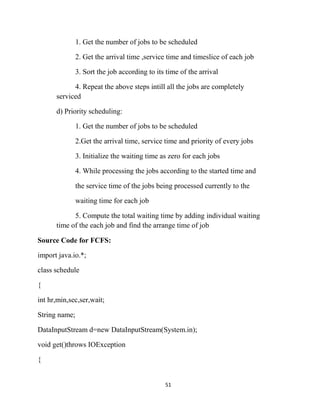

51
2. Get the arrival time ,service time and timeslice of each job
3. Sort the job according to its time of the arrival
4. Repeat the above steps intill all the jobs are completely
serviced
d) Priority scheduling:
2.Get the arrival time, service time and priority of every jobs
3. Initialize the waiting time as zero for each jobs
4. While processing the jobs according to the started time and
the service time of the jobs being processed currently to the
waiting time for each job
5. Compute the total waiting time by adding individual waiting
time of the each job and find the arrange time of job
Source Code for FCFS:
import java.io.*;
class schedule
{
int hr,min,sec,ser,wait;
String name;
{

52

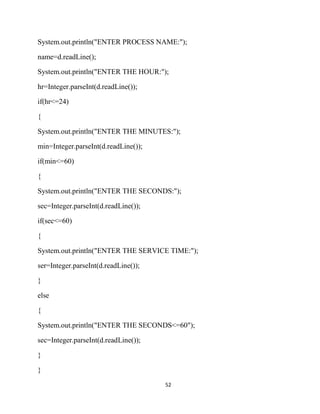

System.out.println("ENTER PROCESS NAME:");
name=d.readLine();
System.out.println("ENTER THE HOUR:");
hr=Integer.parseInt(d.readLine());
if(hr<=24)
{

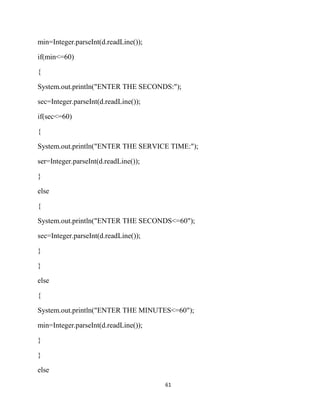

System.out.println("ENTER THE MINUTES:");
min=Integer.parseInt(d.readLine());
if(min<=60)
{
System.out.println("ENTER THE SECONDS:");
sec=Integer.parseInt(d.readLine());
if(sec<=60)
{
System.out.println("ENTER THE SERVICE TIME:");
ser=Integer.parseInt(d.readLine());
}
else
{
System.out.println("ENTER THE SECONDS<=60");
}
}

53
else
{
System.out.println("ENTER THE MINUTES<=60");
}
}
else
{
System.out.println("ENTER THE HOURS<=24");
}
}
void put()
{
System.out.println(" "+name"tt"+hr":"+min+":"+sec+"ttt"+ser+"ttt"+wait);
}
}
class fcfs
{
{
int i,j;
float total=0.0f;

54
schedule s[],t;
System.out.println("ENTER THE NUMBER OF PROCESSES:");
int n=Integer.parseInt(d.readLine();
s=new schedule[10];
t=new schedule();
for(i=0;i<n;i++)
{
s[i]=new schedule();
s[i].get();
}
for(i=0;i<n;i++)
{
for(j=i+1;j<n;j++)
{
if(s[i].hr>s[j].hr)
{
t=s[i];
s[i]=s[j];
s[j]=t;
}
else if(s[i].hr==s[j].hr&&s[i].min>s[j].min&&s[i].sec>s[j].sec)
{

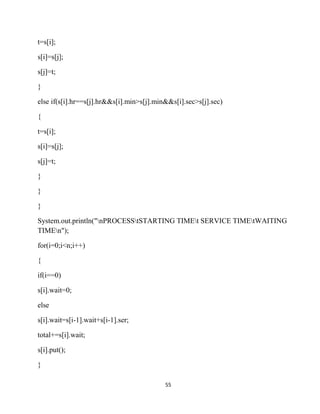

55
t=s[i];
s[i]=s[j];
s[j]=t;
}
{
t=s[i];
s[i]=s[j];
s[j]=t;
}
}
}
System.out.println("nPROCESStSTARTING TIMEt SERVICE TIMEtWAITING
TIMEn");
for(i=0;i<n;i++)
{
if(i==0)
s[i].wait=0;
else
s[i].wait=s[i-1].wait+s[i-1].ser;
total+=s[i].wait;
s[i].put();
}

56

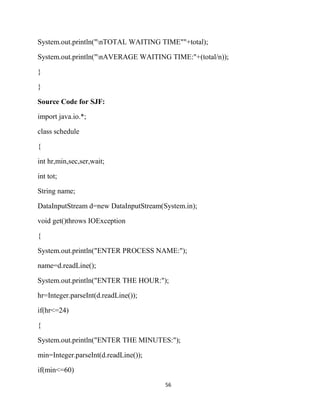

System.out.println("nTOTAL WAITING TIME""+total);
System.out.println("nAVERAGE WAITING TIME:"+(total/n));
}
}
Source Code for SJF:
import java.io.*;
class schedule
{
int tot;
String name;
{
name=d.readLine();
if(hr<=24)
{
if(min<=60)

57
{

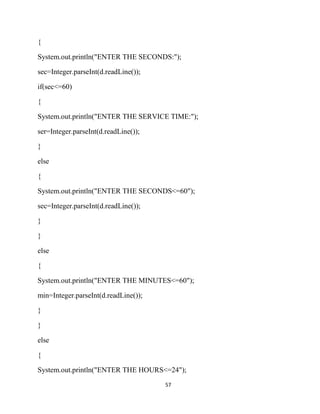

if(sec<=60)
{
}
else
{
}
}
else
{
}
}
else
{

58
}
tot=hr+min+sec;
}
void put()
{
System.out.println(name+"t"+hr+":"+min+":"+sec+"ttt"+ser+"ttt"+wait);
}
}
class sjf
{
{
int i,j;
float total=0.0f;
schedule s[],t;
System.out.println("ENTER THE NUMBER OF PROCESSES:"):
int n=Integer.parseInt(d.readLine());
s=new schedule[10];
t=new schedule();

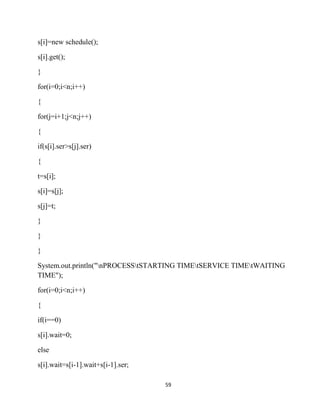

for(i=0;i<n;i++)
{

59
s[i].get();
}
for(i=0;i<n;i++)
{
for(j=i+1;j<n;j++)
{
if(s[i].ser>s[j].ser)
{
t=s[i];
s[i]=s[j];
s[j]=t;
}
}
}
System.out.println("nPROCESStSTARTING TIMEtSERVICE TIMEtWAITING
TIME");
for(i=0;i<n;i++)
{
if(i==0)
s[i].wait=0;
else

60
total+=s[i].wait;
s[i].put();
}
System.out.println("nTOTAL WAITING TIME:"+total);
}
}
Source Code for Round Robin:
import java.io.*;
class schedule
{
String name;
{
name=d.readLine();
if(hr<=24)
{

61
if(min<=60)
{
if(sec<=60)
{
}
else
{
}
}
else
{
}
}
else

62
{
}
}
void put()
{
}
}
class round
{
{
int i,j,k,round,max,ts,ml,w;
int mod[][]=new int[20][20];
int tser[]=new int[20];
float total=0.0f;
schedule s[],t;
s=new schedule[10];

63
t=new schedule();
for(i=0;i<n;i++)
{
s[i].get();
}
for(i=0;i<n-1;i++)
{
for(j=i+1;j<n;j++)
{
if(s[i].hr>s[j].hr)
{
t=s[i];
s[i]=s[j];
s[j]=t;
}
else if(s[i].hr==s[j].hr&&s[i].min>s[j].min)
{
t=s[i];
s[i]=s[j];
s[j]=t;
}

64
{

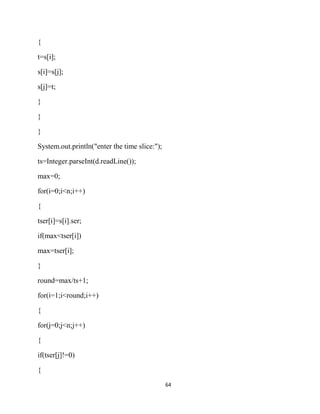

t=s[i];
s[i]=s[j];
s[j]=t;
}
}
}
System.out.println("enter the time slice:");
ts=Integer.parseInt(d.readLine());
max=0;
for(i=0;i<n;i++)
{
tser[i]=s[i].ser;
if(max<tser[i])
max=tser[i];
}
round=max/ts+1;
for(i=1;i<round;i++)
{
for(j=0;j<n;j++)
{
if(tser[j]!=0)
{

65
m1=tser[j]-ts;
if(m1>0)
{
mod[i][j]=ts;
tser[j]=tser[j]-ts;
}
else
{
mod[i][j]=tser[j];
tser[j]=0;
}
}
else
mod[i][j]=0;
}
}
for(k=0;k<n;k++)
{
w=0;
s[k].wait=0;
for(i=1;i<round;i++)
{
if(mod[i][k]==ts)

66
{

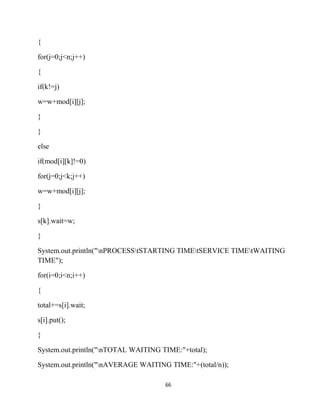

for(j=0;j<n;j++)
{
if(k!=j)
w=w+mod[i][j];
}
}
else
if(mod[i][k]!=0)
for(j=0;j<k;j++)
w=w+mod[i][j];
}
s[k].wait=w;
}
TIME");
for(i=0;i<n;i++)
{
total+=s[i].wait;
s[i].put();
}

67
}
}

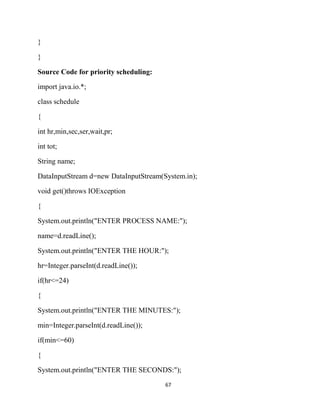

Source Code for priority scheduling:
import java.io.*;
class schedule
{
int hr,min,sec,ser,wait,pr;
int tot;
String name;
{
name=d.readLine();
if(hr<=24)
{
if(min<=60)
{

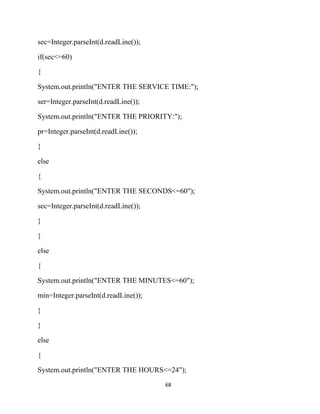

68
if(sec<=60)
{
System.out.println("ENTER THE PRIORITY:");
pr=Integer.parseInt(d.readLine());
}
else
{
}
}
else
{
}
}
else
{

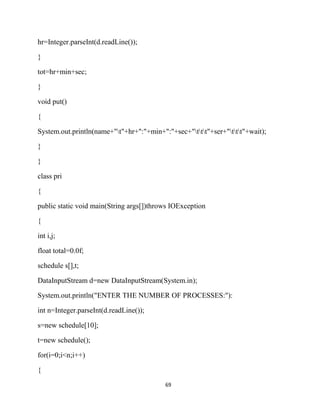

69
}
tot=hr+min+sec;
}
void put()
{
}
}
class pri
{
{
int i,j;
float total=0.0f;
schedule s[],t;
s=new schedule[10];
t=new schedule();
for(i=0;i<n;i++)
{

70
s[i].get();
}
for(i=0;i<n;i++)
{
for(j=i+1;j<n;j++)
{
if(s[i].pr>s[j].pr)
{
t=s[i];
s[i]=s[j];
s[j]=t;
}
}
}
TIME");
for(i=0;i<n;i++)
{
if(i==0)
s[i].wait=0;
else

71
total+=s[i].wait;
s[i].put();
}
}
}
Sample Input and Output:
FCFS:
ENTER THE NUMBER OF PROCESSES:
4
ENTER PROCESS NAME:
P1
ENTER THE HOUR:
2
ENTER THE MINUTES:
5
ENTER THE SECONDS:
3
ENTER THE SERVICE TIME:
1
ENTER THE PROCESS NAME:
P2

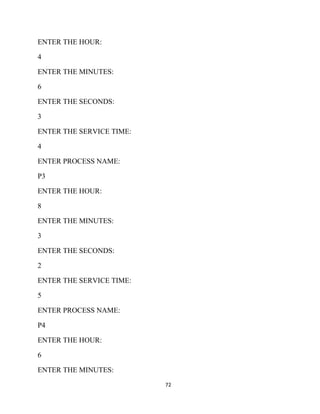

72
ENTER THE HOUR:
4
ENTER THE MINUTES:
6
ENTER THE SECONDS:
3
4
ENTER PROCESS NAME:
P3
ENTER THE HOUR:
8
ENTER THE MINUTES:
3
ENTER THE SECONDS:
2
5
ENTER PROCESS NAME:
P4
ENTER THE HOUR:
6
ENTER THE MINUTES:

73
3
ENTER THE SECONDS:
1
6
PROCESS STARTING TIME SERVICE TIME WAITING TIME
P1 2:5:3 1 0
P2 4:6:3 4 1
P4 6:3:1 6 5
P3 8:3:2 5 11
TOTAL WAITING TIME:17.0
AVERAGE WAITING TIME:4.25
SJF:
4
ENTER PROCESS NAME:
P1
ENTER THE HOUR:
4
ENTER THE MINUTES:
5
ENTER THE SECONDS:
3

74
2
P2
ENTER THE HOUR:
2
ENTER THE MINUTES:
1
ENTER THE SECONDS:
0
4
ENTER PROCESS NAME:
P3
ENTER THE HOUR:
3
ENTER THE MINUTES:
5
ENTER THE SECONDS:
2
7
ENTER PROCESS NAME:

75
P4
ENTER THE HOUR:
5
ENTER THE MINUTES:
2
ENTER THE SECONDS:
1
4
P1 4:5:3 2 0
P2 2:1:0 4 2
P4 5:2:1 4 6
P3 3:5:2 7 10
Round Robin:
4
ENTER PROCESS NAME:
P1
ENTER THE HOUR:
1

76
ENTER THE MINUTES:
1
ENTER THE SECONDS:
1
1
P2
ENTER THE HOUR:
2
ENTER THE MINUTES:
2
ENTER THE SECONDS:
2
2
ENTER PROCESS NAME:
P3
ENTER THE HOUR:
3
ENTER THE MINUTES:
3
ENTER THE SECONDS:

77
3
3
ENTER PROCESS NAME:
P4
ENTER THE HOUR:
4
ENTER THE MINUTES:
4
ENTER THE SECONDS:
4
4
Enter the time slice:
3
P1 1:1:1 1 0
P2 2:2:2 2 1
P3 3:3:3 3 6
P4 4:4:4 4 6

78

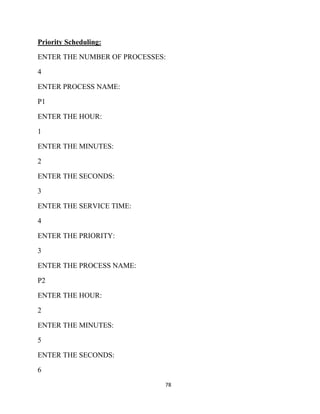

Priority Scheduling:
4
ENTER PROCESS NAME:
P1
ENTER THE HOUR:
1
ENTER THE MINUTES:
2
ENTER THE SECONDS:
3
4
ENTER THE PRIORITY:
3
P2
ENTER THE HOUR:
2
ENTER THE MINUTES:
5
ENTER THE SECONDS:
6

79
3
ENTER THE PRIORITY:
2
ENTER PROCESS NAME:
P3
ENTER THE HOUR:
6
ENTER THE MINUTES:
2
ENTER THE SECONDS:
1
6
ENTER THE PRIORITY:
1
ENTER PROCESS NAME:
P4
ENTER THE HOUR:
7
ENTER THE MINUTES:
3
ENTER THE SECONDS:

80

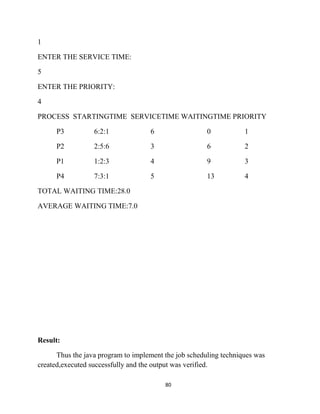

1
5
ENTER THE PRIORITY:
4
PROCESS STARTINGTIME SERVICETIME WAITINGTIME PRIORITY
P3 6:2:1 6 0 1
P2 2:5:6 3 6 2
P1 1:2:3 4 9 3
P4 7:3:1 5 13 4
Result:
Thus the java program to implement the job scheduling techniques was
created,executed successfully and the output was verified.

81
Ex.No:14
DISK SCHEDULING TECHNIQUES
Aim:
To write a java program to implement the concept of different disk scheduling
techniques like,
a)First Come First Server[FCFS]
b)Shortest Seek Time First[SSTF]
c)Scan
d)C-Scan
e)Look
f)C-Look
Algorithm:
a) First Come First Serverd:
Move the head according to the request
b) Shortest Seek Time First:
Move the disk arm to the request position from the current position inward
or outward that maintain minimizes arm movements
c) Scan:
1.Move the disk arm to the requested position in the path
2.Change the direction when there are no more request to service in
the count direction
d) C-Scan:
Move the disk arm to the requested position which moving towards
inward and direction

82
e) Look:
The arm goes only as far as the final request in each direction then it reverse it
direction
f) C-Look:
1. Move head from current position
2. Process the request untill the condition is satisfied
Source Code for FCFS:
import java.io.*;
import java.lang.*;
class disk_fcfs
{
{
int i,sum=0,n,st;
int b[],dd[],a[];
a=new int[20];
b=new int[20];
dd=new int[20];
do
{
System.out.println("Enter the block number between 0 and 200:");
st=Integer.parseInt(d.readLine());

83
}while((st>=200)||(st<0));
System.out.println("nOur disk head is on the"+st+"th block");
a[0]=st;
System.out.println("nEnter the no.of request:");
n=Integer.parseInt(d.readLine());
System.out.println("nEnter request:n");
for(i=1;i<=n;i++)
{
do
{
System.out.println("Enter "+i+"Request:");
a[i]=Integer.parseInt(d.readLine());
if((a[i]>200)||(a[i]<0))
{
System.out.println("nBlock number must be between 0 and 200!n");
}
}while((a[i]>200)||(a[i]<0));
}
for(i=0;i<=n;i++)
dd[i]=a[i];
System.out.println("nnttFIRST COME FIRST SERVE");
System.out.println("nDISK QUEUE:");
for(i=0;i<=n;i++)

84
{

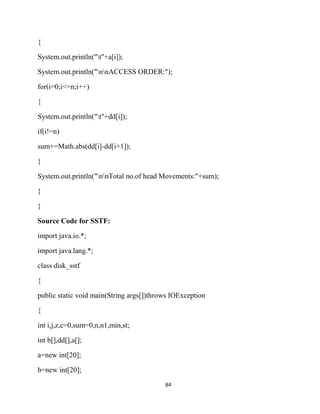

System.out.println("t"+a[i]);
System.out.println("nnACCESS ORDER:");
for(i=0;i<=n;i++)
{
System.out.println("t"+dd[i]);
if(i!=n)
sum+=Math.abs(dd[i]-dd[i+1]);
}
System.out.println("nnTotal no.of head Movements:"+sum);
}
}
Source Code for SSTF:
import java.io.*;
import java.lang.*;
class disk_sstf
{
{
int i,j,z,c=0,sum=0,n,n1,min,st;
int b[],dd[],a[];
a=new int[20];
b=new int[20];

85
dd=new int[20];
do
{
}while((st>=200)||(st<0));
a[0]=st;
for(i=1;i<=n;i++)
{
do
{
if((a[i]>200)||(a[i]<0))
{
}
}while((a[i]>200)||(a[i]<0));

86
}

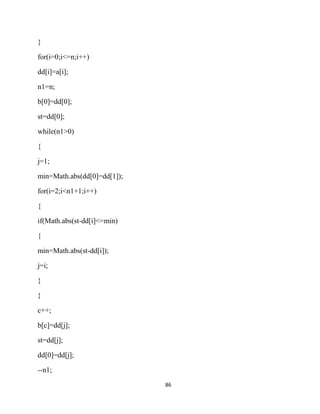

for(i=0;i<=n;i++)
dd[i]=a[i];
n1=n;
b[0]=dd[0];
st=dd[0];
while(n1>0)
{
j=1;
min=Math.abs(dd[0]=dd[1]);
for(i=2;i<n1+1;i++)
{
if(Math.abs(st-dd[i]<=min)
{
min=Math.abs(st-dd[i]);
j=i;
}
}
c++;
b[c]=dd[j];
st=dd[j];
dd[0]=dd[j];
--n1;

87
for(z=j;z<n1+1;z++)
dd[z]=dd[z+1];
dd[z]='0';
}
System.out.println("nnttSHORTEST SEEK TIME FIRST:");
for(i=0;i<=n;i++)
for(i=0;i<=c;i++)
{
System.out.println("t"+b[i]);
if(i!=c)
sum+=Math.abs(b[i]-b[i+1]);
}
System.out.println("nn Total no.of head movements:"+sum);
}
}
Source Code for Scan:
import java.io.*;
import java.lang.*;
class disk_scan
{

88
{

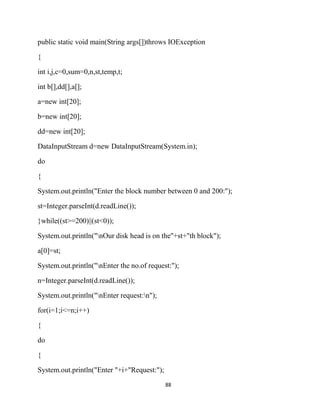

int i,j,c=0,sum=0,n,st,temp,t;
int b[],dd[],a[];
a=new int[20];
b=new int[20];
dd=new int[20];
do
{
}while((st>=200)||(st<0));
a[0]=st;
for(i=1;i<=n;i++)
{
do
{

89
if((a[i]>200)||(a[i]<0))
{
}
}while((a[i]>200)||(a[i]<0));
}
for(i=0;i<=n;i++)
dd[i]=a[i];
for(i=0;i<=n;i++)
for(j=i+1;j<=n;j++)
if(dd[i]>dd[j])
{
temp=dd[i];
dd[i]=dd[j];
dd[j]=temp;
}
for(i=0;i<=n;i++)
{
if(st==dd[i])
{
t=i+1;
b[c]=st;

90
for(j=i-1;j>=0;j--)
b[++c]=dd[j];
b[++c]=0;
for(j=t;j<=n;j++)
b[++c]=dd[j];
}
}
System.out.println("nnttSCAN TECHNIQUE:");
for(i=0;i<=n;i++)
for(i=0;i<=c;i++)
{
if(i!=c)
}
}
}

91

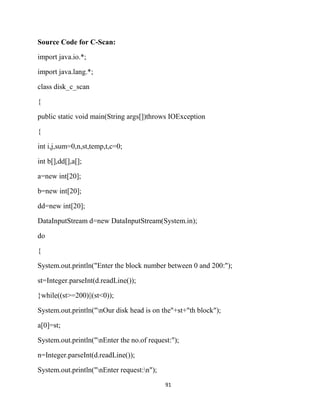

Source Code for C-Scan:
import java.io.*;
import java.lang.*;
class disk_c_scan
{
{
int i,j,sum=0,n,st,temp,t,c=0;
int b[],dd[],a[];
a=new int[20];
b=new int[20];
dd=new int[20];
do
{
}while((st>=200)||(st<0));
a[0]=st;

92

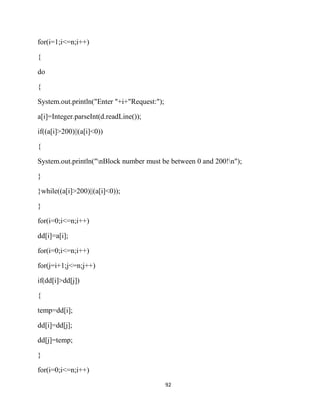

for(i=1;i<=n;i++)
{
do
{
if((a[i]>200)||(a[i]<0))
{
}
}while((a[i]>200)||(a[i]<0));
}
for(i=0;i<=n;i++)
dd[i]=a[i];
for(i=0;i<=n;i++)
for(j=i+1;j<=n;j++)
if(dd[i]>dd[j])
{
temp=dd[i];
dd[i]=dd[j];
dd[j]=temp;
}
for(i=0;i<=n;i++)

93
{
if(st==dd[i])
{
t=i;
b[c]=st;
for(j=t+1;j>=n;j++)
b[++c]=dd[j];
b[++c]=199;
b[++c]=0;
for(j=0;j<t;j++)
b[++c]=dd[j];
}
}
System.out.println("nnttC-SCAN TECHNIQUE:");
for(i=0;i<=n;i++)
for(i=0;i<=c;i++)
{
if(i!=c)

94
}
}
}

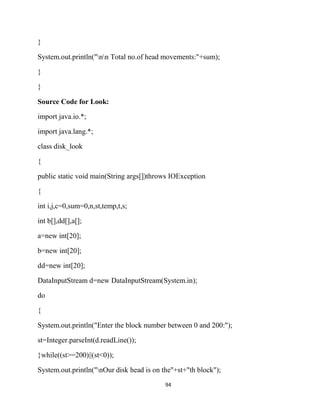

Source Code for Look:
import java.io.*;
import java.lang.*;
class disk_look
{
{
int i,j,c=0,sum=0,n,st,temp,t,s;
int b[],dd[],a[];
a=new int[20];
b=new int[20];
dd=new int[20];
do
{
}while((st>=200)||(st<0));

95
a[0]=st;
for(i=1;i<=n;i++)
{
do
{
if((a[i]>200)||(a[i]<0))
{
}
}while((a[i]>200)||(a[i]<0));
}
for(i=0;i<=n;i++)
dd[i]=a[i];
s=a[0];
for(i=0;i<=n;i++)
for(j=i+1;j<=n;j++)
if(dd[i]>dd[j])
{

96
temp=dd[i];
dd[i]=dd[j];
dd[j]=temp;
}
for(i=0;i<=n;i++)
{
if(st==dd[i])
{
b[c]=st;
for(j=i-1;j>=0;j--)
b[++c]=dd[j];
b[++c]=200;
for(j=n;j>i;j--)
b[++c]=dd[j];
}
}
System.out.println("nnttLOOK TECHNIQUE:");
for(i=0;i<=n;i++)
for(i=0;i<=c;i++)
{

97
if(i!=c)
}
}
}

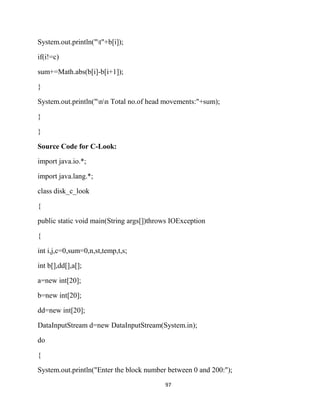

Source Code for C-Look:
import java.io.*;
import java.lang.*;
class disk_c_look
{
{
int i,j,c=0,sum=0,n,st,temp,t,s;
int b[],dd[],a[];
a=new int[20];
b=new int[20];
dd=new int[20];
do
{

98
}while((st>=200)||(st<0));
a[0]=st;
for(i=1;i<=n;i++)
{
do
{
if((a[i]>200)||(a[i]<0))
{
}
}while((a[i]>200)||(a[i]<0));
}
for(i=0;i<=n;i++)
dd[i]=a[i];
s=a[0];
for(i=0;i<=n;i++)

99
for(j=i+1;j<=n;j++)
if(dd[i]>dd[j])
{
temp=dd[i];
dd[i]=dd[j];
dd[j]=temp;
}
for(i=0;i<=n;i++)
{
if(st==dd[i])
{
t=i;
b[c]=st;
for(j=t+1;j<=n;j++)
b[++c]=dd[j];
for(j=0;j<t;j++)
b[++c]=dd[j];
}
}
System.out.println("nnttC-LOOK TECHNIQUE:");
for(i=0;i<=n;i++)

100
for(i=0;i<=c;i++)
{
if(i!=c)
}
}
}

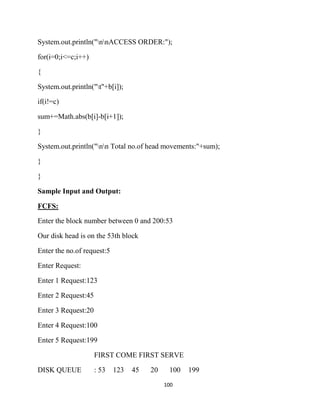

FCFS:
Enter the block number between 0 and 200:53
Our disk head is on the 53th block
Enter the no.of request:5
Enter Request:
Enter 1 Request:123
Enter 2 Request:45
Enter 3 Request:20
Enter 4 Request:100
Enter 5 Request:199
FIRST COME FIRST SERVE
DISK QUEUE : 53 123 45 20 100 199

101

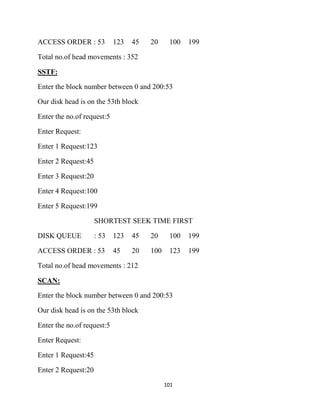

ACCESS ORDER : 53 123 45 20 100 199
Total no.of head movements : 352
SSTF:
Enter Request:
Enter 1 Request:123
Enter 2 Request:45
Enter 3 Request:20
Enter 4 Request:100
Enter 5 Request:199
SHORTEST SEEK TIME FIRST
DISK QUEUE : 53 123 45 20 100 199
ACCESS ORDER : 53 45 20 100 123 199
SCAN:
Enter Request:
Enter 1 Request:45
Enter 2 Request:20

102
Enter 3 Request:123
Enter 4 Request:100
Enter 5 Request:199
SCAN TECHNIQUE:
DISK QUEUE : 53 45 20 123 100 199
ACCESS ORDER : 53 45 20 0 100 123 199
C-SCAN:
Enter Request:
Enter 1 Request:123
Enter 2 Request:45
Enter 3 Request:20
Enter 4 Request:100
Enter 5 Request:199
C-SCAN TECHNIQUE:
DISK QUEUE : 53 123 45 20 100 199
ACCESS ORDER : 53 100 123 199 199 0 20 45
LOOK:

103
Enter Request:
Enter 1 Request:123
Enter 2 Request:45
Enter 3 Request:20
Enter 4 Request:100
Enter 5 Request:199
LOOK TECHNIQUE:
DISK QUEUE : 53 123 45 20 100 199
ACCESS ORDER : 53 45 20 200 100 123 100
C-LOOK:
Enter Request:
Enter 1 Request:123
Enter 2 Request:45
Enter 3 Request:20
Enter 4 Request:100
Enter 5 Request:199

104
C-LOOK TECHNIQUE:
DISK QUEUE : 53 123 45 20 100 199
ACCESS ORDER : 53 100 123 199 20 45
Results:
Thus the java program to implement the disk scheduling techniques was created,
executed successfully and the output was verified.

105
Ex.No:15
MEMORY ALLOCATION TECHNIQUES
Aim:
To write a java program to implement the concept of different memory allocation
techniques like,
a) First Fit
b) Best Fit
c) Worst Fit
d) Next Fit
Algorithm:
a) First Fit
1. Get thenumber of process to be allocated
2. Get the number of free blocks available and its size
3. Find the first free block from the starting, so that the new
process can allocated fully in that block
b) Best Fit
1. Get the number of process to be allocated
2. Get the number of free blocks available and its size
3. Repeat the above steps, so that all the process can be allocated
c) Worst Fit
2. Get the number of free blocks available and size
3. Get the memory size of the process to be allocated

106

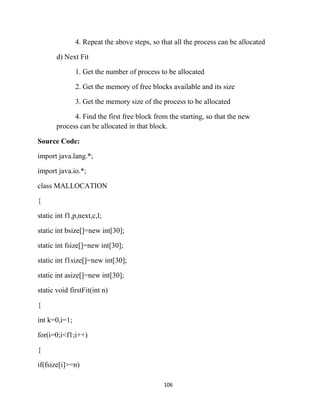

4. Repeat the above steps, so that all the process can be allocated
d) Next Fit
2. Get the memory of free blocks available and its size
3. Get the memory size of the process to be allocated
4. Find the first free block from the starting, so that the new
process can be allocated in that block.
Source Code:
import java.lang.*;
import java.io.*;
class MALLOCATION
{
static int f1,p,next,c,l;
static int bsize[]=new int[30];
static int fsize[]=new int[30];
static int f1size[]=new int[30];
static int asize[]=new int[30];
static void firstFit(int n)
{
int k=0,i=1;
for(i=0;i<f1;i++)
{
if(fsize[i]>=n)

107
{
asize[i]=asize[i]+n;
next=i+1;
System.out.println("nMEMORY ALLOCATION IN BLOCK:"+i);
int s1=50;
for(l=0;l<i;l++)
s1=s1+fsize[l]+asize[l];
System.out.println("nMemory allocated for process:"+asize[l]);
fsize[i]=-n;
k=1;
break;
}
}
if(k==0)
System.out.println("nNo matching block for:"+n);
System.out.println("n");
}
static void bestFit(int n)
{
int l,s,k=0;
int min1=10000;
for(int i=0;i<f1;i++)
{

108
if((fsize[i]-n)>=0)
{
s=fsize[i]-n;
if(s<min1)
{
min1=s;
k=i+1;
{
int l,k=0;
for(int i=next;i<f1;i++)
{
if((fsize[i]-n)>=n)
{
next=i+1;
fsize[i]=fsize[i]-n;
asize[i]=asize[i]+n;
int s1=50;
for(l=0;l<i;l++)
System.out.println("n Memory allocated for process:"+asize[l]);
System.out.println("n Memory allocated in block:"+(k-1));
k=1;
break;

109
}
}

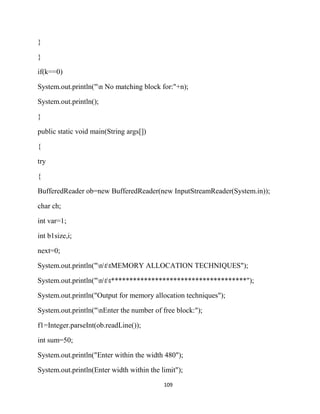

if(k==0)
System.out.println("n No matching block for:"+n);
System.out.println();
}
{
try
{
BufferedReader ob=new BufferedReader(new InputStreamReader(System.in));
char ch;
int var=1;
int b1size,i;
next=0;
System.out.println("nttMEMORY ALLOCATION TECHNIQUES");
System.out.println("ntt*************************************");
System.out.println("Output for memory allocation techniques");
System.out.println("nEnter the number of free block:");
f1=Integer.parseInt(ob.readLine());
int sum=50;
System.out.println("Enter within the width 480");
System.out.println(Enter width within the limit");

110
for(i-0;i<f1;i++)
{
System.out.println("nEnter the size of the block"+i+":");
fsize[i]=Integer.parseInt(ob.readLine());
if(fsize[i]>481)
{
System.out.println("nExecuting the limit, re-enter the value!");
continue;
}
}
}
if(k!=0)
{
next=k;
fsize[k-1]=min1;
asize[k-1]+=n;
int s1=50;
for(l=0;l<k-1;l++)
}

111
else
}

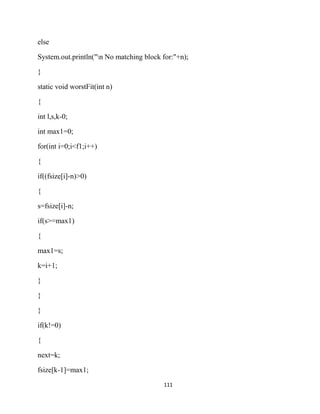

static void worstFit(int n)
{
int l,s,k-0;
int max1=0;
for(int i=0;i<f1;i++)
{
if((fsize[i]-n)>0)
{
s=fsize[i]-n;
if(s>=max1)
{
max1=s;
k=i+1;
}
}
}
if(k!=0)
{
next=k;
fsize[k-1]=max1;

112
fsize[k-1]=asize[k-1]+n;
int s1=50;
for(l=0;l<k-1;l++)
s1+=fsize[l]+asize[l];
}
else
}
static void nextFit(int n)
{
f1size[i]=fsize[i];
asize[i]=0;
sum=sum+fsize[i];
}
System.out.println("nHow many no.of process:");
p=Integer.parseInt(ob.readLine());
for(i=0;i<p;i++)
{
System.out.println("n Enter the size of allocated memory process"+i+":");
bsize[i]=Integer.parseInt(ob.readLine());
}

113
while(var!=0)
{
System.out.println("nttMEMORY ALLOCATION TECHNIQUES");
System.out.println("ntt*************************************");
System.out.println("n1.FIRST FITn2.BEST FITn3.WORST FITn4.NEXT
FITn5.EXIT"):
System.out.println("nEnter your choice:");
c=Integer.parseInt(ob.readLine());
switch(c)
{
case 1:
for(i=0;i<p;i++)
firstFit(bsize[i]);
break;
case 2:
for(i=0;i<p;i++)
bestFit(bsize[i]);
break;
case 3:
for(i=0;i<p;i++)
worstFit(bsize[i]);
break;
case 4:

114
for(i=0;i<p;i++)
nextFit(bsize[i]);
break;
case 5:
System.exit(0);
default:
System.out.println("nENTERED WRONG CHOICE:"+c);
System.out.flush();
System.exit(0);
}
System.out.println("nDo you want to continue:");
ch=(char)ob.readLine().charAt(0);
if(ch=='n'||ch=='N')
System.exit(0);
sum=50;
for(i=0;i<f1;i++)
{
asize[i]=0;
sum=sum+f1size[i];
fsize[i]=f1size[i];
}
}
}

115
catch(IOException e)
{
System.out.println("n Exception Raised");
}
catch(Exception e)
{
}
}
}
*************************************
Output for memory allocation techniques
Enter the number of free block:3
Enter within the width 480
Enter width within the limit
Enter the size of the block 0:100
How many no.of process:
3
Enter the size of allocated memory process 0:200

116
*************************************
1.FIRST FIT
2.BEST FIT
3.WORST FIT
4.NEXT FIT
5.EXIT
Enter your choice:1
MEMORY ALLOCATION IN BLOCK : 2
Memory allocated for process : 200
No matching block for : 250
MEMORY ALLOCATION IN BLOCK : 0
Do you want to continue : Y
*************************************
1.FIRST FIT
2.BEST FIT
3.WORST FIT
4.NEXT FIT
5.EXIT
Enter your choice : 2

117
Memory allocated in block : 2
*************************************
1.FIRST FIT
2.BEST FIT
3.WORST FIT
4.NEXT FIT
5.EXIT
*************************************
1.FIRST FIT
2.BEST FIT

118
3.WORST FIT
4.NEXT FIT
5.EXIT
*************************************
1.FIRST FIT
2.BEST FIT
3.WORST FIT
4.NEXT FIT
5.EXIT
Result:
Thus the java program to implement the memory allocation techniques was created,

119
Ex.No:16
MEMORY MANAGEMENT TECHNIQUES
Aim:
To write a java program to implement the concept of different memory
management techniques like,
1.Paging
2.Demand paging
Algorithm:
1.Paging
i)Display option
a)store
b)Retrieve
c)Exit
ii)Read ch
iii)if ch=’a’ then get page size and process size
iv)allocate process in pages
v)if ch=’2’ then get logical address to the retrieve
2.Page demand
i)Display option
a)Store
b)Retrieve
c)Exit
ii)Read ch
iii)allocate the content to the page
iv)Enter the page number
Source code for paging:
import java.io.*;
class pagemanagementsub
{

120
String name;
class pagemanagementsub
{
String content;
}
pagemanagementsub page[]=new pagemanagementsub[10];
public pagemanagement()
{
{
page[i]=new pagemanagementsub();
}
}
}
class mem_management
{
int pagememsize,pageprocesssize,ppage,ptotalpage;
int pframe[]=new int[10];
pagemanagement p[]=new pagemanagement[10];
public mem_management()
{
{
p[i]=new pagemanagement();
}
}
void pagestore()throws IOException
{

121
int i=0,j=0,e=0,t;
do
{
System.out.println(“nEnter the logical memory size(power of 2):”);
pagememsize=Integer.parseInt(d.readLine());
}
while(ispow2(pagememsize)!=0);
do
{
System.out.println(“nEnter the process size:”);
pageprocesssize=Integer.parseInt(d.readLine());
if(pageprocesssize>pagememsize)
System.out.println(“nError:process size should not exceed logical memory size!”);
}while(pageprocesssize>pagememsize);
do
{
System.out.println(“Enter the page size(power of 2):”);
ppage=Integer.parseInt(d.readLine());
}
while(ispow2(ppage)!=0);
ptotalpage=pageprocesssize/ppage;
if((pageprocesssize%ppage)!=0)
ptotalpage++;
for(i=0;i<ptotalpage;i++)
{
System.out.println(“Enter the content of page[“+i+”]:”);
for(j=0;j<ppage;j++)
{
System.out.println(“Enter the content[“+j+”]:”);

122
p[i].page[j].content=d.readLine();
e++;
if(e==pageprocessize)
break;
}
}
System.out.println(“Page Not Frame No”);
{
System.out.println(“ “+i+”tt”);
pframe[i]=Integer.parseInt(d.readLine());
}
System.out.println(“ntPhysical memoryn”);
e=0;
{
System.out.println(“nContent of page[“+i+”]:”);
for(i=0;i<ppage;i++)
{
t=(pframe[i]*ppage)+j;
System.out.println(“Content[“+t+”]:”);
System.out.println(p[i].page[j].content);
e++;
if(e==pageprocesssize)
break;
}
}
if((pageprocesssize%ppage)!=0)
Syatem.out.println(“nThe page has internal fragmentation”);

123
}
int ispow(int no)
{
float n=(float)no;
for(;n>2;)
n/=2;
if(n==2.0)
return 0;
else
return 1;
}
void pageretreive()throws IOException
{
int offset=0,physical_addr=0,logical_addr;
int pageno,frameno;
System.out.println (“nEnter logical address to retrieve:”);
logical_addr=Integer.parseInt(d.readLine());
if(logical_addr>=pageprocesssize||logical_addr<0)
{
System.out.println(“Logical address exceeds process size!”);
return;
}
pageno=logical_addr/ppage;
frameno=pframe[pageno];
offset=logical_addr%ppage;
physical_addr=offset+(frameno*ppage);
System.out.println(“nPage no:”+pageno);
System.out.println(“nFrame no:”+frameno);

124
System.out.println(“nOffset value:”+offset);
System.out.println(“nPhysical address:”+physical_addr);
System.out.println(“nContent:”+p[pageno].page[offset].content);
}
}
class mem_paging
{
{
mem_management m=new mem_management();
int ch;
System.out.println(“nMEMORY MANAGEMENT TECHNIQUE:”);
System.out.println(“PAGING:”);
do
{
System.out.println(“n1.Store”);
System.out.println(“n2.Retreive”);
System.out.println(“n3.Exit”);
System.out.println(“nEnter your choice:”);
ch=Integr.parseInt(d.readLine());
switch(ch)
{
case 1:
m.pagestore();
break;
case 2:
m.pageretreive();
break;

125
case 3:
System.exit(0);
break;
default:
continue;
}
}
while(true);
}
}
Source code for Demand Paging:
import java.io.*;
class demand_paging
{
int prs,t;
int pmt[]=new int[20];
int limit[]=new int[20];
int base[]=new int[20];
String frame[]=new String[50];
String val[]=new String[50];
String cont=”y”;
void demandstore()throws IOException
{
int i,j,k=0;
System.out.println(“nDemand Paging Storing”);
System.out.println(“nEnter the logical memory size:”);
prs=Integer.parseInt(d.readLine());
System.out.println(“nLogical memory contents:”);

126
for(i=0;i<prs;<i++)
{
System.out.println(“Enter the value[“+i+”]:”);
val[i]=d.readLine();
}
System.out.println(“nFrame Details:”);
for(i=0;i<prs;i++)
{
System.out.println(“Enter the frame no to store”’+val[i]+’”:”);
k=Integer.parseInt(d.readLine());
pmt[i]=k;
frame[i]=val[i];
}
t=prs;
for(i=0;i<t;i++)
{
System.out.println(“Store”’+val[i]+’”in frame”+pmt[i]+”[Y/N]:”);
cont=d.readLine();
if(cont.equalsIgnoreCase(“y”))
{
base[i]=1;
j=0;
while(true)
{
if(val[i].compareTo(frame[j])==0)
{
limit[i]=pmt[i];
break;

127
}
else
j++;
}
}
else
{
limit[i]=-1;
base[i]=-1;
}
}
System.out.println(“nPage map table:”);
System.out.println(“PAGE NOtFRAME NOtCONTENT”);
for(i=0;i<t;i++)
{
System.out.println(“ “+i+”tt”+limit[i]+”tt”+val[i]);
}
System.out.println(“n(-1)represents frame number which is not loaded”);
}
void demandretreive()throws IOException
{
int I,j,k=0;
System.out.println(“nDemand page retrieval:”);
System.out.print(“Enter the page no to retrieve [0-“+(prs-1)+”]:”);
i=Integer.parseInt(d.readLine());
while(i<prs)
{
if(base[i]==1)

128
{
System.out.println(“nThe page is loaded to frame”+limit[i]+”and content”val[i]);
break;
}
else
{
k=0;
while(true)
{
if(val[i].compareTo(frame[k])==0)
{
limit[i]=pmt[i];
base[i]=1;
break;
}
else
k++;
}
}
}
System.out.println(“nPage map table:”);
System.out.println(“PAGE NOtFRAME NOtCONTENT”);
for(i=0;i<t;i++)
{
System.out.println(“ “+i+”tt”+limit[i]+”tt”+val[i]);
}
System.out.println(“n(-1)represents frame no which is not loaded”);
}
}

129
class mem_demand
{
{
demand_paging dp=new demand_paging();
int c;
System.out.println(“nMEMORY MANAGEMENT TECHNIQUE”);
System.out.println(DEMAND Paging:”);
do
{
System.out.println(“n1.Store”);
System.out.println(“2.Retreive”);
System.out.println(“3.Exit”);
switch (c)
{
case 1:
dp.demandstore();
break;
case 2:
dp.demandretreive();
break;
case 3:
System.exit(0);
break;
default:
continue;

130
}
}
while(true);
}
}
Paging
MEMORY MANAGEMENT TECHNIQUE:
PAGING:
1.Store
2.Retreive
3.Exit
Enter your choice:1
Enter the logical memory size(power of 2):16
Enter the process size:10
Enter the page size(power of 2):4
Enter the content of page[0]:
Enter the content[0]:00

131
Page No Frame No
0 1
1 3
2 0
Physical memory
Content of page[0]:
Content[4]:00
Content[5]:01
Content[6]:02
Content[7]:03
Content of page[1]:
Content[12]:10
Content[13]:11
Content[14]:12
Content[15]:13
Content of page[2]:
Content[0]:20
Content[1]:21
The page has internal fragmentation
1.Store
2.Retreive
3.Exit
Enter your choice:2
Enter logical address to retrieve:2
Page no:0
Frame no:1
Offset value:2
Physical address:6
Content:02

132
1.Store
2.Retreive
3.Exit
Enter your choice:3
Demand Paging
MEMORY MANAGEMENT TECHNIQUE:
DEMAND PAGING:
1.Store
2.Retreive
3.Exit
Enter your choice:1
Demand Paging Storing
Enter the logical memory size:10
Logical memory contents:
Enter the value[0]:one
Enter the value[1]:Two
Enter the value[2]:Three
Enter the value[3]:Four
Enter the value[4]:Five
Enter the value[5]:Six
Enter the value[6]:Seven
Enter the value[7]:Eight
Enter the value[8]:Nine
Enter the value[9]:Ten
Frame Details:
Enter the frame no to store ‘One’:11
Enter the frame no to store ‘Two’:22
Enter the frame no to store ‘Three’:33

133
Enter the frame no to store ‘Four’:44
Enter the frame no to store ‘Five’:55
Enter the frame no to store ‘Six’:66
Enter the frame no to store ‘Seven’:77
Enter the frame no to store ‘Eight’:88
Enter the frame no to store ‘Nine’:99
Enter the frame no to store ‘Ten’:100
Store ‘One’in frame 11[Y/N]:Y
Store ‘Two’in frame 22[Y/N]:Y
Store ‘Three’in frame 33[Y/N]:Y
Store ‘Four’in frame 44[Y/N]:Y
Store ‘Five’in frame 55[Y/N]:Y
Store ‘Six’in frame 66[Y/N]:N
Store ‘Seven’in frame 77[Y/N]:Y
Store ‘Eight’in frame 88[Y/N]:Y
Store ‘Nine’in frame 99[Y/N]:Y
Store ‘Ten’in frame 100[Y/N]:N
Page map table:
PAGE NO FRAME NO CONTENT
0 11 One
1 22 Two
2 33 Three
3 44 Four
4 55 Five
5 -1 Six
6 77 Seven
7 88 Eight
8 99 Nine
9 -1 Ten

134
(-1) represents frame number which is not loaded
1.Store
2.Retreive
3.Exit
Enter your choice:2
Demand page retrieval:
Enter the page no to retrieve[0-9]:1
The page is loaded to frame 22 and content Two
Page map table:
PAGE NO FRAME NO CONTENT
0 11 One
1 22 Two
2 33 Three
3 44 Four
4 55 Five
5 -1 Six
6 77 Seven
7 88 Eight
8 99 Nine
9 -1 Ten
(-1) represents frame number which is not loaded
1.Store
2.Retreive
3.Exit
Enter your choice:3
Result:
Thus the java program to implement the memory management techniques was
created, executed successfully and the output was verified

135
Ex.No:17
PAGE REPLACEMENT TECHNIQUES
Aim:
To write a java program to implement the concept of different page replacement
techniques.
Algorithm:
1.Start the program execution
2.enter the number of pages and frames
3.enter the value into pages
4.display menu
5.if ch=1,the FIFO
6.if ch=2,then LRU
7.if ch=3,then exit
8.if any page fault then print page fault occurs
9.Stop the execution
Source code:
import java.io.*;
class page_r
{
int page[][]=new int[50][50];
int p[]=new int[50];
int ht[]=new int[10];
int n,fr;
{
int i;
System.out.print(“nEnter the no.of page:”);

136
System.out.print(“nEnter the no.of frame:”);
fr=Integer.parseInt(d.readLine());
System.out.println(“nEnter the content:”);
for(i=0;i<n;i++)
p[i]=Integer.parseInt(d.readLine());
}
void fifo()
{
int i,j,k,l,c,t;
int flg,nw,pf;
c=0;
for(i=0;i<fr;i++)
page[i][c]=-1;
page[0][0]=p[0];
pf=1;
nw=1;
i=1;
while(i<n)
{
t=p[i];
flg=0;
for(k=0;k<fr;k++)
{
if(page[k][c]==t)
flg=1;
}
if(flg==0)
{
c++;

137
for(k=0;k<fr;k++)
{
page[k][c]=page[k][c-1];
}
page[nw][c]=t;
nw++;
pf++;
if(nw==fr)
nw=0;
}
else
{
i++;
}
}
System.out.println(“nnttFIFO”);
System.out.println(“nPage number:”);
for(i=0;i<n;i++)
System.out.print(p[i]+” ”);
System.out.println(“nnPage table:”);
for(k=0;k<fr;k++)
{
for(i=0;i<=c,i++)
{
if(page[k][i]==-1)
System.out.prin(“-“);
else
System.out.print(page[k][i]+” ”);
}

138
}
System.out.println(“nTotal no.of page fault:”+pf);
}
void lru
{
int page1[][]=new int[fr][n];
int frame[]=new int[fr];
int count[]=new int[fr];
int I,j,k,ts,flg,pf=0,min,c=0;
ts=0;
for(i=0;i<fr;i++)
{
frame[i]=-1;
page1[i][c]=-1;
count[i]=0;
}
for(i=0;i<n;i++)
{
flg=0;
for(j=0;j<fr;j++)
{
if(frame[j]==-1)
{
if(flg==0)
{
page1[j][c]=p[i];
frame[j]=p[i];
ts++;

139
c++;
count[j]=ts;
flg=1;
continue;
}
}
if((frame[j]!=-1&&flg==0)||(frame[j]==-1&&flg==1))
{
page1[j][c]=page1[j][c-1];
}
}
if(flg==0)
{
for(j=0;j<fr;j++)
{
if(frame[j]==p[i])
{
ts++;
count[j]=ts;
flg=1;
}
else
{
}
}
}
if(flg==0)
{

140
min=100;
for(j=0;j<fr;j++)
{
if(count[j]<min)
min=count[j];
}
for(j=0;j<fr;j++)
{
if(count[j]==min)
{
frame[j]=p[i];
page1[j][c]=p[i];
ts++;
c++;
count[j]=ts;
}
else
{
}
}
}
}
System.out.println(“nttLRU”);
System.out.println(“nPage number:”);
for(i=0;i<n,i++)
System.out.print(p[i]+” “);
System.out.println(“nnPage table:”);
for(k=0;k<fr;k++)

141
{
for(i=0;i<c;i++)
if(page1[k][i]==-1)
System.out.print(“-“);
else
System.out.print(page1[k][i]+” “);
}
System.out.println(“nTotal no.of page fault:”+c);
}
void hitcount(int pos)
{
int i;
for(i=0;i<fr;i++)
if(i==pos)
ht[i]=1;
else if(ht[i]!=0)
ht[i]++;
}
}
class pagereplace
{
{
int ch;
page_r p=new page_r();
p.get();
do
{

142
System.out.println(“nn1.FIFO”);
System.out.println(“2.LRU”);
System.out.print(“nEnter your choice:”);
ch=Integer.parseInt(d.readLine());
switch(ch)
{
case 1:
p.fifo();
break;
case 2:
p.lru();
break;
case 3:
System.out.println(“you are exiting”);
default:
System.out.println(“Invalid choice!!”);
}
}
while(ch!=3);
}
}
Enter the no.of page:5
Enter the no.frame:5
Enter the content:
2
3
4

143
5
6
1.FIFO
2.LRU
3.Exit
Enter your choice:1
FIFO
page number:
2 3 4 5 6
Page table:
2 2 2 2 2
- 3 3 3 3
- - 4 4 4
- - - 5 5
- - - - 6
Total no. of page fault:5
1.FIFO
2.LRU
3.Exit
Enter your choice:2
LRU
Page number:
2 3 4 5 6
Page table:
2 2 2 2 2
- 3 3 3 3
- - 4 4 4

144
- - - 5 5
- - - - 6
Total no. of page fault:5
1.FIFO
2.LRU
3.Exit
Enter your choice:3
you are exiting
Result:
Thus the java program to implement the different page replacement techniques
was created, executed successfully and the output was verified.

145
Ex.No:18
PRODUCER CONSUMER PROBLEM
Aim:
To write a java program to implement the concept of the producer consumer
problem.
Algorithm:
a)Display the menu Read the choice
1.Produce a problem
2.consume a problem
3.display
4.exit
b)if choice=1 then do
1.get the process to be proceed
2.check whether process already existing if(yes) display
3.check whether process already existing if(yes)then consume the process
4.display all the process to be consumed
i)get the process to be consumed
ii)check the process is already produced, if yes then consume.
Source code:
import java.io.*;
class semaphore
{
int s=0,z=0;
String wait[]=new String[50];
String produce[]=new String[50];
void producer()throws IOException
{
int i,j=0,check=0;
String ch=”y”;

146
do
{
System.out.println(“nenter the process name to produce:”);
++s;
produce[s]=d.readLine();
for(i=1;i<s;i++)
{
if(produce[i].compareTo(produce[s])==0)
{
System.out.println(“nprocess already exists!!”);
--s;
break;
}
}
for(i=1;i<=z;i++)
{
if(produce[s].compareTo(wait[i])==0)
{
System.out.println(“Waiting process”);
System.out.println(produce[s]+”is now consumed”);
j=1;
--s;
check=1;
break;
}
}
if(check==1)
{

147
for(i=j;i<z;i++)
wait[i]=wait[i+1];
z--;
}
if(check==0)
{
System.out.println(“nProduced process”);
for(i=1;i<=s;i++)
System.out.println(produce[i]);
}
System.out.println(“nnDo you want to continue?”);
ch=d.readLine();
}
while(ch.equalsIgnoreCase(“y”));
}
void consumer()throws IOException
{
String consume,ch;
int i,j=0,flag;
if(s==0)
{
System.out.println(“nNo process produced please wait”);
return;
}
System.out.println(“nnConsume a process”);
do
{
flag=0;

148
System.out.println(“nEnter the consume process”);
consume=d.readLine();
for(i=1;i<=s;i++)
{
if(produce[i].compareTo(consume)==0)
{
flag=1;
j=i;
break;
}
}
for(i=1;i<=z;i++)
{
if(wait[i].compareTo(consume)==0)
{
flag=2;
break;
}
}
if(flag==1)
{
System.out.println(“nprocess”+consume+” is now consumed”);
for(i=j;i<s;i++)
produce[i]=produce[i+1];
--s;
}
else if(flag==2)
System.out.println(“nprocess already exists”);
else

149
{
System.out.println(“nprocess”+consume+”has to be produced”);
System.out.println(“nIt has to wait”);
wait[++z]=consume;
}
if(z==0)
System.out.println(“nNo waiting process”);
else
{
System.out.println(“nWaiting process”);
for(i=1;i<=z;i++)
System.out.println(wait[i]);
}
System.out.print(“nDo you want to continue?”);
ch=d.readLine();
}
while(ch.equalsIgnoreCase(“y”));
}
void display()
{
int i;
System.out.println(“nnPRODUCED PROCESS”);
for(i=1;i<=s;i++)
System.out.println(produce[i]);
System.out.println(“nnWAITING PROCESS”);
for(i=1;i<=z;i++)
System.out.println(wait[i]);
}
}

150
class prod_cons
{
{
semaphore se=new semaphore();
int c;
do
{
System.out.println(“nnProducer--> Consumer problem”);
System.out.println(“n1.produce a process”);
System.out.println(“2.Consume a process”);
System.out.println(“3.Display”);
switch(c)
{
case 1:
se.producer();
break;
case 2:
se.consumer();
break;
case 3:
se.display();
break;
case 4:
System.exit(0);

151
default:
System.out.println(“Option not valid”);
}}
while(true);
}}
Producer- ->Consumer problem
1.Produce a process
2.Consume a process
3.Display
4.Exit
Enter your choice:1
Enter the process name to produce:
P1
Produced process
P1
Do you want to continue?Y
Enter the process name to produce:
P2
Produced process
P1
P2
Do you want to continue?N
1.Produce a process
2.Consume a process
3.Display
4.Exit
Enter your choice:2

152
Consume a process
Enter the consume process
P3
Process P3 has to be produced
It has to wait
Waiting process
P3
Do you want to continue?N
1.Produce a process
2.Consume a process
3.Display
4.Exit
Enter your choice:3
PRODUCED PROCESS
P1
P2
WAITING PROCESS
P3
1.Produce a process
2.Consume a process
3.Display
4.Exit
Enter your choice:4
Result:
Thus the java program to implement the producer consumer problem was created,

153
Ex.No:19
BANKERS ALGORITHM
Aim:
To write a java program to implement Bankers Algorithm
Algorithm:
1.If request be the array of process p
2.If request [i]=k then process p wants k instance of resource type R
3.when a request for resources is made by process p then following action are taken
i)if request<=available go to step 3
ii)the system pretend to have allocated the request resource to p
Available=Available-request
Allocation=Allocation+ request
Need=Need-request
Source code:
import java.lang.*;
import java.io.*;
{
BankSub BS=new BankSub();
try
{
BS.mainFun();
}
catch(Exception E)
{
System.out.println(“Exception caught from main”);
}
}
}

154
class BankSub
{
int alloc[][],max[],need[][],ne[][],al[][],interavail[][];
int finish[],avail[],requ[],work[],order[];
int pre,av[];
int n,j,i,f,ch,inc,a,r,flag;
char c;
public BankSub()
{
alloc=new int[10][10];
max=new int[10][10];
need=new int[10][10];
ne=new int[10][10];
al=new int[10][10];
interavail=new int[10][10];
finish=new int[10];
avail=new int[10];
requ=new int[10];
work=new int[10];
order=new int[10];
pre=0;
av=new int[10];
inc=0;
}
public void mainFun()throws IOException
{
try
{
BufferedReader br=new BufferedReader(new InputStreamReader(System.in));

155
System.out.print(“nnHow many process to be entered:”);
n=Integer.parseInt(br.readLine());
System.out.print(“nEnter Number of resources:”);
r=Integer.parseInt(br.readLine());
System.out.println(“nEnter the allocated value for each process:”);
for(i=0;i<n;i++)
{
System.out.println(“P”+(i+1)+”-->”);
for(j=0;j<r;j++)
{
alloc[i][j]=Integer.parseInt(br.readLine());
}
}
System.out.println(“nEnter maximum value for each process:”);
for(i=0;i<n;i++)
{
System.out.println(“P”+(i+1)+”-->”);
for(j=0;j<r;j++)
{
max[i][j]=Integer.parseInt(br.readLine());
}
}
System.out.println(“nEnter available value:”);
System.out.prin(“n”);
for(i=0;i<r;i++)
{
System.out.println(“Resource”+(i+1)+”-->”);
avail[i]=Integer.parseInt(br.readLine());
}

156
for(i=0;i<n;i++)
{
for(j=0;j<r;j++)
{
need[i][j]=max[i][j]-alloc[i][j];
}
}
do
{
System.out.print(“nnn1.Safety algorithmn2.Resource Request
algorithmn3.ExitnnEnter your choice:”);
ch=Integer.parseInt(br.readLine());
switch(ch)
{
case 1:
safety();
break;
case 2:
try
{
resources();
}
catch(IOException e) {}
break;
case 3:
System.exit(0);
}
}while(ch<+3);
}

157
{
System.out.println(“Number format invalid”);
}
}
void safety()
{
int con[]=new int[10];
a=0;
inc=0;
for(i=0;i<n;i++)
finish[i]=0;
for(i=0;i<r;i++)
work[i]=avail[i];
do
{
for(i=0;i<n;i++)
{
con[i]=check();
if(finish[i]==0&&con[i]==1)
{
for(j=0;j<r;j++)
{
work[j]=work[j]+alloc[i][j];
}
finish[i]=1;
order[a]=i+1;
a++;
/*for(j=0;j<r;j++)

158
{
interavail[i][j]=work[j]
}*/
}
}
inc++;
}while(inc!=2);
f=0;
for(i=0;i<n;i++)
{
if(finish[i]==00
f=1;
}
if(f==0)
{
System.out.println(“nnntThe system in safe state:”);
System.out.println(“nThe safe sequence:”);
for(i=0;i<a;i++)
System.out.print(order[i]+” “);
}
else
{
System.out.prntln(“nnntThe system in unsafe state:”);
pre=1;
}
summerize();
}

159
void summerize()
{
System.out.println(“nnSummerizing..”);
System.out.println(“nMax valuetAllocated valuetNeeded valuetRemaining
available”);
System.out.println(“nt”);
for(i=0;i<n;i++)
{
for(j=0;j<r;j++)
System.out.println(max[i][j]+” “);
System.out.print(“t”);
for(j=0;j<r;j++)
System.out.println(alloc[i][j]+” “);
for(j=0;j<r;j++)
System.out.println(need[i][j]+” “);
for(j=0;j<r;j++)
System.out.println(interavail[i][j]+” “);
}
System.out.print(“The available resource:”);
for(i=0;i<r;i++)
System.out.print(avail[i]+” “);
}
int check()
{
int f=1,flag=1;
for(j=0;j<r;j++)

160
{
if(need[i][j]<=work[j])
f=1;
else
f=0;
flag=flag*f;
}
return flag;
}
void resource()throws IOException
{
try
{
BufferedReader b=new BufferedReader(new InputStreamReader(System.in));
int pno,f=1,var=1,flag;
while(var!=0)
{
System.out.print(“nEnter the process no1)-->”+n+”:”);
pno=Integr.parseInt(b.readLine());
if(pno<=n&&pno!=0)
{
pno--;
System.out.print(“nEnter the current request for this process:”);
for(i=0;i<r;i++)
requ[i]=Integer.parseInt(b.readLine());
for(flag=1,i=0;i<r;i++)
{
if(requ[i]<=need[pno][i])
{

161
flag=1;
}
else
{
flag=0;
}
//flag=flag*f;
}
for(i=0;i<r;i++)
{
if(flag!=0)
{
if(requ[i]<=avail[i])
{
al[pno][i]=alloc[pno][i];
ne[pno][i]=need[pno][i];
av[i]=avail[i];
alloc[pno][i]=alloc[pno][i]+requ[i];
need[pno][i]=need[pno][i]-requ[i];
avail[i]=avail[i]-requ[i];
}
else
{
System.out.println(“nThe process has to wait”);
f=0;
break;
}

162
}
else
{
System.out.println(“nERROR”);
f=0;
System.out.println(“nSince proceaa requires more than what it had already asked”);
break;
}
}
if(f!=0)
{
summerize();
if(pre!=0)
{
alloc[pno][i]=al[pno][i];
need[pno][i]=ne[pno][i];
avail[i]=av[i];
pre=0;
}
}
var=0;
}
else
{
continue;
}
}
}

163
{}
}
}
How many process to be entered:5
Enter number of resources:4
Enter the allocated value for each process:
P1-->
0
0
1
2
P2-->
1
0
0
0
P3-->
1
3
5
4
P4-->
0
0
1
4
P5-->
0

164
6
3
2
Enter maximum value for each process:
P1-->
0
0
1
2
P2-->
1
7
5
0
P3-->
2
3
5
6
P4-->
0
6
5
6
P5-->
0
6
5
2

165
Enter available value:
Resource1-->1
Resource2-->5
Resource3-->2
Resource4-->0
1.Safety Algorithm
2.Resource request algorithm
3.Exit
Enter your choice:1
The system in safe state.
The Safe sequence:
1 3 4 5 2
Summerizing..
Max value Allocated value Needed value Remaining Available
0 0 1 2 0 0 1 2 0 0 0 0 1 5 3 2
1 7 5 0 1 0 0 0 0 7 5 0 3 14 12 12
2 3 5 6 1 3 5 4 1 0 0 2 2 8 8 6
0 6 5 6 0 0 1 4 0 6 4 2 2 8 9 10
0 6 5 2 0 6 3 2 0 0 2 0 2 14 12 12
The available resource:1 5 2 0
1.Safety Algorithm
3.Exit
Enter your choice:2
Enter the process no 1)-->5:2
Enter the current request for this process:0
4
2
0

166
Summerizing..
Max value Allocated value Needed value Remaining Available
0 0 1 2 0 0 1 2 0 0 0 0 1 1 1 2
1 7 5 0 1 4 2 0 0 3 3 0 3 14 12 12
2 3 5 6 1 3 5 4 1 0 0 2 2 4 6 6
0 6 5 6 0 0 1 4 0 6 4 2 2 10 10 10
0 6 5 2 0 6 3 2 0 0 2 0 2 10 9 8
The available resource:1 1 0 0
1.Safety Algorithm
3.Exit
Enter your choice:3
Result:
Thus the java program to implement the Bankers Algorithm was created, executed
successfully and the output was verified.

167
Ex.No:20
DINING PHILOSOPHER PROBLEM
Aim:
To write a java program to implement the concept of the Dining Philosopher
problem.
Algorithm:
1.Get the total number of philosopher
2.get the number of philosopher who are hungry
3.if all are hungry then deadlock occurs
4.get the philosopher position
5.display the menu
6.Two can eat at a time
7.one can eat at a time
8.if choice is one,then
a)get the philosopher states of eating position
b)display the means of those who are waiting.
Source code:
import java.io.*;
import.java.math.*;
public class DinPhilo
{
{
DinPhilosopher OB;
OB=new DinPhilosopher();
try
{
OB.mainFun();
}

168
{
System.out.println(“Exception caught from main.”);
}
}
}
class DinPhilosopher
{
String[] philname;
char op,conf=’Y’;
int status[],hu[],pos,cho,x,i,j,r,t,tph,howhung,s;
public DinPhilosopher()
{
philname=new String[20];
status=new int[20];
hu=new int[20];
s=0;
}
void one()
{
pos=0;
System.out.println(“nALLOW ONE PHILOSOPHER TO EAT AT ANY TIMEn”);
for(i=0;i<howhung;i++,pos++)
{
System.out.println(“tPHILOSOPHER<”+philname[hu[pos]]+”>IS GRANTED TO
EAT”);
for(x=pos;x<howhung;x++)
System.out.println(“tPHILOSOPHER<”+philname[hu[x]]+”>IS WAITING”);
}

169
}
void two()
{
System.out.println(“nTWO PHILOSOPHER TO EAT AT SAME TIMEn”);
for(i=0;i<howhung;i++)
{
for(j=i+1;j<howhung;j++)
{
if(Math.abs(hu[i]-hu[j])>=1&&Math.abs(hu[i]-hu[j])!=4)
{
System.out.println(“nnCOMBINATION”+(s+1)+”n”);
t=hu[i];
r=hu[j];
s++;
System.out.println(“<”+philname[hu[i]]+”>AND<”+philname[hu[j]]+”>ARE
GRANTED TO EAT”);
for(x=0;x<howhung;x++)
{
if((hu[x]!=t)&&(hu[x]!=r))
System.out.println(“PHILOSOPHER<”+philname[hu[x]]+”>IS WAITING”);
}
}
}
}
}
void menu()throws IOException
{
try
{

170
BufferedReader br=new BufferedReader(new InputStreamReader(System.in));
do(
System.out.println(“nnDINING PHILOSOPHER PROBLEM”);
System.out.print(“n1.One can eat at a timen2.Two can eat at a timen3.ExitnnEnter
your choice:”);
cho=Integer.parseInt(br.readLine());
switch(cho)
{
case 1:one();
break;
case 2:two();
break;
case 3:System.exit(0);
default:System.out.println(“nInvalid option..”);
}
System.out.print(“nContinue with main menu(Y/N):”);
conf=(char)br.read();
br.readLine();
}while(conf==’Y’||conf==’y’);
}
{
System.out.println(“IOException handled”);
}
}
public void mainFun()throws IOException
{
try
{

171
BufferReader br=new BufferedReader(new InputStreamReader(System.in));
System.out.println(“nnDINING PHILOSOPHER PROBLEM”);
System.out.println(“nENTER THE TOTAL PHILOSOPHER:”);
tph=Integer.parseInt(br.readLine());
System.out.print(“n”);
for(i=0;i<tph;i++)
{
System.out.print(“PHILOSOPHER”+(i+1)+”:”);
philname[i]=br.readLine();
status[i]=1;
}
System.out.print(“nnHow many are hungry:”);
howhung=Integer.parseInt(br.readLine());
if(howhung==tph)
{
System.out.print(“nDO YOU WANT ALL PHILOSOPHER EAT AT A TIME:”);
op=(char)br.readLine();
if(op==’y’||op==’Y’)
{
System.out.println(“nAll are hungry..nDead lock stage will occur”);
System.out.println(“nExiting..”);
}
}
else
{
System.out.print(“n”);
for(i=0;i<howhung;i++)
{
System.out.print(“ENTER PHILOSOPHER”+(i+1)+”POSITION:”);

172
hu[i]=Integer.parseInt(br.readLine());
status[hu[i]]=2;
}
menu();
}
}
catch(IOException ex)
{
System.out.println(“nException caught from mainfun method”);
}
}
}
ENTER THE TOTAL PHILOSOPHER:5
PHILOSOPHER 1:a
PHILOSOPHER 2:b
PHILOSOPHER 3:c
PHILOSOPHER 4:d
PHILOSOPHER 5:e
How many are hungry:3
ENTER PHILOSOPHER 1 POSITION:2
1.One can eat at a time
3.Exit
Enter your choice:1

173
ALLOW ONE PHILOSOPHER TO EAT AT ANY TIME
PHILOSOPHER<c>IS GRANTED TO EAT
PHILOSOPHER<e>IS WAITING
PHILOSOPHER<null>IS WAITING
PHILOSOPHER<e>IS GRANTED TO EAT
PHILOSOPHER<null>IS GRANTED TO EAT
Continue with main menu(Y/N):Y
3.Exit
Enter your choice:2
TWO PHILOSOPHER TO EAT AT SAME TIME
COMBINATION 1
<c>AND<e>ARE GRANTED TO EAT
COMBINATION 2
<c>AND<null>ARE GRANTED TO EAT
PHILOSOPHER<e>IS WAITING
COMBINATION 3
<e>AND<null>ARE GRANTED TO EAT
PHILOSOPHER<c>IS WAITING.
Continue with main menu(Y/N):Y
3.Exit
Enter your choice:3

174
Result:
Thus the java program to implement the Dining philosopher problem was created,
executed successfully and the output was verified

Java programming lab manual

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Java programming lab manual

Similar to Java programming lab manual (20)

More from sameer farooq

More from sameer farooq (8)

Recently uploaded

Recently uploaded (20)

Java programming lab manual
