Jagdeep Foundry, established in 1967, is ISO certified and employs 90 people across a facility of approximately 78,000 sq. feet. The company specializes in manufacturing various cast iron and steel products, including bed plates, surface plates, and CNC machining services. They also have a well-equipped foundry and fabrication facility, participating in exhibitions and serving notable customers in the automotive sector.

1. E N G I N E E R I N G & D E S I G N I N G
Y O U R R E Q U I R E M E N T S …
JAGDEEP FOUNDRY

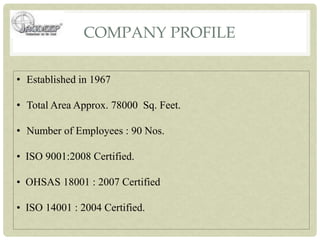

2. COMPANY PROFILE
• Established in 1967
• Total Area Approx. 78000 Sq. Feet.
• Number of Employees : 90 Nos.
• ISO 9001:2008 Certified.
• OHSAS 18001 : 2007 Certified
• ISO 14001 : 2004 Certified.

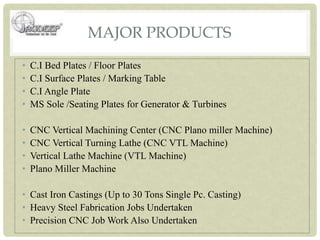

3. MAJOR PRODUCTS
• C.I Bed Plates / Floor Plates
• C.I Surface Plates / Marking Table
• C.I Angle Plate
• MS Sole /Seating Plates for Generator & Turbines
• CNC Vertical Machining Center (CNC Plano miller Machine)
• CNC Vertical Turning Lathe (CNC VTL Machine)
• Vertical Lathe Machine (VTL Machine)
• Plano Miller Machine
• Cast Iron Castings (Up to 30 Tons Single Pc. Casting)
• Heavy Steel Fabrication Jobs Undertaken
• Precision CNC Job Work Also Undertaken

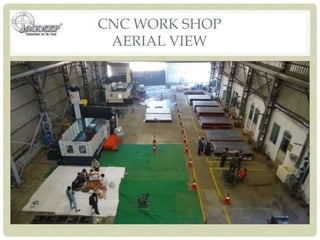

4. CNC WORK SHOP
AERIAL VIEW

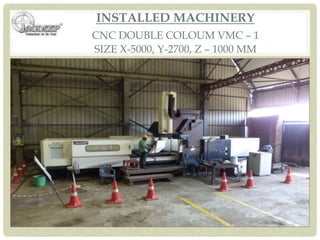

5. INSTALLED MACHINERY
CNC DOUBLE COLOUM VMC – 1
SIZE X-5000, Y-2700, Z – 1000 MM

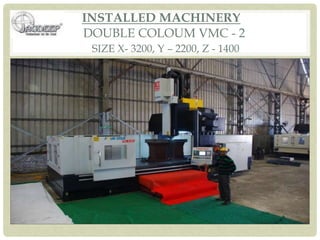

6. INSTALLED MACHINERY
DOUBLE COLOUM VMC - 2
SIZE X- 3200, Y – 2200, Z - 1400

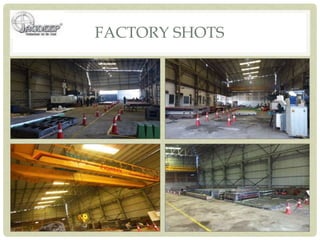

7. FACTORY SHOTS

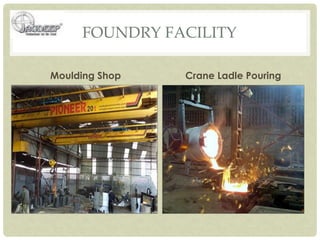

8. FOUNDRY FACILITY
Moulding Shop Crane Ladle Pouring

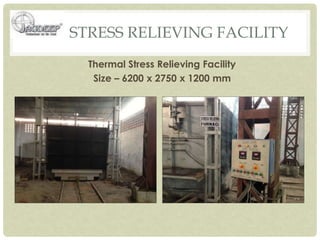

9. STRESS RELIEVING FACILITY
Thermal Stress Relieving Facility
Size – 6200 x 2750 x 1200 mm

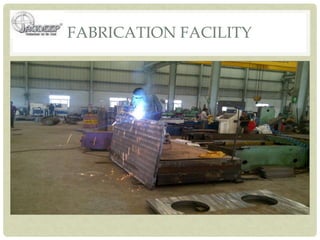

10. FABRICATION FACILITY

11. T-SLOTTED FLOOR PLATE
Bed Plate
Size 3000 x 1500 x 300
With Length Wise T-Slots
Bed Plate
Size 3000 x 2000 x 300
With Width Wise T-Slots

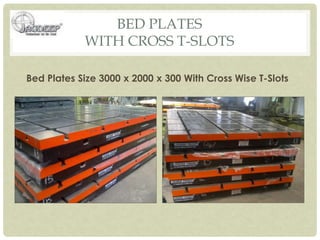

12. BED PLATES
WITH CROSS T-SLOTS
Bed Plates Size 3000 x 2000 x 300 With Cross Wise T-Slots

13. CAST IRON ANGLE PLATES
C.I Angle Plate1200 x 1200 x 3000 mm

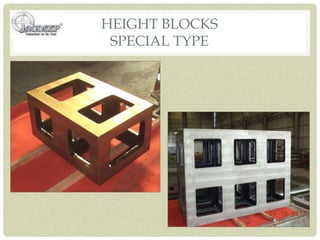

14. HEIGHT BLOCKS
SPECIAL TYPE

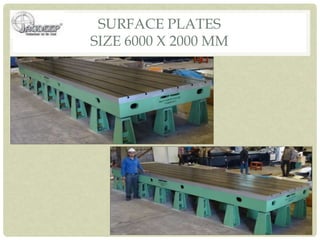

15. SURFACE PLATES
SIZE 6000 X 2000 MM

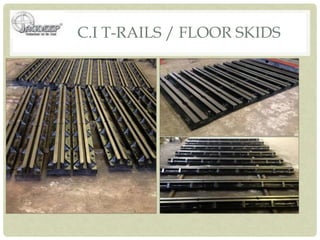

16. C.I T-RAILS / FLOOR SKIDS

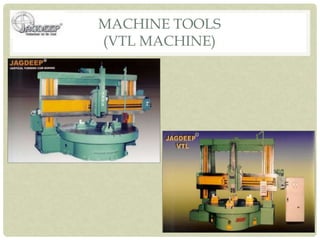

17. MACHINE TOOLS
(VTL MACHINE)

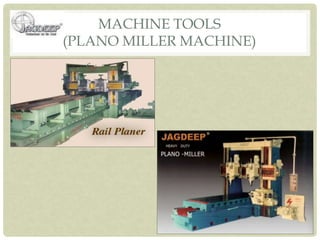

18. MACHINE TOOLS
(PLANO MILLER MACHINE)

19. CNC ROTARY TABLES
Rotary Table
Table Size 3000 x 2000 mm
Rotary Table
Table dia. 3000 mm

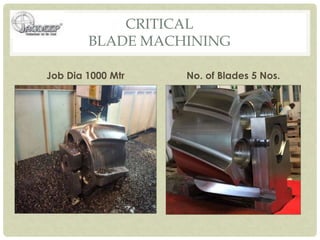

20. CRITICAL
BLADE MACHINING
Job Dia 1000 Mtr No. of Blades 5 Nos.

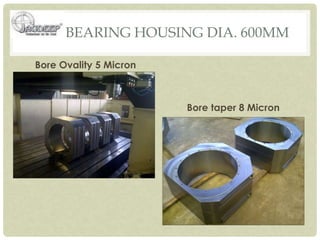

21. BEARING HOUSING DIA. 600MM
Bore Ovality 5 Micron
Bore taper 8 Micron

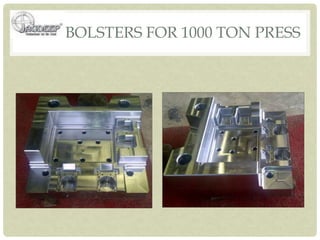

22. BOLSTERS FOR 1000 TON PRESS

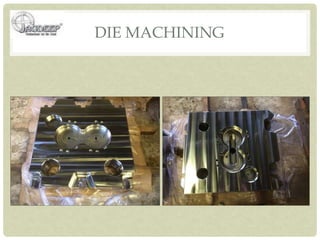

23. DIE MACHINING

24. FABRICATED JOBS

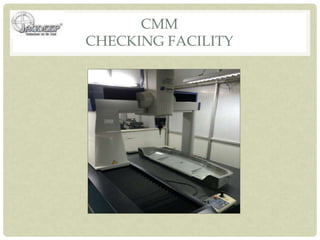

25. CMM
CHECKING FACILITY

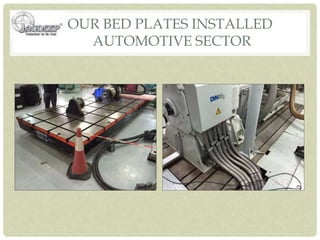

26. OUR BED PLATES INSTALLED
AUTOMOTIVE SECTOR

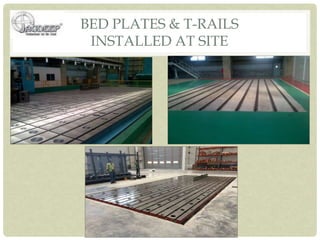

27. BED PLATES & T-RAILS
INSTALLED AT SITE

28. SUPPORT BLOCKS &
ANGLE PLATES SUPPLIED BY US

29. EXHIBITION PARTICIPATION

30. FEW VALUED CUSTOMERS

31. CONTACT US
We'll be Glad to discuss with you the requirements of
your esteemed company.
Contact Persons:-
• Mr. Hitesh Aggarwal - +91 98149-21641
• Mr. Mahesh Aggarwal - +91 98140-50121
Emails:-
• Sales@jagdeepfoundry.in
• jagdeepfoundry@rediffmail.com
