The document outlines Premier Manufacturing Group's extensive capabilities in manufacturing, including plastic injection molding, CNC machining, precision manual machining, and various fabrication methods such as welding and plasma cutting. It highlights the advanced equipment used, like CNC plasma cutters and 3D printers, and details their automation solutions for manufacturing processes. The company focuses on creating customized electrical control systems and automated systems while emphasizing the importance of safety and reliability in their operations.

2. CAPABILITIES SUMMARY
 Plastic Injection Molding – Polymer Over Molding
 CNC Machining & CNC Turning
 Precision Manual Machining & Surface Grinding
 Fabrication – Welding & Plasma Cutting
 Powder Coat Painting & Pre-Treatment
 Tooling - Design, Construction, Machining & Maintenance
 3-D Prototype Printing Rapidly Creates Parts from Design Concepts
 Turn-Key Design & Construction of Complex Automation Equipment for
Manufacturing Plants, Production & Other Processing Applications
 Electrical & Mechanical Engineers on Staff for the Design & Integration of
Customized Electrical Controls & Modules

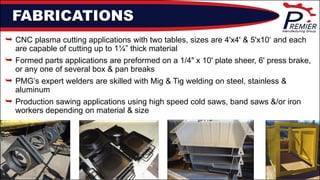

3. FABRICATIONS
 CNC plasma cutting applications with two tables, sizes are 4'x4' & 5'x10‘ and each
are capable of cutting up to 1¼” thick material
 Formed parts applications are preformed on a 1/4" x 10' plate sheer, 6' press brake,
or any one of several box & pan breaks
 PMG’s expert welders are skilled with Mig & Tig welding on steel, stainless &
aluminum
 Production sawing applications using high speed cold saws, band saws &/or iron
workers depending on material & size

4. High coating thickness, superior to liquid top coats
Large Capacity Oven Chamber: 8ft wide x 25ft deep x 8ft high
EuroTech Spraying Equipment
Tiger Drylac Powder
RAL Colors ,Textures & Finishes
Degreasing
Phosphating
Sandblasting
POWDERCOAT PAINT
Powder Paint Overview
Pretreatment Options

5. FABRICATION EXAMPLES

6. CNC MACHINING + MILLING
Okuma Genos L300M Machining Center
 High precision off-center machining & reduction of both cutting time and non-cutting
time for machining complex shapes
 Combined functions of spindle, sub spindle, Y axis & milling realize two or more times
the manufacturing productivity
 Multiple Turning & Milling operations performed in a single setup

7. VERTICAL CNC MILLING
Chevalier FVM 4026DC
 Axis Travel: X=161” / Y=102” / Z=40.5”
 Table Size: 161.4"x 86.6"
 Spindle Speed: 6,000 rpm
 Table Load Capacity: 30,800 lbs
 900
side milling head

8. VERTICAL CNC MILLING
DOOSAN MV 4020
 Table Size: 40" x 20"
 Table Load Capacity: 1,760 lbs
 Quantity: 2
SHARP SV 4323
 Table Size: 43" x 23"
 Table Load Capacity: 2,205 lbs
 Quantity: 2

9. KNEE MILLING
3 Wessel Knee Mills + 1 Wessel Bed Mill
 Table Size: 10" x 54"
 Knee Travel: 15“ Z-Axis
 Maximum Work Load: 750 lbs

10. CNC TURNING
OKUMA HERITAGE ES-L8
 MAX Cut Diameter 9.84"
 MAX Cut Length 19.69"
 MAX Swing 15.75”
OKUMA CADET LNC-8C
 10" Hydraulic Chuck
 MAX Cut Diameter 9.84"
 MAX Cut Length 19.69"
 MAX Swing 15.75“
 Quantity: 2

11. CNC TURNING
Harrison ALPHA 1760 CNC Lathe
 MAX Cut Diameter 15”
Length 60”
MAX Swing 30”
Chevalier CNC Turning Center
 Fanuc Oi-TD
 MAX Cut Diameter 26.8”
 Length 78"
 MAX Swing 33”

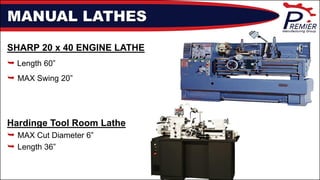

12. MANUAL LATHES
SHARP 20 x 40 ENGINE LATHE
 Length 60”
 MAX Swing 20”
Hardinge Tool Room Lathe
 MAX Cut Diameter 6”
 Length 36”

13. WET/DRY SURFACE GRINDING
Chevalier Wet Surface Grinder
 Table Size: 12” x 24”
 Standard Magnetic Chuck Size: 11¾” x 23 5/8”
 Variable Table Speed: 16 ~ 82
 Rapid Travel: 56
 Spindle Drive Speed: 1,756 RPM
 Grinding Wheel Diameter: 14”
 Grinding Wheel Width: 1.97”
 Grinding Wheel Bore: 5”
Chevalier Surface Grinder
 Table Size: 6” x 18”
Okamoto Surface Grinder
 Table Size: 6” x 18”
Harig Surface Grinder
 Table Size: 6” x 12”

14. OD/ID GRINDING
Brown & Sharp OD/ID grinder
 8” Diameter X 24” Length
Crystal Lake OD Grinder
 3” Diameter X 12” Length

15. WIRE EDM
Sodick AP500
Sodick A530D
Sodick A320D
 Controls: Sodick Fine Mark 25 CNC
 Inside Tank Dimensions: 36.5" x 30.5" x 10.6"
 Travels (X, Y, Z): 19.7" x 13.7" x 10.6"
SINKER EDM
AGIE Mondo STAR 50
Inside Tank Dimensions: 29.5" x 21.6"
Travels (X, Y, Z): 19.6" x 13.7" x 13.7"
Electric Discharge Machining
WIRE EDM (x3)
SINKER EDM

16. MACHINED PART EXAMPLES

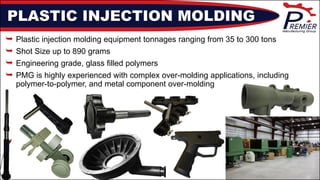

17. PLASTIC INJECTION MOLDING
 Plastic injection molding equipment tonnages ranging from 35 to 300 tons
 Shot Size up to 890 grams
 Engineering grade, glass filled polymers
 PMG is highly experienced with complex over-molding applications, including
polymer-to-polymer, and metal component over-molding

18. PLASTIC PART EXAMPLES

19.  Dimension SST1200ES 3-D Printer
 Software: ACAD Inventor (Solidworks, IGES, & other CAD file formats)
 Build Size: 10” x 10” x 12”
 Accuracy: ± .0095 in
 Durable enough to withstand rigorous testing without warpage, shrinking,
or moisture absorption
 Capable of being drilled, tapped, threaded, sanded, painted, vacuum
metalized, &/or polished without issue
 Great for testing form, fit, & function prior to production build
3-D Prototype Printing
3-D Printing Overview
ABSplus-P430 Material

20. AUTOMATION EQUIPMENT
 PMG designs and builds automated systems in-house for manufacturing & assembly
processing including surface treatment, heat staking, & ultrasonic welding
 Robotic integration applications include spray coating cells, pick & place, and a variety of
other assembly systems
 PMG engineers have extensive experience with automated conveyors, both horizontal &
vertical, incorporated into accumulator systems & automated ovens of multiple types
 We strive to keep things simple and not overload the design &/or
controls with redundant items
 PMG engineers ensure that the equipment is safe, reliable,
ergonomic, and conform to OSHA requirements

21. AUTOMATION EXAMPLES

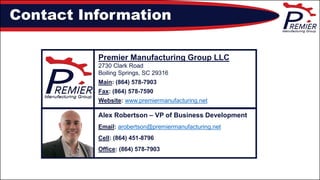

22. Alex Robertson – VP of Business Development
Email: arobertson@premiermanufacturing.net
Cell: (864) 451-8796
Office: (864) 578-7903
Contact Information
Premier Manufacturing Group LLC
2730 Clark Road
Boiling Springs, SC 29316
Main: (864) 578-7903
Fax: (864) 578-7590
Website: www.premiermanufacturing.net
