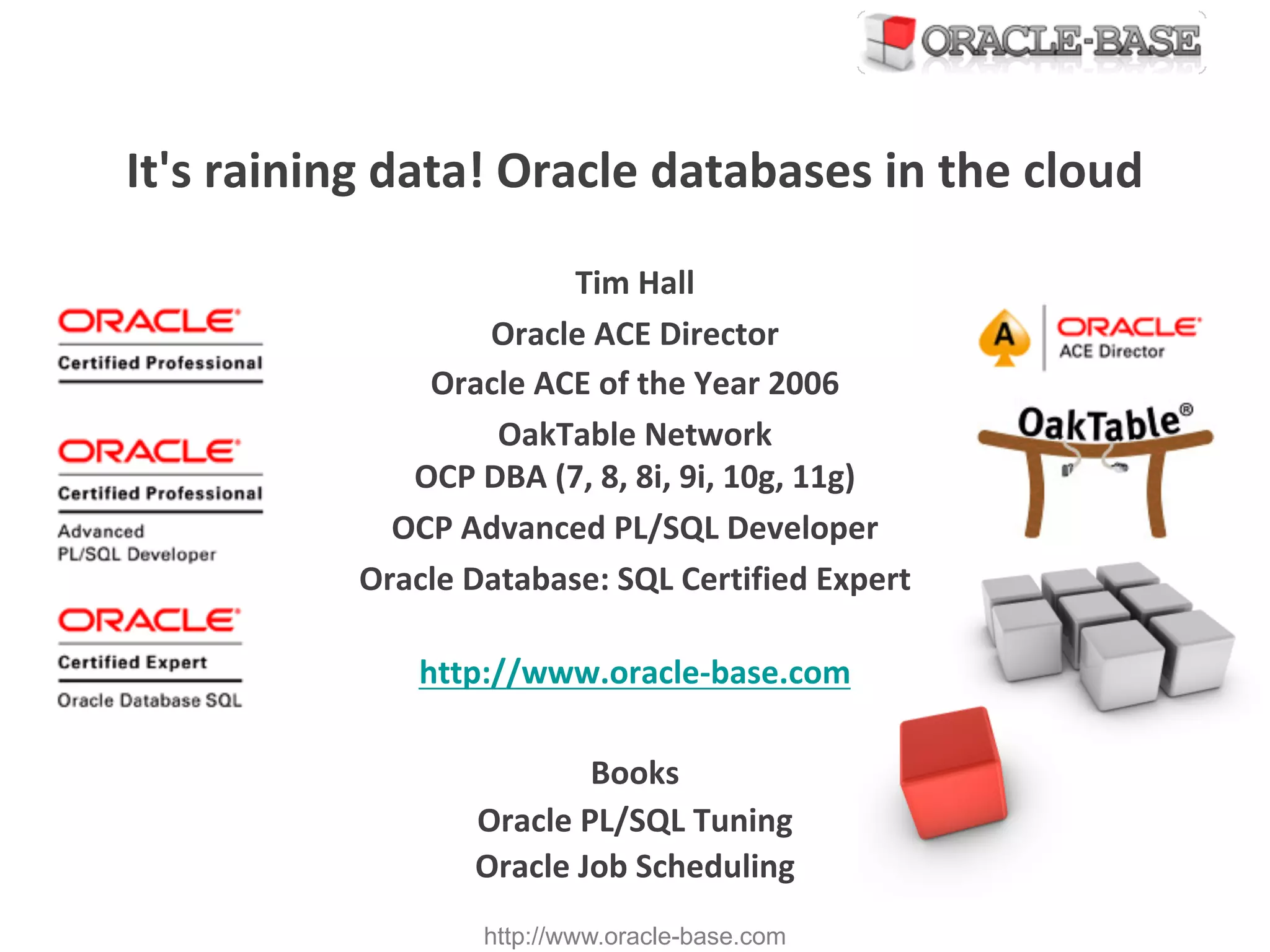

It's raining data! Oracle databases in the cloud
Tim Hall
Oracle ACE Director
Oracle ACE of the Year 2006
OakTable Network
OCP DBA (7, 8, 8i, 9i, 10g, 11g)
OCP Advanced PL/SQL Developer
Oracle Database: SQL Certified Expert
Books
Oracle PL/SQL Tuning
Oracle Job Scheduling

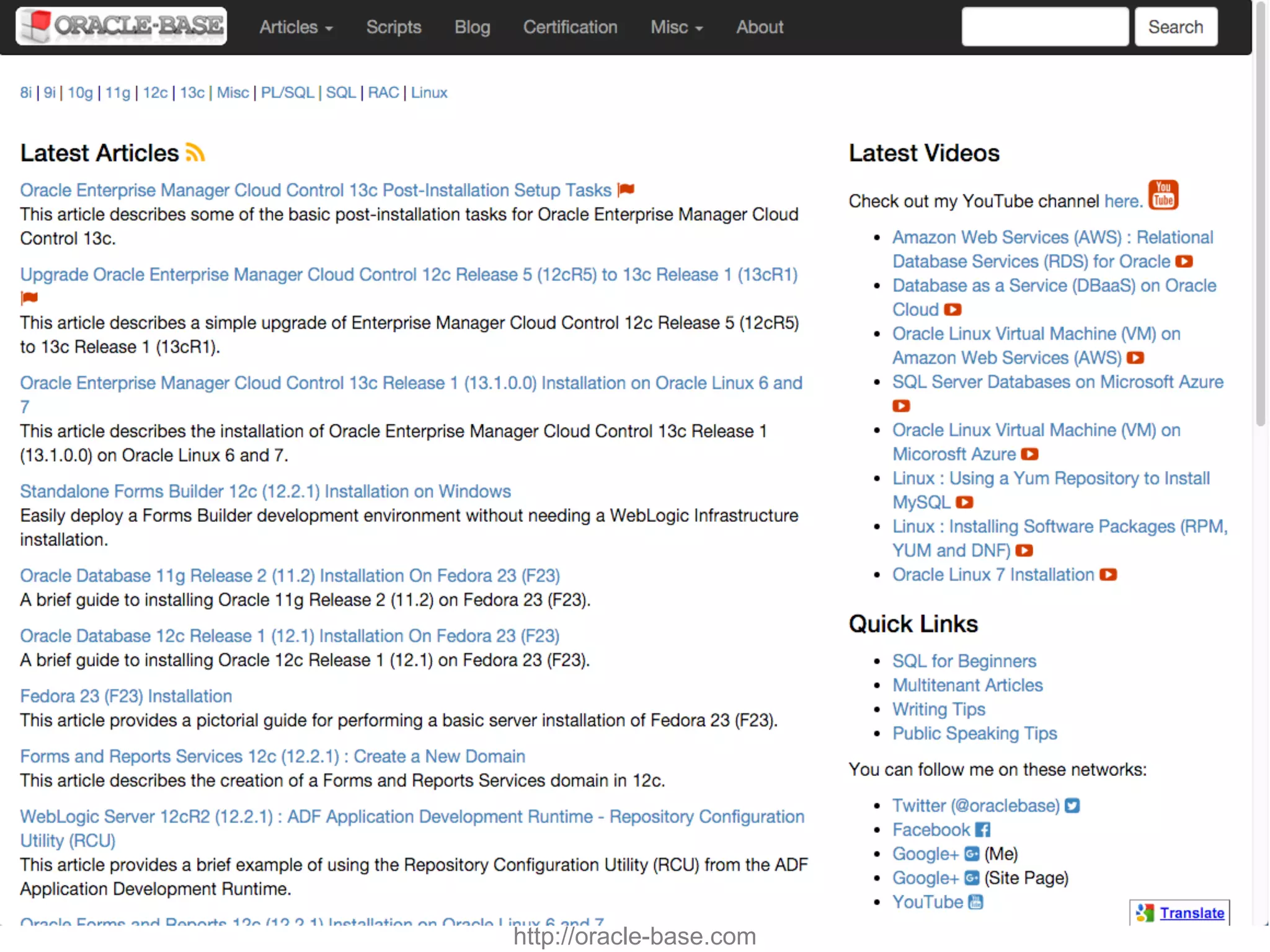

http://oracle-base.com
Agenda
§ Cloud Definitions
§ Service Catalogs
§ Costs?
§ Oracle Databases on the Cloud
§ Amazon Web Services (AWS)
§ Microsoft Azure
§ Oracle Cloud
§ Vmware vCloud Air
§ Quick Tips
§ Concerns

Cloud Definitions

Cloud Definitions
§ Infrastructure as a Service (IaaS) : Virtual hardware (VMs, Storage, DNS,
load balancers, VLANs, VPN etc.)
§ Platform as a Service (PaaS) : Environments (VM + OS + DB, VM + OS +
App Server etc.)
§ Software as a Service (SaaS): Applications delivered over the cloud.
§ Database as a Service (DBaaS)
§ Bring Your Own License (BYOL)
§ On-Demand License

Service Catalogs

Costs?
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$

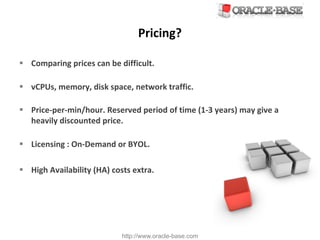

Pricing?
§ Comparing prices can be difficult.
§ vCPUs, memory, disk space, network traffic.
§ Price-per-min/hour. Reserved period of time (1-3 years) may give a
heavily discounted price.
§ Licensing : On-Demand or BYOL.
§ High Availability (HA) costs extra.

Oracle Licensing
§ For certified cloud providers (Oracle, AWS, Microsoft Azure)
§ So
§ AWS: 16 vCores = 8 Physical Cores * 0.5 = 4 Core licenses.
§ Azure: 8 vCores = 8 Physical Cores * 0.5 = 4 Core licenses.
§ Physical: 8 Physical cores (Intel) * 0.5 = 4 Core licenses.

Oracle
Databases on the Cloud

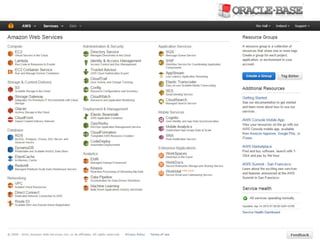

Amazon Web Services (AWS)
§ Elastic Compute Cloud (EC2):
§ IaaS - Virtual Machine (VM).
§ Self-managed.
§ BYOL.

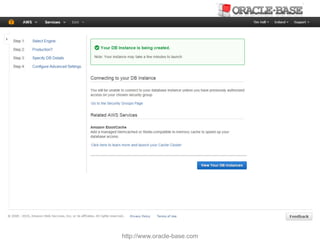

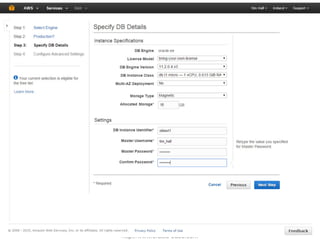

§ Relational Data Services (RDS) for Oracle :
§ DBaaS.
§ No OS system administration and tooling to greatly reduce DBA work.
§ BYOL or On-Demand Licensing.
§ Some functionality restricted or prevented entirely, as is typical of many
DBaaS offerings.
§ RDS offerings for MySQL, MS SQL Server, Postgres etc.

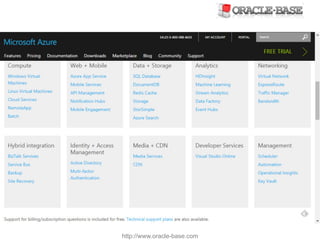

Microsoft Azure
§ No DBaaS for Oracle databases.
§ IaaS - Virtual Machine (VM).
§ Self-managed.
§ BYOL.
§ Certified and supported for Oracle Linux and RHEL.

Oracle Cloud
§ Database Schema Service:
§ 5-50G schema.
§ Data access using RESTful web services, not SQL*Net.
§ Virtual Image:
§ Virtual Machine (VM) with Oracle software zips.
§ Create DBs using DBCA
§ Data access using SQL*Net.
§ DBaaS:
§ Similar to Virtual Image, but also includes cloud-based tooling.
§ DBaaS - Managed (Not Yet Available):
§ A fully Oracle managed version of DBaaS.

VMware vCloud Air
§ Hybrid Cloud.
§ Interesting for existing VMware shops.
§ Seamless move from on premise to cloud.
§ Currently not a certified or supported cloud provider for Oracle.

Quick Tips

Silent Installations
§ Get used to doing silent installations!
§ Build a response file on a client using the OUI.
$ ./runInstaller -record -destinationFile /tmp/10gR2.rsp

§ Get used to doing silent installations!
§ Build a response file on a client using the OUI.
$ ./runInstaller -record -destinationFile /tmp/10gR2.rsp
§ Use the response file on the server.
$ ./runInstaller -silent -ignoreSysPrereqs -responseFile /tmp/12cR1.rsp
§ Relying on remote X emulation is a nightmare!

Command Line DBCA
§ Get used to using the command line DBCA!
$ dbca -silent -createDatabase
-templateName General_Purpose.dbc
-gdbname cdb1 -sid cdb1 -responseFile NO_VALUE
-characterSet AL32UTF8
-sysPassword OraPasswd1
-systemPassword OraPasswd1
-createAsContainerDatabase true
-numberOfPDBs 1
-pdbName pdb1
-pdbAdminPassword OraPasswd1
-databaseType MULTIPURPOSE
-automaticMemoryManagement false
-storageType FS
-ignorePreReqs
§ Or use a response file.
§ Relying on remote X emulation is a nightmare!

Encrypt Database Connections
§ Use Native Network Encryption to protect connections.
§ Just add the following to the server’s sqlnet.ora file.
SQLNET.ENCRYPTION_SERVER=REQUIRED
SQLNET.ENCRYPTION_TYPES_SERVER=(AES256)
§ Or use TCP/IP with SSL/TLS.
§ The internet is not safe without encryption!

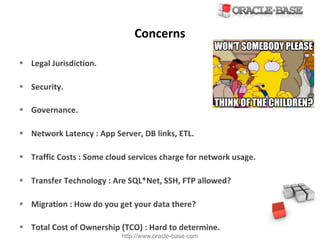

Concerns

Concerns
§ Legal Jurisdiction.
§ Security.
§ Governance.
§ Network Latency : App Server, DB links, ETL.
§ Traffic Costs : Some cloud services charge for network usage.
§ Transfer Technology : Are SQL*Net, SSH, FTP allowed?
§ Migration : How do you get your data there?
§ Total Cost of Ownership (TCO) : Hard to determine.

Oracle Database on the Cloud?
§ It depends!
§ Should be a case-by-case judgement.
§ Unlikely that a one-size-fits-all policy will work.

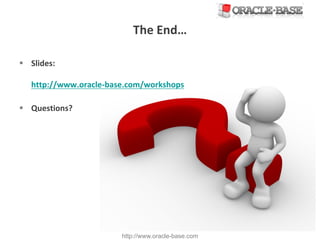

The End…
§ Slides:
http://www.oracle-base.com/workshops
§ Questions?
