Iterative deepening search (IDS) is a complete search algorithm that combines the completeness of breadth-first search with the memory efficiency of depth-first search. IDS works by performing iterative depth-first searches, increasing the depth limit by one each iteration, until the goal is found or the entire search space has been explored. IDS is guaranteed to find a solution if one exists, uses less memory than breadth-first search by limiting the depth at each iteration, and is more efficient than naive depth-first search which can get stuck in infinite loops.

1. Iterative Deepening Search
Ashis Kumar Chanda
Department of Computer Science and Engineering
University of Dhaka

2. Topics
• Introduction
• Searching Methods
• Iterative Deepening Search
• Properties
• Analysis
• Summary
2CSE, DU

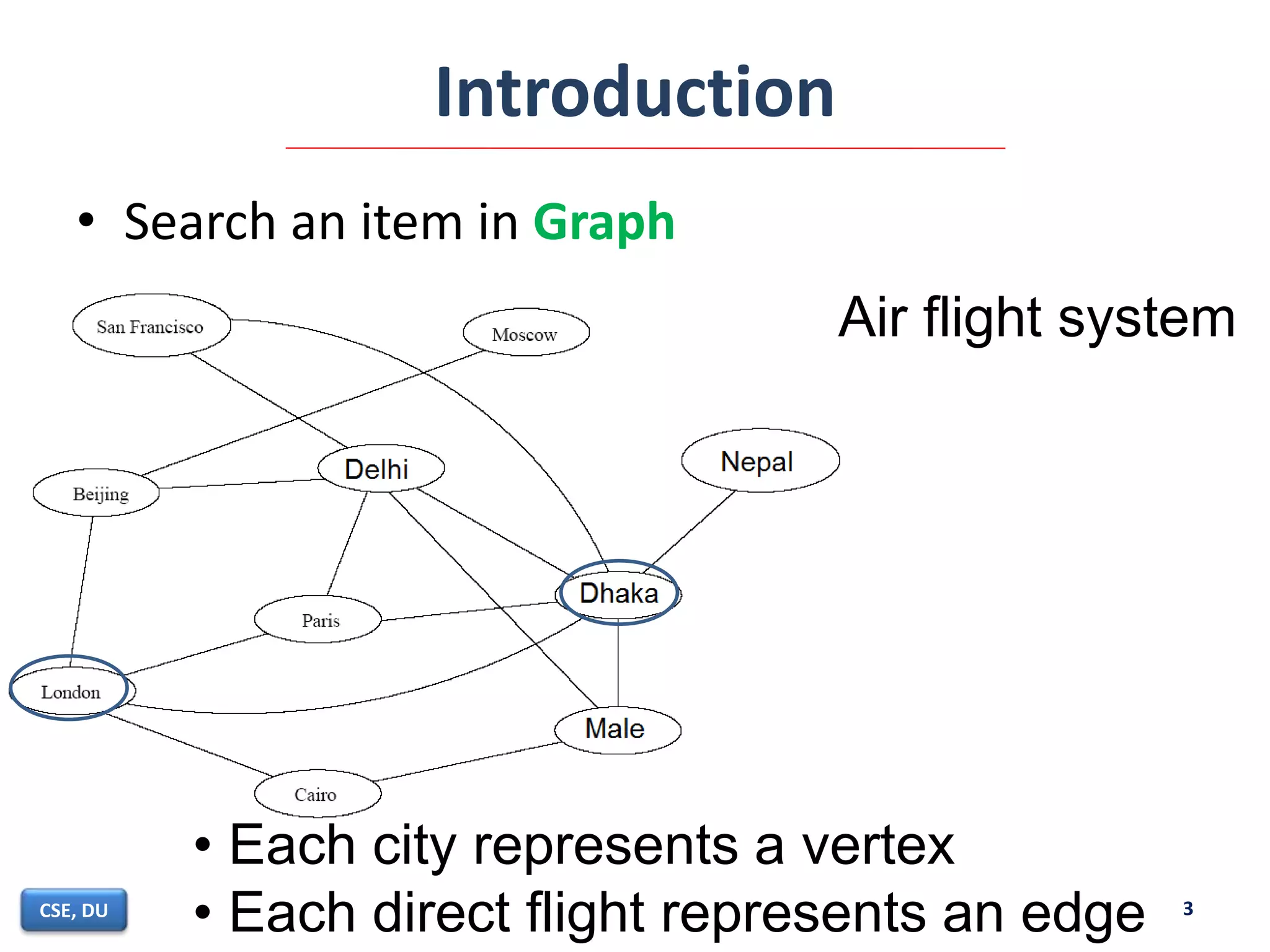

3. Introduction
• Search an item in Graph
3CSE, DU
Air flight system
• Each city represents a vertex
• Each direct flight represents an edge

4. Graph
• A well recognized tool in modeling problems
• Consist of:
– Vertices can be considered locations.
– Edges represent connections connections.
4CSE, DU
D
E
A
C
F
B
Vertex
Edge

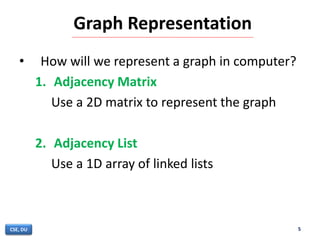

5. Graph Representation
• How will we represent a graph in computer?
1. Adjacency Matrix
Use a 2D matrix to represent the graph
2. Adjacency List
Use a 1D array of linked lists
5CSE, DU

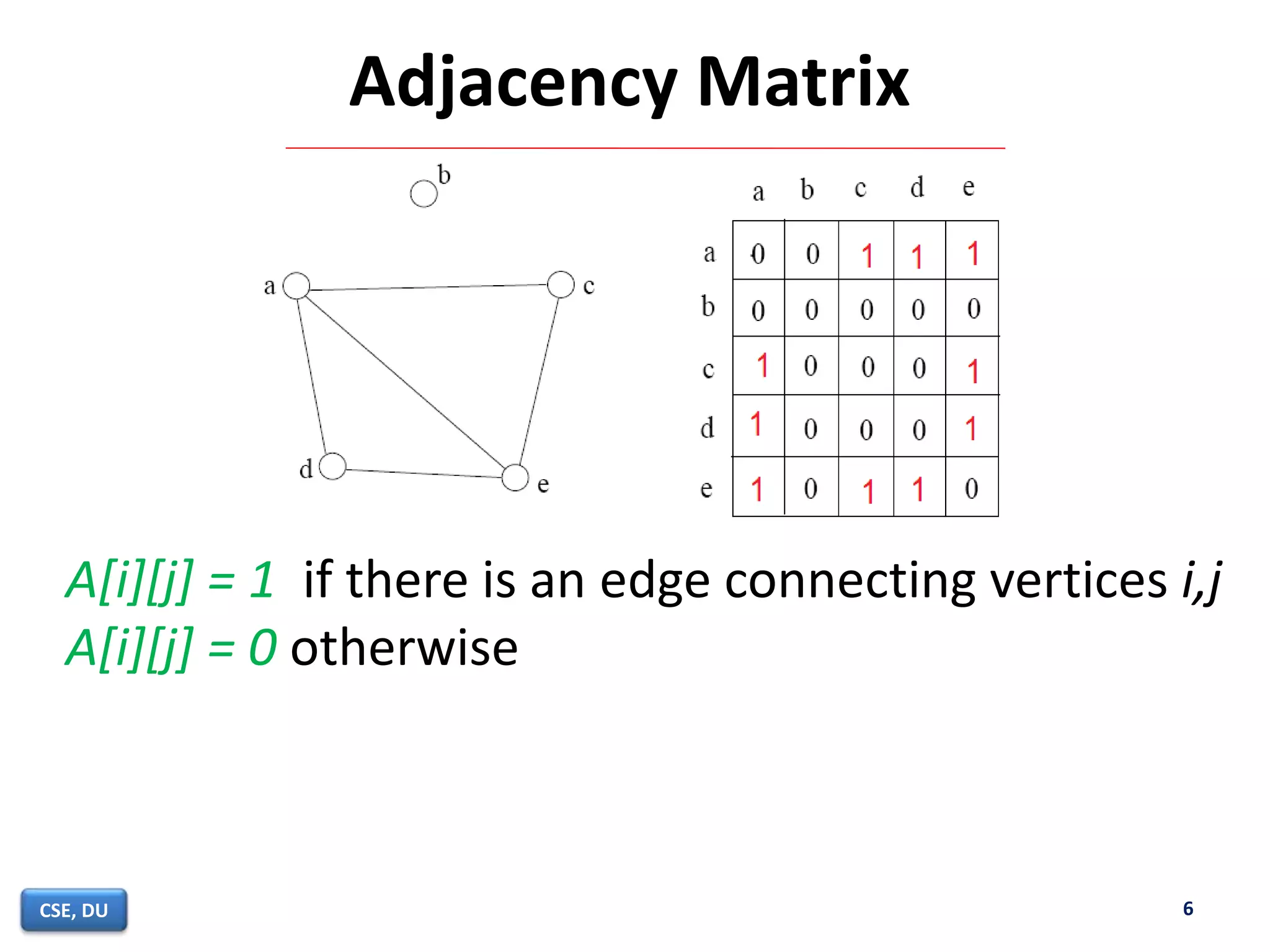

6. Adjacency Matrix
A[i][j] = 1 if there is an edge connecting vertices i,j
A[i][j] = 0 otherwise
6CSE, DU

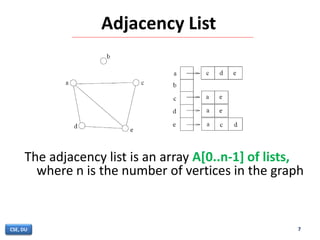

7. Adjacency List
The adjacency list is an array A[0..n-1] of lists,
where n is the number of vertices in the graph
7CSE, DU

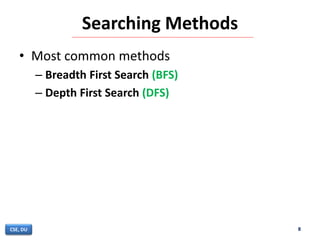

8. Searching Methods
• Most common methods
– Breadth First Search (BFS)
– Depth First Search (DFS)
8CSE, DU

9. 9

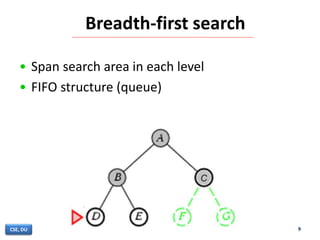

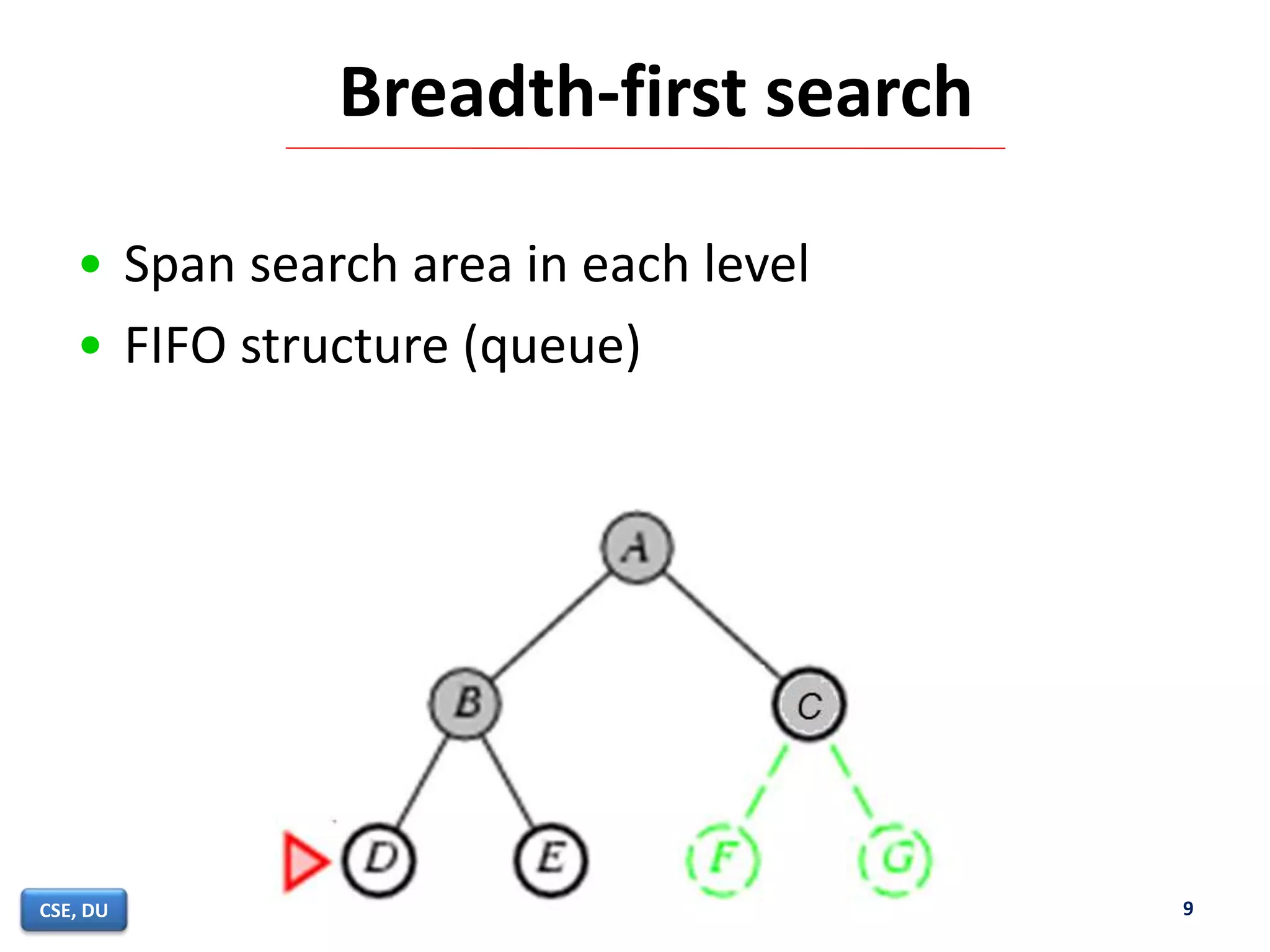

Breadth-first search
• Span search area in each level
• FIFO structure (queue)
9CSE, DU

10. 10
Depth-first search
• Move at depth, start search and then return at back
• LIFO structure (Stack)
10CSE, DU

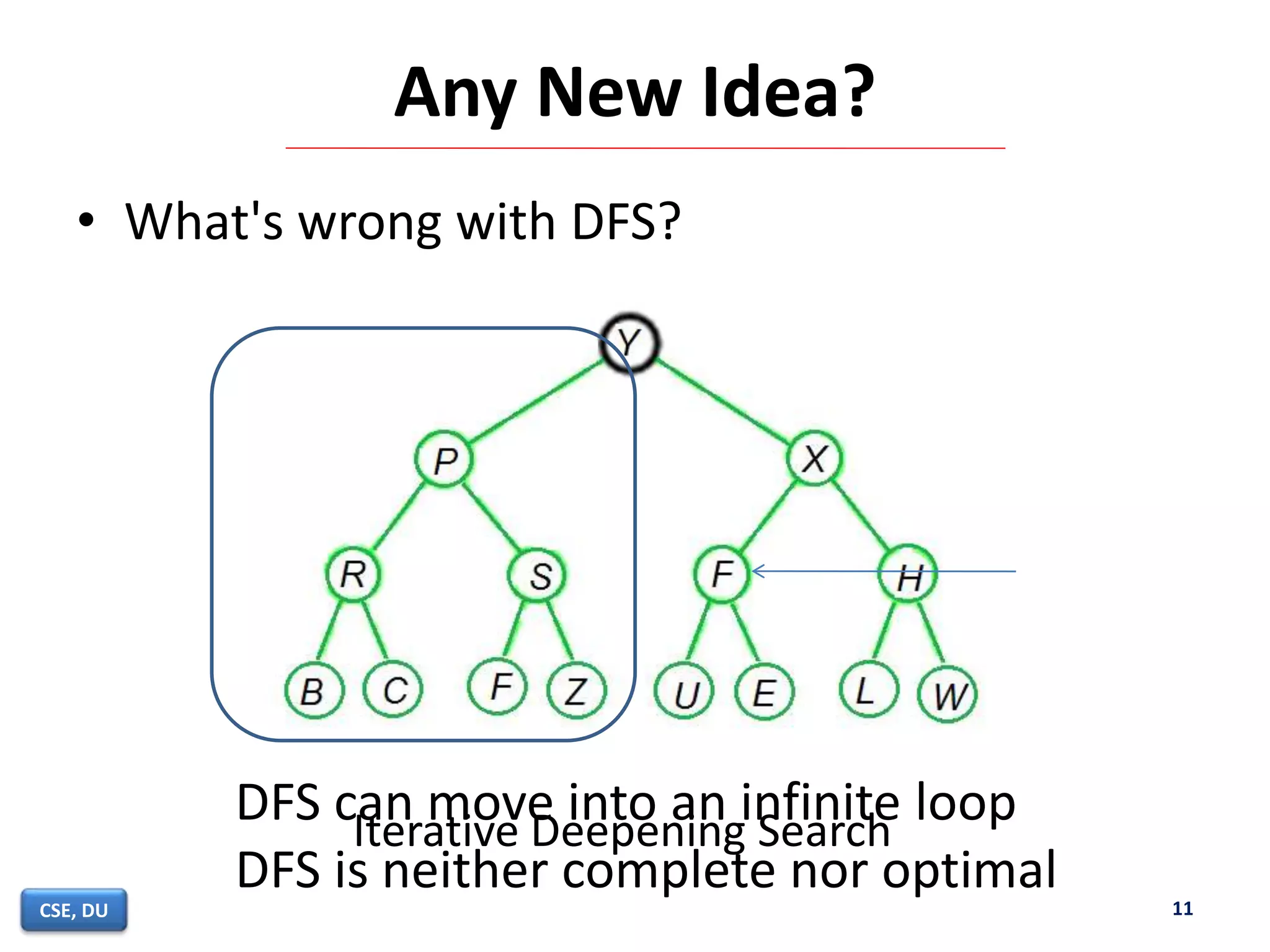

11. Any New Idea?
• What's wrong with DFS?
11CSE, DU
Iterative Deepening Search
DFS can move into an infinite loop
DFS is neither complete nor optimal

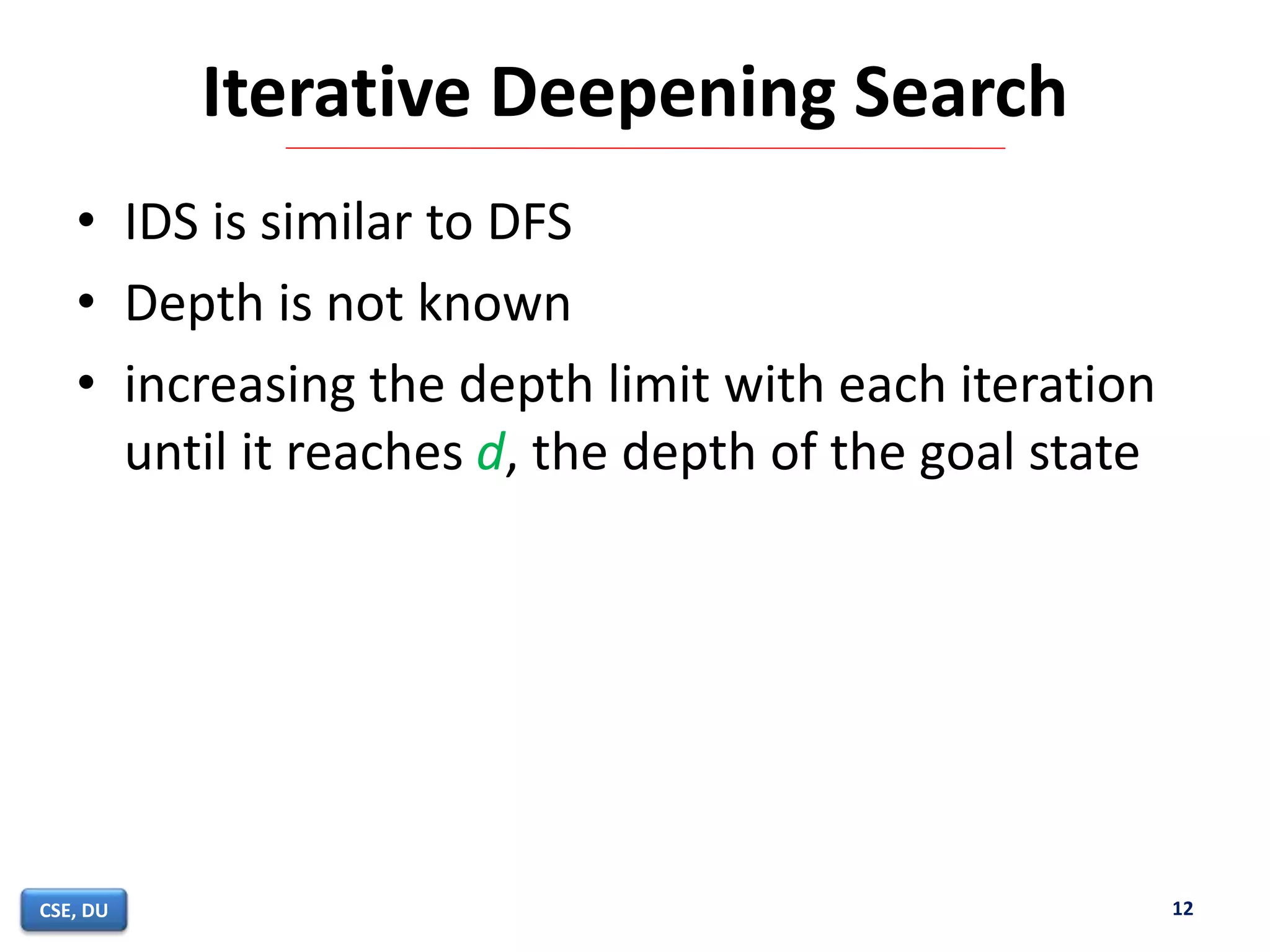

12. Iterative Deepening Search
• IDS is similar to DFS
• Depth is not known
• increasing the depth limit with each iteration
until it reaches d, the depth of the goal state
12CSE, DU

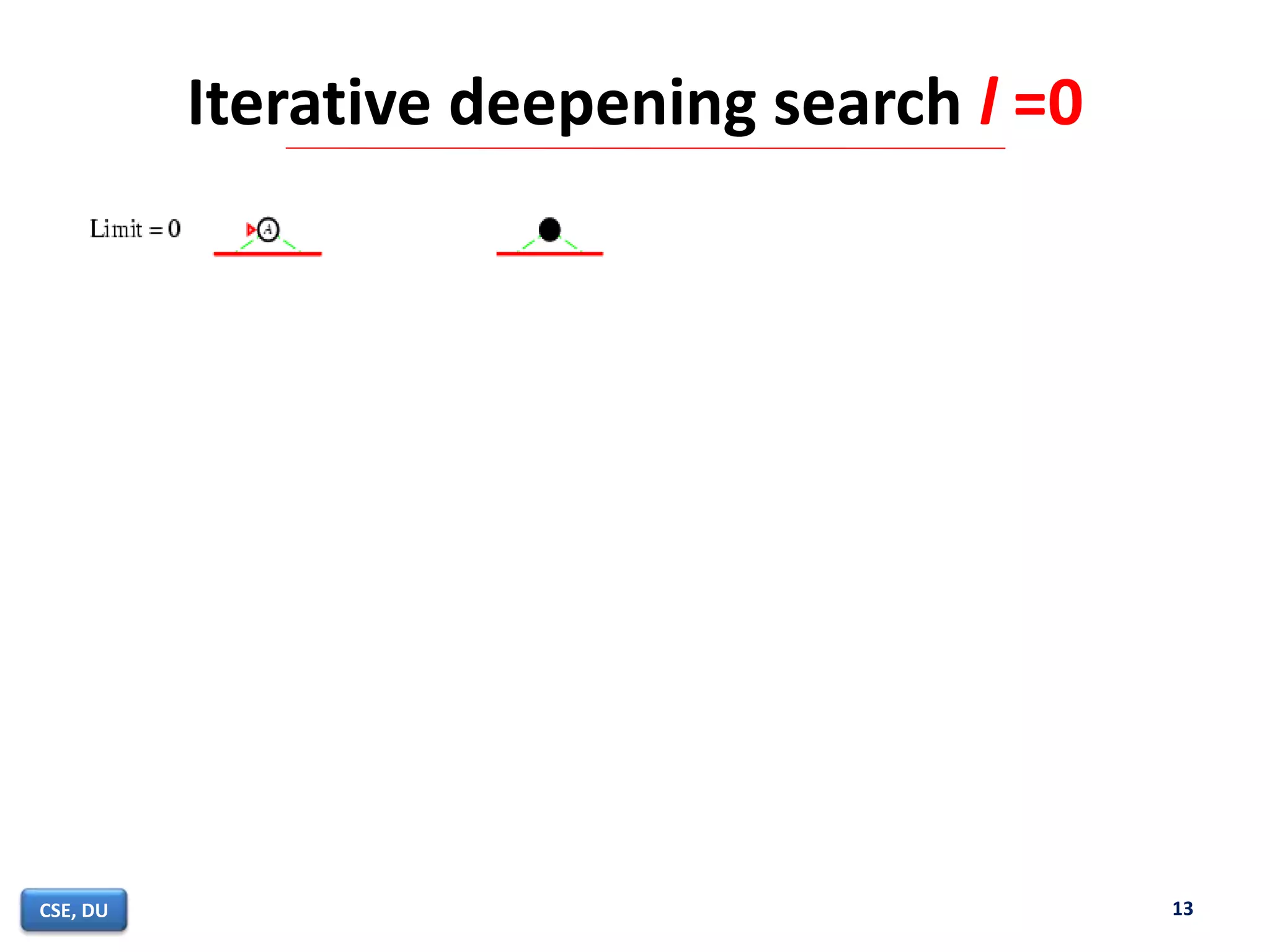

13. 13
Iterative deepening search l =0
13CSE, DU

14. 14
Iterative deepening search l =1
14CSE, DU

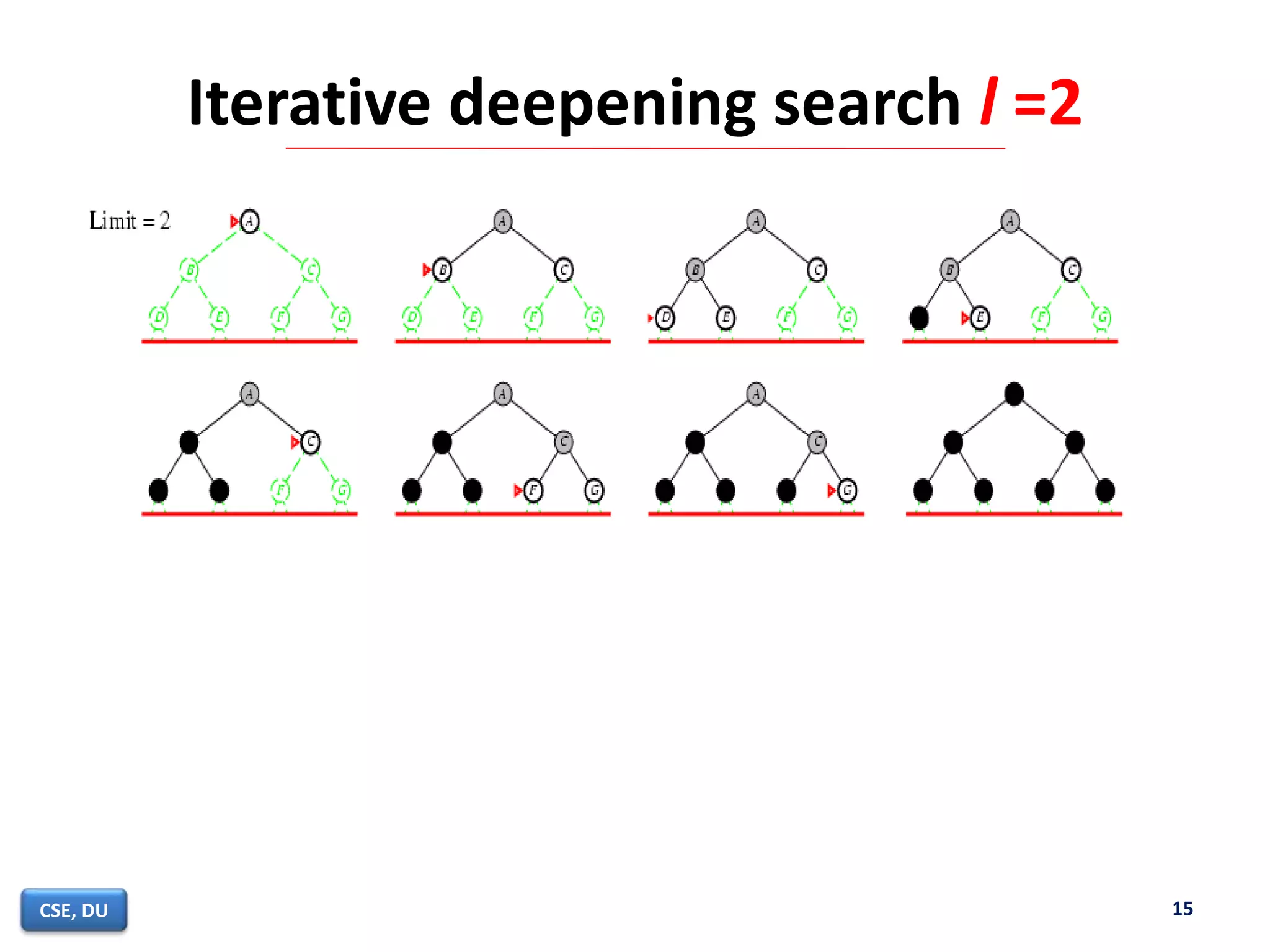

15. 15
Iterative deepening search l =2
15CSE, DU

16. 16
Iterative deepening search l =3

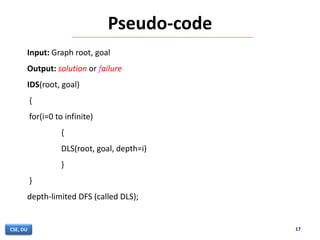

17. Pseudo-code
17CSE, DU
Input: Graph root, goal
Output: solution or failure
IDS(root, goal)
{
for(i=0 to infinite)
{
DLS(root, goal, depth=i)
}
}
depth-limited DFS (called DLS);

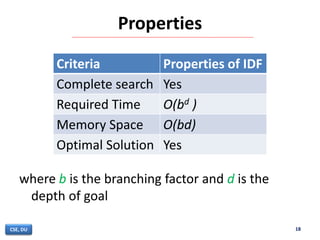

18. Properties
where b is the branching factor and d is the
depth of goal
18CSE, DU
Criteria Properties of IDF
Complete search Yes
Required Time O(bd )
Memory Space O(bd)
Optimal Solution Yes

19. Analysis
• Applicable when there is a large search space
and depth is not known
• The main advantage of IDS in game tree
searching
• IDS combines depth first search’s space
efficiency and breadth first search’s complete
-ness
19CSE, DU

20. Practice Problem
• Show each steps to find node F from the
source node Y using BFS, DFS, IDS
20CSE, DU

21. Summary
• Representation of Graph model
• Searching model BFS, DFS
• Iterative Deepening Search Model is
combination of BFS, DFS
• Better than DFS and needs less space than BFS
21CSE, DU

22. About Me
• Research Topics:
- Flexible Periodic Pattern Mining
- Closed Frequent Pattern Mining
• ML course of Stanford University
• Won several Software Contests
• Solve Hundreds ACM problem
22CSE, DU
Story writing Code Rage Badge
www.chandacse.blogspot.com

23. References
23CSE, DU
- Artificial Intelligence a Modern Approach
by Russell and Norvig
- Introduction to Algorithm by Cormen
-Fundamentals of Computer Algorithms by Ellis; Sahni,
Sartaj Horowitz
-http://en.wikipedia.org/wiki/Iterative_deepening_dep
th-first_search
-http://artint.info/html/ArtInt_62.html
-http://will.thimbleby.net/algorithms/doku.php?id=iter
ative_deepening_depth-first_search
