Docker can isolate application environments in software containers that are like virtual machines but more lightweight and faster. A Dockerfile defines the steps to build a container image. For example, a Dockerfile can create a container image for a Symfony PHP application that contains PHP-FPM and dependencies. The application code can be mounted into the container from the host machine. Nginx on the host can then serve the application using the container's PHP-FPM.

1. Environment isolation with
Docker
Alex Medvedev (fduch)
Software Architect at Alpari
alex.medwedew@gmail.com
Twitter: @alex_medwedew
1

2. 2
Docker in a nutshell

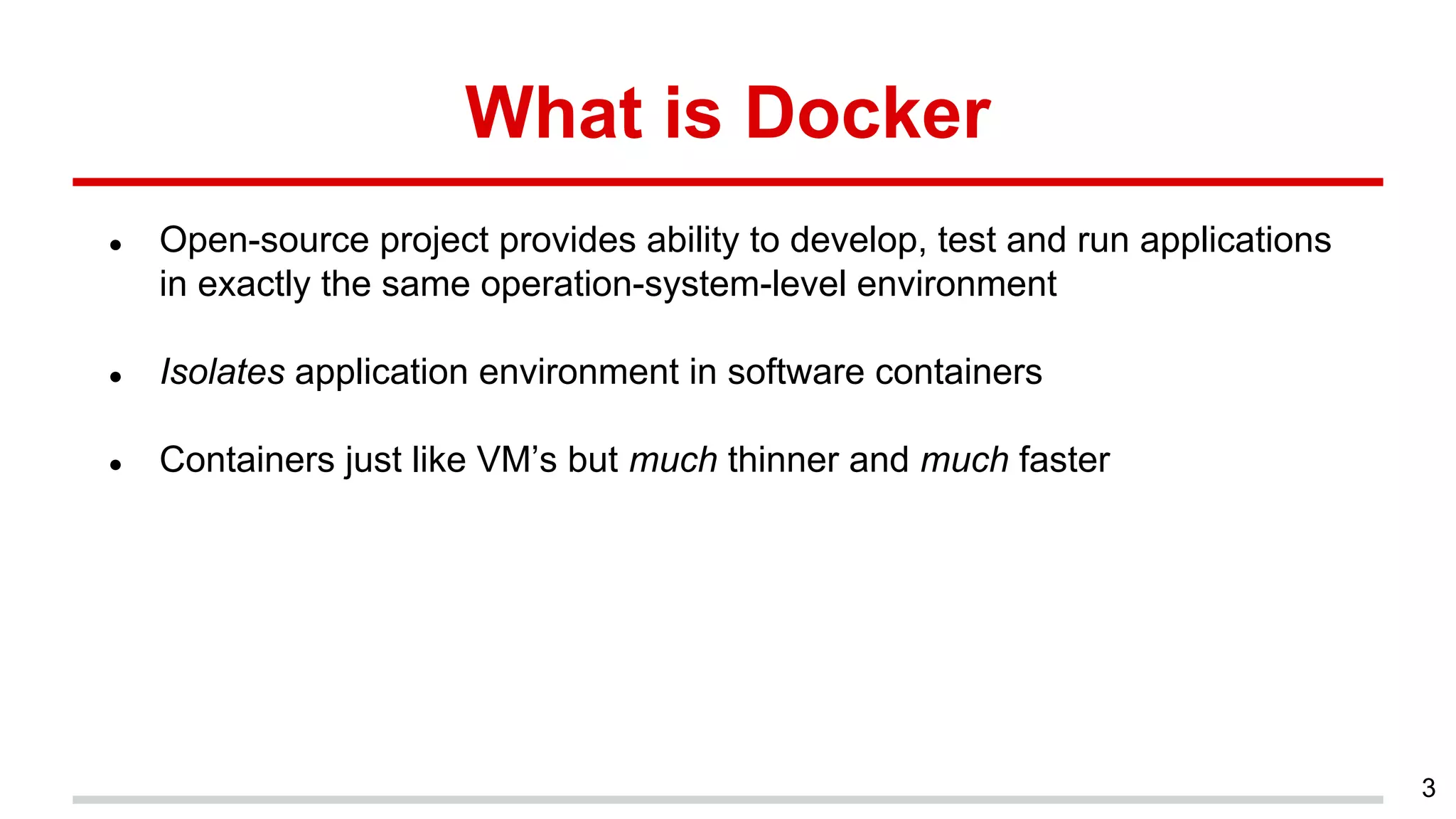

3. What is Docker
● Open-source project provides ability to develop, test and run applications
in exactly the same operation-system-level environment
● Isolates application environment in software containers
● Containers just like VM’s but much thinner and much faster
3

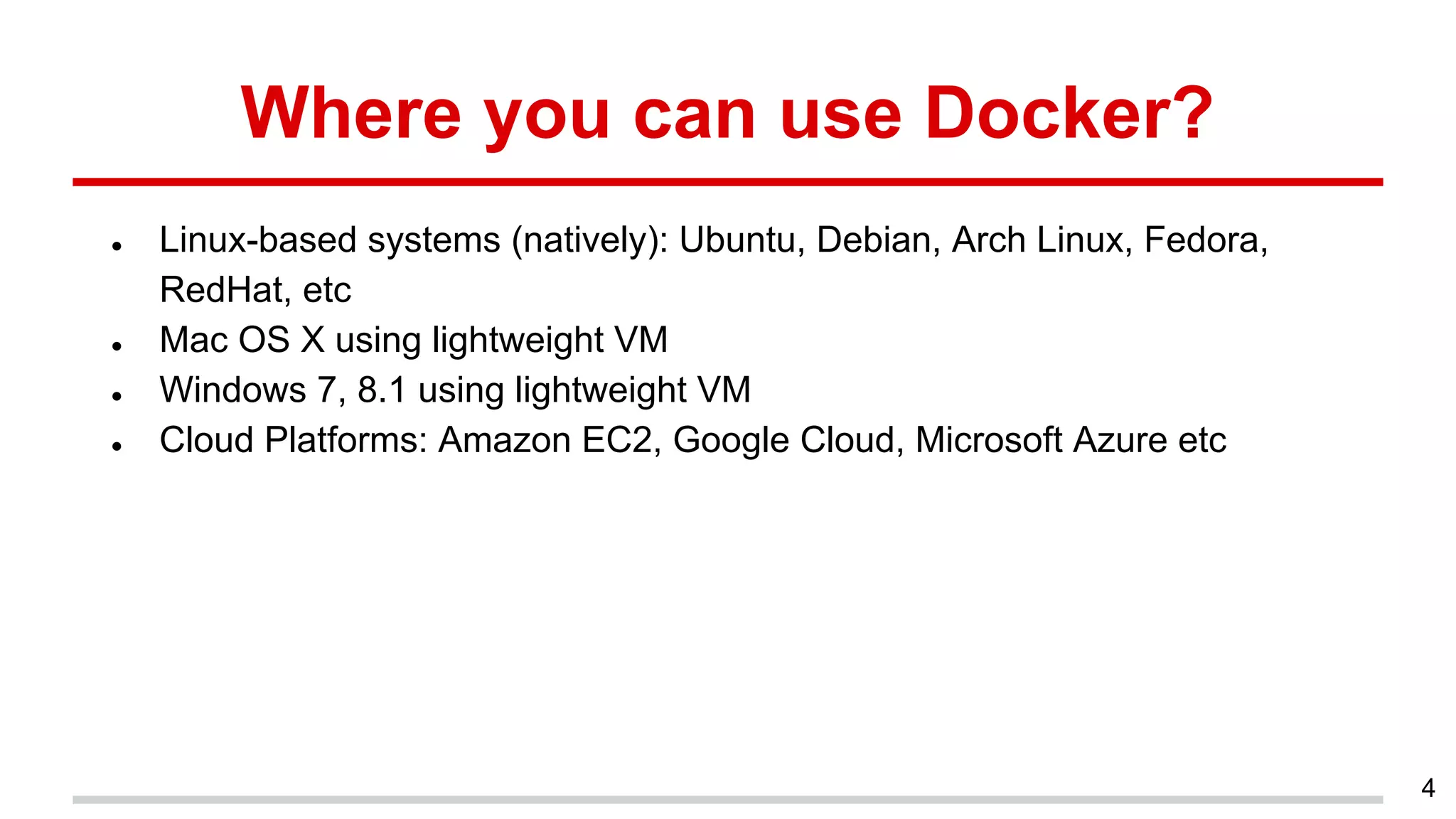

4. Where you can use Docker?
● Linux-based systems (natively): Ubuntu, Debian, Arch Linux, Fedora,
RedHat, etc
● Mac OS X using lightweight VM
● Windows 7, 8.1 using lightweight VM
● Cloud Platforms: Amazon EC2, Google Cloud, Microsoft Azure etc
4

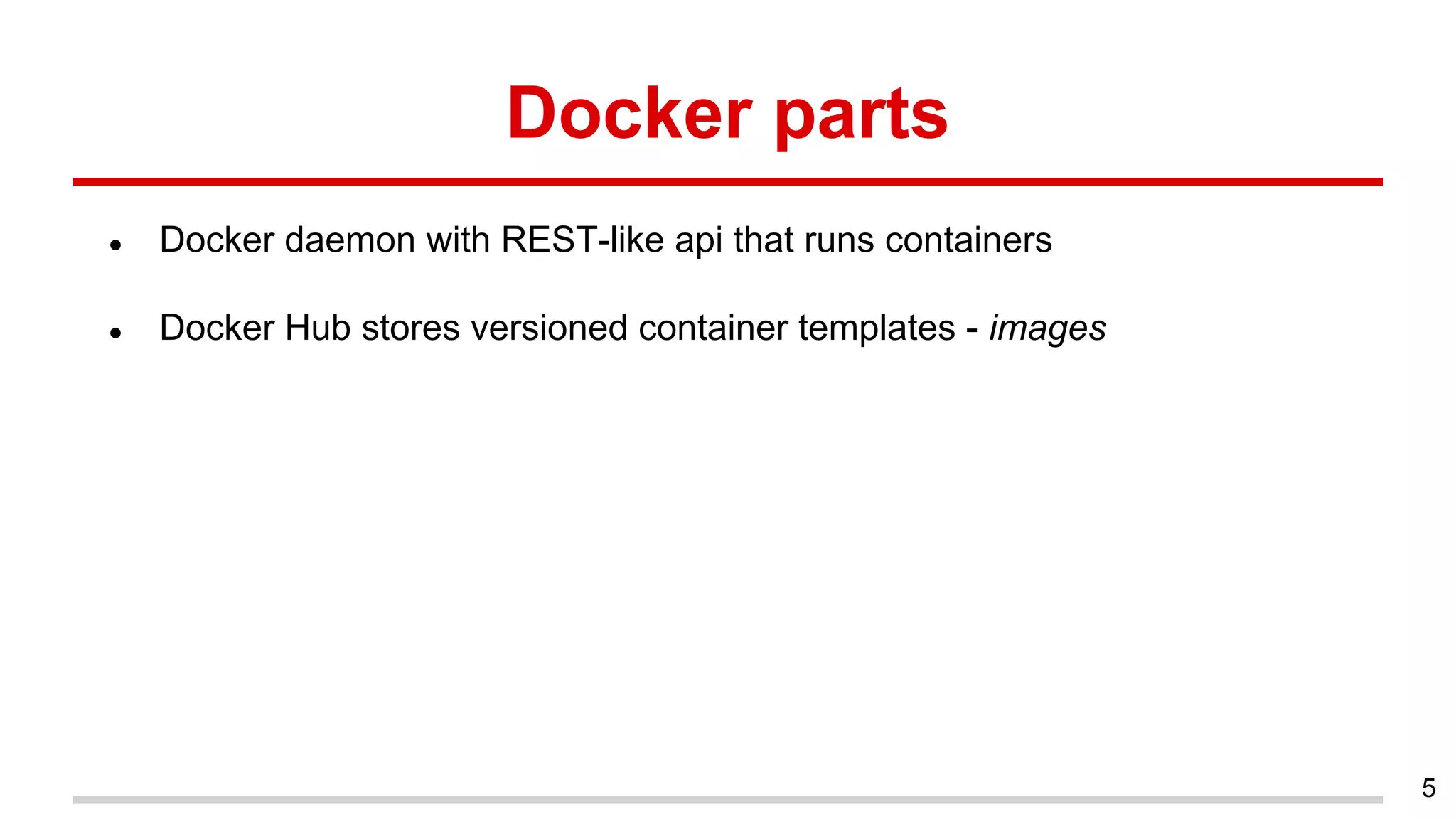

5. Docker parts
● Docker daemon with REST-like api that runs containers
● Docker Hub stores versioned container templates - images
5

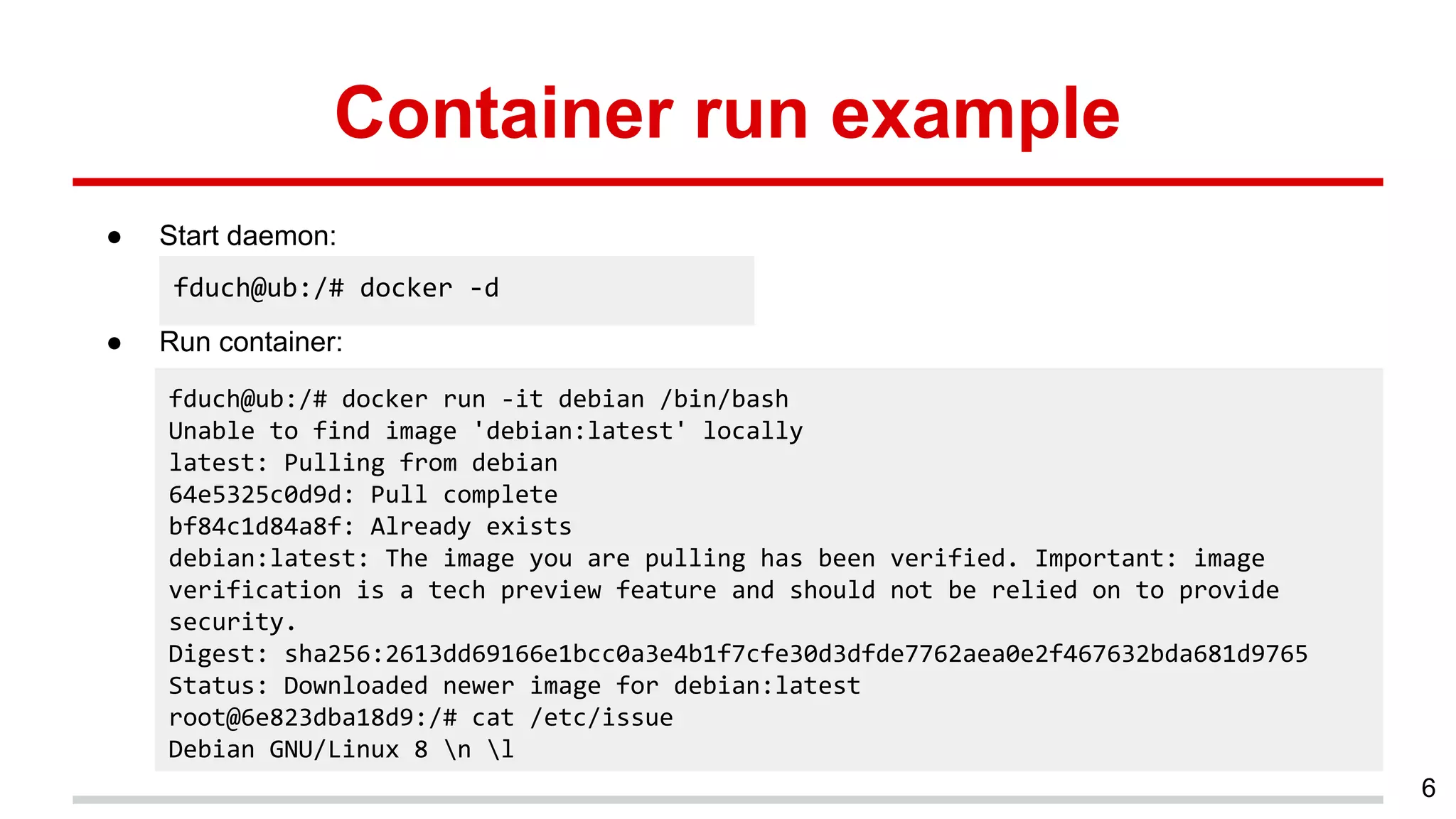

6. Container run example
● Start daemon:
● Run container:
6
fduch@ub:/# docker -d
fduch@ub:/# docker run -it debian /bin/bash
Unable to find image 'debian:latest' locally
latest: Pulling from debian
64e5325c0d9d: Pull complete
bf84c1d84a8f: Already exists
debian:latest: The image you are pulling has been verified. Important: image
verification is a tech preview feature and should not be relied on to provide
security.
Digest: sha256:2613dd69166e1bcc0a3e4b1f7cfe30d3dfde7762aea0e2f467632bda681d9765
Status: Downloaded newer image for debian:latest
root@6e823dba18d9:/# cat /etc/issue
Debian GNU/Linux 8 n l

7. Dockerfile
Strict-format file defines all the steps to take to
build the image
7

8. 8
Isolation of Symfony 2
application in Docker container

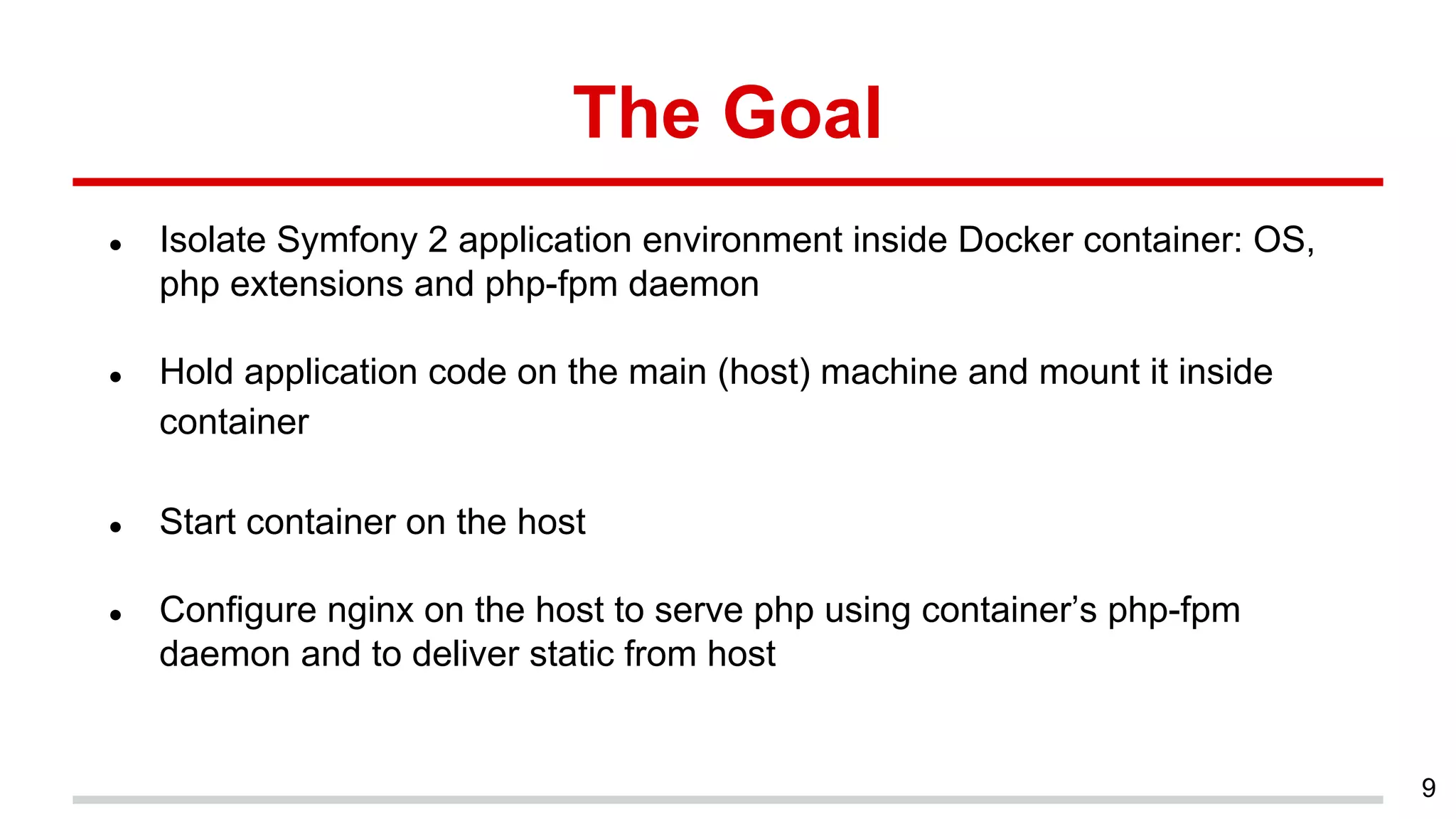

9. The Goal
● Isolate Symfony 2 application environment inside Docker container: OS,
php extensions and php-fpm daemon
● Hold application code on the main (host) machine and mount it inside
container
● Start container on the host
● Configure nginx on the host to serve php using container’s php-fpm
daemon and to deliver static from host
9

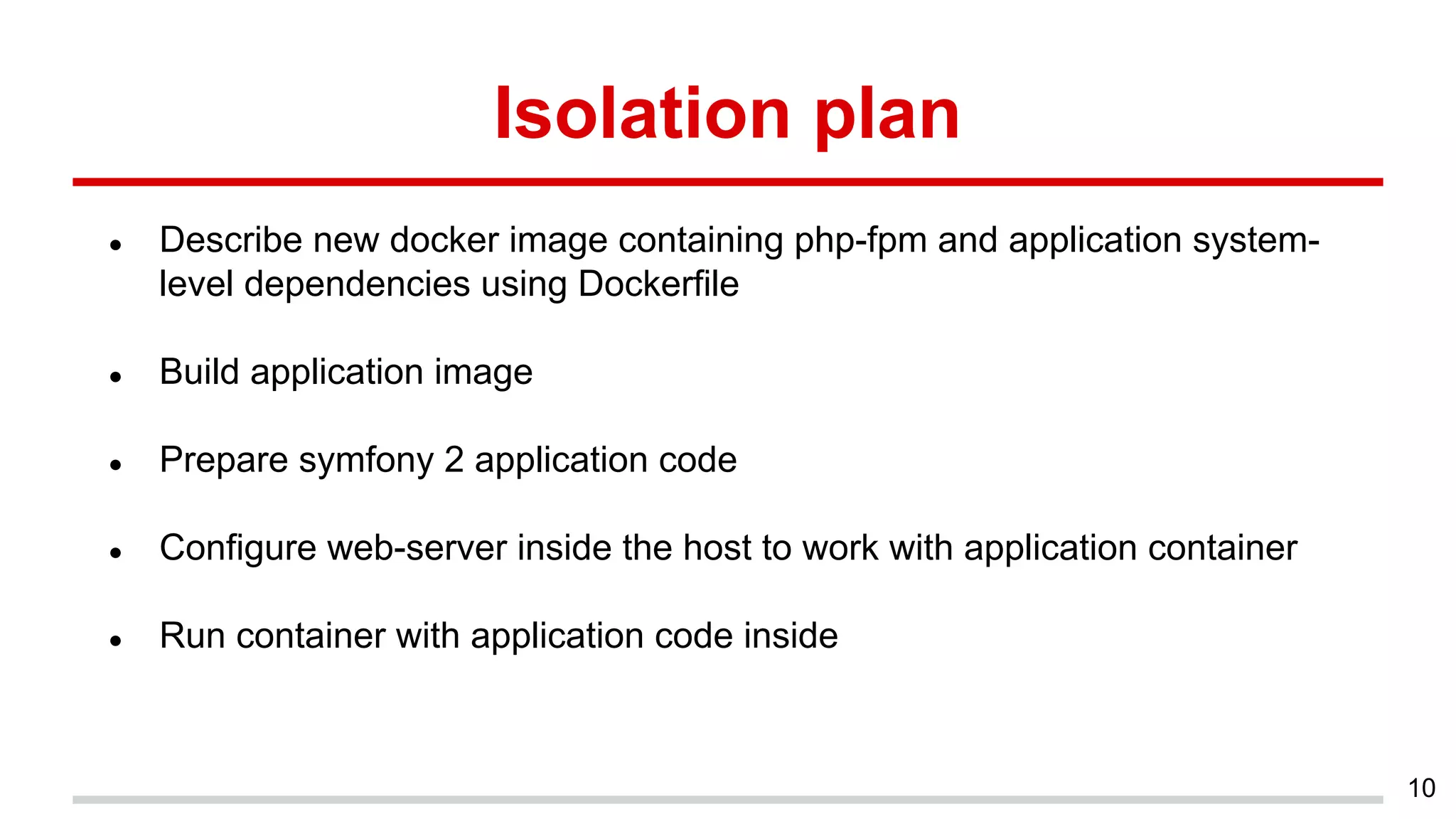

10. Isolation plan
● Describe new docker image containing php-fpm and application system-
level dependencies using Dockerfile
● Build application image
● Prepare symfony 2 application code
● Configure web-server inside the host to work with application container
● Run container with application code inside
10

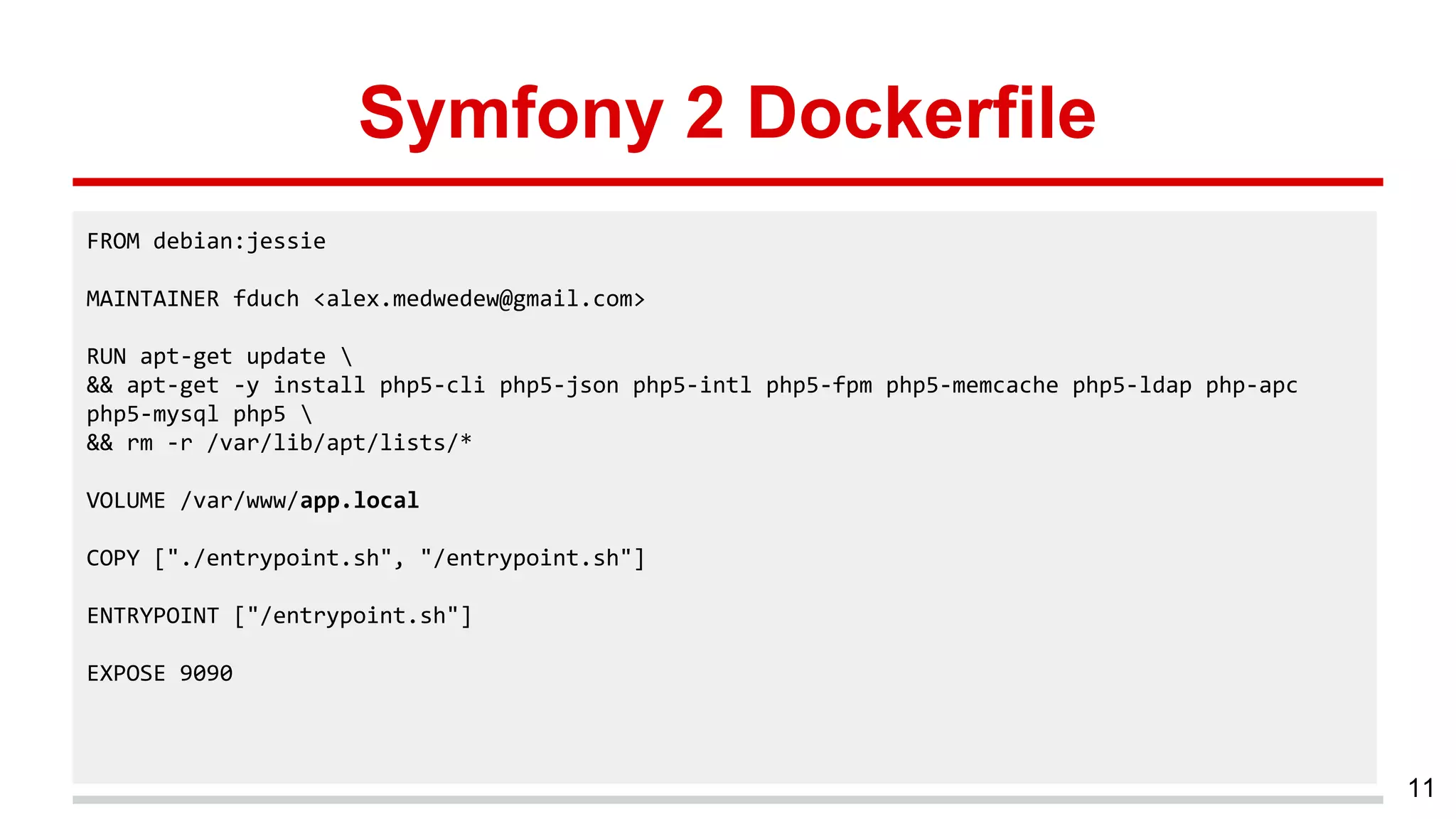

11. Symfony 2 Dockerfile
11
FROM debian:jessie
MAINTAINER fduch <alex.medwedew@gmail.com>
RUN apt-get update
&& apt-get -y install php5-cli php5-json php5-intl php5-fpm php5-memcache php5-ldap php-apc
php5-mysql php5
&& rm -r /var/lib/apt/lists/*
VOLUME /var/www/app.local
COPY ["./entrypoint.sh", "/entrypoint.sh"]
ENTRYPOINT ["/entrypoint.sh"]
EXPOSE 9090

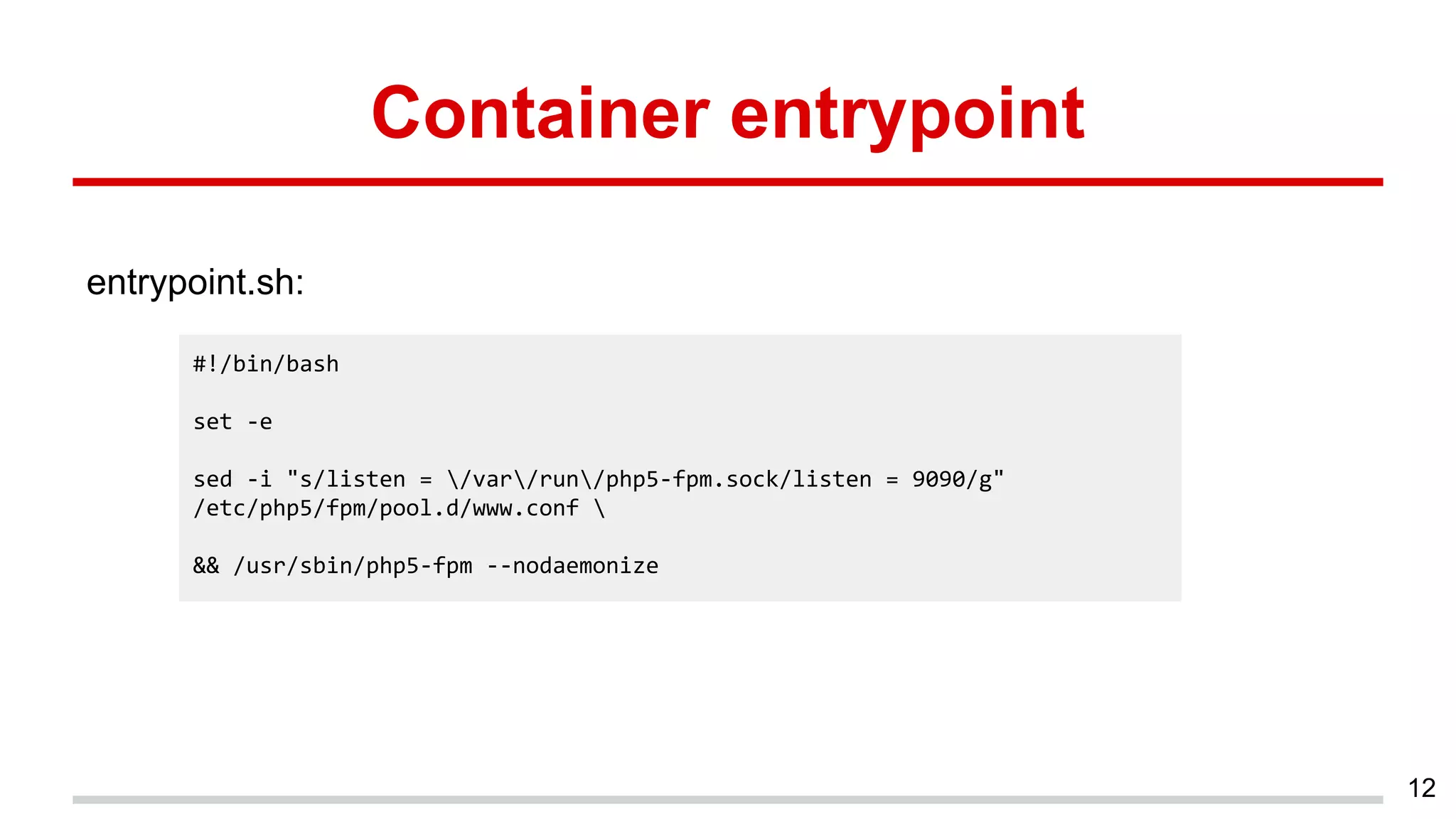

12. Container entrypoint
entrypoint.sh:
12
#!/bin/bash
set -e
sed -i "s/listen = /var/run/php5-fpm.sock/listen = 9090/g"
/etc/php5/fpm/pool.d/www.conf
&& /usr/sbin/php5-fpm --nodaemonize

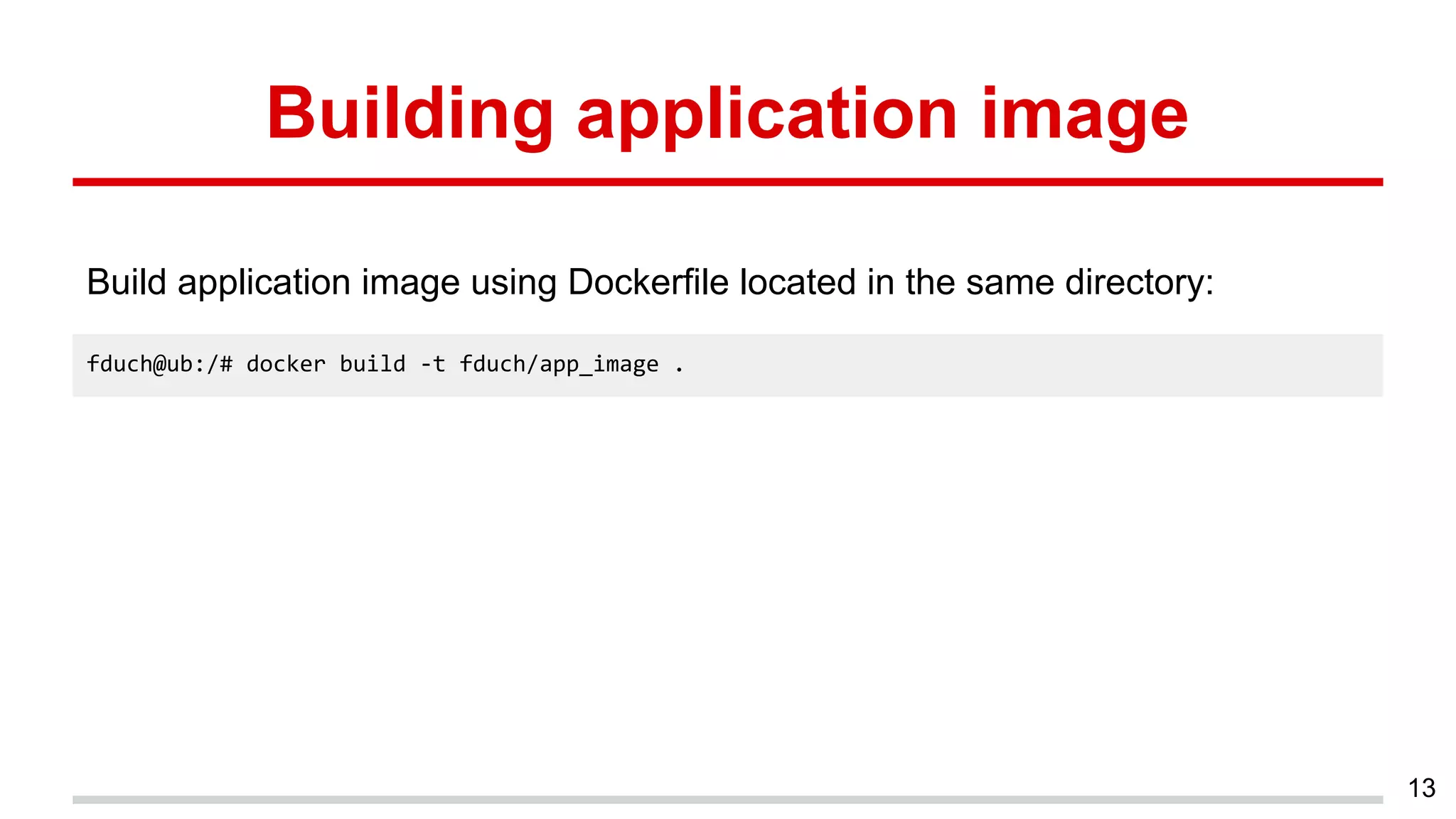

13. Building application image
Build application image using Dockerfile located in the same directory:
13
fduch@ub:/# docker build -t fduch/app_image .

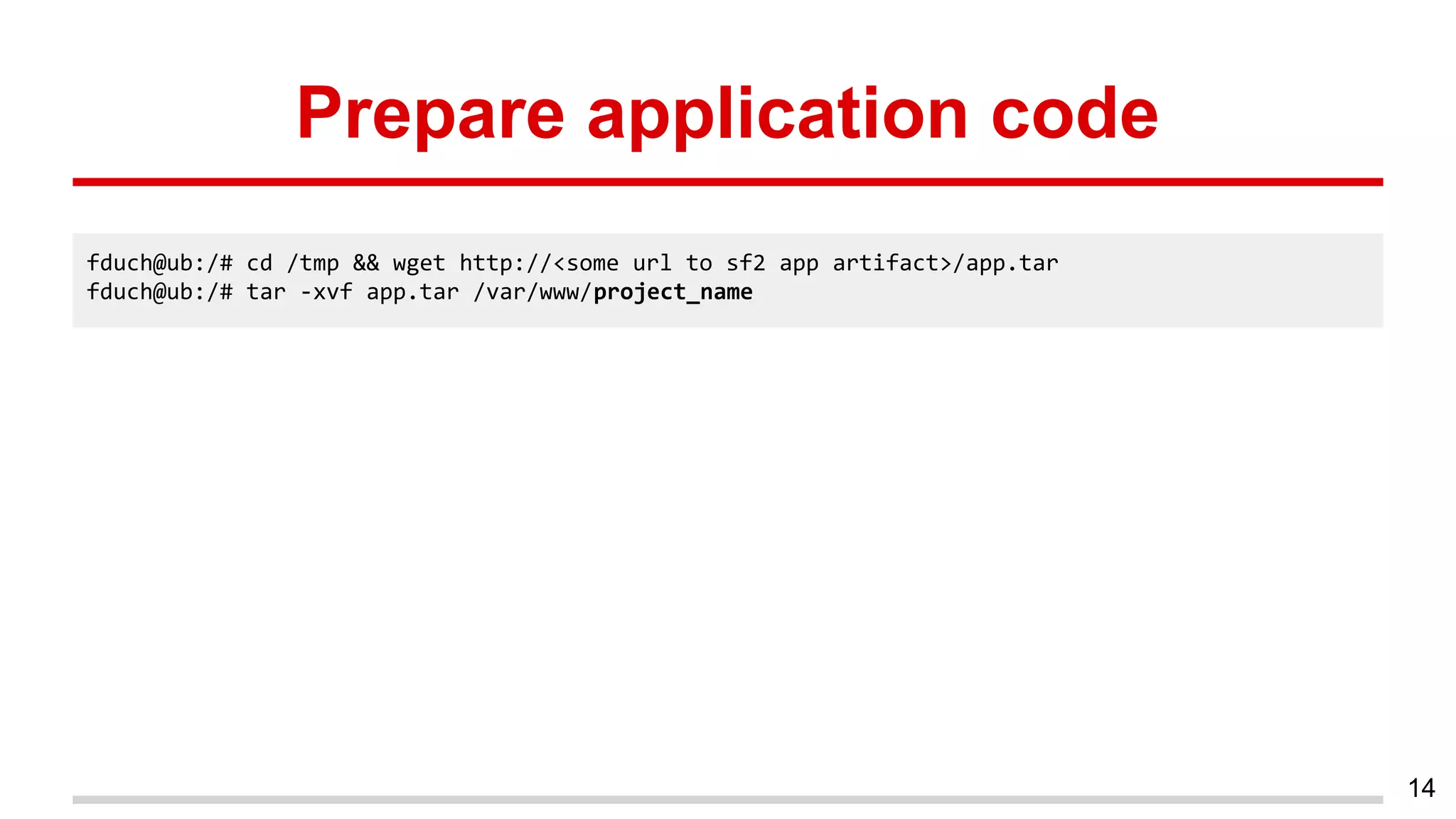

14. Prepare application code
14
fduch@ub:/# cd /tmp && wget http://<some url to sf2 app artifact>/app.tar
fduch@ub:/# tar -xvf app.tar /var/www/project_name

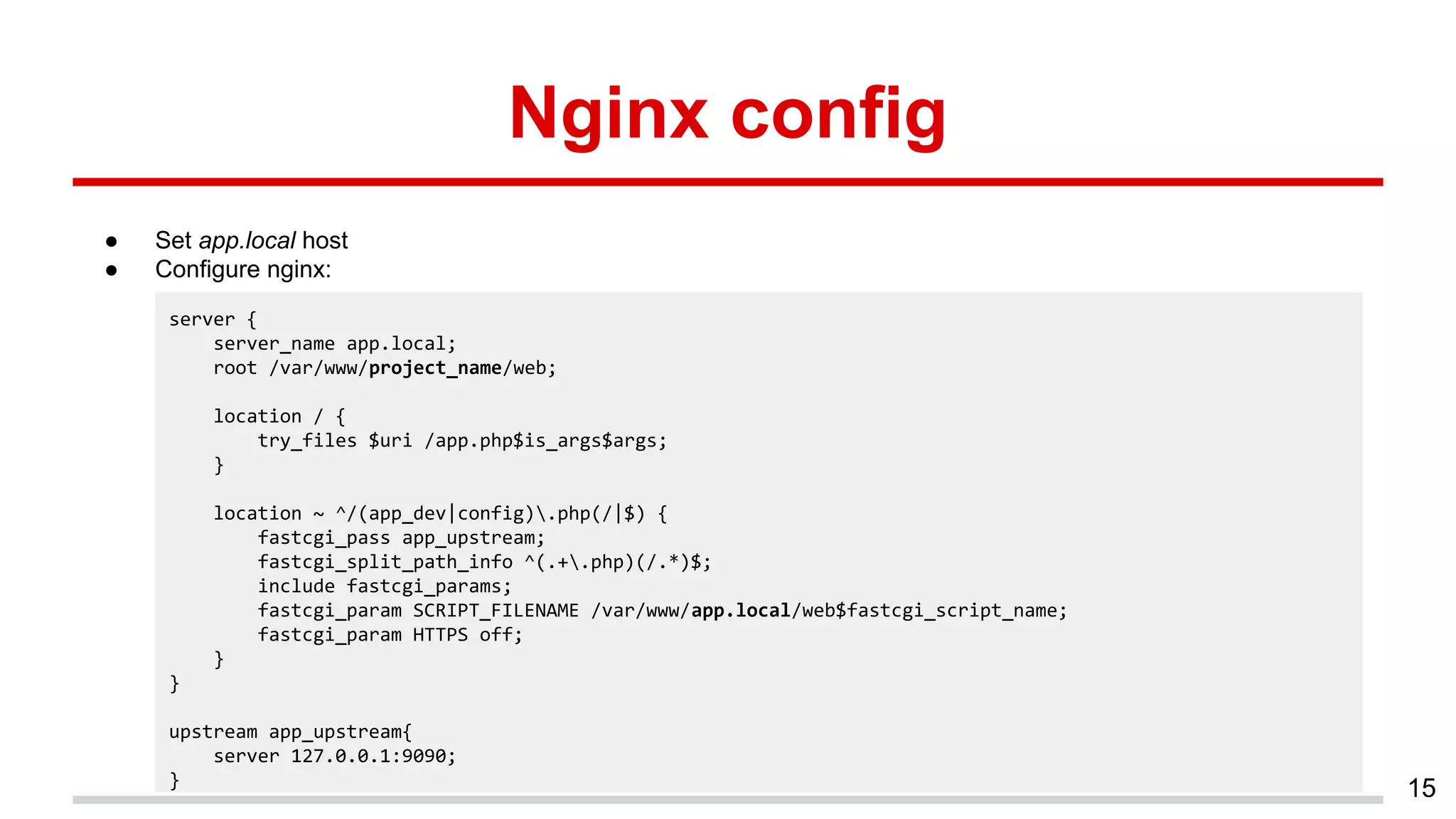

15. Nginx config
● Set app.local host
● Configure nginx:
15
server {
server_name app.local;
root /var/www/project_name/web;
location / {
try_files $uri /app.php$is_args$args;
}
location ~ ^/(app_dev|config).php(/|$) {
fastcgi_pass app_upstream;
fastcgi_split_path_info ^(.+.php)(/.*)$;
include fastcgi_params;
fastcgi_param SCRIPT_FILENAME /var/www/app.local/web$fastcgi_script_name;
fastcgi_param HTTPS off;
}
}
upstream app_upstream{
server 127.0.0.1:9090;
}

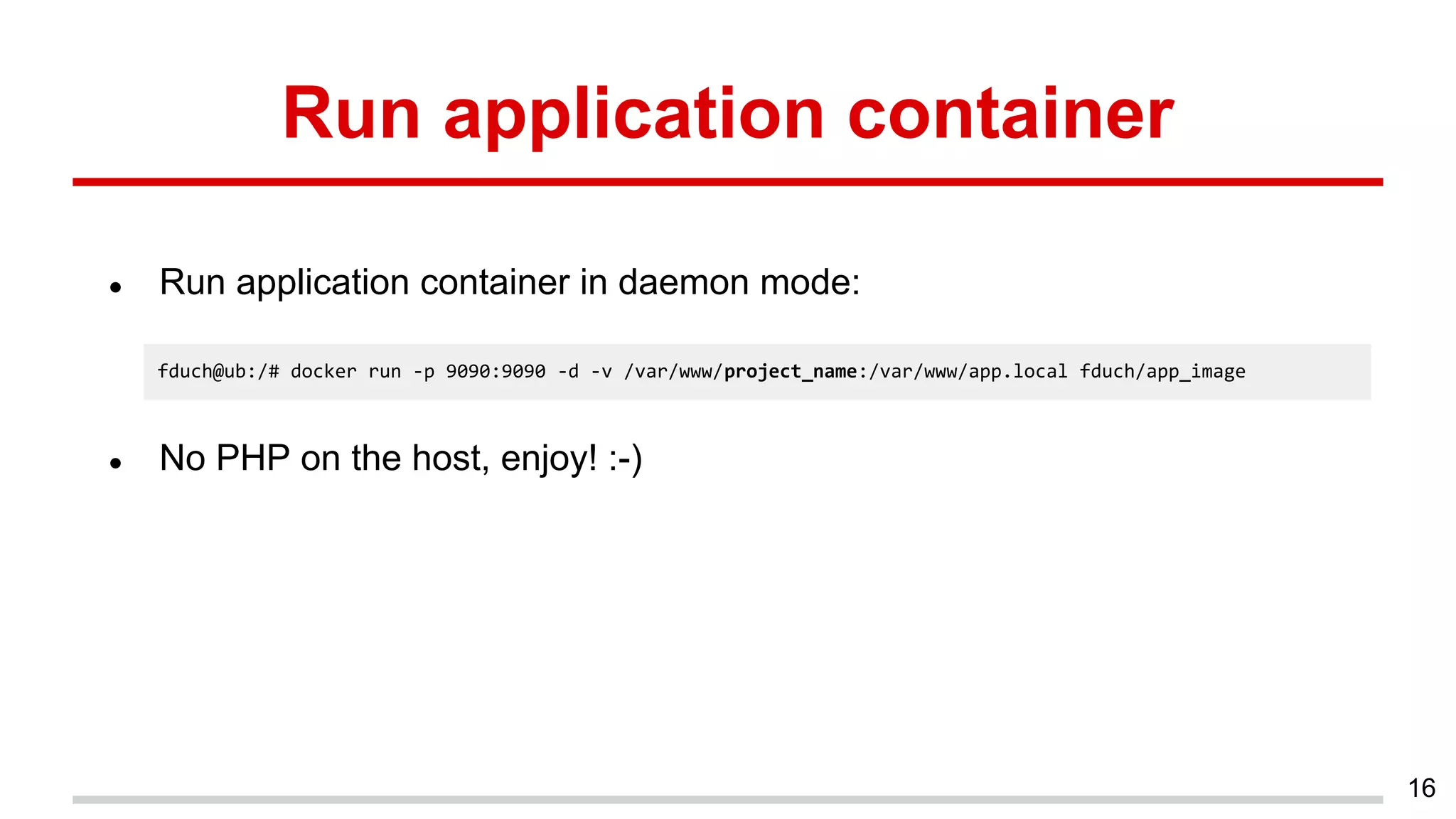

16. Run application container
● Run application container in daemon mode:
● No PHP on the host, enjoy! :-)
16
fduch@ub:/# docker run -p 9090:9090 -d -v /var/www/project_name:/var/www/app.local fduch/app_image

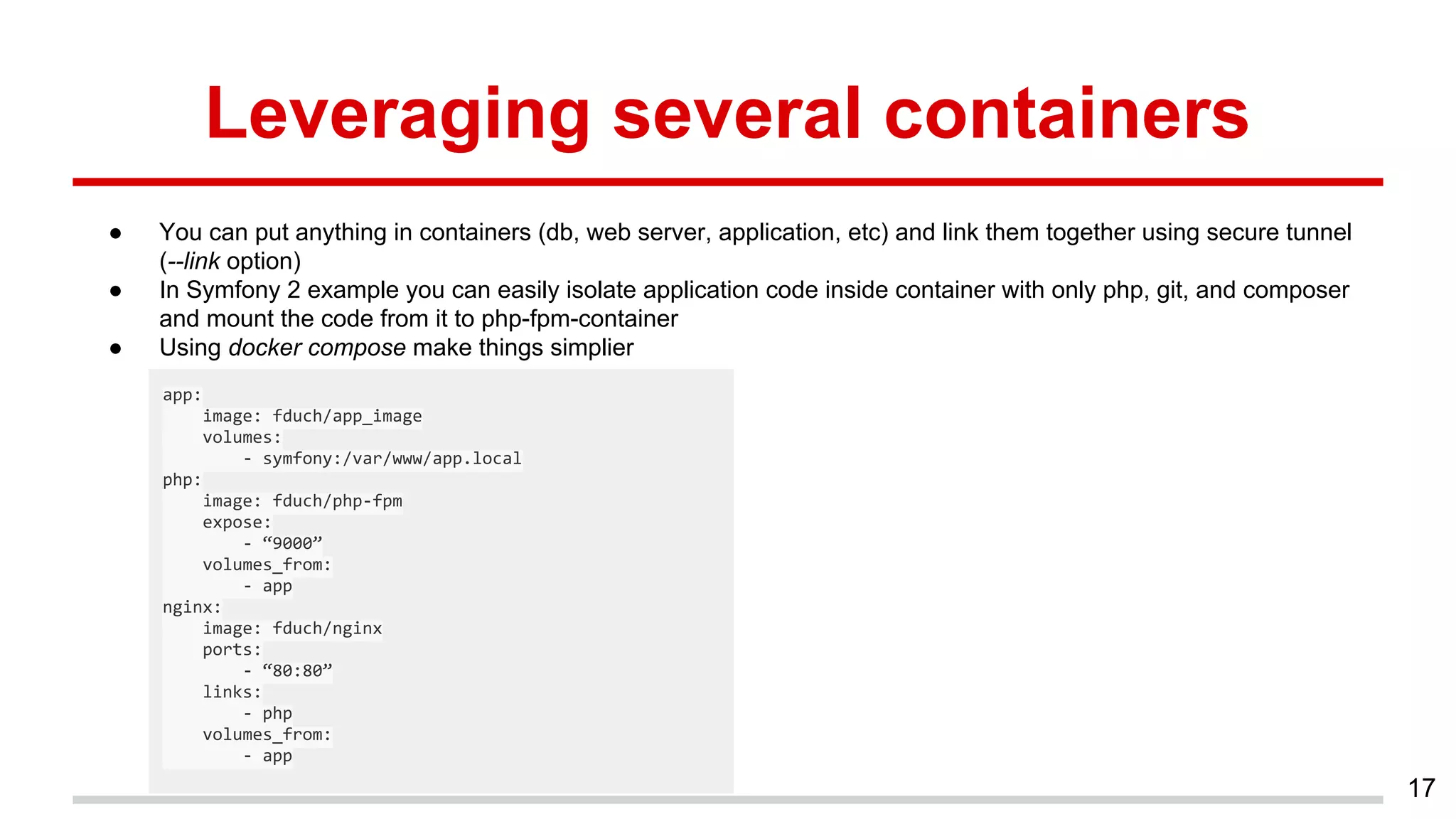

17. Leveraging several containers
● You can put anything in containers (db, web server, application, etc) and link them together using secure tunnel
(--link option)
● In Symfony 2 example you can easily isolate application code inside container with only php, git, and composer
and mount the code from it to php-fpm-container
● Using docker compose make things simplier
17
app:
image: fduch/app_image
volumes:
- symfony:/var/www/app.local
php:
image: fduch/php-fpm
expose:
- “9000”
volumes_from:
- app
nginx:
image: fduch/nginx
ports:
- “80:80”
links:
- php
volumes_from:
- app

18. 18
Isolating several environments
inside container

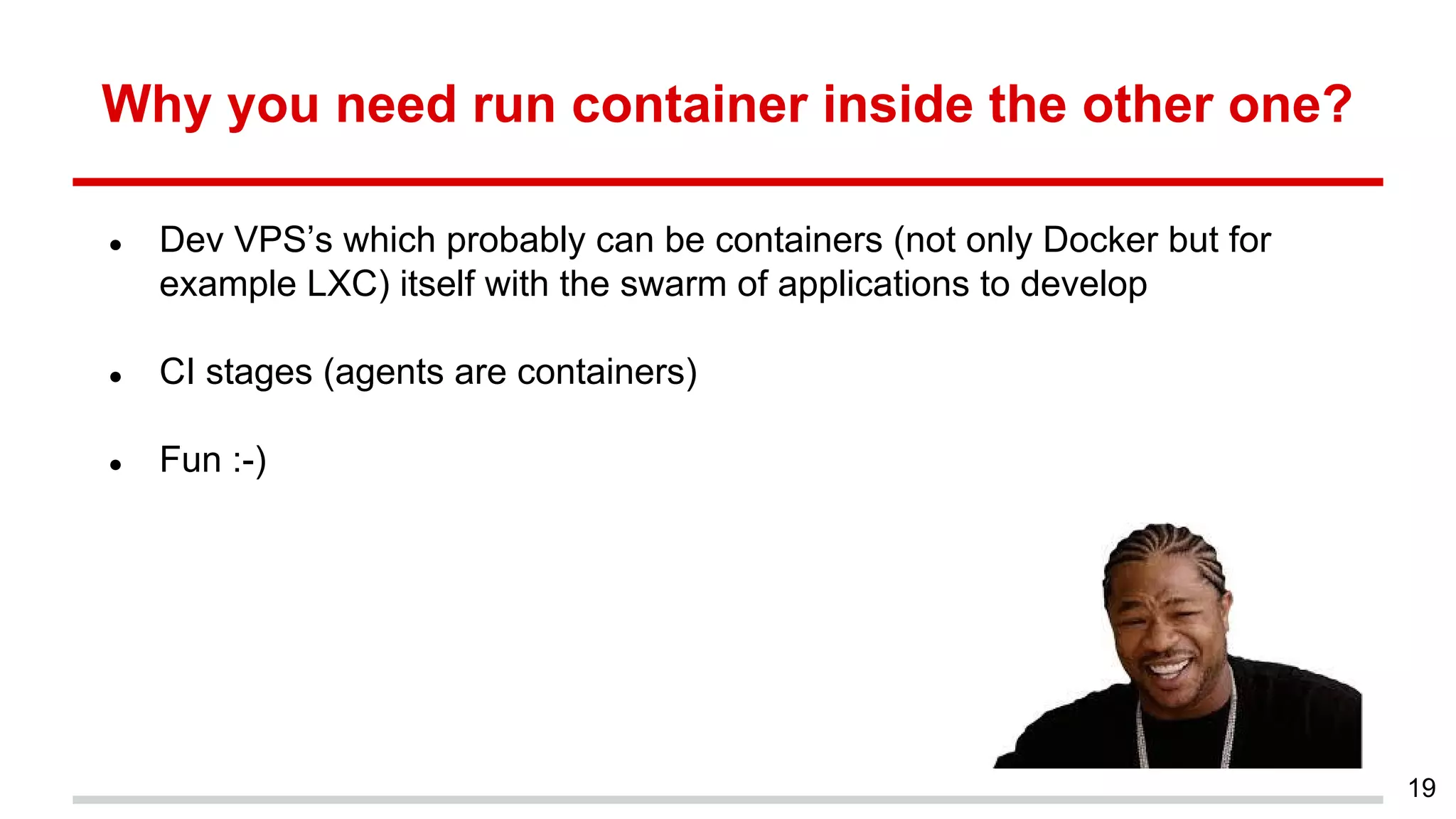

19. Why you need run container inside the other one?
● Dev VPS’s which probably can be containers (not only Docker but for
example LXC) itself with the swarm of applications to develop
● CI stages (agents are containers)
● Fun :-)
19

20. 20
Not now about this!

21. Thanks!
Alex Medvedev (fduch)
Software Architect at Alpari
alex.medwedew@gmail.com
Twitter: @alex_medwedew
21
