FactoryTalk View SE - Building a Better View

Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.Rev 5058-CO900E
PUBLIC INFORMATION
FactoryTalkTM View Site Edition
Building a better view
Official HMI of

Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.PUBLIC INFORMATION

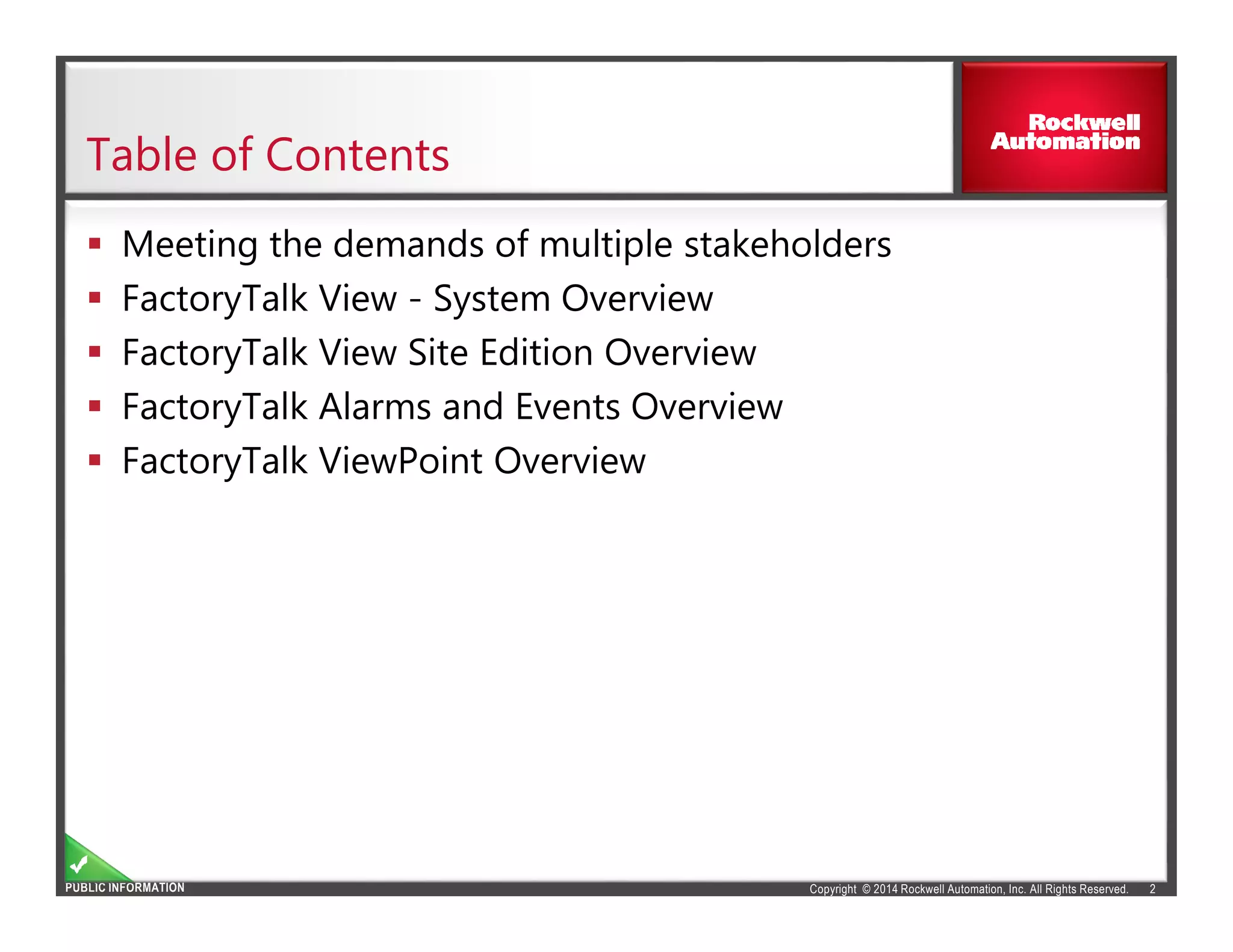

Table of Contents
2
Meeting the demands of multiple stakeholders
FactoryTalk View - System Overview
FactoryTalk View Site Edition Overview
FactoryTalk Alarms and Events Overview
FactoryTalk ViewPoint Overview

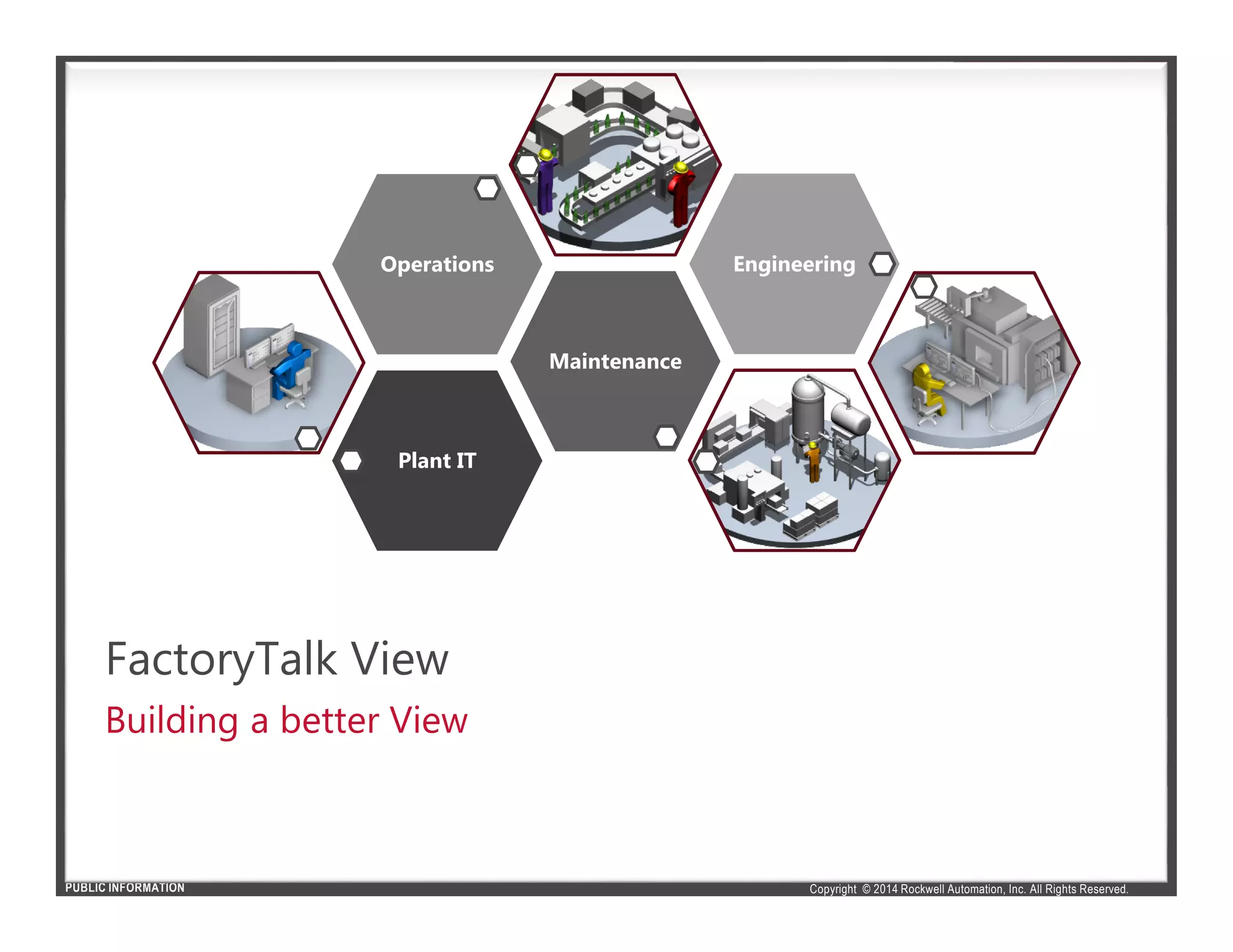

FactoryTalk View
Building a better View
Plant ITPlant IT
MaintenanceMaintenance
OperationsOperations EngineeringEngineering

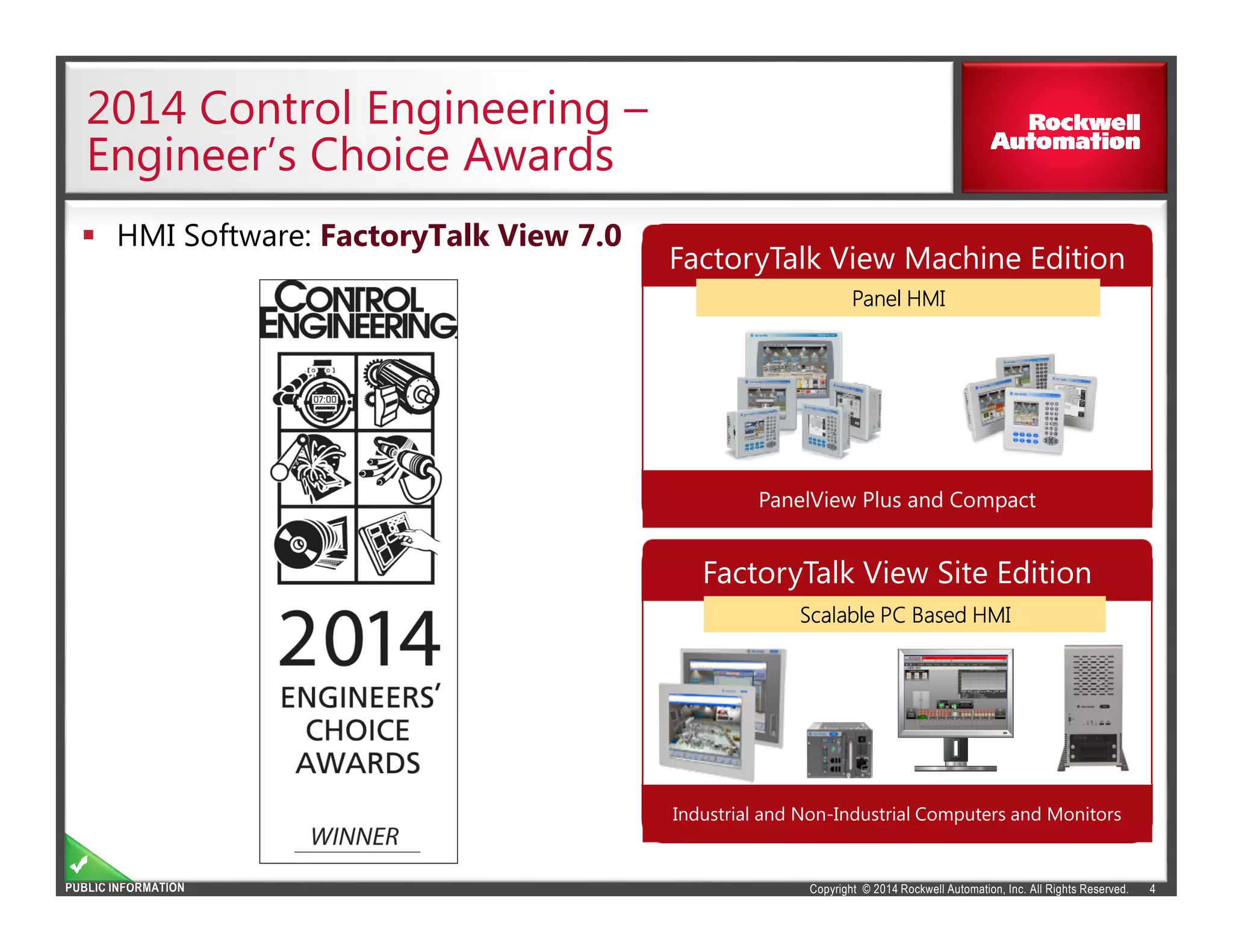

2014 Control Engineering –
Engineer’s Choice Awards
4
HMI Software: FactoryTalk View 7.0
FactoryTalk View Machine Edition
PanelView Plus and Compact
Panel HMIPanel HMIPanel HMIPanel HMIPanel HMIPanel HMIPanel HMIPanel HMI
FactoryTalk View Site Edition
Industrial and Non-Industrial Computers and Monitors
Scalable PC Based HMIScalable PC Based HMIScalable PC Based HMIScalable PC Based HMIScalable PC Based HMIScalable PC Based HMIScalable PC Based HMIScalable PC Based HMI

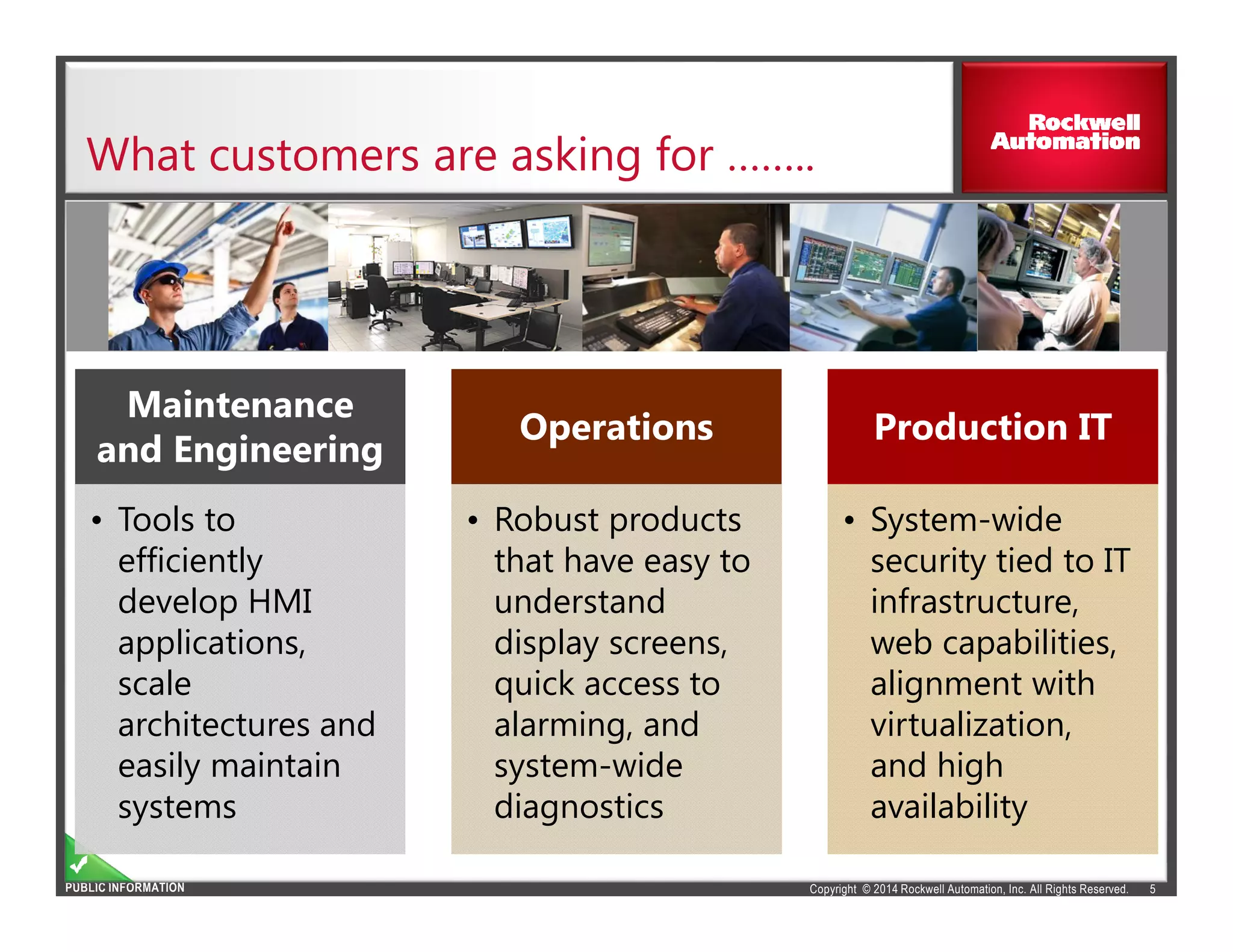

What customers are asking for ……..
5
Maintenance
and Engineering
• Tools to
efficiently
develop HMI
applications,
scale
architectures and
easily maintain
systems
Operations
• Robust products
that have easy to
understand
display screens,
quick access to
alarming, and
system-wide
diagnostics
Production IT
• System-wide
security tied to IT
infrastructure,
web capabilities,
alignment with
virtualization,
and high
availability

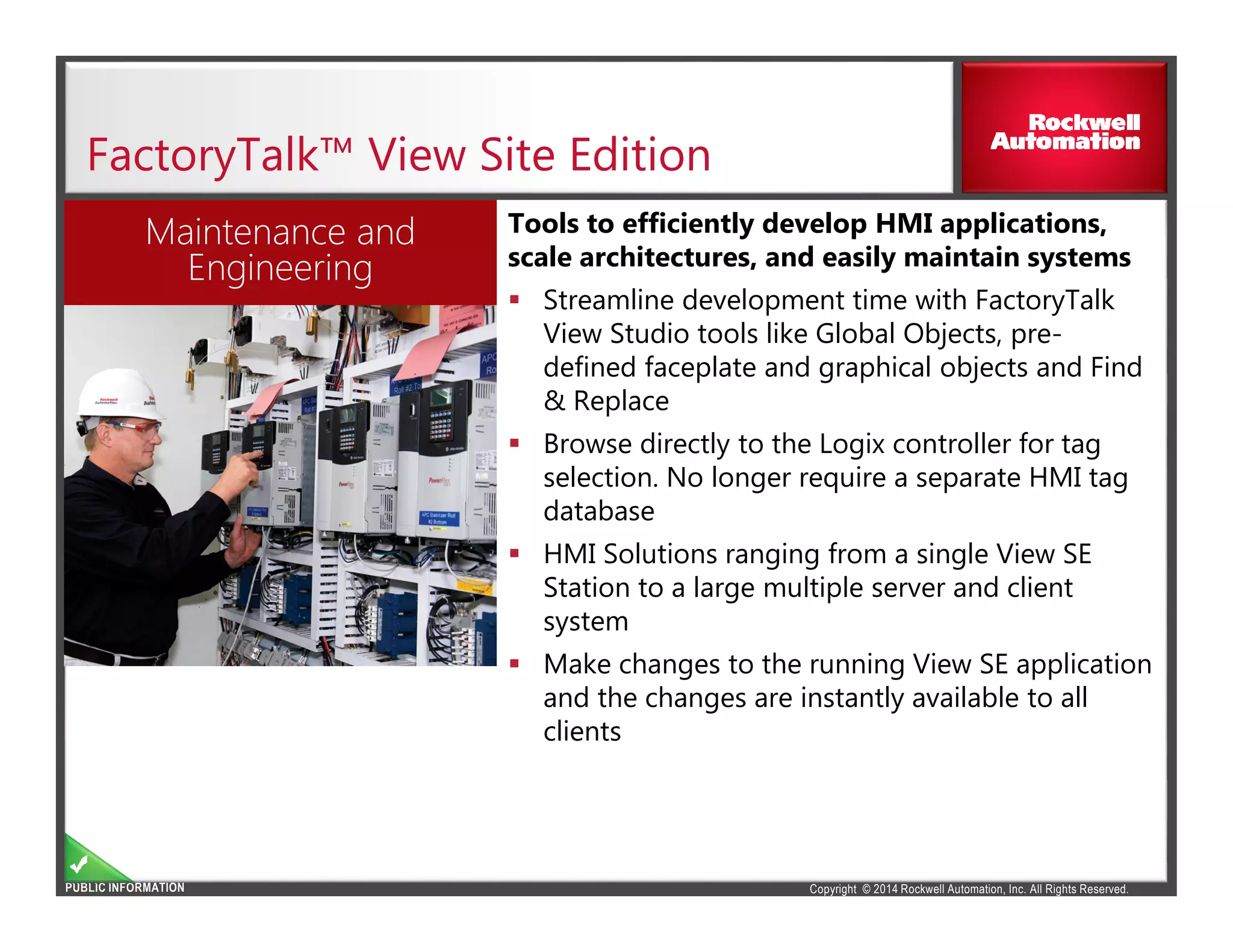

FactoryTalk™ View Site Edition
Tools to efficiently develop HMI applications,
scale architectures, and easily maintain systems
Streamline development time with FactoryTalk
View Studio tools like Global Objects, pre-
defined faceplate and graphical objects and Find
& Replace
Browse directly to the Logix controller for tag
selection. No longer require a separate HMI tag
database
HMI Solutions ranging from a single View SE
Station to a large multiple server and client
system
Make changes to the running View SE application
and the changes are instantly available to all
clients
Maintenance and
Engineering

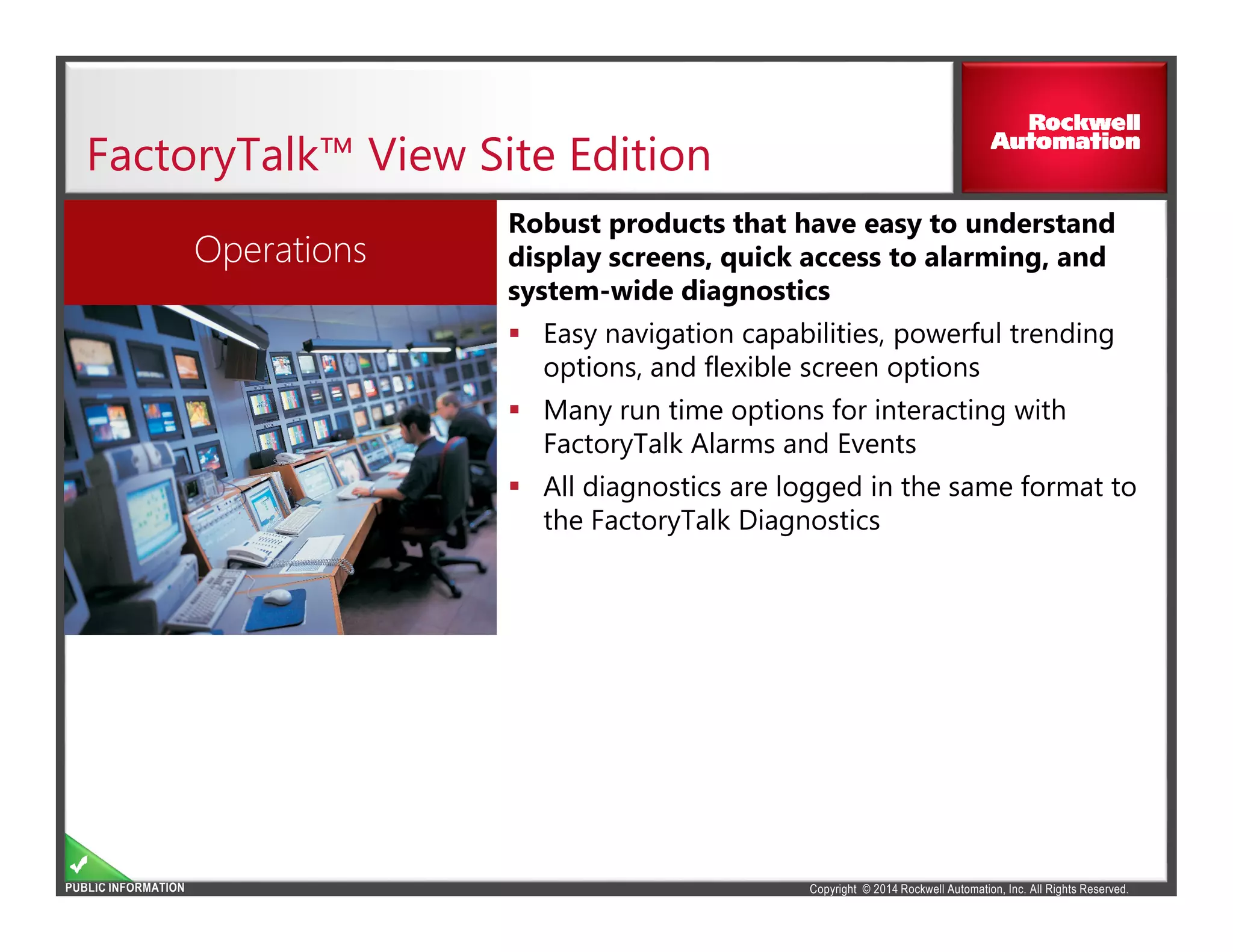

Robust products that have easy to understand
display screens, quick access to alarming, and
system-wide diagnostics
Easy navigation capabilities, powerful trending
options, and flexible screen options
Many run time options for interacting with
FactoryTalk Alarms and Events
All diagnostics are logged in the same format to
the FactoryTalk Diagnostics
Operations

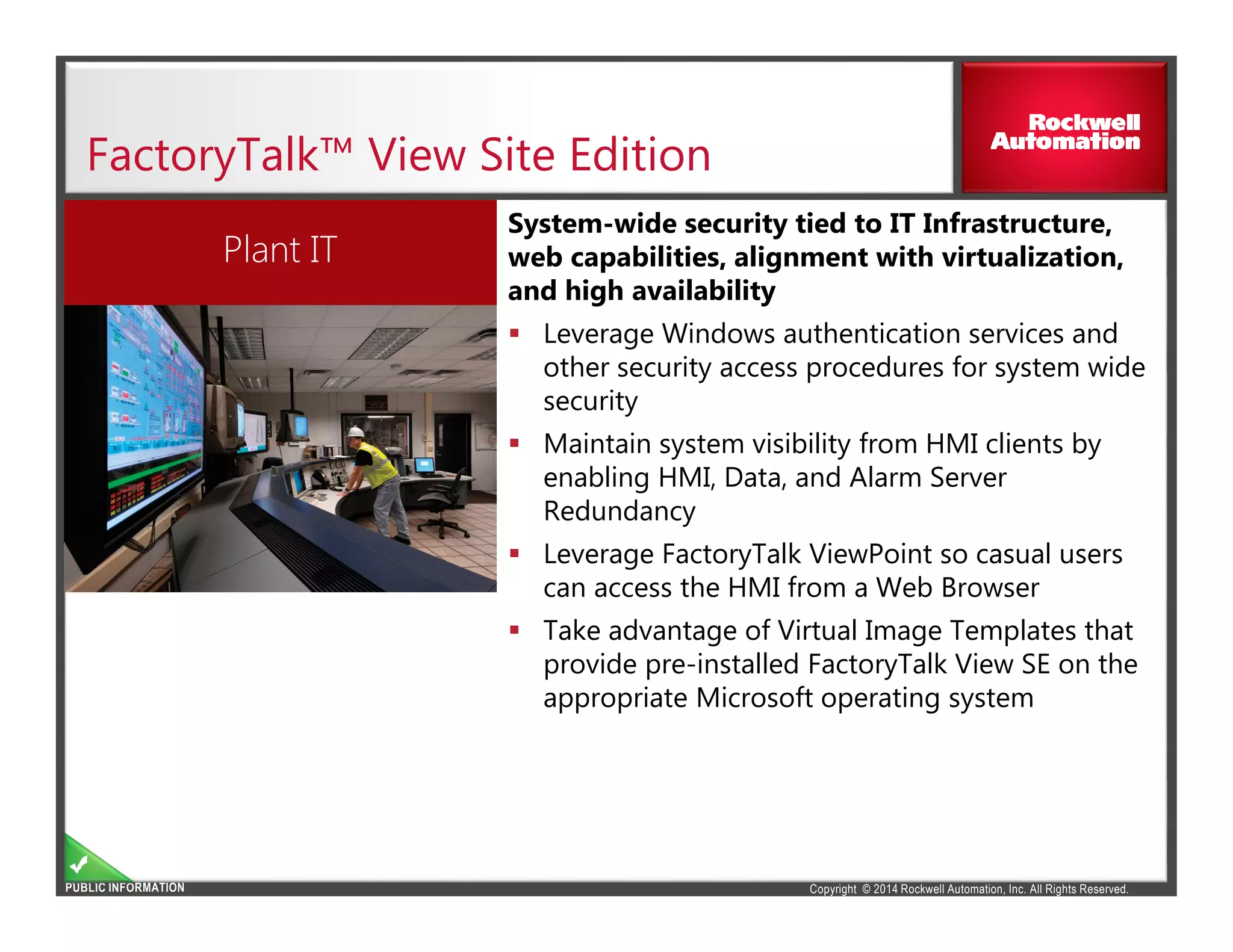

System-wide security tied to IT Infrastructure,
web capabilities, alignment with virtualization,
and high availability
Leverage Windows authentication services and
other security access procedures for system wide
security
Maintain system visibility from HMI clients by
enabling HMI, Data, and Alarm Server
Redundancy
Leverage FactoryTalk ViewPoint so casual users
can access the HMI from a Web Browser
Take advantage of Virtual Image Templates that
provide pre-installed FactoryTalk View SE on the
appropriate Microsoft operating system
Plant IT

System Overview
StudioStudio
ServerServer
ClientClient StationStation

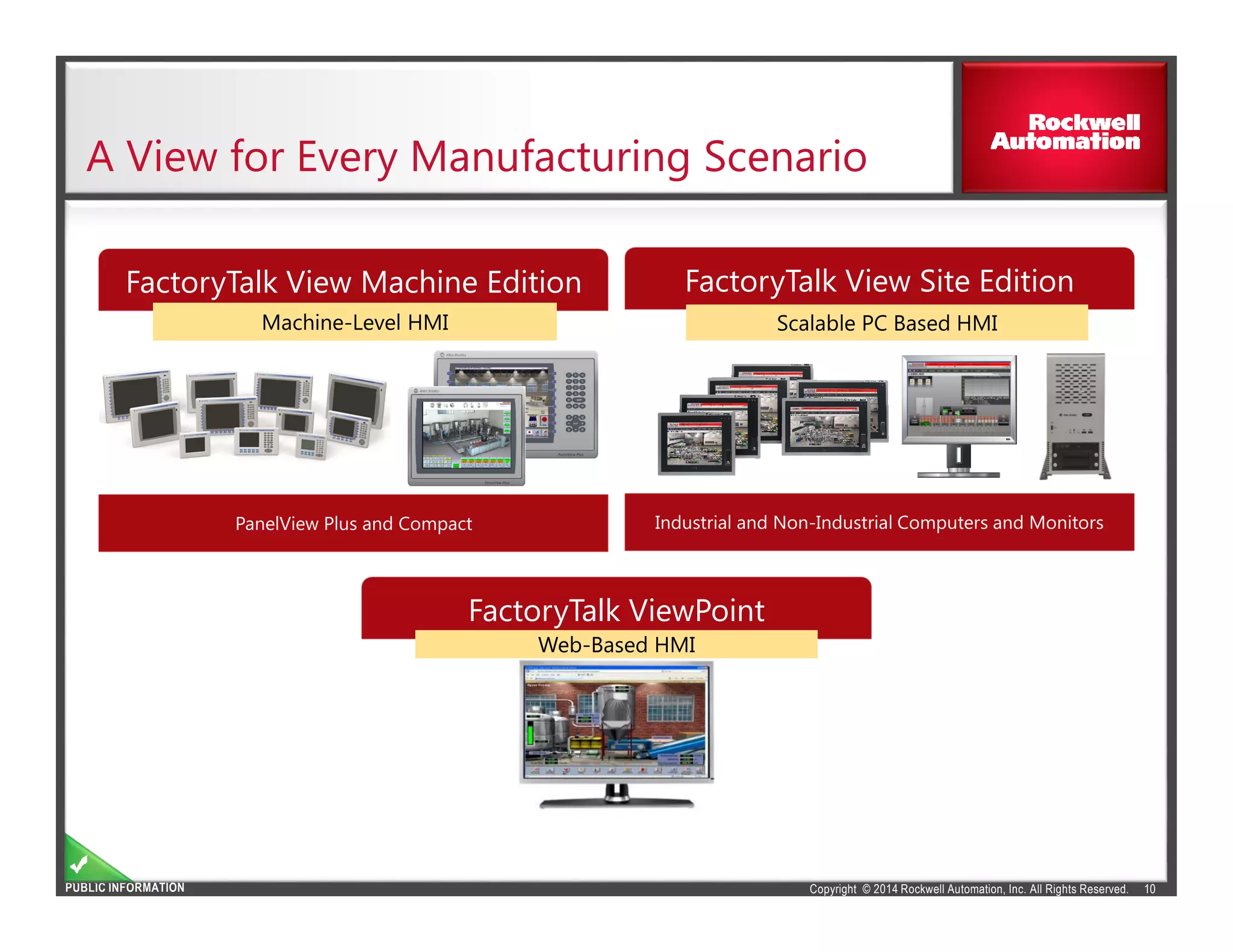

A View for Every Manufacturing Scenario
10
FactoryTalk ViewPoint
Web-Based HMIWeb-Based HMI
FactoryTalk View Machine Edition
PanelView Plus and Compact
Machine-Level HMIMachine-Level HMI
Industrial and Non-Industrial Computers and Monitors
Scalable PC Based HMIScalable PC Based HMI

11

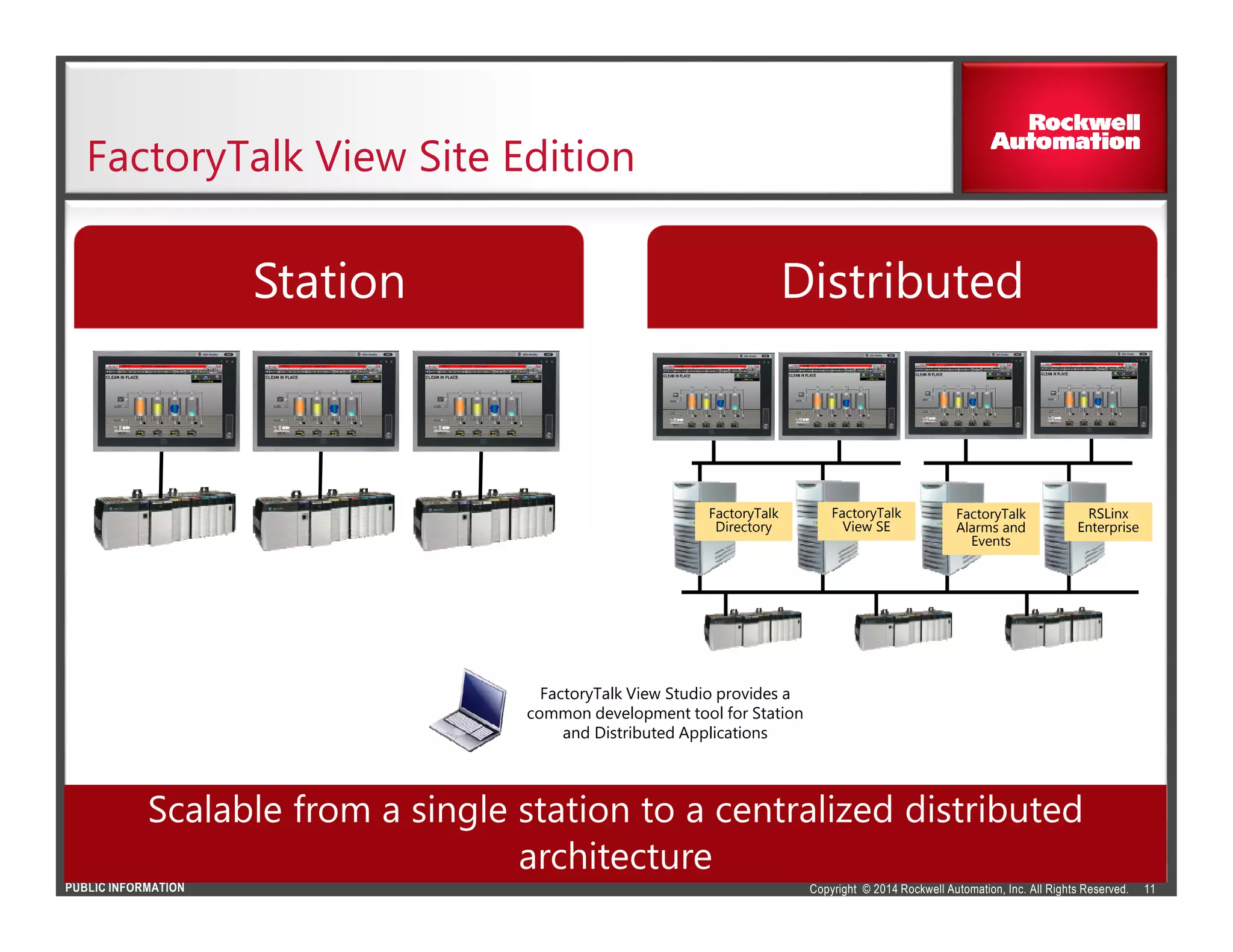

Scalable from a single station to a centralized distributed
architecture
DistributedStation
FactoryTalk
Directory
FactoryTalk
View SE
FactoryTalk
Alarms and
Events
RSLinx
Enterprise
FactoryTalk View Studio provides a
common development tool for Station
and Distributed Applications

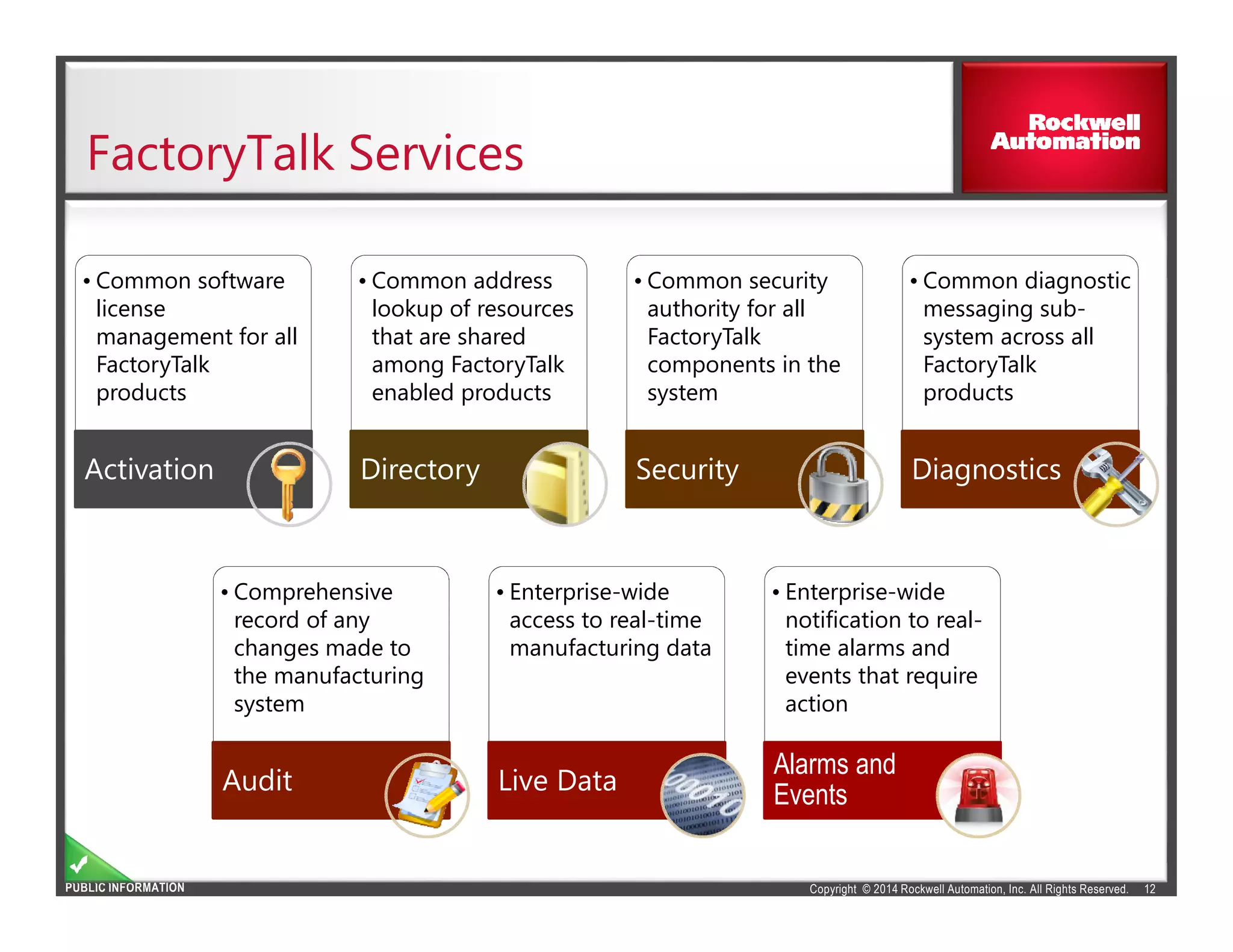

FactoryTalk Services
12
• Common software
license
management for all
FactoryTalk
products
• Common software
license
management for all
FactoryTalk
products
Activation
• Common address
lookup of resources
that are shared
among FactoryTalk
enabled products
• Common address
lookup of resources
that are shared
among FactoryTalk
enabled products
Directory
• Common security
authority for all
FactoryTalk
components in the
system
• Common security
authority for all
FactoryTalk
components in the
system
Security
• Common diagnostic
messaging sub-
system across all
FactoryTalk
products
• Common diagnostic
messaging sub-
system across all
FactoryTalk
products
Diagnostics
• Comprehensive
record of any
changes made to
the manufacturing
system
• Comprehensive
record of any
changes made to
the manufacturing
system
Audit
• Enterprise-wide
access to real-time
manufacturing data
• Enterprise-wide
access to real-time
manufacturing data
Live Data
• Enterprise-wide
notification to real-
time alarms and
events that require
action
• Enterprise-wide
notification to real-
time alarms and
events that require
action
Alarms and
Events

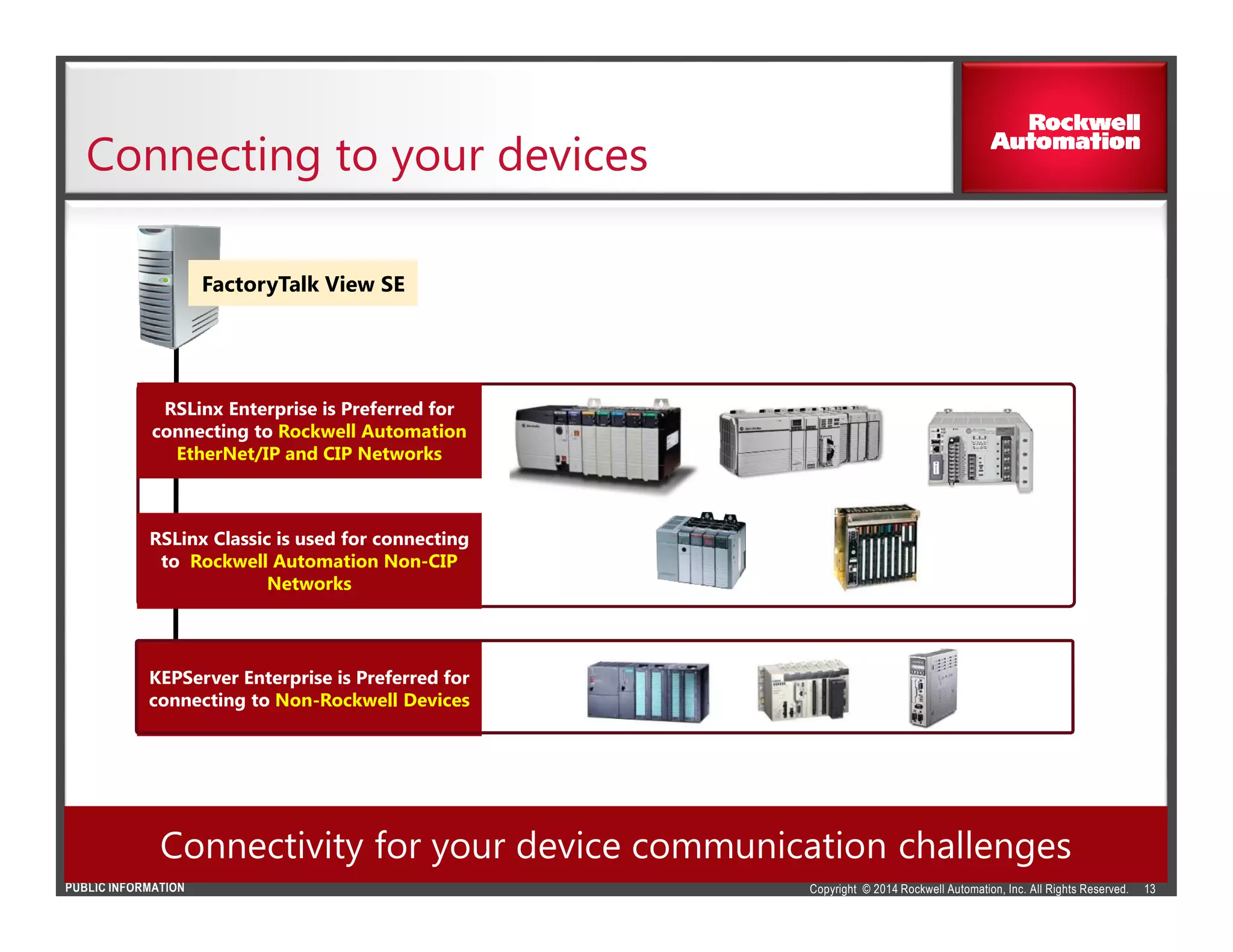

Connecting to your devices
13
Connectivity for your device communication challenges
FactoryTalk View SEFactoryTalk View SE
KEPServer Enterprise is Preferred for
connecting to Non-Rockwell Devices
KEPServer Enterprise is Preferred for
connecting to Non-Rockwell Devices
RSLinx Enterprise is Preferred for
connecting to Rockwell Automation
EtherNet/IP and CIP Networks
RSLinx Enterprise is Preferred for
connecting to Rockwell Automation
EtherNet/IP and CIP Networks
RSLinx Classic is used for connecting
to Rockwell Automation Non-CIP
Networks
RSLinx Classic is used for connecting
to Rockwell Automation Non-CIP
Networks

Product Overview
StudioStudio
ServerServer

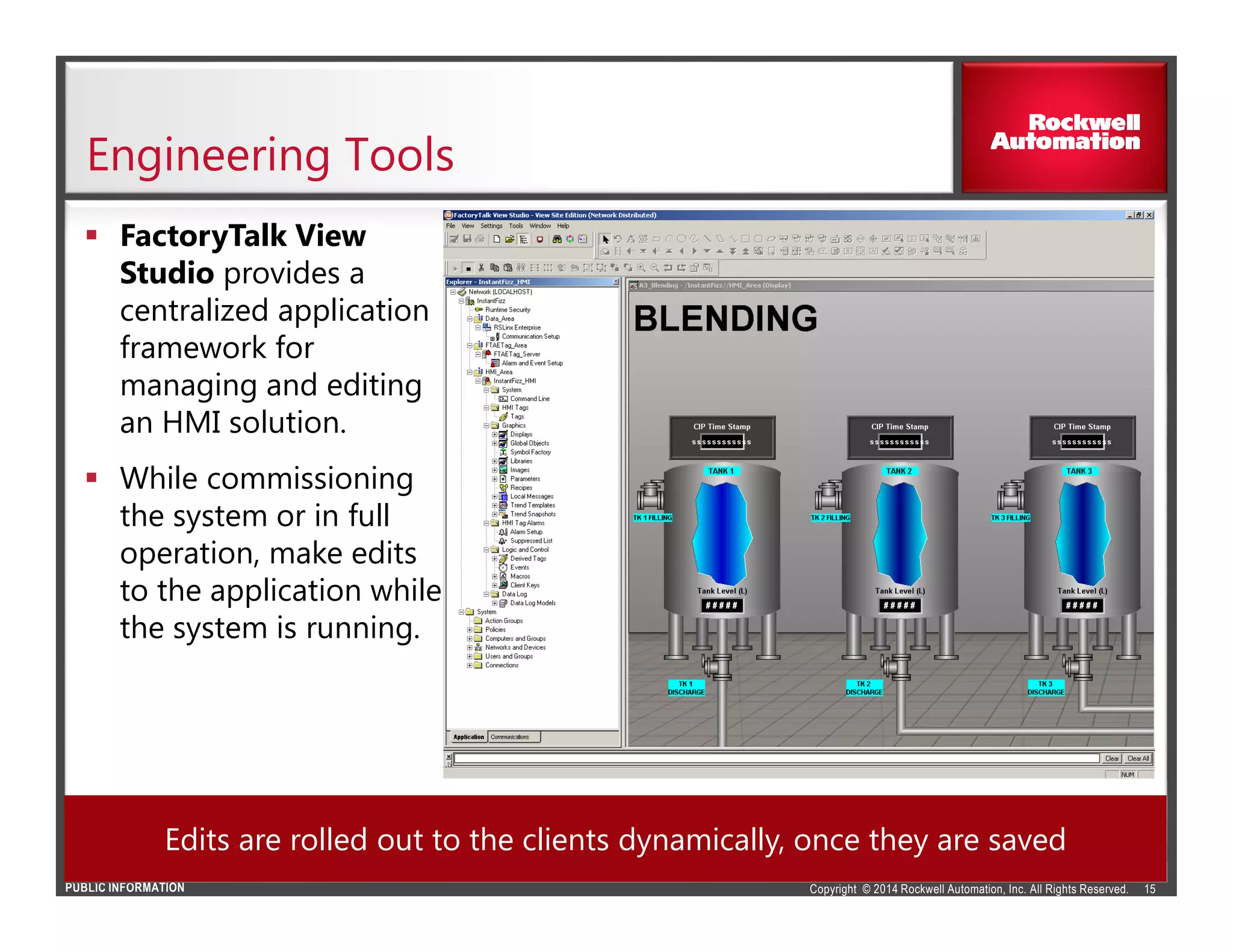

Engineering Tools
FactoryTalk View
Studio provides a
centralized application
framework for
managing and editing
an HMI solution.
While commissioning
the system or in full
operation, make edits
to the application while
the system is running.
15
Edits are rolled out to the clients dynamically, once they are saved

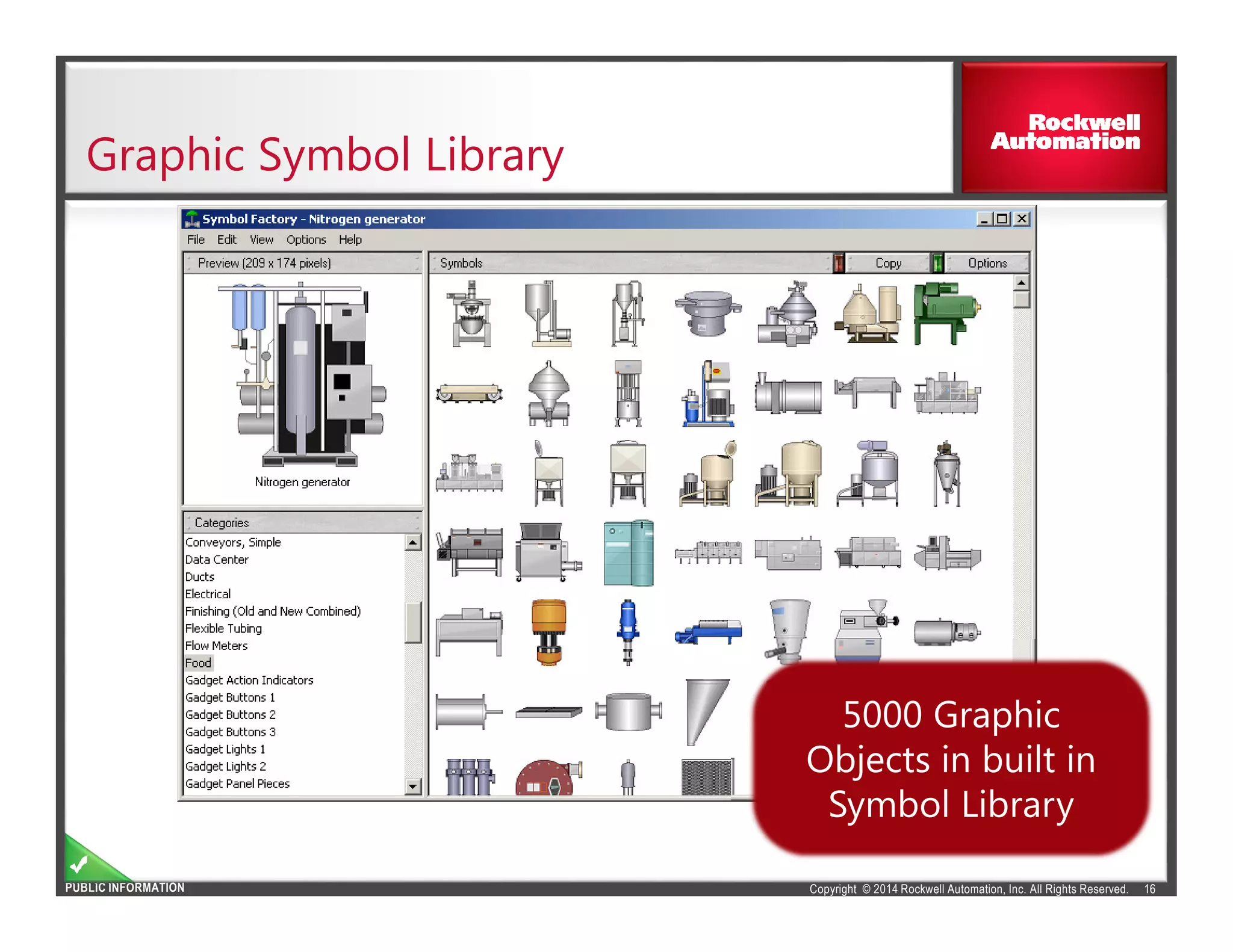

Graphic Symbol Library
16
5000 Graphic
Objects in built in
Symbol Library
5000 Graphic
Objects in built in
Symbol Library

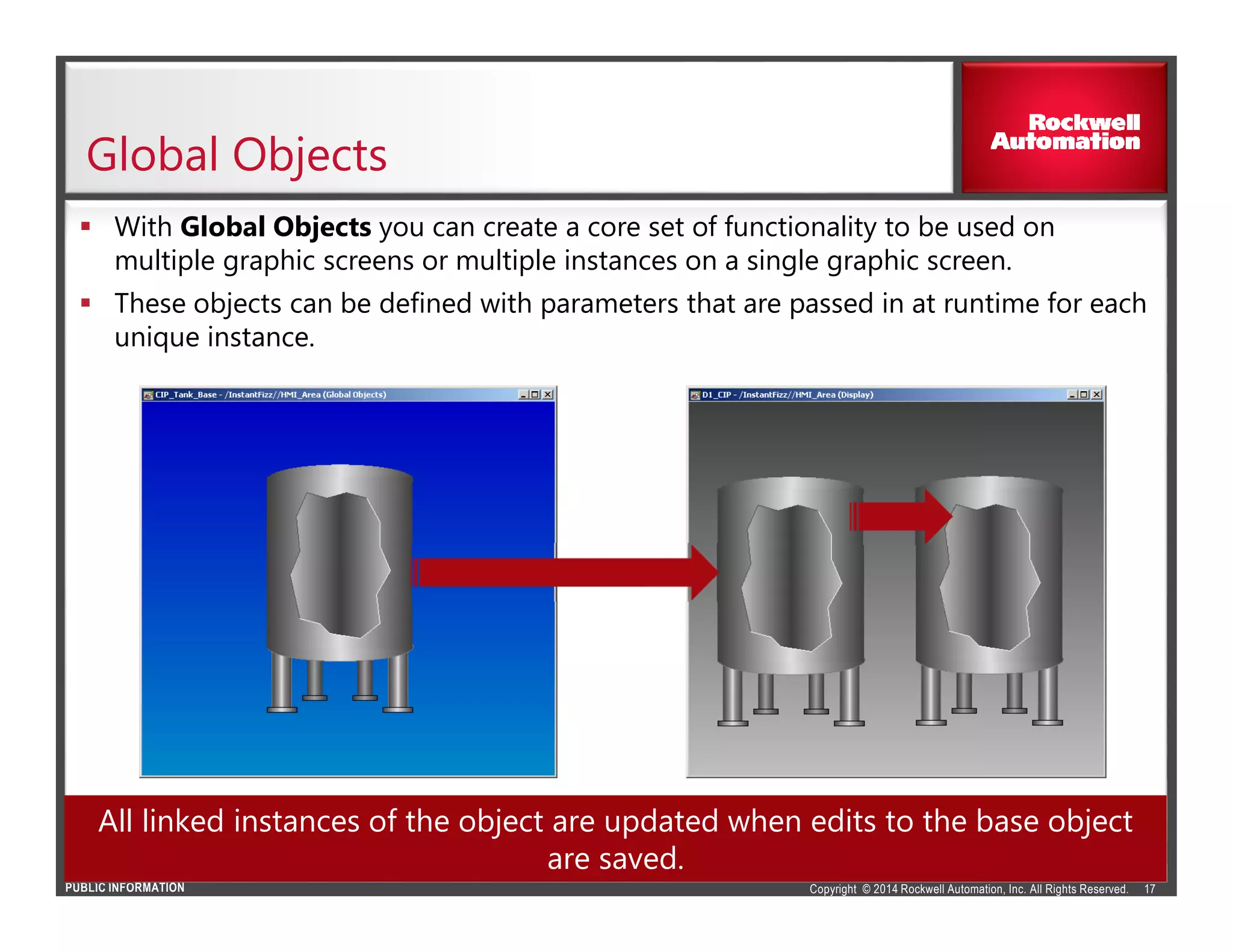

With Global Objects you can create a core set of functionality to be used on
multiple graphic screens or multiple instances on a single graphic screen.
These objects can be defined with parameters that are passed in at runtime for each
unique instance.
Global Objects
17
All linked instances of the object are updated when edits to the base object
are saved.

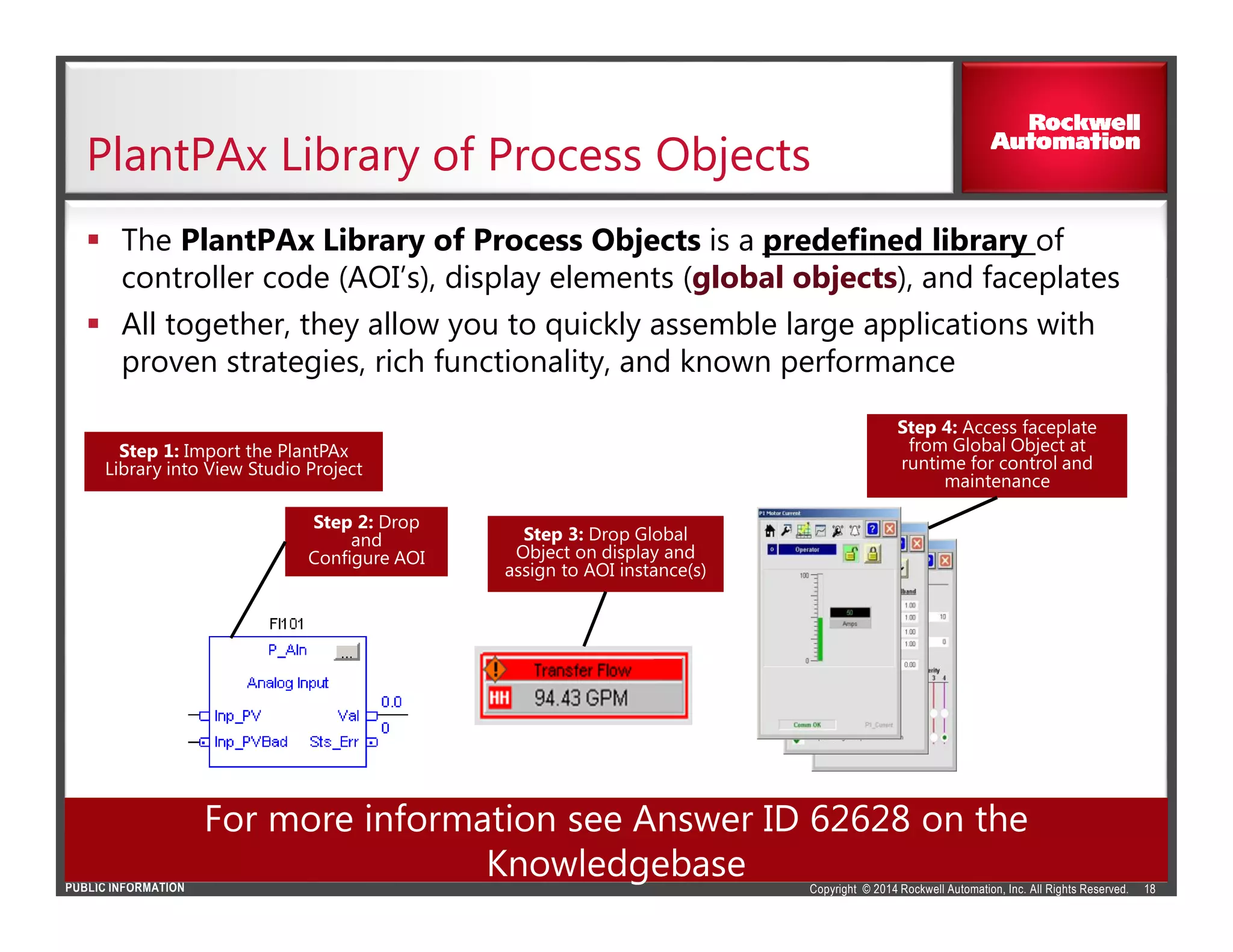

PlantPAx Library of Process Objects
18
The PlantPAx Library of Process Objects is a predefined library of
controller code (AOI’s), display elements (global objects), and faceplates
All together, they allow you to quickly assemble large applications with
proven strategies, rich functionality, and known performance
Step 2: Drop
and
Configure AOI
Step 2: Drop
and
Configure AOI
Step 3: Drop Global
Object on display and
assign to AOI instance(s)
Step 3: Drop Global
Object on display and
assign to AOI instance(s)
Step 4: Access faceplate
from Global Object at
runtime for control and
maintenance
Step 4: Access faceplate
from Global Object at
runtime for control and
maintenance
Step 1: Import the PlantPAx
Library into View Studio Project
Step 1: Import the PlantPAx
Library into View Studio Project
For more information see Answer ID 62628 on the
Knowledgebase

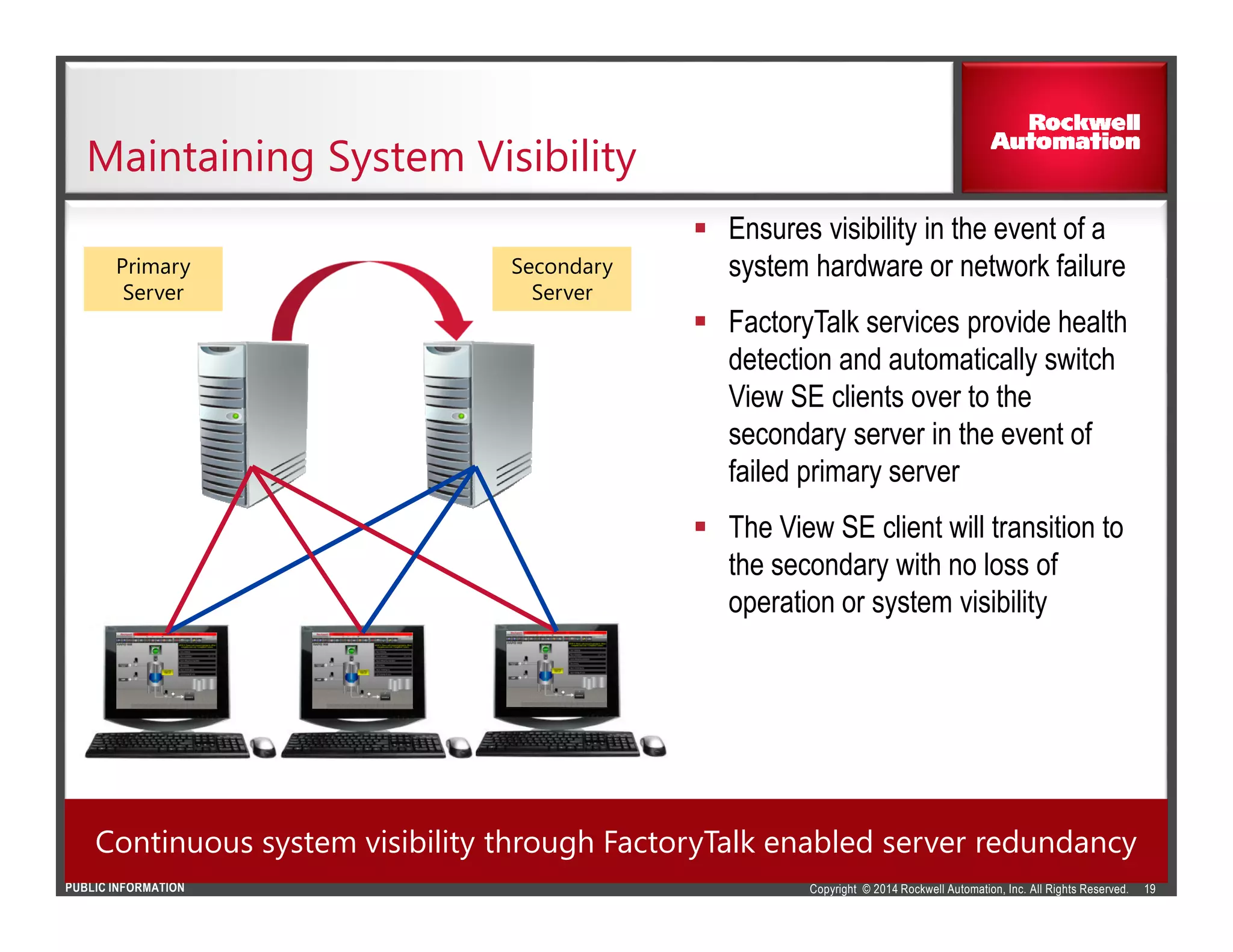

Maintaining System Visibility
19
Ensures visibility in the event of a
system hardware or network failure
FactoryTalk services provide health
detection and automatically switch
View SE clients over to the
secondary server in the event of
failed primary server
The View SE client will transition to
the secondary with no loss of
operation or system visibility
Secondary
Server
Secondary
Server
Primary
Server
Primary
Server
Continuous system visibility through FactoryTalk enabled server redundancyContinuous system visibility through FactoryTalk enabled server redundancy

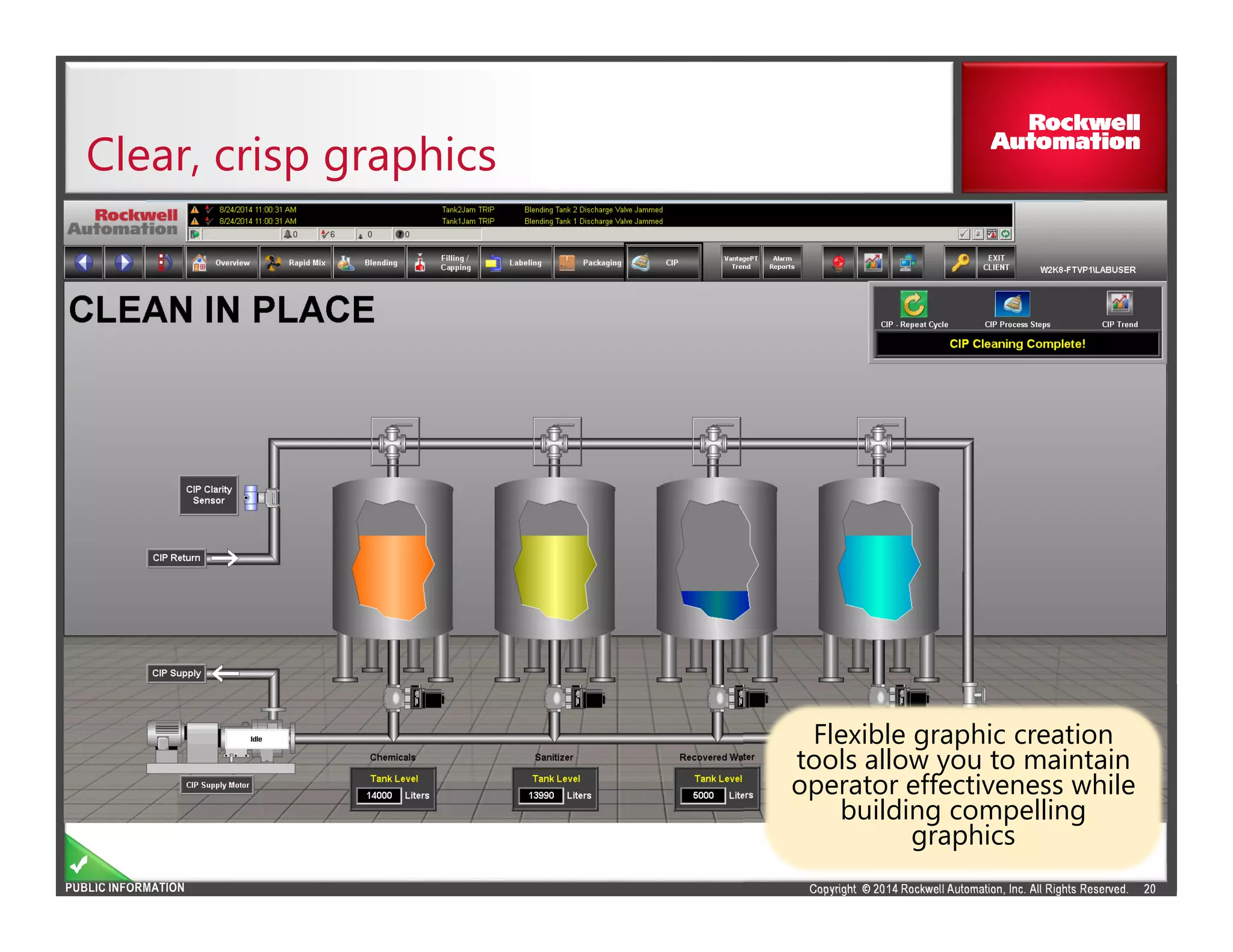

Clear, crisp graphics
20
Flexible graphic creation
tools allow you to maintain
operator effectiveness while
building compelling
graphics
Flexible graphic creation
tools allow you to maintain
operator effectiveness while
building compelling
graphics

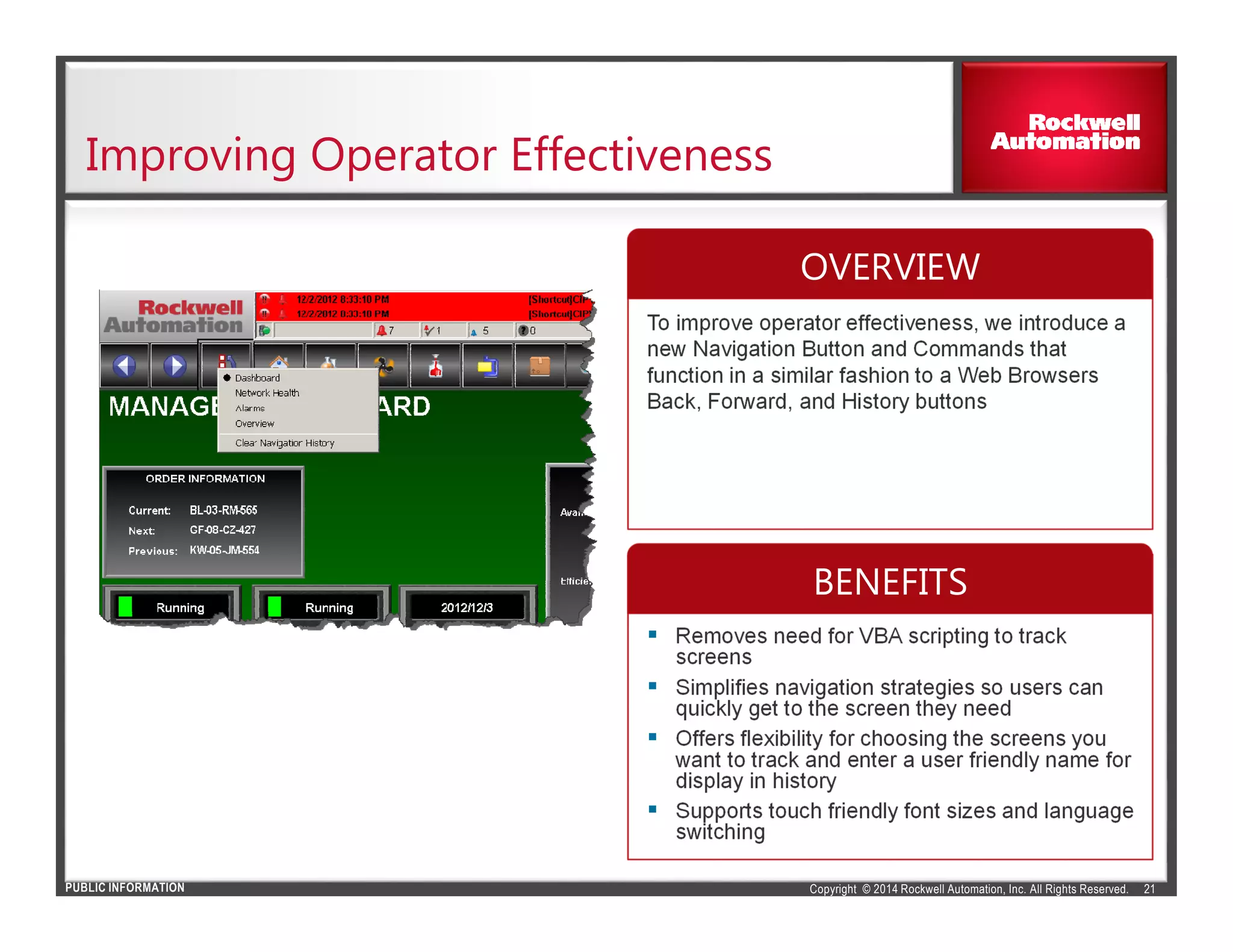

Improving Operator Effectiveness
21
To improve operator effectiveness, we introduce a
new Navigation Button and Commands that
function in a similar fashion to a Web Browsers
Back, Forward, and History buttons
Removes need for VBA scripting to track
screens
Simplifies navigation strategies so users can
quickly get to the screen they need
Offers flexibility for choosing the screens you
want to track and enter a user friendly name for
display in history
Supports touch friendly font sizes and language
switching
OVERVIEW
BENEFITS

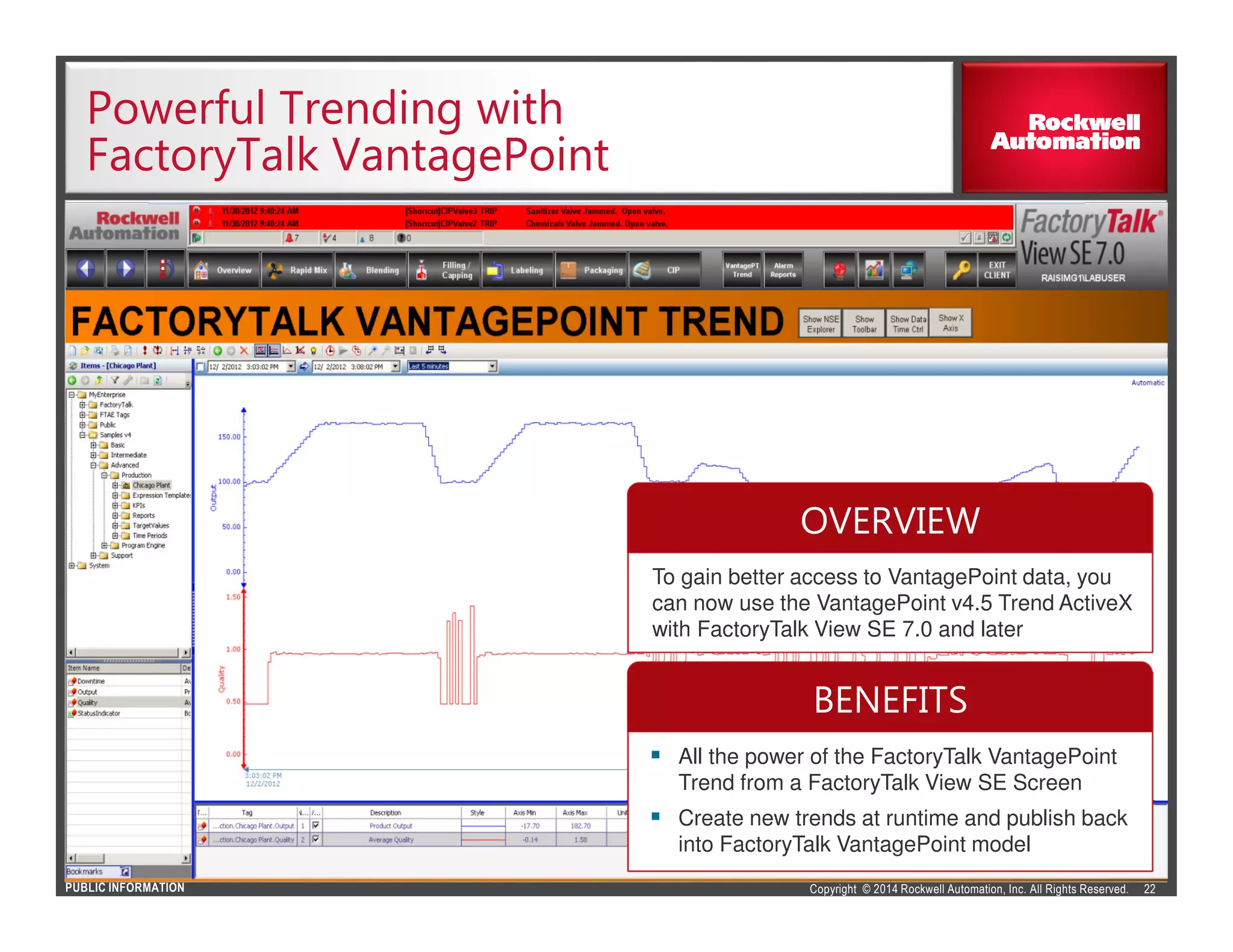

Powerful Trending with
FactoryTalk VantagePoint
OVERVIEW
BENEFITS
22
To gain better access to VantagePoint data, you
can now use the VantagePoint v4.5 Trend ActiveX
with FactoryTalk View SE 7.0 and later
All the power of the FactoryTalk VantagePoint
Trend from a FactoryTalk View SE Screen
Create new trends at runtime and publish back
into FactoryTalk VantagePoint model

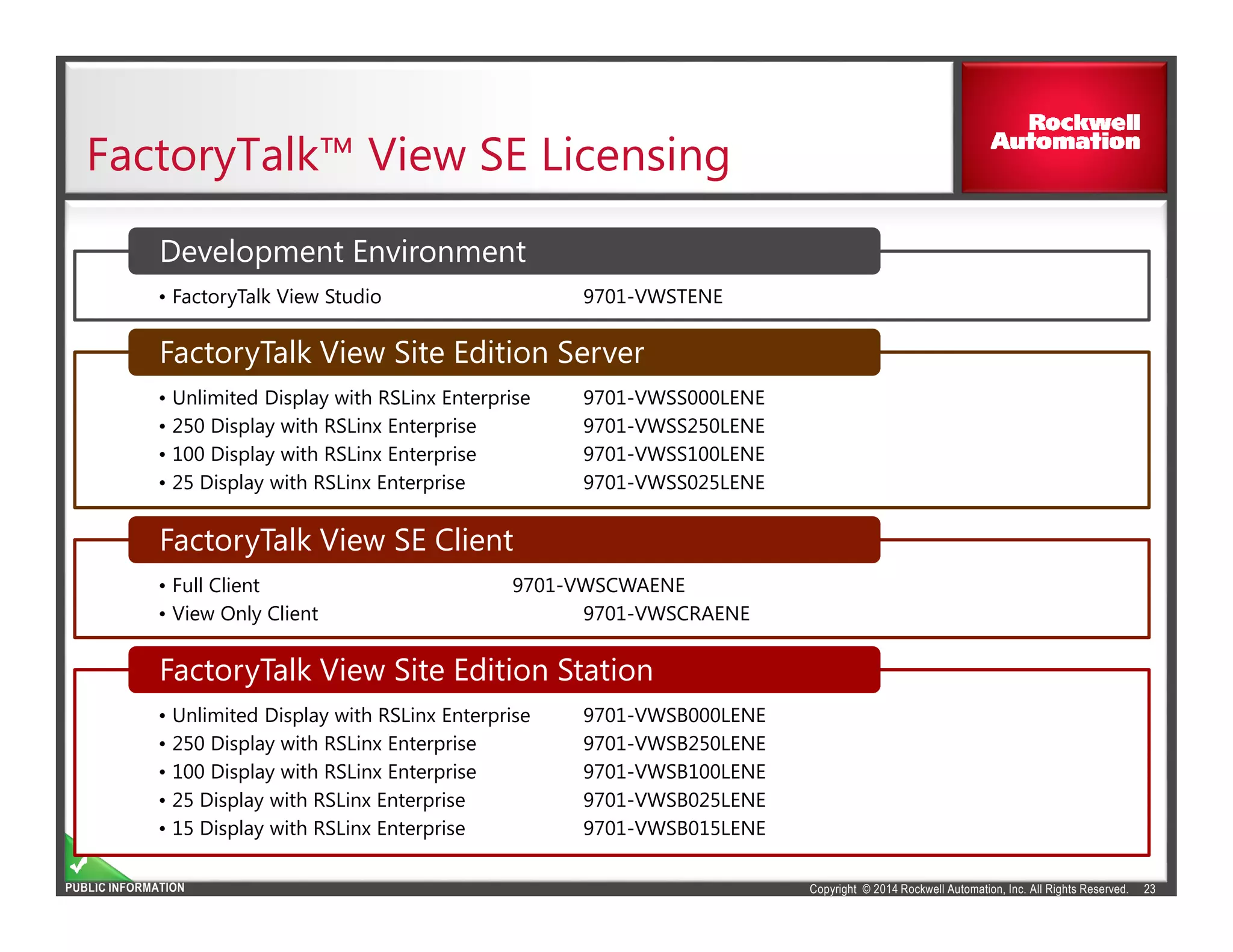

FactoryTalk™ View SE Licensing
• FactoryTalk View Studio 9701-VWSTENE• FactoryTalk View Studio 9701-VWSTENE
Development EnvironmentDevelopment Environment
• Unlimited Display with RSLinx Enterprise 9701-VWSS000LENE
• 250 Display with RSLinx Enterprise 9701-VWSS250LENE
• Unlimited Display with RSLinx Enterprise 9701-VWSS000LENE
FactoryTalk View Site Edition ServerFactoryTalk View Site Edition Server
• Full Client 9701-VWSCWAENE
• View Only Client 9701-VWSCRAENE
• Full Client 9701-VWSCWAENE
• View Only Client 9701-VWSCRAENE
FactoryTalk View SE ClientFactoryTalk View SE Client
• Unlimited Display with RSLinx Enterprise 9701-VWSB000LENE
• 250 Display with RSLinx Enterprise 9701-VWSB250LENE
• Unlimited Display with RSLinx Enterprise 9701-VWSB000LENE
FactoryTalk View Site Edition StationFactoryTalk View Site Edition Station
23

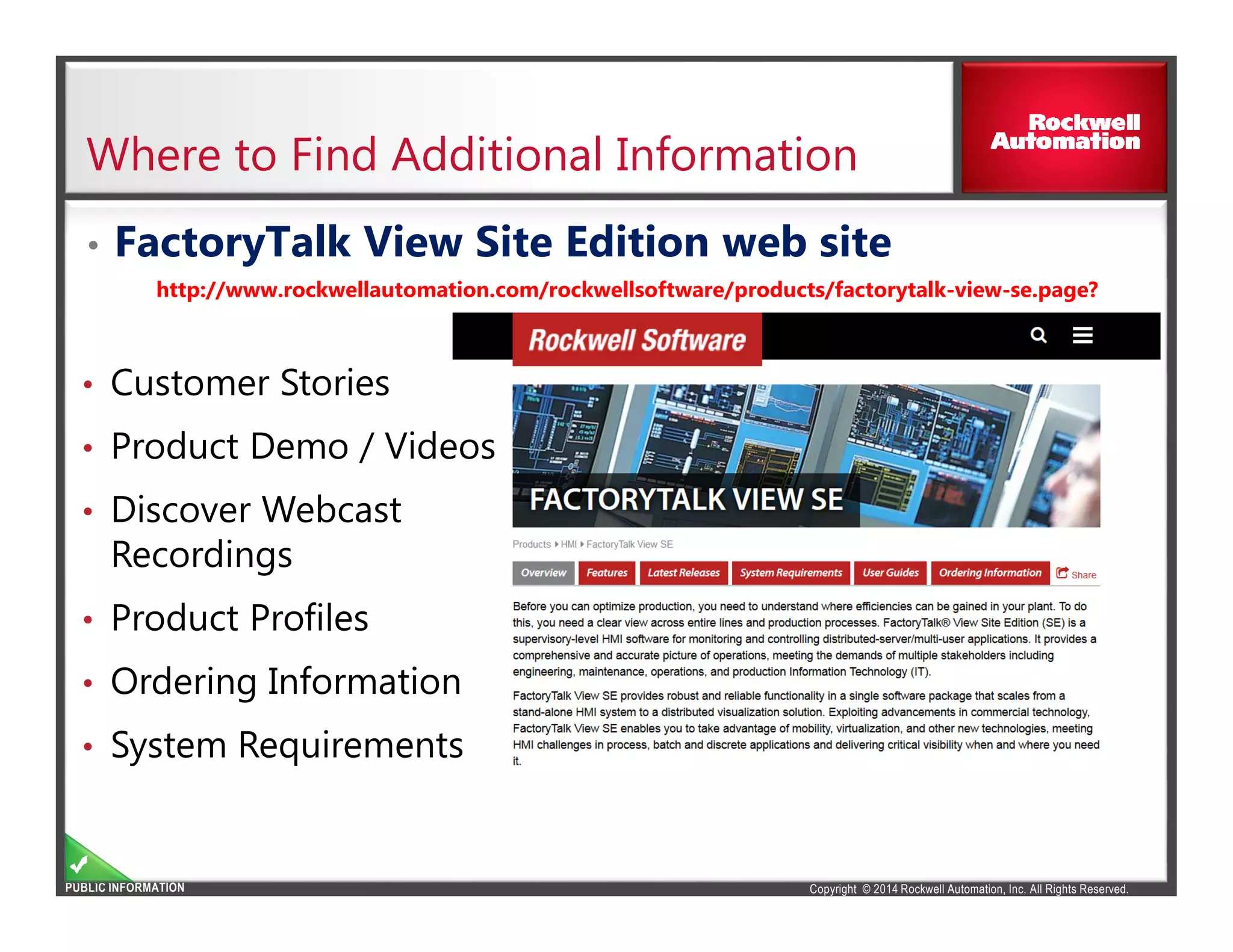

Where to Find Additional Information
• FactoryTalk View Site Edition web site
http://www.rockwellautomation.com/rockwellsoftware/products/factorytalk-view-se.page?
• Customer Stories
• Product Demo / Videos
• Discover Webcast
Recordings
• Product Profiles
• Ordering Information
• System Requirements

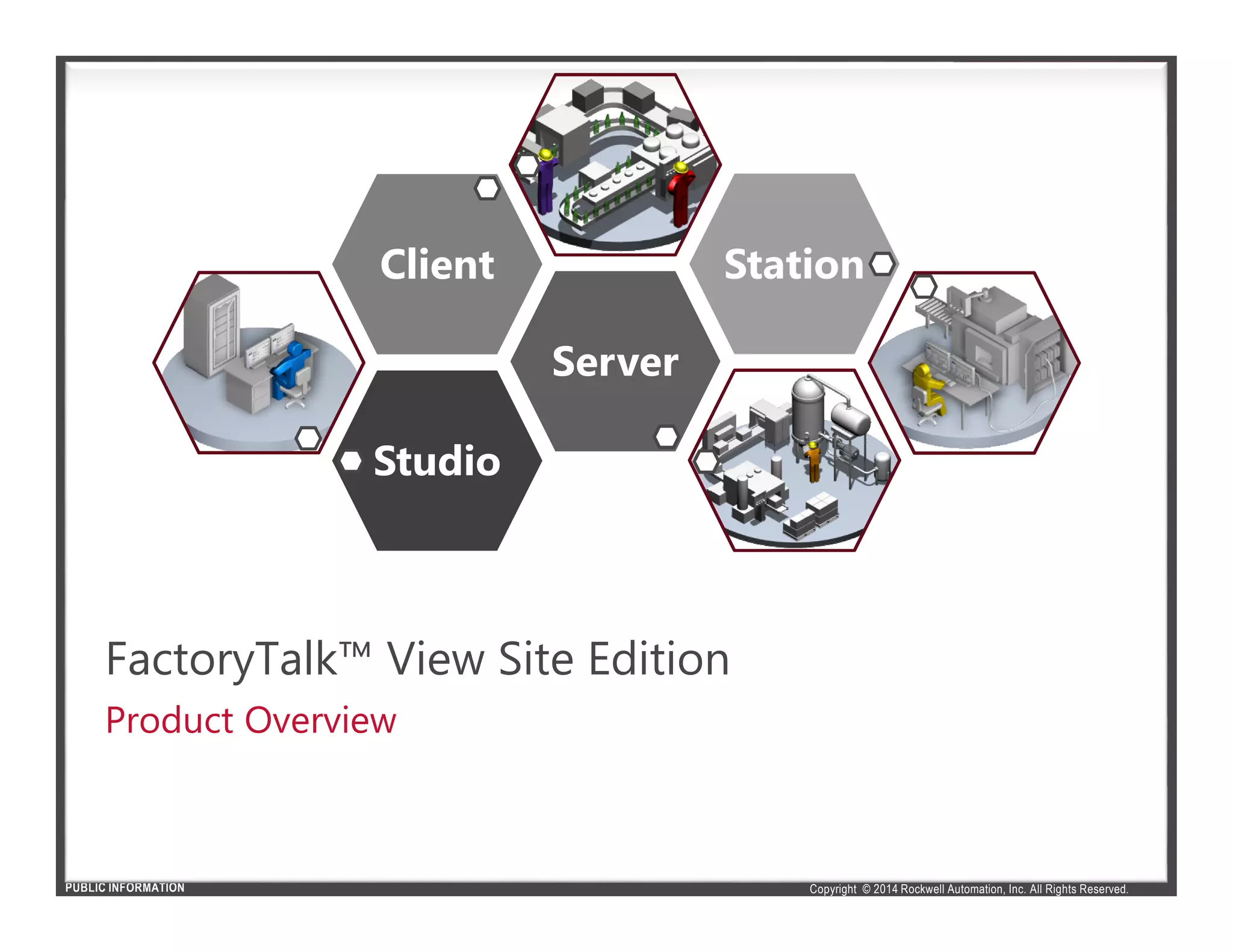

Product Overview
StudioStudio
ServerServer

26

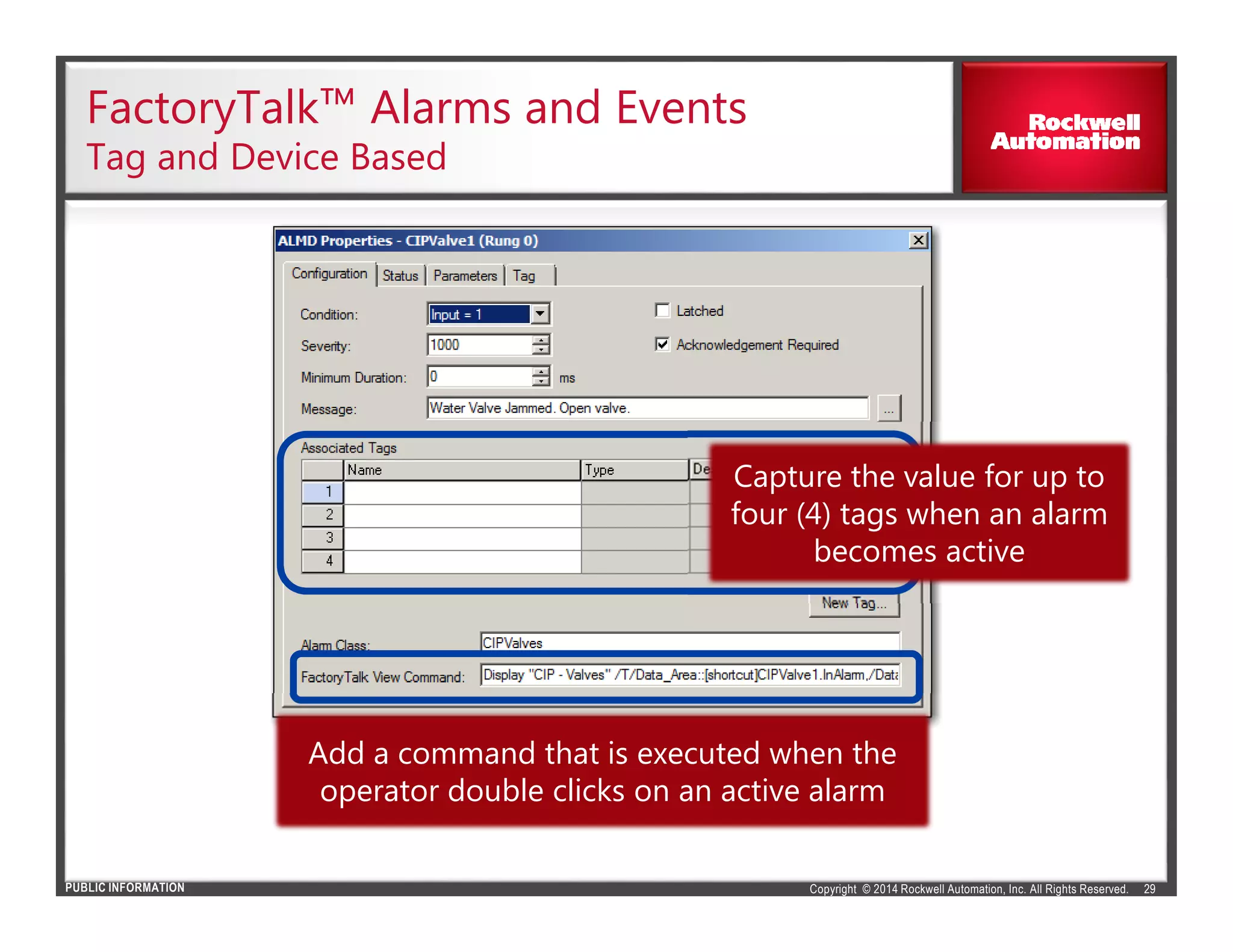

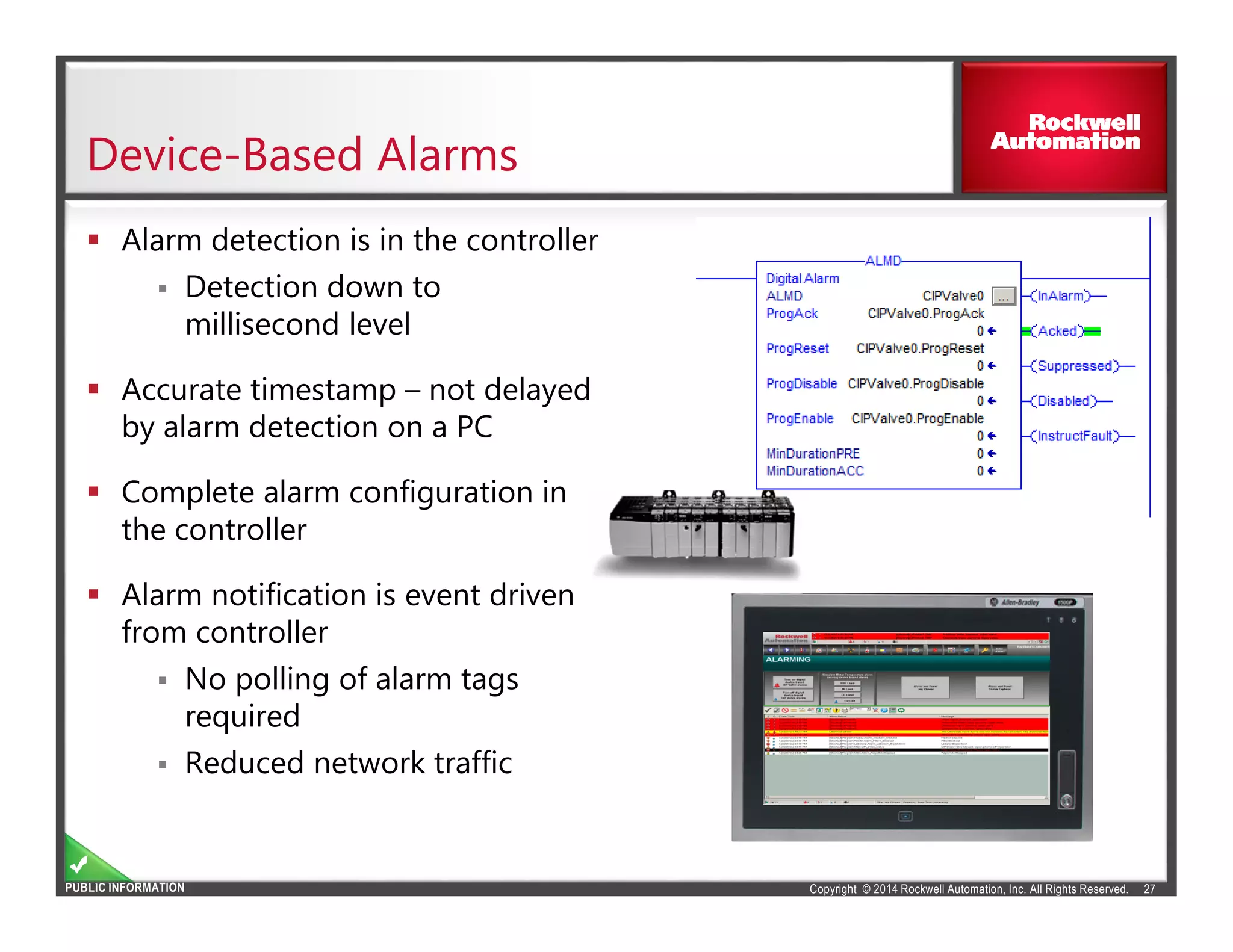

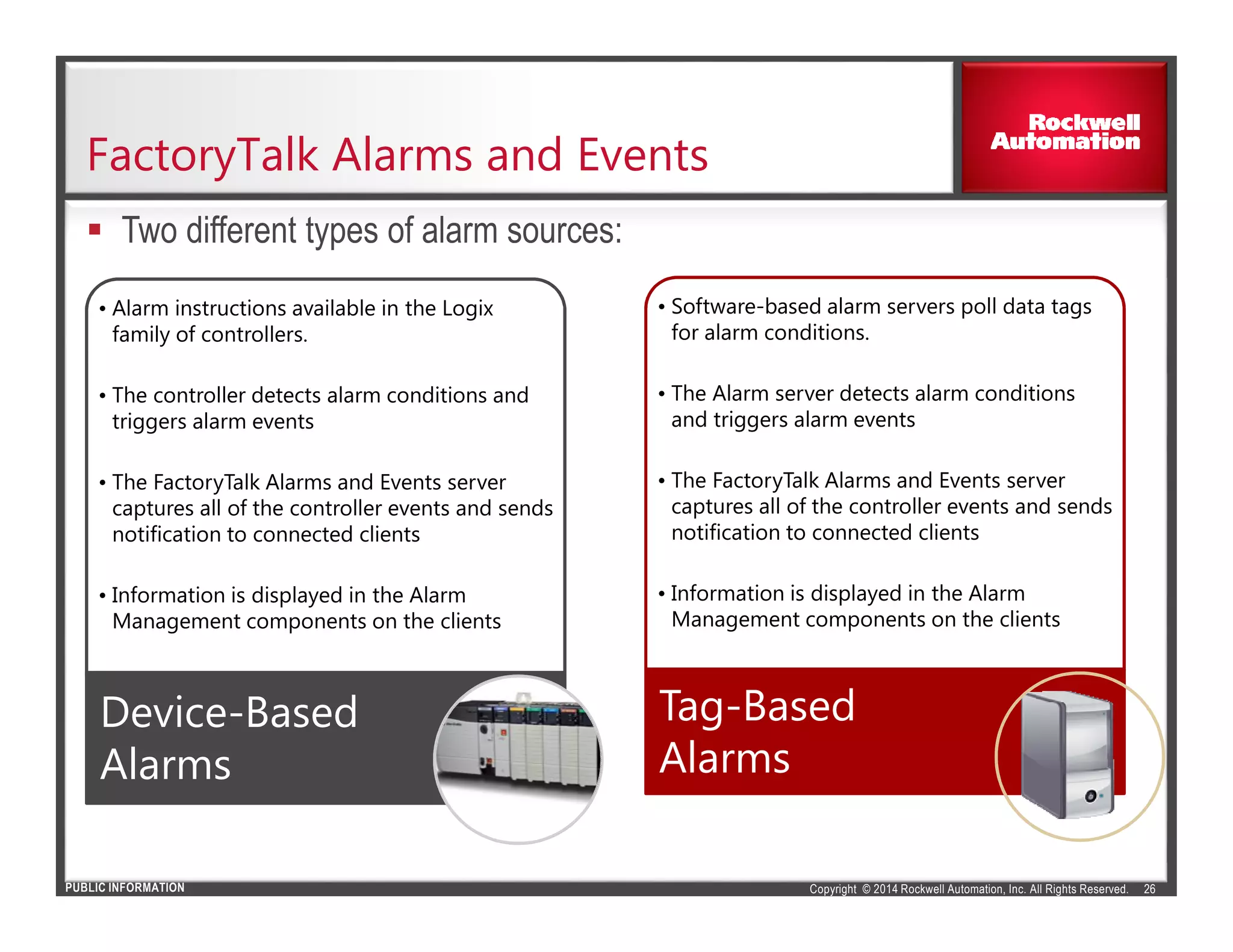

• Alarm instructions available in the Logix
family of controllers.
• The controller detects alarm conditions and
triggers alarm events
• The FactoryTalk Alarms and Events server
captures all of the controller events and sends
notification to connected clients
• Information is displayed in the Alarm
Management components on the clients
• Alarm instructions available in the Logix
family of controllers.
• The controller detects alarm conditions and
triggers alarm events
Device-Based
Alarms
• Software-based alarm servers poll data tags
for alarm conditions.
• The Alarm server detects alarm conditions
and triggers alarm events
• Supports PLC-5, SLC 500, or any third-party
device through OPC-DA
• Software-based alarm servers poll data tags
for alarm conditions.
• The Alarm server detects alarm conditions
and triggers alarm events
• Supports PLC-5, SLC 500, or any third-party
device through OPC-DATag-Based
Alarms
Two different types of alarm sources:

Device-Based Alarms
27
Alarm detection is in the controller
Detection down to
millisecond level
Accurate timestamp – not delayed
by alarm detection on a PC
Complete alarm configuration in
the controller
Alarm notification is event driven
from controller
No polling of alarm tags
required
Reduced network traffic

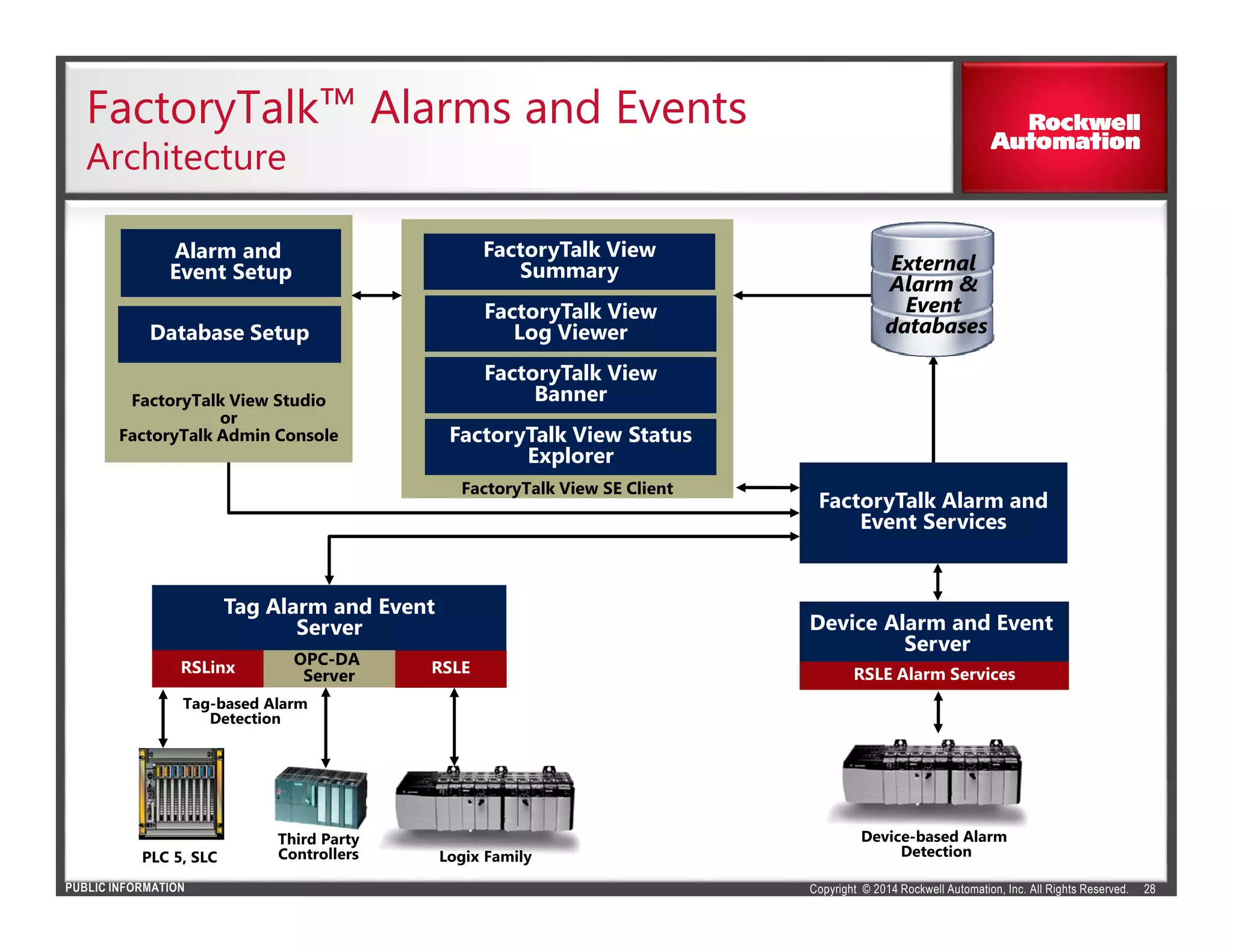

FactoryTalk™ Alarms and Events
Architecture
28
FactoryTalk View SE ClientFactoryTalk View SE Client
FactoryTalk View
Summary
FactoryTalk View
Summary
FactoryTalk View
Banner
FactoryTalk View
Banner
FactoryTalk View
Log Viewer
FactoryTalk View
Log Viewer
Device Alarm and Event
Server
Device Alarm and Event
Server
RSLE Alarm ServicesRSLE Alarm Services
Device-based Alarm
Detection
FactoryTalk View Studio
or
FactoryTalk Admin Console
FactoryTalk View Studio
or
FactoryTalk Admin Console
Alarm and
Event Setup
Alarm and
Event Setup
Database SetupDatabase Setup
FactoryTalk View Status
Explorer
FactoryTalk View Status
Explorer
PLC 5, SLC
Tag Alarm and Event
Server
Tag Alarm and Event
Server
RSLinxRSLinx
Tag-based Alarm
Detection
OPC-DA
Server
OPC-DA
Server
Third Party
Controllers
FactoryTalk Alarm and
Event Services
FactoryTalk Alarm and
Event Services
External
Alarm &
Event
databases
RSLERSLE
Logix Family

FactoryTalk™ Alarms and Events
Tag and Device Based
29
Capture the value for up to
four (4) tags when an alarm
becomes active
Capture the value for up to
four (4) tags when an alarm
becomes active
Add a command that is executed when the
operator double clicks on an active alarm
Add a command that is executed when the
operator double clicks on an active alarm

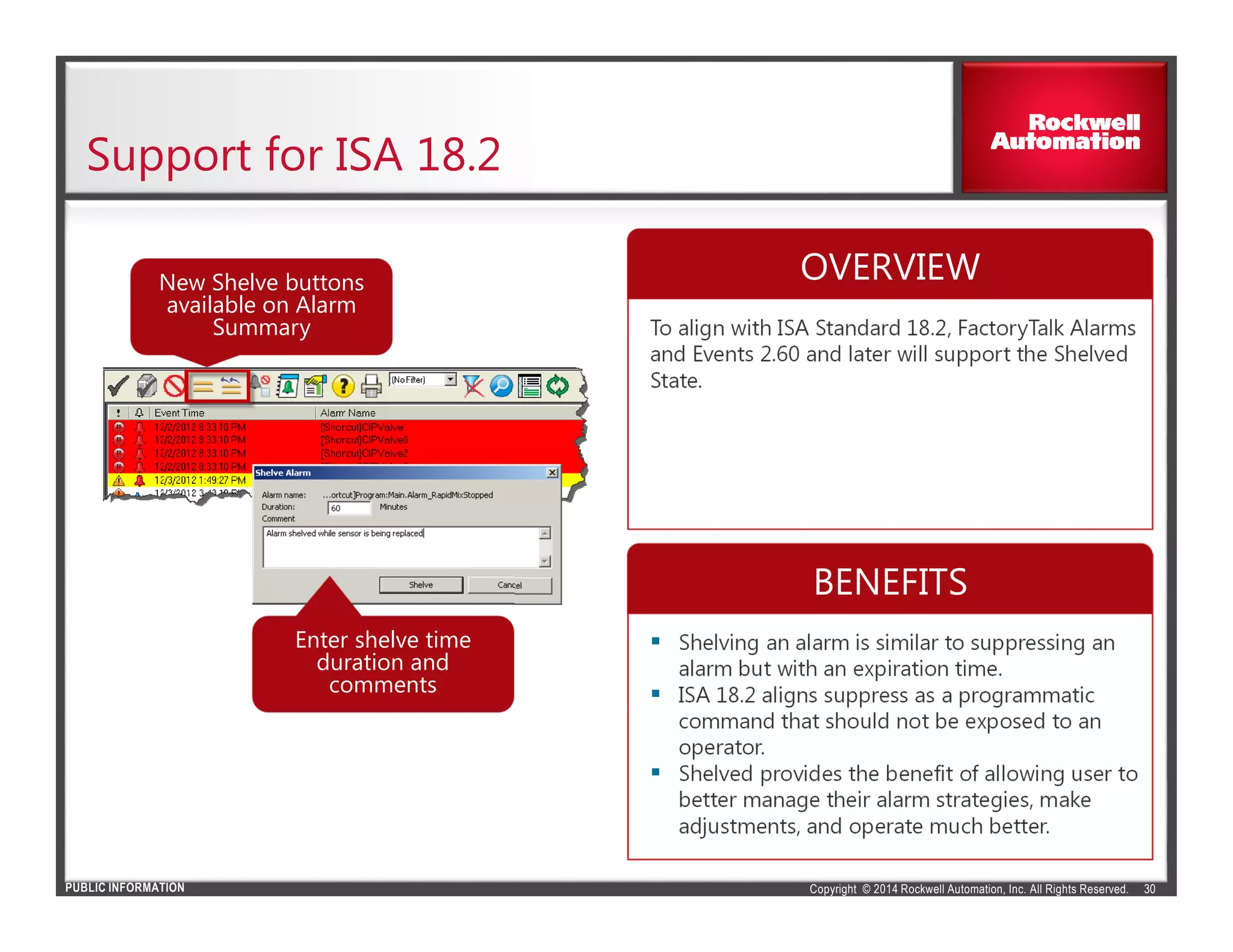

Support for ISA 18.2
30
To align with ISA Standard 18.2, FactoryTalk Alarms
and Events 2.60 and later will support the Shelved
State.
Shelving an alarm is similar to suppressing an
alarm but with an expiration time.
ISA 18.2 aligns suppress as a programmatic
command that should not be exposed to an
operator.
Shelved provides the benefit of allowing user to
better manage their alarm strategies, make
adjustments, and operate much better.
New Shelve buttons
available on Alarm
Summary
Enter shelve time
duration and
comments
OVERVIEW
BENEFITS

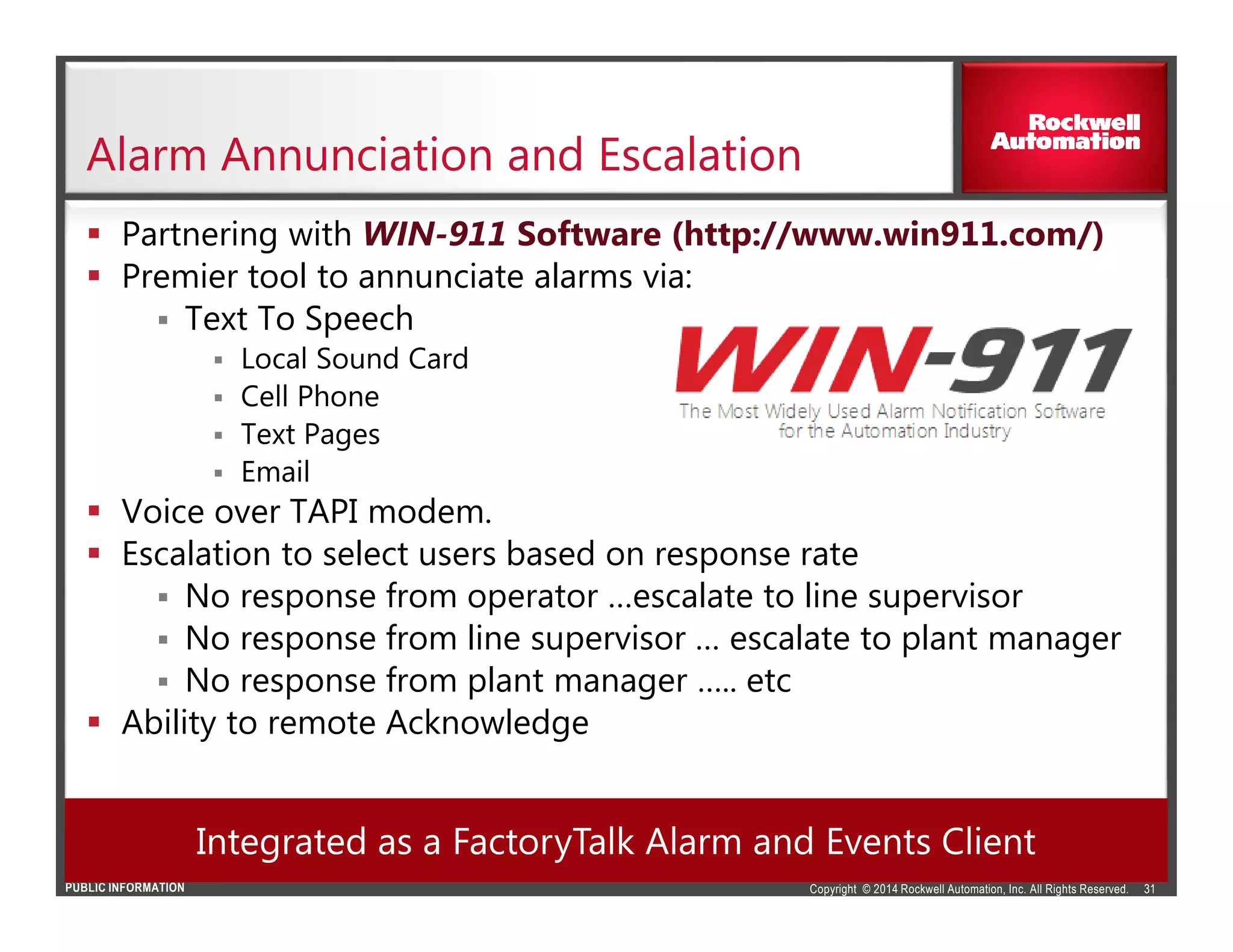

Alarm Annunciation and Escalation
31
Partnering with WIN-911 Software (http://www.win911.com/)
Premier tool to annunciate alarms via:
Text To Speech
Local Sound Card
Cell Phone
Text Pages
Email
Voice over TAPI modem.
Escalation to select users based on response rate
No response from operator …escalate to line supervisor
No response from line supervisor … escalate to plant manager
No response from plant manager ….. etc
Ability to remote Acknowledge
Integrated as a FactoryTalk Alarm and Events Client

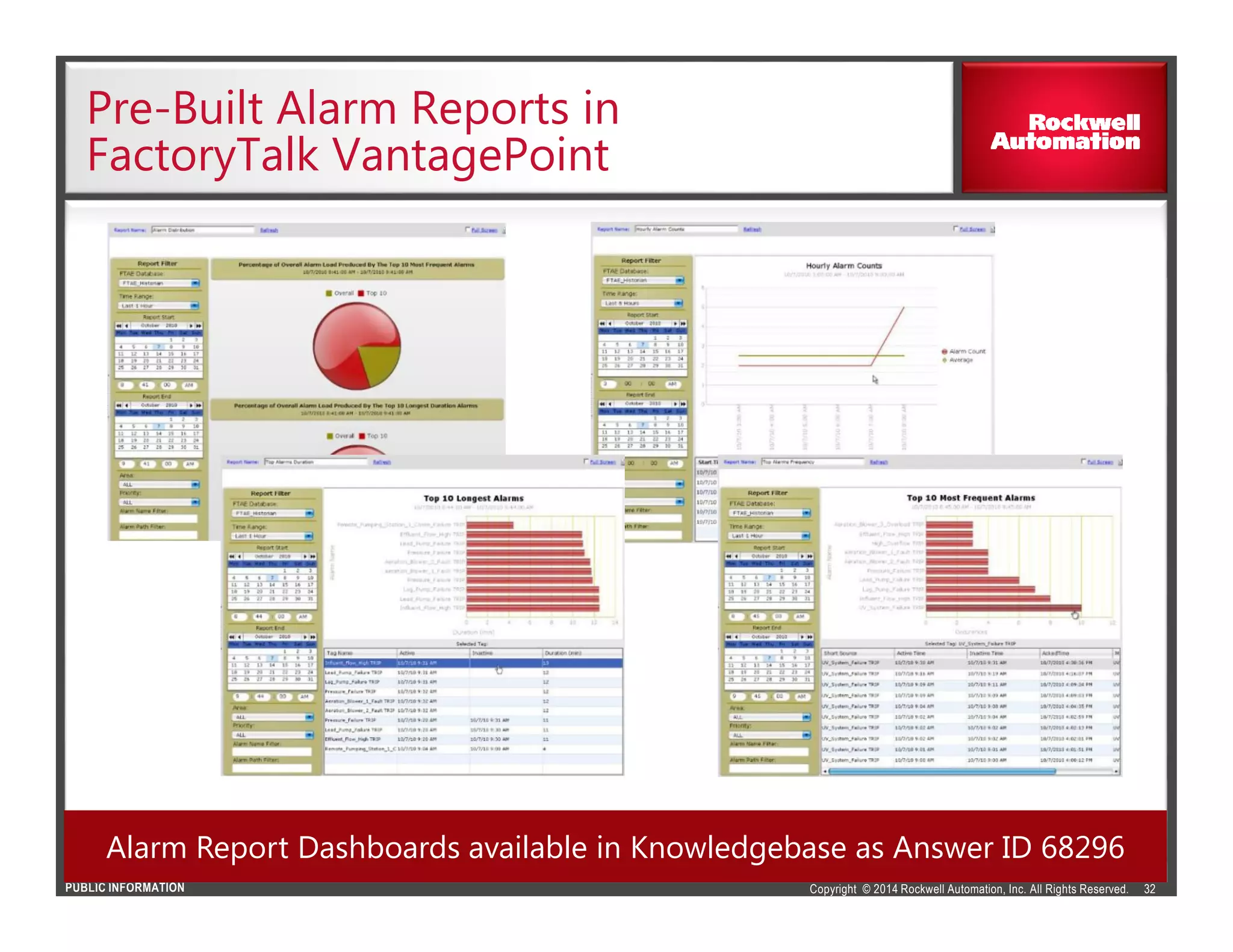

Pre-Built Alarm Reports in
FactoryTalk VantagePoint
32
Alarm Report Dashboards available in Knowledgebase as Answer ID 68296

Product Overview
StudioStudio
ServerServer

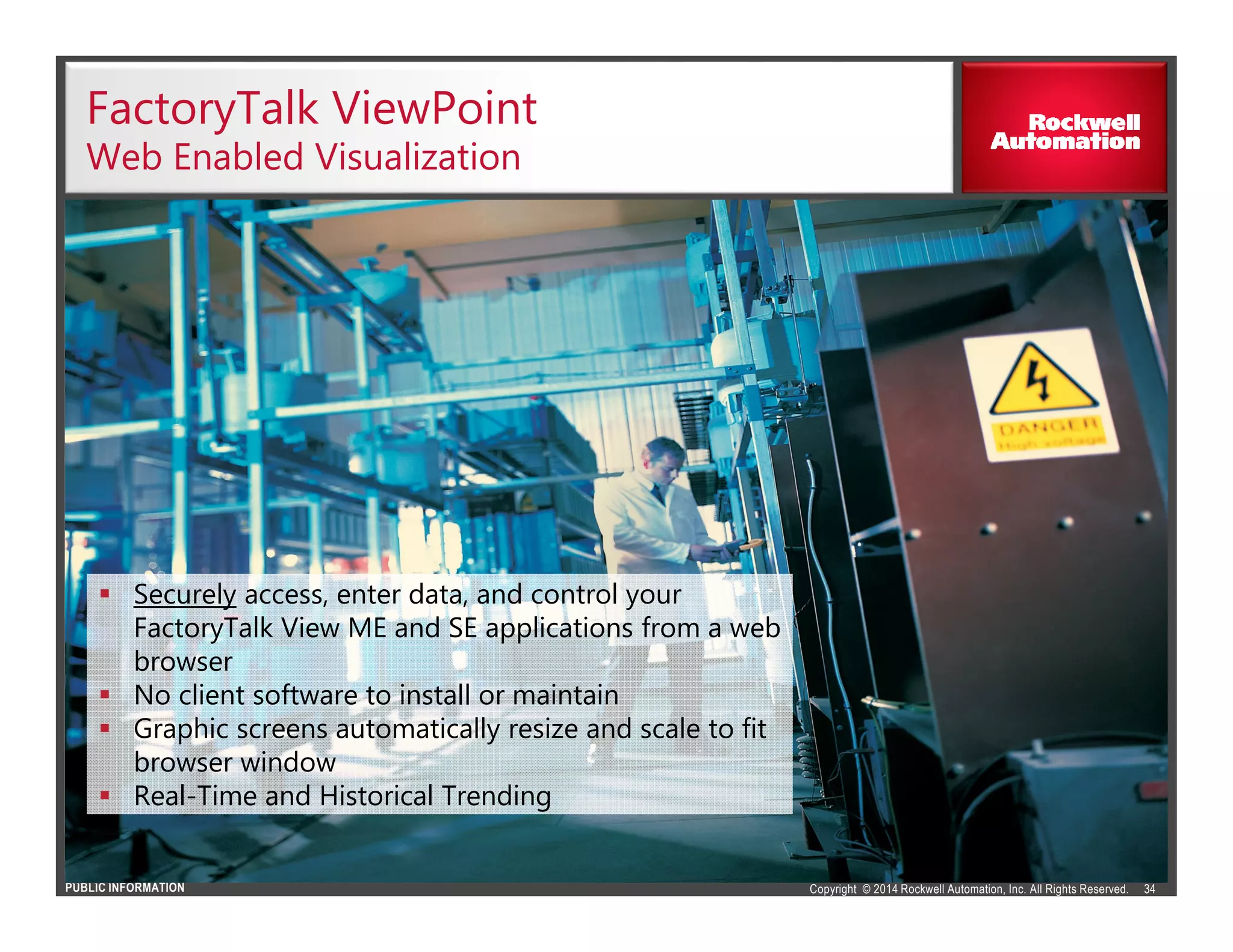

Web Enabled Visualization
34
Securely access, enter data, and control your
FactoryTalk View ME and SE applications from a web
browser
No client software to install or maintain
Graphic screens automatically resize and scale to fit
browser window
Real-Time and Historical Trending

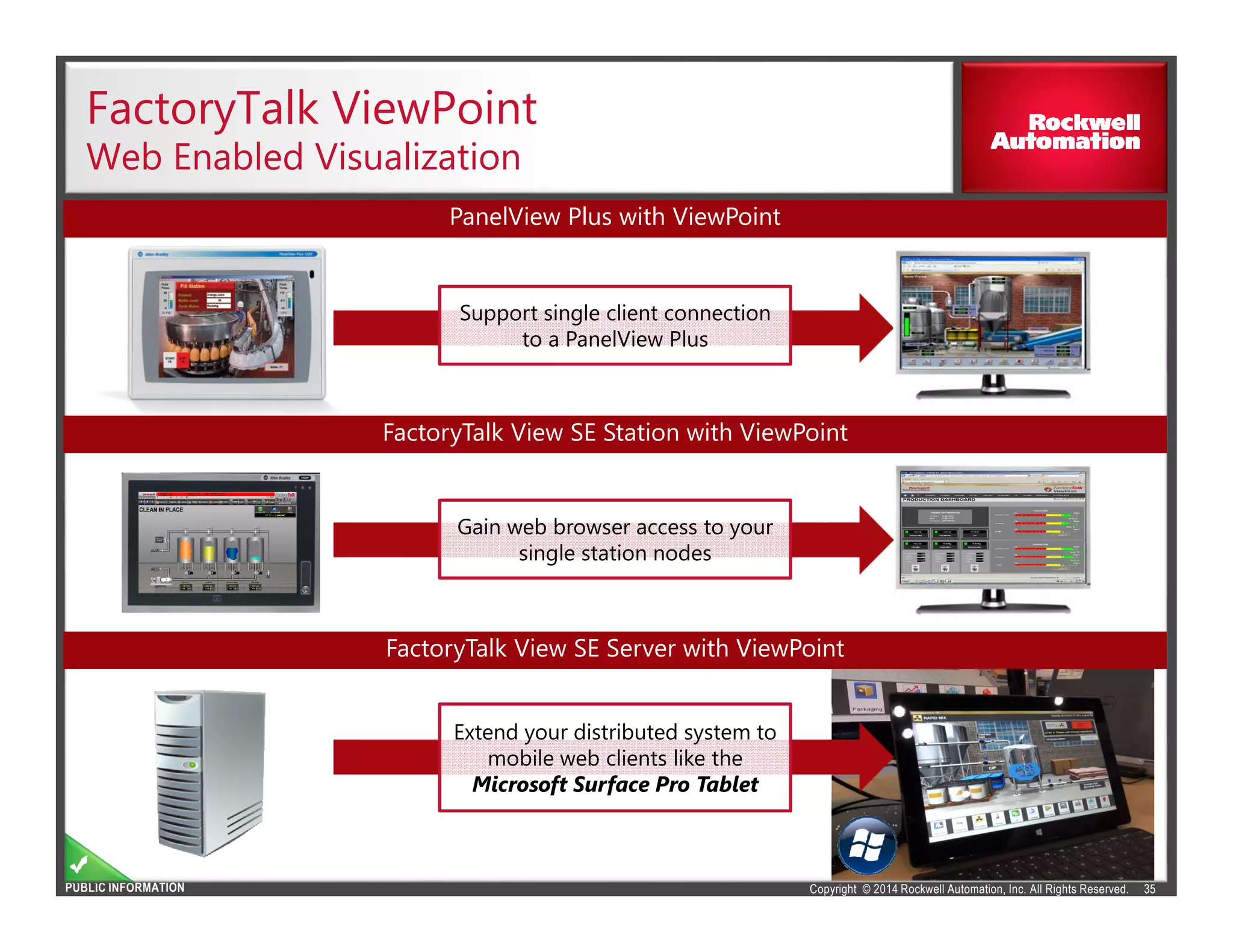

Web Enabled Visualization
35
PanelView Plus with ViewPoint
Support single client connection
to a PanelView Plus
FactoryTalk View SE Station with ViewPoint
FactoryTalk View SE Server with ViewPoint
Gain web browser access to your
single station nodes
Extend your distributed system to
mobile web clients like the
Microsoft Surface Pro Tablet

Where to Find Additional Information
• FactoryTalk ViewPoint web site
http://www.rockwellautomation.com/rockwellsoftware/products/factorytalk-viewpoint.page?
• Customer Stories
• Product Demo /
Videos
• Product Profiles
• Ordering Information
• System Requirements

Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.
www.rockwellautomation.com
Follow ROKAutomation on Facebook & Twitter.
Connect with us on LinkedIn.
Rev 5058-CO900F
PUBLIC INFORMATION
Thank You

FactoryTalk View SE - Building a Better View

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (15)

Similar to FactoryTalk View SE - Building a Better View

Similar to FactoryTalk View SE - Building a Better View (20)

Recently uploaded

Recently uploaded (20)

FactoryTalk View SE - Building a Better View
