1. N. de Hilster
E. Gaikhorst
HSB Workshop Vessel Geometry and Calibrations
15 January 2014
The Inverted Heading Calibration:
a field case
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
1/18

2. Project Outline
Create a copy of the reference
marble on the aft weather deck.
Required heading accuracy: 3'
(0.05°)
While being afloat!
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
2/18

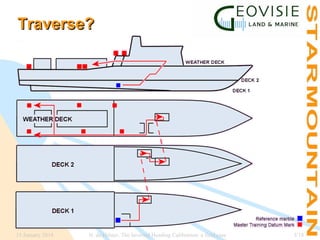

3. Traverse?
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
3/18

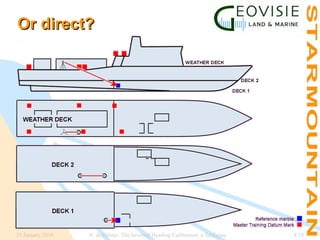

4. Or direct?
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
4/18

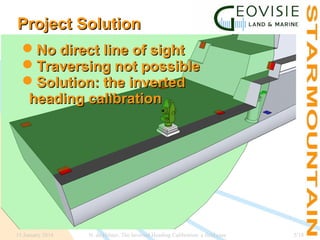

5. Project Solution
No direct line of sight
Traversing not possible
Solution: the inverted
heading calibration
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
5/18

6. Implementation
dFOG (Geovisie)
autocollimation set (Starmountain)
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
6/18

7. Autocollimation Set
Tilting base for T2
Groove for FOG pins
Alignment accuracy: 0.002°
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
7/18

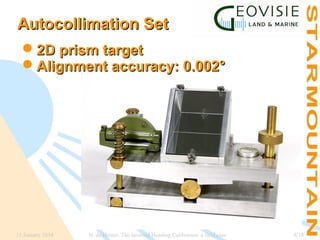

8. Autocollimation Set
2D prism target
Alignment accuracy: 0.002°
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
8/18

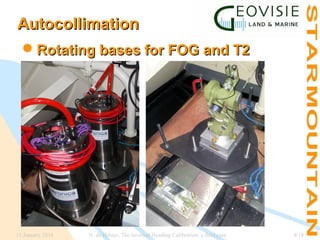

9. Autocollimation
Rotating bases for FOG and T2
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
9/18

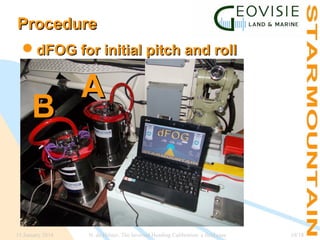

10. Procedure
dFOG for initial pitch and roll
B
15 January 2014
A
N. de Hilster, The Inverted Heading Calibration: a field case
10/18

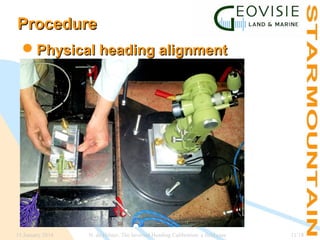

11. Procedure
Physical heading alignment
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
11/18

12. Procedure
dFOG for final pitch and roll
B
15 January 2014
A
N. de Hilster, The Inverted Heading Calibration: a field case
12/18

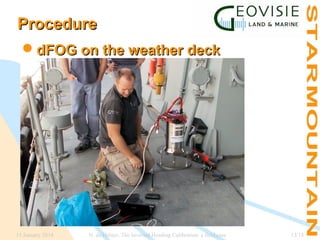

13. Procedure
dFOG on the weather deck
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
13/18

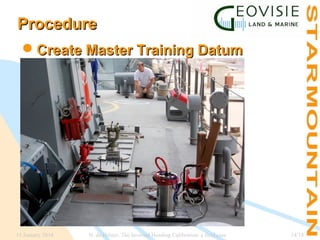

14. Procedure
Create Master Training Datum
Markers
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
14/18

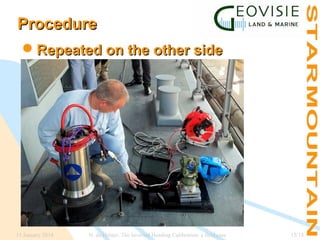

15. Procedure
Repeated on the other side
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
15/18

16. Result
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
16/18

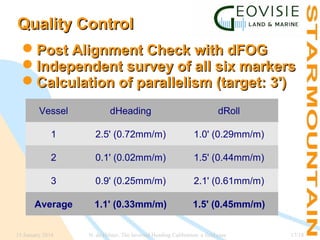

17. Quality Control
Post Alignment Check with dFOG
Independent survey of all six markers
Calculation of parallelism (target: 3')
Vessel
dHeading
dRoll
1
2.5' (0.72mm/m)
1.0' (0.29mm/m)
2
0.1' (0.02mm/m)
1.5' (0.44mm/m)
3
0.9' (0.25mm/m)
2.1' (0.61mm/m)
Average
1.1' (0.33mm/m)
1.5' (0.45mm/m)
15 January 2014
N. de Hilster, The Inverted Heading Calibration: a field case
17/18

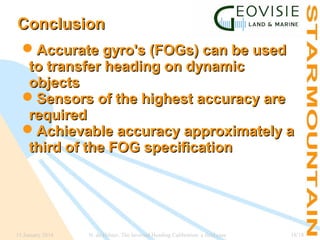

18. Conclusion
Accurate gyro's (FOGs) can be used
to transfer heading on dynamic
objects
Sensors of the highest accuracy are
required
Achievable accuracy approximately a
third of the FOG specification
