1. Lecture 2: Names, Bindings, and Scopes
(Sebesta Chapter 5)
TI1220 2012-2013
Concepts of Programming Languages
Eelco Visser / TU Delft

2. Outline
Messages from the lab
Names
Variables
Binding & binding time
Scope

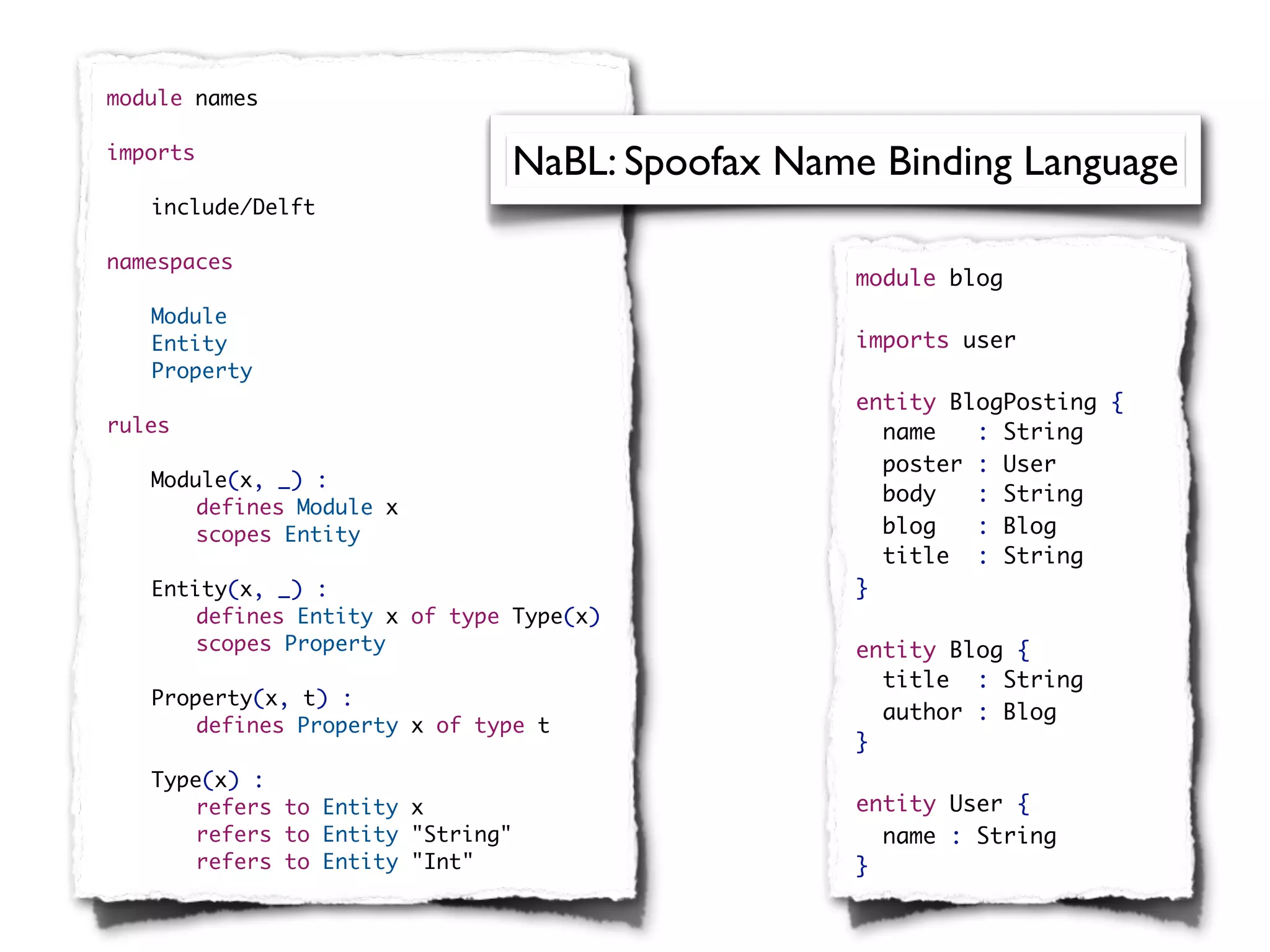

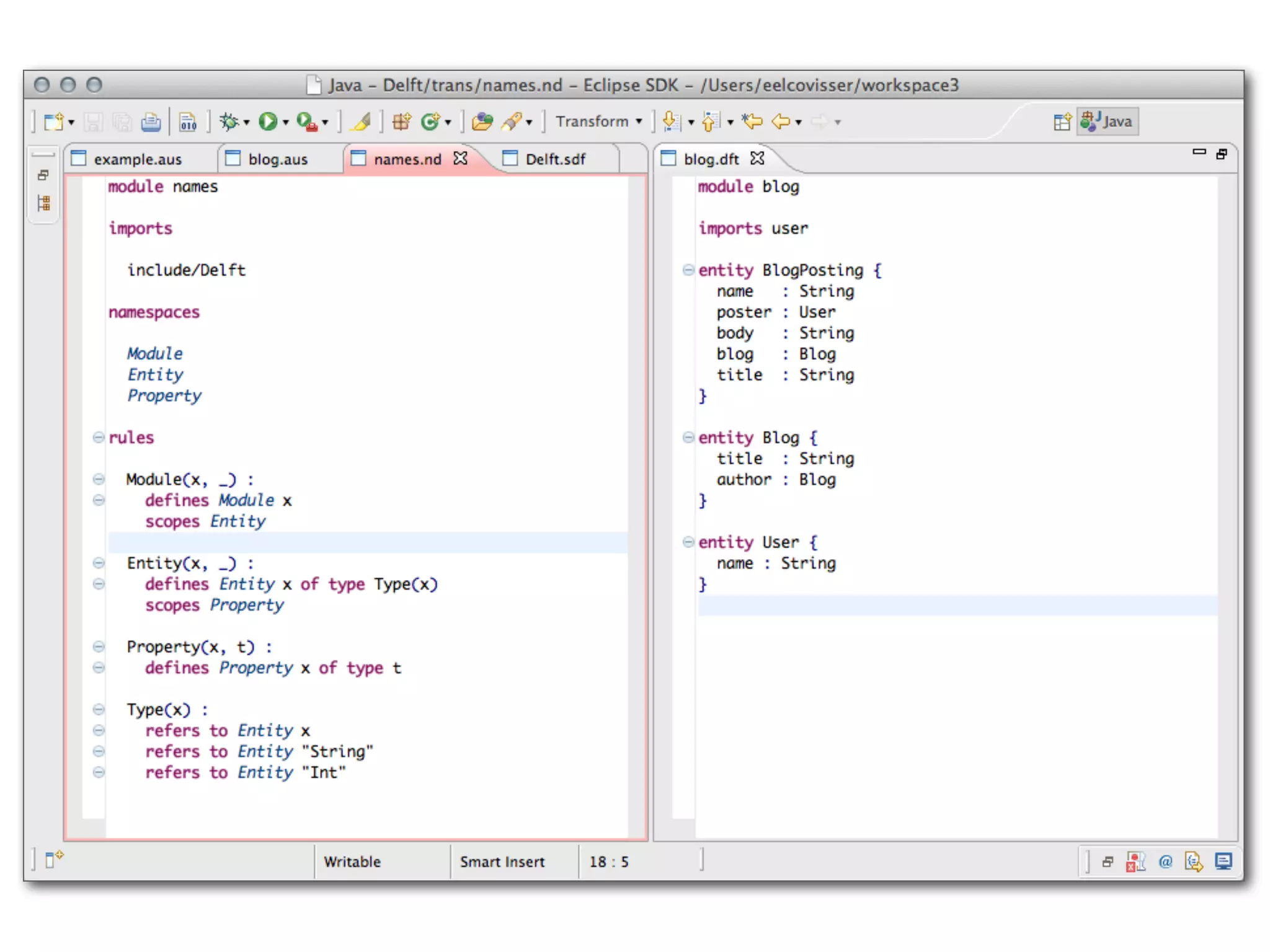

Demo: Spoofax name binding language

3. Messages from the Lab

4. “There were not a lot of students at the lab. This of
course is ok for the first week, but students should
be told that they stand no chance of passing
the graded assignments without the tutorials, or the
exam without the graded assignments.”

5. “There are too many
rooms for the number
of students. Could you
mention that they
should start filling the
rooms from the top, one
by one and then move
down as they fill up.
Room 0.010 is quite
unhandy for labs because
of the cubicles.”

6. “WebLab of course does not work
properly in Internet Explorer, we
should tell students that.”

7. Email addresses
e.visser@tudelft.nl: for personal questions about
grades and such
ti1220.ewi@gmail.com: for general questions about
the lab
ti1220.ewi+lab@gmail.com: for questions about the
lab (addresses all student assistants)
Policies
Our first response: did you ask this question at the
lab?
We’re closed in the weekend (in principle)
Please report problems with WebLab immediately

8. Names (Identifiers)

9. Name Forms
[a-zA-Z][a-zA-Z0-9_]* -> ID %% typical
"$" [a-zA-Z][a-zA-Z0-9_]* -> PhpID
[$@%][a-zA-Z][a-zA-Z0-9_]* -> PerlID
"@" [a-zA-Z][a-zA-Z0-9_]* -> RubyInstanceVar
"@@" [a-zA-Z][a-zA-Z0-9_]* -> RubyClassVar

10. Case Sensitive or Case Insensitive?
foobar == FooBar == FOOBAR ?
C-based languages: case sensitive
C convention: variable names only lower case letters
Pascal: case insensitive
Java convention: CamelCase instead of under_scores

11. Special Words
keyword: identifier with special type
meaning in certain contexts Integer Apple
Integer = 4
name Integer Real
package example; Real Integer
class User {
private String name;
public String get_name {
Fortran
return name;
}
} Java
reserved word: special word
that cannot be used as a name

12. Variables

13. A program variable is an abstraction of a
computer memory cell or collection of cells
machine language: absolute
numeric address of data
assembly language:
names for data

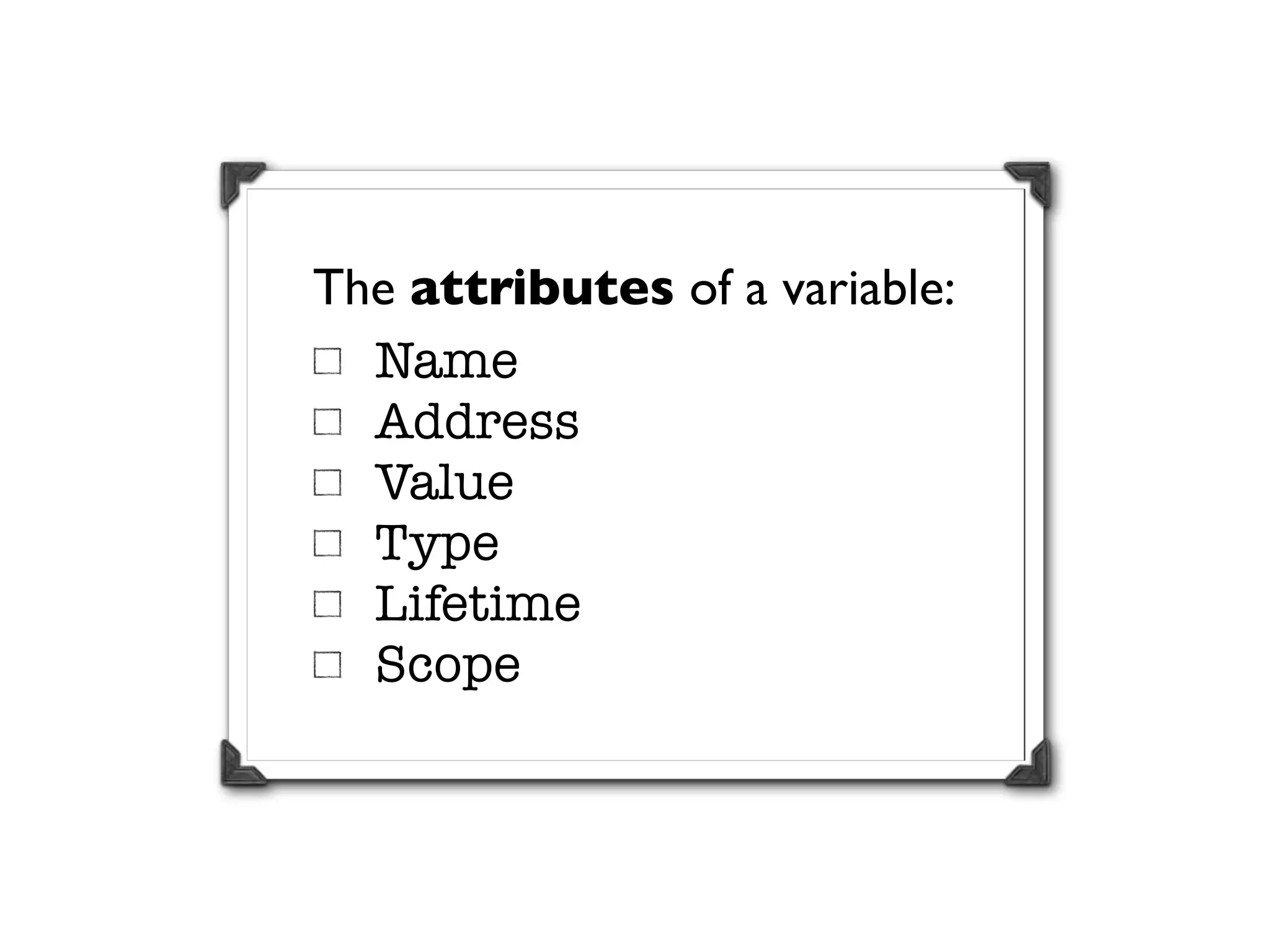

14. The attributes of a variable:
Name
Address
Value
Type
Lifetime
Scope

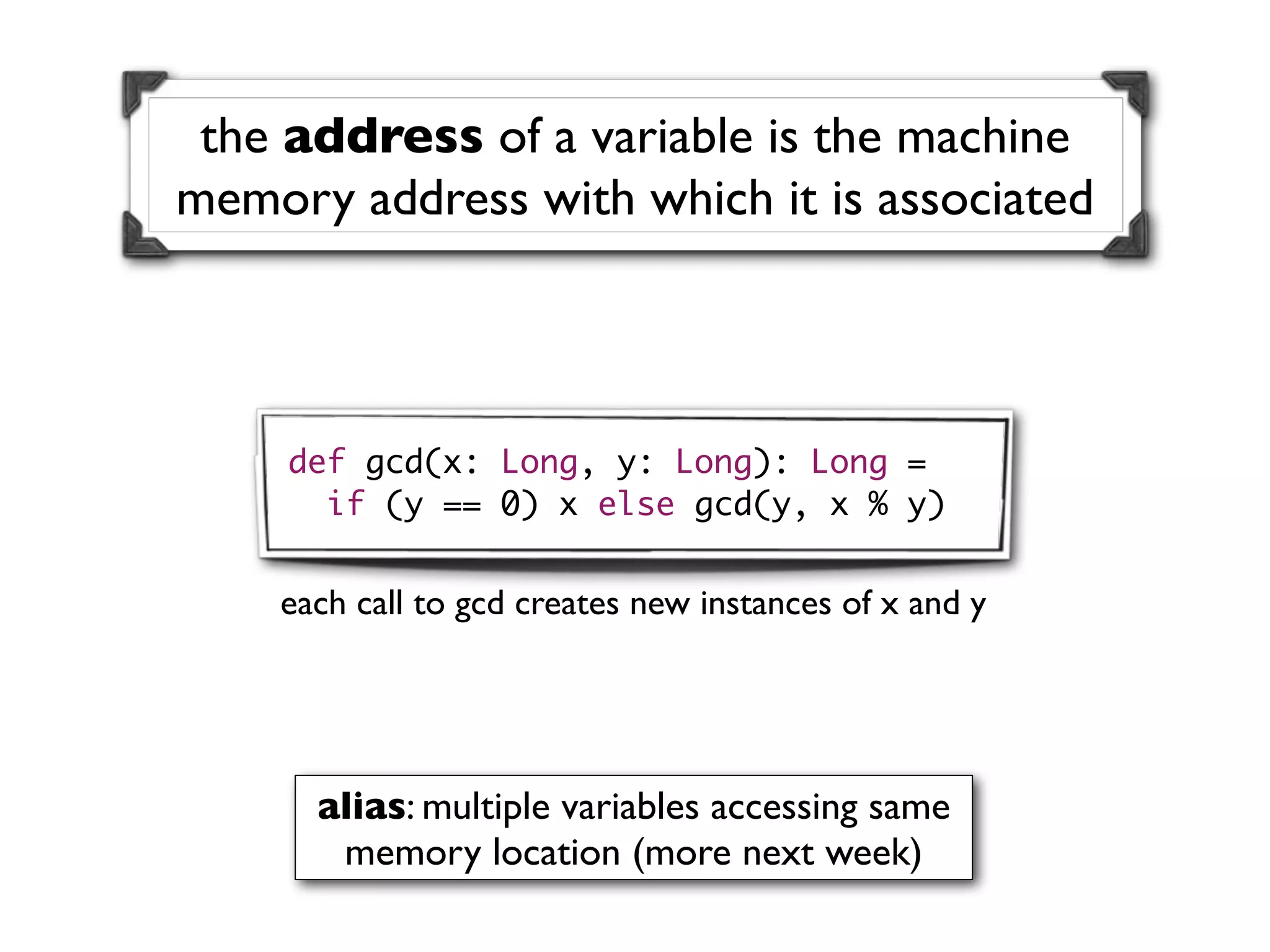

15. the address of a variable is the machine
memory address with which it is associated
def gcd(x: Long, y: Long): Long =
if (y == 0) x else gcd(y, x % y)
each call to gcd creates new instances of x and y
alias: multiple variables accessing same
memory location (more next week)

16. Type & Value
the type of a variable determines the range of
values the variable can store and the set of
operations that are defined for values of the type
the value of a variable is the contents of the
memory cell or cells associated with the variable

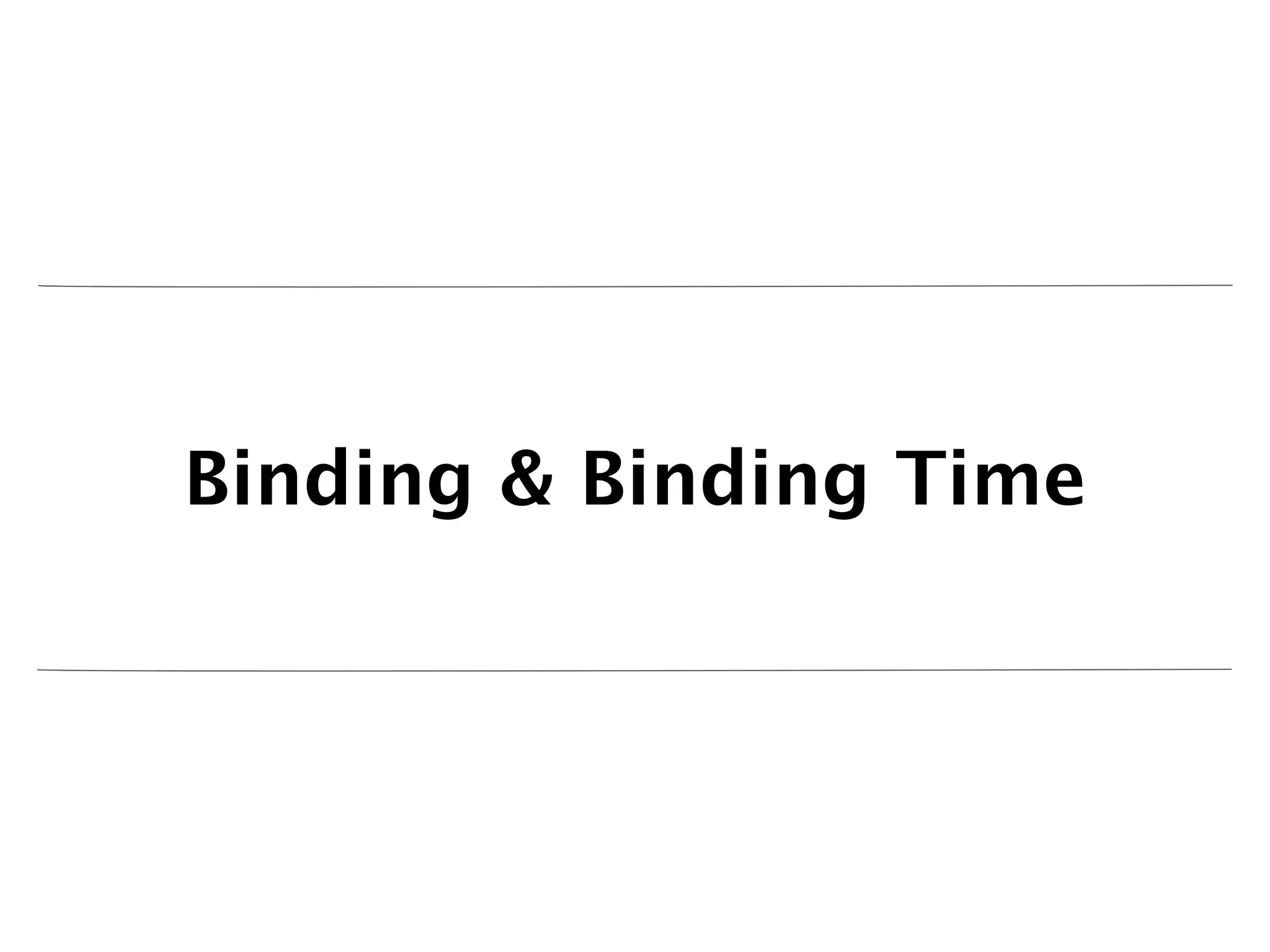

17. Binding & Binding Time

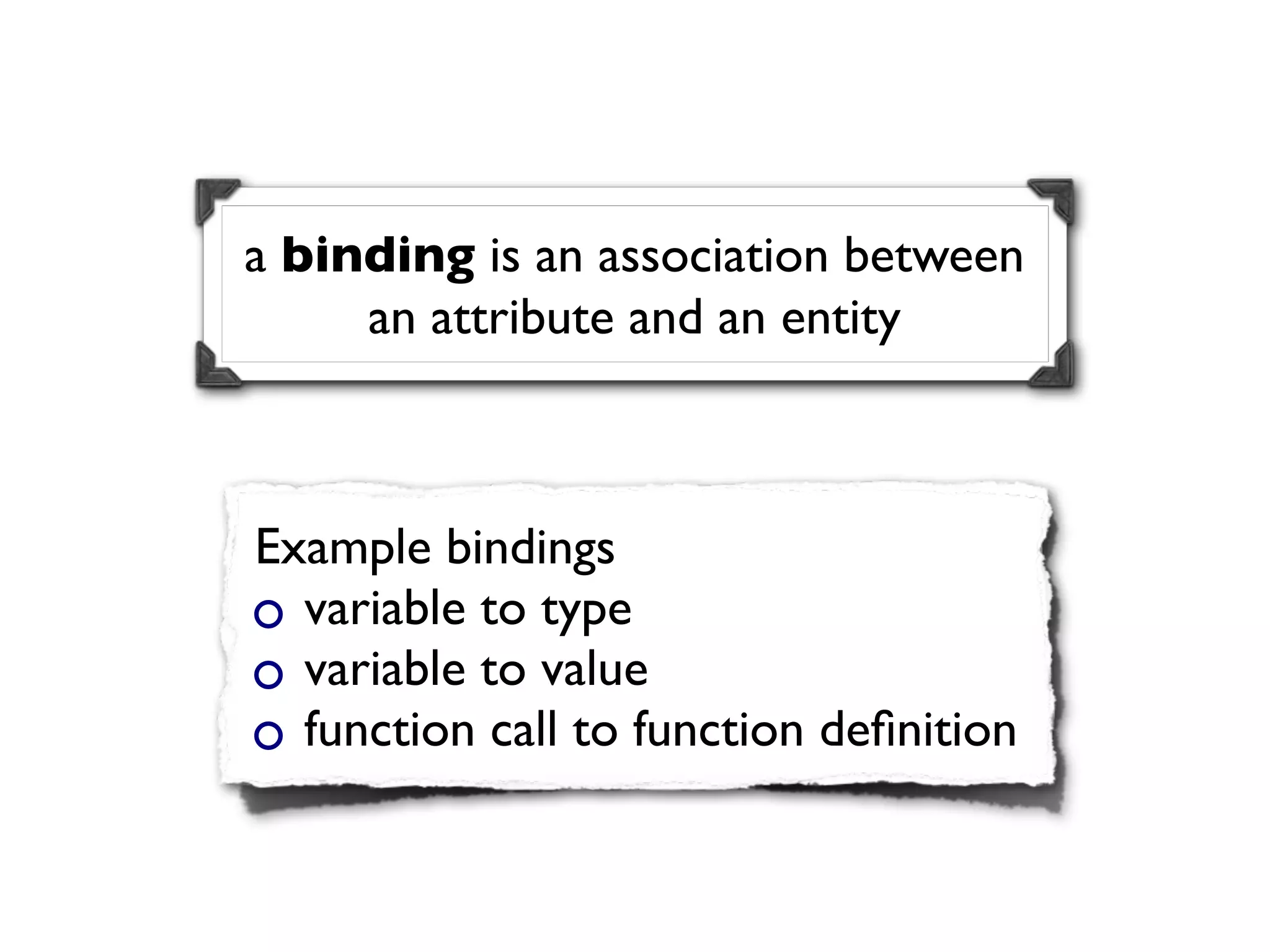

18. a binding is an association between
an attribute and an entity
Example bindings
variable to type
variable to value
function call to function definition

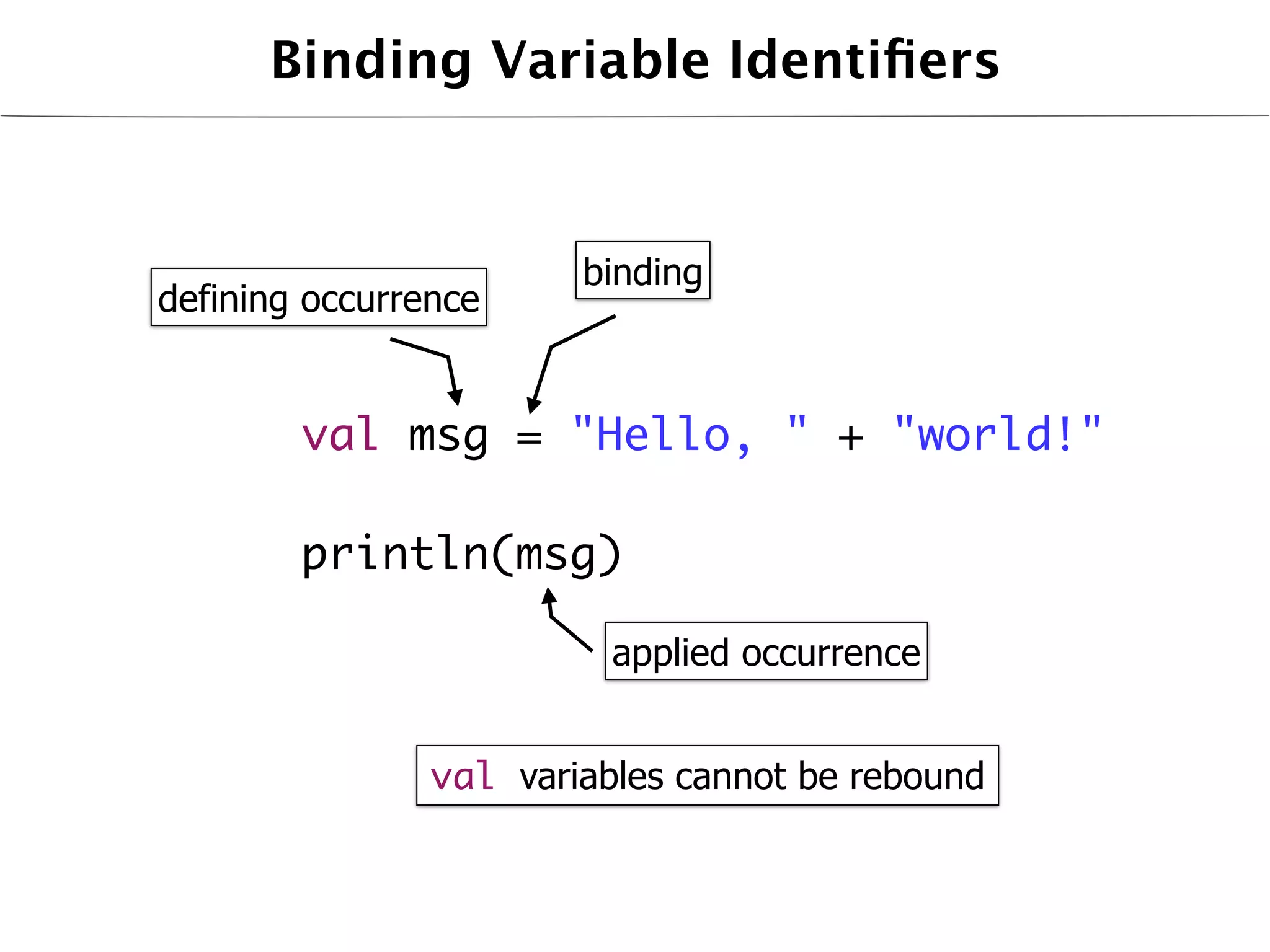

19. Binding Variable Identifiers
binding
defining occurrence
val msg = "Hello, " + "world!"
println(msg)
applied occurrence
val variables cannot be rebound

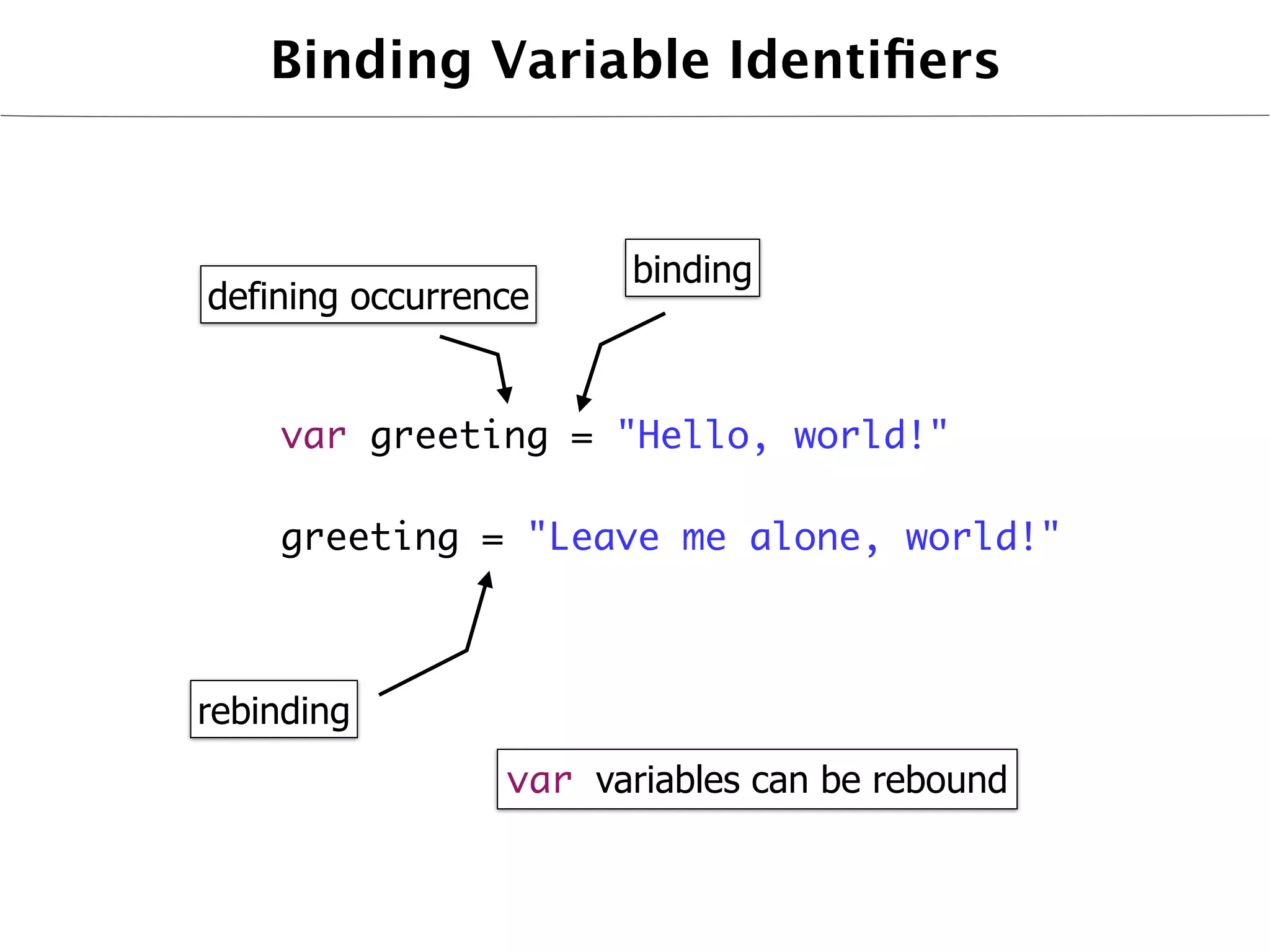

20. Binding Variable Identifiers
binding
defining occurrence
var greeting = "Hello, world!"
greeting = "Leave me alone, world!"
rebinding
var variables can be rebound

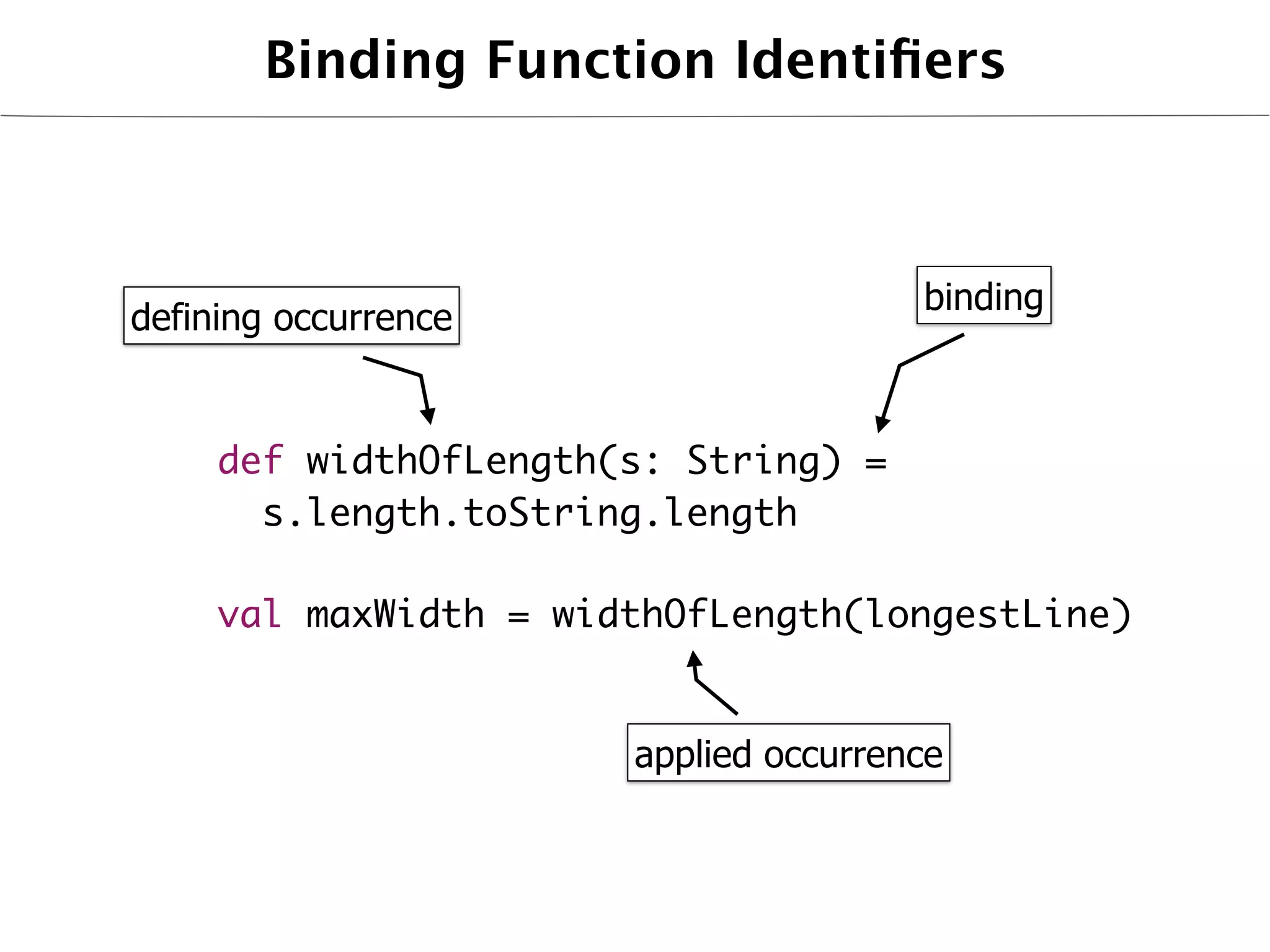

21. Binding Function Identifiers
binding
defining occurrence
def widthOfLength(s: String) =
s.length.toString.length
val maxWidth = widthOfLength(longestLine)
applied occurrence

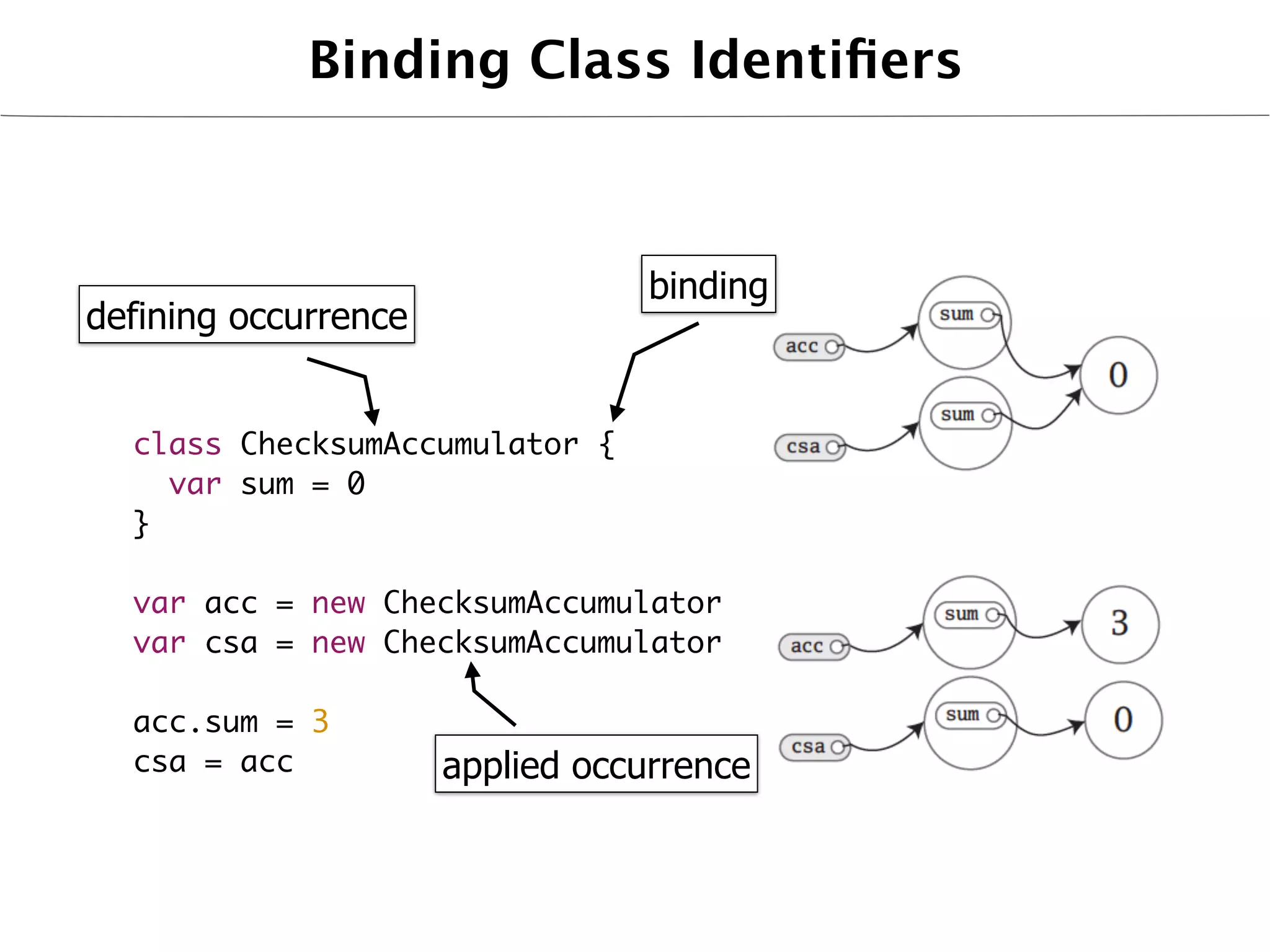

22. Binding Class Identifiers
binding
defining occurrence
class ChecksumAccumulator {
var sum = 0
}
var acc = new ChecksumAccumulator
var csa = new ChecksumAccumulator
acc.sum = 3
csa = acc applied occurrence

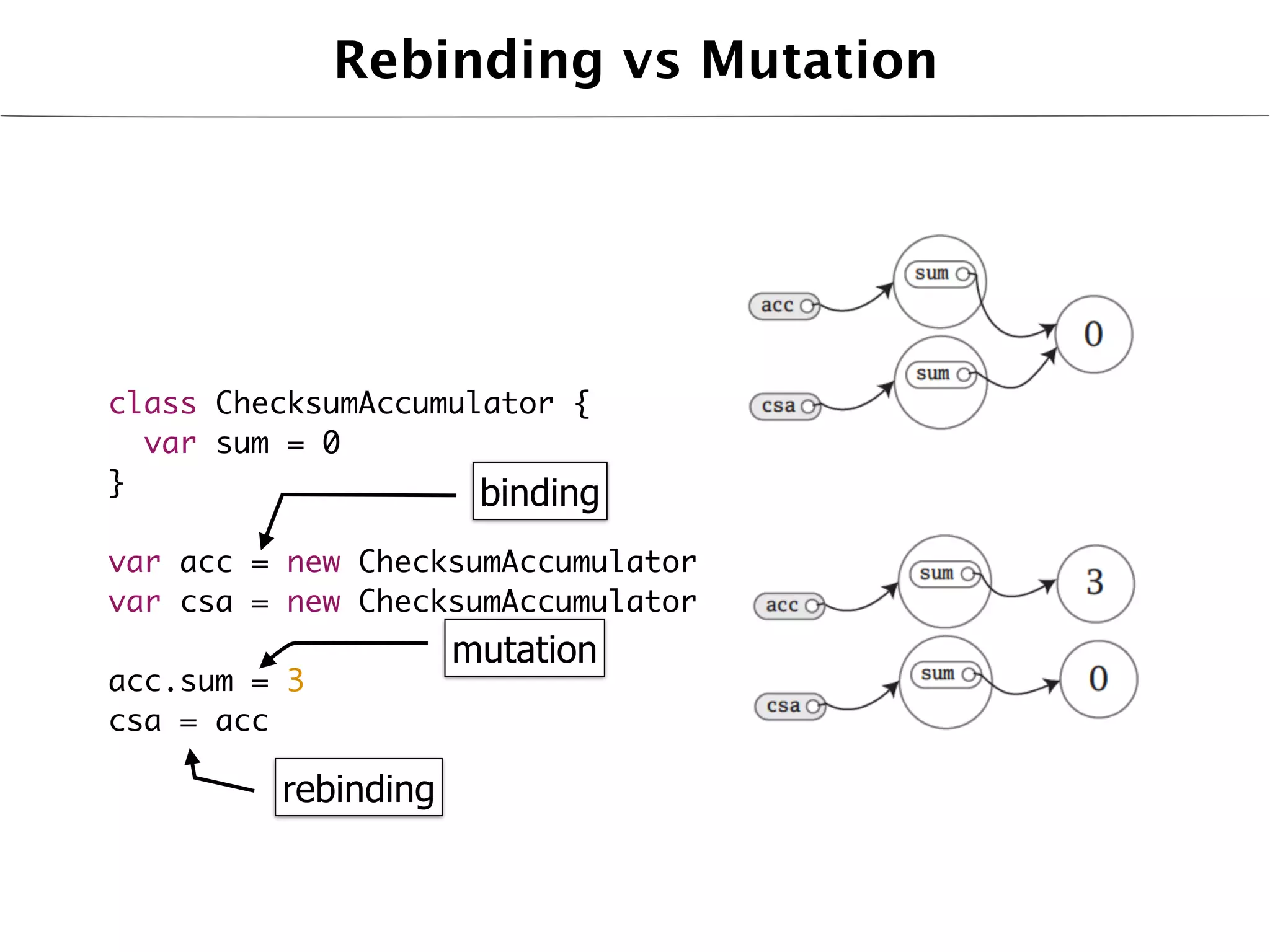

23. Rebinding vs Mutation
class ChecksumAccumulator {
var sum = 0
} binding
var acc = new ChecksumAccumulator
var csa = new ChecksumAccumulator
mutation
acc.sum = 3
csa = acc
rebinding

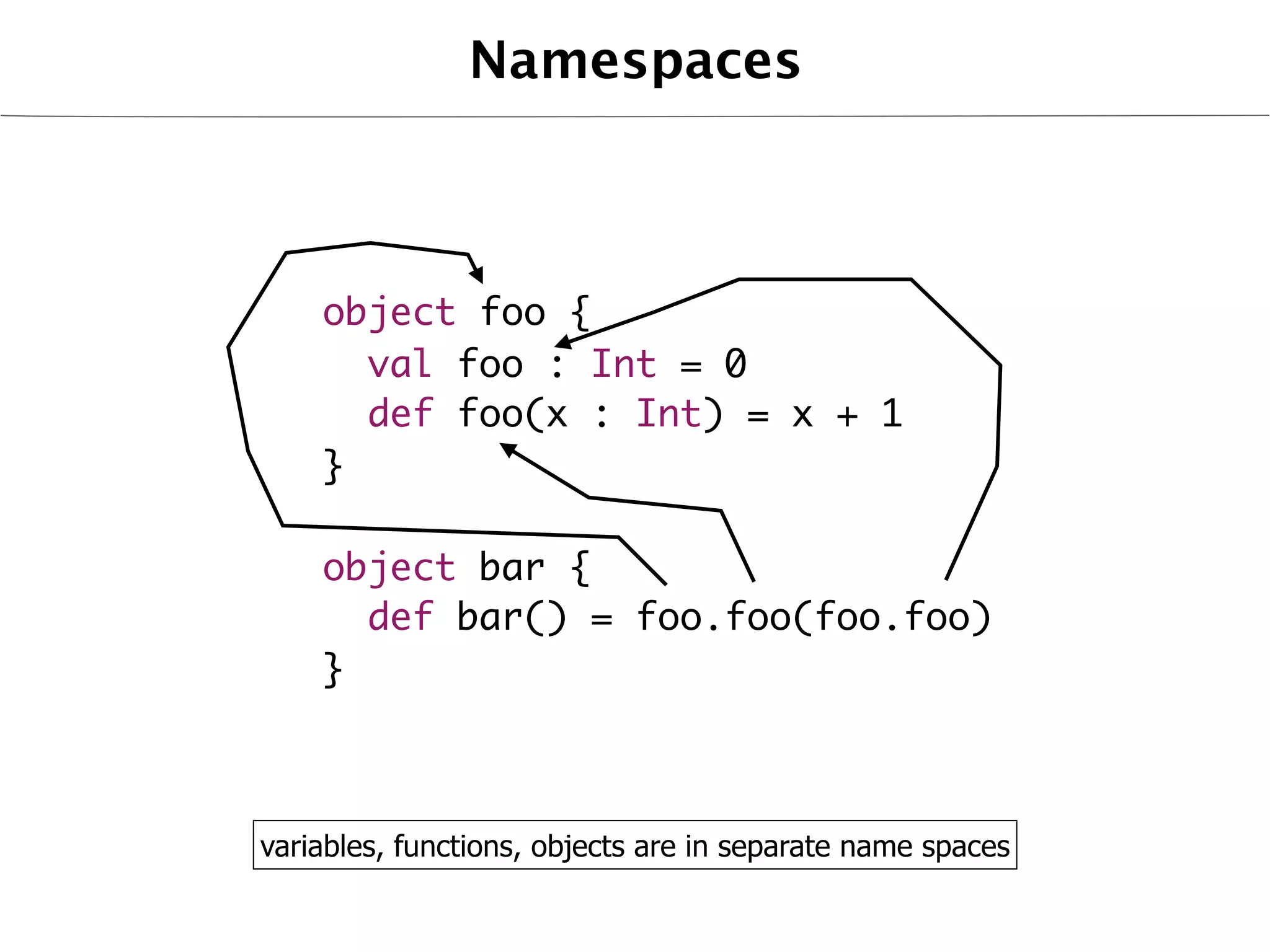

24. Namespaces
object foo {
val foo : Int = 0
def foo(x : Int) = x + 1
}
object bar {
def bar() = foo.foo(foo.foo)
}
variables, functions, objects are in separate name spaces

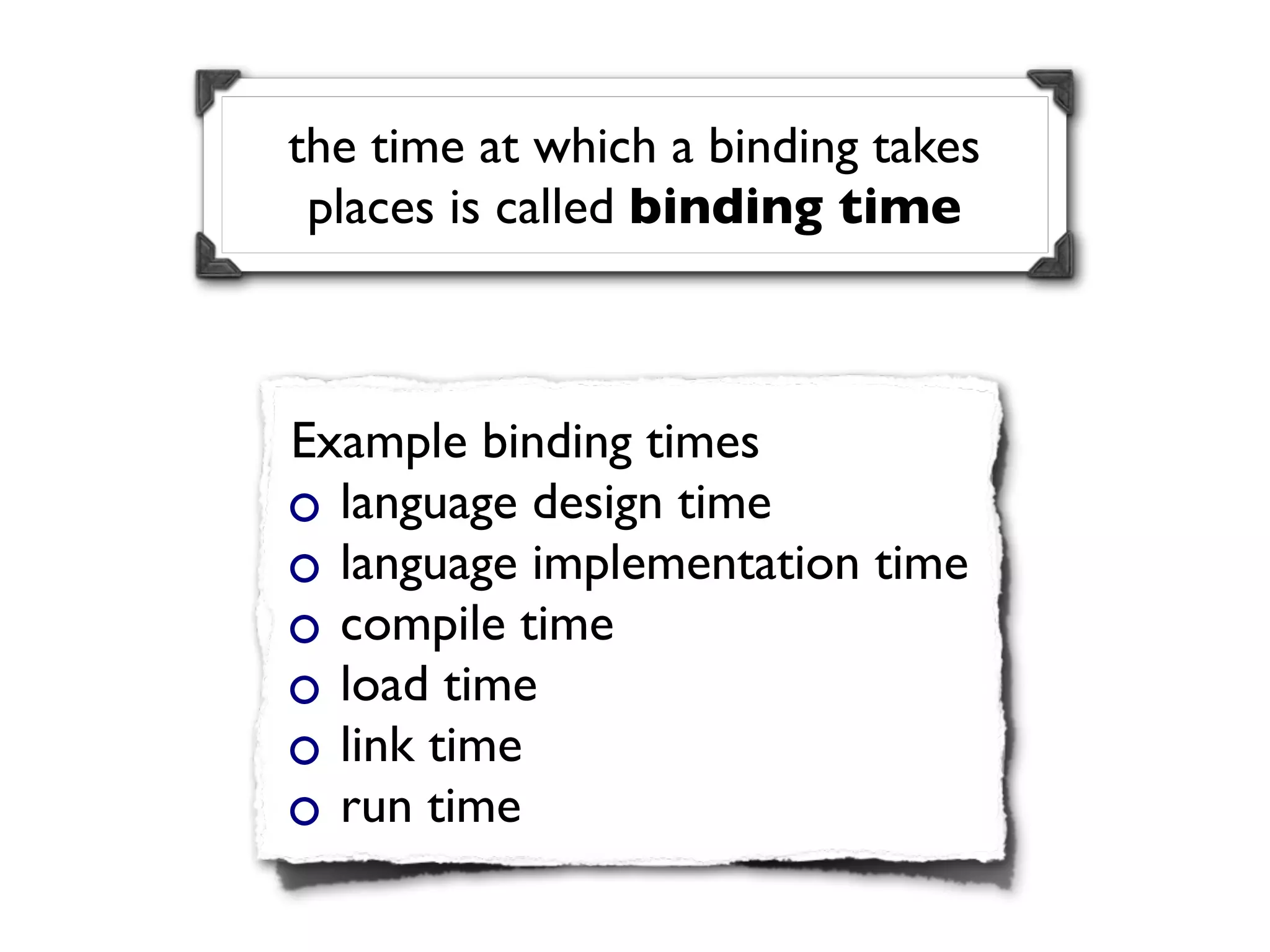

25. the time at which a binding takes
places is called binding time
Example binding times
language design time
language implementation time
compile time
load time
link time
run time

26. Type int in C
bound to range of possible values
(e.g. 32 bit words)
at language implementation time
Variable in Java
bound to data type
at compile time
Variable in JavaScript
bound to data type
at run time

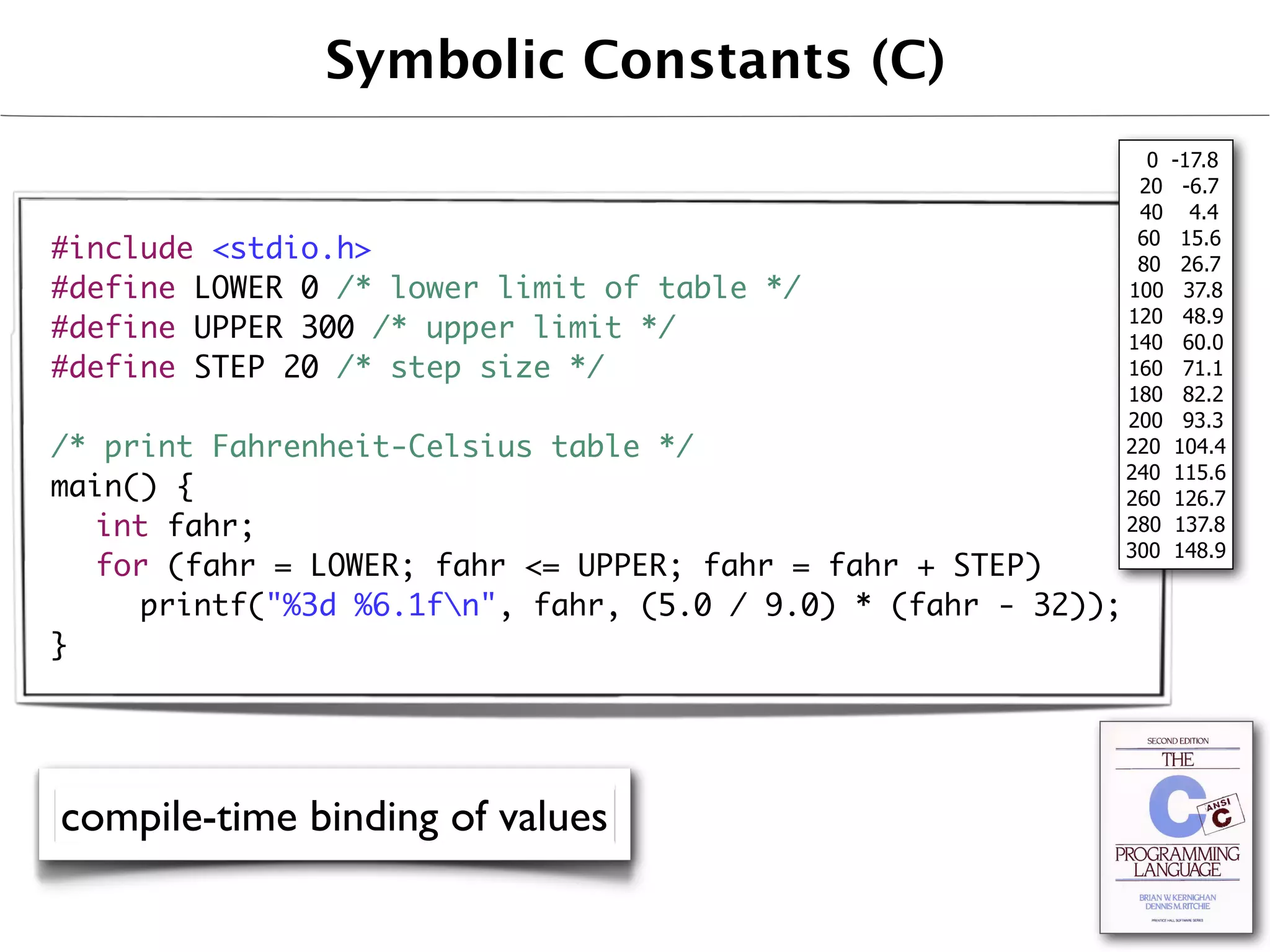

27. Symbolic Constants (C)
0 -17.8
20 -6.7
40 4.4
60 15.6
#include <stdio.h> 80 26.7
#define LOWER 0 /* lower limit of table */ 100 37.8
120 48.9
#define UPPER 300 /* upper limit */ 140 60.0
#define STEP 20 /* step size */ 160 71.1
180 82.2
200 93.3
/* print Fahrenheit-Celsius table */ 220 104.4
240 115.6
main() { 260 126.7
int fahr; 280 137.8
300 148.9
for (fahr = LOWER; fahr <= UPPER; fahr = fahr + STEP)
printf("%3d %6.1fn", fahr, (5.0 / 9.0) * (fahr - 32));
}
compile-time binding of values

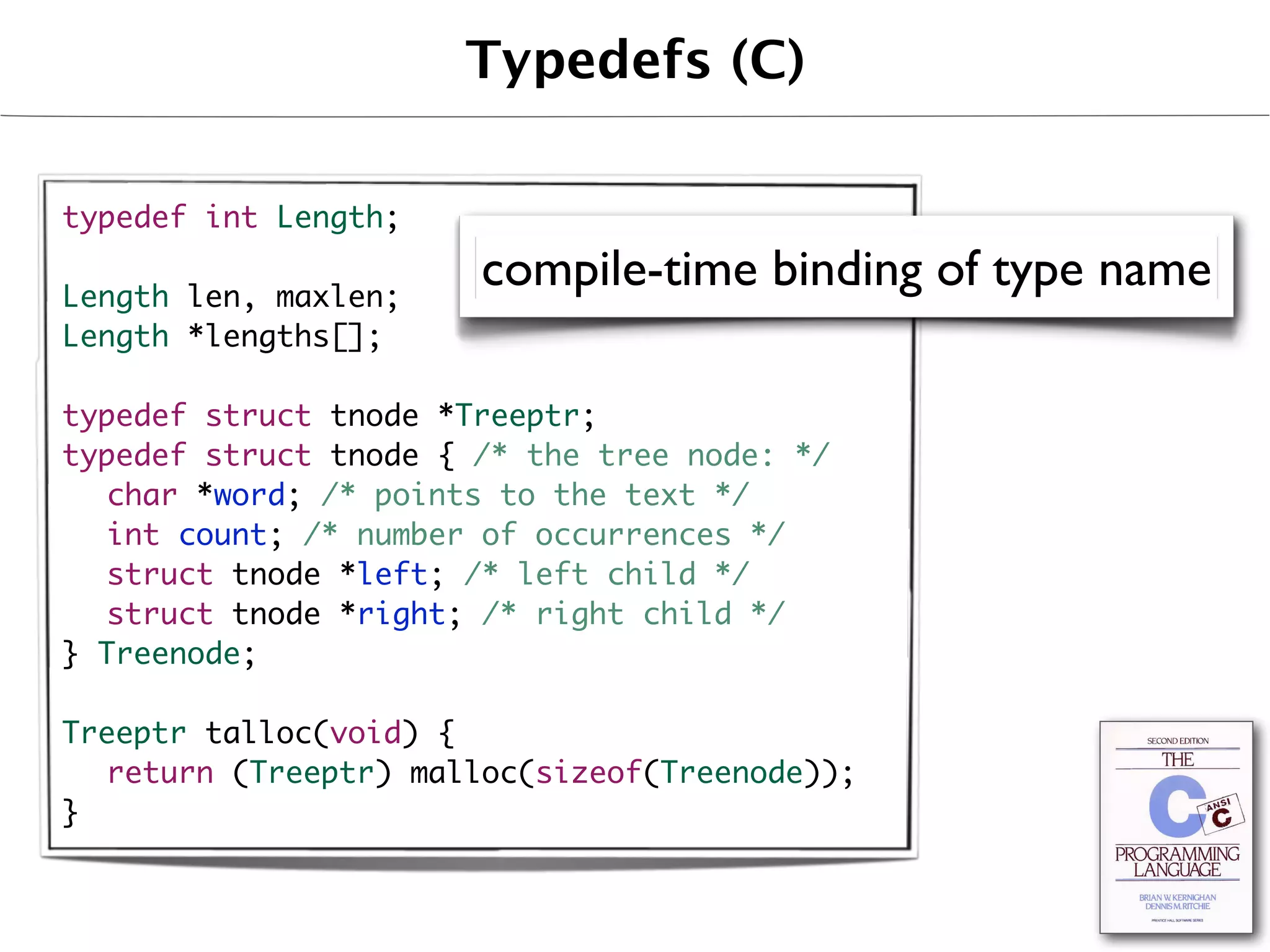

28. Typedefs (C)
typedef int Length;
Length len, maxlen;
compile-time binding of type name
Length *lengths[];
typedef struct tnode *Treeptr;
typedef struct tnode { /* the tree node: */
char *word; /* points to the text */
int count; /* number of occurrences */
struct tnode *left; /* left child */
struct tnode *right; /* right child */
} Treenode;
Treeptr talloc(void) {
return (Treeptr) malloc(sizeof(Treenode));
}

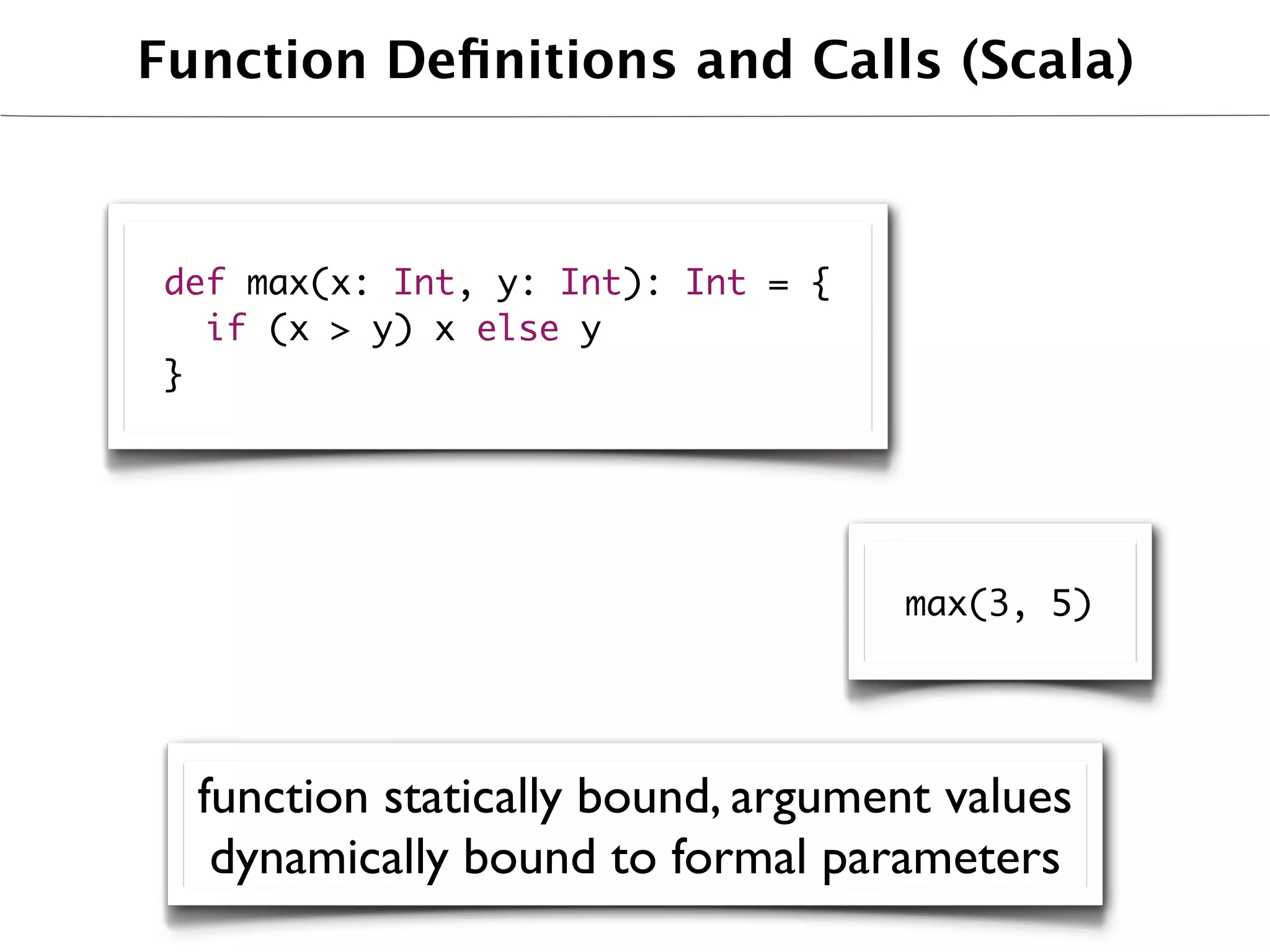

29. Function Definitions and Calls (Scala)
def max(x: Int, y: Int): Int = {
if (x > y) x else y
}
max(3, 5)
function statically bound, argument values
dynamically bound to formal parameters

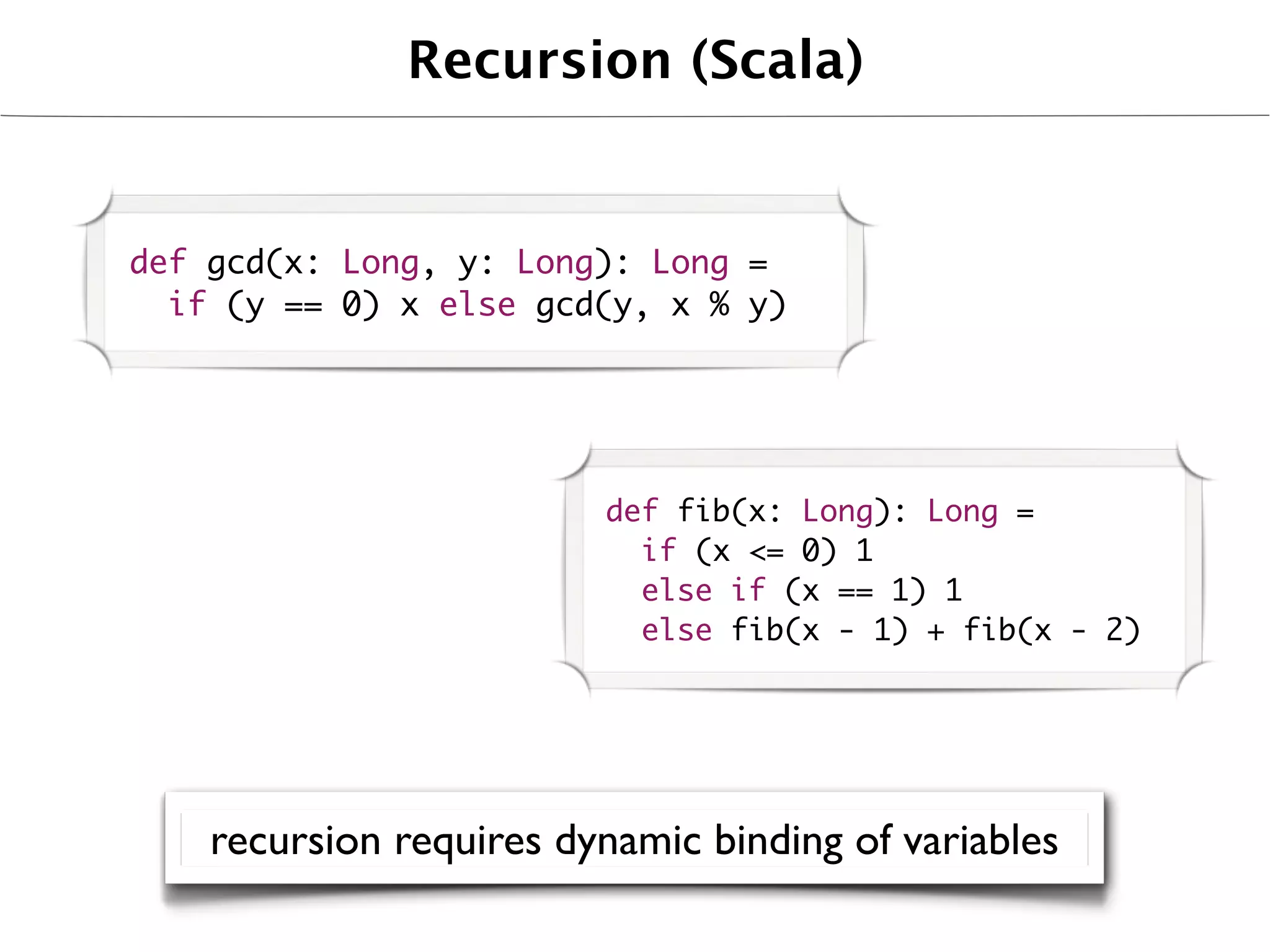

30. Recursion (Scala)
def gcd(x: Long, y: Long): Long =
if (y == 0) x else gcd(y, x % y)
def fib(x: Long): Long =
if (x <= 0) 1
else if (x == 1) 1
else fib(x - 1) + fib(x - 2)
recursion requires dynamic binding of variables

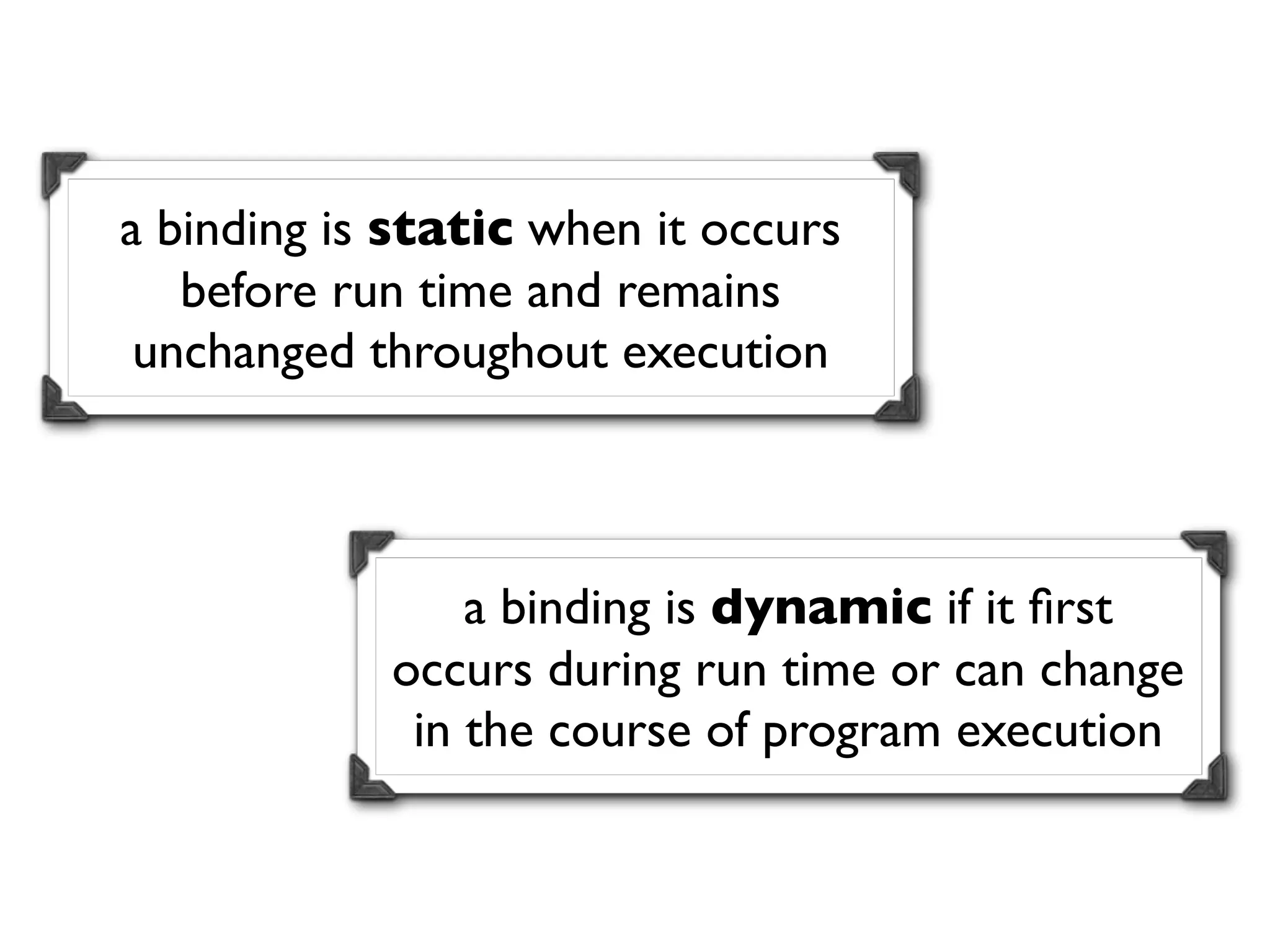

31. a binding is static when it occurs
before run time and remains
unchanged throughout execution
a binding is dynamic if it first
occurs during run time or can change
in the course of program execution

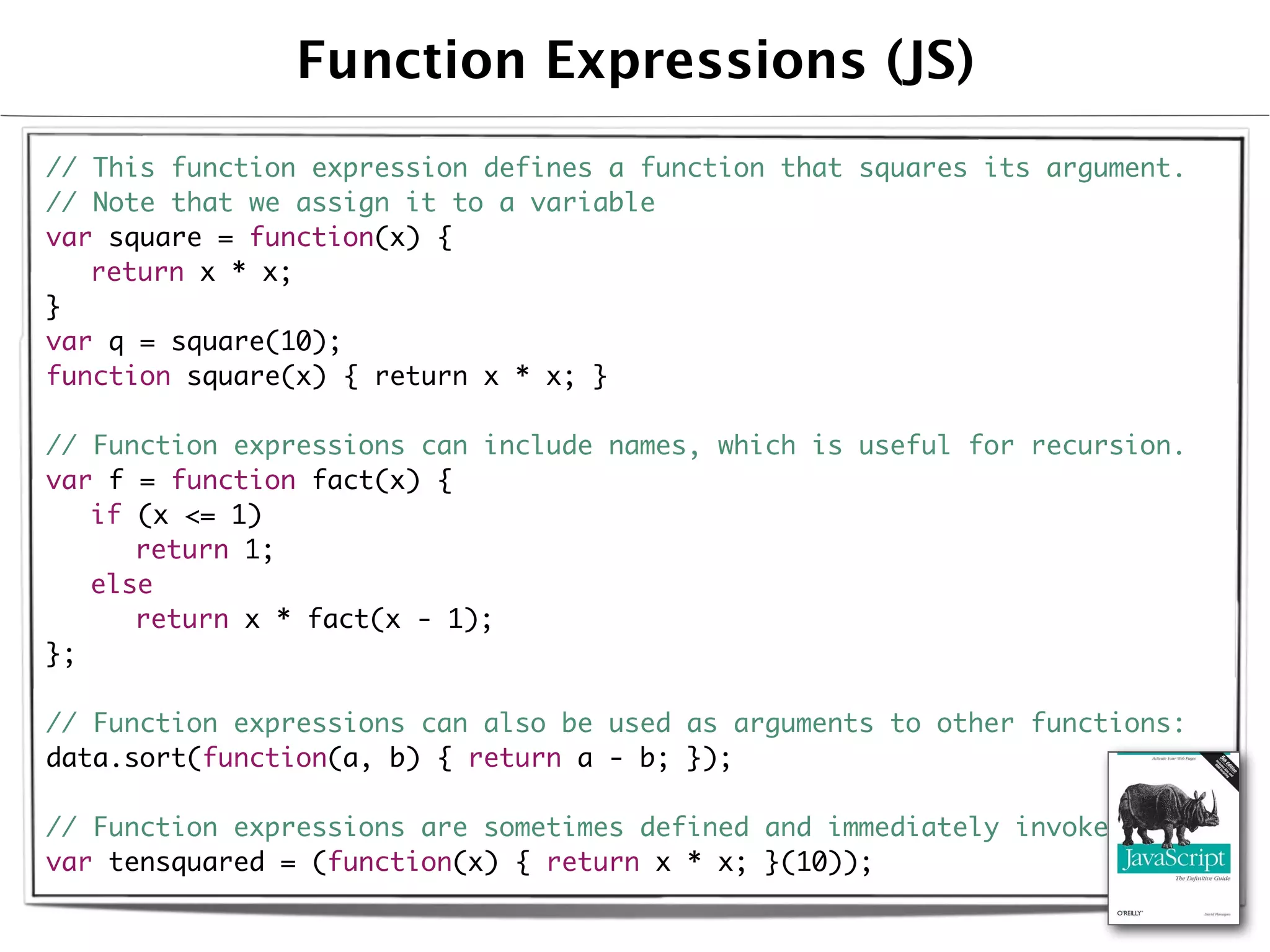

32. Function Expressions (JS)
// This function expression defines a function that squares its argument.
// Note that we assign it to a variable
var square = function(x) {
return x * x;
}
var q = square(10);
function square(x) { return x * x; }
// Function expressions can include names, which is useful for recursion.
var f = function fact(x) {
if (x <= 1)
return 1;
else
return x * fact(x - 1);
};
// Function expressions can also be used as arguments to other functions:
data.sort(function(a, b) { return a - b; });
// Function expressions are sometimes defined and immediately invoked:
var tensquared = (function(x) { return x * x; }(10));

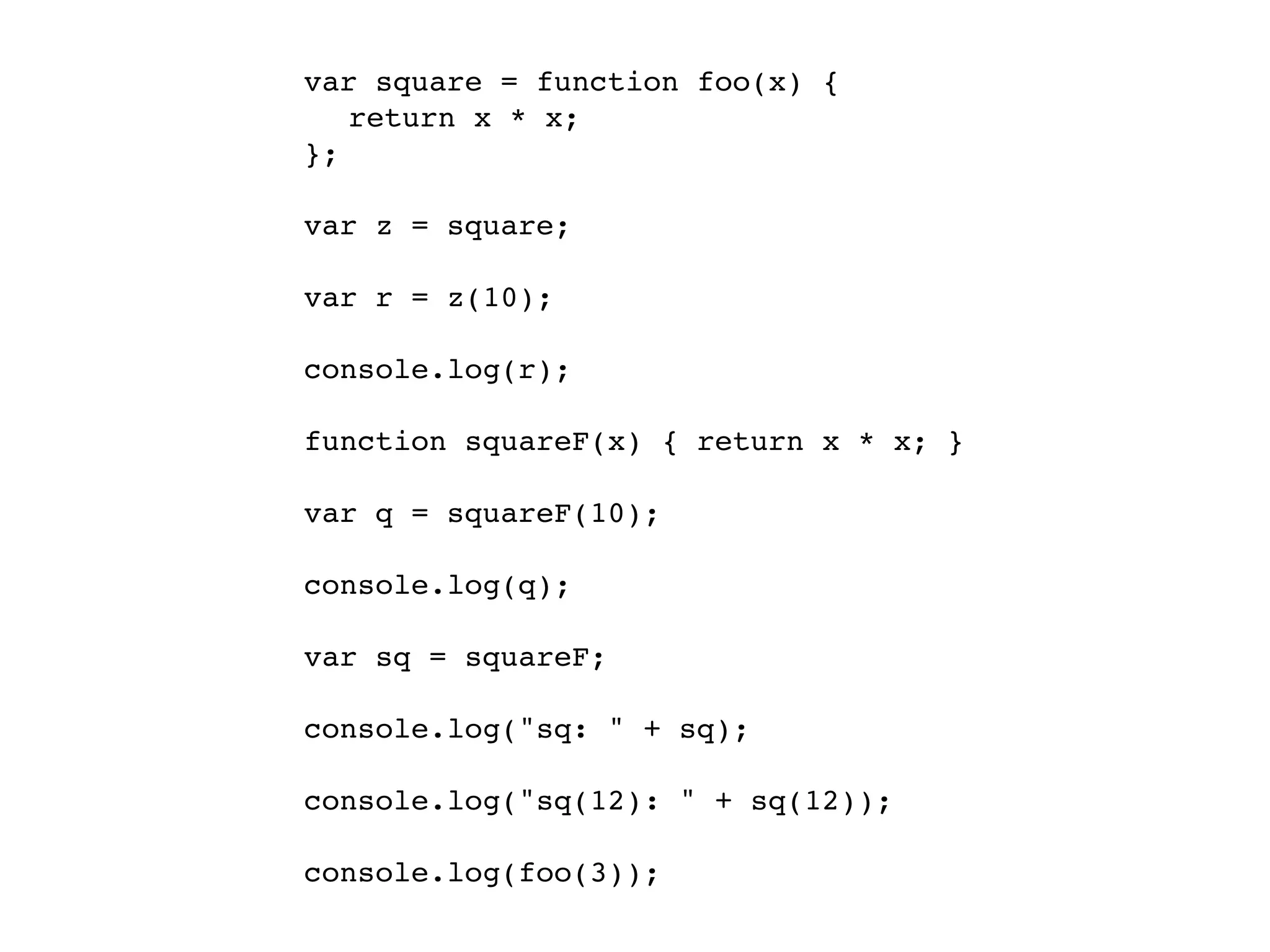

33. var square = function foo(x) {
! return x * x;
};
var z = square;
var r = z(10);
console.log(r);
function squareF(x) { return x * x; }
var q = squareF(10);
console.log(q);
var sq = squareF;
console.log("sq: " + sq);
console.log("sq(12): " + sq(12));
console.log(foo(3));

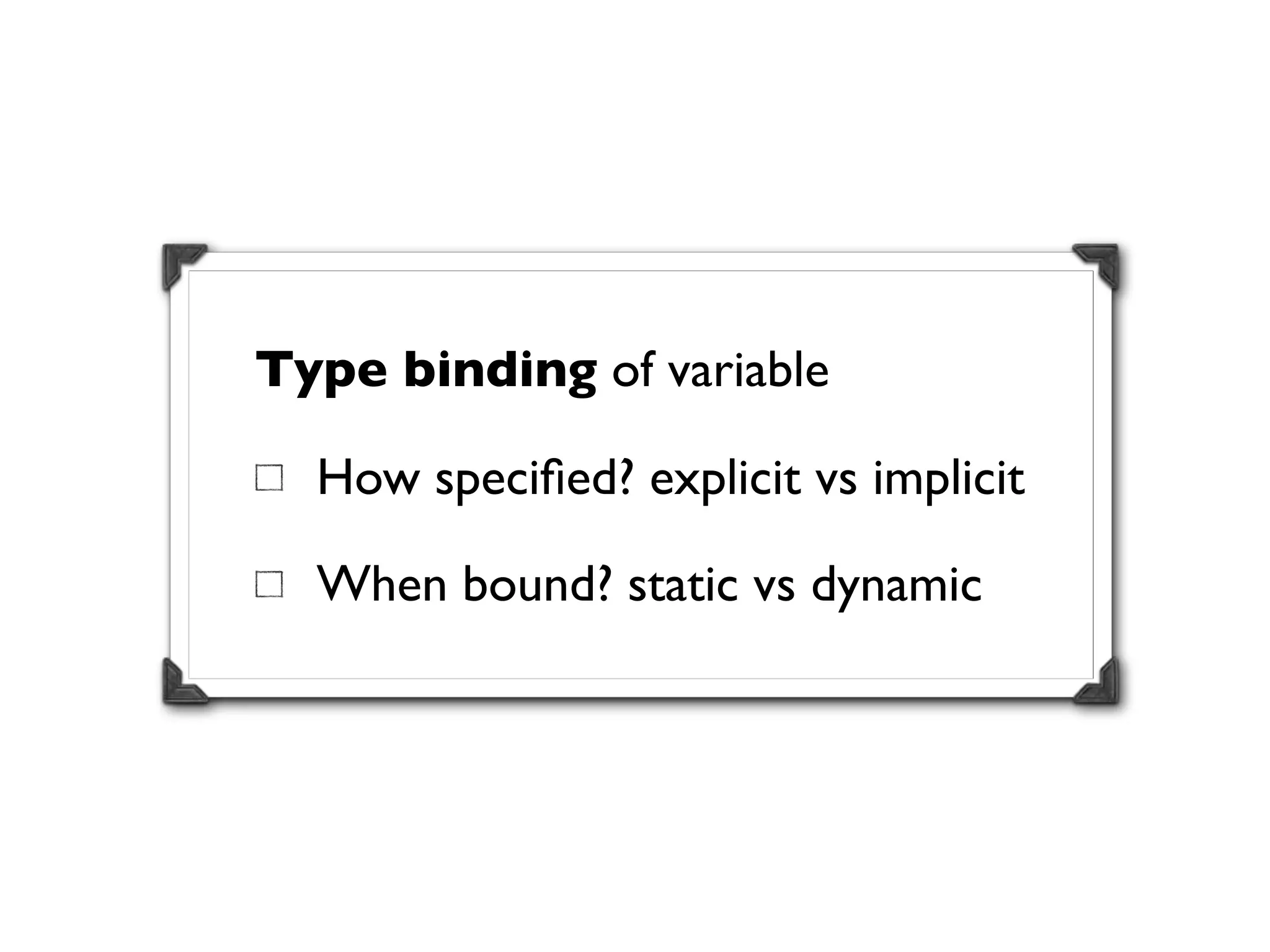

34. Type binding of variable
How specified? explicit vs implicit
When bound? static vs dynamic

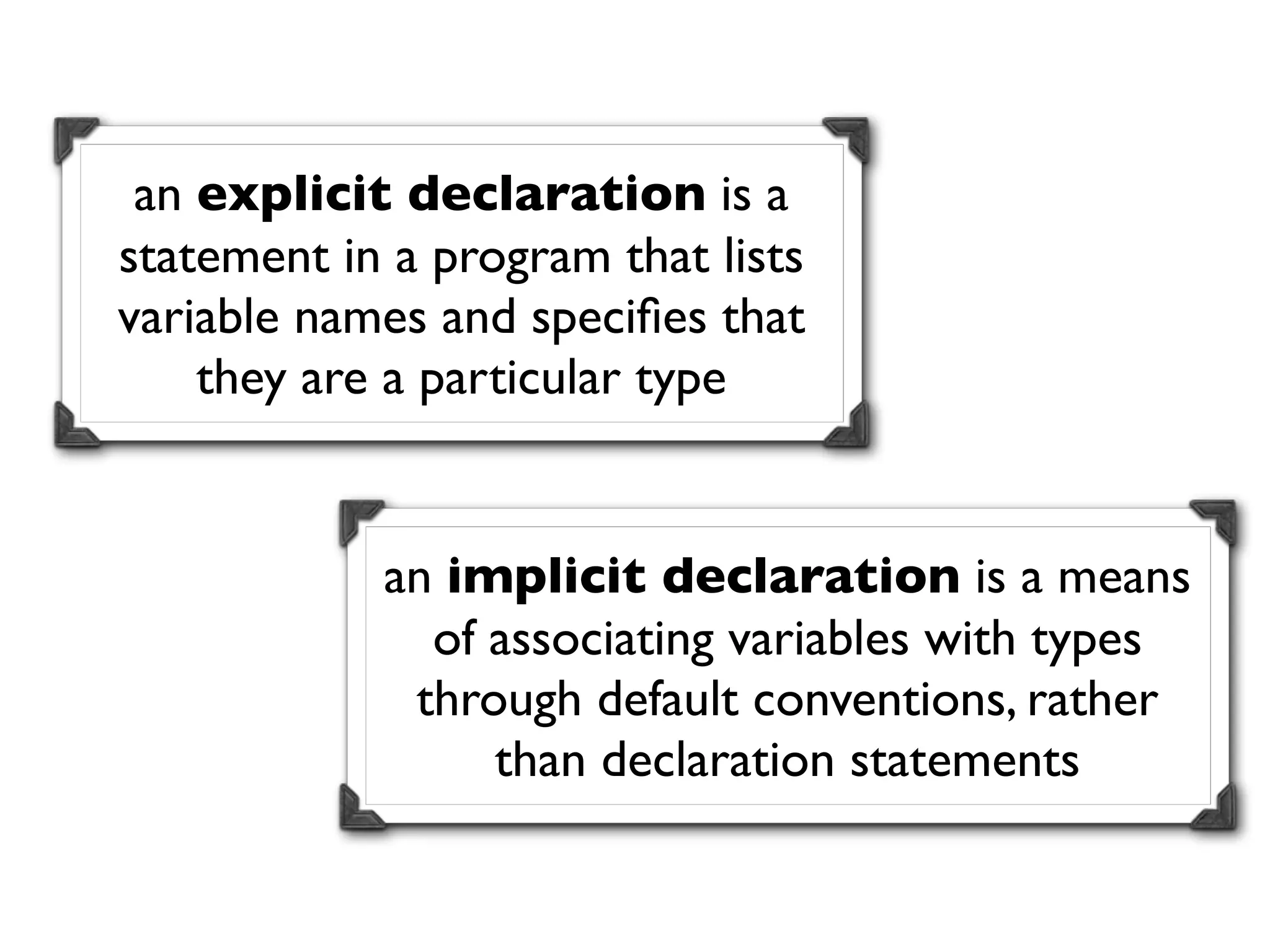

35. an explicit declaration is a
statement in a program that lists
variable names and specifies that
they are a particular type
an implicit declaration is a means
of associating variables with types
through default conventions, rather
than declaration statements

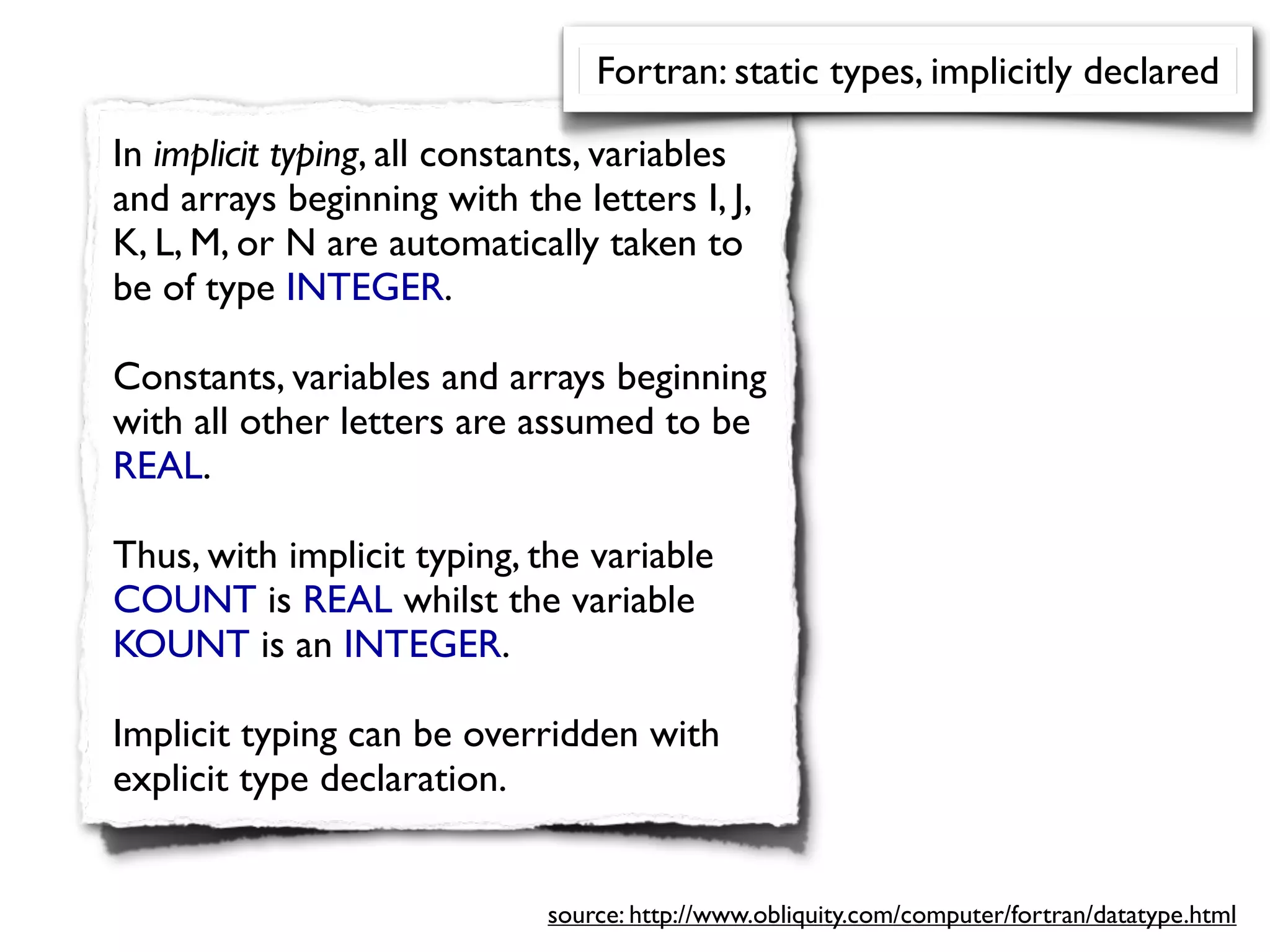

36. Fortran: static types, implicitly declared
In implicit typing, all constants, variables
and arrays beginning with the letters I, J,
K, L, M, or N are automatically taken to
be of type INTEGER.
Constants, variables and arrays beginning
with all other letters are assumed to be
REAL.
Thus, with implicit typing, the variable
COUNT is REAL whilst the variable
KOUNT is an INTEGER.
Implicit typing can be overridden with
explicit type declaration.
source: http://www.obliquity.com/computer/fortran/datatype.html

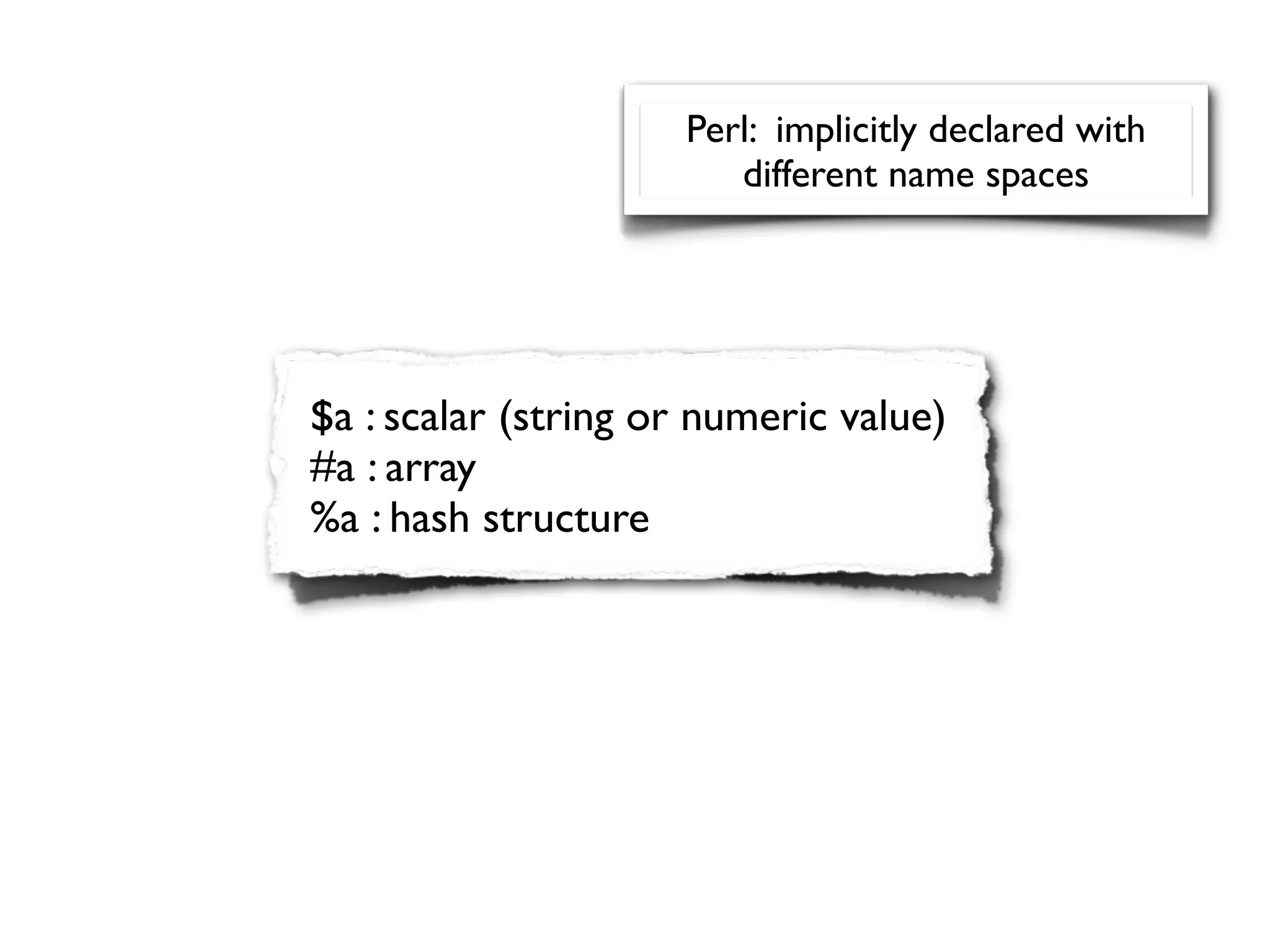

37. Perl: implicitly declared with
different name spaces
$a : scalar (string or numeric value)
#a : array
%a : hash structure

38. Variables and Expressions (C)
#include <stdio.h>
static types, explicitly declared
/* print Fahrenheit-Celsius table for fahr = 0, 20, ..., 300 */
int main() {
int fahr, celsius;
int lower, upper, step;
lower = 0; /* lower limit of temperature scale */
upper = 300; /* upper limit */
step = 20; /* step size */
fahr = lower;
while (fahr <= upper) {
celsius = 5 * (fahr - 32) / 9;
printf("%dt%dn", fahr, celsius);
fahr = fahr + step;
}
return 0;
}

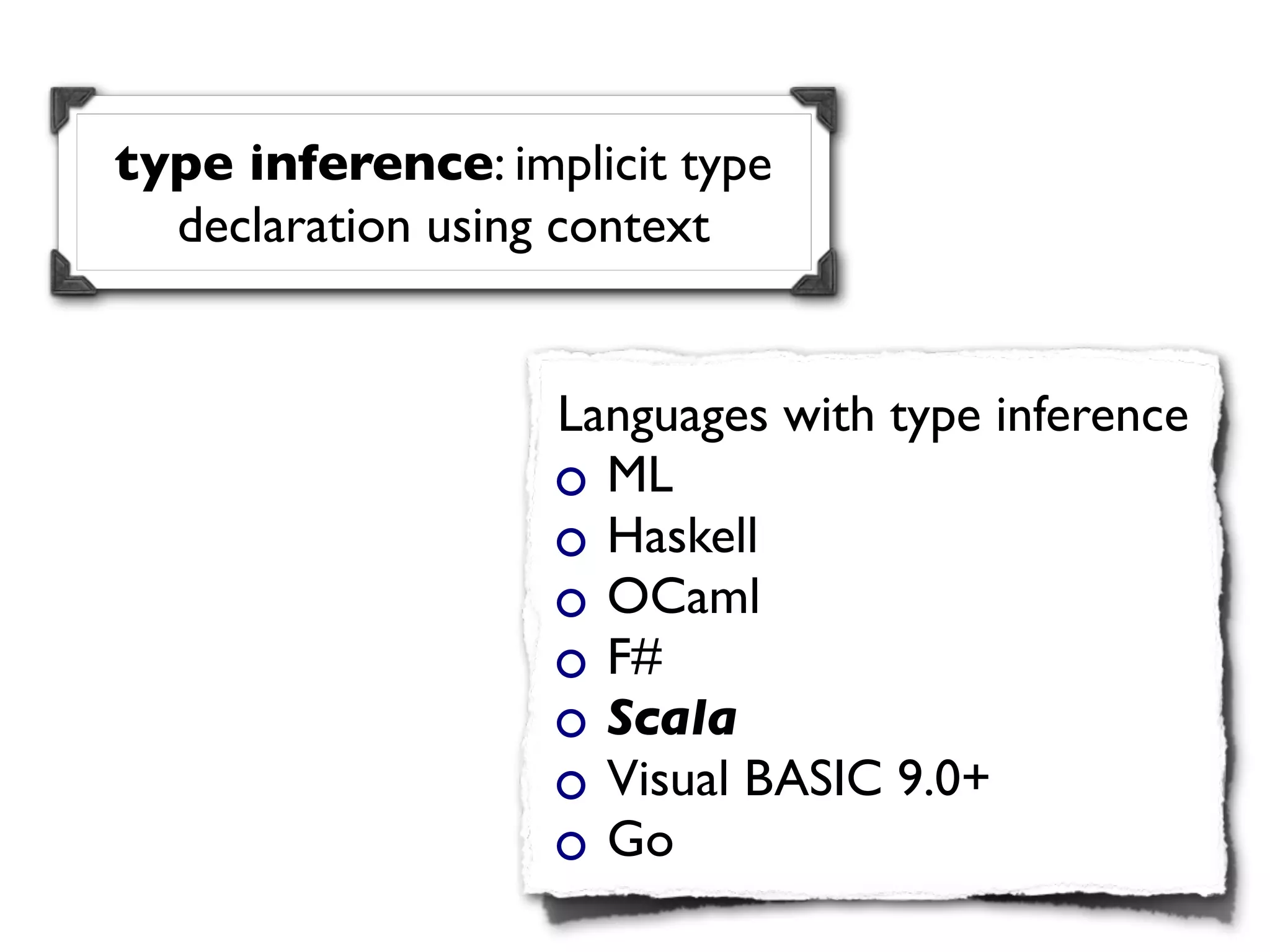

39. type inference: implicit type
declaration using context
Languages with type inference
ML
Haskell
OCaml
F#
Scala
Visual BASIC 9.0+
Go

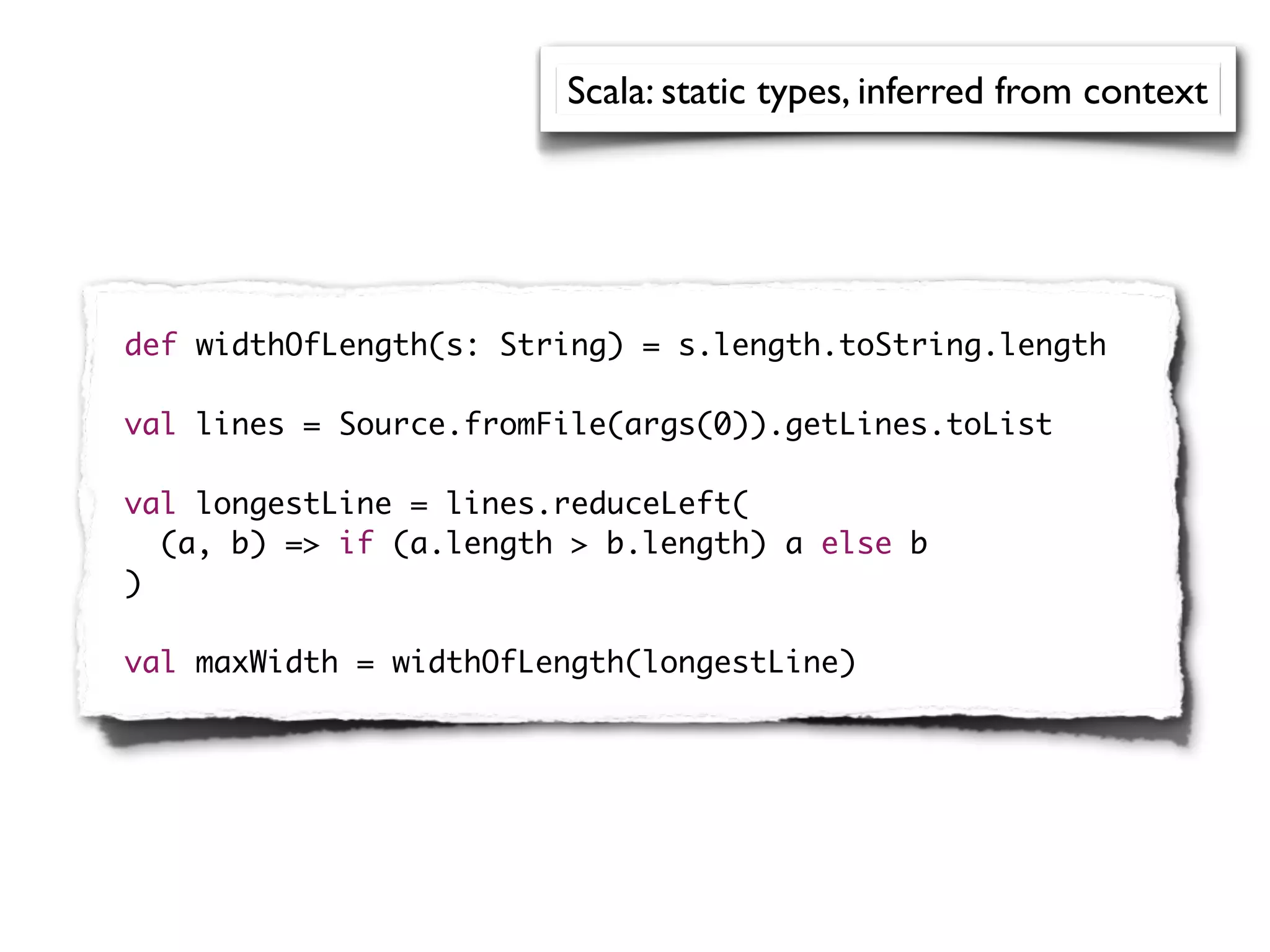

40. Scala: static types, inferred from context
def widthOfLength(s: String) = s.length.toString.length
val lines = Source.fromFile(args(0)).getLines.toList
val longestLine = lines.reduceLeft(
(a, b) => if (a.length > b.length) a else b
)
val maxWidth = widthOfLength(longestLine)

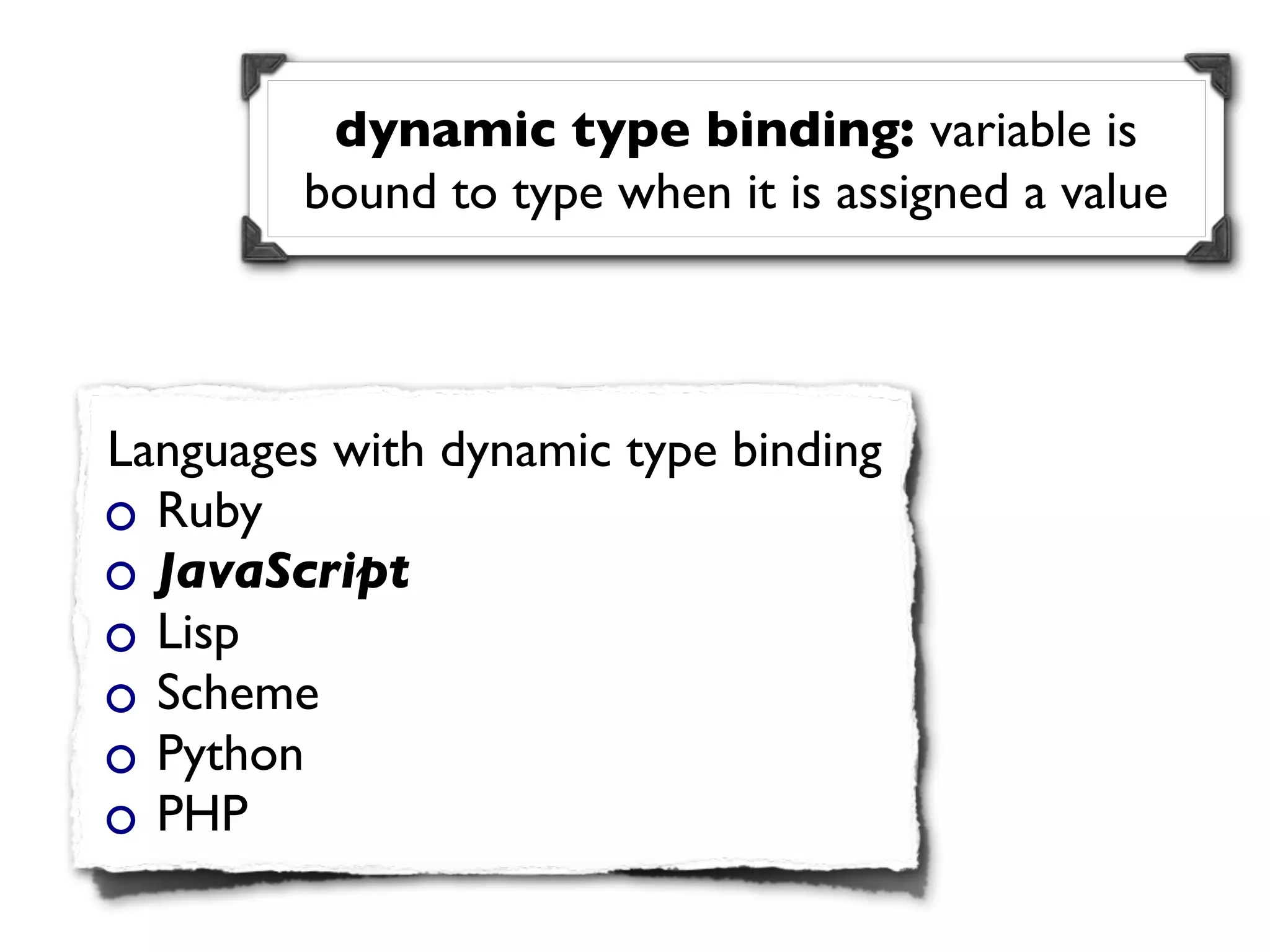

41. dynamic type binding: variable is
bound to type when it is assigned a value
Languages with dynamic type binding
Ruby
JavaScript
Lisp
Scheme
Python
PHP

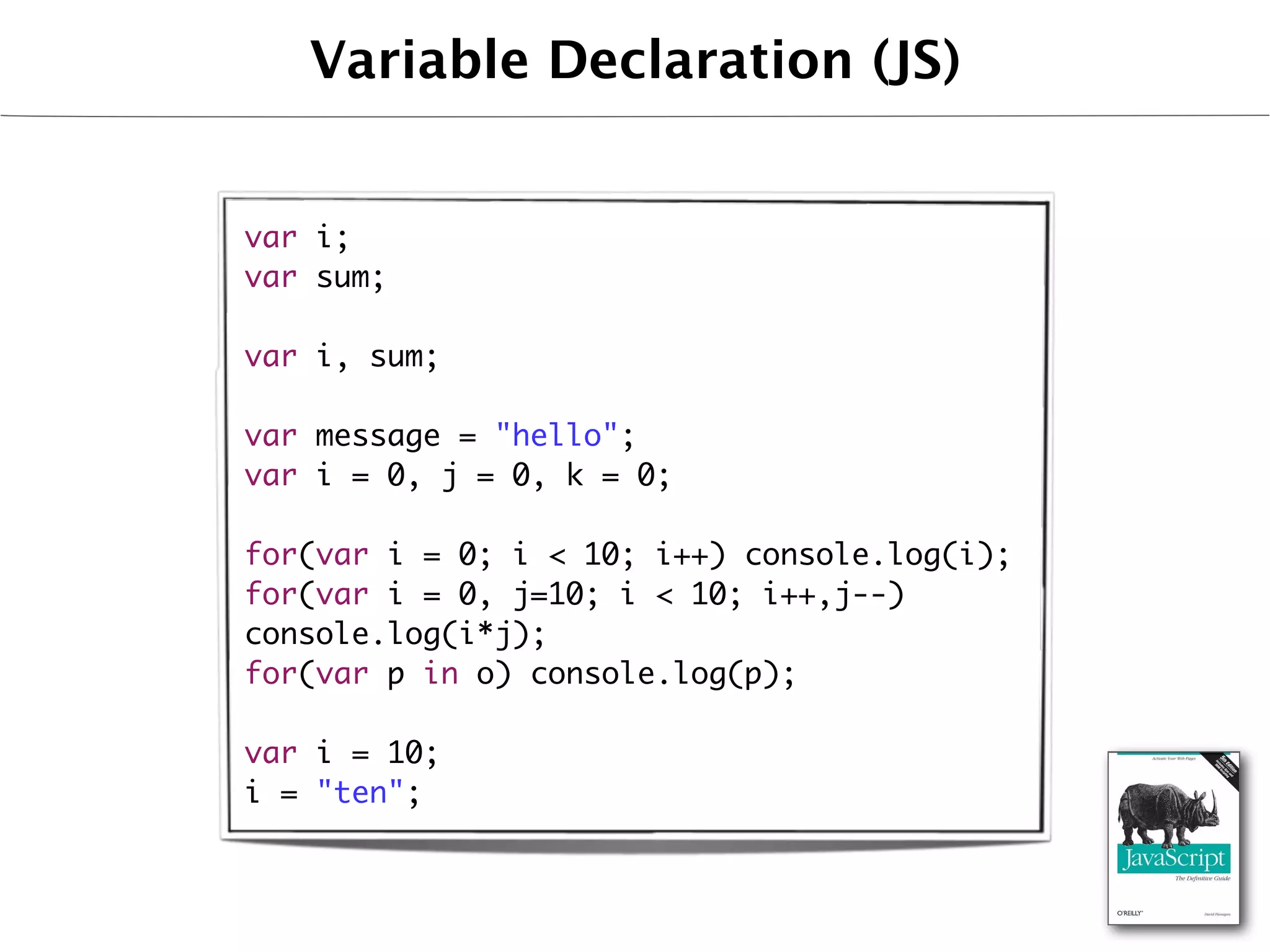

42. Variable Declaration (JS)
var i;
var sum;
var i, sum;
var message = "hello";
var i = 0, j = 0, k = 0;
for(var i = 0; i < 10; i++) console.log(i);
for(var i = 0, j=10; i < 10; i++,j--)
console.log(i*j);
for(var p in o) console.log(p);
var i = 10;
i = "ten";

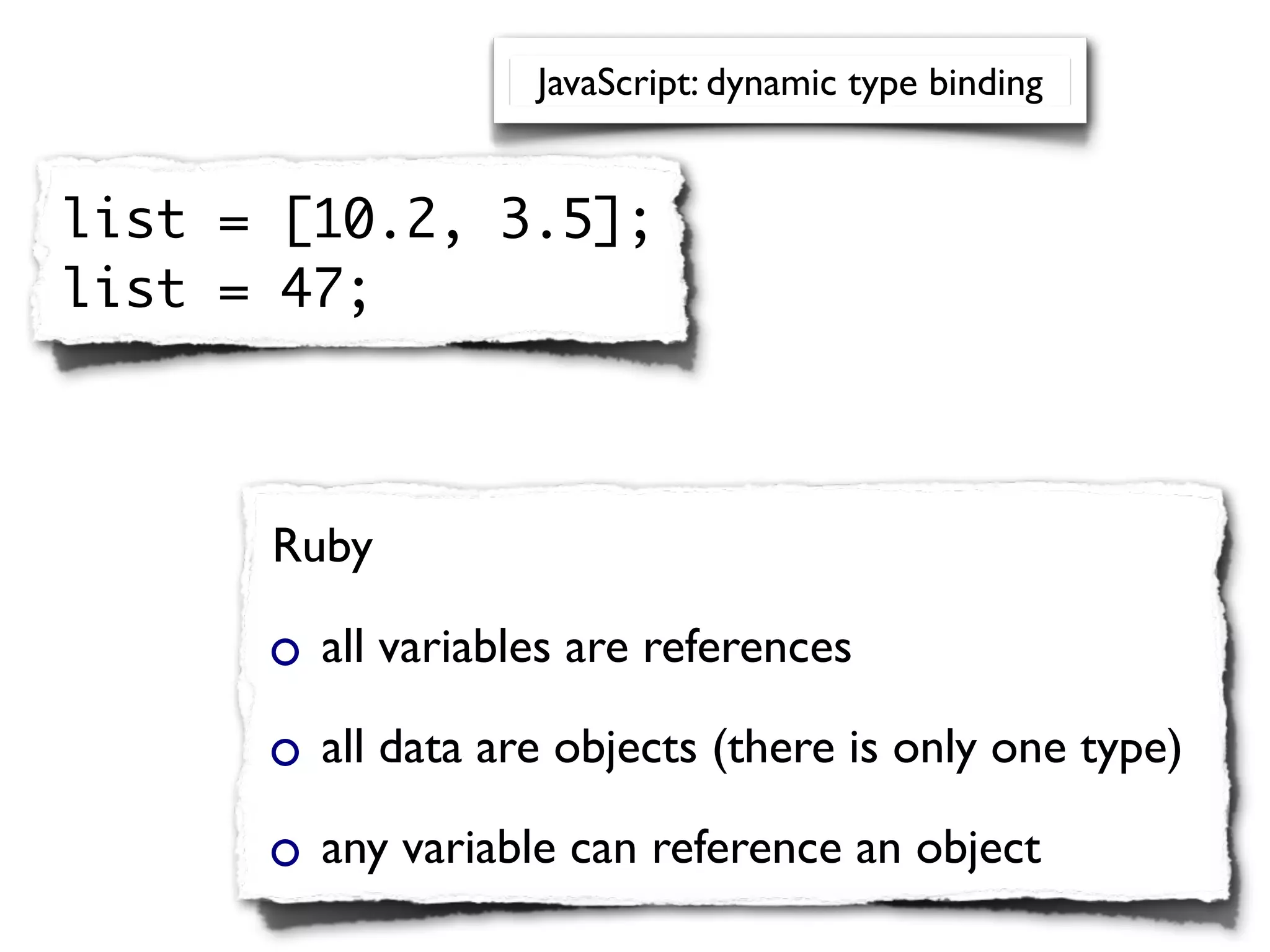

43. JavaScript: dynamic type binding
list = [10.2, 3.5];
list = 47;
Ruby
all variables are references
all data are objects (there is only one type)
any variable can reference an object

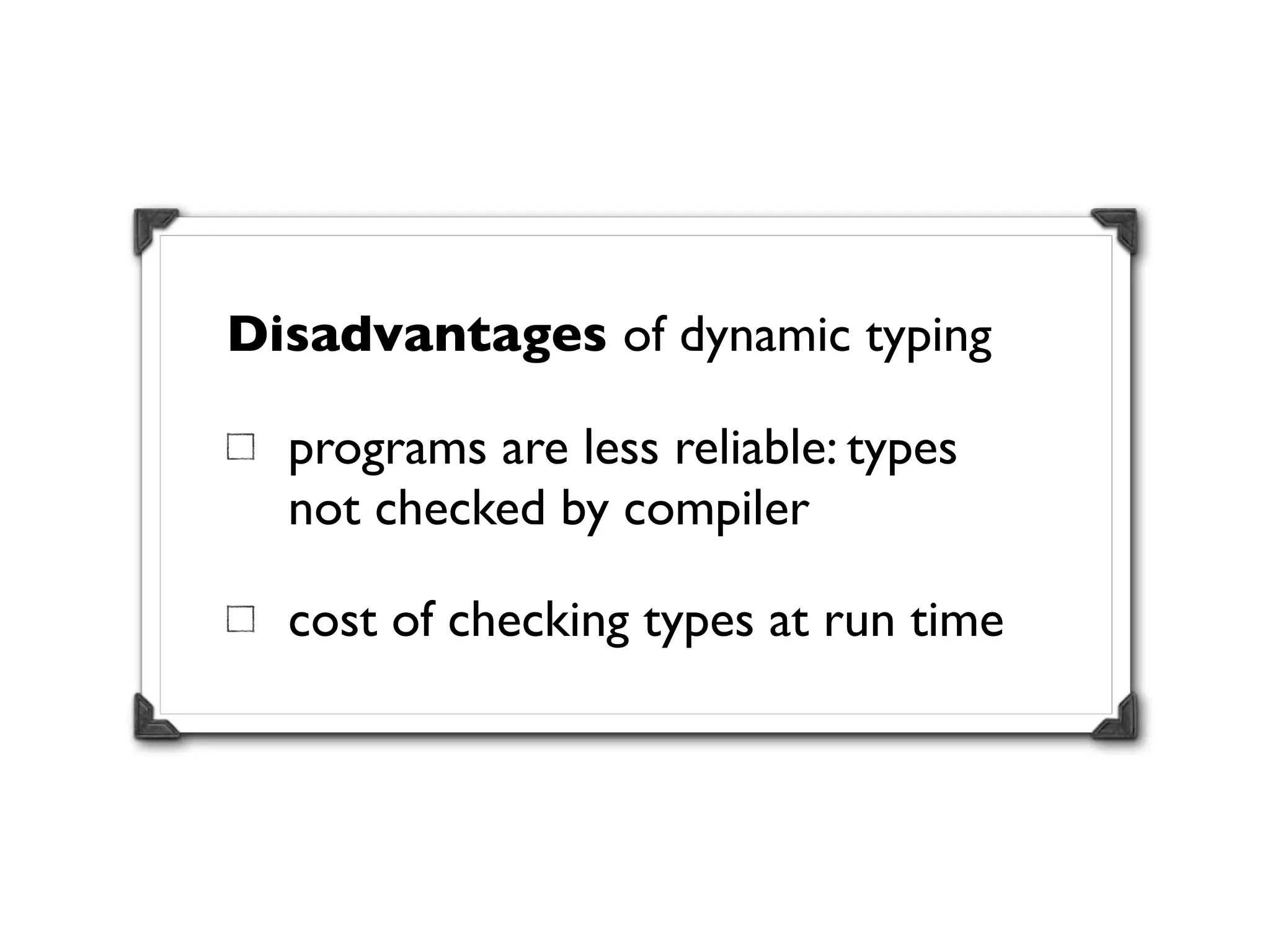

44. Disadvantages of dynamic typing
programs are less reliable: types
not checked by compiler
cost of checking types at run time

45. next week: storage bindings and lifetime

46. Scope

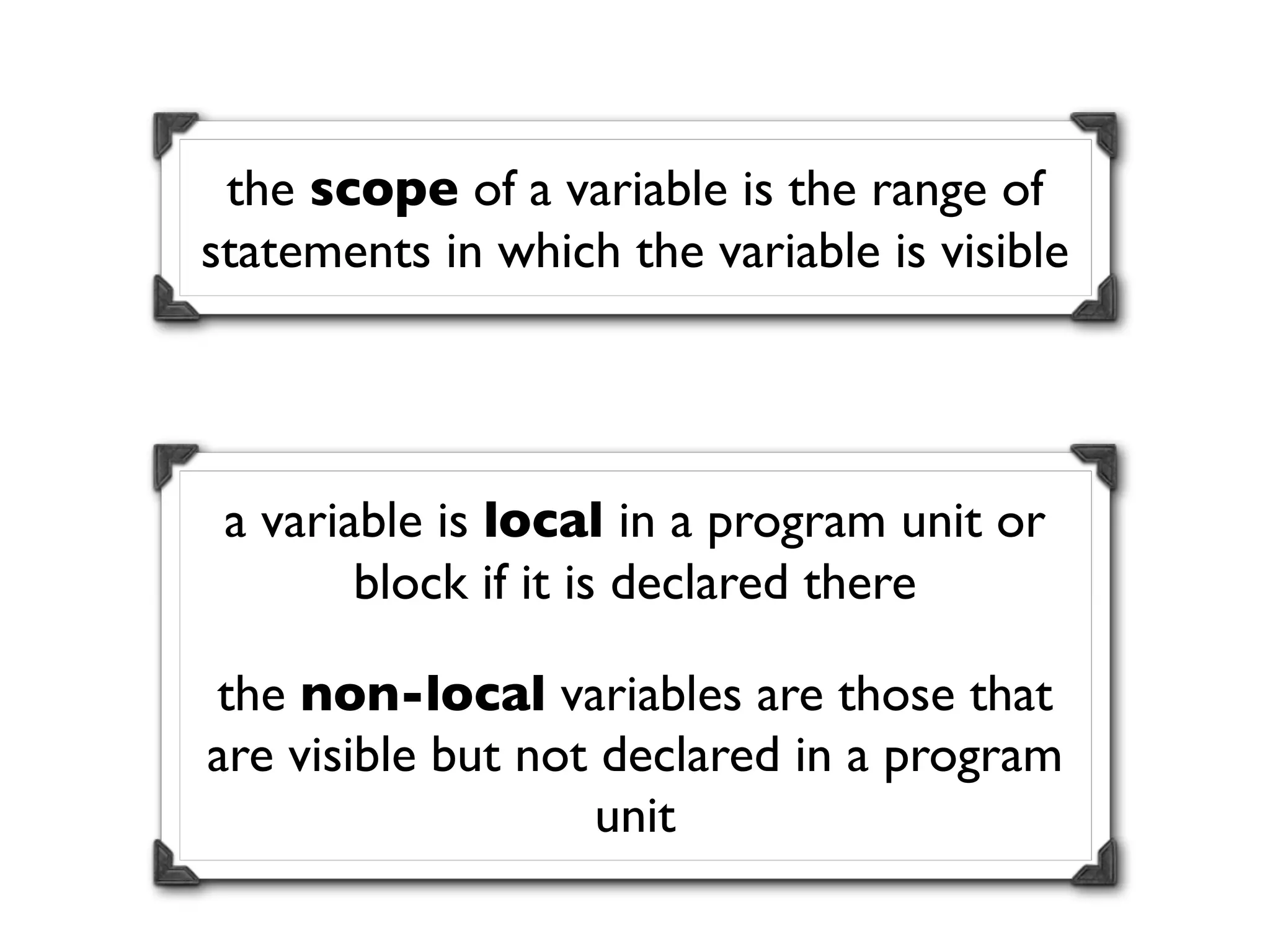

47. the scope of a variable is the range of
statements in which the variable is visible
a variable is local in a program unit or
block if it is declared there
the non-local variables are those that
are visible but not declared in a program
unit

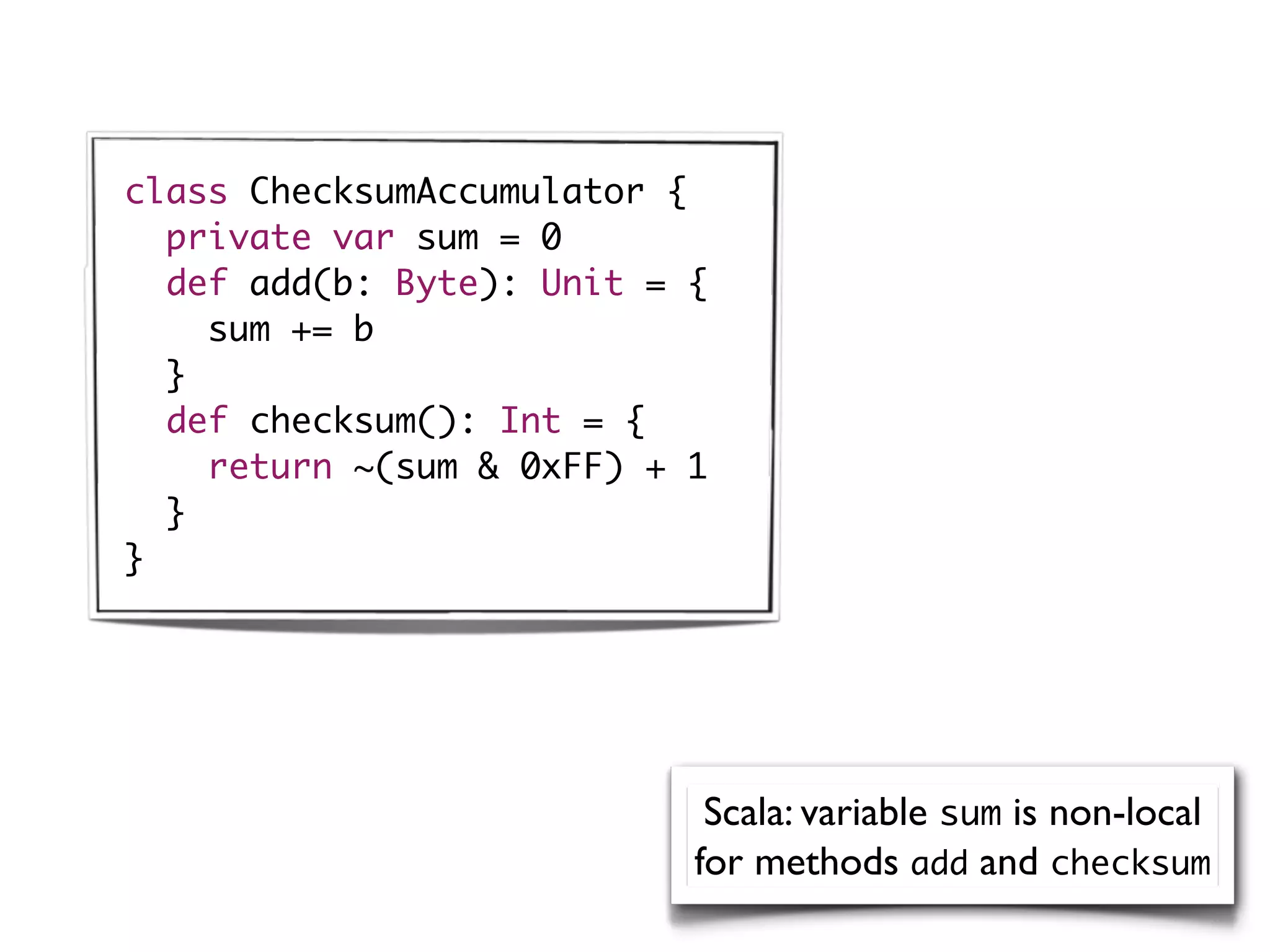

48. class ChecksumAccumulator {
private var sum = 0
def add(b: Byte): Unit = {
sum += b
}
def checksum(): Int = {
return ~(sum & 0xFF) + 1
}
}
Scala: variable sum is non-local
for methods add and checksum

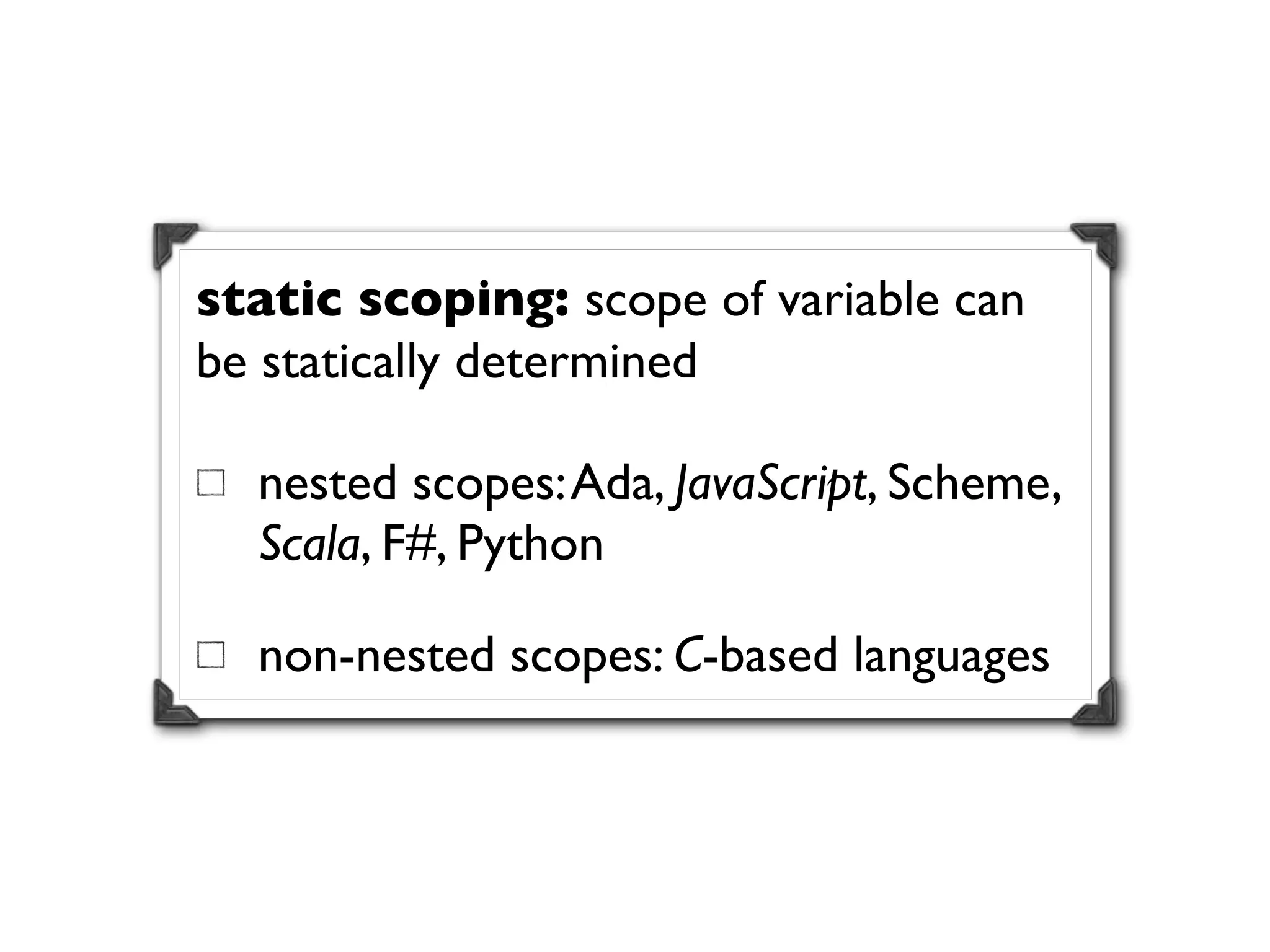

49. static scoping: scope of variable can
be statically determined
nested scopes: Ada, JavaScript, Scheme,
Scala, F#, Python
non-nested scopes: C-based languages

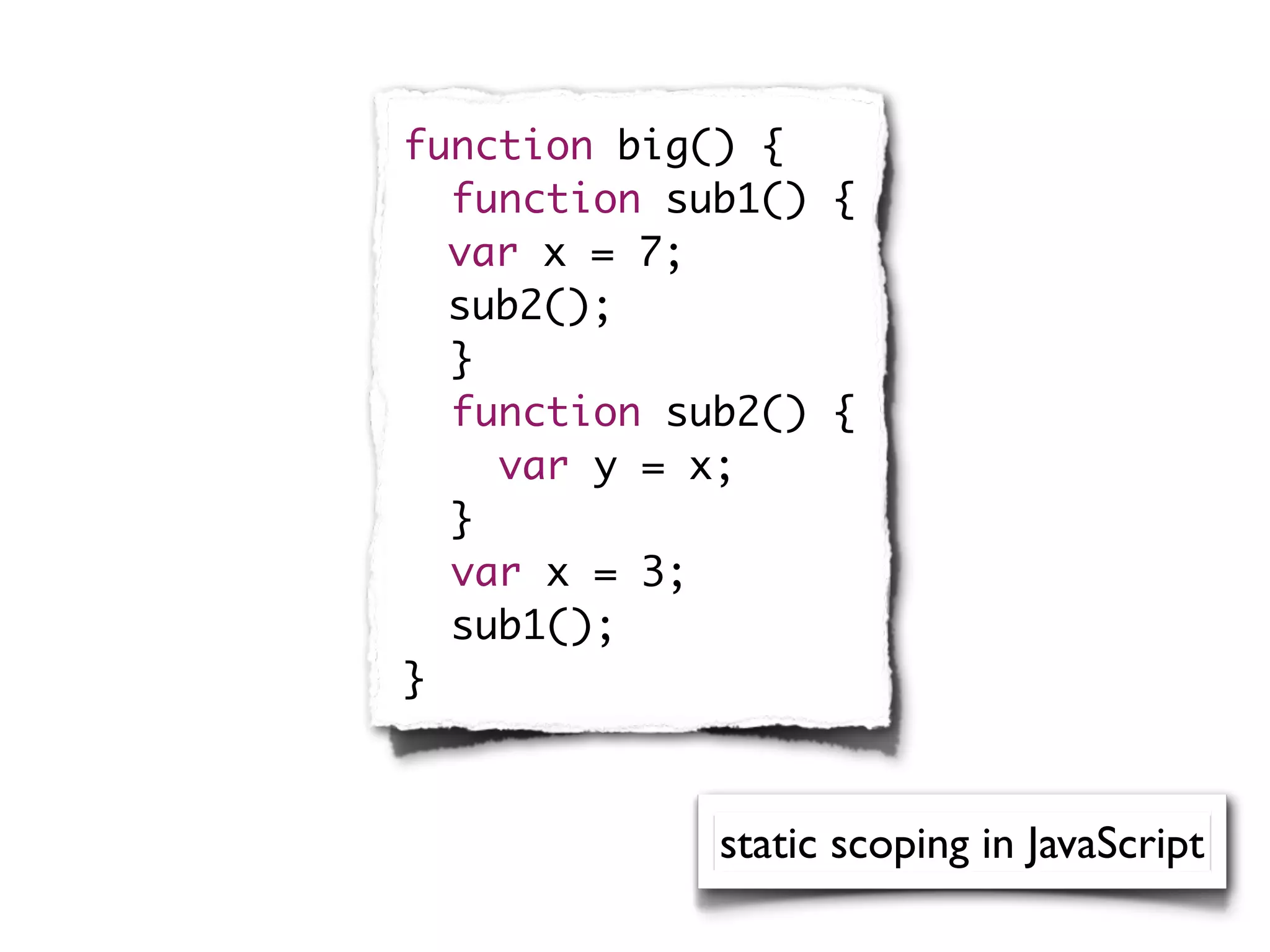

50. function big() {
function sub1() {
var x = 7;
sub2();
}
function sub2() {
var y = x;
}
var x = 3;
sub1();
}
static scoping in JavaScript

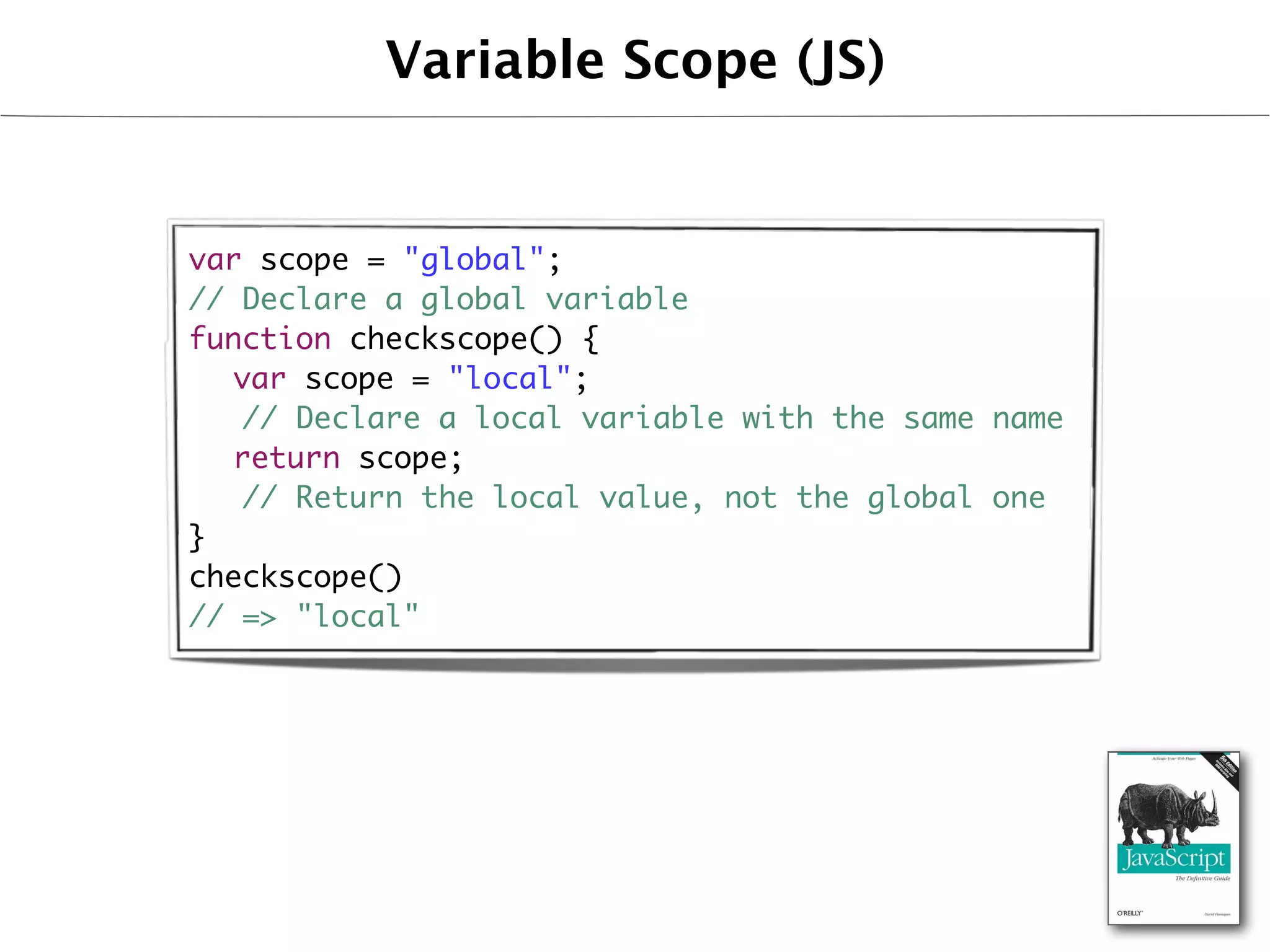

51. Variable Scope (JS)
var scope = "global";
// Declare a global variable
function checkscope() {
var scope = "local";
// Declare a local variable with the same name
return scope;
// Return the local value, not the global one
}
checkscope()
// => "local"

52. Variable Scope (JS)
scope = "global"; // Declare a global variable, even without var.
function checkscope2() {
scope = "local"; // Oops! We just changed the global variable.
myscope = "local"; // This implicitly declares a new global variable.
return [ scope, myscope ]; // Return two values.
}
checkscope2() // => ["local", "local"]: has side effects!
scope // => "local": global variable has changed.
myscope // => "local": global namespace cluttered up.

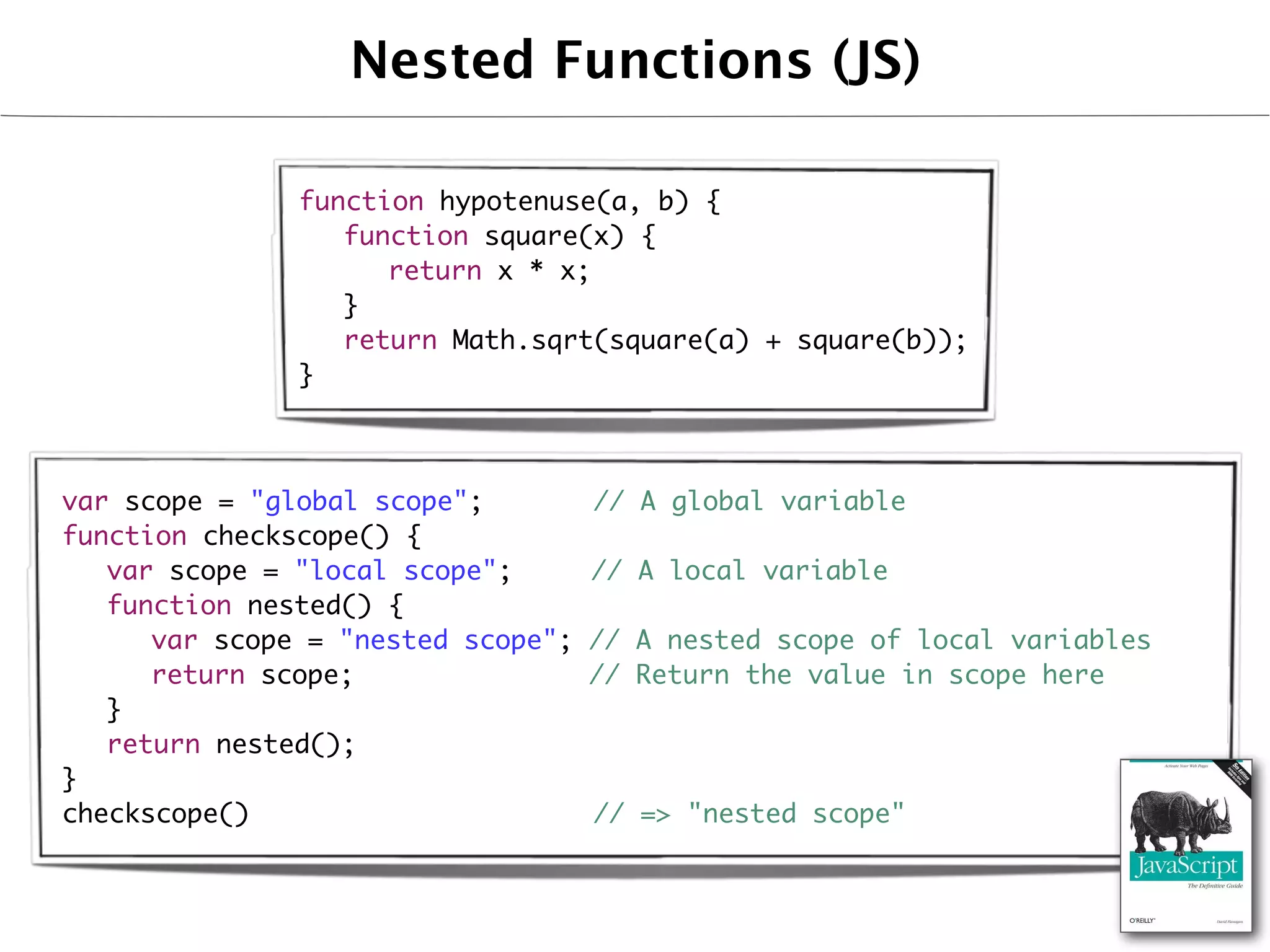

53. Nested Functions (JS)
function hypotenuse(a, b) {
function square(x) {
return x * x;
}
return Math.sqrt(square(a) + square(b));
}
var scope = "global scope"; // A global variable
function checkscope() {
var scope = "local scope"; // A local variable
function nested() {
var scope = "nested scope"; // A nested scope of local variables
return scope; // Return the value in scope here
}
return nested();
}
checkscope() // => "nested scope"

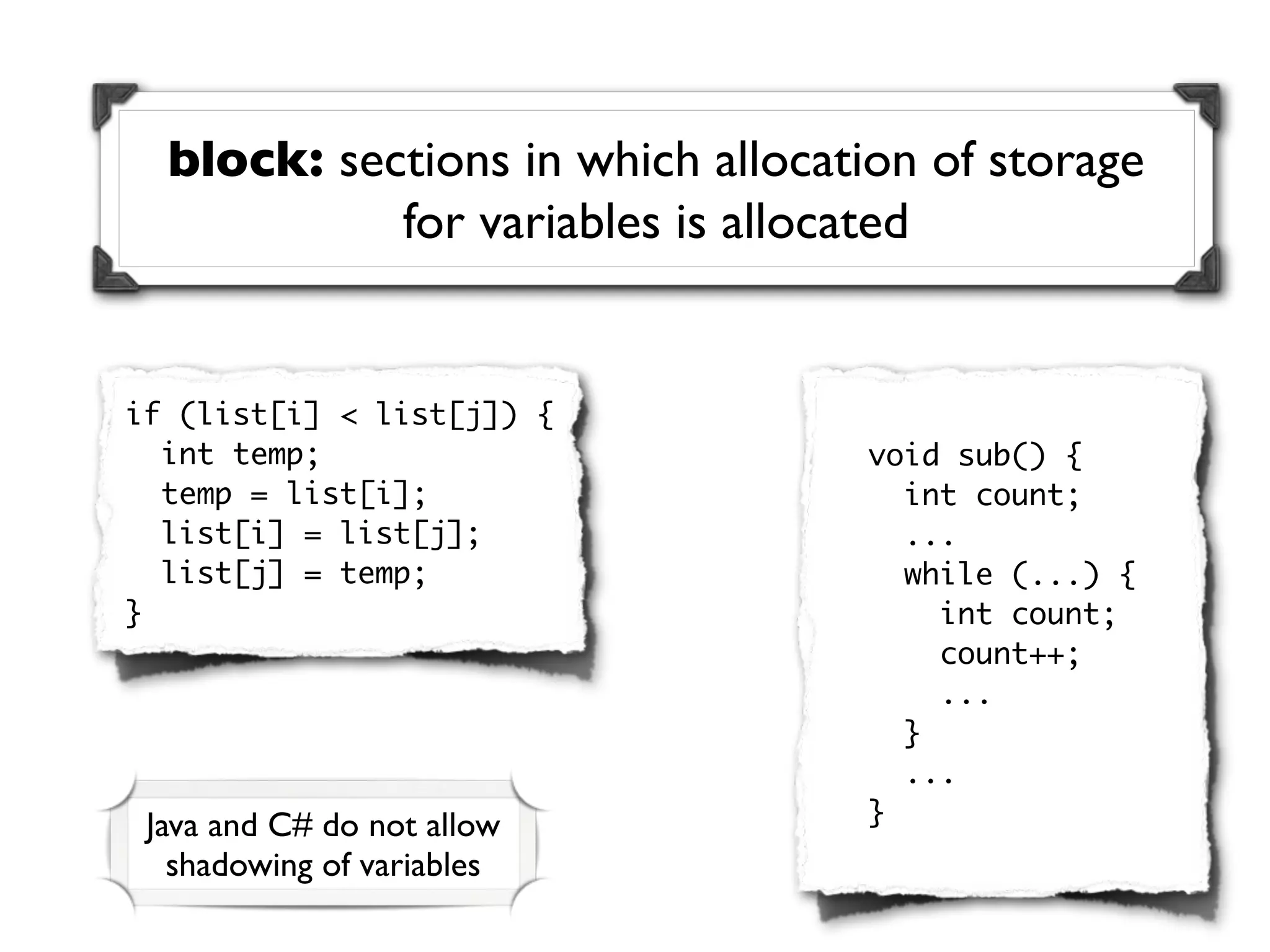

54. block: sections in which allocation of storage
for variables is allocated
if (list[i] < list[j]) {
int temp; void sub() {
temp = list[i]; int count;
list[i] = list[j]; ...
list[j] = temp; while (...) {
} int count;
count++;
...
}
...
Java and C# do not allow }
shadowing of variables

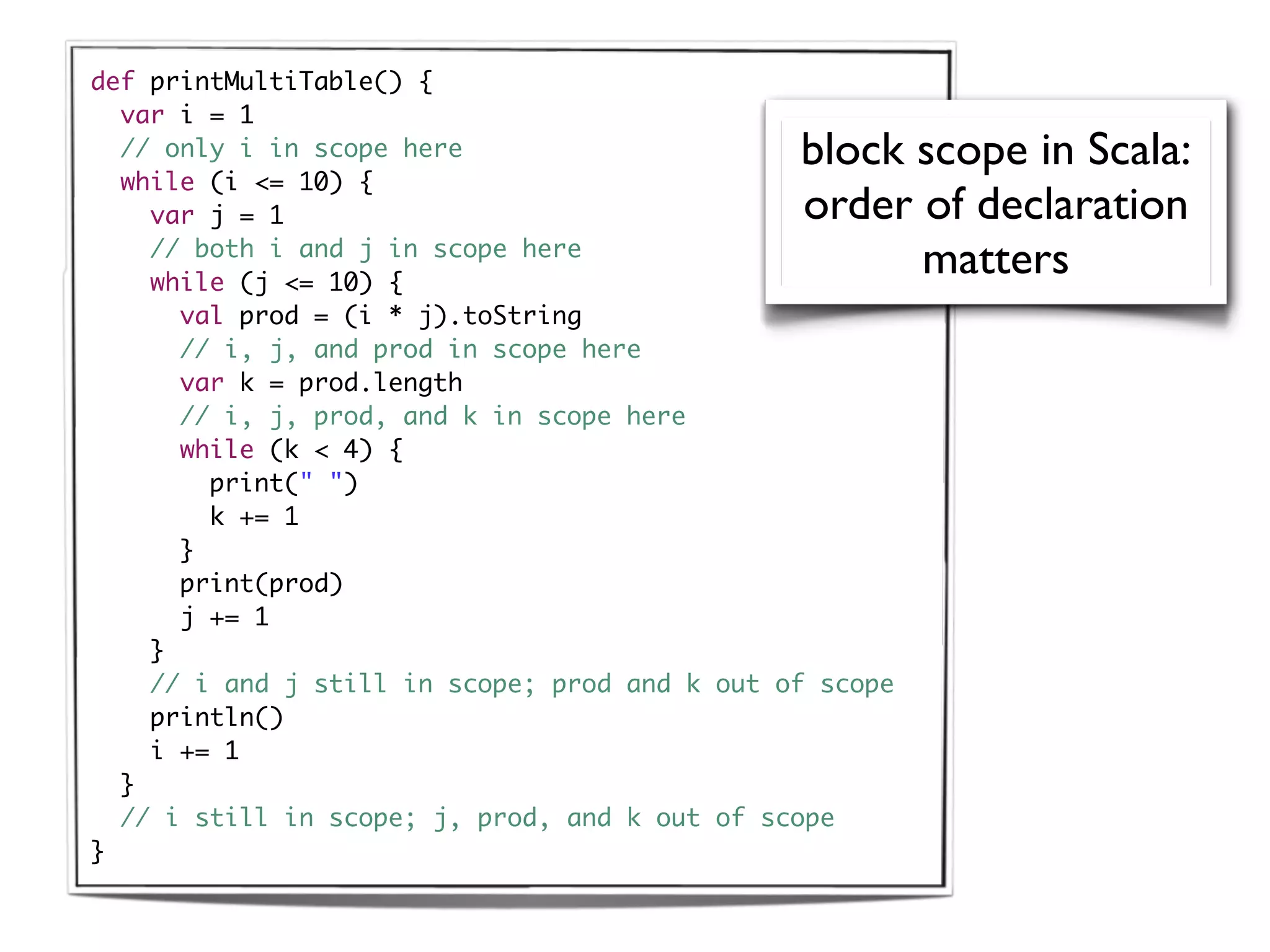

55. def printMultiTable() {
var i = 1
// only i in scope here block scope in Scala:
while (i <= 10) {
var j = 1 order of declaration
// both i and j in scope here
while (j <= 10) {
matters
val prod = (i * j).toString
// i, j, and prod in scope here
var k = prod.length
// i, j, prod, and k in scope here
while (k < 4) {
print(" ")
k += 1
}
print(prod)
j += 1
}
// i and j still in scope; prod and k out of scope
println()
i += 1
}
// i still in scope; j, prod, and k out of scope
}

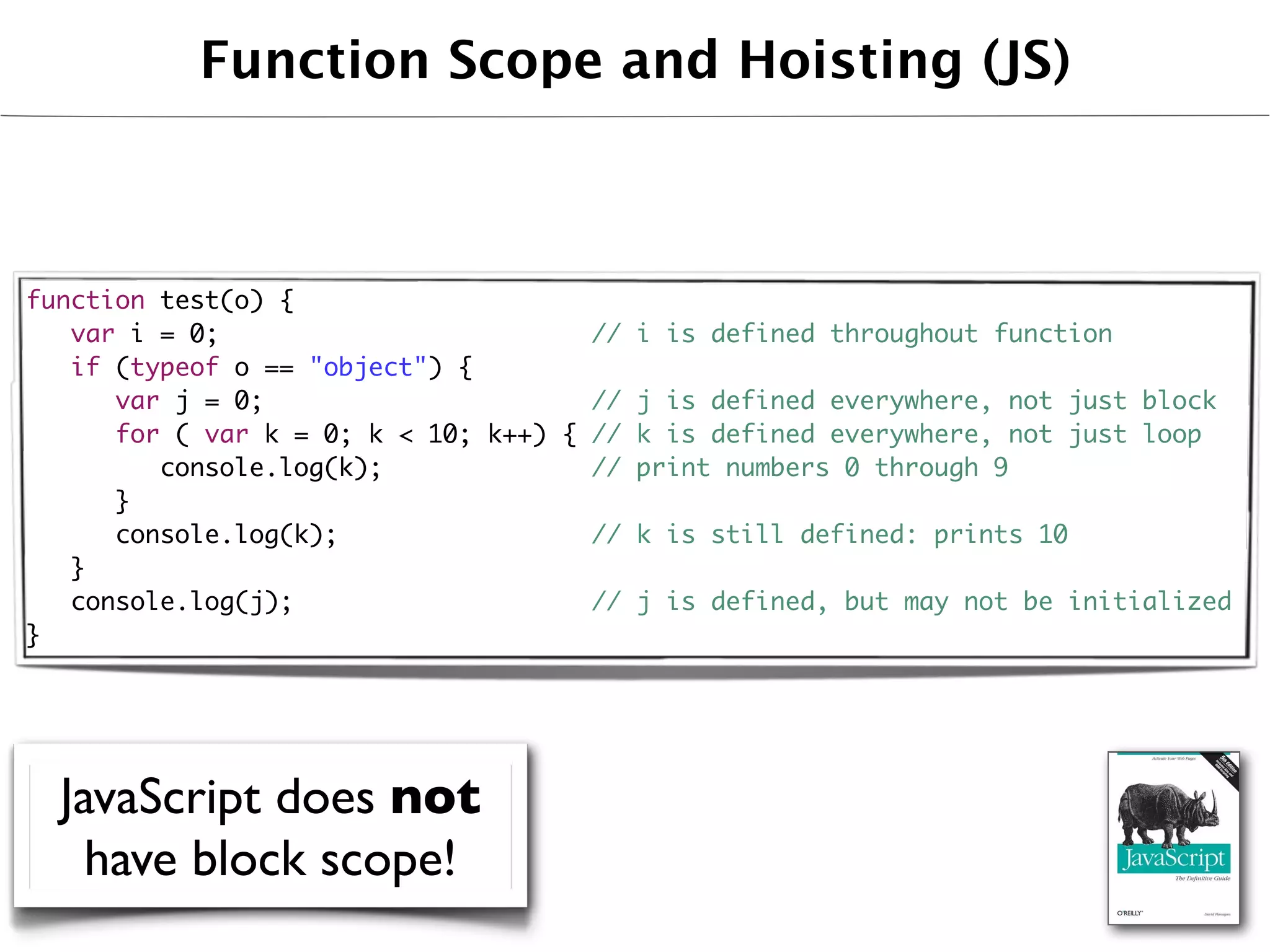

56. Function Scope and Hoisting (JS)
function test(o) {
var i = 0; // i is defined throughout function
if (typeof o == "object") {
var j = 0; // j is defined everywhere, not just block
for ( var k = 0; k < 10; k++) { // k is defined everywhere, not just loop
console.log(k); // print numbers 0 through 9
}
console.log(k); // k is still defined: prints 10
}
console.log(j); // j is defined, but may not be initialized
}
JavaScript does not
have block scope!

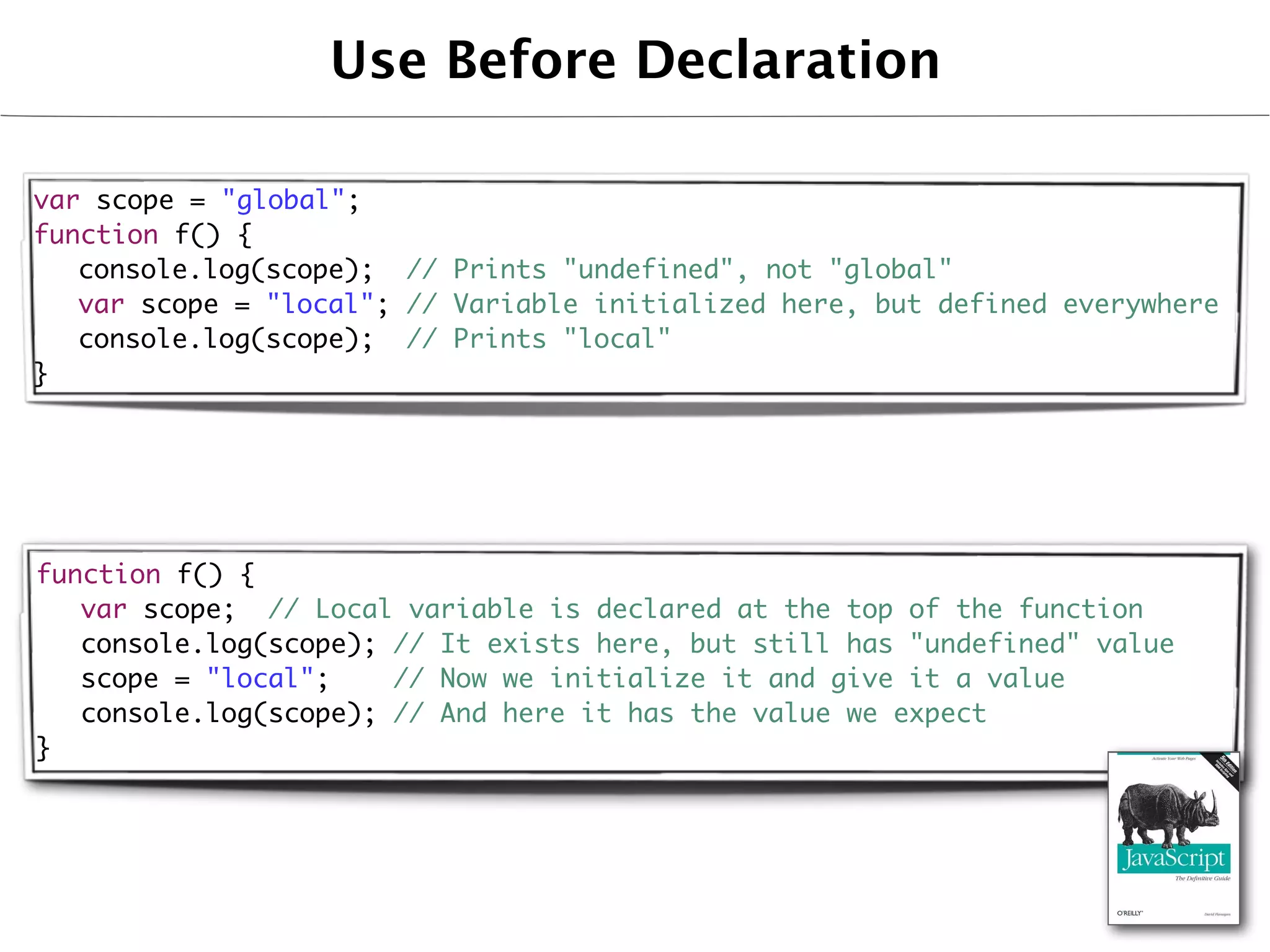

57. Use Before Declaration
var scope = "global";
function f() {
console.log(scope); // Prints "undefined", not "global"
var scope = "local"; // Variable initialized here, but defined everywhere
console.log(scope); // Prints "local"
}
function f() {
var scope; // Local variable is declared at the top of the function
console.log(scope); // It exists here, but still has "undefined" value
scope = "local"; // Now we initialize it and give it a value
console.log(scope); // And here it has the value we expect
}

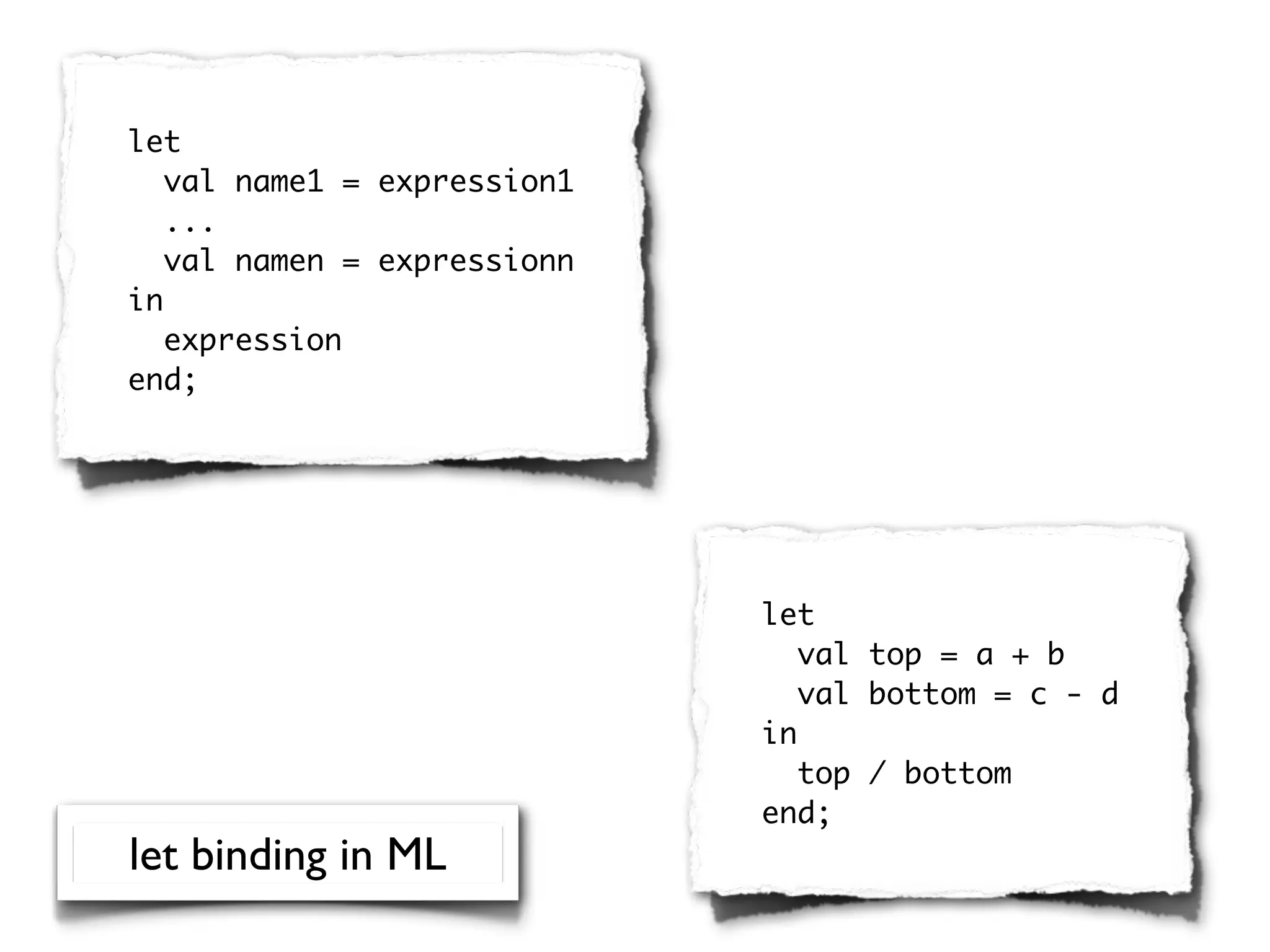

58. let
val name1 = expression1
...
val namen = expressionn
in
expression
end;
let
val top = a + b
val bottom = c - d
in
top / bottom
end;
let binding in ML

59. Describing Static Name
Binding Rules

60. module names
imports
NaBL: Spoofax Name Binding Language
include/Delft
namespaces
module blog
Module
Entity imports user
Property
entity BlogPosting {
rules name : String
poster : User
Module(x, _) :
body : String
defines Module x
scopes Entity blog : Blog
title : String
Entity(x, _) : }
defines Entity x of type Type(x)
scopes Property entity Blog {
title : String
Property(x, t) :
author : Blog
defines Property x of type t
}
Type(x) :
refers to Entity x entity User {
refers to Entity "String" name : String
refers to Entity "Int" }

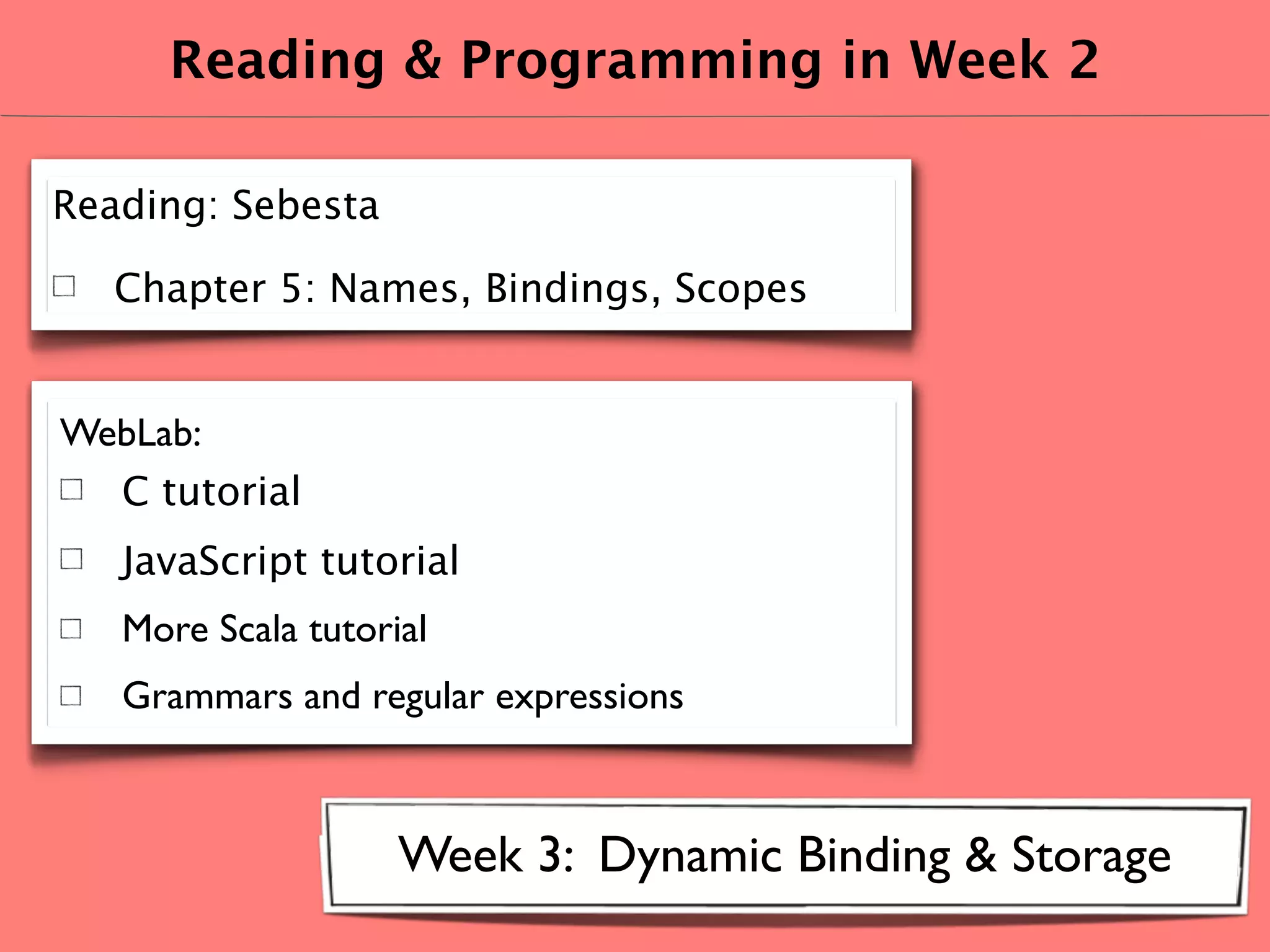

62. Reading & Programming in Week 2
Reading: Sebesta
Chapter 5: Names, Bindings, Scopes
WebLab:
C tutorial
JavaScript tutorial
More Scala tutorial
Grammars and regular expressions
Week 3: Dynamic Binding & Storage
