Pygments is a Python package to syntax hightlight over 300 programming languages and text formats. This talk gives an overview on using the pygmentize tool to render source code as HTML, RTF or latex. It then explains the basics of lexers and tokens and show how to use the pygments API to implement source code converters. Finally a step by step life coding section describes how to implement your own lexer step by step.

1. Introduction to
https://github.com/roskakori/talks/tree/master/pygraz/pygments
Thomas Aglassinger
http://www.roskakori.at
@TAglassinger

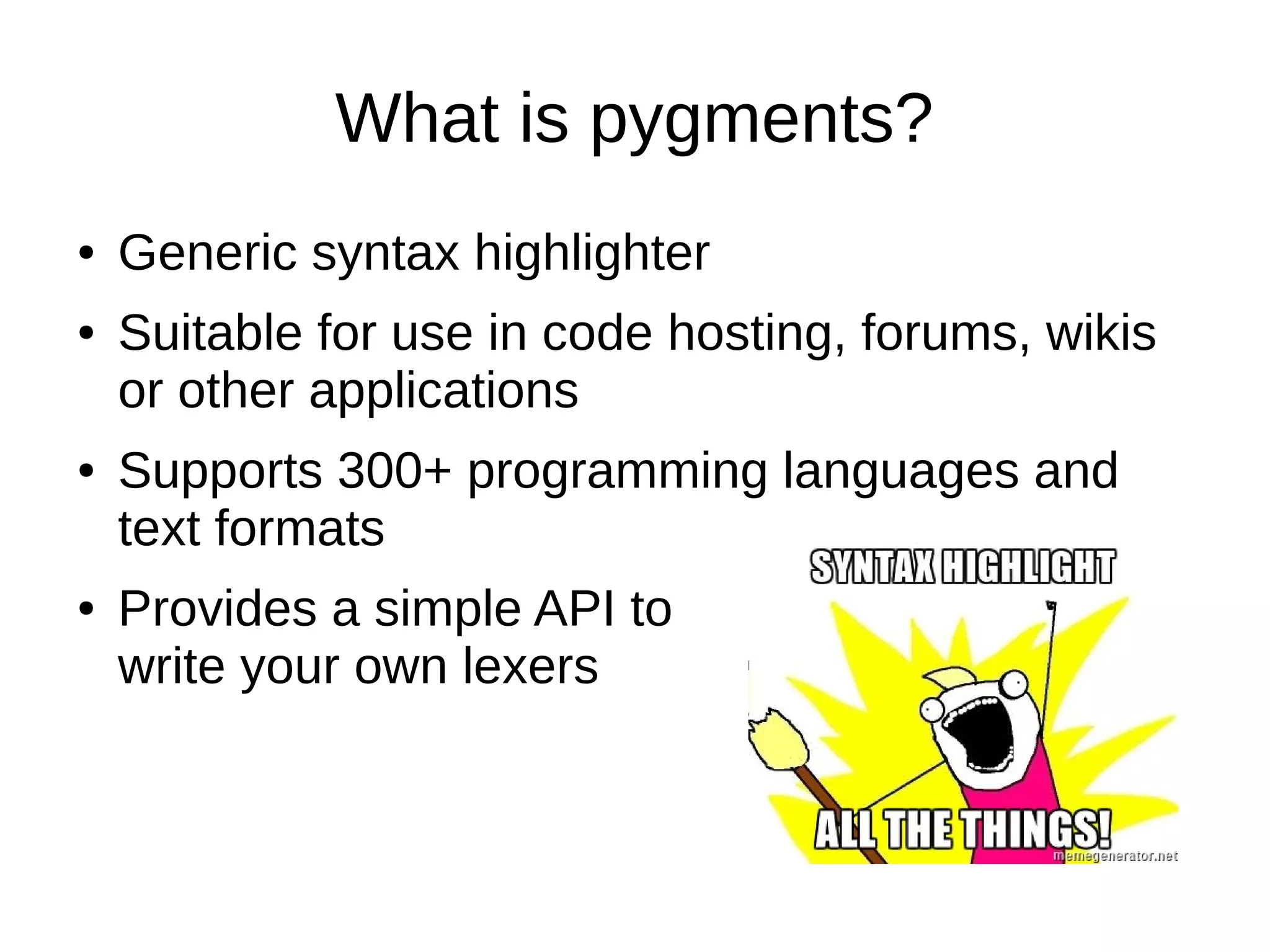

2. What is pygments?
● Generic syntax highlighter
● Suitable for use in code hosting, forums, wikis
or other applications
● Supports 300+ programming languages and
text formats
● Provides a simple API to
write your own lexers

3. Agenda
● Basic usage
● A glimpse at the API: lexers and tokens
● Use case: convert source code
● Use case: write your own lexer

4. Basic usage

5. Applications that use pygments
● Wikipedia
● Jupyter notebook
● Sphinx documentation builder
● Trac ticket tracker and wiki
● Bitbucket source code hosting
● Pygount source lines of code counter
(shameless plug)
● And many others

6. Try it online

7. Try it online

8. Use the command line
● pygmentize -f html -O full,style=emacs
-o example.html example.sql
● Renders example.sql to
example.html
● Without
“-O full,style=emacs”
you have to provide your
own CSS
● Other formats: LaTex, RTF,
ANSI sequences
-- Simple SQL example.
select
customer_number,
first_name,
surname,
date_of_birth
from
customer
where
date_of_birth >= '1990-01-01'
and rating <= 20

9. Choose a specific SQL dialect
● There are many SQL dialects
● Most use “.sql” as file suffix
● Use “-l <lexer>”
to choose
a specific lexer
● pygmentize -l tsql
-f html
-O full,style=emacs
-o example.html transact.sql
-- Simple Transact-SQL example.
declare @date_of_birth date = '1990-01-01';
select top 10
*
from
[customer]
where
[date_of_birth] = @date_of_birth
order by
[customer_number]

10. A glimpse at the API:
lexers and tokens

11. What are lexers?
● Lexers split a text into a list of tokens
● Tokens are strings with an assigned meaning
● For example, a Python source code might resolve to tokens
like:
– Comment: # Some comment
– String: ‘Hellonworld!’
– Keyword: while
– Number: 1.23e-45
● Lexers only see single “words”, parsers see the whole
syntax

12. Split a source code into tokens
Source code for example.sql:
-- Simple SQL example.
select
customer_number,
first_name,
surname,
date_of_birth
from
customer
where
date_of_birth >= '1990-01-01'
and rating <= 20

13. Tokens for example.sql
(Token.Comment.Single, '-- Simple SQL example.n')
(Token.Keyword, 'select')
(Token.Text, 'n ')
(Token.Name, 'customer_number')
(Token.Punctuation, ',')
…
(Token.Operator, '>')
...
(Token.Literal.String.Single, "'1990-01-01'")
...
(Token.Literal.Number.Integer, '20')
...
-- Simple SQL example.
select
customer_number,
first_name,
surname,
date_of_birth
from
customer
where
date_of_birth >= '1990-01-01'
and rating <= 20

14. Source code to lex example.sql
import pygments.lexers
import pygments.token
def print_tokens(source_path):
# Read source code into string.
with open(source_path, encoding='utf-8') as source_file:
source_text = source_file.read()
# Find a fitting lexer.
lexer = pygments.lexers.guess_lexer_for_filename(
source_path, source_text)
# Print tokens from source code.
for items in lexer.get_tokens(source_text):
print(items)

15. Source code to lex example.sql
Obtain token
sequence
Find lexer
matching the
source code
import pygments.lexers
import pygments.token
def print_tokens(source_path):
# Read source code into string.
with open(source_path, encoding='utf-8') as source_file:
source_text = source_file.read()
# Find a fitting lexer.
lexer = pygments.lexers.guess_lexer_for_filename(
source_path, source_text)
# Print tokens from source code.
for items in lexer.get_tokens(source_text):
print(items)

16. Tokens in pygments
● Tokens are tuples with 2 items:
– Type, e.g. Token.Comment
– Text, e.g. ‘# Some comment’
● Tokens are defined in pygments.token
● Some token types have subtypes, e.g. Comment has
Comment.Single, Comment.Multiline etc.
● In that case, use “in” instead of “==” to check if a
token type matches, e.g.:
if token_type in pygments.token.Comment: ...

17. Convert source code

18. Convert source code
● Why?
To match coding guidelines!
● Example: “SQL keywords must
be lower case”→ faster to read
● Despite that, a lot of SQL code
uses upper case for keywords.
● Legacy from the mainframe
era and when text editors did
not have syntax highlighting.
SELECT
CustomerNumber,
FirstName,
Surname
FROM
Customer
WHERE
DateOfBirth >= '1990-01-01'

19. Convert source code
SELECT
CustomerNumber,
FirstName,
Surname
FROM
Customer
WHERE
DateOfBirth >= '1990-01-01'
select
CustomerNumber,
FirstName,
Surname
from
Customer
where
DateOfBirth >= '1990-01-01'

20. Convert source code
Check for keywords
and convert them
to lower case
def lowify_sql_keywords(source_path, target_path):
# Read source code into string.
with open(source_path, encoding='utf-8') as source_file:
source_text = source_file.read()
# Find a fitting lexer.
lexer = pygments.lexers.guess_lexer_for_filename(
source_path, source_text)
# Lex the source, convert keywords and write target file.
with open(target_path, 'w', encoding='utf-8') as target_file:
for token_type, token_text in lexer.get_tokens(source_text):
# Check for keywords and convert them to lower case.
if token_type == pygments.token.Keyword:
token_text = token_text.lower()
target_file.write(token_text)

21. Write your own lexer

22. Why write your own lexer?
● To support new languages
● To support obscure languages
(mainframe FTW!)
● To support in house domain specific languages
(DSL)

23. How to write your own lexer
● All the gory details:
http://pygments.org/docs/lexerdevelopment/
● For most practical purposes, inherit from
RegexLexer
● Basic knowledge of
regular expressions
required (“import re”)

24. NanoSQL
● Small subset if SQL
● Comment: -- Some comment
● Keyword: select
● Integer number: 123
● String: ‘Hello’; use ‘’ to escape
● Name: Customer
● Punctuation: .,;:

25. External lexers with pygmentize
Use -l and -x to:
pygmentize -f html -O full,style=emacs
-l nanosqllexer.py:NanoSqlLexer -x
-o example.html example.nsql

26. Source code for NanoSQL lexer
● Life coding!
● Starting from a skeleton
● Gradually adding regular expressions to render
more elements

27. Skeleton for NanoSQL lexer
from pygments.lexer import RegexLexer, words
from pygments.token import Comment, Keyword, Name, Number, String,
Operator, Punctuation, Whitespace
_NANOSQL_KEYWORDS = (
'as',
'from',
'select',
'where',
)
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
# TODO: Add rules.
],
}
Words to be treated
as keywords.
Names recognized by
pygmentize’s -l option
Patterns recognized by
get_lexer_by_filename().

28. Render unknown tokens as Error
from pygments.lexer import RegexLexer, words
from pygments.token import Comment, Keyword, Name, Number, String,
Operator, Punctuation, Whitespace
_NANOSQL_KEYWORDS = (
'as',
'from',
'select',
'where',
)
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
# TODO: Add rules.
],
}

29. Detect comments
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(r'--.*?$', Comment),
],
}

30. Detect whitespace
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(r's+', Whitespace),
(r'--.*?$', Comment),
],
}

31. Detect names
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'w+', Name),
],
}
w = [a-zA-Z0-9_]

32. Detect numbers
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
],
}
d = [0-9]
Must check
before w

33. Detect keywords
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(words(_NANOSQL_KEYWORDS, suffix=r'b'), Keyword),
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
]
}

34. Detect keywords
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(words(_NANOSQL_KEYWORDS, suffix=r'b'), Keyword),
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
]
}
words() takes a list of strings
and returns an optimized
pattern for a regular expression
that matches any of these
strings.
b = end of word

35. Detect punctuation and operators
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(words(_NANOSQL_KEYWORDS, suffix=r'b'), Keyword),
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
(r'[.,;:]', Punctuation),
(r'[<>=/*+-]', Operator),
],
}

36. Detect string – finished!
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(words(_NANOSQL_KEYWORDS, suffix=r'b'), Keyword),
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
(r'[.,;:]', Punctuation),
(r'[<>=/*+-]', Operator),
(''', String, 'string'),
],
'string': [
("''", String),
(r'[^']', String),
("'", String, '#pop')
]
}

37. Detect string – finished!
class NanoSqlLexer(RegexLexer):
name = 'NanoSQL'
aliases = ['nanosql']
filenames = ['*.nsql']
tokens = {
'root': [
(words(_NANOSQL_KEYWORDS, suffix=r'b'), Keyword),
(r's+', Whitespace),
(r'--.*?$', Comment),
(r'd+', Number),
(r'w+', Name),
(r'[.,;:]', Punctuation),
(r'[<>=/*+-]', Operator),
(''', String, 'string'),
],
'string': [
("''", String),
(r'[^']', String),
("'", String, '#pop')
]
}
Change state
to ‘string’
Double single quote
(escaped quote)
On single quote, terminate string and
revert lexer to previous state (‘root’)
“Anything except
single quote”

38. Regex fetish note
You can squeeze string tokens in a single regex
rule without the need for a separate state:
(r"'(|'|''|[^'])*'", String),

39. Conclusion

40. Summary
● Pygments is a versatile Python package to
syntax highlight over 300 programming
languages and text formats.
● Use pygmentize to create highlighted code as
HTML, LaTex or RTF.
● Utilize lexers to implement code converters and
analyzers.
● Writing your own lexers is simple.
