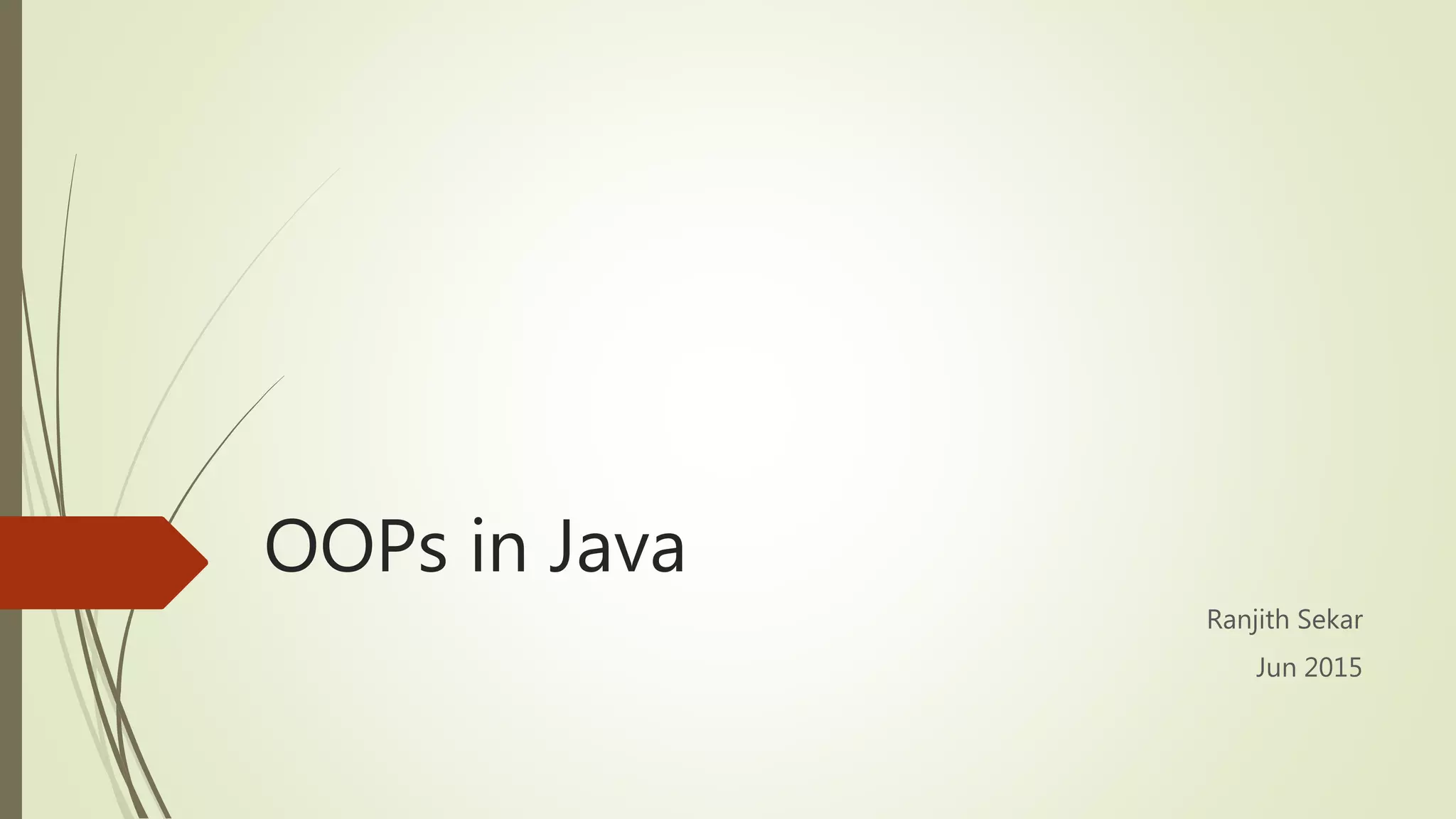

1. OOPs in Java
Ranjith Sekar
Jun 2015

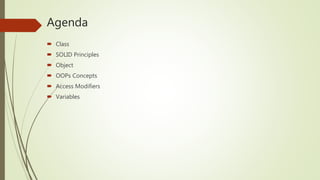

2. Agenda
 Class
 SOLID Principles
 Object
 OOPs Concepts
 Access Modifiers
 Variables

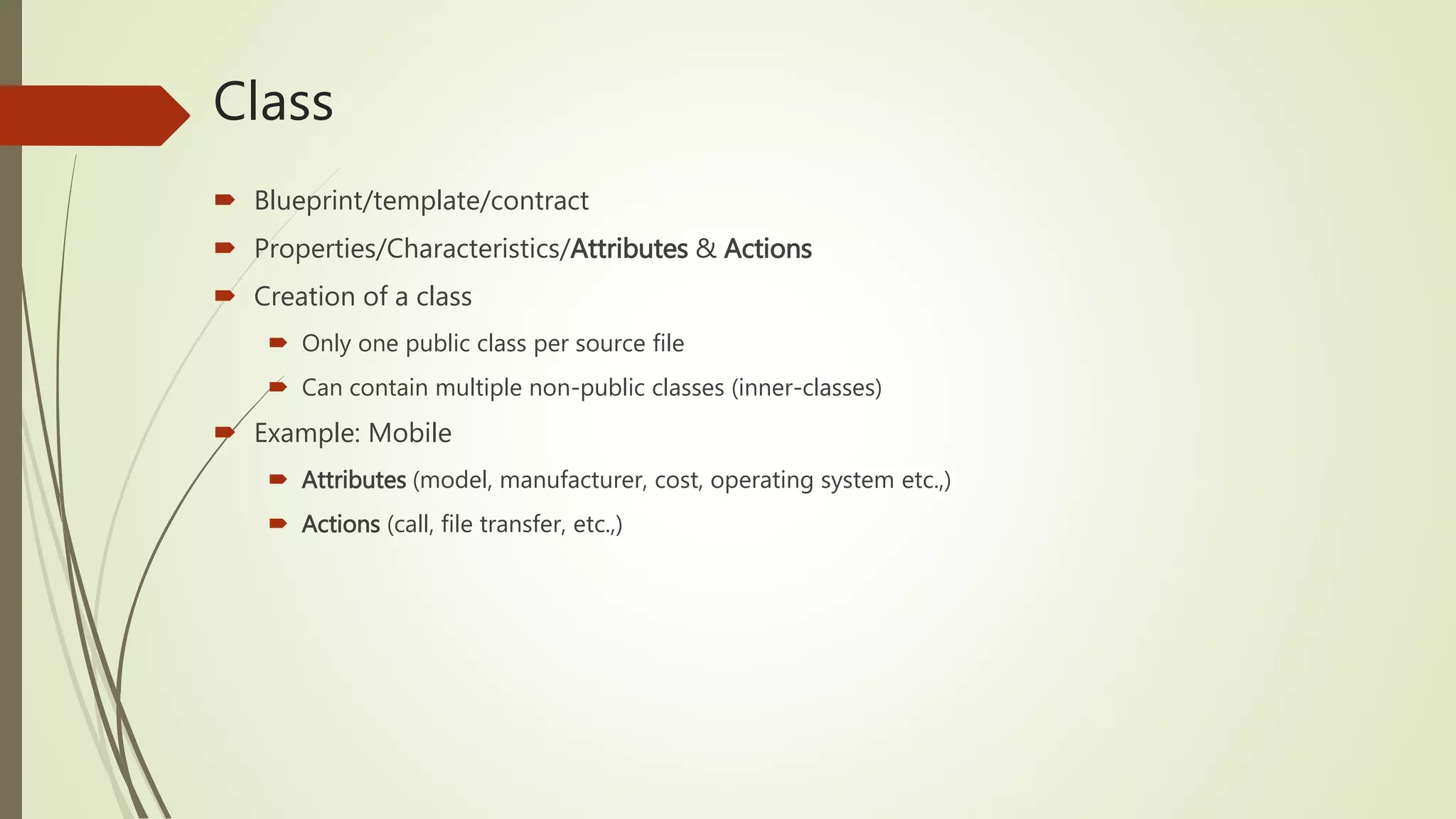

3. Class
 Blueprint/template/contract
 Properties/Characteristics/Attributes & Actions
 Creation of a class
 Only one public class per source file
 Can contain multiple non-public classes (inner-classes)
 Example: Mobile
 Attributes (model, manufacturer, cost, operating system etc.,)
 Actions (call, file transfer, etc.,)

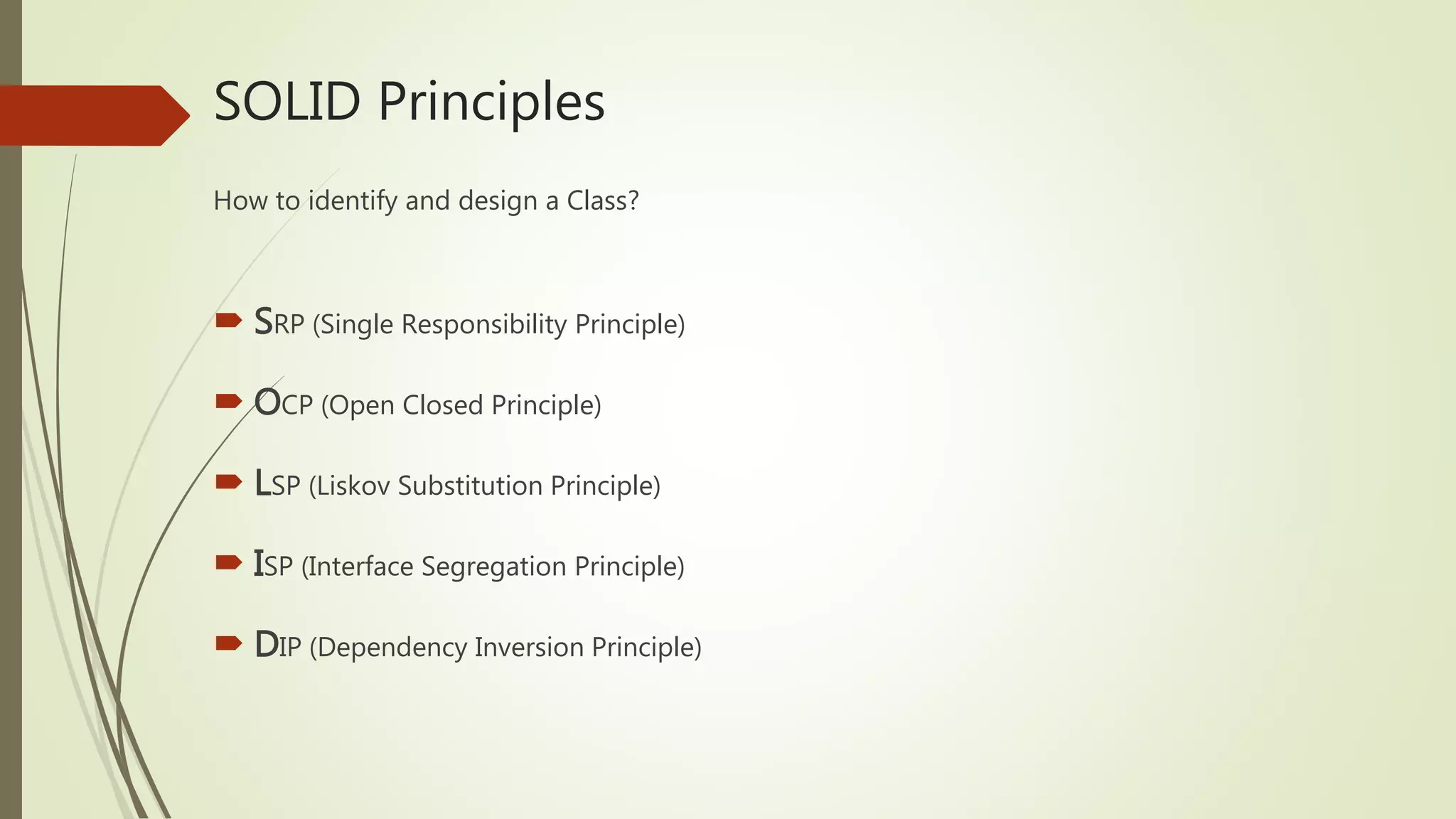

4. SOLID Principles
How to identify and design a Class?
 SRP (Single Responsibility Principle)
 OCP (Open Closed Principle)
 LSP (Liskov Substitution Principle)
 ISP (Interface Segregation Principle)
 DIP (Dependency Inversion Principle)

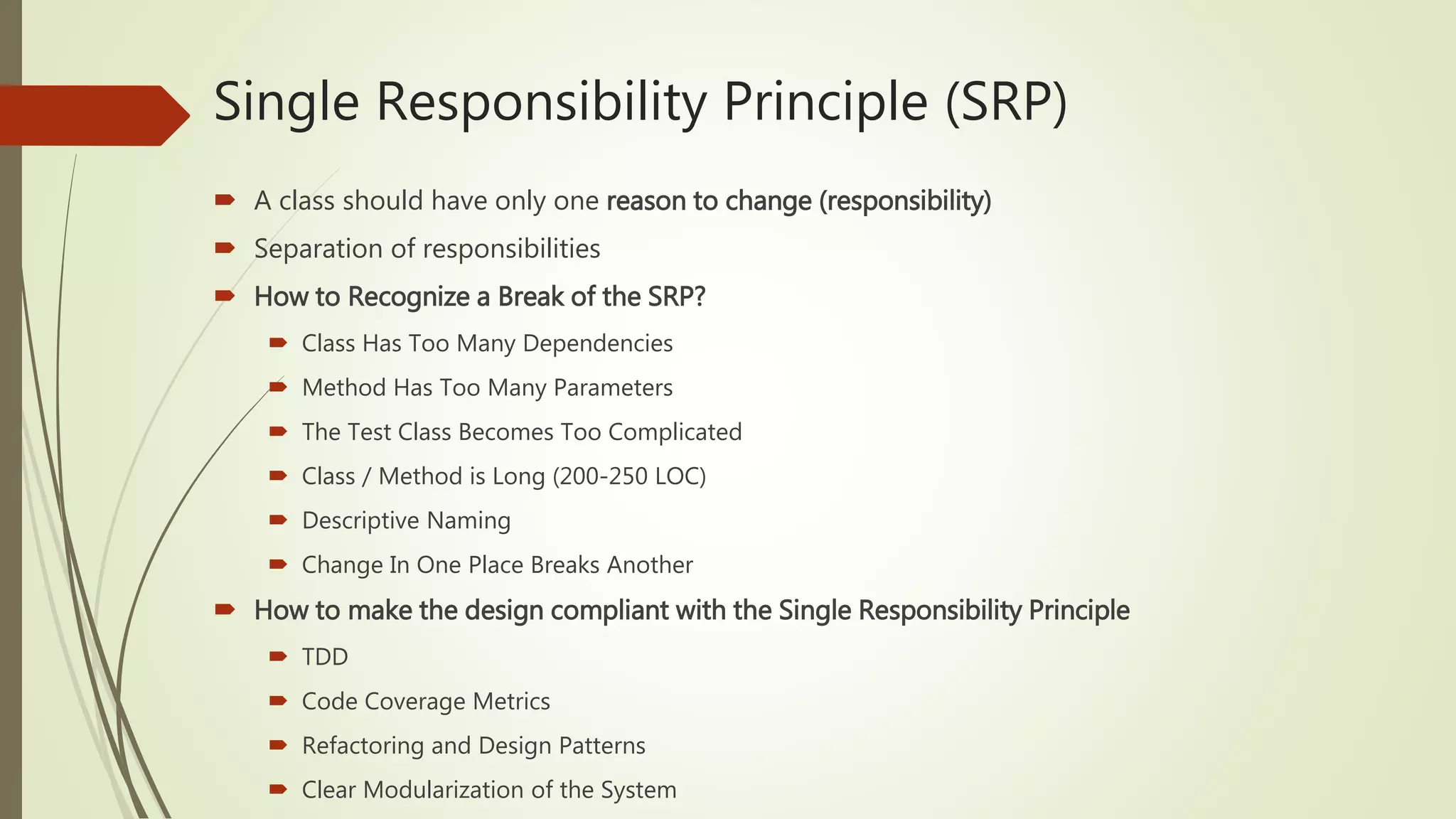

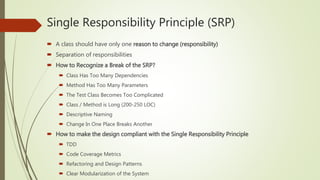

5. Single Responsibility Principle (SRP)
 A class should have only one reason to change (responsibility)
 Separation of responsibilities
 How to Recognize a Break of the SRP?
 Class Has Too Many Dependencies
 Method Has Too Many Parameters
 The Test Class Becomes Too Complicated
 Class / Method is Long (200-250 LOC)
 Descriptive Naming
 Change In One Place Breaks Another
 How to make the design compliant with the Single Responsibility Principle
 TDD
 Code Coverage Metrics
 Refactoring and Design Patterns
 Clear Modularization of the System

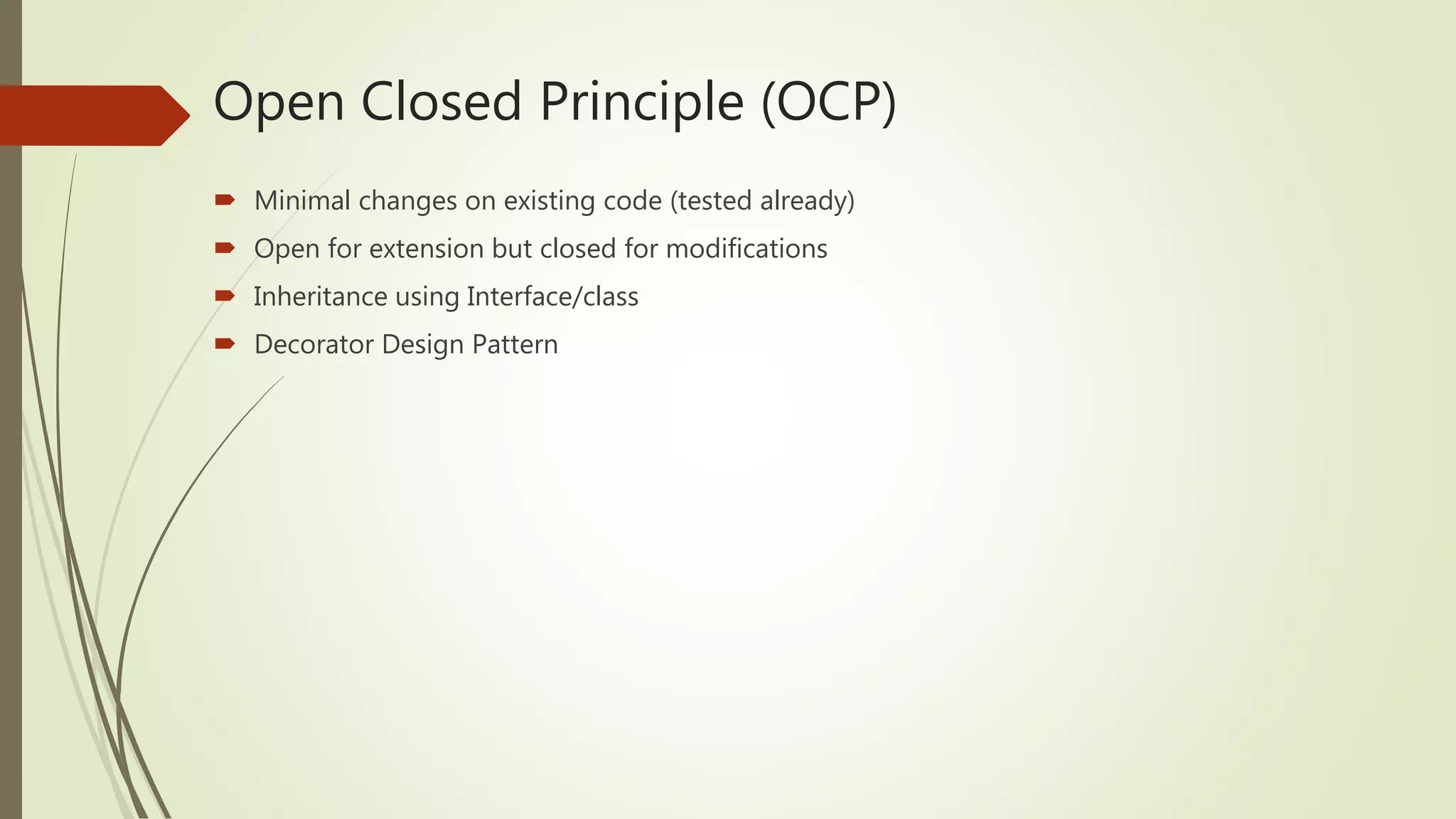

6. Open Closed Principle (OCP)
 Minimal changes on existing code (tested already)
 Open for extension but closed for modifications
 Inheritance using Interface/class
 Decorator Design Pattern

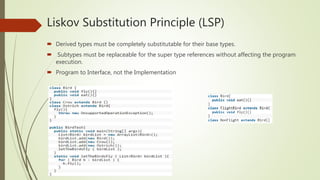

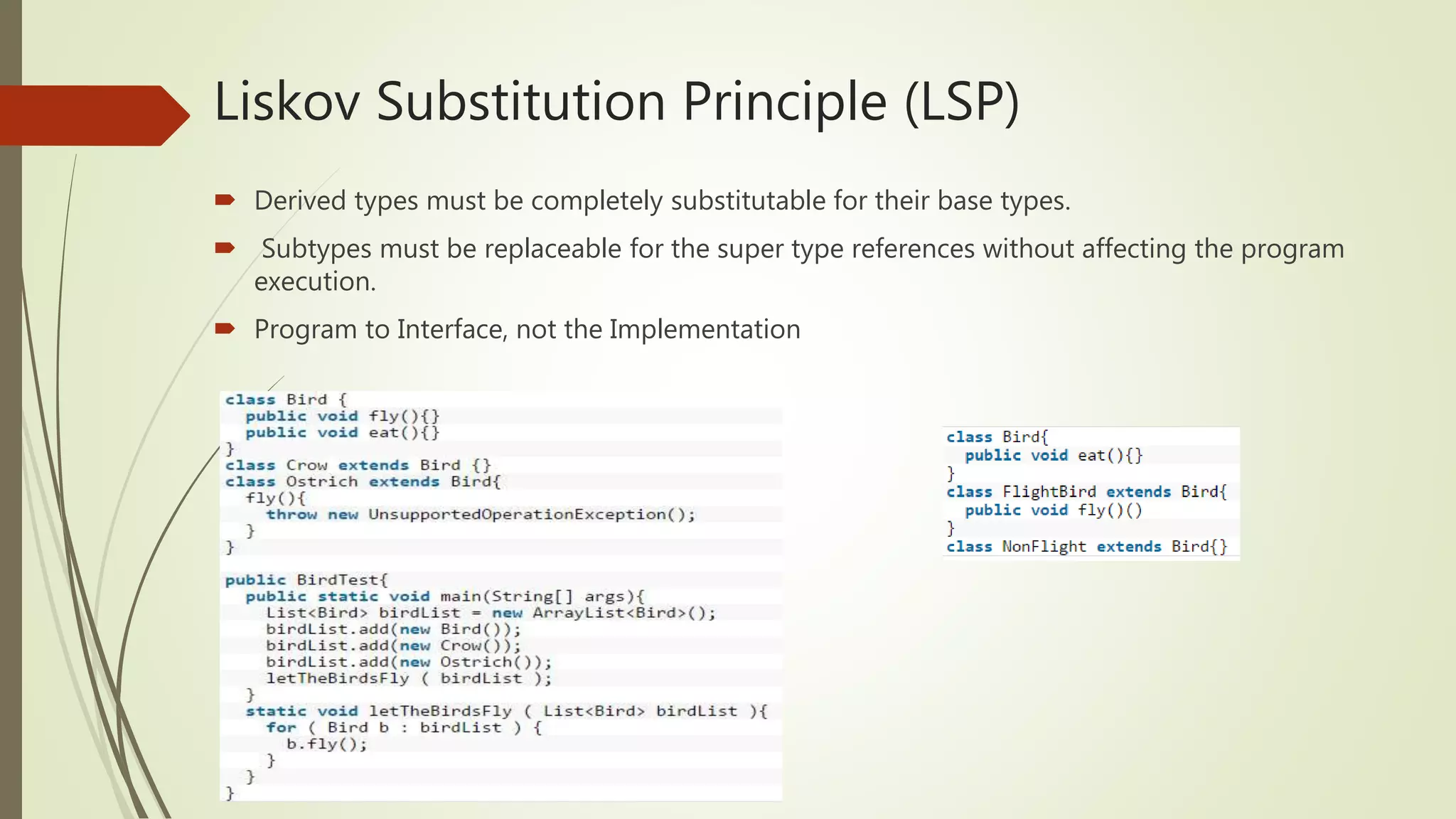

7. Liskov Substitution Principle (LSP)
 Derived types must be completely substitutable for their base types.
 Subtypes must be replaceable for the super type references without affecting the program
execution.
 Program to Interface, not the Implementation

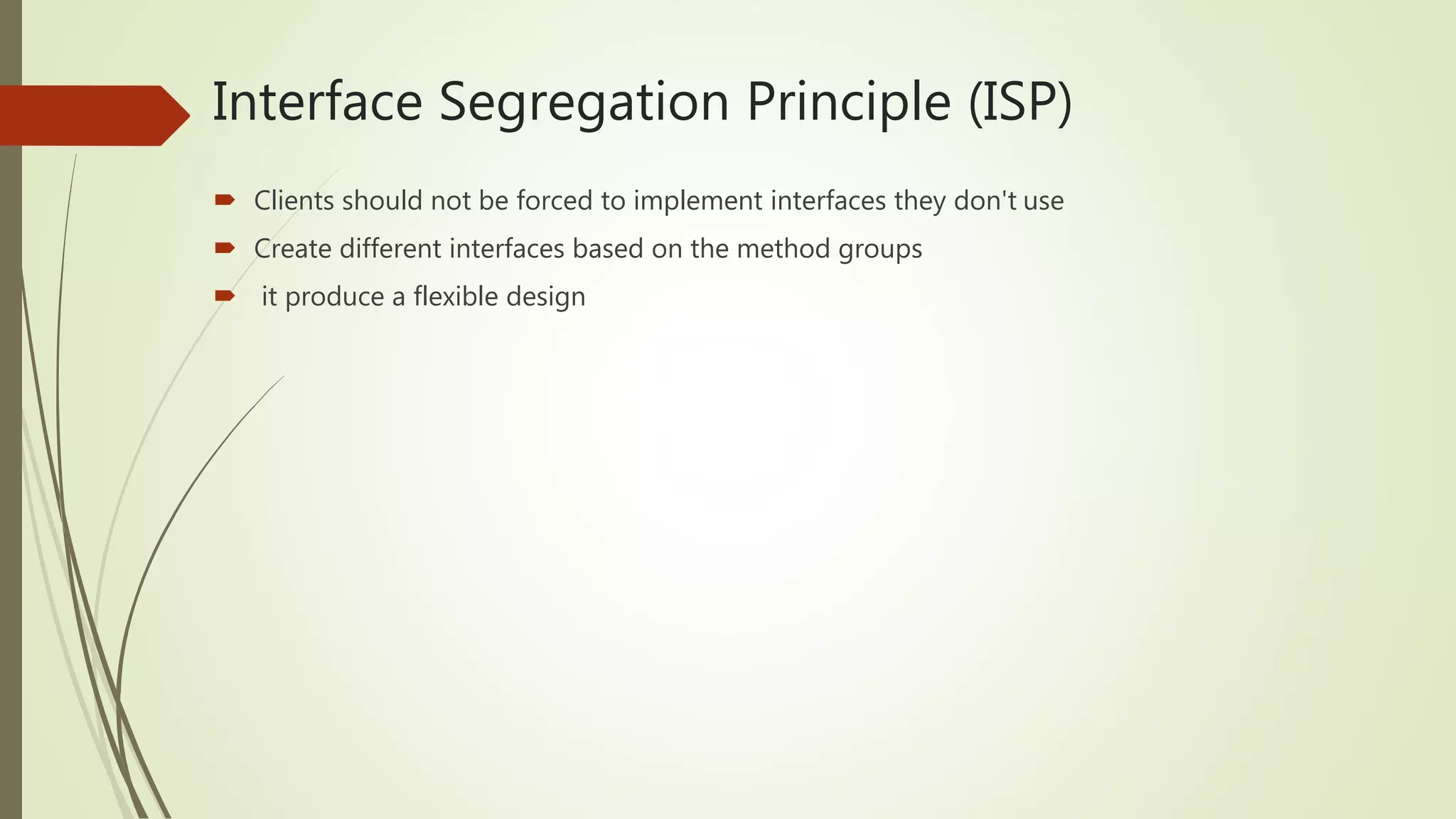

8. Interface Segregation Principle (ISP)
 Clients should not be forced to implement interfaces they don't use
 Create different interfaces based on the method groups
 it produce a flexible design

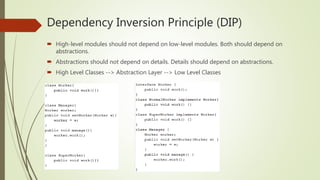

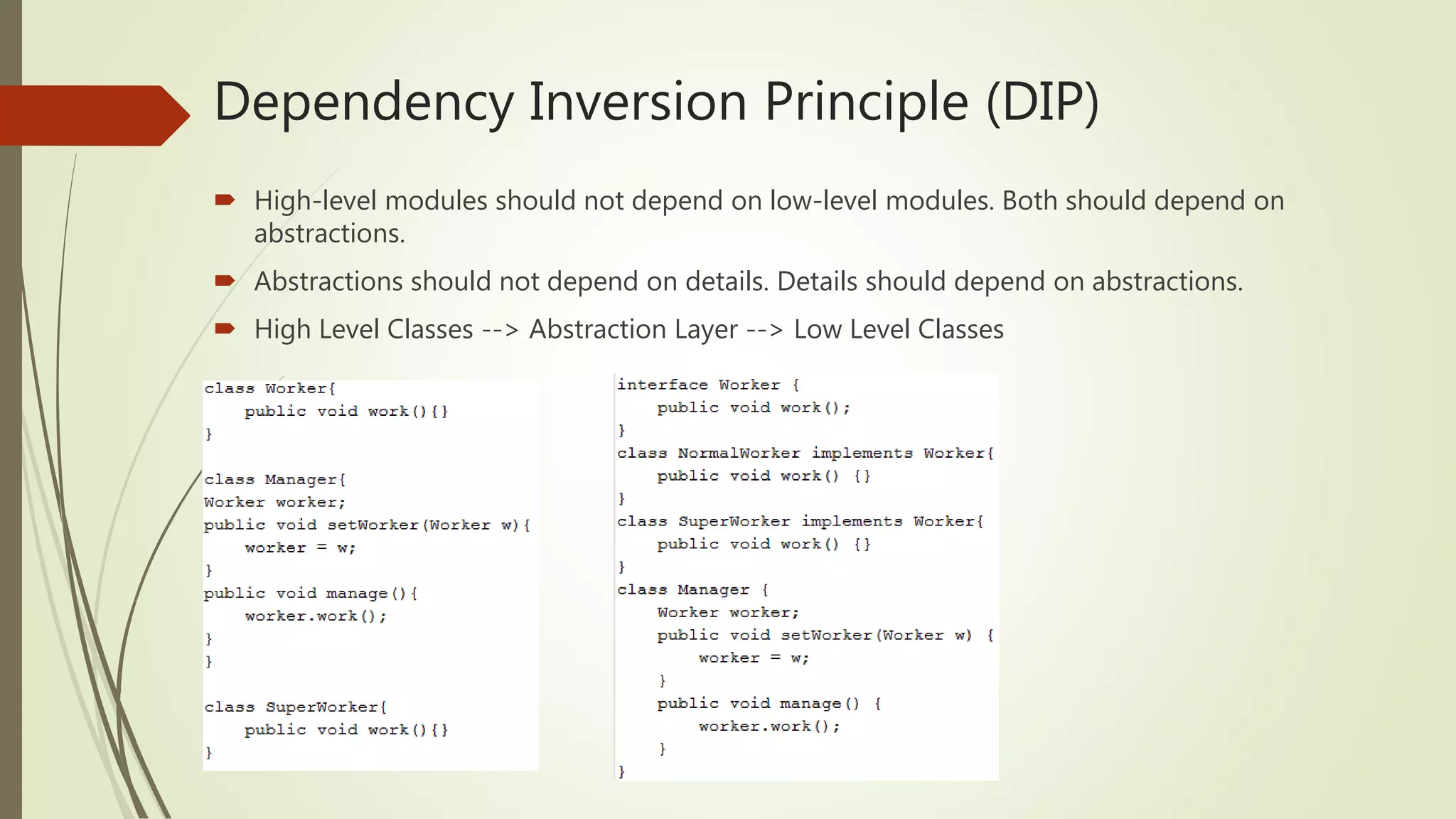

9. Dependency Inversion Principle (DIP)
 High-level modules should not depend on low-level modules. Both should depend on
abstractions.
 Abstractions should not depend on details. Details should depend on abstractions.
 High Level Classes --> Abstraction Layer --> Low Level Classes

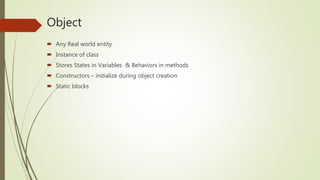

10. Object
 Any Real world entity
 Instance of class
 Stores States in Variables & Behaviors in methods
 Constructors – initialize during object creation
 Static blocks

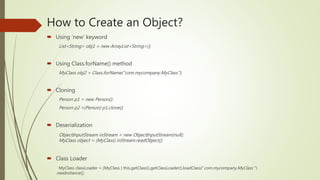

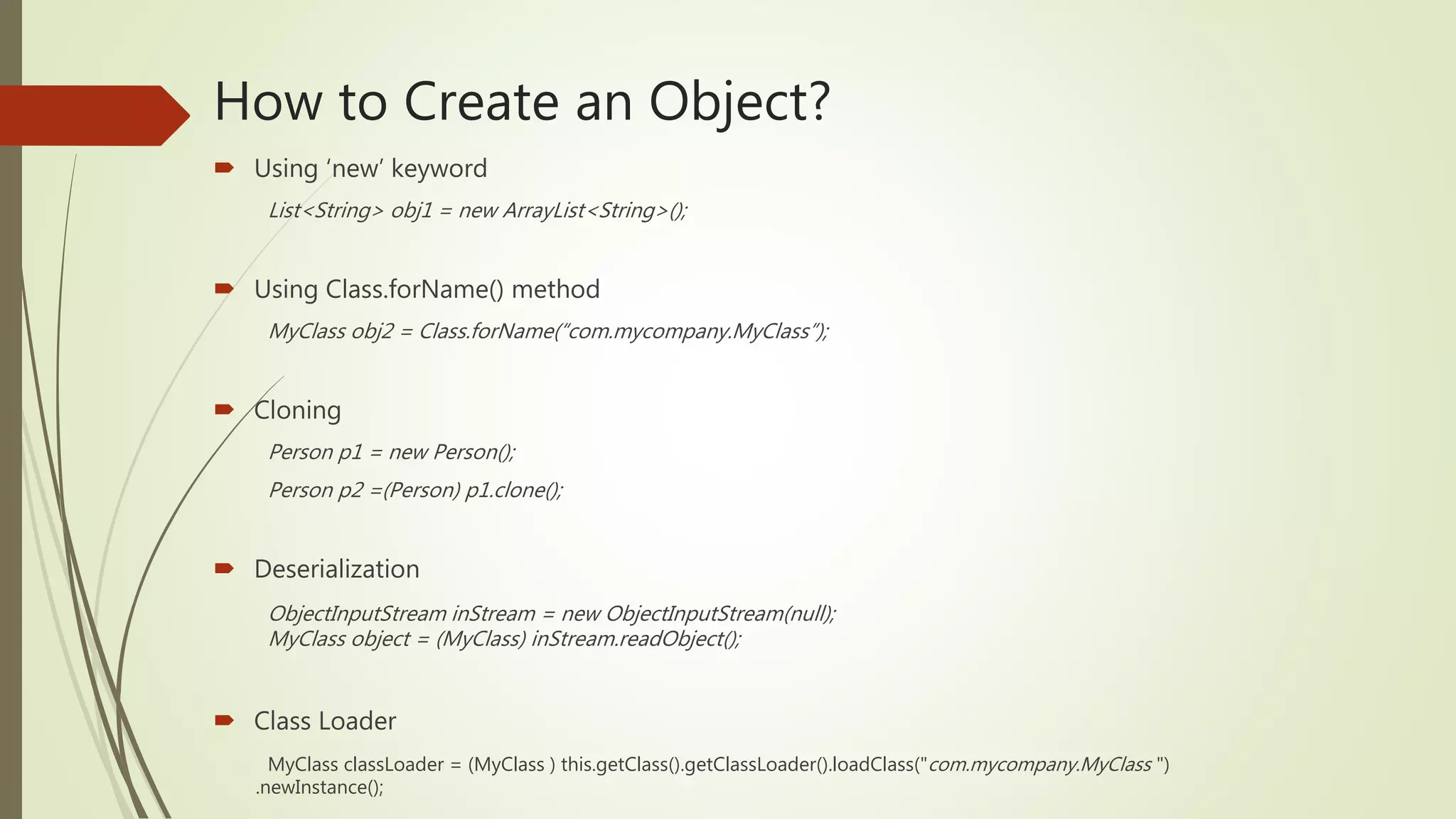

11. How to Create an Object?
 Using ‘new’ keyword
List<String> obj1 = new ArrayList<String>();
 Using Class.forName() method
MyClass obj2 = Class.forName(“com.mycompany.MyClass”);
 Cloning
Person p1 = new Person();
Person p2 =(Person) p1.clone();
 Deserialization
ObjectInputStream inStream = new ObjectInputStream(null);
MyClass object = (MyClass) inStream.readObject();
 Class Loader
MyClass classLoader = (MyClass ) this.getClass().getClassLoader().loadClass("com.mycompany.MyClass ")
.newInstance();

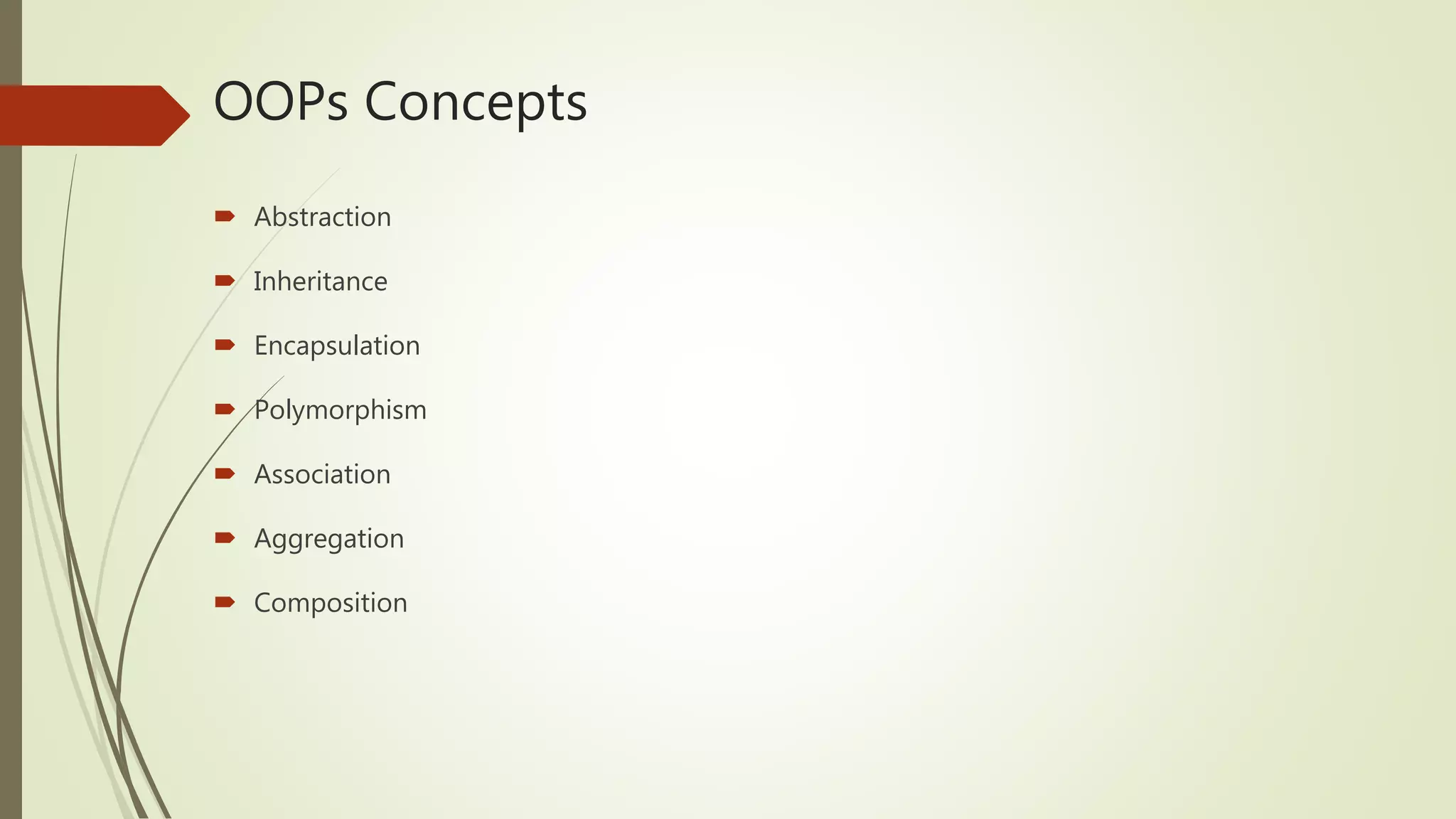

12. OOPs Concepts
 Abstraction
 Inheritance
 Encapsulation
 Polymorphism
 Association
 Aggregation
 Composition

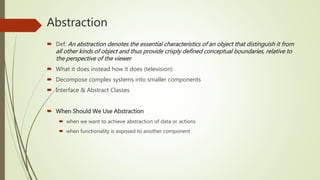

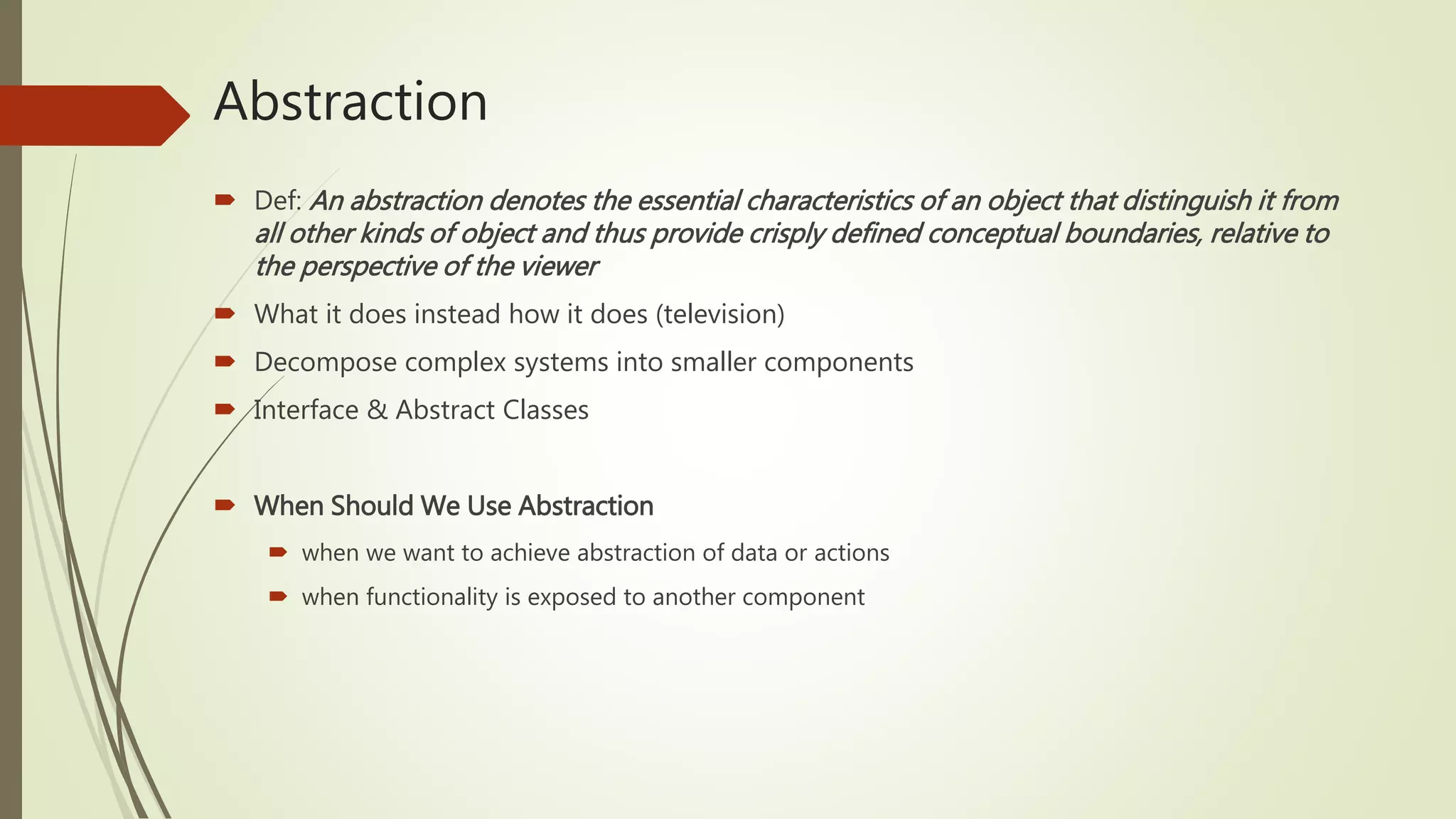

13. Abstraction
 Def: An abstraction denotes the essential characteristics of an object that distinguish it from
all other kinds of object and thus provide crisply defined conceptual boundaries, relative to
the perspective of the viewer
 What it does instead how it does (television)
 Decompose complex systems into smaller components
 Interface & Abstract Classes
 When Should We Use Abstraction
 when we want to achieve abstraction of data or actions
 when functionality is exposed to another component

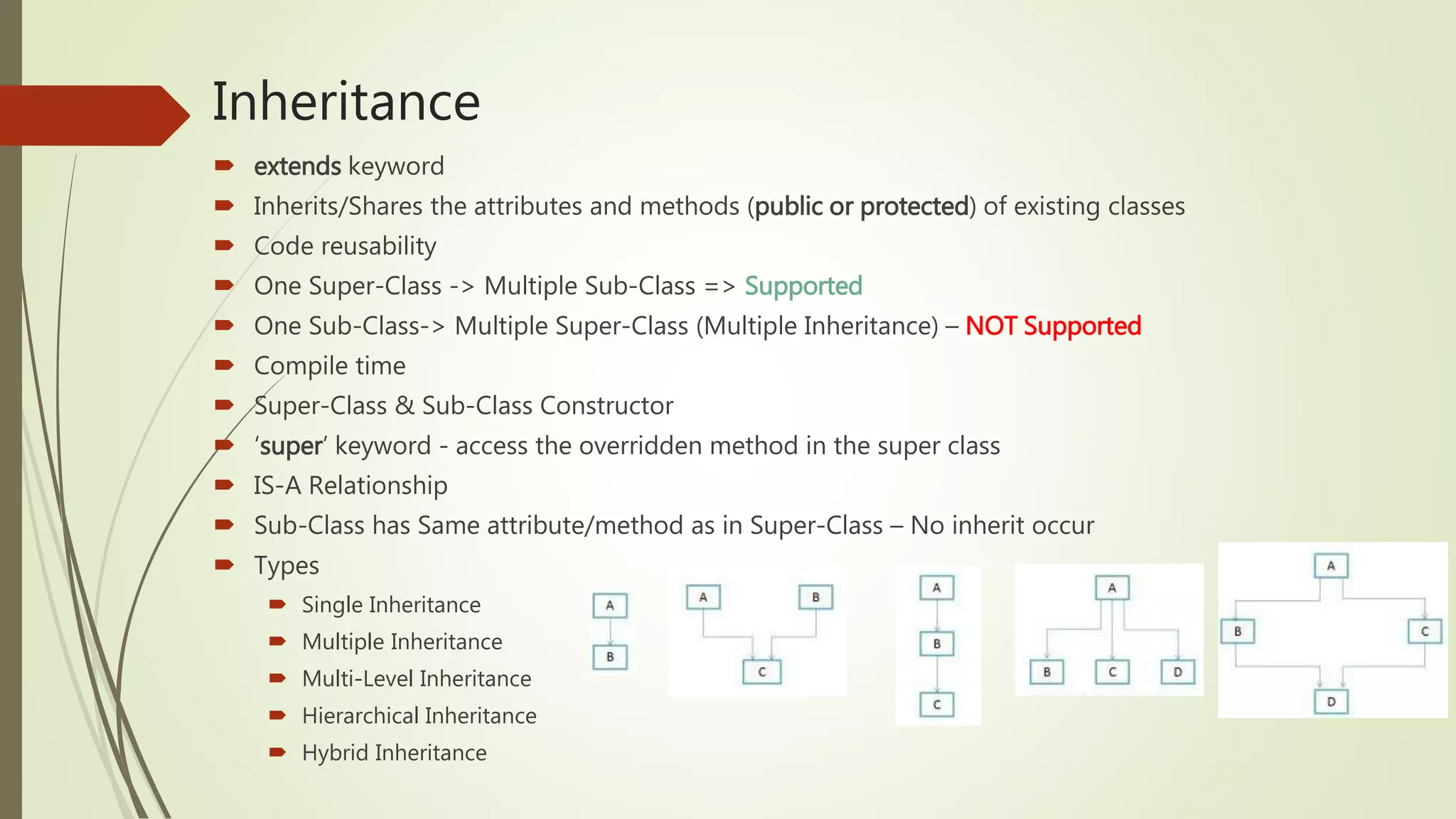

14. Inheritance
 extends keyword
 Inherits/Shares the attributes and methods (public or protected) of existing classes
 Code reusability
 One Super-Class -> Multiple Sub-Class => Supported
 One Sub-Class-> Multiple Super-Class (Multiple Inheritance) – NOT Supported
 Compile time
 Super-Class & Sub-Class Constructor
 ‘super’ keyword - access the overridden method in the super class
 IS-A Relationship
 Sub-Class has Same attribute/method as in Super-Class – No inherit occur
 Types
 Single Inheritance
 Multiple Inheritance
 Multi-Level Inheritance
 Hierarchical Inheritance
 Hybrid Inheritance

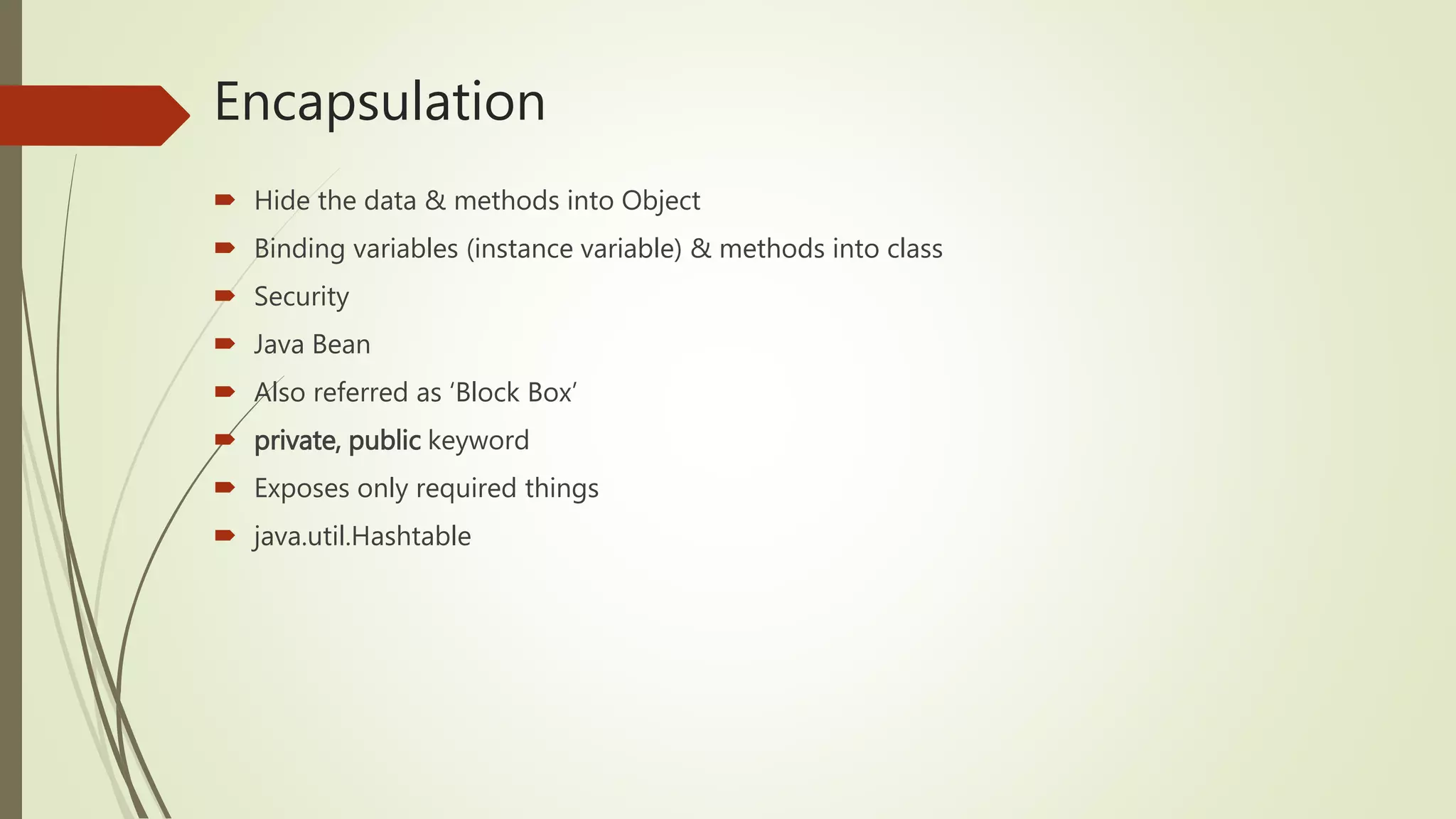

15. Encapsulation
 Hide the data & methods into Object
 Binding variables (instance variable) & methods into class
 Security
 Java Bean
 Also referred as ‘Block Box’
 private, public keyword
 Exposes only required things
 java.util.Hashtable

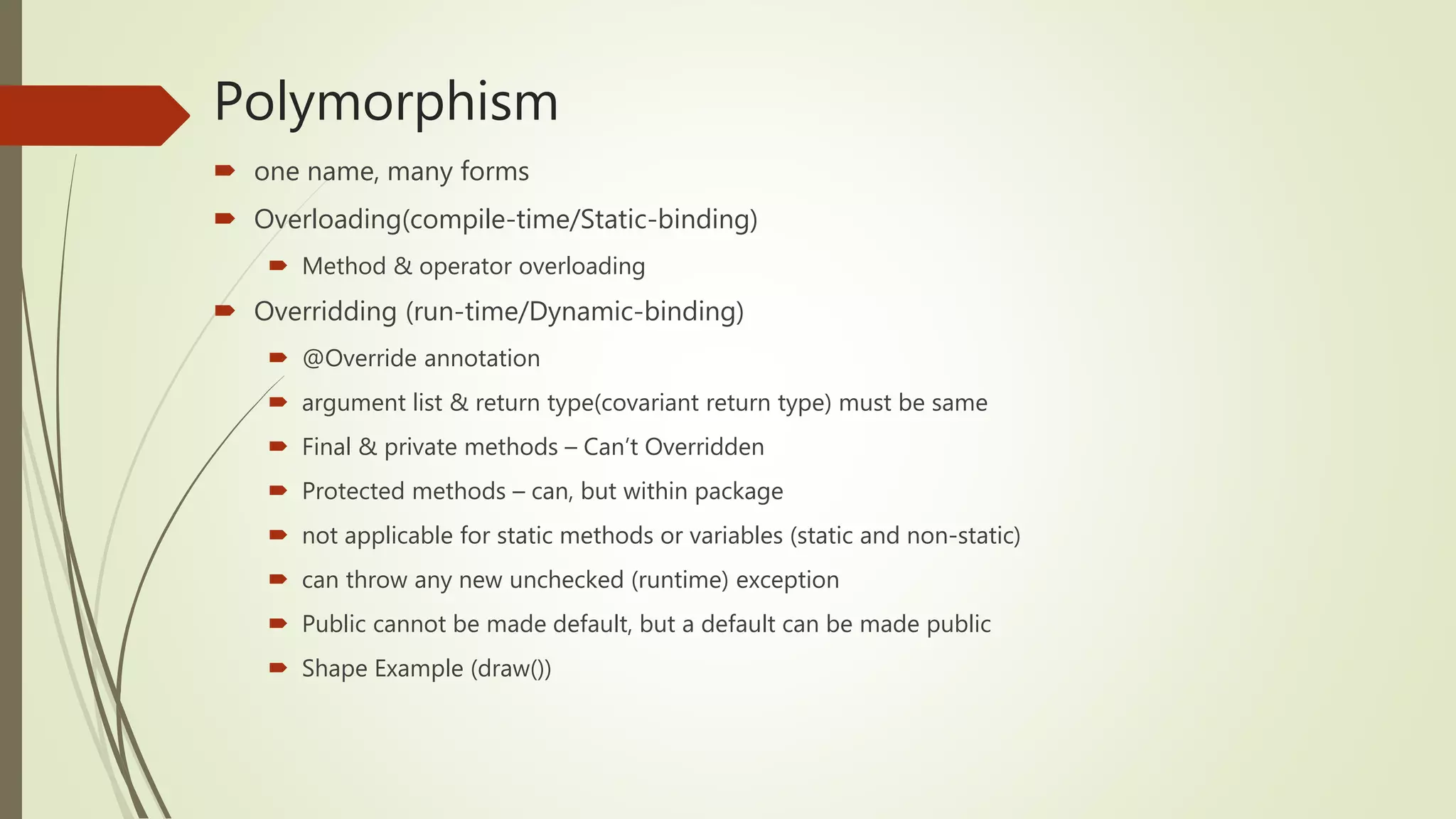

16. Polymorphism
 one name, many forms
 Overloading(compile-time/Static-binding)
 Method & operator overloading
 Overridding (run-time/Dynamic-binding)
 @Override annotation
 argument list & return type(covariant return type) must be same
 Final & private methods – Can’t Overridden
 Protected methods – can, but within package
 not applicable for static methods or variables (static and non-static)
 can throw any new unchecked (runtime) exception
 Public cannot be made default, but a default can be made public
 Shape Example (draw())

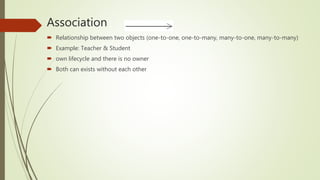

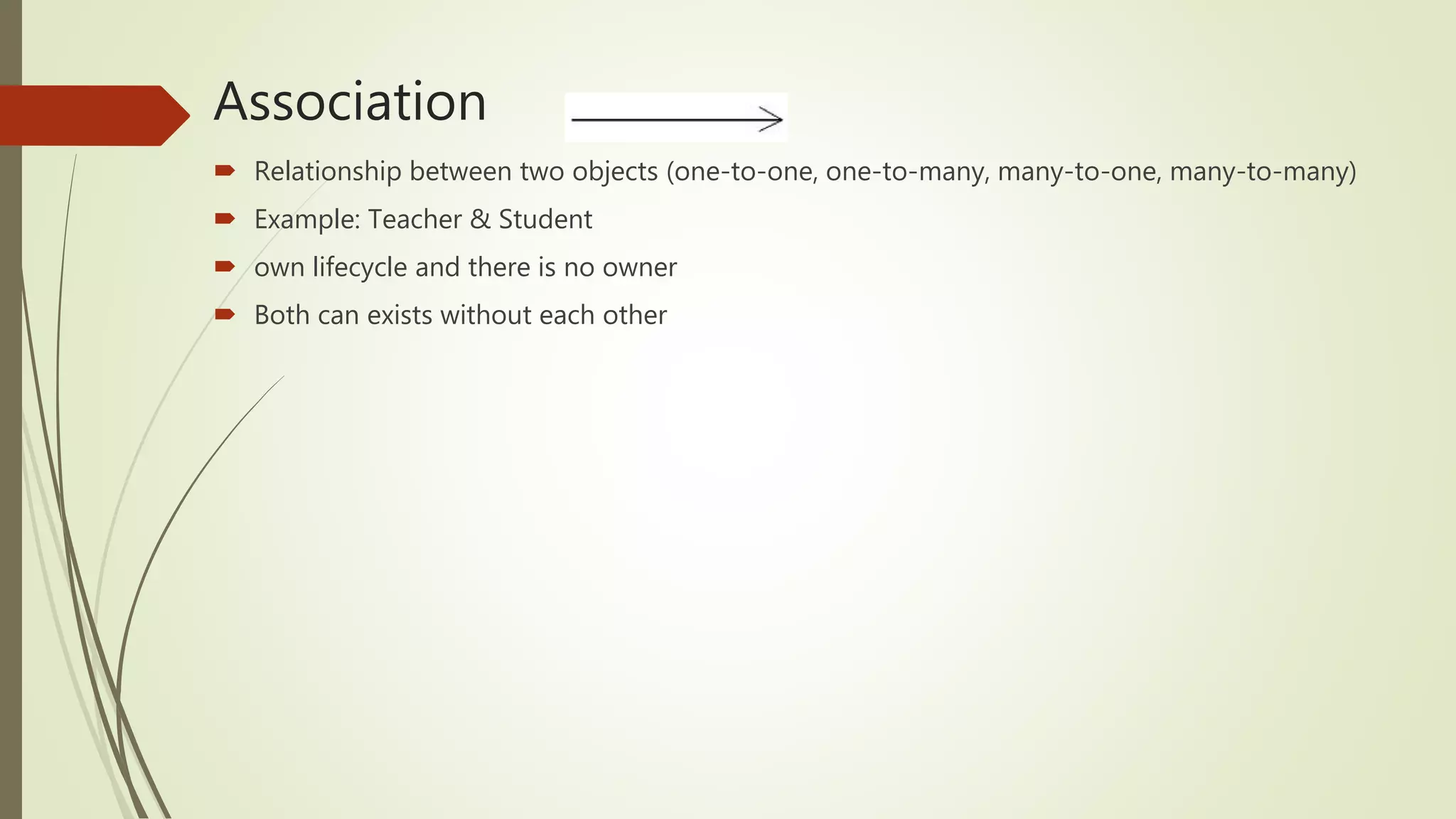

17. Association
 Relationship between two objects (one-to-one, one-to-many, many-to-one, many-to-many)
 Example: Teacher & Student
 own lifecycle and there is no owner
 Both can exists without each other

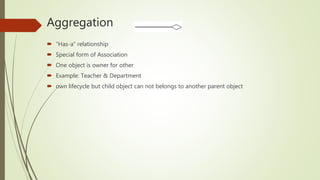

18. Aggregation
 “Has-a” relationship
 Special form of Association
 One object is owner for other
 Example: Teacher & Department
 own lifecycle but child object can not belongs to another parent object

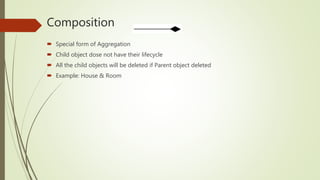

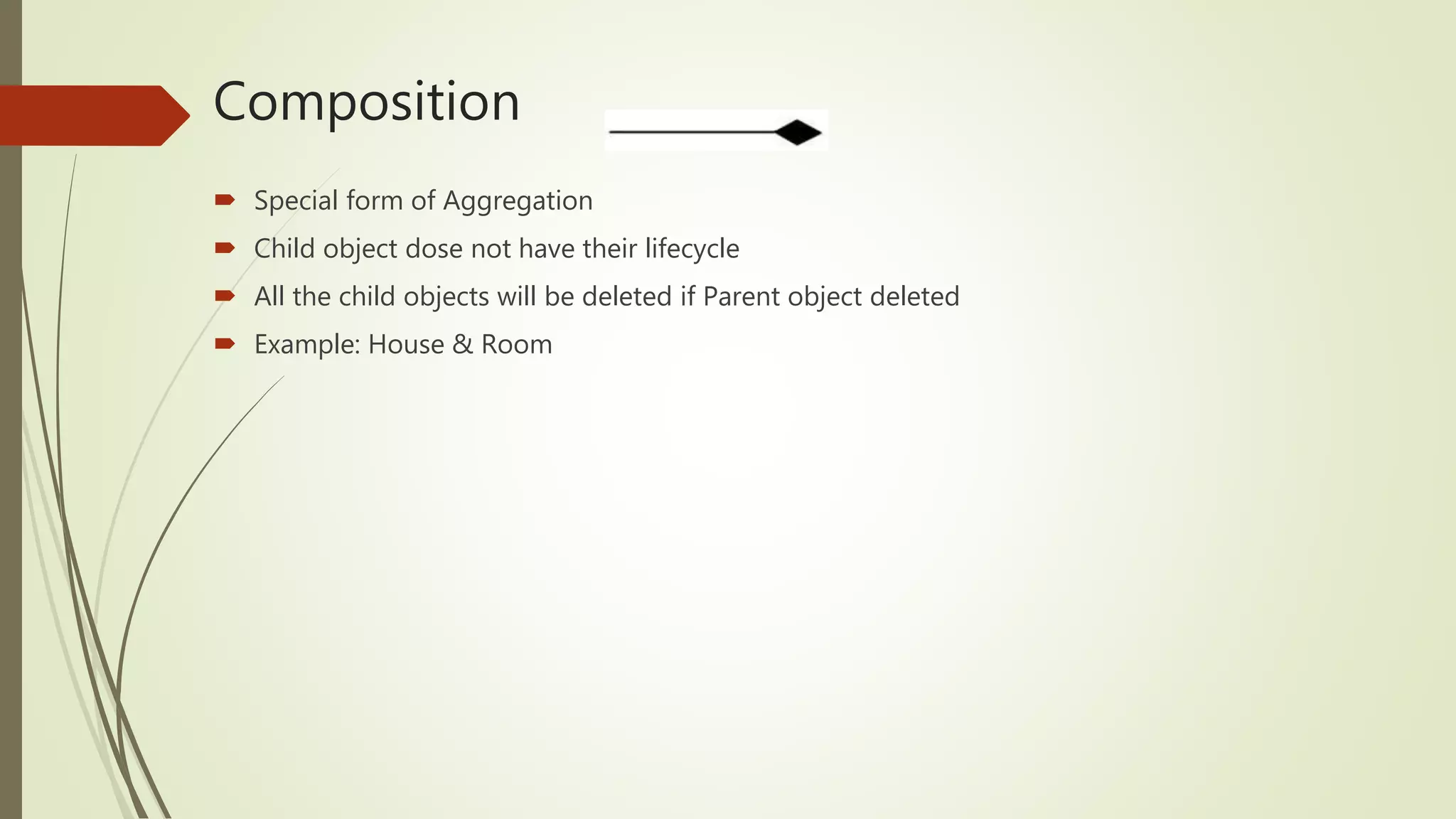

19. Composition
 Special form of Aggregation
 Child object dose not have their lifecycle
 All the child objects will be deleted if Parent object deleted
 Example: House & Room

20. OO design Principles & OO basic principles

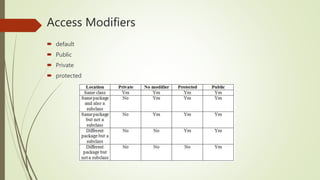

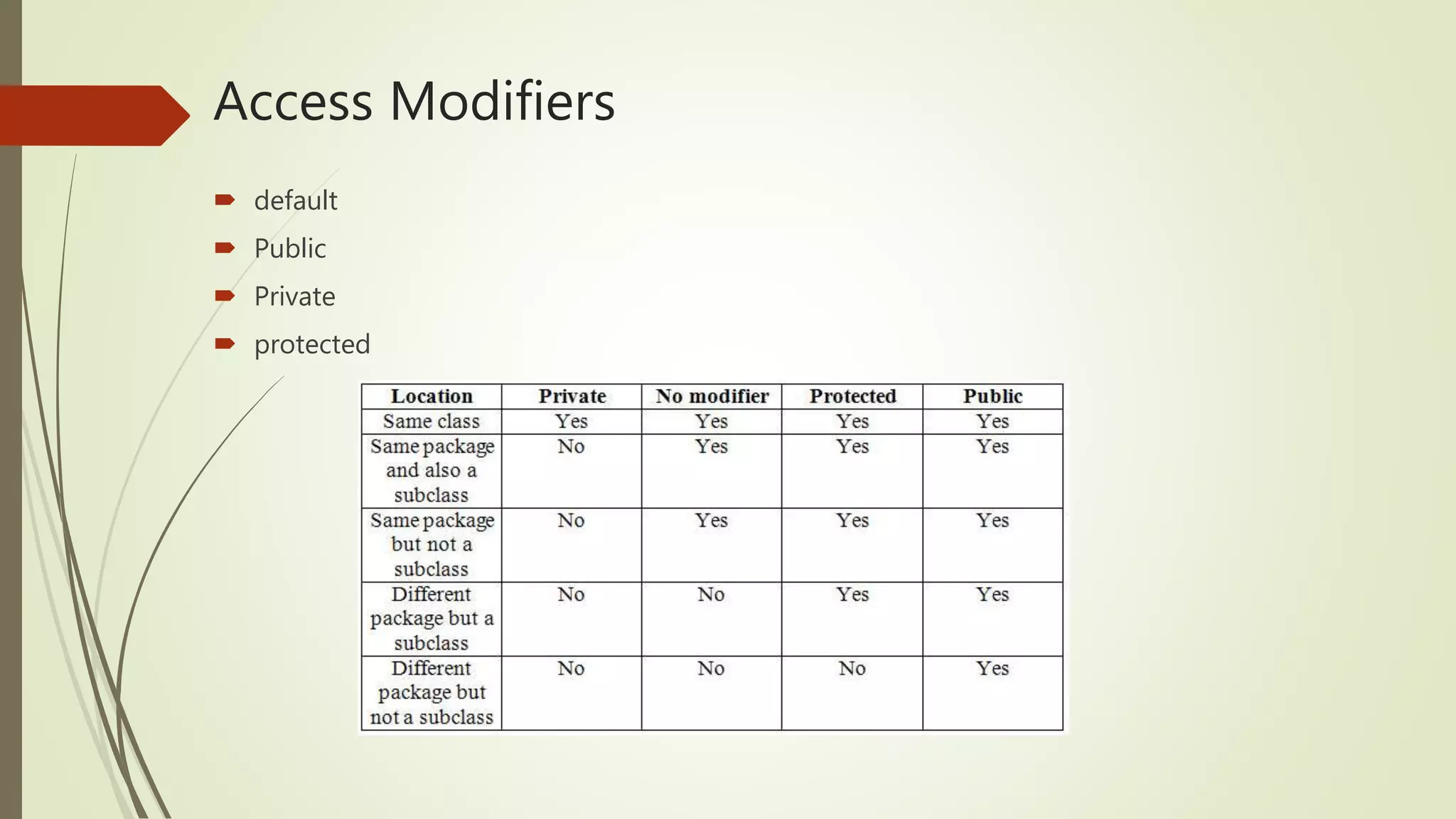

21. Access Modifiers
 default
 Public
 Private
 protected

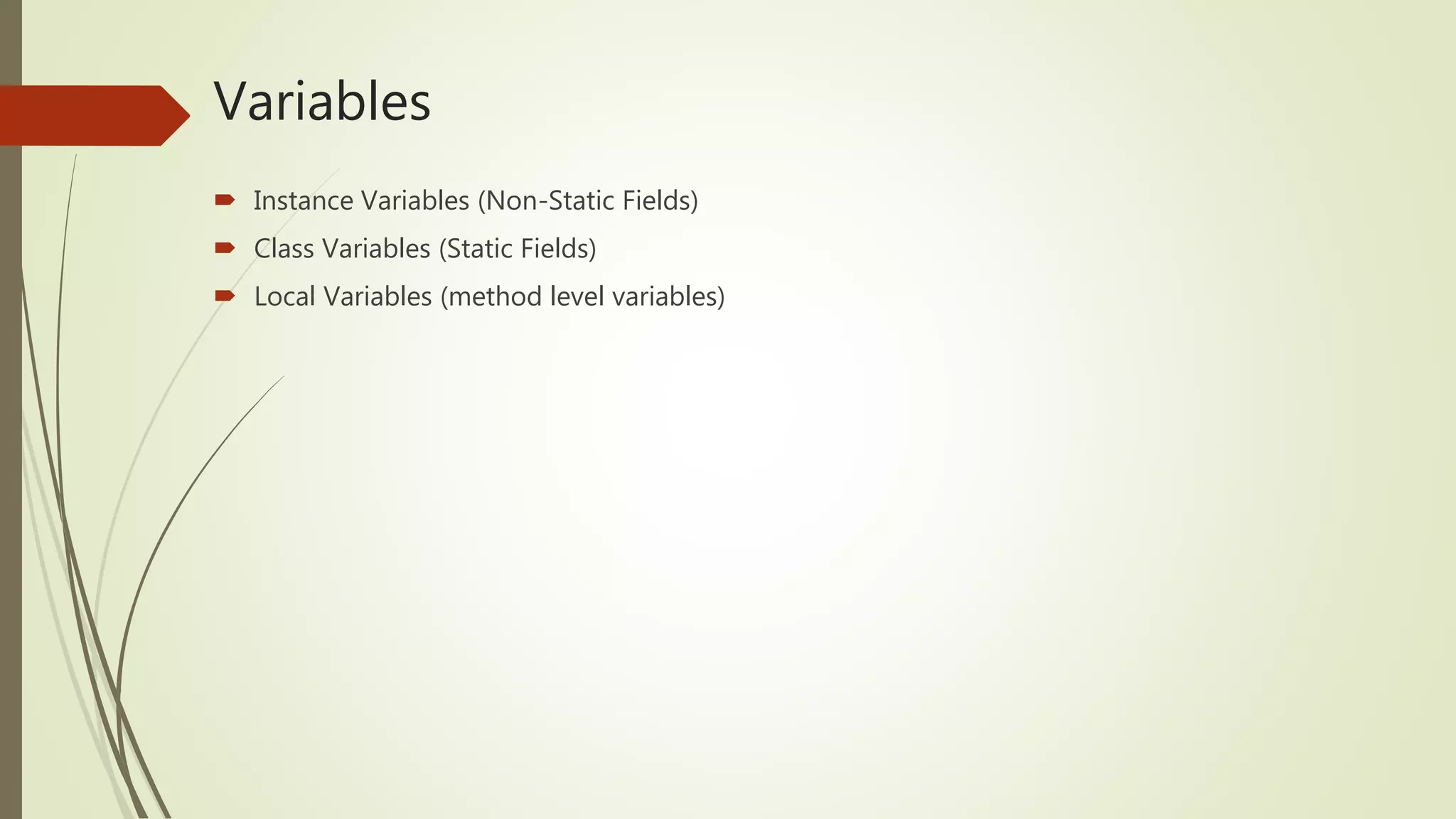

22. Variables
 Instance Variables (Non-Static Fields)
 Class Variables (Static Fields)
 Local Variables (method level variables)

23. Thank You All 
