Introduction To Data Mining

Course Overview Introduction to Knowledge Discovery in Databases and Data Mining Why Data Mining? What is Data Mining? On What Kind of Data? Applications of Data Mining Application Domains and Examples Knowledge Discovery in Databases and Data Mining Process Processing Steps Data Quality, Preparation, and Transformations Data Mining Tools D2K, SAS, Clementine, Intelligent Miner, Insightful Miner, K-Wiz Data Mining Methods Association Rules Decision Trees Information Visualization Summary

Acknowledgement Contributions: Michael Welge, Loretta Auvil, Lisa Gatzke, Automated Learning Group, National Center for Supercomputing Applications (NCSA), University of Illinois at Urbana-Champaign Jiawei Han, Computer Science, University of Illinois at Urbana-Champaign

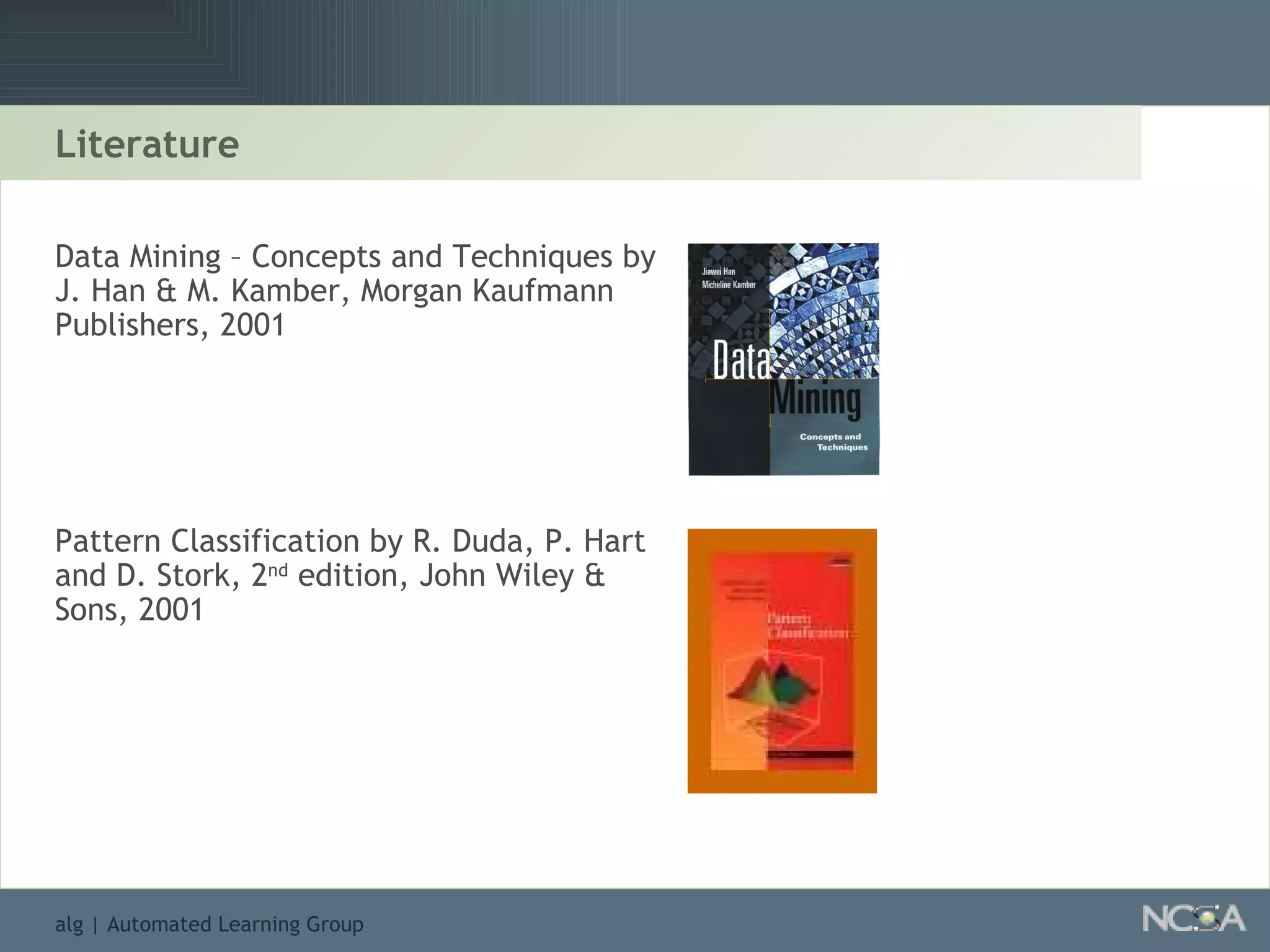

Literature Data Mining – Concepts and Techniques by J. Han & M. Kamber, Morgan Kaufmann Publishers, 2001 Pattern Classification by R. Duda, P. Hart and D. Stork, 2 nd edition, John Wiley & Sons, 2001

Introduction to Knowledge Discovery in Databases and Data Mining

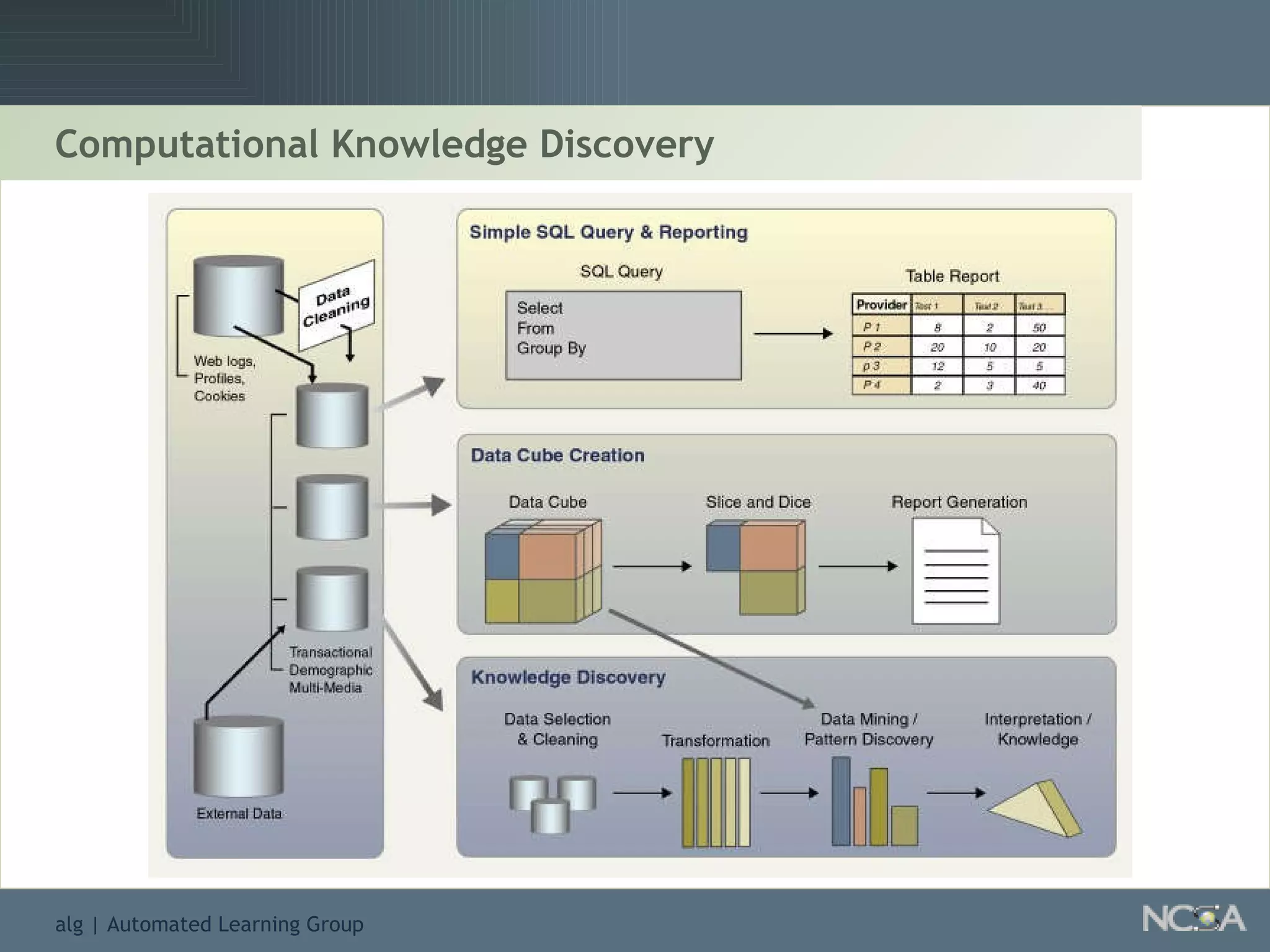

Computational Knowledge Discovery

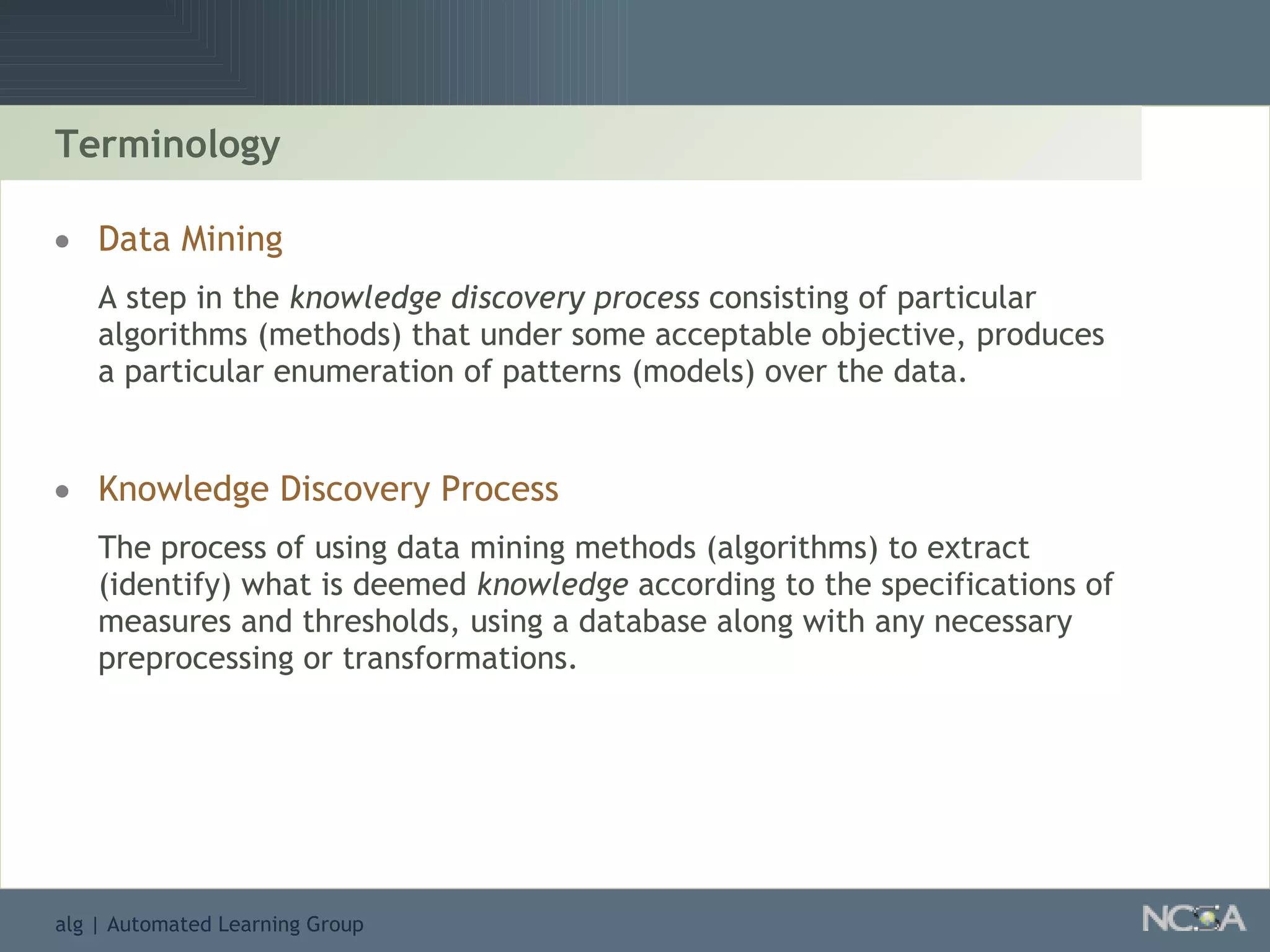

Terminology Data Mining A step in the knowledge discovery process consisting of particular algorithms (methods) that under some acceptable objective, produces a particular enumeration of patterns (models) over the data. Knowledge Discovery Process The process of using data mining methods (algorithms) to extract (identify) what is deemed knowledge according to the specifications of measures and thresholds, using a database along with any necessary preprocessing or transformations.

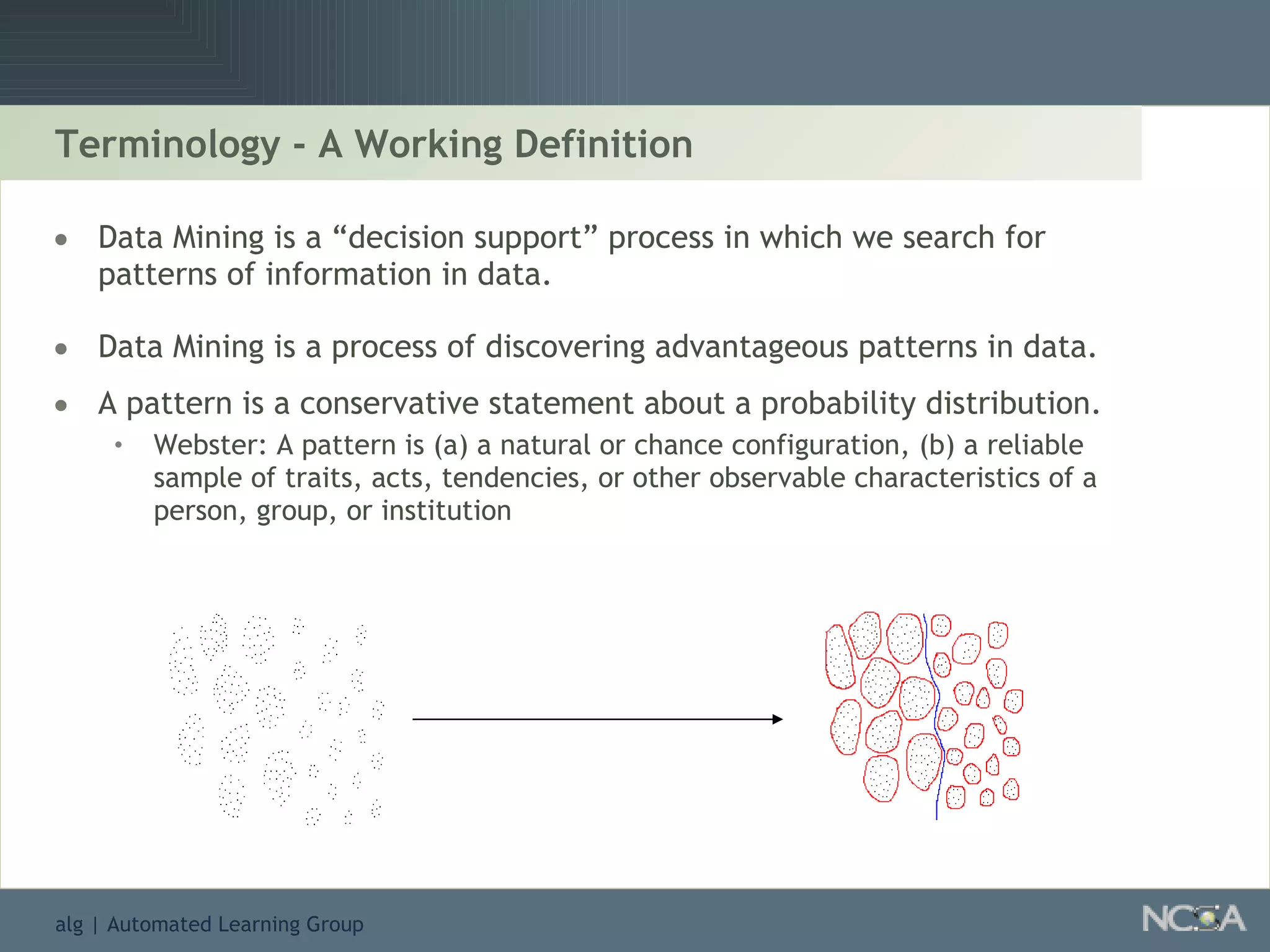

Terminology - A Working Definition Data Mining is a “decision support” process in which we search for patterns of information in data. Data Mining is a process of discovering advantageous patterns in data. A pattern is a conservative statement about a probability distribution. Webster: A pattern is (a) a natural or chance configuration, (b) a reliable sample of traits, acts, tendencies, or other observable characteristics of a person, group, or institution

Data Mining: On What Kind of Data? Relational Databases Data Warehouses Transactional Databases Advanced Database Systems Object-Relational Spatial and Temporal Time-Series Multimedia Text Heterogeneous, Legacy, and Distributed WWW Structure - 3D Anatomy Function – 1D Signal Metadata – Annotation

Data Mining: Confluence of Multiple Disciplines ? 20x20 ~ 2^400  10^120 patterns

Why Do We Need Data Mining ? Data volumes are too large for classical analysis approaches: Large number of records (10 8 – 10 12 bytes) High dimensional data ( 10 2 – 10 4 attributes) How do you explore millions of records, tens or hundreds of fields, and find patterns?

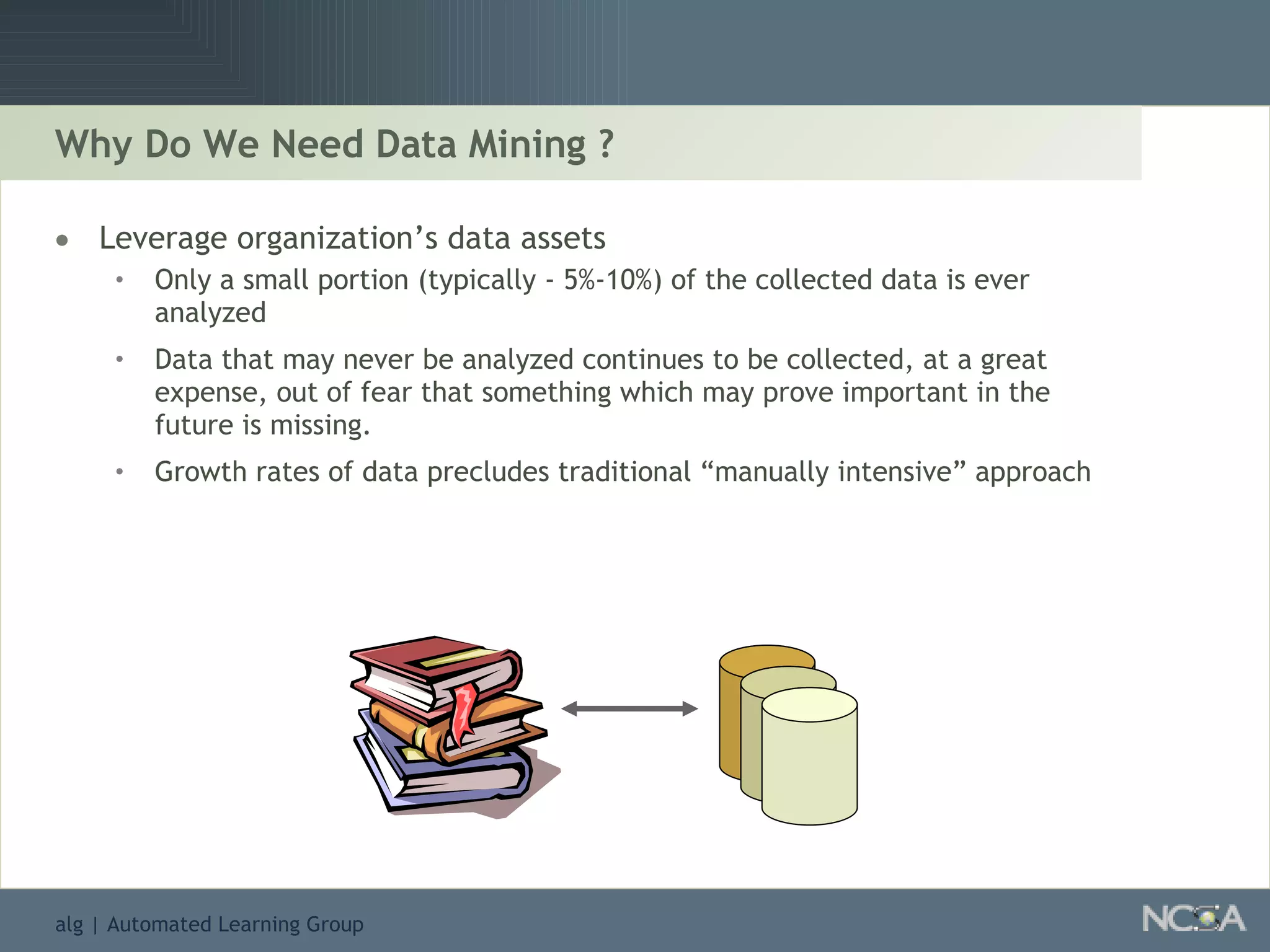

Why Do We Need Data Mining ? Leverage organization’s data assets Only a small portion (typically - 5%-10%) of the collected data is ever analyzed Data that may never be analyzed continues to be collected, at a great expense, out of fear that something which may prove important in the future is missing. Growth rates of data precludes traditional “manually intensive” approach

Why Do We Need Data Mining? As databases grow, the ability to support the decision support process using traditional query languages becomes infeasible Many queries of interest are difficult to state in a query language (Query formulation problem) “find all cases of fraud” “find all individuals likely to buy a FORD expedition” “find all documents that are similar to this customers problem” QUERY RESULT (Latitude, Longitude) 1 (Latitude, Longitude) 2

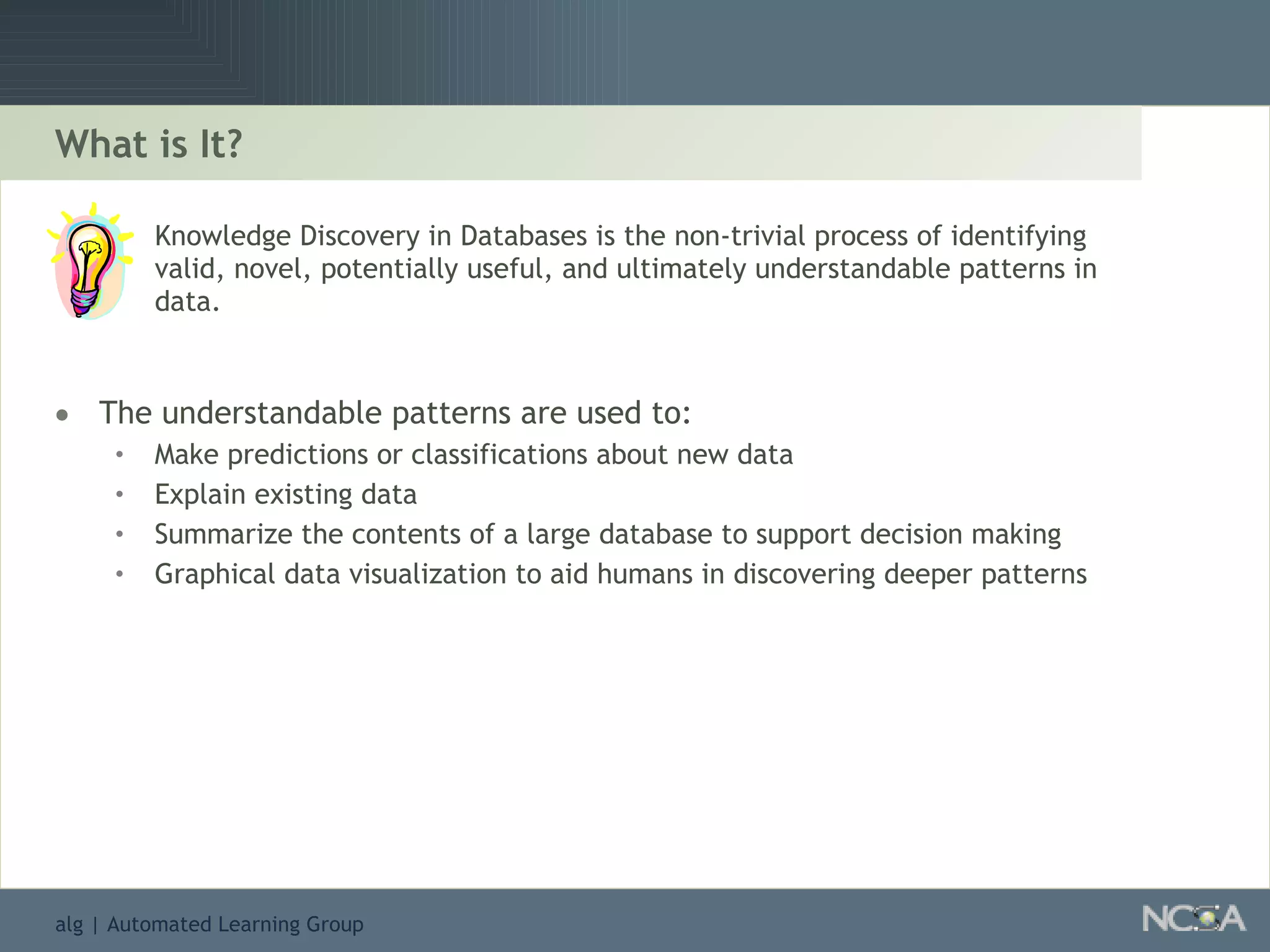

What is It? Knowledge Discovery in Databases is the non-trivial process of identifying valid, novel, potentially useful, and ultimately understandable patterns in data. The understandable patterns are used to: Make predictions or classifications about new data Explain existing data Summarize the contents of a large database to support decision making Graphical data visualization to aid humans in discovering deeper patterns

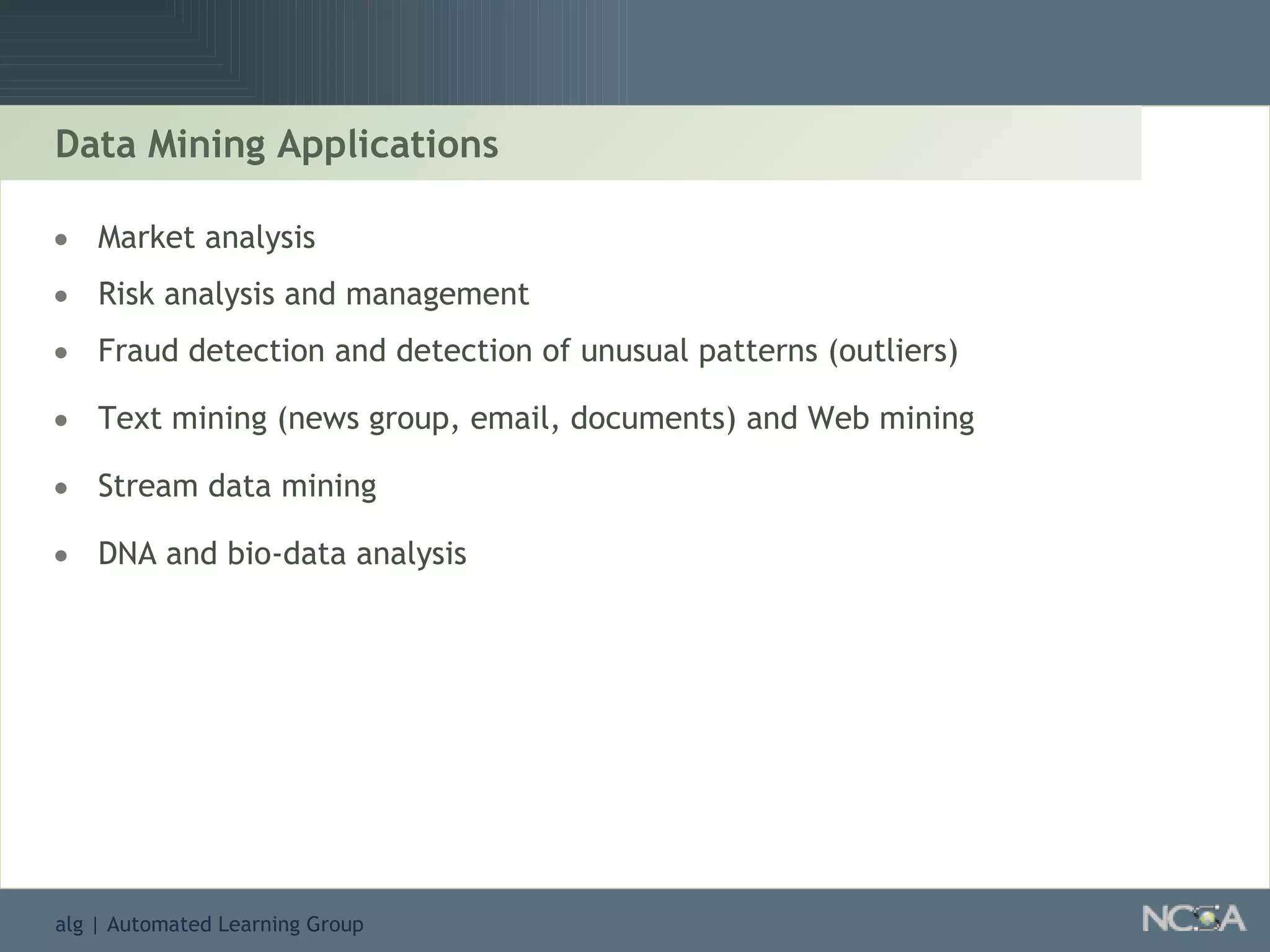

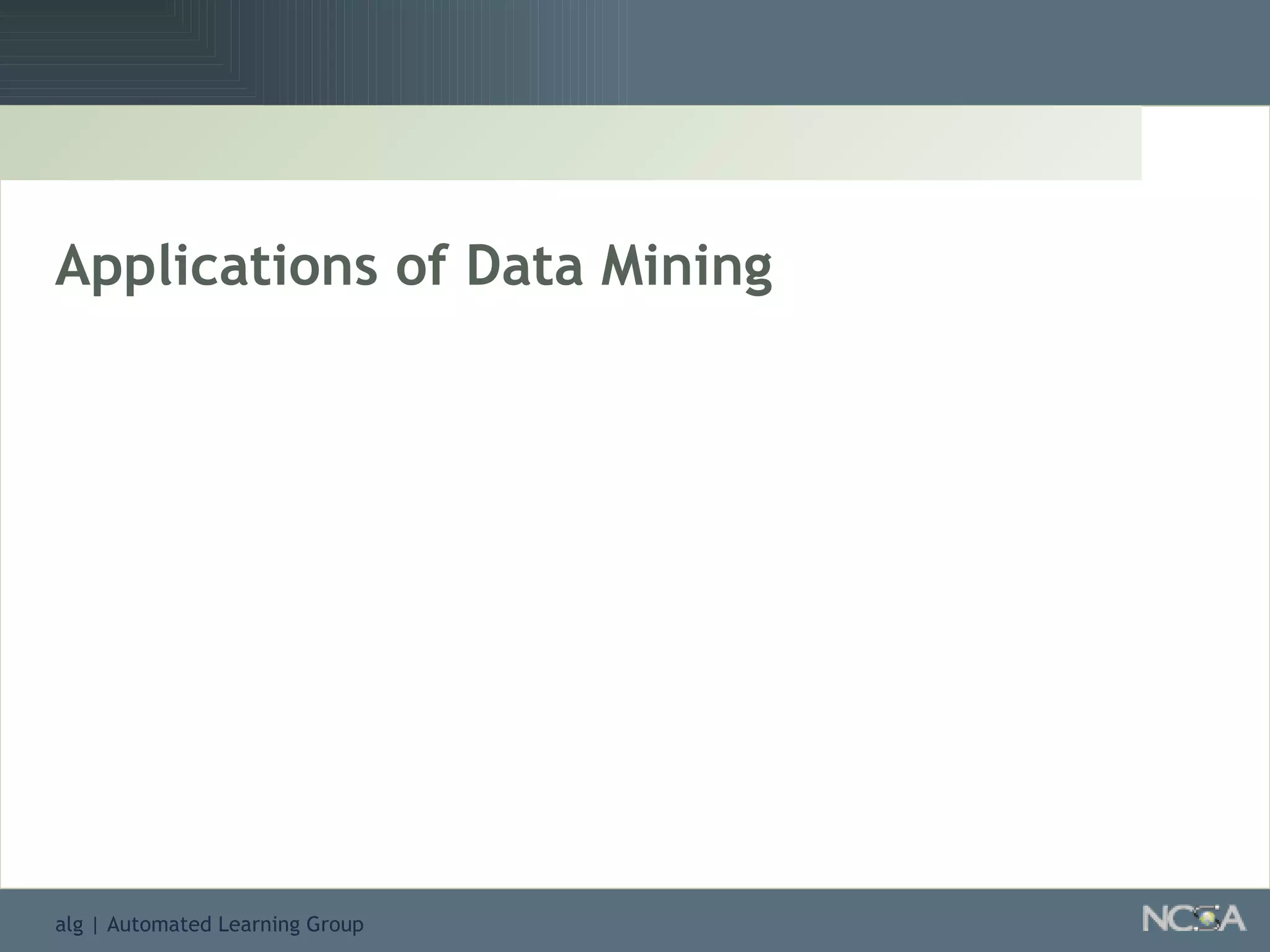

Data Mining Applications Market analysis Risk analysis and management Fraud detection and detection of unusual patterns (outliers) Text mining (news group, email, documents) and Web mining Stream data mining DNA and bio-data analysis

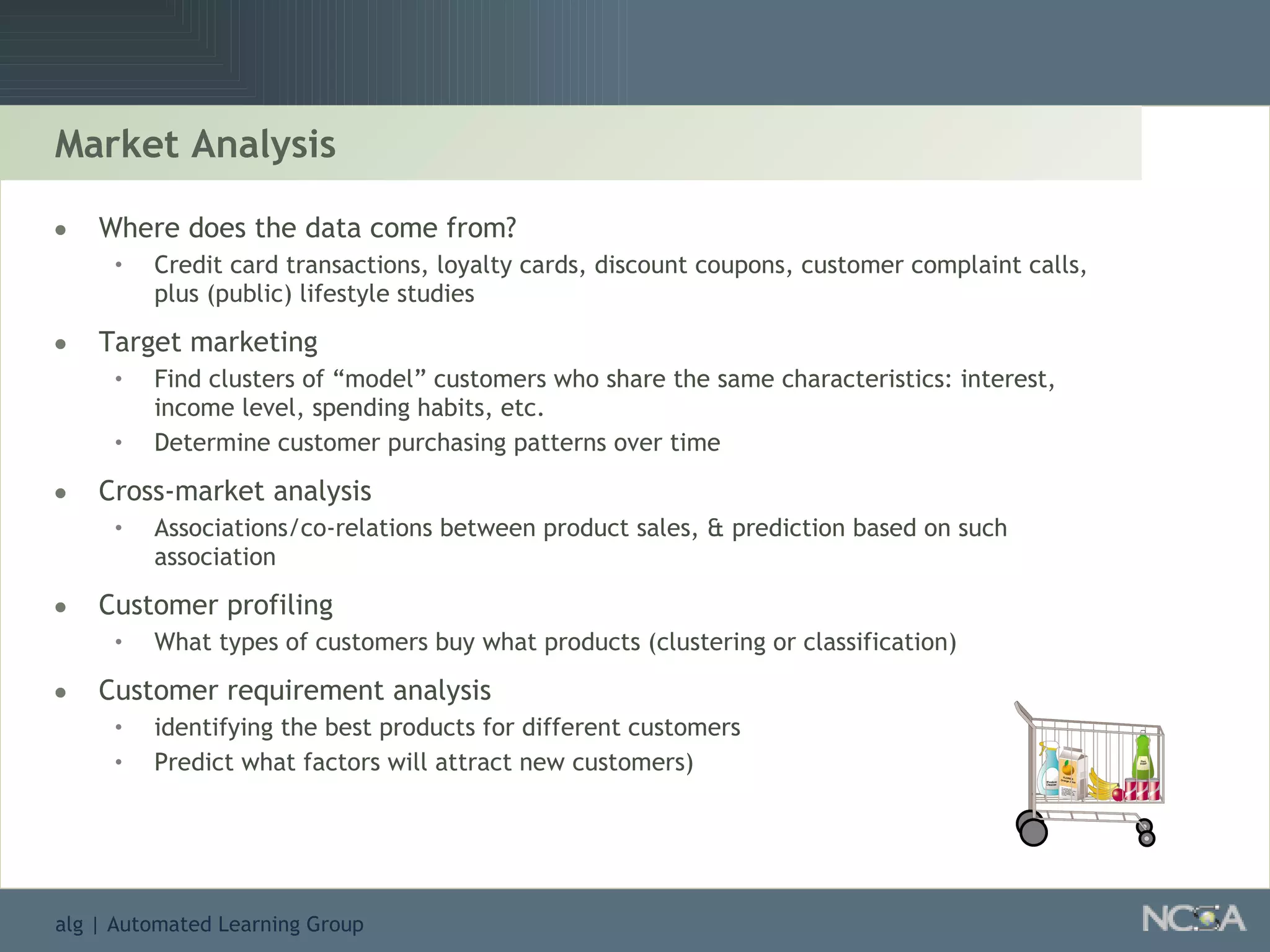

Market Analysis Where does the data come from? Credit card transactions, loyalty cards, discount coupons, customer complaint calls, plus (public) lifestyle studies Target marketing Find clusters of “model” customers who share the same characteristics: interest, income level, spending habits, etc. Determine customer purchasing patterns over time Cross-market analysis Associations/co-relations between product sales, & prediction based on such association Customer profiling What types of customers buy what products (clustering or classification) Customer requirement analysis identifying the best products for different customers Predict what factors will attract new customers)

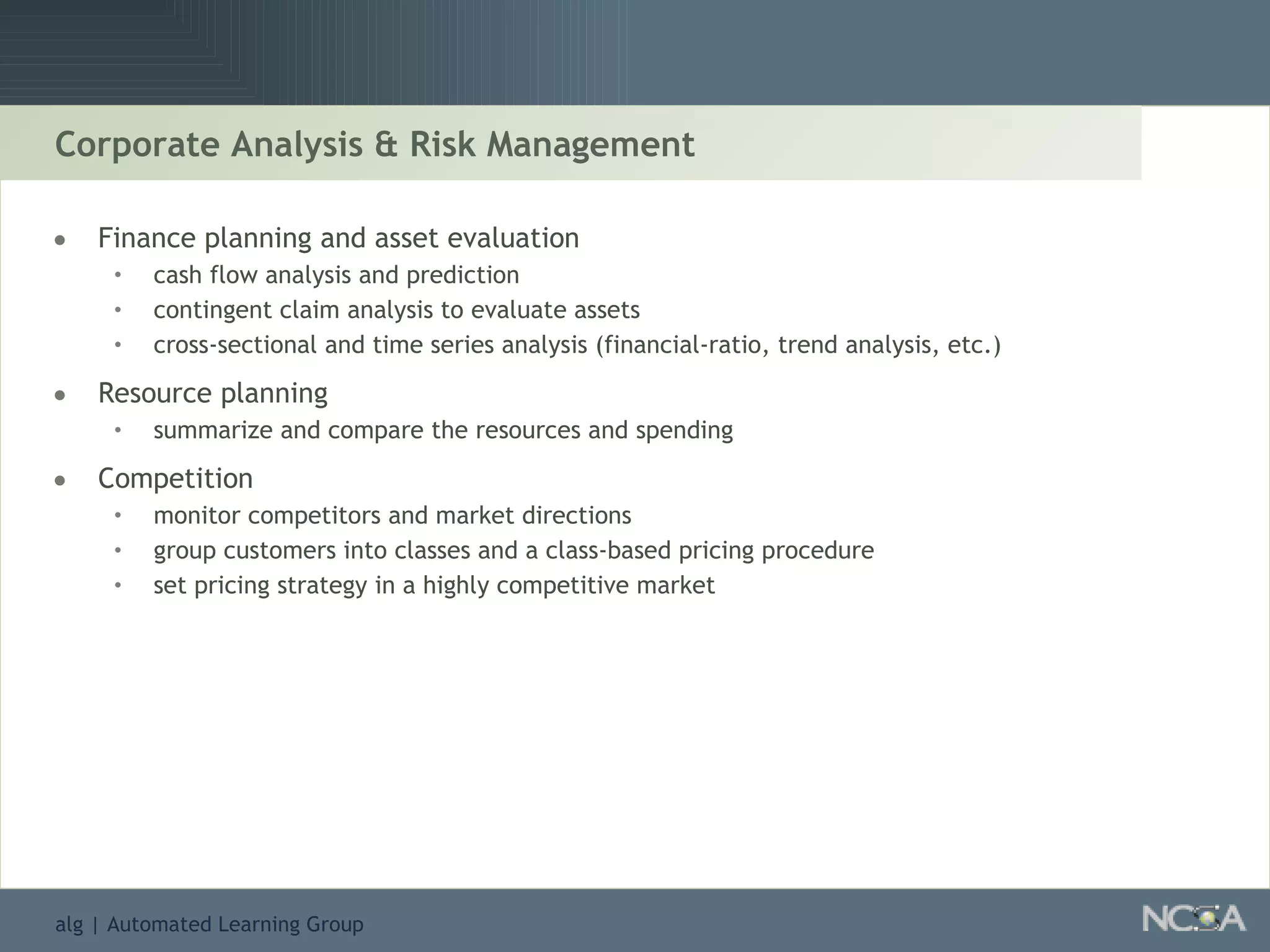

Corporate Analysis & Risk Management Finance planning and asset evaluation cash flow analysis and prediction contingent claim analysis to evaluate assets cross-sectional and time series analysis (financial-ratio, trend analysis, etc.) Resource planning summarize and compare the resources and spending Competition monitor competitors and market directions group customers into classes and a class-based pricing procedure set pricing strategy in a highly competitive market

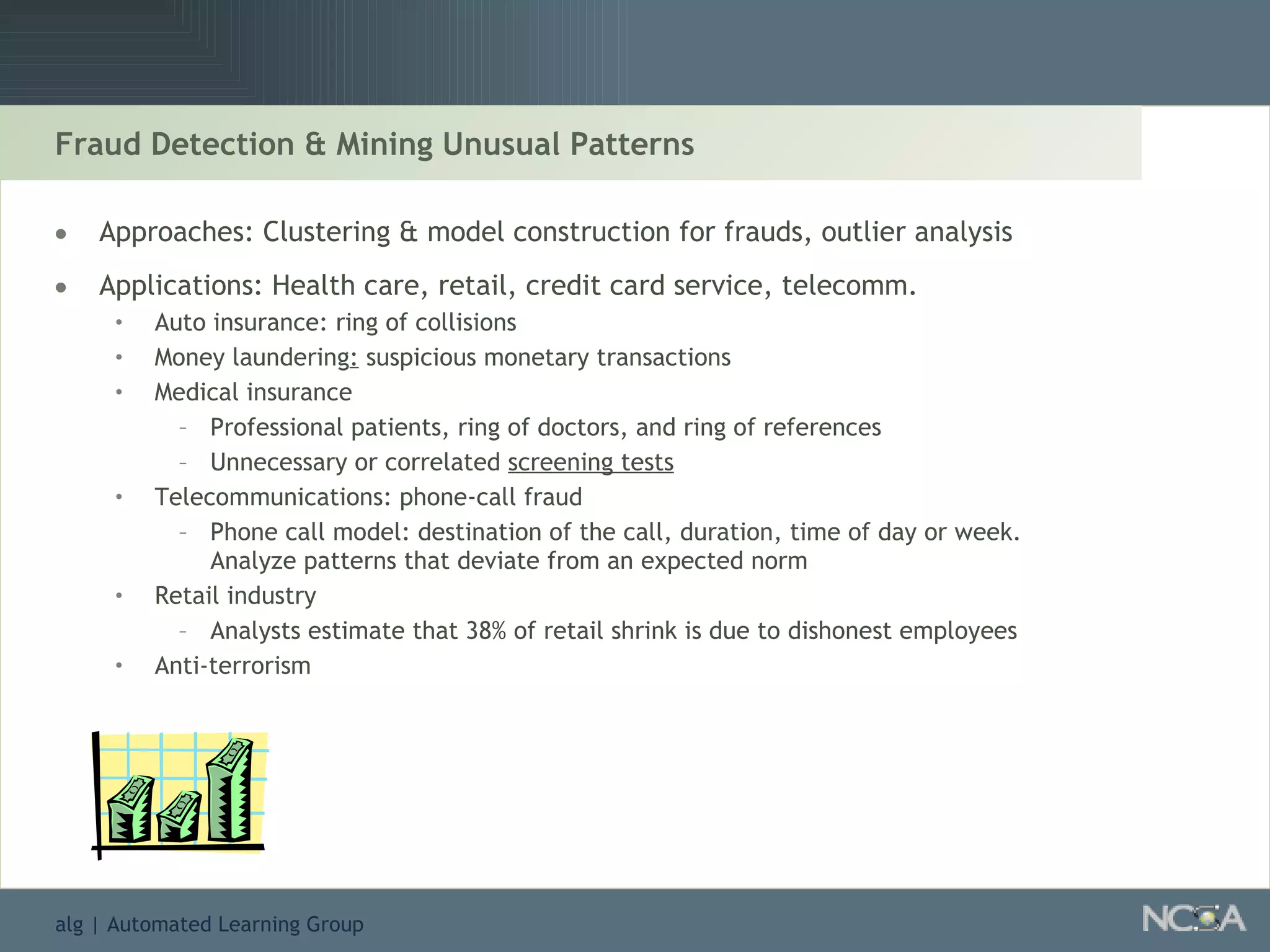

Fraud Detection & Mining Unusual Patterns Approaches: Clustering & model construction for frauds, outlier analysis Applications: Health care, retail, credit card service, telecomm. Auto insurance: ring of collisions Money laundering : suspicious monetary transactions Medical insurance Professional patients, ring of doctors, and ring of references Unnecessary or correlated screening tests Telecommunications: phone-call fraud Phone call model: destination of the call, duration, time of day or week. Analyze patterns that deviate from an expected norm Retail industry Analysts estimate that 38% of retail shrink is due to dishonest employees Anti-terrorism

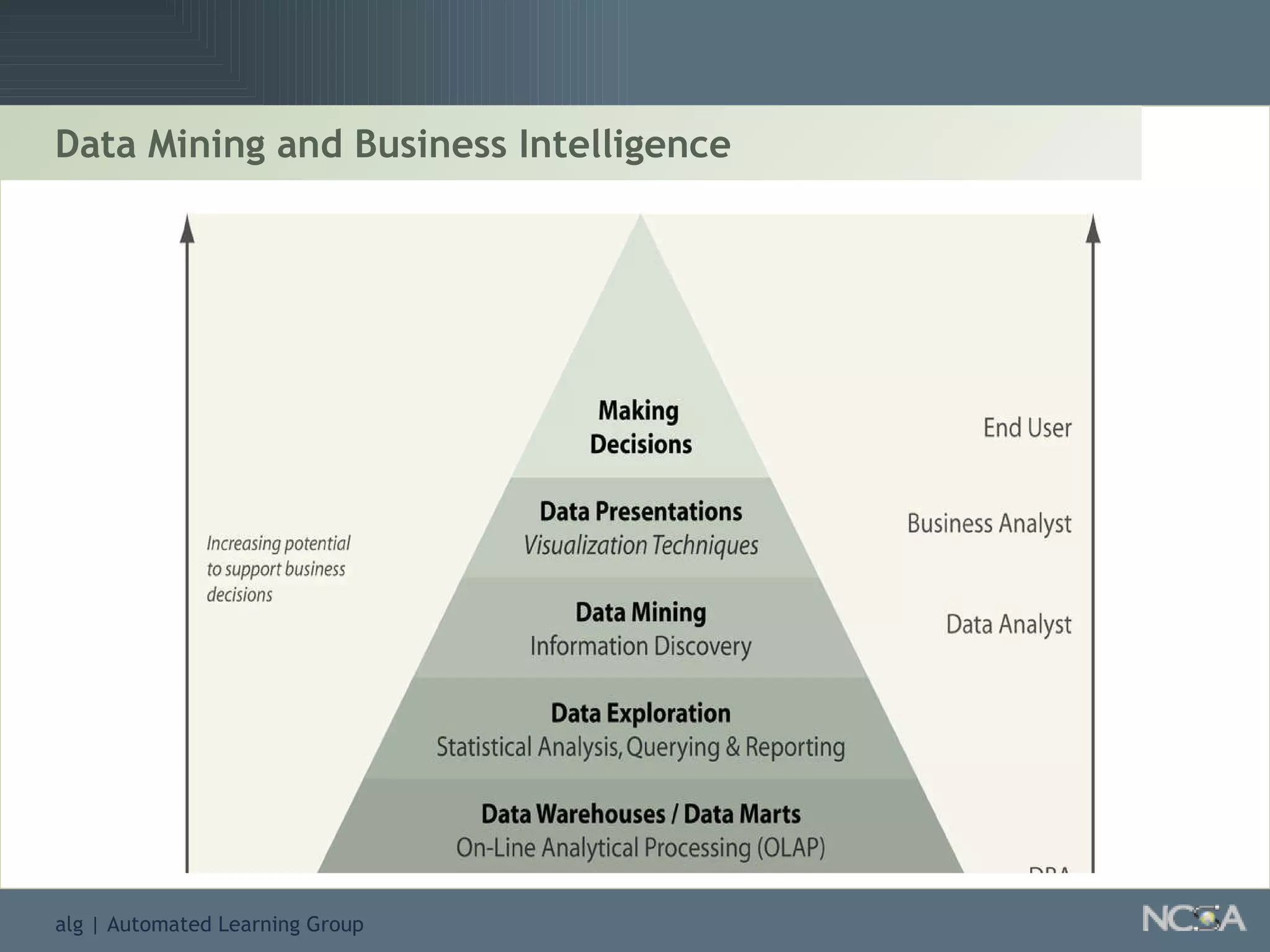

Data Mining and Business Intelligence

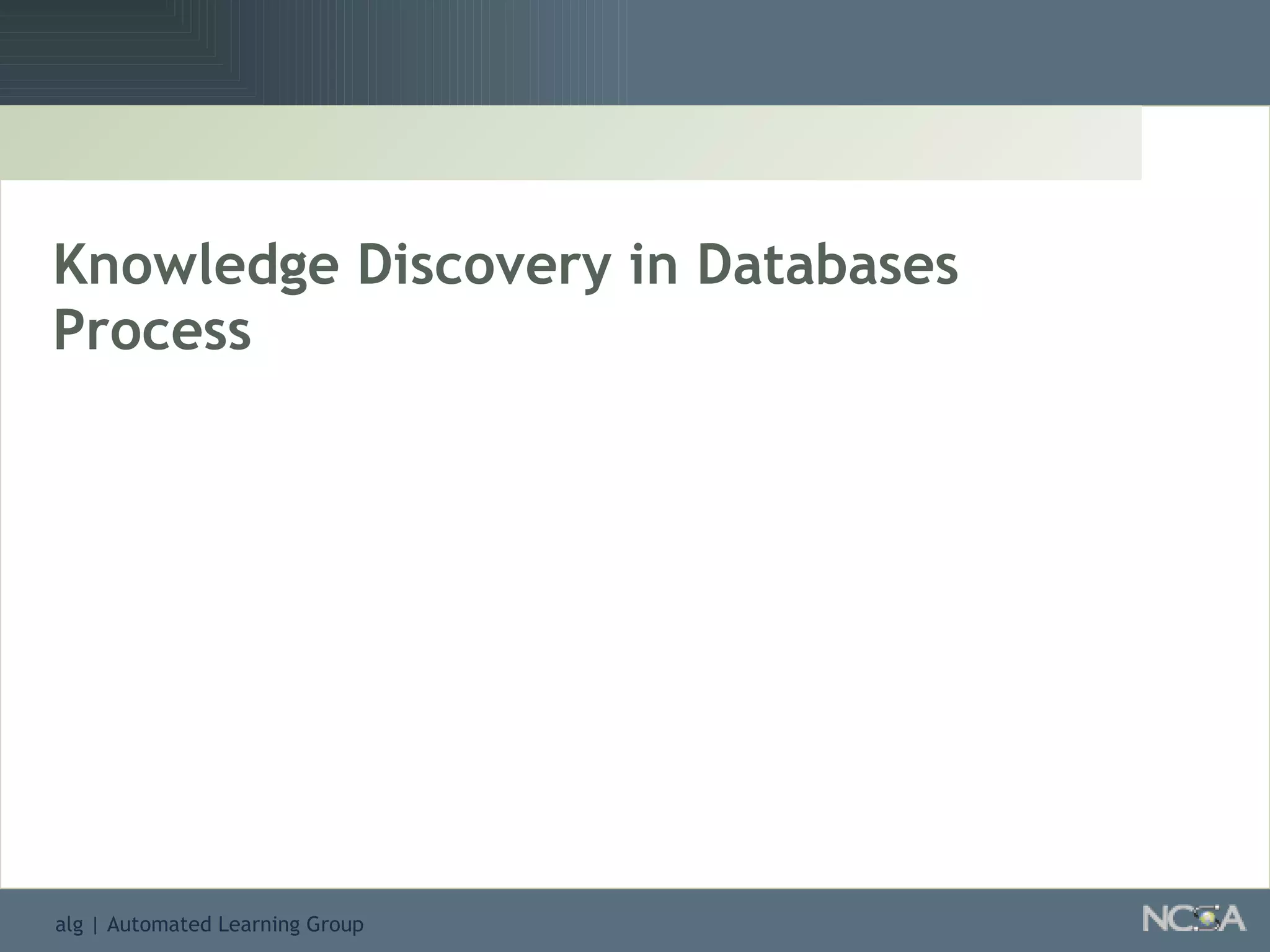

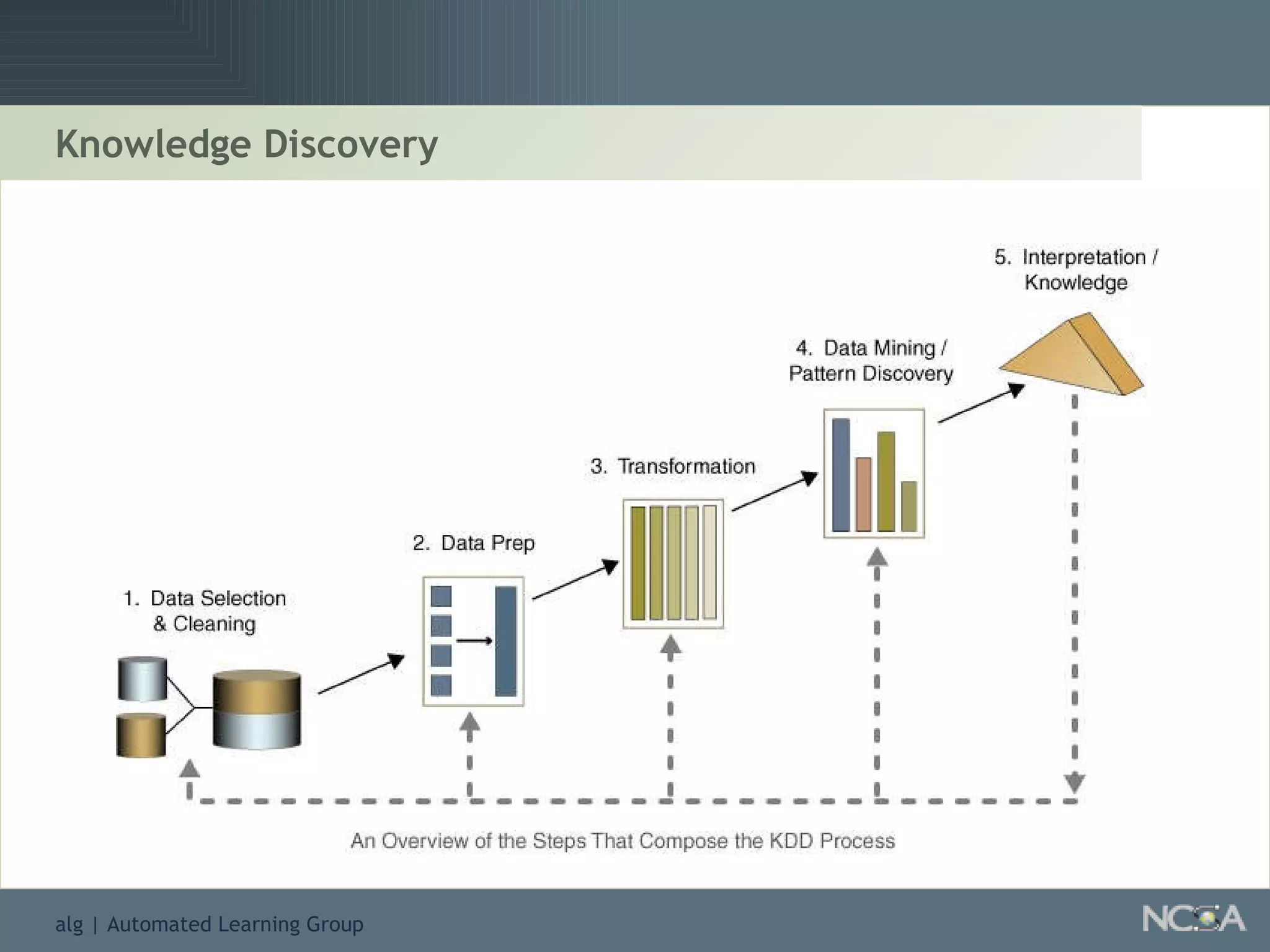

Knowledge Discovery in Databases Process

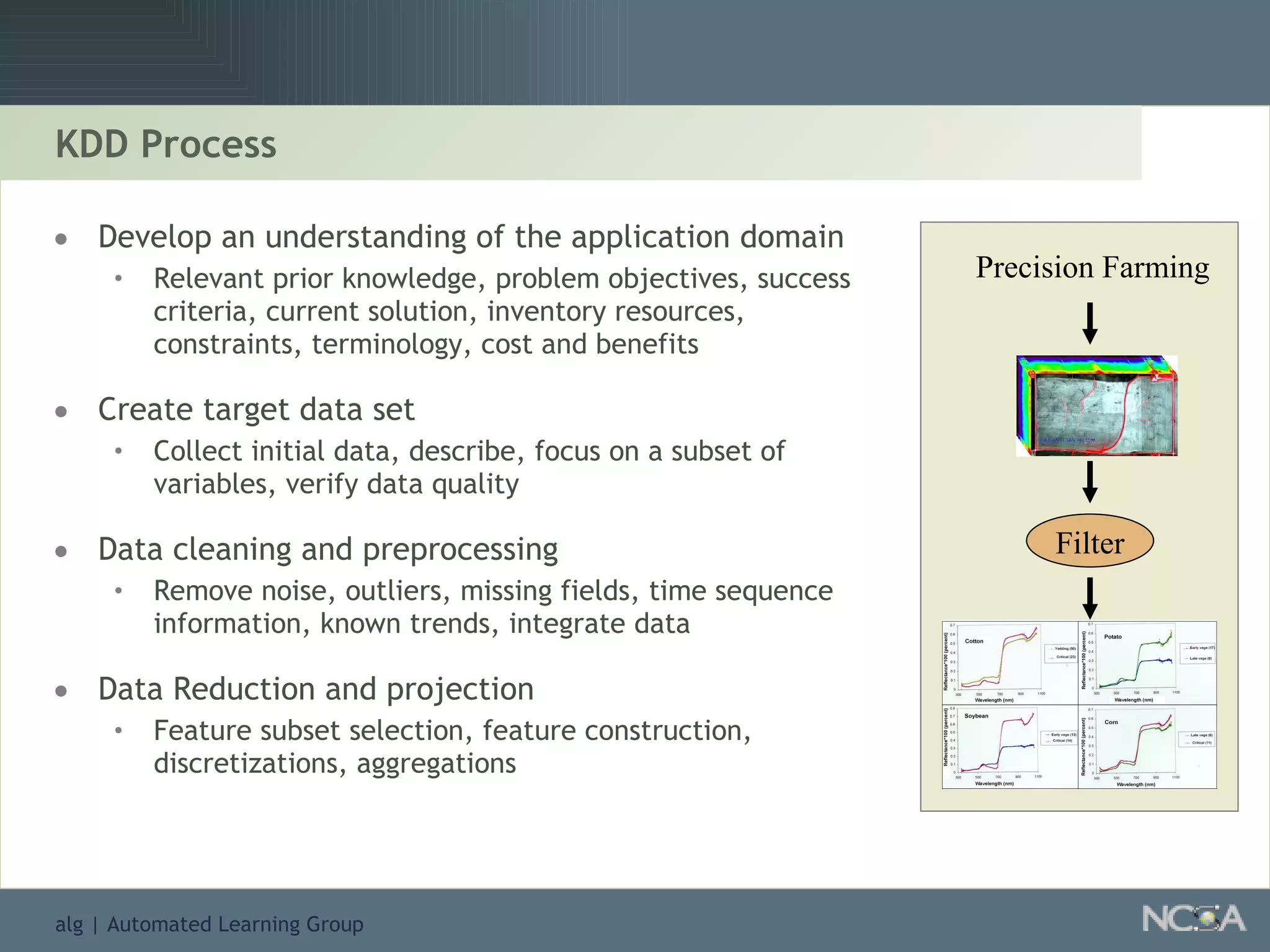

KDD Process Develop an understanding of the application domain Relevant prior knowledge, problem objectives, success criteria, current solution, inventory resources, constraints, terminology, cost and benefits Create target data set Collect initial data, describe, focus on a subset of variables, verify data quality Data cleaning and preprocessing Remove noise, outliers, missing fields, time sequence information, known trends, integrate data Data Reduction and projection Feature subset selection, feature construction, discretizations, aggregations Precision Farming Filter

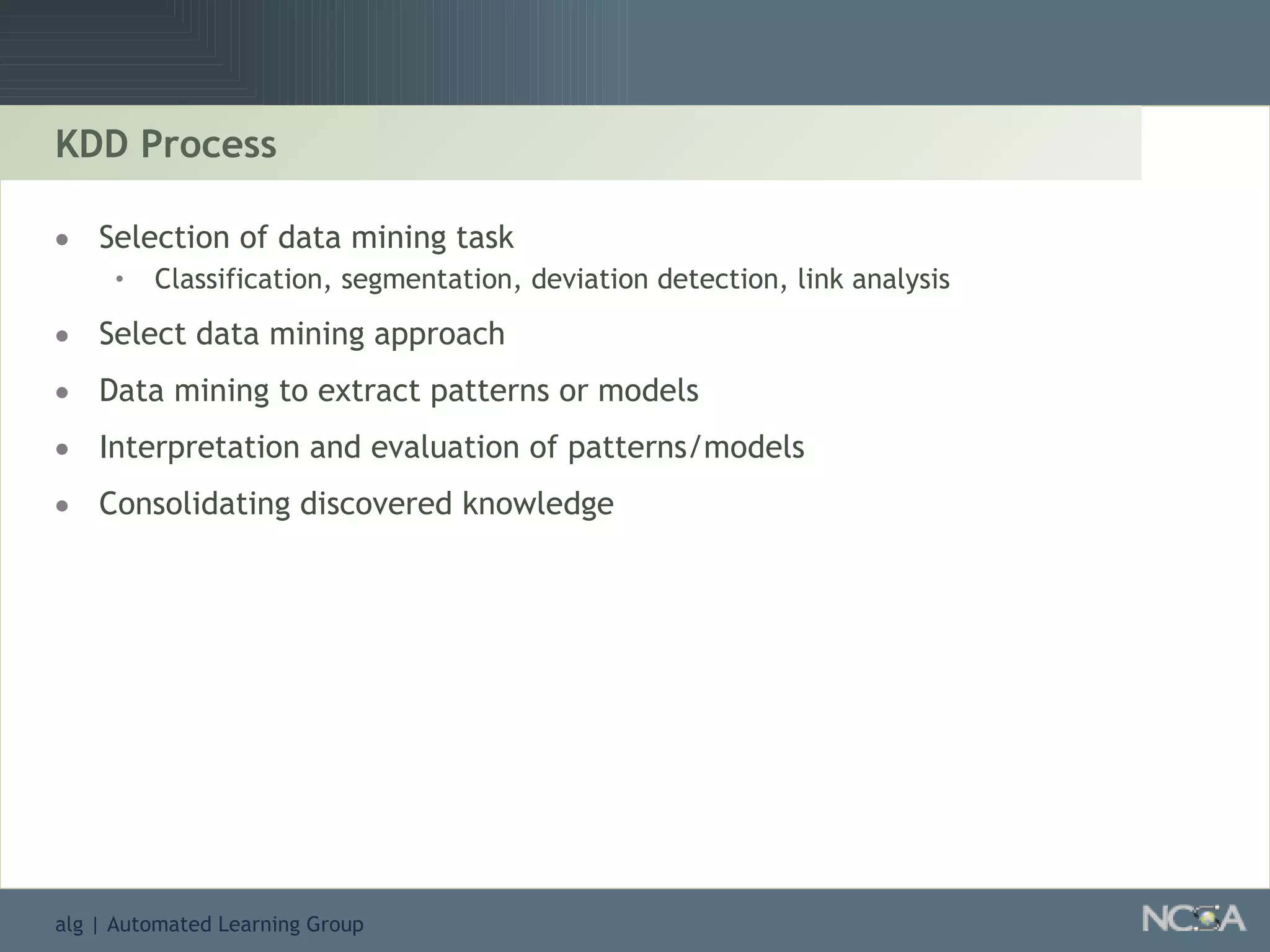

KDD Process Selection of data mining task Classification, segmentation, deviation detection, link analysis Select data mining approach Data mining to extract patterns or models Interpretation and evaluation of patterns/models Consolidating discovered knowledge

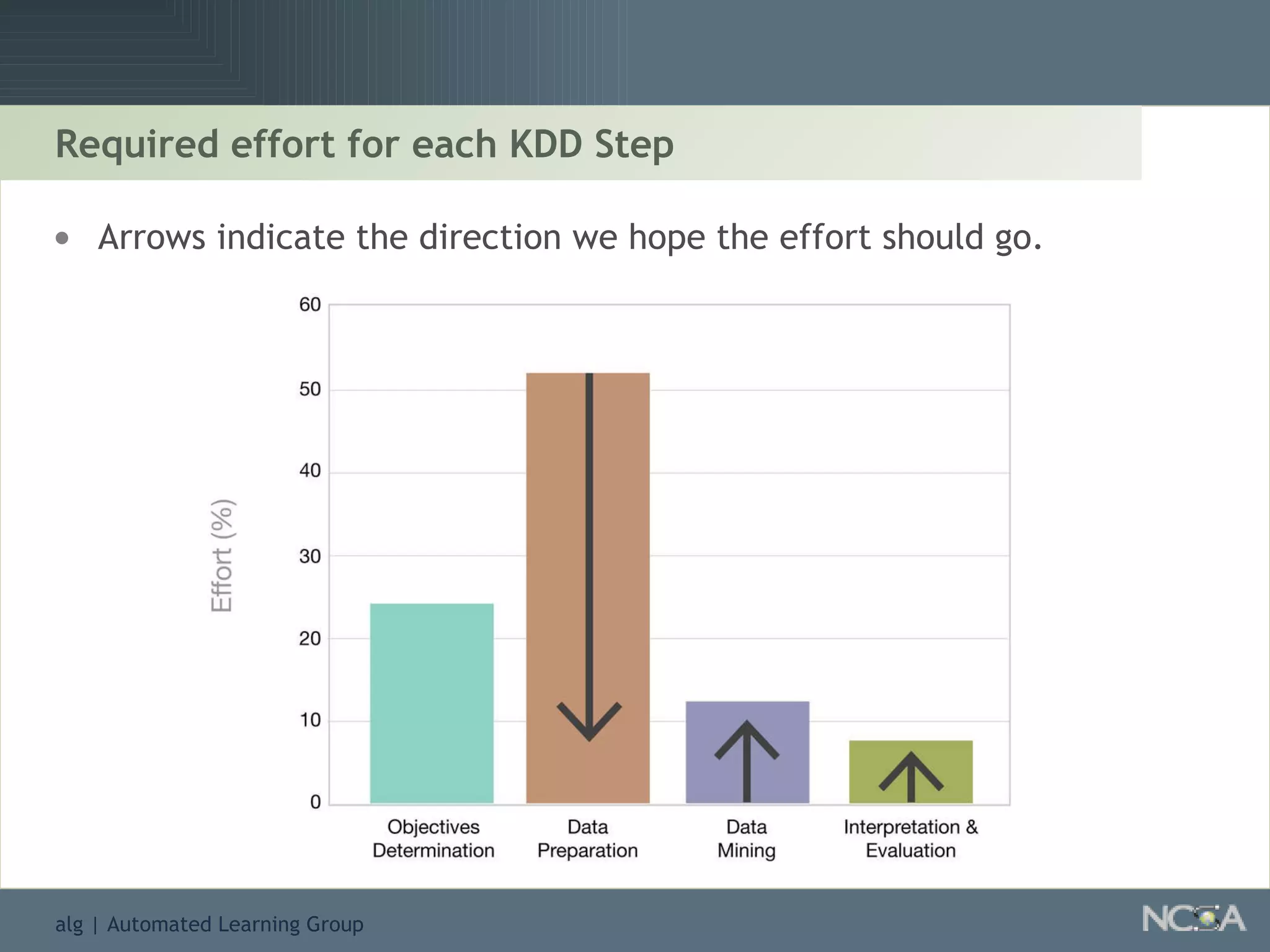

Required effort for each KDD Step Arrows indicate the direction we hope the effort should go.

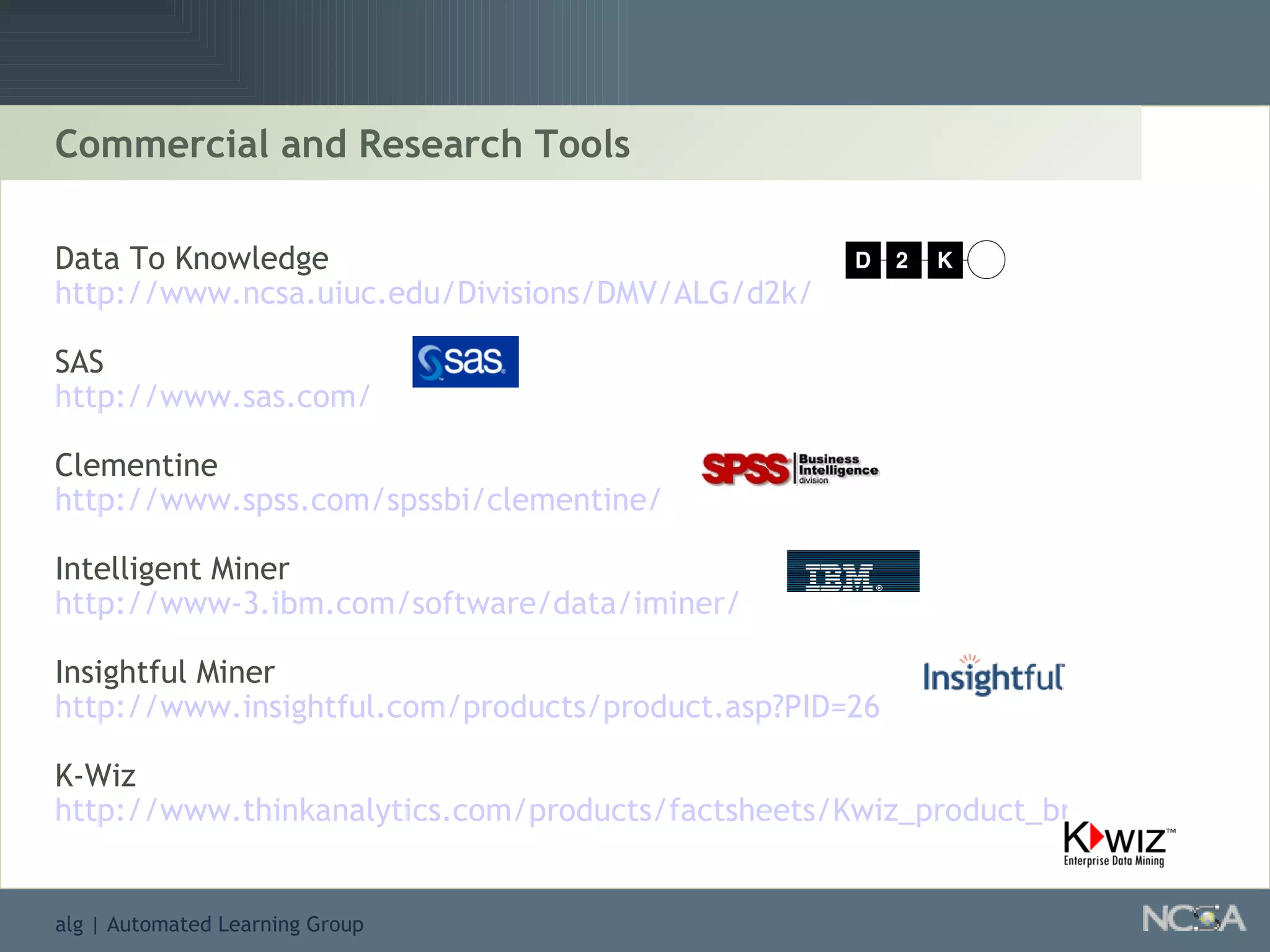

Commercial and Research Tools Data To Knowledge http://www.ncsa.uiuc.edu/Divisions/DMV/ALG/d2k/ SAS http://www.sas.com/ Clementine http://www.spss.com/spssbi/clementine/ Intelligent Miner http://www-3.ibm.com/software/data/iminer/ Insightful Miner http://www.insightful.com/products/product.asp?PID=26 K-Wiz http://www.thinkanalytics.com/products/factsheets/Kwiz_product_brief.htm

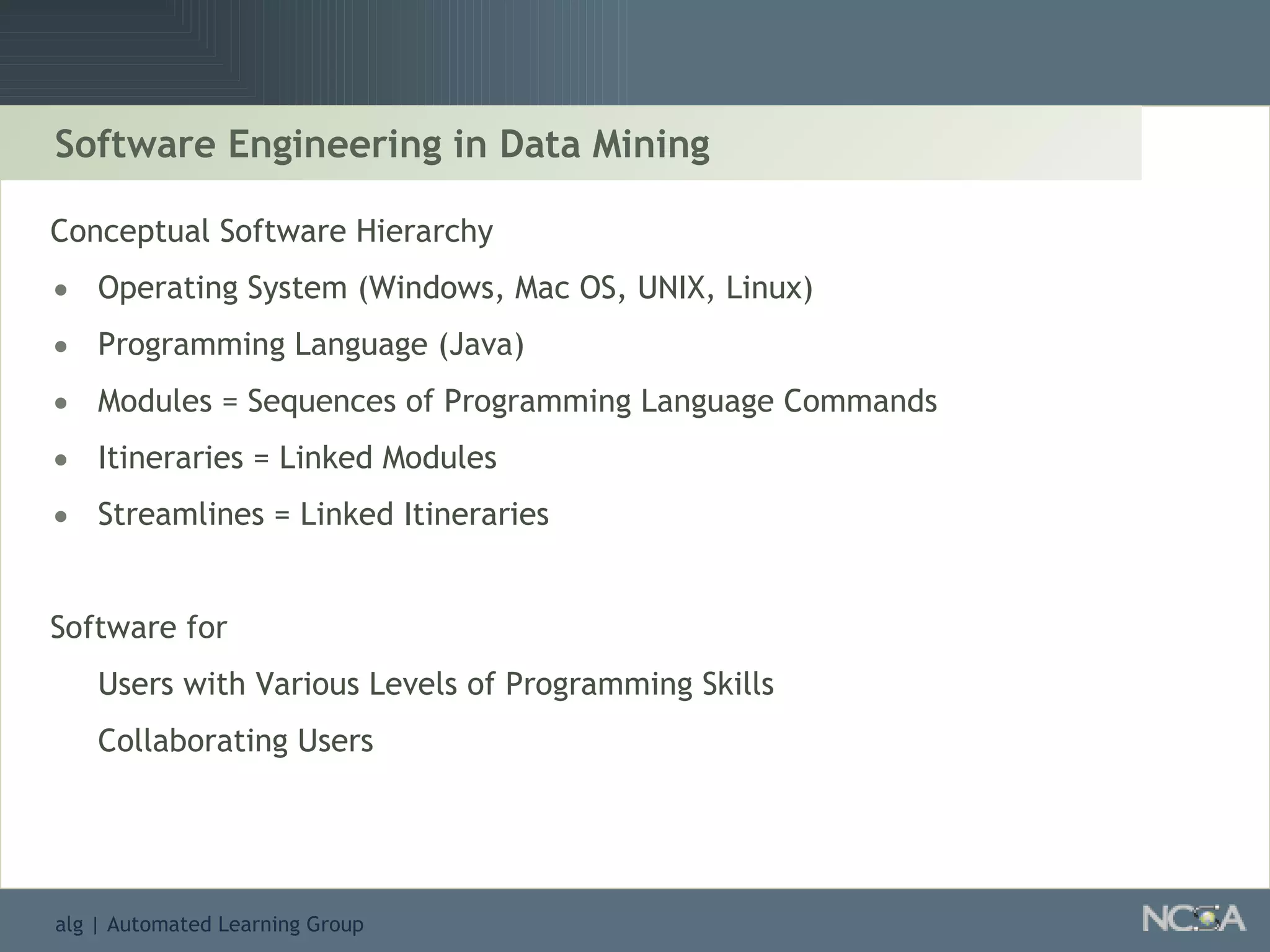

Software Engineering in Data Mining Conceptual Software Hierarchy Operating System (Windows, Mac OS, UNIX, Linux) Programming Language (Java) Modules = Sequences of Programming Language Commands Itineraries = Linked Modules Streamlines = Linked Itineraries Software for Users with Various Levels of Programming Skills Collaborating Users

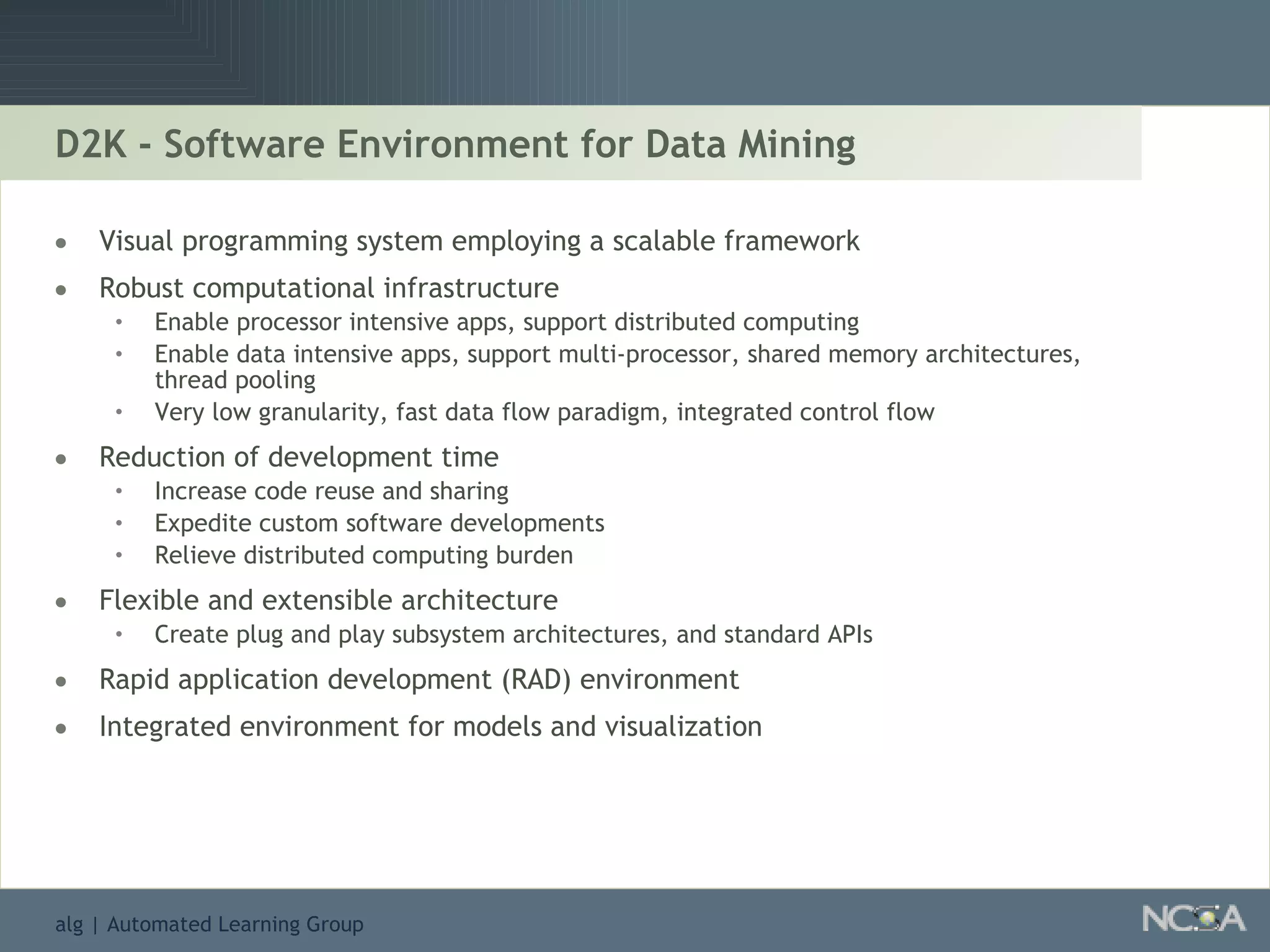

D2K - Software Environment for Data Mining Visual programming system employing a scalable framework Robust computational infrastructure Enable processor intensive apps, support distributed computing Enable data intensive apps, support multi-processor, shared memory architectures, thread pooling Very low granularity, fast data flow paradigm, integrated control flow Reduction of development time Increase code reuse and sharing Expedite custom software developments Relieve distributed computing burden Flexible and extensible architecture Create plug and play subsystem architectures, and standard APIs Rapid application development (RAD) environment Integrated environment for models and visualization

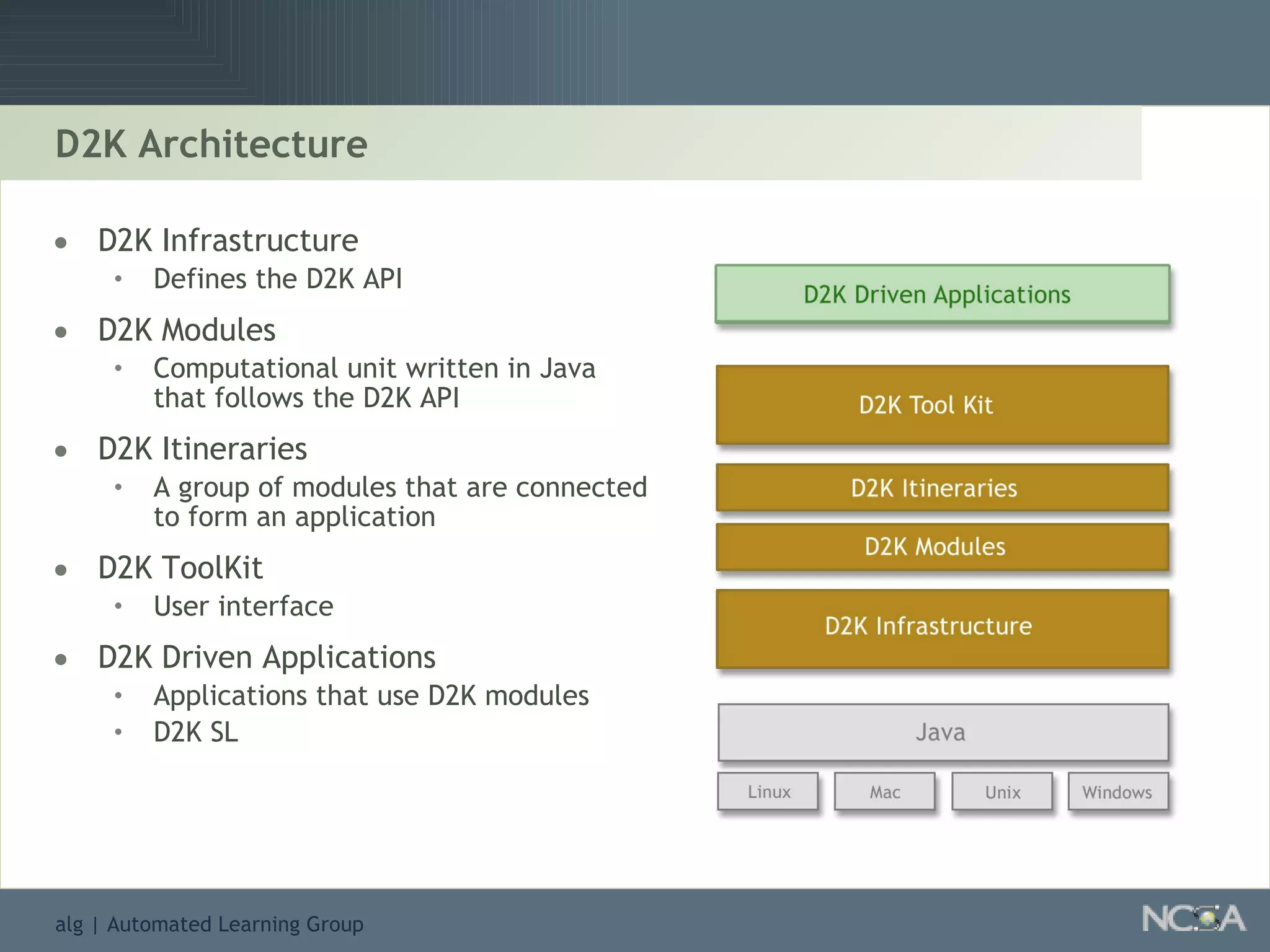

D2K Architecture D2K Infrastructure Defines the D2K API D2K Modules Computational unit written in Java that follows the D2K API D2K Itineraries A group of modules that are connected to form an application D2K ToolKit User interface D2K Driven Applications Applications that use D2K modules D2K SL

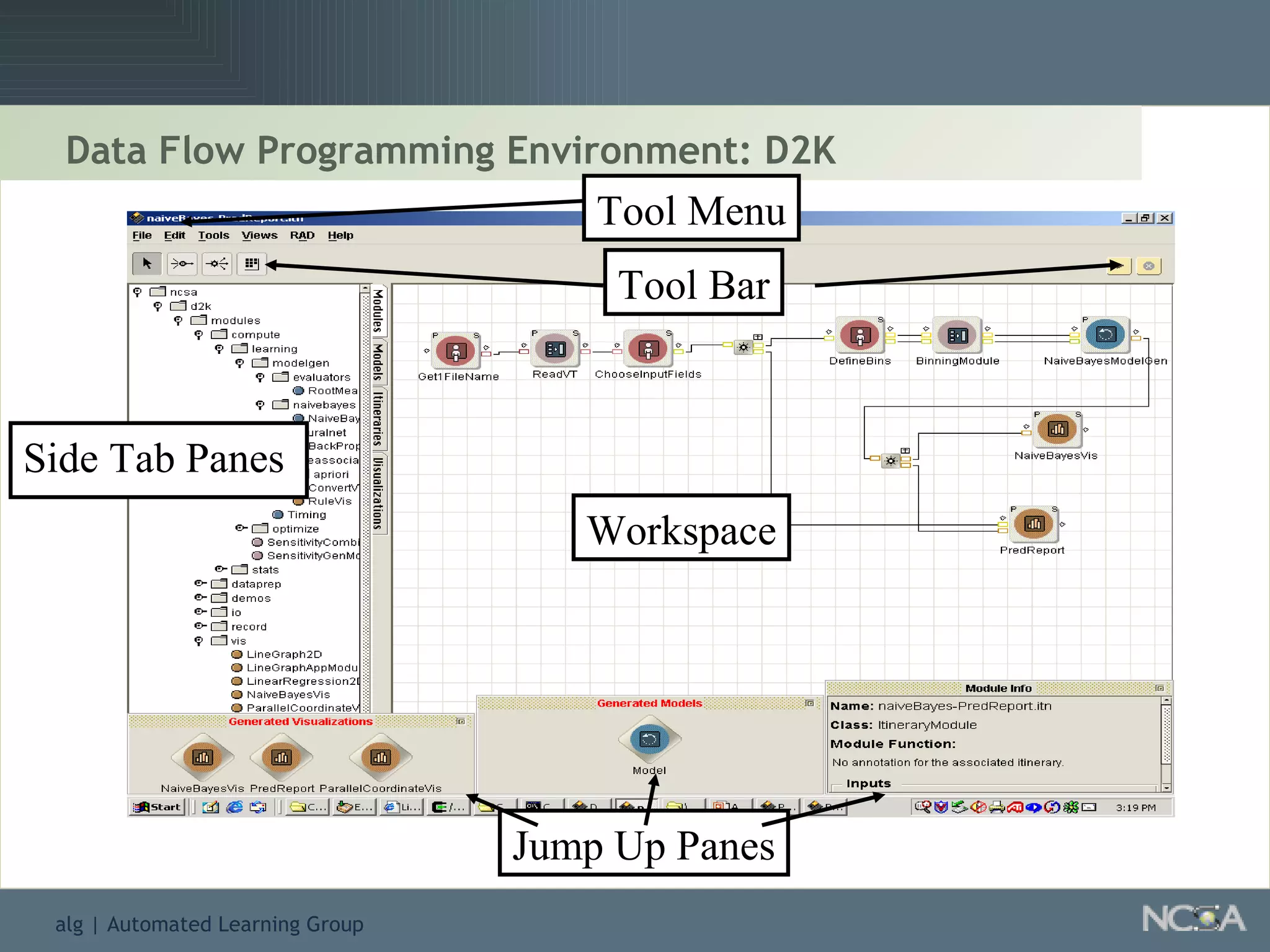

Data Flow Programming Environment: D2K Jump Up Panes Workspace Tool Bar Tool Menu Side Tab Panes

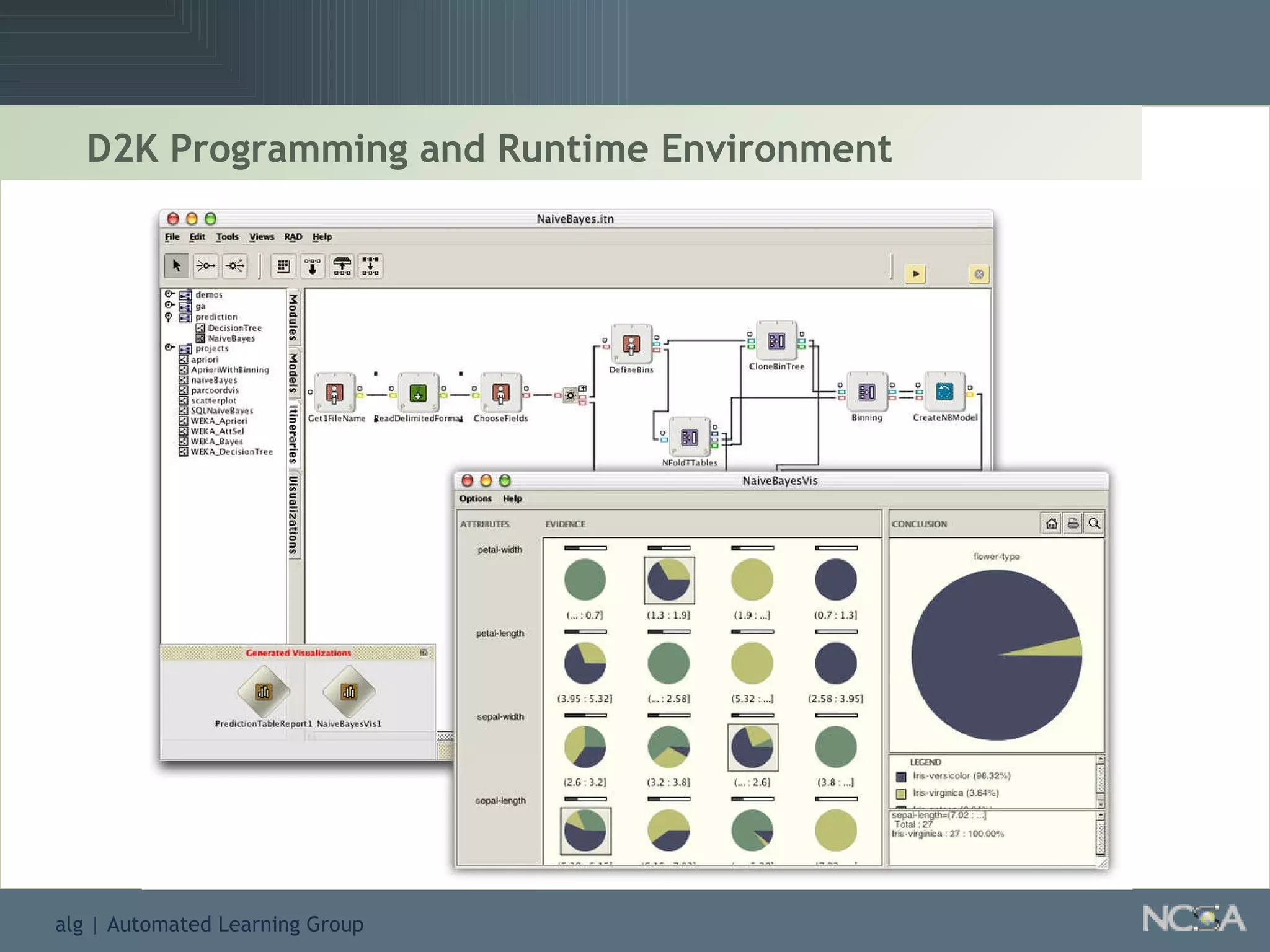

D2K Programming and Runtime Environment

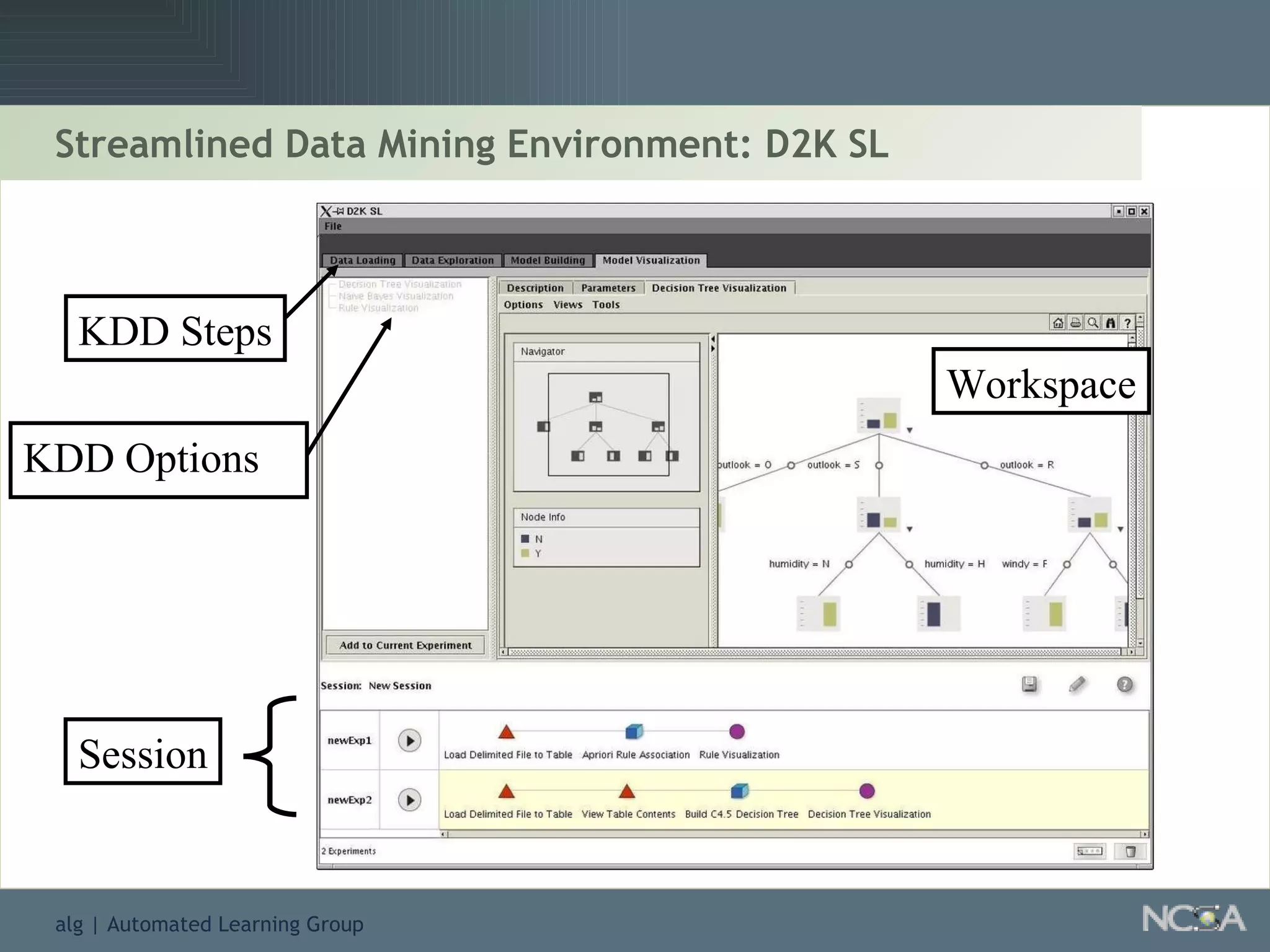

Streamlined Data Mining Environment: D2K SL KDD Steps Session KDD Options Workspace

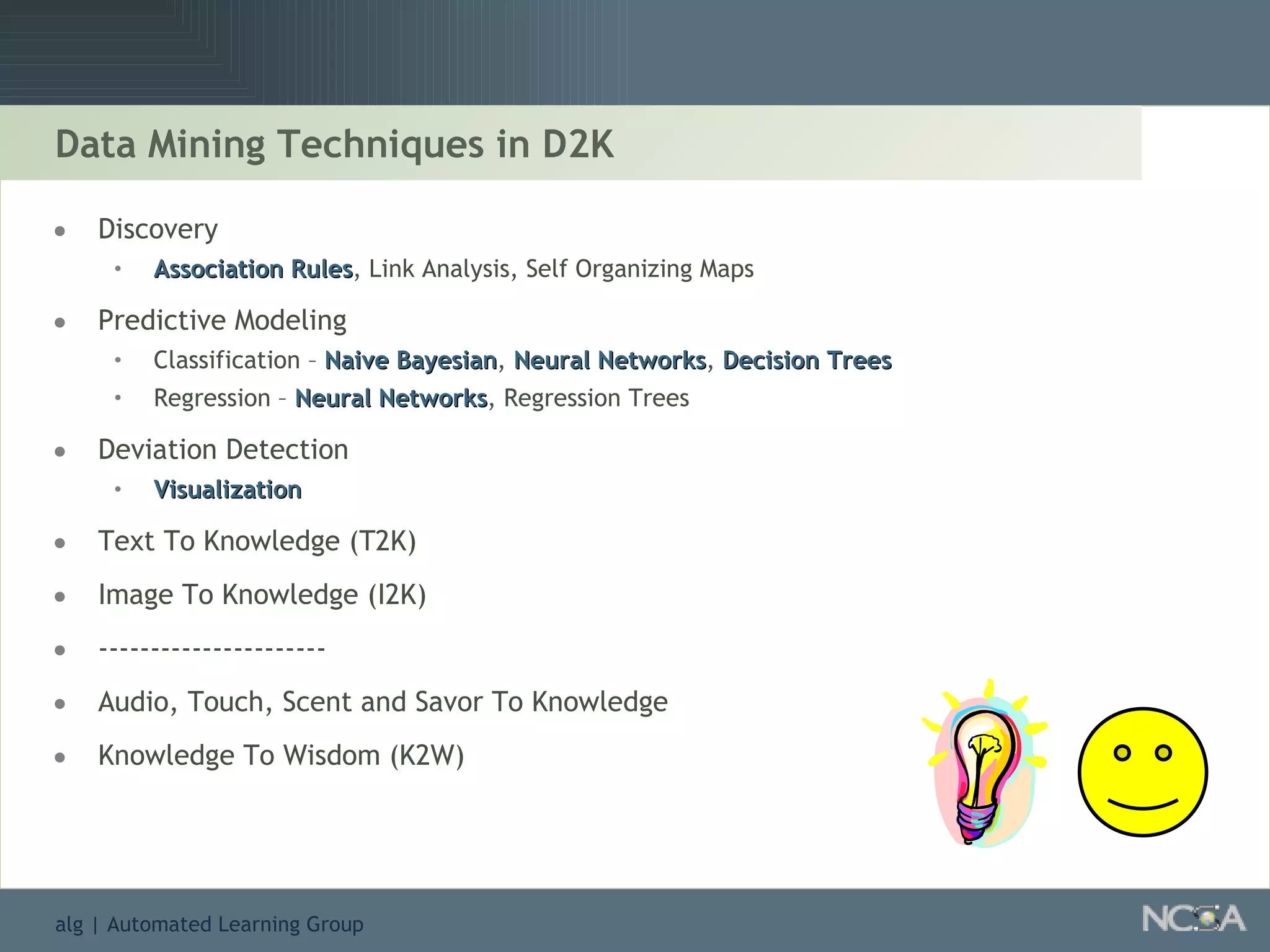

Data Mining Techniques in D2K Discovery Association Rules , Link Analysis, Self Organizing Maps Predictive Modeling Classification – Naive Bayesian , Neural Networks , Decision Trees Regression – Neural Networks , Regression Trees Deviation Detection Visualization Text To Knowledge (T2K) Image To Knowledge (I2K) ---------------------- Audio, Touch, Scent and Savor To Knowledge Knowledge To Wisdom (K2W)

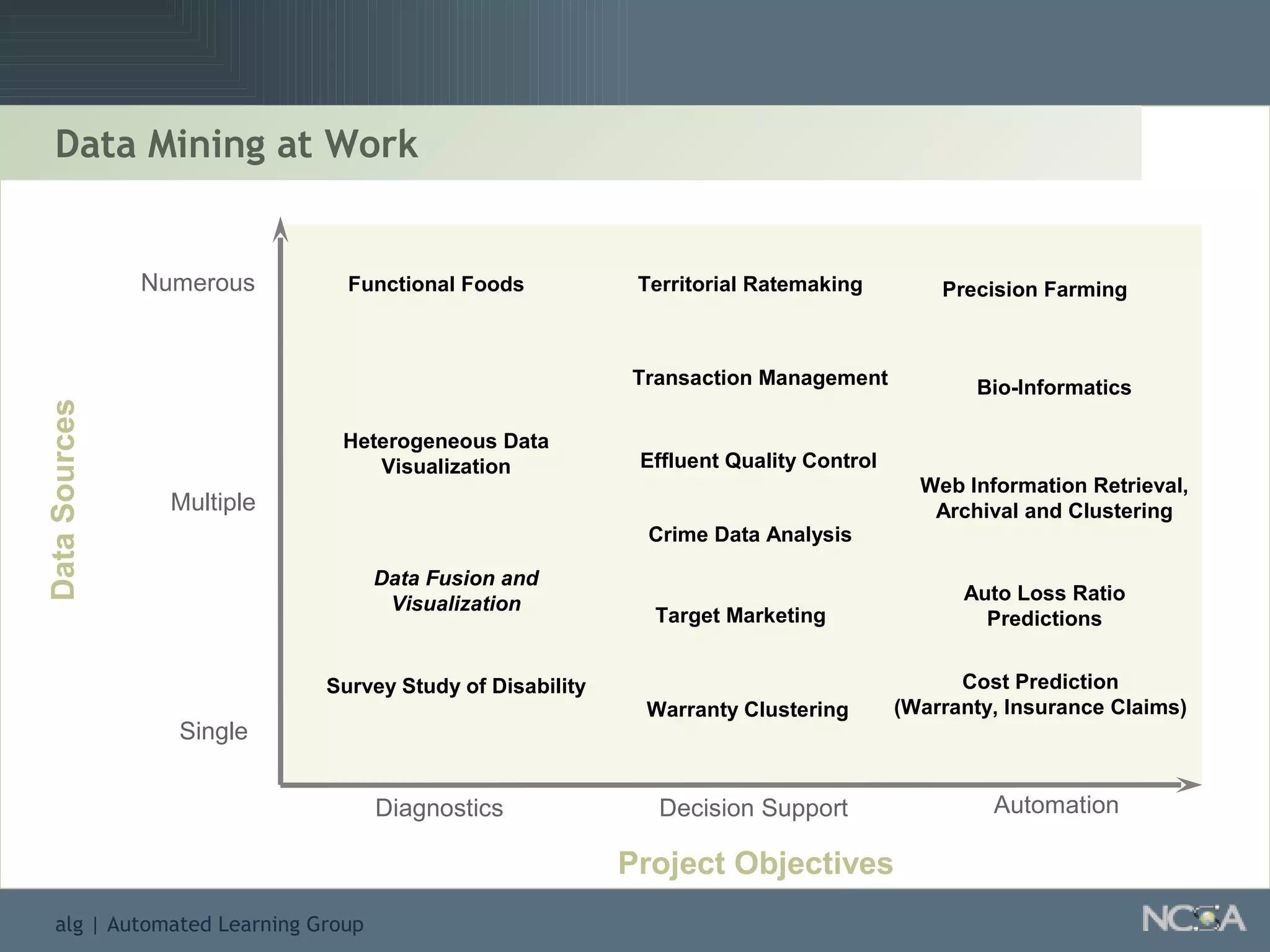

Data Mining at Work Data Sources Project Objectives Single Multiple Numerous Diagnostics Target Marketing Effluent Quality Control Decision Support Automation Transaction Management Cost Prediction (Warranty, Insurance Claims) Warranty Clustering Territorial Ratemaking Web Information Retrieval, Archival and Clustering Auto Loss Ratio Predictions Precision Farming Bio-Informatics Functional Foods Heterogeneous Data Visualization Crime Data Analysis Data Fusion and Visualization Survey Study of Disability

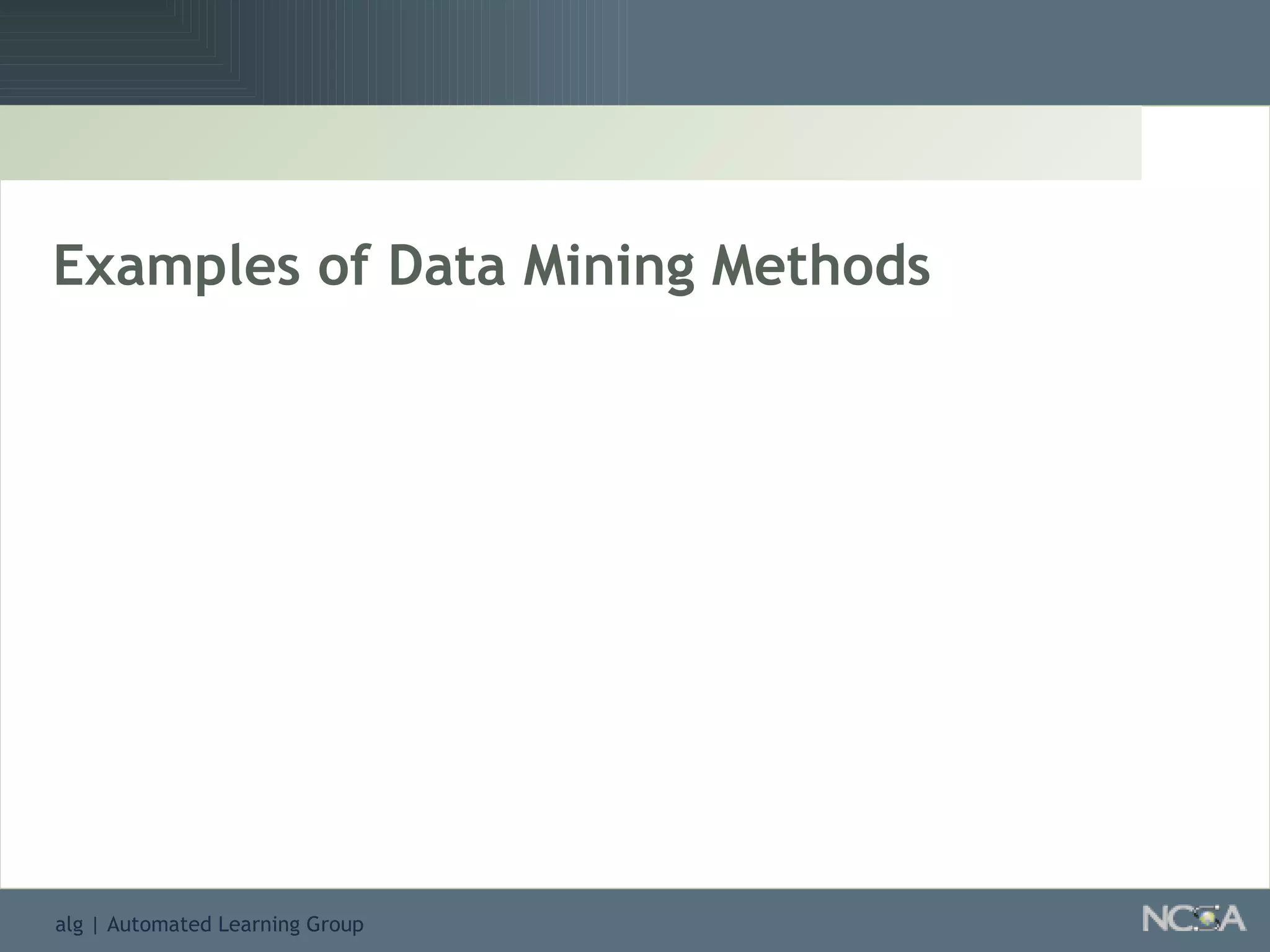

Examples of Data Mining Methods

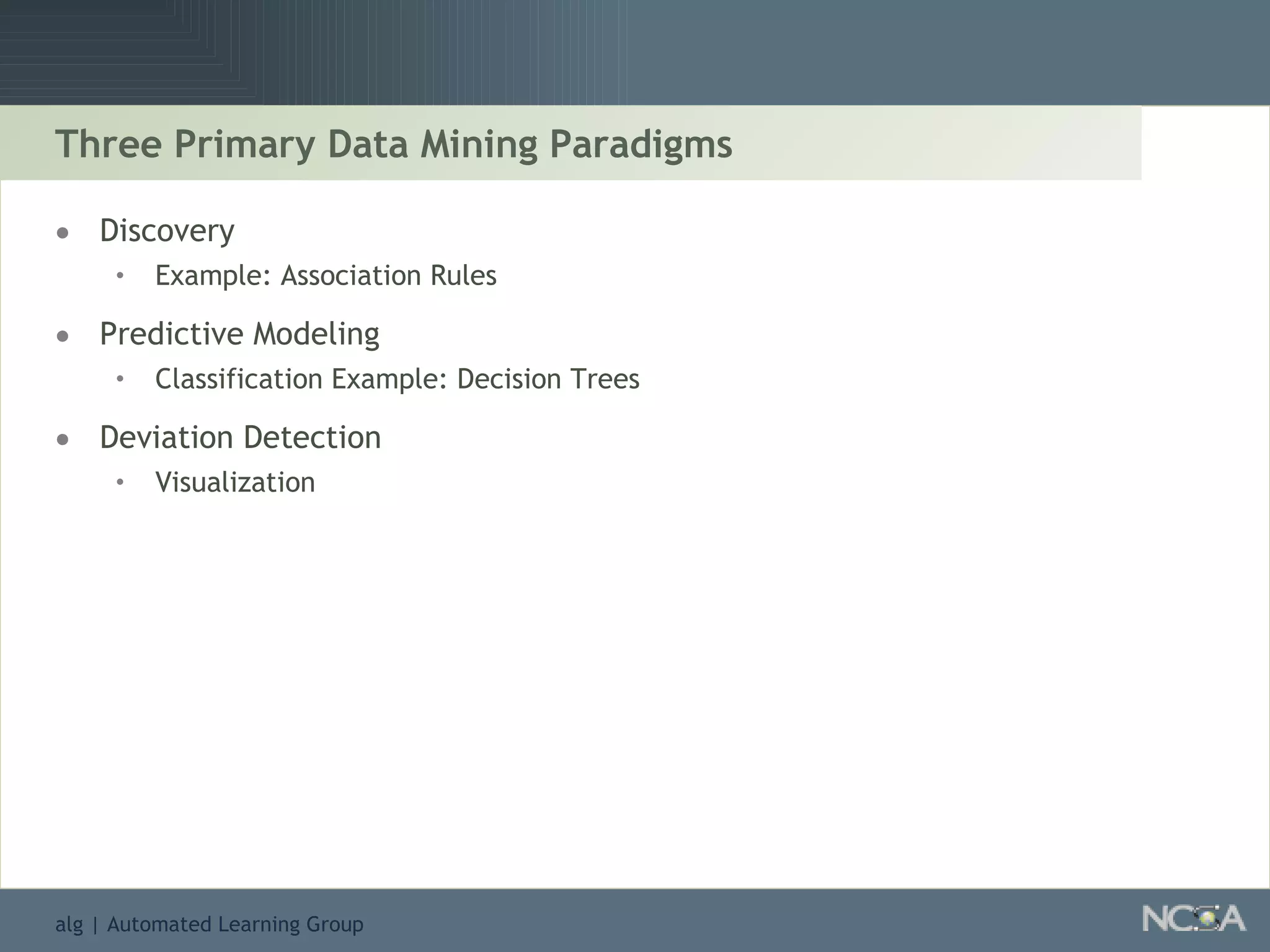

Three Primary Data Mining Paradigms Discovery Example: Association Rules Predictive Modeling Classification Example: Decision Trees Deviation Detection Visualization

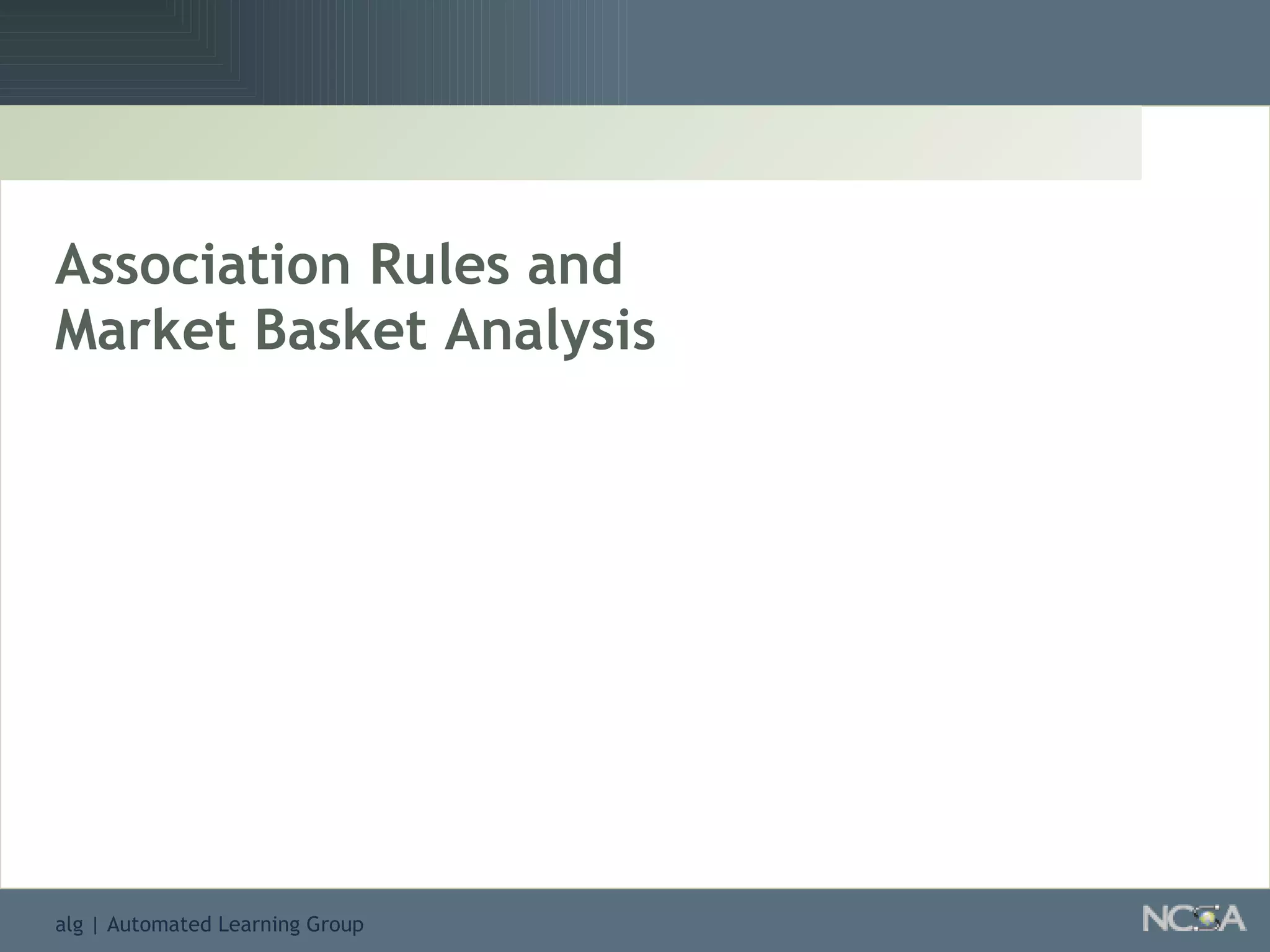

Association Rules and Market Basket Analysis

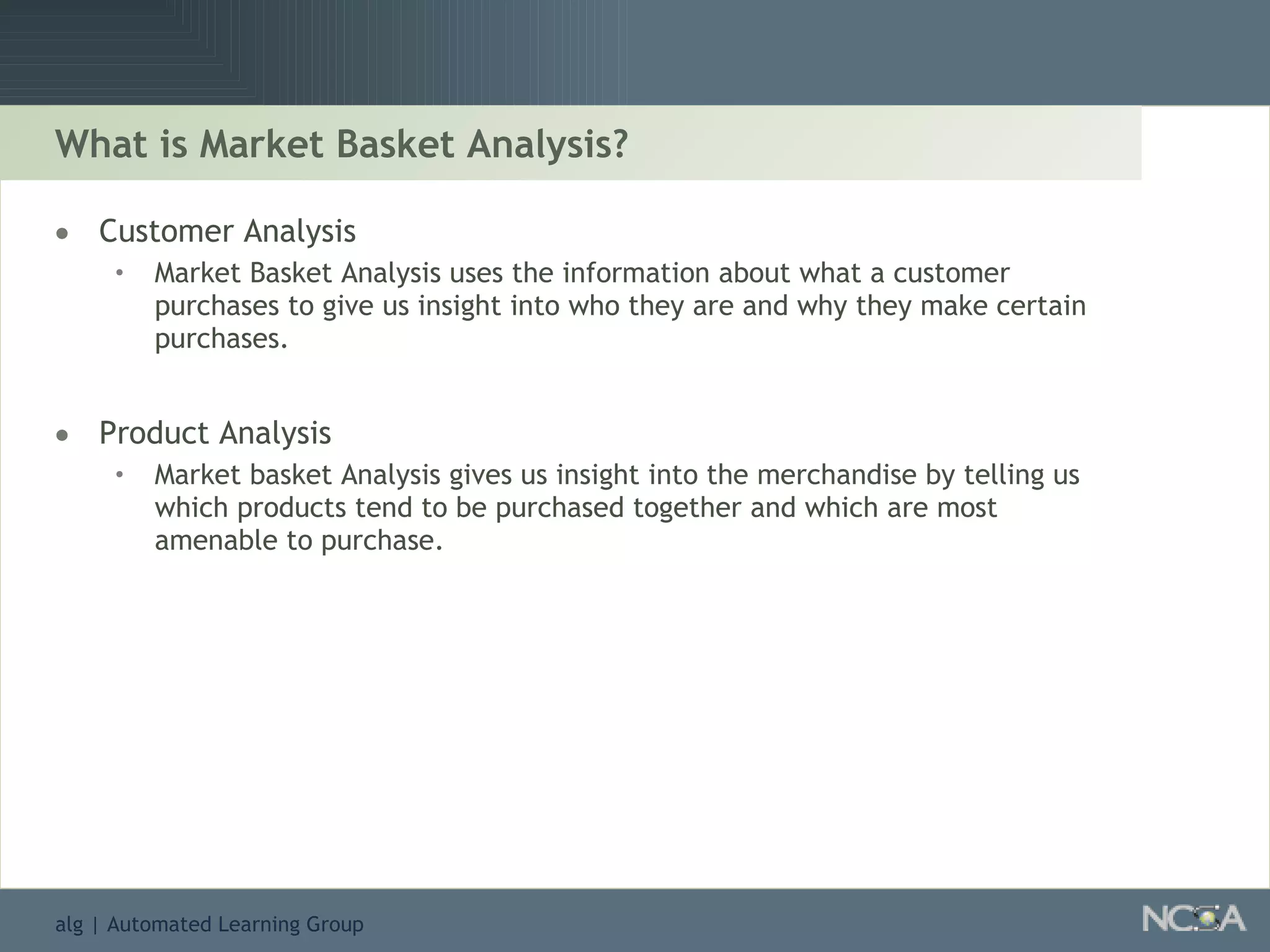

What is Market Basket Analysis? Customer Analysis Market Basket Analysis uses the information about what a customer purchases to give us insight into who they are and why they make certain purchases. Product Analysis Market basket Analysis gives us insight into the merchandise by telling us which products tend to be purchased together and which are most amenable to purchase.

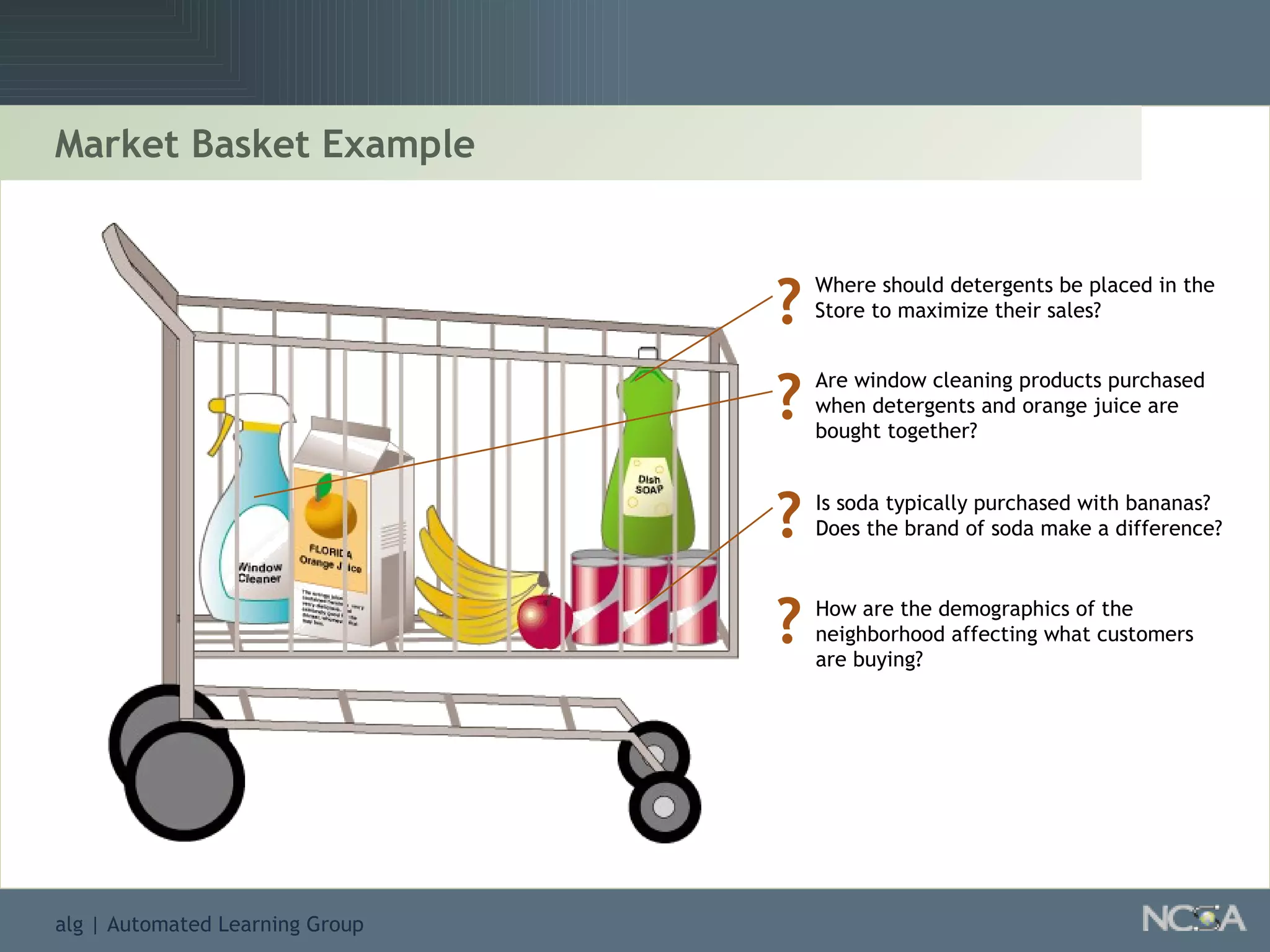

Market Basket Example Is soda typically purchased with bananas? Does the brand of soda make a difference? Where should detergents be placed in the Store to maximize their sales? Are window cleaning products purchased when detergents and orange juice are bought together? How are the demographics of the neighborhood affecting what customers are buying? ? ? ? ?

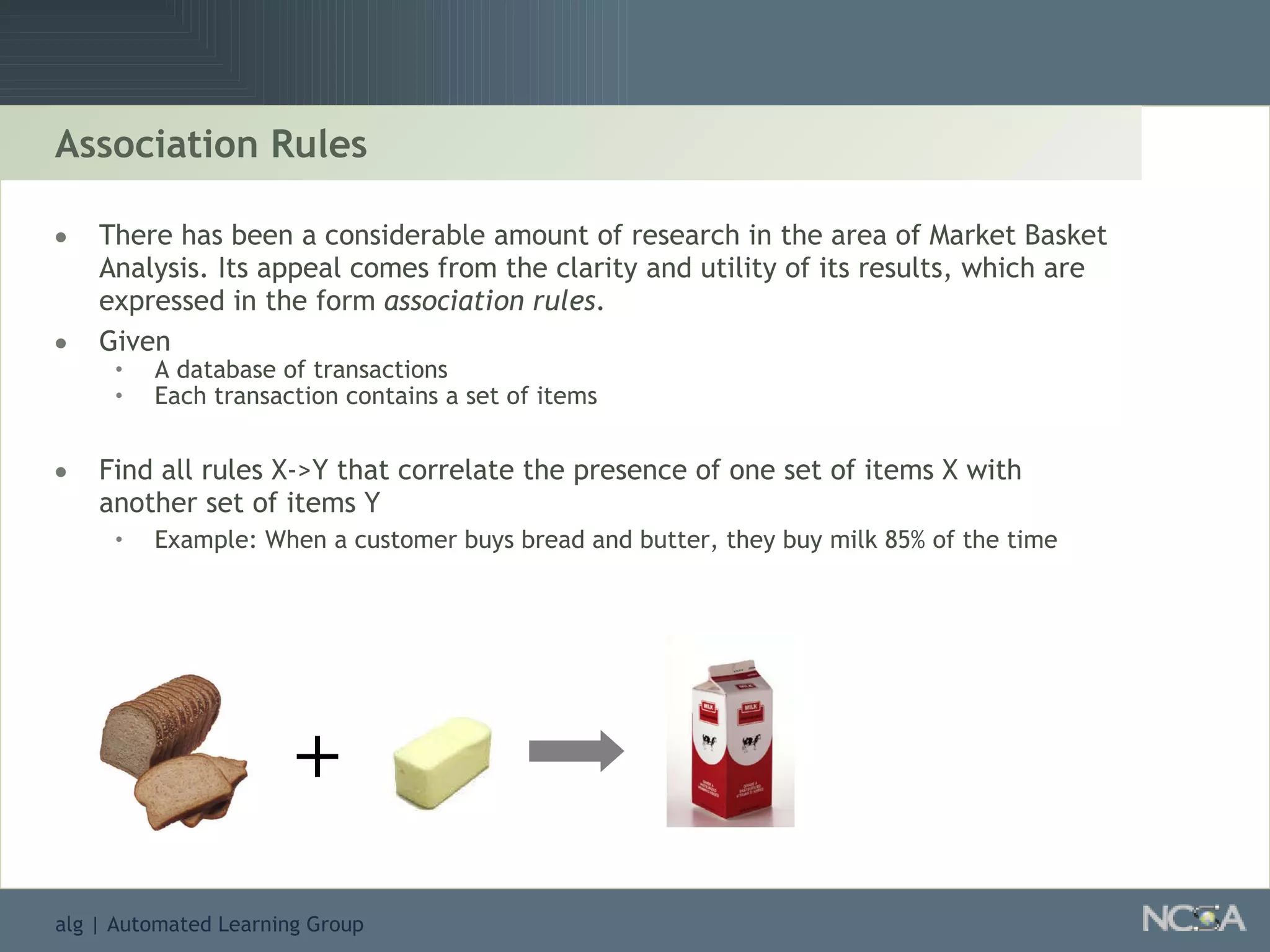

Association Rules There has been a considerable amount of research in the area of Market Basket Analysis. Its appeal comes from the clarity and utility of its results, which are expressed in the form association rules . Given A database of transactions Each transaction contains a set of items Find all rules X->Y that correlate the presence of one set of items X with another set of items Y Example: When a customer buys bread and butter, they buy milk 85% of the time +

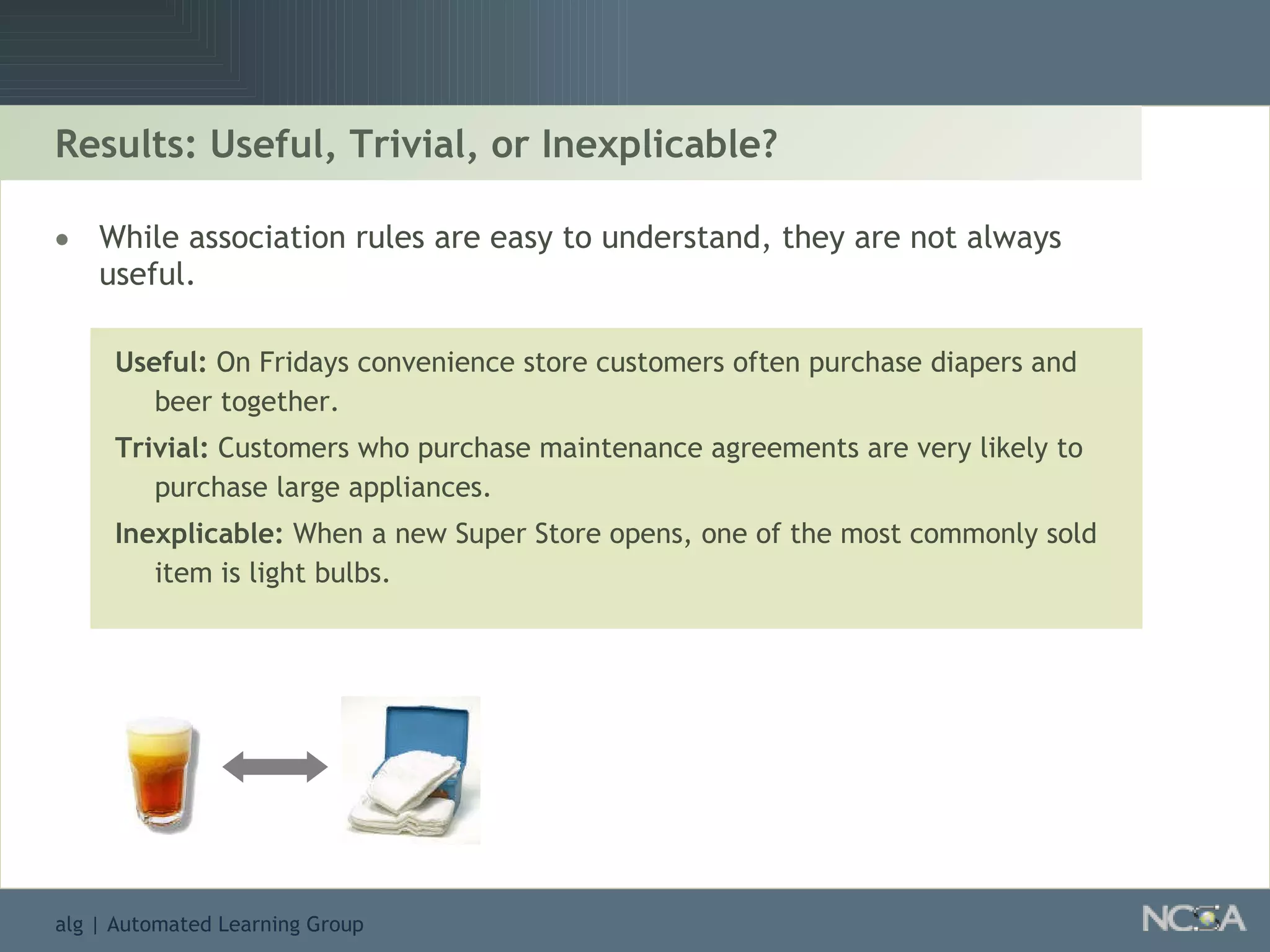

Results: Useful, Trivial, or Inexplicable? While association rules are easy to understand, they are not always useful. Useful: On Fridays convenience store customers often purchase diapers and beer together. Trivial: Customers who purchase maintenance agreements are very likely to purchase large appliances. Inexplicable: When a new Super Store opens, one of the most commonly sold item is light bulbs.

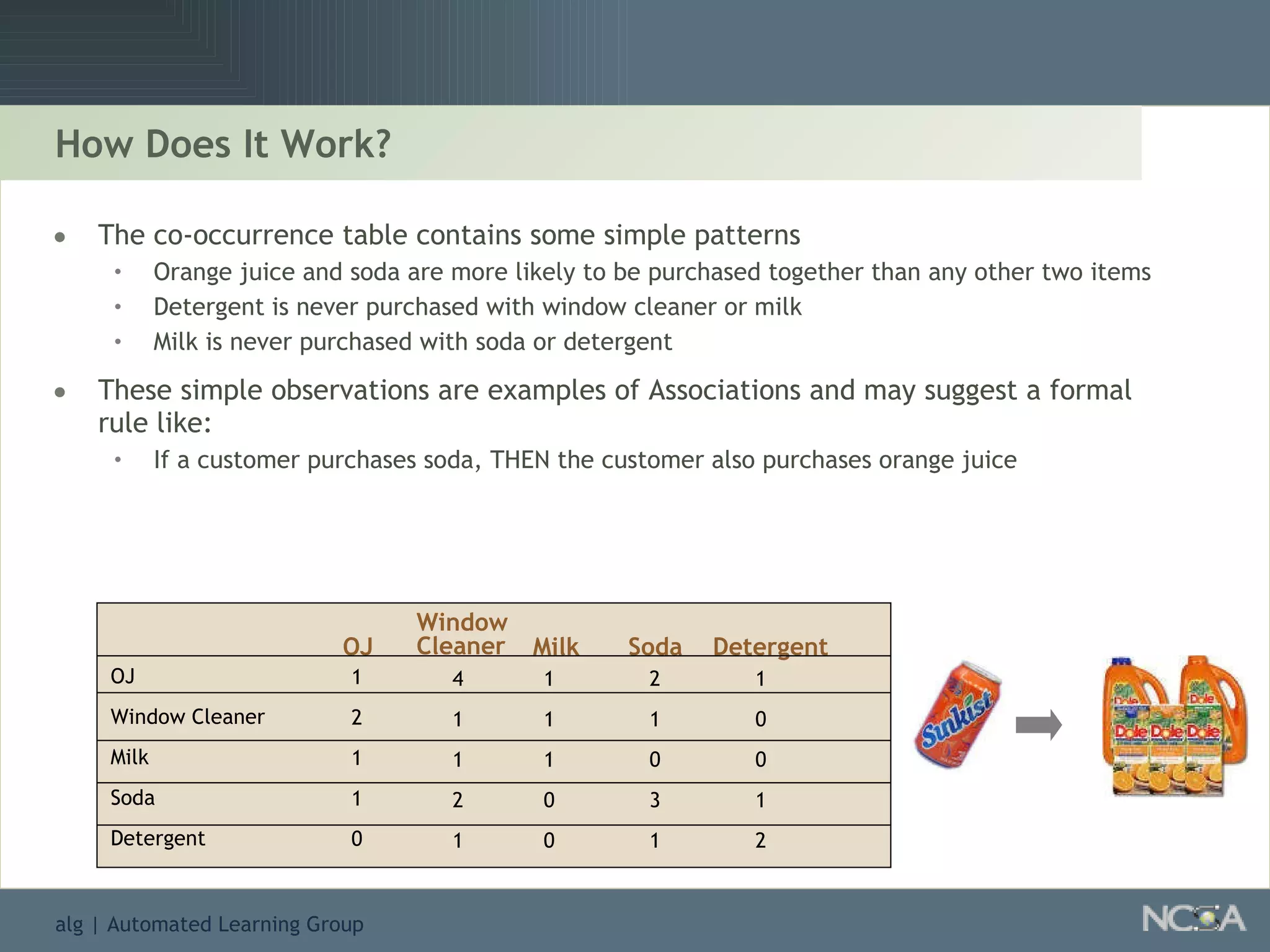

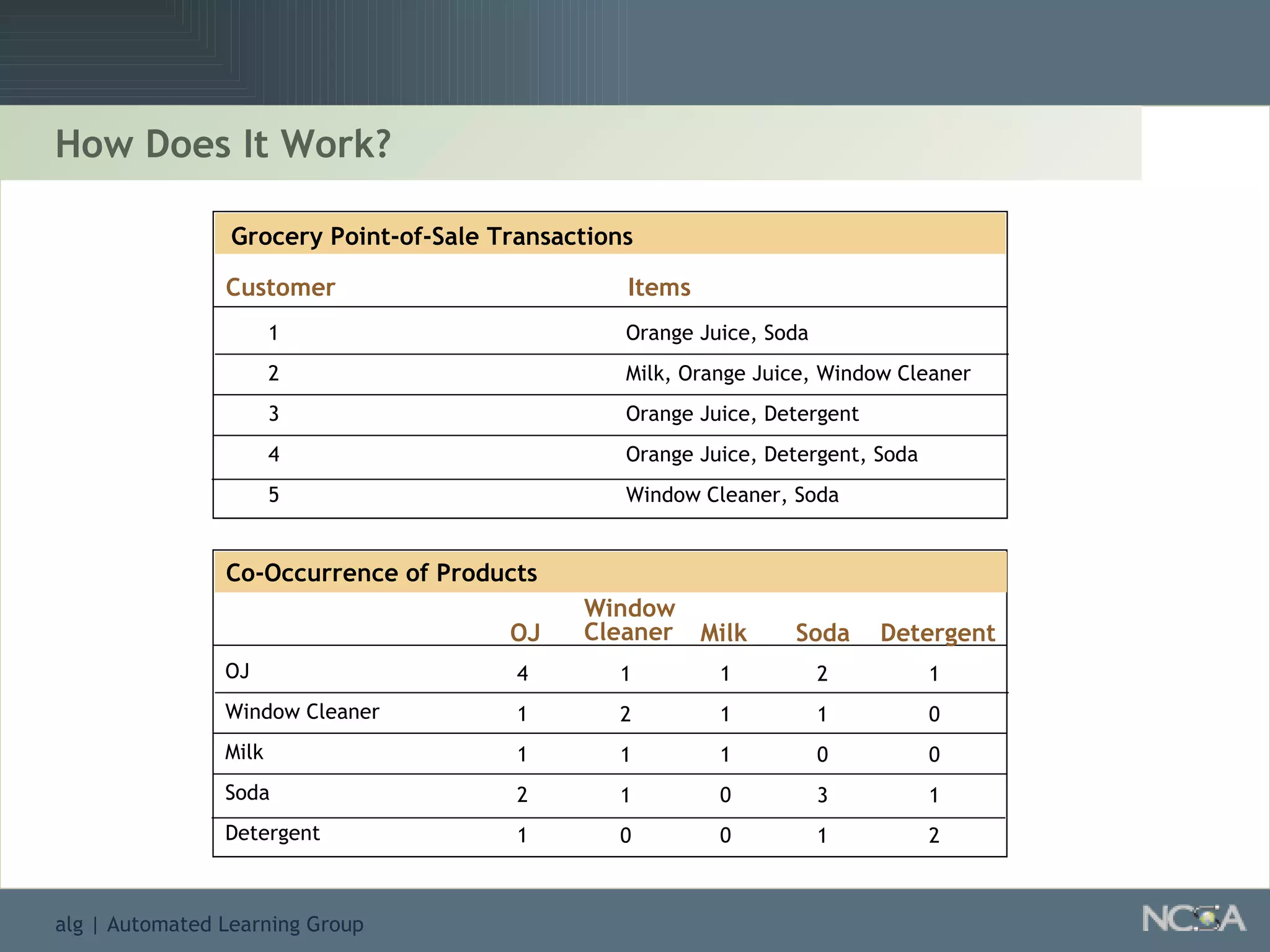

How Does It Work? Orange juice, Soda Milk, Orange Juice, Window Cleaner Orange Juice, Detergent Orange juice, detergent, soda Window cleaner, soda OJ 4 1 1 2 1 OJ Window Cleaner Milk Soda Detergent 1 2 1 1 0 1 1 1 0 0 2 1 0 3 1 1 0 0 1 2 Window Cleaner Milk Soda Detergent Co-Occurrence of Products Customer Items 1 2 3 4 5 Grocery Point-of-Sale Transactions Orange Juice, Soda Milk, Orange Juice, Window Cleaner Orange Juice, Detergent Orange Juice, Detergent, Soda Window Cleaner, Soda

The co-occurrence table contains some simple patterns Orange juice and soda are more likely to be purchased together than any other two items Detergent is never purchased with window cleaner or milk Milk is never purchased with soda or detergent These simple observations are examples of Associations and may suggest a formal rule like: If a customer purchases soda, THEN the customer also purchases orange juice How Does It Work? OJ Window Cleaner Milk Soda Detergent 1 1 1 0 0 2 1 0 3 1 1 0 0 1 2 OJ Window Cleaner Milk Soda Detergent 1 2 1 1 0 4 1 1 2 1

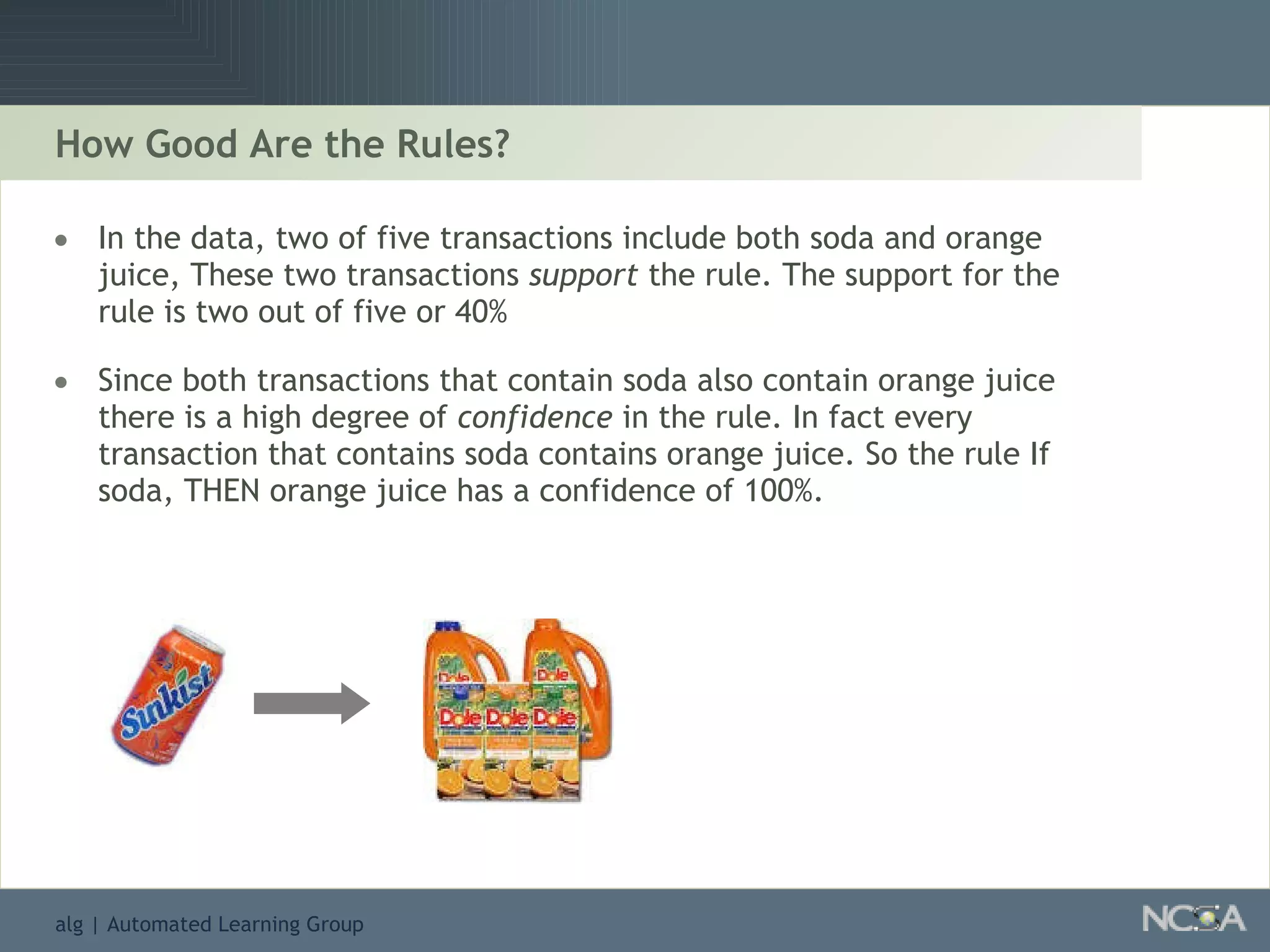

How Good Are the Rules? In the data, two of five transactions include both soda and orange juice, These two transactions support the rule. The support for the rule is two out of five or 40% Since both transactions that contain soda also contain orange juice there is a high degree of confidence in the rule. In fact every transaction that contains soda contains orange juice. So the rule If soda, THEN orange juice has a confidence of 100%.

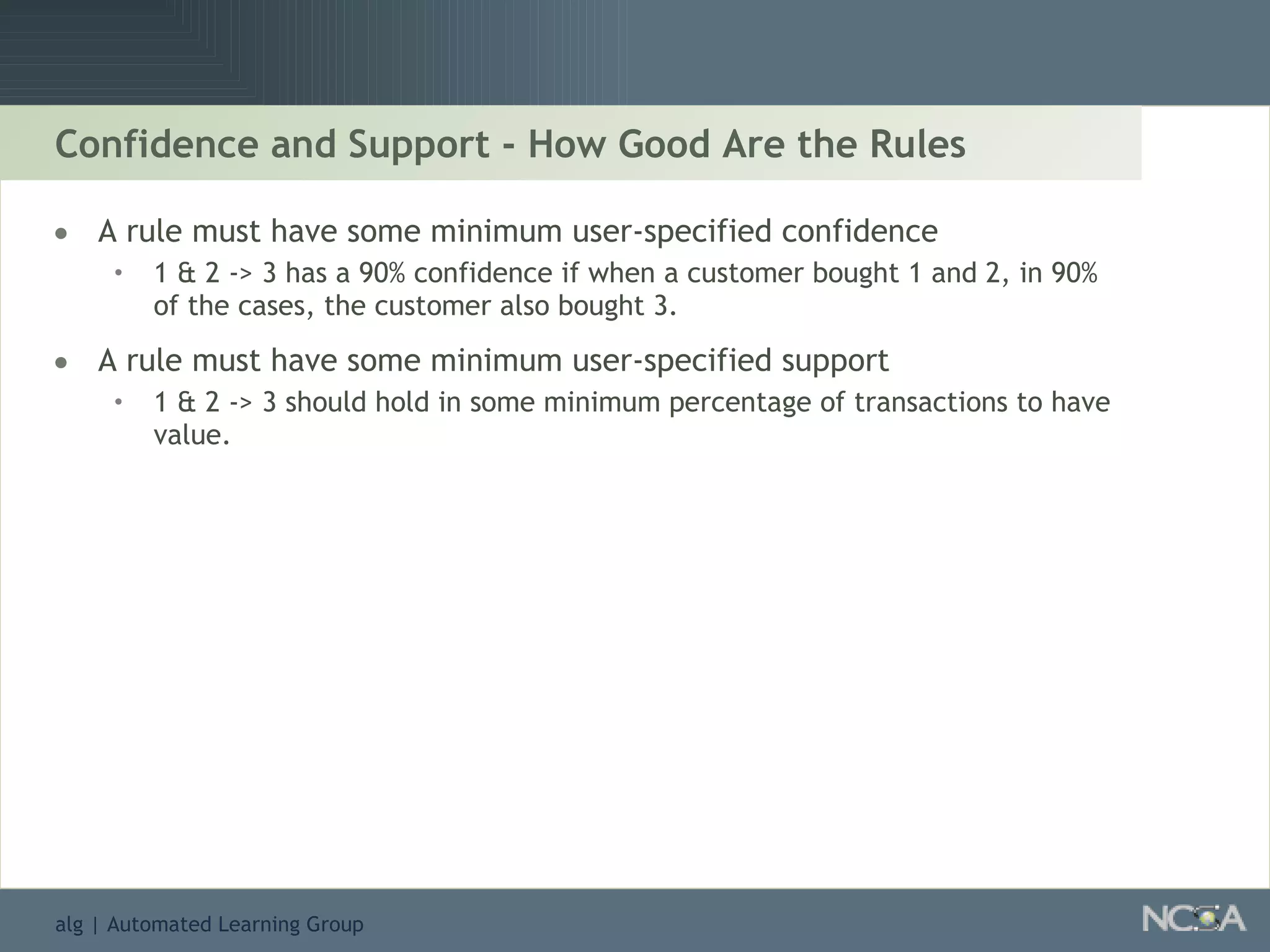

Confidence and Support - How Good Are the Rules A rule must have some minimum user-specified confidence 1 & 2 -> 3 has a 90% confidence if when a customer bought 1 and 2, in 90% of the cases, the customer also bought 3. A rule must have some minimum user-specified support 1 & 2 -> 3 should hold in some minimum percentage of transactions to have value.

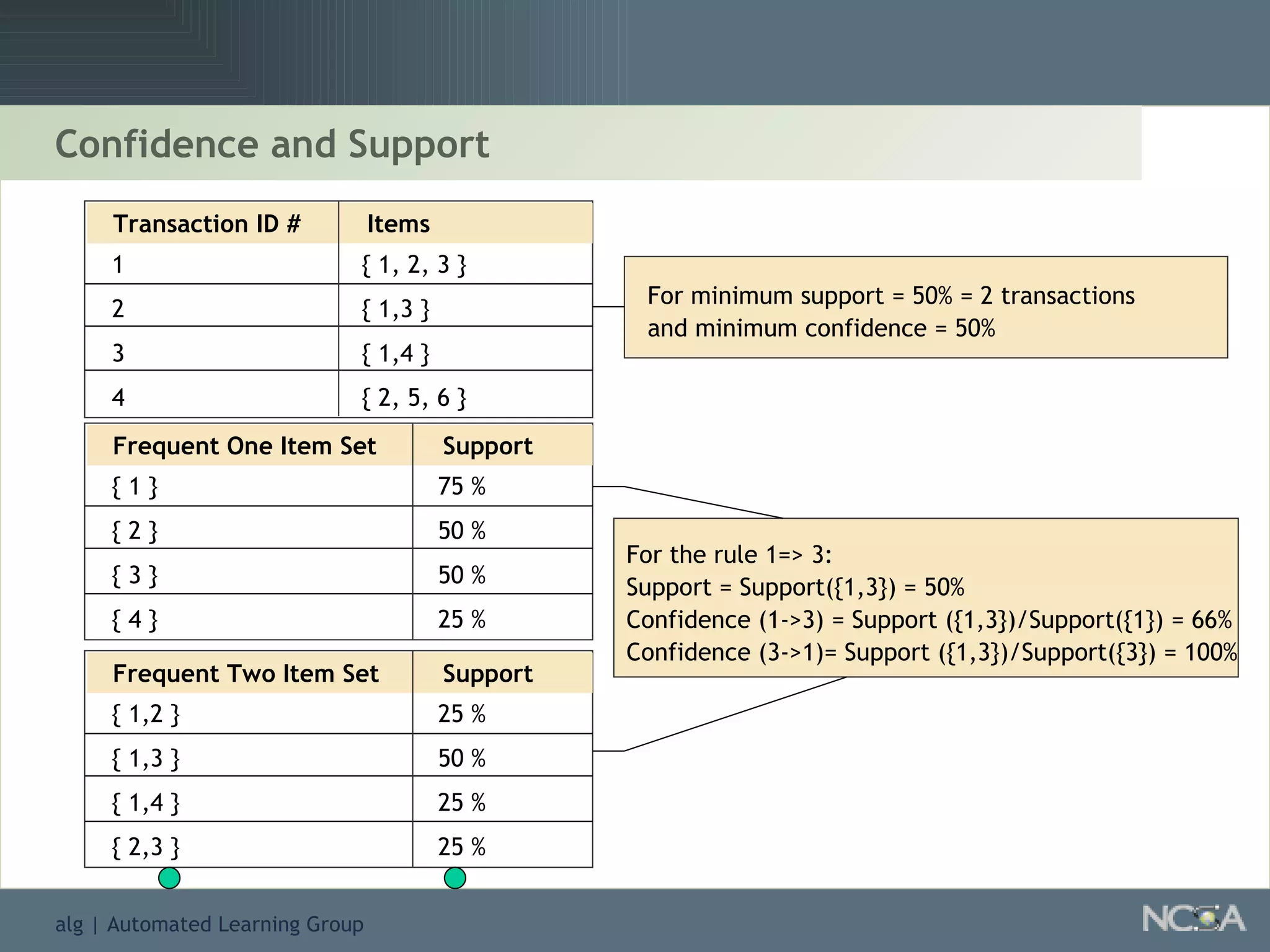

Confidence and Support Transaction ID # Items 1 2 3 4 { 1, 2, 3 } { 1,3 } { 1,4 } { 2, 5, 6 } Frequent One Item Set Support { 1 } { 2 } { 3 } { 4 } 75 % 50 % 50 % 25 % For minimum support = 50% = 2 transactions and minimum confidence = 50% For the rule 1=> 3: Support = Support({1,3}) = 50% Confidence (1->3) = Support ({1,3})/Support({1}) = 66% Confidence (3->1)= Support ({1,3})/Support({3}) = 100% Frequent Two Item Set Support { 1,2 } { 1,3 } { 1,4 } { 2,3 } 25 % 50 % 25 % 25 %

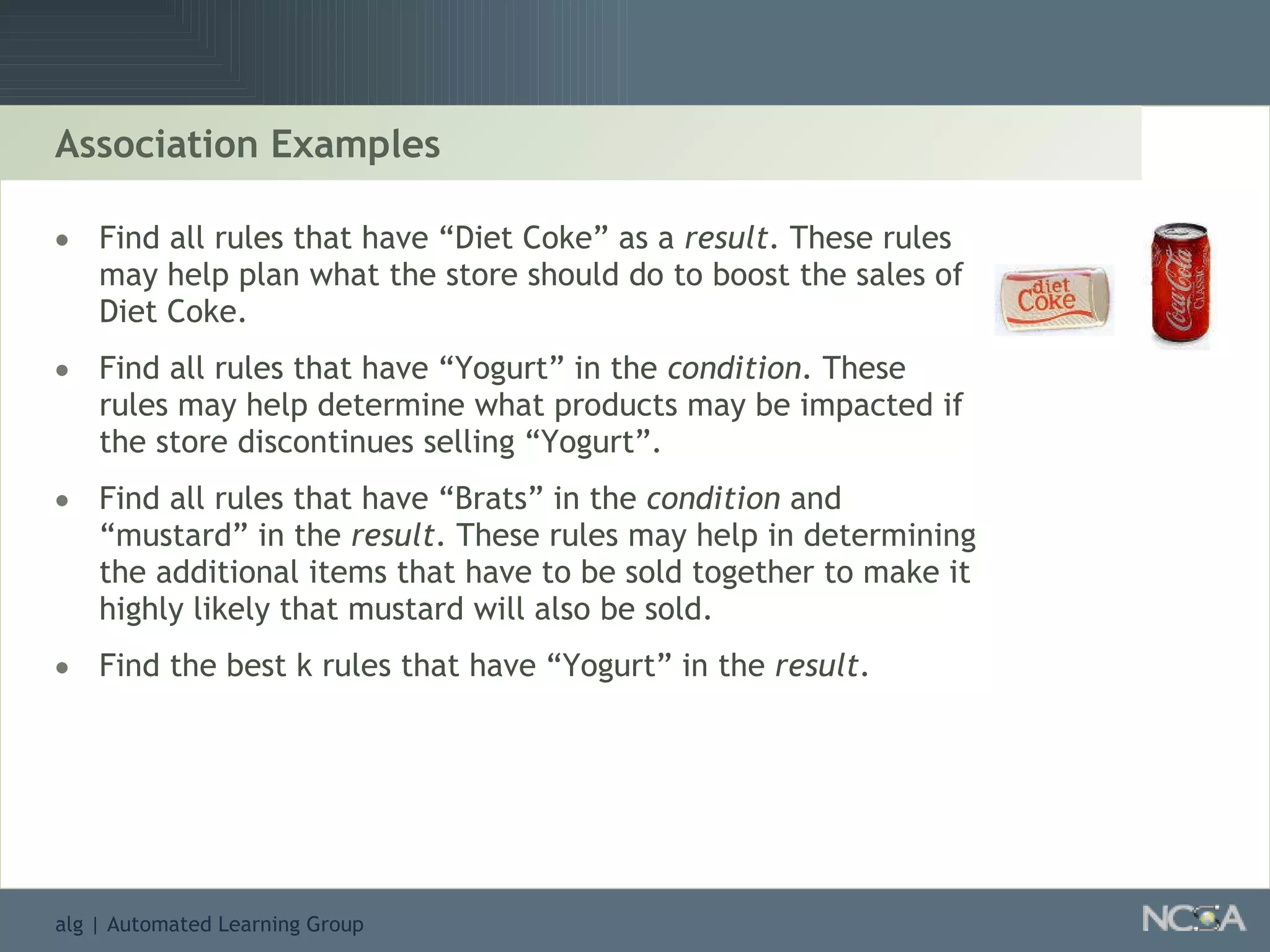

Association Examples Find all rules that have “Diet Coke” as a result . These rules may help plan what the store should do to boost the sales of Diet Coke. Find all rules that have “Yogurt” in the condition . These rules may help determine what products may be impacted if the store discontinues selling “Yogurt”. Find all rules that have “Brats” in the condition and “mustard” in the result . These rules may help in determining the additional items that have to be sold together to make it highly likely that mustard will also be sold. Find the best k rules that have “Yogurt” in the result .

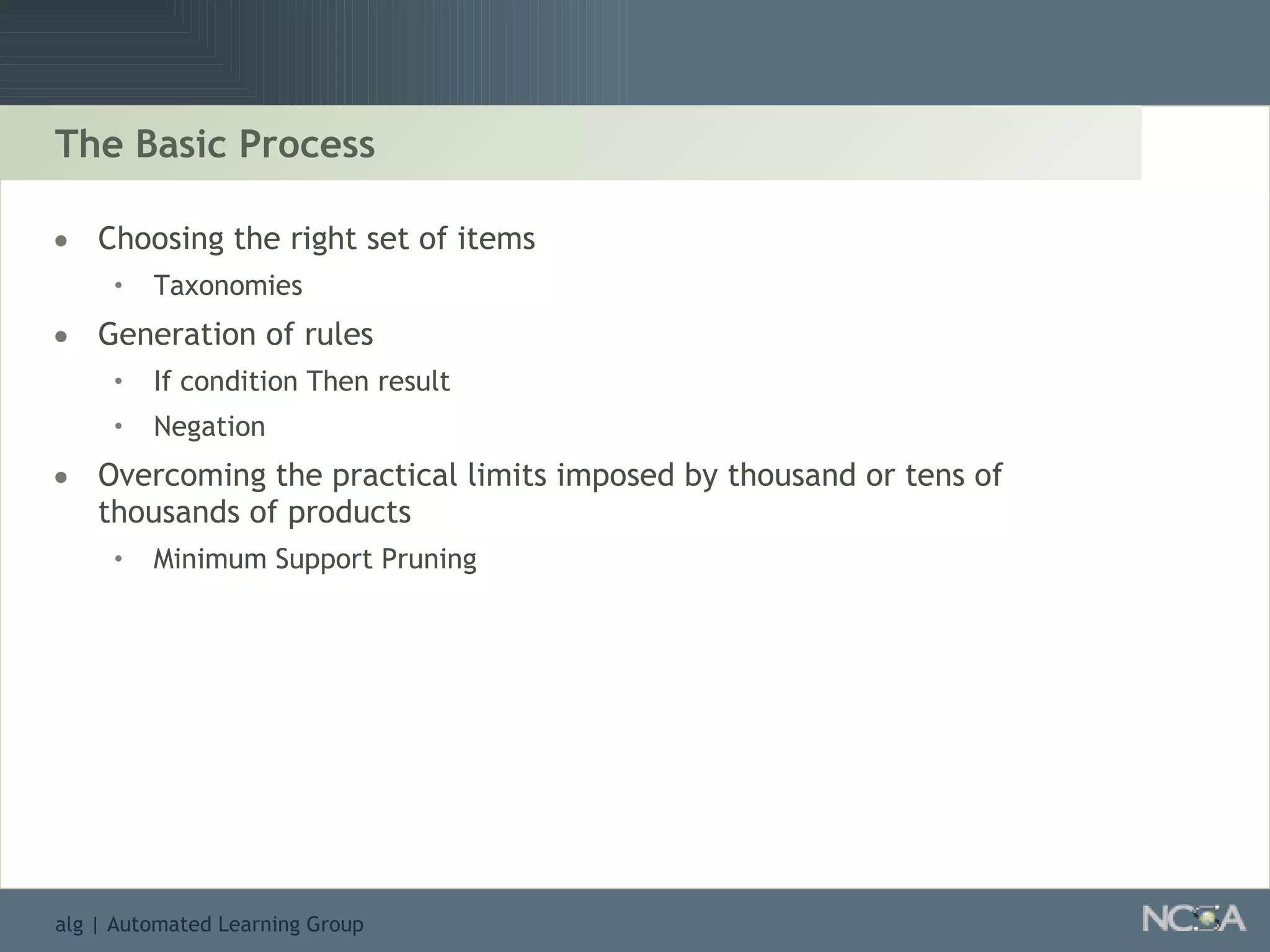

The Basic Process Choosing the right set of items Taxonomies Generation of rules If condition Then result Negation Overcoming the practical limits imposed by thousand or tens of thousands of products Minimum Support Pruning

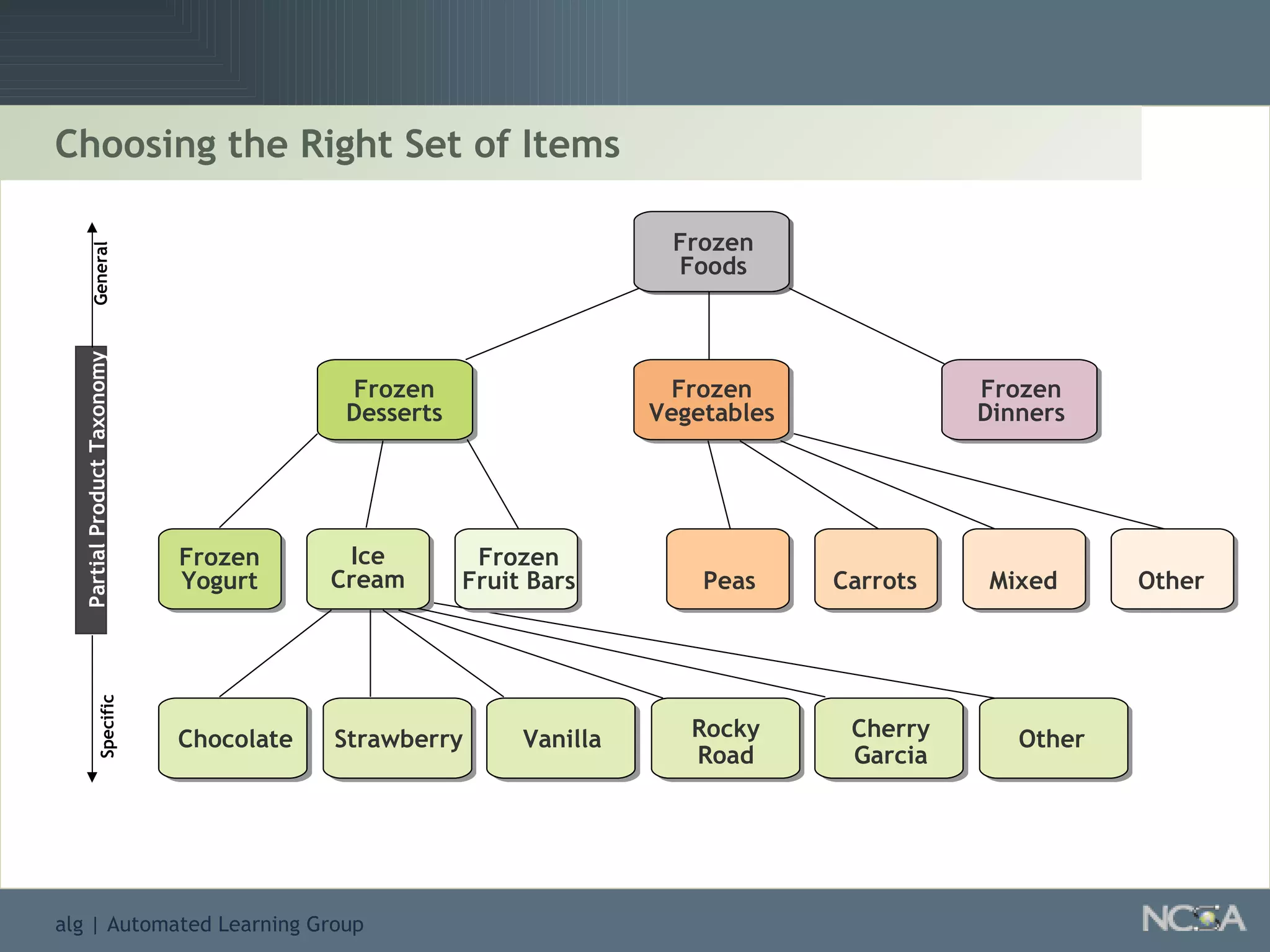

Choosing the Right Set of Items Frozen Foods Frozen Desserts Frozen Vegetables Frozen Dinners Frozen Yogurt Frozen Fruit Bars Ice Cream Peas Carrots Mixed Other Rocky Road Chocolate Strawberry Vanilla Cherry Garcia Other Partial Product Taxonomy General Specific

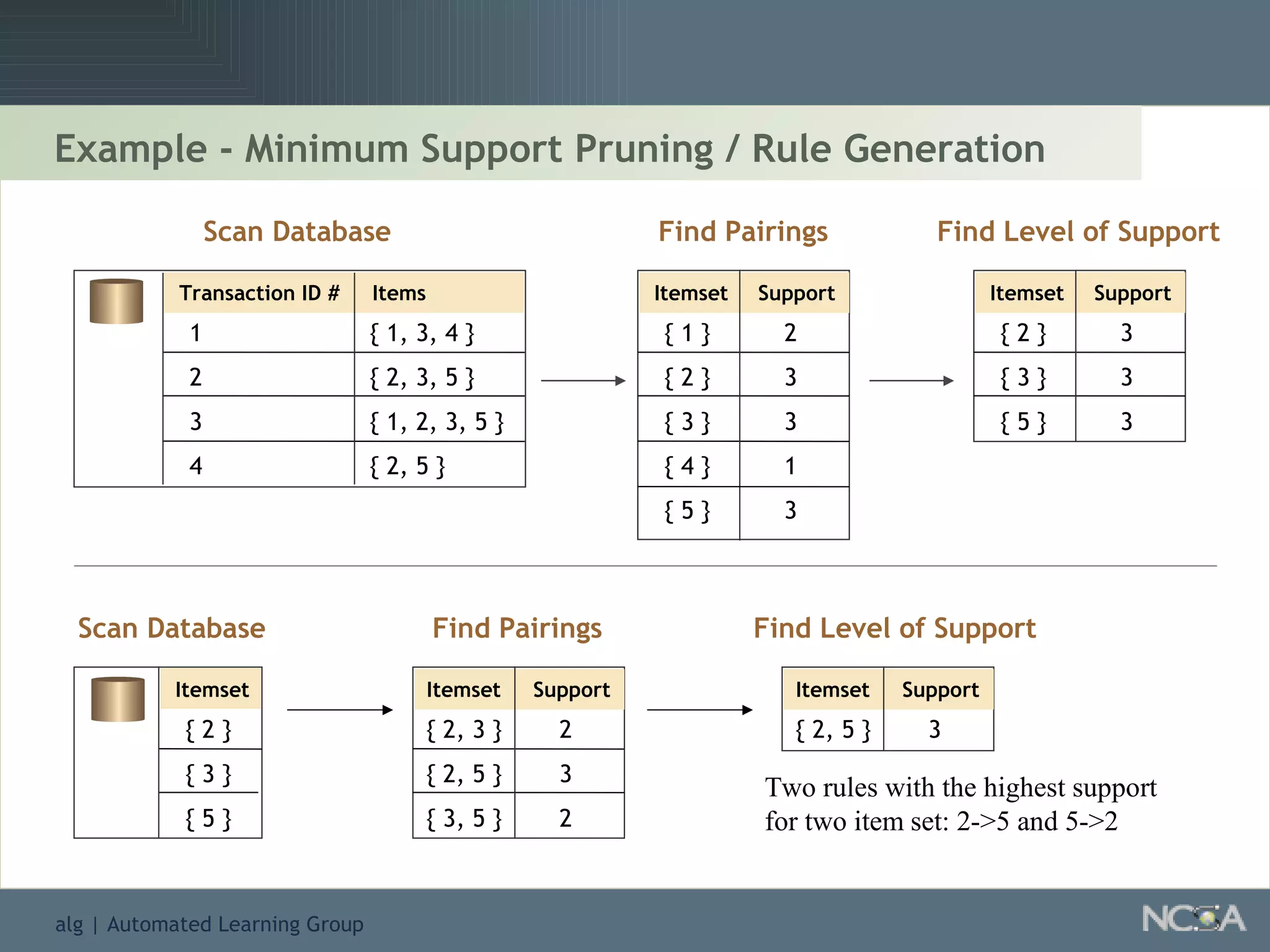

Example - Minimum Support Pruning / Rule Generation Transaction ID # Items 1 2 3 4 { 1, 3, 4 } { 2, 3, 5 } { 1, 2, 3, 5 } { 2, 5 } Itemset Support { 1 } { 2 } { 3 } { 4 } { 5 } 2 3 3 1 3 Itemset Support { 2 } { 3 } { 5 } 3 3 3 Itemset { 2 } { 3 } { 5 } Itemset Support { 2, 3 } { 2, 5 } { 3, 5 } 2 3 2 Itemset Support { 2, 5 } 3 Scan Database Find Pairings Find Level of Support Scan Database Find Pairings Find Level of Support Two rules with the highest support for two item set: 2->5 and 5->2

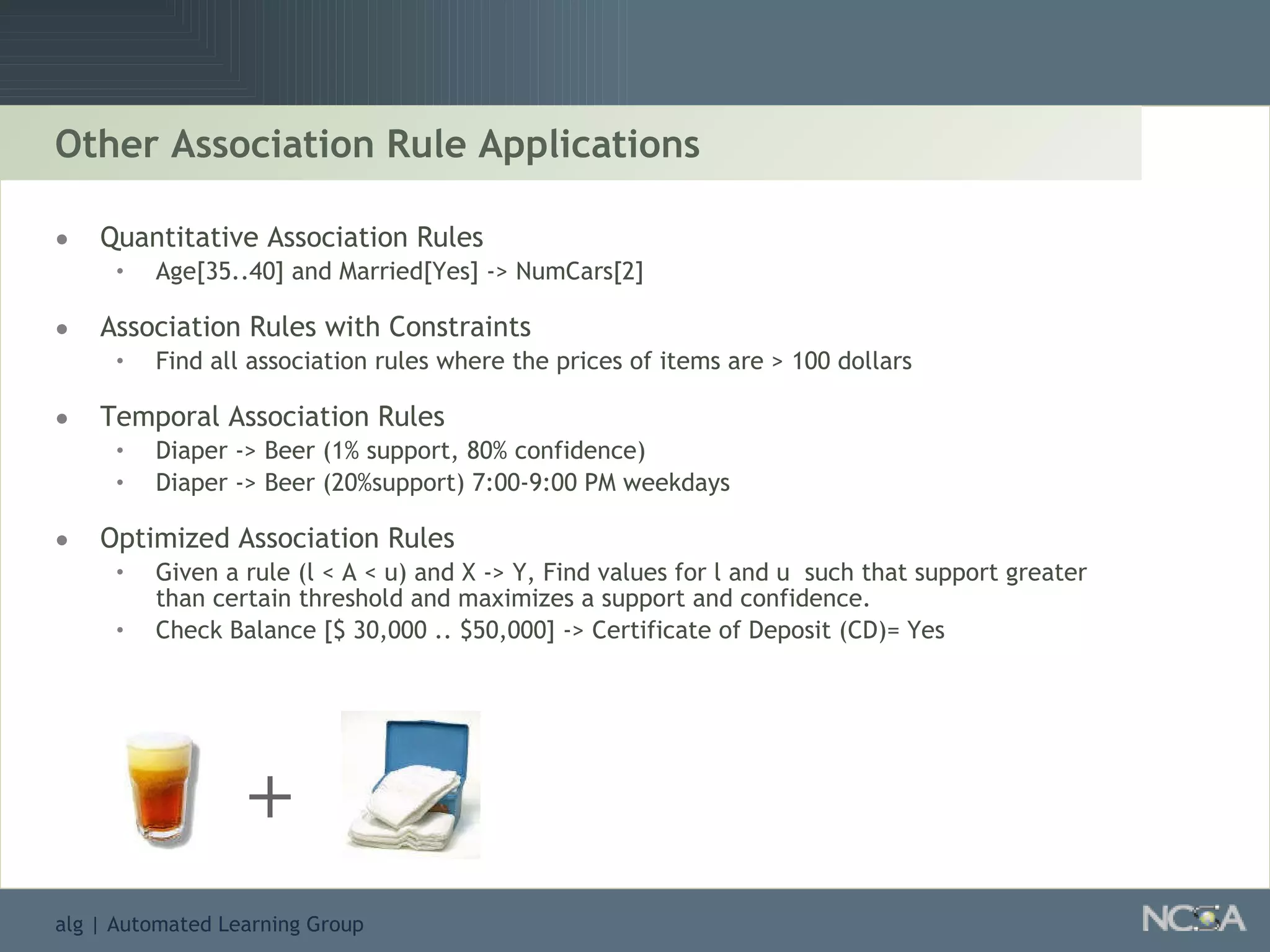

Other Association Rule Applications Quantitative Association Rules Age[35..40] and Married[Yes] -> NumCars[2] Association Rules with Constraints Find all association rules where the prices of items are > 100 dollars Temporal Association Rules Diaper -> Beer (1% support, 80% confidence) Diaper -> Beer (20%support) 7:00-9:00 PM weekdays Optimized Association Rules Given a rule (l < A < u) and X -> Y, Find values for l and u such that support greater than certain threshold and maximizes a support and confidence. Check Balance [$ 30,000 .. $50,000] -> Certificate of Deposit (CD)= Yes +

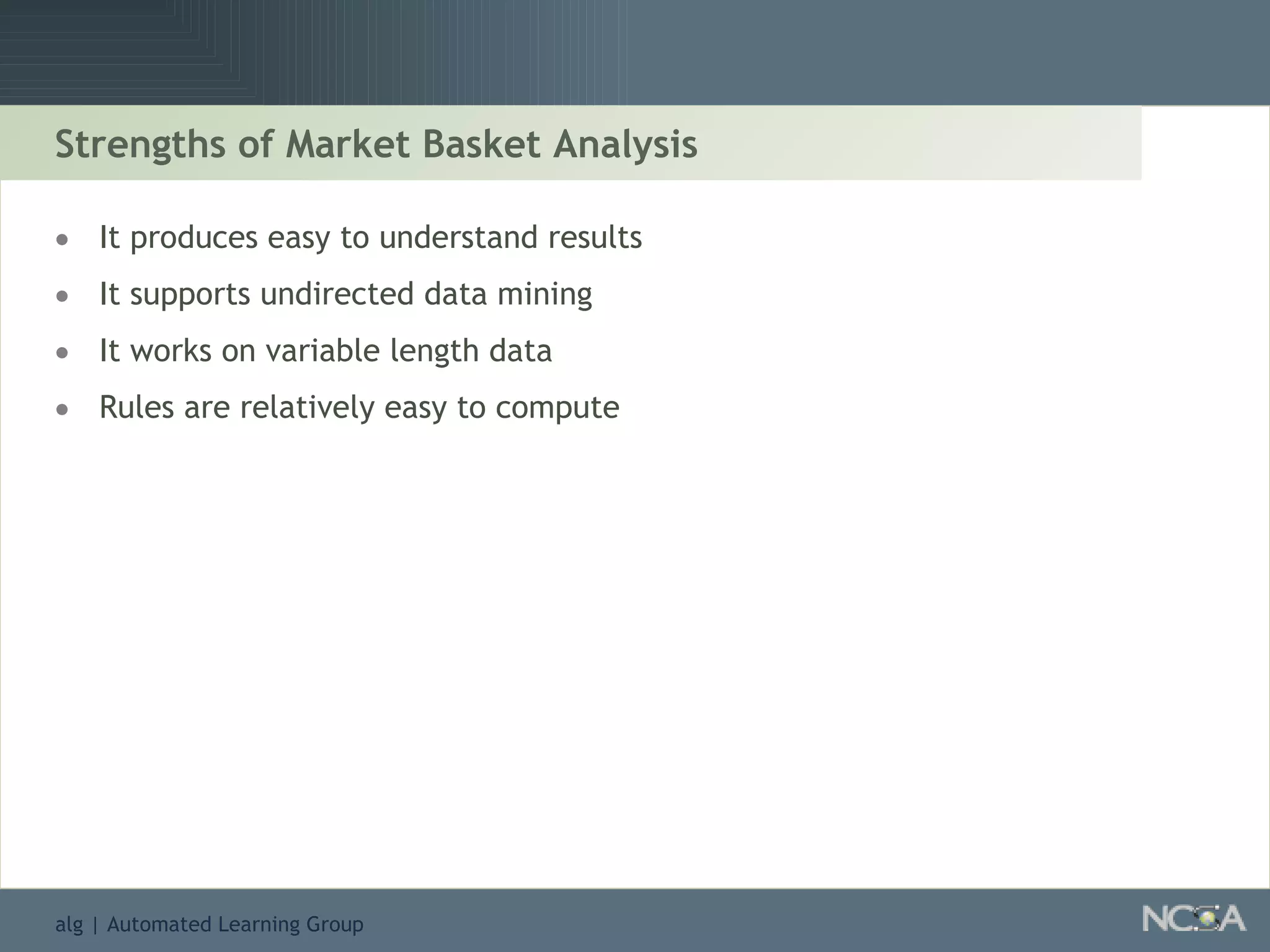

Strengths of Market Basket Analysis It produces easy to understand results It supports undirected data mining It works on variable length data Rules are relatively easy to compute

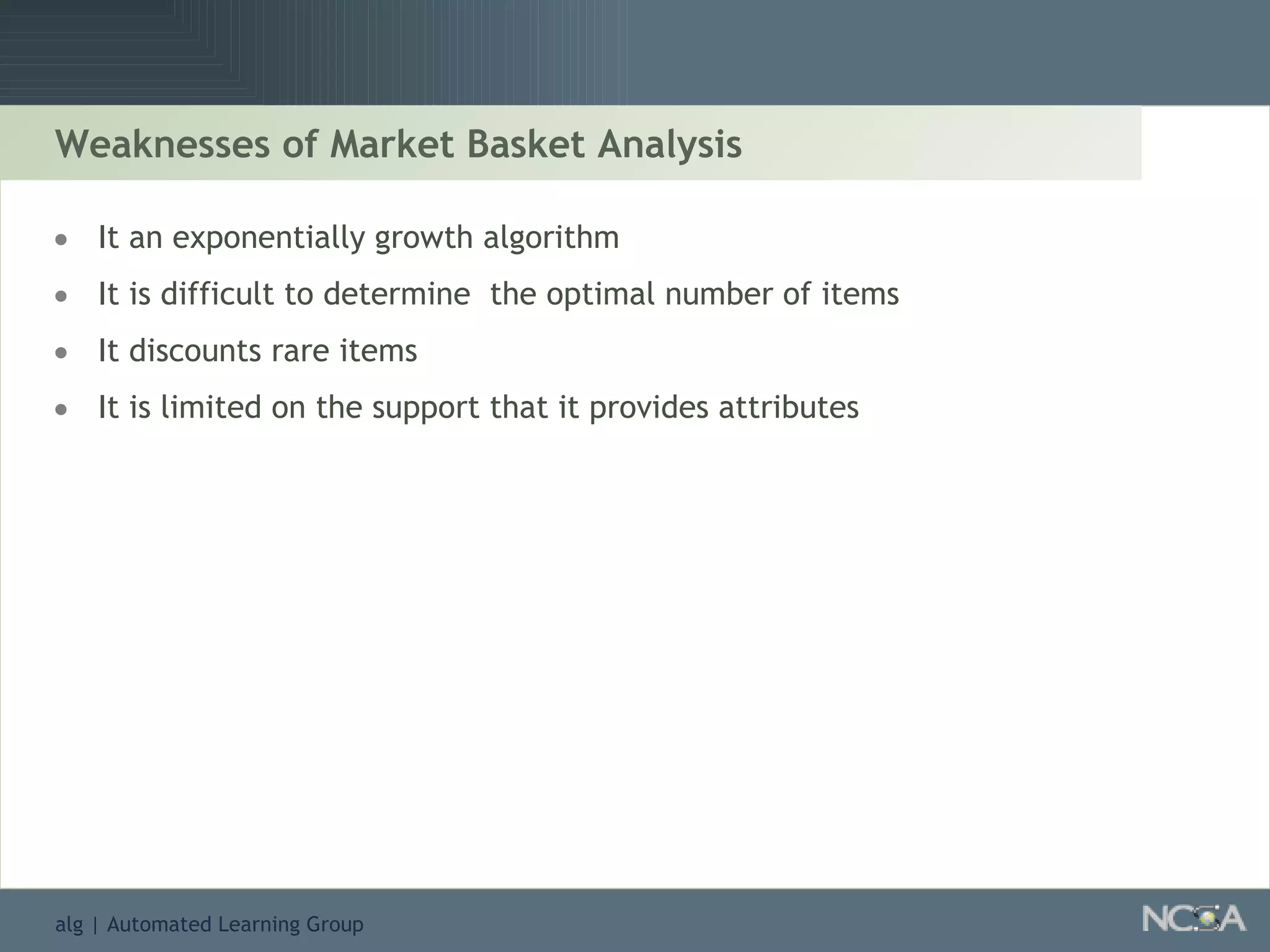

Weaknesses of Market Basket Analysis It an exponentially growth algorithm It is difficult to determine the optimal number of items It discounts rare items It is limited on the support that it provides attributes

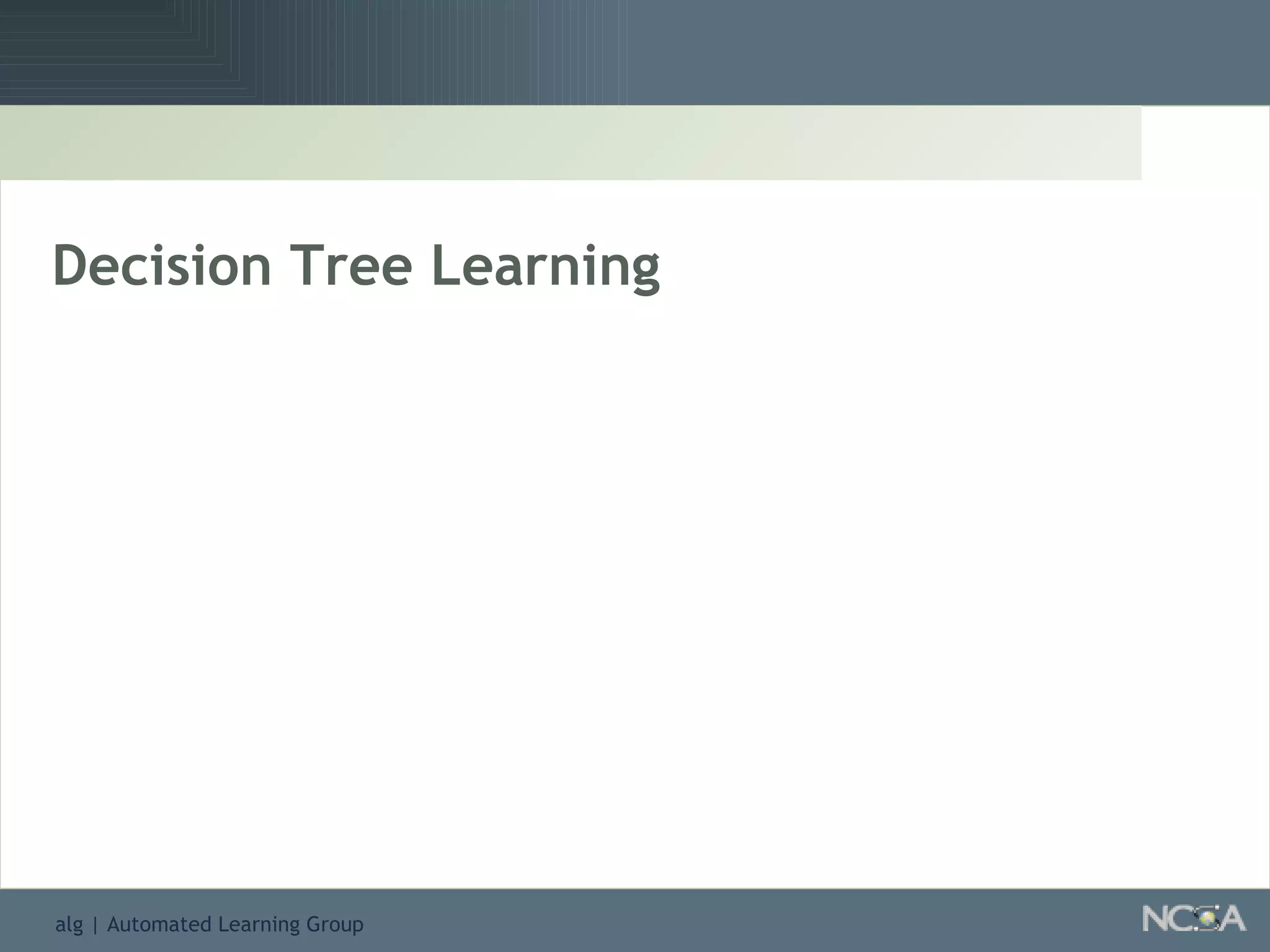

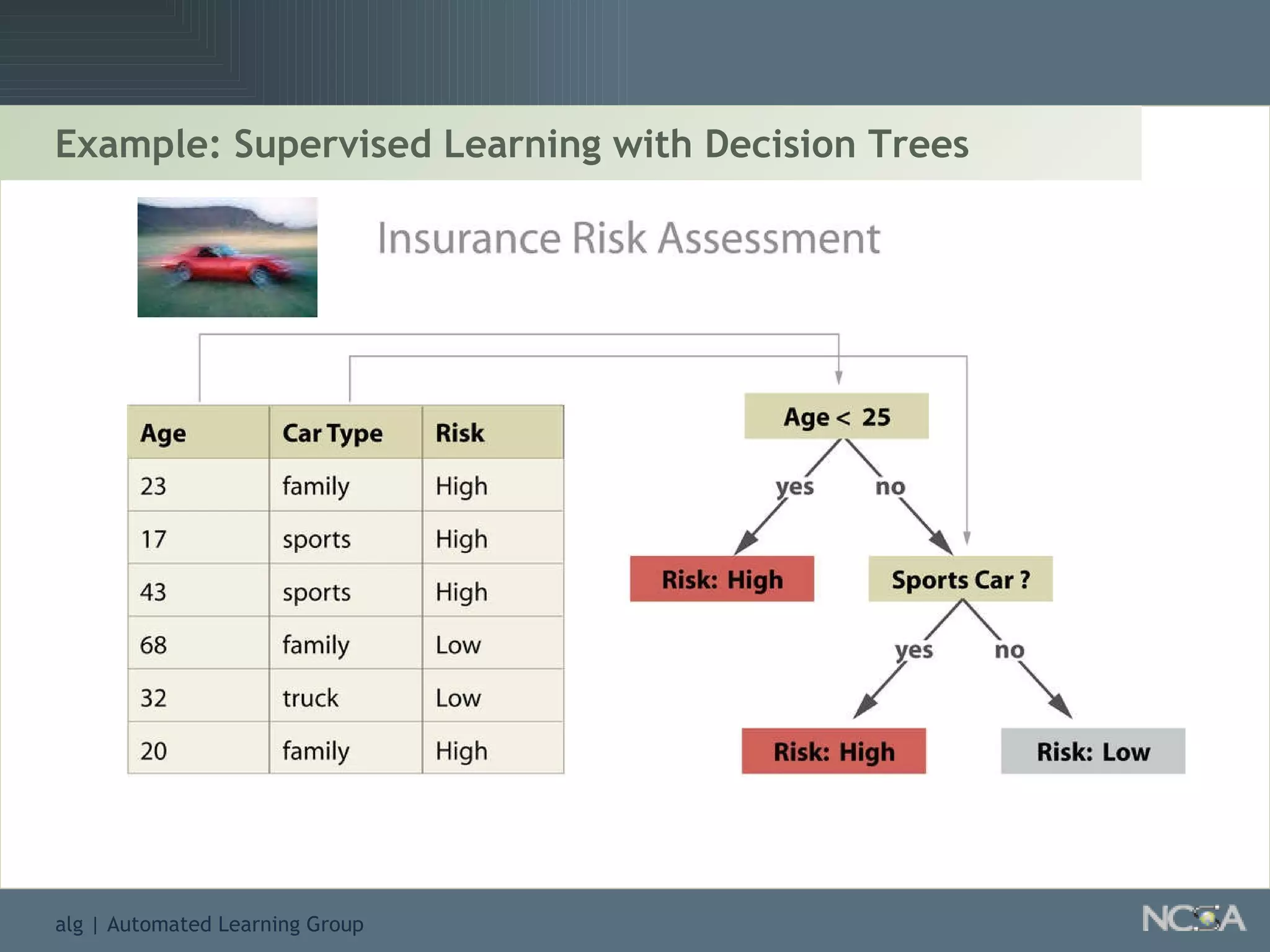

Example: Supervised Learning with Decision Trees

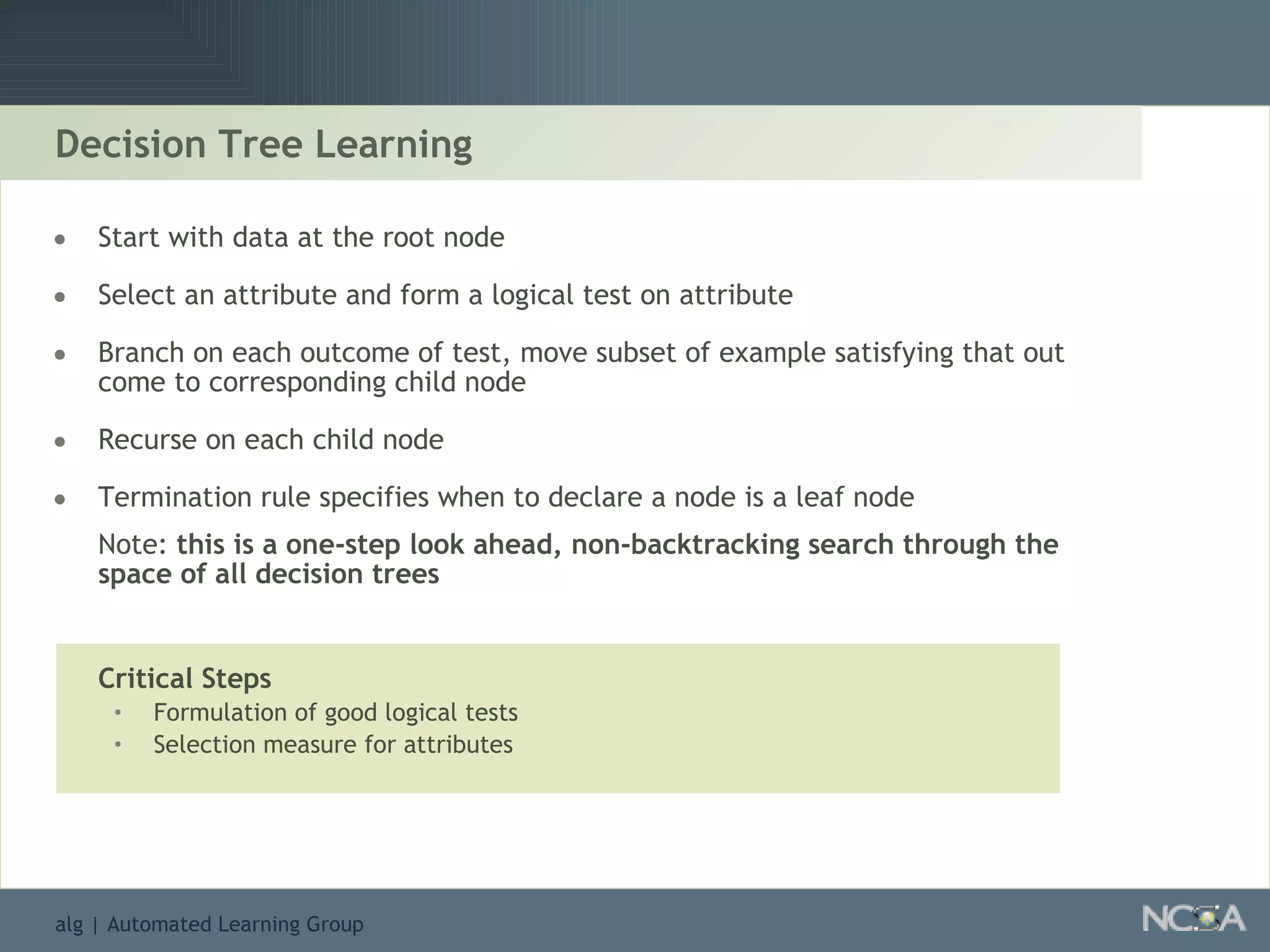

Start with data at the root node Select an attribute and form a logical test on attribute Branch on each outcome of test, move subset of example satisfying that out come to corresponding child node Recurse on each child node Termination rule specifies when to declare a node is a leaf node Note: this is a one-step look ahead, non-backtracking search through the space of all decision trees Critical Steps Formulation of good logical tests Selection measure for attributes Decision Tree Learning

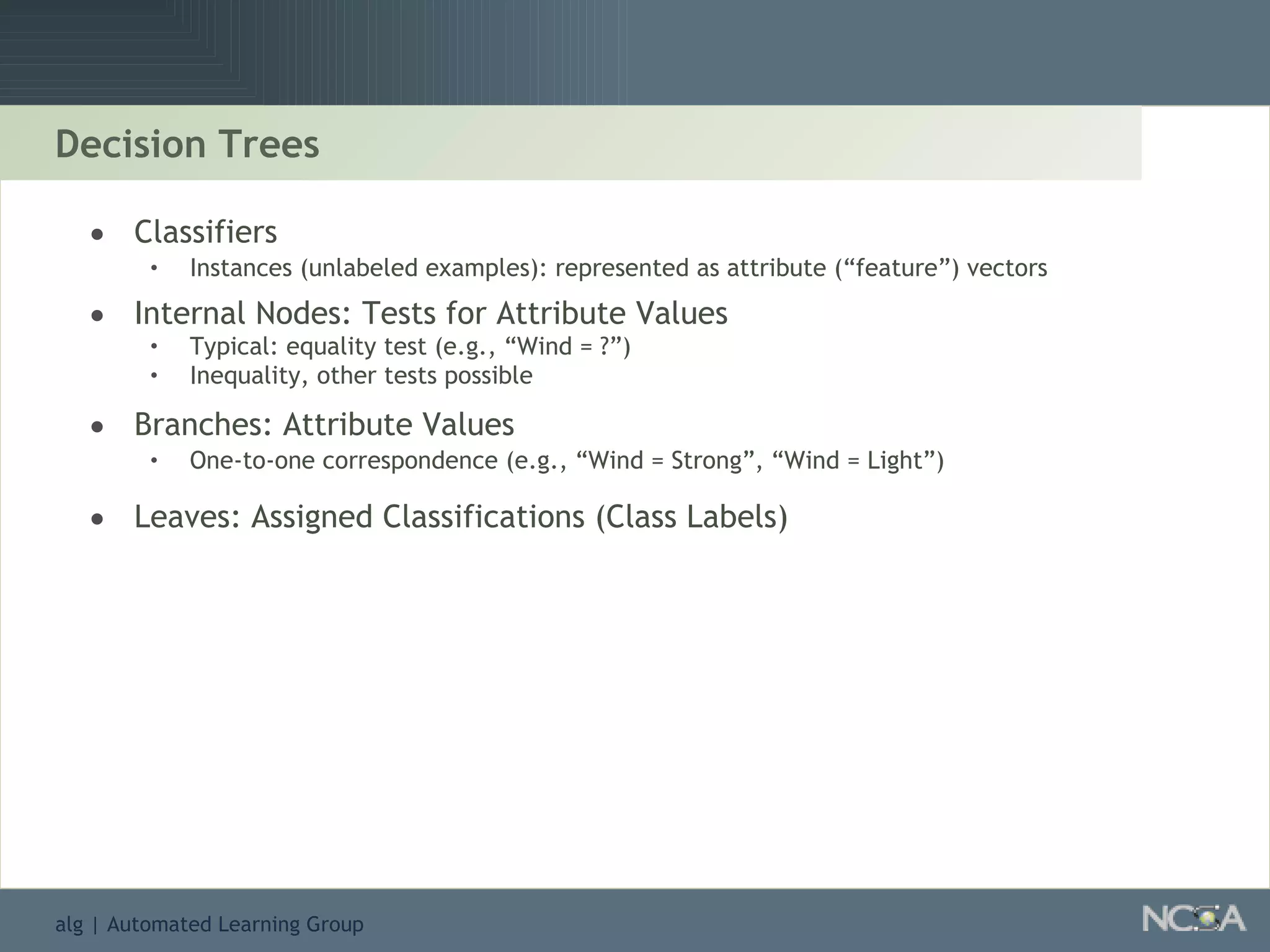

Decision Trees Classifiers Instances (unlabeled examples): represented as attribute (“feature”) vectors Internal Nodes: Tests for Attribute Values Typical: equality test (e.g., “Wind = ?”) Inequality, other tests possible Branches: Attribute Values One-to-one correspondence (e.g., “Wind = Strong”, “Wind = Light”) Leaves: Assigned Classifications (Class Labels)

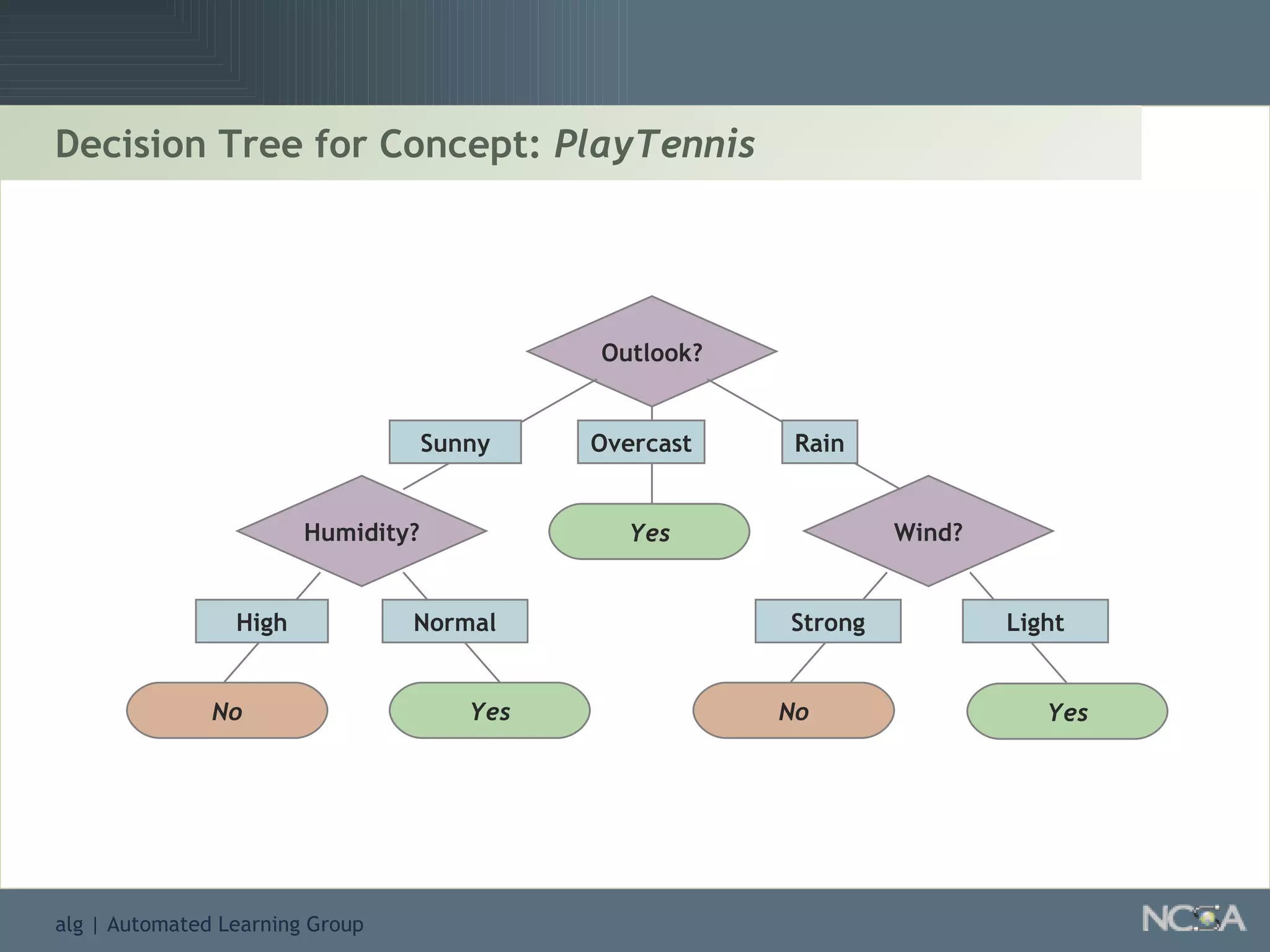

Decision Tree for Concept: PlayTennis Outlook? Humidity? Wind? Sunny Overcast Rain Yes No High Normal No Strong Light Outlook? Humidity? Wind? Sunny Overcast Rain Yes No High Normal No Strong Light Yes Yes Yes Yes

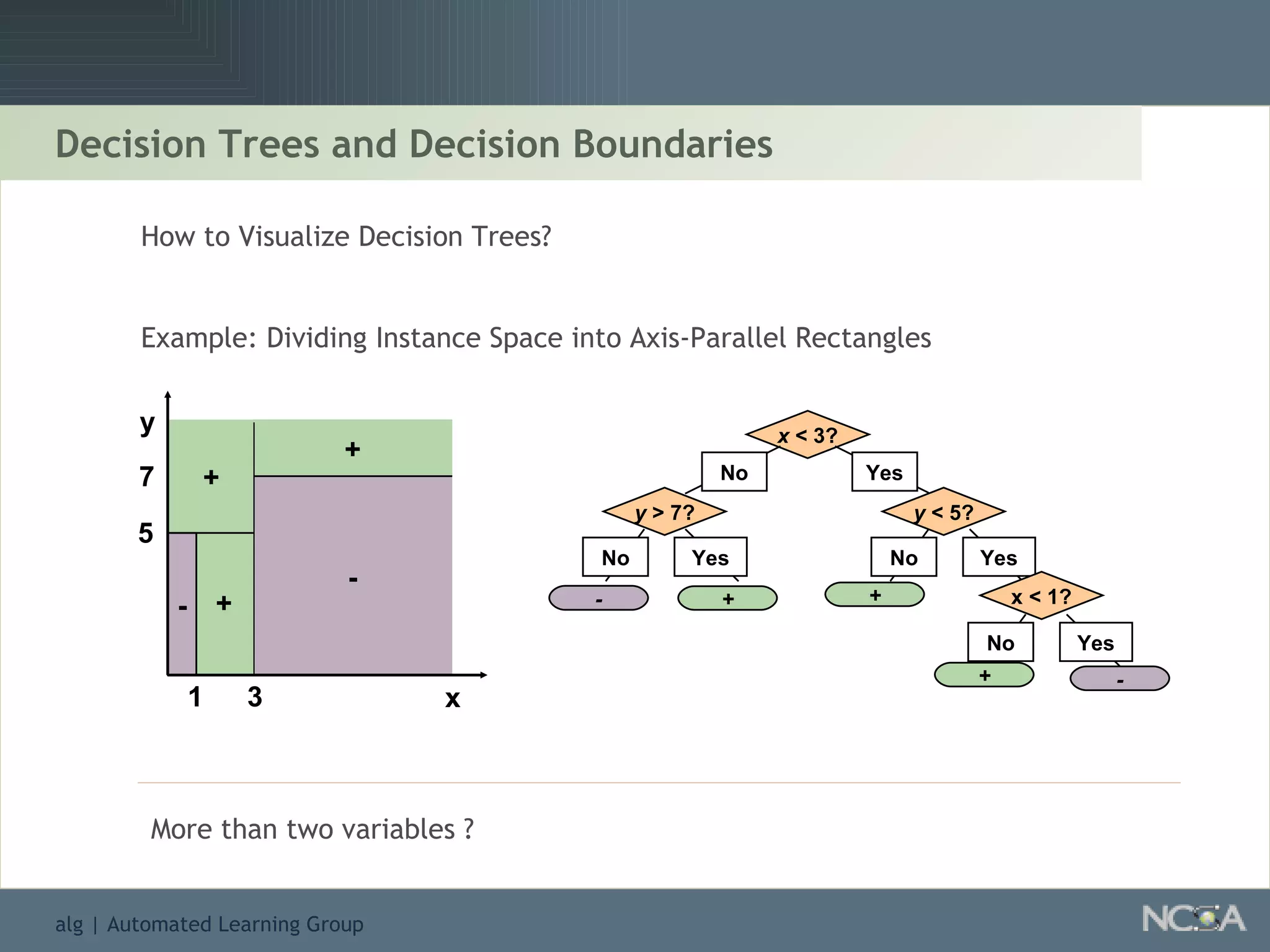

Decision Trees and Decision Boundaries + + - - + + + + - - y x 1 3 5 7 How to Visualize Decision Trees? Example: Dividing Instance Space into Axis-Parallel Rectangles More than two variables ? y > 7? No Yes x < 3? No Yes y < 5? No Yes x < 1? No Yes

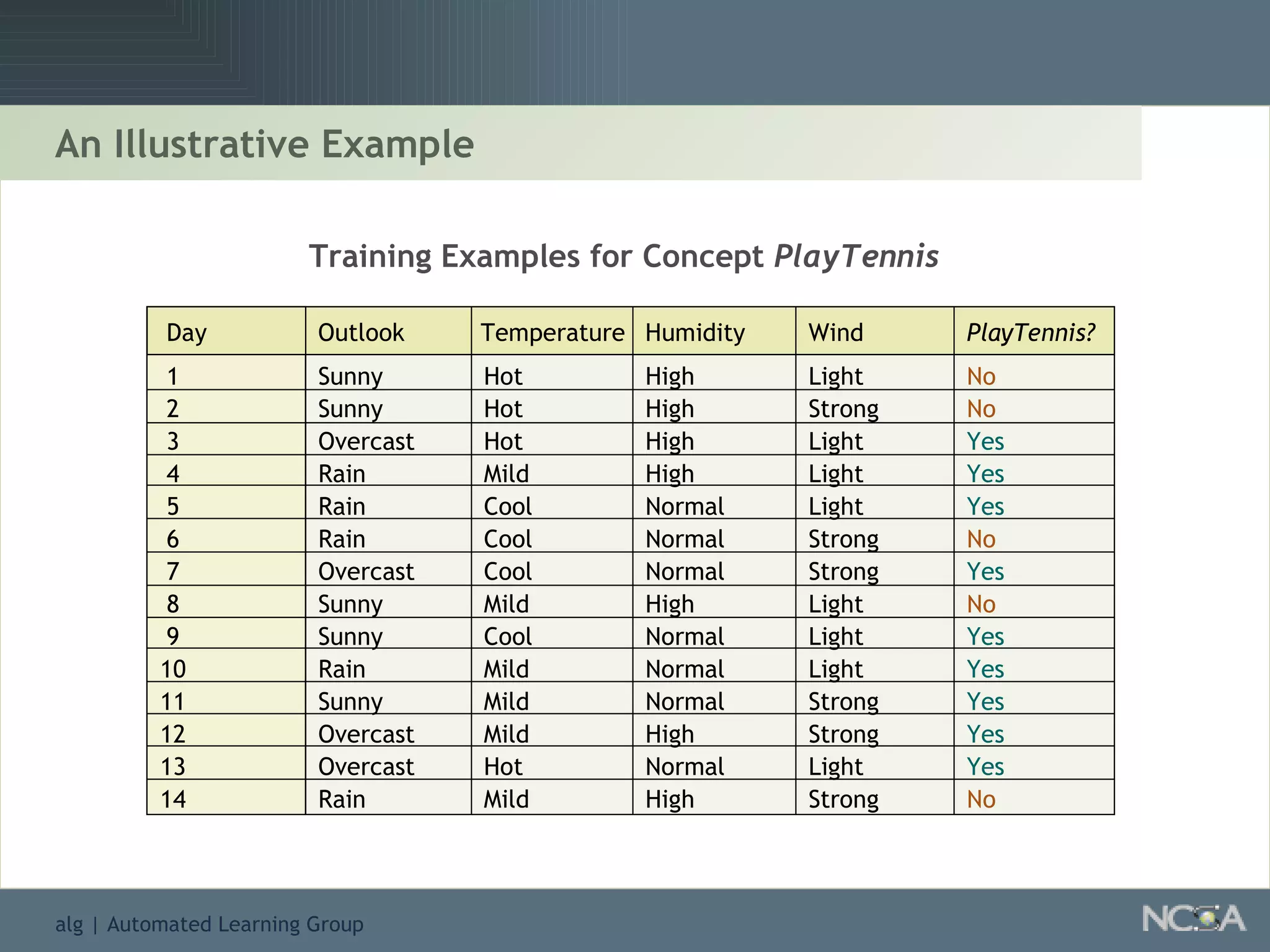

An Illustrative Example 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Day Sunny Sunny Overcast Rain Rain Rain Overcast Sunny Sunny Rain Sunny Overcast Overcast Rain Hot Hot Hot Mild Cool Cool Cool Mild Cool Mild Mild Mild Hot Mild Temperature Humidity Wind PlayTennis? High High High High Normal Normal Normal High Normal Normal Normal High Normal High Outlook Light Strong Light Light Light Strong Strong Light Light Light Strong Strong Light Strong No No Yes Yes Yes No Yes No Yes Yes Yes Yes Yes No Training Examples for Concept PlayTennis

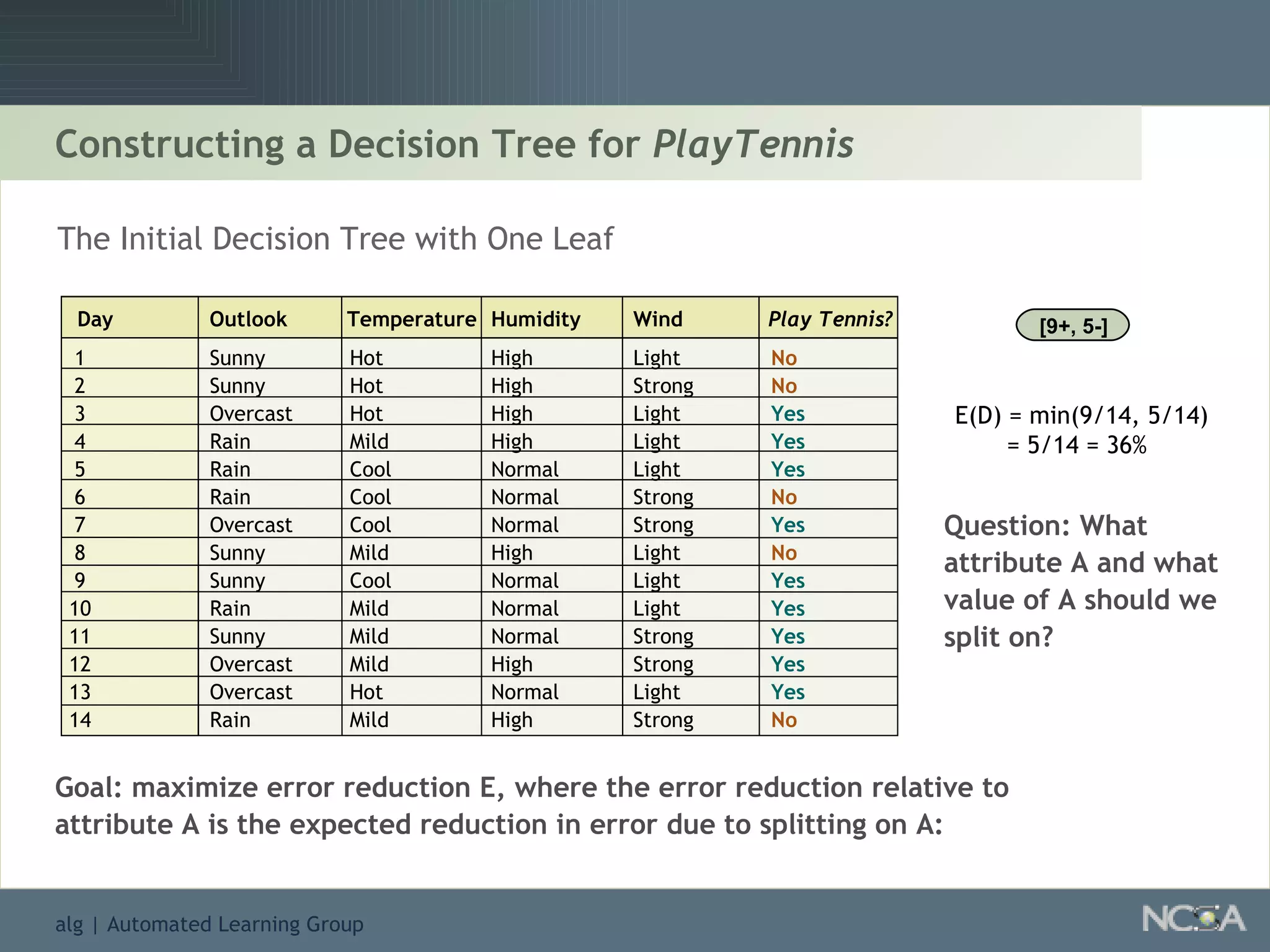

Constructing a Decision Tree for PlayTennis [9+, 5-] E(D) = min(9/14, 5/14) = 5/14 = 36% The Initial Decision Tree with One Leaf Goal: maximize error reduction E, where the error reduction relative to attribute A is the expected reduction in error due to splitting on A: Question: What attribute A and what value of A should we split on? 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Day Sunny Sunny Overcast Rain Rain Rain Overcast Sunny Sunny Rain Sunny Overcast Overcast Rain Hot Hot Hot Mild Cool Cool Cool Mild Cool Mild Mild Mild Hot Mild Temperature Humidity Wind Play Tennis? High High High High Normal Normal Normal High Normal Normal Normal High Normal High Outlook Light Strong Light Light Light Strong Strong Light Light Light Strong Strong Light Strong No No Yes Yes Yes No Yes No Yes Yes Yes Yes Yes No

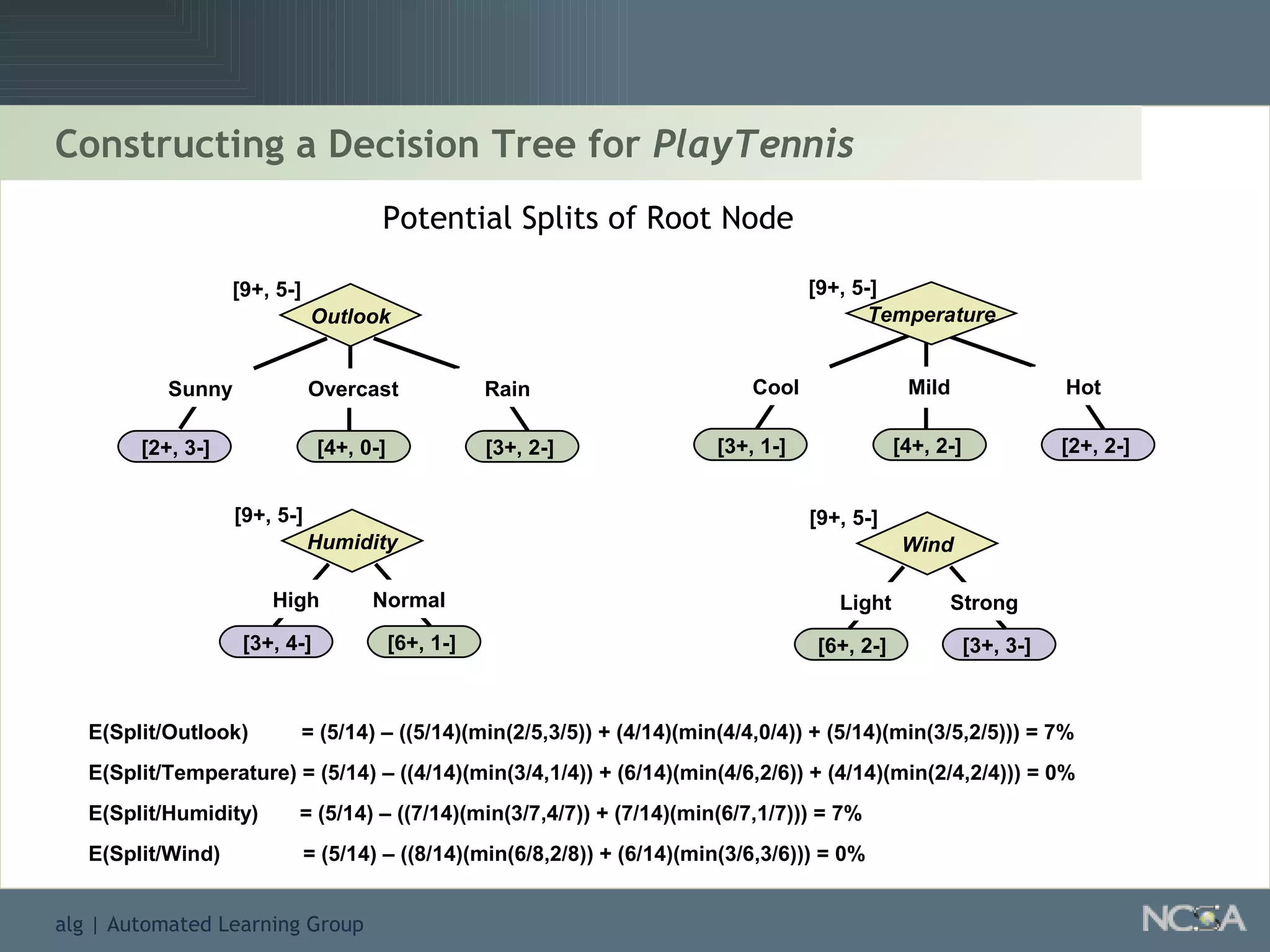

Constructing a Decision Tree for PlayTennis Potential Splits of Root Node [3+, 4-] [6+, 1-] Humidity High Normal [9+, 5-] [6+, 2-] [3+, 3-] Wind Light Strong [9+, 5-] [2+, 3-] [3+, 2-] Outlook Sunny Rain [9+, 5-] Overcast [4+, 0-] [3+, 1-] [2+, 2-] Temperature Cool Hot [9+, 5-] Mild [4+, 2-] E(Split/Outlook) = (5/14) – ((5/14)(min(2/5,3/5)) + (4/14)(min(4/4,0/4)) + (5/14)(min(3/5,2/5))) = 7% E(Split/Temperature) = (5/14) – ((4/14)(min(3/4,1/4)) + (6/14)(min(4/6,2/6)) + (4/14)(min(2/4,2/4))) = 0% E(Split/Humidity) = (5/14) – ((7/14)(min(3/7,4/7)) + (7/14)(min(6/7,1/7))) = 7% E(Split/Wind) = (5/14) – ((8/14)(min(6/8,2/8)) + (6/14)(min(3/6,3/6))) = 0%

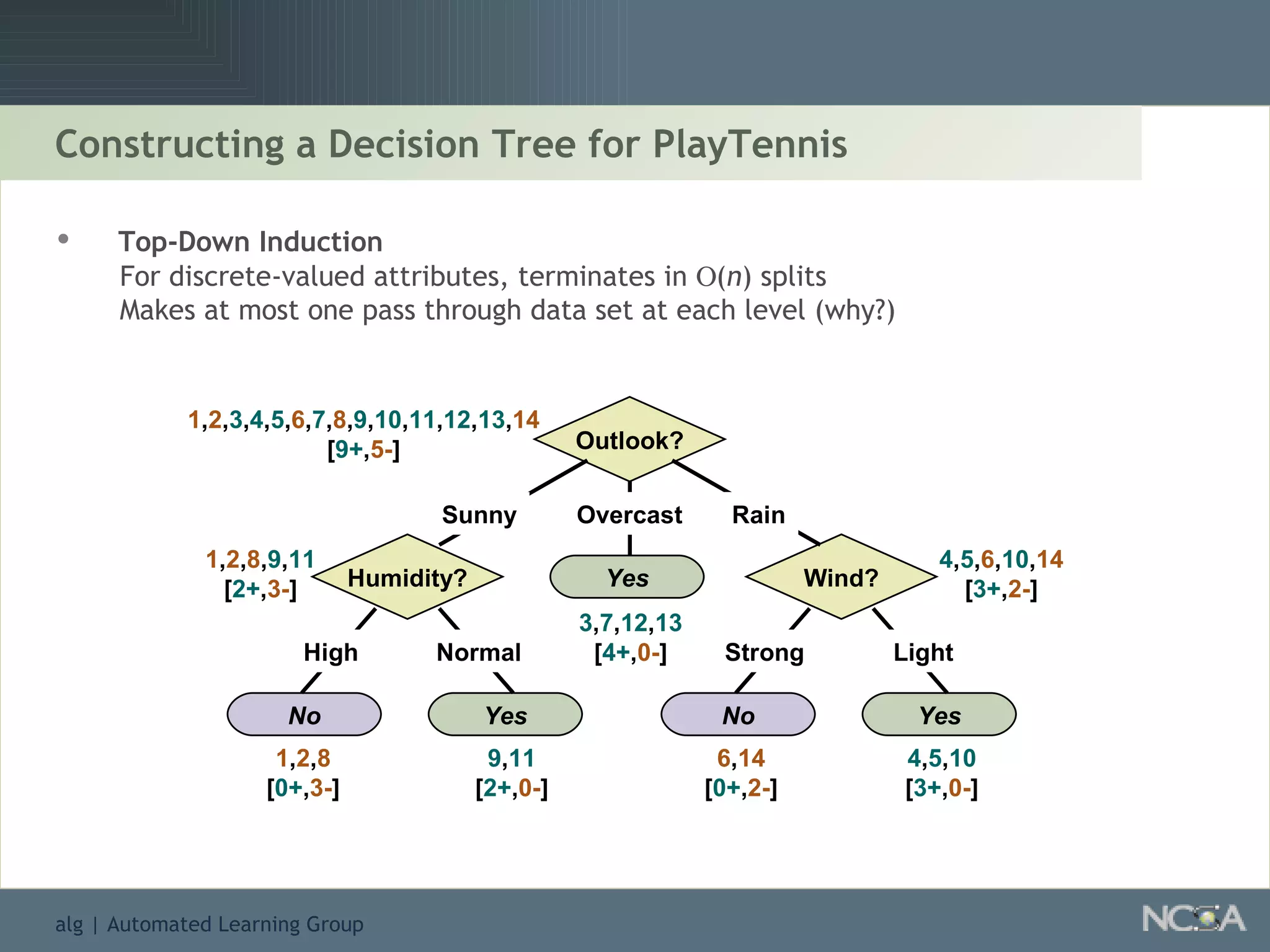

Constructing a Decision Tree for PlayTennis Humidity? Wind? Yes Yes No Yes No Outlook? 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 [ 9+ , 5- ] Top-Down Induction For discrete-valued attributes, terminates in  ( n ) splits Makes at most one pass through data set at each level (why?) Sunny Overcast Rain 1 , 2 , 8 , 9 , 11 [ 2+ , 3- ] 3 , 7 , 12 , 13 [ 4+ , 0- ] 4 , 5 , 6 , 10 , 14 [ 3+ , 2- ] High Normal 1 , 2 , 8 [ 0+ , 3- ] 9 , 11 [ 2+ , 0- ] Strong Light 6 , 14 [ 0+ , 2- ] 4 , 5 , 10 [ 3+ , 0- ]

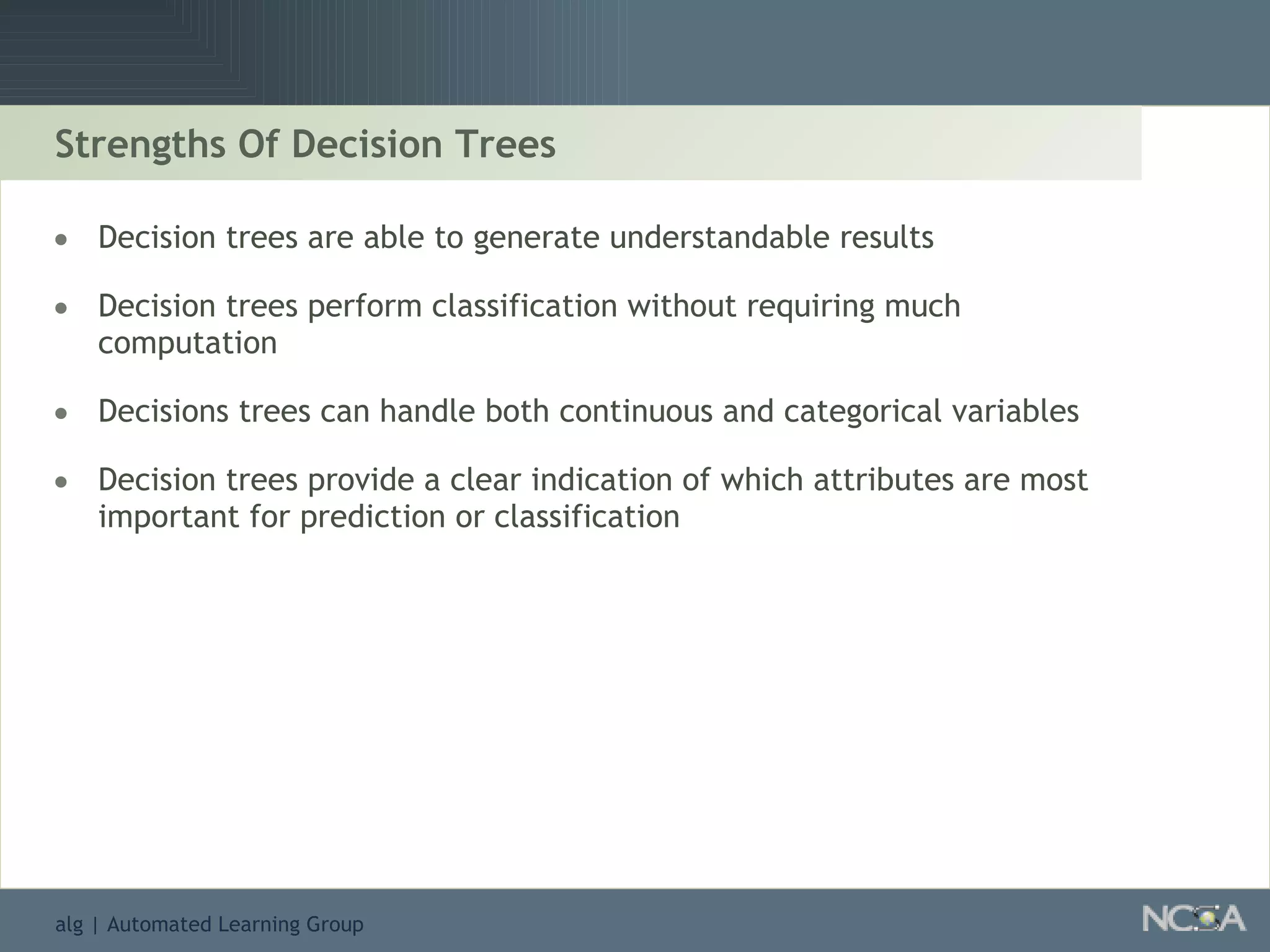

Strengths Of Decision Trees Decision trees are able to generate understandable results Decision trees perform classification without requiring much computation Decisions trees can handle both continuous and categorical variables Decision trees provide a clear indication of which attributes are most important for prediction or classification

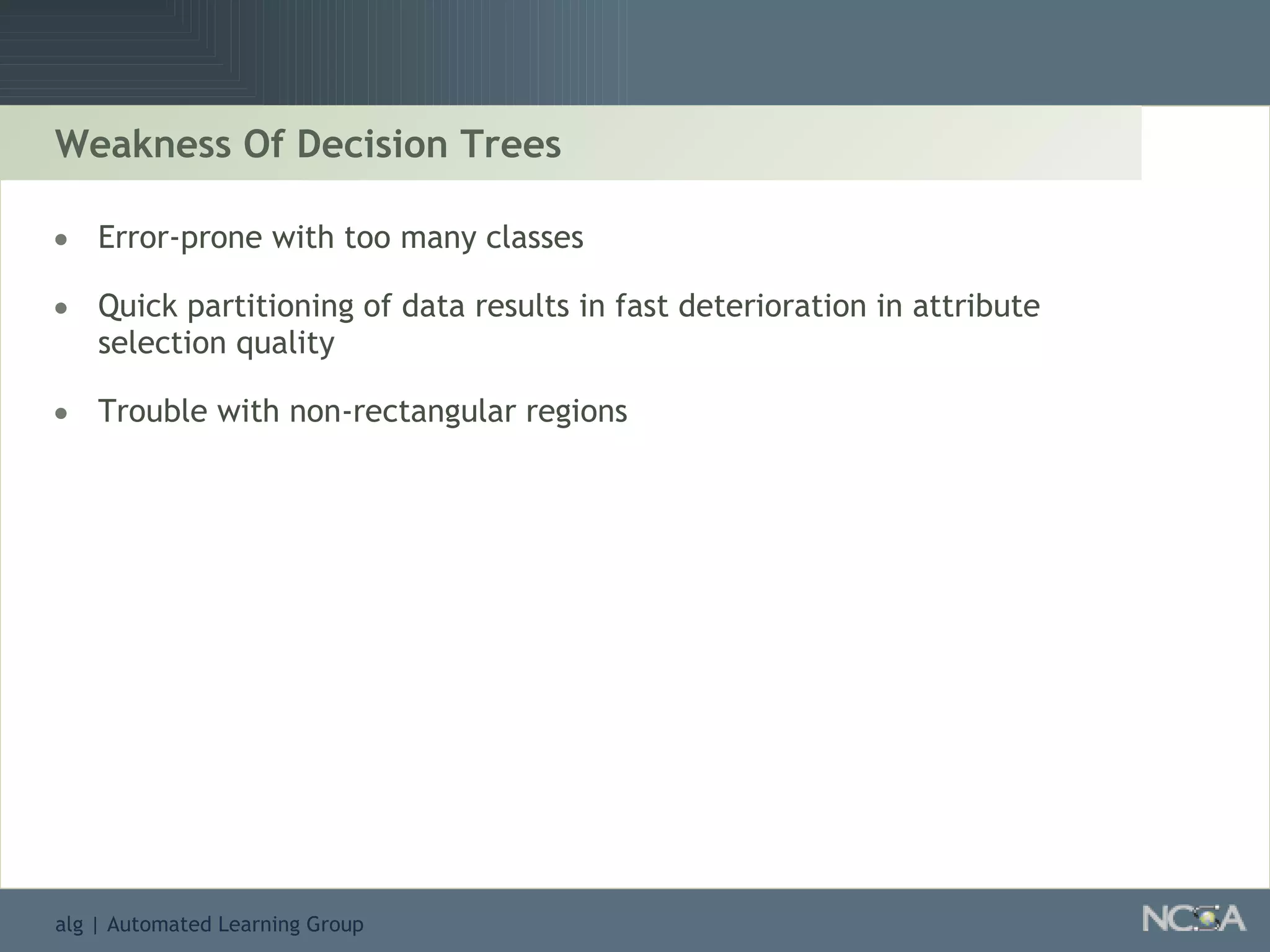

Weakness Of Decision Trees Error-prone with too many classes Quick partitioning of data results in fast deterioration in attribute selection quality Trouble with non-rectangular regions

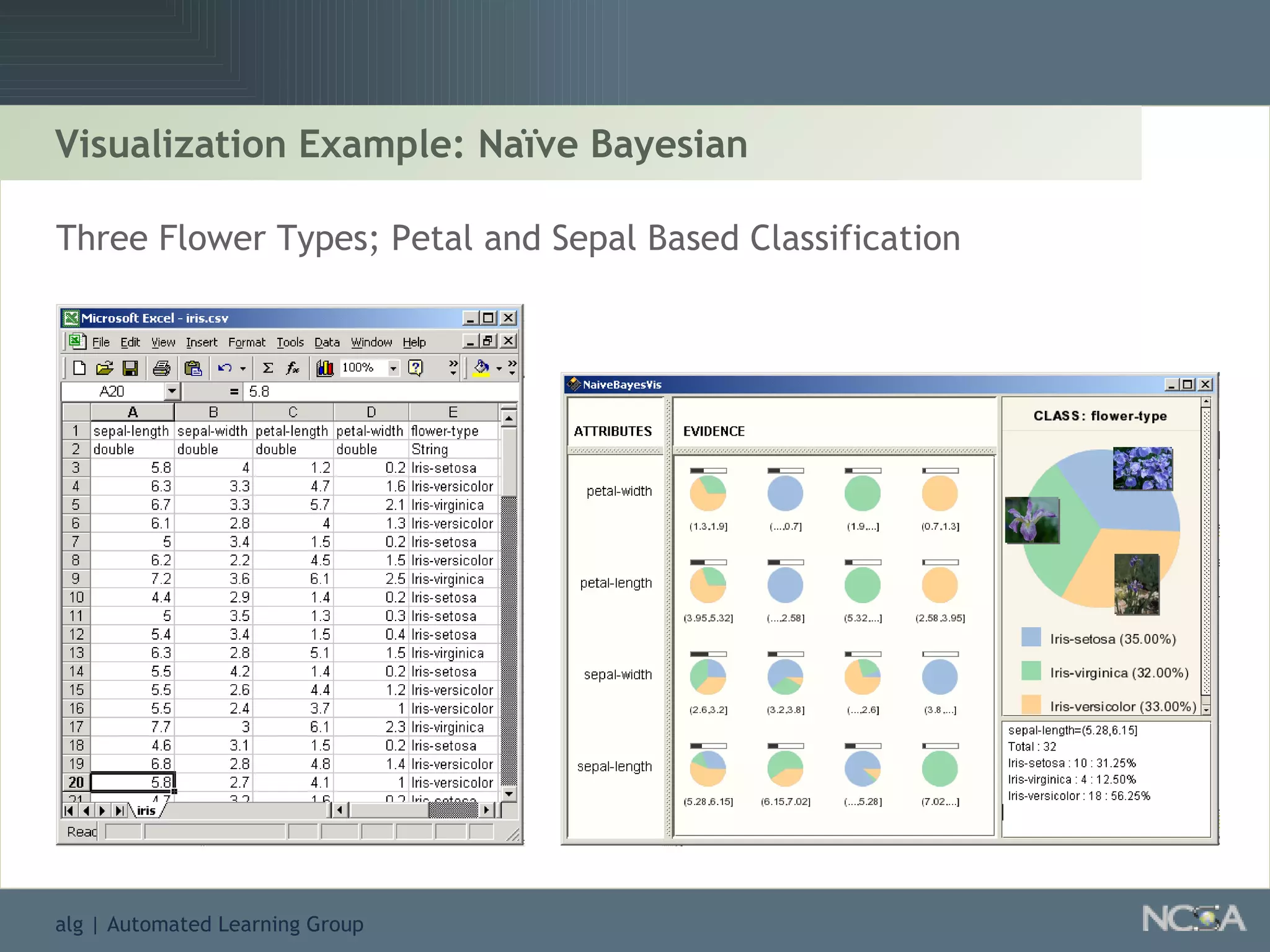

Visualization Example: Naïve Bayesian Three Flower Types; Petal and Sepal Based Classification

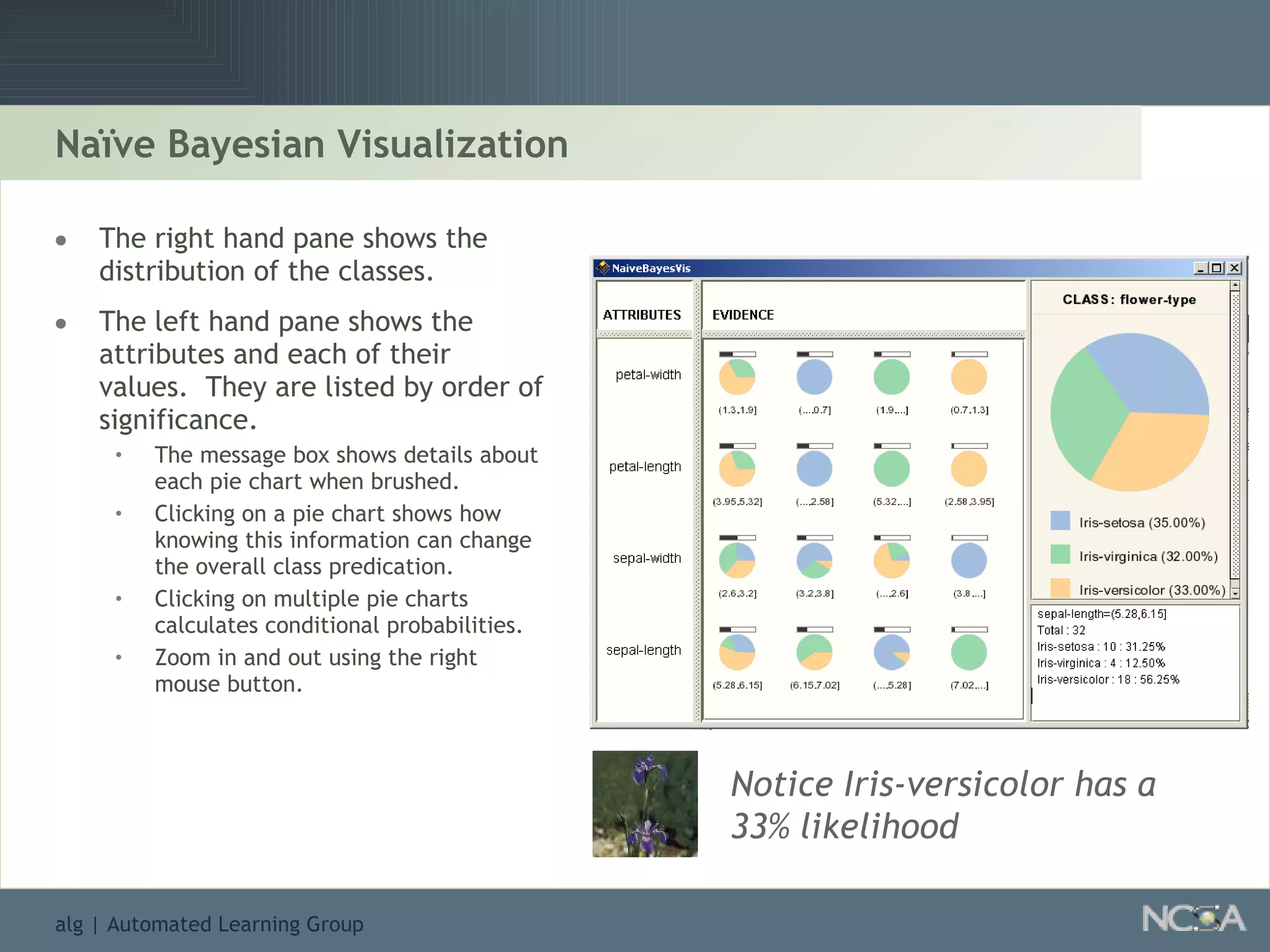

Naïve Bayesian Visualization The right hand pane shows the distribution of the classes. The left hand pane shows the attributes and each of their values. They are listed by order of significance. The message box shows details about each pie chart when brushed. Clicking on a pie chart shows how knowing this information can change the overall class predication. Clicking on multiple pie charts calculates conditional probabilities. Zoom in and out using the right mouse button. Notice Iris-versicolor has a 33% likelihood

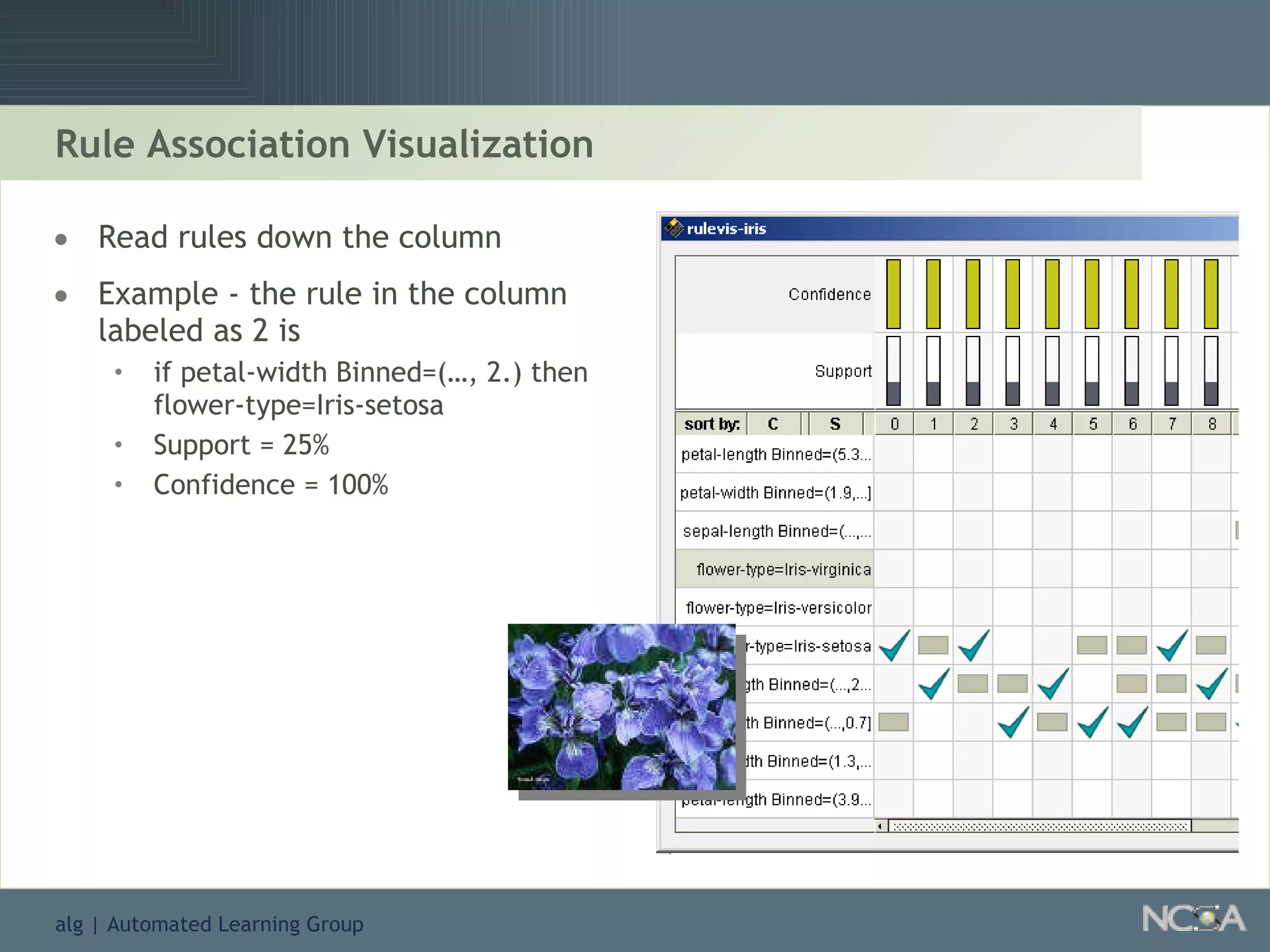

Rule Association Visualization Read rules down the column Example - the rule in the column labeled as 2 is if petal-width Binned=(…, 2.) then flower-type=Iris-setosa Support = 25% Confidence = 100%

Discovery Using Rule Association What services are purchased together? What products or transactions are executed by customers on a single visit to your website? What are the relationships in the data?

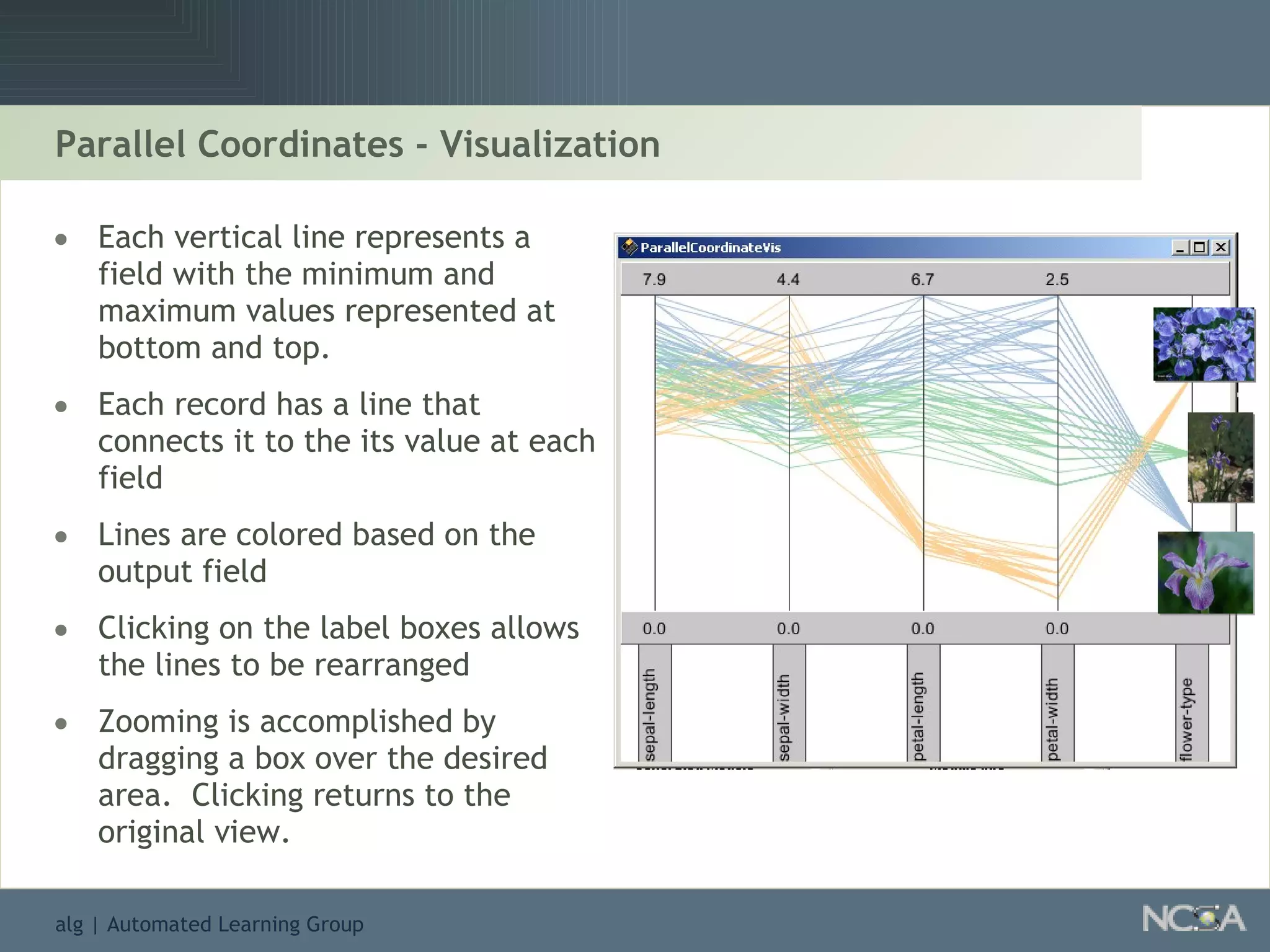

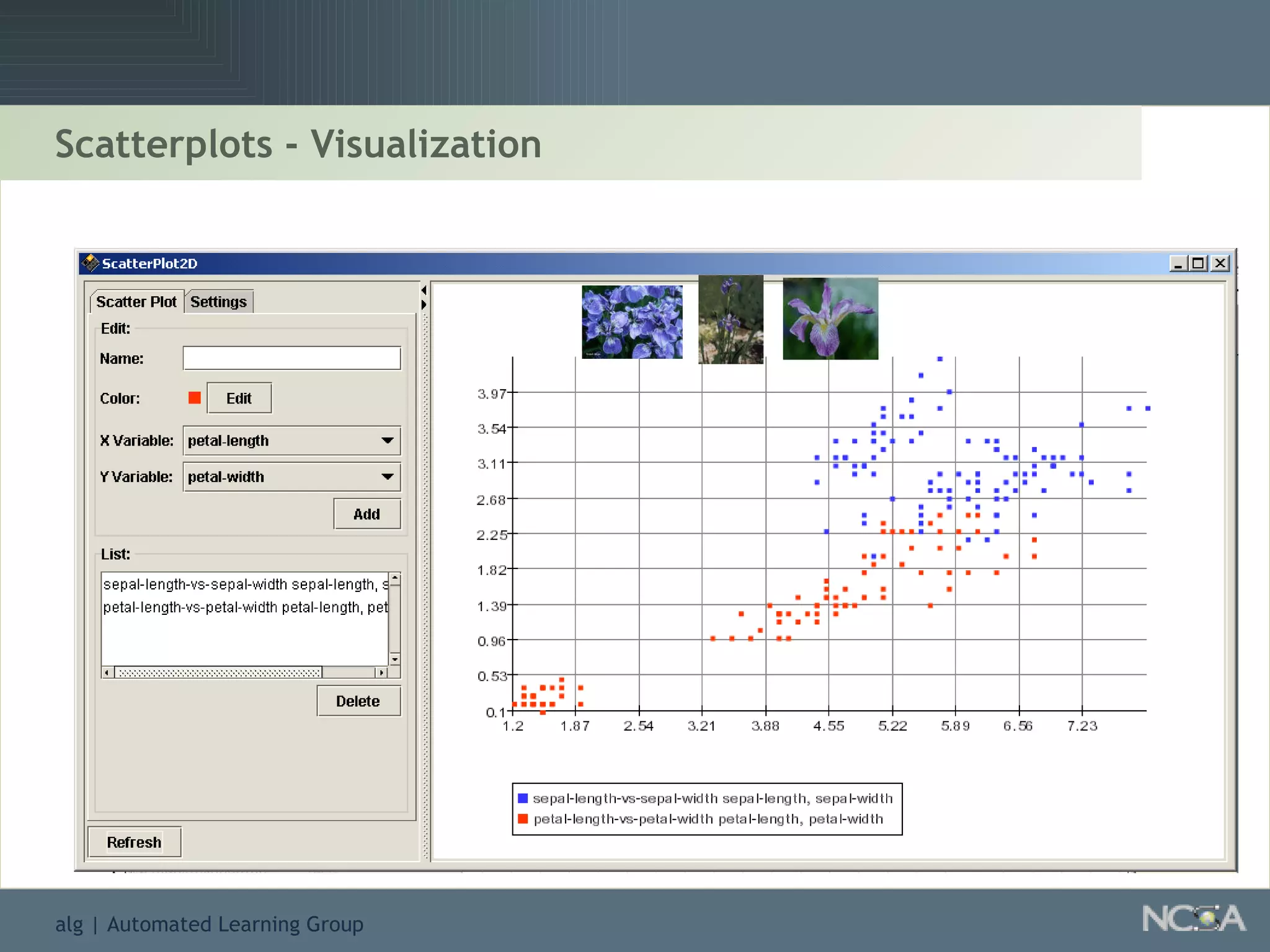

Parallel Coordinates - Visualization Each vertical line represents a field with the minimum and maximum values represented at bottom and top. Each record has a line that connects it to the its value at each field Lines are colored based on the output field Clicking on the label boxes allows the lines to be rearranged Zooming is accomplished by dragging a box over the desired area. Clicking returns to the original view.

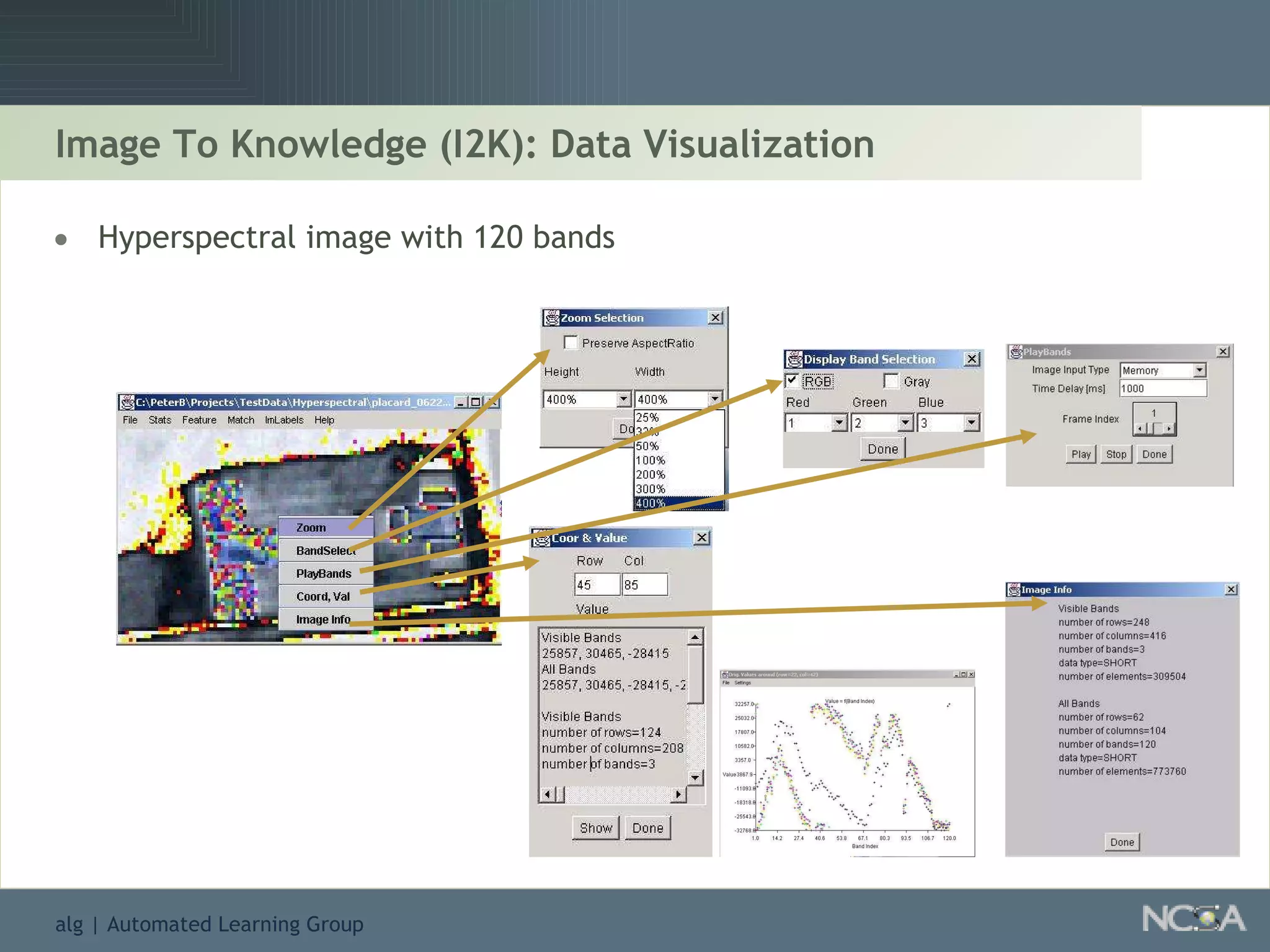

Image To Knowledge (I2K): Data Visualization Hyperspectral image with 120 bands

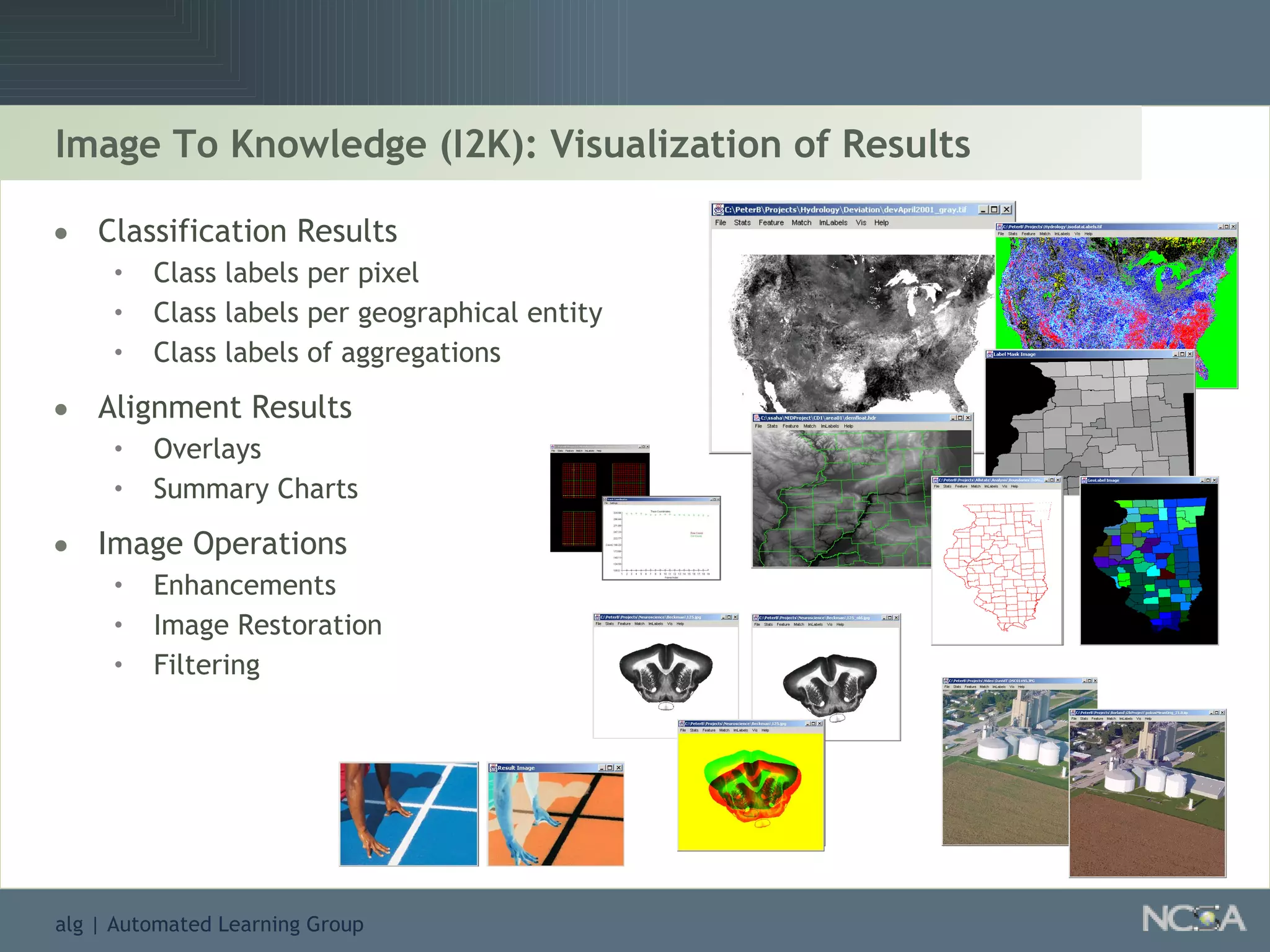

Image To Knowledge (I2K): Visualization of Results Classification Results Class labels per pixel Class labels per geographical entity Class labels of aggregations Alignment Results Overlays Summary Charts Image Operations Enhancements Image Restoration Filtering

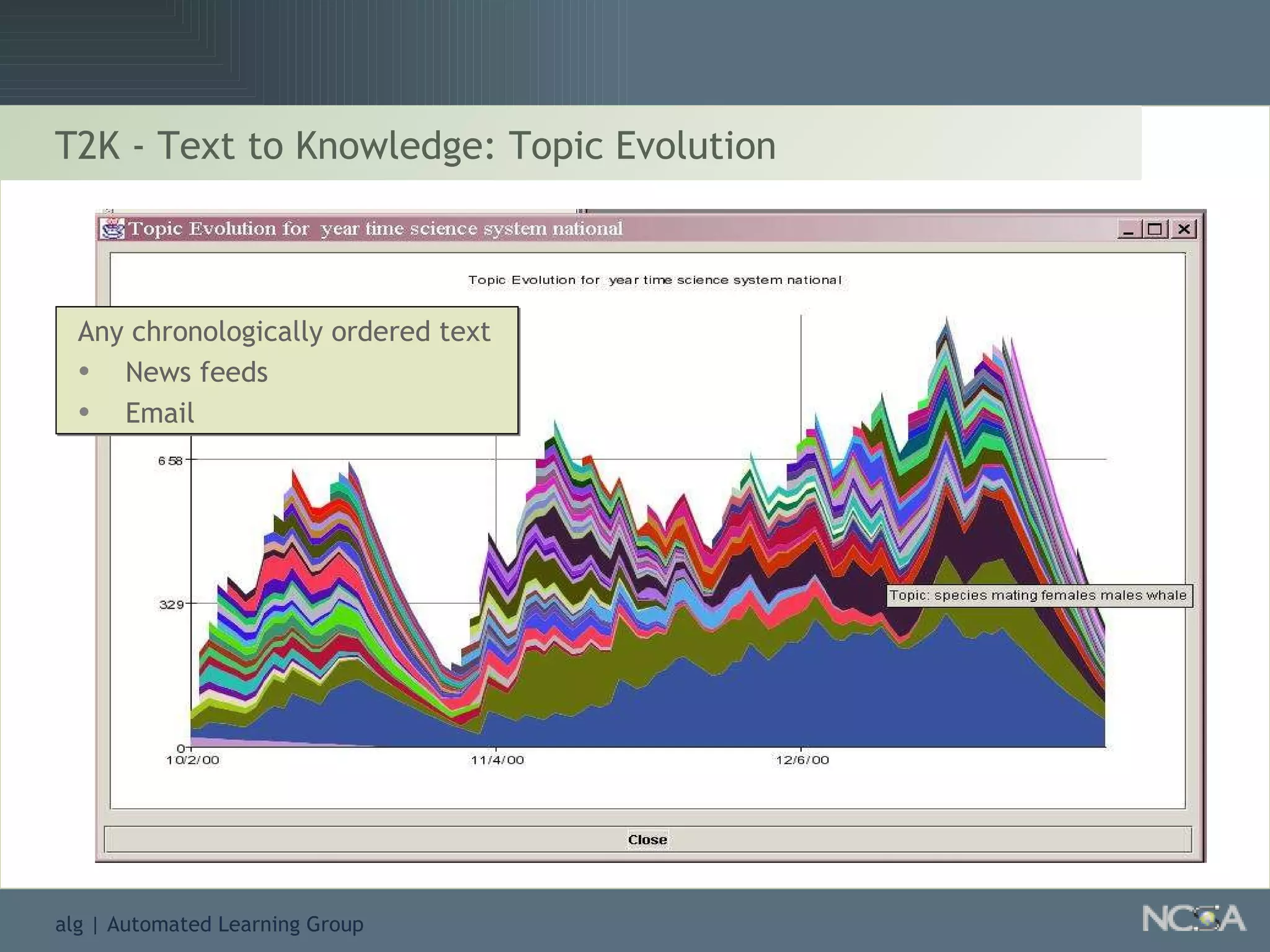

T2K - Text to Knowledge: Topic Evolution Any chronologically ordered text News feeds Email

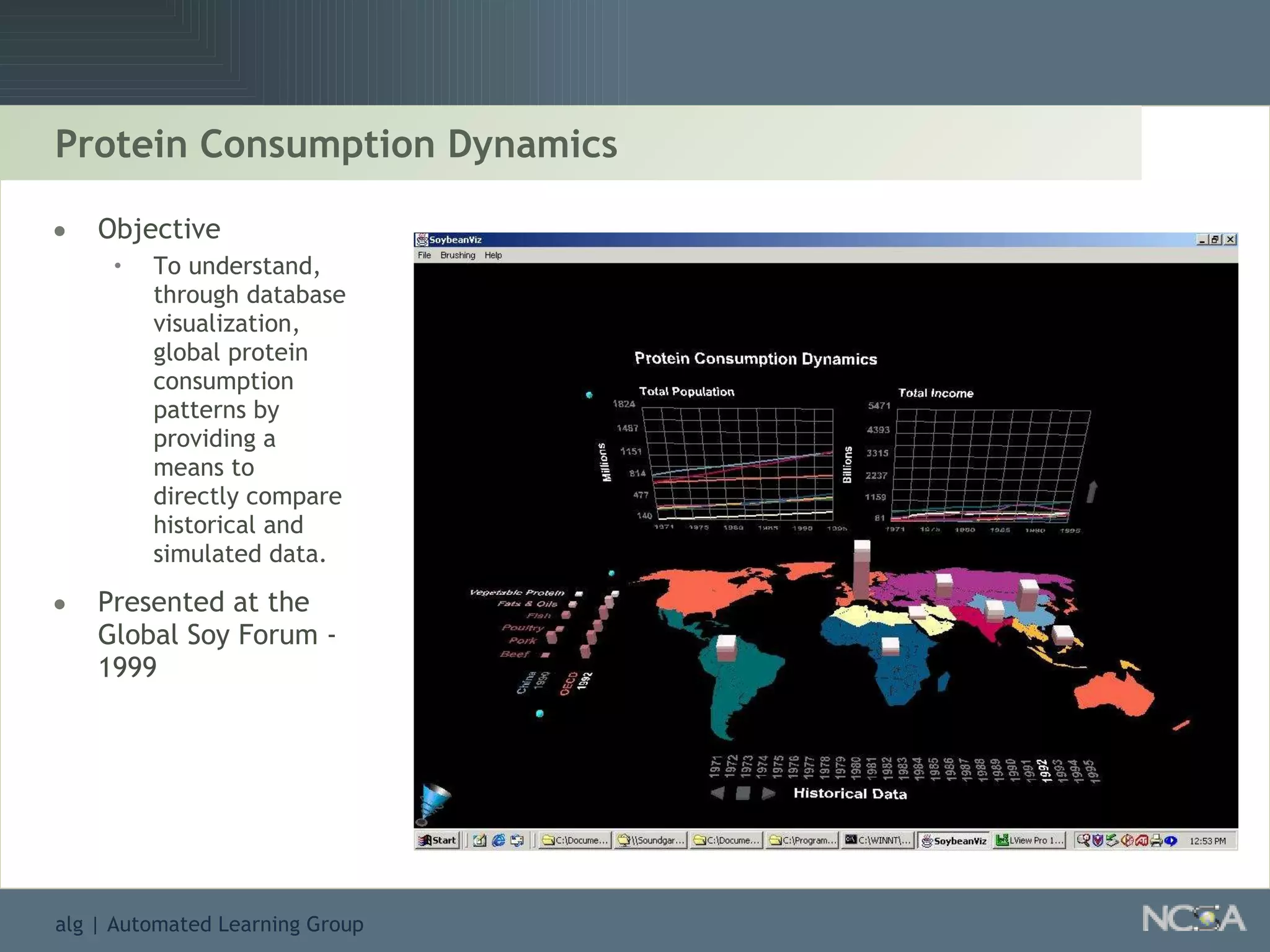

Protein Consumption Dynamics Objective To understand, through database visualization, global protein consumption patterns by providing a means to directly compare historical and simulated data. Presented at the Global Soy Forum - 1999

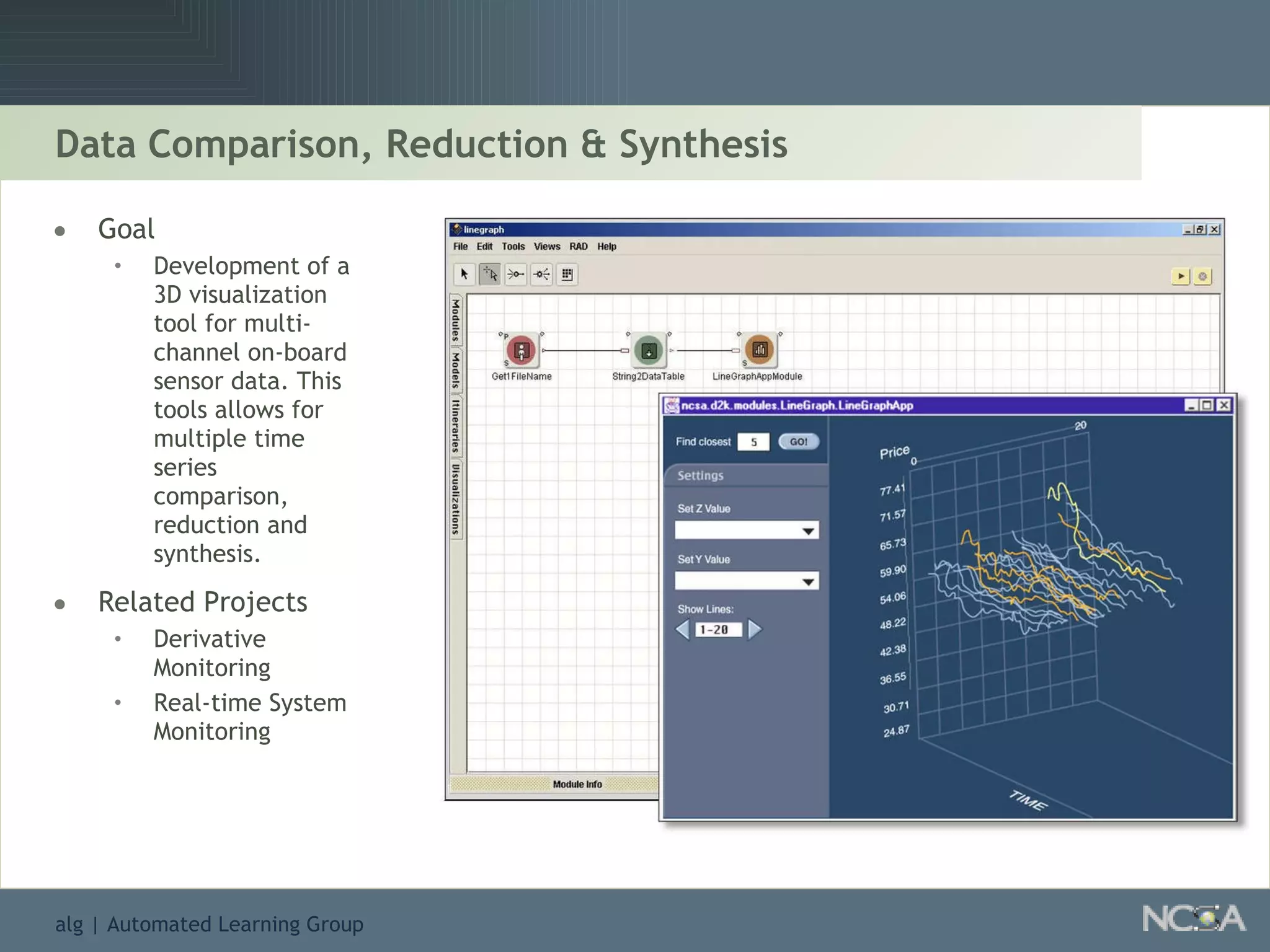

Data Comparison, Reduction & Synthesis Goal Development of a 3D visualization tool for multi-channel on-board sensor data. This tools allows for multiple time series comparison, reduction and synthesis. Related Projects Derivative Monitoring Real-time System Monitoring

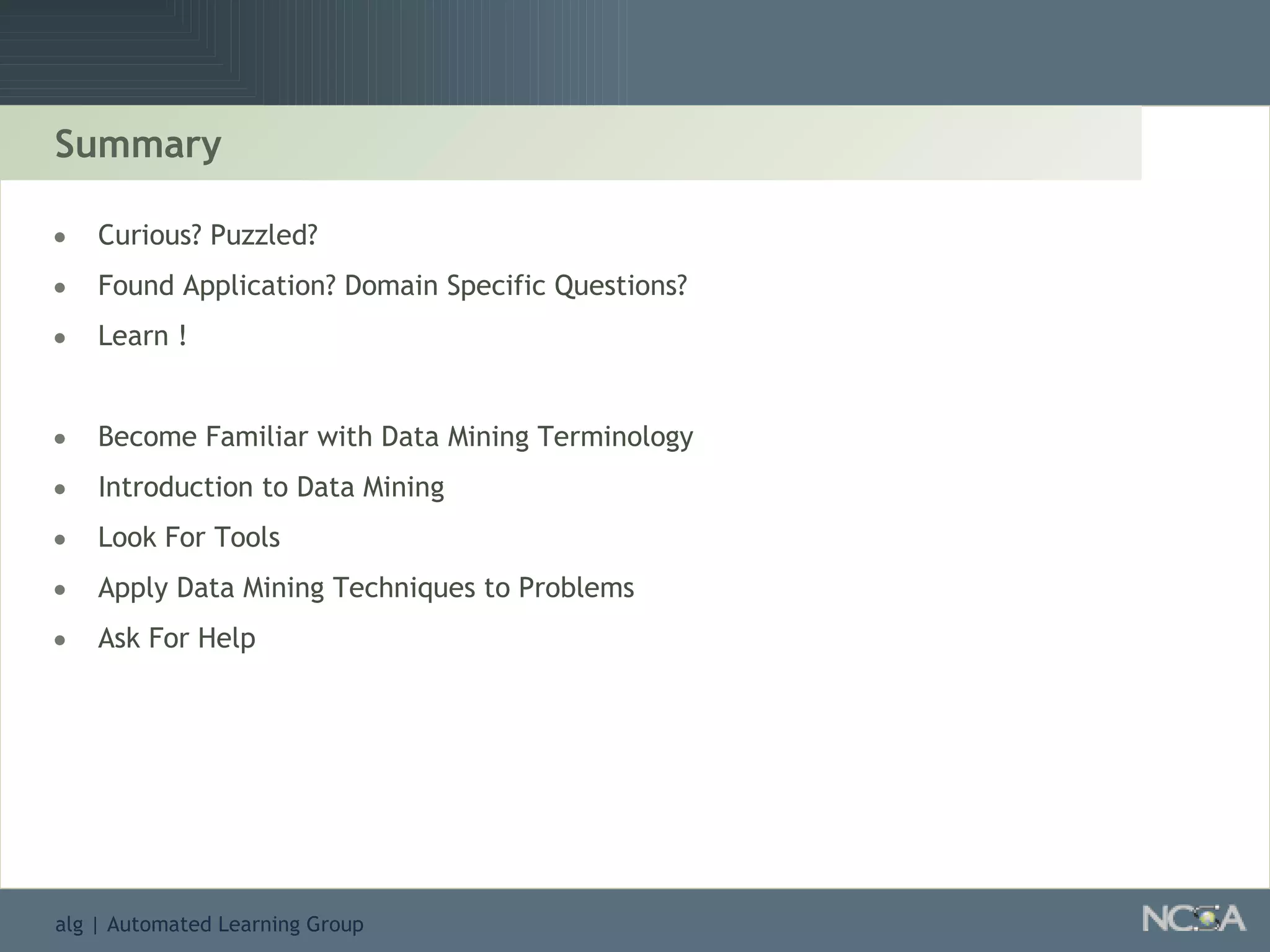

Summary Curious? Puzzled? Found Application? Domain Specific Questions? Learn ! Become Familiar with Data Mining Terminology Introduction to Data Mining Look For Tools Apply Data Mining Techniques to Problems Ask For Help
