Introduction to Computer Architecture

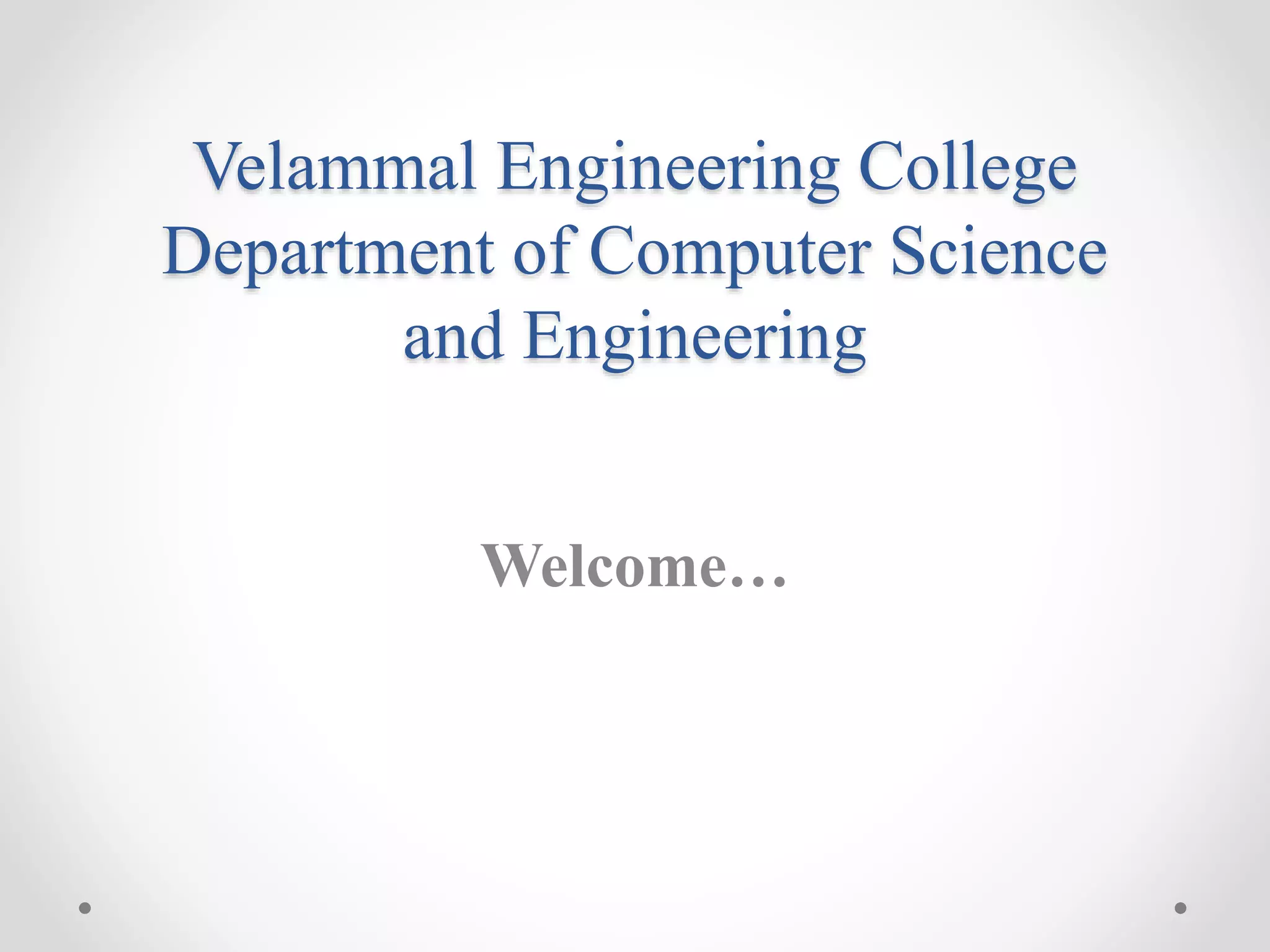

Velammal Engineering College
Department of Computer Science
and Engineering
Welcome…

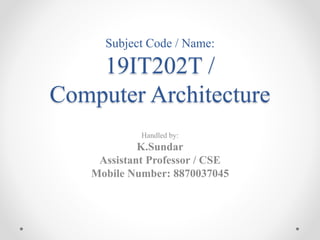

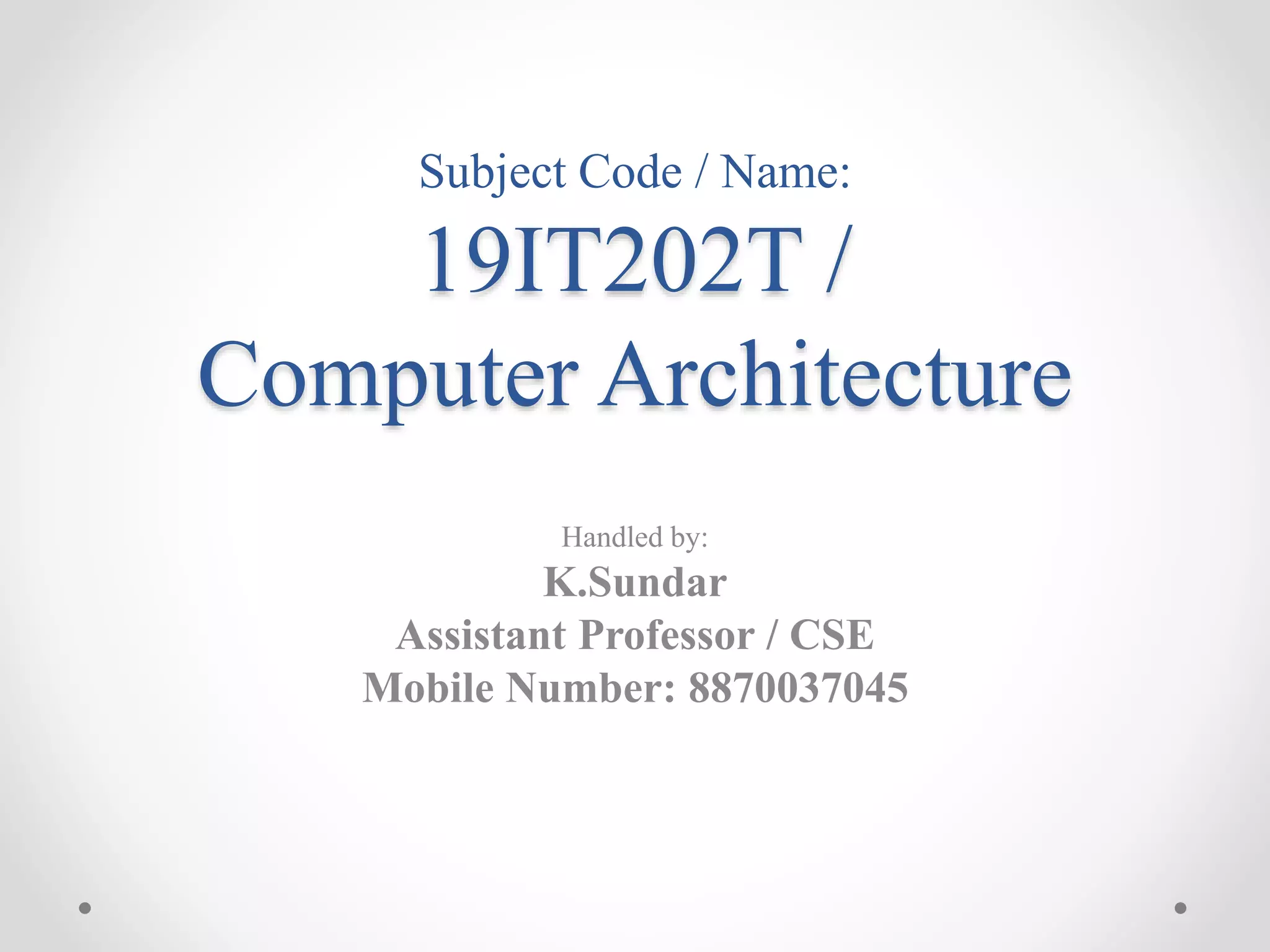

Subject Code / Name:
19IT202T /
Computer Architecture
Handled by:
K.Sundar
Assistant Professor / CSE
Mobile Number: 8870037045

Course Objectives
• This course aims to learn the basic structure and operations of
a computer.
• The course is intended to learn ALU, pipelined execution,
parallelism and multi-core processors.
• The course will enable the students to understand memory
hierarchies, cache memories and virtual memories.

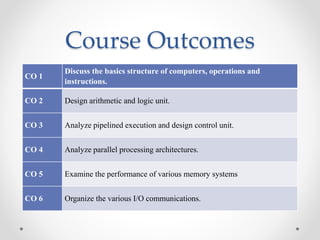

Course Outcomes
CO 1
Discuss the basics structure of computers, operations and
instructions.
CO 2 Design arithmetic and logic unit.
CO 3 Analyze pipelined execution and design control unit.
CO 4 Analyze parallel processing architectures.
CO 5 Examine the performance of various memory systems
CO 6 Organize the various I/O communications.

Syllabus

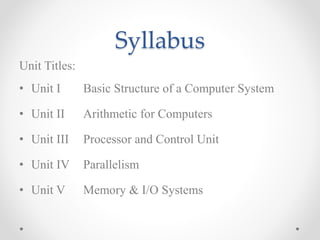

Unit Titles:
• Unit I Basic Structure of a Computer System
• Unit II Arithmetic for Computers
• Unit III Processor and Control Unit
• Unit IV Parallelism
• Unit V Memory & I/O Systems

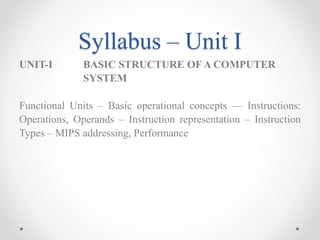

Syllabus – Unit I
UNIT-I BASIC STRUCTURE OF A COMPUTER
SYSTEM
Functional Units – Basic operational concepts –– Instructions:
Operations, Operands – Instruction representation – Instruction
Types – MIPS addressing, Performance

Syllabus – Unit II

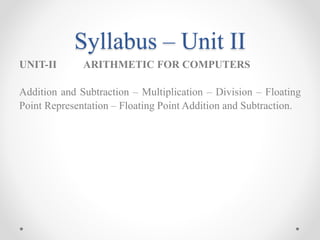

UNIT-II ARITHMETIC FOR COMPUTERS
Addition and Subtraction – Multiplication – Division – Floating
Point Representation – Floating Point Addition and Subtraction.

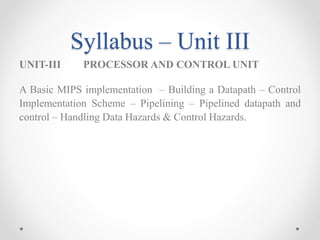

Syllabus – Unit III
UNIT-III PROCESSOR AND CONTROL UNIT
A Basic MIPS implementation – Building a Datapath – Control
Implementation Scheme – Pipelining – Pipelined datapath and
control – Handling Data Hazards & Control Hazards.

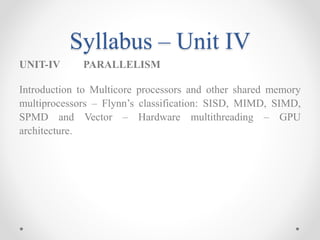

Syllabus – Unit IV
UNIT-IV PARALLELISM
Introduction to Multicore processors and other shared memory
multiprocessors – Flynn’s classification: SISD, MIMD, SIMD,
SPMD and Vector – Hardware multithreading – GPU
architecture.

Syllabus – Unit V
• UNIT-V MEMORY & I/O SYSTEMS
Memory Hierarchy – memory technologies – Cache Memory –
Performance Considerations, Virtual Memory,TLB’s – Accessing
I/O devices – Interrupts – Direct Memory Access – Bus Structure
– Bus operation.

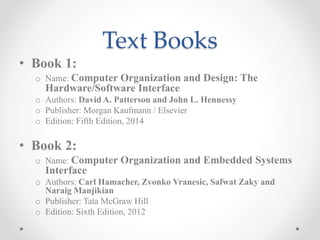

Text Books
• Book 1:
o Name: Computer Organization and Design: The
Hardware/Software Interface
o Authors: David A. Patterson and John L. Hennessy
o Publisher: Morgan Kaufmann / Elsevier
o Edition: Fifth Edition, 2014
• Book 2:
o Name: Computer Organization and Embedded Systems
Interface
o Authors: Carl Hamacher, Zvonko Vranesic, Safwat Zaky and
Naraig Manjikian
o Publisher: Tata McGraw Hill
o Edition: Sixth Edition, 2012

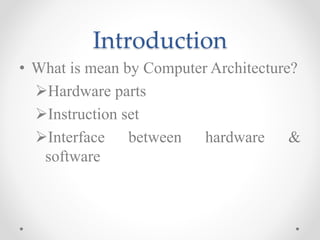

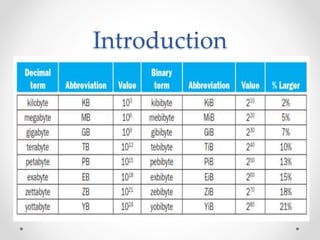

Introduction
• What is mean by Computer Architecture?
Hardware parts
Instruction set
Interface between hardware &
software

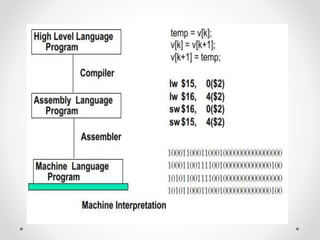

Introduction

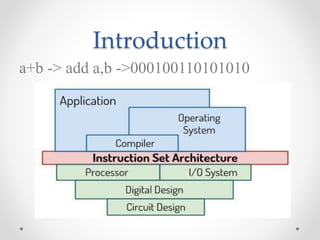

a+b -> add a,b ->000100110101010

Introduction

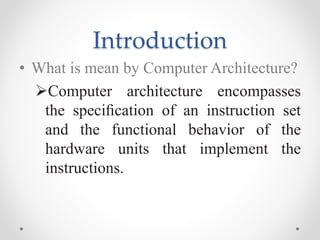

• What is mean by Computer Architecture?
Computer architecture encompasses
the speciﬁcation of an instruction set
and the functional behavior of the
hardware units that implement the
instructions.

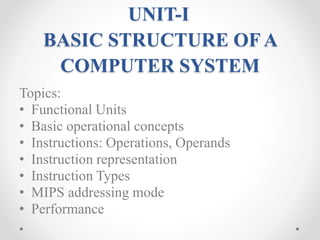

UNIT-I
BASIC STRUCTURE OF A
COMPUTER SYSTEM
Topics:
• Functional Units
• Basic operational concepts
• Instructions: Operations, Operands
• Instruction representation
• Instruction Types
• MIPS addressing mode

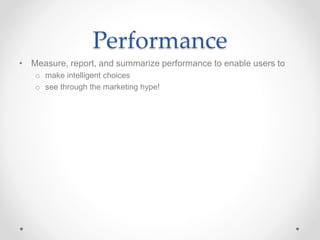

• Performance

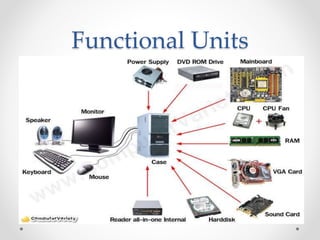

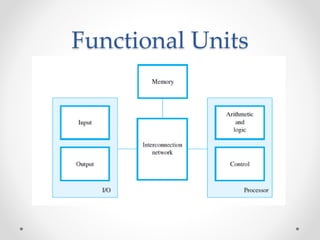

Functional Units

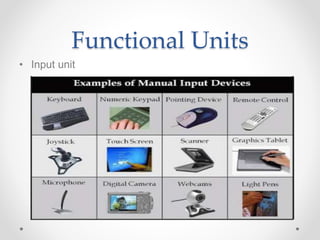

• Input unit
• Output unit
• Memory unit
• Arithmetic Logic unit
• Control unit

Functional Units
• Input unit

Functional Units

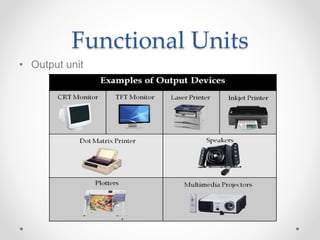

• Output unit

Functional Units

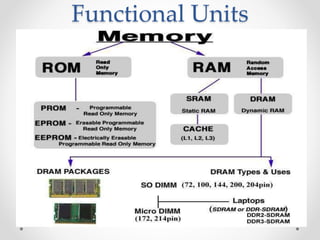

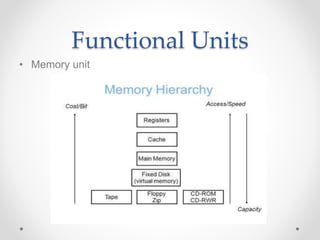

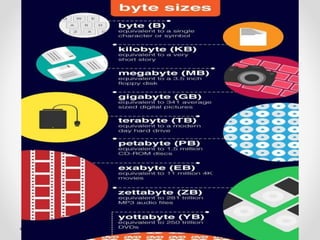

• Memory unit

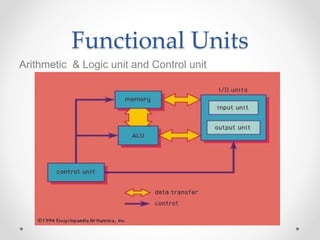

Functional Units
Arithmetic & Logic unit and Control unit

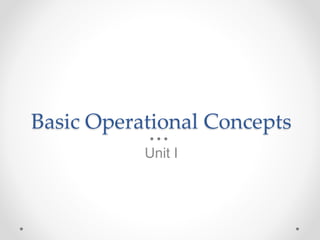

Basic Operational Concepts
Unit I

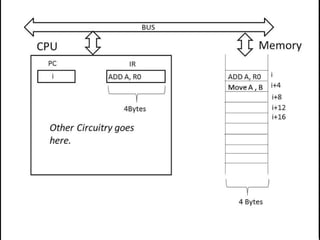

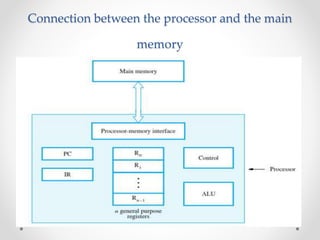

Connection between the processor and the main
memory

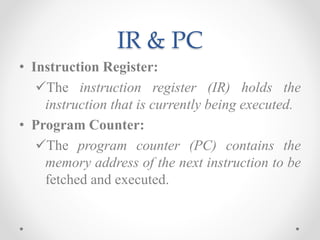

IR & PC
• Instruction Register:
The instruction register (IR) holds the
instruction that is currently being executed.
• Program Counter:
The program counter (PC) contains the
memory address of the next instruction to be
fetched and executed.

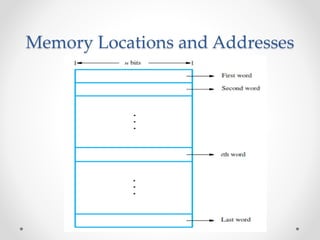

Memory Locations and Addresses

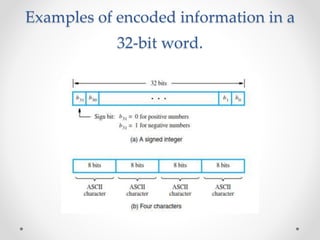

Examples of encoded information in a
32-bit word.

Machine vs Assembly
Language
Machine Language Assembly Language
• A particular set of
instructions that the
CPU can directly
execute – but these
are ones and zeros
• Ex:
0100001010101
• Assembly language
is a symbolic
version of the
equivalent machine
language
• Ex:
add a,b

Instructions

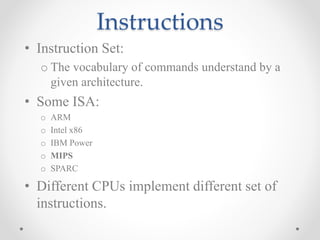

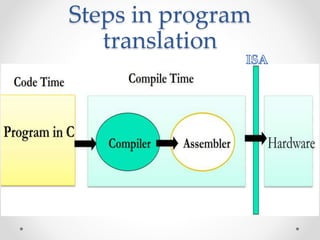

• Instruction Set:
o The vocabulary of commands understand by a
given architecture.
• Some ISA:
o ARM
o Intel x86
o IBM Power
o MIPS
o SPARC
• Different CPUs implement different set of
instructions.

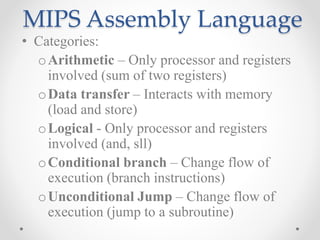

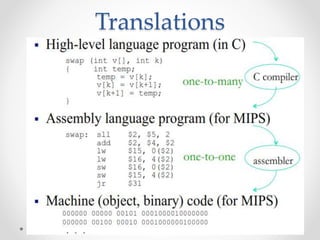

MIPS Assembly Language
• Categories:
oArithmetic – Only processor and registers
involved (sum of two registers)
oData transfer – Interacts with memory
(load and store)
oLogical - Only processor and registers
involved (and, sll)
oConditional branch – Change flow of
execution (branch instructions)

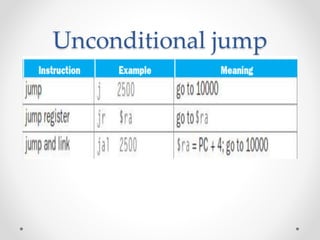

oUnconditional Jump – Change flow of
execution (jump to a subroutine)

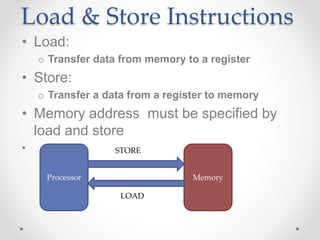

Load & Store Instructions
• Load:
o Transfer data from memory to a register
• Store:
o Transfer a data from a register to memory
• Memory address must be specified by
load and store
•
Processor Memory
STORE
LOAD

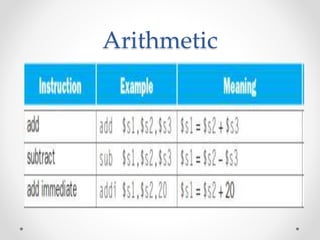

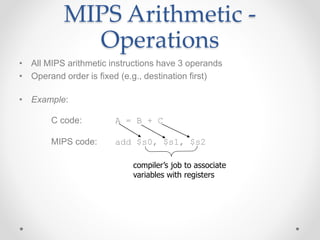

MIPS Arithmetic -
Operations
• All MIPS arithmetic instructions have 3 operands
• Operand order is fixed (e.g., destination first)
• Example:
C code: A = B + C
MIPS code: add $s0, $s1, $s2
compiler’s job to associate
variables with registers

MIPS Arithmetic -
Operations

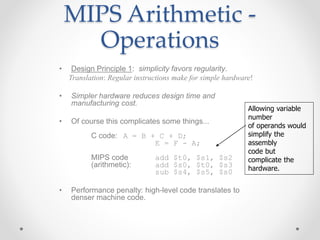

• Design Principle 1: simplicity favors regularity.
Translation: Regular instructions make for simple hardware!
• Simpler hardware reduces design time and
manufacturing cost.
• Of course this complicates some things...
C code: A = B + C + D;
E = F - A;
MIPS code add $t0, $s1, $s2
(arithmetic): add $s0, $t0, $s3
sub $s4, $s5, $s0
• Performance penalty: high-level code translates to
denser machine code.
Allowing variable
number
of operands would
simplify the
assembly
code but
complicate the
hardware.

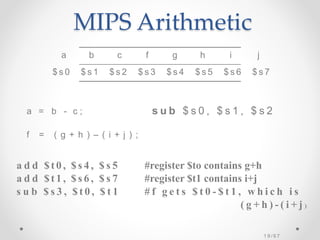

MIPS Arithmetic
a b c f g h i j
$ s 0 $ s 1 $ s 2 $ s 3 $ s 4 $ s 5 $ s 6 $ s 7
a = b - c ;
f = ( g + h ) – ( i + j ) ;
s u b $ s 0 , $ s 1 , $ s 2
1 9 / 6 7
a d d $t 0, $ s 4 , $ s 5 #register $to contains g+h
a d d $t 1, $ s 6 , $ s 7 #register $t1 contains i+j
s u b $ s 3 , $ t 0 , $ t 1 # f g e t s $ t 0 - $ t 1 , w h i c h i s
( g + h ) - ( i + j )

Operands -
Registers vs. Memory
Processor I/O
Control
Datapath
Memory
Input
Output
• Arithmetic instructions operands must be in
registers
o MIPS has 32 registers
• Compiler associates variables with registers
• What about programs with lots of variables
(arrays, etc.)? Use memory, load/store
operations to transfer data from memory to
register – if not enough registers spill registers
to memory
• MIPS is a load/store architecture

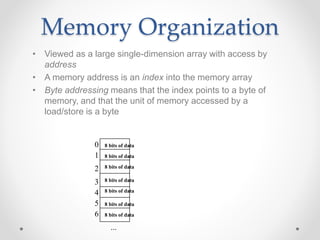

Memory Organization
• Viewed as a large single-dimension array with access by
address
• A memory address is an index into the memory array
• Byte addressing means that the index points to a byte of
memory, and that the unit of memory accessed by a
load/store is a byte
0
1
2
3
4
5
6
...
8 bits of data
8 bits of data
8 bits of data
8 bits of data
8 bits of data
8 bits of data
8 bits of data

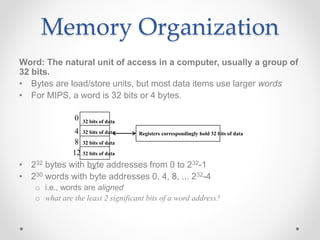

Memory Organization
Word: The natural unit of access in a computer, usually a group of
32 bits.
• Bytes are load/store units, but most data items use larger words
• For MIPS, a word is 32 bits or 4 bytes.
• 232 bytes with byte addresses from 0 to 232-1
• 230 words with byte addresses 0, 4, 8, ... 232-4
o i.e., words are aligned
o what are the least 2 significant bits of a word address?
0
4
8
12
...
32 bits of data
32 bits of data
32 bits of data
32 bits of data
Registers correspondingly hold 32 bits of data

Data Transfer Instructions

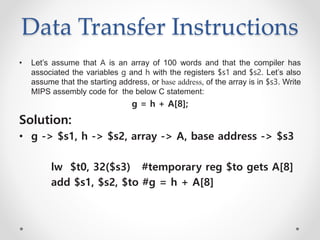

• Let’s assume that A is an array of 100 words and that the compiler has
associated the variables g and h with the registers $s1 and $s2. Let’s also
assume that the starting address, or base address, of the array is in $s3. Write
MIPS assembly code for the below C statement:
g = h + A[8];
Solution:
• g -> $s1, h -> $s2, array -> A, base address -> $s3
lw $t0, 32($s3) #temporary reg $to gets A[8]
add $s1, $s2, $to #g = h + A[8]

• Assume variable h is associated with register $s2 and the base address of
the array A is in $s3. What is the MIPS assembly code for the C assignment
statement below?
A[12] = h + A[8];
Solution:
• h -> $s2, array -> A, base address -> $s3
lw $t0, 32($s3) #temporary reg $to gets A[8]
add $s1, $s2, $to #reg $s1 gets h + A[8]
sw $s1, 48($s3) #stores h+A[8] back into A[12]

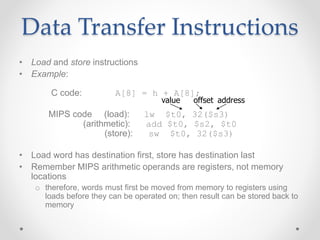

• Load and store instructions
• Example:
C code: A[8] = h + A[8];
MIPS code (load): lw $t0, 32($s3)
(arithmetic): add $t0, $s2, $t0
(store): sw $t0, 32($s3)
• Load word has destination first, store has destination last
• Remember MIPS arithmetic operands are registers, not memory
locations
o therefore, words must first be moved from memory to registers using
loads before they can be operated on; then result can be stored back to
memory
offset address
value

So far we’ve learned:
• MIPS
o loading words but addressing bytes
o arithmetic on registers only
• Instruction Meaning
add $s1, $s2, $s3 $s1 = $s2 + $s3
sub $s1, $s2, $s3 $s1 = $s2 – $s3
lw $s1, 100($s2) $s1 = Memory[$s2+100]
sw $s1, 100($s2) Memory[$s2+100]= $s1

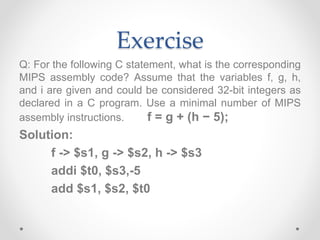

Exercise
Q: For the following C statement, what is the corresponding
MIPS assembly code? Assume that the variables f, g, h,
and i are given and could be considered 32-bit integers as
declared in a C program. Use a minimal number of MIPS
assembly instructions. f = g + (h − 5);
Solution:
f -> $s1, g -> $s2, h -> $s3
addi $t0, $s3,-5
add $s1, $s2, $t0

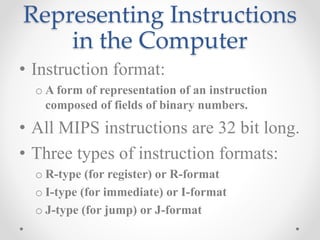

Representing Instructions
in the Computer
• Instruction format:
o A form of representation of an instruction
composed of fields of binary numbers.
• All MIPS instructions are 32 bit long.
• Three types of instruction formats:
o R-type (for register) or R-format
o I-type (for immediate) or I-format
o J-type (for jump) or J-format

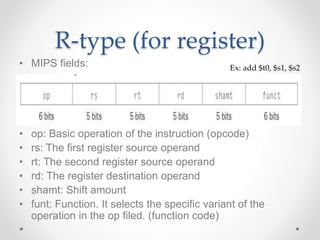

R-type (for register)
• MIPS fields:
• op: Basic operation of the instruction (opcode)
• rs: The first register source operand
• rt: The second register source operand
• rd: The register destination operand
• shamt: Shift amount
• funt: Function. It selects the specific variant of the
operation in the op filed. (function code)
Ex: add $t0, $s1, $s2

I-type (for immediate)
• MIPS fields:
• rs: The register source operand
• rt: destination register, which receives the result of the
load
• constant or address: It contains 16 bit constant or
address value.

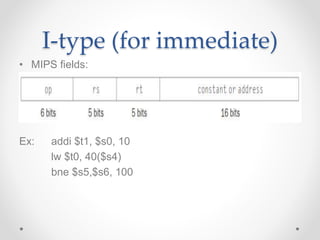

I-type (for immediate)
• MIPS fields:
Ex: addi $t1, $s0, 10
lw $t0, 40($s4)
bne $s5,$s6, 100

J-type (for jump)

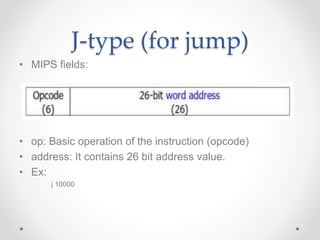

• MIPS fields:
• address: It contains 26 bit address value.
• Ex:
j 10000

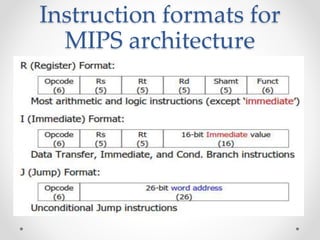

Instruction formats for
MIPS architecture

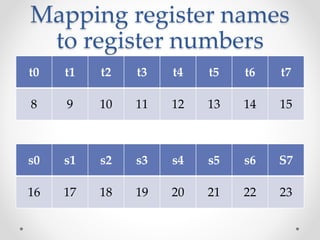

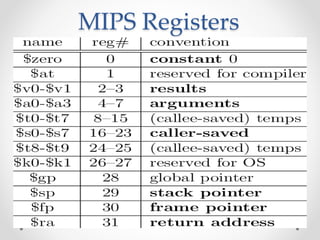

Mapping register names
to register numbers
t0 t1 t2 t3 t4 t5 t6 t7
8 9 10 11 12 13 14 15
s0 s1 s2 s3 s4 s5 s6 S7
16 17 18 19 20 21 22 23

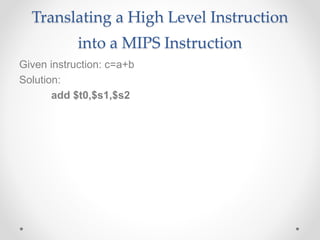

Translating a High Level Instruction
into a MIPS Instruction
Given instruction: c=a+b
Solution:
add $t0,$s1,$s2

Translating a MIPS Assembly
Instruction into a Machine Instruction
Given instruction: add $t0,$s1,$s2
• Solution:
• Identify the type instruction format: R-type
• Format: Operation rd, rs, rt
• rs -> $s1, rt -> $s2, rd -> $t0, shamt – NA
• Op -> , funct ->
• Decimal representation:
• Binary representation:

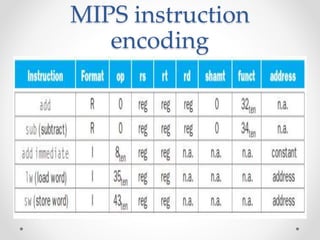

op rs rt rd shamt funct
0 17 18 8 0 32
000000 10001 10010 01000 00000 100000

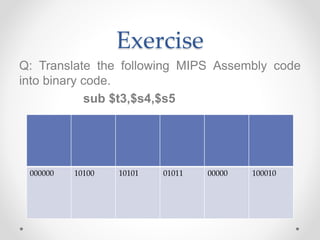

Exercise
Q: Translate the following MIPS Assembly code
into binary code.
sub $t3,$s4,$s5
000000 10100 10101 01011 00000 100010

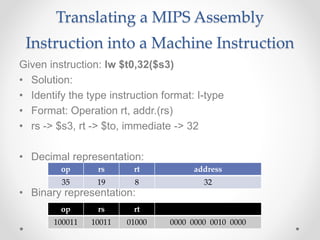

Translating a MIPS Assembly
Instruction into a Machine Instruction
Given instruction: lw $t0,32($s3)
• Solution:
• Identify the type instruction format: I-type
• Format: Operation rt, addr.(rs)
• rs -> $s3, rt -> $to, immediate -> 32
• Decimal representation:
• Binary representation:
op rs rt address
35 19 8 32
op rs rt
100011 10011 01000 0000 0000 0010 0000

Exercise
Q: Translate the following MIPS Assembly code
into binary code.
sw $t2,58($s5)
101011 10101 01010 0000 0000 0011 1010

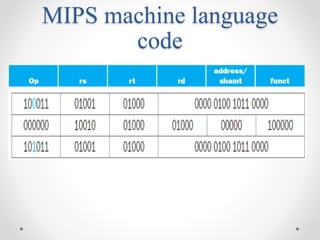

Translating High level Language
into Machine Language
Q: Consider the following high level statement
A[300] = h + A[300];
If $t1 has the base of the array A and $s2 corresponds to
h, What is the MIPS machine language code?

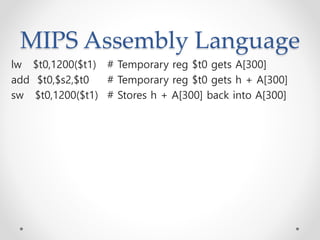

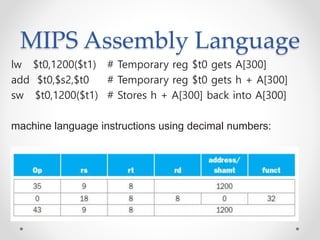

lw $t0,1200($t1) # Temporary reg $t0 gets A[300]
add $t0,$s2,$t0 # Temporary reg $t0 gets h + A[300]
sw $t0,1200($t1) # Stores h + A[300] back into A[300]

lw $t0,1200($t1) # Temporary reg $t0 gets A[300]
add $t0,$s2,$t0 # Temporary reg $t0 gets h + A[300]
sw $t0,1200($t1) # Stores h + A[300] back into A[300]
machine language instructions using decimal numbers:

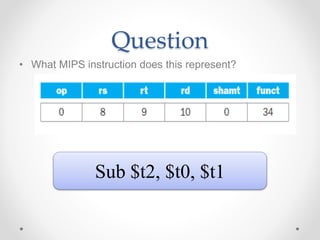

Question
• What MIPS instruction does this represent?
Sub $t2, $t0, $t1

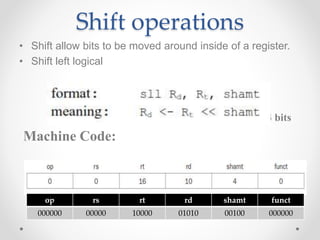

Shift operations
• Shift allow bits to be moved around inside of a register.
• Shift left logical
Example: sll $t2,$s0,4 # reg $t2 = reg $s0 << 4 bits
Machine Code:
000000 00000 10000 01010 00100 000000

Shift Left Logical(sll)
• Example: sll $t2,$s0,4 # reg $t2 = reg $s0 << 4 bits
• If $s0=10
• Value of $t2=???

Shift operations
• Shift right logical
Example: srl $t5,$s3,2 # reg $t5 = reg $s3 >> 2 bits
Machine Code:
000000 00000 10011 01101 00010 000010
0 00000 19 13 2 2

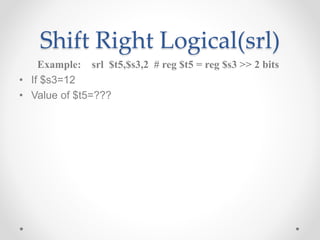

Shift Right Logical(srl)
Example: srl $t5,$s3,2 # reg $t5 = reg $s3 >> 2 bits
• If $s3=12
• Value of $t5=???

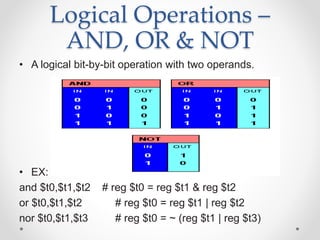

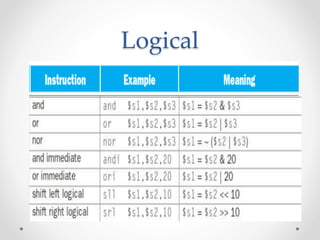

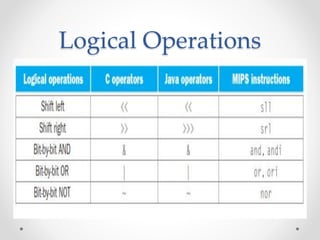

Logical Operations –
AND, OR & NOT
• A logical bit-by-bit operation with two operands.
• EX:
and $t0,$t1,$t2 # reg $t0 = reg $t1 & reg $t2
or $t0,$t1,$t2 # reg $t0 = reg $t1 | reg $t2
nor $t0,$t1,$t3 # reg $t0 = ~ (reg $t1 | reg $t3)

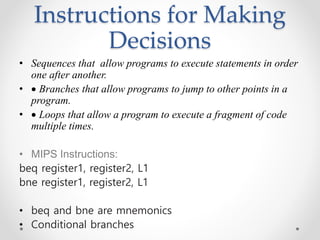

Instructions for Making
Decisions
• Sequences that allow programs to execute statements in order
one after another.
•  Branches that allow programs to jump to other points in a
program.
•  Loops that allow a program to execute a fragment of code
multiple times.
• MIPS Instructions:
beq register1, register2, L1
bne register1, register2, L1
• beq and bne are mnemonics

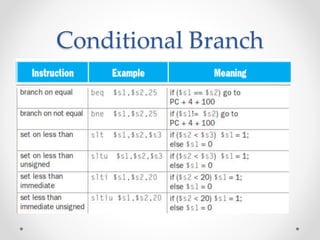

• Conditional branches

Decisions

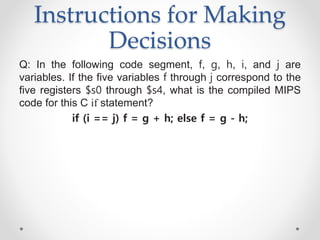

Q: In the following code segment, f, g, h, i, and j are
variables. If the five variables f through j correspond to the
five registers $s0 through $s4, what is the compiled MIPS
code for this C if statement?
if (i == j) f = g + h; else f = g - h;

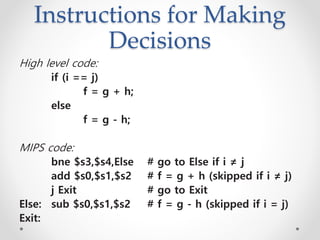

Decisions
• Solution:

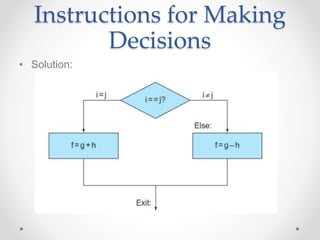

Decisions
High level code:
if (i == j)
f = g + h;
else
f = g - h;
MIPS code:
bne $s3,$s4,Else # go to Else if i ≠ j
add $s0,$s1,$s2 # f = g + h (skipped if i ≠ j)
j Exit # go to Exit
Else: sub $s0,$s1,$s2 # f = g - h (skipped if i = j)
Exit:

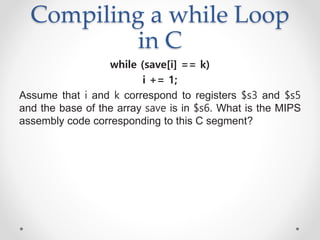

Compiling a while Loop
in C
while (save[i] == k)
i += 1;
Assume that i and k correspond to registers $s3 and $s5
and the base of the array save is in $s6. What is the MIPS
assembly code corresponding to this C segment?

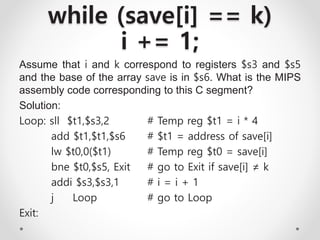

Compiling a while Loop
in C
i += 1;
1. load save[i] into a temporary register
1. add i to the base of array save to form the address
2. performs the loop test
1. go to Exit if save[i] ≠ k
3. adds 1 to I
4. back to the while test at the top of the loop
5. Exit

i += 1;
Assume that i and k correspond to registers $s3 and $s5
and the base of the array save is in $s6. What is the MIPS
assembly code corresponding to this C segment?
Solution:
Loop: sll $t1,$s3,2 # Temp reg $t1 = i * 4
add $t1,$t1,$s6 # $t1 = address of save[i]
lw $t0,0($t1) # Temp reg $t0 = save[i]
bne $t0,$s5, Exit # go to Exit if save[i] ≠ k
addi $s3,$s3,1 # i = i + 1
j Loop # go to Loop
Exit:

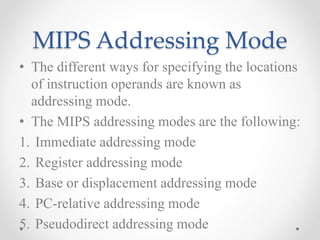

MIPS Addressing Mode
• The different ways for specifying the locations
of instruction operands are known as
addressing mode.
• The MIPS addressing modes are the following:
1. Immediate addressing mode
2. Register addressing mode
3. Base or displacement addressing mode
4. PC-relative addressing mode
5. Pseudodirect addressing mode

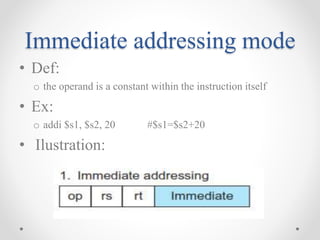

Immediate addressing mode
• Def:
o the operand is a constant within the instruction itself
• Ex:
o addi $s1, $s2, 20 #$s1=$s2+20
• Ilustration:

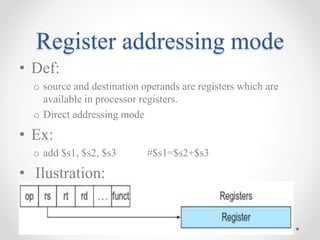

Register addressing mode
• Def:
o source and destination operands are registers which are
available in processor registers.
o Direct addressing mode
• Ex:
o add $s1, $s2, $s3 #$s1=$s2+$s3
• Ilustration:

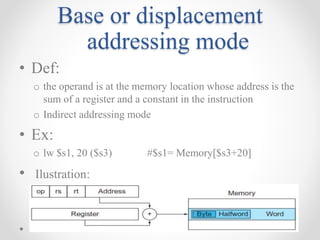

Base or displacement
addressing mode
• Def:
o the operand is at the memory location whose address is the
sum of a register and a constant in the instruction
o Indirect addressing mode
• Ex:
o lw $s1, 20 ($s3) #$s1= Memory[$s3+20]
• Ilustration:

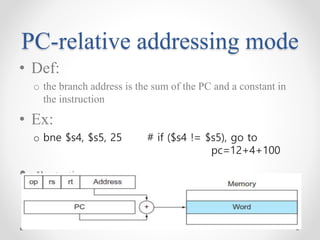

PC-relative addressing mode
• Def:
o the branch address is the sum of the PC and a constant in
the instruction
• Ex:
o bne $s4, $s5, 25 # if ($s4 != $s5), go to
pc=12+4+100
• Ilustration:

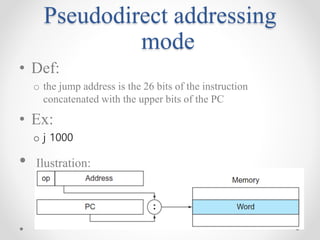

Pseudodirect addressing
mode
• Def:
o the jump address is the 26 bits of the instruction
concatenated with the upper bits of the PC
• Ex:
o j 1000
• Ilustration:

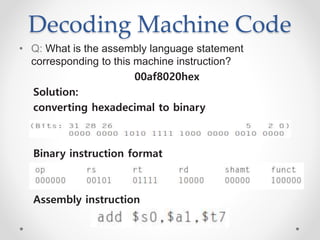

Decoding Machine Code
• Q: What is the assembly language statement
corresponding to this machine instruction?
00af8020hex
Solution:
converting hexadecimal to binary
Binary instruction format
Assembly instruction

Translating Machine Language
to Assembly Language
• Translate the following machine language code into
assembly language.
0x02F34022

Performance
• Measure, report, and summarize performance to enable users to
o make intelligent choices
o see through the marketing hype!

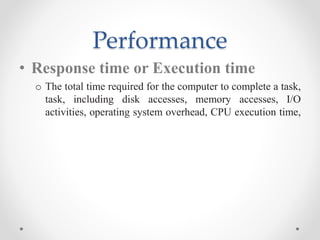

Performance
• Response time or Execution time
o The total time required for the computer to complete a task,
task, including disk accesses, memory accesses, I/O
activities, operating system overhead, CPU execution time,

• Response Time (elapsed time, latency):
o how long does it take for my job to run?
o how long does it take to execute (start to
finish) my job?
o how long must I wait for the database query?
• Throughput:
o how many jobs can the machine run at once?
o what is the average execution rate?
o how much work is getting done?

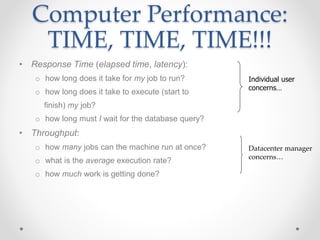

Computer Performance:
TIME, TIME, TIME!!!
Individual user
concerns…
Datacenter manager
concerns…

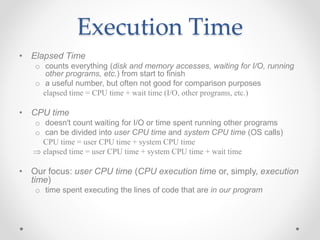

• Elapsed Time
o counts everything (disk and memory accesses, waiting for I/O, running
other programs, etc.) from start to finish
o a useful number, but often not good for comparison purposes
elapsed time = CPU time + wait time (I/O, other programs, etc.)
• CPU time
o doesn't count waiting for I/O or time spent running other programs
o can be divided into user CPU time and system CPU time (OS calls)
CPU time = user CPU time + system CPU time
 elapsed time = user CPU time + system CPU time + wait time
• Our focus: user CPU time (CPU execution time or, simply, execution
time)
o time spent executing the lines of code that are in our program
Execution Time

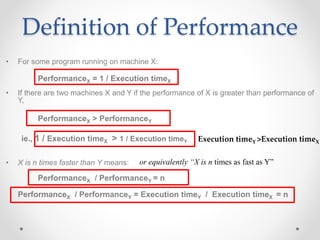

• For some program running on machine X:
PerformanceX = 1 / Execution timeX
• If there are two machines X and Y if the performance of X is greater than performance of
Y,
PerformanceX > PerformanceY
ie., 1 / Execution timeX > 1 / Execution timeY
• X is n times faster than Y means:
PerformanceX / PerformanceY = n
PerformanceX / PerformanceY = Execution timeY / Execution timeX = n
Definition of Performance
or equivalently “X is n times as fast as Y”
Execution timeY >Execution timeX

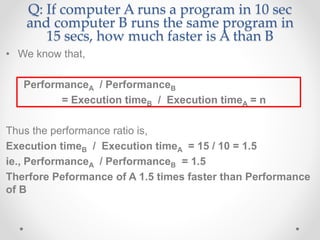

Q: If computer A runs a program in 10 sec
and computer B runs the same program in
15 secs, how much faster is A than B
• We know that,
PerformanceA / PerformanceB
= Execution timeB / Execution timeA = n
Thus the performance ratio is,
Execution timeB / Execution timeA = 15 / 10 = 1.5
ie., PerformanceA / PerformanceB = 1.5
Therfore Peformance of A 1.5 times faster than Performance
of B

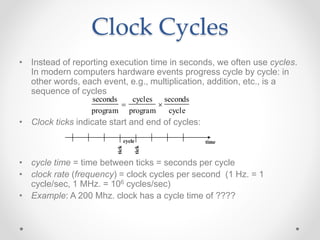

Clock Cycles
• Instead of reporting execution time in seconds, we often use cycles.
In modern computers hardware events progress cycle by cycle: in
other words, each event, e.g., multiplication, addition, etc., is a
sequence of cycles
• Clock ticks indicate start and end of cycles:
• cycle time = time between ticks = seconds per cycle
• clock rate (frequency) = clock cycles per second (1 Hz. = 1
cycle/sec, 1 MHz. = 106 cycles/sec)
• Example: A 200 Mhz. clock has a cycle time of ????
time
seconds
program

cycles
program

seconds
cycle
cycle
tick
tick

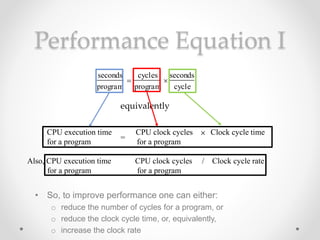

Performance Equation I
• So, to improve performance one can either:
o reduce the number of cycles for a program, or
o reduce the clock cycle time, or, equivalently,
o increase the clock rate
seconds
program

cycles
program

seconds
cycle
CPU execution time CPU clock cycles Clock cycle time
for a program for a program
=

equivalently
Also, CPU execution time CPU clock cycles / Clock cycle rate

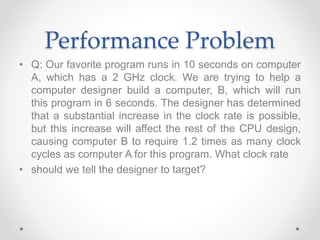

Performance Problem
• Q: Our favorite program runs in 10 seconds on computer
A, which has a 2 GHz clock. We are trying to help a
computer designer build a computer, B, which will run
this program in 6 seconds. The designer has determined
that a substantial increase in the clock rate is possible,
but this increase will affect the rest of the CPU design,
causing computer B to require 1.2 times as many clock
cycles as computer A for this program. What clock rate
• should we tell the designer to target?

Solution:

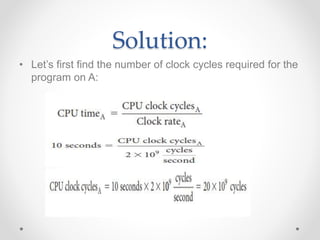

• Let’s first find the number of clock cycles required for the
program on A:

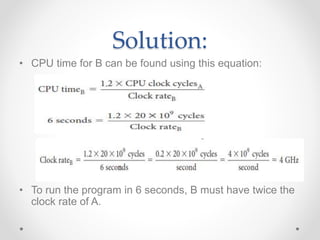

Solution:
• CPU time for B can be found using this equation:
• To run the program in 6 seconds, B must have twice the
clock rate of A.

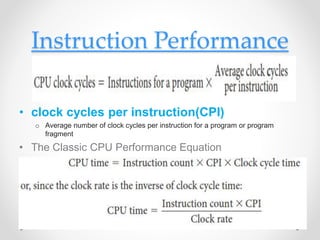

Instruction Performance
• clock cycles per instruction(CPI)
o Average number of clock cycles per instruction for a program or program
fragment
• The Classic CPU Performance Equation

Performance Equations
• PerformanceX / PerformanceY = Execution timeY / Execution timeX = n
• CPU execution time = CPU clock cycles X Clock cycle time
• CPU execution time = CPU clock cycles / Clock cycle rate

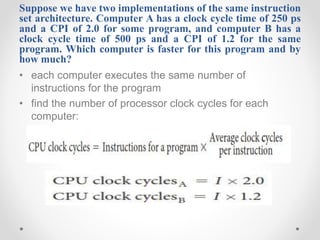

Suppose we have two implementations of the same instruction
set architecture. Computer A has a clock cycle time of 250 ps
and a CPI of 2.0 for some program, and computer B has a
clock cycle time of 500 ps and a CPI of 1.2 for the same
program. Which computer is faster for this program and by
how much?

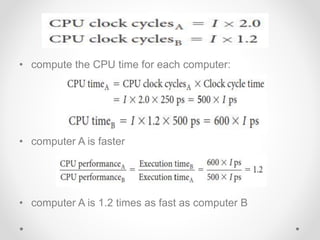

• each computer executes the same number of
instructions for the program
• find the number of processor clock cycles for each
computer:

• compute the CPU time for each computer:
• computer A is faster
• computer A is 1.2 times as fast as computer B

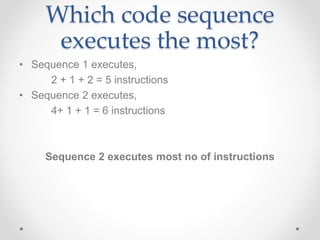

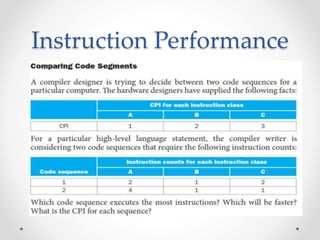

Which code sequence
executes the most?
• Sequence 1 executes,
2 + 1 + 2 = 5 instructions
• Sequence 2 executes,
4+ 1 + 1 = 6 instructions
Sequence 2 executes most no of instructions

Which will be faster?
• So code sequence 2 is faster

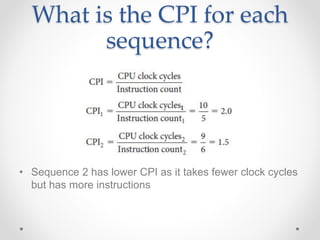

What is the CPI for each
sequence?
• Sequence 2 has lower CPI as it takes fewer clock cycles
but has more instructions

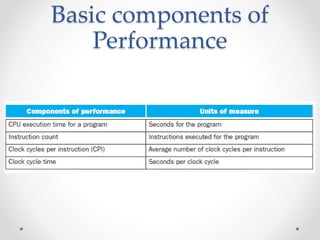

Basic components of
Performance

Introduction to Computer Architecture

More Related Content

What's hot

Similar to Introduction to Computer Architecture

Recently uploaded

Introduction to Computer Architecture
