This document discusses inversion of control (IoC) and dependency injection (DI). It defines IoC as inverting control of object flow compared to procedural programming. DI reduces coupling between components by injecting dependencies rather than hard-coding them. The benefits are more flexible, reusable, and testable code. The document provides examples of implementing DI in a .NET web API project using the Unity IoC container. It registers dependencies and creates a custom IDependencyResolver to resolve them.

1. Inversion of control
and
Dependency Injection
By Dinesh Sharma

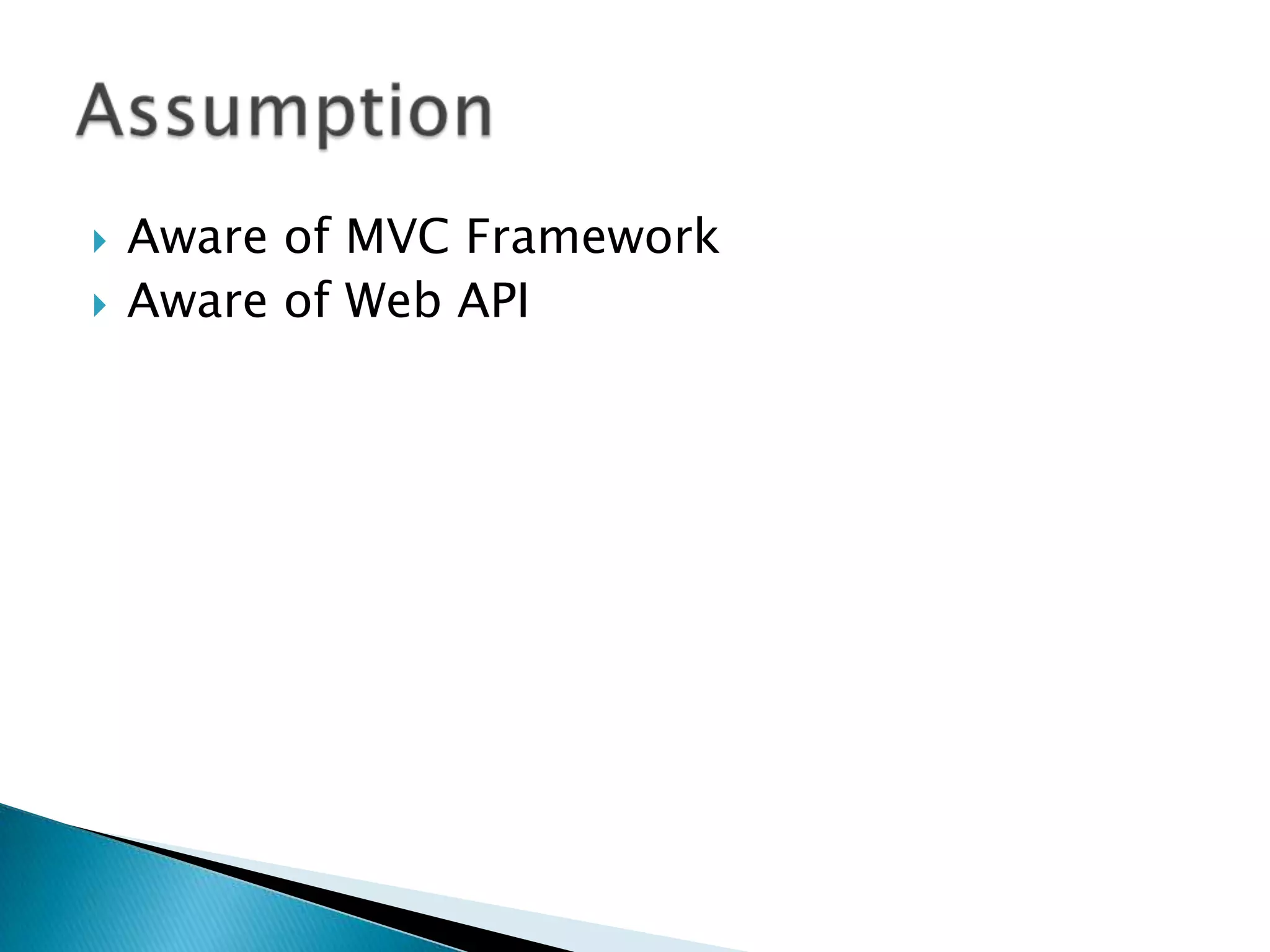

2.  Aware of MVC Framework
 Aware of Web API

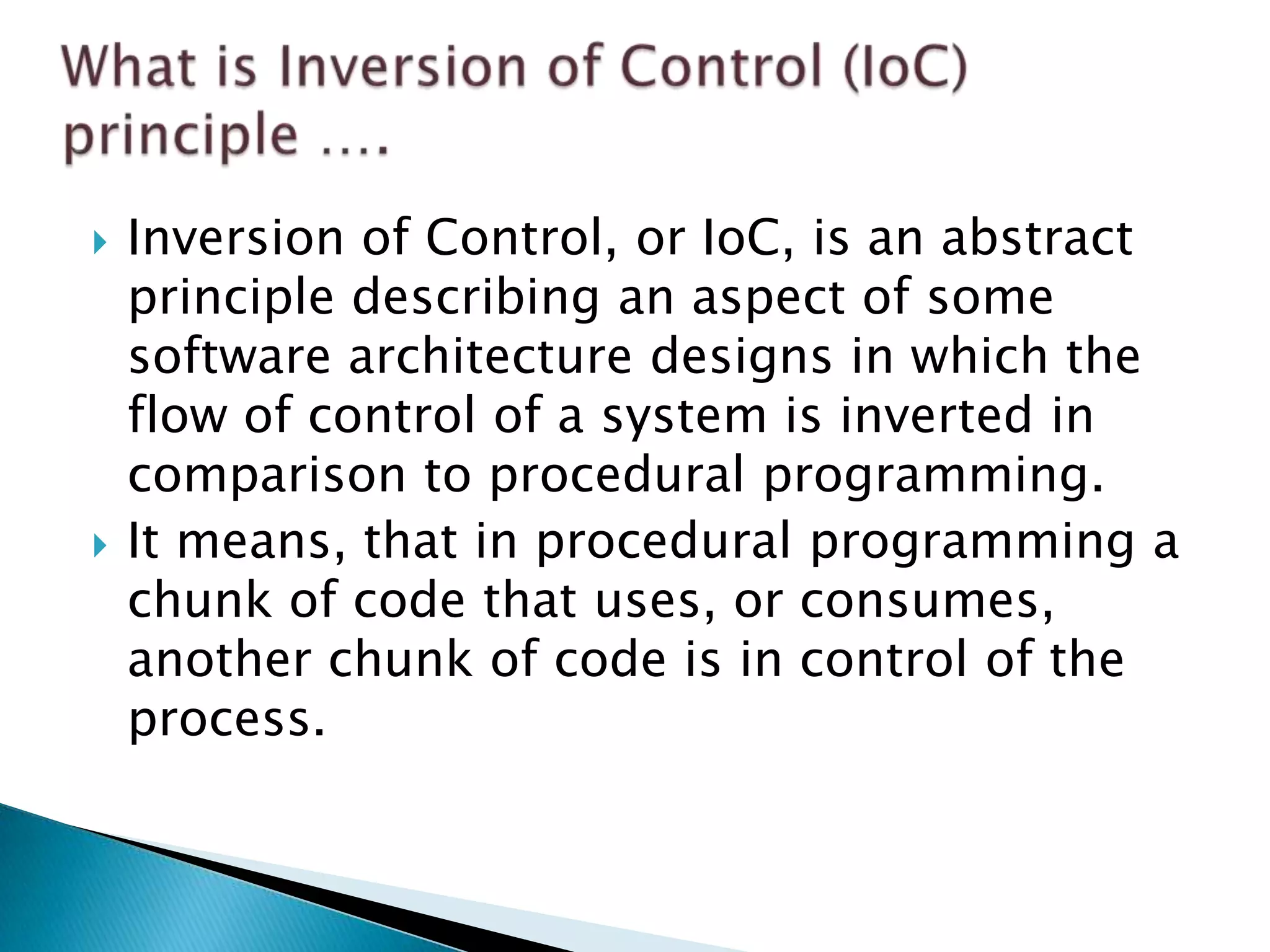

3.  Inversion of Control, or IoC, is an abstract
principle describing an aspect of some
software architecture designs in which the
flow of control of a system is inverted in
comparison to procedural programming.
 It means, that in procedural programming a
chunk of code that uses, or consumes,
another chunk of code is in control of the
process.

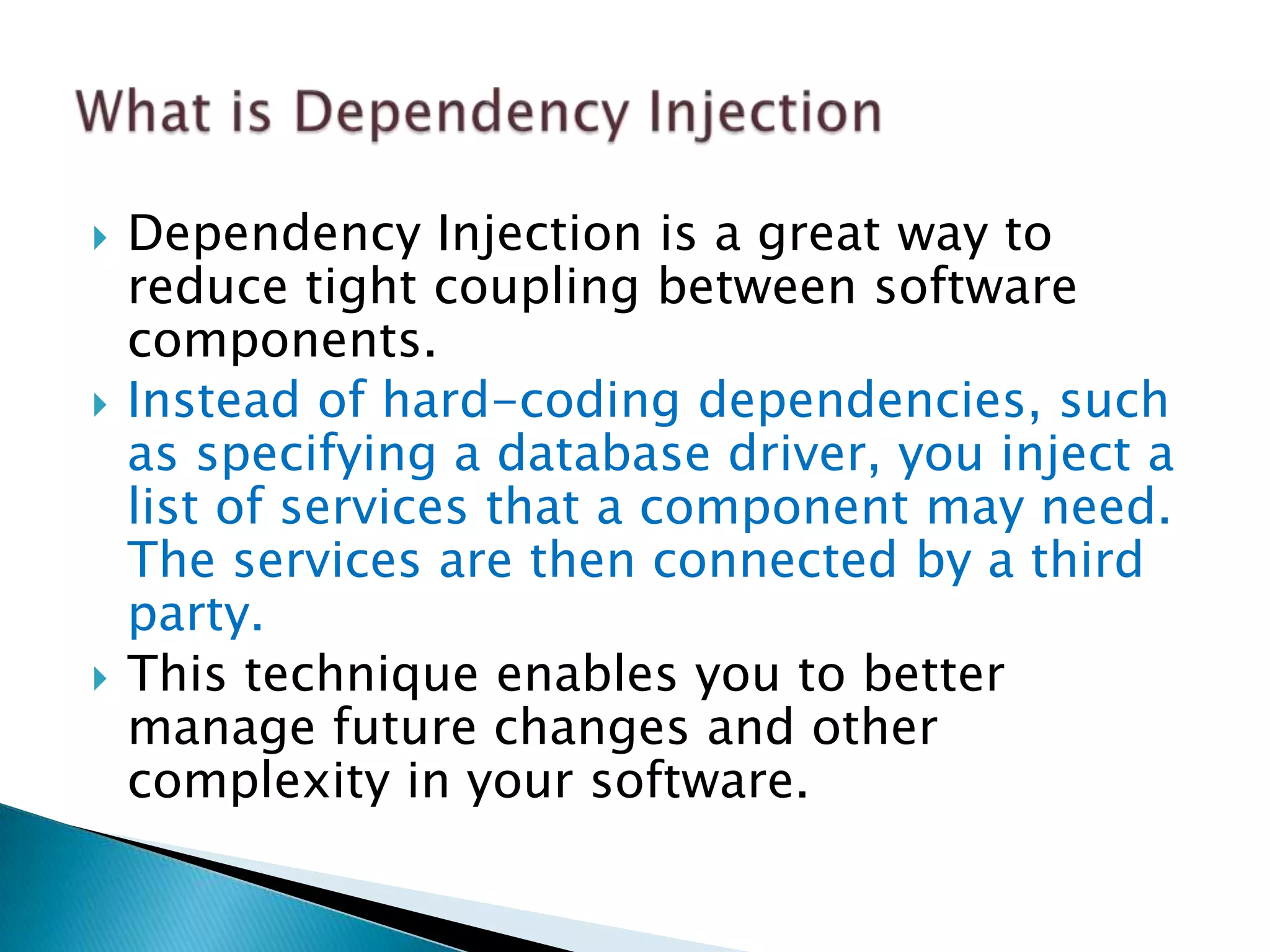

4.  Dependency Injection is a great way to
reduce tight coupling between software
components.
 Instead of hard-coding dependencies, such
as specifying a database driver, you inject a
list of services that a component may need.
The services are then connected by a third
party.
 This technique enables you to better
manage future changes and other
complexity in your software.

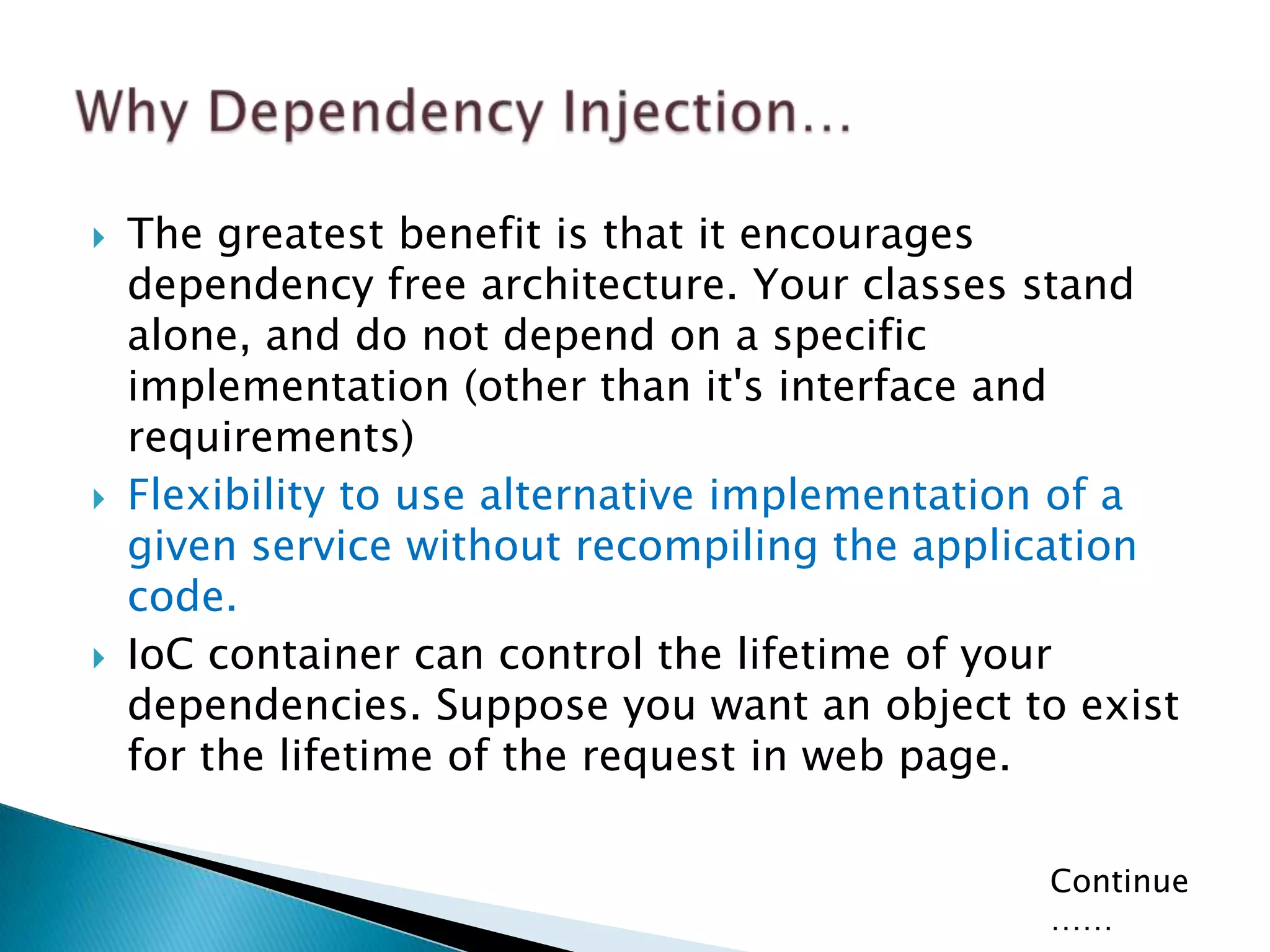

5.  The greatest benefit is that it encourages
dependency free architecture. Your classes stand
alone, and do not depend on a specific
implementation (other than it's interface and
requirements)
 Flexibility to use alternative implementation of a
given service without recompiling the application
code.
 IoC container can control the lifetime of your
dependencies. Suppose you want an object to exist
for the lifetime of the request in web page.
Continue
……

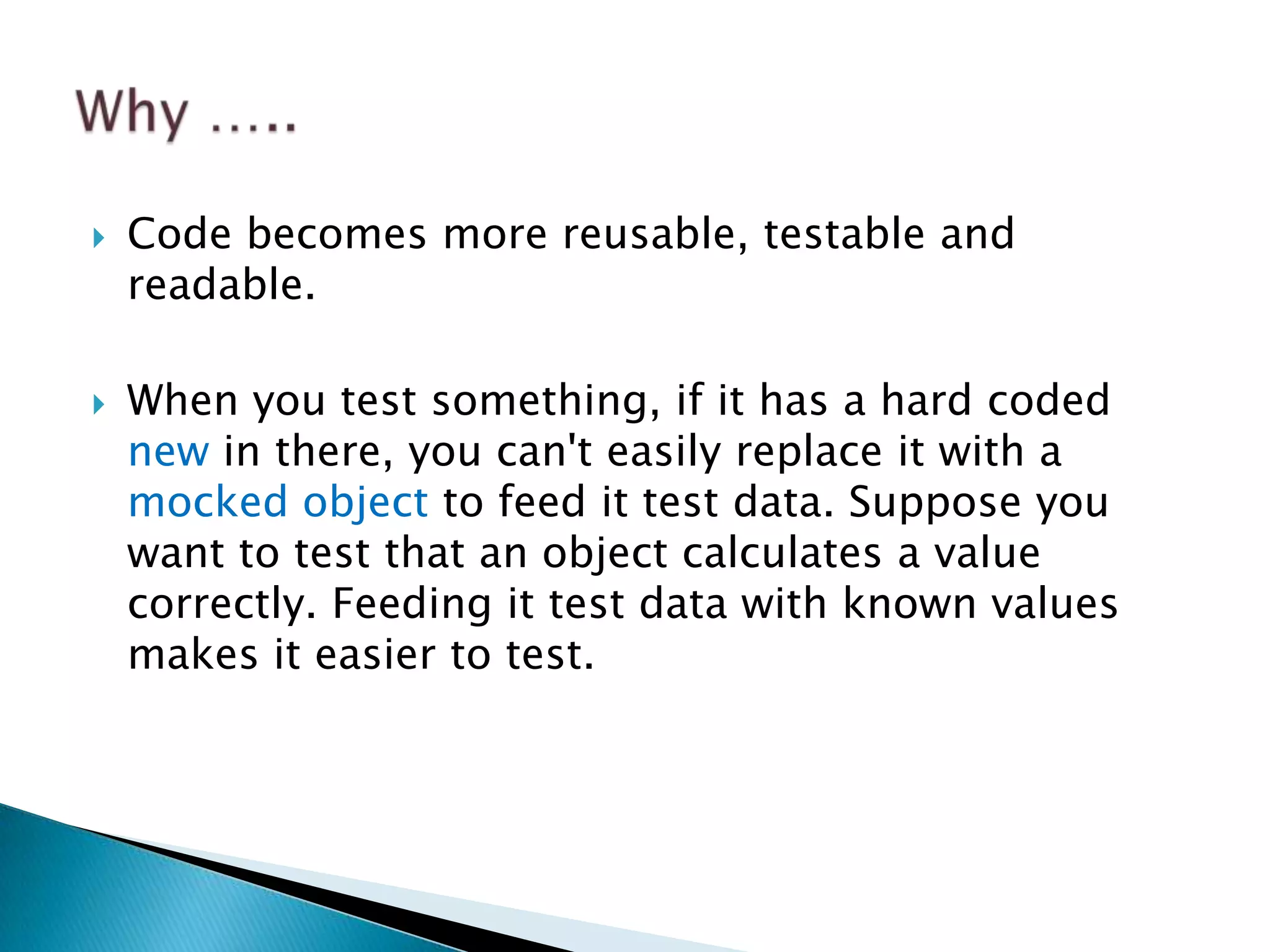

6.  Code becomes more reusable, testable and
readable.
 When you test something, if it has a hard coded
new in there, you can't easily replace it with a
mocked object to feed it test data. Suppose you
want to test that an object calculates a value
correctly. Feeding it test data with known values
makes it easier to test.

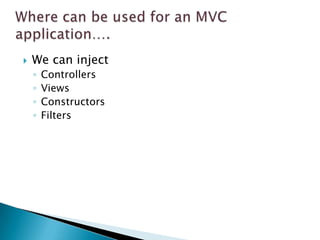

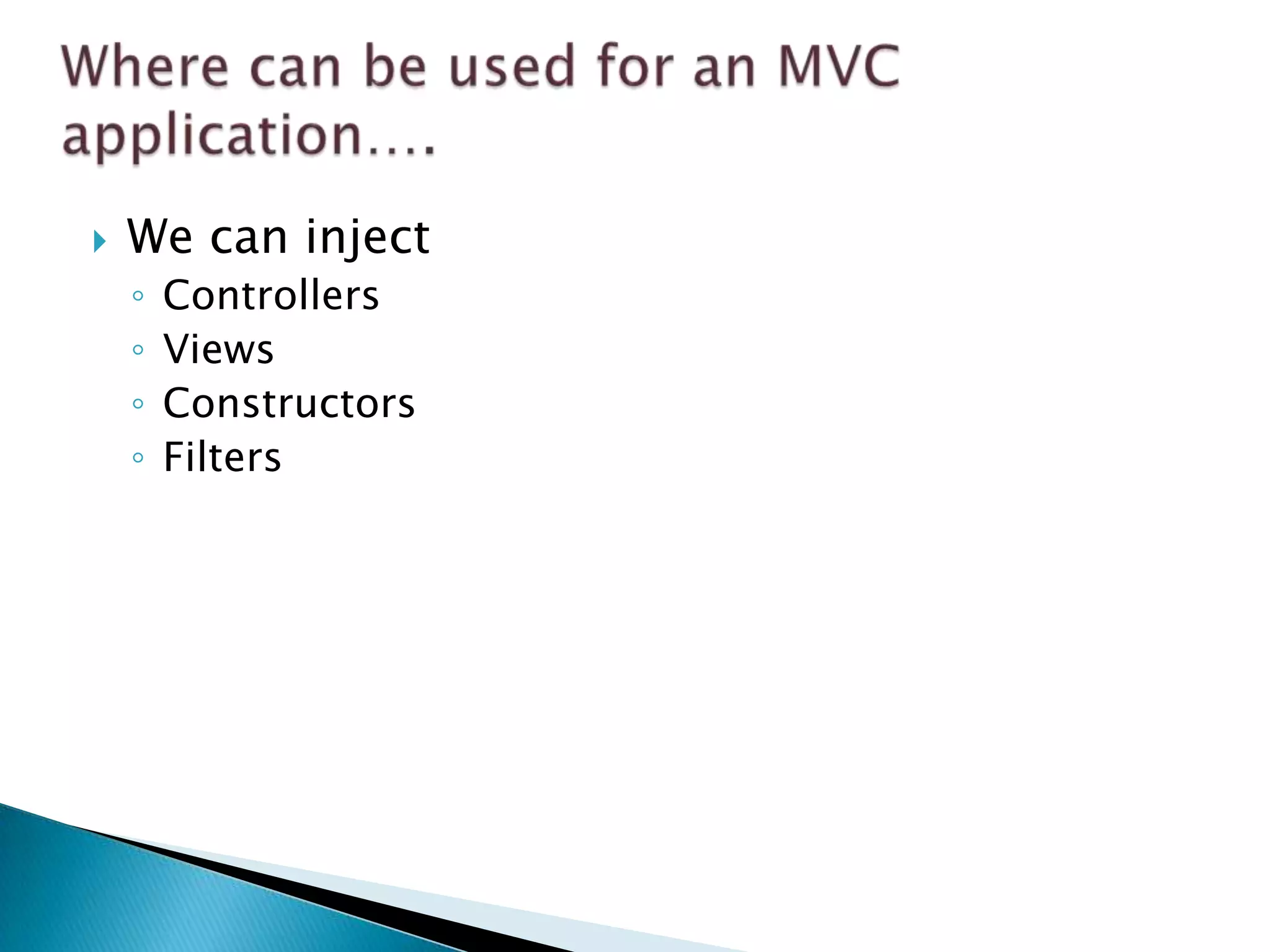

7.  We can inject
◦ Controllers
◦ Views
◦ Constructors
◦ Filters

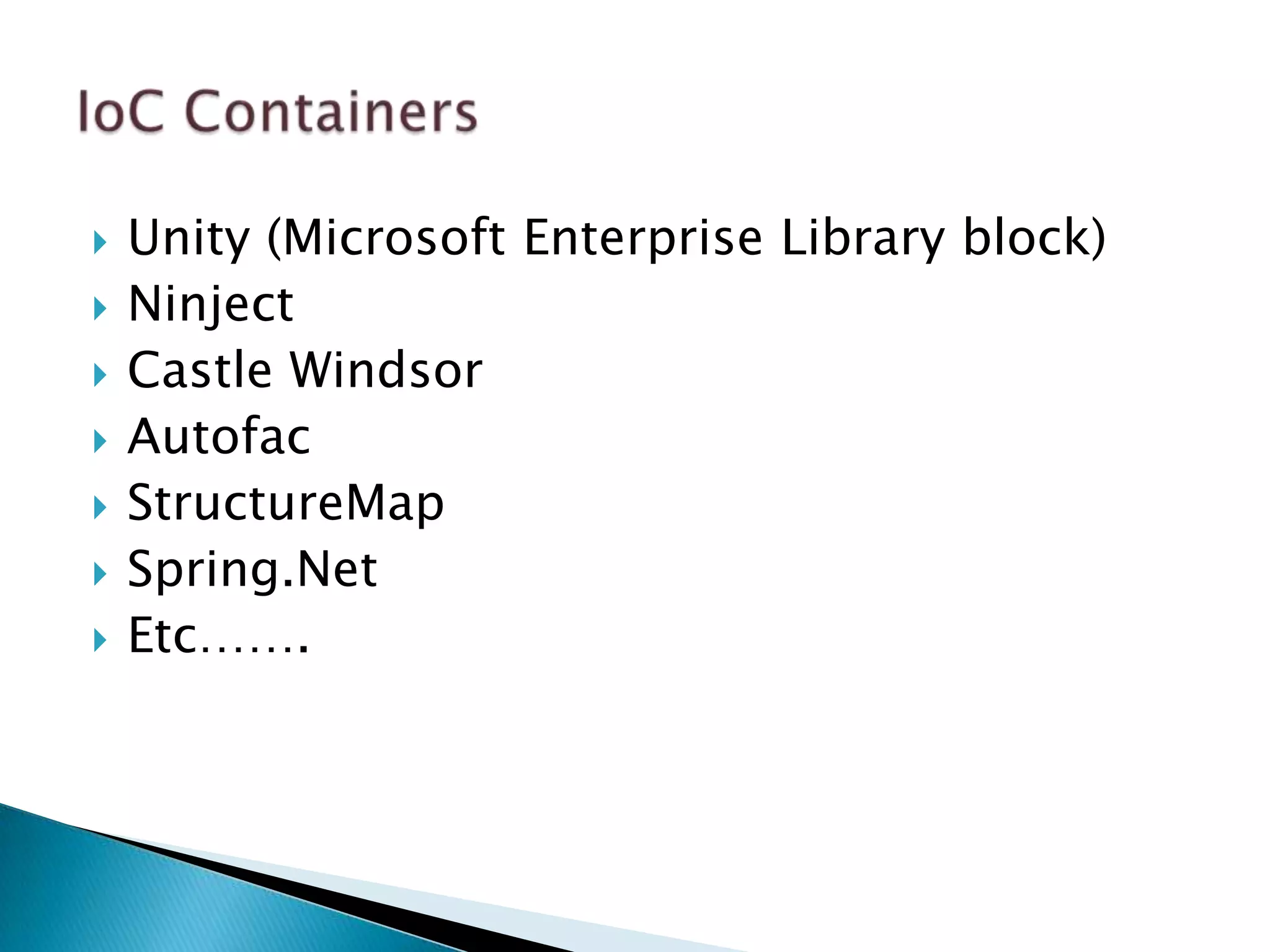

8.  Unity (Microsoft Enterprise Library block)
 Ninject
 Castle Windsor
 Autofac
 StructureMap
 Spring.Net
 Etc…….

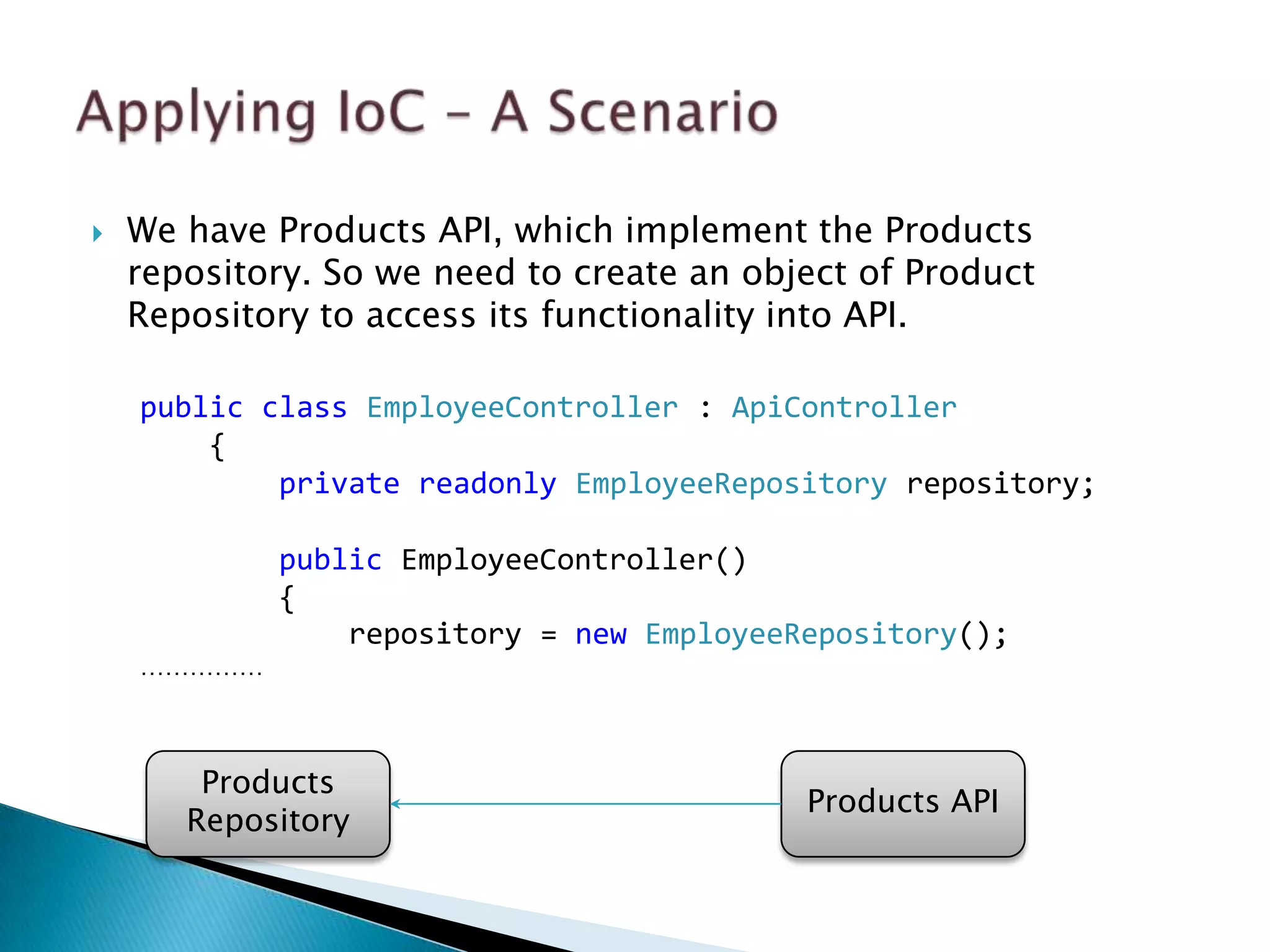

9.  We have Products API, which implement the Products
repository. So we need to create an object of Product
Repository to access its functionality into API.
public class EmployeeController : ApiController
{
private readonly EmployeeRepository repository;
public EmployeeController()
{
repository = new EmployeeRepository();
……………
Products
Products API
Repository

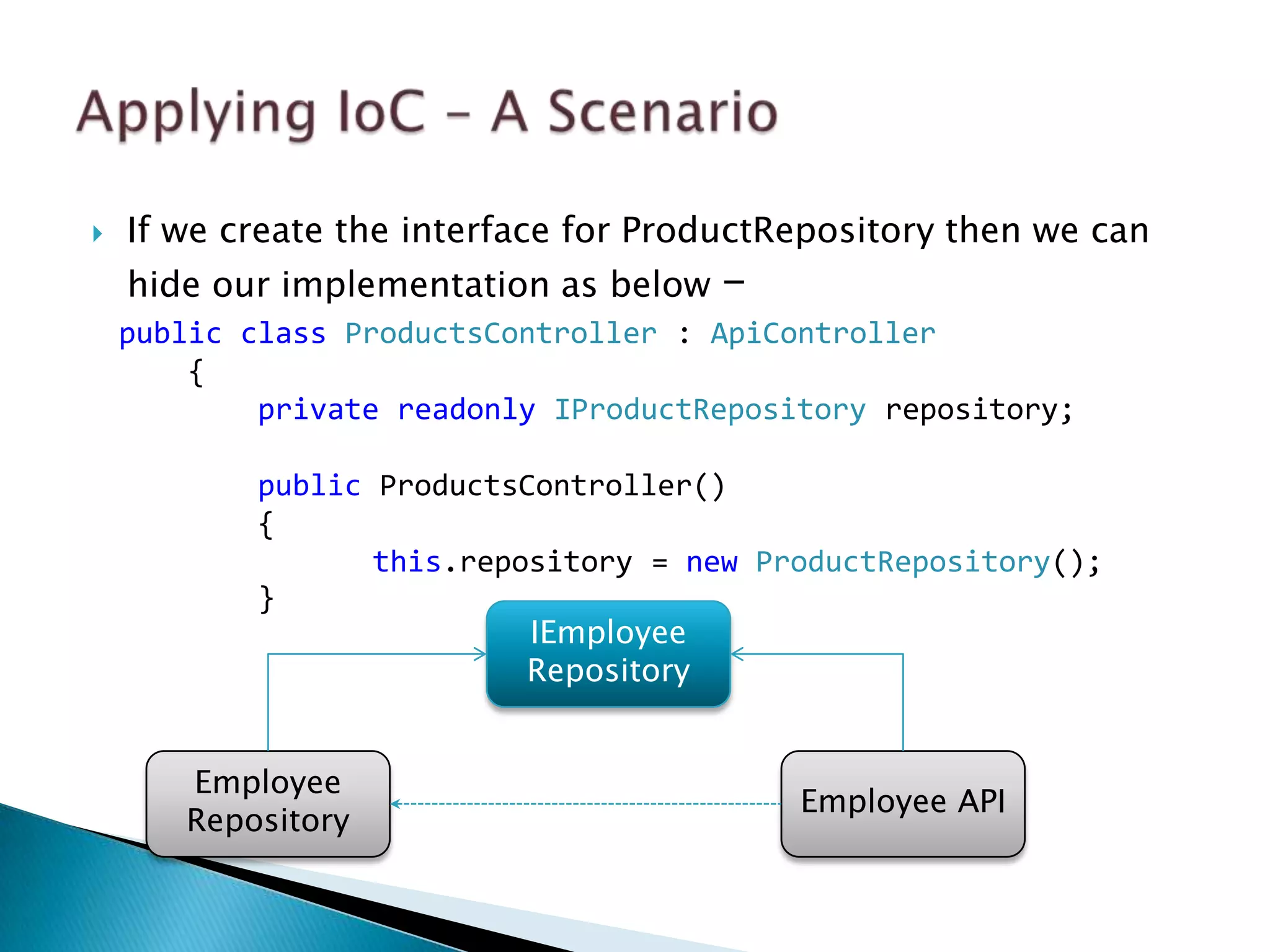

10.  If we create the interface for ProductRepository then we can
hide our implementation as below –
public class ProductsController : ApiController
{
private readonly IProductRepository repository;
public ProductsController()
{
this.repository = new ProductRepository();
}
IEmployee
Repository
Employee
Employee API
Repository

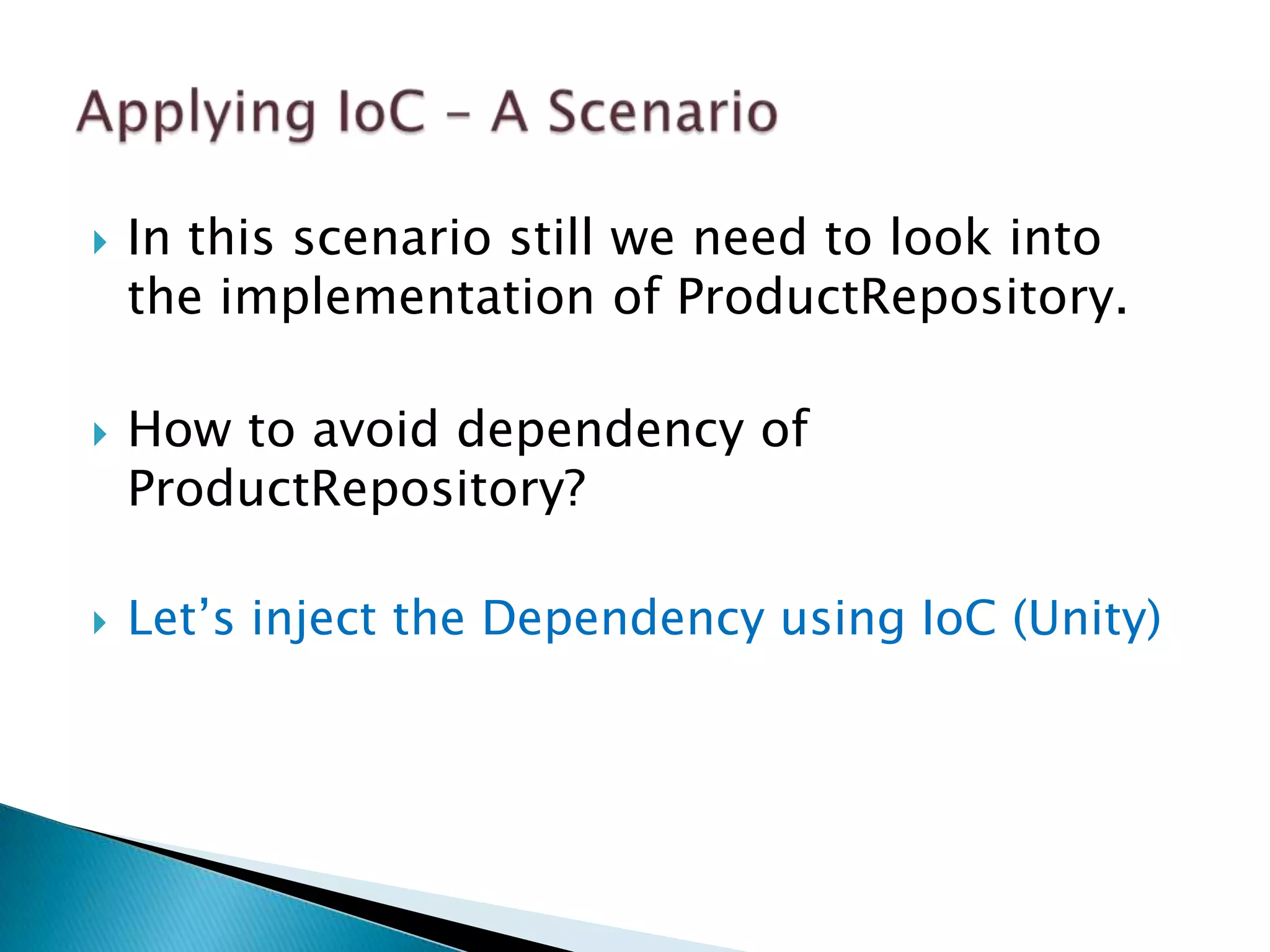

11.  In this scenario still we need to look into
the implementation of ProductRepository.
 How to avoid dependency of
ProductRepository?
 Let’s inject the Dependency using IoC (Unity)

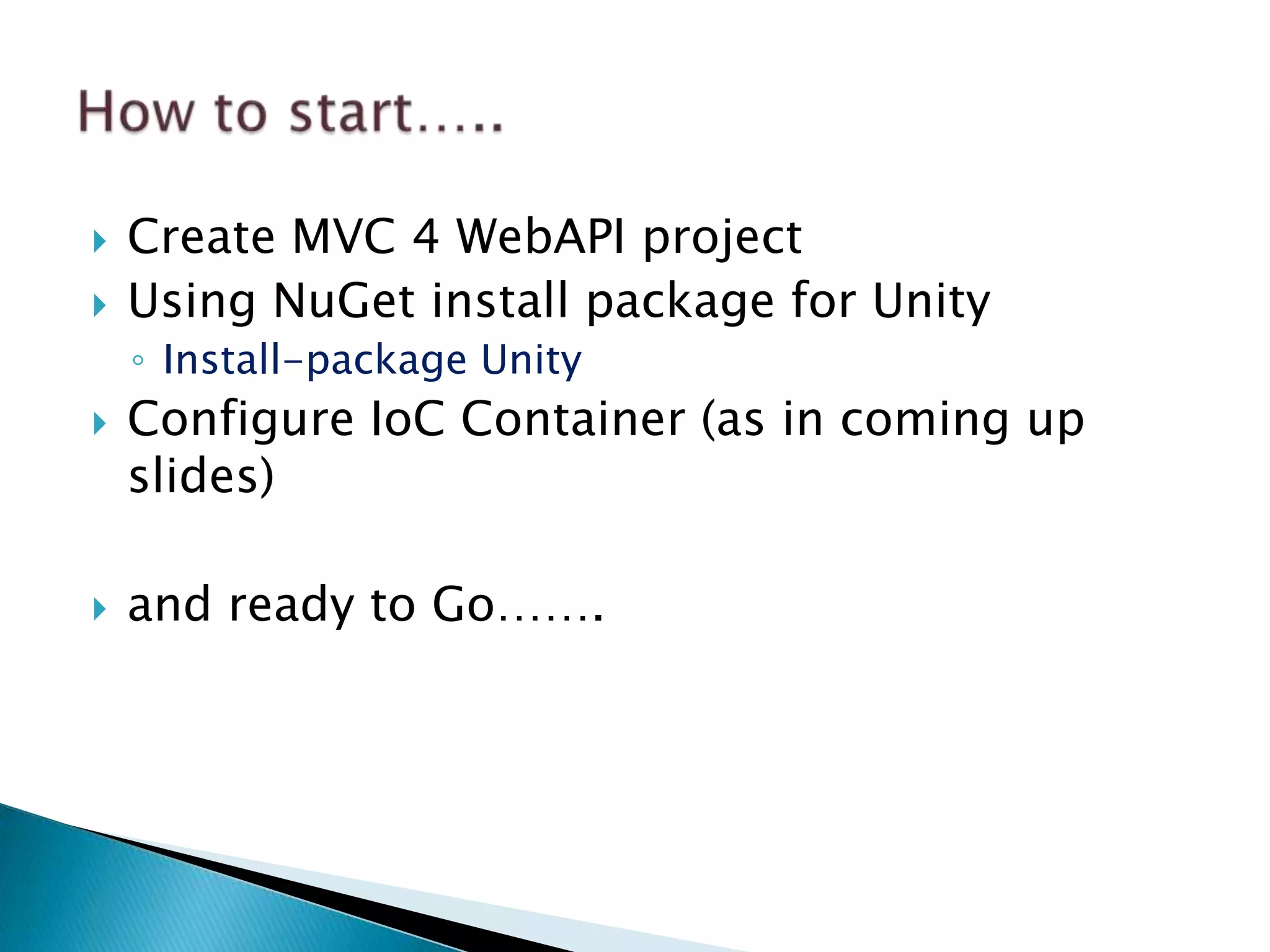

12.  Create MVC 4 WebAPI project
 Using NuGet install package for Unity
◦ Install-package Unity
 Configure IoC Container (as in coming up
slides)
 and ready to Go…….

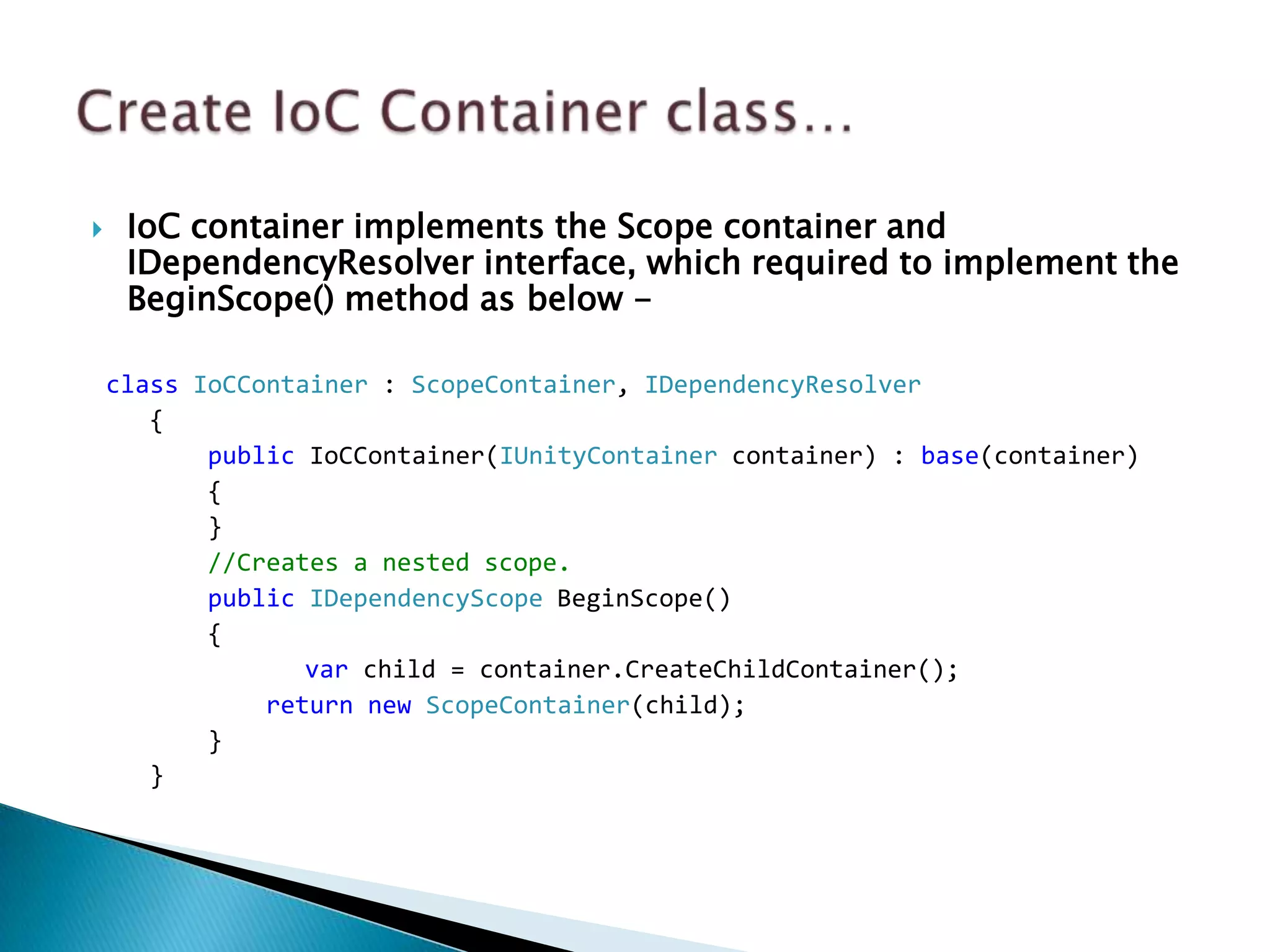

13.  IoC container implements the Scope container and
IDependencyResolver interface, which required to implement the
BeginScope() method as below -
class IoCContainer : ScopeContainer, IDependencyResolver
{
public IoCContainer(IUnityContainer container) : base(container)
{
}
//Creates a nested scope.
public IDependencyScope BeginScope()
{
var child = container.CreateChildContainer();
return new ScopeContainer(child);
}
}

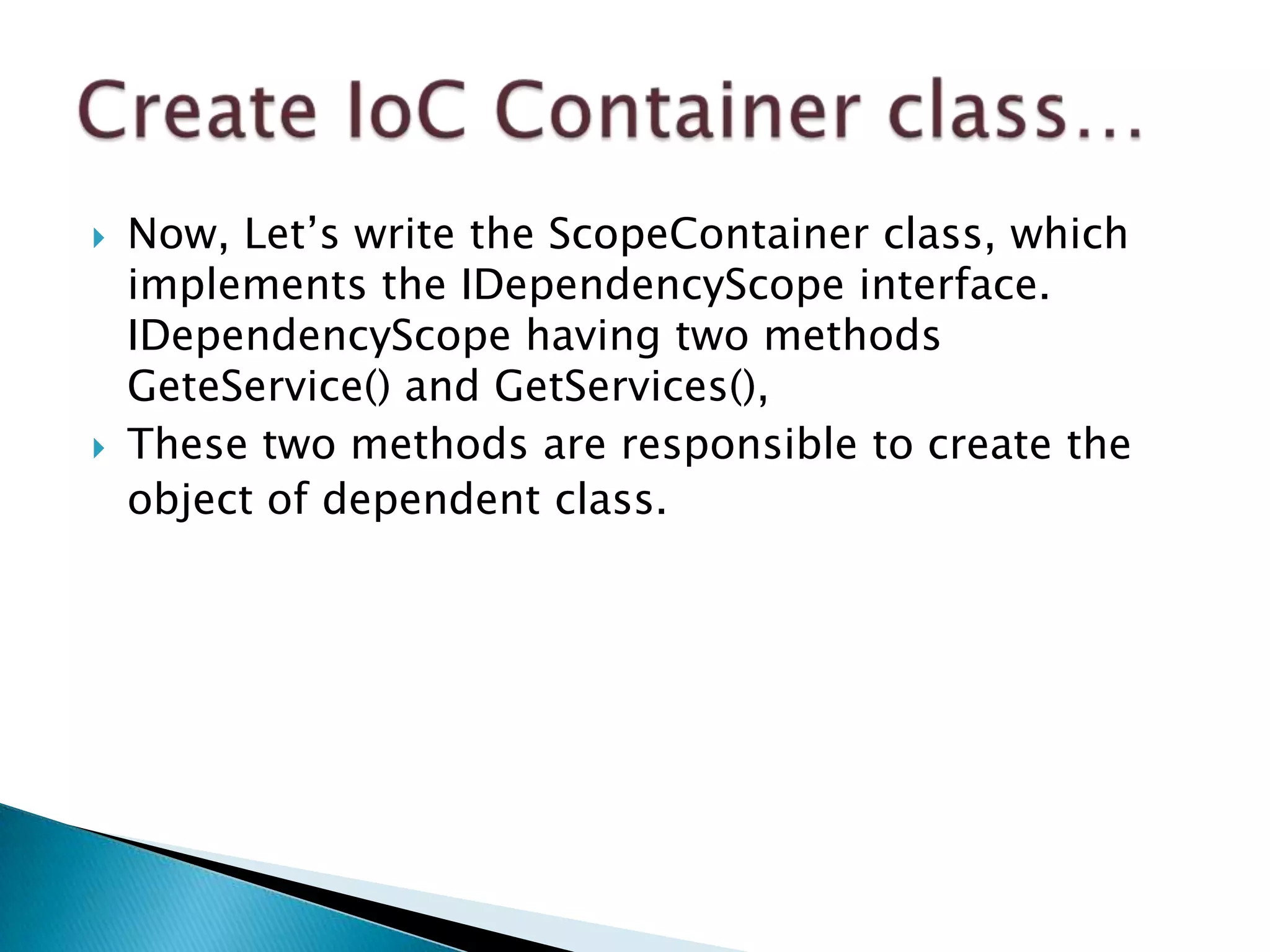

14.  Now, Let’s write the ScopeContainer class, which
implements the IDependencyScope interface.
IDependencyScope having two methods
GeteService() and GetServices(),
 These two methods are responsible to create the
object of dependent class.

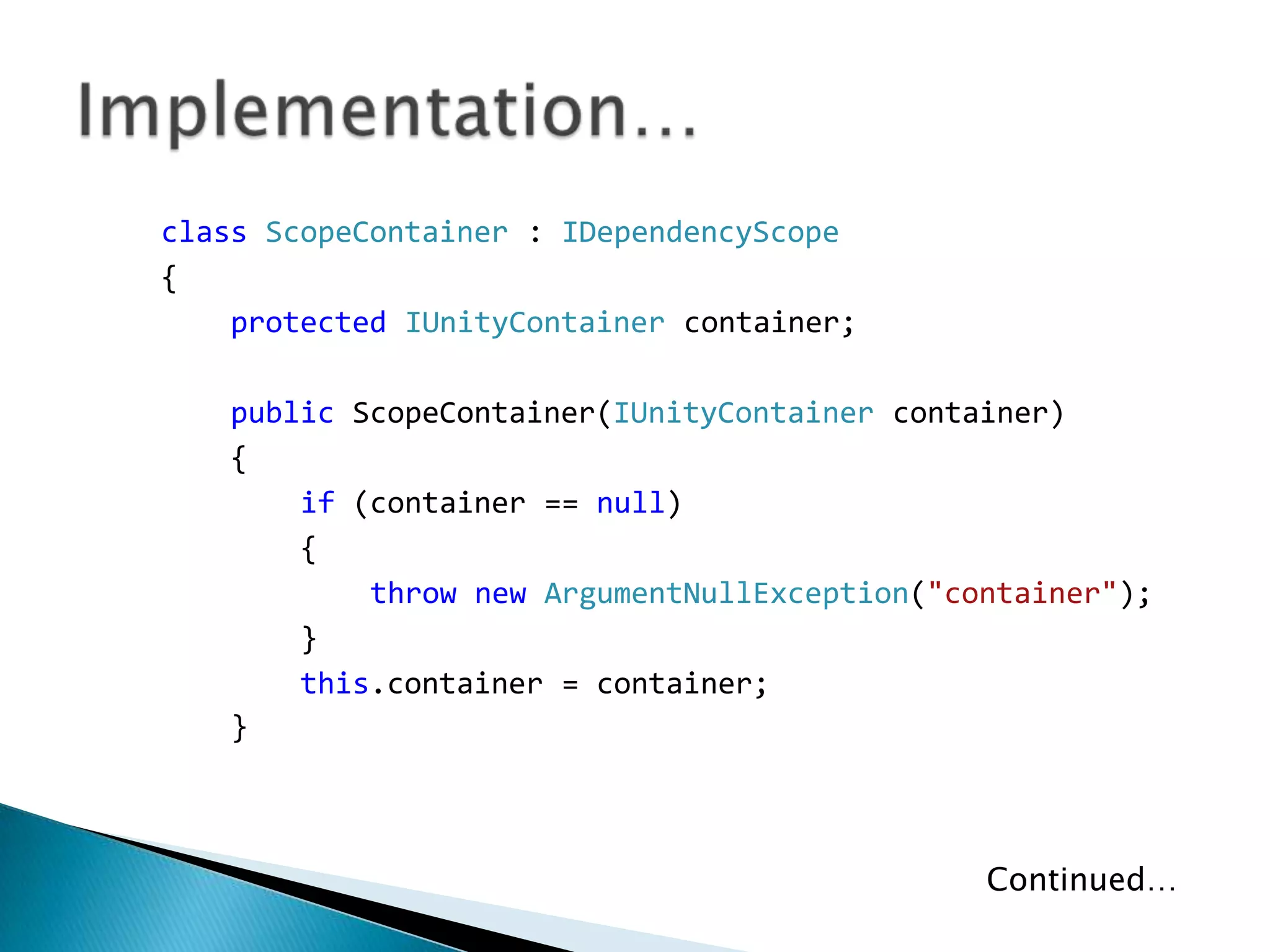

15. class ScopeContainer : IDependencyScope
{
protected IUnityContainer container;
public ScopeContainer(IUnityContainer container)
{
if (container == null)
{
throw new ArgumentNullException("container");
}
this.container = container;
}
Continued…

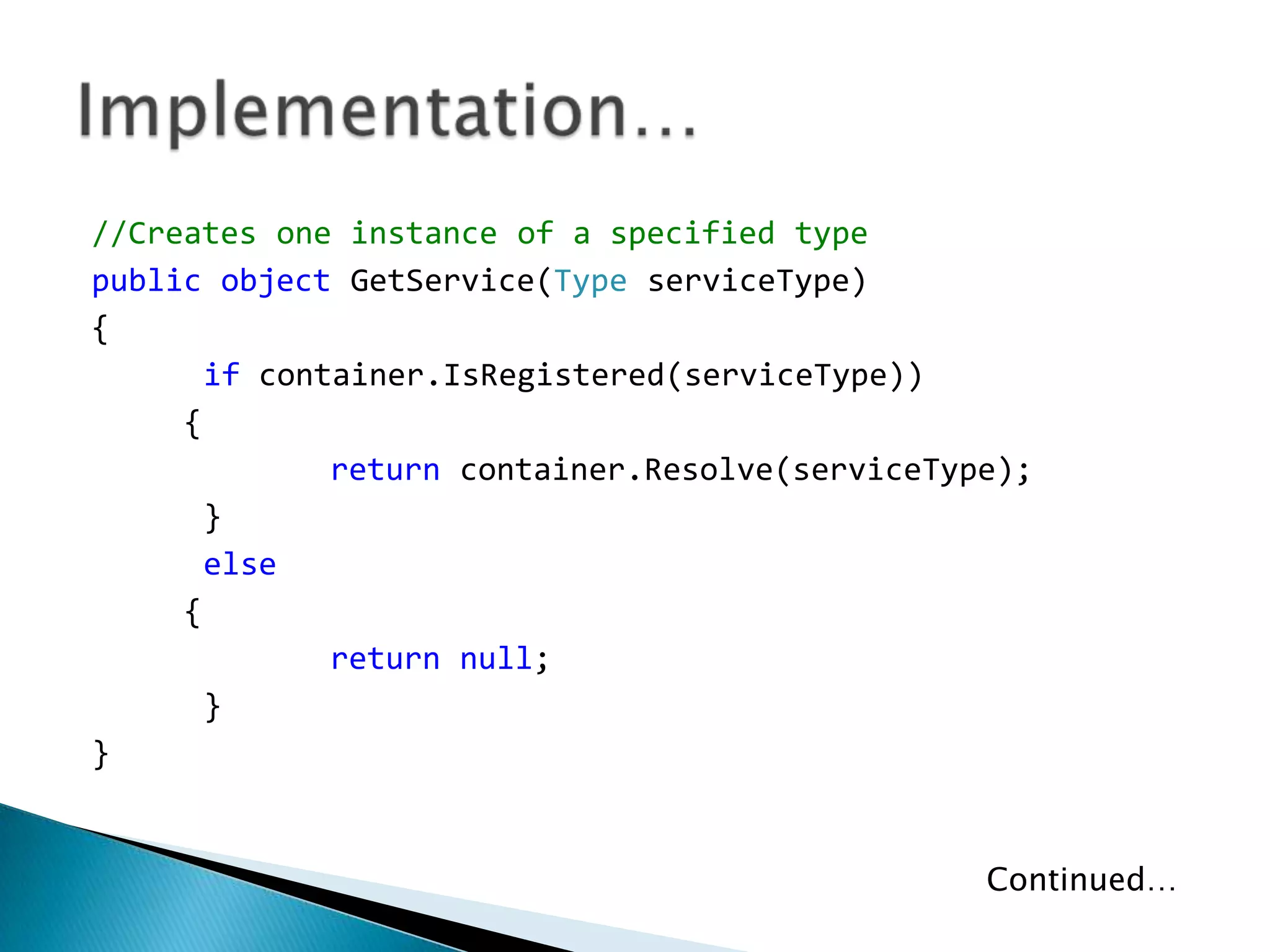

16. //Creates one instance of a specified type
public object GetService(Type serviceType)
{
if container.IsRegistered(serviceType))
{
return container.Resolve(serviceType);
}
else
{
return null;
}
}
Continued…

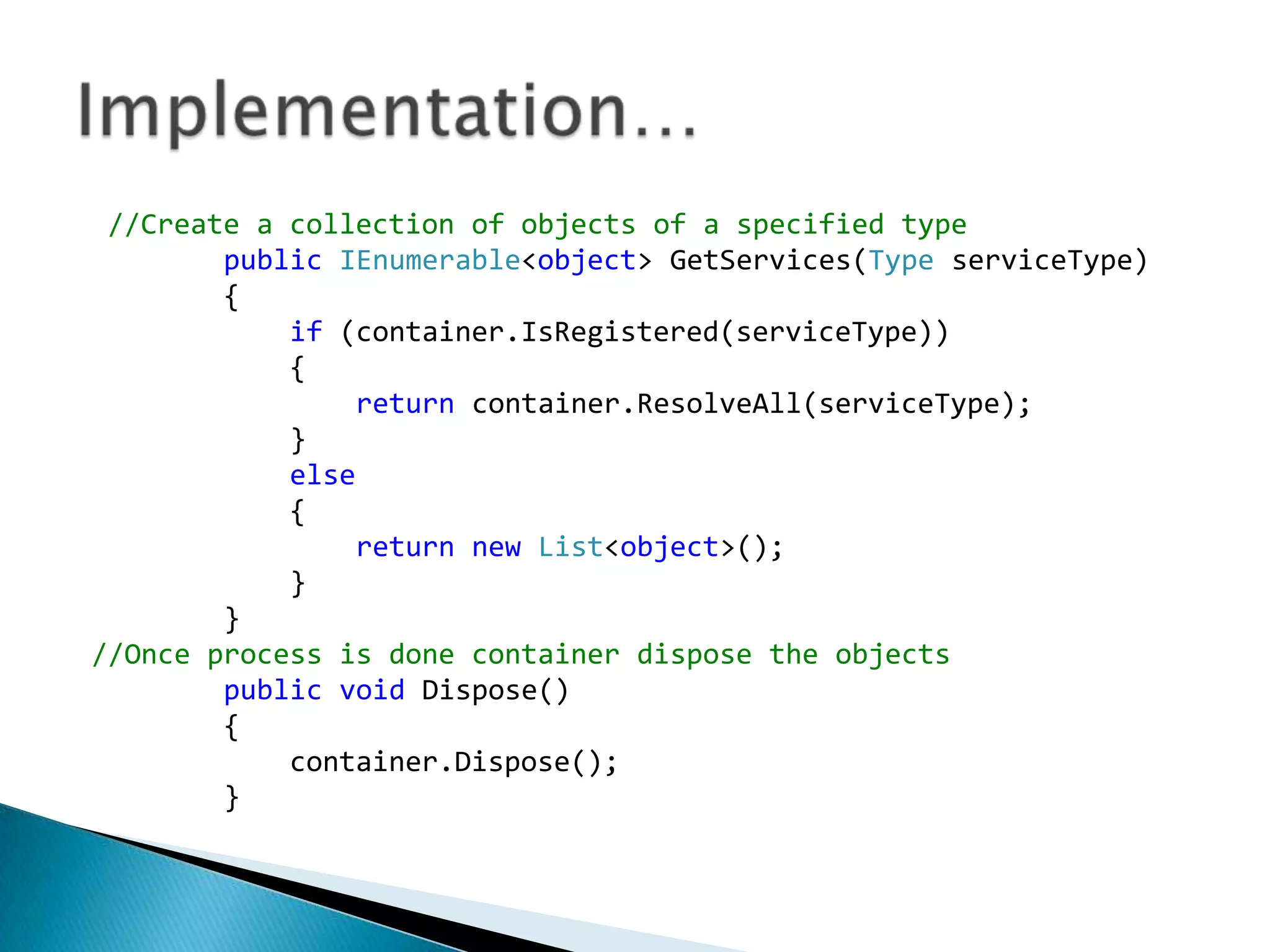

17. //Create a collection of objects of a specified type
public IEnumerable<object> GetServices(Type serviceType)
{
if (container.IsRegistered(serviceType))
{
return container.ResolveAll(serviceType);
}
else
{
return new List<object>();
}
}
//Once process is done container dispose the objects
public void Dispose()
{
container.Dispose();
}

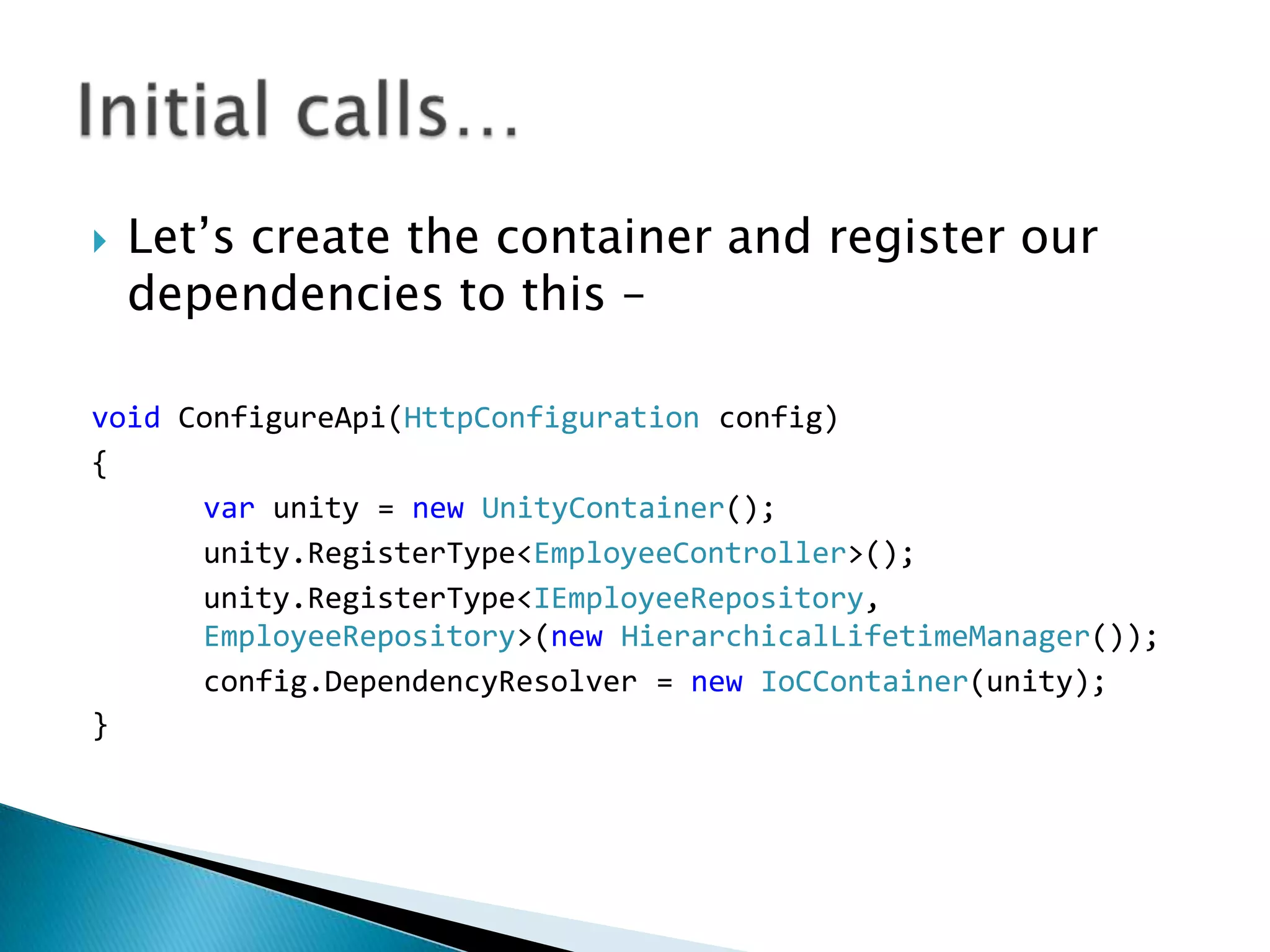

18.  Let’s create the container and register our
dependencies to this –
void ConfigureApi(HttpConfiguration config)
{
var unity = new UnityContainer();
unity.RegisterType<EmployeeController>();
unity.RegisterType<IEmployeeRepository,
EmployeeRepository>(new HierarchicalLifetimeManager());
config.DependencyResolver = new IoCContainer(unity);
}

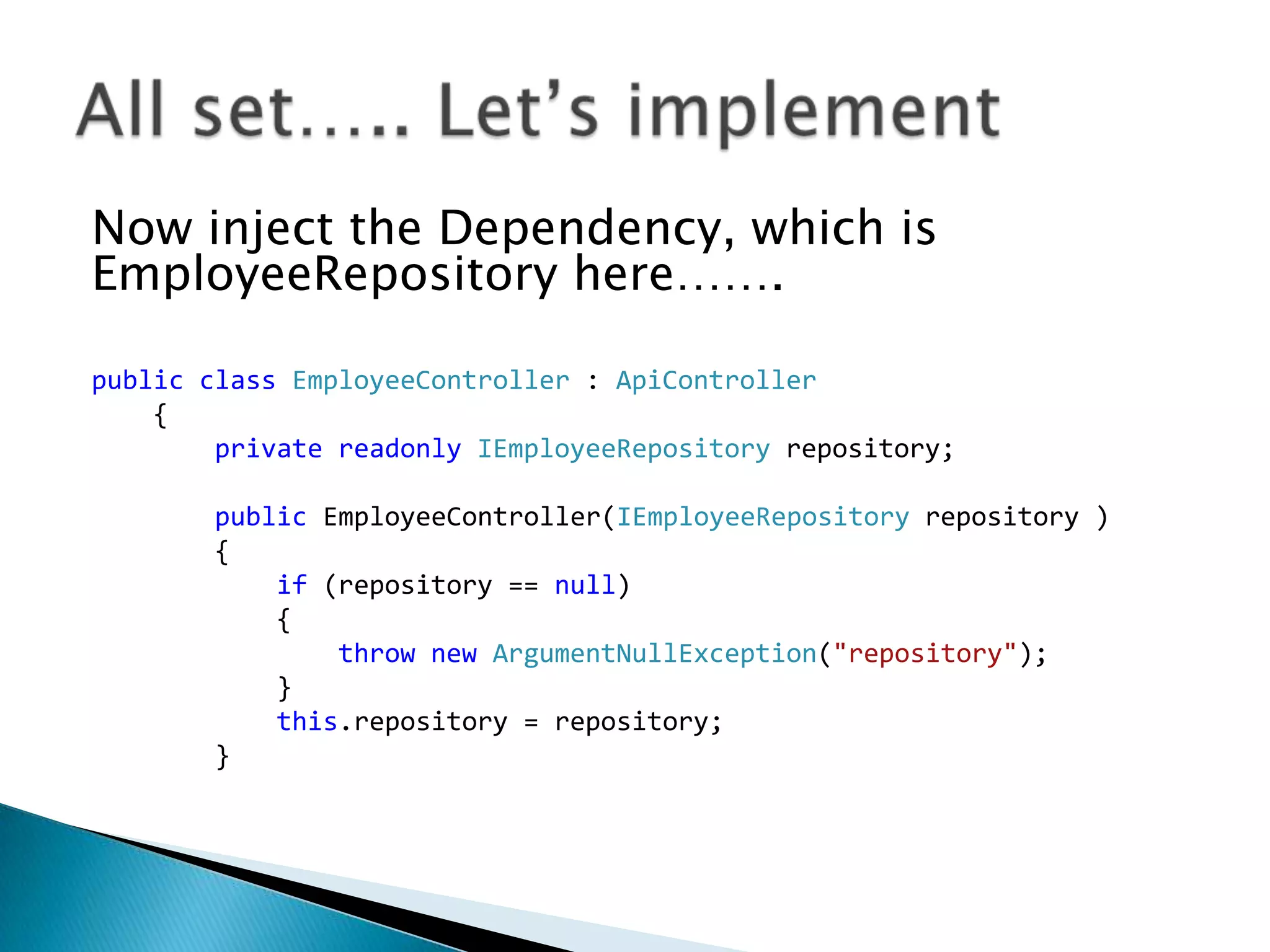

19. Now inject the Dependency, which is
EmployeeRepository here…….
public class EmployeeController : ApiController
{
private readonly IEmployeeRepository repository;
public EmployeeController(IEmployeeRepository repository )
{
if (repository == null)
{
throw new ArgumentNullException("repository");
}
this.repository = repository;
}

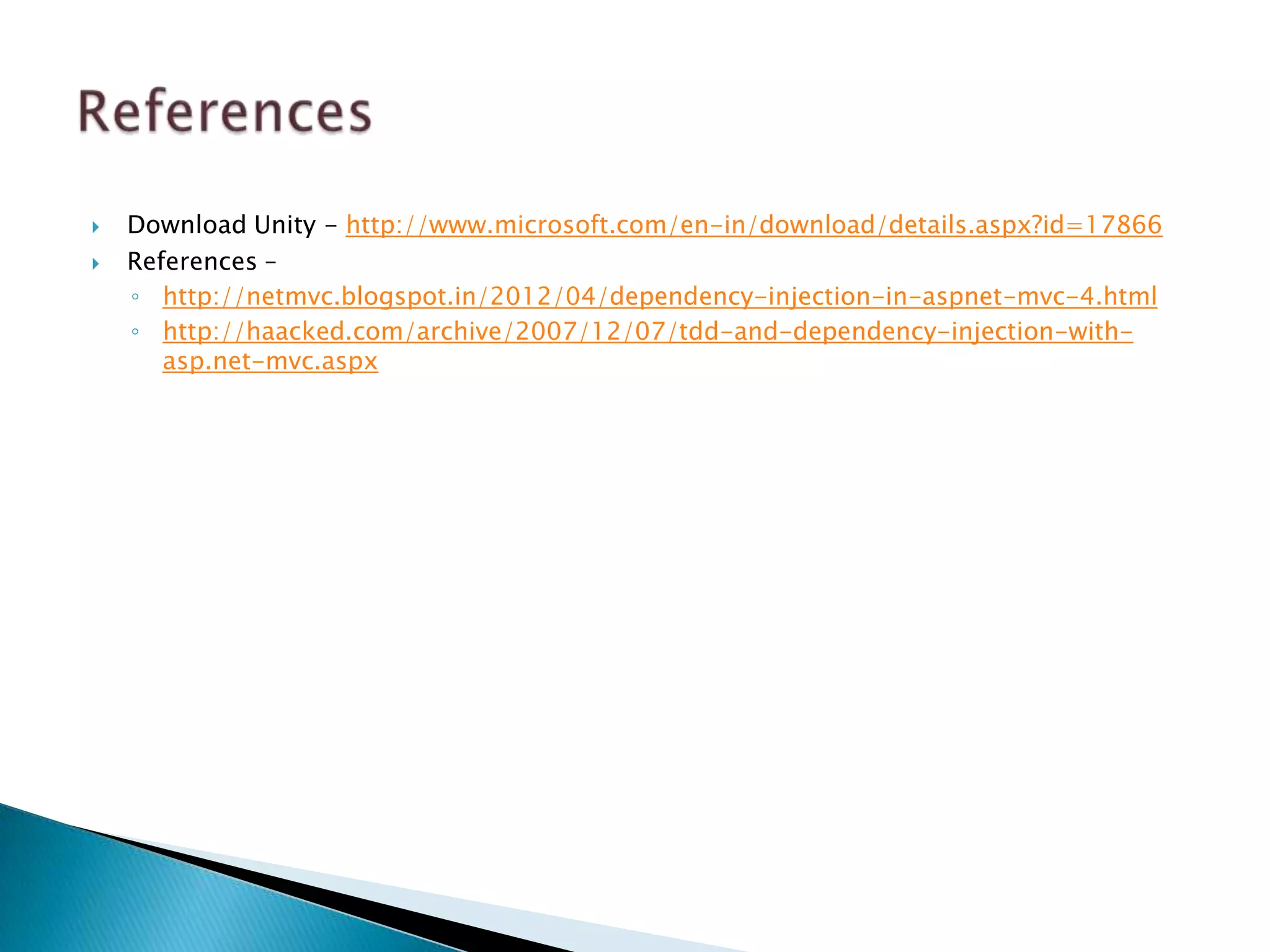

20.  Download Unity - http://www.microsoft.com/en-in/download/details.aspx?id=17866
 References –
◦ http://netmvc.blogspot.in/2012/04/dependency-injection-in-aspnet-mvc-4.html
◦ http://haacked.com/archive/2007/12/07/tdd-and-dependency-injection-with-
asp.net-mvc.aspx

21. By Dinesh Sharma
