Unleash the power of Context and Dependency Injection (CDI) in a JEE container. The slides go over the 2.0 specification and how each part of the specification can be applied. Code for this can be found on GitHub: https://github.com/bpaskin/JavaExamples/tree/master/CDI2.0Examples/src/com/ibm/example/cdi

1. Context and Dependency Injection 2.0
Brian S Paskin, Senior Application Architect, R&D Services, IBM Cloud Innovations Lab
Updated 17 January 2019
WebSphere Liberty Lunch and Learn

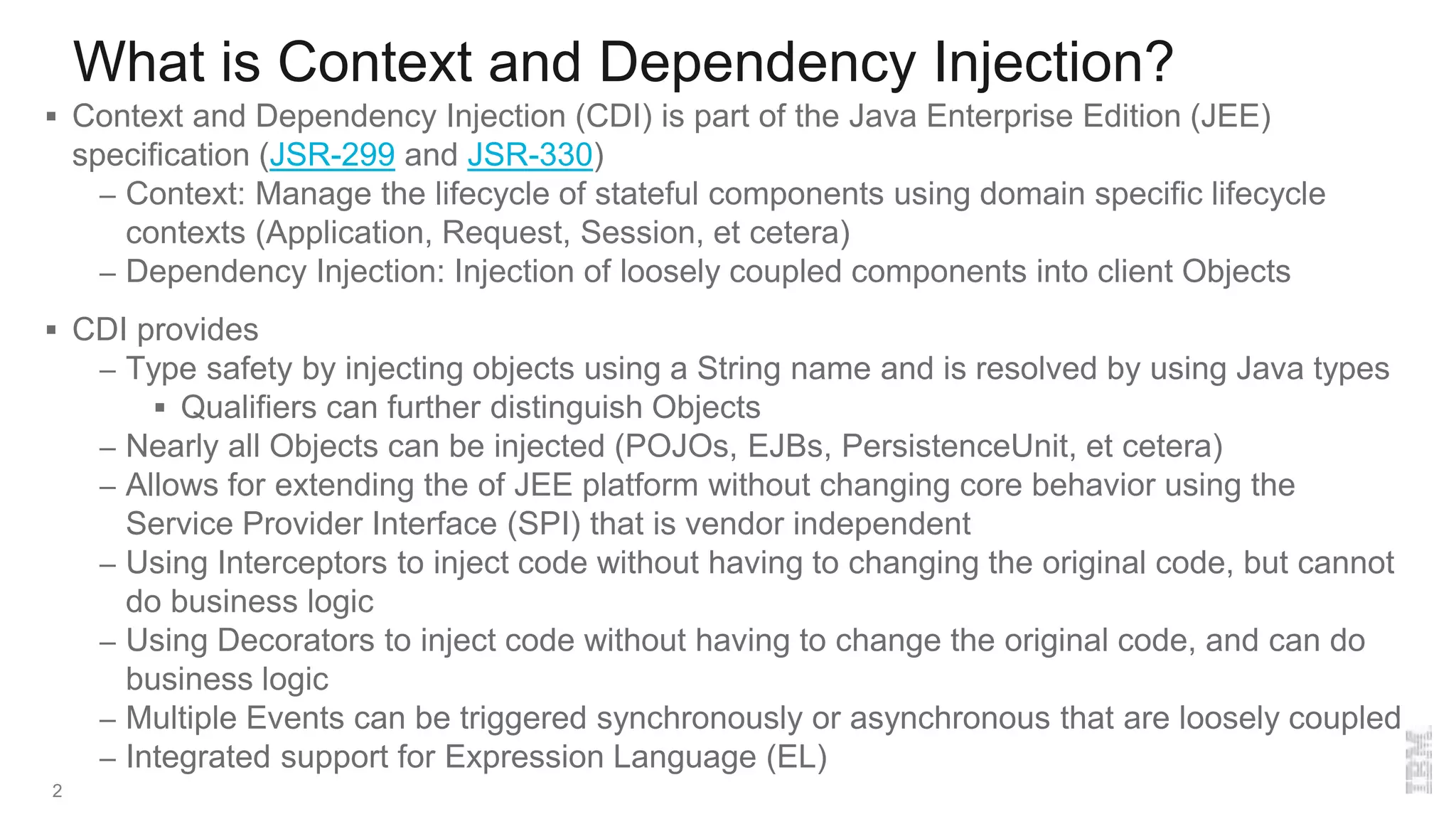

2. What is Context and Dependency Injection?
2
 Context and Dependency Injection (CDI) is part of the Java Enterprise Edition (JEE)
specification (JSR-299 and JSR-330)
– Context: Manage the lifecycle of stateful components using domain specific lifecycle
contexts (Application, Request, Session, et cetera)
– Dependency Injection: Injection of loosely coupled components into client Objects
 CDI provides
– Type safety by injecting objects using a String name and is resolved by using Java types
 Qualifiers can further distinguish Objects
– Nearly all Objects can be injected (POJOs, EJBs, PersistenceUnit, et cetera)
– Allows for extending the of JEE platform without changing core behavior using the
Service Provider Interface (SPI) that is vendor independent
– Using Interceptors to inject code without having to changing the original code, but cannot
do business logic
– Using Decorators to inject code without having to change the original code, and can do
business logic
– Multiple Events can be triggered synchronously or asynchronous that are loosely coupled
– Integrated support for Expression Language (EL)

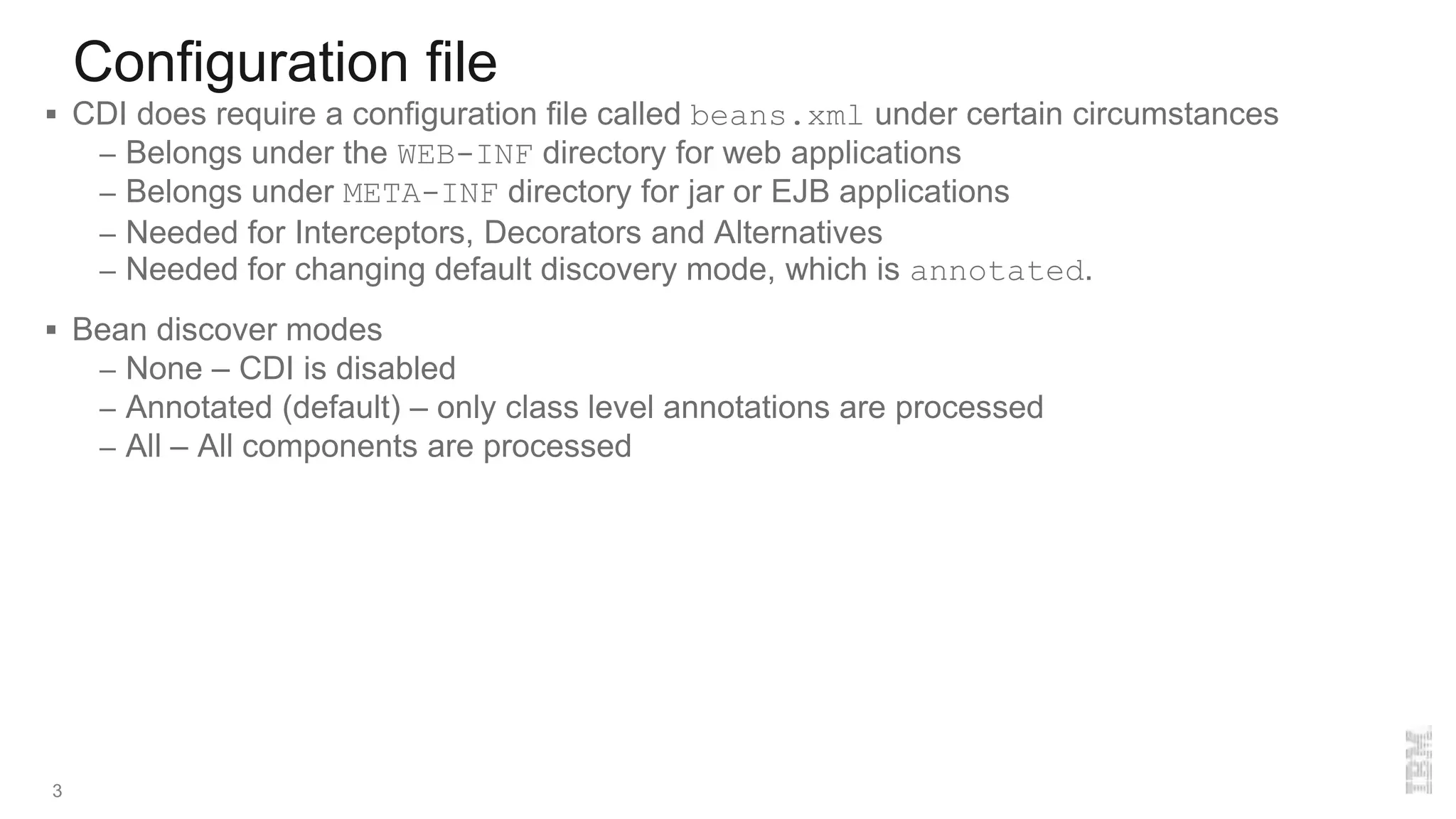

3. Configuration file
3
 CDI does require a configuration file called beans.xml under certain circumstances
– Belongs under the WEB-INF directory for web applications
– Belongs under META-INF directory for jar or EJB applications
– Needed for Interceptors, Decorators and Alternatives
– Needed for changing default discovery mode, which is annotated.
 Bean discover modes
– None – CDI is disabled
– Annotated (default) – only class level annotations are processed
– All – All components are processed

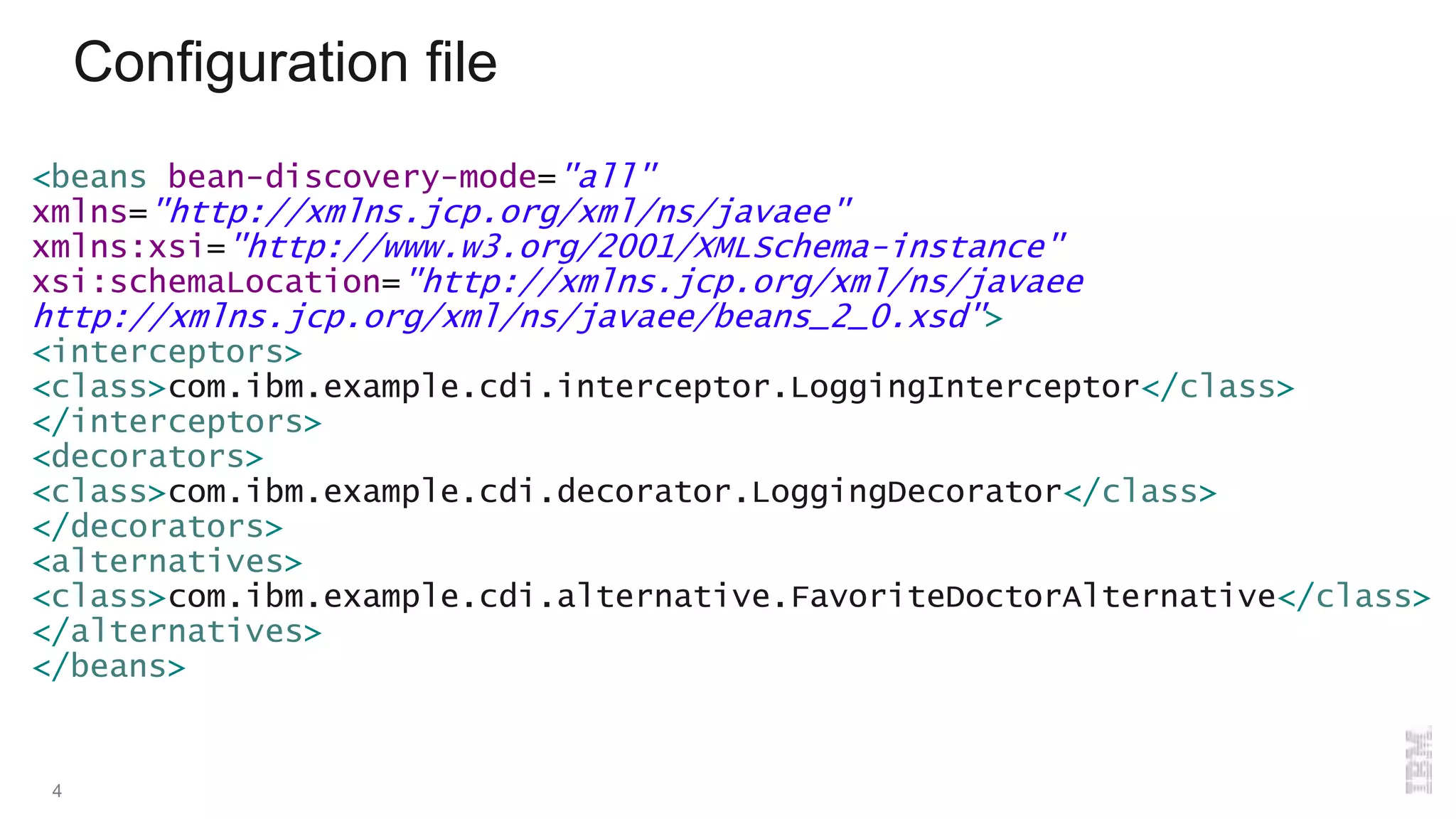

4. Configuration file
4
<beans bean-discovery-mode="all"
xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/beans_2_0.xsd">
<interceptors>
<class>com.ibm.example.cdi.interceptor.LoggingInterceptor</class>
</interceptors>
<decorators>
<class>com.ibm.example.cdi.decorator.LoggingDecorator</class>
</decorators>
<alternatives>
<class>com.ibm.example.cdi.alternative.FavoriteDoctorAlternative</class>
</alternatives>
</beans>

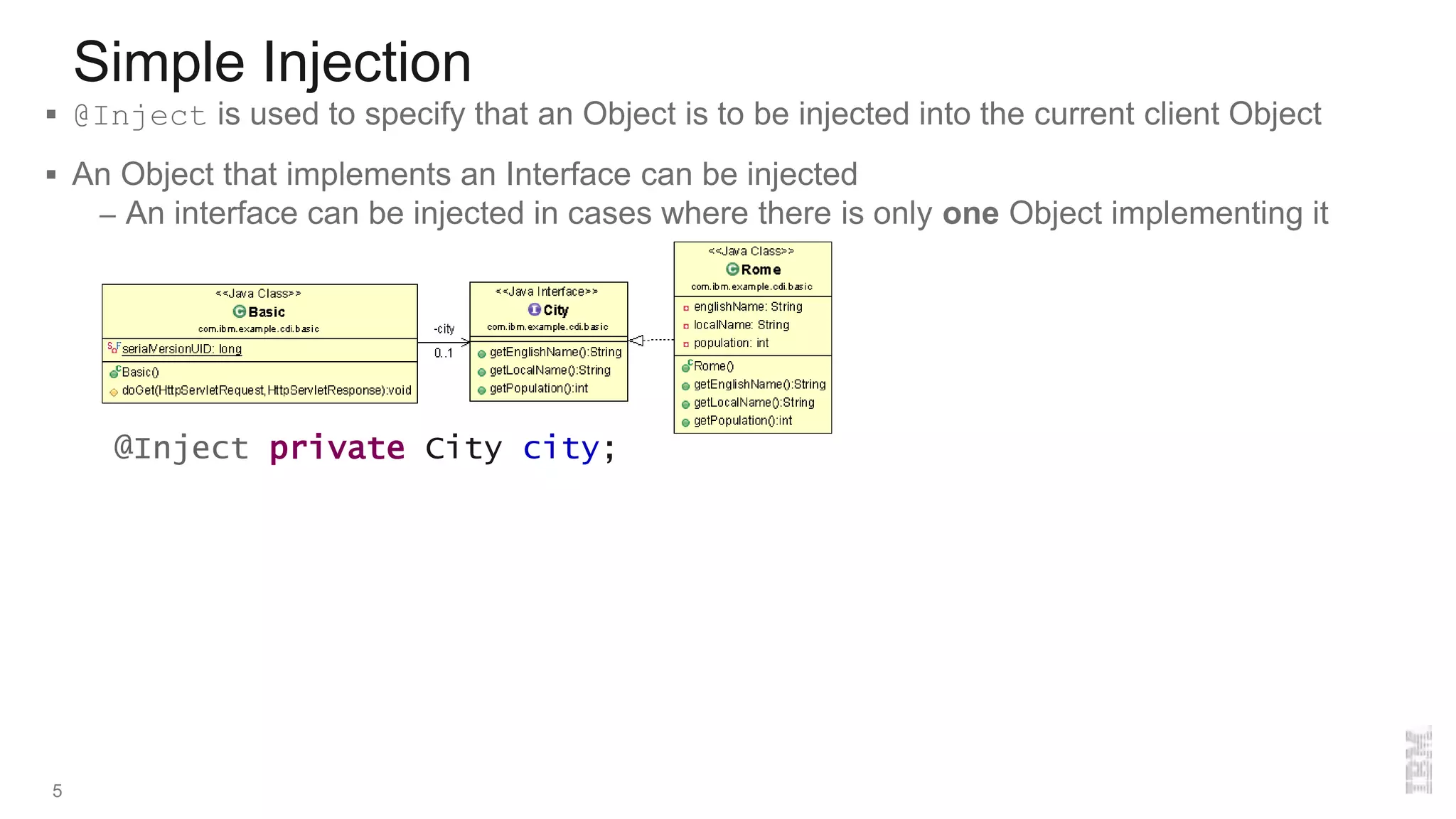

5. Simple Injection
5
 @Inject is used to specify that an Object is to be injected into the current client Object
 An Object that implements an Interface can be injected
– An interface can be injected in cases where there is only one Object implementing it
@Inject private City city;

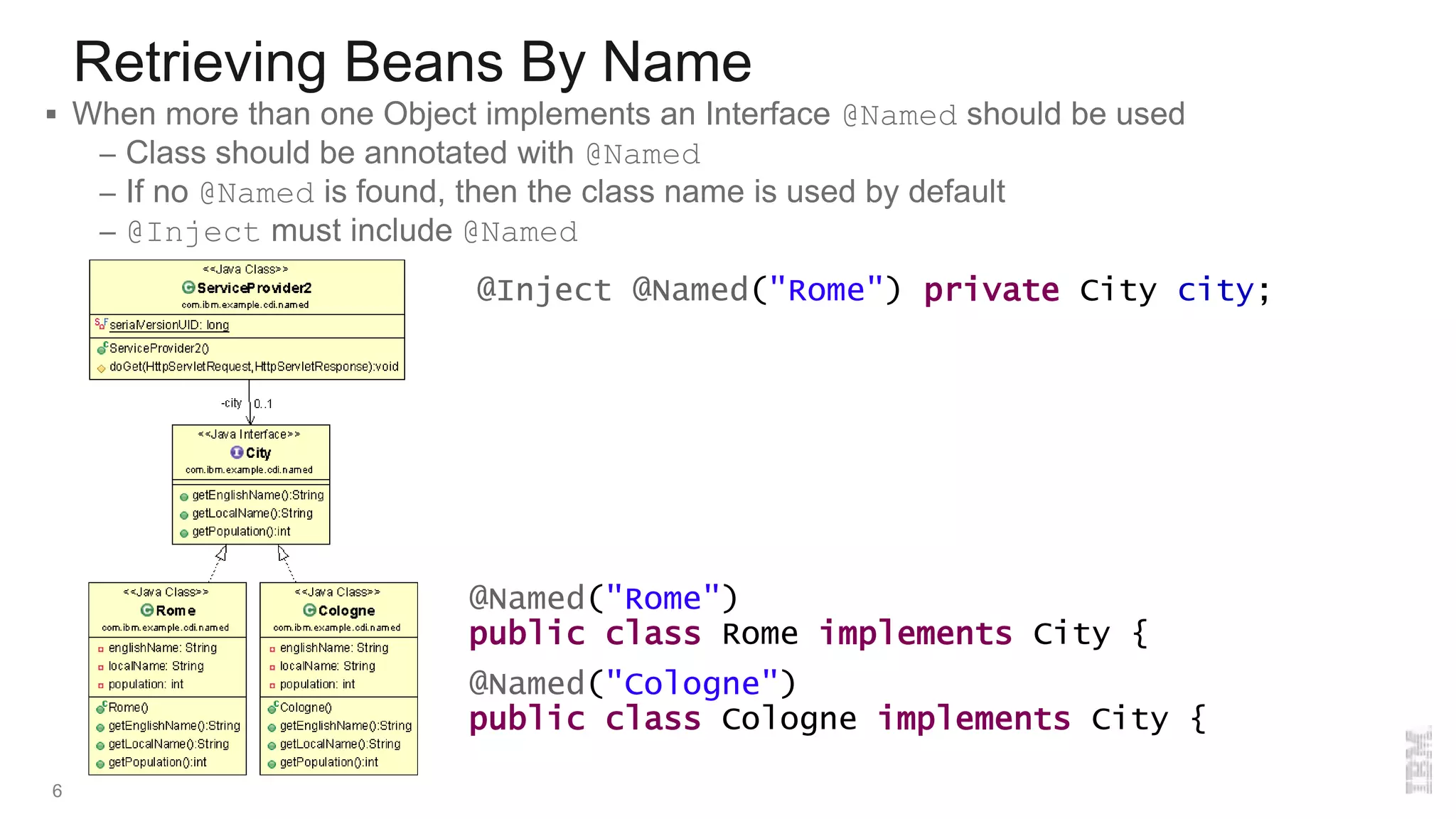

6. Retrieving Beans By Name
6
 When more than one Object implements an Interface @Named should be used
– Class should be annotated with @Named
– If no @Named is found, then the class name is used by default
– @Inject must include @Named
@Named("Rome")
public class Rome implements City {
@Named("Cologne")
public class Cologne implements City {
@Inject @Named("Rome") private City city;

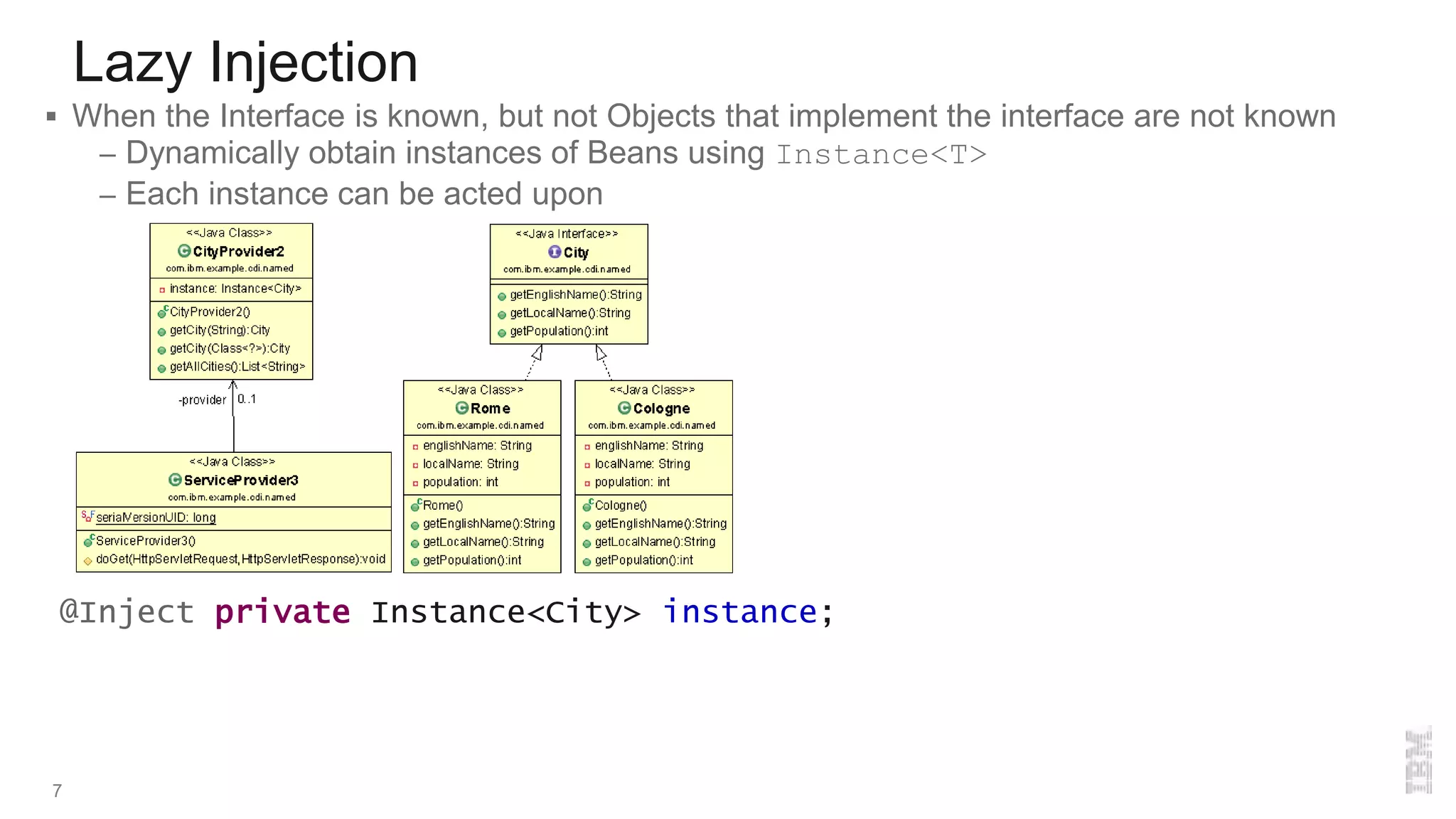

7. Lazy Injection
7
 When the Interface is known, but not Objects that implement the interface are not known
– Dynamically obtain instances of Beans using Instance<T>
– Each instance can be acted upon
@Inject private Instance<City> instance;

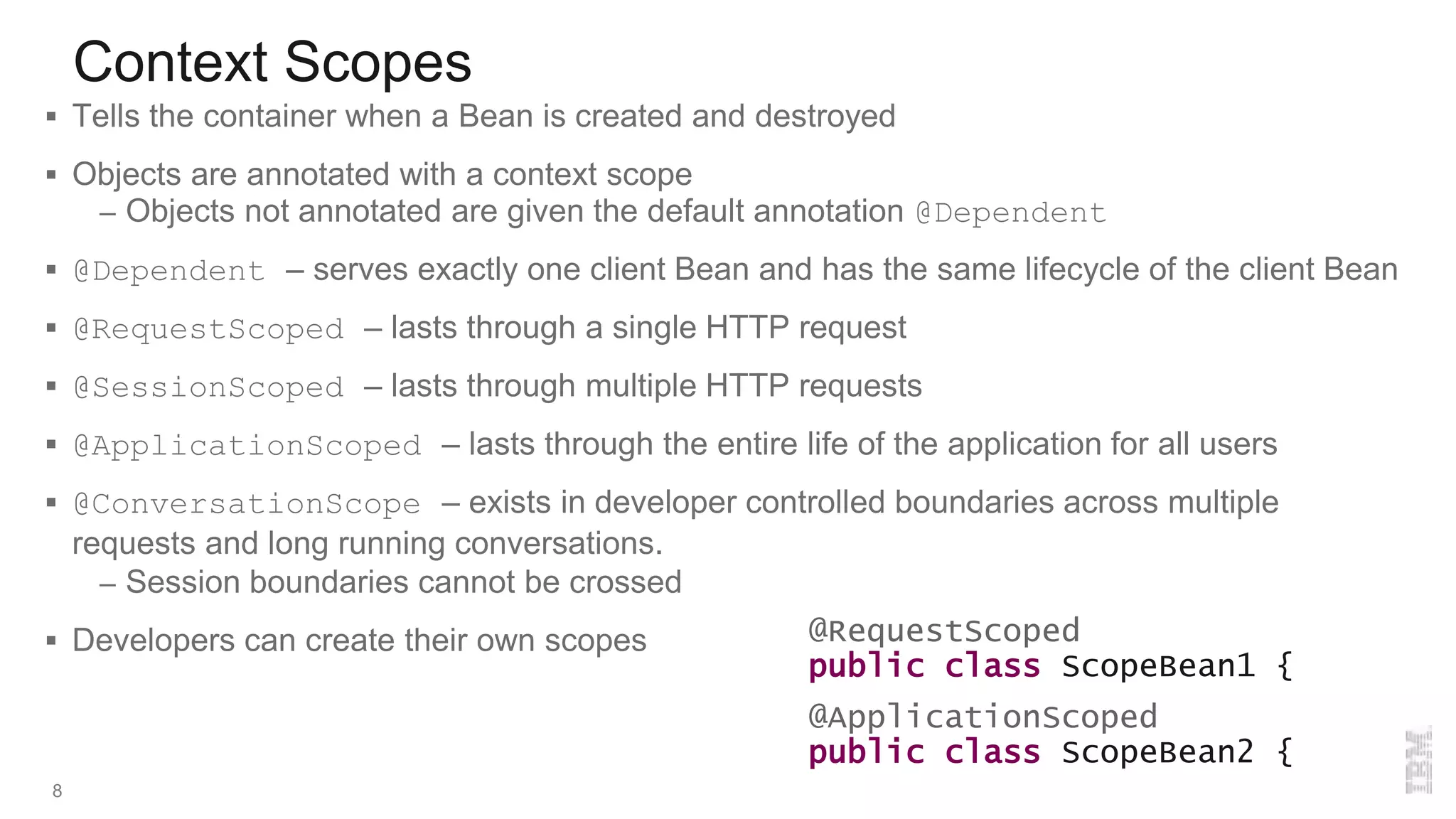

8. Context Scopes
8
 Tells the container when a Bean is created and destroyed
 Objects are annotated with a context scope
– Objects not annotated are given the default annotation @Dependent
 @Dependent – serves exactly one client Bean and has the same lifecycle of the client Bean
 @RequestScoped – lasts through a single HTTP request
 @SessionScoped – lasts through multiple HTTP requests
 @ApplicationScoped – lasts through the entire life of the application for all users
 @ConversationScope – exists in developer controlled boundaries across multiple
requests and long running conversations.
– Session boundaries cannot be crossed
 Developers can create their own scopes @RequestScoped
public class ScopeBean1 {
@ApplicationScoped
public class ScopeBean2 {

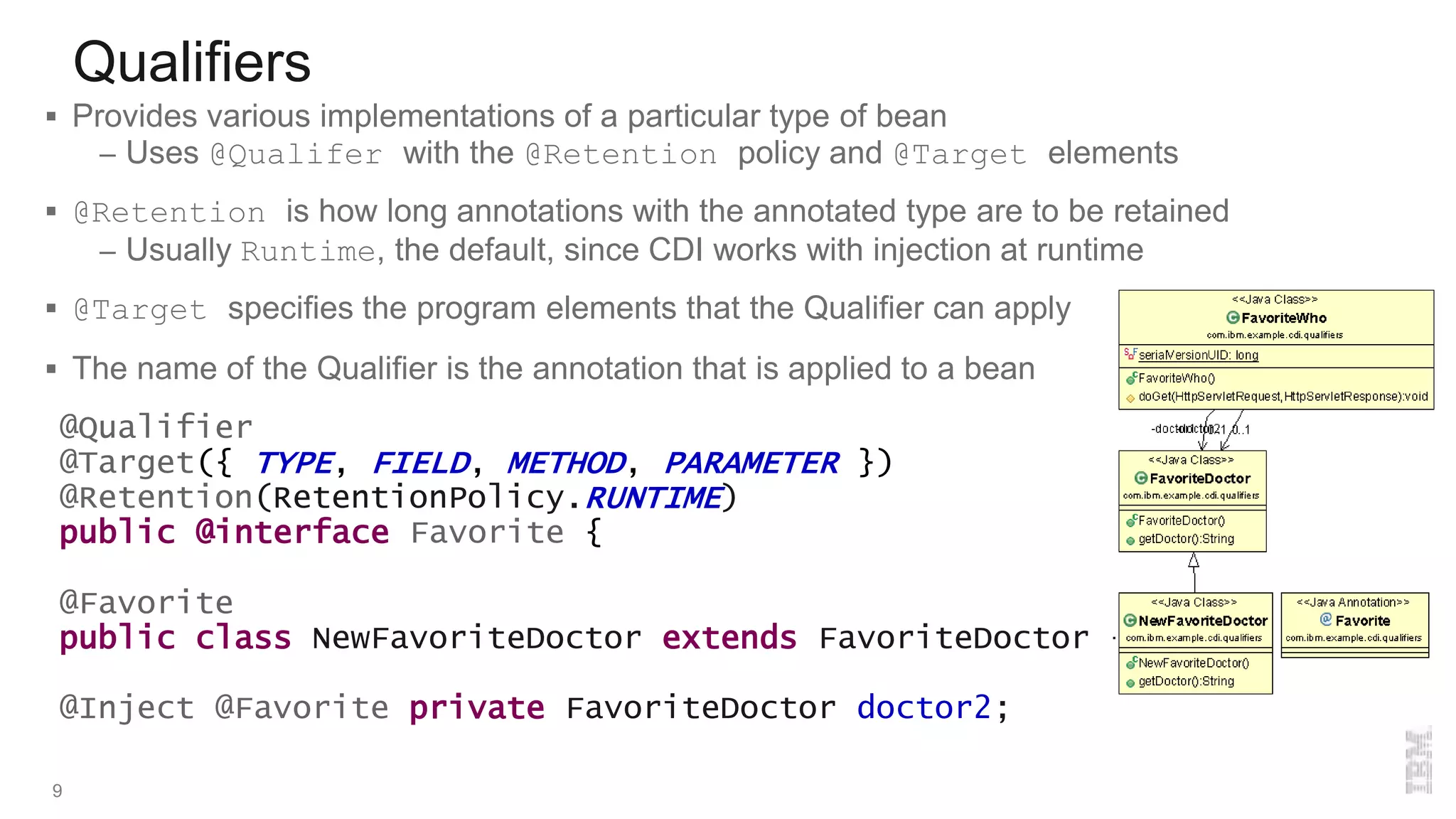

9. Qualifiers
9
 Provides various implementations of a particular type of bean
– Uses @Qualifer with the @Retention policy and @Target elements
 @Retention is how long annotations with the annotated type are to be retained
– Usually Runtime, the default, since CDI works with injection at runtime
 @Target specifies the program elements that the Qualifier can apply
 The name of the Qualifier is the annotation that is applied to a bean
@Qualifier
@Target({ TYPE, FIELD, METHOD, PARAMETER })
@Retention(RetentionPolicy.RUNTIME)
public @interface Favorite {
@Favorite
public class NewFavoriteDoctor extends FavoriteDoctor {
@Inject @Favorite private FavoriteDoctor doctor2;

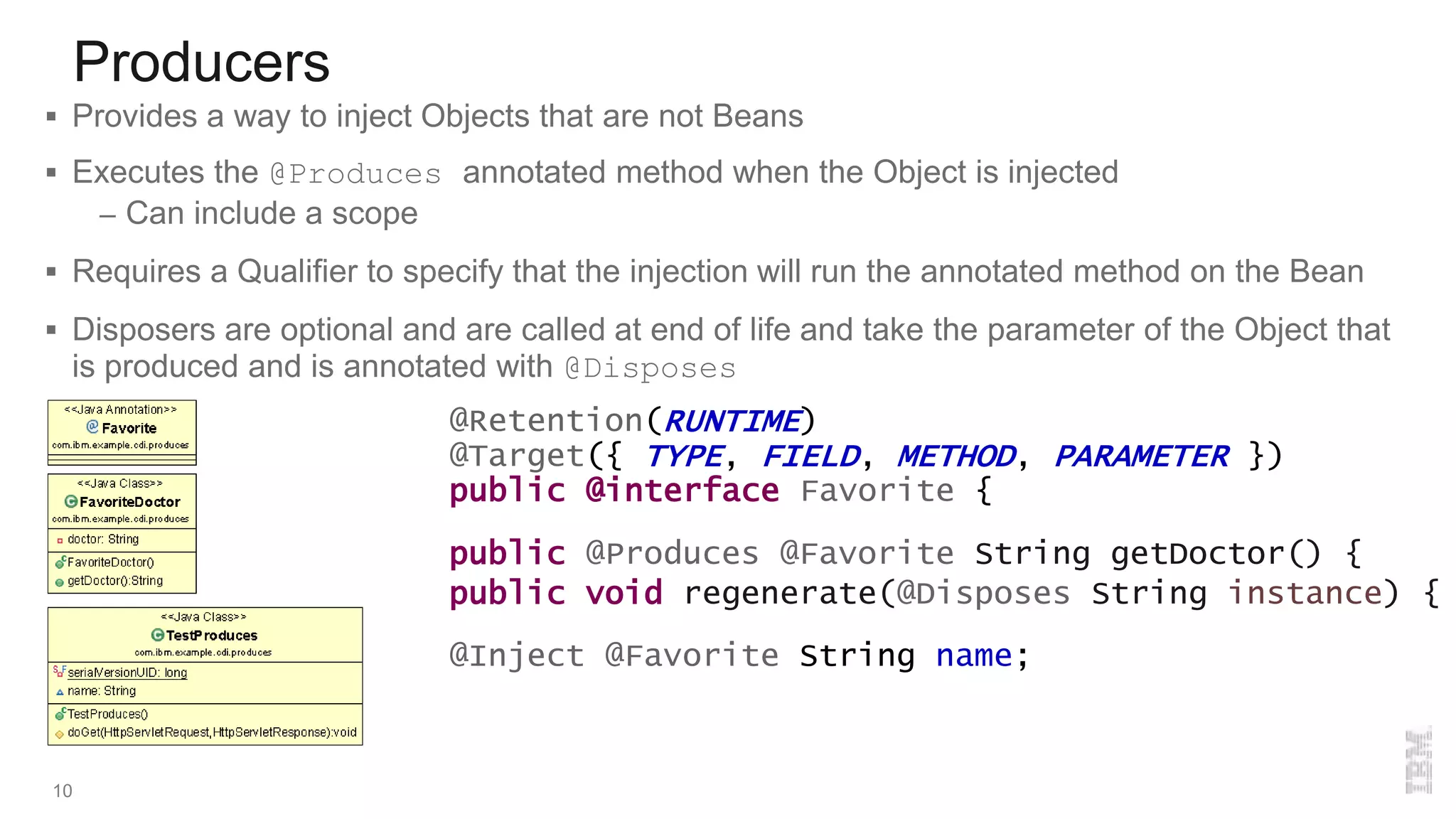

10. Producers
10
 Provides a way to inject Objects that are not Beans
 Executes the @Produces annotated method when the Object is injected
– Can include a scope
 Requires a Qualifier to specify that the injection will run the annotated method on the Bean
 Disposers are optional and are called at end of life and take the parameter of the Object that
is produced and is annotated with @Disposes
@Retention(RUNTIME)
@Target({ TYPE, FIELD, METHOD, PARAMETER })
public @interface Favorite {
public @Produces @Favorite String getDoctor() {
@Inject @Favorite String name;
public void regenerate(@Disposes String instance) {

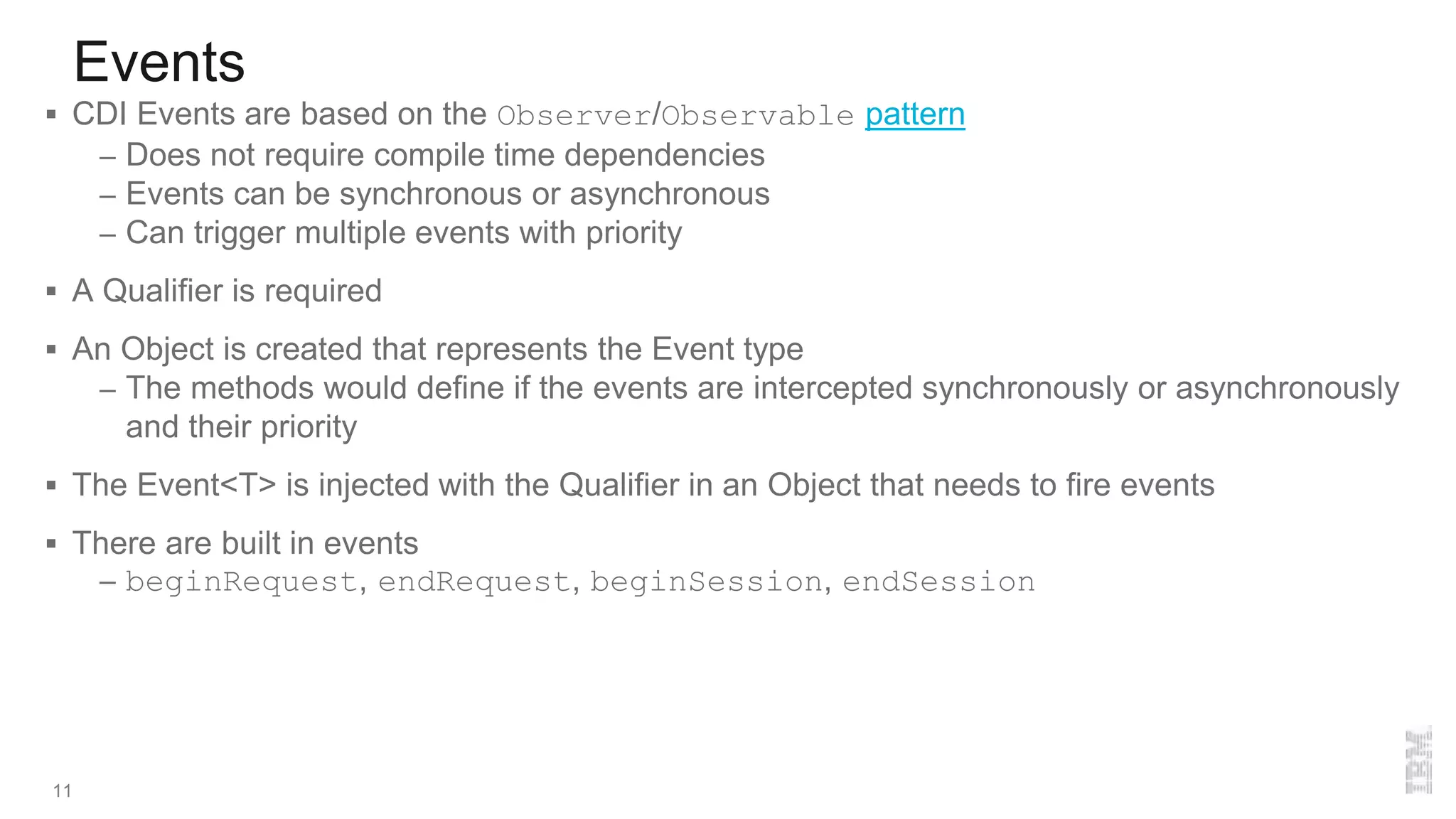

11. Events
11
 CDI Events are based on the Observer/Observable pattern
– Does not require compile time dependencies
– Events can be synchronous or asynchronous
– Can trigger multiple events with priority
 A Qualifier is required
 An Object is created that represents the Event type
– The methods would define if the events are intercepted synchronously or asynchronously
and their priority
 The Event<T> is injected with the Qualifier in an Object that needs to fire events
 There are built in events
– beginRequest, endRequest, beginSession, endSession

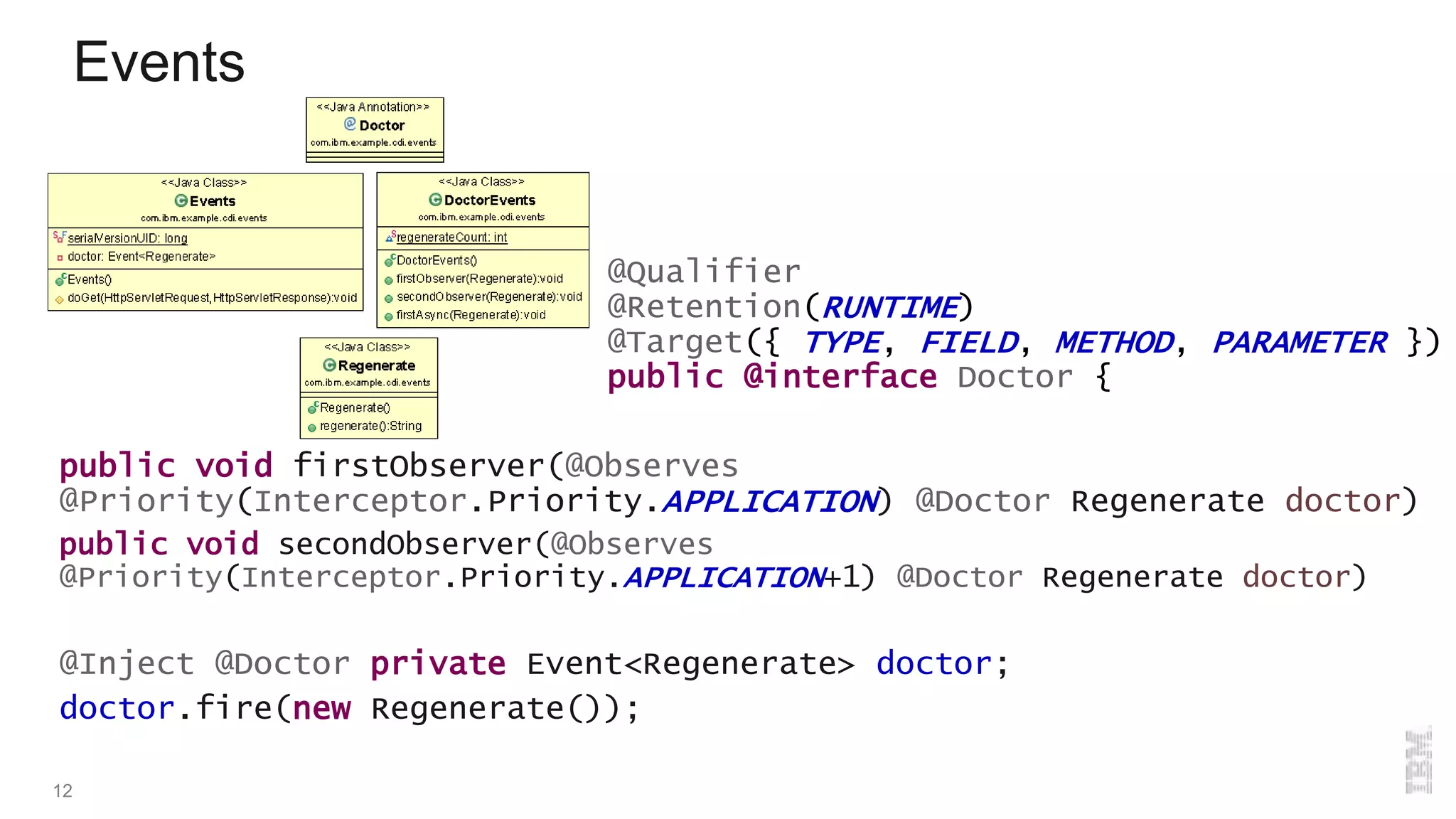

12. Events
12
@Qualifier
@Retention(RUNTIME)
@Target({ TYPE, FIELD, METHOD, PARAMETER })
public @interface Doctor {
public void firstObserver(@Observes
@Priority(Interceptor.Priority.APPLICATION) @Doctor Regenerate doctor)
public void secondObserver(@Observes
@Priority(Interceptor.Priority.APPLICATION+1) @Doctor Regenerate doctor)
@Inject @Doctor private Event<Regenerate> doctor;
doctor.fire(new Regenerate());

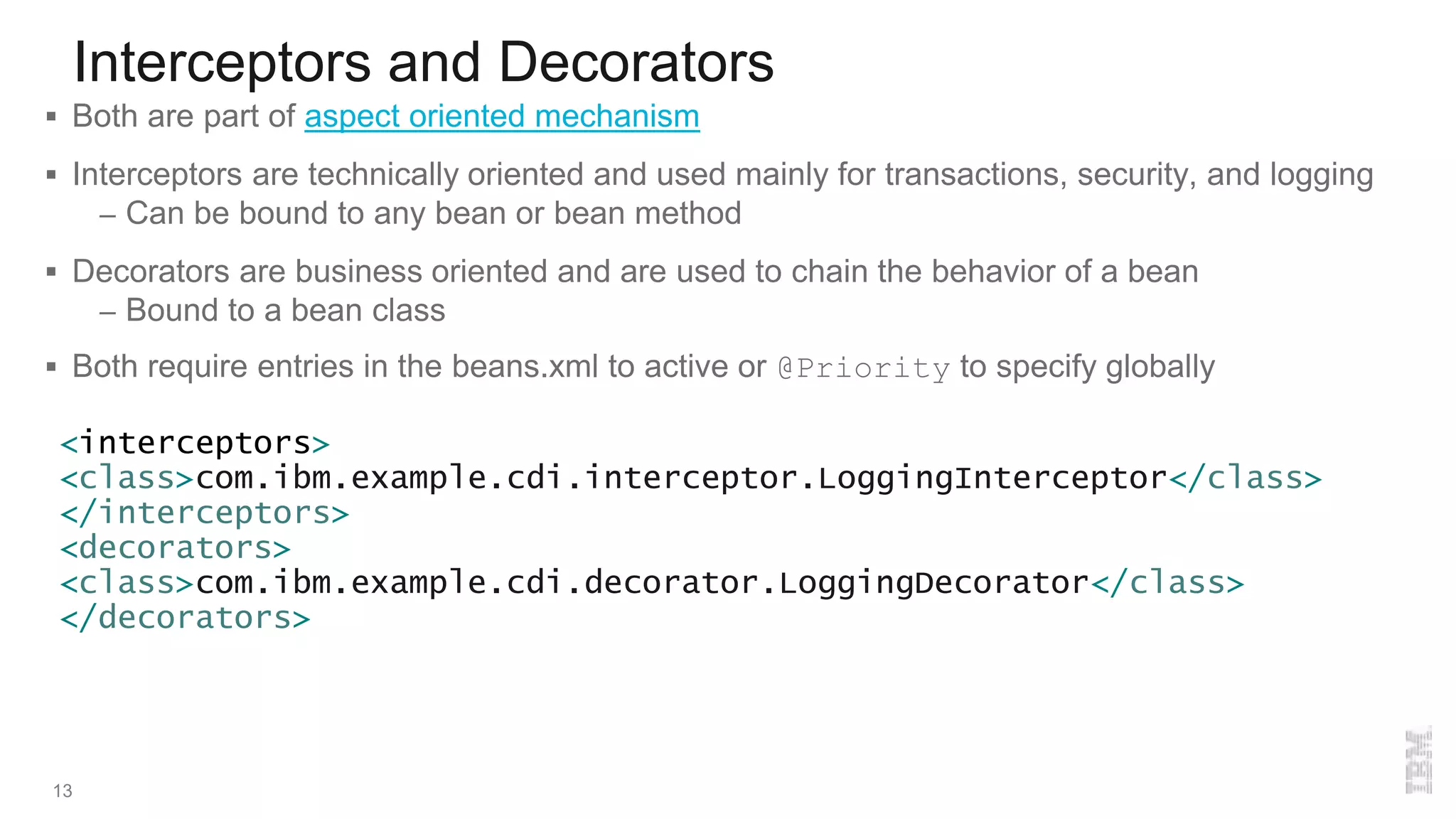

13. Interceptors and Decorators
13
 Both are part of aspect oriented mechanism
 Interceptors are technically oriented and used mainly for transactions, security, and logging
– Can be bound to any bean or bean method
 Decorators are business oriented and are used to chain the behavior of a bean
– Bound to a bean class
 Both require entries in the beans.xml to active or @Priority to specify globally
<interceptors>
<class>com.ibm.example.cdi.interceptor.LoggingInterceptor</class>
</interceptors>
<decorators>
<class>com.ibm.example.cdi.decorator.LoggingDecorator</class>
</decorators>

14. Interceptors
14
 Interceptors usually contain the annotation @AroundInvoke which specifies the method to
be run when the interceptor is invoked
 The methods @PostConstruct, @PreDestroy, @PrePassivate, and @PostActivate
to specify lifecycle callback interceptors
 The method @AroundTimeout can be used to specify an EJB timeout interceptor
 Interceptor classes can contain more than one Interceptor methods but only one of each type
 One or more Interceptor Binding Types must be defined
– Associate annotation with target bean or method
– Similar to Qualifiers but annotated with @InterceptorBinding
– Can include the annotation @Inherited to specify it can be inherited by the superclass
– May declare other Interceptor Bindings
 Interceptor classes are annotated with @Interceptor and the Interceptor Binding
 @AroundInvoke takes an InovationContext parameter and can throw an Exception

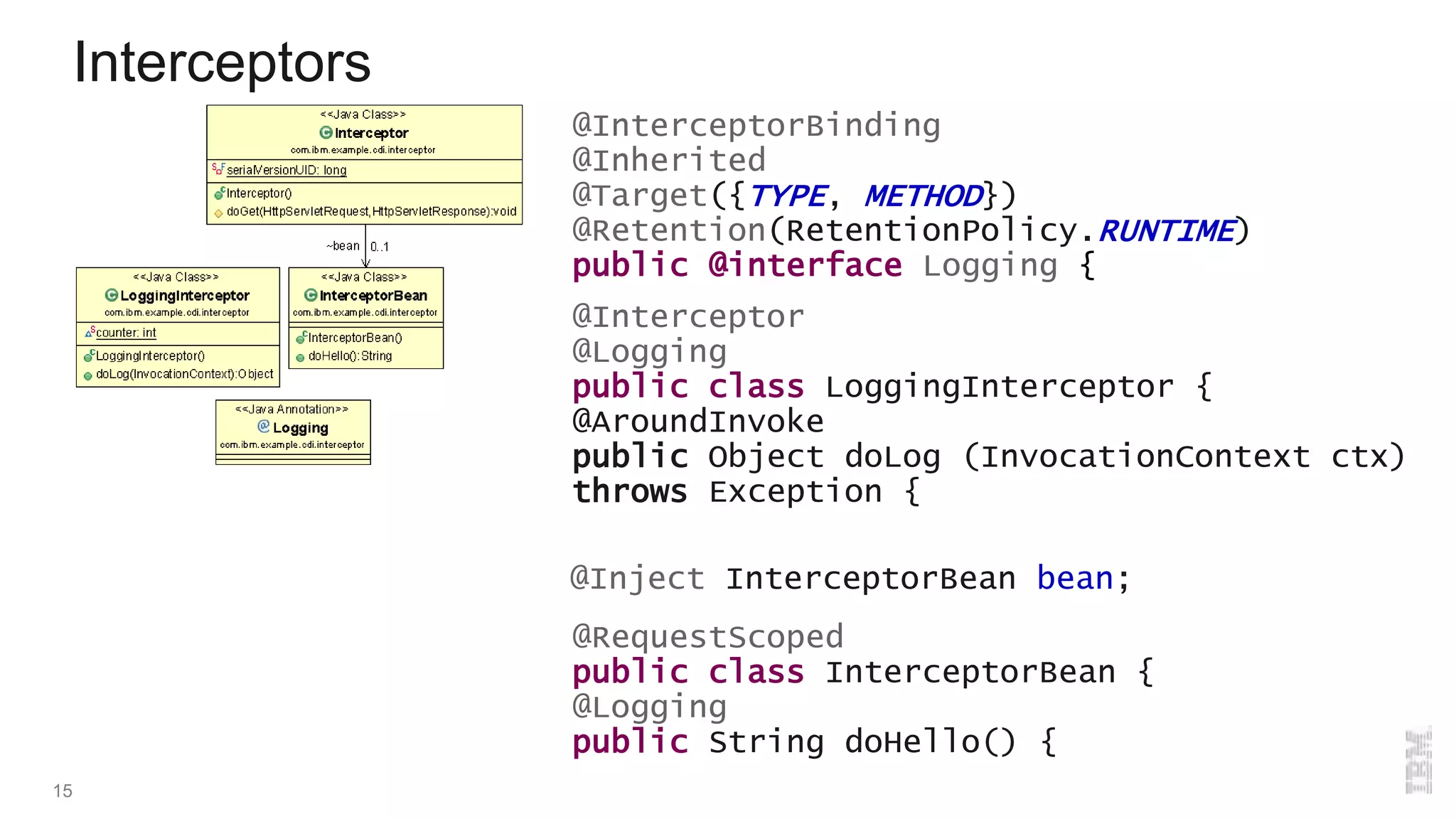

15. Interceptors
15
@InterceptorBinding
@Inherited
@Target({TYPE, METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface Logging {
@Interceptor
@Logging
public class LoggingInterceptor {
@AroundInvoke
public Object doLog (InvocationContext ctx)
throws Exception {
@RequestScoped
public class InterceptorBean {
@Logging
public String doHello() {
@Inject InterceptorBean bean;

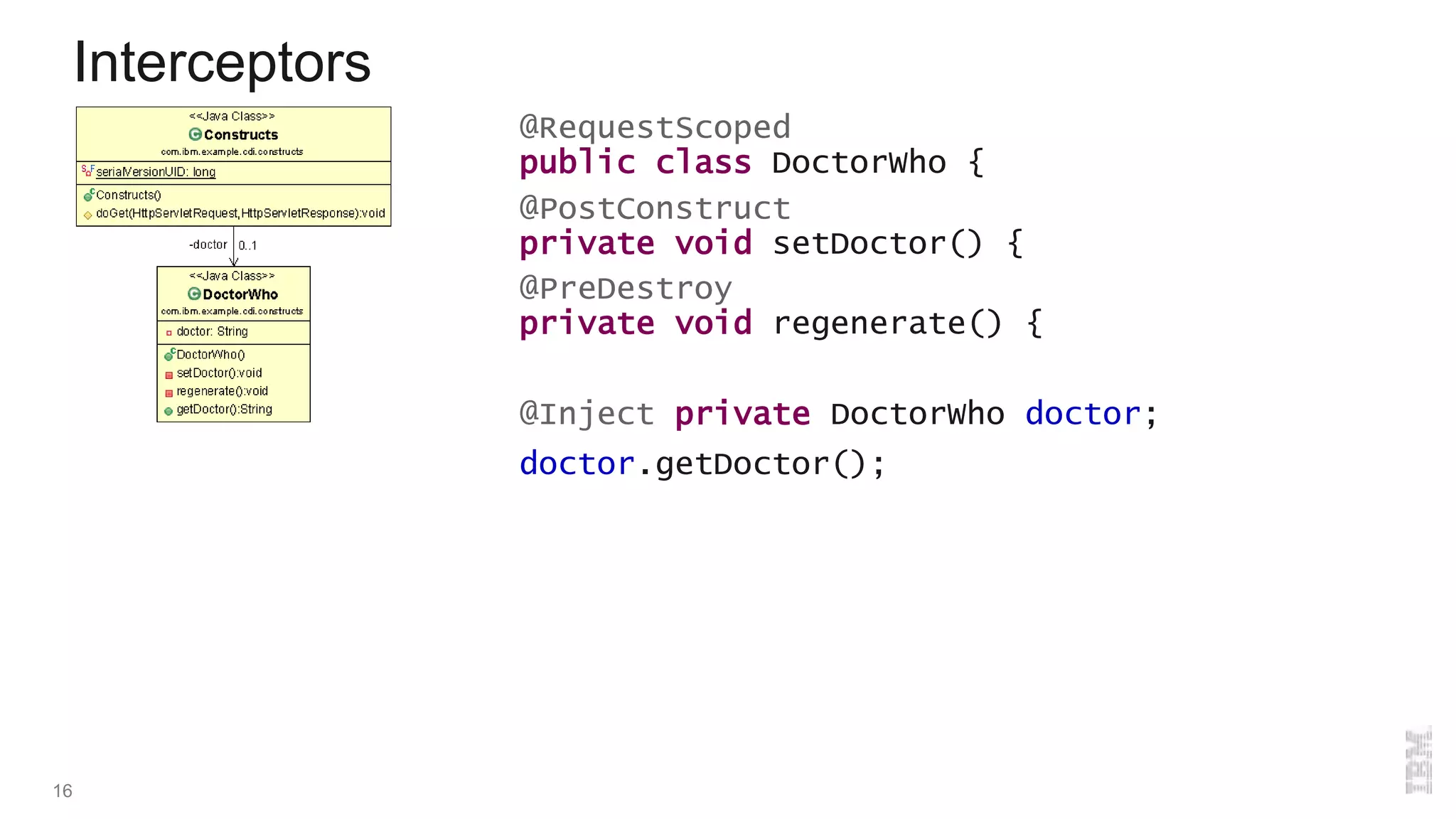

16. Interceptors
16
@RequestScoped
public class DoctorWho {
@PostConstruct
private void setDoctor() {
@PreDestroy
private void regenerate() {
@Inject private DoctorWho doctor;
doctor.getDoctor();

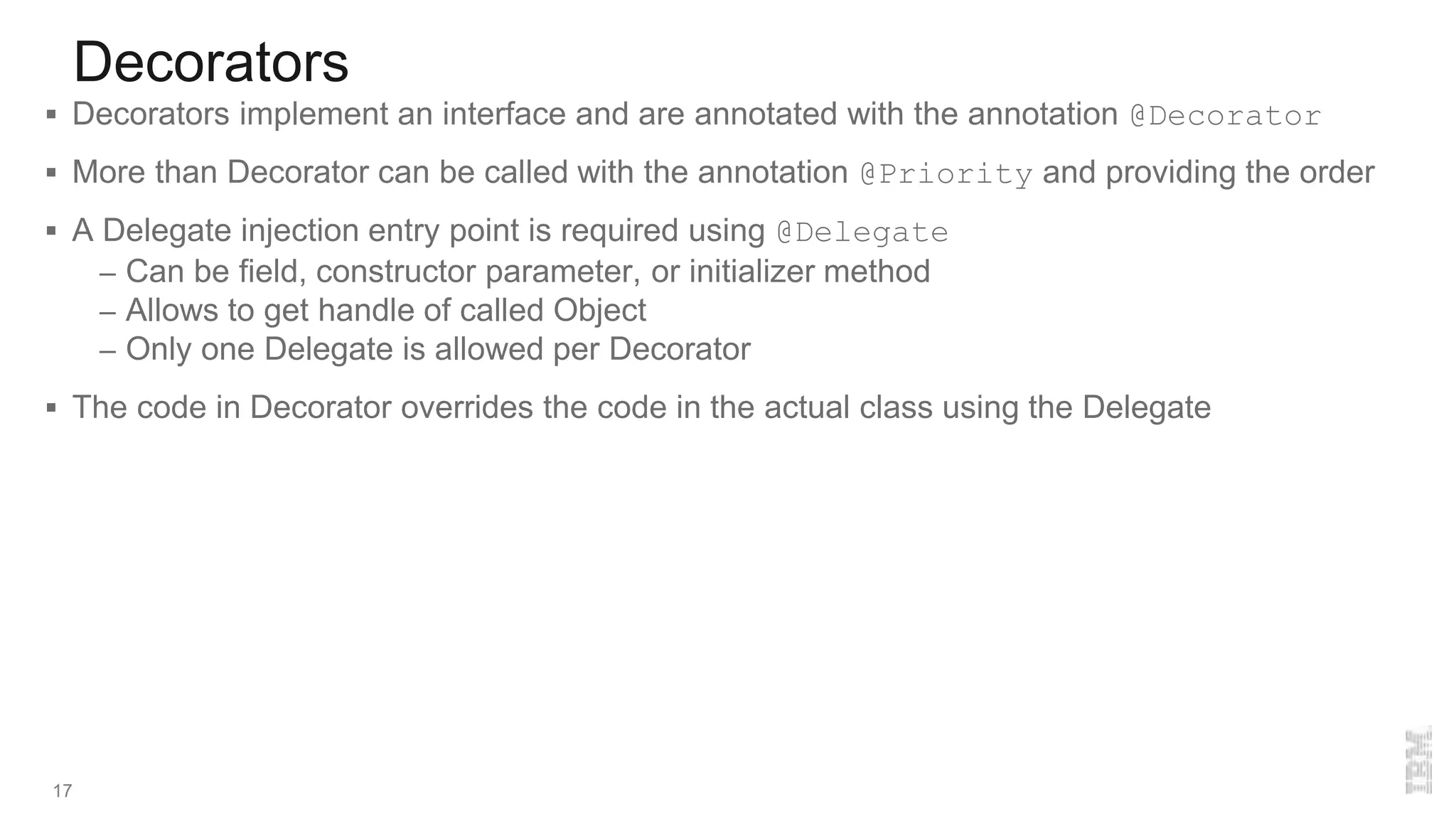

17. Decorators
17
 Decorators implement an interface and are annotated with the annotation @Decorator
 More than Decorator can be called with the annotation @Priority and providing the order
 A Delegate injection entry point is required using @Delegate
– Can be field, constructor parameter, or initializer method
– Allows to get handle of called Object
– Only one Delegate is allowed per Decorator
 The code in Decorator overrides the code in the actual class using the Delegate

18. Decorators
18
public interface Logging {
public class LoggingEntry implements Logging {
@Decorator
public class LoggingDecorator implements Logging {
@Inject @Delegate @Any
private Logging logging;
@Inject private LoggingEntry entry;

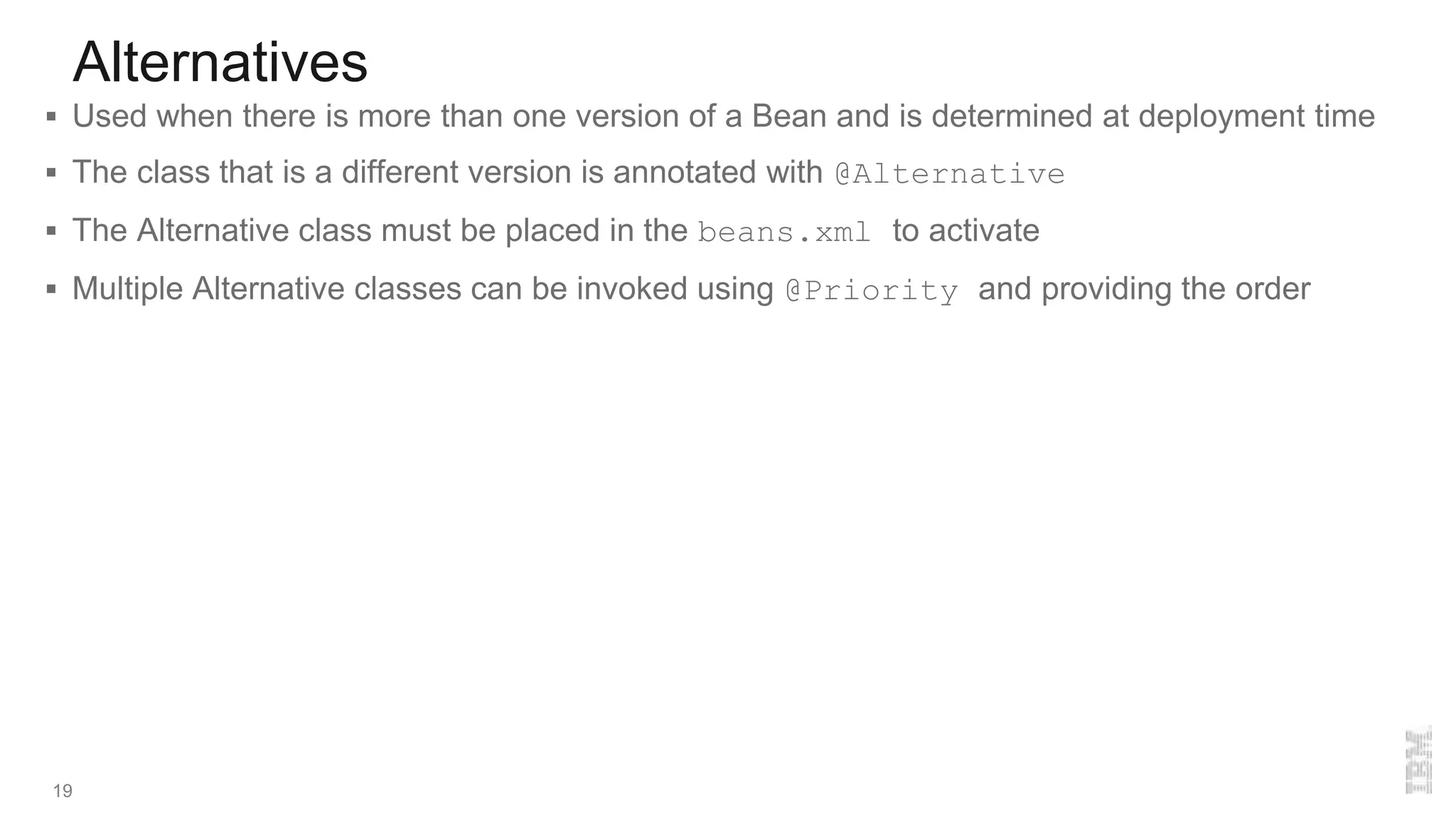

19. Alternatives
19
 Used when there is more than one version of a Bean and is determined at deployment time
 The class that is a different version is annotated with @Alternative
 The Alternative class must be placed in the beans.xml to activate
 Multiple Alternative classes can be invoked using @Priority and providing the order

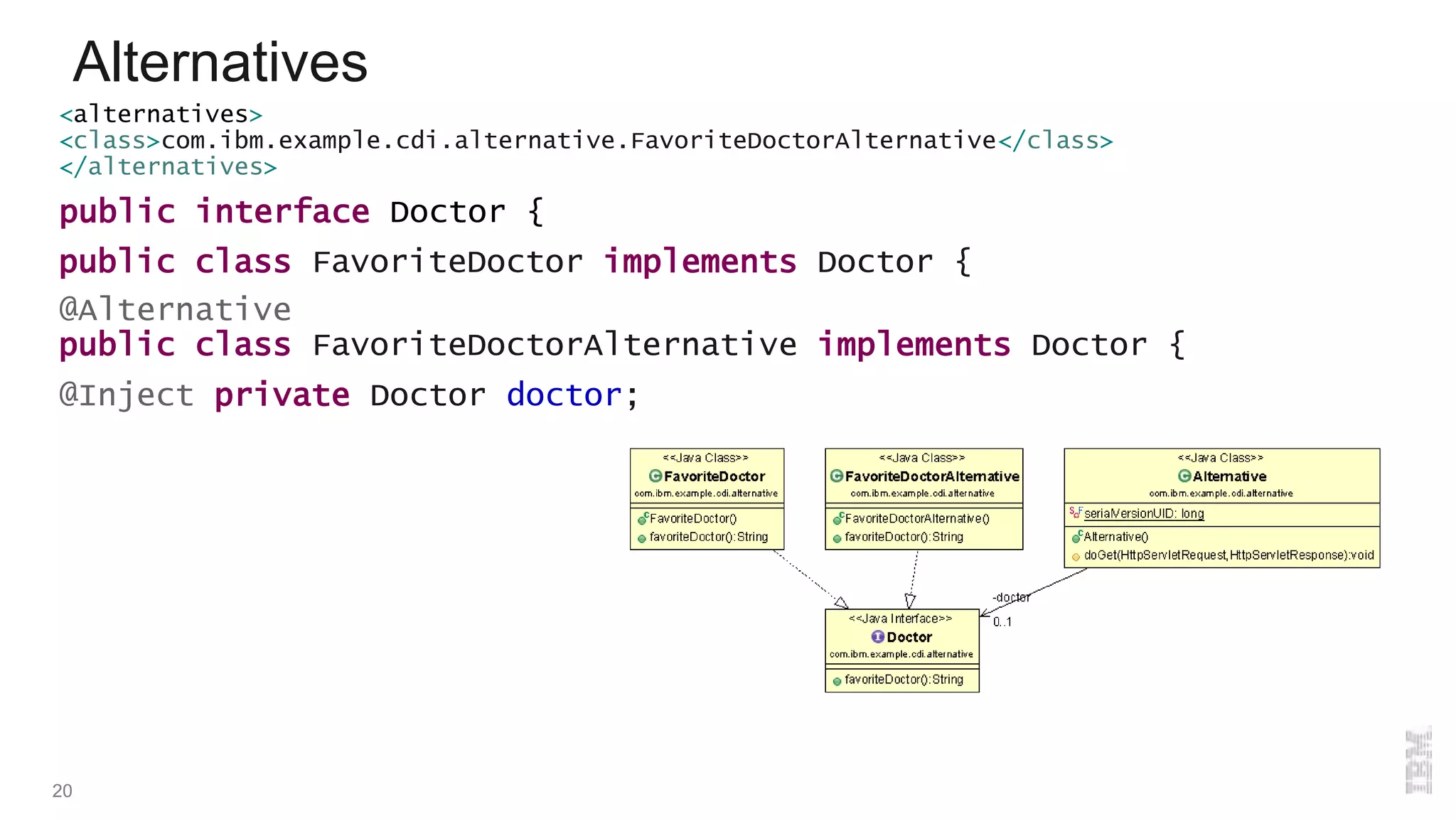

20. Alternatives
20
public interface Doctor {
public class FavoriteDoctor implements Doctor {
@Alternative
public class FavoriteDoctorAlternative implements Doctor {
@Inject private Doctor doctor;
<alternatives>
<class>com.ibm.example.cdi.alternative.FavoriteDoctorAlternative</class>
</alternatives>

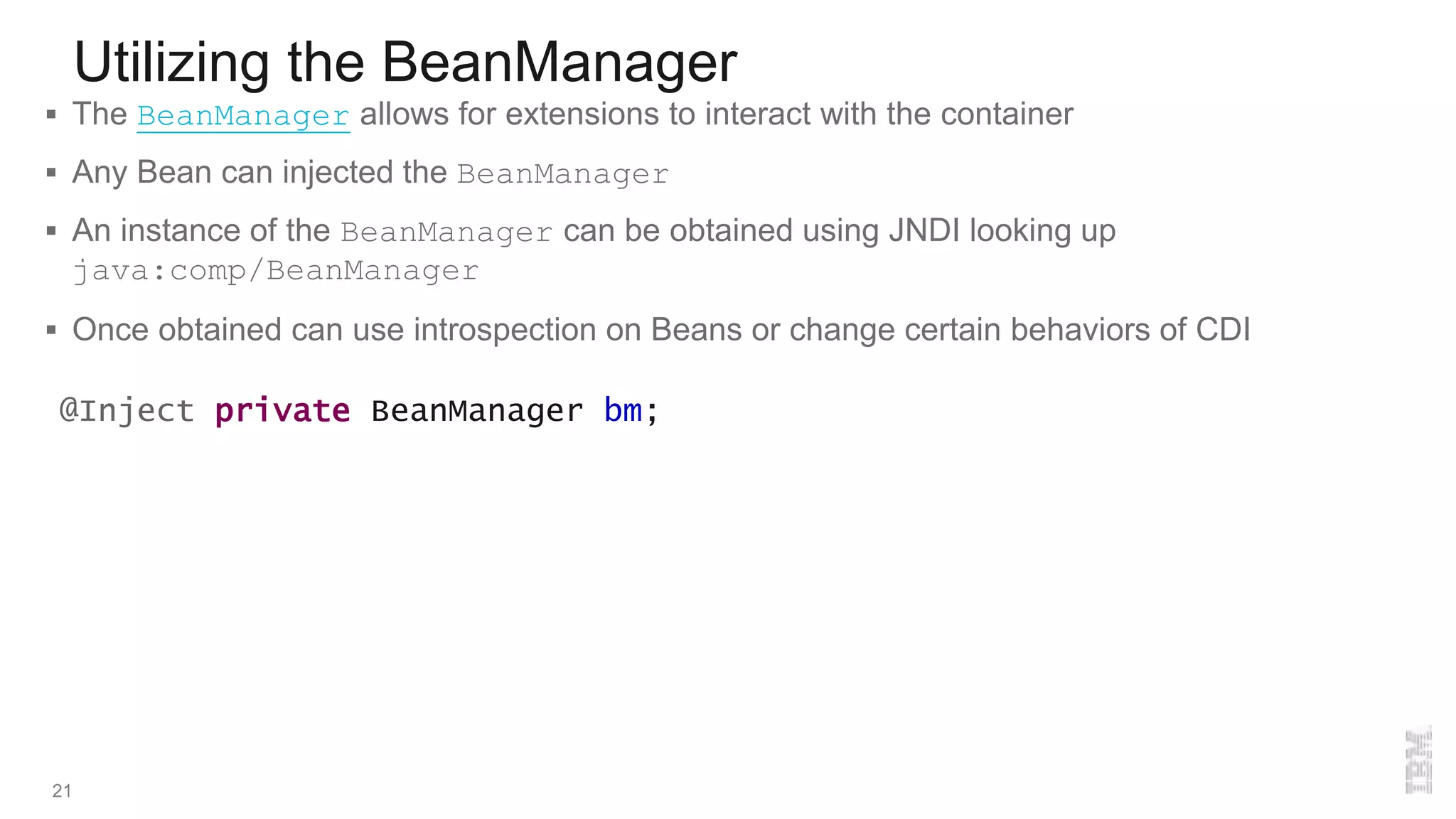

21. Utilizing the BeanManager
21
 The BeanManager allows for extensions to interact with the container
 Any Bean can injected the BeanManager
 An instance of the BeanManager can be obtained using JNDI looking up
java:comp/BeanManager
 Once obtained can use introspection on Beans or change certain behaviors of CDI
@Inject private BeanManager bm;

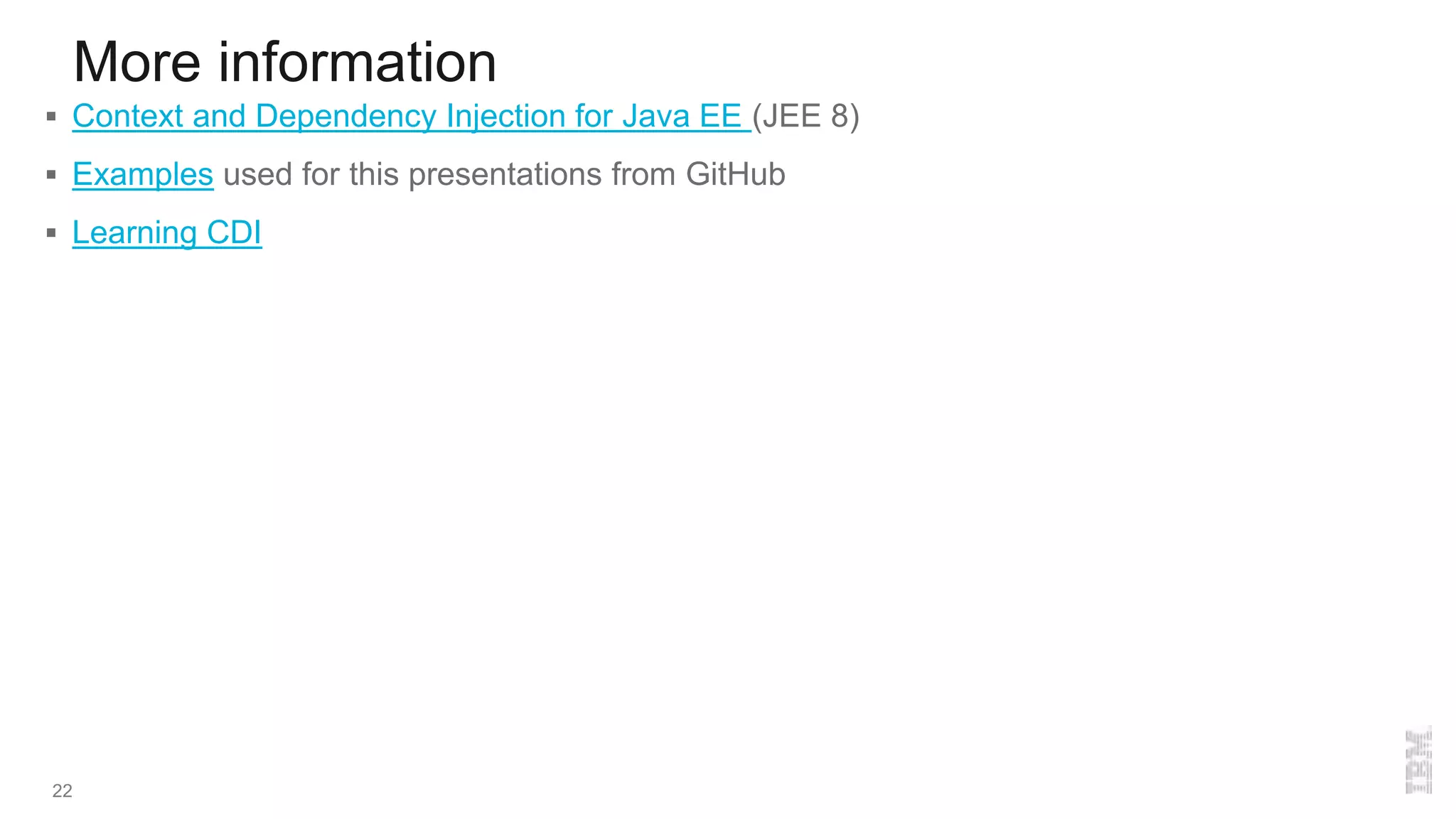

22. More information
22
 Context and Dependency Injection for Java EE (JEE 8)
 Examples used for this presentations from GitHub
 Learning CDI
